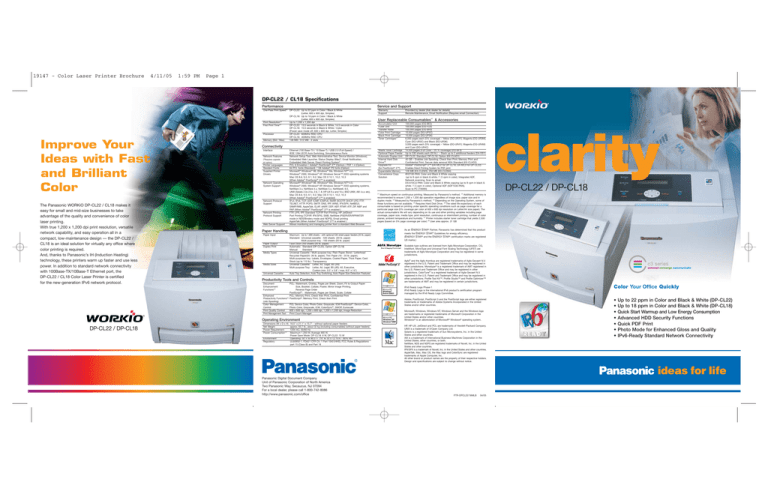

19147 - Color Laser Printer Brochure
4/11/05
1:59 PM
Page 1
DP-CL22 / CL18 Specifications
Service and Support
Performance
Improve Your
Ideas with Fast
and Brilliant
Color
The Panasonic WORKiO DP-CL22 / CL18 makes it
easy for small and mid-size businesses to take
advantage of the quality and convenience of color
laser printing.
With true 1,200 x 1,200 dpi print resolution, versatile
network capability, and easy operation all in a
compact, low-maintenance design — the DP-CL22 /
CL18 is an ideal solution for virtually any office where
color printing is required.
And, thanks to Panasonic’s IH (Induction Heating)
technology, these printers warm up faster and use less
power. In addition to standard network connectivity
with 100Base-TX/10Base-T Ethernet port, the
DP-CL22 / CL18 Color Laser Printer is certified
for the new-generation IPv6 network protocol.
One-Pass Print Speed*1 DP-CL22: Up to 22 ppm in Color / Black & White
(Letter, 600 x 600 dpi, Simplex)
DP-CL18: Up to 18 ppm in Color / Black & White
(Letter, 600 x 600 dpi, Simplex)
2
Print Resolution*
Up to 1,200 x 1,200 dpi
DP-CL22: 13.5 seconds in Black & White, 14.5 seconds in Color
First Print Time*3
DP-CL18: 15.5 seconds in Black & White / Color
(Power save mode off, 600 x 600 dpi, Letter, Simplex)
Processor
DP-CL22: 600MHz RISC CPU
DP-CL18: 400MHz RISC CPU
Memory (Std / Max)
128 MB / 512 MB - 2 slots
Interface
Network Features
(‡Requires upgrade
kit option)
Printer Languages
Resident Fonts
Supplied Printer
Drivers
Network Operating
System Support
Network Protocol
Support
Network Printing
Protocol Support
Web Server Support
Ethernet (100 Base-TX / 10 Base-T) / USB 2.0 (Full-Speed) /
IEEE 1284 (ECP) Auto Switching, Simulataneous Ports
Network Setup Tool, Web Administrative Tool, Device Monitor (Windows),
Embedded Web Launcher, Status Display (Mac)‡, Email Notification,
Embedded Web Server, Direct Printing System‡
PCL 6 Emulation / Adobe® PostScript® 3™ (Option) / PDF 1.4 (Option)
84 PCL fonts (Standard) / 136 Adobe® PS fonts (Option)
Microsoft® Windows® 98, Windows® Me, Windows NT® 4.0,
Windows® 2000, Windows® XP, Windows Server™ 2003 operating systems
Mac OS 8.6, 9.0, 9.1, 9.2, Mac OS X 10.1, 10.2, 10.3
(When Adobe® PostScript® 3™ is enabled)
Microsoft® Windows® 98, Windows® Me, Windows NT® 4.0,
Windows® 2000, Windows® XP, Windows Server™ 2003 operating systems,
NetWare 3.x, NetWare 4.x, NetWare 5.x, NetWare6, 6.5,
UNIX (Solaris 2.3x-2.5x, 2.6, 7, 8, HP-UX 9.x and 10.x, BSD UNIX, AIX 4.x.x etc),
Mac OS 8.6, 9.0, 9.1, 9.2, Mac OS X 10.1, 10.2, 10.3
(When Adobe® PostScript® 3™ is enabled)
IPv4, IPv6, TCP, UDP, ICMP, ICMPv6, RARP, BOOTP, DHCP, LPD, FTP,
TELNET, HTTP, POP3, SMTP, DNS, IPP, WINS, IPX/SPX, NetBEUI,
SNMP/MIB, AppleTalk, ELAP, AARP, DDP, AEP, RTMP, ATP, ZIP, NBP and
PAP (When Adobe® PostScript® 3™ is enabled )
FTP, LPR, IPP, Standard TCP/IP Port Printing, HP JetDirect
Port Printing (TCP/IP, IPX/SPX), SMB, NetWare (PSERVER/RPRINTER
mode in NDS/Bindery mode and NDPS), Email printing
AppleTalk (When Adobe® PostScript® 3™ is enabled )
Allows monitoring and managing printer from a standard Web Browser
Paper Handling
Paper Input
Paper Output
Duplex Print
Media Types
Media Sizes
Universal Cassette
Maximum: Up to 1,690 sheets - with optional 530 sheet paper feeders (20 lb. paper)
Standard: Universal cassette - 530 sheets (20 lb. paper)
Multi-purpose tray - 100 sheets (20 lb. paper)
Face Down 250 sheets (20 lb. paper)
Automatic: Standard (DP-CL22), Option (DP-CL18)
Manual:
Standard
Universal Cassette / Multi-purpose tray: Plain Paper, Bond / Letterhead
Recycled Paper(20- 28 lb. paper), Thin Paper (16 - 20 lb. paper),
Multi-purpoose tray: Labels, Envelopes, Coated Paper, Thick Paper, Card
Stock (up to 110 lb.) Transparency
Universal Cassette: Letter, A4, Legal, B5 (JIS)
Multi-purpose Tray: Letter, A4, Legal, B5 (JIS), A5, Executive,
Custom (min. 3.5" x 5.8" / max. 8.5" x 14")
Auto Tray Selection, Auto Tray Switching, Auto Paper Size Detection Features
Productivity Tools and Controls
Document
Enhancement
Functions*4
PCL: Watermark, Overlay, Pages per Sheet, Zoom, Fit to Output Paper
Size, Booklet, Collate, Poster, Mirror Image Printing,
Reverse Page Order
PostScript®: Watermark, Pages per Sheet, Scale, Collate
Enhanced
PCL: Memory Print, Check then Print, Confidential Print
Productivity Functions*5 PostScript®: Memory Print, Check then Print
(Job Spooling)
Color Management
PCL Device Color, Photo Color, Grayscale, ICM PostScript®: Device Color,
Control
Photo Color, Grayscale, ICM, ColorSync®, SWOP, Euroscale
Print Quality Control
600 x 600 dpi, 1,200 x 600 dpi, 1,200 x 1,200 dpi, Image Reduction
Print Management Tool
Print Count Manager
Dimensions (W x D x H)
Net Weight
Power Requirement
Power Consumption*3
Environment
Regulatory
16.5" x 21.1" x 15.7" - without optional paper feeders
approx. 65.7 lb., about 32 kg (including consumables) (without paper feeders)
120V AC, 50/60 Hz
Maximum 1,200 W, Average 460 W,
Power Save Mode: DP-CL18: 8 W, DP-CL22: 15 W
Operating: 50˚ F to 90.5˚ F (10˚ to 32.5˚ C) 15% - 80% RH
UL60950-1, FDA21 CFR Ch. 1 Part 1040 (HHS), FCC Rules & Regulations
part 15 (Class B) and Part 18
Panasonic Digital Document Company
Unit of Panasonic Corporation of North America
Two Panasonic Way, Secaucus, NJ 07094
For a local dealer, please call 1-800-742-8086
http://www.panasonic.com/office
Provided by dealer (Ask dealer for details)
Remote Maintenance, Email Notification (Requires email Connection)
User Replaceable Consumables*6 & Accessories
Accumulator Unit
Fuser Unit
Transfer Roller
Color Print Cartridge
Black Print Cartridge
Toner Cartridges*7
Connectivity
Operating Environment
DP-CL22 / DP-CL18
Warranty
Support
Waste Toner Cartridge
Optional Paper Feeder
Automatic Duplex Unit
Internal Hard Disk
Drive*8
Upgrade Kit
(for PostScript® 3™)
Expandable Memory
Convenience Copy
Solution
100,000 pages (DQ-BE3)
100,000 pages (DQ-FU3)
100,000 pages (DQ-BR3)
15,000 pages (DQ-UP3C)
15,000 pages (DQ-UP3K)
6,000 pages each (5% coverage) – Yellow (DQ-UR3Y), Magenta (DQ-UR3M),
Cyan (DQ-UR3C) and Black (DQ-UR3K)
3,000 pages each (5% coverage) – Yellow (DQ-UR4Y), Magenta (DQ-UR4M)
and Cyan (DQ-UR4C)
14,000 pages (Full Color – 20 % coverage) (DQ-BF3)
Up to 530 sheets each (20 lb.) – Stack up to 2 additional feeders (DA-DS1)
DP-CL22: Standard, DP-CL18: Option (KX-CLAD1)
40 GB – Enables Job Spooling, Check then Print, Memory Print and
Confidential Print, Secure data removal NSA Standard (KX-CLHD2)
Adobe® PostScript® 3™ (DA-MC2 for DP-CL18, DA-MC3 for DP-CL22)
Enables Direct Printing System for PDF print.
128 MB (KX-CLEM3), 256 MB (KX-CLEM4)
@V2100-PAN: Color and Black & White copying
(up to 9 cpm in black & white / 1.5 cpm in color), Integrated ADF,
Network scanning, Scan to email.
DS-610CU-PAN: Color and Black & White copying (up to 9 cpm in black &
white / 1.5 cpm in color), Optional ADF (ADF1030-PAN),
Scan to PC (TWAIN)
clarity
DP-CL22 / DP-CL18
*1 Maximum speed on continuous printing. Measured by Panasonic’s method. *2 Additional memory is
recommended to ensure 1,200 x 1,200 dpi operation regardless of image size, paper size and in
duplex mode. *3 Measured by Panasonic’s method. *4 Depending on the Operating System, some of
these functions are not available. *5 Requires Hard Disk Drive. *6 The rated life expectancy of each
consumable is based on printing under specific operating conditions such as page coverage for a
particular page size (5% coverage per color at 600 x 600 dpi resolution on Letter/A4 size paper). The
actual consumable’s life will vary depending on its use and other printing variables including page
coverage, paper size, media type, print resolution, continuous or intermittent printing, number of color
planes, ambient temperature and humidity. *7 Printer includes starter toner cartridge that yields 2,500
pages (based on 5% page coverage per color) *8 User area approx. 31 GB
As an ENERGY STAR® Partner, Panasonic has determined that this product
meets the ENERGY STAR® Guidelines for energy efficiency.
(ENERGY STAR® and the ENERGY STAR® certification marks are registered
US marks.)
Scalable type outlines are licensed from Agfa Monotype Corporation. CG,
Intellifont, MicroType and Universal Font Scaling Technology (UFST) are
trademarks of Agfa Monotype Corporation and may be registered in some
jurisdictions.
Agfa® and the Agfa rhombus are registered trademarks of Agfa-Gevaert N.V.
registered in the U.S. Patent and Trademark Office and may be registered in
other jurisdictions. Monotype® is a registered trademark of AMT registered in
the U.S. Patent and Trademark Office and may be registered in other
jurisdictions. ColorTune® is a registered trademark of Agfa-Gevaert N.V.
registered in the U.S. Patent and Trademark Office and may be registered in
other jurisdictions. Profile Tool Kit™, Profile Studio™ and Profile Optimizer™
are trademarks of AMT and may be registered in certain jurisdictions.
IPv6 Ready Logo Phase-1
IPv6 Ready Logo is the international IPv6 product’s certification program
managed by the IPv6 Ready Logo Committee.
Adobe, PostScript, PostScript 3 and the PostScript logo are either registered
trademarks or trademarks of Adobe Systems Incorporated in the United
States and/or other countries.
Microsoft, Windows, Windows NT, Windows Server and the Windows logo
are trademarks or registered trademarks of Microsoft Corporation in the
United States and/or other countries.
Windows® is an abbreviation of Microsoft® Windows® operating system.
HP, HP-UX, JetDirect and PCL are trademarks of Hewlett-Packard Company.
UNIX is a trademark of X/Open Company Ltd.
Solaris is a registered trademark of Sun Microsystems, Inc. in the United
States and other countries.
AIX is a trademark of International Business Machines Corporation in the
United States, other countries, or both.
NetWare, NDS and NDPS are registered trademarks of Novell, Inc. in the United
States and other countries.
IPX/SPX is a trademark of Novell, Inc. in the United States and other countries.
AppleTalk, Mac, Mac OS, the Mac logo and ColorSync are registered
trademarks of Apple Computer, Inc.
All other brand or product names are the property of their respective holders.
Design and specifications are subject to change without notice.
PTR-DPCL22/18MLB
04/05
Color Your Office Quickly
•
•
•
•
•
•
•
Up to 22 ppm in Color and Black & White (DP-CL22)
Up to 18 ppm in Color and Black & White (DP-CL18)
Quick Start Warmup and Low Energy Consumption
Advanced HDD Security Functions
Quick PDF Print
Photo Mode for Enhanced Gloss and Quality
IPv6-Ready Standard Network Connectivity
19147 - Color Laser Printer Brochure
4/11/05
1:59 PM
Page 2
High Speed & Quality
Versatile & User Friendly
Convenient Printing Capability
Induction Heating (IH) Technology
Pages per Sheet
Photo Mode
1 2 3 4
Up to 16 pages can be printed
next to each other on a single
sheet. This feature is convenient
for printing test sheets and
conserving paper.
Most conventional color laser printing devices indirectly heat the fuser roller
using a halogen lamp that requires high energy consumption and long warm
up time. To reduce warm up time for quick printing on demand, the fuser
roller has to be pre-heated. Energy consumption efficiency or office
productivity, which should come first?
5 6 7 8
9 10 11 12
Fast Warmup
Panasonic has a smart solution for fast warm up time while
consuming less energy. Our Induction Heating (IH) technologies along
with a redesigned, low thermal capacity heater belt, has eliminated
the need for pre-heating. By maximizing the efficiency of the heating
process, these Energy Star® printers are fast, efficient and
economical.
Thanks to Panasonic’s IH Technology, the DP-CL22 / CL18 warms up
faster and prints from sleep mode utilizing only 8W (DP-CL18) or
15W (DP-CL22) of power. These technological breakthroughs
contribute to producing quick color documents, helps to conserve
the environment and reduces energy costs.
400
Fit to Output Paper Size
0
0
Scales the source document to fit the specified paper. This
feature is convenient for printing Ledger or A3 source
documents on to Letter or A4 paper, for example.
High speed One-Pass Printing
The WORKiO DP-CL22 / CL18 utilizes innovative one-pass
technology. Incorporating four in-line 1200 dpi laser diodes and
imaging drums, the Panasonic color laser printer is able to
produce vibrant, full color documents at speeds comparable to
monochrome printing. A cost-effective, state of the art printing
process that saves time and money.
Booklet
50
100
150
200
Elapsed Time (seconds)
250
High yield, easy-to-replace
consumables
Advanced HDD Security
Functions†1
Advanced Management
Functions
Our high-yield toner cartridges can be
easily replaced from the top of the printer.
Improvements to the toner particle and the
toner supply system, as well as greater
internal system efficiency helps to ensure
a longer service life for the toner cartridge
and other consumables.
Hard Disk Data Erasing
Web Administrative Tool
Used with the printer’s optional internal
Hard Disk Drive (KX-CLHD2), the HDD
Utility allows you to remotely manage
“Check then Print”, “Memory Print” and
“Confidential Print” files. For added
security, this function can be set to
automatically render image data
unreadable by overwriting it with zeros
and random data. You can also use it to
protect confidential company information
by completely erasing all of the hard disk
data when the machine is retired.
When two or more printers (of any type) are
connected to the network, this tool allows
network administrators to check each
printer’s settings and obtain real-time
status information such as paper
conditions, remaining toner and much more
without ever having to leave their desks.
Automatic Duplex for
Efficient Double-Sided Printing
Orange: Fusing Temperature
200
The new Photo mode improves the
glossy finish on the surface and
enhances contrast to provide
beautifully smooth reproductions of
color photo images. Now you can
add real flair to your business
documents with gorgeous color
photos.
13 14 15 16
Red: IH Technology, Blue: Conventional
Temperature [˚F]
Quick Start while Saving Energy
Advanced
Management &
Security
This easy-to-use feature
automatically converts fullpage documents into half
size booklets without the
need for expensive finishing
options or hard to use
specialty software. Just print
and fold in half for
professional style booklets.
These printers are designed to accommodate an automatic
duplex unit, enabling effortless double-sided printing. Cost
effective and speedy, double-sided prints are output at an
incredible rate of up to 21 ppm* in both Color and Black &
White.
With Panasonic’s advanced technology, the printer’s speed
remains the same even when printing two-sided documents.
Save time... Save paper… Save money!
* Actual automatic duplex print speed; DP-CL22: up to 20.9 ppm; DP-CL18:
up to 16.9 ppm with automatic duplex unit (option)
180
160
140
120
100
80
Convenient Operation Indicator
60
40
20
0
Convenient operation indicators located on the edge of the
front panel make it easy to check the current operation mode
even when you’re away from the printer.
Direct Print with Quick
PDF Print†2
High-Capacity Paper
Supply
The DP-CL22 / CL18 comes standard with
a 530-sheet paper cassette and a 100sheet multi-purpose tray. Two optional
Paper Feeders can be added to provide a
maximum paper capacity of 1,690 sheets.
Enhanced Color Quality
Thanks to its high-resolution 1200 x 1200 dpi printing, color reproduction is especially
vivid. In addition, because the printer engine and controller are optimized for the color
setting best suited for photographs, the DP-CL22 / CL18 delivers impressive results
when used for photo printing.
You can also print directly from a PC with
a simple “drag & drop” of the PDF file you
want, without using the printer driver.
Printing is quicker and easier than ever.
Quick PDF Print (Direct
Printing System†2)
The Direct Printing System is a utility that
lets you send PDF files directly to the
printer, bypassing the printer driver.
Delivery Print and Parallel Print methods
are also available.
Delivery Print: You can
choose which printer or
printers you want to deliver
the PDF file to.
Zoom
You can reduce or enlarge (25 –
400%) documents by specifying the
desired magnification. You can also
specify where scaled documents are
positioned on the page.
Print Count Manager
Print Count Manager enables an
administrator to determine which group of
users has permission to print in color and
black & white, black & white only or no
printing rights at all. You can also set limits
on the number of pages allowed to be
printed per user or group.
Embedded Web Server
This enables you to review the printer’s
status and set its configuration using a
standard web browser.
Network
One-Pass Printing Technology
Enhanced Network Connectivity
IPv6-ready Ethernet port
Thanks to Panasonic’s intelligent design, you can use the
DP-CL22 / CL18 in an IPv4 environment, an IPv6 environment,
or even an environment where both protocols co-exist.
Laser Scanning Unit
Induction
Heating Fuser
Poster
Color Print Cartridge
Black Print Cartridge
Automatic
Duplex Unit
Accumulator Unit
Transfer Roller
-----------
Duplex
Simplex
Universal Paper
Cassette
Enlarges a single-page source
document for printing on a
specified number of sheets. You
can use this feature to print large
posters – just assemble the
printed sheets.
Parallel Print: Supports fast, high-volume
printing by enabling you to print to
multiple devices simultaneously
* The provided printer utilities which utilize IP protocol, such as the Device
Monitor, are not compatible with IPv6.
Color
Technology
Conference
†1 Requires optional Hard Disk Drive — sold
separately.
†2 Requires optional Upgrade Kit (for PostScript® 3™).
USB 2.0 and Parallel Port
The DP-CL22 / CL18 is also equipped with a
full-speed USB 2.0 and IEEE1284 bidirectional parallel interface so it can be
used as a stand-alone unit. You can also
simultaneously connect to all 3 ports.
(shown above with optional paper feeders)
DP-CL22 / DP-CL18
19147 - Color Laser Printer Brochure
4/11/05
1:59 PM
Page 2
High Speed & Quality
Versatile & User Friendly
Convenient Printing Capability
Induction Heating (IH) Technology
Pages per Sheet
Photo Mode
1 2 3 4
Up to 16 pages can be printed
next to each other on a single
sheet. This feature is convenient
for printing test sheets and
conserving paper.
Most conventional color laser printing devices indirectly heat the fuser roller
using a halogen lamp that requires high energy consumption and long warm
up time. To reduce warm up time for quick printing on demand, the fuser
roller has to be pre-heated. Energy consumption efficiency or office
productivity, which should come first?
5 6 7 8
9 10 11 12
Fast Warmup
Panasonic has a smart solution for fast warm up time while
consuming less energy. Our Induction Heating (IH) technologies along
with a redesigned, low thermal capacity heater belt, has eliminated
the need for pre-heating. By maximizing the efficiency of the heating
process, these Energy Star® printers are fast, efficient and
economical.
Thanks to Panasonic’s IH Technology, the DP-CL22 / CL18 warms up
faster and prints from sleep mode utilizing only 8W (DP-CL18) or
15W (DP-CL22) of power. These technological breakthroughs
contribute to producing quick color documents, helps to conserve
the environment and reduces energy costs.
400
Fit to Output Paper Size
0
0
Scales the source document to fit the specified paper. This
feature is convenient for printing Ledger or A3 source
documents on to Letter or A4 paper, for example.
High speed One-Pass Printing
The WORKiO DP-CL22 / CL18 utilizes innovative one-pass
technology. Incorporating four in-line 1200 dpi laser diodes and
imaging drums, the Panasonic color laser printer is able to
produce vibrant, full color documents at speeds comparable to
monochrome printing. A cost-effective, state of the art printing
process that saves time and money.
Booklet
50
100
150
200
Elapsed Time (seconds)
250
High yield, easy-to-replace
consumables
Advanced HDD Security
Functions†1
Advanced Management
Functions
Our high-yield toner cartridges can be
easily replaced from the top of the printer.
Improvements to the toner particle and the
toner supply system, as well as greater
internal system efficiency helps to ensure
a longer service life for the toner cartridge
and other consumables.
Hard Disk Data Erasing
Web Administrative Tool
Used with the printer’s optional internal
Hard Disk Drive (KX-CLHD2), the HDD
Utility allows you to remotely manage
“Check then Print”, “Memory Print” and
“Confidential Print” files. For added
security, this function can be set to
automatically render image data
unreadable by overwriting it with zeros
and random data. You can also use it to
protect confidential company information
by completely erasing all of the hard disk
data when the machine is retired.
When two or more printers (of any type) are
connected to the network, this tool allows
network administrators to check each
printer’s settings and obtain real-time
status information such as paper
conditions, remaining toner and much more
without ever having to leave their desks.
Automatic Duplex for
Efficient Double-Sided Printing
Orange: Fusing Temperature
200
The new Photo mode improves the
glossy finish on the surface and
enhances contrast to provide
beautifully smooth reproductions of
color photo images. Now you can
add real flair to your business
documents with gorgeous color
photos.
13 14 15 16
Red: IH Technology, Blue: Conventional
Temperature [˚F]
Quick Start while Saving Energy
Advanced
Management &
Security
This easy-to-use feature
automatically converts fullpage documents into half
size booklets without the
need for expensive finishing
options or hard to use
specialty software. Just print
and fold in half for
professional style booklets.
These printers are designed to accommodate an automatic
duplex unit, enabling effortless double-sided printing. Cost
effective and speedy, double-sided prints are output at an
incredible rate of up to 21 ppm* in both Color and Black &
White.
With Panasonic’s advanced technology, the printer’s speed
remains the same even when printing two-sided documents.
Save time... Save paper… Save money!
* Actual automatic duplex print speed; DP-CL22: up to 20.9 ppm; DP-CL18:
up to 16.9 ppm with automatic duplex unit (option)
180
160
140
120
100
80
Convenient Operation Indicator
60
40
20
0
Convenient operation indicators located on the edge of the
front panel make it easy to check the current operation mode
even when you’re away from the printer.
Direct Print with Quick
PDF Print†2
High-Capacity Paper
Supply
The DP-CL22 / CL18 comes standard with
a 530-sheet paper cassette and a 100sheet multi-purpose tray. Two optional
Paper Feeders can be added to provide a
maximum paper capacity of 1,690 sheets.
Enhanced Color Quality
Thanks to its high-resolution 1200 x 1200 dpi printing, color reproduction is especially
vivid. In addition, because the printer engine and controller are optimized for the color
setting best suited for photographs, the DP-CL22 / CL18 delivers impressive results
when used for photo printing.
You can also print directly from a PC with
a simple “drag & drop” of the PDF file you
want, without using the printer driver.
Printing is quicker and easier than ever.
Quick PDF Print (Direct
Printing System†2)
The Direct Printing System is a utility that
lets you send PDF files directly to the
printer, bypassing the printer driver.
Delivery Print and Parallel Print methods
are also available.
Delivery Print: You can
choose which printer or
printers you want to deliver
the PDF file to.
Zoom
You can reduce or enlarge (25 –
400%) documents by specifying the
desired magnification. You can also
specify where scaled documents are
positioned on the page.
Print Count Manager
Print Count Manager enables an
administrator to determine which group of
users has permission to print in color and
black & white, black & white only or no
printing rights at all. You can also set limits
on the number of pages allowed to be
printed per user or group.
Embedded Web Server
This enables you to review the printer’s
status and set its configuration using a
standard web browser.
Network
One-Pass Printing Technology
Enhanced Network Connectivity
IPv6-ready Ethernet port
Thanks to Panasonic’s intelligent design, you can use the
DP-CL22 / CL18 in an IPv4 environment, an IPv6 environment,
or even an environment where both protocols co-exist.
Laser Scanning Unit
Induction
Heating Fuser
Poster
Color Print Cartridge
Black Print Cartridge
Automatic
Duplex Unit
Accumulator Unit
Transfer Roller
-----------
Duplex
Simplex
Universal Paper
Cassette
Enlarges a single-page source
document for printing on a
specified number of sheets. You
can use this feature to print large
posters – just assemble the
printed sheets.
Parallel Print: Supports fast, high-volume
printing by enabling you to print to
multiple devices simultaneously
* The provided printer utilities which utilize IP protocol, such as the Device
Monitor, are not compatible with IPv6.
Color
Technology
Conference
†1 Requires optional Hard Disk Drive — sold
separately.
†2 Requires optional Upgrade Kit (for PostScript® 3™).
USB 2.0 and Parallel Port
The DP-CL22 / CL18 is also equipped with a
full-speed USB 2.0 and IEEE1284 bidirectional parallel interface so it can be
used as a stand-alone unit. You can also
simultaneously connect to all 3 ports.
(shown above with optional paper feeders)
DP-CL22 / DP-CL18
19147 - Color Laser Printer Brochure
4/11/05
1:59 PM
Page 1
DP-CL22 / CL18 Specifications
Service and Support
Performance
Improve Your
Ideas with Fast
and Brilliant
Color
The Panasonic WORKiO DP-CL22 / CL18 makes it
easy for small and mid-size businesses to take
advantage of the quality and convenience of color
laser printing.
With true 1,200 x 1,200 dpi print resolution, versatile
network capability, and easy operation all in a
compact, low-maintenance design — the DP-CL22 /
CL18 is an ideal solution for virtually any office where
color printing is required.
And, thanks to Panasonic’s IH (Induction Heating)
technology, these printers warm up faster and use less
power. In addition to standard network connectivity
with 100Base-TX/10Base-T Ethernet port, the
DP-CL22 / CL18 Color Laser Printer is certified
for the new-generation IPv6 network protocol.
One-Pass Print Speed*1 DP-CL22: Up to 22 ppm in Color / Black & White
(Letter, 600 x 600 dpi, Simplex)
DP-CL18: Up to 18 ppm in Color / Black & White
(Letter, 600 x 600 dpi, Simplex)
2
Print Resolution*
Up to 1,200 x 1,200 dpi
DP-CL22: 13.5 seconds in Black & White, 14.5 seconds in Color
First Print Time*3
DP-CL18: 15.5 seconds in Black & White / Color
(Power save mode off, 600 x 600 dpi, Letter, Simplex)
Processor
DP-CL22: 600MHz RISC CPU
DP-CL18: 400MHz RISC CPU
Memory (Std / Max)
128 MB / 512 MB - 2 slots
Interface
Network Features
(‡Requires upgrade
kit option)
Printer Languages
Resident Fonts
Supplied Printer
Drivers
Network Operating
System Support
Network Protocol
Support
Network Printing
Protocol Support
Web Server Support
Ethernet (100 Base-TX / 10 Base-T) / USB 2.0 (Full-Speed) /
IEEE 1284 (ECP) Auto Switching, Simulataneous Ports
Network Setup Tool, Web Administrative Tool, Device Monitor (Windows),
Embedded Web Launcher, Status Display (Mac)‡, Email Notification,
Embedded Web Server, Direct Printing System‡
PCL 6 Emulation / Adobe® PostScript® 3™ (Option) / PDF 1.4 (Option)
84 PCL fonts (Standard) / 136 Adobe® PS fonts (Option)
Microsoft® Windows® 98, Windows® Me, Windows NT® 4.0,
Windows® 2000, Windows® XP, Windows Server™ 2003 operating systems
Mac OS 8.6, 9.0, 9.1, 9.2, Mac OS X 10.1, 10.2, 10.3
(When Adobe® PostScript® 3™ is enabled)
Microsoft® Windows® 98, Windows® Me, Windows NT® 4.0,
Windows® 2000, Windows® XP, Windows Server™ 2003 operating systems,
NetWare 3.x, NetWare 4.x, NetWare 5.x, NetWare6, 6.5,
UNIX (Solaris 2.3x-2.5x, 2.6, 7, 8, HP-UX 9.x and 10.x, BSD UNIX, AIX 4.x.x etc),
Mac OS 8.6, 9.0, 9.1, 9.2, Mac OS X 10.1, 10.2, 10.3
(When Adobe® PostScript® 3™ is enabled)
IPv4, IPv6, TCP, UDP, ICMP, ICMPv6, RARP, BOOTP, DHCP, LPD, FTP,
TELNET, HTTP, POP3, SMTP, DNS, IPP, WINS, IPX/SPX, NetBEUI,
SNMP/MIB, AppleTalk, ELAP, AARP, DDP, AEP, RTMP, ATP, ZIP, NBP and
PAP (When Adobe® PostScript® 3™ is enabled )
FTP, LPR, IPP, Standard TCP/IP Port Printing, HP JetDirect
Port Printing (TCP/IP, IPX/SPX), SMB, NetWare (PSERVER/RPRINTER
mode in NDS/Bindery mode and NDPS), Email printing
AppleTalk (When Adobe® PostScript® 3™ is enabled )
Allows monitoring and managing printer from a standard Web Browser
Paper Handling
Paper Input
Paper Output
Duplex Print
Media Types
Media Sizes
Universal Cassette
Maximum: Up to 1,690 sheets - with optional 530 sheet paper feeders (20 lb. paper)
Standard: Universal cassette - 530 sheets (20 lb. paper)
Multi-purpose tray - 100 sheets (20 lb. paper)
Face Down 250 sheets (20 lb. paper)
Automatic: Standard (DP-CL22), Option (DP-CL18)
Manual:
Standard
Universal Cassette / Multi-purpose tray: Plain Paper, Bond / Letterhead
Recycled Paper(20- 28 lb. paper), Thin Paper (16 - 20 lb. paper),
Multi-purpoose tray: Labels, Envelopes, Coated Paper, Thick Paper, Card
Stock (up to 110 lb.) Transparency
Universal Cassette: Letter, A4, Legal, B5 (JIS)
Multi-purpose Tray: Letter, A4, Legal, B5 (JIS), A5, Executive,
Custom (min. 3.5" x 5.8" / max. 8.5" x 14")
Auto Tray Selection, Auto Tray Switching, Auto Paper Size Detection Features
Productivity Tools and Controls
Document
Enhancement
Functions*4
PCL: Watermark, Overlay, Pages per Sheet, Zoom, Fit to Output Paper
Size, Booklet, Collate, Poster, Mirror Image Printing,
Reverse Page Order
PostScript®: Watermark, Pages per Sheet, Scale, Collate
Enhanced
PCL: Memory Print, Check then Print, Confidential Print
Productivity Functions*5 PostScript®: Memory Print, Check then Print
(Job Spooling)
Color Management
PCL Device Color, Photo Color, Grayscale, ICM PostScript®: Device Color,
Control
Photo Color, Grayscale, ICM, ColorSync®, SWOP, Euroscale
Print Quality Control
600 x 600 dpi, 1,200 x 600 dpi, 1,200 x 1,200 dpi, Image Reduction
Print Management Tool
Print Count Manager
Dimensions (W x D x H)
Net Weight
Power Requirement
Power Consumption*3
Environment
Regulatory
16.5" x 21.1" x 15.7" - without optional paper feeders
approx. 65.7 lb., about 32 kg (including consumables) (without paper feeders)
120V AC, 50/60 Hz
Maximum 1,200 W, Average 460 W,
Power Save Mode: DP-CL18: 8 W, DP-CL22: 15 W
Operating: 50˚ F to 90.5˚ F (10˚ to 32.5˚ C) 15% - 80% RH
UL60950-1, FDA21 CFR Ch. 1 Part 1040 (HHS), FCC Rules & Regulations
part 15 (Class B) and Part 18
Panasonic Digital Document Company
Unit of Panasonic Corporation of North America
Two Panasonic Way, Secaucus, NJ 07094
For a local dealer, please call 1-800-742-8086
http://www.panasonic.com/office
Provided by dealer (Ask dealer for details)
Remote Maintenance, Email Notification (Requires email Connection)
User Replaceable Consumables*6 & Accessories
Accumulator Unit
Fuser Unit
Transfer Roller
Color Print Cartridge
Black Print Cartridge
Toner Cartridges*7
Connectivity
Operating Environment
DP-CL22 / DP-CL18
Warranty
Support
Waste Toner Cartridge
Optional Paper Feeder
Automatic Duplex Unit
Internal Hard Disk
Drive*8
Upgrade Kit
(for PostScript® 3™)
Expandable Memory
Convenience Copy
Solution
100,000 pages (DQ-BE3)
100,000 pages (DQ-FU3)
100,000 pages (DQ-BR3)
15,000 pages (DQ-UP3C)
15,000 pages (DQ-UP3K)
6,000 pages each (5% coverage) – Yellow (DQ-UR3Y), Magenta (DQ-UR3M),
Cyan (DQ-UR3C) and Black (DQ-UR3K)
3,000 pages each (5% coverage) – Yellow (DQ-UR4Y), Magenta (DQ-UR4M)
and Cyan (DQ-UR4C)
14,000 pages (Full Color – 20 % coverage) (DQ-BF3)
Up to 530 sheets each (20 lb.) – Stack up to 2 additional feeders (DA-DS1)
DP-CL22: Standard, DP-CL18: Option (KX-CLAD1)
40 GB – Enables Job Spooling, Check then Print, Memory Print and
Confidential Print, Secure data removal NSA Standard (KX-CLHD2)
Adobe® PostScript® 3™ (DA-MC2 for DP-CL18, DA-MC3 for DP-CL22)
Enables Direct Printing System for PDF print.
128 MB (KX-CLEM3), 256 MB (KX-CLEM4)
@V2100-PAN: Color and Black & White copying
(up to 9 cpm in black & white / 1.5 cpm in color), Integrated ADF,
Network scanning, Scan to email.
DS-610CU-PAN: Color and Black & White copying (up to 9 cpm in black &
white / 1.5 cpm in color), Optional ADF (ADF1030-PAN),
Scan to PC (TWAIN)
clarity
DP-CL22 / DP-CL18
*1 Maximum speed on continuous printing. Measured by Panasonic’s method. *2 Additional memory is
recommended to ensure 1,200 x 1,200 dpi operation regardless of image size, paper size and in
duplex mode. *3 Measured by Panasonic’s method. *4 Depending on the Operating System, some of
these functions are not available. *5 Requires Hard Disk Drive. *6 The rated life expectancy of each
consumable is based on printing under specific operating conditions such as page coverage for a
particular page size (5% coverage per color at 600 x 600 dpi resolution on Letter/A4 size paper). The
actual consumable’s life will vary depending on its use and other printing variables including page
coverage, paper size, media type, print resolution, continuous or intermittent printing, number of color
planes, ambient temperature and humidity. *7 Printer includes starter toner cartridge that yields 2,500
pages (based on 5% page coverage per color) *8 User area approx. 31 GB
As an ENERGY STAR® Partner, Panasonic has determined that this product
meets the ENERGY STAR® Guidelines for energy efficiency.
(ENERGY STAR® and the ENERGY STAR® certification marks are registered
US marks.)
Scalable type outlines are licensed from Agfa Monotype Corporation. CG,
Intellifont, MicroType and Universal Font Scaling Technology (UFST) are
trademarks of Agfa Monotype Corporation and may be registered in some
jurisdictions.
Agfa® and the Agfa rhombus are registered trademarks of Agfa-Gevaert N.V.
registered in the U.S. Patent and Trademark Office and may be registered in
other jurisdictions. Monotype® is a registered trademark of AMT registered in
the U.S. Patent and Trademark Office and may be registered in other
jurisdictions. ColorTune® is a registered trademark of Agfa-Gevaert N.V.
registered in the U.S. Patent and Trademark Office and may be registered in
other jurisdictions. Profile Tool Kit™, Profile Studio™ and Profile Optimizer™
are trademarks of AMT and may be registered in certain jurisdictions.
IPv6 Ready Logo Phase-1
IPv6 Ready Logo is the international IPv6 product’s certification program
managed by the IPv6 Ready Logo Committee.
Adobe, PostScript, PostScript 3 and the PostScript logo are either registered
trademarks or trademarks of Adobe Systems Incorporated in the United
States and/or other countries.
Microsoft, Windows, Windows NT, Windows Server and the Windows logo
are trademarks or registered trademarks of Microsoft Corporation in the
United States and/or other countries.
Windows® is an abbreviation of Microsoft® Windows® operating system.
HP, HP-UX, JetDirect and PCL are trademarks of Hewlett-Packard Company.
UNIX is a trademark of X/Open Company Ltd.
Solaris is a registered trademark of Sun Microsystems, Inc. in the United
States and other countries.
AIX is a trademark of International Business Machines Corporation in the
United States, other countries, or both.
NetWare, NDS and NDPS are registered trademarks of Novell, Inc. in the United
States and other countries.
IPX/SPX is a trademark of Novell, Inc. in the United States and other countries.
AppleTalk, Mac, Mac OS, the Mac logo and ColorSync are registered
trademarks of Apple Computer, Inc.
All other brand or product names are the property of their respective holders.
Design and specifications are subject to change without notice.
PTR-DPCL22/18MLB
04/05
Color Your Office Quickly
•
•
•
•
•
•
•
Up to 22 ppm in Color and Black & White (DP-CL22)
Up to 18 ppm in Color and Black & White (DP-CL18)
Quick Start Warmup and Low Energy Consumption
Advanced HDD Security Functions
Quick PDF Print
Photo Mode for Enhanced Gloss and Quality
IPv6-Ready Standard Network Connectivity
19147 - Color Laser Printer Brochure
4/11/05
1:59 PM
Page 2
High Speed & Quality
Versatile & User Friendly
Convenient Printing Capability
Induction Heating (IH) Technology
Pages per Sheet
Photo Mode
1 2 3 4
Up to 16 pages can be printed
next to each other on a single
sheet. This feature is convenient
for printing test sheets and
conserving paper.
Most conventional color laser printing devices indirectly heat the fuser roller
using a halogen lamp that requires high energy consumption and long warm
up time. To reduce warm up time for quick printing on demand, the fuser
roller has to be pre-heated. Energy consumption efficiency or office
productivity, which should come first?
5 6 7 8
9 10 11 12
Fast Warmup
Panasonic has a smart solution for fast warm up time while
consuming less energy. Our Induction Heating (IH) technologies along
with a redesigned, low thermal capacity heater belt, has eliminated
the need for pre-heating. By maximizing the efficiency of the heating
process, these Energy Star® printers are fast, efficient and
economical.
Thanks to Panasonic’s IH Technology, the DP-CL22 / CL18 warms up
faster and prints from sleep mode utilizing only 8W (DP-CL18) or
15W (DP-CL22) of power. These technological breakthroughs
contribute to producing quick color documents, helps to conserve
the environment and reduces energy costs.
400
Fit to Output Paper Size
0
0
Scales the source document to fit the specified paper. This
feature is convenient for printing Ledger or A3 source
documents on to Letter or A4 paper, for example.
High speed One-Pass Printing
The WORKiO DP-CL22 / CL18 utilizes innovative one-pass
technology. Incorporating four in-line 1200 dpi laser diodes and
imaging drums, the Panasonic color laser printer is able to
produce vibrant, full color documents at speeds comparable to
monochrome printing. A cost-effective, state of the art printing
process that saves time and money.
Booklet
50
100
150
200
Elapsed Time (seconds)
250
High yield, easy-to-replace
consumables
Advanced HDD Security
Functions†1
Advanced Management
Functions
Our high-yield toner cartridges can be
easily replaced from the top of the printer.
Improvements to the toner particle and the
toner supply system, as well as greater
internal system efficiency helps to ensure
a longer service life for the toner cartridge
and other consumables.
Hard Disk Data Erasing
Web Administrative Tool
Used with the printer’s optional internal
Hard Disk Drive (KX-CLHD2), the HDD
Utility allows you to remotely manage
“Check then Print”, “Memory Print” and
“Confidential Print” files. For added
security, this function can be set to
automatically render image data
unreadable by overwriting it with zeros
and random data. You can also use it to
protect confidential company information
by completely erasing all of the hard disk
data when the machine is retired.
When two or more printers (of any type) are
connected to the network, this tool allows
network administrators to check each
printer’s settings and obtain real-time
status information such as paper
conditions, remaining toner and much more
without ever having to leave their desks.
Automatic Duplex for
Efficient Double-Sided Printing
Orange: Fusing Temperature
200
The new Photo mode improves the
glossy finish on the surface and
enhances contrast to provide
beautifully smooth reproductions of
color photo images. Now you can
add real flair to your business
documents with gorgeous color
photos.
13 14 15 16
Red: IH Technology, Blue: Conventional
Temperature [˚F]
Quick Start while Saving Energy
Advanced
Management &
Security
This easy-to-use feature
automatically converts fullpage documents into half
size booklets without the
need for expensive finishing
options or hard to use
specialty software. Just print
and fold in half for
professional style booklets.
These printers are designed to accommodate an automatic
duplex unit, enabling effortless double-sided printing. Cost
effective and speedy, double-sided prints are output at an
incredible rate of up to 21 ppm* in both Color and Black &
White.
With Panasonic’s advanced technology, the printer’s speed
remains the same even when printing two-sided documents.
Save time... Save paper… Save money!
* Actual automatic duplex print speed; DP-CL22: up to 20.9 ppm; DP-CL18:
up to 16.9 ppm with automatic duplex unit (option)
180
160
140
120
100
80
Convenient Operation Indicator
60
40
20
0
Convenient operation indicators located on the edge of the
front panel make it easy to check the current operation mode
even when you’re away from the printer.
Direct Print with Quick
PDF Print†2
High-Capacity Paper
Supply
The DP-CL22 / CL18 comes standard with
a 530-sheet paper cassette and a 100sheet multi-purpose tray. Two optional
Paper Feeders can be added to provide a
maximum paper capacity of 1,690 sheets.
Enhanced Color Quality
Thanks to its high-resolution 1200 x 1200 dpi printing, color reproduction is especially
vivid. In addition, because the printer engine and controller are optimized for the color
setting best suited for photographs, the DP-CL22 / CL18 delivers impressive results
when used for photo printing.
You can also print directly from a PC with
a simple “drag & drop” of the PDF file you
want, without using the printer driver.
Printing is quicker and easier than ever.
Quick PDF Print (Direct
Printing System†2)
The Direct Printing System is a utility that
lets you send PDF files directly to the
printer, bypassing the printer driver.
Delivery Print and Parallel Print methods
are also available.
Delivery Print: You can
choose which printer or
printers you want to deliver
the PDF file to.
Zoom
You can reduce or enlarge (25 –
400%) documents by specifying the
desired magnification. You can also
specify where scaled documents are
positioned on the page.
Print Count Manager
Print Count Manager enables an
administrator to determine which group of
users has permission to print in color and
black & white, black & white only or no
printing rights at all. You can also set limits
on the number of pages allowed to be
printed per user or group.
Embedded Web Server
This enables you to review the printer’s
status and set its configuration using a
standard web browser.
Network
One-Pass Printing Technology
Enhanced Network Connectivity
IPv6-ready Ethernet port
Thanks to Panasonic’s intelligent design, you can use the
DP-CL22 / CL18 in an IPv4 environment, an IPv6 environment,
or even an environment where both protocols co-exist.
Laser Scanning Unit
Induction
Heating Fuser
Poster
Color Print Cartridge
Black Print Cartridge
Automatic
Duplex Unit
Accumulator Unit
Transfer Roller
-----------
Duplex
Simplex
Universal Paper
Cassette
Enlarges a single-page source
document for printing on a
specified number of sheets. You
can use this feature to print large
posters – just assemble the
printed sheets.
Parallel Print: Supports fast, high-volume
printing by enabling you to print to
multiple devices simultaneously
* The provided printer utilities which utilize IP protocol, such as the Device
Monitor, are not compatible with IPv6.
Color
Technology
Conference
†1 Requires optional Hard Disk Drive — sold
separately.
†2 Requires optional Upgrade Kit (for PostScript® 3™).
USB 2.0 and Parallel Port
The DP-CL22 / CL18 is also equipped with a
full-speed USB 2.0 and IEEE1284 bidirectional parallel interface so it can be
used as a stand-alone unit. You can also
simultaneously connect to all 3 ports.
(shown above with optional paper feeders)
DP-CL22 / DP-CL18
19147 - Color Laser Printer Brochure
4/11/05
1:59 PM
Page 1
DP-CL22 / CL18 Specifications
Service and Support
Performance
Improve Your
Ideas with Fast
and Brilliant
Color
The Panasonic WORKiO DP-CL22 / CL18 makes it
easy for small and mid-size businesses to take
advantage of the quality and convenience of color
laser printing.
With true 1,200 x 1,200 dpi print resolution, versatile
network capability, and easy operation all in a
compact, low-maintenance design — the DP-CL22 /
CL18 is an ideal solution for virtually any office where
color printing is required.
And, thanks to Panasonic’s IH (Induction Heating)
technology, these printers warm up faster and use less
power. In addition to standard network connectivity
with 100Base-TX/10Base-T Ethernet port, the
DP-CL22 / CL18 Color Laser Printer is certified
for the new-generation IPv6 network protocol.
One-Pass Print Speed*1 DP-CL22: Up to 22 ppm in Color / Black & White
(Letter, 600 x 600 dpi, Simplex)
DP-CL18: Up to 18 ppm in Color / Black & White
(Letter, 600 x 600 dpi, Simplex)
2
Print Resolution*
Up to 1,200 x 1,200 dpi
DP-CL22: 13.5 seconds in Black & White, 14.5 seconds in Color
First Print Time*3
DP-CL18: 15.5 seconds in Black & White / Color
(Power save mode off, 600 x 600 dpi, Letter, Simplex)
Processor
DP-CL22: 600MHz RISC CPU
DP-CL18: 400MHz RISC CPU
Memory (Std / Max)
128 MB / 512 MB - 2 slots
Interface
Network Features
(‡Requires upgrade
kit option)
Printer Languages
Resident Fonts
Supplied Printer
Drivers
Network Operating
System Support
Network Protocol
Support
Network Printing
Protocol Support
Web Server Support
Ethernet (100 Base-TX / 10 Base-T) / USB 2.0 (Full-Speed) /
IEEE 1284 (ECP) Auto Switching, Simulataneous Ports
Network Setup Tool, Web Administrative Tool, Device Monitor (Windows),
Embedded Web Launcher, Status Display (Mac)‡, Email Notification,
Embedded Web Server, Direct Printing System‡
PCL 6 Emulation / Adobe® PostScript® 3™ (Option) / PDF 1.4 (Option)
84 PCL fonts (Standard) / 136 Adobe® PS fonts (Option)
Microsoft® Windows® 98, Windows® Me, Windows NT® 4.0,
Windows® 2000, Windows® XP, Windows Server™ 2003 operating systems
Mac OS 8.6, 9.0, 9.1, 9.2, Mac OS X 10.1, 10.2, 10.3
(When Adobe® PostScript® 3™ is enabled)
Microsoft® Windows® 98, Windows® Me, Windows NT® 4.0,
Windows® 2000, Windows® XP, Windows Server™ 2003 operating systems,
NetWare 3.x, NetWare 4.x, NetWare 5.x, NetWare6, 6.5,
UNIX (Solaris 2.3x-2.5x, 2.6, 7, 8, HP-UX 9.x and 10.x, BSD UNIX, AIX 4.x.x etc),
Mac OS 8.6, 9.0, 9.1, 9.2, Mac OS X 10.1, 10.2, 10.3
(When Adobe® PostScript® 3™ is enabled)
IPv4, IPv6, TCP, UDP, ICMP, ICMPv6, RARP, BOOTP, DHCP, LPD, FTP,
TELNET, HTTP, POP3, SMTP, DNS, IPP, WINS, IPX/SPX, NetBEUI,
SNMP/MIB, AppleTalk, ELAP, AARP, DDP, AEP, RTMP, ATP, ZIP, NBP and
PAP (When Adobe® PostScript® 3™ is enabled )
FTP, LPR, IPP, Standard TCP/IP Port Printing, HP JetDirect
Port Printing (TCP/IP, IPX/SPX), SMB, NetWare (PSERVER/RPRINTER
mode in NDS/Bindery mode and NDPS), Email printing
AppleTalk (When Adobe® PostScript® 3™ is enabled )
Allows monitoring and managing printer from a standard Web Browser
Paper Handling
Paper Input
Paper Output
Duplex Print
Media Types
Media Sizes
Universal Cassette
Maximum: Up to 1,690 sheets - with optional 530 sheet paper feeders (20 lb. paper)
Standard: Universal cassette - 530 sheets (20 lb. paper)
Multi-purpose tray - 100 sheets (20 lb. paper)
Face Down 250 sheets (20 lb. paper)
Automatic: Standard (DP-CL22), Option (DP-CL18)
Manual:
Standard
Universal Cassette / Multi-purpose tray: Plain Paper, Bond / Letterhead
Recycled Paper(20- 28 lb. paper), Thin Paper (16 - 20 lb. paper),
Multi-purpoose tray: Labels, Envelopes, Coated Paper, Thick Paper, Card
Stock (up to 110 lb.) Transparency
Universal Cassette: Letter, A4, Legal, B5 (JIS)
Multi-purpose Tray: Letter, A4, Legal, B5 (JIS), A5, Executive,
Custom (min. 3.5" x 5.8" / max. 8.5" x 14")
Auto Tray Selection, Auto Tray Switching, Auto Paper Size Detection Features
Productivity Tools and Controls
Document
Enhancement
Functions*4
PCL: Watermark, Overlay, Pages per Sheet, Zoom, Fit to Output Paper
Size, Booklet, Collate, Poster, Mirror Image Printing,
Reverse Page Order
PostScript®: Watermark, Pages per Sheet, Scale, Collate
Enhanced
PCL: Memory Print, Check then Print, Confidential Print
Productivity Functions*5 PostScript®: Memory Print, Check then Print
(Job Spooling)
Color Management
PCL Device Color, Photo Color, Grayscale, ICM PostScript®: Device Color,
Control
Photo Color, Grayscale, ICM, ColorSync®, SWOP, Euroscale
Print Quality Control
600 x 600 dpi, 1,200 x 600 dpi, 1,200 x 1,200 dpi, Image Reduction
Print Management Tool
Print Count Manager
Dimensions (W x D x H)
Net Weight
Power Requirement
Power Consumption*3
Environment
Regulatory
16.5" x 21.1" x 15.7" - without optional paper feeders
approx. 65.7 lb., about 32 kg (including consumables) (without paper feeders)
120V AC, 50/60 Hz
Maximum 1,200 W, Average 460 W,
Power Save Mode: DP-CL18: 8 W, DP-CL22: 15 W
Operating: 50˚ F to 90.5˚ F (10˚ to 32.5˚ C) 15% - 80% RH
UL60950-1, FDA21 CFR Ch. 1 Part 1040 (HHS), FCC Rules & Regulations
part 15 (Class B) and Part 18
Panasonic Digital Document Company
Unit of Panasonic Corporation of North America
Two Panasonic Way, Secaucus, NJ 07094
For a local dealer, please call 1-800-742-8086
http://www.panasonic.com/office
Provided by dealer (Ask dealer for details)
Remote Maintenance, Email Notification (Requires email Connection)
User Replaceable Consumables*6 & Accessories
Accumulator Unit
Fuser Unit
Transfer Roller
Color Print Cartridge
Black Print Cartridge
Toner Cartridges*7
Connectivity
Operating Environment
DP-CL22 / DP-CL18
Warranty
Support
Waste Toner Cartridge
Optional Paper Feeder
Automatic Duplex Unit
Internal Hard Disk
Drive*8
Upgrade Kit
(for PostScript® 3™)
Expandable Memory
Convenience Copy
Solution
100,000 pages (DQ-BE3)
100,000 pages (DQ-FU3)
100,000 pages (DQ-BR3)
15,000 pages (DQ-UP3C)
15,000 pages (DQ-UP3K)
6,000 pages each (5% coverage) – Yellow (DQ-UR3Y), Magenta (DQ-UR3M),
Cyan (DQ-UR3C) and Black (DQ-UR3K)
3,000 pages each (5% coverage) – Yellow (DQ-UR4Y), Magenta (DQ-UR4M)
and Cyan (DQ-UR4C)
14,000 pages (Full Color – 20 % coverage) (DQ-BF3)
Up to 530 sheets each (20 lb.) – Stack up to 2 additional feeders (DA-DS1)
DP-CL22: Standard, DP-CL18: Option (KX-CLAD1)
40 GB – Enables Job Spooling, Check then Print, Memory Print and
Confidential Print, Secure data removal NSA Standard (KX-CLHD2)
Adobe® PostScript® 3™ (DA-MC2 for DP-CL18, DA-MC3 for DP-CL22)
Enables Direct Printing System for PDF print.
128 MB (KX-CLEM3), 256 MB (KX-CLEM4)
@V2100-PAN: Color and Black & White copying
(up to 9 cpm in black & white / 1.5 cpm in color), Integrated ADF,
Network scanning, Scan to email.
DS-610CU-PAN: Color and Black & White copying (up to 9 cpm in black &
white / 1.5 cpm in color), Optional ADF (ADF1030-PAN),
Scan to PC (TWAIN)
clarity
DP-CL22 / DP-CL18
*1 Maximum speed on continuous printing. Measured by Panasonic’s method. *2 Additional memory is
recommended to ensure 1,200 x 1,200 dpi operation regardless of image size, paper size and in
duplex mode. *3 Measured by Panasonic’s method. *4 Depending on the Operating System, some of
these functions are not available. *5 Requires Hard Disk Drive. *6 The rated life expectancy of each
consumable is based on printing under specific operating conditions such as page coverage for a
particular page size (5% coverage per color at 600 x 600 dpi resolution on Letter/A4 size paper). The
actual consumable’s life will vary depending on its use and other printing variables including page
coverage, paper size, media type, print resolution, continuous or intermittent printing, number of color
planes, ambient temperature and humidity. *7 Printer includes starter toner cartridge that yields 2,500
pages (based on 5% page coverage per color) *8 User area approx. 31 GB
As an ENERGY STAR® Partner, Panasonic has determined that this product
meets the ENERGY STAR® Guidelines for energy efficiency.
(ENERGY STAR® and the ENERGY STAR® certification marks are registered
US marks.)
Scalable type outlines are licensed from Agfa Monotype Corporation. CG,
Intellifont, MicroType and Universal Font Scaling Technology (UFST) are
trademarks of Agfa Monotype Corporation and may be registered in some
jurisdictions.
Agfa® and the Agfa rhombus are registered trademarks of Agfa-Gevaert N.V.
registered in the U.S. Patent and Trademark Office and may be registered in
other jurisdictions. Monotype® is a registered trademark of AMT registered in
the U.S. Patent and Trademark Office and may be registered in other
jurisdictions. ColorTune® is a registered trademark of Agfa-Gevaert N.V.
registered in the U.S. Patent and Trademark Office and may be registered in
other jurisdictions. Profile Tool Kit™, Profile Studio™ and Profile Optimizer™
are trademarks of AMT and may be registered in certain jurisdictions.
IPv6 Ready Logo Phase-1
IPv6 Ready Logo is the international IPv6 product’s certification program
managed by the IPv6 Ready Logo Committee.
Adobe, PostScript, PostScript 3 and the PostScript logo are either registered
trademarks or trademarks of Adobe Systems Incorporated in the United
States and/or other countries.
Microsoft, Windows, Windows NT, Windows Server and the Windows logo
are trademarks or registered trademarks of Microsoft Corporation in the
United States and/or other countries.
Windows® is an abbreviation of Microsoft® Windows® operating system.
HP, HP-UX, JetDirect and PCL are trademarks of Hewlett-Packard Company.
UNIX is a trademark of X/Open Company Ltd.
Solaris is a registered trademark of Sun Microsystems, Inc. in the United
States and other countries.
AIX is a trademark of International Business Machines Corporation in the
United States, other countries, or both.
NetWare, NDS and NDPS are registered trademarks of Novell, Inc. in the United
States and other countries.
IPX/SPX is a trademark of Novell, Inc. in the United States and other countries.
AppleTalk, Mac, Mac OS, the Mac logo and ColorSync are registered
trademarks of Apple Computer, Inc.
All other brand or product names are the property of their respective holders.
Design and specifications are subject to change without notice.
PTR-DPCL22/18MLB
04/05
Color Your Office Quickly
•
•
•
•
•
•
•
Up to 22 ppm in Color and Black & White (DP-CL22)
Up to 18 ppm in Color and Black & White (DP-CL18)
Quick Start Warmup and Low Energy Consumption
Advanced HDD Security Functions
Quick PDF Print
Photo Mode for Enhanced Gloss and Quality
IPv6-Ready Standard Network Connectivity
Download PDF

advertising
