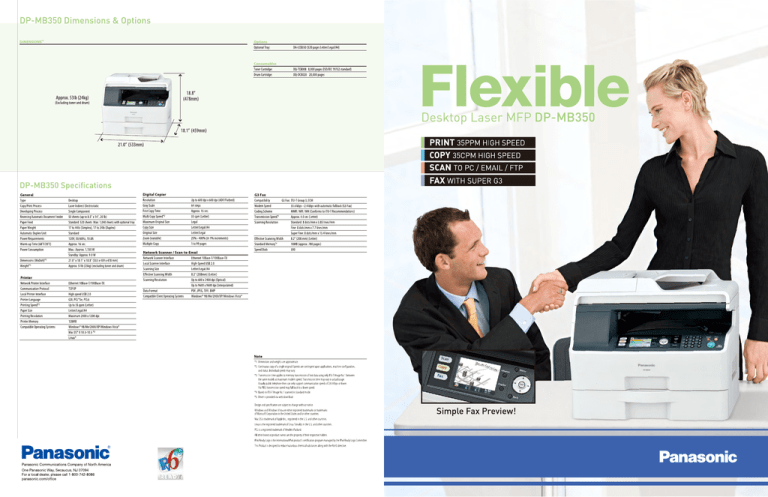

Panasonic DP-MB350 Specification

Panasonic DP-MB350 Specification
 Optional Tray: DA-LCB350 (520 pages Letter/Legal/A4)
Toner Cartridge: DO-TCB008 8,000 pages (ISO/IEC 19752 standard)
mi 7 Drum Cartridge: DO-DCB020 20,000 pages
18.8”
Approx. 531b (24kg) (478mm)
(Excluding toner and drum)
f
21.0” (533mm)
General Digital Copier G3 Fax
Type Desktop Resolution Up to 600 dpi x 600 dpi (ADF/Flatbed) Compatibility G3 Fax: ITU-T Group 3, ECM
Copy/Print Process Laser Indirect Electrostatic Gray Scale 64 steps Modem Speed 33.6 kbps - 2.4 kbps with automatic fallback (G3 Fax)
Developing Process Single Component First Copy Time Approx. 15 sec. Coding Scheme MMR / MR / MH (Conforms to ITU-T Recommendations)
Reversing Automatic Document Feeder 50 sheets (up to 8.5" x 14", 20 Ib) Multi Copy Speed”? 35 cpm (Letter) Transmission Speed Approx. 4.0 sec (Letter)
Paper Feed Standard: 520 sheets Max: 1,040 sheets with optional tray Maximum Original Size Legal Scanning Resolution Standard: 8 dots/mm x 3.85 lines/mm
Paper Weight 17 to 441b (Simplex), 17 to 241b (Duplex) Copy Size Letter/Legal/A4 Fine: 8 dots/mm x 7.7 lines/mm
Automatic Duplex Unit Standard Original Size Letter/Legal Super Fine: 8 dots/mm x 15.4 lines/mm
Power Requirements 120V, 50/60Hz, 10.8A Zoom (variable) 25% - 400% (in 1% increments) Effective Scanning Width 8.2" (208 mm) (Letter)
Warm-up Time (68°F/20°C) Approx. 16 sec. Multiple Copy 1to 99 pages Standard Memory™ 10MB (approx. 780 pages)
Power Consumption Max.: Approx. 1,150 W Speed Dials 300
Network Scanner / Scan-to-Email
Standby: Approx. 9.0 W
Dimensions (WxDxH) 21.0" x 18.1" x 188" (533 x 459 x 478 mm) Network Scanner Interface Ethernet 10Base-T/100Base-TX
Weight“ Approx. 511b (23kg) (excluding toner and drum) Local scanner Interface High-Speed USB 2.0
Scanning Size Letter/Legal/A4
Effective Scanning Width 8.2" (208mm) (Letter)
Printer Scanning Resolution Up to 600 x 2400 dpi (Optical)
Network Printer Interface Ethernet 10Base-T/100Base-TX Up 0.9600 x 9600 dpi (Interpolated)
Communication Protocol TCP/IP Data Format PDF, JPEG, TIFF, BMP
Local Printer Interface High speed USB 2.0 Compatible Client Operating Systems Windows® 98/Me/2000/XP/Windows Vista®
Printer Language GDI, PCL*Se, PCL6
Printing Speed*? Up to 35 ppm (Letter)
Paper Size Letter/Legal/A4
Printing Resolution Maximum 2400 x 1200 dpi
Printer Memory 128MB
Compatible Operating Systems Windows® 98/Me/2000/XP/Windows Vista®
Mac 0S* X 10.3-10.5 3
Linux®
Note
Panasonic
Panasonic Communications Company of North America
One Panasonic Way, Secaucus, NJ 07094
For a local dealer, please call 1-800-742-8086
panasonic.com/office
*1 Dimensions and weights are approximate,
*2 Continuous copy of a single original. Speeds are contingent upon applications, machine configuration,
and status. Individual speeds may vary.
*3 Transmission time applies to memory transmission of text data using only ITU-T Image No.1 between
the same models at maximum modem speed. Transmission time may vary in actual usage.
Usually public telephone lines can only support communication speeds of 28.8 Kbps or lower.
Via PBX, transmission speed may fall back to a lower speed.
*4 Based on ITU-T Image No.1 scanned in Standard mode.
*5 Driver is provided via web download.
Design and specification are subject to change without notice.
Windows and Windows Vista are either registered trademarks or trademarks
of Microsoft Corporation in the United States and/or other countries.
Mac OS is trademark of Apple Inc, registered in the U.S. and other countries.
Linux is the registered trademark of Linus Torvalds in the U.S. and other countries.
PCL is a registered trademark of Hewlett-Packard,
All other brand or product names are the property of their respective holders.
IPv6 Ready Logo is the international IPv6 product's certification program managed by the IPv6 Ready Logo Committee.
This Product is designed to reduce hazardous chemical substances along with the RoHS directive.
Simple Fax Preview!
Panasonic
Co LEY
Panasonic
Design and Functionality
The Panasonic DP-MB350 is a high-performance “desktop” Multi-Function-Printer that is an excellent choice for any
small to mid-size office workgroup, small office and remote home offices. The Network-ready DP-MB350 is equipped
with 10/100 Base-TX connectivity and is ready to take on any size print or copy job with its large 520-sheet standard capacity
input tray and 50-sheet reversing ADF. The user friendly control panel interface features large, easy to read buttons and a
bright 3.6-inch color LCD (TFT) display. This provides a simple to use interface for adjusting device settings and allows you
to preview incoming faxes for simple and efficient document management. For simple device management, the built in
Configuration Web Page allows device users and system administrators to easily check device status, toner level, adjust
system settings and update the device address book. Packed with all the right features in a small footprint, the DP-MB350
IS a robust multifunction printer, that has a rich feature set and is easy to operate.
Contrast
Resolution
Pago Layout
e |
[Taxt?Photo
————]]Ó]]—]—..— |
[Disabled
Maru
Advance
Duplex ©
[cf Te À
High Speed Printing
The DP-MB350 prints up to 35 ppm in B&W with image resolutions up
to 2400 dpi x 1200 dpi. Panasonic's State-of-the-Art image smoothing
technology eliminates unsightly jagged edges on printed documents,
while making text and graphics appear crisp and clear. Environmentally
friendly features of the DP-MB350 include standard automatic duplex
printing to help reduce paper consumption, toner save mode to reduce
the amount of toner consumption when printing draft or sample
documents, and N in 1 printing which allows up to 16 pages to be
printed on a single sheet of paper.
Convenient Copy Functions
The DP-MB350 can copy up to 35 cpm and is able to take on
any size copy job, with its standard 520-sheet multipurpose
paper drawer expandable to 1,040 sheets and 50-sheet
reversing ADF. Advanced copy features of the DP-MB350
include Proof Copy, Quick 1D Copy, N in 1 and repeat copy.
All these features and more can be accessed from the large
3.6" color LCD (TFT) display.
Quick & Easy Scanning
The DP-MB350 can quickly and easily convert paper documents into electronic
documents that can be edited or archived. The DP-MB350 is capable of scanning
single page documents by utilizing the flatbed scanner or multiple documents
using the built-in 50-sheet reversing ADF. Documents can be scanned in full
color with image resolutions up to 9600 dpi x 9600 dpi (interpolated). The a PA .
standard Scan-to-Email feature allows you to send scanned document directly
from the DP-MB350 as an Email attachment in PDF, JPEG or TIFF formats
without needing a PC. To complete your digital document needs, the standard
Panasonic Quick Image Navigator software allows you to conveniently manage
your digital documents and the Readiris OCR software suite (also included)
allows you to easily convert digital documents into text editable documents. \ у» Ce,
|
Simple Fax Preview
Preview Incoming Faxes Van can ind us;
Gas Can find ug fo,
Equipped with Super G3 fax capabilities, the DP-MB350 offers the added И A Send Fax File to:
convenience of a simple fax preview. Utilizing the large 3.6" LCD (TFT] Es PC
screen, you can preview incoming faxes before they are printed, thereby —
reducing paper and toner consumption. You can zoom, rotate or scroll to FTP
check the fax contents. Once the document is previewed, you can decide wt Easily
whether to print, delete or forward the document to a PC, FTP site or as a Email Delete
an Email Attachment. In addition, the DP-MB350 features a Junk Fax LL ad
filter to prevent unwanted faxes from being received. Thus providing yet NY —
another environmentally friendly feature to help reduce unnecessary Incoming Fax : >
paper and toner consumption. | al Print =
= " lla
>a
Watermark Overlay Booklet Nin 1
A watermark such as “Confidential” A custom image such as a By Utilizing the Automatic This cost saving feature reduces originals
or “Draft” can be printed on the company logo can be saved and Duplex Unit You can produce and prints up to 16 pages onto one sheet.
background or foreground of a printed on a document. brochures or small booklets
document. The size and angle of the In-house and eliminate the use
mark can be adjusted as desired. of an outside print shop.
Poster Copy Proof Copy Quick ID Copy N in 1 8: Duplex Copy Easy Repeat
Copy a normal size image and easily On a large copying job, you can Copy both sides of one or more With N in 1 you can copy up to 8 Copy one original and
create a large size poster at 2x2 or generate a sample set before ID or business cards consecutively, originals onto one sheet, while print it repeatedly on a
3x3 sizes.
printing the entire job.
and then print onto a single page
inthe2in1,4in1or8in1 format.
single page ininthe 2in 1,
Duplex Copy utilizes both sides of lo e ora
the paper for reduced paper usage.
Nin 1
Duplex Copy
