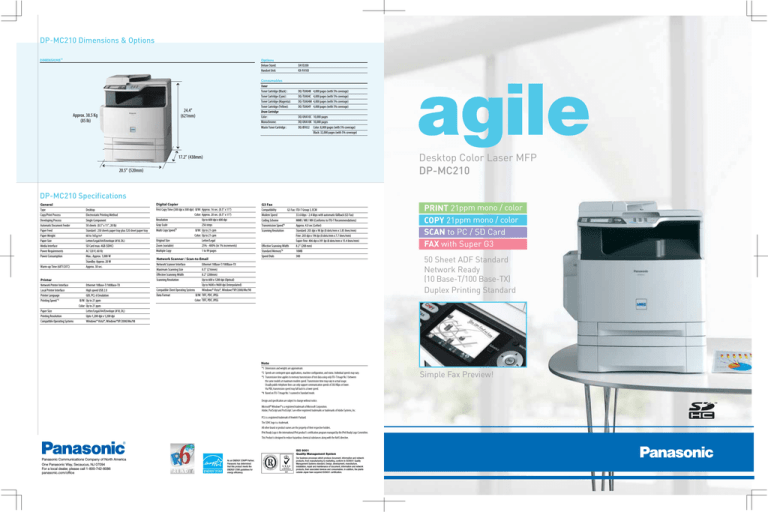

DP-MC210 Dimensions & Options
DIMENSIONS*1
Options
Deluxe Stand:
Handset Unit:
Consumables
Toner
Toner Cartridge (Black) :
Toner Cartridge (Cyan) :
Toner Cartridge (Magenta):
Toner Cartridge (Yellow):
Drum Cartridge
Color :
Monochrome:
Waste Toner Cartridge :
24.4”
(621mm)
Approx. 38.5 Kg
(85 lb)
DA1D200
KX-FA103
DQ-TUA04K
DQ-TUA04C
DQ-TUA04M
DQ-TUA04Y
4,000 pages (with 5% coverage)
4,000 pages (with 5% coverage)
4,000 pages (with 5% coverage)
4,000 pages (with 5% coverage)
DQ-UHA10C 10,000 pages
DQ-UHA10K 10,000 pages
DQ-BFA32 Color: 8,000 pages (with 5% coverage)
Black: 32,000 pages (with 5% coverage)
Desktop Color Laser MFP
DP-MC210
17.2” (438mm)
20.5” (520mm)
DP-MC210 Specifications
General
Type
Copy/Print Process
Developing Process
Automatic Document Feeder
Paper Feed
Paper Weight
Paper Size
Media Interface
Power Requirements
Power Consumption
Warm-up Time (68˚F/20˚C)
Printer
Network Printer Interface
Local Printer Interface
Printer Language
Printing Speed *2
Paper Size
Printing Resolution
Compatible Operating Systems
Desktop
Electrostatic Printing Method
Single Component
50 sheets (8.5" x 11", 20 lb)
Standard : 250 sheets paper tray plus 520 sheet paper tray
60 to 165g/m2
Letter/Legal/A4/Envelope (#10, DL)
SD Card max. 4GB (SDHC)
AC 120 V, 60 Hz
Max.: Approx. 1,000 W
Standby: Approx. 20 W
Approx. 38 sec.
Ethernet 10Base-T/100Base-TX
High speed USB 2.0
GDI, PCL 6 Emulation
B/W: Up to 21 ppm
Color: Up to 21 ppm
Letter/Legal/A4/Envelope (#10, DL)
Upto 1,200 dpi x 1,200 dpi
Windows® Vista®, Windows®XP/2000/Me/98
Digital Copier
First Copy Time (300 dpi x 300 dpi) B/W: Approx. 16 sec. (8.5" x 11")
Color: Approx. 20 sec. (8.5" x 11")
Resolution
Up to 600 dpi x 600 dpi
Gray Scale
256 steps
Multi Copy Speed*2
B/W: Up to 21 cpm
Color: Up to 21 cpm
Original Size
Letter/Legal
Zoom (variable)
25% - 400% (in 1% increments)
Multiple Copy
1 to 99 pages
Network Scanner / Scan-to-Email
Network Scanner Interface
Ethernet 10Base-T/100Base-TX
Maximum Scanning Size
8.5" (216mm)
Effective Scanning Width
8.2" (208mm)
Scanning Resolution
Up to 600 x 1200 dpi (Optical)
Up to 9600 x 9600 dpi (Interpolated)
Compatible Client Operating Systems
Windows® Vista®, Windows®XP/2000/Me/98
Data Format
B/W: TIFF, PDF, JPEG
Color: TIFF, PDF, JPEG
G3 Fax
Compatibility
G3 Fax: ITU-T Group 3, ECM
Modem Speed
33.6 kbps - 2.4 kbps with automatic fallback (G3 Fax)
Coding Scheme
MMR / MR / MH (Conforms to ITU-T Recommendations)
Approx. 4.0 sec (Letter)
Transmission Speed*3
Scanning Resolution
Standard: 203 dpi x 98 lpi (8 dots/mm x 3.85 lines/mm)
Fine: 203 dpi x 196 lpi (8 dots/mm x 7.7 lines/mm)
Super Fine: 406 dpi x 391 lpi (8 dots/mm x 15.4 lines/mm)
Effective Scanning Width
8.2" (208 mm)
Standard Memory*4
10MB
Speed Dials
300
PRINT 21ppm mono / color
COPY 21ppm mono / color
SCAN to PC / SD Card
FAX with Super G3
50 Sheet ADF Standard
Network Ready
(10 Base-T/100 Base-TX)
Duplex Printing Standard
Note
*1 Dimensions and weights are approximate.
*2 Speeds are contingent upon applications, machine configuration, and status. Individual speeds may vary.
*3 Transmission time applies to memory transmission of text data using only ITU-T Image No.1 between
the same models at maximum modem speed. Transmission time may vary in actual usage.
Usually public telephone lines can only support communication speeds of 28.8 Kbps or lower.
Via PBX, transmission speed may fall back to a lower speed.
*4 Based on ITU-T Image No.1 scanned in Standard mode.
Design and specification are subject to change without notice.
Microsoft® Windows® is a registered trademark of Microsoft Corporation.
Adobe, PostScript and PostScript 3 are either registered trademarks or trademarks of Adobe Systems, Inc.
PCL is a registered trademark of Hewlett-Packard.
The SDHC logo is a trademark.
All other brand or product names are the property of their respective holders.
IPv6 Ready Logo is the international IPv6 product’s certification program managed by the IPv6 Ready Logo Committee.
This Product is designed to reduce hazardous chemical substances along with the RoHS directive.
ISO 9001
Quality Management System
Panasonic Communications Company of North America
One Panasonic Way, Secaucus, NJ 07094
For a local dealer, please call 1-800-742-8086
panasonic.com/office
As an ENERGY STAR® Partner,
Panasonic has determined
that this product meets the
ENERGY STAR guidelines for
energy efficiency.
Our business processes which produce document, information and network
products, from manufacturing to marketing, conform to ISO9001 Quality
Management Systems standard. Design, development, manufacture,
installation, repair and maintenance of document, information and network
products, their associated devices and consumables. In addition, the plants
outside Japan have acquired ISO9001 certification.
Simple Fax Preview!
Printing
Design and Functionality
The DP-MC210 is a high-performance “desktop” MFP that means business. With its 250-sheet multi-purpose tray
and 2nd 520-sheet tray standard, this space-saving all-in-one solution has the capacity to handle big jobs, plus
a 50-sheet ADF for scanning and copying multiple originals. Not only is the DP-MC210 network-ready with standard
From high-quality color prints up to 1200 x 1200 dpi and a quick output speed of 21ppm in both monochrome and color. The DP-MC210 is
unlike other MFP’s that use a complex 4-pass process, our 1-pass technology powered by a tandem print engine achieves the same
high-speed printing for both color and monochrome, as well as simplifing consumable replacement and recovery from the rare
paper jam. Advanced features like standard duplex for automatic 2-sided printing, “watermark” printing for identifying confidential or
10/100 Base-TX connectivity, but it is also IPv6-ready for next-generation networks. The large 3.6-inch color LCD
sample documents, “overlay” printing of corporate logos, and enhanced “N in 1” function (up to 16 document images on 1 sheet) are all
(TFT) display and intuitive control panel layout set a new standard in user-friendly operation, while having the
standard. Built-in network connectivity and expanded input capabilities enable users to select and print multiple print jobs from an FTP
ability to monitor toner levels, edit the built in address book and adjust common user settings via the network
server or print directly from an SDHC card, taking full advantage of all the cutting-edge print functionality.
using a browser, making device management a breeze. User Friendly Design improves efficiency and simplifies
maintenance, as well as offering features like printing and scanning from the built-in SDHC card slot and standard
duplex for easy 2-sided copies and prints. The DP-MC210 is the ideal solution for the small and medium-sized
Scan Preview
Scanning
office looking for maximum functionality, ease of use, and performance in a compact footprint.
Send Scanned File to
PC
Large 3.6” Color LCD
FTP
Easy to lift ADF
Convert paper into digital documents easily, efficiently and in full
color with flatbed scanning of originals up to legal size or with the
built-in 50-sheet ADF. Scan documents directly onto your desktop,
send them by Email, store them on an SD memory card or transmit
them to an FTP server for convenient document sharing. All this
SD Card
scanning versatility is at your finger tips via the user-friendly control
Email
Scanned document
panel. For even more convenience, the standard Readiris OCR
software included with the DP-MC210 allows you to convert scanned
or Print
documents into text editable documents.
Simple Fax Preview
Super G3 Faxing
Send Fax File to
PC
With FAX Preview, you can easily zoom, rotate and scroll
Direct SDHC slot
through incoming faxes on the large color LCD display
FTP
before printing or you can forward the data to a PC or
FTP server, store it on an SD memory card, send it as
Easy-to-view inner tray
SD Card
an Email attachment or delete it. The DP-MC210 also
Email
features a Junk Fax Filter to block unwanted faxes before
Easily accessible maintenance door
wasting paper and the Mistake Dial Prevention feature
Easily
Delete
Junk Faxes
Incoming Fax
or Print
assures documents are sent to the correct destination.
SD Card Image Preview
N in 1 Functions
SDHC Card Direct Printing
Direct SD Card Slot
Economical Copy Functions
Just Insert your SD memory card into the SDHC
Fast copy output up to 600 x 600 dpi in both color and
card slot and directly print PDF, JPEG, and TIFF
monochrome is just the beginning. For example, the
files without using a PC. Picture data taken on your
enhanced N in 1 function opens up a world of practical
digital camera can be conveniently previewed on the
applications and paper-saving possibilities. Users will
large LCD display.
also appreciate the Proof Set Copy function to avoid
making costly errors when copying a large job where
multiple copies and settings are used.
Quick ID Copy
Mixed Size N in 1
Easy Repeat
Scan both sides of one or multiple
ID cards consecutively and print
the data on a single page in the
2 in 1, 4 in 1 or 8 in 1 format.
Scan documents of various sizes,
and the DP-MC210 will auto-size
them for printing on a single page
in the 2 in 1, 4 in 1 or 8 in 1 format.
Scan one original and
print it repeatedly on a
single page in in the 2 in 1,
4 in 1or 8 in 1 format.
Printing
Design and Functionality
The DP-MC210 is a high-performance “desktop” MFP that means business. With its 250-sheet multi-purpose tray
and 2nd 520-sheet tray standard, this space-saving all-in-one solution has the capacity to handle big jobs, plus
a 50-sheet ADF for scanning and copying multiple originals. Not only is the DP-MC210 network-ready with standard
From high-quality color prints up to 1200 x 1200 dpi and a quick output speed of 21ppm in both monochrome and color. The DP-MC210 is
unlike other MFP’s that use a complex 4-pass process, our 1-pass technology powered by a tandem print engine achieves the same
high-speed printing for both color and monochrome, as well as simplifing consumable replacement and recovery from the rare
paper jam. Advanced features like standard duplex for automatic 2-sided printing, “watermark” printing for identifying confidential or
10/100 Base-TX connectivity, but it is also IPv6-ready for next-generation networks. The large 3.6-inch color LCD
sample documents, “overlay” printing of corporate logos, and enhanced “N in 1” function (up to 16 document images on 1 sheet) are all
(TFT) display and intuitive control panel layout set a new standard in user-friendly operation, while having the
standard. Built-in network connectivity and expanded input capabilities enable users to select and print multiple print jobs from an FTP
ability to monitor toner levels, edit the built in address book and adjust common user settings via the network
server or print directly from an SDHC card, taking full advantage of all the cutting-edge print functionality.
using a browser, making device management a breeze. User Friendly Design improves efficiency and simplifies
maintenance, as well as offering features like printing and scanning from the built-in SDHC card slot and standard
duplex for easy 2-sided copies and prints. The DP-MC210 is the ideal solution for the small and medium-sized
Scan Preview
Scanning
office looking for maximum functionality, ease of use, and performance in a compact footprint.
Send Scanned File to
PC
Large 3.6” Color LCD
FTP
Easy to lift ADF
Convert paper into digital documents easily, efficiently and in full
color with flatbed scanning of originals up to legal size or with the
built-in 50-sheet ADF. Scan documents directly onto your desktop,
send them by Email, store them on an SD memory card or transmit
them to an FTP server for convenient document sharing. All this
SD Card
scanning versatility is at your finger tips via the user-friendly control
Email
Scanned document
panel. For even more convenience, the standard Readiris OCR
software included with the DP-MC210 allows you to convert scanned
or Print
documents into text editable documents.
Simple Fax Preview
Super G3 Faxing
Send Fax File to
PC
With FAX Preview, you can easily zoom, rotate and scroll
Direct SDHC slot
through incoming faxes on the large color LCD display
FTP
before printing or you can forward the data to a PC or
FTP server, store it on an SD memory card, send it as
Easy-to-view inner tray
SD Card
an Email attachment or delete it. The DP-MC210 also
Email
features a Junk Fax Filter to block unwanted faxes before
Easily accessible maintenance door
wasting paper and the Mistake Dial Prevention feature
Easily
Delete
Junk Faxes
Incoming Fax
or Print
assures documents are sent to the correct destination.
SD Card Image Preview
N in 1 Functions
SDHC Card Direct Printing
Direct SD Card Slot
Economical Copy Functions
Just Insert your SD memory card into the SDHC
Fast copy output up to 600 x 600 dpi in both color and
card slot and directly print PDF, JPEG, and TIFF
monochrome is just the beginning. For example, the
files without using a PC. Picture data taken on your
enhanced N in 1 function opens up a world of practical
digital camera can be conveniently previewed on the
applications and paper-saving possibilities. Users will
large LCD display.
also appreciate the Proof Set Copy function to avoid
making costly errors when copying a large job where
multiple copies and settings are used.
Quick ID Copy
Mixed Size N in 1
Easy Repeat
Scan both sides of one or multiple
ID cards consecutively and print
the data on a single page in the
2 in 1, 4 in 1 or 8 in 1 format.
Scan documents of various sizes,
and the DP-MC210 will auto-size
them for printing on a single page
in the 2 in 1, 4 in 1 or 8 in 1 format.
Scan one original and
print it repeatedly on a
single page in in the 2 in 1,
4 in 1or 8 in 1 format.
DP-MC210 Dimensions & Options
DIMENSIONS*1
Options
Deluxe Stand:
Handset Unit:
24.4”
(621mm)
Approx. 38.5 Kg
(85 lb)
Consumables
Toner
Toner Cartridge (Black) :
Toner Cartridge (Cyan) :
Toner Cartridge (Magenta):
Toner Cartridge (Yellow):
Drum Cartridge
Color :
Monochrome:
Waste Toner Cartridge :
DA1D200
KX-FA103
DQ-TUA04K
DQ-TUA04C
DQ-TUA04M
DQ-TUA04Y
4,000 pages (with 5% coverage)
4,000 pages (with 5% coverage)
4,000 pages (with 5% coverage)
4,000 pages (with 5% coverage)
DQ-UHA10C 10,000 pages
DQ-UHA10K 10,000 pages
DQ-BFA32 Color: 8,000 pages (with 5% coverage)
Black: 32,000 pages (with 5% coverage)
Desktop Color Laser MFP
DP-MC210
17.2” (438mm)
20.5” (520mm)
DP-MC210 Specifications
General
Type
Copy/Print Process
Developing Process
Automatic Document Feeder
Paper Feed
Paper Weight
Paper Size
Media Interface
Power Requirements
Power Consumption
Warm-up Time (68˚F/20˚C)
Printer
Network Printer Interface
Local Printer Interface
Printer Language
Printing Speed *2
Paper Size
Printing Resolution
Compatible Operating Systems
Desktop
Electrostatic Printing Method
Single Component
50 sheets (8.5" x 11", 20 lb)
Standard : 250 sheets paper tray plus 520 sheet paper tray
60 to 165g/m2
Letter/Legal/A4/Envelope (#10, DL)
SD Card max. 4GB (SDHC)
AC 120 V, 60 Hz
Max.: Approx. 1,000 W
Standby: Approx. 20 W
Approx. 38 sec.
Ethernet 10Base-T/100Base-TX
High speed USB 2.0
GDI, PCL 6 Emulation
B/W: Up to 21 ppm
Color: Up to 21 ppm
Letter/Legal/A4/Envelope (#10, DL)
Upto 1,200 dpi x 1,200 dpi
Windows® Vista®, Windows®XP/2000/Me/98
Digital Copier
First Copy Time (300 dpi x 300 dpi) B/W: Approx. 16 sec. (8.5" x 11")
Color: Approx. 20 sec. (8.5" x 11")
Resolution
Up to 600 dpi x 600 dpi
Gray Scale
256 steps
Multi Copy Speed*2
B/W: Up to 21 cpm
Color: Up to 21 cpm
Original Size
Letter/Legal
Zoom (variable)
25% - 400% (in 1% increments)
Multiple Copy
1 to 99 pages
Network Scanner / Scan-to-Email
Network Scanner Interface
Ethernet 10Base-T/100Base-TX
Maximum Scanning Size
8.5" (216mm)
Effective Scanning Width
8.2" (208mm)
Scanning Resolution
Up to 600 x 1200 dpi (Optical)
Up to 9600 x 9600 dpi (Interpolated)
Compatible Client Operating Systems
Windows® Vista®, Windows®XP/2000/Me/98
Data Format
B/W: TIFF, PDF, JPEG
Color: TIFF, PDF, JPEG
G3 Fax
Compatibility
G3 Fax: ITU-T Group 3, ECM
Modem Speed
33.6 kbps - 2.4 kbps with automatic fallback (G3 Fax)
Coding Scheme
MMR / MR / MH (Conforms to ITU-T Recommendations)
Approx. 4.0 sec (Letter)
Transmission Speed*3
Scanning Resolution
Standard: 203 dpi x 98 lpi (8 dots/mm x 3.85 lines/mm)
Fine: 203 dpi x 196 lpi (8 dots/mm x 7.7 lines/mm)
Super Fine: 406 dpi x 391 lpi (8 dots/mm x 15.4 lines/mm)
Effective Scanning Width
8.2" (208 mm)
Standard Memory*4
10MB
Speed Dials
300
PRINT 21ppm mono / color
COPY 21ppm mono / color
SCAN to PC / SD Card
FAX with Super G3
50 Sheet ADF Standard
Network Ready
(10 Base-T/100 Base-TX)
Duplex Printing Standard
Note
*1 Dimensions and weights are approximate.
*2 Speeds are contingent upon applications, machine configuration, and status. Individual speeds may vary.
*3 Transmission time applies to memory transmission of text data using only ITU-T Image No.1 between
the same models at maximum modem speed. Transmission time may vary in actual usage.
Usually public telephone lines can only support communication speeds of 28.8 Kbps or lower.
Via PBX, transmission speed may fall back to a lower speed.
*4 Based on ITU-T Image No.1 scanned in Standard mode.
Design and specification are subject to change without notice.
Microsoft® Windows® is a registered trademark of Microsoft Corporation.
Adobe, PostScript and PostScript 3 are either registered trademarks or trademarks of Adobe Systems, Inc.
PCL is a registered trademark of Hewlett-Packard.
The SDHC logo is a trademark.
All other brand or product names are the property of their respective holders.
IPv6 Ready Logo is the international IPv6 product’s certification program managed by the IPv6 Ready Logo Committee.
This Product is designed to reduce hazardous chemical substances along with the RoHS directive.
Panasonic Communications Company of North America
One Panasonic Way, Secaucus, NJ 07094
For a local dealer, please call 1-800-742-8086
panasonic.com/office
Simple Fax Preview!
Download PDF

advertising
