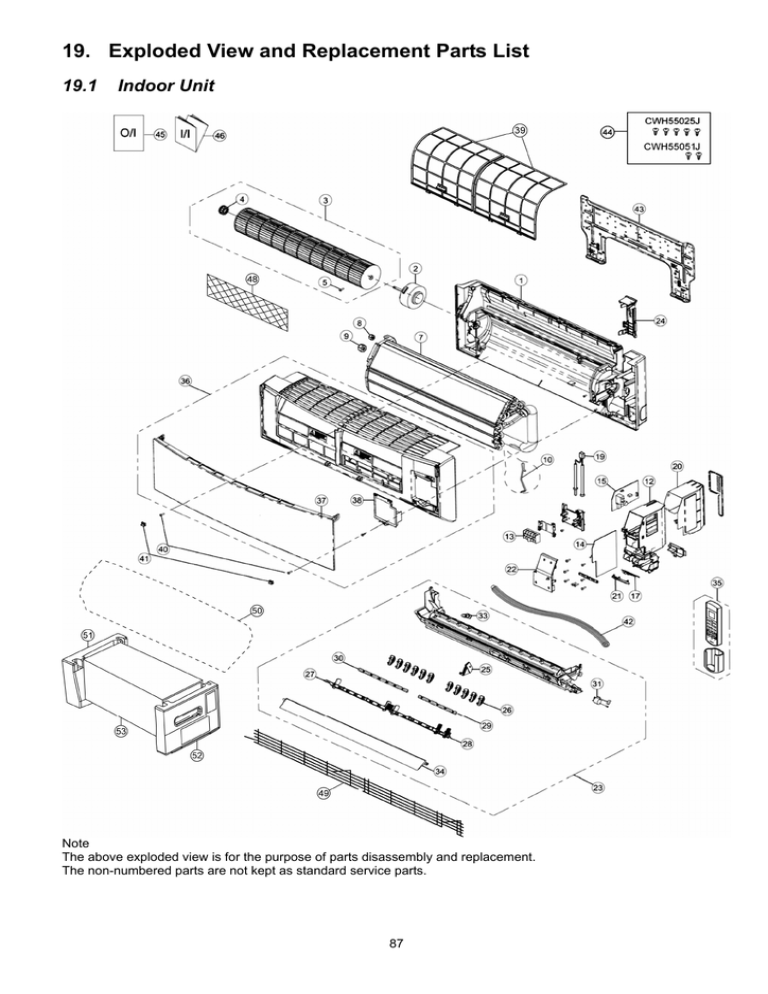

19. Exploded View and Replacement Parts List
19.1
Indoor Unit
Note
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
87
REF. NO.
PART NAME & DESCRIPTION
QTY.
CS-E9NKUAW
CS-E12NKUAW
REMARK
1
CHASSIS COMPLETE
1
CWD50C1633
←
2
FAN MOTOR
1
L6CBYYYL0055
←
3
CROSS-FLOW FAN COMPLETE
1
CWH02C1076
←
4
BEARING ASSY
1
CWH64K007
←
5
SCREW - CROSS-FLOW FAN
1
CWH551146
←
7
EVAPORATOR
1
CWB30C3504
CWB30C3505
8
FLARE NUT (LIQUID)
1
CWT251030
←
9
FLARE NUT (GAS)
1
CWT251031
CWT251032
10
CLIP FOR SENSOR
1
CWH32143
←
12
CONTROL BOARD CASING
1
CWH102370A
←
13
TERMINAL BOARD COMPLETE
1
CWA28C2357
←
O
14
ELECTRONIC CONTROLLER - MAIN
1
CWA73C6147
CWA73C6148
O
15
ELECTRONIC CONTROLLER - POWER
1
CWA746567
←
O
17
ELECTRONIC CONTROLLER - INDICATOR
1
CWA746489
←
O
19
SENSOR COMPLETE
1
CWA50C2800
←
O
20
CONTROL BOARD TOP COVER
1
CWH131350
←
21
INDICATOR HOLDER
1
CWD933021
←
22
CONTROL BOARD FRONT COVER CO.
1
CWH13C1201
←
23
DISCHARGE GRILLE COMPLETE
1
CWE20C3038
←
24
BACK COVER CHASSIS
1
CWD933233B
←
25
FULCRUM
1
CWH621102
←
26
VERTICAL VANE
11
CWE241287
←
27
CONNECTING BAR
1
CWE261152
←
28
CONNECTING BAR
1
CWE261154
←
29
CONNECTING BAR
1
CWE261155
←
30
CONNECTING BAR
1
CWE261153
←
31
AIR SWING MOTOR
1
CWA981240
←
33
CAP - DRAIN TRAY
1
CWH521096
←
34
HORIZONTAL VANE COMPLETE
1
CWE24C1268
←
35
REMOTE CONTROL COMPLETE
1
CWA75C3724
←
O
36
FRONT GRILLE COMPLETE
1
CWE11C4512
←
O
37
INTAKE GRILLE COMPLETE
1
CWE22C1507
←
O
38
GRILLE DOOR COMPLETE
1
CWE14C1029
←
39
AIR FILTER
2
CWD001279
←
40
SCREW - FRONT GRILLE
2
XTT4+16CFJ
←
41
CAP - FRONT GRILLE
2
CWH521194
←
42
DRAIN HOSE
1
CWH851173
←
43
INSTALLATION PLATE
1
CWH361097
←
44
BAG COMPLETE - INSTALLATION SCREW
1
CWH82C1705
←
45
OPERATING INSTRUCTION
1
CWF568316
←
46
INSTALLATION INSTRUCTION
1
CWF615169
←
48
AIR PURIFYING FILTER
1
CWD00C1141
←
49
WIRE NET
1
CWD041144A
←
50
BAG
1
CWG861426
←
51
SHOCK ABSORBER (L)
1
CWG712940
←
52
SHOCK ABSORBER (R)
1
CWG712941
←
53
C.C.CASE
1
CWG565009
←
(Note)
š All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).
š “O” marked parts are recommended to be kept in stock.
88
O
O
O
19.2
Outdoor Unit
Note
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
89
REF. NO.
PART NAME & DESCRIPTION
QTY.
CU-E9NKUA
CU-E12NKUA
1
CHASSIS ASSY
1
CWD50K2081A
←
2
FAN MOTOR BRACKET
1
CWD541089
←
3
SCREW - FAN MOTOR BRACKET
2
CWH551217
←
4
FAN MOTOR
1
ARW6404AC
←
5
SCREW - FAN MOTOR MOUNT
4
CWH55252J
←
6
PROPELLER FAN ASSY
1
CWH03K1014
←
REMARK
O
7
NUT - PROPELLER FAN
1
CWH56053J
←
8
COMPRESSOR
1
5RS102XHA21
←
9
ANTI - VIBRATION BUSHING
3
CWH50077
←
10
NUT - COMPRESSOR MOUNT
3
CWH56000J
←
11
CONDENSER
1
CWB32C3394
←
12
EXPANSION VALVE
1
CWB051016J
←
13
DISCHARGE MUFFLER (EXP VALVE)
1
CWB121021
←
14
HOLDER COUPLING
1
CWH351015A
←
15
2-WAYS VALVE (LIQUID)
1
CWB021333
←
O
16
3-WAY VALVE (GAS)
1
CWB011374
CWB011367
O
17
TERMINAL COVER
1
CWH171039A
←
18
NUT - TERMINAL COVER
1
CWH7080300J
←
19
SOUND PROOF BOARD
1
CWH151172A
←
O
20
SOUND PROOF MATERIAL
1
CWG302570
←
21a
SOUND PROOF MATERIAL
1
CWG302292
←
21b
SOUND PROOF MATERIAL
1
CWG302569
←
22
SENSOR CO-COMP TEMP
1
CWA50C2340
←
23
CONTROL BOARD COVER-TOP
1
CWH131264
←
24
ELECTRONIC CONTROLLER - MAIN
1
CWA73C6161R
CWA73C6162R
O
26
TERMINAL BOARD ASSY
1
CWA28K1154
←
O
27
CABINET SIDE PLATE CO.
1
CWE04C1226
←
28
SENSOR CO-AIR TEMP AND PIPE TEMP
1
CWA50C2793
←
29
CABINET SIDE PLATE
1
CWE041492A
←
30
CABINET FRONT PLATE CO.
1
CWE06C1142
←
31
CABINET TOP PLATE
1
CWE031018A
←
32
PLATE - C. B. COVER TERMINAL
1
CWH131301
←
33
CONTROL BOARD COVER CO.
1
CWH13C1208
←
34
HANDLE
1
CWE161010
←
36
REACTOR
1
G0C193J00003
G0C193J00004
O
O
37
4-WAYS VALVE
1
CWB001058
←
38
WIRE NET
1
CWD041161A
←
39
V-COIL COMPLETE
1
CWA43C2432
←
←
40
CRANKCASE HEATER
1
CWA341065
41
ACCESSORY CO.(DRAIN ELBOW)
1
CWG87C900
←
42
STRAINER
1
CWB111061
←
43
V-COIL COMPLETE (EXP. VALVE)
1
CWA43C2393
←
44
DISCHARGE MUFFLER (4 W.VALVE)
1
CWB121047
←
45
BAG
1
CWG861078
←
46
BASE BOARD - COMPLETE
1
CWG50C2388
←
47
SHOCK ABSORBER (R)
1
CWG712209
←
48
SHOCK ABSORBER (L)
1
CWG712210
←
49
C.C.CASE
1
CWG565107
←
O
O
(Note)
š All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).
š “O” marked parts are recommended to be kept in stock.
Printed in Malaysia
