Panasonic E18NKUA Parts list

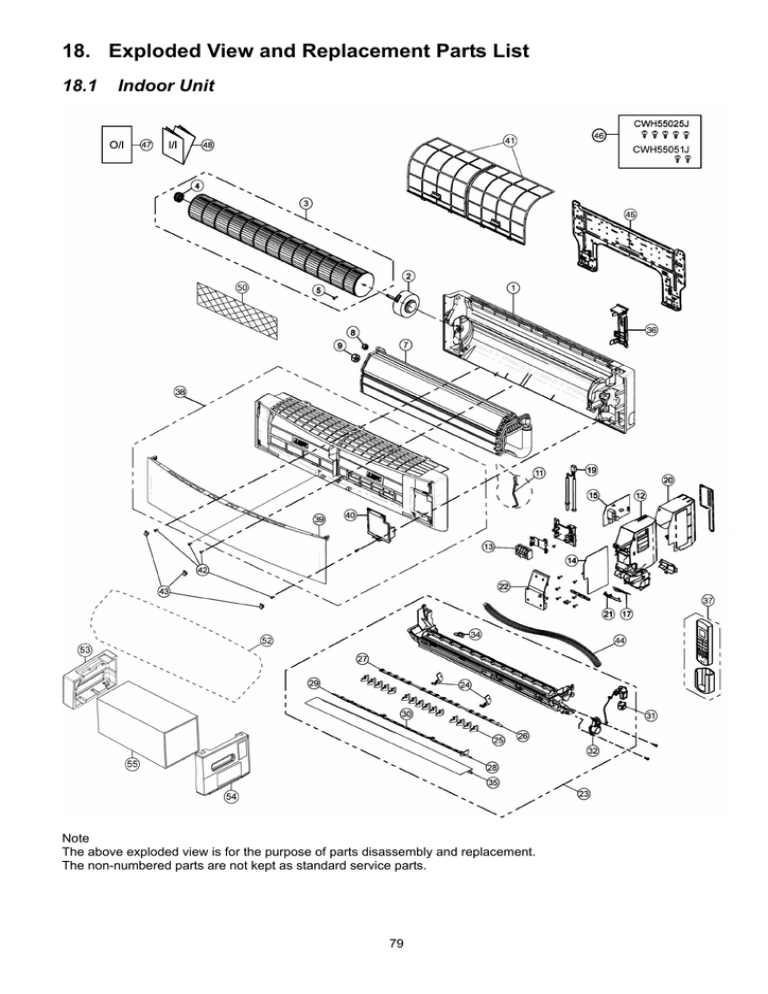

18. Exploded View and Replacement Parts List
18.1
Indoor Unit
Note
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
79
REF. NO.
PART NAME & DESCRIPTION
QTY.
CS-E18NKUA
CS-E24NKUA
REMARK
1
CHASSIS COMPLETE
1
CWD50C1637
←
2
FAN MOTOR
1
ARW7663AC
←
3
CROSS FLOW FAN COMPLETE
1
CWH02C1077
←
4
BEARING ASS’Y
1
CWH64K007
←
5
SCREW - CROSS FLOW FAN
1
CWH551146
←
7
EVAPORATOR
1
CWB30C3963
CWB30C3967
8
FLARE NUT (LIQUID)
1
CWT251030
←
9
FLARE NUT (GAS)
1
CWT251032
CWT251033
11
HOLDER SENSOR
1
CWH32143
←
12
CONTROL BOARD CASING
1
CWH102505
←
13
TERMINAL BOARD COMPLETE
1
CWA28C2357
←
O
14
ELECTRONIC CONTROLLER - MAIN
1
CWA73C6805
CWA73C6806
O
15
ELECTRONIC CONTROLLER - POWER
1
CWA746567
←
O
17
ELECTRONIC CON-INDICATOR,RCVR
1
CWA747108
←
O
19
SENSOR COMPLETE
1
CWA50C2989
←
O
20
CONTROL BOARD TOP COVER
1
CWH131350
←
21
INDICATOR HOLDER
1
CWD933021
←
22
CONTROL BOARD FRONT COVER
1
CWH13C1201
←
23
DISCHARGE GRILLE COMPLETE
1
CWE20C3049
←
24
FULCRUM
2
CWH621103
←
25
VERTICAL VANE
15
CWE241289
←
26
CONNECTING BAR
1
CWE261156
←
27
CONNECTING BAR
1
CWE261158
←
28
CONNECTING BAR
1
CWE261157
←
29
CONNECTING BAR
1
CWE261159
←
30
CONNECTING BAR
1
CWE261160
←
31
AIR SWING MOTOR
1
CWA98K1014
←
O
32
AIR SWING MOTOR
1
CWA981241
←
O
34
CAP - DRAIN TRAY
1
CWH521096
←
35
HORIZONTAL VANE
1
CWE24C1295
←
36
BACK COVER CHASSIS
1
CWD933031B
←
37
REMOTE CONTROL COMPLETE
1
CWA75C3726
←
O
38
FRONT GRILLE COMPLETE
1
CWE11C4514
←
O
39
INTAKE GRILLE COMPLETE
1
CWE22C1483
←
O
40
GRILLE DOOR
1
CWE14C1029
←
41
E-ION FILTER
2
CWD001283
←
42
SCREW - FRONT GRILLE
4
XTT4+16CFJ
←
43
CAP - FRONT GRILLE
3
CWH521194
←
44
DRAIN HOSE
1
CWH851173
←
45
INSTALLATION PLATE
1
CWH361098
←
46
BAG COMPLETE - INSTALLATION SCREW
1
CWH82C1705
←
47
OPERATING INSTRUCTION
1
CWF568726
←
48
INSTALLATION INSTRUCTION
1
CWF615170
←
50
AIR PURIFYING FILTER
1
CWD00C1141
←
52
BAG
1
CWG861498
←
53
SHOCK ABSORBER (L)
1
CWG713033
←
54
SHOCK ABSORBER (R)
1
CWG713034
←
55
C.C. CASE
1
CWG565069
←
(Note)
š All parts are supplied from PAPAMY, Malaysia (Vendor Code: 00029488).
š “O” marked parts are recommended to be kept in stock.
80
O
18.2
Outdoor Unit
Note
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
81
REF. NO.
PART NAME & DESCRIPTION
QTY.
CU-E18NKUA
CU-E24NKUA
REMARK
1
CHASSIS ASS’Y
1
CWD52K1228A
←
2
ANTI-VIBRATION BUSHING
3
CWH50055
←
3
COMPRESSOR
1
5KD240XAF21
←
4
NUT-COMPRESSOR MOUNT
3
CWH561049
←
5
FAN MOTOR BRACKET
1
CWD541127
←
6
FAN MOTOR
1
EHDS80CAC
←
7
SCREW - FAN MOTOR BRACKET
3
CWH551217
←
8
SCREW - FAN MOTOR MOUNT
4
CWH551323
←
9
PROPELLER FAN ASSY
1
CWH00K1006
←
10
NUT - PROPELLER FAN
1
CWH561092
←
11
CONDENSER
1
CWB32C3516
←
12
EXPANSION VALVE
1
CWB051018J
←
14
4-WAYS VALVE
1
CWB001057
←
16
HOLDER - COUPLING
1
CWH351228A
←
17
3 WAYS VALVE (GAS)
1
CWB011672
CWB011363
O
18
2 WAYS VALVE (LIQUID)
1
CWB021464
←
O
19
SOUND PROOF BOARD
1
CWH151197
←
20
TERMINAL COVER
1
CWH171039A
←
21
NUT-TERMINAL COVER
1
CWH7080300J
←
22
V-COIL COMPLETE
1
CWA43C2393
←
23
SENSOR COMPLETE
1
CWA50C2689
←
O
24
SENSOR COMPLETE
1
CWA50C2710
←
O
25
REACTOR
1
G0C452J00002
←
27
TERMINAL BOARD ASSY
1
CWA28K1076J
←
27a
TERMINAL BOARD ASS’Y
1
CWA28K1277
←
O
O
O
28
ELECTRONIC CONTROLLER - MAIN
1
CWA73C6800R
CWA73C6801R
28a
ELECTRONIC CONTROLLER – NF
1
CWA747077
←
29
CONTROL BOARD COVER CO.
1
CWH13C1210
←
30
CABINET SIDE PLATE (LEFT)
1
CWE041490A
←
31
HANDLE
1
CWE161010
←
32
CABINET SIDE PLATE(R)
1
CWE041488A
←
33
CABINET FRONT PLATE CO.
1
CWE06K1070
←
34
WIRE NET
1
CWD041128A
←
35
CABINET TOP PLATE
1
CWE031131A
←
37
PACKING
3
CWB81043
←
38
SOUND PROOF MATERIAL
1
CWG302510
←
39
SOUND PROOF MATERIAL
1
CWG302245
←
40
SOUND PROOF MATERIAL
1
CWG302246
←
41
V-COIL COMPLETE
1
CWA43C2392
←
42
HEATER
1
CWA341067
←
43
FLEXIBLE PIPE (L-TUBE)
1
CWH5850080
←
43a
PACKING – L.TUBE
1
CWB81012
←
44
CAPILLARY TUBE ASS’Y
1
CWT01C6093
←
45
CONTROL BOARD COVER – TOP
1
CWH131333
←
46
PLATE – C.C. COVER TERMINAL
1
CWH131332
←
47
BAG
1
CWG861154
←
48
BASE BOARD – COMPLETE
1
CWG62C1082
←
49
SHOCK ABSORBER (R)
1
CWG712879
←
50
SHOCK ABSORBER (L)
1
CWG712880
←
51
C.C. CASE
1
CWG565614
←
O
(Note)
š All parts are supplied from PAPAMY, Malaysia (Vendor Code: 00029488).
“O” marked parts are recommended to be kept in stock.
Printed in Malaysia
FY0412-0
82
