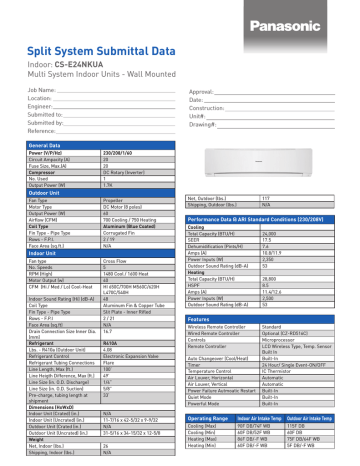

Split System Submittal Data
Indoor: CS-E24NKUA
Multi System Indoor Units - Wall Mounted
Job Name:
Location:
Engineer:
Submitted to:
Submitted by:
Reference:
Approval:
Date:
Construction:
Unit#:
Drawing#:
General Data
Power (V/P/Hz)
Circuit Ampacity (A)
Fuse Size, Max.(A)
Compressor
No. Used
Output Power (W)
230/208/1/60
20
20
DC Rotary (Inverter)
1
1.7K
Outdoor Unit
Fan Type
Motor Type
Output Power (W)
Airflow (CFM)
Coil Type
Fin Type - Pipe Type
Rows - F.P.I.
Face Area (sq.ft.)
Propeller
DC Motor (8 poles)
60
700 Cooling / 750 Heating
Aluminum (Blue Coated)
Corrugated Fin
2 / 19
N/A
Indoor Unit
Fan type
No. Speeds
RPM (High)
Motor Output (w)
CFM (Hi / Med / Lo) Cool-Heat
Indoor Sound Rating (Hi) (dB-A)
Coil Type
Fin Type - Pipe Type
Rows - F.P.I
Face Area (sq.ft)
Drain Connection Size Inner Dia.
(mm)
Refrigerant
Lbs. - R410a (Outdoor Unit)
Refrigerant Control
Refrigerant Tubing Connections
Line Length, Max (ft.)
Line Heigth Difference, Max (ft.)
Line Size (in. O.D. Discharge)
Line Size (in. O.D. Suction)
Pre-charge, tubing length at
shipment
Dimensions (HxWxD)
Indoor Unit (Crated) (in.)
Indoor Unit (Uncrated) (in.)
Outdoor Unit (Crated (in.)
Outdoor Unit (Uncrated) (in.)
Weight
Net, Indoor (lbs.)
Shipping, Indoor (lbs.)
Cross Flow
5
1480 Cool / 1600 Heat
40
HI 650C/700H M560C/620H
L470C/540H
48
Aluminum Fin & Copper Tube
Slit Plate - Inner Rifled
2 / 21
N/A
16.7
R410A
4.08
Electronic Expansion Valve
Flare
100’
49’
1/4”
5/8”
33’
N/A
11-7/16 x 42-5/32 x 9-9/32
N/A
31-5/16 x 34-15/32 x 12-5/8
26
N/A
Net, Outdoor (lbs.)
Shipping, Outdoor (lbs.)
117
N/A
Performance Data @ ARI Standard Conditions (230/208V)
Cooling
Total Capacity (BTU/H)
SEER
Dehumidification (Pints/H)
Amps (A)
Power Inputs (W)
Outdoor Sound Rating (dB-A)
Heating
Total Capacity (BTU/H)
HSPF
Amps (A)
Power Inputs (W)
Outdoor Sound Rating (dB-A)
24,000
17.5
7.6
10.8/11.9
2,350
53
28,800
8.5
11.4/12.6
2,500
53
Features
Wireless Remote Controller
Wired Remote Controller
Controls
Remote Controller
Auto Changeover (Cool/Heat)
Timer
Temperature Control
Air Louver, Horizontal
Air Louver, Vertical
Power Failure Autmoatic Restart
Quiet Mode
Powerful Mode
Standard
Optional (CZ-RD516C)
Microprocessor
LCD Wireless Type, Temp. Sensor
Built In
Built-In
24 Hour/ Single Event-ON/OFF
IC Thermistor
Automatic
Automatic
Built-In
Built-In
Built-In
Operating Range
Indoor Air Intake Temp
Outdoor Air Intake Temp
Cooling (Max)
Cooling (Min)
Heating (Max)
Heating (Min)
90F DB/74F WB
60F DB/52F WB
86F DB/-F WB
60F DB/-F WB
115F DB
60F DB
75F DB/64F WB
5F DB/-F WB
4. Dimensions
Indoor
4.1 Dimensions
Indoor Unit
8
Panasonic North America
Air Conditioning Division
1690 Roberts Blvd., NW, Suite 110
Kennesaw, GA 30144
us.panasonic.com/aircon
