Panasonic E9NKUA Datasheet

Panasonic E9NKUA Datasheet

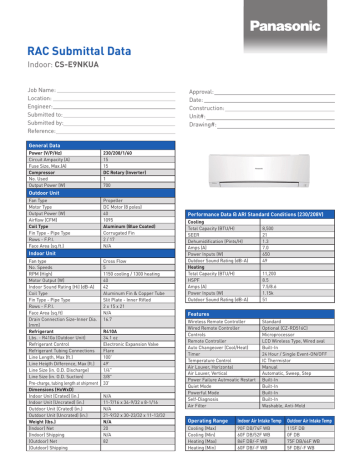

RAC Submittal Data
Indoor: CS-E9NKUA
Job Name:
Location:
Engineer:
Submitted to:
Submitted by:
Reference:
Approval:
Date:
Construction:
Unit#:
Drawing#:
General Data
Power (V/P/Hz)
Circuit Ampacity (A)
Fuse Size, Max.(A)
Compressor
No. Used
Output Power (W)
230/208/1/60
15
15
DC Rotary (Inverter)
1
700
Outdoor Unit
Fan Type
Motor Type
Output Power (W)
Airflow (CFM)
Coil Type
Fin Type - Pipe Type
Rows - F.P.I.
Face Area (sq.ft.)
Propeller
DC Motor (8 poles)
40
1095
Aluminum (Blue Coated)
Corrugated Fin
2 / 17
N/A
Indoor Unit
Fan type
No. Speeds
RPM (High)
Motor Output (W)
Indoor Sound Rating (Hi) (dB-A)
Coil Type
Fin Type - Pipe Type
Rows - F.P.I.
Face Area (sq.ft)
Drain Connection Size-Inner Dia.
(mm)
Refrigerant
Lbs. - R410a (Outdoor Unit)
Refrigerant Control
Refrigerant Tubing Connections
Line Length, Max (ft.)
Line Heigth Difference, Max (ft.)
Line Size (in. O.D. Discharge)
Line Size (in. O.D. Suction)
Pre-charge, tubing length at shipment
Dimensions (HxWxD)
Indoor Unit (Crated) (in.)
Indoor Unit (Uncrated) (in.)
Outdoor Unit (Crated) (in.)
Outdoor Unit (Uncrated) (in.)
Weight (lbs.)
(Indoor) Net
(Indoor) Shipping
(Outdoor) Net
(Outdoor) Shipping
Cross Flow
5
1150 cooling / 1300 heating
40
42
Aluminum Fin & Copper Tube
Slit Plate - Inner Rifled
2 x 15 x 21
N/A
16.7
R410A
34.1 oz
Electronic Expansion Valve
Flare
100'
49'
1/4"
3/8"
33'
N/A
11-7/16 x 34-9/32 x 8-1/16
N/A
21-9/32 x 30-23/32 x 11-13/32
N/A
20
N/A
82
Performance Data @ ARI Standard Conditions (230/208V)
Cooling
Total Capacity (BTU/H)
SEER
Dehumidification (Pints/H)
Amps (A)
Power Inputs (W)
Outdoor Sound Rating (dB-A)
Heating
Total Capacity (BTU/H)
HSPF
Amps (A)
Power Inputs (W)
Outdoor Sound Rating (dB-A)
8,500
21
1.3
7.0
650
49
11,200
8.5
7.5/8.6
1.15k
51
Features
Wireless Remote Controller
Wired Remote Controller
Controls
Remote Controller
Auto Changeover (Cool/Heat)
Timer
Temperature Control
Air Louver, Horizontal
Air Louver, Vertical
Power Failure Autmoatic Restart
Quiet Mode
Powerful Mode
Self-Diagnosis
Air Filter
Standard
Optional (CZ-RD516C)
Microprocessor
LCD Wireless Type, Wired aval
Built-In
24 Hour / Single Event-ON/OFF
IC Thermistor
Manual
Automatic, Sweep, Step
Built-In
Built-In
Built-In
Built-In
Washable, Anti-Mold
Operating Range
Indoor Air Intake Temp
Outdoor Air Intake Temp
Cooling (Max)
Cooling (Min)
Heating (Max)
Heating (Min)
90F DB/74F WB
60F DB/52F WB
86F DB/-F WB
60F DB/-F WB
115F DB
0F DB
75F DB/64F WB
5F DB/-F WB
Indoor Dimensions
Panasonic North America
Air Conditioning Division
1690 Roberts Blvd., NW, Suite 110
Kennesaw, GA 30144
us.panasonic.com/aircon
