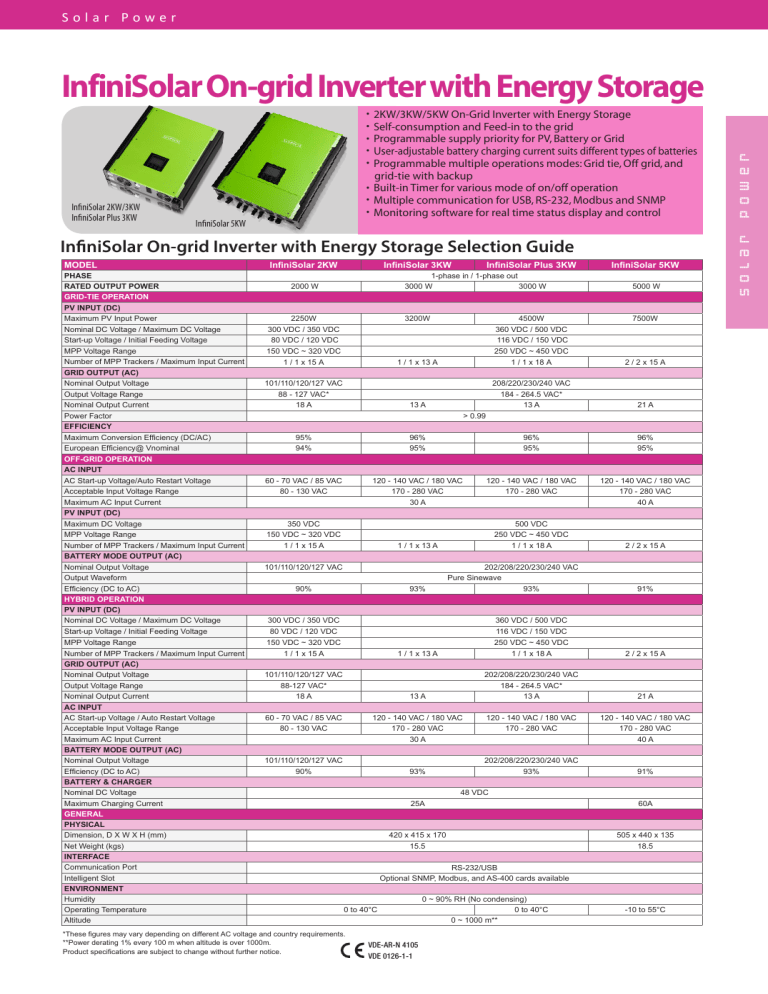

InfiniSolar On-grid Inverter with Energy Storage
Solar Power
InfiniSolar 5KW
InfiniSolar On-grid Inverter with Energy Storage Selection Guide
MODEL
PHASE
RATED OUTPUT POWER
GRID-TIE OPERATION
PV INPUT (DC)
Maximum PV Input Power
Nominal DC Voltage / Maximum DC Voltage
Start-up Voltage / Initial Feeding Voltage
MPP Voltage Range
Number of MPP Trackers / Maximum Input Current
GRID OUTPUT (AC)
Nominal Output Voltage
Output Voltage Range
Nominal Output Current
Power Factor
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)
European [email protected] Vnominal
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage
Acceptable Input Voltage Range
Maximum AC Input Current
PV INPUT (DC)
Maximum DC Voltage
MPP Voltage Range
Number of MPP Trackers / Maximum Input Current
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
Output Waveform
Efficiency (DC to AC)
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage
Start-up Voltage / Initial Feeding Voltage
MPP Voltage Range
Number of MPP Trackers / Maximum Input Current
GRID OUTPUT (AC)
Nominal Output Voltage
Output Voltage Range
Nominal Output Current
AC INPUT
AC Start-up Voltage / Auto Restart Voltage
Acceptable Input Voltage Range
Maximum AC Input Current
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
Efficiency (DC to AC)
BATTERY & CHARGER
Nominal DC Voltage
Maximum Charging Current
GENERAL
PHYSICAL
Dimension, D X W X H (mm)
Net Weight (kgs)
INTERFACE
Communication Port
Intelligent Slot
ENVIRONMENT
Humidity
Operating Temperature
Altitude
InfiniSolar 2KW
InfiniSolar 3KW
InfiniSolar Plus 3KW
1-phase in / 1-phase out
3000 W
3000 W
2000 W
2250W
300 VDC / 350 VDC
80 VDC / 120 VDC
150 VDC ~ 320 VDC
1 / 1 x 15 A
3200W
101/110/120/127 VAC
88 - 127 VAC*
18 A
InfiniSolar 5KW
5000 W
1 / 1 x 13 A
4500W
360 VDC / 500 VDC
116 VDC / 150 VDC
250 VDC ~ 450 VDC
1 / 1 x 18 A
7500W
2 / 2 x 15 A
13 A
208/220/230/240 VAC
184 - 264.5 VAC*
13 A
21 A
> 0.99
95%
94%
96%
95%
96%
95%
96%
95%
60 - 70 VAC / 85 VAC
80 - 130 VAC
120 - 140 VAC / 180 VAC
170 - 280 VAC
30 A
120 - 140 VAC / 180 VAC
170 - 280 VAC
120 - 140 VAC / 180 VAC
170 - 280 VAC
40 A
350 VDC
150 VDC ~ 320 VDC
1 / 1 x 15 A
500 VDC
250 VDC ~ 450 VDC
1 / 1 x 18 A
1 / 1 x 13 A
101/110/120/127 VAC
90%
93%
202/208/220/230/240 VAC
Pure Sinewave
93%
300 VDC / 350 VDC
2 / 2 x 15 A
91%
360 VDC / 500 VDC
80 VDC / 120 VDC
116 VDC / 150 VDC
150 VDC ~ 320 VDC
1 / 1 x 15 A
1 / 1 x 13 A
250 VDC ~ 450 VDC
1 / 1 x 18 A
2 / 2 x 15 A
13 A
202/208/220/230/240 VAC
184 - 264.5 VAC*
13 A
21 A
101/110/120/127 VAC
88-127 VAC*
18 A
60 - 70 VAC / 85 VAC
80 - 130 VAC
120 - 140 VAC / 180 VAC
170 - 280 VAC
30 A
101/110/120/127 VAC
90%
93%
120 - 140 VAC / 180 VAC
170 - 280 VAC
202/208/220/230/240 VAC
93%
120 - 140 VAC / 180 VAC
170 - 280 VAC
40 A
91%
48 VDC
25A
60A
420 x 415 x 170
15.5
505 x 440 x 135
18.5
RS-232/USB
Optional SNMP, Modbus, and AS-400 cards available
0 to 40°C
*These figures may vary depending on different AC voltage and country requirements.
**Power derating 1% every 100 m when altitude is over 1000m.
Product specifications are subject to change without further notice.
VDE-AR-N 4105
VDE 0126-1-1
0 ~ 90% RH (No condensing)
0 to 40°C
0 ~ 1000 m**
-10 to 55°C
Solar
InfiniSolar 2KW/3KW
InfiniSolar Plus 3KW
‧2KW/3KW/5KW On-Grid Inverter with Energy Storage
‧Self-consumption and Feed-in to the grid
‧Programmable supply priority for PV, Battery or Grid
‧User-adjustable battery charging current suits different types of batteries
‧Programmable multiple operations modes: Grid tie, Off grid, and
grid-tie with backup
‧Built-in Timer for various mode of on/off operation
‧Multiple communication for USB, RS-232, Modbus and SNMP
‧Monitoring software for real time status display and control
Power
InfiniSolar On-grid Inverter with Energy Storage
Solar Power
InfiniSolar On-grid Inverter with Energy Storage
S o la r
P o we r
• 10KW three phase on-grid inverter with energy storage
• Self-consumption and Feed-in to the grid
• Programmable supply priority for PV, Battery or Grid
• User-adjustable battery charging current suits different types of batteries
• Programmable multiple operations modes: Grid tie, Off grid,
and grid-tie with backup
• Built-in Timer for various mode of on/off operation
• Multiple communication for USB, RS-232, Modbus and SNMP
• Monitoring software for real time status display and control
Inifinisolar Three Phase On-grid Inverter with Energy Storage Selection Guide
MODEL
PHASE
RATED OUTPUT POWER
GRID-TIE OPERATION
PV INPUT (DC)
Maximum PV Input Power
Nominal DC Voltage / Maximum DC Voltage
Start-up Voltage / Initial Feeding Voltage
MPP Voltage Range
Number of MPP Trackers / Maximum Input Current
GRID OUTPUT (AC)
Nominal Output Voltage
Output Voltage Range
Nominal Output Current
Power Factor
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)
European [email protected] Vnominal
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage
Acceptable Input Voltage Range
Maximum AC Input Current
PV INPUT (DC)
Maximum DC Voltage
MPP Voltage Range
Number of MPP Trackers / Maximum Input Current
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
Output Waveform
Efficiency (DC to AC)
HYBRID OPERATION
PV INPUT (DC)
Nominal DC Voltage / Maximum DC Voltage
InfiniSolar 10KW
3-phase in / 3-phase out
10000 W
14850W
720 VDC / 900 VDC
320 VDC / 350 VDC
400 VDC ~ 800 VDC
2 / 2 x 18.6A
3/N/PE, 230VAC/400VAC*
184 - 264.5 VAC*
14.5 A*
> 0.99
96%
95%
120 - 140 VAC / 185 VAC*
175 - 280 VAC*
28 A
900 VDC
400 VDC ~ 800 VDC
2 / 2 x 18.6A
230 VAC*
Pure Sinewave
92%
720 VDC / 900 VDC
Start-up Voltage / Initial Feeding Voltage
320 VDC / 350 VDC
MPP Voltage Range
Number of MPP Trackers / Maximum Input Current
GRID OUTPUT (AC)
Nominal Output Voltage
Output Voltage Range
Nominal Output Current
AC INPUT
AC Start-up Voltage / Auto Restart Voltage
Acceptable Input Voltage Range
Maximum AC Input Current
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
Efficiency (DC to AC)
BATTERY & CHARGER
Nominal DC Voltage
Maximum Charging Current
GENERAL
PHYSICAL
Dimension, D X W X H (mm)
Net Weight (kgs)
INTERFACE
Communication Port
Intelligent Slot
ENVIRONMENT
Humidity
Operating Temperature
Altitude
400 VDC ~ 800 VDC
2 / 2 x 18.6A
230 VAC*
184 - 264.5 VAC*
14.5 A*
120 - 140 VAC / 198 VAC
184 - 264.5 VAC*
28A*
3/N/PE, 230VAC/400VAC*
91%
48 VDC
80A
155 x 438 x 600
45.5
RS-232/USB
Optional SNMP, Modbus, and AS-400 cards available
0 ~ 90% RH (No condensing)
-10 to 55°C
0 ~ 1000 m**
*These figures are based on VDE-4105 standard. All figures may vary depending on different AC voltage and country requirements.
** Power derating 1% every 100 m when altitude is over 1000m
Product specifications are subject to change without further notice.
