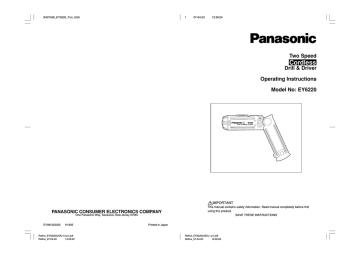

Two Speed
Cordless
Drill & Driver
Operating Instructions
Model No: EY6220
2
Lock
15min. CHARGE EY 6220
6
IMPORTANT
PANASONIC CONSUMER ELECTRONICS COMPANY
One Panasonic Way, Secaucus, New Jersey 07094
EY981062205
H1905
Refine_EY6220(USA).12.p1.pdf
Refine_07-04-20
13:26:25
This manual contains safety information. Read manual completely before first
using this product.
SAVE THESE INSTRUCTIONS
Printed in Japan
Refine_EY6220(USA).1.p1.pdf
Refine_07-04-20
13:26:28
EY6220取説(USA) 07.4.20 13:19 ページ2
B437428_EY6220_Tori_USA
EY6220取説(USA) 07.4.20 13:19 ページ3
2
07-04-23
13:36:04
Parts and Controls
I. GENERAL SAFETY RULES
E
D
A
2
WARNING! Read all instructions
Failure to follow all instructions listed
below may result in electric shock, fire
and/or serious injury. The term “power
tool” in all of the warnings listed below
refers to your mains operated (corded)
power tool and battery operated (cordless) power tool.
Lock
15min. CHARGE EY 6220
6
SAVE THESE INSTRUCTIONS
Work Area Safety
B
C
H
G
F
1) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
2) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or
dust.
Power tools create sparks which may
ignite the dust or fumes.
3) Keep children and bystanders away
while operating a power tool.
Distractions can cause you to lose control.
I
Electrical Safety
J
1) Power tool plugs must match the
outlet. Never modify the plug in any
way. Do not use any adapter plugs
with earthed (grounded) power tools.
Unmodified plugs and matching outlets
will reduce risk of electric shock.
2) Avoid body contact with earthed or
grounded surfaces such as pipes,
radiators, ranges and refrigerators.
There is an increased risk of electric
shock if your body is earthed or grounded.
3) Do not expose power tools to rain or
wet conditions.
Water entering a power tool will increase the risk of electric shock.
4) Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving
parts.
Damaged or entangled cords increase
the risk of electric shock.
5) When operating a power tool outdoors, use an extension cord suitable
for outdoor use.
Use of a cord suitable for outdoor use
reduces the risk of electric shock.
K
A Hexagonal bit holder
F Battery pack (EY9021)
B Clutch handle
G Battery pack release button
C Main switch
H Battery charger (EY0225)
D Speed selector switch
I #1 Philips bit
E Main switch lock
J Slotted head bit
K #2 Philips bit
–2–
Refine_EY6220(USA).2.p1.pdf
Refine_07-04-20
13:26:25
Personal Safety
1) Stay alert, watch what you are doing
and use common sense when operating a power tool. Do not use a power
tool while you are tired or under the
influence of drugs, alcohol or medication.
A moment of inattention while operating
power tools may result in personal injury.
2) Use safety equipment. Always wear
eye protection.
Safety equipment such as dust mask,
non-skid safety shoes, hard hat, or
hearing protection used for appropriate
conditions will reduce personal injuries.
3) Avoid accidental starting. Ensure the
switch is in the off position before
plugging in.
Carrying power tools with your finger on
the switch or plugging in the power tools
that have the switch on invites accidents.
4) Remove any adjusting key or wrench
before turning the power tool on.
A wrench or a key left attached to a
rotating part of the power tool may
result in personal injury.
5) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power
tool in unexpected situations.
6) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving
parts.
Loose clothes, jewellery or long hair can
be caught in moving parts.
7) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
Use of these devices can reduce dust
related hazards.
Power Tool Use and Care
1) Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job
better and safer at the rate for which it
was designed.
2) Do not use the power tool if the switch
does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous and
must be repaired.
-– 3 –Refine_EY6220(USA).3.p1.pdf
Refine_07-04-20
13:26:26
EY6220取説(USA) 07.4.20 13:19 ページ4
B437428_EY6220_Tori_USA
EY6220取説(USA) 07.4.20 13:19 ページ5
3
07-04-23
13:36:04
3) Disconnect the plug from the power
source and/or the battery pack from
the power tool before making any
adjustments, changing accessories,
or storing power tools.
Such preventive safety measures
reduce the risk of starting the power tool
accidentally.
4) Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands
of untrained users.
5) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other
condition that may affect the power
tools operation. If damaged, have the
power tool repaired before use.
Many accidents are caused by poorly
maintained power tools.
6) Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to
bind and are easier to control.
7) Use the power tool, accessories and
tool bits etc. in accordance with these
instructions and in the manner intended for the particular type of power
tool, taking into account the working conditions and the work to be performed.
Use of the power tool for operations
different from those intended could
result in a hazardous situation.
Battery Tool Use and Care
1) Ensure the switch is in the off position before inserting battery pack.
Inserting battery pack into power tools
that have the switch on invites accidents.
2) Recharge only with the charger specified by the manufacturer.
A charger that is suitable for one type
of battery pack may create a risk of fire
when used with another battery pack.
3) Use power tools only with specifically designated battery packs.
Use of any other battery packs may
create a risk of injury and fire.
4) When battery pack is not in use, keep it
away from other metal objects like paper
clips, coins, keys, nails, screws, or other
small metal objects that can make a
connection from one terminal to another.
Shorting the battery terminals together
may cause burns, or a fire.
5) Under abusive conditions, liquid may
be ejected from battery; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts
eyes, additionally seek medical help.
Liquid ejected from the battery may
cause irritation or burns.
Service
1) Have your power tool serviced by a
qualified repair person using only
identical replacement parts.
This will ensure that the safety of power
tool is maintained.
II. SPECIFIC SAFETY RULES
1) Wear ear protectors when using the
tool for extended periods.
Prolonged exposure to high intensity
noise can cause hearing loss.
2) Be aware that this tool is always in an
operating condition, since it does not
have to be plugged into an electrical
outlet.
3) Hold power tools by insulated gripping sur faces when performing an
operation where the cutting tool may
contact hidden wiring.
Contact with a “live” wire will make exposed metal parts of the tool “live” and
shock the operator.
4) If the bit becomes jammed, immediately
turn the main switch off to prevent an
overload which can damage the battery
pack or motor. Use reverse motion to
loosen jammed bits.
5) Do not touch the rotating parts to avoid
injury.
6) Do not use the tool continuously for a
long period of time. Stop using the tool
from time to time to avoid temperature
rise and heat overload of the motor.
7) Do not drop the tool.
Symbol
Meaning
V
Volts
Direct current
n0
No load speed
… min-1
Revolutions or reciprocations per
minutes
Ah
Electrical capacity of battery pack
WARNING!
Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contains chemicals known to the
State of California to cause cancer, birth
defects or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement
and other masonry products
• Arsenic and chromium from chemically-treated lumber.
To reduce your exposure to these chemicals: work in a well ventilated area, and
work with approved safety equipment,
such as dust masks that are specially
designed to filter out microscopic particles.
III. FOR BATTERY CHARGER & BATTERY PACK
Important Safety Instructions
1) SAVE THESE INSTRUCTIONS -This
manual contains important safety
and operating instructions for battery
charger EY0225.
2) Before using battery charger, read all
instructions and cautionary markings
on battery charger, battery pack, and
product using battery pack.
3) CAUTION -To reduce the risk of injury,
charge only Panasonic Battery Pack as
shown in last page.
Other types of batteries may burst
causing personal injury and damage.
4) Do not expose charger and battery pack
to rain or snow.
5) To reduce risk of damaging the electric
plug and cord, pull by plug rather than
-– 4 –Refine_EY6220(USA).4.p1.pdf
Refine_07-04-20
13:26:26
cord when disconnecting charger.
6) Make sure cord is located so that it
will not be stepped on, tripped over, or
otherwise subjected to damage or stress.
7) An extension cord should not be used
unless absolutely necessary.
Use of improper extension cord could
result in a risk of fire and electric shock.
If extension cord must be used, make
sure that:
a. pins on plug of extension cord are
the same number, size and shape as
those of plug on charger.
b. extension cord is properly wired and
in good electrical condition.
c. wire size is large enough for ampere
rating of charger as specified below.
RECOMMENDED MINIMUM AWG SIZE OF
EXTENSION CORDS FOR
BATTERY CHARGERS
AC Input Rating. Amperes
AWG Size of Cord
Equal to or
But less
Length of Cord,
greater than
than
Feet
25 50 100 150
0
2
18 18 18 16
8) Do not operate charger with damaged
cord or plug-replace them immediately.
9) Do not operate charger if it has received
a sharp blow, been dropped, or otherwise damaged in any way; take it to a
qualified service personnel.
10) Do not disassemble charger; take it
to a qualified service personnel when
service or repair is required. Incorrect
reassembly may result in a risk of electric shock or fire.
11) To reduce the risk of electric shock, unplug charger from outlet before attempting
any maintenance or cleaning.
12)The charger and battery pack are specifically designed to work together. Do
not attempt to charge any other cordless
tool or battery pack with this charger.
13)Do not attempt to charge the battery
pack with any other charger.
14)Do not attempt to disassemble the battery pack housing.
15)Do not store the tool and battery pack
in locations where the temperature may
reach or exceed 50°C (122°F) (such
as a metal tool shed, or a car in the
summer), which can lead to deterioration
of the storage battery.
-– 5 –Refine_EY6220(USA).5.p1.pdf
Refine_07-04-20
13:26:29
EY6220取説(USA) 07.4.20 13:19 ページ6
B437428_EY6220_Tori_USA
EY6220取説(USA) 07.4.23 13:17 ページ7
4
07-04-23
13:36:04
16)Do not charge battery pack when the
temperature is BELOW 0°C (32°F) or
ABOVE 40°C (104°F). This is very important in order to maintain optimal condition
of the battery pack.
17)Do not incinerate the battery pack. It
can explode in a fire.
18)Avoid dangerous environment. Do not
use charger in damp or wet locations.
19)The charger is designed to operate on
standard household electrical power
only. Do not attempt to use it on any
other voltage!
20)Do not abuse cord. Never carry charger
by cord or yank it to disconnect from
outlet. Keep cord away from heat, oil
and sharp edges.
21)Charge the battery pack in a well ventilated place, do not cover the charger
and battery pack with a cloth, etc., while
charging.
22)Use of an attachment not recommended may result in a risk of fire, electric
shock, or personal injury.
23)Do not short the battery pack. A battery
short can cause a large current flow,
over heating and create the risk of fire
or personal injury.
24)NOTE: If the supply cord of this appliance is damaged, it must only be replaced by a repair shop authorized by
the manufacturer, because special purpose tools are required.
25)TO REDUCE THE RISK OF ELECTRIC
SHOCK, THIS APPLIANCE HAS A
POLARIZED PLUG (ONE BLADE IS
WIDER THAN THE OTHER).
This plug will fit in a polarized outlet
only one way. If the plug does not fit
fully in the outlet, reverse the plug. If
it still does not fit, contact a qualified
electrician to install the proper outlet.
Do not change the plug in any way.
IMPORTANT NOTICE
PLEASE READ THIS ENTIRE
NOTICE BEFORE OPERATING
YOUR NEW PANASONIC
CORDLESS POWER TOOL!
PANASONIC’S CHARGING
SYSTEM UTILIZES A QUALITY HIGH
TEMPERATURE NICKEL CADMIUM
BATTERY PACK IN CONJUNCTION
WITH OUR SELF-DIAGNOSTIC
UNIVERSAL INVERTER CHARGER.
THIS HIGH TEMPERATURE NICKEL
CADMIUM BATTERY PACK
REQUIRES A “BREAK-IN PERIOD”
TO REACH MAXIMUM OPERATING
CAPACITY. THE
“BREAK-IN PERIOD” IS
ACCOMPLISHED DURING NORMAL
USAGE DURING THE FIRST 6-8
CHARGE AND DISCHARGE
CYCLES OF THE BATTERY PACK.
AFTER THE “BREAK-IN PERIOD” IS
COMPLETED, THE BATTERY
PACK WILL MAINTAIN MAXIMUM
OPERATING CAPACITY
THROUGHOUT THE NORMAL LIFE
OF THE BATTERY PACK.
ASSEMBLY &
OPERATION
Bit locking function
With the switch at off, the bit is locked in
place, and the tool can be used as a
manual screw-driver.
There will be a little play in the driving
shaft, but this is not a malfunction.
A Hexagonal driving shaft
NOTE: When attaching or removing
bit, be sure to set the main
switch lock at the lock position.
Select the suitable bit and lightly
push it into the hexagonal driving
shaft of the main unit.
CAUTION: Exact torque should be verified
with a torque wrench for precise limits as
the screw can be damaged.
Hexagonal driving shaft
Lock
Lock
6.35mm(1/4″)
11.5mm (7/16″)
C Main switch (ON/OFF)
Push the upper half of the switch for
forward ( ) rotation, or the lower half
for reverse ( ) rotation.
B Clutch handle
When using the tool for driving screws
into soft material or for terminal screws,
etc., there is the possibility of damaging
the material or threads if the torque is
too high. To compensate for this, the
clutch torque may be adjusted by turning
the clutch handle to the required setting.
Clutch position 1 is the minimum and the
clutch torque increases with positions 2,
3, 4, and 5. When the device is set at
position 6, the clutch will not slip and the
connection to the motor will be direct.
Lock
Main switch
D Speed selector switch
To suit the application of this tool, two
different rotational speeds are available.
Depending upon use, either the high or
low speed should be selected.
CAUTION: If the battery pack loses its
power during usage, the clutch may not
slip even at positions 4 or 5, if this
occurs, recharge the battery pack.
LOW
200min-1 (rpm)
strong torque
HIGH
400min-1 (rpm)
less torque
CAUTION: Check rotational speed
selection before operating this tool.
Low
High
Lock
Lock
Speed
selector switch
-– 6 –Refine_EY6220(USA).6.p1.pdf
Refine_07-04-20
13:26:29
–7–
Refine_EY6220(USA).7.p1.pdf
Refine_07-04-23
13:20:27
EY6220取説(USA) 07.4.20 13:20 ページ8
B437428_EY6220_Tori_USA
EY6220取説(USA) 07.4.20 13:20 ページ9
5
07-04-23
13:36:05
E Main switch lock
After use, set the main switch lock at
the lock position to prevent accidental operation.
Main switch
lock
G Battery pack release button
H Battery charger (EY0225)
1. Plug the charger into an AC outlet.
NOTE: Sparks may be produced
when the plug is inserted
into the AC power
supply, but this is not a
problem in terms of safety.
2. Insert the battery pack firmly into
the charger.
less than a full charge.)
NOTE: • Cool down the charger when
charging more than two
battery packs consecutively.
CAUTION: • Do not use power source
from an engine generator.
LAMP INDICATIONS
Lock
Battery
pack
Lock
$
To AC
outlet
Now charging
#
F Battery pack (EY9021)
CAUTION
Lit
Charging is completed
When you charge the battery pack
for the first time, or after prolonged
storage, charge it for about 24 hours
to bring the battery up to full capacity.
1. Press the battery pack release
buttons G on both sides and pull
the pack away from the tool.
2. Charge the battery pack using the
battery charger.
3. After the charging has been completed, remove the battery pack
from the charger and connect it to
the tool. Disconnect the charger
from the power source when not in
use.
Battery Pack Life
The rechargeable batteries have a
limited life. If the operation time
becomes extremely short after
recharging, replace the battery with a
new one.
Note: Use under extremely hot or
cold conditions will reduce
operation capacity per charge.
Charging lamp
Red
Battery
charger
3. During charging, the charging
lamp will be lit.
When charging is completed, an
internal electronic switch will automatically be triggered to prevent
overcharging.
B Charging will not start if the battery pack is warm (for example,
immediately after heavy-duty
operation). The orange standby
lamp will be lit until the battery
cools down. Charging will then
begin automatically.
4. When charging is completed, the
charging lamp will start flashing rapidly.
5. If a fully charged battery pack is
inserted into the charger again, the
charging lamp may light up and then
flash slowly. After several minutes,
the charging lamp may flash quickly
to indicate the charging is completed.
6. If the charging lamp does not light
immediately after the charger is
plugged in, or if after the standard
charging time the lamp does not go
off, consult an authorized dealer.
NOTE: • When a cold battery (of
about 5°C or less) is to be
charged in a warm room,
leave the battery in the room
for at least one hour and
charge it when it has warmed
up to room temperature.
(Failing to do so may result in
Flashing quickly
Battery pack is warm. Charging will begin
when temperature of battery pack drops.
Lit
Standby lamp
Orange
Charging is not possible. Clogged with
dust or malfunction of the battery pack.
Flashing
I #1 Philips bit
J Slotted head bit
K #2 Philips bit
Maintenance
Use only a dry, soft cloth for wiping the
unit. Do not use a damp cloth, thinner,
benzine, or other volatile solvents for
cleaning.
BATTERY RECYCLING
ATTENTION:
A nickel cadmium battery that is
recyclable powers the product you have
purchased. At the end of its useful life,
under various state and local laws, it is
illegal to dispose of this battery into your
municipal waste stream.
Please call 1-800-8-BATTERY for
information on how to recycle this battery.
–8–
Refine_EY6220(USA).8.p1.pdf
Refine_07-04-20
13:26:29
Charger is plugged into the AC outlet.
Ready to charge.
Flashing
–9–
Refine_EY6220(USA).9.p1.pdf
Refine_07-04-20
13:26:31
Download PDF

advertising
