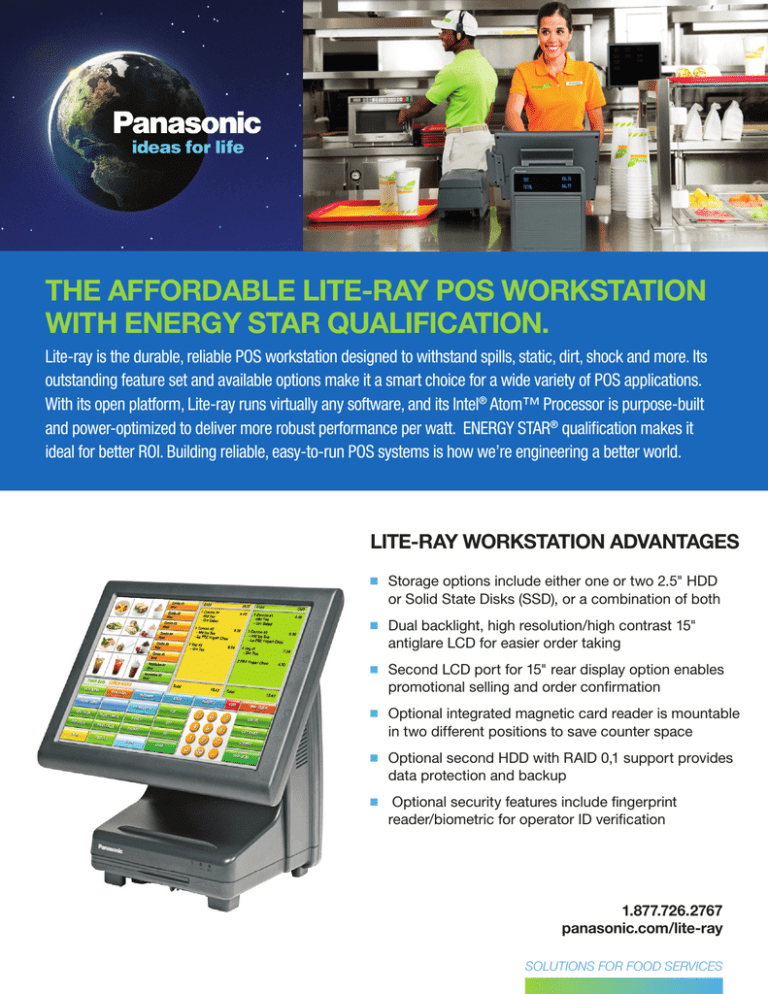

THE AFFORDABLE LITE-RAY POS WORKSTATION
WITH ENERGY STAR QUALIFICATION.
Lite-ray is the durable, reliable POS workstation designed to withstand spills, static, dirt, shock and more. Its
outstanding feature set and available options make it a smart choice for a wide variety of POS applications.
With its open platform, Lite-ray runs virtually any software, and its Intel® Atom™ Processor is purpose-built
and power-optimized to deliver more robust performance per watt. ENERGY STAR® qualification makes it
ideal for better ROl. Building reliable, easy-to-run POS systems is how we’re engineering a better world.
LITE-RAY WORKSTATION ADVANTAGES
■■ Storage
options include either one or two 2.5" HDD
or Solid State Disks (SSD), or a combination of both
■■ Dual
backlight, high resolution/high contrast 15"
antiglare LCD for easier order taking
■■ Second
LCD port for 15" rear display option enables
promotional selling and order confirmation
■■ Optional
integrated magnetic card reader is mountable
in two different positions to save counter space
■■ Optional
second HDD with RAID 0,1 support provides
data protection and backup
■■
Optional security features include fingerprint
reader/biometric for operator ID verification
1.877.726.2767
panasonic.com/lite-ray
SOLUTIONS FOR FOOD SERVICES
Common
Specifications
Environmental condition
POS Workstation
JS-925WS
Operating Temperature +5°C – +40°C
15% RH – 85% RH (no dew)
Operating Humidity
-30°C – +60°C
■■Storage Temperature
10%RH – 90%RH
■■Storage Humidity
■■
■■
CPU
Power supply input
Size
■■Mass
■■Backup battery I/F
Communication
board
■■Backup battery
(Spare parts)
■■Magnetic card reader
■■USB HUB board
JS-925CB-010 expansion IO I/F + speaker, I/F : expansion I/F - Line-OUT 1port - USB 2.0 2ports Din type drawer 1port (Same as JS-950WS) Note: The power of +12V, 1A is required to drive DIN type cash drawer
Ni-CD: N4HKLNB00007, Ni-MH: BT50024A, backup battery for AC power fail, Note: retention time: 2 minutes,
battery charge function
JS-950MG-010, Magnetic strip reader module, I/F : USB (internal connector for MSR) Virtual COM
JS-925HU-010, USB-HUB board, use for 2 USB ports of Display unit
Main Memory
■■
BIOS
■■
Supported OS
■■
HDD
■■
Other Disk Drive (Option)
Local Area Network
Display
■■
■■
Touch panel
■■
I/O ports
■■
Expansion I/F
Switch
■■LED
■■
■■
■■
■■
■■
Options
Type
Package
Frequency
Capacity
Slot
Type
Type
BIOS function
Intel® Atom N270
μFCBGA8
1.6GHz
Standard: 1GB (use 1 SO-DIMM slot) Maximum: 2GB
1 x DDR2 SO-DIMM slots, 200pin
DDR2-400/533/667
Flash ROM
ACPI 1.0b, APM 1.2, PXE boot, USB-FDD boot, USB-CD ROM/DVD ROM boot, USB Flash Memory boot
Windows XP SP3, WEPOS 1.1 SP3, POSReady 2009, Windows Vista Ultimate, Linux Kernel 2.6,
Windows Embedded 7, POSReady 7
2.5"
Type
160GB minimum
Size
SATA (2.5" type)
I/F
External USB FDD interface is supported
External USB DVD/CD-ROM interface is supported
Ethernet (10BASE-T/100BASE-TX) Note : Wake On LAN supported
TFT type LCD with dual backlight
Type
Display size/pixel 15": 1024 x 768 (XGA)
260,000 colors or more
Colors
15": 250 nits (without touch panel)
Brightness
5-wire resistive
Type
Interface
Serial
Life
30 million touches or more
Surface
Non-glare surface treatment
Serial
4 Ports 9pin D-SUB male - Note: 2 ports are powered
Video
1 Port 15pin D-SUB female - Note: The Dual Display function is supported
LAN
11 Port RJ-45
USB 2.0
2 USB ports: IO panel, 1 USB port: touch screen unit, 1 USB port: rear, 2 USB ports: IO panel (Option: JS-925CB)
Audio
1 port Line-out (Option: JS-925CB)
Cash drawer
RJ type drawer located on I/O panel
For communication board: JS-925CB -IO extension + Speaker
1 power switch (power on/off) - Shutdown activated by momentarily pushing the on/off button
1 power (2 colors: green, red) green ON: power ON red ON: power OFF 1 HDD (green)
Light ON: HDD accessing 1 LAN (green) Light ON: Send/Receive
AC100V-240V, 50/60 Hz, 1.6A
15”: Approx. W364mm x D291mm x H413mm, Carton box: Approx. W514mm x D358mm x H548mm
Net weight: Approx. 7.57 kg, Gross weight: Approx. 9.18 kg
Optional, note: retention time: 2 minutes
■■
■■
1.877.726.2767
panasonic.com/lite-ray
Panasonic is constantly enhancing product specifications and accessories. Specifications subject to change without notice.
Trademarks are property of their respective owners.© 2012 Panasonic Corporation of North America. All rights reserved.
