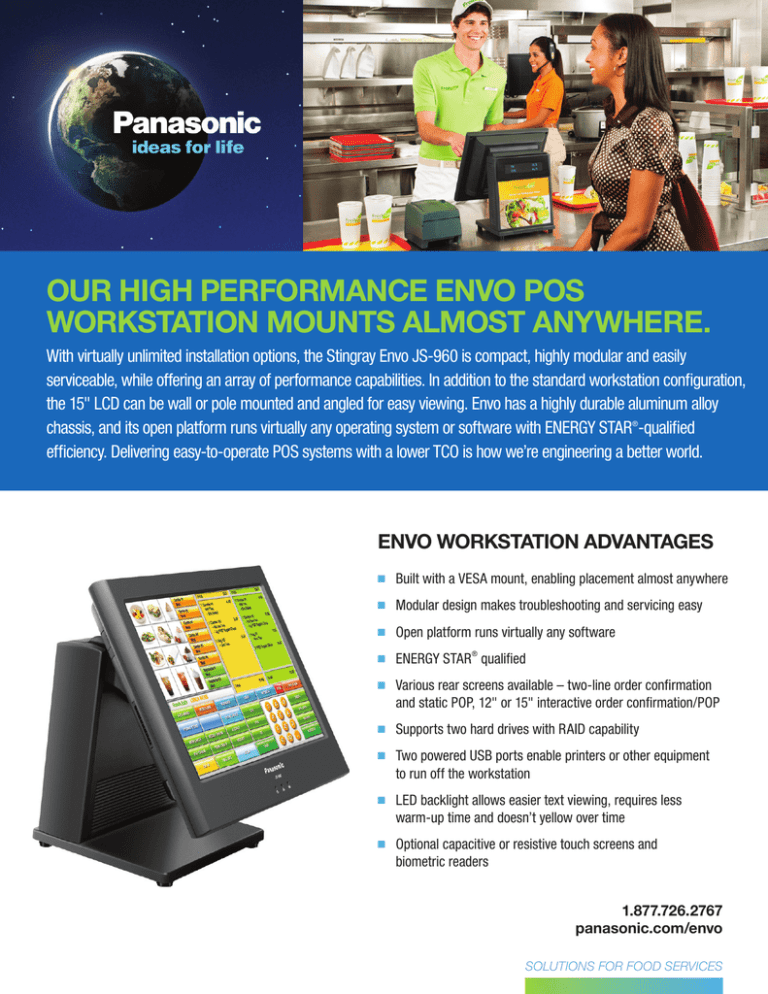

OUR HIGH PERFORMANCE ENVO POS
WORKSTATION MOUNTS ALMOST ANYWHERE.
With virtually unlimited installation options, the Stingray Envo JS-960 is compact, highly modular and easily
serviceable, while offering an array of performance capabilities. In addition to the standard workstation configuration,
the 15" LCD can be wall or pole mounted and angled for easy viewing. Envo has a highly durable aluminum alloy
chassis, and its open platform runs virtually any operating system or software with ENERGY STAR®-qualified
efficiency. Delivering easy-to-operate POS systems with a lower TCO is how we’re engineering a better world.
ENVO WORKSTATION ADVANTAGES
■
Built with a VESA mount, enabling placement almost anywhere
■
Modular design makes troubleshooting and servicing easy
■
Open platform runs virtually any software
■
ENERGY STAR® qualified
■
Various rear screens available – two-line order confirmation
and static POP, 12" or 15" interactive order confirmation/POP
■
Supports two hard drives with RAID capability
■
Two powered USB ports enable printers or other equipment
to run off the workstation
■
LED backlight allows easier text viewing, requires less
warm-up time and doesn’t yellow over time
■
Optional capacitive or resistive touch screens and
biometric readers
1.877.726.2767
panasonic.com/envo
SOLUTIONS FOR FOOD SERVICES
Stingray Envo
Upright
JS-960
Options
Stingray Envo
Intel P4500 dual core CPU (1.86Ghz)
Low Profile
Intel i5-520M (2.4Ghz)
JS-960
■■Chipset
Intel HM55 or QM57
■■Screen
15" TFT, LED backlit, 1024x768
■■LCD brightness
450 nit (without touch panel)
■■Touch panel
Capacitive or Resistive
■■System memory
2GB SO-DIMM, DDR3, up to 8GB, 2 slots
■■Video memory
256MB max (shared with system memory)
■■HDD
2.5" 250GB SATA HDD minimum
■■LAN (Ethernet)
10BASE-T/100BASE-TX/1000BASE-T
■■2nd display interface
DVI - I
■■USB ports
Enabled or disabled in BIOS
Total 10 (HM55) or 9 (QM57) USB ports
5 (HM55) or 4 (QM57) ports on IO panel
(1 x 12V powered, 1 x 24V powered)
2 ports on the bottom of the main unit
1 port inside display unit
2 ports inside display unit (dedicated)
■■COM ports
2 ports (HM55) or 3 ports (QM57)
■■Parallel port
1 port
■■Audio
Line out/mic in
■■Speaker
Built-in stereo speaker 1w x 1w
■■Cash drawer
1 x RJ12 (controls 2 drawers), 1 x Port 6 Pin DIN
■■System management
Wake on LAN, PXE
■■Power management
Integrated Power Supply
■■Power supply
AC100V - 240V
■■Supported OS
POSReady 2009
POSReady 7
Windows 7
Windows Embedded Standard 7
WEPOS 1.1
Windows XP Pro SP3
Windows XP Embedd ed
Linux kernel2.6
■■Mounting
No
■■Indicator
LED status indicator (LAN, PWR, HDD)
■■Dimension
14.3"W x 15.2"D x 16.3"H (364W x 386D x 412H mm)
■■Weight
Approx. 10.3 kg (22.7 lbs.)
■■Operating temperature
+5C to +40C (41F to 104F)
■■Humidity
15%RH to 85%RH (No condensation)
Processor
■■
Customer display
■■
MS
Fingerprint reader
■■2nd HDD
■■SSD
■■WiFi
■■
■■
2 line X 20char VFD, 1
12.1" Integrated LCD, 1
15" Semi-Integrated LCD
Integrated 3-track
Biometric fingerprint reader
Yes
2.5" SATA SSD
802.11 a/b/g/n USB module
Options
Intel P4500 dual core CPU (1.86Ghz)
Intel i5-520M (2.4Ghz)
■■Chipset
Intel HM55 or QM57
■■Screen
15" TFT, LED backlit, 1024x768
■■LCD brightness
450 nit (without touch panel)
■■Touch panel
Capacitive or Resistive
■■System memory
2GB SO-DIMM, DDR3, up to 8GB, 2 slots
■■Video memory
256MB max (shared with system memory)
■■HDD
2.5" 250GB SATA HDD minimum
■■LAN (Ethernet)
10BASE-T/100BASE-TX/1000BASE-T
■■2nd display inter face
DVI - I
■■USB ports
Enabled or disabled in BIOS
Total 10 (HM55) or 9 (QM57) USB ports
5 (HM55) or 4 (QM57) ports on IO panel
(1 x 12V powered, 1 x 24V powered)
2 ports on the bottom of the main unit
1 port inside display unit
2 ports inside display unit (dedicated)
■■COM ports
2 ports (HM55) or 3 ports (QM57)
■■Parallel port
1 port
■■Audio
Line out/mic in
■■Speaker
Built-in stereo speaker 1w x 1w
■■Cash drawer
1 x RJ12 (controls 2 drawers), 1 x Port 6 Pin DIN
■■System management
Wake on LAN, PXE
■■Power management
External AC adapter
■■Power supply
External AC adapter AC100V - 240V
■■Supported OS
POSReady 2009
POSReady 7
Windows 7
Windows Embedded Standard 7
WEPOS 1.1
Windows XP Pro SP3
Windows XP Embedded
Linux kernel2.6
■■Mounting
VESA100
■■Indicator
LED status indicator (LAN, PWR, HDD)
■■Dimension
Main unit only 14.3"W x 5.3"D x 12.9"H
(364W x 134D x 328H mm)
■■Weight
Approx. 5.6kg (12.3 lbs.)
■■Operating temperature
+5C to +40C (41F to 104F)
■■Humidity
15%RH to 85%RH (No condensation)
Processor
■■
■■
Customer display
■■
MSR
Fingerprint reader
■■2nd HDD
■■SSD
■■WiFi
■■
■■
2 line X 20char VFD, 1
12.1" Integrated LCD, 1
15" Semi-Integrated LCD
Integrated 3-track
Biometric fingerprint reader
No
2.5" SATA SSD
802.11 a/b/g/n USB modul
1.877.726.2767
panasonic.com/envo
Panasonic is constantly enhancing product specifications and accessories. Specifications subject to change without notice.
Trademarks are property of their respective owners.© 2012 Panasonic Corporation of North America. All rights reserved.
