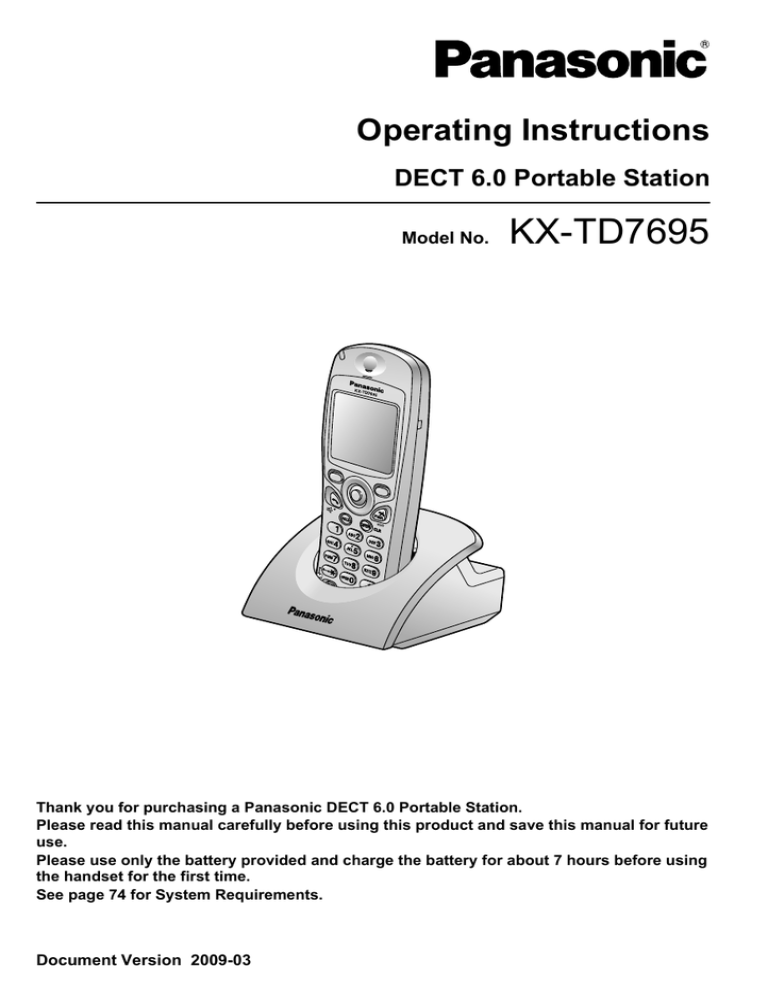

Operating Instructions
DECT 6.0 Portable Station
Model No.
KX-TD7695
Thank you for purchasing a Panasonic DECT 6.0 Portable Station.
Please read this manual carefully before using this product and save this manual for future
use.
Please use only the battery provided and charge the battery for about 7 hours before using
the handset for the first time.
See page 74 for System Requirements.
Document Version 2009-03
Table of Contents
Table of Contents
Before Initial Use ......................................................................................4
Accessories (included) ..................................................................................4
Installation ......................................................................................................5
Battery Installation ......................................................................................5
Charger Connection ....................................................................................5
Charging the Battery ...................................................................................6
Charger Wall Mounting ...............................................................................6
Attaching the Belt Clip .................................................................................7
Before Operating the Handset ................................................................8
Location of Controls ......................................................................................8
Key Lock .....................................................................................................9
Meeting Mode ...........................................................................................10
Residential Mode and Office Mode ...........................................................10
Selecting the Display Language .................................................................11
Editing the Standby Display Name .............................................................11
Editing the Names of the Flexible CO Keys ...............................................12
Adjusting the Ringer Volume ......................................................................13
Adjusting the Ringer Volume or Turning the Ringer off while
Ringing ..........................................................................................................13
Changing the Vibrate Setting ......................................................................14
Adjusting the Receiver/Speaker/Headset Volume ....................................14
Changing the Usage Mode (Residential Mode/Office Mode) ...................15
Display ..........................................................................................................16
Soft Keys .......................................................................................................17
Operation Outline for Residential Mode ....................................................19
Operation Outline for Office Mode .............................................................20
Function Menus ............................................................................................21
Function Keys ..............................................................................................22
Flexible CO Keys ..........................................................................................23
Operation ................................................................................................24
Making Calls .................................................................................................24
Searching for an item stored in the Phonebook ........................................28
Receiving Calls .............................................................................................31
Caller ID ....................................................................................................32
During a Conversation .................................................................................33
Useful Features ............................................................................................35
Making Use of the Voice Mail Service ........................................................39
Using the Handset Phonebook .............................................................41
Handset Phonebook ....................................................................................41
Private Ring ..............................................................................................41
Storing an Item in the Handset Phonebook ...............................................41
Storing a New Item ...................................................................................41
Editing a Stored Item ................................................................................42
Storing an Item Using the Predialing ........................................................43
Storing an Item Using the Outgoing Call Log ............................................43
2
Table of Contents
Storing an Item Using the Incoming Call Log ............................................44
Storing an Item Using the PBX System Phonebook .................................45
Storing an Item Using the PBX Extension Phonebook .............................46
Editing Category Names ...........................................................................46
Assigning Hot Keys .....................................................................................47
Entering Characters .....................................................................................48
Character Mode Table ..............................................................................49
Locking the Handset Phonebook ...............................................................50
Locking the Handset Phonebook ..............................................................50
Unlocking the Handset Phonebook ...........................................................50
Unlocking the Handset Phonebook Temporarily .......................................51
Deleting Stored Items ............................................................................52
Deleting Stored Items in Handset Phonebook/Hot Key Dial/Outgoing Call
Log/Incoming Call Log ................................................................................52
Handset Phonebook .................................................................................52
Hot Key Dial ..............................................................................................52
Outgoing Call Log .....................................................................................53
Incoming Call Log .....................................................................................53
Configuring Handset Settings ..............................................................54
Changing the Initial Settings .......................................................................54
Handset Setting Menu Layout ...................................................................55
Memo Alarm Setting .................................................................................62
Troubleshooting and Error Messages .................................................64
Troubleshooting ...........................................................................................64
Error Messages ............................................................................................66
Important Information ............................................................................67
Battery Information ......................................................................................67
Important Safety Instructions .....................................................................68
FCC and Other Information .........................................................................70
Customer Information ...............................................................................70
Other Important Information .......................................................................72
3
Before Initial Use
Please read “Important Information” on page 67 before using. Read and understand
all instructions.
Before Initial Use
Accessories (included)
AC adaptor .................... One Charger ......................... One Battery ........................... One
[Part No.]
[Part No.]
[Part No.]
PQLV207
PSWETD7695M
N4HHGMB00005 or
HHR-P103
Belt Clip ......................... One Battery Cover ................ One Screws and Washers .... Two
[Part No.]
[Part No.]
[Part No.]
PSKE1093Z1
PSYNTD7694MR
Screws: PQHE5004Y
Washers: XWG35FJ
•
4
To order accessories, call toll free 1-800-332-5368.
Before Initial Use
Installation
Battery Installation
Insert the battery, and close the cover as indicated below.
1
2
Charger Connection
Connect the AC adaptor to the charger.
•
To AC Outlet
•
•
The AC adaptor should be connected to
a vertically oriented or floor-mounted AC
outlet. Do not connect the AC adaptor to
a ceiling-mounted AC outlet, as the
weight of the adaptor may cause it to
become disconnected.
Fasten the AC adaptor cord to the cord
holder.
Use only the Panasonic AC adaptor
PQLV207.
WARNING
• To reduce the risk of fire or electric shock, do not overload AC outlets and extension
cords.
• Do not bundle the charger's AC adaptor cord with the power cords of machines located
nearby.
• Completely insert the AC adaptor/power plug into the AC outlet. Failure to do so may
cause electric shock and/or excessive heat resulting in a fire.
5
Before Initial Use
Charging the Battery
At the time of shipment, the battery is not charged. Please charge the battery for about
7 hours before using the handset for the first time.
•
To AC
Outlet
•
•
•
When the battery has been
completely charged, the charge
indicator will change from red to
green. For more information, refer
to “Battery Information” on page
67.
It is normal for the handset and
charger to feel warm while the
battery is charging.
Keep devices sensitive to
magnetic fields away from the
charger.
Use only the included charger.
Charger Wall Mounting
1. Install the two included screws in the wall, spacing them 24.5 mm (1 in)
apart.
24.5 mm
(1 in)
for charger
24.5 mm
(1 in)
Washer
Screws
Drive the screw
to this point.
•
•
6
2. Mount the charger securely on the wall.
Make sure that the wall that the charger will be attached to is strong enough to support
the weight of the handset and charger (240 g [0.53 lb]). If not, it is necessary for the
wall to be reinforced.
When this product is no longer in use, make sure to detach it from the wall.
Before Initial Use
Attaching the Belt Clip
You can attach the handset to your belt by following the steps below.
[To attach]
[To remove]
Allows phone straps and
similar objects to be
connected.
Insert the clip into the designated notches in the
handset.
Remove the belt clip.
7
Before Operating the Handset
Location of Controls
Before Operating the Handset
[Back View]
The headset is an option.
Please use only a
Panasonic headset below.
KX-TCA86/KX-TCA91/
KX-TCA92
A
J
B
C
Open the cover.
D
E
F
G
H
8
I
Speaker
K LPress POWER for
L more than 2 seconds.
[Power On]
M Standby mode
N [Power Off]
Blank display
Up
M
O
Left
Right
Down
You can use the
Joystick to move the
cursor in the desired
direction. Press the
center button to
confirm a selection.
Before Operating the Handset
J Display
A Ringer/Charger Indicator
Refer to “Display” on page 16.
B Headset Jack
C TALK/SP-PHONE (Speakerphone) Key K Left/Right Soft Key
Used to make or answer calls, or toggle
between the Receiver/Hands-free*1
mode during a conversation.
D HOLD Key
Used to place a call on Hold.
E Meeting Mode Key
Used to turn Meeting Mode on or off
when pressed for more than 2 seconds
in standby mode.
For more information, refer to “Meeting
Mode” on page 10.
F Message Key
Used to leave a message waiting
indication, or to call back the party who
left a message waiting indication.
G Charge Contact
H Microphone
I Receiver
Used to select the function displayed
directly above each key. Functions are
displayed based on the current context.
L POWER/CANCEL Key
Used to end calls, exit the Phonebook or
Function mode, or turn the handset on or
off.
M Joystick
Used to adjust the ringer/receiver
volume, select Function menus and the
function displayed directly above it, and
to move the cursor to select a desired
item.
N TRANSFER/CLEAR Key
Used to transfer a call to another party,
or to clear digits or characters.
O INTERCOM Key
Used to make or answer intercom calls.
*1 You can talk with the other party alternately through the speaker in a quiet room.
During a conversation using a headset, Hands-free mode does not work.
Key Lock
You can lock all keys other than the Joystick while the handset is in standby mode.
[Display Icon]
Unlocked
Locked
Press the Joystick for more than 2 seconds to
lock/unlock.
9
Before Operating the Handset
Meeting Mode
Meeting Mode allows you to turn off the ringer and set the handset to vibrate when calls are
received. This can be useful in situations where you do not want to be disturbed, such as
during a meeting.
When Meeting Mode is active, the microphone’s sensitivity is increased, and the following
features are turned off automatically, regardless of their settings.
– Ringer Volume
– Ring On Charger
– Auto Answer
– Key Tone
– Range Alarm
– Low Battery Alarm
•
If you set the handset on the charger during Meeting Mode, the handset will not
vibrate*1.
*1 Please note that if you set the handset on the charger while receiving an incoming call, vibration
will stop. Once the vibration stops, the handset will not vibrate again for that call, even if the handset
is lifted up again. (If Quick Answer is set, lifting up the handset will answer the call.)
Residential Mode and Office Mode
You can choose one of the following modes depending on how you intend to use the
handset:
– Residential Mode
This mode is designed for residential use.
– Office Mode
This mode is designed for business use.
Note
The soft keys and procedures vary depending on the mode.
Please note that the soft keys and procedures in this manual are based on Residential
mode.
For details about soft keys differences, see “Soft Keys” on page 17.
For details about procedure differences, see “Operation Outline for Residential Mode” on
page 19 and “Operation Outline for Office Mode” on page 20.
10
Before Operating the Handset
Selecting the Display Language
You can select the desired language (English/Spanish/French).
•
•
Press the
Joystick.
Select “
Setting
Handset”.
Press the
Joystick.
Select
“Display
Option”.
Press the
Joystick.
Select
“Language”.
Press the
Joystick.
Select the desired language.
(Auto/English/Español/
FRANÇAIS)
Press the
Joystick.
When set to “Auto”, the language settings of the PBX will be used.
The display language of both the handset and PBX can be selected, and both should
be set to the same language. For more information, refer to the user documentation for
your PBX.
Editing the Standby Display Name
You can edit the name of the standby mode display of the handset.
Press the Joystick. Select “
Setting
Handset”.
Press the Joystick. Select “Display
Option”.
Press the Joystick. Select
“Standby
Display”.
Press the Joystick. Select “Edit”.
Enter name.
(max. 16 characters)
Press the Joystick.
•
Press the Joystick.
To enter characters, see page 48.
11
Before Operating the Handset
Editing the Names of the Flexible CO Keys
You can edit a name for each flexible CO key of the handset.
Press the
Joystick.
Select “
Setting
Handset”.
Press the
Joystick.
Select “Key
Option”.
Press the
Joystick.
Select “F-CO
Key Name”.
Press the
Joystick.
Select the
desired base.
(Base 1-4)
Press the
Joystick.
Select the
desired flexible
CO key.
Enter name.
(max. 12 characters)
Press the
Joystick.
•
12
To enter characters, see page 48.
Press the
Joystick.
Before Operating the Handset
Adjusting the Ringer Volume
Press the Joystick. Select “
Ringer
Volume”.
Press the Joystick. Select the desired
setting. (Step Up/
Step Down/Level
1-6/Off)
Press the Joystick.
•
To set the ringer pattern, see page 56.
Adjusting the Ringer Volume or Turning the Ringer off
while Ringing
While receiving a call
[To adjust the ringer volume]
Move the Joystick UP or DOWN to adjust the volume.*1
[To turn the ringer off]
OR
Press the Joystick.
Press CANCEL.
*1 The adjusted volume level will also be used for subsequent calls.
•
If you attach the headset while receiving an incoming call, the ring from the handset
does not switch to the headset. If you attach the headset before receiving an incoming
call, and headset tone is set to on, a tone will be heard from the headset. If Vibrate is
set to on, the handset will vibrate whether a headset is attached or not.
13
Before Operating the Handset
Changing the Vibrate Setting
Press the
Joystick.
Select “
Setting
Handset”.
Press the
Joystick.
Select
“Vibrate”.
Press the
Joystick.
Select one of the following:
– Vib.& Ring
–
–
Select
“Incoming
Option”.
Press the
Joystick.
Press the
Joystick.
Vib.® Ring
Off
To set Vibrate only, without ringing, select “Vib.& Ring” and set the Ringer Volume
to off, or turn Meeting Mode on. (See page 10, 13.)
•
Adjusting the Receiver/Speaker/Headset Volume
During a conversation
Move the Joystick UP or DOWN to adjust the volume.
(Receiver Volume—Level 1-4, Speaker Volume—Level 1-6, Headset Volume—Level 1-4)
14
Before Operating the Handset
Changing the Usage Mode (Residential Mode/Office
Mode)
Press the
Joystick.
Select
“ResidentialMode”.
Select “
Setting
Handset”.
Press the
Joystick.
Press the
Joystick.
Select
“Other
Option”.
Select the desired mode:
– On: Residential mode
– Off: Office mode
Press the
Joystick.
Press the
Joystick.
15
Before Operating the Handset
Display
A
B
C
D
E
F
A
Within range of a Cell Station B
(CS)
Out of range
C
Intercom Indicator
Call Forwarding (See
page 35.)
Do Not Disturb (See
page 35.)
Ringer Volume OFF
(See page 13.)
Meeting Mode (See
page 10.)
Vibrate (See page 14.)
Off-hook Status
Message Waiting
Phonebook
Battery Indicator*1
Full
Low
Needs to be charged.
*1 Refer to “Battery Information” on page 67.
16
Extension Number and Name
To edit the standby display name, see
page 11.
Auto Answer
D
E
F
Incoming Call Log Status
Date and Time Display
Soft Keys (See page 17.)
Before Operating the Handset
Soft Keys
Icons and information shown on the display will vary depending on the context. To select
an item shown on the display, press the corresponding soft keys.
*2
Opens the Handset Phonebook.
Pressing this key for more than 2
seconds locks the Phonebook.*1
Displayed when in Special
character entry mode.
Pressing this key switches to
Alphabetic character entry mode.
Displayed when in Phonebook
Lock.
Pressing this key and then
entering the password (default:
1234), unlocks the Phonebook
temporarily.
Pressing for more than 2
seconds, then entering the
password (default: 1234), unlocks
the Phonebook.
Inserts a dialing pause.
Stores a new item in the
Phonebook.
Opens the PBX System
Phonebook.
*2
Turns the microphone mute on or
off during a conversation.
Flashes when Mic Mute is on.
Opens the PBX Extension
Phonebook.
Turns the ringer off.
Displays the caller information
stored in the Handset Phonebook
while receiving a call.
Opens the main menu.
Pressing this key for more than 2
seconds locks all keys.
Displays the caller information
stored in the system while
receiving a call.
*2
Clears digits or characters.
CLR
Establishes a multiple-party
conversation (Conference).
*2
Returns to the previous display.
*2
*2
Opens the list menu (edit/delete in
the Phonebook, etc.).
Searches for an item in the
Phonebook alphabetically.
Confirms the entry.
Displayed when in Alphabetic
character entry mode.
Pressing this key switches to
Numeric character entry mode.
Displayed when in Key Lock
mode. Pressing this key for more
than 2 seconds unlocks the keys.
Displayed when in Numeric
character entry mode.
Pressing this key switches to
Special character entry mode.
Advances to the next display.
17
Before Operating the Handset
*2
Displays the Outgoing Call Log.
Used to clear the Memo Alarm
display setting.
Displays the last dialed number.
Used to enter an “X” when storing
the Line Access CD.
Opens the Incoming Call Log.
*2
Opens the Incoming Call Log
Group.
Used to register the handset with
the PBX simply.
Used to select an item when in
setting mode.
Displayed when it is possible to
use an arrow key to make a
selection.
Used to select AM or PM when
setting the Memo Alarm feature.
Displayed when the
corresponding soft key has no
function.
Displays a list of flexible CO keys.
Displays a list of Phonebooks and
call logs.
*1 This function is only available in Office mode.
*2 This soft key appears only in Office mode.
18
Disconnects the current call and
make another call without
hanging up.
Before Operating the Handset
Operation Outline for Residential Mode
Handset functions are accessed through the display menu and selected with the Joystick
and soft keys.
[Function Keys]
[In standby mode]
[Flexible CO Keys]
OR
[Main Menu]
Select the desired item,
then press
.
“H/S Phonebook”
“PBX Phonebook”
*1 Moving the Joystick
•
“Incoming Log” *1
“Outgoing Log”
“EXT Phonebook”
“Group Log”
displays the phone number.
To enter characters, see page 48. To search for an item stored in the Phonebook, see
page 28.
19
Before Operating the Handset
Operation Outline for Office Mode
Handset functions are accessed through the display menu and selected with the Joystick
and soft keys. The guidance display is shown in standby mode for easy operation.
[Function Keys]
[In standby mode] *1
[Flexible CO Keys]
“H/S Phonebook”
“Incoming Log” *2
“Outgoing Log”
“PBX Phonebook”
“EXT Phonebook”
“Group Log”
[Main Menu]
*1 You can select whether the guidance display is shown or not. (See page 59.)
*2 Moving the Joystick
displays the phone number.
•
20
To enter characters, see page 48. To search for an item stored in the Phonebook, see
page 28.
Before Operating the Handset
Function Menus
Press the Joystick to display the main and sub menus.
Main Menu—While in Standby Mode
Ringer Volume:
Accesses the “Ringer Volume” setting.
New Phonebook:
Stores a new item in the Phonebook.
Memo Alarm:
Accesses the “Memo Alarm” settings.
Setting Handset:
Accesses the “Setting Handset” settings.
PBX Program:
Enters PBX Personal Programming mode.
For PBX Personal Programming, refer to the user
to exit from PBX
documentation for your PBX. Press
Personal Programming mode.
Sub Menu—While Off-hook/During a Conversation
Phonebook:
Opens the Phonebook.
New Phonebook:
Stores a new item in the Phonebook.
Outgoing Call Log:
Enters the Outgoing Call Log.
Incoming Call Log:
Enters the Incoming Call Log.
21
Before Operating the Handset
Function Keys
Functions of the handset can be activated through the display key list.
to display the feature key list.
Move the Joystick
1: Redial
Redials the last dialed number.
2: Fwd/DND
Displays and/or sets Call Forwarding and Do Not Disturb.
3: Flash/Recall
Disconnects the current call and make another call without hanging
up.
4: Auto Answer
Answers an incoming call automatically in hands-free
mode. “A.Ans” is displayed in standby mode.
5: Conference
Establishes a multiple-party conversation.
6: Pause
Inserts a dialing pause.
7: Auto Dial
Makes a call through PBX Personal/System Speed Dialing.
0: PBX Program
Enters PBX Personal Programming mode. Press
to exit from PBX
Personal Programming mode.
•
For PBX Personal Programming, refer to the user documentation for your PBX.
Shortcut Combinations
•
•
22
Redial
Conference
Fwd/DND
Pause
Flash/Recall
Auto Dial
Auto Answer
PBX Program
For operation, see page 24.
To edit the function key list, see page 58.
Before Operating the Handset
Flexible CO Keys
A flexible CO key can be used either to seize a line in order to make or receive an outside
or move the Joystick
to display
call (F-CO key), or used as a function key. Press
the flexible CO key list. Here you can access the 12 flexible CO keys. The icon shown beside
each F-CO key indicates line status similarly to the LED indicators on a Proprietary
Telephone; is the same as a green LED, and is the same as a red LED.
[Example]
Understanding the F-CO Key Icons*1
(on):
You are currently using this line.
(flashing rapidly):
You have an incoming call on this line.
(An outside call is coming in on a single extension.)
(flashing slowly):
You have a call on hold on this line.
(on):
This line is in use by someone else.
(flashing rapidly):
You have an incoming call on this line.
(An outside call is coming in on multiple extensions simultaneously.)
(flashing slowly):
Someone has a call on hold on this line.
(no icon):
This line is idle.
*1 The meanings of these icons vary depending on the status of the CO line.
to select the desired key
•
To select a key, press its key number, or move the Joystick
•
•
To edit the names of flexible CO keys, see page 12.
For more information, refer to the feature documentation for your PBX.
and press
.
23
Operation
Making Calls
Calling
Operation
To an extension
Extension No.
To an outside party
To use the Line Access Numbers
OR
Outside Phone No.
CO Line Group No.
To use Flexible CO Keys
(idle CO key no. [0-9, , #])
OR
OR
Outside Phone No.
(idle CO key)
To use Hot Key Dial*1
(Press the dialing key assigned as a Hot Key for more than 1 second.)
To use the Outgoing Call Log*2
Select “Outgoing
Log”.
To use the Incoming Call Log
Select “Incoming
Log”.
24
Operation
Calling
To use the Incoming Call Log Group
Incoming Call
Log Group No.
Select “Group
Log”.
To use the Handset Phonebook*3
Name*4
OR
(if required)
Select “H/S
Phonebook”.
To use the PBX System Phonebook*2 *3
Name*4
OR
(if required)
Select “PBX
Phonebook”.
To use the PBX Extension Phonebook*3
Name*4
OR
Select “EXT
Phonebook”.
(if required)
25
Operation
One-touch Dialing
To store
(“
PBX Program”)
OR
(F-CO Key)
Desired No.
To dial
(One-touch Dialing key)
Hot Line
To store
Desired Phone No.
To set/cancel
Set
Cancel
To dial
Operator Call
System Speed Dialing
To dial
System Speed Dial No. (3 digits)
Doorphone Call
Doorphone No. (2 digits)
26
Operation
Automatic Callback Busy
To set
While hearing a busy tone
To cancel
To answer from an idle extension
While hearing a callback ring
To answer from an idle CO line
While hearing a callback ring
Outside Phone No.
*1 To assign a phone number to a Hot Key, see page 47.
*2 When a call is made using the PBX System Phonebook, the called party’s name is not stored in
the Outgoing Call Log. To log the name as well as the number, copy the item into the Handset
Phonebook before dialing it. (See page 45.)
*3 To store an item in the Phonebook, see page 41.
To search for an item stored in the Phonebook, see page 28.
*4 This step can be omitted.
•
•
•
To enter characters, see page 48.
You can confirm that the number was dialed correctly before calling (Predialing) by
entering the number, then pressing
.
for more than 1 second.
To clear an entire number while predialing, press
If an outside call is received from a phone number stored in the Handset Phonebook,
the number and name of the caller will be displayed in the call log.
To cancel dialing, press
.
•
•
If “
” flashes, move closer to the CS and dial again.
For more information, refer to the user documentation for your PBX.
•
•
27
Operation
Searching for an item stored in the Phonebook
You can search for an item in the Phonebook by following the steps below.
Handset Phonebook
Scrolling through all items
Press the
Left Soft Key.
Select “H/S
Phonebook”.
Press the
Joystick.
Press the Joystick UP or
DOWN repeatedly.
Searching by name or first character(s) of name
Enter name or first character
of the desired name.
Press the
Left Soft Key.
Select “H/S
Phonebook”.
Press the
Joystick.
OR
Move the Joystick
UP or DOWN.
Press the
Joystick.
Select the desired
item. (if required)
Searching by category
Press the
Left Soft Key.
Select “H/S
Phonebook”.
*1 This step can be omitted.
•
28
To enter characters, see page 48.
Select the desired
Category Number.
OR
Enter
name.*1
Press the
Joystick.
Press #.
Press the
Joystick.
Press the
Joystick.
Move the
Joystick UP
or DOWN.
Select the
desired item.
(if required)
Operation
•
While an item is displayed you can:
–
–
Return to the “<Enter Name>” display by pressing
, then search for another
item.
Search for another item by pressing the dial key that corresponds to the letter you
are searching for. If there is no entry that corresponds to the letter you selected, the
next entry will be displayed.
PBX System Phonebook
Scrolling through all items
Press the
Left Soft Key.
Select “PBX
Phonebook”.
Press the
Joystick.
Press the Joystick UP or
DOWN repeatedly.
Searching by name or first character(s) of name
Enter name or first character
of the desired name.
Press the
Left Soft Key.
Select “PBX
Phonebook”.
Press the
Joystick.
OR
Press the
Joystick.
•
•
Move the Joystick
UP or DOWN.
Select the desired
item. (if required)
To enter characters, see page 48.
While an item is displayed you can:
–
–
, then search for another
Return to the “<Enter Name>” display by pressing
item.
Search for another item by pressing the dial key that corresponds to the letter you
are searching for. If there is no entry that corresponds to the letter you selected, the
next entry will be displayed.
29
Operation
PBX Extension Phonebook
Scrolling through all items
Press the
Left Soft Key.
Select “EXT
Phonebook”.
Press the
Joystick.
Press the Joystick UP
or DOWN repeatedly.
Searching by name or first character(s) of name
Enter name or first
character of the
desired name.
Press the
Left Soft Key.
Select “EXT
Phonebook”.
Press the
Joystick.
OR
Press the
Joystick.
•
•
Select the desired
item. (if required)
To enter characters, see page 48.
While an item is displayed you can:
–
–
30
Move the Joystick
UP or DOWN.
Return to the “<Enter Name>” display by pressing
, then search for another
item.
Search for another item by pressing the dial key that corresponds to the letter you
are searching for. If there is no entry that corresponds to the letter you selected, the
next entry will be displayed.
Operation
Receiving Calls
Receiving
An Intercom Call/An Outside Call/An Group Call
An Intercom Call
An Outside Call on a specific line
(rapidly flashing F-CO key [0-9, , #])
OR
OR
(rapidly flashing F-CO key)
Call Pickup
Directed
Extension No.
Group
Group No. (2 digits)
•
•
•
You can also answer a call with the following features:
– Any Key Answer (See page 58.)
– Quick Answer (See page 58.)
– Auto Answer (See page 58.)
You can select the ringer, LED, and vibrate pattern for each type of incoming call. (See
page 56.)
For more information, refer to the user documentation for your PBX.
31
Operation
Caller ID
If an outside call that contains Caller ID information (a caller’s name and telephone number)
is received, this information will be logged in the incoming call log and displayed on the
handset in one of the two following ways.
– If the caller’s information is stored in the PBX, that information can be displayed.
–
If the caller’s information is stored in the handset, that information can be displayed.
•
If information is stored in both the PBX and in the handset for the same caller, you can
choose which information will be displayed on the handset. Caller information stored in
the PBX is displayed by default. (See “Caller ID Disp” on page 59.) If you set the
handset to display the caller information stored in the handset, caller information stored
in the PBX will be displayed if the caller is not stored in the handset. When receiving a
call, you can display the information stored in the handset by pressing
, and display
the information stored in the PBX by pressing
•
32
.
The caller information can be displayed even if a line access number, CO line number,
or P (
) is stored in the Phonebook. (See “Line Access CD” on page 61.)
Operation
During a Conversation
Transferring a Call
To an extension
Extension No.
To an outside party
OR
Outside Phone No.
CO Line Group No.
Holding
To hold (Regular Hold)
To hold (Exclusive Call Hold)
To retrieve a call
An Intercom Call
An Outside Call
(slowly flashing F-CO key [0-9,
OR
, #])
OR
(slowly flashing F-CO key)
33
Operation
Three-party Conference
To add another party during a conversation
Desired Phone No.
Select “Conference”.
Press the Joystick.
(Talk to the new party.)
Select “Conference”.
(Talk with multiple parties.)
Press the Joystick.
To leave a conference
Select “Conference”.
•
•
•
•
34
Press the Joystick.
To return to the call before the transfer destination answers, press .
The method used to hold a call depends on the Call Hold mode (Regular Hold/Exclusive
Call Hold). Ask your manager what the current mode is.
When you hold several outside calls, you need to assign F-CO Keys (Single Line/Loop
Line/Trunk Group) as necessary beforehand.
For more information, refer to the user documentation for your PBX.
Operation
Useful Features
Call Forwarding
Both Calls
Outside Calls
Intercom Calls
All Calls
Busy
No answer
Busy/No answer
Destination
Extension No.
OR
CO Line
Access
No.
Outside
Phone
No.
Cancel
Follow Me
Follow Me Cancel
Your Extension No.
Do Not Disturb
Both Calls
Outside Calls
Intercom Calls
Set
Cancel
Sending a Call Waiting Tone*1
While hearing a busy tone
Wait for an answer.
Call Waiting
To set/cancel for intercom calls
No call
Tone
To set/cancel for outside calls
No tone
Tone
35
Operation
Call Waiting
To talk to the new party (While hearing the Call Waiting tone)
To terminate a current status
To hold and then talk to the new party
OR
(rapidly flashing F-CO Key [0-9, , #])
OR
OR
(rapidly flashing F-CO Key)
OR
Disregard this step if both parties are extensions.
Paging
To page
Paging Group No. (2 digits)
Wait for an answer.
To answer
36
(Announce)
Operation
Absent Message
To set
*2
Will Return Soon
Gone Home
At Ext %%%% + Extension no.
Back at %%:%% + Hour:Minute
Out until %%/%% + Month/Day
In a Meeting
Enter required no.
To cancel
Log-in/Log-out
For Log-in
Specified
ICD Group* Extension No.
For Log-out
All
* ICD Group: Incoming Call Distribution Group
Extension Feature Clear
Extension Dial Lock*3
To lock
To unlock
Extension PIN* (max. 10 digits)
* PIN: Personal Identification Number
37
Operation
Message Waiting
Caller
To leave a message waiting indication
When the called extension is busy or does not answer
OR
To cancel a message waiting indication
Desired Extension No.
Called extension
To call back
OR
To clear message waiting indications left on your extension*4
Your Extension No.
*1 You cannot send a call waiting tone when
– the called party has not set the Call Waiting feature.
– the called party has set the Data Line Security feature.
*2 Enter the desired value in the “%” positions. You must enter the correct number of characters as
represented by the “%” using 0 to 9 or .
To change the default messages and create your personal messages (Message no. 9), refer to the
documentation for your PBX.
*3 If you do not set an extension PIN, you cannot lock and unlock your extension.
*4 You can register a flexible CO key to the clear message waiting indications feature (for one-touch
operation).
To register
(“
PBX Program”)
(F-CO Key)
Your Extension No.
To clear message waiting indications (one-touch operation)
(One-touch dialing key)
•
38
For more information, refer to the user documentation for your PBX.
Operation
Making Use of the Voice Mail Service
Listening to a Message
From your own extension
KX-TVA series
VPS* Extension No.
Listen to Message
Deliver Message
Mailbox Management
Automated Attendant
Message Notification
Other Features
End Call
Mailbox Password*1 +
•
If you have no password, you can skip the last
step.
* VPS: Voice Processing System
KX-TVS series
From someone else’s extension
Listen to Message
Deliver Message
Check Mailbox Distribution
Automated Attendant
Mailbox Management
Other Features
End Call
VPS Extension No.
Mailbox No.
Mailbox Password*1 +
•
If you have no password, you can skip the last
step.
Leaving a Message
From your own extension
Mailbox Password*1 +
VPS Extension No.
From someone else’s extension
Mailbox No.
Mailbox Password*1 +
•
If you have no password, you can skip the last step.
Enter the desired mailbox no.
Leave a message
To send the message immediately
(KX-TVA series)
(KX-TVS series)
Follow the guidance
To set the delivery time
39
Operation
During Playback
Repeat Voice Guidance
Exit Menu
*1 For more information on the Mailbox Password, refer to the user documentation for the VPS.
•
40
Some feature access numbers may vary depending on the market. Please consult your
local dealer for the details.
Using the Handset Phonebook
Handset Phonebook
Using the Handset Phonebook
You can store up to 100 items with names, phone numbers, and category numbers in the
handset for easy access. You can set unique Ringer/LED/Vibrate patterns for each category
to identify incoming calls. All Phonebook items are stored in alphabetical order. For security
purposes, you can lock the Phonebook. To make a call using the Phonebook, see page
24.
Note
We recommend that you keep a copy of your Handset Phonebook in case data becomes
unrecoverable due to product malfunction.
Private Ring
You can organize entries in the Phonebook into one of 9 Private Ring Categories. It is
possible to set a different ringer/LED/vibrate pattern*1 for each category. When the
displayed Caller ID*2 matches a phone number or name stored in the Phonebook, the
handset rings according to the Private Ring Category settings.
*1 For Ringer/LED/Vibrate patterns, see page 56.
*2 For Caller ID information, see “Caller ID” on page 32.
Storing an Item in the Handset Phonebook
Storing a New Item
Enter name.
(max. 16 characters)
Press the
Joystick.
Select “
New
Phonebook”.
Press the
Joystick.
OR
Press the
Joystick.
Move the
Joystick UP or
DOWN.
Select the desired category number
(1-9) or Off.
Enter phone number.
(max. 32 digits)
Press the
Joystick.
•
To enter characters, see page 48.
•
The valid digits are “0” through “9”, “ ”, “#”, “P (
Press the
Joystick.
Press the Joystick
for “Save”.
)”.
41
Using the Handset Phonebook
•
When storing an outside phone number, you should first store a line access number.
Editing a Stored Item
Enter name.*1
Press the Left
Soft Key.
Press the
Joystick.
Select “H/S
Phonebook”.
OR
Press the
Joystick.
Move the
Joystick UP
or DOWN.
Select the desired
item. (if required)
Press the
Joystick.
Edit name.
(max. 16 characters)
Select “Edit”.
Press the
Joystick.
OR
Edit phone number.
(max. 32 digits)
Press the
Joystick.
Move the
Joystick UP
or DOWN.
Select the desired category
number (1-9) or Off.
Press the
Joystick.
Press the Joystick
for “Save”.
Press the
Joystick.
*1 This step can be omitted.
•
•
To enter characters, see page 48.
To search for an item in the Phonebook, see page 28.
•
The valid digits are “0” through “9”, “ ”, “#”, “P (
•
To change a character or digit, move the Joystick
to highlight it, press
to delete
it, then enter the new character or digit.
To clear an entire line, press
for more than 1 second.
To move the cursor to the left or right, move the Joystick
or
, respectively.
•
•
42
)”.
Using the Handset Phonebook
Storing an Item Using the Predialing
Enter name.
(max. 16
characters)
Enter phone number.
(max. 32 digits)
Press the
Joystick.
OR
Press the
Joystick.
Move the
Joystick UP
or DOWN.
Select the desired category
number (1-9) or Off.
Edit phone
number.
(max. 32
digits)
Press the
Joystick.
OR
Press the
Joystick.
Press the Joystick
for “Save”.
Storing an Item Using the Outgoing Call Log
Press the Left
Soft Key.
Press the
Joystick.
Select “Outgoing
Log”.
Select “Save
Phonebook”.
Press the
Joystick.
Press the
Joystick.
Select the desired
item.
Enter a name, phone
number, and select
the category number
(1-9) or Off.*1
Press the Joystick
for “Save”.
*1 Press
•
to confirm each entry. (name: max. 16 characters/phone number: 32 digits)
When storing an outside phone number, the line access number will be stored
automatically. The line access number must be identical to the handset’s “Line
Access CD” setting (Other Option). (See page 61.)
43
Using the Handset Phonebook
Storing an Item Using the Incoming Call Log
Press the Left
Soft Key.
Select “Incoming
Log”.
Press the
Joystick.
Select the
desired item.
Press the
Joystick.
Enter a name, phone number,
and select the category number
(1-9) or Off.*1
Select “Save
Phonebook”.
Press the
Joystick.
Press the Joystick for “Save”.
*1 Press
•
44
to confirm each entry. (name: max. 16 characters/phone number: 32 digits)
When storing an outside phone number, the line access number will be stored
automatically. The line access number must be identical to the handset’s “Line
Access CD” setting (Other Option). (See page 61.)
Using the Handset Phonebook
Storing an Item Using the PBX System Phonebook
Enter name.*1
Press the Left
Soft Key.
Select “PBX
Phonebook”.
Press the
Joystick.
OR
Press the
Joystick.
Move the
Joystick UP
or DOWN.
Select the
desired item.
(if required)
Press the
Joystick.
Enter a name, phone
number, and select the
category number (1-9)
or Off.*2
Select “Save
Phonebook”.
Press the
Joystick.
Press the Joystick
for “Save”.
*1 This step can be omitted.
*2 Press
to confirm each entry. (name: max. 16 characters/phone number: 32 digits)
•
To search for an item in the Phonebook, see page 28.
45
Using the Handset Phonebook
Storing an Item Using the PBX Extension Phonebook
Enter name.*1
Press the Left
Soft Key.
Select “EXT
Phonebook”.
Press the
Joystick.
OR
Press the
Joystick.
Move the
Joystick UP or
DOWN.
Select the
desired item.
(if required)
Press the
Joystick.
Enter a name, phone
number, and select the
category number (1-9)
or Off.*2
Select “Save
Phonebook”.
Press the Joystick
for “Save”.
Press the
Joystick.
*1 This step can be omitted.
*2 Press
to confirm each entry. (name: max. 16 characters/phone number: 32 digits)
•
To search for an item in the Phonebook, see page 28.
Editing Category Names
You can edit the names of the categories in the Handset Phonebook.
Press the
Joystick.
Select “
Setting
Handset”.
Press the
Joystick.
Select
“Display
Option”.
Press the
Joystick.
Select
“Category
Name”.
Press the
Joystick.
Select the desired category
number (1-9).
Press the
Joystick.
Enter name.
(max. 15 characters)
Press the
Joystick.
46
Using the Handset Phonebook
Assigning Hot Keys
You can assign a phone number stored in the Handset Phonebook to a key to be used as
a Hot Key.
Enter name.*1
Press the Left
Soft Key.
Select “H/S
Phonebook”.
Press the
Joystick.
OR
Press the
Joystick.
Move the
Joystick UP
or DOWN.
Select “Regist.Hot Press the
Joystick.
Key”.
Select the
desired item.
(if required)
Select a blank hot
key number (0-9).
Press the
Joystick.
Press the
Joystick.
Press the
Joystick for “Save”.
*1 This step can be omitted.
•
•
To search for an item in the Phonebook, see page 28.
A “ ” will be displayed next to hot key numbers that have a Phonebook item registered
to them.
47
Using the Handset Phonebook
Entering Characters
You can enter characters and digits using the dialing keys.
You can select one of 3 character modes by pressing the Right Soft
Key while entering a name. The function icon above the soft key displays
the current character mode.
See “Character Mode Table” (page 49) for available characters.
A, a
B, b
C, c
2
To change the character mode while editing a name in the Phonebook, press the Right Soft
Key.
Alphabet
Numeric
Extended
Example: To enter “Anne” in Alphabet Mode.
•
•
•
To switch between uppercase and lowercase, press
.
To enter a character located on the same dialing key as the previous character, move
the cursor by moving the Joystick
, then enter the desired character.
to highlight the
If you enter a different character by mistake, move the Joystick
character, press
to delete it, then enter the correct character.
To clear an entire line, press
for more than 1 second.
•
To move the cursor, move the Joystick
•
48
.
Using the Handset Phonebook
Character Mode Table
Keys
ABC (Alphabet)
0-9
(Numeric)
+ÀÂ (Extended)
1
2
3
4
5
6
7
8
9
0
•
•
Press
before or after entering a character to change between uppercase and
lowercase.
Pressing a key repeatedly will cycle through the characters associated with that key. For
example, to enter the letter “C”, press
three times.
49
Using the Handset Phonebook
Locking the Handset Phonebook
You can lock/unlock the Phonebook while the handset is in standby mode.
Locking the Handset Phonebook
Press the
Joystick.
Select
“Phonebook
Lock”.
Select “
Setting
Handset”.
Press the
Joystick.
Press the
Joystick.
Select
“Other
Option”.
Select “On”.
Press the
Joystick.
Press the
Joystick.
Unlocking the Handset Phonebook
Press the
Joystick.
Select “
Setting
Handset”.
Press the
Joystick.
Select
“Other
Option”.
Press the
Joystick.
Enter your
Password*1.
(default: 1234)
Select
“Phonebook
Lock”.
50
Press the
Joystick.
Select “Off”.
Press the
Joystick.
Using the Handset Phonebook
Unlocking the Handset Phonebook Temporarily
Press the Left Soft
Key.
Enter your
Password*1.
(default: 1234)
Select “H/S
Phonebook”.
Press the Joystick.
You can view the Phonebook and use it to make calls.
Still locked.
Press CANCEL.
*1 To change the password, see page 61.
51
Deleting Stored Items
Deleting Stored Items
Deleting Stored Items in Handset Phonebook/Hot Key
Dial/Outgoing Call Log/Incoming Call Log
Handset Phonebook
Enter name.*1
Press the Left
Soft Key.
Select “H/S
Phonebook”.
Press the
Joystick.
OR
Press the
Joystick.
Select “Delete”.*2
Move the
Joystick UP
or DOWN.
Press the
Joystick.
Select the
desired item.
(if required)
Select “Yes”.
Press the
Joystick.
Press the
Joystick.
*1 This step can be omitted.
*2 Select “Delete All” if you want to delete all items.
•
To search for an item in the Phonebook, see page 28.
Hot Key Dial
Press the dialing
key for more than 1
second.
Select the desired
item.
Press the
Joystick.
Press the
Joystick.
Select “Yes”.
Press the
Joystick.
*1 Select “Delete All” if you want to delete all items.
52
Select
“Delete”.*1
Deleting Stored Items
•
If you delete a Phonebook item that you also assigned to a Hot Key, the Hot Key Dial is
also deleted. (See page 47.)
Outgoing Call Log
Press the Left
Soft Key.
Select “Outgoing
Log”.
Press the
Joystick.
Press the
Joystick.
Select “Delete”.
Press the
Joystick.
Press the Left
Soft Key.
Select “Incoming
Log”.
Press the
Joystick.
Press the
Joystick.
Select “Delete”.
Press the
Joystick.
Select the desired
item.
Select “Yes”.
Press the
Joystick.
Incoming Call Log
Select the desired
item.
Select “Yes”.
Press the
Joystick.
53
Configuring Handset Settings
Configuring Handset Settings
Changing the Initial Settings
You can customize the handset by editing the settings found under “Setting Handset”
in the menu list, as follows:
Press the
Joystick.
Select “
Setting
Handset”.
Press the
Joystick.
Select the
desired main
item.
Press the
Joystick.
Follow the setting.
Select the
desired sub
item.
Press the
Joystick.
Press the
Joystick.
.
•
To return to the previous menu, press
•
•
To cancel, press
at any time.
The handset will beep to indicate that the new settings have been saved.
54
Configuring Handset Settings
Handset Setting Menu Layout
[Main Item]
Setting Handset
[Sub Item]
Incoming Option
Ringer Volume
Ringer Type
Vibrate
Ring On Charger
Memo Alarm
Headset Tone
Talk Option
Speaker Volume
Receiver Volume
Headset Volume
Headset Mic Vol
Talk On Charger
Answer Option
Any Key Answer
Quick Answer
Auto Answer
Auto Ans Delay
Key Option
F-CO Key Name
Function Key
Display Option
Language
Backlight
LCD Contrast
Standby Display
Category Name
Guidance
Date&Time Form
Caller ID Disp
Tone Option
Key Tone
Range Alarm
System Option
Register H/S
Cancel Base
Select Base
System Lock
Change PIN
Other Option
Change Password
Line Access CD
Reset Handset
Phonebook Lock
ResidentialMode
55
Configuring Handset Settings
Incoming Option
Sub Item
Ringer Volume
Description
Adjusts the ringer volume.
Setting
Default
Step Up
Step Down
Level 1-6
Level 3
Off
Ringer Type
– Intercom Ring
– CO Ring
– Group Ring
– Private Ring
(Category 1-9)
Ringer Pattern
Selects the ringer pattern for
each type of call.
Bell 1-6
LED Pattern
Selects the LED pattern for
each type of call.
Red
Melody 1-9
Green
Orange
R®G®O
Vib. Pattern
Selects the vibrate pattern for
each type of call.
Bell 1
CO Ring:
Red
Intercom Ring/
Private Ring:
Green
Group Ring:
Orange
Single
Double
Triple
Short Double
Single
Short Triple
Short Term
Continuous
Vibrate
Selects whether the handset
vibrates while receiving a call.
Vib.& Ring
Vib.® Ring
Off
Off
Ring On
Charger
56
Selects the ringing mode (On
or Off) while a handset is set on
the charger.*1
On
Off
On
Configuring Handset Settings
Sub Item
Memo Alarm
Description
Setting
Ringer Pattern
Selects the ringer pattern for
each Memo Alarm.
Bell 1-6
LED Pattern
Selects the LED pattern for
each Memo Alarm.
Red
Melody 1-9
Green
Orange
Default
Bell 1
Green
R®G®O
Vib. Pattern
Selects the vibrate pattern for
each Memo Alarm.
Single
Double
Triple
Short Double
Single
Short Triple
Short Term
Continuous
Headset Tone
Selects whether a tone is
heard from the attached
headset while receiving a call.
On
Off
Off
*1 When “Ring On Charger” is set to on but “Ringer Volume” is set to off, the handset rings at
level 1.
Talk Option
Sub Item
Description
Setting
Speaker Volume
Adjusts the rear speaker
volume.
Level 1-6
Receiver
Volume
Adjusts the receiver volume.
Level 1-4
Headset Volume
Adjusts the headset speaker
volume.
Level 1-4
Headset Mic
Vol
Adjusts the headset
microphone volume.
Level 1-4
Talk On
Charger
Selects whether or not to
continue the conversation
when the handset is put on the
charger during a conversation.
Default
Level 3
Level 2
Level 2
Level 1
On
Off
Off
57
Configuring Handset Settings
Answer Option
Sub Item
Description
Any Key Answer
Answers a call by pressing any
dialing key.
On
Answers a call while charging
by just lifting up a handset from
the charger.
On
Selects the types of calls that
can be answered by AUTO
ANSWER.
Int Only
Quick Answer
Auto Answer
Auto Ans Delay
Setting
Off
Off
Int & CO
Selects the number of seconds 0 s-20 s
before a call is automatically
answered when Auto Answer
is turned on.
Default
Off
Off
Int Only
6s
Key Option
Sub Item
F-CO Key Name
Function Key
Description
Setting
Default
Edits the names of the flexible
CO keys.
Max. 12 characters
x 12 flexible CO
keys x 4 bases
Not stored
Edits Function Key list.
Redial
1: Redial
Fwd/DND
2: Fwd/DND
Flash/Recall
3: Flash/Recall
Auto Answer
4: Auto Answer
Conference
5: Conference
Pause
6: Pause
Auto Dial
7: Auto Dial
PBX Program
8: None
None*1
9: None
0: PBX Program
*1 Used to cancel the settings.
58
Configuring Handset Settings
Display Option
Sub Item
Language
Description
Selects the display language.
Setting
Default
Auto
English
Español
Auto
FRANÇAIS
Backlight
Turns on the backlight of the
LCD and keypad.
On
On & Receiving
On
Off
LCD Contrast
Adjusts the LCD contrast.
Standby
Display
Selects what is shown on the
display while in standby
mode.*1
Level 1-5
Base & H/S No.
H/S No.
Edit
Edits the name displayed on
the LCD while in standby
mode.
Max. 16 characters/
4 digits
Category Name
Edits the names of the
categories.
Max. 15 characters
x Category (1-9)
Guidance*2
Selects whether the guidance
display is shown or not in
standby mode.
On
Selects the format for the date
shown on the display in
standby mode.
DD-MM 12H
Date&Time Form
Level 3
H/S No.
Off
Not stored
Not stored
On
DD-MM 24H
MM-DD 12H
MM-DD 24H
MM-DD 12H
DD-MM-YY
MM-DD-YY
Caller ID Disp
Selects which caller
information is displayed when
a call is received.
Either the information stored in
the Handset Phonebook or the
PBX can be displayed.
H/S Phonebook
PBX Setting
PBX Setting
*1 If the extension name is stored in the PBX, the extension name is displayed when “H/S No.”
or “Base & H/S No.” is selected. Depending on the number of characters stored for the extension
name, the end of the extension name may not be displayed.
*2 This setting is applied only in Office mode. In Residential mode, you can set this item, but it will not
be applied.
59
Configuring Handset Settings
Tone Option
Sub Item
Key Tone
Description
Turns the key tone on or off.
Setting
On
Off
Range Alarm
Selects whether the range
alarm tone rings or not.
On
Off
Default
On
On
System Option
Sub Item
Description
Setting
Register H/S
Registers a handset to a base. Base 1-4
Cancel Base*1
Cancels the registration of a
handset.
Select Base*1
Selects a base.
Change PIN
Selects whether to lock the
System Option set or not.
Before registering your
handset with a PBX, enter the
PBX’s PIN here. Once you
have registered the handset
with a PBX, this PIN can be
changed so that the handset
can be registered to an
additional PBX.
*1 Only registered base is shown.
*2 You can select multiple bases simultaneously.
*3 Password is required. (4 digits)
60
Not stored
Base 1-4*2
Auto
Base 1-4
System Lock
Default
On*3
Off
Auto
Off
Enter the PIN
number. (max. 8
digits)
1234
Configuring Handset Settings
Other Option
Sub Item
Change
Password*1 *2
Description
Changes the handset
password (4 digits) used for
unlocking the Handset
Phonebook and using
the “Reset Handset”
option.
Setting
Default
Enter Old
Password.
¯
Enter New
Password.
1234
¯
Verify New
Password.
Line Access CD
Enters the line access code
that matches the setting of
your PBX. Three access line
codes can be stored.
Select a number,
No.1: 9
then enter the code. No.2: 8XX*3
(max. 6 digits)
No.3: Not Stored
Reset Handset
Returns the handset settings
to its default settings.
Enter Password.
(4 digits)
¯
Select the desired
item(s).
Not stored
¯
Press “OK”.
Phonebook Lock
ResidentialMode
Locks/unlocks the
Phonebook while the handset
is in standby mode.
On
Selects the operating mode:
• On: Residential mode
• Off: Office mode
On
Off
Off
Off
On
*1 To avoid unauthorized access to this product:
• Change the default password.
• Set a password that is random and cannot be easily guessed.
• Change the password regularly.
*2 Make a note of the password so that you will not forget it.
*3 XX is identical to the CO line group number, and 8XX represents any 3-digit code starting
with “8”.
61
Configuring Handset Settings
Memo Alarm Setting
An alarm will sound at the set time. A memo can also be displayed. Memo Alarm is available
only when handset is within range of a CS.
To set
Press the
Joystick.
Select “
Press the
Memo Alarm”. Joystick.
Select the alarm Press the
number. (1-3)
Joystick.
[Select the Alarm mode—Once/Daily]
[Once]
Enter date
and time.*1
[Daily]
Enter the
time.
Enter memo.
Press the
Joystick.
Press the
Joystick.
Press the
Joystick
for “Save”.
[Select the Alarm mode—Weekly]*2
Enter time.
Select the
desired day of
the week.
Press the
Right Soft
Key.
Press the
Joystick.
Press the
Joystick.
Press the
Joystick
for “Save”.
Press the
Joystick.
Enter memo.
[Select the Alarm mode—Off]
Press the
Joystick.
Press the
Joystick
for “Save”.
*1 You can select the format for the date and time. (See page 59.)
*2 A “ ” will be displayed next to a day of the week that have been set.
•
•
62
You can select the ringer/LED/vibrate pattern for each Memo Alarm. (See page 50.)
If you are on a call at the time that the alarm is set to sound, it will sound after you have
ended the call.
Configuring Handset Settings
To delete the alarm mode setting
Press the
Joystick.
Select “Yes”.
Select “
Memo Alarm”.
Press the
Joystick.
Select the alarm
number. (1-3)
Press the Right
Soft Key.
Press the
Joystick.
To stop the alarm
•
Press any key other than soft keys.
63
Troubleshooting and Error Messages
Troubleshooting
Problem
Troubleshooting and Error Messages
The handset does
not work.
Possible Cause
Solution
The battery is drained.
Charge the battery fully.
(See “Charging the Battery” on
page 6.)
The power is OFF.
•
•
Turn it ON.
(See “Location of Controls” on
page 8.)
Re-insert the battery and try
again. (See “Battery
Installation” on page 5.)
The handset does
not ring.
Ringer volume is set to “Off”.
Adjust the ringer volume level.
(See “Adjusting the Ringer
Volume” on page 13.)
You cannot make/
receive a call.
The handset is out of range, or
the CS is busy.
Move closer to the CS or try again
later.
The radio channel is busy, or a
radio communication error
occurred.
Try again later.
The number that you dialed is
restricted by the PBX.
Consult your dealer.
Key lock mode is ON.
To cancel the mode, press the
Joystick for about 2 seconds.
(See “Key Lock” on page 9.)
The radio channel is busy or a
radio communication error
occurred.
Try again later.
You cannot dial.
The handset stops
working during
operation.
•
•
You cannot use the
handset during a
power failure.
64
The handset will not function
during a power failure because
the PBX stops emitting
radiowaves.
Turn the handset off, then turn
it back on.
(See “Location of Controls” on
page 8.)
Re-insert the battery and try
again.
(See “Battery Installation” on
page 5.)
Troubleshooting and Error Messages
Problem
Possible Cause
Solution
The headset does
not work.
A headset tone cannot be heard •
when receiving an incoming
call when the headset is
attached.
•
The tone from the
headset cannot be
changed to a bell or
melody.
The headset tone is a specific
tone and is not related to the
Incoming Option settings
(Ringer Type).
Noise is frequently
heard.
•
•
Make sure the headset tone
setting is set to on.
(See “Incoming Option” on
page 56.)
Make sure the headset jack is
connected properly.
(See “Location of Controls” on
page 8.)
Set the handset and CS away
from other electrical
appliances.
Move closer to the CS.
Two short beeps are The radio signal is weak.
heard during a
conversation.
Move closer to the CS.
The charge indicator The charger is not connected
flashes red rapidly.
properly.
•
•
The battery charge contacts
You charged the
may be dirty.
battery for 7 hours,
but the beep tones
sound, and
It is time to change the battery.
(needs to be
charged) flashes
after a few telephone
calls.
While operating the
handset, the AC
adaptor feels warm.
While charging the
battery, the handset
feels warm.
Make sure the battery is
inserted properly.
Set the handset in the charger
properly.
Clean the battery charge contacts
without damaging them and
charge once more.
Replace with a new one.
These are normal conditions.
65
Troubleshooting and Error Messages
Error Messages
Error Message
Possible Cause
Solution
Register Unit
The handset has been canceled Consult your dealer.
or the handset has not been
registered.
No Service
The handset is out of range.
Move closer to the CS.
The CS is turned off.
Make sure the power cord is
connected.
PS Not Connected
The called handset is out of
range or is not turned on.
Try again later.
CS Busy
The CS is busy.
Try again later.
Please Wait...
The handset is connecting to
the CS or PBX.
Wait for a moment.
Charge Battery
The handset battery has little
charge remaining.
Charge the battery fully.
(See “Charging the Battery” on
page 6.)
No Entries
When trying to view the
Phonebook: No items have
been stored. (See “Storing an
Item in the Handset
Phonebook” on page 41.)
When trying to view the
Incoming or Outgoing Call Log:
No logs have been stored.
Memory Full
The Phonebook is full and
cannot store the new item.
Remove unnecessary data in the
Phonebook and try again.
Incorrect Entry
The numbers you entered are
invalid.
Recheck your entry (max. 5 digits)
and try again.
Need Repair
1(-2)
66
Consult your dealer.
Important Information
Battery Information
Important Information
After your Panasonic battery is fully charged (at 25 °C [77 °F]):
•
•
•
•
Operation
Operating Time
While in use (Talk)
Up to about 10 h
While not in use (Standby)
Up to about 168 h
Operating time may be shorter than listed above depending on usage conditions and
ambient temperature.
The battery will drain slowly even while the handset is turned off.
The handset can receive calls while charging.
Battery consumption increases when the handset is used out of range. If “ ” flashes,
power off the handset.
Low Battery Warning
The battery needs to be charged in the following situations:
” flashes, and the alarm sounds*1.
• “
• “Charge Battery” is displayed. In this situation, the handset cannot be operated.
*1 If the low battery warning occurs during a conversation, the call will be automatically disconnected
one minute after the alarm sounds.
Replacing the Battery
” flashes after using the phone for a short time, even when the battery has been fully
If “
charged, the battery should be replaced.
Before replacing the battery, make sure the low battery warning is displayed, then turn off
the power to prevent memory loss. Replace the battery and charge the new battery for about
7 hours.
If you replace the battery before the low battery warnings appears, the battery strength icon
may display an incorrect reading. In this case, use the handset as normal with the new
battery installed. When the low battery warning is displayed, charge the battery for about 7
hours. The battery strength icon will then display the correct reading.
1. Turn the power off to prevent memory loss.
2. Press the notch on the cover firmly and slide it as indicated by the
arrow.
3. Open the cover and replace the battery.
4. Close the cover and charge the handset.
•
Please use a Panasonic battery with the service part number N4HHGMB00005 or
HHR-P103.
This product is powered by a recyclable nickel-metal hydride battery.
Please call 1-800-8-BATTERY for information on how to recycle this battery.
There is a danger of explosion if the battery is incorrectly replaced.
67
Important Information
Important Safety Instructions
When using your telephone equipment, basic safety precautions, including those below,
should always be followed to reduce the risk of fire, electric shock and injury to persons.
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on this product.
3. Unplug the charger from the AC outlet before cleaning. Wipe the product with a soft
cloth. Do not clean with abrasive powders or with chemical agents such as benzene or
thinner. Do not use liquid cleaners or aerosol cleaners.
4. Do not use the product near water, for example, near a bathtub, kitchen sink, or laundry
tub, in a wet basement, or near a swimming pool.
5. Place the charger on a stable surface.
6. The product should never be placed near or over a radiator or other heat source.
7. The charger should only be connected to the type of electric power supply specified on
the charger label. If you are not sure of the type of power supply to your home, consult
your dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not locate the charger where the
power cord may be stepped on or tripped on.
9. To reduce the risk of fire or electric shock, do not overload AC outlets and extension
cords.
10. Do not insert objects of any kind into this product through openings, as they may touch
dangerous voltage points or short out parts that could result in a risk of fire or electric
shock. Never spill liquid of any kind on the product.
11. To reduce the risk of electric shock, do not disassemble this product. Only qualified
personnel should service this product. Opening or removing covers may expose you to
dangerous voltages or other risks. Incorrect reassembly can cause electric shock.
12. Unplug the charger from the AC outlet and have the product serviced by qualified service
personnel in the following cases:
A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled on the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate according to this manual. Adjust only the controls
that are explained in this manual. Improper adjustment of other controls may result
in damage and may require service by a qualified technician to restore the product
to normal operation.
E. If the product has been dropped or damaged.
F. If product performance deteriorates.
13. Avoid using a wired telephone during an electrical storm. There is a remote risk of electric
shock from lightning.
14. Do not use the telephone in the vicinity of a gas leak to report the leak.
15. When you operate this product, the AC outlets should be near the product and easily
accessible.
68
Important Information
16. Switch off the device when in the proximity of areas with potentially explosive
atmospheres such as fuel/chemical storage facilities or blasting operations.
SAVE THESE INSTRUCTIONS
CAUTION
1. Use only the AC adaptor, battery and charger indicated in this manual.
2. Do not dispose of the battery in a fire. They may explode. Check with local authorities
for special disposal instructions.
3. Do not open or disassemble the battery. Released electrolyte is corrosive and may
cause burns or injury to the eyes or skin. The electrolyte is toxic if swallowed.
4. Exercise care in handling batteries in order not to short the battery to conductive
materials such as rings, bracelets, and keys. The battery and/or conductor may overheat
and cause burns.
5. Charge the battery provided with, or identified for use with, this product only in
accordance with the instructions and limitations specified in this manual.
6. There is a danger of explosion if the battery is incorrectly replaced.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this product.
WARNING
• FOR SAFETY REASONS, DO NOT PHYSICALLY MODIFY THE PRODUCT OR ANY
OPTIONAL EQUIPMENT.
• TO PREVENT POSSIBLE FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
• THE USE OF EXCESSIVE SOUND VOLUME THROUGH EARPHONES,
HEADPHONES, OR HEADSETS MAY CAUSE HEARING LOSS.
Unplug the charger from AC outlets if it emits smoke, an abnormal smell or makes unusual
noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped
and contact an authorized service center.
When programming emergency numbers and/or making test calls to emergency numbers:
1. Remain on the line and briefly explain to the dispatcher the reason for the call before
hanging up.
2. Perform such activities during off-peak hours, such as early morning or late evening.
Note
This telephone communicates using digital signals that are difficult to intercept. However,
it is possible that the signals could be intercepted by a third party.
69
Important Information
FCC and Other Information
Privacy of communications may not be ensured when using this phone.
Radio Frequency Exposure Requirements
This product complies with FCC radiation exposure limits set forth for an uncontrolled
environment. To comply with FCC RF exposure requirements, it must be installed and
operated in accordance with provided instructions. For handset body-worn operation, this
handset must be used with the provided plastic belt clip, which assures no metal parts and
minimum of 1.5 cm (9/16 in) spacing from the user’s body. This transmitter must not be
co-located or operated in conjunction with any other antenna or transmitter.
Note
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment to an outlet on a circuit different from that to which the receiver
is connected.
– Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:(1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Customer Information
This equipment complies with Part 68 of the FCC rules and the requirements adopted by
the ACTA. On the inside of the battery compartment of this equipment is a label that
contains, among other information, the following product identifier:
US: ACJKXNANKX-TD7685
If requested, this number must be provided to the telephone company.
If trouble is experienced with this equipment KX-TD7695, for repair or warranty information,
please contact:
Panasonic Service and Technology Company-BTS Center
415 Horizon Drive Bldg. 300 Ste. 350-B
Suwanee, GA 30024-3186
If the equipment is causing harm to the telephone network, the telephone company may
request that you disconnect the equipment until the problem is resolved.
70
Important Information
Hearing Aid Compatibility
This telephone provides magnetic coupling for hearing aids as defined by the FCC in 47
CFR Section 68.316. Use only handsets or other acoustic devices with this equipment that
are compliant with the hearing aid compatibility requirements of FCC Part 68.
When you hold the phone to your ear, noise might be heard in your Hearing Aid. Some
Hearing Aids are not adequately shielded from external RF (radio frequency) energy. If noise
occurs, use an optional headset accessory or the speakerphone option (if applicable) when
using this phone. Consult your audiologist or Hearing Aid manufacturer about the availability
of Hearing Aids which provide adequate shielding to RF energy commonly emitted by digital
devices.
Compliance with TIA-1083 standard
Compatible with
Hearing Aid T-Coil
Telephone handsets identified with this logo have reduced noise and
interference when used with T-Coil equipped hearing aids and
cochlear implants.
T
TIA-1083
71
Important Information
Other Important Information
Environment—do not place the product in rooms where the temperature is less than 5 °C
(41 °F) or greater than 40 °C (104 °F). Allow 10 cm (3-15/16 in) clearance around the product
for proper ventilation.
Avoid environments with excessive smoke, dust, mechanical vibration, shock, or direct
sunlight.
Medical—consult the manufacturer of any personal medical devices, such as pacemakers,
to determine if they are adequately shielded from external RF (radio frequency) energy.
(The product operates in the frequency range of 1,920 MHz to 1,930 MHz and the output
peak power level is less than 0.12 W.) Do not use the product in health care facilities if any
regulations posted in the area instruct you not to do so. Hospitals or health care facilities
may be using devices sensitive to external RF (radio frequency) energy.
Routine Care—wipe the product with a soft cloth. Do not clean the product with abrasive
powder or with chemical agents such as benzene or thinner. Clean the terminal of the
charger periodically. When you leave the product unused for a long period of time, unplug
the AC adaptor from the outlet.
Notice for product disposal, transfer, or return—this product can store your private/
confidential information. To protect your privacy/confidentiality, we recommend that you
erase the information such as phonebook or call log from the memory before you dispose,
transfer or return the product.
For Product Service
•
•
•
Panasonic service centers are listed in the service center directory.
Call 1-800-211-PANA (7262) for the location of your nearest authorized service center.
Panasonic’s e-mail address for customer inquiries:
consumerproducts@panasonic.com
for customers in the USA and Puerto Rico ONLY
To return a product for repair
Carefully pack and send it prepaid, adequately insured and preferably in the original carton.
Attach a postage-paid letter, detailing the symptom, to the outside of the carton. DO NOT
send the product to the Executive or Regional Sales offices, as they are not equipped to
make repairs.
Product Service
Panasonic factory service centers for this product are listed in the service center directory.
Consult your certified Panasonic dealer for detailed instructions.
72
Important Information
Keep a copy of all important data (such as your Phonebook) before sending the machine
for repair.
For Best Performance
Operating Range
1. The range of operation depends on the topography of your office, weather, or usage
conditions, because signals are transmitted between the CS and the handset by radio
waves.
2. Normally, you get greater range outdoors than indoors. If there are obstacles such as
walls, noise may interfere with your telephone calls. In particular, high metal shelves or
reinforced concrete walls will restrict your operating range.
3. A handset may not work when it is too far from the CS depending on the structure of the
building.
Noise
Occasional noise or interference may occur due to electromagnetic radiation from objects
such as refrigerators, microwave ovens, faxes, TVs, radios, or personal computers. If noise
disturbs your telephone calls, keep the handset away from these electrical appliances.
We strongly suggest you hold the bottom half of the handset to ensure better call quality.
Because, the antenna is located in the upper half of the handset.
73
Important Information
System Requirements
This model supports the following CS models, PBX models, and PBX software versions:
CS
KX-T0155
KX-T0158
74
PBX
Model No.
Main Processing (MPR) Software Version
KX-TDA50
KX-TAW848
PSMPR Software File Version 3.0005 or later
KX-TDA100
KX-TDA200
PMPR Software File Version 3.0002 or later
KX-TDA600
PLMPR Software File Version 3.1006 or later
KX-TDE100
KX-TDE200
PMMPR Software File Version 1.0000 or later
KX-TDE600
PGMPR Software File Version 2.0000 or later
KX-NCP500
KX-NCP1000
PBMPR Software File Version 1.0000 or later
KX-TDA600
PLMPR Software File Version 5.0000 or later
KX-TDE100
KX-TDE200
PMMPR Software File Version 1.0000 or later
KX-TDE600
PGMPR Software File Version 2.0000 or later
KX-NCP500
KX-NCP1000
PBMPR Software File Version 1.0000 or later
Notes
75
For your future reference
SERIAL NO.
(found inside the battery compartment)
DATE OF PURCHASE
NAME OF DEALER
DEALER’S ADDRESS
DEALER’S TEL. NO.
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
http://www.panasonic.com/csd
Copyright:
This material is copyrighted by Panasonic Communications Co., Ltd., and may be
reproduced for internal use only. All other reproduction, in whole or in part, is prohibited
without the written consent of Panasonic Communications Co., Ltd.
© Panasonic Communications Co., Ltd. 2008
PSQX4645YA-UU KK0108SY3039
Download PDF
