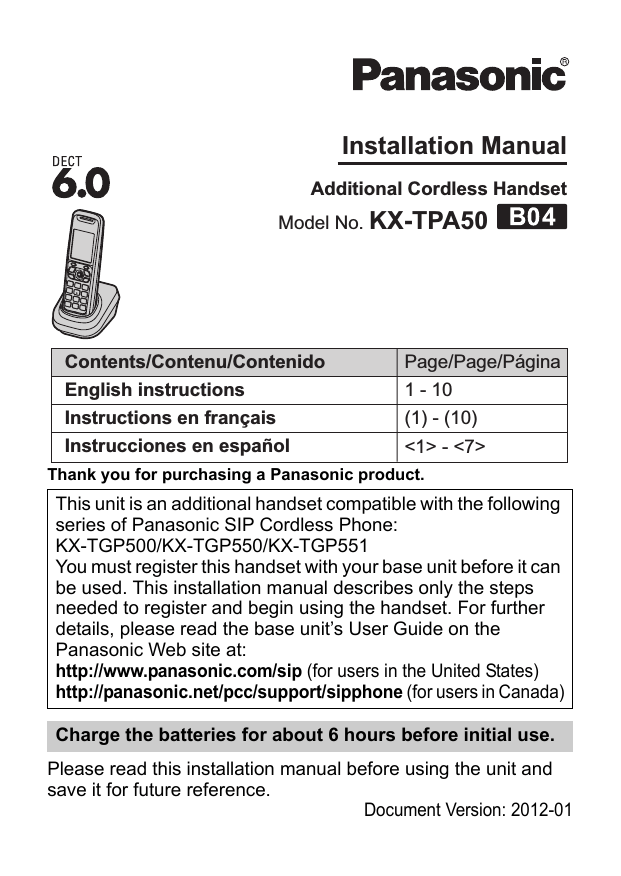

Installation Manual
Additional Cordless Handset
Model No. KX-TPA50
Contents/Contenu/Contenido
English instructions
Page/Page/Página
1 - 10
Instructions en français
Instrucciones en español
(1) - (10)
<1> - <7>
Thank you for purchasing a Panasonic product.
This unit is an additional handset compatible with the following
series of Panasonic SIP Cordless Phone:
KX-TGP500/KX-TGP550/KX-TGP551
You must register this handset with your base unit before it can
be used. This installation manual describes only the steps
needed to register and begin using the handset. For further
details, please read the base unit’s User Guide on the
Panasonic Web site at:
http://www.panasonic.com/sip (for users in the United States)
http://panasonic.net/pcc/support/sipphone (for users in Canada)
Charge the batteries for about 6 hours before initial use.
Please read this installation manual before using the unit and
save it for future reference.
Document Version: 2012-01
Accessory information
Supplied accessories
Accessory item/Order number
Quantity
Charger/PNWETGP500B
1
AC adaptor/PQLV219Z or PQLV219 (03)Z
1
Rechargeable batteries/HHR-4DPA
(Part No. HHR-65AAABU or N4DHYYY00002)
2
Handset cover*1/PNYNTGA641TR
1
Belt clip/PNKE1029Z1
1
*1 The handset cover comes attached to the handset.
Note:
L Please read the additional/replacement accessory section of the base
unit’s User Guide on the Panasonic Web site. See page 1 for
Panasonic URL.
Setting up
Connections
(120 V AC,
60 Hz)
Hooks
Note:
L Use only the supplied Panasonic AC adaptor PQLV219 or PQLV219
(03).
2
L The AC adaptor must remain connected at all times. (It is normal for
the adaptor to feel warm during use.)
L Make sure that the wall is strong enough to support the weight of the
unit.
Battery installation/Battery charge
Important:
L Use the supplied rechargeable batteries. For replacement, we
recommend using the Panasonic rechargeable batteries noted on
page 2.
L Wipe the battery ends (S, T) with a dry cloth.
L Avoid touching the battery ends (S, T) or the unit contacts.
L Confirm correct polarities (S, T).
L USE ONLY Ni-MH batteries AAA (R03) size.
L Do NOT use Alkaline/Manganese/Ni-Cd batteries.
Charge for about 6 hours.
L When the batteries are fully charged, the charge indicator goes off.
Charge indicator
Rechargeable Ni-MH
ONLY
Confirm
“Charging” is
displayed.
Note:
L If the batteries are fully charged, but the operating time seems to be
shorter, clean the battery ends (S, T) and the charge contacts with a
dry cloth and charge again.
3
Registering a handset to the base unit
1 Base unit:
NKX-TGP500
Press and hold {ALL} for about 4 seconds until the STATUS
indicator flashes in red.
NKX-TGP550/KX-TGP551
Press and hold {ALL} for about 4 seconds until the registration tone
sounds and the STATUS indicator flashes in red.
L If all registered handsets start ringing, press the same button to
stop. Then repeat this step.
L The next step must be completed within 90 seconds.
2 Handset:
Press {OKL}, then wait until a long beep sounds.
Note:
L If an error tone sounds, or if _ is still displayed, register the handset
according to the registering section of the base unit’s User Guide on
the Panasonic Web site. See page 1 for Panasonic URL.
Display language
1 {MENU} (center of joystick) i {#}{1}{1}{0}
2 {V}/{^}: Select the desired setting.
3 Press down the center of the joystick to save. i {OFF}
4
Belt clip
N To attach
N To remove
Wall mounting
1 Drive the screws (not supplied) into the wall.
2 Mount the charger (A), then slide it down (B) and to the right (C)
until it is secure.
25.4 mm
(1 inch)
A
B
C
Screws
5
For your safety
To prevent severe injury and loss of life/property, read this section carefully before
using the product to ensure proper and safe operation of your product.
WARNING
Power connection
L Completely insert the AC adaptor/power plug into the power outlet. Failure to do
so may cause electric shock and/or excessive heat resulting in a fire.
L Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it
from the power outlet, then wiping with a dry cloth. Accumulated dust may cause
an insulation defect from moisture, etc. resulting in a fire.
L Unplug the product from power outlets if it emits smoke, an abnormal smell, or
makes an unusual noise. These conditions can cause fire or electric shock.
Confirm that smoke has stopped emitting and contact your phone system dealer.
Installation
L To prevent the risk of fire or electrical shock, do not expose the product to rain or
any type of moisture.
L Do not place or use this product near automatically controlled devices such as
automatic doors and fire alarms. Radio waves emitted from this product may
cause such devices to malfunction resulting in an accident.
CAUTION
Installation and relocation
L The AC adaptor is used as the main disconnect device. Ensure that the AC outlet
is installed near the product and is easily accessible.
Battery
L We recommend using the supplied batteries or additional/replacement batteries
noted on page 2 for replacement battery information. USE ONLY rechargeable
Ni-MH batteries AAA (R03) size.
L Risk of explosion if battery is replaced by an incorrect type. Dispose of used
batteries according to the instructions.
L Do not mix old and new batteries.
L Do not open or mutilate the batteries. Released electrolyte from the batteries is
corrosive and may cause burns or injury to the eyes or skin. The electrolyte is
toxic and may be harmful if swallowed.
L Exercise care when handling the batteries. Do not allow conductive materials
such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit
6
may cause the batteries and/or the conductive material to overheat and cause
burns.
L Charge the batteries provided with or identified for use with this product only, in
accordance with the instructions and limitations specified in this manual.
L Only use a compatible charger to charge the batteries. Do not tamper with the
charger. Failure to follow these instructions may cause the batteries to swell or
explode.
Attention:
A nickel metal hydride battery that is
recyclable powers the product you have
purchased.
Please call 1-800-8-BATTERY (1-800-8228837) for information on how to recycle this
battery.
Important safety instructions
When using your product, basic safety precautions should always be followed to
reduce the risk of fire, electric shock, and injury to persons, including the following:
1. Do not use this product near water for example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet basement or near a swimming pool.
2. Do not use the telephone to report a gas leak in the vicinity of the leak.
3. Use only the power cord and batteries indicated in this manual. Do not dispose
of batteries in a fire. They may explode. Check with local codes for possible
special disposal instructions.
SAVE THESE INSTRUCTIONS
Other information
L Operating the product near electrical appliances may cause interference. Move
away from the electrical appliances.
Routine care
L Wipe the outer surface of the product with a soft moist cloth.
L Do not use benzine, thinner, or any abrasive powder.
Notice for product disposal, transfer, or return
L This product can store your private/confidential information. To protect your
privacy/confidentiality, we recommend that you erase information such as
7
phonebook or caller list entries from the memory before you dispose of, transfer,
or return the product.
FCC and other information
This equipment is hearing aid compatible as defined by the FCC in 47 CFR Section
68.316.
When you hold the phone to your ear, noise might be heard in your Hearing Aid.
Some Hearing Aids are not adequately shielded from external RF (radio frequency)
energy. If noise occurs, use an optional headset accessory or the speakerphone
option (if applicable) when using this phone. Consult with your audiologist or
Hearing Aid manufacturer about the availability of Hearing Aids which provide
adequate shielding to RF energy commonly emitted by digital devices.
WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING TEST
CALLS TO EMERGENCY NUMBERS:
1) Remain on the line and briefly explain to the dispatcher the reason for the call.
2) Perform such activities in the off-peak hours, such as early morning or late
evenings.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired
operation.
Privacy of communications may not be ensured when using this phone.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this device.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
8
– Consult the dealer or an experienced radio/TV technician for help.
FCC RF Exposure Warning:
L This product complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
L This handset may not be collocated or operated in conjunction with any other
antenna or transmitter.
L For body-worn operation, the handset must be used only with a non-metallic
accessory. Use of other accessories may not ensure compliance with FCC RF
exposure requirements.
Notice:
L FCC ID can be found inside the battery compartment or on the bottom of the unit.
Compliance with TIA-1083 standard:
Telephone handsets identified with this logo have reduced
noise and interference when used with T-Coil equipped hearing
aids and cochlear implants.
Compatible with
Hearing Aid T-Coil
T
TIA-1083
Notice
LThis product is designed for use in the United States of America and Canada.
Sale or use of this product in other countries may violate local laws.
LCet appareil est conçu pour être utilisé aux États-Unis d’Amérique et le
Canada. La vente ou l’emploi de cet appareil dans certains autres pays peut
constituer une infraction à la législation locale.
LEste producto está diseñado para usarse en los Estados Unidos de América.
La venta o el empleo de este producto en ciertos países puede constituir
violación de la legislación local.
Lҏ౰ࠢட࣏छ୽‫ٺ‬ҢՄ೩Ȅषӵ‫ڏ‬т୽ড়᎛୵‫ٺܖ‬ҢȂџ૖ོႂІ࿋Ӵ‫ٽݲ‬Ȅ
Lߎߩ⵾ຠߪ‫ޔ‬ᣣᧄ࿖ᄖߢߩ૶↪ࠍ⋡⊛ߣߒߡ⸳⸘ߐࠇߡ߅ࠅ‫ޔ‬ᣣᧄ࿖ౝߢߩ
૶↪ߪᴺᓞ㆑෻ߣߥࠅ߹ߔ‫ޕ‬ᓥߞߡ‫ޔ‬ᒰ␠ߢߪᣣᧄ࿖ౝߦ߅޿ߡߪේೣߣߒ
ߡୃℂߥߤߩࠨ࡯ࡆࠬߪ⥌ߒ߆ߨ߹ߔ‫ޕ‬
9
Industry Canada Notices and other information
NOTICE:
This equipment meets the applicable
Industry Canada Terminal Equipment
Technical Specifications. This is
confirmed by the registration number.
The abbreviation, “IC:”, before the
registration number signifies that
registration was performed based on
a Declaration of Conformity indicating
that Industry Canada technical
specifications were met. It does not
imply that Industry Canada approved
the equipment.
Users should ensure, for their own
protection, that the electrical ground
connections of the power utility,
telephone lines and internal metallic
water pipe system, if present, are
connected together. This precaution
may be particularly important in rural
areas.
NOTICE:
Operation is subject to the following
two conditions: (1) this device may
not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
Privacy of communications may not
be ensured when using this
telephone.
Some cordless telephones operate at
frequencies that may cause
interference to nearby TVs and
VCRs. To minimize or prevent such
interference, the base of the cordless
telephone should not be placed near,
or on top of, a TV or VCR. If
interference is experienced, move
10
the cordless telephone further away
from the TV or VCR. This will often
reduce, or eliminate, interference.
RF Exposure Warning:
LThis product complies with IC
radiation exposure limits set forth
for an uncontrolled environment.
LTo comply with IC RF exposure
requirements, the base unit must
be installed and operated 20 cm
(8 inches) or more between
product and all person’s body
(excluding extremities of hands,
wrist and feet).
LThis product may not be collocated
or operated in conjunction with any
other antenna or transmitter.
LFor body-worn operation, the
handset must be used only with a
non-metallic accessory. Use of
other accessories may not ensure
compliance with IC RF exposure
requirements.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
