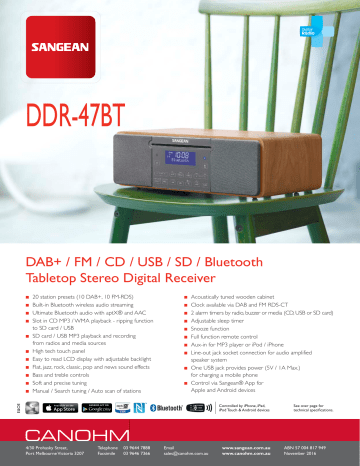

DDR-47BT
DDR-47BT
DAB+ / FM / CD / USB / SD / Bluetooth
Tabletop Stereo Digital Receiver
■■
■■
■■
■■
■■
■■
■■
■■
■■
■■
■■
20 station presets (10 DAB+, 10 FM-RDS)
Built-in Bluetooth wireless audio streaming
Ultimate Bluetooth audio with aptX® and AAC
Slot in CD MP3 / WMA playback - ripping function
to SD card / USB
SD card / USB MP3 playback and recording
from radios and media sources
High tech touch panel
Easy to read LCD display with adjustable backlight
Flat, jazz, rock, classic, pop and news sound effects
Bass and treble controls
Soft and precise tuning
Manual / Search tuning / Auto scan of stations
■■
■■
■■
■■
■■
■■
■■
■■
■■
■■
Acoustically tuned wooden cabinet
Clock available via DAB and FM RDS-CT
2 alarm timers by radio, buzzer or media (CD, USB or SD card)
Adjustable sleep timer
Snooze function
Full function remote control
Aux-in for MP3 player or iPod / iPhone
Line-out jack socket connection for audio amplified
speaker system
One USB jack provides power (5V / 1A Max.)
for charging a mobile phone
Control via Sangean® App for
Apple and Android devices
E&OE
Controlled by iPhone, iPad,
iPod Touch & Android devices
4/30 Prohasky Street,
Port Melbourne Victoria 3207
Telephone 03 9644 7888
Facsimile 03 9646 7366
Email
sales@canohm.com.au
www.sangean.com.au
www.canohm.com.au
See over page for
technical specifications.
ABN 57 004 817 949
November 2016
SPECIFICATIONS
TunerDAB
Band III Frequency (MHz)
FM
Frequency MHz
RDS / RBDS
Presets
MediaCD
CD/CD-R/CD-RW
SD
USB
Aux-In
Bluetooth
Clock
Real time
DAB+ / RDS / iRadio
Alarm
Tuner / Buzzer / iRadio
Sleep
Snooze
Display
LCD
View Area (mm)
Graphic / Character Type
Backlight
Dimmer
Features
Record – SD / USB
Software Upgrade
Control
Bluetooth
Audio
Treble/Bass Control
EQ (Sound Effect Selection)
Earphones Output
Speaker Output
Other
Speaker Size
Speaker Impedence
I/O Sockets AC/DC In
Aux In
Line Out
Earphones - Stereo
SD
USB
USB
Ext. Antenna
Colour Options
Walnut
Power Supply
AC
Accessories
AC Cord
Remote Control
Dimensions
W x H x D (mm)
Weight (g) Warranty
174-240 (W / DAB+)
87.5 – 108
PS / PTY / CT / RT
20 (10 DAB+ , 10 FM)
Yes (CD Audio / MP3)
Yes (CD Audio / MP3 / WMA)
Yes (CD Audio / MP3 / WMA)
Yes
Yes
Yes
Yes / Yes
Yes
Yes
Yes
70 x 23.7
16 Characters x 2 Lines
Yes
Yes
Yes
USB-B / SD / Internet
Touchpanel
Yes
Yes
7 (Flat / Jazz / rock / Movie
/ Classic / Pop / News)
5 + 5mW
7W + 7W
Class D Amplfier
2 x 2.5 inch
8 Ohm
AC
3.5mm Stereo
3.5mm Stereo
Yes
Yes
USB-A Playback
USB-A Charging
Wifi , F Type (DAB+ / FM)
DDR-47BT
Yes
Yes
Yes
326 x 108 x 223.5mm
3000g
12 Months
E&OE
Controlled by iPhone, iPad,
iPod Touch & Android devices
4/30 Prohasky Street,
Port Melbourne Victoria 3207
Telephone 03 9644 7888
Facsimile 03 9646 7366
Email
sales@canohm.com.au
www.sangean.com.au
www.canohm.com.au
ABN 57 004 817 949
November 2016
