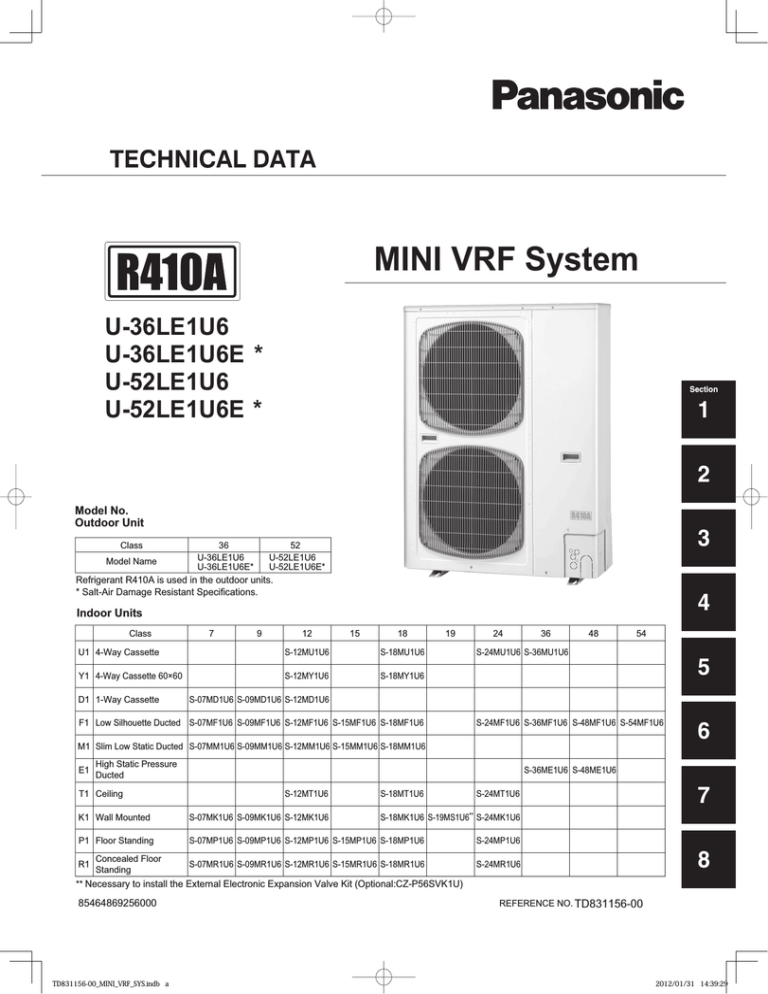

MINI VRF System

U-36LE1U6

U-36LE1U6E

U-52LE1U6

U-52LE1U6E *

*

Model No.

Outdoor Unit

Class

Model Name

36 52

U-36LE1U6 U-52LE1U6

U-36LE1U6E* U-52LE1U6E*

Refrigerant R410A is used in the outdoor units.

* Salt-Air Damage Resistant Specifications.

Indoor Units

Class

U1 4-Way Cassette

7 9 12

S-12MU1U6

Y1 4-Way Cassette 60×60 S-12MY1U6

15 18

S-18MU1U6

S-18MY1U6

19 24 36

S-24MU1U6 S-36MU1U6

48 54

D1 1-Way Cassette S-07MD1U6 S-09MD1U6 S-12MD1U6

F1 Low Silhouette Ducted S-07MF1U6 S-09MF1U6 S-12MF1U6 S-15MF1U6 S-18MF1U6 S-24MF1U6 S-36MF1U6 S-48MF1U6 S-54MF1U6

M1 Slim Low Static Ducted S-07MM1U6 S-09MM1U6 S-12MM1U6 S-15MM1U6 S-18MM1U6

E1

High Static Pressure

Ducted

T1 Ceiling S-12MT1U6 S-18MT1U6

K1 Wall Mounted S-07MK1U6 S-09MK1U6 S-12MK1U6

S-24MT1U6

S-18MK1U6 S-19MS1U6

**

S-24MK1U6

S-36ME1U6 S-48ME1U6

P1 Floor Standing S-07MP1U6 S-09MP1U6 S-12MP1U6 S-15MP1U6 S-18MP1U6

R1

Concealed Floor

Standing

S-07MR1U6 S-09MR1U6 S-12MR1U6 S-15MR1U6 S-18MR1U6

**

Necessary to install the External Electronic Expansion Valve Kit (Optional:CZ-P56SVK1U)

85464869256000

S-24MP1U6

S-24MR1U6

REFERENCE NO.

TD831156-00

Section

1

Section

1

2

2

3

3

4

4

5

5

IMPORTANT!

Please Read Before Starting

This air conditioning system meets strict safety and operating standards. As the installer or service person, it is an important part of your job to install or service the system so it operates safely and efficiently.

For safe installation and trouble-free operation, you must:

Carefully read this instruction booklet before beginning.

Follow each installation or repair step exactly as shown.

Observe all local, state, and national electrical codes.

When Installing…

Select an installation location which is rigid and strong enough to support or hold the unit, and select a location for easy maintenance.

…In a Room

Properly insulate any tubing run inside a room to prevent

“sweating” that can cause dripping and water damage to walls and floors.

Pay close attention to all warning and caution notices given in this manual.

WARNING

This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death.

CAUTION

This symbol refers to a hazard or unsafe practice which can result in personal injury or product or property damage.

CAUTION

Keep the fire alarm and the air outlet at least 5 feet away from the unit.

…In Moist or Uneven Locations

Use a raised concrete pad or concrete blocks to provide a solid, level foundation for the outdoor unit. This prevents water damage and abnormal vibration.

…In an Area with High Winds

Securely anchor the outdoor unit down with bolts and a metal frame. Provide a suitable air baffle.

If Necessary, Get Help

These instructions are all you need for most installation sites and maintenance conditions. If you require help for a special problem, contact our sales/service outlet or your certified dealer for additional instructions.

…In a Snowy Area (for Heat Pump-type Systems)

Install the outdoor unit on a raised platform that is higher than drifting snow. Provide snow vents.

When Connecting Refrigerant Tubing

In Case of Improper Installation

The manufacturer shall in no way be responsible for improper installation or maintenance service, including failure to follow the instructions in this document.

• Ventilate the room well, in the event that is refrigerant gas leaks during the installation. Be careful not to allow contact of the refrigerant gas with a flame as this will cause the generation of poisonous gas.

SPECIAL PRECAUTIONS

• Keep all tubing runs as short as possible.

WARNING

When Wiring

ELECTRICAL SHOCK CAN CAUSE

SEVERE PERSONAL INJURY OR DEATH.

ONLY A QUALIFIED, EXPERIENCED

ELECTRICIAN SHOULD ATTEMPT TO

WIRE THIS SYSTEM.

• Do not supply power to the unit until all wiring and tubing are completed or reconnected and checked.

• Highly dangerous electrical voltages are used in this system. Carefully refer to the wiring diagram and these instructions when wiring. Improper connections and inadequate grounding can cause accidental injury or death.

• Ground the unit following local electrical codes.

• Connect all wiring tightly. Loose wiring may cause overheating at connection points and a possible fire hazard.

• To prevent possible hazards from insulation failure, the unit must be grounded.

• Use the flare method for connecting tubing.

• Apply refrigerant lubricant to the matching surfaces of the flare and union tubes before connecting them, then tighten the nut with a torque wrench for a leak-free connection.

• Check carefully for leaks before starting the test run.

WARNING

• When performing piping work do not mix air except for specified refrigerant (R410A) in refrigeration cycle. It causes capacity down, and risk of explosion and injury due to high tension inside the refrigerant cycle.

• Refrigerant gas leakage may cause fire.

• Do not add or replace refrigerant other than specified type.

It may cause product damage, burst and injury etc.

When Transporting

Be careful when picking up and moving the indoor and outdoor units. Get a partner to help, and bend your knees when lifting to reduce strain on your back. Sharp edges or thin aluminum fins on the air conditioner can cut your fingers.

• Do not leak refrigerant while piping work for an installation or re-installation, and while repairing refrigeration parts.

Handle liquid refrigerant carefully as it may cause frostbite.

i

When Servicing

• Turn the power OFF at the main power box (mains) before opening the unit to check or repair electrical parts and wiring.

• Keep your fingers and clothing away from any moving parts.

• Clean up the site after you finish, remembering to check that no metal scraps or bits of wiring have been left inside the unit being serviced.

WARNING

• Do not clean inside the indoor and outdoor units by users. Engage authorized dealer or specialist for cleaning.

• In case of malfunction of this appliance, do not repair by yourself.

Contact to the sales dealer or service dealer for a repair.

CAUTION

• Do not touch the air inlet or the sharp aluminum fins of the outdoor unit. You may get injured.

• Ventilate any enclosed areas when installing or testing the refrigeration system. Escaped refrigerant gas, on contact with fire or heat, can produce dangerously toxic gas.

• Confirm after installation that no refrigerant gas is leaking. If the gas comes in contact with a burning stove, gas water heater, electric room heater or other heat source, it can cause the generation of poisonous gas.

Others

CAUTION

Do not touch the air inlet or the sharp aluminum fins of the outdoor unit. You may get injured.

Do not sit or step on the unit, you may fall down accidentally.

• Do not stick any object into the

FAN CASE.

You may be injured and the unit may be damaged.

Check of Density Limit

The room in which the air conditioner is to be installed requires a design that in the event of refrigerant gas leaking out, its density will not exceed a set limit.

The refrigerant (R410A), which is used in the air conditioner, is safe, without the toxicity or combustibility of ammonia, and is not restricted by laws imposed to protect the ozone layer. However, since it contains more than air, it poses the risk of suffocation if its density should rise excessively. Suffocation from leakage of refrigerant is almost non-existent.

With the recent increase in the number of high density buildings, however, the installation of multi air conditioner systems is on the increase because of the need for effective use of floor space, individual control, energy conservation by curtailing heat and carrying power, etc.

Most importantly, the multi air conditioner system is able to replenish a large amount of refrigerant compared to conventional individual air conditioners. If a single unit of the multi air conditioner system is to be installed in a small room, select a suitable model and installation procedure so that if the refrigerant accidentally leaks out, its density does not reach the limit (and in the event of an emergency, measures can be made before injury can occur).

ASHRAE and the International Mechanical Code of the

ICC as well as CSA provide guidance and define safeguards related to the use of refrigerants, all of which define a Refrigerant Concentration Level (RCL) of 25 pounds per 1,000 cubic feet for R410A refrigerant.

For additional guidance and precautions related to refrigerant safety, please refer to the following documents:

International Mechanical Code 2009 (IMC-2009)

(or more recently revised)

ASHRAE 15

ASHRAE 34 ii

Precautions for Installation Using New Refrigerant

1.Care regarding tubing

1-1.Process tubing

Material:Use C1220 phosphorous deoxidized copper specified in JIS H3300 “Copper and Copper Alloy Seamless

Pipes and Tubes.”

Tubing size:Be sure to use the sizes indicated in the table below.

Use a tube cutter when cutting the tubing, and be sure to remove any flash.This also applies to distribution joints

(optional).

When bending tubing, use a bending radius that is 4 times the outer diameter of the tubing or larger.

CAUTION

Use sufficient care in handling the tubing.Seal the tubing ends with caps or tape to prevent dirt,moisture,or other foreign substances from entering.These substances can result in system malfunction.

Unit: in. (mm)

Copper tube

Material

Outer diameter

Wall thickness

1/4 (6.35)

1/32 (0.8)

3/8 (9.52)

1/32 (0.8)

O

1/2 (12.7)

1/32 (0.8)

5/8 (15.88)

5/128 (1.0)

3/4 (19.05)

5/128 (1.0)

1-2. Prevent impurities including water, dust and oxide from entering the tubing. Impurities can cause R410A refrigerant deterioration and compressor defects. Due to the features of the refrigerant and refrigerating machine oil, the prevention of water and other impurities becomes more important than ever.

2. Be sure to recharge the refrigerant only in liquid form.

2-1. Since R410A is a non-azeotrope, recharging the refrigerant in gas form can lower performance and cause defects of the unit.

2-2. Since refrigerant composition changes and performance decreases when gas leaks, collect the remaining refrigerant and recharge the required total amount of new refrigerant after fixing the leak.

3. Different tools required

3-1. Tool specifications have been changed due to the characteristics of R410A.

Some tools for R22- and R407C-type refrigerant systems cannot be used.

Item

Manifold gauge

Charge hose

Vacuum pump

Leak detector

Flaring oil

New tool?

Yes

Yes

Yes

Yes

Yes

R407C tools compatible with R410A?

No

Remarks

Types of refrigerant, refrigerating machine oil, and pressure gauge are different.

No

Yes

No

To resist higher pressure, material must be changed.

Use a conventional vacuum pump if it is equipped with a check valve. If it has no check valve, purchase and attach a vacuum pump adapter.

Leak detectors for CFC and HCFC that react to chlorine do not function because

R410A contains no chlorine. Leak detector for HFC134a can be used for R410A.

No For systems that use R22, apply mineral oil (Suniso oil) to the flare nuts on the tubing to prevent refrigerant leakage. For machines that use R407C or R410A, apply synthetic oil (ether oil) to the flare nuts.

Manifold gauge

Vacuum pump

Outlet

Inlet

* Using tools for R22 and R407C and new tools for R410A together can cause defects.

iii

3-2.Use R410A exclusive cylinder only.

Single-outlet valve

(with siphon tube)

Liquid refrigerant should be recharged with the cylinder standing on end as shown.

Liquid

Valve

New refrigerant R410A cannot be used for earlier models

1.Compressor specifications are different.

If recharging a R22 or R407C compressor with

R410A, durability will significantly decrease since some of the materials used for compressor parts are different.

2.Existing tubing cannot be used (especially R22).

Completely cleaning out residual refrigerating machine oil is impossible, even by flushing.

3.Refrigerating machine oil differs (R22).

Since R22 refrigerating machine oil is mineral oil, it does not dissolve in R410A.Therefore, refrigerating machine oil discharged from the compressor can cause compressor damage.

R22 refrigerating machine oil Mineral oil (Suniso oil)

R407C refrigerating machine oil Synthetic fluid (ether oil)

R410A refrigerating machine oil Synthetic fluid (ether oil) iv

Contents

Section 1: OUTLINE OF MINI VRF SYSTEM .........................................................................

1-1

1.

Line-up ............................................................................................................

1-2

2. Salt-Air Damage Resistant Specifications .......................................................

1-4

Section 2: DESIGN OF MINI VRF SYSTEM ..........................................................................

1.

2.

Model Selecting and Capacity Calculator .......................................................

System Design .............................................................................................

2-1

2-2

2-13

3.

4.

Electrical Wiring ............................................................................................

Installation Instructions .................................................................................

2-22

2-30

5.

6.

7.

HOW TO PROCESS TUBING ......................................................................

AIR PURGING ..............................................................................................

Optional Parts ...............................................................................................

2-38

2-42

2-45

3-1 Section 3: CONTROL OF MINI VRF SYSTEM ......................................................................

1.

2.

Main Operating Functions

Wireless Remote Controller

3.

4.

5.

6.

7.

8.

Timer Remote Controller

Simplified Remote Controller

System Controller

Schedule Timer

Intelligent Controller (CZ-256ESMC1U)

Communication Adaptor (CZ-CFUNC1U)

9.

10.

Remote Sensor

LonWorks Interface (CZ-CLNC1U)

* Refer to the 2WAY VRF SYSTEM TECHNICAL DATA (TD831157)

Section 4: MINI VRF SYSTEM UNIT SPECIFICATIONS .......................................................

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

Outdoor Unit ..................................................................................................

4-Way Cassette Type (U1 Type)

4-Way Cassette 60×60 Type (Y1 Type)

1-Way Cassette Type (D1 Type)

Low Silhouette Ducted Type (F1 Type)

Slim Low Static Ducted Type (M1 Type)

High Static Pressure Ducted Type (E1 Type)

Ceiling Type (T1 Type)

Wall Mounted Type (K1 Type)

Floor Standing Type (P1 Type)

Concealed Floor Standing Type (R1 Type)

4-1

4-2

12. Intaking Fresh Air of 4-Way Casstte Type and Slim Low Static Ducted Type

* Refer to the 2WAY VRF SYSTEM TECHNICAL DATA (TD831157)

Section 5: TEST RUN .............................................................................................................

1.

2.

3.

4.

5.

6.

7.

Preparing for Test Run ....................................................................................

Test Run Procedure ........................................................................................

Outdoor Unit PCB Setting ..............................................................................

Auto Address Setting ......................................................................................

Remote Controller Test Run Settings ...........................................................

5-6

5-12

Caution for Pump Down ................................................................................

Meaning of Alarm Messages ........................................................................

5-1

5-2

5-3

5-4

5-13

5-13

Section 6: ELECTRICAL DATA ..............................................................................................

1.

2.

Outdoor Unit ...................................................................................................

Indoor Unit

6-1

6-2

* Refer to the 2WAY VRF SYSTEM TECHNICAL DATA (TD831157)

Section 7: PCB AND FUNCTIONS ........................................................................................

1.

2.

Outdoor Unit Control PCB ...............................................................................

Indoor Unit Control PCB Switches and Functions

7-1

7-2

* Refer to the 2WAY VRF SYSTEM TECHNICAL DATA (TD831157)

Section 8: CAPACITY TABLE ................................................................................................

1.

Capacity Ratio of Outdoor Unit ......................................................................

2.

Cooling Capacity of Indoor Unit ....................................................................

8-1

8-2

8-10 v

Outline of Mini VRF SYSTEM

Contents

1. OUTLINE OF MINI VRF SYSTEM

1. Line-up .................................................................................................................................1-2

2. Salt-Air Damage Resistant Specifications.........................................................................

1-4

1

2

3

4

5

6

7

8

1 - 1

7

8

Outline of Mini VRF SYSTEM

1. Line-up

1

2

3

4

5

Indoor units

Type

4-Way Cassette

(U1 Type)

7 9 12 15 18

S-12MU1U6 S-18MU1U6

4-Way Cassette

60 X 60

(Y1 Type)

S-12MY1U6 S-18MY1U6

1-Way Cassette

(D1 Type)

S-07MD1U6 S-09MD1U6 S-12MD1U6

Low Silhouette

Ducted

(F1 Type)

S-07MF1U6 S-09MF1U6 S-12MF1U6 S-15MF1U6 S-18MF1U6

Slim Low Static

Ducted

(M1 Type)

S-07MM1U6 S-09MM1U6 S-12MM1U6 S-15MM1U6 S-18MM1U6

High Static

Pressure Ducted

(E1 Type)

19 24 36

S-24MU1U6 S-36MU1U6

48 54

S-24MF1U6 S-36MF1U6 S-48MF1U6 S-54MF1U6

S-36ME1U6 S-48ME1U6

Ceiling

(T1 Type)

S-12MT1U6

Wall Mounted

(K1 Type)

S-07MK1U6 S-09MK1U6 S-12MK1U6

S-18MT1U6 S-24MT1U6

S-18MK1U6

*

S-19MS1U6 S-24MK1U6

Floor Standing

(P1 Type)

S-07MP1U6 S-09MP1U6 S-12MP1U6 S-15MP1U6 S-18MP1U6 S-24MP1U6

Concealed Floor

Standing

(R1 Type)

S-07MR1U6 S-09MR1U6 S-12MR1U6 S-15MR1U6 S-18MR1U6 S-24MR1U6

* Necessary to install the External Electronic Expansion Valve Kit (Optional:CZ-P56SVK1U).

6

1 - 2

Outline of Mini VRF SYSTEM

1. Line-up

Indoor units

Type

Capacity:

BTU/h (kW)

Cooling /

Heating

36

38,200 (11.2)

/ 42,700 (12.5)

U-36LE1U6/U-52LE1U6

U-36LE1U6E*/U-52LE1U6E*

6-

11/16

2-

3/4 8-5/8

25-31/32

5-29/32

Air intake

1/2 1/2

4-

5/16

DC inverter unit

52

52,900 (15.5)

/ 60,000 (17.6)

Outdoor

Unit

1 / 2

Air discharge

37

1 / 2

3-29/32

25/32

Air discharge

Air intake

2-3/8

1-13/32

2-3/8

4-11/32

5-1/8

* Outdoor unit model name ended with letters "U6E". Refer to the Section 1 "2. Salt-Air Damage Resistant Specifications".

1

2

3

4

5

6

7

8

1 - 3

Outline of Mini VRF SYSTEM

2. Salt-Air Damage Resistant Specifications

1

2

3

4

5

6

Specifications

Relevant Parts Material Standard Specifications

Outer box/side plate/ drain pan between the stud

Base frame

Fan guard

Fin

Tube

Tube plate

Propeller fan

Hot-dip zinc-coated steel sheet

Polyester powder double coating

(both sides) ( 40 m)

Hot-dip aluminum-zinc coated steel sheet

No treatment

Resin (Polypropylene) No treatment

Aluminum No treatment

Copper No treatment

Hot-dip zinc-coated steel sheet

Resin

Aluminum

Hot-dip zinc-coated steel sheet

No treatment

No treatment

No treatment

No treatment

--

Motor maker's standard spec.

Motor

Installation frame

Hot-dip zinc-coated steel sheet

Electrical component box

Hot-dip zinc-coated steel sheet

Polyester powder double coating

(both sides) ( 120 m)

No treatment

Hexavalent chromium-free coating

Tapping screws

Stud supplementary bracket

PC board

Accumulator

Receiver tank

SUS410

Hot-dip zinc-coated steel sheet

--

Steel

No treatment

No treatment

Epoxy coating + alkyd coating

Welded portion Copper tube No treatment

Salt-Air Damage

Resistant Specifications

Outdoor unit model name ended with letters "U6E".

Polyester powder double coating

(both sides) ( 120 m)

Polyester powder double coating

(both sides) ( 120 m)

No treatment

Zinc rich treatment

Zinc rich treatment (whole)

Zinc rich treatment (whole)

No treatment

Urethane coating ( 30 m)

Urethane coating ( 30 m)

Motor maker's spec. for salt-air damage resistant (urethane coating)

Polyester powder double coating

(both sides) ( 120 m)

Polyester powder coating ( 120 m)

Hexavalent chromium-free coating + urethane coating

Polyester powder double coating

( 120 m)

Dessicant coating ( 30 m)

Zinc rich double coating + urethane coating ( 70 m)

Urethane coating

Outer surface Copper tube No treatment Urethane coating

Fixing bracket

Hot-dip zinc-coated steel sheet

No treatment

Polyester powder double coating

(both sides) ( 80 m)

Notes: 1 Consult us before introducing a salt-air damage resistant model as it requires a special treatment.

2 The specifications are subject to change without notice for development.

3 Contact us for the delivery schedule.

7

8

1 - 4

Design of Mini VRF SYSTEM

Contents

2. DESIGN OF MINI VRF SYSTEM

1. Model Selecting and Capacity Calculator ......................................................................... 2-2

1-1. Operating Range ...........................................................................................................

2-2

1-2. Procedure for Selecting Models and Calculating Capacity ...........................................

2-3

1-3. Calculation of Actual Capacity of Indoor Unit ................................................................

2-4

1-4. Capacity Correction Graph According to Temperature Condition ................................

2-9

1-5. Capacity Correction Graph According to Tubing Length and Elevation Difference ....

2-11

2. System Design ................................................................................................................... 2-13

2-1. Tools Required for Installation (not supplied) ..............................................................

2-13

2-2. Accessories Supplied with Outdoor Unit .....................................................................

2-13

2-3. Type of Copper Tube and Insulation Material ..............................................................

2-13

2-4. Additional Materials Required for Installation...............................................................

2-13

2-5. Tubing Size ..................................................................................................................

2-6. Straight Equivalent Length of Joints ...........................................................................

2-7. Additional Refrigerant Charge .....................................................................................

2-14

2-14

2-8. System Limitations

2-9. Tubing Length

.......................................................................................................

..............................................................................................................

2-15

2-15

2-15

2-10. Check of Limit Density ...............................................................................................

2-11. System Example ........................................................................................................

2-12. Example of Tubing Size Selection and Refrigerant Charge Amount .........................

2-13. Installing Distribution Joint .........................................................................................

2-16

2-17

2-19

2-21

3. Electrical Wiring .................................................................................................................

3-1. General Precautions on Wiring ...................................................................................

3-2. Recommended Wire Length and Wire Diameter for Power Supply System .................

2-22

2-22

2-22

3-3. Wiring System Diagrams .............................................................................................

2-23

3-4. Important Note When Wiring for Common Type .........................................................

2-26

3-5. Important Note When Wiring for Y1 Type.....................................................................

2-29

4. Installation Instructions.....................................................................................................

2-30

Outdoor Unit .................................................................................................................

2-30

4-1. Selecting the Installation Site for Outdoor Unit ............................................................

2-30

4-2.

4-3.

Air Discharge Chamber for Top Discharge

Installing the Unit in Heavy Snow Areas

..................................................................

......................................................................

2-31

2-31

4-4.

4-5.

Precautions for Installation in Heavy Snow Areas .......................................................

Dimensions of Air-Discharge Chamber........................................................................

4-6. Dimensions of Outdoor Unit with Air-Discharge Chamber (field supply) ....................

4-7.

Dimensions of Snow Ducting ......................................................................................

4-8. Dimensions of Outdoor Unit with Snow-Proof Ducting (field supply)

4-9.

Installing the Outdoor Unit

..........................

..........................................................................................

2-31

2-32

2-32

2-34

2-34

2-37

4-10. Drainage Work ...........................................................................................................

2-37

4-11. Routing the Tubing and Wiring ...................................................................................

2-37

Indoor Unit

* Refer to the 2WAY VRF SYSTEM TECHNICAL DATA (TD831157)

5. HOW TO PROCESS TUBING .............................................................................................

2-38

5-1. Connecting the Refrigerant Tubing ............................................................................

2-38

5-2. Connecting Tubing Between Indoor and Outdoor Units .............................................

2-39

5-3. Insulating the Refrigerant Tubing ...............................................................................

5-4. Taping the Tubes ........................................................................................................

2-40

2-41

5-5. Finishing the Installation ..............................................................................................

6. AIR PURGING ....................................................................................................................

2-41

2-42

Air Purging with a Vacuum Pump (for Test Run) Preparation..................................

2-42

7. Optional Parts .....................................................................................................................

2-45

7-1.

Distribution Joint Kits ....................................................................................................

2 - 1

2-45

1

2

3

4

5

6

7

8

5

6

7

8

1

2

Design of Mini VRF SYSTEM

1. Model Selecting and Capacity Calculator

1-1. Operating Range

Cooling

113

109

104

95

86

77

68

59

50

41

Operating range

32

23

14

50

57

59 68 77 86

Indoor air intake temp. °F (WB)

Heating

59

50

41

32

23

77

68

Operating range

14

5

–4

50 59 68 77 86 95

Indoor air intake temp. °F (DB)

3

4

2 - 2

Design of Mini VRF SYSTEM

1. Model Selecting and Capacity Calculator

1-2. Procedure for Selecting Models and Calculating Capacity

Model Selection Procedure

Select the model and calculate the capacity for each refrigerant system according to the procedure shown below.

Calculation of the indoor air-conditioning load

Calculate the maximum air-conditioning load for each room or zone.

Selection of an air conditioning system

Select the ideal air conditioning system for air conditioning of each room or zone.

Design of the control system

Design a suitable control system for the selected air conditioning system.

Preliminary selection of indoor and outdoor units

Make preliminary selections that are within the allowable range for the system.

...................

2-2

Check of the tubing length and elevation difference

Check that the length of refrigerant tubing and the elevation difference are within the allowable ranges. ................................................................................................................. 2-4, 2-15 – 2-16

Calculation of the corrected outdoor unit capacity

Capacity correction coefficient for outdoor temperature conditions .......................... 2-4, 2-6 – 2-7

Capacity correction coefficient for tubing length and elevation difference ........................ 2-4, 2-8

Heating capacity correction coefficient for frosting/defrosting ............................................ 2-4, 2-7

Calculation of the corrected capacity for each indoor unit

Capacity correction coefficient for indoor temperature conditions ..................................... 2-4, 2-8

Capacity distribution ratio based on the tubing length and elevation difference ... 2-4, 2-15 – 2-16

Calculation of the actual capacity for each indoor unit

Calculate the corrected indoor/outdoor capacity ratio, based on the corrected outdoor unit capacity and the total corrected capacity of all indoor units in the same system. Use the result to calculate the capacity correction coefficient for the indoor units. ..................................... 2-4 – 2-8

Multiply the corrected capacity of each indoor unit by the capacity correction coefficient to calculate the actual capacity for each indoor unit. ................................................................... 2-6

Recheck of the actual capacity for each indoor unit

If the capacity is inadequate, reexamine the unit combinations.

Example 1: Increasing the outdoor unit capacity ........................................................ 2-17 – 2-18

Example 2: Increasing the indoor unit capacity .......................................................... 2-17 – 2-18

Design of tubing

Create a tubing design which minimizes the amount of additional refrigerant charge as much as possible. ....................................................................................................................... 2-14 – 2-15

If tubing extension is expected in the future, create the tubing design with adequate consideration for this extension.

Select the tubing size for the main tube (LA) up to the No. 1 distribution joint based on the rated cooling capacity of the outdoor unit. Select tubing sizes after the distribution point based on the total rated cooling capacity of the connected indoor units.

Calculation of additional refrigerant charge amount

Calculate the additional refrigerant charge from the diameters and lengths of the refrigerant tubing. Even if the gas tubing diameter was increased, determine the additional refrigerant charge based only on the liquid tubing size. .......................................................................... 2-21

Check the minimum indoor capacity (limit density) with respect to the amount of refrigerant. If the limit density is exceeded, be sure to install ventilation equipment or take other corrective steps. 2-22

Design of electrical wiring capacity

Select a wiring capacity according to the method of power supply. ....................................... 2-32

1

2

3

4

5

6

7

8

2 - 3

Design of Mini VRF SYSTEM

1. Model Selecting and Capacity Calculator

1

2

3

4

5

6

7

1-3. Calculation of Actual Capacity of Indoor Unit

Calculating the actual capacity of each indoor unit

Because the capacity of a multi air-conditioner changes according to the temperature conditions, tubing length, elevation difference and other factors, select the correct model after taking into account the various correction values. When selecting the model, calculate the corrected capacities of the outdoor unit and each indoor unit. Use the corrected outdoor unit capacity and the total corrected capacity of all the indoor units to calculate the actual final capacity of each indoor unit.

1. Outdoor unit capacity correction coefficient

Find the outdoor unit capacity correction coefficient for the following items.

(1) Capacity correction for the outdoor unit temperature conditions

From the graph of capacity characteristics on page 2-6, use the outdoor temperature to find the capacity correction coefficient.

(2) Capacity correction for the outdoor unit tubing length and elevation difference

From the graph of capacity change characteristics on page 2-7, use the tubing length and elevation difference to find the capacity correction coefficient.

The outdoor unit correction coefficient is the value which corresponds to the most demanding indoor unit.

(3) Capacity correction for outdoor unit frosting/defrosting during heating

From the table on page 2-7, find the capacity correction coefficient.

2. Indoor unit capacity correction coefficients

Find the indoor unit capacity correction coefficient for the following items.

(1) Capacity correction for the indoor unit temperature conditions

From the graph of capacity characteristics on page 2-8, use the indoor temperature to find the capacity correction coefficient.

(2) Capacity distribution ratio based on the indoor unit tubing length and elevation difference

First, in the same way as for the outdoor unit, use the tubing length and elevation difference for each indoor unit to find the correction coefficient from the graph of capacity change characteristics on page 2-8. Then divide the result by the outdoor unit correction coefficient to find the capacity distribution ratio for each indoor unit.

Capacity distribution ratio for each indoor unit (2) = Correction coefficient for that indoor unit / Correction coefficient for the outdoor uni t

3. Calculating the corrected capacities for the outdoor unit and each indoor unit

The corrected capacities for the outdoor unit and each indoor unit are calculated form the formula below.

<Cooling>

Outdoor unit corrected cooling capacity (5) = Outdoor unit rated cooling capacity

× Correction coefficient for outdoor temperature conditions ((1) Page 2-6)

× Correction coefficient for tubing length and elevation difference ((2) Page 2-8)

* However, if the outdoor unit corrected cooling capacity [5] is greater than 100%, then the outdoor unit corrected cooling capacity [5] is considered to be 100%.

Corrected cooling capacity of each indoor unit (5) = Rated cooling capacity for that indoor unit

× Correction coefficient for indoor temperature conditions at that indoor unit ((1) Page 2-7)

× Distribution ratio based on tubing length and elevation difference at that indoor unit ((2) Page 2-8)

However, the corrected cooling capacity of each indoor unit is found as shown below.

If (1) < 100% and (1)

× (2) > 100%: Corrected cooling capacity for that indoor unit [5] = Rated cooling capacity for that indoor unit

If (1)

≥ 100%: Corrected cooling capacity for that indoor unit (5) = Rated cooling capacity for that indoor unit × (1)

8

2 - 4

Design of Mini VRF SYSTEM

1. Model Selecting and Capacity Calculator

<Heating>

Outdoor unit corrected heating capacity (5) = Outdoor unit rated heating capacity

× Correction coefficient for outdoor temperature conditions ((1) Page 2-6)

× Correction coefficient for tubing length and elevation difference ((2) Page 2-8)

× Correction coefficient for frosting/defrosting ((2) Page 2-7)

* However, if the outdoor unit corrected heating capacity [5] is greater than 100%, then the outdoor unit corrected heating capacity is considered to be 100%.

Corrected heating capacity of each indoor unit (5) = Rated heating capacity for that indoor unit

× Correction coefficient for indoor temperature conditions at that indoor unit ((1) Page 2-6)

× Distribution ratio based on tubing length and elevation difference at that indoor unit ((2) Page 2-8).

However, the corrected heating capacity of each indoor unit is found as shown below.

length and elevation difference at that indoor unit ((3) Page 2-72)

If (1)

≥ 100%: Corrected heating capacity for that indoor unit (5) = Rated heating capacity for that indoor unit × (1)

* Characteristic graphs are shown on the pages listed above next to each correction item.

Find each correction coefficient from the appropriate conditions.

4. Calculating the actual indoor unit capacity based on the indoor/outdoor corrected capacity ratio

Calculate the actual capacity of each indoor unit from the values (found in (3)) for the corrected outdoor unit capacity and the corrected capacity of each indoor unit.

<Cooling capacity>

Corrected indoor/outdoor capacity ratio during cooling (Ruc) = Total corrected cooling capacity of all indoor units in that system / Corrected outdoor unit cooling capacity

If the corrected outdoor unit cooling capacity is greater than or equal to the total corrected unit cooling capacity of all indoor units in that system (Ruc

≤ 1), then:

Actual cooling capacity of each indoor unit (7) = Corrected cooling capacity of each indoor unit (5)

(In other words, the correction coefficient (6), based on the corrected indoor/outdoor capacity ratios for each indoor unit, is 1.)

If the corrected outdoor unit cooling capacity is less than the total corrected unit cooling capacity of all indoor units in that system (Ruc > 1), then:

(Actual cooling capacity of each indoor unit (7)) = (Corrected cooling capacity of each indoor unit (5))

× (0.25 ×

Ruc + 0.75) / Ruc

(In other words, the correction coefficient (6), based on the corrected indoor/outdoor capacity ratios for each indoor unit, is the underlined part in the formula above.)

<Heating capacity>

Corrected indoor/outdoor capacity ratio during heating (Ruh) = Total corrected heating capacity of all indoor units in that system / Corrected outdoor unit heating capacity

If the corrected outdoor unit heating capacity is greater than or equal to the total corrected unit heating capacity of all indoor units in that system (Ruh

≤ 1), then:

Actual heating capacity of each indoor unit (7) = Corrected heating capacity of each indoor unit (5)

(In other words, the correction coefficient (6), based on the corrected indoor/outdoor capacity ratios for each indoor unit, is 1.)

If the corrected outdoor unit heating capacity is less than the total corrected unit heating capacity of all indoor units in that system (Ruh > 1), then:

(Actual heating capacity of each indoor unit (7)) = (Corrected heating capacity of each indoor unit (5))

× (0.1 ×

Ruh + 0.9) / Ruh

(In other words, the correction coefficient (6), based on the corrected indoor/outdoor capacity ratios for each indoor unit, is the underlined part in the formula above.)

1

2

3

4

5

6

7

8

2 - 5

7

8

Design of Mini VRF SYSTEM

1. Model Selecting and Capacity Calculator

1

Refer to the graph below for the correction coefficients for Ruc and Ruh.

Indoor unit capacity correction coefficient for Ruc (cooling)

Indoor unit capacity correction coefficient for Ruh (heating)

1.0

0.9

0.8

0.7

0.6

0.5

0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0

Corrected indoor/outdoor capacity ratio (Ruc or Ruh)

Note: When Ruc or Ruh is less than or equal to 1.0, the indoor unit capacity correction coefficient for both Ruc and Ruh is 1.0.

5. Graph of capacity correction coefficients

Graph of outdoor unit capacity characteristics (1 – (1))

Outdoor unit cooling capacity characteristics

2

3

120

100

80

71°F WB

66°F WB

60°F WB

(1) U-36LE1U6, U-36LE1U6E

104

(1)

100

90

(2)

(1)

80 (2)

(2) U-52LE1U6, U-52LE1U6E

4

14 95 100

Outdoor air intake temp. (°F DB)

109

5

6

2 - 6

Design of Mini VRF SYSTEM

1. Model Selecting and Capacity Calculator

Outdoor unit heating capacity characteristics

U-36LE1U6, U-36LE1U6E

130

120

110

100

90

80

70

60

50

–4 5 14 23 32 41 50 59

Outdoor air intake temp. (°F DB)

(°F DB)

59

68

77

U-52LE1U6, U-52LE1U6E

130

120

110

100

90

80

70

60

50

–4 5 14 23 32 41 50 59

Outdoor air intake temp. (°F DB)

(°F DB)

59

68

77

Outdoor unit heating capacity correction coefficient during frosting/defrosting (1 – (2))

Outdoor intake air

–4 5 14 17 21 23 24 28 30 32 33 35 37 39 41 42

temp. (°F WB RH 85%)

Correction

coefficient

0.97 0.97 0.97 0.96 0.94 0.91 0.89 0.87 0.87 0.87 0.88 0.89 0.91 0.92 0.95 1.0

* To calculate the heating capacity with consideration for frosting/defrosting operation, multiply the heating capacity found from the capacity graph by the correction coefficient from the table above.

1

2

3

4

5

6

7

8

2 - 7

Design of Mini VRF SYSTEM

1. Model Selecting and Capacity Calculator

Graph of indoor unit capacity characteristics (2 – (1))

Indoor unit cooling capacity characteristics Indoor unit heating capacity characteristics

indicates the rating point.

120

110

100

90

80

57 59 60 62 64 66 68 69 71 73 75 77

Indoor air intake temp. (˚F WB)

indicates the rating point.

110

105

100

95

90

59 60 62 64 66 68 69 71 73 75 77 78

80

Indoor air intake temp. (˚F DB)

5

6

7

8

1

2

3

Graph of capacity change characteristics resulting from tubing length and elevation difference (1

• 2 – (2))

<Cooling>

Base capacity change rate (%)

164

92 90 88 86 84 82 80 78 76

131

98

66

33

100

%

98

96

94

0

-33

-66

-98

-131

0 33 66 98 131 164 197 230 262 295 328 361 394 427 459 492

Equivalent length (ft)

<Heating>

Base capacity change rate (%)

164

98

131

98

66

33

100

%

99

0

-33

-66

-98

-131

0 33

97 96 95 94 93 92 91

Equivalent length (ft)

The positive side for the elevation difference indicates that the outdoor unit is installed at a higher position than the indoor units. The negative side indicates the opposite.

4

2 - 8

Design of Mini VRF SYSTEM

1. Model Selecting and Capacity Calculator

1-4. Capacity Correction Graph According to Temperature Condition

Capacity characteristics

(The corrected capacity for specific temperature conditions can be found from the graphs below and next page.)

<COOLING>

120

100

80

71°F WB

66°F WB

60°F WB

(1) U-36LE1U6, U-36LE1U6E

104

(1)

100

90

(2)

(1)

80 (2)

(2) U-52LE1U6, U-52LE1U6E

14 95 100

Outdoor air intake temp. (°F DB)

109

100

50

63

50

33

14

92 104 100 112

71°F WB

66°F WB

60°F WB

95 100 109

Outdoor air intake temp. (°F DB)

124 (1)

118

114

108

(1)

(2)

(2)

100

(2)

(1) U-36LE1U6, U-36LE1U6E

(2) U-52LE1U6, U-52LE1U6E

1

2

3

4

5

6

7

8

2 - 9

5

6

7

8

3

4

Design of Mini VRF SYSTEM

1. Model Selecting and Capacity Calculator

1

<HEATING>

U-36LE1U6, U-36LE1U6E

130

120

110

100

90

80

70

60

50

40

130

120

110

100

90

80

70

60

50

–4 5 14 23 32 41 50 59

59

68

77

Outdoor air intake temp. (°F DB)

(°F DB)

59

68

77

U-52LE1U6, U-52LE1U6E

130

120

110

100

90

80

70

60

50

40

130

120

110

100

90

80

70

60

50

–4 5 14 23 32 41 50 59

59

68

77

Outdoor air intake temp. (°F DB)

(°F DB)

59

68

77

2

2 - 10

Design of Mini VRF SYSTEM

1. Model Selecting and Capacity Calculator

Inverter model rated performance values

Model

Item

U-36LE1U6, U-36LE1U6E

U-52LE1U6, U-52LE1U6E

Cooling capacity

BTU/h(kW)

38,200 (11.2)

52,900 (15.5)

Cooling

Power consumption

BTU/h(kW)

9,400 (2.76)

16,600 (4.57)

Heating capacity

BTU/h(kW)

42,700 (12.5)

60,000 (17.6)

Heating

Power consumption

BTU/h(kW)

9,800 (2.88)

15,600 (4.58)

Outdoor unit heating capacity correction coefficient during frosting/defrosting (1 – (3))

Outdoor intake air

temp. (°F WB RH 85%)

Correction

coefficient

–4 5 14 17 21 23 24 28 30 32 33 35 37 39 41 42

0.97 0.97 0.97 0.96 0.94 0.91 0.89 0.87 0.87 0.87 0.88 0.89 0.91 0.92 0.95 1.0

* To calculate the heating capacity with consideration for frosting/defrosting operation, multiply the heating capacity found from the capacity graph by the correction coefficient from the table above.

1-5. Capacity Correction Graph According to Tubing Length and Elevation Difference

Capacity change characteristics

<Cooling>

164

Base capacity change rate (%)

–33

–66

–98

131

98

66

33

100

%

98

0

96

94

*1

–131

0 33 66 98 131 164 197 230 262 295 328 361 394 427 459 492

Equivalent length (ft)

<Heating>

164

Base capacity change rate (%)

97 96 95 94 93 92 91

–33

–66

–98

131

98

66

33

100

%

0

99

98

*1

–131

0 33 66 98 131 164 197 230 262 295 328 361 394 427 459 492

Equivalent length (ft)

2 - 11

1

2

3

4

5

6

7

8

5

6

7

8

Design of Mini VRF SYSTEM

1

2

For U-36LE1U6(E) units

■ If the maximum tubing length (L1) exceeds 295 ft. (equivalent length), increase the tubing size of the main gas tube (LM) by one rank.

* The size increase is applied to the gas tube only. In addition, for a 6 HP unit it is not necessary to increase the tubing size.

■ Increasing the tubing size of the gas tubes can reduce the loss of capacity caused by longer tubing lengths.

Refer to Table 2-1 to increase the tubing size. However, the maximum allowable tubing length must not be exceeded.

* The size increase is applied to the LM gas tube (main tube with the largest diameter) only, and is limited to the cases shown in Table 2-1. In addition, the amount of additional refrigerant charge is determined from the liquid tube size only.

* In case of 6 pieces, increasing the size of the gas tube is not possible.

Table 2-1 Correction coefficient for equivalent length when the size of the gas tube (LM) is increased

Standard tube diameter (gas tube, in. (mm))

Tube diameter after change (gas tube, in. (mm))

Equivalent length correction coefficient

ø5/8" (ø15.88)

ø3/4" (ø19.05)

0.4

* When increasing the size of the gas tubing (LM), multiply by the correction coefficient from Table 2-1 and calculate the equivalent length for section LM.

Tubing equivalent length after size increase = Standard tubing equivalent length

× Equivalent length correction coefficient

WARNING

The upper limit for tubing size is ø3/4” (ø19.05). Tubing above that size cannot be used.

3

1. Model Selecting and Capacity Calculator

4

2 - 12

Design of Mini VRF SYSTEM

2. System Design

2-1. Tools Required for Installation (not supplied)

1. Flathead screwdriver

2. Phillips head screwdriver

3. Knife or wire stripper

4. Tape measure

5. Carpenter’s level

6. Sabre saw or key hole saw

7. Hack saw

8. Core bits

9. Hammer

10. Drill

12. Tube flaring tool

15. Reamer (for deburring)

2-2. Accessories Supplied with Outdoor Unit

Table 2-2 (Outdoor Unit)

Patr name Figure

Q'ty

U-36LE1U6

U-36LE1U6E

(4 hp)

U-52LE1U6

U-52LE1U6E

(6 hp)

2-3. Type of Copper Tube and Insulation Material

If you wish to purchase these materials separately from a local source, you will need:

1. Deoxidized annealed copper tube for refrigerant tubing.

2. Foamed polyethylene insulation for copper tubes as required to precise length of tubing. Wall thickness of the insulation should be not less than 5/16".

3. Use insulated copper wire for field wiring. Wire size varies with the total length of wiring. Refer to

3. Electrical Wiring for details.

CAUTION

Check local electrical codes and regulations before obtaining wire. Also, check any specified instructions or limitations.

2-4. Additional Materials Required for Installation

1

(See your local codes.)

2

Tube Discharge

Assembly

0 1

3

4

Instruction manual

paper 1 1 hp = horsepower

5

6

7

8

2 - 13

Design of Mini VRF SYSTEM

2. System Design

2-5. Tubing Size

Table 2-3 Main Tubing Size (LA)

BTU/h (kW)

System horsepower

Gas tubing

Liquid tubing

38,200 (11.2)

4

ø5/8" (ø15.88)

52,900 (15.5)

6

ø 3/4" (ø19.05)

ø 3/8" (ø9.52)

Unit: in. (mm)

Note: If the system consists of only one indoor unit with an outdoor 6HP (Type 52), the main tube of the unit (LA) should be

ø19.05. Convert ø19.05 to ø15.88 using a reducer (field supply) close to the indoor unit and then make the connection.

Table 2-4 Main Tubing Size After Distribution (LB, LC...)

Total capacity after distribution

Tubing size

Below BTU/h

Over BTU/h s tubing

Liquid tubing

24,200 (2.5 hp) 38,200 (4 hp) 47,800 (5 hp) 52,900 (6 hp)

ø 1/2" ( ø 12.7)

ø 3/8" (ø9.52)

24,200 (2.5 hp)

ø 5/ 8" (ø15.88) ø 3/4" (ø19.05)

ø 3/8" (ø9.52)

Unit: in. (mm) hp = horsepower

Note: In case the total capacity of connected indoor units exceeds the total capacity of the outdoor units, select the main tubing size for the total capacity of the outdoor units.

1

2

Table 2-5 Indoor Unit Tubing Connection (

1

,

2

...

n–1

)

Indoor unit type

Gas tubing

Liquid tubing

7 9 12 15

ø

1/2" (

ø

12.7)

ø

1/4" (

ø

6.35)

18 19 24 36 48

ø

5/8" (

ø

15.88)

ø

3/8" (

ø

9.52)

54

Unit: in. (mm)

3

4

5

6

2-6. Straight Equivalent Length of Joints

Design the tubing system by referring to the following table for the straight equivalent length of joints.

Table 2-6 Straight Equivalent Length of Joints

Unit: ft.

1/2" (12.7) 5/8" (15.88) 3/4" (19.05) Gas tubing size (in. (mm))

90

° elbow

45

° elbow

U-shape tube bend (R2-3/8" – 4" (60 – 100))

1

0.8

3

1.1

0.9

3.4

1.4

1

4.1

Trap bend

Y-branch distribution joint

Ball valve for service

7.5

9.2

10.5

Equivalent length conversion not needed.

Equivalent length conversion not needed.

7

Table 2-7 Required Copper Tubing Dimensions

Copper tube

Material

Outer diameter

Wall thickness

1/4 (6.35)

1/32 (0.8)

3/8 (9.52)

1/32 (0.8)

Unit: in. (mm)

O

1/2 (12.7)

1/32 (0.8)

5/8 (15.88) 3/4 (19.05)

5/128 (1.0) over 5/128 (1.0)

8

2 - 14

Design of Mini VRF SYSTEM

2. System Design

2-7. Additional Refrigerant Charge

Additional refrigerant charge amount is calculated from the liquid tubing total length as follows.

Table 2-8 Amount of Refrigerant Charge Per Feet, According to Liquid Tubing Size

Liquid tubing size

(in. (mm))

Amount of refrigerant charge (oz/ft.)

Required amount of charge = (Amount of refrigerant charge per ft. of each size of liquid tube × its tube

0.279

length) + (...) + (...)

0.602

*Always charge accurately using a scale for weighing.

Table 2-9 Refrigerant Charge Amount at Shipment (for outdoor unit)

Heat pump unit

(Single-phase)(oz)

U-36LE1U6

U-36LE1U6E

123

U-52LE1U6

U-52LE1U6E

123

2-8. System Limitations

Table 2-10 System Limitations

Outdoor units

Number of max. connectable indoor units

Max. allowable indoor/outdoor capacity ratio

U-36LE1U6

U-36LE1U6E

6

U-52LE1U6

U-52LE1U6E

50 – 130%

9

1

2

2-9. Tubing Length

Select the installation location so that the length and size of refrigerant tubing are within the allowable range shown in the figure below.

3

4

LA

Main tube of unit

1st branch

Unit distribution tube

L3

1

LB

2

LC

L1

L2

3

LD n

n-1

H2

H1

Note: Do not use commercially available T-joints for the liquid tubing.

* Be sure to use special R410A distribution joints (CZ: purchased separately) for outdoor

unit connections and tubing branches.

R410A distribution joint

CZ-P160BK1U (for indoor unit)

5

6

7

8

2 - 15

7

8

Design of Mini VRF SYSTEM

2. System Design

Table 2-11 Ranges that Apply to Refrigerant Tubing Lengths and to Differences in Installation Heights

Items

Allowable tubing length

Allowable elevation difference

Marks

L1

L (L2 – L3)

LA

1

,

2

... n

1

+

2

+... n-1

+L1

H1

H2

Contents

Max. tubing length

Actual length

Equivalent length

Difference between max. length and min.

length from the No.1 distribution joint

Max. length of main tubing (at max. diameter)

Max. length of each distribution tube

Total max. tubing length including length of each distribution tube (only narrow tubing)

When outdoor unit is installed higher than indoor unit

When outdoor unit is installed lower than indoor unit

Max. difference between indoor units

Length (ft.)

>

492

>

574

> 131

>

>

262

98

>

656

>

>

>

164

131

49

L = Length, H = Height

1

2

WARNING

Always check the gas density limit for the room in which the unit is installed.

2-10. Check of Limit Density

When installing an air conditioner in a room, it is necessary to ensure that even if the refrigerant gas accidentally leaks out, its density does not exceed the limit level for that room.

3

4

CAUTION

Pay special attention to any location, such as a basement, etc., where leaking refrigerant can accumulate, since refrigerant gas is heavier than air.

5

6

2 - 16

Design of Mini VRF SYSTEM

2. System Design

2-11. System Example

(1) Below are the tables created using the “PAC System Diagram Software.”

Details of the calculations are shown in (2).

Outdoor unit

131 ft.

33 ft.

33 ft.

49 ft.

Elevation difference: 33 ft.

Indoor unit 1

33 ft.

Indoor unit 2

33 ft.

Indoor unit 3

33 ft.

Indoor unit 4

Selection conditions

Assumes that installation is in a 60 Hz region.

Selected model

Outdoor unit

U-36LE1U6 (U-36LE1U6E)

Room 1

(indoor unit 1)

Type 12

Cooling

Air condition

(DB/WB)

Max. load (BTU/h)

91.0 / 72.0

78.0 / 64.0

10,000

Heating

Air condition

(DB/WB)

Max. load (BTU/h)

Actual tubing length

Equivalent length (with consideration for curves, etc.)

37.0 / 35.0

246 ft.

295 ft.

69.0 / 55.0

12,000

164 ft.

197 ft.

Room 2

(indoor unit 2)

Type 7

Room 3

(indoor unit 3)

Type 7

78.0 / 64.0

7,000

69.0 / 55.0

8,400

197 ft.

236 ft.

78.0 / 64.0

7,000

69.0 / 55.0

8,400

230 ft.

276 ft.

Room 4

(indoor unit 4)

Type 7

78.0 / 64.0

7,000

69.0 / 55.0

8,400

246 ft.

295 ft.

Preliminary selection

Outdoor unit

Selected model

Load (cooling/heating) (BTU/h)

U-36LE1U6 (U-36LE1U6E)

Room 1

(indoor unit 1)

Type 12

Room 2

(indoor unit 2)

Type 7

Room 3

(indoor unit 3)

Type 7

Room 4

(indoor unit 4)

Type 7

10,000 / 12,000 7,000 / 8,400 7,000 / 8,400 7,000 / 8,400

Rated capacity

(cooling/heating) (BTU/h)

38,200 / 42,700

12,000 / 14,000 7,500 / 8,500 7,500 / 8,500 7,500 / 8,500

(5) Corrected capacity

(cooling/heating) (BTU/h)

33,200 / 33,700 11,700 / 14,000 7,200 / 8,400 7,000 / 8,400

(7) Actual capacity

(cooling/heating) (BTU/h)

11,700 / 12,200 7,200 / 7,400

Total corrected capacity of indoor units (cooling/heating) = 32,800 / 39,100

Ruc = 32,800 / 33,200 = 0.988

< 1 Ruh = 39,100 / 33,700 = 1,160 > 1

7,000 / 7,300

6,900 / 8,300

6,900 / 7,300

Outdoor unit changes

During heating, the corrected outdoor unit capacity is less than the total corrected capacity of all indoor units in the system. As a result, the actual capacity of each indoor unit is less than the maximum load. Therefore the outdoor unit is increased by one rank.

Outdoor unit

U-52LE1U6 (U-52LE1U6E)

Room 1

(indoor unit 1)

Type 12

Room 2

(indoor unit 2)

Type 7

Room 3

(indoor unit 3)

Type 7

Room 4

(indoor unit 4)

Type 7

Selected model

Maximum load

(cooling/heating) (BTU/h)

10,000 / 12,000 7,000 / 8,400 7,000 / 8,400 7,000 / 8,400

Rated capacity

(cooling/heating) (BTU/h)

(5) Corrected capacity

(cooling/heating) (BTU/h)

(7) Actual capacity

(cooling/heating) (BTU/h)

52,900 / 60,000

45,900 / 47,300

12,000 / 14,000

11,700 / 14,000

11,700 / 14,000

7,500 / 8,500

7,200 / 8,400

7,200 / 8,400

7,500 / 8,500

7,000 / 8,400

7,000 / 8,400

7,500 / 8,500

6,900 / 8,300

6,900 / 8,300

Total corrected capacity of all indoor units (cooling/heating) = 32,800 / 39,100

Ruc = 32,800 / 45,900 = 0.715

< 1 Ruh = 39,100 / 47,300 = 0.827 < 1

2 - 17

1

2

3

4

5

6

7

8

Design of Mini VRF SYSTEM

2. System Design

1

2

3

4

5

6

7

8

Indoor unit changes

The indoor unit in room 4, where the corrected indoor unit capacity is less than the maximum load, is increased by one rank.

Selected model

Maximum load

(cooling/heating) (BTU/h)

Outdoor unit

U-52LE1U6 (U-52LE1U6E)

Room 1

(indoor unit 1)

Type 12

Room 2

(indoor unit 2)

Type 7

10,000 / 12,000 7,000 / 8,400

Room 3

(indoor unit 3)

Type 7

7,000 / 8,400

Room 4

(indoor unit 4)

Type 12

7,000 / 8,400

Rated capacity

(cooling/heating) (BTU/h)

(5) Corrected capacity

(cooling/heating) (BTU/h)

(7) Actual capacity

(cooling/heating) (BTU/h)

52,900 / 60,000

45,900 / 47,300

12,000 / 14,000

7,500 / 8,500

11,700 / 14,000 7,200 / 8,400

11,700 / 14,000 7,200 / 8,400

7,500 / 8,500 12,000 / 14,000

7,000 / 8,400 11,000 / 13,700

7,000 / 8,400 11,000 / 13,700

Total corrected capacity of all indoor units (cooling/heating) = 36,900 / 44,500

Ruc = 36,900 / 45,900 = 0.804

< 1 Ruh = 44,500 / 47,300 = 0.941 < 1

•For both cooling and heating in all rooms, actual capacity is now greater than or equal to the maximum

load. Selection is completed.

(2) Calculate the final selection results according to the capacity calculation procedure.

[From calculation of the correction coefficient to calculation of actual capacity]

(Cooling/heating)

Outdoor unit

Room 1

(indoor unit 1)

Room 2

(indoor unit 2)

Room 3

(indoor unit 3)

Room 4

(indoor unit 4)

Rated capacity

(cooling/heating) (BTU/h)

52,900 / 60,000 12,000 / 14,000 7,500 / 8,500 7,500 / 8,500 12,000 / 14,000

(1) Model 1.00 / 1.00

(2) Temp. condition

1.020 / 0.937

0.920 / 0.980

0.920 / 0.980

0.920 / 0.980

0.920 / 0.980

(3) Tubing length, elevation difference

Correction coefficient

(4) Frosting • defrosting

Result of (2)

× (3)

Correction coefficient applied to indoor unit *1

0.851 / 0.946

— / 0.890

1.062 / 1.020

0.977 / 1.000

0.977 / 1.000

1.037 / 1.012

0.954 / 0.992

0.954 / 0.992

1.012 / 1.004

0.992 / 0.984

0.992 / 0.984

1.000 / 1.000

0.920 / 0.980

0.920 / 0.980

(5) Corrected capacity (BTU/h) *2 45,900 / 47,300 11,700 / 14,000

7,200 / 8,400

7,000 / 8,400 11,000 / 13,700

(6) Correction coefficient for corrected capacity ratio

(7) Actual capacity (BTU/h)

1.00 / 1.00

11,700 / 14,000 7,200 / 8,400 7,000 / 8,400 11,000 / 13,700

*1: This varies depending on the values of (2) and (2)

× (Distribution ratio in (3)).

*2: Corrected outdoor unit capacity = Rated outdoor unit capacity

× (1) × (2) × (3) × (4)

The actual capacity is calculated as shown below.

Cooling: Ruc = (11,700 + 7,200 + 7,000 + 11,000) / 45,900 = 0.804 < 1

Therefore,

Actual cooling capacity of each indoor unit = Corrected cooling capacity of each indoor unit

(In other words, the correction coefficient [6] for the corrected capacity ratio is 1.)

Heating: Ruh = (14,000 + 8,400 + 8,400 + 13,700) / 47,300 = 0.941 < 1

Therefore,

Actual heating capacity of each indoor unit = Corrected heating capacity of each indoor unit

(In other words, the correction coefficient (6) for the corrected capacity ratio is 1.)

2 - 18

Design of Mini VRF SYSTEM

2. System Design

2-12. Example of Tubing Size Selection and Refrigerant Charge Amount

Additional refrigerant charging

Based on the values in Tables 2-3, 2-4, 2-5 and 2-8, use the liquid tubing size and length, and calculate the amount of additional refrigerant charge using the formula below.

Required additional refrigerant charge (oz)

= 0.602 × (a) + 0.279 × (b)

(a): Liquid tubing Total length of ø3/8” (ø9.52) (ft.) (b): Liquid tubing Total length of ø1/4” (ø6.35) (ft.)

● Charging procedure

Be sure to charge with R410A refrigerant in liquid form.

1. After performing a vacuum, charge with refrigerant from the liquid tubing side. At this time, all valves must be in the “fully closed” position.

2. If it was not possible to charge the designated amount, operate the system in Cooling mode while charging with refrigerant from the gas tubing side. (This is performed at the time of the test run. For this, all valves must be in the “fully open” position.)

Charge with R410A refrigerant in liquid form.

With R410A refrigerant, charge while adjusting the amount being fed a little at a time in order to prevent liquid refrigerant from backing up.

● After charging is completed, turn all valves to the “fully open” position.

● Replace the tubing covers as they were before.

1

2

3

Tightening torque for valve stem cap: 160 – 180 lbs · in.

4

Tightening torque: 300 – 360 lbs · in.

3

CAUTION

1 Tightening torque: 590 – 710 lbs · in.

2 Tightening torque for valve stem cap: 240 – 280 lbs · in.

1. R410A additional charging absolutely must be done through liquid charging.

2. The R410A refrigerant cylinder has a gray base color, and the top part is pink.

3. The R410A refrigerant cylinder includes a siphon tube. Check that the siphon tube is present. (This is indicated on the label at the top of the cylinder.)

4. Due to differences in the refrigerant, pressure, and refrigerant oil involved in installation, it is not possible in some cases to use the same tools for R22 and for R410A.

2 - 19

6

7

8

4

5

Design of Mini VRF SYSTEM

2. System Design

Example:

5

6

7

8

1

2

3

4

LA

LC

L1

L2

LN

Main tube of unit

LB n

1st branch

Unit distribution tube

1

2 model 7

● Example of each tubing length

Main tubing Distribution joint tubing

LA = 131 ft.

LB = 16 ft.

LC = 16 ft.

LD = 49 ft.

Indoor side

1 = 16 ft.

2 = 16 ft.

3 = 7 ft.

4 = 20 ft.

5 = 16 ft.

model 9

3 model 12 n–1 model 18 model 18

● Obtain charge amount for each tubing size

Note that the charge amounts per 3.3 ft. are different for each liquid tubing size.

ø3/8" (ø9.52)

→ LA + LB + LC + LD

: 212 ft.

× 0.602 oz/ft. = 127 oz

ø1/4" (ø6.35)

→ 1 + 2 + 3 + 4 + 5 : 75 ft. × 0.279 oz/ft. = 20 oz

Additional refrigerant charge amount is 147 oz.

CAUTION

Be sure to check the limit density for the room in which the indoor unit is installed.

2 - 20

2. System Design

2-13. Installing Distribution Joint

(1) Refer to “HOW TO ATTACH DISTRIBUTION

JOINT” enclosed with the optional distribution joint kit (CZ-P160BK1U).

(2) In order to prevent accumulation of refrigerant oil in stopped units, if the main tubing is horizontal then each branch tubing length “B” should be at an angle that is greater than horizontal. If the main tubing is vertical, provide a raised starting portion for each branch.

When only one indoor unit is connected to the side of

“A”, install part “A” at a positive angle (15-30°) for the fi eld tubing as shown in the fi gure.

(3) If there are height differences between indoor units or if branch tubing that follows a distribution joint is connected to only 1 unit, a trap or ball valve must be added to that distribution joint. (When adding the ball valve, locate it within 1.3 ft. of the distribution joint.)

If a trap or ball valve is not added, do not operate the system before repairs to a malfunctioning unit are completed. (The refrigerant oil sent through the tubing to the malfunctioning unit will accumulate and may damage the compressor.)

Design of Mini VRF SYSTEM

Tube branching methods (horizontal use)

B

Arrow view D

view D

15 to 30

°

A

B

A

Arrow view C

15 to 30

°

B

Horizontal line

A

View as seen

view C

from arrow

Types of vertical trap specifications

(When using ball valve)

Main tubing

1

Ball valve

(BV: purchased separately)

Indoor unit (more than 2 units)

(If only 1 unit is connected, a ball valve is also needed on this side.)

Indoor unit (1)

(When not using ball valve)

Main tubing

Horizontal

Indoor unit

Branch tubing is directed upward.

More than

8 in.

(Each unit is connected to tubing that is either level or is directed downward.)

Indoor unit is directed downward

2

3

4

5

6

7

8

2 - 21

Design of Mini VRF SYSTEM

3. Electrical Wiring

1

2

3

4

5

3-1. General Precautions on Wiring

(1) Before wiring, confirm the rated voltage of the unit as shown on its nameplate, then carry out the wiring closely following the wiring diagram.

(2) Provide a power outlet to be used exclusively for each unit, and a power supply disconnect, circuit breaker and earth leakage breaker for overcurrent protection should be provided in the exclusive line.

(3) To prevent possible hazards from insulation failure, the unit must be grounded.

(4) Each wiring connection must be done in accordance with the wiring system diagram.

Wrong wiring may cause the unit to misoperate or become damaged.

(5) Do not allow wiring to touch the refrigerant tubing, compressor, or any moving parts of the fan.

(6) Unauthorized changes in the internal wiring can be very dangerous. The manufacturer will accept no responsibility for any damage or misoperation that occurs as a result of such unauthorized changes.

(7)

(9)

Regulations on wire diameters differ from locality to locality. For field wiring rules, please refer to your LOCAL ELECTRICAL CODES before beginning.

You must ensure that installation complies with all relevant rules and regulations.

(8) To prevent malfunction of the air conditioner caused by electrical noise, care must be taken when wiring as follows:

The remote control wiring and the inter-unit control wiring should be wired apart from the inter-unit power wiring.

Use shielded wires for inter-unit control wiring between units and ground the shield on both sides.

If the power supply cord of this appliance is damaged, it must be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required.

3-2. Recommended Wire Length and Wire Diameter for Power Supply System

Outdoor unit

Type

Time delay fuse or circuit capacity

U-36LE1U6

U-36LE1U6E

U-52LE1U6

U-52LE1U6E

30 A

50 A

Indoor unit

Type

K1

D1, U1, Y1, F1, M1, T1, P1, R1

E1

Time delay fuse or circuit capacity

15 A

15 A

15 A

6

7

Control wiring

(A) Inter-unit (between outdoor and indoor units) control wiring*

AWG #18 (0.75 mm

2

)

Max. 3,280 ft.

(B) Remote control wiring

AWG #18 (0.75 mm

2

)

Max. 1,640 ft.

(C) Control wiring for group control

AWG #18 (0.75 mm

2

)

Max. 650 ft. (Total)

8

NOTE

* With ring-type wire terminal.

2 - 22

Design of Mini VRF SYSTEM

3. Electrical Wiring

3-3.Wiring System Diagram

*

Power supply

208 / 230V, 60Hz, 1-PH

L1

L2

Remote

Controller

WHT

BLK

1

2

1

2

Ground

B

*

Power supply

208 / 230V, 60Hz, 1-PH

L1

L2

Remote

Controller

WHT

BLK

1

2

1

2

Ground

B

Group control:

Power supply

208 / 230V, 60Hz, 1-PH

L1

L2

Ground

K1 Type

*

*

Power supply

208 / 230V, 60Hz, 1-PH

L1

L2

Remote

Controller

BLK

WHT

2

1

CONNECTOR

2P (WHT)

Ground

BLK

WHT

BLK

WHT

C

Indoor unit (No. 1)

L1

L2

U1

U2

R1

R2

A

Indoor unit (No. 2)

L1

L2

U1

U2

R1

R2

A

Indoor unit (No. 3)

L1

L2

U1

U2

R1

R2

A

B

BLK

WHT

Indoor unit (No. n)

L1

L2

U1

U2

3

1

A

Outdoor unit

INV unit

1

2

L1

L2

* Disconnect switch

(Field Supply)

* NOTE:

Disconnect Switch may be needed by the

National/Local code.

Outdoor Unit

L1 L2

Power supply

Indoor Unit

U1, E1 Types

7P terminal board

NOTE

(1) Refer to Section 3-2.“Recommended Wire

Length and Wire Diameter for Power Supply

System for the explanation of “A,” “B,” and

“C,” in the above diagram.

(2) The basic connection diagram of the indoor unit shows the 6P terminal board, so the terminal boards in your equipment may differ from the diagram.

(3) Refrigerant Circuit (R.C.) address should be set before turning the power on.

(4) Regarding the R.C. address setting, refer to

Section 5 "TEST RUN." Address setting can be executed by remote controller automatically.

1(L1) 2(L2)

Power supply

U1 U2 R1 R2

Unit Remote control

Line control

Line

K1 Type

Model : S-07MK1U6

S-09MK1U6

S-12MK1U6

5P terminal board

1

(L1)

2

(L2)

Power supply

U1 U2

Unit control

Line

2 - 23

*

L1

L2

Ground

Power supply

208 / 230V, 60Hz, 1-PH

ALWAYS COMPLY WITH NATIONAL AND

LOCAL CODE REQUIREMENTS.

5P terminal board

1 2

Y1, D1, T1, F1, M1, P1, R1 Types

6P terminal board

L1 L2 U1 U2 R1 R2

Power supply

Unit control

Line

Remote control

Line

K1 Type

Model : S-18MK1U6

S-19MS1U6

S-24MK1U6

5P terminal board

1 2

(L1) (L2)

Power supply

U1 U2

Unit control

Line

1

2

3

4

5

6

7

8

Design of Mini VRF SYSTEM

3. Electrical Wiring

1

CAUTION

(1) When linking outdoor units in a network, disconnect the terminal extended from the short plug (CN003,

2P Black, location: right bottom on the outdoor main control PCB) from all outdoor units except any one of the outdoor units.

(When shipping: In shorted condition.)

For a system without link (no connection wiring between outdoor units), do not remove the short plug.

(2) Do not install the inter-unit control wiring in a way that forms a loop. (Fig. 2-1)

Outdoor unit Outdoor unit Outdoor unit

Prohibited

Prohibited

Indoor unit Indoor unit Indoor unit

Fig. 2-1

Indoor unit Indoor unit

(3) Do not install inter-unit control wiring such as star branch wiring. Star branch wiring causes misaddress setting.

2

3

4

Outdoor unit Indoor unit Indoor unit

NO

Indoor unit Indoor unit

Fig. 2-2

Branch point

(4) If branching the inter-unit control wiring, the number of branch points should be 16 or fewer.

(Branches less than 3.3 ft. are not included in the total branch number.) (Fig. 2-3)

Outdoor unit Outdoor unit Outdoor unit

5

6

7

8

Indoor unit Indoor unit more than 3.3 ft

Branch point

16 or fewer

Indoor unit more than 3.3 ft

Indoor unit

Indoor unit less than 3.3 ft

Indoor unit

Fig. 2-3

Indoor unit

Indoor unit

2 - 24

Indoor unit

Indoor unit

Design of Mini VRF SYSTEM

3. Electrical Wiring

WARNING

Loose wiring may cause the terminal to overheat or result in unit malfunction.

A fire hazard may also exist. Therefore, ensure that all wiring is tightly connected.

When connecting each power wire to the terminal, follow the instructions on “How to connect wiring to the terminal” and fasten the wire securely with the fixing screw of the terminal plate.

How to connect wiring to the terminal

For stranded wiring

(1) Cut the wire end with cutting pliers, then strip the insulation to expose the stranded wiring approx.

3/8 in. and tightly twist the wire ends. (Fig. 2-4)

(2) Using a Phillips head screwdriver, remove the terminal screw(s) on the terminal plate.

(3) Using a ring connector fastener or pliers, securely clamp each stripped wire end with a ring pressure terminal.

(4) Place the ring pressure terminal, and replace and tighten the removed terminal screw using a screwdriver. (Fig. 2-5)

Stranded wire

Fig. 2-4

Special washer

Wire

Screw

Ring pressure terminal

Terminal plate

Wire

Fig. 2-5

Ring pressure terminal

Screw and

Special washer

Ring pressure terminal

1

2

3

4

5

6

7

8

2 - 25

Design of Mini VRF SYSTEM

3. Electrical Wiring

1

2

3-4. Important Note When Wiring for Common Type

Connect the wires referring to the diagram.

Note that the control wirings (Low voltages) shall be segregated from the power supply wires (High voltage) as follows:

1.

Connect the Inter-unit control wiring to U1/U2 terminals and the remote control wire to R1/R2.

(excepting K1 type).

2.

Connect the power supply wires to “L1, L2” of the terminal block. Be sure to connect the grounding conductor of the incoming power supply to the earth

(ground) screw.

3.

Securely affix the power supply wires and remote control wires by the clamping strap or clamping clip not to cross each other and not to leave the wirings loose. When loosening the clamping clip, twist the strap and it will come undone.

U1 Type

Earth screw

Power wiring

(field supplied)

Clamping clip

Clamping clip

Twist

NOTE

Securely affix the 3-way wiring harness with the remote control wiring (U1 type).

Conduit

Connection for

Solenoid Valve Kit

(for 3WAY)

Remote control wiring and Inter-unit control wiring

(field supplied)

3

D1 Type

Remote control wiring and Inter-unit control wiring

(field supplied)

Conduit

(field supplied)

4

F1 Type

Earth screw

5

Power wiring

(field supplied)

Conduit

(field supplied)

6

Clamping clip

7

Clamping clip

Earth screw

Power wiring

(field supplied)

8

Remote control wiring and Inter-unit control wiring

(field supplied)

Connection for Solenoid

Valve Kit (for 3WAY)

2 - 26

Design of Mini VRF SYSTEM

3. Electrical Wiring

Important Note When Wiring for Common Type (Continued)

E1 Type

Remote control wiring and Inter-unit control wiring (field supplied)

T1 Type

Clamping clip

Remote control wiring

(field supplied)

Clamping clip

Conduit

(field supplied)

Earth screw

Power wiring

(field supplied)

M1 Type

Earth screw

Power wiring

(field supplied)

Conduit

(field supplied)

1

2

P1, R1 Type

3

4

Clamping clip

Power wiring

(field supplied)

Earth screw

Earth screw

Power wiring

(field supplied)

Clamping clip

Conduit

(field supplied)

Remote control wiring and Inter-unit control wiring

(field supplied)

Conduit

Optional remote control wiring (field supplied)

2 - 27

5

Connection for Solenoid

Valve Kit

(for 3WAY)

6

3-way connection wiring with harness(supplied)

7

8

3. Electrical Wiring

Important Note When Wiring for Common Type (Continued)

K1 Type

Model : S-07MK1U6

S-09MK1U6

S-12MK1U6

Clamping strap

Connection for Solenoid

Valve Kit (for 3WAY)

Design of Mini VRF SYSTEM

Power wiring

(field supplied)

1

2

3

K1 Type

Model : S-18MK1U6

S-19MS1U6*

S-24MK1U6

4

5

Conduit

(field supplied)

Clamping strap

Power wiring

(field supplied)

Remote control wiring and Inter-unit control wiring (field supplied)

Connection for Solenoid

Valve Kit (for 3WAY)

6

Earth screw

7

8

Conduit

(field supplied)

Remote control wiring and Inter-unit control wiring (field supplied)

* Necessary to install the External Electronic Expansion Valve Kit (Optional : CZ-P56SVK1U)

2 - 28

Design of Mini VRF SYSTEM

3. Electrical Wiring

3-5. Important Note When Wiring for Y1 Type

Connect the wires referring to the diagram.

Note that the control wirings (Low Voltages) shall be segregated from the power supply wires (High Voltage) as follows:

1.

Connect the Inter-unit control wiring to U1/U2 terminals and the remote control wire to R1/R2.

Then place and fix the two clasps so that the clasps shall cover both the remote control wires, the Interunit control wiring and the 3-way wiring harness as shown in the magnified drawing.

2.

Connect the grounding conductor of the incoming power supply to the earth (ground) screw before connecting the power supply conductors to “L1, L2” of the terminal block.

3.

Securely affix the two power supply conductors (L1,

L2) in the wiring channel by the clamping strap as shown.

Y1 Type

Power wiring

(field supplied)

Connection for Solenoid

Valve Kit (for 3WAY)

Remote control wiring

(field supplied)

Clasp

Conduit

(field supplied)

Earth screw

Clamping clip

1

2

NOTE

Take care not to damage the control wirings by the clasp.

Do not leave the control wirings loose.

Entirely cover the control wirings (Remote / Inter-unit

3WAY connection)

Remote control wiring and Inter-unit control wiring (field supplied)

3

4

5

6

7

8

2 - 29

Design of Mini VRF SYSTEM

4. Installation Instructions

1

2

3

4

5

6

7

8

4-1. Selecting the Installation Site for Outdoor Unit

AVOID:

heat sources, exhaust fans, etc.(Fig.2-6) damp, humid or uneven locations

DO:

choose a place as cool as possible.

choose a place that is well ventilated and outside air temperature does not exceed maximum 113°F constantly.

allow enough room around the unit for air intake/ exhaust and possible maintenance.(Fig.2-7) use lug bolts or equal to bolt down unit, reducing vibration and noise.

Hot air

Outdoor unit

Exhaust fan

Fig. 2-6

Heat source

Installation space

Distance between obstructions and the unit air inlet and outlet must be as shown below.

*3

(Obstruction above unit)

More than 25/64"

*2

CAUTION

Air direction chamber

(field supply)

Inlet side C

More than 25/64" B

A

*4

Outlet side

More than

3.3 ft.

*1

*1

Inlet side

More than 8 in.

(Obstruction on inlet side)

Fig. 2-7

(Ground)

Fig. 2-8

Concerning inlet-side distance “C” (Fig. 2-7)

The minimum for distance “C” is 6 in. if there are no obstructions on the outlet side

(wall *1 side) and *2 or *4 is not present. In all other cases, the minimum for distance

“C” is 8 in.

If the unit is installed with the outlet side facing wall *1, then there must be no obstructions on 2 of the remaining 3 sides: *2, *3, *4.

If wall *1 is on the outlet side (Fig. 2-7), or if obstructions are present on all 3 sides *2,

*3, and *4 (Fig. 2-7), then the minimum distance for “A” and “B” is 6.6 ft. (Fig. 2-9).

Even if there is no wall on the outlet side, a minimum of 3.3 ft. is required.

In case of multiple installations

provide a solid base (concrete block, 4 × 16 in.

beams or equal), a minimum of 6 in. above ground level to reduce humidity and protect the unit against possible water damage and decreased service life.

(Fig. 2-9) use lug bolts or equal to bolt down unit, reducing vibration and noise.

Anchor bolts

(4 pieces)

Fig. 2-9

2 - 30

Design of Mini VRF SYSTEM

4. Installation Instructions

4-2. Air Discharge Chamber for Top Discharge

Be sure to install an air discharge chamber (field supply) in the field when: it is difficult to keep a space of min.20 in.between

the air discharge outlet and an obstacle.

the air discharge outlet is facing a sidewalk and discharged hot air may annoy passers-by.

Refer to Fig.2-10.

4-3. Installing the Unit in Heavy Snow Areas

In locations with strong wind, snow-proof ducting

(field supply) should be fitted and direct exposure to the wind should be avoided as much as possible.

Countermeasures against snow and wind

In regions with snow and strong wind, the following problems may occur when the outdoor unit is not provided with a platform and snow-proof ducting: a) The outdoor fan may not run and damage to the unit may occur.

b) There may be no air flow.

c) The tubing may freeze and burst.

d) The condenser pressure may drop because of strong wind, and the indoor unit may freeze.

4-4. Precautions for Installation in Heavy Snow

Areas

(1) The platform should be higher than the max. snow depth. (Fig. 2-11)

(2) The 2 anchoring feet of the outdoor unit should be used for the platform, and the platform should be installed beneath the air intake side of outdoor unit.

(3) The platform foundation must be firm and the unit must be secured with anchor bolts.

(4) In case of installation on a roof subject to strong wind, countermeasures must be taken to prevent the unit from being blown over.

Air discharge

2 - 31

Fig. 2-10

In regions with significant snowfall, the outdoor unit should be provided with a platform and snow-proof ducting.

1

2

Without snowproof ducting

(Low platform)

With snowproof ducting

(High platform)

Fig. 2-11

Outdoor

Unit

Duct

3

4

Air

Intake

Fig. 2-12

5

6

7

8

4. Installation Instructions

4-5. Dimensions of Air-Discharge Chamber

Reference diagram for air-discharge chamber (field supply)

3

4

1

2

Unit front, air discharge chamber

Unit left side, air discharge chamber

Unit right side, air discharge chamber

Reinforcement brackets, 4 locations

1-1/8 9-7/16

2

1

4

3

Rectangular hole

Design of Mini VRF SYSTEM

9-7/16 1-1/8

Rectangular hole

7

8

Rectangular hole

1

2

3

1

22-13/32

21-13/32 1

4-6. Dimensions of Outdoor Unit with Air-Discharge Chamber (field supply)

6-11/16

1/2

25-31/32

Wind direction

1/2

4-5/16

Wind direction

1/2

4

2-11/36 21-13/32

37

11-13/16

Wind direction

5

Rectangular hole

Unit:in.

6

Wind direction

Wind direction

Wind direction

Wind direction

Wind direction

Unit:in.

2 - 32

Design of Mini VRF SYSTEM

4. Installation Instructions

Reference for air-discharge chamber (field supply)

Required space around outdoor unit

If an air discharge chamber is used, the space shown below must be secured around the outdoor unit.

If the unit is used without the required space, a protective device may activate, preventing the unit from operating.

(1) Single-unit installation

Unit:in.

CAUTION

(2) Multiple-unit installation

Installation in lateral rows

The top and both sides must remain open.

If there are obstacles to the front and rear of the outdoor unit, the obstacle at either the front or rear must be no taller than the height of the outdoor unit.

More than 11-13/16

More than 7-7/8

More than 11-13/16

CAUTION

The front and top must remain open.

The obstacles must be no taller than the height of the outdoor unit.

Installation in front-rear rows

Installation with intakes facing intakes or outlets facing outlets

More than 59-1/16

More than 15-3/4

Installation with intakes facing outlets

More than 78-3/4

CAUTION

The front and both sides must remain open.

2 - 33

Unit: in.

1

2

3

4

5

6

7

8

Design of Mini VRF SYSTEM

4. Installation Instructions

4-7. Dimensions of Snow Ducting

Reference diagram for snow-proof ducting (field supply)

Fastened by screws at 13 locations

30-3/32

3

4

1

2

Unit top, snow-proof vent

Unit left side

Unit right side

Unit reverse side

3

25-13/32

17-15/32

3-3/4 19-11/16

4

1

Unit: in.

11-7/8

3-31/32

2

5

6

7

8

1

2

3

Fastened by screws at

3 locations (also on reverse side)

1-5/8

Unit anchor hole

(7 – ø9/32 hole)

28-3/4

30-5/8

Fastened by screw at

1 location (also on reverse side)

15-9/32

4-8. Dimensions of Outdoor Unit with Snow-Proof Ducting (field supply)

30-3/32

Wind direction

7-1/16

Wind direction

5/8

4

Wind direction Wind direction

37

24-7/8

Wind direction

Unit: in.

11-29/32

Wind direction

2 - 34

1-3/16

Design of Mini VRF SYSTEM

4. Installation Instructions

Reference diagram for snow-proof ducting – 1

Space requirements for setting – (1)

[Obstacle to the rear of unit]

Top is open:

(1) Single-unit installation

(2) Obstacles on both sides

[Obstacle to the front of unit]

Top is open:

(1) Single-unit installation

(3) Multiple-unit installation (2 or more units)

Min. I Min. I

Min. E

Min. F

Min. E Min. E

A B C

5-29/32 5-29/32 11-13/16

D

7-7/8

E F G

11-13/16 5-29/32 7-7/8

Note: In cases 2 and 3 the height of the obstacle

must be no taller than the height of the outdoor

unit.

Top is blocked by an obstacle:

Min. L

H I J

19-11/16 11-13/16 39-3/8

Top is blocked by an obstacle:

Min. M

K L

19-11/16 5-29/32

Min. B

Min. C

(2) Multiple-unit installation (2 or more units)

M N

39-3/8 39-3/8

Unit: in.

7

8

3

4

5

6

1

2

2 - 35

Design of Mini VRF SYSTEM

4. Installation Instructions

Reference diagram for snow-proof ducting – 2

Space requirements for setting – (2)

[Obstacles to the front and rear of unit]

The top and both sides must remain open. Either the obstacle to the front or the obstacle to the rear must be no taller than the height of the outdoor unit.

(1) Single-unit installation

Dimension Q

If a snow protection duct is attached after the unit is installed, verify that dimension Q is 19-11/16" or more.

O P

39-3/8 5-29/32

1

(2) Obstacles on both sides

2

Min. 11-13/16 Min. 11-13/16

3

4

5

6

[Installation in front-rear rows]

The top and both sides must remain open. Either the obstacle to the front or the obstacle to the rear must be no taller than the height of the outdoor unit.

Q

Min. 39-3/8

Min. 11-13/16

Min. 59-1/16 Min. 78-3/4

Min. 7-7/8

Dimension Q

If a snow protection duct is attached after the unit is installed, verify that dimension

Q is 19-11/16" or more.

Unit:in.

7

8

2 - 36

Design of Mini VRF SYSTEM

4. Installation Instructions

4-9. Installing the Outdoor Unit

Use concrete or a similar material to create the base, and ensure good drainage.

Ordinarily, ensure a base height of 2" or more. If a drain pipe is used, or for use in cold-weather regions, ensure a height of 6" or more at the feet on both sides of the unit.

(In this case, leave clearance below the unit for the drain pipe, and to prevent freezing of drainage water in cold-weather regions.)

Refer to the Fig. 2-13 for the anchor bolt dimensions.

Be sure to anchor the feet with the anchor bolts (M10 or

3/8"). In addition, use anchoring washers on the top side.

(Use large square 1-1/4"×1-1/4" SUS washers with diameters of 3/8".) (Field supply)

4-10. Drainage Work

Follow the procedure below to ensure adequate draining for the outdoor unit.

For the drain port dimensions, refer to the figure at right.

Ensure a base height of 6" or more at the feet on both sides of the unit.

4-11. Routing the Tubing and Wiring

The tubing and wiring can be extended out in 4 directions: front, rear, right, and down.

The service valves are housed inside the unit. To access them, remove the inspection panel. (To remove the inspection panel, remove the 3 screws, then slide the panel downward and pull it toward you.)

(1) If the routing direction is through the front, rear, or right, use a nipper or similar tool to cut out the knockout holes for the inter-unit control wiring outlet, power wiring outlet, and tubing outlet from the appropriate covers A and B.

(2) If the routing direction is down, use a nipper or similar tool to cut out the lower flange from cover A.

Drain port (2 locations)

6-47/64 25-63/64

8-5/8

33/64

5-29/32

33/64

4-3/8

33/64

37

Drain port

Fig. 2-13

Inter-unit control wiring

Inspection panel

33/64

Anchor bolt

(M10 or 3/8")

Unit: in.

Rear

CAUTION

Route the tubing so that it does not contact the compressor, panel, or other parts inside the unit. Increased noise will result if the tubing contacts these parts.

When routing the tubing, use a tube bender to bend the tubes.

Cover A

Front

Power supply

Cover B

Right

Down

Fig. 2-14

Tubing outlet

1

2

3

4

5

6

7

8

2 - 37

7

8

1

2

3

4

5

5. HOW TO PROCESS TUBING

5. HOW TO PROCESS TUBING

5-1. Connecting the Refrigerant Tubing

Use of the Flaring Method

Many of conventional split system air conditioners employ the flaring method to connect refrigerant tubes which run between indoor and outdoor units.In this method, the copper tubes are flared at each end and connected with flare nuts.

Flaring Procedure with a Flare Tool

(1) Cut the copper tube to the required length with a tube cutter. It is recommended to cut approx. 1 –

2 ft. longer than the tubing length you estimate.

(2) Remove burrs at the end of the copper tube with a tube reamer or file. This process is important and should be done carefully to make a good flare.

(Fig. 2-15)

NOTE

When reaming, hold the tube end downward and be sure that no copper scraps fall into the tube.(Fig.2-16)

(3) Remove the flare nut from the unit and be sure to mount it on the copper tube.

(4) Make a flare at the end of copper tube with a flare tool. (Fig.2-17)

NOTE

A good flare should have the following characteristics: inside surface is glossy and smooth edge is smooth tapered sides are of uniform length

6

2 - 38

Design of Mini VRF SYSTEM

Before

Deburring

After

Fig. 2-15

Copper tubing

Reamer

Fig. 2-16

Flare tool

Fig. 2-17

Flare nut

Copper tubing

Design of Mini VRF SYSTEM

5. HOW TO PROCESS TUBING

Caution Before Connecting Tubes Tightly

(1) Apply a sealing cap or water-proof tape to prevent dust or water from entering the tubes before they are used.

(2) Be sure to apply refrigerant lubricant to the matching surfaces of the flare and union before connecting them together. This is effective for reducing gas leaks. (Fig.2-18)

(3) For proper connection, align the union tube and flare tube straight with each other, then screw in the flare nut lightly at first to obtain a smooth match.(Fig.2-19)

Adjust the shape of the liquid tube using a tube bender at the installation site and connect it to the liquid tubing side valve using a flare.

Apply refrigerant lubricant

Fig. 2-18

Cautions During Brazing

Replace air inside the tube with nitrogen gas to prevent copper oxide film from forming during the brazing process. (Oxygen, carbon dioxide and Freon are not acceptable.)

Do not allow the tubing to get too hot during brazing.

The nitrogen gas inside the tubing may overheat, causing refrigerant system valves to become damaged. Therefore allow the tubing to cool when brazing.

Use a reducing valve for the nitrogen cylinder.

Do not use agents intended to prevent the formation of oxide film. These agents adversely affect the refrigerant and refrigerant oil, and may cause damage or malfunctions.

5-2. Connecting Tubing Between Indoor and Outdoor

Units

(1) Tightly connect the indoor-side refrigerant tubing extended from the wall with the outdoor-side tubing.

(2) To fasten the flare nuts, apply specified torque as at right:

Indoor unit

Fig. 2-19

Torque wrench

Spanner

Outdoor unit

Fig. 2-20

Tube diameter

ø1/4"

(ø6.35 mm)

ø3/8"

(ø9.52 mm)

ø1/2"

(ø12.7 mm)

ø5/8"

(ø15.88 mm)

ø3/4"

(ø19.05 mm)

Tightening torque, approximate

120 – 160 lbs

·

in.

(140 – 180 kgf

·

cm)

300 – 360 lbs

·

in.

(340 – 420 kgf

·

cm)

430 – 480 lbs

·

in.

(490 – 550 kgf

·

cm)

590 – 710 lbs

·

in.

(680 – 820 kgf

·

cm)

870 – 1040 lbs

·

in.

(1000 – 1200 kgf

·

cm)

Tube thickness

1/32"

(0.8 mm)

1/32"

(0.8 mm)

1/32"

(0.8 mm)

5/128"

(1.0 mm) over 5/128"

(1.0 mm)

When removing the flare nuts from the tubing connections, or when tightening them after connecting the tubing, be sure to use 2 adjustable wrenches or spanners as shown. (Fig. 2-20)

If the flare nuts are over-tightened, the flare may be damaged, which could result refrigerant leakage and cause in injury or asphyxiation to room occupants.

Because the pressure is approximately 1.6 times higher than conventional refrigerant pressure, the use of ordinary flare nuts (type 1) or thin-walled tubes may result in tube rupture, injury, or asphyxiation caused by refrigerant leakage.

For the flare nuts at tubing connections, be sure to use the flare nuts that were supplied with the unit, or else flare nuts for R410A (type 2). The refrigerant tubing that is used must be of the correct wall thickness as shown in the table at right.

Union

Flare nut

In order to prevent damage to the flare caused by over-tightening of the flare nuts, use the table above as a guide when tightening.

When tightening the flare nut on the liquid tube, use an adjustable wrench with a nominal handle length of 7-7/8".

2 - 39

1

2

3

4

5

6

7

8

5

6

7

8

1

2

3

Design of Mini VRF SYSTEM

5. HOW TO PROCESS TUBING

5-3. Insulating the Refrigerant Tubing

Tubing Insulation

Thermal insulation must be applied to all unit tubing, including distribution joint (purchased separately).

* For gas tubing, the insulation material must be heat resistant to 248°F or above. For other tubing, it must be heat resistant to 176°F or above.

Insulation material thickness must be 25/64" or greater.

If the conditions inside the ceiling exceed DB 86°F and

RH 70%, increase the thickness of the gas tubing insulation material by 1 step.

Taping the flare nuts

CAUTION

If the exterior of the outdoor unit valves has been finished with a square duct covering, make sure you allow sufficient space to use the valves and to allow the panels to be attached and removed.

Wind the white insulation tape around the flare nuts at the gas tube connections. Then cover up the tubing connections with the flare insulator, and fill the gap at the union with the supplied black insulation tape. Finally, fasten the insulator at both ends with the supplied vinyl clamps. (Fig.2-22)

Two tubes arranged together

Liquid tubing

Insulation

Gas tubing

Fig. 2-21

Sealer (supplied)

Insulation tape (white)

(supplied)

Flare insulator (supplied)

Unit side insulator

Tube insulator

(not supplied)

Heat resistant

248°F or above

Flare nut

Vinyl clamps (supplied)

Fig. 2-22

4

2 - 40

Design of Mini VRF SYSTEM

5. HOW TO PROCESS TUBING

5-4. Taping the Tubes

(1) At this time, the refrigerant tubes (and electrical wiring if local codes permit) should be taped together with armoring tape in 1 bundle. To prevent the condensation from overflowing the drain pan, keep the drain hose separate from the refrigerant tubing.

(2) Wrap the armoring tape from the bottom of the outdoor unit to the top of the tubing where it enters the wall. As you wrap the tubing, overlap half of each previous tape turn.

(3) Clamp the tubing bundle to the wall, using 1 clamp approx. each ft. (Fig.2-23)

NOTE

Do not wind the armoring tape too tightly since this will decrease the heat insulation effect. Also ensure that the condensation drain hose splits away from the bundle and drips clear of the unit and the tubing.

5-5. Finishing the Installation

After finishing insulating and taping over the tubing, use sealing putty to seal off the hole in the wall to prevent rain and draft from entering. (Fig.2-24)

Clamp

Insulated tubes Drain hose

Fig. 2-23

Apply putty here

Tubing

Fig. 2-24

1

2

3

4

5

6

7

8

2 - 41

1

2

3

4

5

6

7

8

Design of Mini VRF SYSTEM

6. AIR PURGING

6. AIR PURGING

Air and moisture in the refrigerant system may have undesirable effects as indicated below.

pressure in the system rises operating current rises cooling (or heating) efficiency drops moisture in the refrigerant circuit may freeze and block capillary tubing water may lead to corrosion of parts in the refrigerant system

Therefore, the indoor unit and tubing between the indoor and outdoor unit must be leak tested and evacuated to remove any noncondensables and moisture from the system.

Air Purging with a Vacuum Pump (for Test Run)

Preparation

Check that each tube (both liquid and gas tubes) between the indoor and outdoor units has been properly connected and all wiring for the test run has been completed. Remove the valve caps from both the gas tube and liquid tube service valves on the outdoor unit. Note that both liquid and gas tube service valves on the outdoor unit are kept closed at this stage.

Pressure gauge

Leak test

(1) Attach a manifold valve (with pressure gauges) and dry nitrogen gas cylinder to this service port with charge hoses.

CAUTION

Use a manifold valve for air purging. If it is not available, use a stop valve for this purpose. The

“Hi” knob of the manifold valve must always be kept closed.

(2) Pressurize the system to no more than

512 psig (36 kgf/cm

2

G) with dry nitrogen gas and close the cylinder valve when the gauge reading reaches

512 psig (36 kgf/cm

2

G). Then, test for leaks with liquid soap.

CAUTION

To avoid nitrogen entering the refrigerant system in a liquid state, the top of the cylinder must be higher than the bottom when you pressurize the system. Usually, the cylinder is used in a vertical standing position. (Refer to the previous page.)

2 - 42

Gas tube

Liquid tube

Lo

Manifold gauge

Vacuum pump

Outlet

Inlet

Hi

Fig.2-25

Fig.2-26

Manifold valve

Cylinder valve

Open

Open

Close

Close

Fig.2-27

Charge hose

Nitrogen gas cylinder

(In vertical standing position)

Service port ø5/16"

Outdoor unit

Design of Mini VRF SYSTEM

6. AIR PURGING

(3) Do a leak test of all joints of the tubing (both indoor and outdoor) and both gas tube and liquid tube service valves. Bubbles indicate a leak. Wipe off the soap with a clean cloth after the leak test.

(4) After the system is found to be free of leaks, relieve the nitrogen pressure by loosening the charge hose connector at the nitrogen cylinder. When the system pressure is reduced to normal, disconnect the hose from the cylinder.

Pressure gauge

Evacuation

(1) Attach the charge hose end described in the preceding steps to the vacuum pump to evacuate the tubing and indoor unit. Confirm that the “Lo” knob of the manifold valve is open. Then, run the vacuum pump. The operation time for evacuation varies with the tubing length and capacity of the pump. The following table shows the amount of time for evacuation:

Required time for evacuation when 30 gal/h vacuum pump is used

If tubing length is less than 49 ft.

If tubing length is longer than 49 ft.

45 min. or more 90 min. or more

NOTE

The required time in the above table is calculated based on the assumption that the ideal (or target) vacuum condition is less than –14.7 psig (–755 mmHg, 5 Torr).

(2) When the desired vacuum is reached, close the “Lo” knob of the manifold valve and turn off the vacuum pump.

Confirm that the gauge pressure is under –14.7 psig

(–755 mmHg, 5 Torr) after 4 to 5 minutes of vacuum pump operation.

Gas tube

Liquid tube

Manifold valve

Lo Hi

Vacuum pump

Service port ø5/16"

Open

Open

Close

Close

Fig. 2-28

Outdoor unit

1

2

3

4

5

6

7

8

2 - 43

Design of Mini VRF SYSTEM

6. AIR PURGING

1

2

3

4

5

6

7

8

CAUTION

Use a cylinder designed for use with R410A.

Manifold valve

Charging additional refrigerant

Charging additional refrigerant (calculated from the liquid tube length as shown in Section 2-7

“Additional Refrigerant Charge”) using the liquid tube service valve. (Fig. 2-29)

Use a balance to measure the refrigerant accurately.

If the additional refrigerant charge amount cannot be charged at once, charge the remaining refrigerant in liquid form by using the gas tube service valve with the system in cooling operation mode at the time of test run. (Fig. 2-30)

Finishing the job

(1) With a hex wrench, turn the liquid tube service valve stem counter-clockwise to fully open the valve.

(2) Turn the gas tube service valve stem counter-clockwise to fully open the valve.

CAUTION

To avoid gas from leaking when removing the charge hose, make sure the stem of the gas tube is turned all the way out

(“BACK SEAT” position).

(3) Loosen the charge hose connected to the gas tube service port (for ø5/16" tube) slightly to release the pressure, then remove the hose.

(4) Replace the service port cap on the gas tube service port and fasten the cap securely with an adjustable wrench or box wrench. This process is very important to prevent gas from leaking from the system.

(5) Replace the valve caps at both gas tube and liquid tube service valves and fasten them securely.

This completes air purging with a vacuum pump.

Theair conditioner is now ready for a test run.

Pressure gauge

Gas tube

Liquid tube

Gas tube

Liquid tube

Lo Hi

Close

Open

Fig. 2-29

Open

Close

Close

Close

Open

Liquid

R410A

Valve

Outdoor unit

Outdoor unit

Open

Fig. 2-30

2 - 44

Design of Mini VRF SYSTEM

7. Optional Parts

7-1. Distribution Joint Kits

CZ-P160BK1U (for R410A)

How to Attach Distribution Joint

1. Accompanying Parts

Check the contents of your distribution joint kit.

2. Distribution Joint Kits (with insulation)

Parts Kit 1

4-21/64

3-13/16

A

B

B

C

A

B

Distribution

Joint

D

C

Distribution

Joint

Parts Kit 2

4-21/64

C

3-13/16

C

C

D

E

Insulation unit : inch Insulation

D E unit : inch

Size of connection point on each part

(Shown are inside diameters of tubing)

Size

Part A

Part B

Part C

Part D

Part E mm o19.05

o15.88

o12.7

o9.52

o6.35

Inch

3/4

5/8

1/2

3/8

1/4

Straight tubing 5-15/16" or larger

3. Making Branch Connections

For branching tubes, install 5-15/16" or larger (including reducer) straight tubing up to the point where the tube branches

(or after the point where the tubes join together). (Fig. 2-31)

Using a tube cutter, cut the joints at the diameter required to match the outside diameter of the tubing you are connecting.

(This is usually done at the installation site.)

The tube diameter depends on the total capacity of the indoor unit.

Note that you do not have to cut the joints if it already matches the tubing end size. For size selection of the tube diameter, refer to the installation instructions provided with the outdoor unit.

Stopper(boss)

Cutting point

Fig. 2-31

Make space as long as possible.

Insertion length of the connecting tube

Fig. 2-32

NOTE

Avoid forceful cutting that may harm the shape of the joints or tubing.

(Inserting the tubing will not be possible if the tube shape is not proper.)

Outdoor unit

Side

Indoor unit

Side

Cut off as far away from stopper as possible. (Fig. 2-32)

15 to 30 upward slant

After cutting the joints, be sure to remove burrs on the inside of the joints. (If the joints have been squashed or dented badly, reshaped them using a tube spreader.)

Make sure there is no dirt or other foreign substances inside the distribution joint.

In case of horizontal position

The distribution joint can be either horizontal or vertical. (Fig. 2-33)

In the case of horizontal, the L-shaped tubing must be slanted slightly upward (15 to 30 ).

When brazing a pipe E to the reducer of which middle pipe inner dimension is D as shown above chart, cut the middle pipe as long as possible so that the pipe E can be inserted.

In case of vertical position

(directed upward)

When brazing, replace air inside the tube with nitrogen gas to prevent copper oxide from forming.

Fig. 2-33

To insulate the distribution joint, use the supplied tubing insulation. (If using insulation other than that supplied, make sure that its heat resistance is 248 F or higher.)

For additional details, refer to the installation instructions provided with the outdoor unit.

1

2

3

4

5

6

7

8

2 - 45

– MEMO –

2 - 46

Contents

3. CONTROL OF MINI VRF SYSTEM

1. Main Operating Functions

2. Wireless Remote Controller

3. Timer Remote Controller

4. Simplifi ed Remote Controller

5. System Controller

6. Schedule Timer

7. Intelligent Controller (CZ-256ESMC1U)

8. Communication Adaptor (CZ-CFUNC1U)

9. Remote Sensor

10. LonWorks Interface (CZ-CLNC1U)

* Refer to the 2WAY VRF SYSTEM TECHNICAL DATA (TD831157)

Control of Mini VRF SYSTEM

1

2

3

4

5

6

7

8

3 - 1

– MEMO –

3 - 2

Contents

Mini VRF SYSTEM

Unit Specifications

4. MINI VRF SYSTEM UNIT SPECIFICATIONS

5.

6.

7.

2.

3.

4.

8.

9.

10.

11.

12.

1. Outdoor Unit ..................................................................................................................... 4-2

1-1. Specifications ............................................................................................................. 4-2

1-2. AHRI Registration Values .......................................................................................... 4-4

1-3. Dimensional Data ...................................................................................................... 4-5

1-5. Sound Data .................................................................................................................

4-6

4-7

4-Way Cassette Type (U1 Type)

4-Way Cassette 60×60 Type (Y1 Type)

1-Way Cassette Type (D1 Type)

Low Silhouette Ducted Type (F1 Type)

Slim Low Static Ducted Type (M1 Type)

High Static Pressure Ducted Type (E1 Type)

Ceiling Type (T1 Type)

Wall Mounted Type (K1 Type)

Floor Standing Type (P1 Type)

Concealed Floor Standing Type (R1 Type)

Intaking Fresh Air of 4-Way Casstte Type and Slim Low Static Ducted Type

* Refer to the 2WAY VRF SYSTEM TECHNICAL DATA (TD831157)

1

2

3

4

5

6

7

8

4 - 1

1. Outdoor Unit

Mini VRF SYSTEM

Unit Specifications

1

2

3

4

5

6

7

8

1-1. Specifi cations

Unit specifi cations (A)

MODEL No.

POWER SOURCE

PERFORMANCE

Capacity

Air circulation (Hi)

ELECTRICAL RATINGS

Voltage rating

Available voltage range

Running amperes

Max. running amperes *

Power input

Max. power input

Power factor

Max. starting amperes

FEATURES

Controls

Defrost control

Outdoor Unit

BTU / h kW

CFM kW kW

%

A

A

A

V

V

Cooling

38,200

11.2

U-36LE1U6, U-36LE1U6E*

1

208 - 230 V / 1ø / 60 Hz

Heating

42,700

12.5

3,530

208 230

187 - 253

14.6

23.6

2.76

4.85

91

Approx. 1

13.6

23.6

2.76

4.85

88

Approx. 1

208 230

187 - 253

14.6

2.88

95

Approx. 1

13.6

2.88

92

Approx. 1

Service function

Refrigerant amount at shipment

Refrigerant control

Operation sound (Hi)

Power level

Pressure level

External finish

Color (Approximate value)

Refrigerant tubing

Limit of tubing length

Limit of elevation difference between the 2 units

Refrigerant tube diameter

Unit dimensions

Net weight

Shipping weight

Shipping volume

Liquid tube

Gas tube

Refrigerant tubing kit / Joint kit

DIMENSIONS & WEIGHT

Height

Width

Depth lbs. (kg) dB-A ft. (m) ft. (m) in. (mm) in. (mm) in. (mm) in. (mm) in. (mm) lbs. (kg) lbs. (kg) ft

3

(m

3

)

Microprocessor

Reverse cycle, microprocessor control

Sensor temp. recall function

Past service warnings recall function

R410A - 7.7 (3.5)

Electronic expansion valve

67

51

Galvanized steel plate with powder paint

Munsell code 1Y 8.5 /0.5

492 (150)

Outdoor unit is higher than indoor unit : 164 (50)

Outdoor unit is lower than indoor unit : 131 (40)

3/8 (9.52)

5/8 (15.88)

Optional

Unit dimensions Package dimensions

48-7/16 (1230)

37 (940)

13-13/32 (340)

52-13/32 (1331)

40 (1016)

16-11/32 (415)

229 (104)

247 (112)

19.8 (0.56)

Rated conditions

Cooling : Indoor air temperature 80°F DB / 67°F WB ; Outdoor air temperature 95°F DB

Heating : Indoor air temperature 70°F DB ; Outdoor air temperature 47°F DB / 43°F WB

DATA SUBJECT TO CHANGE WITHOUT NOTICE

* Full-load conditions at Indoor / Outdoor capacity ratio 100%

Cooling : Indoor air temperature 89°F DB / 73°F WB ; Outdoor air temperature 109°F DB / 78°F WB

*

1

Outdoor unit model name ended with letter “E”

Refer to the Section 1 “2. Salt-Air Damage Resistant Specifi cations”.

4 - 2

1. Outdoor Unit

Mini VRF SYSTEM

Unit Specifications

Unit specifi cations (B)

MODEL No.

POWER SOURCE

PERFORMANCE

Capacity

Air circulation (Hi)

ELECTRICAL RATINGS

Voltage rating

Available voltage range

Running amperes

Max. running amperes *

Power input

Max. power input

Power factor

Max. starting amperes

FEATURES

Controls

Defrost control

Outdoor Unit

BTU / h kW

CFM kW kW

%

A

A

A

V

V

Cooling

52,900

15.5

U-52LE1U6, U-52LE1U6E*

1

208 - 230 V / 1ø / 60 Hz

Heating

60,000

17.6

3,530

208 230

187 - 253

23.5

28.0

4.57

5.72

93

Approx. 1

21.9

28.0

4.57

5.72

91

Approx. 1

208 230

187 - 253

23.5

4.58

94

Approx. 1

21.9

4.58

91

Approx. 1

Service function

Refrigerant amount at shipment

Refrigerant control

Operation sound (Hi)

Power level

Pressure level

External finish

Color (Approximate value)

Refrigerant tubing

Limit of tubing length

Limit of elevation difference between the 2 units

Refrigerant tube diameter

Unit dimensions

Net weight

Shipping weight

Shipping volume

Liquid tube

Gas tube

Refrigerant tubing kit / Joint kit

DIMENSIONS & WEIGHT

Height

Width

Depth lbs. (kg) dB-A ft. (m) ft. (m) in. (mm) in. (mm) in. (mm) in. (mm) in. (mm) lbs. (kg) lbs. (kg) ft

3

(m

3

)

Microprocessor

Reverse cycle, microprocessor control

Sensor temp. recall function

Past service warnings recall function

R410A - 7.7 (3.5)

Electronic expansion valve

68

52

Galvanized steel plate with powder paint

Munsell code 1Y 8.5 /0.5

492 (150)

Outdoor unit is higher than indoor unit : 164 (50)

Outdoor unit is lower than indoor unit : 131 (40)

3/8 (9.52)

3/4 (19.05)

Optional

Unit dimensions Package dimensions

48-7/16 (1230)

37 (940)

13-13/32 (340)

52-13/32 (1331)

40 (1016)

16-11/32 (415)

229 (104)

247 (112)

19.8 (0.56)

Rated conditions

Cooling : Indoor air temperature 80°F DB / 67°F WB ; Outdoor air temperature 95°F DB

Heating : Indoor air temperature 70°F DB ; Outdoor air temperature 47°F DB / 43°F WB

DATA SUBJECT TO CHANGE WITHOUT NOTICE

* Full-load conditions at Indoor / Outdoor capacity ratio 100%

Cooling : Indoor air temperature 89°F DB / 73°F WB ; Outdoor air temperature 109°F DB / 78°F WB

*

1

Outdoor unit model name ended with letter “E”

Refer to the Section 1 “2. Salt-Air Damage Resistant Specifi cations”.

4 - 3

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

1. Outdoor Unit

1-2. AHRI Registration Values

Outdoor Unit

Models

U-36LE1U6(E)

U-52LE1U6(E)

Indoor Unit

Types

Cooling

Capacity

Ducted

Non Ducted

Mixed Non-Ducted and Duced

Ducted

BTU/h

37,000

39,000

38,000

51,500

Non Ducted

Mixed Non-Ducted and Duced

52,000

51,750

EER

95°F

9.60

11.50

10.55

9.40

10.20

9.80

SEER

13.1

17.0

15.05

14.6

17.4

16.0

Heating

Capacity

BTU/h

38,500

43,000

40,750

57,500

58,500

58,000

HSPF

7.8

9.8

8.8

7.7

9.6

8.65

Mini VRF SYSTEM

Unit Specifications

4 - 4

1. Outdoor Unit

1-3. Dimensional Data

U-36LE1U6, U-36LE1U6E

U-52LE1U6, U-52LE1U6E

10-25/32

11-11/32

R1-3/16

2-3/8

5/16

R3/4

13/32

25/32

15-15/16

14-31/32 19/32

13/32

11-21/32

13-3/8

Mini VRF SYSTEM

Unit Specifications

7-25/32

2-27/32

4-3/4

6-5/8

7-8/32

8-9/32

8-15/16

6-11/16

5-29/32

3-3/16

48-7/16

23-5/8

5-9/16

22-9/16

6-13/16

23/32

6-9/16

5-1/2

7-3/4

4-23/32

2-25/32

1

2

3

4

5

6

7

8

4 - 5

1

2

3

4

5

6

7

8

1. Outdoor Unit

1-4. Refrigerant Flow Diagram

U-36LE1U6

U-36LE1U6E

U-52LE1U6

U-52LE1U6E

4 - 6

Suction

Mini VRF SYSTEM

Unit Specifications

1. Outdoor Unit

1-5. Sound Data

(1) Sound Power Level

U-36LE1U6, U-36LE1U6E

Model

Sound Power

Level

Condition

U-36LE1U6, U-36LE1U6E

67 dB (A)

Cooling

90

80

70

NC – 70

60

NC – 60

50

NC – 50

40

NC – 40

30

NC – 30

20

NC – 20

10

63 125 250 500 1000 2000 4000

Frequency at center of sound pressure band (Hz)

NOTE

1. dBA = A – weighted sound power level (A – scale according to IEC)

2. Reference acoustic intensity 0 dB = 10

–13

W/ft

2

8000

Mini VRF SYSTEM

Unit Specifications

1

2

3

4

5

6

7

8

4 - 7

1. Outdoor Unit

1

2

3

4

5

6

7

8

U-52LE1U6, U-52LE1U6E

Model

Sound Power

Level

Condition

U-52LE1U6, U-52LE1U6E

68 dB (A)

Cooling

90

80

70

NC – 70

60

NC – 60

50

NC – 50

40

NC – 40

30

NC – 30

20

NC – 20

10

63 125 250 500 1000 2000 4000

Frequency at center of sound pressure band (Hz)

NOTE

1. dBA = A – weighted sound power level (A – scale according to IEC)

2. Reference acoustic intensity 0 dB =10

–13

W/ft

2

8000

4 - 8

Mini VRF SYSTEM

Unit Specifications

1. Outdoor Unit

Mini VRF SYSTEM

Unit Specifications

(2) Sound Pressure Level

U-36LE1U6, U-36LE1U6E

Model

Sound Pressure Level

Cooling

Condition

U-36LE1U6, U-36LE1U6E

Front 51 dB (A)

Quiet Mode 48 dB (A)

3.3 ft. in front at height of 4.9 ft.

90

80

70

NC – 70

60

NC – 60

50

40

NC – 50

NC – 40

30

20

Approximate minimum audible limit for continuous noise

NC – 30

NC – 20

10

Overall

63

* 0 dB = 0.0002 µbar

125 250 500 1000 2000 4000

Frequency at center of sound pressure band (Hz)

8000

Front

Quiet Mode

4 - 9

1

2

3

4

5

6

7

8

1. Outdoor Unit

Mini VRF SYSTEM

Unit Specifications

1

2

3

4

5

6

7

8

U-52LE1U6, U-52LE1U6E

90

Model

Sound Pressure Level

Cooling

Condition

U-52LE1U6, U-52LE1U6E

Front 52 dB (A)

Quiet Mode 49 dB (A)

3.3 ft. in front at height of 4.9 ft.

Front

Quiet Mode

80

70

NC – 70

60

NC – 60

50

40

NC – 50

NC – 40

30

20

Approximate minimum audible limit for continuous noise

NC – 30

NC – 20

10

Overall

63

* 0 dB = 0.0002 µbar

125 250 500 1000 2000 4000

Frequency at center of sound pressure band (Hz)

8000

4 - 10

Test Run

Contents

5. TEST RUN

1. Preparing for Test Run . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

2. Test Run Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

3. Outdoor Unit PCB Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

4. Auto Address Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

5. Remote Controller Test Run Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12

6. Caution for Pump Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13

7. Meaning of Alarm Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13

1

2

3

4

5

6

7

8

5 - 1

5

6

7

8

1. Preparing for Test Run

1

2

3

Before attempting to start the air conditioner,

check the following.

(1) All loose matter is removed from the cabinet, especially steel filings, bits of wire, and clips.

(2) The control wiring is correctly connected and all electrical connections are tight.

(3) The transportation pads for the indoor fan have been removed. If not, remove them now.

(4) The power has been connected to the unit for at least 5 hours before starting the compressor. The bottom of the compressor should be warm to the touch and the crankcase heater around the feet of the compressor should be hot to the touch.

(Fig. 5-1)

(5) Both the gas and liquid tube service valves are open. If not, open them now. (Fig. 5-2)

(6) Request that the customer be present for the trial run.

Explain the contents of the instruction manual, then have the customer actually operate the system.

(7) Be sure to give the instruction manual and warranty certificate to the customer.

(8) When replacing the control PCB, be sure to make all the same settings on the new PCB as were in use before replacement.

The existing EEPROM is not changed, and is connected to the new control PCB.

4

ON

(Power must be turned ON at least 5 hours before attempting test run)

Power mains switch

Fig. 5-1

Test Run

Liquid tube service cap

5 - 2

Fig. 5-2

Gas tube service cap

Test Run

2. Test Run Procedure

Recheck the items to check before the test run.

<Outdoor unit control PCB>

Unit No. setting switch

(S004)

Set the No. of indoor units.

(Check the link wiring.)

<Outdoor unit control PCB>

Unit No. setting switch

(S002 and S003)

Refer to Fig. 5-4

Are the inter-unit control wires connected to more than 1 refrigerant system?

YES

Set the system address.

NO

CASE 1

When multiple outdoor units exist, disconnect the terminals extended from the shorted plugs

(CN33) at all outdoor unit PCBs except for 1.

ޓ

Alternatively, move the sockets to the OPEN side.

Items to Check Before the Test Run

1. Turn the remote power switch on at least 5 hours before the test, in order to energize the crankcase heater.

2. Turn the outdoor service valves

(2 locations) to the full-open positions.

Use caution when making the settings. If there are duplicated system addresses, or if the settings for the Nos. of the indoor units are not consistent, an alarm will occur and the system will not start.

These settings are not made on the indoor unit PCB.

NO

CASE 3B

Is it OK to start the compressors?

Is it possible to turn

ON the power only for the 1 refrigerant system where the test run will be performed?

NO

YES

CASE 2

Will automatic address setting be performed in Heating mode?

YES

Is it OK to start the compressors?

CASE 3A

Turn ON the indoor and outdoor unit power for that refrigerant system only.

Make necessary corrections.

Turn OFF the indoor and outdoor unit power.

Short-circuit the automatic address pin (CN51) on the outdoor unit PCB for 1 second or longer, then release it.

Check the alarm contents.

LED 1 and 2 blink alternately

(about 2 or 3 minutes).

Turn ON the indoor and outdoor unit power.

*2

Short-circuit the mode change pin

(CN50) on the outdoor unit PCB.

At the same time, short-circuit the automatic address pin (CN51) for 1 second or longer, then pull it out.

*3

Start indoor and outdoor unit cooling operation.

LED 1 and 2 blink alternately.

Turn ON the indoor and outdoor unit power.

*2

Short-circuit the automatic address pin (CN51) on the outdoor unit PCB for 1 second or longer, then release it.

Make necessary corrections

NO

Are LEDs 1 and 2 on the outdoor unit PCB OFF?

Refer to “Table of

Self-Diagnostic Functions and

Description of Alarm Displays.”

YES

Turn OFF the indoor and outdoor unit

*3

Start indoor and outdoor unit heating operation. LED 1 and 2 blink alternately.

Check the alarm contents.

Are LEDs 1 and 2 on the outdoor unit PCB OFF?

NO

*2 A minimum of 5 hours must have passed after the power was turned ON to the outdoor unit.

*3 All indoor units operate in all refrigerant systems where the power is ON.

YES

Check that test run preparation is OK.

(Do not allow the short-circuited pins to remain short-circuited.)

Set the wired remote controller for test run.

Refer to the remote controller test-run settings.

Does system operate?

NO

YES

Return remote control to normal mode

End test run.

Check and make corrections according to

“Table of Self Diagnostic Functions.”

5 - 3

Fig. 5-3

1

2

3

4

5

6

7

8

3. Outdoor Unit PCB Setting

Test Run

1

2

3

CN33

7

8

4

5

6

S003

S002

S004

Fig. 5-4

5 - 4

CN51

CN50

D043

(LED2)

D042

(LED1)

3. Outdoor Unit PCB Setting

Examples of the No. of indoor units settings

No. of indoor units

1 unit (factory setting)

Indoor unit setting (S004)

(Rotary switch, red)

1

Set to 1

2

2 units

Set to 2

9 units 9 Set to 9

Examples of refrigerant circuit (R.C.) address settings (required when link wiring is used)

System address No.

System 1 (factory setting)

System 11

System 21

System 30

System address (S003)

(2P DIP switch, blue)

10 20

ON

ON

Both OFF

1

ON

2

OFF

ON

1 ON

1

2

OFF

ON

ON

2 ON

1

ON

2 OFF

ON

1 & 2 ON

1 2 OFF

System address (S002)

(Rotary switch, black)

0

1

1

1

Set to 1

Set to 1

Set to 1

Set to 0

Test Run

1

2

3

4

5

6

7

8

5 - 5

Test Run

4. Auto Address Setting

Basic wiring diagram: Example (1)

• If link wiring is not used

(The inter-unit control wires are not connected to multiple refrigerant systems.)

Indoor unit addresses can be set without operating the compressors.

No. 1 unit settings

System address

(system 1 setting)

(S003)

ON ON

(S002)

1

1 2

OFF

(S004)

No. of indoor units

(8 units setting)

(S004)

8

Outdoor Unit

Unit

No. 1

Inter-unit control wiring

1

2

3

4

5

6

7

8

Indoor Unit

1-1 1-2 1-3

Remote control communication wiring

1-8

Remote controller

Fig. 5-5

(1) Automatic Address Setting from the Outdoor Unit

1. On the outdoor unit control PCB, check that the system address rotary switch (S002) is set to “1” and that the

DIP switch (S003) is set to “0.”

ON

ON

(These are the settings at the time of factory shipment.)

1 2

OFF

2. To set the number of indoor units that are connected to the outdoor unit to 8 on the outdoor unit control PCB, set the No. of indoor units rotary switch (S004) to “8.”

3. Turn ON the power to the indoor and outdoor units.

4. On the outdoor unit control PCB, short-circuit the automatic address pin (CN51) for 1 second or longer, then release it.

(Communication for automatic address setting begins.)

* To cancel, again short-circuit the automatic address pin (CN51) for 1 second or longer, then pull it out.

The LED that indicates that automatic address setting is in progress turns OFF and the process is stopped.

(Automatic address setting is completed when LEDs 1 and 2 on the outdoor unit control PCB turn OFF.)

5. Operation from the remote controllers is now possible.

* To perform automatic address setting from the remote controller, perform steps 1 to 3, then use the remote controller and complete automatic address setting.

Refer to “Automatic Address Setting from the Remote Controller.”

5 - 6

4. Auto Address Setting

Basic wiring diagram: Example (2)

System address

(system 1 setting)

(S003)

ON

ON

(S002)

1

1 2

OFF

No. 1 unit settings

No. of indoor units

(6 units setting)

(S004)

* When multiple outdoor units exist, remove the socket that is used to short-circuit the terminal plug (CN33) from all outdoor unit PCBs except for 1.

Alternatively, move the sockets to the “OPEN” side .

Test Run

Outdoor unit system 1

Unit

No. 1

Leave the socket that is used to short-circuit the terminal plug.

(CN33)

Inter-unit control wiring

1-3

Remote control communication wiring

Indoor unit

Remote controller

1-1 1-2

No. 2 unit settings

System address

(system 2 setting)

(S002)

2

(S003)

ON

ON

1 2

OFF

No. of indoor units

(7 units setting)

(S004)

7

1-6

Outdoor unit system 2

Unit

No. 1

Leave the socket that is used to open circuit the terminal plug (CN33).

Inter-unit control wiring

To other system link wiring

Indoor unit

Remote controller

2-1 2-2

Remote control communication wiring

Make settings as appropriate for the cases listed below.

(Refer to the instructions on the following pages.)

Indoor and outdoor unit power can be turned ON for each system separately.

Case 1

Indoor and outdoor unit power cannot be turned ON for each system separately.

Automatic address setting in Heating mode

Case 2

Automatic address setting in Cooling mode

Case 3

Fig. 5-6

5 - 7

2-7

1

2

3

4

5

6

7

8

5

6

7

8

Test Run

4. Auto Address Setting

1

2

3

Case 1 Automatic Address Setting (no compressor operation)

Indoor and outdoor unit power can be turned ON for each system separately.

Indoor unit addresses can be set without operating the compressors.

Automatic Address Setting from Outdoor Unit

1. On the outdoor unit control PCB, check that the system address rotary switch (S002) is set to “1” and that the

DIP switch (S003) is set to “0.”

ON

ON

(These are the settings at the time of factory shipment.)

1 2

OFF

2. To set the number of indoor units that are connected to the outdoor unit to 6 on the outdoor unit control PCB, set the No. of indoor units rotary switch (S004) to “6.”

3. At the outdoor unit where all indoor and outdoor unit power has been turned ON, short-circuit the automatic address pin (CN51) for 1 second or longer, then pull it out.

(Communication for automatic address setting begins.)

* To cancel, again short-circuit the automatic address pin (CN51) for 1 second or longer, then pull it out.

The LED that indicates automatic address setting is in progress turns OFF and the process is stopped.

(Automatic address setting is completed when LEDs 1 and 2 on the outdoor unit control PCB turn OFF.)

4. Next turn the power ON only for the indoor and outdoor units of the next (different) system. Repeat steps 1 – 3 in the same way to complete automatic address settings for all systems.

5. Operation from the remote controllers is now possible.

* To perform automatic address setting from the remote controller, perform steps 1 and 2, then use the remote controller complete automatic address setting.

Refer to “Automatic Address Setting from the Remote Controller.”

4

5 - 8

Test Run

4. Auto Address Setting

Case 2 Automatic Address Setting in Heating Mode

Indoor and outdoor unit power cannot be turned ON for each system separately.

In the following, automatic setting of indoor unit addresses is not possible if the compressors are not operating.

Therefore perform this process only after completing all refrigerant tubing work.

Automatic Address Setting from Outdoor Unit

1. Perform steps 1 and 2 in the same way as for Case 1 .

2. Turn the indoor and outdoor unit power ON at all systems.

3. To perform automatic address setting in Heating mode , on the outdoor unit control PCB in the refrigerant system where you wish to set the addresses, short-circuit the automatic address pin (CN51) for 1 second or longer, then pull it out.

(Be sure to perform this process for one system at a time. Automatic address settings cannot be performed for more than one system at the same time.)

(Communication for automatic address setting begins, the compressors turn ON, and automatic address

setting in heating mode begins.)

(All indoor units operate.)

* To cancel, again short-circuit the automatic address pin (CN51) for 1 second or longer, then pull it out.

The LED that indicates automatic address setting is in progress turns OFF and the process is stopped.

(Automatic address setting is completed when the compressors stop and LEDs 1 and 2 on the outdoor unit control PCB turn OFF.)

4. At the outdoor unit in the next (different) system, short-circuit the automatic address pin (CN51) for 1 second or longer, then pull it out.

(Repeat the same steps to complete automatic address setting for all units.)

5. Operation from the remote controllers is now possible.

* To perform automatic address setting from the remote controller, perform steps 1 and 2, then use the remote controller complete automatic address setting.

Refer to “Automatic Address Setting from the Remote Controller.”

1

2

3

4

5

6

7

8

5 - 9

Test Run

4. Auto Address Setting

1

2

3

4

5

6

7

8

Case 3 Automatic Address Setting in Cooling Mode

Indoor and outdoor unit power cannot be turned ON for each system separately.

In the following, automatic setting of indoor unit addresses is not possible if the compressors are not operating.

Therefore perform this process only after completing all refrigerant tubing work.

Automatic address setting can be performed during Cooling operation.

Automatic Address Setting from Outdoor Unit

1. Perform steps 1 and 2 in the same way as for Case 1 .

2. Turn the indoor and outdoor unit power ON at all systems.

3. To perform automatic address setting in Cooling mode , on the outdoor unit control PCB in the refrigerant system where you wish to set the addresses, short-circuit the mode change 2P pin (CN50). At the same time, short-circuit the automatic address pin (CN51) for 1 second or longer, then pull it out. (Be sure to perform this process for one system at a time. Automatic address settings cannot be performed for more than one system at the same time.)

(Communication for automatic address setting begins, the compressors turn ON, and automatic address

setting in Cooling mode begins.)

(All indoor units operate.)

↓ * To cancel, again short-circuit the automatic address pin (CN51) for 1 second or longer, then pull it out.

The LED that indicates automatic address setting is in progress turns OFF and the process is stopped.

(Automatic address setting is completed when the compressors stop and LEDs 1 and 2 on the outdoor unit control PCB turn OFF.)

4. At the outdoor unit in the next (different) system, short-circuit the automatic address pin (CN51) for 1 second or longer, then pull it out.

(Repeat the same steps to complete automatic address setting for all units.)

5. Operation from the remote controllers is now possible.

* Automatic address setting in Cooling mode cannot be done from the remote controller.

Automatic Address Setting from the Remote Controller

Selecting each refrigerant system individually for automatic address setting

---Automatic address setting for each system: Item code “A1”

Press the remote controller timer time button and button at the same time. (Press and hold for 4 seconds or longer.)

Next, press either the temperature setting

(Check that the item code is “A1.”)

or button.

Use either the or automatic address setting.

Then press the button.

button to set the system No. to perform

(Automatic address setting for one refrigerant system begins.)

(When automatic address setting for one system is completed, the system returns to normal stopped status.) <Approximately 4 – 5 minutes is required.>

(During automatic address setting, “ ” is displayed on the remote controller. This message disappears when automatic address setting is completed.)

Repeat the same steps to perform automatic address setting for each successive system.

5 - 10

Test Run

4. Auto Address Setting

Display during automatic address setting

On outdoor unit PCB

LED

2 1

Blink alternately

* Do not short-circuit the automatic address setting pin (CN51) again while automatic address setting is in progress. Doing so will cancel the setting operation and will cause

LEDs 1 and 2 to turn OFF.

* When automatic address setting has been successfully completed, both LEDs 1 and 2 turn OFF.

* LED 1 is D042. LED 2 is D043.

* If automatic address setting is not completed successfully, refer to the table below and correct the problem. Then perform automatic address setting again.

Display details of LEDs 1 and 2 on the outdoor unit control PCB

( : ON

:

: Blinking : OFF)

LED 1 LED 2

Display meaning

After the power is turned ON (and automatic address setting is not in progress), no communication with the indoor units in that system is possible.

After the power is turned ON (and automatic address setting is not in progress), 1 or more indoor units are confirmed in that system; however, the number of indoor units does not match the number that was set.

Alternating

Simultaneous

Automatic address setting is in progress.

Automatic address setting completed.

At time of automatic address setting, the number of indoor units did not match the number that was set.

(when indoor units are operating) indication appears on the displa y.

Alternating

Refer to Table of Self-Diagnostic Functions and Description of Alarm Displays.

Note: indicates that the solenoid is fused or that there is a C T (current detection circuit) failure (current is detected when the compressor is OFF).

Remote controller display during automatic setting is blinking

1

2

3

4

5

6

7

8

5 - 11

1

2

3

4

5

6

7

8

4. Auto Address Setting

5. Remote Controller Test Run Settings

Test Run

Request concerning recording the indoor/outdoor unit combination Nos.

After automatic address setting has been completed, be sure to record them for future reference.

List the outdoor unit system address and the addresses of the indoor units in that system in an easily visible location

(next to the nameplate), using a permanent marking pen or similar means that cannot be erased easily.

Example: (Outdoor) 1 – (Indoor) 1-1, 1-2, 1-3… (Outdoor) 2 – (Indoor) 2-1, 2-2, 2-3…

These numbers are necessary for later maintenance. Please be sure to indicate them.

Checking the indoor unit addresses

Use the remote controller to check the indoor unit address.

<If 1 indoor unit is connected to 1 remote controller>

1. Press and hold the button and button for 4 seconds or longer (simple settings mode).

2. The address is displayed for the indoor unit that is connected to the remote controller.

(Only the address of the indoor unit that is connected to the remote controller can be checked.)

3. Press the button again to return to normal remote controller mode.

<If multiple indoor units are connected to 1 remote controller

(group control)>

1. Press and hold the button and button for 4 seconds or longer (simple settings mode).

2. “ALL” is displayed on the remote controller.

3. Next, press the button.

4. The address is displayed for 1 of the indoor units which is connected to the remote controller. Check that the fan of that indoor unit starts and that air is discharged.

5. Press the button again and check the address of each indoor unit in sequence.

6. Press the button again to return to normal remote controller mode.

Number changes to indicate which indoor unit is currently selected.

Indoor unit address

Number changes to indicate which indoor unit is currently selected.

Indoor unit address

5. Remote Controller Test Run Settings

1. Press the remote controller button for 4 seconds or longer. Then press the button.

“TEST” appears on the LCD display while the test run is in progress.

The temperature cannot be adjusted when in Test Run mode.

(This mode places a heavy load on the machines. Therefore use it only when performing the test run.)

2. The test run can be performed using the HEAT, COOL, or FAN operation modes.

Note: The outdoor units will not operate for approximately 3 minutes after the power is turned ON and after operation is stopped.

3. If correct operation is not possible, a code is displayed on the remote controller display.

(Refer to “2-6. Meaning of Alarm Messages” and correct the problem.)

4. After the test run is completed, press the button again. Check that “TEST” disappears from the remote controller's display.

(To prevent continuous test runs, this remote controller includes a timer function that cancels the test run after

60 minutes.)

* If the test run is performed using the wired remote controller, operation is possible even if the cassette-type ceiling panel has not been installed. (“P09” display does not occur.)

5 - 12

6. Caution for Pump Down

7. Meaning of Alarm Messages

Test Run

6. Caution for Pump Down

Pump down means refrigerant gas in the system is returned to the outdoor unit. Pump down is used when the unit is to be moved, or before servicing the refrigerant circuit.

CAUTION

This outdoor unit cannot collect more than the rated refrigerant amount as shown

by the nameplate on the back.

If the amount of refrigerant is more than that recommended, do not conduct pump

down. In this case use another refrigerant collecting system.

7. Meaning of Alarm Messages

Table of Self-Diagnostics Functions and Description of Alarm Displays

Alarm messages are indicated by the blinking of LED 1 and 2 (D042, D043) on the outdoor unit PCB. They are also displayed on the wired remote controller.

● Viewing the LED 1 and 2 (D042 and D043) alarm displays

LED 1

LED 2

Alternating

Alarm contents

Alarm display

LED 1 blinks M times, then LED 2 blinks N times. The cycle then repeats.

M = 2: P alarm 3: H alarm 4: E alarm 5: F alarm 6: L alarm

N = Alarm No.

Example: LED 1 blinks 2 times, then LED 2 blinks 17 times. The cycle then repeats.

Alarm is “P17.”

( : Blinking)

Possible cause of malfunction

Serial communication errors

Mis-setting

Remote controller is detecting error signal from indoor unit.

Error in receiving serial communication signal.

(Signal from main indoor unit in case of group control)

Ex: Auto address is not completed.

Error in transmitting serial communication signal.

Indoor unit is detecting error signal from remote controller (and system controller).

Indoor unit is detecting error signal from outdoor unit.

Error in receiving serial communication signal.

When turning on the power supply, the number of connected indoor units does not correspond to the number set. (Except R.C.

address is “0.”)

Error of the outdoor unit in receiving serial communication signal from the indoor unit.

Improper setting of indoor unit or remote controller.

Indoor unit address setting is duplicated.

Remote controller address connector (RCU. ADR) is duplicated.

(Duplication of main remote controller)

During auto address setting, number of connected units does not correspond to number set.

When turning on the power supply, number of connected units does not correspond to number set.

(Except R.C. address is “0.”)

Starting auto address setting is prohibited.

This alarm message shows that the auto address connector CN100 is shorted while other RC line is executing auto address operation.

Error in auto address setting. (Number of connected indoor units is less than the number set)

Error in auto address setting. (Number of connected indoor units is more than the number set)

No indoor unit is connected during auto address setting.

Indoor unit communication error of group control wiring.

Error of outdoor unit address setting.

Error of main indoor unit in receiving serial communication signal from sub indoor units.

Alarm message

<E01>

<E02>

<<E03>>

E04

<E06>

E08

<<E09>>

E12

E15

E16

E20

E25

E18

Continued

1

2

3

4

5

6

7

8

5 - 13

1

2

3

4

5

6

7

Test Run

7. Meaning of Alarm Messages

Possible cause of malfunction

Serial communication errors

Mis-setting

Improper setting.

Activation of protective device

Protective device in indoor unit is activated.

Protective device in outdoor unit is activated.

This alarm message shows when the indoor unit for multiple-use is not connected to the outdoor unit.

Duplication of main indoor unit address setting in group control.

Duplication of outdoor R.C. address setting.

There are 2 or more indoor units controllers which have operation mode priority in 1 refrigerant circuit.

Priority set remote controller

Non-priority set remote controller

Group control wiring is connected to individual control indoor unit.

Indoor unit address is not set.

Capacity code of indoor unit is not set.

Capacity code of outdoor unit is not set.

Mis-matched connection of outdoor units which have different kinds of refrigerant.

4-way valve operation failure

Thermal protector in indoor unit fan motor is activated.

Improper wiring connections of ceiling panel.

Float switch is activated.

Operation of protective function of fan inverter.

O

2

sensor (detects low oxygen level) activated.

Compressor thermal protector is activated.

Power supply voltage is unusual. (The voltage is more than 260 V or less than 160 V between L1 and L2 phase.)

Incorrect discharge temperature.

High pressure switch is activated.

Detective phase (3-phase outdoor unit only)

Thermistor fault

Indoor thermistor is either open or damaged.

Outdoor thermistor is either open or damaged.

Compressor running failure resulting from missing phase in the compressor wiring, etc. (Start failure not caused by IPM or no gas.)

Outdoor unit fan motor is unusual.

Overcurrent at time of compressor runs more than 80Hz (DCCT secondary current or ACCT primary current is detected at a time other than when IPM has tripped.)

IPM trip (IPM current or temperature)

Inverter for compressor is unusual. (DC compressor does not operate.)

Indoor coil temp. sensor (E1)

Indoor coil temp. sensor (E2)

Indoor coil temp. sensor (E3)

Indoor suction air (room) temp. sensor (TA)

Indoor discharge air temp. sensor (BL)

Compressor discharge sensor (TD)

Outdoor No. 1 coil liquid temp. sensor (C1)

Outdoor air temp. sensor (TO)

Compressor suction port temperature sensor (TS)

High pressure sensor

EEPROM on indoor unit PCB failure

Protective device for compressor is activated

Protective device for compressor

No. 1 is activated.

EEPROM on the outdoor unit PCB is a failure.

Current is not detected when comp. is ON.

Alarm message

L02

<L03>

L04

L05

L06

L07

L08

<<L09>>

L10

L17

L18

<<P01>>

<<P09>>

<<P10>>

P12

P14

P02

P03

P04

P05

P16

P22

P26

H31

P29

F31

H03

<<F01>>

<<F02>>

<<F03>>

<<F10>>

<<F11>>

F04

F07

F08

F12

F16

F29

8

5 - 14

Electrical Data

Contents

6. ELECTRICAL DATA

1. Outdoor Unit ......................................................................................................................

6-2

(1) Electric Wiring Diagram U-36LE1U6, U-36LE1U6E ..................................................

6-2

(2) Electric Wiring Diagram U-52LE1U6, U-52LE1U6E ..................................................

6-4

2. Indoor Unit

* Refer to the 2WAY VRF SYSTEM TECHNICAL DATA (TD831157)

1

2

3

4

5

6

7

8

6 - 1

1

2

3

4

5

6

7

8

1. Outdoor Unit

(1) Electric Wiring Diagram U-36LE1U6, U-36LE1U6E

Electrical Data

6 - 2

1. Outdoor Unit

Schematic Diagram U-36LE1U6, U-36LE1U6E

Electrical Data

1

2

3

4

5

6

7

8

6 - 3

1

2

3

4

5

6

7

8

1. Outdoor Unit

(2) Electric Wiring Diagram U-52LE1U6, U-52LE1U6E

Electrical Data

6 - 4

1. Outdoor Unit

Schematic Diagram U-52LE1U6, U-52LE1U6E

Electrical Data

1

2

3

4

5

6

7

8

6 - 5

– MEMO –

6 - 6

PCB and Functions

Contents

7. PCB AND FUNCTIONS

1. Outdoor Unit Control PCB ................................................................................................

7-2

1-1. Outdoor Unit Control PCB CR-CHX06052 ....................................................................

7-2

1-2. Outdoor Unit HIC Board HIC-CHDX14053 ....................................................................

7-3

1-3. Functions (for CR-CHX06052) ......................................................................................

7-4

2. Indoor Unit Control PCB Switches and Functions

* Refer to the 2WAY VRF SYSTEM TECHNICAL DATA (TD831157)

1

2

3

4

5

6

7

8

7 - 1

1

2

3

4

5

6

7

8

1. Outdoor Unit Control PCB

1-1. Outdoor Unit Control PCB CR-CHX06052

PCB and Functions

7 - 2

1. Outdoor Unit Control PCB

1-2. Outdoor Unit HIC Board HIC-CHDX14053

PCB and Functions

1

2

3

4

5

6

7

8

7 - 3

5

6

7

8

PCB and Functions

1. Outdoor Unit Control PCB

1

2

3

4

1-3. Functions (for CR-CHX06052)

CN51

S002

S003

CN14

2P plug (black): Automatic address setting pin

If the system address switch (S002: Factory setting is 0) is set to other than 0 (centralized control), press this switch once to automatically set the address of the indoor unit to the connected outdoor unit within the same system. While the automatic address setting is in progress, 2 LEDs (red) on the outdoor unit control PCB blinks alternately. (The automatic address operation will stop when this switch is pressed again.)

When other system in centralized control mode is in the progress of automatic address setting, only the LED1 of the outdoor unit control PCB blinks and indicates that the automatic address setting for other system is in progress. While other unit is in the progress of automatic address setting, pressing S001 will disable the automatic address setting.

Rotary switch (10 positions, black): Outdoor system address setting switch

The factory setting is 0 (1 system control), but it is necessary to set the address to each system with the multiple system control or centralized control. (Fig.7-1)

When system address is set to 0, automatic address will start simultaneously with power activation, and it is not necessary to set the automatic address setting with SW01 switch when there is only a single or simultaneously running multiple controls in a single system.

When multiple systems are operated in centralized control, maximum of 30 systems (up to indoor unit 64 units) can be connected. When operated by group control or centralized control, set the system address other than 0 (1 or more).

When the number of systems exceeds 9, you can set up to 30 systems by combining with the dip switch S003. You can set up to 39, however control will be for 30 systems even if you set more than 30. (For details, refer to Table 7-1.)

LED1 of the outdoor unit control PCB lights up and the warning “ ” is displayed in remote control when the system addresses has overlapped (multiple equated addresses exist).

DIP switch (2P, blue): Switches for setting system address 10s digit and 20s digit

• If 10 systems or more are set, the setting is made by a combination of this DIP switch and

S002.

If 10 - 19 systems are set, set switch 1P (10s digit) to ON.

If 20 - 29 systems are set, set switch 2P (20s digit) to ON, and set switch 1P (10s digit) to

OFF.

• If 30 systems are set, set both switch 1P (10s digit) and switch 2P (20s digit) to ON. (For details, refer to Table 7-1.)

2P plug (white): PCB inspection pin at the factory

7 - 4

CN50

CN33

CN028

PCB and Functions

1. Outdoor Unit Control PCB

CN15 The control operations that are shown below are when you short-circuit this cooling inspection pin located on the outdoor unit control PCB.

1.Thermistor inspection

Thermistor

Discharge temperature (TD)

Outdoor temperature (TO)

Heat exchanger temperature (C1)

Heat exchanger temperature (C2)

Air inlet temperature (TS)

Detection results

Normal

LED1 lights up

Error

LED2 lights up

LED1 lights up

LED1, 2 turns off

LED2 lights up

LED1 lights up

2. Turn ON the four-way valve for one second

3. Forced cooling operation

This pin is used to perform automatic address while operating the compressor. Normally, automatic address can be performed in Heating mode, short-circuit this pin to perform automatic address when operation is in Cooling mode.

3P plug (black): Terminal plug of the communications circuit

• A connecting socket (2P, black) for short circuiting is attached to the terminal plug at the

• time of shipment from the factory.

When multiple systems are operated in centralized control, leave the connecting socket in

• place at only 1 of the outdoor unit in system address, and then replace the socket 2 to 3 from the outdoor unit (other than 1). If multiple connecting sockets are left in place while operated in centralized control, communications trouble will occur.

When there is only single (system address 0) connecting socket of 1 system, do not remove the connecting socket. (It is for the warning “ ”.)

2P plug (white): Silent mode operation pin

Operates the outdoor fan and compressor frequency with a limitation.

When relay turns ON, operating noise becomes low.

Relay

(field supply)

Power source

Silent

CN028

External contact

(Timer input, etc.: field supply)

Outdoor unit control PCB

Note 1: Make the length of the wire between the outdoor unit control PCB to Relay within 6.5 ft.

2P socket with lead wire (Service parts: Parts code/CV6231612098)

Relay fi eld supply contact input specifi cation DC5V and 0.5mA

(Recommended relay; The Fuji Electric Co. /HH62SW nano-contact point

• correspondence)

Use commercially available timer. (Omron “H5” daily time switch, etc.)

1

2

3

4

5

6

7

8

7 - 5

7

8

PCB and Functions

1. Outdoor Unit Control PCB

1

2

3

4

Table 7-1. Setting the System Address

[S002: Rotary switch (black), S003: 2P DIP (green or blue)]

Outdoor system address No.

S002 setting

(System address switch)

S003 setting

1P

(10s digit)

2P

(20s digit)

1 refrigerant system only

1 0 OFF OFF

When operated in centralized control

10

11

12

13

14

15

16

17

18

19

8

9

6

7

3

4

1

2

5

20

21

22

23

24

25

26

27

28

29

30

5

4

5

2

3

6

0

1

7

8

8

9

6

7

3

4

1

2

9

2

5

6

3

4

0

1

7

8

9

0

ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

ON

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

OFF

ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

ON

5

System controller

Outdoor unit

Outdoor unit

Outdoor unit

Outdoor unit

Indoor unit

Indoor unit

Indoor unit

Indoor unit

Fig. 7-1

6

7 - 6

Capacity Table

Contents

8. CAPACITY TABLE

1. Capacity Ratio of Outdoor Unit ........................................................................................

8-2

1-1. U-36LE1U6, U-36LE1U6E (Cooling) ............................................................................

8-2

1-2. U-36LE1U6, U-36LE1U6E (Heating) ............................................................................

8-4

1-3. U-52LE1U6, U-52LE1U6E (Cooling) ............................................................................

8-6

1-4. U-52LE1U6, U-52LE1U6E (Heating) ............................................................................

8-8

2. Cooling Capacity of Indoor Unit .....................................................................................

8-10

2-1. 4-Way Cassette Type (U1 Type), 4-Way Cassette 60×60 Type (Y1 Type) ..................

8-10

2-2. 1-Way Cassette Type (D1 Type) .................................................................................

8-16

2-3. Wall Mounted Type (K1 Type) .....................................................................................

8-19

2-4. Ceiling Type (T1 Type) ................................................................................................

8-25

2-5. Low Silhouette Ducted Type (F1 Type), Slim Low Static Ducted Type (M1 Type) .......

8-28

2-6. High Static Pressure Ducted Type (E1 Type) .............................................................

2-7. Floor Standing Type (P1 Type) ...................................................................................

8-42

8-44

2-8. Concealed Floor Standing Type (R1 Type) .................................................................

8-50

1

2

3

4

5

6

7

8

8 - 1

1

2

3

4

5

6

7

8

Capacity Table

1. Capacity Ratio of Outdoor Unit

1-1. U-36LE1U6, U-36LE1U6E (Cooling)

Combination(%):

Indoor/outdoor capacity ratio

130%

Outdoor air temp.

°CDB

-10.0

-5.0

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

43.0

TC kW

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

16.0

PI kW

0.99

1.02

1.08

1.14

1.23

1.35

1.50

1.68

1.92

2.25

2.64

3.01

TC kW

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

17.0

PI kW

1.17

1.20

1.26

1.32

1.41

1.55

1.70

1.89

2.13

2.49

2.89

3.25

MINI VRF Capacity Ratio 50-130%

TC: Total capacity (kW), PI: Power input (kW)

TC kW

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.1

18.0

PI

Indoor air temp. : °CWB kW

1.32

1.35

1.41

1.50

1.59

1.74

1.89

2.10

2.34

2.74

3.13

3.40

TC kW

12.7

12.7

12.7

12.7

12.7

12.7

12.7

12.7

12.7

12.7

12.3

11.6

19.0

PI kW

1.50

1.56

1.62

1.71

1.80

1.92

2.10

2.34

2.64

3.01

3.46

3.55

TC

20.0

kW

13.5

13.5

13.5

13.5

13.5

13.5

13.5

13.5

13.5

13.5

12.8

12.1

PI kW

1.62

1.68

1.77

1.83

1.95

2.10

2.28

2.52

3.01

3.25

3.55

3.58

TC kW

14.3

14.3

14.3

14.3

14.3

14.3

14.3

14.3

14.3

13.9

13.2

12.3

21.0

PI kW

1.74

1.80

1.86

1.98

2.10

2.28

2.46

2.71

3.22

3.43

3.58

3.58

TC kW

15.2

15.2

15.2

15.2

15.2

15.2

15.2

15.2

14.8

14.3

13.4

12.8

22.0

PI kW

1.86

1.92

2.01

2.13

2.25

2.46

2.71

3.13

3.34

3.55

3.58

3.58

Combination(%):

Indoor/outdoor capacity ratio

120%

Outdoor air temp.

°CDB

-10.0

-5.0

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

43.0

TC kW

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

16.0

PI kW

0.97

1.00

1.05

1.11

1.20

1.32

1.46

1.64

1.87

2.20

2.58

2.93

Combination(%):

Indoor/outdoor capacity ratio

110%

Outdoor air temp.

°CDB

-10.0

-5.0

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

43.0

TC kW

9.4

9.4

9.4

9.4

9.4

9.4

9.4

9.4

9.4

9.4

9.4

9.4

16.0

PI kW

0.94

0.97

1.02

1.08

1.17

1.28

1.42

1.59

1.82

2.13

2.50

2.84

Combination(%):

Indoor/outdoor capacity ratio

100%

Outdoor air temp.

°CDB

-10.0

-5.0

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

43.0

9.0

9.0

9.0

9.0

9.0

9.0

TC kW

9.0

9.0

9.0

9.0

9.0

9.0

16.0

1.38

1.55

1.77

2.07

2.43

2.76

PI kW

0.91

0.94

0.99

1.05

1.13

1.24

Combination(%):

Indoor/outdoor capacity ratio

Outdoor air temp.

°CDB

90%

-10.0

-5.0

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

43.0

8.1

8.1

8.1

8.1

8.1

8.1

TC kW

8.1

8.1

8.1

8.1

8.1

8.1

16.0

1.17

1.31

1.50

1.76

2.06

2.35

PI kW

0.77

0.80

0.84

0.89

0.96

1.06

TC kW

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

17.0

PI kW

1.14

1.17

1.23

1.29

1.38

1.51

1.65

1.84

2.08

2.43

2.81

3.16

TC kW

10.2

10.2

10.2

10.2

10.2

10.2

10.2

10.2

10.2

10.2

10.2

10.2

17.0

PI kW

1.11

1.14

1.19

1.25

1.34

1.46

1.61

1.79

2.02

2.36

2.73

3.07

9.7

9.7

9.7

9.7

9.7

9.7

TC kW

9.7

9.7

9.7

9.7

9.7

9.7

17.0

1.56

1.74

1.96

2.29

2.65

2.98

PI kW

1.08

1.10

1.16

1.21

1.30

1.42

8.7

8.7

8.7

8.7

8.7

8.7

TC kW

8.7

8.7

8.7

8.7

8.7

8.7

17.0

1.33

1.48

1.67

1.95

2.25

2.53

PI kW

0.91

0.94

0.99

1.03

1.10

1.21

TC kW

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

10.7

18.0

PI

Indoor air temp. : °CWB

19.0

TC PI TC kW

1.29

1.32

1.38

1.46

1.55

1.70

1.84

2.05

2.28

2.66

3.05

3.31

kW

12.2

12.2

12.2

12.2

12.2

12.2

12.2

12.2

12.2

12.2

11.8

11.2

kW

1.46

1.52

1.58

1.67

1.76

1.87

2.05

2.28

2.58

2.93

3.37

3.46

kW

13.0

13.0

13.0

13.0

13.0

13.0

13.0

13.0

13.0

13.0

12.3

11.7

20.0

PI kW

1.58

1.64

1.73

1.79

1.90

2.05

2.23

2.46

2.93

3.16

3.46

3.57

TC kW

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

10.3

18.0

PI

Indoor air temp. : °CWB

19.0

TC PI TC kW

1.25

1.28

1.34

1.42

1.51

1.65

1.79

1.99

2.22

2.59

2.96

3.21

kW

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.4

10.8

kW

1.42

1.48

1.54

1.62

1.71

1.82

1.99

2.22

2.50

2.84

3.27

3.35

kW

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

11.9

11.3

20.0

PI kW

1.54

1.59

1.68

1.73

1.85

1.99

2.16

2.39

2.84

3.07

3.35

3.47

Indoor air temp. : °CWB

10.4

10.4

10.4

10.4

10.4

9.9

TC kW

10.4

10.4

10.4

10.4

10.4

10.4

18.0

1.74

1.93

2.15

2.51

2.87

3.12

PI kW

1.21

1.24

1.30

1.38

1.46

1.60

TC kW

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

10.9

10.3

19.0

1.93

2.15

2.43

2.76

3.17

3.26

PI kW

1.38

1.44

1.49

1.57

1.66

1.77

11.9

11.9

11.9

11.9

11.3

10.8

TC kW

11.9

11.9

11.9

11.9

11.9

11.9

20.0

2.10

2.32

2.76

2.98

3.26

3.37

PI kW

1.49

1.55

1.63

1.68

1.79

1.93

9.4

9.4

9.4

9.4

9.4

8.9

TC kW

9.4

9.4

9.4

9.4

9.4

9.4

Indoor air temp. : °CWB

18.0

1.48

1.64

1.83

2.13

2.44

2.65

PI kW

1.03

1.06

1.10

1.17

1.24

1.36

TC kW

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

9.8

9.3

19.0

1.64

1.83

2.06

2.35

2.70

2.77

PI kW

1.17

1.22

1.27

1.34

1.41

1.50

10.7

10.7

10.7

10.7

10.2

9.7

TC kW

10.7

10.7

10.7

10.7

10.7

10.7

20.0

1.78

1.97

2.35

2.53

2.77

2.86

PI kW

1.27

1.31

1.38

1.43

1.52

1.64

8 - 2

TC kW

13.8

13.8

13.8

13.8

13.8

13.8

13.8

13.8

13.8

13.4

12.8

12.0

21.0

PI kW

1.70

1.76

1.82

1.93

2.05

2.23

2.40

2.64

3.13

3.34

3.54

3.58

TC kW

13.3

13.3

13.3

13.3

13.3

13.3

13.3

13.3

13.3

12.9

12.3

11.8

21.0

PI kW

1.65

1.71

1.76

1.88

1.99

2.16

2.33

2.56

3.04

3.24

3.44

3.58

12.7

12.7

12.7

12.3

11.8

11.2

TC kW

12.7

12.7

12.7

12.7

12.7

12.7

21.0

2.26

2.48

2.95

3.15

3.34

3.48

PI kW

1.60

1.66

1.71

1.82

1.93

2.10

11.4

11.4

11.4

11.1

10.6

10.1

TC kW

11.4

11.4

11.4

11.4

11.4

11.4

21.0

1.92

2.11

2.51

2.67

2.84

2.96

PI kW

1.36

1.41

1.45

1.55

1.64

1.78

TC kW

14.6

14.6

14.6

14.6

14.6

14.6

14.6

14.6

14.3

13.8

13.1

12.4

22.0

PI kW

1.82

1.87

1.96

2.08

2.20

2.40

2.64

3.05

3.25

3.46

3.58

3.58

TC kW

14.1

14.1

14.1

14.1

14.1

14.1

14.1

14.1

13.8

13.3

12.7

12.1

22.0

PI kW

1.76

1.82

1.90

2.02

2.13

2.33

2.56

2.96

3.16

3.35

3.53

3.58

13.4

13.4

13.1

12.7

12.1

11.6

TC kW

13.4

13.4

13.4

13.4

13.4

13.4

22.0

2.48

2.87

3.06

3.26

3.42

3.53

PI kW

1.71

1.77

1.85

1.96

2.07

2.26

12.1

12.1

11.8

11.4

10.9

10.5

TC kW

12.1

12.1

12.1

12.1

12.1

12.1

22.0

2.11

2.44

2.60

2.77

2.91

3.00

PI kW

1.45

1.50

1.57

1.67

1.76

1.92

Capacity Table

1. Capacity Ratio of Outdoor Unit

Combination(%):

Indoor/outdoor capacity ratio

80%

Outdoor air temp.

°CDB

-10.0

-5.0

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

43.0

kW

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

TC

16.0

PI kW

0.65

0.67

0.71

0.74

0.80

0.88

0.98

1.10

1.25

1.47

1.72

1.96

Combination(%):

Indoor/outdoor capacity ratio

70%

Outdoor air temp.

°CDB

-10.0

-5.0

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

43.0

TC kW

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

16.0

PI kW

0.53

0.54

0.58

0.61

0.66

0.72

0.80

0.90

1.02

1.20

1.41

1.60

Combination(%):

Indoor/outdoor capacity ratio

60%

Outdoor air temp.

°CDB

-10.0

-5.0

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

43.0

TC kW

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

16.0

PI kW

0.43

0.44

0.47

0.49

0.53

0.58

0.65

0.73

0.83

0.97

1.14

1.30

Combination(%):

Indoor/outdoor capacity ratio

50%

Outdoor air temp.

°CDB

-10.0

-5.0

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

43.0

4.5

4.5

4.5

4.5

4.5

4.5

TC kW

4.5

4.5

4.5

4.5

4.5

4.5

16.0

0.50

0.56

0.64

0.75

0.87

0.99

PI kW

0.33

0.34

0.36

0.38

0.41

0.45

TC kW

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

17.0

PI kW

0.76

0.78

0.82

0.86

0.92

1.01

1.11

1.23

1.39

1.63

1.88

2.12

MINI VRF Capacity Ratio 50-130%

TC: Total capacity (kW), PI: Power input (kW)

TC kW

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

7.9

18.0

PI

Indoor air temp. : °CWB

19.0

TC PI TC kW

0.86

0.88

0.92

0.98

1.04

1.14

1.23

1.37

1.53

1.78

2.04

2.21

kW

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

8.7

8.2

kW

0.98

1.02

1.06

1.12

1.18

1.25

1.37

1.53

1.72

1.96

2.25

2.31

kW

9.6

9.6

9.6

9.6

9.6

9.6

9.6

9.6

9.6

9.6

9.0

8.6

20.0

PI kW

1.06

1.10

1.16

1.20

1.27

1.37

1.49

1.65

1.96

2.12

2.31

2.39

TC kW

10.2

10.2

10.2

10.2

10.2

10.2

10.2

10.2

10.2

9.9

9.4

9.0

21.0

PI kW

1.14

1.18

1.21

1.29

1.37

1.49

1.61

1.76

2.10

2.23

2.37

2.47

TC kW

10.8

10.8

10.8

10.8

10.8

10.8

10.8

10.8

10.5

10.1

9.7

9.3

22.0

PI kW

1.21

1.25

1.31

1.39

1.47

1.61

1.76

2.04

2.18

2.31

2.43

2.51

TC kW

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

17.0

PI kW

0.62

0.64

0.67

0.70

0.75

0.82

0.90

1.01

1.14

1.33

1.54

1.73

TC kW

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

17.0

PI kW

0.51

0.52

0.54

0.57

0.61

0.67

0.73

0.82

0.92

1.08

1.25

1.40

4.8

4.8

4.8

4.8

4.8

4.8

TC kW

4.8

4.8

4.8

4.8

4.8

4.8

17.0

0.56

0.63

0.71

0.82

0.95

1.07

PI kW

0.39

0.40

0.42

0.44

0.47

0.51

TC kW

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

6.9

18.0

PI

Indoor air temp. : °CWB

19.0

TC PI TC kW

0.70

0.72

0.75

0.80

0.85

0.93

1.01

1.12

1.25

1.46

1.66

1.81

kW

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.6

7.2

kW

0.80

0.83

0.86

0.91

0.96

1.02

1.12

1.25

1.41

1.60

1.84

1.89

kW

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

7.9

7.5

20.0

PI kW

0.86

0.90

0.94

0.98

1.04

1.12

1.22

1.34

1.60

1.73

1.89

1.95

TC kW

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

5.9

18.0

PI

Indoor air temp. : °CWB

19.0

TC PI TC kW

0.57

0.58

0.61

0.65

0.69

0.75

0.82

0.91

1.01

1.18

1.35

1.47

kW

6.7

6.7

6.7

6.7

6.7

6.7

6.7

6.7

6.7

6.7

6.5

6.2

kW

0.65

0.67

0.70

0.74

0.78

0.83

0.91

1.01

1.14

1.30

1.49

1.53

kW

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

6.8

6.5

20.0

PI kW

0.70

0.73

0.77

0.79

0.84

0.91

0.99

1.09

1.30

1.40

1.53

1.58

5.2

5.2

5.2

5.2

5.2

4.9

TC kW

5.2

5.2

5.2

5.2

5.2

5.2

Indoor air temp. : °CWB

18.0

0.63

0.70

0.78

0.90

1.03

1.12

PI kW

0.44

0.45

0.47

0.50

0.53

0.58

TC kW

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.4

5.2

19.0

0.70

0.78

0.87

0.99

1.14

1.17

PI kW

0.50

0.52

0.54

0.57

0.60

0.64

6.0

6.0

6.0

6.0

5.7

5.4

TC kW

6.0

6.0

6.0

6.0

6.0

6.0

20.0

0.76

0.83

0.99

1.07

1.17

1.21

PI kW

0.54

0.56

0.59

0.61

0.65

0.70

TC kW

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.6

8.2

7.8

21.0

PI kW

0.93

0.96

0.99

1.06

1.12

1.22

1.31

1.44

1.71

1.82

1.94

2.02

TC kW

7.6

7.6

7.6

7.6

7.6

7.6

7.6

7.6

7.6

7.4

7.1

6.7

21.0

PI kW

0.75

0.78

0.80

0.86

0.91

0.99

1.06

1.17

1.39

1.48

1.57

1.63

6.3

6.3

6.3

6.2

5.9

5.6

TC kW

6.3

6.3

6.3

6.3

6.3

6.3

21.0

0.81

0.89

1.06

1.13

1.20

1.25

PI kW

0.58

0.60

0.62

0.66

0.70

0.76

TC kW

9.4

9.4

9.4

9.4

9.4

9.4

9.4

9.4

9.2

8.9

8.5

8.2

22.0

PI kW

0.99

1.02

1.07

1.14

1.20

1.31

1.44

1.66

1.78

1.89

1.98

2.05

TC kW

8.1

8.1

8.1

8.1

8.1

8.1

8.1

8.1

7.9

7.6

7.3

7.0

22.0

PI kW

0.80

0.83

0.87

0.92

0.97

1.06

1.17

1.35

1.44

1.53

1.61

1.66

6.7

6.7

6.6

6.3

6.0

5.8

TC kW

6.7

6.7

6.7

6.7

6.7

6.7

22.0

0.89

1.03

1.10

1.17

1.23

1.27

PI kW

0.62

0.64

0.67

0.71

0.75

0.81

1

2

3

4

5

6

7

8

8 - 3

1

2

3

4

5

6

7

8

Capacity Table

1. Capacity Ratio of Outdoor Unit

1-2. U-36LE1U6, U-36LE1U6E (Heating)

Combination(%):

Indoor/outdoor capacity ratio

130%

MINI VRF Capacity Ratio 50-130%

TC: Total capacity (kW), PI: Power input (kW)

Outdoor air temp.

15.0

TC

17.0

TC

19.0

Indoor air temp. : °CDB

TC

20.0

TC

21.0

TC

23.0

TC

25.0

TC PI PI PI PI PI PI PI

DB

-19.8

WB kW

-20.0

9.9

kW

3.25

kW

9.6

kW

3.22

kW

9.3

kW

3.19

kW

9.2

kW

3.13

kW

9.0

kW

3.10

kW

8.8

kW

3.04

-14.7

-15.0

11.3

3.43

11.0

3.40

10.7

3.34

10.6

3.28

10.5

3.25

10.2

3.22

kW

8.5

kW

2.98

9.9

3.16

-9.6

-10.0

12.9

3.58

12.6

3.55

12.3

3.52

12.1

3.46

11.9

3.40

11.6

3.37

11.4

3.34

-4.4

-1.8

0.8

2.8

-5.0

-2.5

0.0

2.0

6.0

7.0

5.0

6.0

8.6

7.5

11.2

10.0

16.4

15.0

14.3

15.0

15.4

15.7

16.3

16.4

16.5

16.5

16.5

3.74

3.74

3.74

3.74

3.74

3.74

3.68

3.49

3.16

14.1

14.7

15.3

15.5

15.5

15.5

15.5

15.5

15.5

3.74

3.74

3.74

3.74

3.58

3.52

3.40

3.19

2.86

13.8

14.6

14.6

14.6

14.6

14.6

14.6

14.6

14.6

3.68

3.68

3.52

3.37

3.16

3.07

2.98

2.80

2.44

13.7

14.1

14.1

14.1

14.1

14.1

14.1

14.1

14.1

3.61

3.61

3.46

3.31

3.10

3.01

2.92

2.74

2.38

13.6

13.6

13.6

13.6

13.6

13.6

13.6

13.6

13.6

3.58

3.46

3.31

3.19

2.92

2.86

2.80

2.62

2.26

12.7

12.7

12.7

12.7

12.7

12.7

12.7

12.7

12.7

3.40

3.22

3.07

2.92

2.71

2.62

2.53

2.35

2.05

11.7

11.7

11.7

11.7

11.7

11.7

11.7

11.7

11.7

3.13

2.95

2.77

2.62

2.41

2.32

2.23

2.05

1.69

Combination(%):

Indoor/outdoor capacity ratio

120%

Outdoor

15.0

17.0

19.0

PI

Indoor air temp. : °CDB

20.0

TC PI TC

21.0

23.0

25.0

air temp.

TC PI TC PI TC PI TC PI TC PI

DB

-19.8

WB kW

-20.0

9.5

kW

3.20

kW

9.2

kW

3.17

kW

9.0

kW

3.14

kW

8.8

kW

3.08

kW

8.7

kW

3.05

-14.7

-15.0

10.9

3.38

10.6

3.35

10.3

3.29

10.2

3.23

10.1

3.20

kW

8.4

kW

2.99

kW

8.2

kW

2.93

9.8

3.17

9.5

3.11

-9.6

-10.0

12.4

3.53

12.1

3.50

11.8

3.47

11.7

3.41

11.4

3.35

11.2

3.32

11.0

3.29

-4.4

-1.8

0.8

2.8

-5.0

-2.5

0.0

2.0

6.0

7.0

5.0

6.0

8.6

7.5

11.2

10.0

16.4

15.0

13.9

14.4

15.0

15.3

15.8

15.9

15.9

15.9

15.9

3.70

3.74

3.74

3.74

3.74

3.73

3.62

3.44

3.11

13.6

14.3

14.8

15.0

15.0

15.0

15.0

15.0

15.0

3.67

3.70

3.74

3.67

3.53

3.47

3.35

3.14

2.82

13.3

14.1

14.1

14.1

14.1

14.1

14.1

14.1

14.1

3.62

3.62

3.47

3.32

3.11

3.02

2.93

2.76

2.40

13.2

13.6

13.6

13.6

13.6

13.6

13.6

13.6

13.6

3.56

3.56

3.41

3.26

3.05

2.96

2.87

2.70

2.34

13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

3.53

3.41

3.26

3.14

2.87

2.82

2.76

2.58

2.22

12.2

12.2

12.2

12.2

12.2

12.2

12.2

12.2

12.2

3.35

3.17

3.02

2.87

2.67

2.58

2.49

2.31

2.02

11.3

11.3

11.3

11.3

11.3

11.3

11.3

11.3

11.3

3.08

2.90

2.73

2.58

2.37

2.28

2.19

2.02

1.66

Combination(%):

Indoor/outdoor capacity ratio

110%

Outdoor

15.0

17.0

19.0

PI

Indoor air temp. : °CDB

20.0

TC PI TC

21.0

23.0

25.0

air temp.

TC PI TC PI TC PI TC PI TC PI

DB

-19.8

WB kW

-20.0

9.2

kW

3.16

kW

8.9

kW

3.13

kW

8.7

kW

3.10

-14.7

-15.0

10.5

3.33

10.2

3.30

10.0

3.24

kW

8.5

kW

3.04

kW

8.4

kW

3.01

kW

8.1

kW

2.95

kW

7.9

kW

2.89

9.8

3.19

9.7

3.16

9.5

3.13

9.2

3.07

-9.6

-10.0

11.9

3.48

11.7

3.45

11.4

3.42

11.3

3.36

11.0

3.30

10.8

3.27

10.6

3.24

-4.4

-1.8

0.8

2.8

-5.0

-2.5

0.0

2.0

6.0

7.0

5.0

6.0

8.6

7.5

11.2

10.0

16.4

15.0

13.4

14.0

14.6

14.8

15.4

15.4

15.4

15.4

15.4

3.65

3.71

3.74

3.74

3.74

3.68

3.57

3.39

3.07

13.1

13.8

14.4

14.4

14.4

14.4

14.4

14.4

14.4

3.62

3.65

3.74

3.62

3.48

3.42

3.30

3.10

2.78

12.9

13.6

13.6

13.6

13.6

13.6

13.6

13.6

13.6

3.57

3.57

3.42

3.27

3.07

2.98

2.89

2.72

2.37

12.7

13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

3.51

3.51

3.36

3.22

3.01

2.92

2.84

2.66

2.31

12.7

12.7

12.7

12.7

12.7

12.7

12.7

12.7

12.7

3.48

3.36

3.22

3.10

2.84

2.78

2.72

2.54

2.19

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

3.30

3.13

2.98

2.84

2.63

2.54

2.46

2.28

1.99

10.9

10.9

10.9

10.9

10.9

10.9

10.9

10.9

10.9

3.04

2.86

2.69

2.54

2.34

2.25

2.16

1.99

1.64

Combination(%):

Indoor/outdoor capacity ratio

100%

Outdoor air temp.

DB

-14.7

WB

-19.8

-20.0

-15.0

TC kW

8.8

10.0

15.0

PI kW

3.11

3.28

17.0

19.0

Indoor air temp. : °CDB

20.0

21.0

23.0

25.0

-9.6

-10.0

11.4

3.43

11.1

3.40

10.9

3.37

10.8

3.31

10.5

3.25

10.3

3.23

10.1

3.20

-4.4

-1.8

0.8

2.8

6.0

-5.0

-2.5

0.0

2.0

5.0

6.0

7.0

8.6

7.5

11.2

10.0

16.4

15.0

12.8

13.4

14.0

14.3

14.6

14.6

14.6

14.6

14.6

3.60

3.66

3.74

3.74

3.69

3.63

3.51

3.34

3.02

TC kW

8.5

9.8

12.5

13.1

13.8

13.8

13.8

13.8

13.8

13.8

13.8

PI kW

3.08

3.25

3.57

3.60

3.69

3.57

3.43

3.37

3.25

3.05

2.74

TC kW

8.3

9.5

12.3

12.9

12.9

12.9

12.9

12.9

12.9

12.9

12.9

PI kW

3.05

3.20

3.51

3.51

3.37

3.23

3.02

2.94

2.85

2.68

2.33

TC kW

8.1

9.4

12.1

12.5

12.5

12.5

12.5

12.5

12.5

12.5

12.5

PI kW

3.00

3.14

3.46

3.46

3.31

3.17

2.97

2.88

2.79

2.62

2.28

TC kW

8.0

9.3

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

PI kW

2.97

3.11

3.43

3.31

3.17

3.05

2.79

2.74

2.68

2.51

2.16

TC kW

7.8

9.0

11.3

11.3

11.3

11.3

11.3

11.3

11.3

11.3

11.3

PI kW

2.91

3.08

3.25

3.08

2.94

2.79

2.59

2.51

2.42

2.25

1.96

TC kW

7.5

8.8

10.4

10.4

10.4

10.4

10.4

10.4

10.4

10.4

10.4

PI kW

2.85

3.02

3.00

2.82

2.65

2.51

2.30

2.22

2.13

1.96

1.61

Combination(%):

Indoor/outdoor capacity ratio

90%

Indoor air temp. : °CDB

Outdoor

15.0

17.0

air temp.

DB WB

-19.8

-20.0

-14.7

-15.0

TC kW

7.9

9.0

-9.6

-10.0

10.2

3.02

10.0

2.99

-4.4

-1.8

0.8

2.8

-5.0

-2.5

0.0

2.0

6.0

7.0

5.0

6.0

8.6

7.5

11.2

10.0

16.4

15.0

19.0

20.0

21.0

23.0

PI kW

2.74

2.89

TC kW

7.7

8.8

PI kW

2.71

2.86

TC kW

7.4

8.6

PI kW

2.69

2.81

TC kW

7.3

8.4

PI kW

2.64

2.76

TC kW

7.2

8.3

PI kW

2.61

2.74

TC kW

7.0

8.1

PI kW

2.56

2.71

9.8

2.97

9.7

2.91

9.5

2.86

9.2

2.84

11.5

3.17

11.3

3.14

11.0

3.09

10.9

3.04

10.9

3.02

10.1

2.86

12.0

3.22

11.8

3.17

11.6

3.09

11.3

3.04

10.9

2.91

10.1

2.71

12.6

3.29

12.4

3.24

11.6

2.97

11.3

2.91

10.9

2.79

10.1

2.59

12.8

3.29

12.4

3.14

11.6

2.84

11.3

2.79

10.9

2.69

10.1

2.46

13.2

3.24

12.4

3.02

11.6

2.66

11.3

2.61

10.9

2.46

10.1

2.28

13.2

3.19

12.4

2.97

11.6

2.59

11.3

2.53

10.9

2.41

10.1

2.20

13.2

3.09

12.4

2.86

11.6

2.51

11.3

2.46

10.9

2.36

10.1

2.13

13.2

2.94

12.4

2.69

11.6

2.36

11.3

2.31

10.9

2.20

10.1

1.98

13.2

2.66

12.4

2.41

11.6

2.05

11.3

2.00

10.9

1.90

10.1

1.72

8 - 4

9.3

9.3

9.3

9.3

9.3

9.3

TC kW

6.8

7.9

9.1

9.3

9.3

9.3

25.0

2.20

2.03

1.95

1.88

1.72

1.42

PI kW

2.51

2.66

2.81

2.64

2.48

2.33

Capacity Table

1. Capacity Ratio of Outdoor Unit

Combination(%):

Indoor/outdoor capacity ratio

80%

MINI VRF Capacity Ratio 50-130%

TC: Total capacity (kW), PI: Power input (kW)

Outdoor air temp.

TC

15.0

PI TC

17.0

PI TC

19.0

PI

Indoor air temp. : °CDB

TC

20.0

PI

DB

-19.8

-20.0

-14.7

-15.0

-9.6

-10.0

-4.4

-1.8

0.8

2.8

6.0

7.0

WB kW

-5.0

-2.5

0.0

2.0

5.0

6.0

8.6

7.5

11.2

10.0

16.4

15.0

7.0

8.0

9.1

10.2

kW

2.36

2.50

2.60

2.74

kW

6.8

7.8

8.9

10.0

kW

2.34

2.47

2.58

2.71

kW

6.6

7.6

8.7

9.8

kW

2.32

2.43

2.56

2.67

kW

6.5

7.5

8.6

9.7

kW

2.28

2.39

2.52

2.63

10.7

2.78

10.5

2.74

10.4

2.67

10.0

2.63

11.2

2.85

11.0

2.80

10.4

2.56

10.0

2.52

11.4

2.85

11.0

2.71

10.4

2.45

10.0

2.41

11.7

2.80

11.0

2.60

10.4

2.30

10.0

2.25

11.7

2.76

11.0

2.56

10.4

2.23

10.0

2.19

11.7

2.67

11.0

2.47

10.4

2.17

10.0

2.12

11.7

2.54

11.0

2.32

10.4

2.04

10.0

1.99

11.7

2.30

11.0

2.08

10.4

1.77

10.0

1.73

kW

6.4

7.4

8.4

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

TC

21.0

PI kW

2.25

2.36

2.47

2.60

2.52

2.41

2.32

2.12

2.08

2.04

1.90

1.64

TC kW

6.2

7.2

8.2

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

23.0

PI kW

2.21

2.34

2.45

2.47

2.34

2.23

2.12

1.97

1.90

1.84

1.71

1.49

TC kW

6.0

7.0

8.1

8.3

8.3

8.3

8.3

8.3

8.3

8.3

8.3

8.3

25.0

PI kW

2.17

2.30

2.43

2.28

2.15

2.01

1.90

1.75

1.69

1.62

1.49

1.23

Combination(%):

Indoor/outdoor capacity ratio

70%

Outdoor

15.0

air temp.

TC PI

DB WB kW

-19.8

-20.0

-14.7

-15.0

-9.6

-10.0

-4.4

-1.8

6.1

7.0

0.8

2.8

6.0

7.0

8.6

11.2

16.4

-5.0

-2.5

0.0

2.0

5.0

6.0

7.5

10.0

15.0

8.0

8.9

9.4

9.8

kW

1.99

2.10

2.19

2.30

2.34

2.40

10.0

2.40

10.2

2.36

10.2

2.32

10.2

2.25

10.2

2.14

10.2

1.94

Combination(%):

Indoor/outdoor capacity ratio

60%

Outdoor air temp.

TC

DB WB kW

-19.8

-20.0

-14.7

-15.0

-9.6

-10.0

-4.4

-1.8

5.3

6.0

0.8

2.8

6.0

7.0

8.6

11.2

16.4

-5.0

-2.5

0.0

2.0

5.0

6.0

7.5

10.0

15.0

6.8

7.7

8.0

8.4

8.6

8.8

8.8

8.8

8.8

8.8

15.0

PI kW

1.68

1.77

1.85

1.94

1.98

2.02

2.02

1.99

1.96

1.90

1.80

1.63

TC kW

5.1

5.9

6.7

7.5

7.9

8.3

8.3

8.3

8.3

8.3

8.3

8.3

17.0

PI kW

1.66

1.76

1.84

1.93

1.94

1.99

1.93

1.85

1.82

1.76

1.65

1.48

TC kW

6.0

6.8

7.8

8.8

9.2

9.6

9.6

9.6

9.6

9.6

9.6

9.6

17.0

PI kW

1.97

2.08

2.17

2.29

2.30

2.36

2.29

2.19

2.16

2.08

1.95

1.75

TC kW

5.8

6.7

7.6

8.6

9.1

9.1

9.1

9.1

9.1

9.1

9.1

9.1

19.0

PI

Indoor air temp. : °CDB

20.0

TC PI TC kW

1.95

2.05

2.16

2.25

2.25

2.16

2.06

1.94

1.88

1.82

1.71

1.49

kW

5.7

6.6

7.5

8.5

8.8

8.8

8.8

8.8

8.8

8.8

8.8

8.8

kW

1.92

2.01

2.12

2.21

2.21

2.12

2.03

1.90

1.84

1.79

1.68

1.46

kW

5.6

6.5

7.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

21.0

PI kW

1.90

1.99

2.08

2.19

2.12

2.03

1.95

1.79

1.75

1.71

1.60

1.38

TC kW

5.0

5.7

6.5

7.4

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

19.0

PI

Indoor air temp. : °CDB

20.0

TC PI TC kW

1.65

1.73

1.82

1.90

1.90

1.82

1.74

1.63

1.59

1.54

1.45

1.26

kW

4.9

5.6

6.5

7.3

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

kW

1.62

1.70

1.79

1.87

1.87

1.79

1.71

1.60

1.56

1.51

1.42

1.23

kW

4.8

5.6

6.3

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

21.0

PI kW

1.60

1.68

1.76

1.85

1.79

1.71

1.65

1.51

1.48

1.45

1.35

1.17

TC kW

4.7

5.4

6.2

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

23.0

PI kW

1.57

1.66

1.74

1.76

1.66

1.59

1.51

1.40

1.35

1.31

1.21

1.06

TC kW

5.4

6.3

7.2

7.9

7.9

7.9

7.9

7.9

7.9

7.9

7.9

7.9

23.0

PI kW

1.86

1.97

2.06

2.08

1.97

1.88

1.79

1.66

1.60

1.55

1.44

1.25

TC kW

4.5

5.3

6.1

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

25.0

PI kW

1.54

1.63

1.73

1.62

1.52

1.43

1.35

1.24

1.20

1.15

1.06

0.87

TC kW

5.3

6.1

7.1

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

25.0

PI kW

1.82

1.94

2.05

1.92

1.81

1.70

1.60

1.47

1.42

1.36

1.25

1.03

Combination(%):

Indoor/outdoor capacity ratio

50%

Outdoor air temp.

DB

-19.8

-20.0

-14.7

-15.0

-9.6

-10.0

TC

WB kW

-4.4

-1.8

0.8

2.8

6.0

7.0

8.6

11.2

16.4

-5.0

-2.5

0.0

2.0

5.0

6.0

7.5

10.0

15.0

4.4

5.0

5.7

6.4

6.7

7.0

7.1

7.3

7.3

7.3

7.3

7.3

15.0

1.65

1.62

1.60

1.55

1.47

1.33

PI kW

1.37

1.44

1.51

1.58

1.61

1.65

6.9

6.9

6.9

6.9

6.9

6.9

TC kW

4.3

4.9

5.6

6.3

6.6

6.9

17.0

1.57

1.51

1.48

1.43

1.34

1.20

PI kW

1.36

1.43

1.50

1.57

1.58

1.62

6.5

6.5

6.5

6.5

6.5

6.5

TC kW

4.1

4.8

5.4

6.1

6.5

6.5

19.0

Indoor air temp. : °CDB

20.0

1.42

1.33

1.29

1.25

1.18

1.03

PI kW

1.34

1.41

1.48

1.55

1.55

1.48

TC kW

4.1

4.7

5.4

6.1

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

1.39

1.31

1.27

1.23

1.15

1.00

PI kW

1.32

1.38

1.46

1.52

1.52

1.46

6.0

6.0

6.0

6.0

6.0

6.0

TC kW

4.0

4.6

5.3

6.0

6.0

6.0

21.0

1.34

1.23

1.20

1.18

1.10

0.95

PI kW

1.31

1.37

1.43

1.51

1.46

1.39

5.6

5.6

5.6

5.6

5.6

5.6

TC kW

3.9

4.5

5.1

5.6

5.6

5.6

23.0

1.23

1.14

1.10

1.06

0.99

0.86

PI kW

1.28

1.36

1.42

1.43

1.36

1.29

5.2

5.2

5.2

5.2

5.2

5.2

TC kW

3.8

4.4

5.1

5.2

5.2

5.2

25.0

1.10

1.01

0.98

0.94

0.86

0.71

PI kW

1.25

1.33

1.41

1.32

1.24

1.17

1

2

3

4

5

6

7

8

8 - 5

1

2

3

4

5

6

7

8

Capacity Table

1. Capacity Ratio of Outdoor Unit

1-3. U-52LE1U6, U-52LE1U6E (Cooling)

Combination(%):

Indoor/outdoor capacity ratio

130%

Outdoor air temp.

°CDB

-10.0

-5.0

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

43.0

TC kW

14.0

14.0

14.0

14.0

14.0

14.0

14.0

14.0

14.0

14.0

14.0

14.0

16.0

PI kW

1.64

1.69

1.79

1.89

2.04

2.24

2.49

2.79

3.19

3.73

4.38

4.98

kW

15.2

15.2

15.2

15.2

15.2

15.2

15.2

15.2

15.2

15.2

15.2

14.0

TC

17.0

PI kW

1.94

1.99

2.09

2.19

2.34

2.56

2.81

3.14

3.53

4.13

4.78

5.28

MINI VRF Capacity Ratio 50-130%

TC: Total capacity (kW), PI: Power input (kW)

TC kW

16.3

16.3

16.3

16.3

16.3

16.3

16.3

16.3

16.3

16.3

16.3

14.0

18.0

PI

Indoor air temp. : °CWB kW

2.19

2.24

2.34

2.49

2.64

2.89

3.14

3.48

3.88

4.53

5.18

5.37

TC kW

17.5

17.5

17.5

17.5

17.5

17.5

17.5

17.5

17.5

17.5

15.8

14.0

19.0

PI kW

2.49

2.59

2.69

2.84

2.99

3.19

3.48

3.88

4.38

4.98

5.33

5.47

TC

20.0

kW

18.7

18.7

18.7

18.7

18.7

18.7

18.7

18.7

18.7

18.2

17.0

15.8

PI kW

2.59

2.74

2.94

3.14

3.28

3.63

3.98

4.48

4.68

5.08

5.37

5.62

TC kW

19.8

19.8

19.8

19.8

19.8

19.8

19.8

19.8

19.6

18.9

17.9

16.8

21.0

PI kW

2.89

3.04

3.23

3.43

3.63

3.98

4.33

4.83

4.88

5.23

5.52

5.72

TC kW

21.0

21.0

21.0

21.0

21.0

21.0

21.0

20.7

20.3

19.6

18.4

17.5

22.0

PI kW

3.09

3.19

3.33

3.53

3.73

4.08

4.48

4.78

5.08

5.37

5.72

5.87

Combination(%):

Indoor/outdoor capacity ratio

120%

Outdoor air temp.

°CDB

-10.0

-5.0

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

43.0

TC kW

13.5

13.5

13.5

13.5

13.5

13.5

13.5

13.5

13.5

13.5

13.5

13.5

16.0

PI kW

1.60

1.65

1.75

1.84

1.99

2.18

2.42

2.72

3.10

3.64

4.27

4.85

Combination(%):

Indoor/outdoor capacity ratio

110%

Outdoor air temp.

°CDB

-10.0

-5.0

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

43.0

TC kW

13.0

13.0

13.0

13.0

13.0

13.0

13.0

13.0

13.0

13.0

13.0

13.0

16.0

PI kW

1.55

1.60

1.69

1.79

1.93

2.12

2.35

2.64

3.01

3.53

4.14

4.71

Combination(%):

Indoor/outdoor capacity ratio

100%

Outdoor air temp.

°CDB

-10.0

-5.0

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

43.0

12.4

12.4

12.4

12.4

12.4

12.4

TC kW

12.4

12.4

12.4

12.4

12.4

12.4

16.0

2.29

2.56

2.92

3.43

4.02

4.57

PI kW

1.51

1.55

1.65

1.74

1.87

2.06

Combination(%):

Indoor/outdoor capacity ratio

Outdoor air temp.

°CDB

90%

-10.0

-5.0

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

43.0

11.2

11.2

11.2

11.2

11.2

11.2

TC kW

11.2

11.2

11.2

11.2

11.2

11.2

16.0

1.92

2.15

2.46

2.88

3.38

3.84

PI kW

1.27

1.31

1.38

1.46

1.57

1.73

kW

14.6

14.6

14.6

14.6

14.6

14.6

14.6

14.6

14.6

14.6

14.6

13.5

TC

17.0

PI kW

1.89

1.94

2.04

2.13

2.28

2.50

2.74

3.05

3.44

4.02

4.65

5.14

TC kW

14.1

14.1

14.1

14.1

14.1

14.1

14.1

14.1

14.1

14.1

14.1

13.0

17.0

PI kW

1.84

1.88

1.98

2.07

2.21

2.42

2.66

2.97

3.34

3.91

4.52

4.99

13.4

13.4

13.4

13.4

13.4

12.4

TC kW

13.4

13.4

13.4

13.4

13.4

13.4

17.0

2.58

2.88

3.24

3.79

4.39

4.84

PI kW

1.78

1.83

1.92

2.01

2.15

2.35

12.1

12.1

12.1

12.1

12.1

11.2

TC kW

12.1

12.1

12.1

12.1

12.1

12.1

17.0

2.17

2.42

2.73

3.19

3.69

4.07

PI kW

1.50

1.54

1.61

1.69

1.80

1.98

TC kW

15.7

15.7

15.7

15.7

15.7

15.7

15.7

15.7

15.7

15.7

15.7

13.5

18.0

PI

Indoor air temp. : °CWB kW

2.13

2.18

2.28

2.42

2.57

2.81

3.05

3.39

3.78

4.41

5.04

5.24

TC kW

16.9

16.9

16.9

16.9

16.9

16.9

16.9

16.9

16.9

16.9

15.2

13.5

19.0

PI kW

2.42

2.52

2.62

2.76

2.91

3.10

3.39

3.78

4.27

4.85

5.19

5.33

TC

20.0

kW

18.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

18.0

17.5

16.4

15.2

PI kW

2.52

2.67

2.86

3.05

3.20

3.54

3.88

4.36

4.56

4.95

5.24

5.48

TC kW

15.2

15.2

15.2

15.2

15.2

15.2

15.2

15.2

15.2

15.2

15.2

13.0

18.0

PI

Indoor air temp. : °CWB

19.0

TC PI TC kW

2.07

2.12

2.21

2.35

2.49

2.73

2.97

3.29

3.67

4.28

4.90

5.08

kW

16.3

16.3

16.3

16.3

16.3

16.3

16.3

16.3

16.3

16.3

14.6

13.0

kW

2.35

2.45

2.54

2.68

2.82

3.01

3.29

3.67

4.14

4.71

5.04

5.18

kW

17.3

17.3

17.3

17.3

17.3

17.3

17.3

17.3

17.3

16.9

15.8

14.6

20.0

PI kW

2.45

2.59

2.78

2.97

3.11

3.44

3.77

4.24

4.42

4.80

5.08

5.32

Indoor air temp. : °CWB

14.5

14.5

14.5

14.5

14.5

12.4

TC kW

14.5

14.5

14.5

14.5

14.5

14.5

18.0

2.88

3.20

3.56

4.16

4.75

4.94

PI kW

2.01

2.06

2.15

2.29

2.42

2.65

TC kW

15.5

15.5

15.5

15.5

15.5

15.5

15.5

15.5

15.5

15.5

14.0

12.4

19.0

3.20

3.56

4.02

4.57

4.89

5.03

PI kW

2.29

2.38

2.47

2.60

2.74

2.92

16.5

16.5

16.5

16.1

15.0

14.0

TC kW

16.5

16.5

16.5

16.5

16.5

16.5

20.0

3.66

4.11

4.30

4.66

4.94

5.16

PI kW

2.38

2.51

2.70

2.88

3.02

3.34

Indoor air temp. : °CWB

13.0

13.0

13.0

13.0

13.0

11.2

TC kW

13.0

13.0

13.0

13.0

13.0

13.0

18.0

2.42

2.69

2.99

3.49

3.99

4.15

PI kW

1.69

1.73

1.80

1.92

2.03

2.23

TC kW

14.0

14.0

14.0

14.0

14.0

14.0

14.0

14.0

14.0

14.0

12.6

11.2

19.0

2.69

2.99

3.38

3.84

4.11

4.22

PI kW

1.92

2.00

2.07

2.19

2.30

2.46

14.9

14.9

14.9

14.5

13.5

12.6

TC kW

14.9

14.9

14.9

14.9

14.9

14.9

20.0

3.07

3.45

3.61

3.92

4.15

4.34

PI kW

2.00

2.11

2.26

2.42

2.53

2.80

8 - 6

TC kW

19.1

19.1

19.1

19.1

19.1

19.1

19.1

19.1

18.9

18.2

17.2

16.2

21.0

PI kW

2.81

2.96

3.15

3.35

3.54

3.88

4.22

4.70

4.75

5.09

5.38

5.58

TC kW

18.4

18.4

18.4

18.4

18.4

18.4

18.4

18.4

18.2

17.6

16.6

15.6

21.0

PI kW

2.73

2.87

3.06

3.25

3.44

3.77

4.10

4.57

4.61

4.94

5.22

5.41

17.6

17.6

17.4

16.7

15.8

14.9

TC kW

17.6

17.6

17.6

17.6

17.6

17.6

21.0

3.98

4.43

4.48

4.80

5.07

5.26

PI kW

2.65

2.79

2.97

3.15

3.34

3.66

15.8

15.8

15.6

15.1

14.2

13.4

TC kW

15.8

15.8

15.8

15.8

15.8

15.8

21.0

3.34

3.72

3.76

4.03

4.26

4.41

PI kW

2.23

2.34

2.50

2.65

2.80

3.07

TC kW

20.2

20.2

20.2

20.2

20.2

20.2

20.2

19.9

19.6

18.9

17.7

16.9

22.0

PI kW

3.01

3.10

3.25

3.44

3.64

3.98

4.36

4.65

4.95

5.24

5.58

5.72

TC kW

19.5

19.5

19.5

19.5

19.5

19.5

19.5

19.2

18.9

18.2

17.1

16.3

22.0

PI kW

2.92

3.01

3.15

3.34

3.53

3.86

4.24

4.52

4.80

5.08

5.41

5.55

18.6

18.3

18.0

17.4

16.3

15.5

TC kW

18.6

18.6

18.6

18.6

18.6

18.6

22.0

4.11

4.39

4.66

4.94

5.26

5.39

PI kW

2.83

2.92

3.06

3.24

3.43

3.75

16.7

16.5

16.2

15.6

14.6

14.0

TC kW

16.7

16.7

16.7

16.7

16.7

16.7

22.0

3.45

3.69

3.92

4.15

4.41

4.53

PI kW

2.38

2.46

2.57

2.73

2.88

3.15

Capacity Table

1. Capacity Ratio of Outdoor Unit

Combination(%):

Indoor/outdoor capacity ratio

80%

Outdoor air temp.

°CDB

-10.0

-5.0

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

43.0

TC kW

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

16.0

PI kW

1.03

1.06

1.12

1.18

1.27

1.40

1.55

1.74

1.99

2.33

2.73

3.11

Combination(%):

Indoor/outdoor capacity ratio

70%

Outdoor air temp.

°CDB

-10.0

-5.0

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

43.0

TC kW

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

16.0

PI kW

0.83

0.85

0.90

0.96

1.03

1.13

1.26

1.41

1.61

1.89

2.21

2.51

Combination(%):

Indoor/outdoor capacity ratio

60%

Outdoor air temp.

°CDB

-10.0

-5.0

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

43.0

TC kW

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

16.0

PI kW

0.68

0.70

0.74

0.78

0.84

0.93

1.03

1.15

1.32

1.54

1.81

2.06

Combination(%):

Indoor/outdoor capacity ratio

50%

Outdoor air temp.

°CDB

-10.0

-5.0

0.0

5.0

10.0

15.0

20.0

25.0

30.0

35.0

40.0

43.0

6.2

6.2

6.2

6.2

6.2

6.2

TC kW

6.2

6.2

6.2

6.2

6.2

6.2

16.0

0.79

0.89

1.01

1.19

1.39

1.58

PI kW

0.52

0.54

0.57

0.60

0.65

0.71

TC kW

10.7

10.7

10.7

10.7

10.7

10.7

10.7

10.7

10.7

10.7

10.7

9.9

17.0

PI kW

1.21

1.24

1.31

1.37

1.46

1.60

1.76

1.96

2.21

2.58

2.98

3.29

MINI VRF Capacity Ratio 50-130%

TC: Total capacity (kW), PI: Power input (kW) kW

11.6

11.6

11.6

11.6

11.6

11.6

11.6

11.6

11.6

11.6

11.6

9.9

TC

18.0

PI

Indoor air temp. : °CWB kW

1.37

1.40

1.46

1.55

1.65

1.80

1.96

2.18

2.42

2.83

3.23

3.36

TC kW

12.4

12.4

12.4

12.4

12.4

12.4

12.4

12.4

12.4

12.4

11.2

9.9

19.0

PI kW

1.55

1.62

1.68

1.77

1.86

1.99

2.18

2.42

2.73

3.11

3.33

3.42

TC kW

13.2

13.2

13.2

13.2

13.2

13.2

13.2

13.2

13.2

12.9

12.0

11.2

20.0

PI kW

1.62

1.71

1.83

1.96

2.05

2.27

2.49

2.80

2.92

3.17

3.36

3.51

TC kW

14.0

14.0

14.0

14.0

14.0

14.0

14.0

14.0

13.9

13.4

12.6

11.9

21.0

PI kW

1.80

1.90

2.02

2.14

2.27

2.49

2.70

3.01

3.05

3.26

3.45

3.57

TC kW

14.9

14.9

14.9

14.9

14.9

14.9

14.9

14.6

14.4

13.9

13.0

12.4

22.0

PI kW

1.93

1.99

2.08

2.21

2.33

2.55

2.80

2.98

3.17

3.36

3.57

3.67

TC kW

9.4

9.4

9.4

9.4

9.4

9.4

9.4

9.4

9.4

9.4

9.4

8.7

17.0

PI kW

0.98

1.01

1.06

1.11

1.18

1.29

1.42

1.58

1.78

2.09

2.41

2.66

TC kW

8.1

8.1

8.1

8.1

8.1

8.1

8.1

8.1

8.1

8.1

8.1

7.4

17.0

PI kW

0.80

0.82

0.86

0.90

0.97

1.06

1.16

1.30

1.46

1.71

1.97

2.18

6.7

6.7

6.7

6.7

6.7

6.2

TC kW

6.7

6.7

6.7

6.7

6.7

6.7

17.0

0.89

1.00

1.12

1.31

1.52

1.68

PI kW

0.62

0.63

0.66

0.70

0.74

0.81

TC kW

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

8.7

18.0

PI

Indoor air temp. : °CWB

19.0

TC PI TC kW

1.11

1.13

1.18

1.26

1.33

1.46

1.58

1.76

1.96

2.29

2.61

2.71

kW

10.9

10.9

10.9

10.9

10.9

10.9

10.9

10.9

10.9

10.9

9.8

8.7

kW

1.26

1.31

1.36

1.43

1.51

1.61

1.76

1.96

2.21

2.51

2.69

2.76

kW

11.6

11.6

11.6

11.6

11.6

11.6

11.6

11.6

11.6

11.3

10.5

9.8

20.0

PI kW

1.31

1.38

1.48

1.58

1.66

1.83

2.01

2.26

2.36

2.56

2.71

2.84

TC kW

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

7.4

18.0

PI

Indoor air temp. : °CWB

19.0

TC PI TC kW

0.90

0.93

0.97

1.03

1.09

1.19

1.30

1.44

1.60

1.87

2.14

2.22

kW

9.3

9.3

9.3

9.3

9.3

9.3

9.3

9.3

9.3

9.3

8.4

7.4

kW

1.03

1.07

1.11

1.17

1.23

1.32

1.44

1.60

1.81

2.06

2.20

2.26

kW

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.7

9.0

8.4

20.0

PI kW

1.07

1.13

1.21

1.30

1.36

1.50

1.65

1.85

1.93

2.10

2.22

2.32

7.2

7.2

7.2

7.2

7.2

6.2

TC kW

7.2

7.2

7.2

7.2

7.2

7.2

Indoor air temp. : °CWB

18.0

1.00

1.11

1.23

1.44

1.64

1.71

PI kW

0.70

0.71

0.74

0.79

0.84

0.92

TC kW

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.0

6.2

19.0

1.11

1.23

1.39

1.58

1.69

1.74

PI kW

0.79

0.82

0.85

0.90

0.95

1.01

8.3

8.3

8.3

8.1

7.5

7.0

TC kW

8.3

8.3

8.3

8.3

8.3

8.3

20.0

1.26

1.42

1.49

1.61

1.71

1.79

PI kW

0.82

0.87

0.93

1.00

1.04

1.15

TC kW

12.3

12.3

12.3

12.3

12.3

12.3

12.3

12.3

12.2

11.7

11.1

10.4

21.0

PI kW

1.46

1.53

1.63

1.73

1.83

2.01

2.19

2.44

2.46

2.64

2.79

2.89

TC kW

10.5

10.5

10.5

10.5

10.5

10.5

10.5

10.5

10.4

10.0

9.5

8.9

21.0

PI kW

1.19

1.25

1.34

1.42

1.50

1.65

1.79

1.99

2.02

2.16

2.28

2.36

8.8

8.8

8.7

8.4

7.9

7.4

TC kW

8.8

8.8

8.8

8.8

8.8

8.8

21.0

1.38

1.53

1.55

1.66

1.76

1.82

PI kW

0.92

0.96

1.03

1.09

1.15

1.26

TC kW

13.0

13.0

13.0

13.0

13.0

13.0

13.0

12.8

12.6

12.2

11.4

10.9

22.0

PI kW

1.56

1.61

1.68

1.78

1.89

2.06

2.26

2.41

2.56

2.71

2.89

2.97

TC kW

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.0

10.8

10.4

9.8

9.3

22.0

PI kW

1.28

1.32

1.38

1.46

1.54

1.69

1.85

1.97

2.10

2.22

2.36

2.43

9.3

9.1

9.0

8.7

8.1

7.8

TC kW

9.3

9.3

9.3

9.3

9.3

9.3

22.0

1.42

1.52

1.61

1.71

1.82

1.87

PI kW

0.98

1.01

1.06

1.12

1.19

1.30

1

2

3

4

5

6

7

8

8 - 7

1

2

3

4

5

6

7

8

Capacity Table

1. Capacity Ratio of Outdoor Unit

1-4. U-52LE1U6, U-52LE1U6E (Heating)

Combination(%):

Indoor/outdoor capacity ratio

130%

MINI VRF Capacity Ratio 50-130%

TC: Total capacity (kW), PI: Power input (kW)

Outdoor air temp.

TC

15.0

17.0

TC

19.0

Indoor air temp. : °CDB

TC

20.0

TC

21.0

TC

23.0

TC

25.0

PI TC PI PI PI PI PI PI

DB WB kW kW kW kW kW kW kW kW kW kW kW kW

-19.8

-20.0

12.1

4.31

11.7

4.22

11.3

4.12

11.1

4.07

10.7

4.00

10.3

3.88

kW

9.7

kW

3.74

-14.7

-15.0

14.1

4.65

13.7

4.50

13.3

4.41

13.1

4.36

12.9

4.29

12.5

4.17

11.7

4.02

-9.6

-10.0

16.1

4.93

15.7

4.79

15.3

4.69

15.1

4.65

14.9

4.58

14.5

4.46

13.7

4.31

-4.4

-1.8

0.8

2.8

-5.0

-2.5

0.0

2.0

6.0

7.0

5.0

6.0

8.6

7.5

11.2

10.0

16.4

15.0

18.3

19.1

20.3

21.1

22.5

22.9

23.3

23.3

23.3

5.17

5.32

5.46

5.61

5.80

5.84

5.89

5.61

5.03

17.9

18.7

19.9

20.7

21.9

21.9

21.9

21.9

21.9

5.08

5.22

5.32

5.46

5.70

5.56

5.37

5.08

4.55

17.7

18.3

19.3

20.1

20.6

20.6

20.6

20.6

20.6

4.98

5.13

5.22

5.37

5.27

5.03

4.89

4.60

4.02

17.1

18.1

19.1

19.9

19.9

19.9

19.9

19.9

19.9

4.93

5.08

5.17

5.27

4.93

4.79

4.65

4.36

3.78

16.9

17.9

18.9

19.2

19.2

19.2

19.2

19.2

19.2

4.86

5.01

5.10

5.20

4.69

4.55

4.41

4.12

3.55

16.5

17.5

17.9

17.9

17.9

17.9

17.9

17.9

17.9

4.74

4.84

4.93

4.65

4.31

4.17

4.02

3.74

3.16

15.5

16.5

16.5

16.5

16.5

16.5

16.5

16.5

16.5

4.60

4.69

4.41

4.12

3.83

3.69

3.55

3.21

2.68

Combination(%):

Indoor/outdoor capacity ratio

120%

Outdoor

15.0

17.0

19.0

Indoor air temp. : °CDB

20.0

PI TC PI TC

21.0

23.0

25.0

air temp.

TC PI TC PI TC PI TC PI TC PI

DB WB kW kW kW kW kW kW kW kW kW kW kW kW

-19.8

-20.0

11.7

4.24

11.3

4.15

10.9

4.05

10.7

4.01

10.3

3.94

10.0

3.82

kW

9.4

kW

3.68

-14.7

-15.0

13.6

4.57

13.2

4.43

12.8

4.34

12.6

4.29

12.4

4.22

12.1

4.10

11.3

3.96

-9.6

-10.0

15.5

4.85

15.1

4.71

14.7

4.62

14.6

4.57

14.4

4.50

14.0

4.38

13.2

4.24

-4.4

-1.8

0.8

2.8

-5.0

-2.5

0.0

2.0

6.0

7.0

5.0

6.0

8.6

7.5

11.2

10.0

16.4

15.0

17.6

18.4

19.5

20.3

21.6

22.0

22.4

22.4

22.4

5.09

5.23

5.37

5.51

5.70

5.75

5.80

5.51

4.95

17.2

18.0

19.1

19.9

21.1

21.1

21.1

21.1

21.1

5.00

5.14

5.23

5.37

5.61

5.47

5.28

5.00

4.48

17.0

17.6

18.6

19.3

19.8

19.8

19.8

19.8

19.8

4.90

5.04

5.14

5.28

5.18

4.95

4.81

4.52

3.96

16.5

17.4

18.4

19.1

19.1

19.1

19.1

19.1

19.1

4.85

5.00

5.09

5.18

4.85

4.71

4.57

4.29

3.72

16.3

17.2

18.2

18.5

18.5

18.5

18.5

18.5

18.5

4.78

4.92

5.02

5.11

4.62

4.48

4.34

4.05

3.49

15.9

16.9

17.2

17.2

17.2

17.2

17.2

17.2

17.2

4.67

4.76

4.85

4.57

4.24

4.10

3.96

3.68

3.11

14.9

15.9

15.9

15.9

15.9

15.9

15.9

15.9

15.9

4.52

4.62

4.34

4.05

3.77

3.63

3.49

3.16

2.64

Combination(%):

Indoor/outdoor capacity ratio

110%

Outdoor

15.0

17.0

19.0

Indoor air temp. : °CDB

20.0

PI TC PI TC

21.0

23.0

25.0

air temp.

TC PI TC PI TC PI TC PI TC PI

DB WB kW kW kW kW kW kW kW kW kW kW

-19.8

-20.0

11.3

4.18

10.9

4.09

10.5

4.00

10.3

3.95

10.0

3.88

kW

9.6

kW

3.77

kW

9.1

kW

3.63

-14.7

-15.0

13.1

4.51

12.8

4.37

12.4

4.28

12.2

4.23

12.0

4.16

11.6

4.04

10.9

3.90

-9.6

-10.0

15.0

4.79

14.6

4.65

14.2

4.56

14.0

4.51

13.9

4.44

13.5

4.32

12.8

4.18

-4.4

-1.8

0.8

2.8

-5.0

-2.5

0.0

2.0

6.0

7.0

5.0

6.0

8.6

7.5

11.2

10.0

16.4

15.0

17.0

17.7

18.8

19.6

20.9

21.3

21.6

21.6

21.6

5.02

5.16

5.30

5.44

5.62

5.67

5.72

5.44

4.88

16.6

17.4

18.5

19.2

20.3

20.3

20.3

20.3

20.3

4.93

5.07

5.16

5.30

5.53

5.39

5.21

4.93

4.42

16.4

17.0

17.9

18.7

19.1

19.1

19.1

19.1

19.1

4.83

4.97

5.07

5.21

5.11

4.88

4.74

4.46

3.90

15.9

16.8

17.7

18.5

18.5

18.5

18.5

18.5

18.5

4.79

4.93

5.02

5.11

4.79

4.65

4.51

4.23

3.67

15.7

16.6

17.6

17.8

17.8

17.8

17.8

17.8

17.8

4.72

4.86

4.95

5.04

4.56

4.42

4.28

4.00

3.44

15.3

16.3

16.6

16.6

16.6

16.6

16.6

16.6

16.6

4.60

4.70

4.79

4.51

4.18

4.04

3.90

3.63

3.07

14.4

15.3

15.3

15.3

15.3

15.3

15.3

15.3

15.3

4.46

4.56

4.28

4.00

3.72

3.58

3.44

3.11

2.60

Combination(%):

Indoor/outdoor capacity ratio

100%

Outdoor air temp.

DB

-19.8

-20.0

TC

WB kW

10.7

15.0

PI kW

4.12

TC kW

10.4

17.0

PI kW

4.03

TC kW

10.0

19.0

PI kW

Indoor air temp. : °CDB

20.0

3.94

TC kW

9.9

PI kW

3.89

TC kW

9.5

21.0

PI kW

3.82

TC kW

9.2

23.0

PI kW

3.71

TC kW

8.6

25.0

PI kW

3.57

-14.7

-15.0

12.5

4.44

12.1

4.31

11.8

4.21

11.6

4.17

11.4

4.10

11.1

3.98

10.4

3.85

-9.6

-10.0

14.3

4.72

13.9

4.58

13.6

4.49

13.4

4.44

13.2

4.37

12.8

4.26

12.1

4.12

-4.4

-1.8

0.8

2.8

6.0

-5.0

-2.5

0.0

2.0

5.0

6.0

7.0

8.6

7.5

11.2

10.0

16.4

15.0

16.2

16.9

18.0

18.7

19.9

20.2

20.6

20.6

20.6

4.95

5.08

5.22

5.36

5.54

5.59

5.63

5.36

4.81

15.8

16.5

17.6

18.3

19.4

19.4

19.4

19.4

19.4

4.85

4.99

5.08

5.22

5.45

5.31

5.13

4.85

4.35

15.7

16.2

17.1

17.8

18.2

18.2

18.2

18.2

18.2

4.76

4.90

4.99

5.13

5.04

4.81

4.67

4.40

3.85

15.1

16.0

16.9

17.6

17.6

17.6

17.6

17.6

17.6

4.72

4.85

4.95

5.04

4.72

4.58

4.44

4.17

3.62

15.0

15.8

16.7

17.0

17.0

17.0

17.0

17.0

17.0

4.65

4.79

4.88

4.97

4.49

4.35

4.21

3.94

3.39

14.6

15.5

15.8

15.8

15.8

15.8

15.8

15.8

15.8

4.53

4.63

4.72

4.44

4.12

3.98

3.85

3.57

3.02

13.7

14.6

14.6

14.6

14.6

14.6

14.6

14.6

14.6

4.40

4.49

4.21

3.94

3.66

3.53

3.39

3.07

2.56

Combination(%):

Indoor/outdoor capacity ratio

90%

Indoor air temp. : °CDB

Outdoor

15.0

17.0

19.0

20.0

21.0

23.0

air temp.

DB

-19.8

-20.0

TC

WB kW

PI kW

TC kW

PI kW

TC kW

PI kW

TC kW

PI kW

TC kW

PI kW

TC kW

PI kW

9.7

3.59

9.3

3.51

9.0

3.43

8.9

3.39

8.6

3.33

8.2

3.23

-14.7

-15.0

11.2

3.87

10.9

3.75

10.6

3.67

10.5

3.63

10.3

3.57

10.0

3.47

25.0

-9.6

-10.0

12.8

4.10

12.5

3.98

12.2

3.90

12.0

3.87

11.9

3.81

11.6

3.71

10.9

3.59

-4.4

-1.8

0.8

2.8

6.0

-5.0

-2.5

0.0

2.0

5.0

6.0

7.0

8.6

7.5

11.2

10.0

16.4

15.0

14.6

15.2

16.2

16.8

17.9

18.2

18.5

18.5

18.5

4.30

4.42

4.54

4.66

4.82

4.86

4.90

4.66

4.18

14.3

14.9

15.8

16.5

17.4

17.4

17.4

17.4

17.4

4.22

4.34

4.42

4.54

4.74

4.62

4.46

4.22

3.79

14.1

14.6

15.4

16.0

16.4

16.4

16.4

16.4

16.4

4.14

4.26

4.34

4.46

4.38

4.18

4.06

3.83

3.35

13.6

14.4

15.2

15.8

15.8

15.8

15.8

15.8

15.8

4.10

4.22

4.30

4.38

4.10

3.98

3.87

3.63

3.15

13.5

14.3

15.0

15.3

15.3

15.3

15.3

15.3

15.3

4.04

4.16

4.24

4.32

3.90

3.79

3.67

3.43

2.95

13.1

13.9

14.3

14.3

14.3

14.3

14.3

14.3

14.3

3.94

4.02

4.10

3.87

3.59

3.47

3.35

3.11

2.63

TC kW

7.8

9.3

12.4

13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

PI kW

3.11

3.35

3.83

3.90

3.67

3.43

3.19

3.07

2.95

2.67

2.23

8 - 8

Capacity Table

1. Capacity Ratio of Outdoor Unit

Combination(%):

Indoor/outdoor capacity ratio

80%

MINI VRF Capacity Ratio 50-130%

TC: Total capacity (kW), PI: Power input (kW)

Outdoor air temp.

TC

15.0

17.0

TC

19.0

Indoor air temp. : °CDB

TC

20.0

TC

21.0

TC

23.0

TC

25.0

PI TC PI PI PI PI PI PI

DB

-19.8

-14.7

-4.4

-1.8

0.8

2.8

6.0

7.0

8.6

11.2

16.4

WB

-20.0

-15.0

-5.0

-2.5

0.0

2.0

5.0

6.0

7.5

10.0

15.0

kW

8.6

10.0

kW

3.03

3.27

kW

8.3

9.7

kW

2.96

3.16

kW

8.0

9.4

kW

2.90

3.10

kW

7.9

9.3

kW

2.86

3.06

kW

7.6

9.2

kW

2.81

3.01

kW

7.3

8.9

kW

2.73

2.93

-9.6

-10.0

11.4

3.47

11.1

3.37

10.8

3.30

10.7

3.27

10.6

3.21

10.3

3.13

kW

6.9

8.3

9.7

kW

2.63

2.83

3.03

13.0

3.64

12.7

3.57

12.5

3.50

12.1

3.47

12.0

3.42

11.7

3.33

11.0

3.23

13.5

3.74

13.2

3.67

13.0

3.60

12.8

3.57

12.7

3.52

12.4

3.40

11.7

3.30

14.4

3.84

14.1

3.74

13.7

3.67

13.5

3.64

13.4

3.59

12.7

3.47

11.7

3.10

14.9

3.94

14.6

3.84

14.2

3.77

14.1

3.70

13.6

3.65

12.7

3.27

11.7

2.90

15.9

4.07

15.5

4.01

14.6

3.70

14.1

3.47

13.6

3.30

12.7

3.03

11.7

2.69

16.2

4.11

15.5

3.90

14.6

3.53

14.1

3.37

13.6

3.20

12.7

2.93

11.7

2.59

16.5

4.14

15.5

3.77

14.6

3.43

14.1

3.27

13.6

3.10

12.7

2.83

11.7

2.49

16.5

3.94

15.5

3.57

14.6

3.23

14.1

3.06

13.6

2.90

12.7

2.63

11.7

2.26

16.5

3.53

15.5

3.20

14.6

2.83

14.1

2.66

13.6

2.49

12.7

2.22

11.7

1.89

Combination(%):

Indoor/outdoor capacity ratio

70%

Outdoor

15.0

17.0

19.0

Indoor air temp. : °CDB

20.0

PI TC PI TC

21.0

23.0

25.0

air temp.

TC PI TC PI TC PI TC PI TC PI

DB

-19.8

-14.7

-15.0

-4.4

-1.8

0.8

2.8

6.0

7.0

8.6

11.2

16.4

WB

-20.0

-5.0

-2.5

0.0

2.0

5.0

6.0

7.5

10.0

15.0

kW

7.5

8.7

kW

2.51

2.71

-9.6

-10.0

10.0

2.88

kW

7.3

8.5

9.7

kW

2.46

2.63

2.79

kW

7.0

8.3

9.5

kW

2.40

2.57

2.74

kW

6.9

8.1

9.4

kW

2.37

2.54

2.71

kW

6.7

8.0

9.2

kW

2.33

2.50

2.67

kW

6.4

7.8

9.0

kW

2.26

2.43

2.60

kW

6.0

7.3

8.5

kW

2.18

2.35

2.51

11.3

3.02

11.1

2.96

11.0

2.91

10.6

2.88

10.5

2.84

10.2

2.77

9.6

2.68

11.8

3.10

11.6

3.05

11.3

2.99

11.2

2.96

11.1

2.92

10.8

2.82

10.2

2.74

12.6

3.18

12.3

3.10

12.0

3.05

11.8

3.02

11.7

2.98

11.1

2.88

10.2

2.57

13.1

3.27

12.8

3.18

12.4

3.13

12.3

3.07

11.9

3.03

11.1

2.71

10.2

2.40

13.9

3.38

13.6

3.32

12.8

3.07

12.3

2.88

11.9

2.74

11.1

2.51

10.2

2.24

14.2

3.41

13.6

3.24

12.8

2.93

12.3

2.79

11.9

2.65

11.1

2.43

10.2

2.15

14.4

3.44

13.6

3.13

12.8

2.85

12.3

2.71

11.9

2.57

11.1

2.35

10.2

2.07

14.4

3.27

13.6

2.96

12.8

2.68

12.3

2.54

11.9

2.40

11.1

2.18

10.2

1.87

14.4

2.93

13.6

2.65

12.8

2.35

12.3

2.21

11.9

2.07

11.1

1.84

10.2

1.56

Combination(%):

Indoor/outdoor capacity ratio

60%

Outdoor

15.0

17.0

19.0

Indoor air temp. : °CDB

20.0

PI TC PI TC

21.0

air temp.

TC PI TC PI TC PI

DB WB kW

-19.8

-20.0

-14.7

-15.0

-9.6

-10.0

-4.4

-1.8

6.4

7.5

8.6

9.7

kW

2.12

2.29

2.43

2.55

10.1

2.62

0.8

2.8

6.0

7.0

-5.0

-2.5

0.0

2.0

5.0

6.0

8.6

7.5

11.2

10.0

16.4

15.0

kW

6.2

7.3

8.3

kW

2.08

2.22

2.36

kW

6.0

7.1

8.1

kW

2.03

2.17

2.31

kW

5.9

7.0

8.0

kW

2.00

2.15

2.29

kW

5.7

6.9

7.9

kW

1.97

2.11

2.25

9.5

9.9

2.50

2.57

9.4

9.7

2.45

2.52

9.1

9.6

2.43

2.50

9.0

9.5

2.39

2.46

10.8

2.69

10.6

2.62

10.2

2.57

10.1

2.55

10.0

2.51

11.2

2.76

11.0

2.69

10.7

2.64

10.6

2.59

10.2

2.56

11.9

2.85

11.6

2.81

10.9

2.59

10.6

2.43

10.2

2.31

12.1

2.88

11.6

2.74

10.9

2.48

10.6

2.36

10.2

2.24

12.4

2.90

11.6

2.64

10.9

2.41

10.6

2.29

10.2

2.17

12.4

2.76

11.6

2.50

10.9

2.26

10.6

2.15

10.2

2.03

12.4

2.48

11.6

2.24

10.9

1.98

10.6

1.86

10.2

1.75

TC kW

5.5

6.7

7.7

8.8

9.3

9.5

9.5

9.5

9.5

9.5

9.5

9.5

23.0

PI kW

1.91

2.05

2.19

2.34

2.38

2.43

2.29

2.12

2.05

1.98

1.84

1.56

TC kW

5.2

6.2

7.3

8.2

8.8

8.8

8.8

8.8

8.8

8.8

8.8

8.8

25.0

PI kW

1.84

1.98

2.12

2.26

2.31

2.17

2.03

1.89

1.82

1.75

1.58

1.32

Combination(%):

Indoor/outdoor capacity ratio

50%

Outdoor air temp.

DB

-19.8

-20.0

-14.7

-15.0

-9.6

-10.0

TC

WB kW

-4.4

-1.8

0.8

2.8

-5.0

-2.5

0.0

2.0

6.0

7.0

5.0

6.0

8.6

7.5

11.2

10.0

16.4

15.0

5.4

6.2

7.1

8.1

8.4

9.0

9.3

9.9

15.0

2.25

2.33

10.1

2.35

10.3

2.37

10.3

2.25

10.3

2.02

PI kW

1.73

1.87

1.98

2.08

2.14

2.19

9.2

9.7

9.7

9.7

9.7

9.7

TC kW

5.2

6.1

7.0

7.9

8.3

8.8

17.0

2.19

2.29

2.23

2.15

2.04

1.83

PI kW

1.69

1.81

1.92

2.04

2.10

2.14

Indoor air temp. : °CDB

8.9

9.1

9.1

9.1

9.1

9.1

TC kW

5.0

5.9

6.8

7.8

8.1

8.5

19.0

2.15

2.12

2.02

1.96

1.85

1.62

PI kW

1.65

1.77

1.89

2.00

2.06

2.10

TC kW

4.9

5.8

6.7

7.6

8.0

8.4

8.8

8.8

8.8

8.8

8.8

8.8

20.0

2.12

1.98

1.92

1.87

1.75

1.52

PI kW

1.64

1.75

1.87

1.98

2.04

2.08

8.5

8.5

8.5

8.5

8.5

8.5

TC kW

4.8

5.7

6.6

7.5

7.9

8.4

21.0

2.09

1.89

1.83

1.77

1.65

1.42

PI kW

1.61

1.72

1.84

1.95

2.01

2.05

7.9

7.9

7.9

7.9

7.9

7.9

TC kW

4.6

5.5

6.4

7.3

7.7

7.9

23.0

1.87

1.73

1.67

1.62

1.50

1.27

PI kW

1.56

1.67

1.79

1.90

1.94

1.98

7.3

7.3

7.3

7.3

7.3

7.3

TC kW

4.3

5.2

6.1

6.9

7.3

7.3

25.0

1.65

1.54

1.48

1.42

1.29

1.08

PI kW

1.50

1.62

1.73

1.85

1.89

1.77

1

2

3

4

5

6

7

8

8 - 9

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

2-1. 4-Way Cassette Type (U1 Type), 4-Way Cassette 60×60 Type (Y1 Type)

S-12MU1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

3.6 kW

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

15 17

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

AIR FLOW 15.5 m

3

/min

CONDENSER

AMBIENT TEMP. ( o

C)

19 21 23 25 27 29 31 33 35 37 39 41 43

TC 2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

15

21

23

25

27

16

17

18

21

23

25

27

29

31

21

23

25

27

29

21

23

25

27

29

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.2

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.2

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.2

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.4

3.4

3.3

19

21

23

25

27

29

31

20

21

22

23

23

25

27

29

31

25

27

29

31

23

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.4

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.4

3.3

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.4

3.4

3.3

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.5

3.4

3.3

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.7

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.2

2.2

2.2

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.6

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.2

3.2

3.2

3.1

3.1

3.1

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.6

3.6

3.5

3.4

3.3

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

3.9

3.9

3.8

3.7

3.6

3.5

3.4

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.5

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.4

2.4

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.8

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.4

3.4

3.3

3.3

4.3

4.3

4.3

4.3

4.3

4.2

4.2

4.1

4.1

4.0

3.9

3.8

3.8

3.7

3.6

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.7

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.9

2.9

2.9

2.9

2.9

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.6

2.6

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.2

3.2

3.2

3.1

3.1

3.1

3.1

4.6

4.5

4.5

4.5

4.4

4.4

4.3

4.3

4.2

4.2

4.1

4.0

3.9

3.9

3.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.5

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.7

2.7

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.4

2.4

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.9

8 - 10

Capacity Table

2. Cooling Capacity of Indoor Unit

S-18MU1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

5.6 kW

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

AIR FLOW 16.0 m

3

/min

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC

15 17 19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

15

16

17

18

21

23

25

27

29

31

21

23

25

27

29

21

23

25

27

29

21

23

25

27

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.0

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.6

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.2

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.3

4.3

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.8

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.0

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.5

5.4

5.2

5.1

19

20

21

22

23

25

27

29

31

25

27

29

31

23

25

27

29

31

21

23

25

27

29

31

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.3

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

2.9

2.9

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.5

3.4

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.1

4.1

4.0

4.0

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.6

4.6

4.5

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.1

5.1

5.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

5.9

5.8

5.7

5.6

5.5

5.3

5.2

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.8

2.8

2.7

2.7

2.6

2.6

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.2

3.2

3.2

3.1

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

3.9

3.9

3.9

3.8

3.8

3.7

3.6

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.4

4.4

4.3

4.3

4.2

4.2

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

4.9

4.9

4.8

4.7

6.4

6.4

6.4

6.4

6.4

6.4

6.3

6.2

6.1

6.0

5.9

5.8

5.6

5.5

5.4

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.4

2.4

2.3

2.3

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.1

3.0

3.0

2.9

2.9

2.8

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.6

3.6

3.6

3.5

3.5

3.4

3.3

4.3

4.3

4.3

4.3

4.3

4.3

4.2

4.2

4.2

4.1

4.1

4.1

4.0

4.0

3.9

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.7

4.7

4.6

4.6

4.6

4.5

4.4

6.7

6.7

6.7

6.7

6.6

6.6

6.5

6.4

6.3

6.2

6.1

6.0

5.9

5.7

5.6

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.8

2.8

2.8

2.7

2.7

2.6

2.6

2.5

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.2

3.2

3.1

4.1

4.1

4.1

4.1

4.0

4.0

4.0

3.9

3.9

3.9

3.8

3.8

3.7

3.7

3.6

4.6

4.6

4.6

4.6

4.6

4.5

4.5

4.5

4.4

4.4

4.4

4.3

4.3

4.2

4.2

7.1

7.1

7.0

7.0

6.9

6.8

6.8

6.7

6.6

6.5

6.4

6.3

6.1

6.0

5.8

23

25

27

29

31

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.5

2.5

2.5

2.4

2.4

2.3

2.3

3.3

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.1

3.0

3.0

2.9

2.9

2.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.7

3.6

3.6

3.6

3.5

3.5

3.4

3.4

4.4

4.3

4.3

4.3

4.3

4.3

4.2

4.2

4.2

4.1

4.1

4.1

4.0

4.0

3.9

8 - 11

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

S-24MU1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

7.3 kW

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

AIR FLOW 20.0 m

3

/min

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC

15 17 19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

15

16

17

18

21

23

25

27

29

31

21

23

25

27

29

21

23

25

27

29

21

23

25

27

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.7

6.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.4

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.7

4.7

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.3

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.0

5.9

6.7

6.7

6.7

6.7

6.7

6.7

6.7

6.7

6.7

6.7

6.7

6.7

6.7

6.7

6.5

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.1

7.0

6.8

6.6

19

20

21

22

23

23

25

27

29

31

25

27

29

31

23

25

27

29

31

25

27

29

31

21

23

25

27

29

31

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.1

3.1

3.0

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.8

3.7

3.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.5

4.5

4.4

4.3

4.3

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.1

5.1

5.0

4.9

5.9

5.9

5.9

5.9

5.9

5.9

5.9

5.9

5.9

5.9

5.8

5.8

5.7

5.6

5.5

6.5

6.5

6.5

6.5

6.5

6.5

6.5

6.5

6.5

6.5

6.5

6.4

6.3

6.3

6.2

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.7

7.6

7.5

7.3

7.1

7.0

6.8

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.6

3.5

3.5

3.4

3.3

3.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.2

4.1

4.1

4.0

3.9

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

4.9

4.9

4.8

4.8

4.7

4.6

4.5

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.5

5.5

5.4

5.3

5.3

5.2

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.2

6.2

6.1

6.1

6.0

5.9

5.8

8.3

8.3

8.3

8.3

8.3

8.3

8.2

8.1

7.9

7.8

7.7

7.5

7.3

7.2

7.0

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.1

3.1

3.0

2.9

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

3.9

3.9

3.8

3.8

3.7

3.7

3.6

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.6

4.6

4.5

4.5

4.4

4.3

4.3

4.2

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.2

5.2

5.1

5.1

5.0

4.9

4.9

6.0

6.0

6.0

6.0

6.0

6.0

5.9

5.9

5.9

5.8

5.7

5.7

5.6

5.6

5.5

8.8

8.8

8.8

8.7

8.7

8.6

8.5

8.4

8.2

8.1

8.0

7.8

7.6

7.5

7.3

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.7

3.6

3.5

3.5

3.5

3.4

3.3

3.3

4.5

4.5

4.5

4.5

4.4

4.4

4.3

4.3

4.3

4.2

4.1

4.1

4.0

4.0

3.9

5.1

5.1

5.1

5.1

5.1

5.0

5.0

4.9

4.9

4.8

4.8

4.7

4.7

4.6

4.5

5.7

5.7

5.7

5.7

5.7

5.7

5.6

5.6

5.5

5.5

5.4

5.4

5.3

5.3

5.2

9.3

9.2

9.2

9.1

9.0

8.9

8.8

8.7

8.6

8.5

8.3

8.2

8.0

7.8

7.6

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.3

3.3

3.3

3.2

3.1

3.1

3.0

2.9

4.2

4.2

4.1

4.1

4.1

4.1

4.0

4.0

3.9

3.9

3.8

3.8

3.7

3.7

3.6

4.8

4.8

4.8

4.8

4.7

4.7

4.7

4.6

4.6

4.5

4.5

4.4

4.4

4.3

4.2

5.5

5.5

5.4

5.4

5.4

5.3

5.3

5.3

5.2

5.2

5.1

5.1

5.0

4.9

4.9

8 - 12

Capacity Table

2. Cooling Capacity of Indoor Unit

S-36MU1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

10.6 kW

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

15 17

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

AIR FLOW 28.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

TC 7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

6.5

6.5

6.5

6.5

6.5

6.5

6.5

6.5

6.5

6.5

6.5

6.5

6.5

6.5

6.5

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

16

21

23

25

27

29

17

18

19

20

21

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

SHC

SHC

SHC

SHC

SHC

TC

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

SHC

SHC

SHC

SHC

SHC

TC

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

8.6

8.6

8.6

8.6

8.6

8.6

8.6

8.6

8.6

8.6

8.6

8.6

8.6

8.6

8.6

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.8

9.5

SHC

SHC

SHC

SHC

SHC

SHC

TC

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

4.8

5.9

5.9

5.9

5.9

5.9

5.9

5.9

5.9

5.9

5.9

5.9

5.9

5.9

5.8

5.7

6.7

6.7

6.7

6.7

6.7

6.7

6.7

6.7

6.7

6.7

6.7

6.7

6.7

6.6

6.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.4

7.3

8.3

8.3

8.3

8.3

8.3

8.3

8.3

8.3

8.3

8.3

8.3

8.3

8.3

8.3

8.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.1

9.0

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.4

10.1

9.9

9.6

SHC

SHC

SHC

SHC

SHC

SHC

TC

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.6

4.6

4.4

4.3

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.5

5.3

5.2

5.1

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.3

6.2

6.1

6.0

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.2

7.1

7.0

6.9

6.8

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

7.9

7.8

7.7

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.8

8.7

8.6

8.4

11.3

11.3

11.3

11.3

11.3

11.3

11.3

11.3

11.2

11.0

10.8

10.6

10.4

10.1

9.8

SHC

SHC

SHC

SHC

SHC

TC

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.2

5.2

5.1

5.0

4.9

4.8

4.7

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.0

5.9

5.8

5.7

5.6

5.5

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.8

6.8

6.6

6.5

6.4

6.3

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.7

7.5

7.5

7.4

7.3

7.1

8.6

8.6

8.6

8.6

8.6

8.6

8.6

8.6

8.6

8.5

8.4

8.3

8.2

8.1

8.0

12.0

12.0

12.0

12.0

12.0

12.0

11.9

11.7

11.5

11.3

11.1

10.9

10.7

10.4

10.1

SHC

SHC

SHC

SHC

SHC

TC

5.0

5.0

5.0

5.0

5.0

5.0

4.9

4.8

4.8

4.7

4.6

4.5

4.4

4.3

4.2

5.8

5.8

5.8

5.8

5.8

5.8

5.7

5.7

5.6

5.5

5.5

5.3

5.2

5.2

5.1

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.5

6.4

6.4

6.2

6.2

6.1

6.0

5.9

7.5

7.5

7.5

7.5

7.5

7.5

7.4

7.3

7.3

7.2

7.1

7.0

6.9

6.8

6.7

8.3

8.3

8.3

8.3

8.3

8.3

8.2

8.2

8.1

8.0

7.9

7.8

7.8

7.7

7.5

12.7

12.7

12.7

12.7

12.6

12.4

12.3

12.1

12.0

11.8

11.5

11.3

11.1

10.8

10.6

22

23

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

5.5

5.5

5.5

5.5

5.4

5.3

5.3

5.2

5.2

5.1

5.0

5.0

4.8

4.7

4.6

6.3

6.3

6.3

6.3

6.2

6.2

6.1

6.1

6.0

5.9

5.9

5.7

5.7

5.6

5.5

7.1

7.1

7.1

7.1

7.1

7.0

7.0

6.9

6.8

6.8

6.7

6.6

6.5

6.4

6.3

8.0

8.0

8.0

7.9

7.9

7.9

7.8

7.8

7.7

7.6

7.5

7.4

7.3

7.2

7.1

13.4

13.4

13.3

13.2

13.1

13.0

12.8

12.6

12.5

12.3

12.1

11.8

11.6

11.3

11.1

SHC

SHC

SHC

SHC

5.1

5.1

5.1

5.1

5.0

5.0

4.9

4.8

4.8

4.7

4.6

4.6

4.4

4.3

4.2

6.0

6.0

5.9

5.9

5.9

5.8

5.7

5.7

5.6

5.5

5.5

5.3

5.3

5.2

5.1

6.8

6.8

6.8

6.7

6.7

6.6

6.6

6.5

6.4

6.4

6.3

6.2

6.1

6.0

5.9

7.7

7.6

7.6

7.5

7.5

7.4

7.4

7.3

7.3

7.2

7.1

7.0

6.9

6.9

6.8

8 - 13

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

S-12MY1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

3.6 kW

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

15 17

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

AIR FLOW 9.0 m

3

/min

CONDENSER

AMBIENT TEMP. ( o

C)

19 21 23 25 27 29 31 33 35 37 39 41 43

TC 2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

15

16

17

18

21

23

25

27

29

31

21

23

25

27

29

21

23

25

27

29

21

23

25

27

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.2

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.8

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.2

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.4

3.4

3.3

19

20

21

22

23

25

27

29

31

25

27

29

31

23

25

27

29

31

21

23

25

27

29

31

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.2

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

3.0

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.4

3.3

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.5

3.4

3.3

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

1.7

1.7

1.7

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.0

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.5

2.4

2.4

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.9

2.8

2.8

2.8

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.2

3.2

3.1

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

3.9

3.9

3.8

3.7

3.6

3.5

3.4

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.5

1.5

1.5

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.8

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.2

2.2

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

2.6

2.6

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.1

3.1

3.1

3.0

3.0

3.0

2.9

4.3

4.3

4.3

4.3

4.3

4.2

4.2

4.1

4.1

4.0

3.9

3.8

3.8

3.7

3.6

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.6

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.0

2.0

2.7

2.7

2.7

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.5

2.4

2.4

2.4

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.9

2.8

2.8

2.8

2.7

4.6

4.5

4.5

4.5

4.4

4.4

4.3

4.3

4.2

4.2

4.1

4.0

3.9

3.9

3.8

23

25

27

29

31

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

1.8

1.8

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.5

1.5

1.5

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.8

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.2

2.2

2.9

2.9

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

2.6

2.6

8 - 14

Capacity Table

2. Cooling Capacity of Indoor Unit

S-18MY1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

5.6 kW

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

15 17

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

AIR FLOW 12.5 m

3

/min

CONDENSER

AMBIENT TEMP. ( o

C)

19 21 23 25 27 29 31 33 35 37 39 41 43

TC 4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

15

16

17

18

21

23

25

27

29

31

21

23

25

27

29

21

23

25

27

29

21

23

25

27

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.0

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.6

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.6

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.6

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.0

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.5

5.4

5.2

5.1

19

20

21

22

23

25

27

29

31

25

27

29

31

23

25

27

29

31

21

23

25

27

29

31

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.3

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.8

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.3

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

3.9

3.9

3.8

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.4

4.4

4.3

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.0

5.0

4.9

4.8

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

5.9

5.8

5.7

5.6

5.5

5.3

5.2

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.6

2.6

2.5

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.2

3.1

3.1

3.0

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.6

3.5

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.3

4.3

4.3

4.2

4.2

4.1

4.0

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.8

4.8

4.8

4.7

4.7

4.6

4.5

6.4

6.4

6.4

6.4

6.4

6.4

6.3

6.2

6.1

6.0

5.9

5.8

5.6

5.5

5.4

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.4

2.4

2.3

2.3

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

3.0

2.9

2.9

2.8

2.8

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.5

3.5

3.4

3.4

3.3

3.3

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.1

4.1

4.0

4.0

3.9

3.9

3.8

3.8

4.7

4.7

4.7

4.7

4.7

4.7

4.6

4.6

4.6

4.5

4.5

4.4

4.4

4.3

4.3

6.7

6.7

6.7

6.7

6.6

6.6

6.5

6.4

6.3

6.2

6.1

6.0

5.9

5.7

5.6

2.9

2.9

2.9

2.9

2.9

2.9

2.8

2.8

2.8

2.7

2.7

2.7

2.6

2.6

2.5

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.2

3.2

3.2

3.1

3.1

3.0

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.8

3.8

3.8

3.7

3.7

3.6

3.6

3.5

4.5

4.5

4.5

4.4

4.4

4.4

4.4

4.3

4.3

4.3

4.2

4.2

4.1

4.1

4.0

7.1

7.1

7.0

7.0

6.9

6.8

6.8

6.7

6.6

6.5

6.4

6.3

6.1

6.0

5.8

23

25

27

29

31

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.4

2.4

2.3

2.3

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.1

3.0

3.0

3.0

2.9

2.9

2.8

2.8

3.7

3.7

3.7

3.7

3.7

3.6

3.6

3.6

3.5

3.5

3.5

3.4

3.4

3.3

3.3

4.2

4.2

4.2

4.2

4.2

4.1

4.1

4.1

4.1

4.0

4.0

3.9

3.9

3.8

3.8

8 - 15

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

2-2. 1-Way Cassette Type (D1 Type)

S-07MD1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

2.2 kW

15 17

AIR FLOW 8.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.0

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

0.9

0.9

0.9

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.1

1.1

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.1

2.1

2.0

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.0

1.0

1.0

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

1.7

1.6

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.9

1.9

1.8

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.3

2.3

2.2

2.2

2.1

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

0.9

0.9

0.9

0.9

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.2

1.2

1.1

1.1

1.1

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

1.8

1.8

1.7

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.4

2.4

2.4

2.3

2.2

2.2

1.2

1.2

1.2

1.2

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.0

1.0

1.0

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

1.7

1.7

1.6

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

2.6

2.5

2.5

2.5

2.4

2.4

2.3

1.1

1.1

1.1

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

0.9

0.9

0.9

0.9

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.2

1.2

1.1

1.1

1.1

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.6

1.6

1.5

8 - 16

Capacity Table

2. Cooling Capacity of Indoor Unit

S-09MD1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

2.8 kW

15 17

AIR FLOW 8.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.6

2.5

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

1.9

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.8

2.7

2.7

2.6

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.5

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.1

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.4

2.3

2.3

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.0

3.0

2.9

2.9

2.8

2.7

2.7

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.1

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

1.9

1.9

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.2

3.2

3.1

3.1

3.0

2.9

2.9

2.8

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.3

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.5

1.5

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.1

2.0

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.3

3.3

3.2

3.2

3.1

3.1

3.0

2.9

1.4

1.4

1.4

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.1

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

2.2

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

1.9

1.9

8 - 17

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

S-12MD1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

3.6 kW

15 17

AIR FLOW 9.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.2

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.4

3.4

3.3

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.8

2.8

2.7

2.7

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.1

3.0

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.5

3.4

3.3

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.6

1.6

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

1.9

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.2

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.5

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.8

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

3.9

3.9

3.8

3.7

3.6

3.5

3.4

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.4

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.8

1.8

1.8

1.8

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.8

2.8

2.8

2.7

2.7

2.7

4.3

4.3

4.3

4.3

4.3

4.2

4.2

4.1

4.1

4.0

3.9

3.8

3.8

3.7

3.6

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.6

1.6

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.1

2.0

2.0

2.0

1.9

1.9

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.2

2.2

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.5

2.5

4.6

4.5

4.5

4.5

4.4

4.4

4.3

4.3

4.2

4.2

4.1

4.0

3.9

3.9

3.8

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.4

2.1

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.8

1.8

1.8

1.8

2.4

2.4

2.4

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.7

2.7

2.7

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.5

2.4

2.4

2.4

8 - 18

Capacity Table

2. Cooling Capacity of Indoor Unit

2-3. Wall Mounted Type (K1 Type)

S-07MK1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

2.2 kW

15 17

AIR FLOW 10.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

16

17

18

19

20

21

22

23

23

25

27

29

31

SHC

SHC

SHC

SHC

SHC

TC

23

25

27

29

31

SHC

SHC

SHC

SHC

SHC

TC

25

27

29

31

SHC

SHC

SHC

SHC

TC

25

27

29

31

SHC

SHC

SHC

SHC

21

23

25

27

29

SHC

SHC

SHC

SHC

SHC

TC

21

23

25

27

29

21

23

25

27

29

31

21

23

25

27

29

31

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

0.9

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.0

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.1

2.1

2.0

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.1

1.1

1.1

1.1

1.1

1.1

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.6

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.0

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.3

2.3

2.2

2.2

2.1

1.1

1.1

1.1

1.1

1.1

1.1

1.0

1.0

1.0

1.0

1.0

1.0

1.0

0.9

0.9

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.2

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

2.0

1.9

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.4

2.4

2.4

2.3

2.2

2.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.1

1.1

1.1

1.1

1.1

1.1

1.0

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.6

1.6

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

2.6

2.5

2.5

2.5

2.4

2.4

2.3

1.1

1.1

1.1

1.1

1.1

1.1

1.0

1.0

1.0

1.0

1.0

1.0

1.0

0.9

0.9

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.2

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.9

1.9

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

8 - 19

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

S-09MK1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

2.8 kW

15 17

AIR FLOW 10.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.6

2.5

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.1

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.6

2.5

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.8

2.7

2.7

2.6

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.4

1.4

1.3

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

1.7

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.0

3.0

2.9

2.9

2.8

2.7

2.7

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.9

1.9

1.8

1.8

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.1

2.1

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.5

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.2

3.2

3.1

3.1

3.0

2.9

2.9

2.8

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

1.6

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.3

3.3

3.2

3.2

3.1

3.1

3.0

2.9

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

2.4

2.4

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

2.1

8 - 20

Capacity Table

2. Cooling Capacity of Indoor Unit

S-12MK1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

3.6 kW

15 17

AIR FLOW 10.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.2

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.8

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.2

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.2

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.4

3.4

3.3

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.2

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.3

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.5

3.4

3.3

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

1.7

1.7

1.7

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.0

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.4

2.4

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.8

2.8

2.8

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.2

3.2

3.1

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

3.9

3.9

3.8

3.7

3.6

3.5

3.4

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.5

1.5

1.5

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.8

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.3

2.2

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

2.6

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.1

3.0

3.0

3.0

3.0

4.3

4.3

4.3

4.3

4.3

4.2

4.2

4.1

4.1

4.0

3.9

3.8

3.8

3.7

3.6

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.6

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.0

2.0

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.5

2.4

2.4

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.9

2.8

2.8

2.8

4.6

4.5

4.5

4.5

4.4

4.4

4.3

4.3

4.2

4.2

4.1

4.0

3.9

3.9

3.8

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.5

1.5

1.5

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.8

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.3

2.2

2.9

2.9

2.9

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

2.6

8 - 21

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

S-18MK1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

5.3 kW

15 17

AIR FLOW 16.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

4.9

4.7

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.6

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

4.9

4.7

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.2

5.1

4.9

4.8

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.2

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.8

2.8

2.7

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.2

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

3.9

3.9

3.8

3.8

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.4

4.4

4.3

4.3

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

4.9

4.9

4.8

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.6

5.5

5.4

5.3

5.2

5.0

4.9

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.5

2.5

2.4

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.0

3.0

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.7

3.6

3.6

3.5

3.5

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.2

4.2

4.1

4.1

4.1

4.0

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.7

4.7

4.6

4.6

4.5

6.0

6.0

6.0

6.0

6.0

6.0

5.9

5.9

5.8

5.7

5.6

5.5

5.3

5.2

5.1

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.3

2.3

2.3

2.2

2.2

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.8

2.8

2.7

2.7

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.4

3.3

3.3

3.2

3.2

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

4.0

3.9

3.9

3.8

3.8

3.7

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.5

4.5

4.5

4.4

4.4

4.3

4.3

4.2

6.4

6.4

6.4

6.3

6.3

6.2

6.1

6.1

6.0

5.9

5.8

5.7

5.5

5.4

5.3

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.6

2.6

2.5

2.5

2.5

2.4

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.2

3.2

3.2

3.1

3.1

3.0

3.0

2.9

3.9

3.9

3.9

3.8

3.8

3.8

3.8

3.7

3.7

3.7

3.6

3.6

3.5

3.5

3.4

4.4

4.4

4.4

4.4

4.3

4.3

4.3

4.3

4.2

4.2

4.1

4.1

4.1

4.0

4.0

6.7

6.7

6.6

6.6

6.5

6.5

6.4

6.3

6.2

6.1

6.0

5.9

5.8

5.7

5.5

2.6

2.6

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.3

2.3

2.3

2.2

2.2

3.1

3.1

3.1

3.1

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.8

2.8

2.7

2.7

3.6

3.6

3.6

3.6

3.6

3.5

3.5

3.5

3.4

3.4

3.4

3.3

3.3

3.2

3.2

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

4.0

4.0

3.9

3.9

3.8

3.8

3.7

8 - 22

Capacity Table

2. Cooling Capacity of Indoor Unit

S-19MS1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

5.6 kW

15 17

AIR FLOW 16.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.0

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.6

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.2

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.8

4.8

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.0

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.5

5.4

5.2

5.1

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.3

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

2.9

2.9

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.5

3.4

3.4

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

3.9

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.6

4.6

4.5

4.4

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.1

5.1

5.0

5.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

5.9

5.8

5.7

5.6

5.5

5.3

5.2

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.8

2.8

2.8

2.7

2.7

2.6

2.5

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.2

3.2

3.2

3.1

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.8

3.8

3.7

3.7

3.6

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.4

4.4

4.3

4.3

4.2

4.2

4.1

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

4.9

4.9

4.9

4.8

4.7

4.7

6.4

6.4

6.4

6.4

6.4

6.4

6.3

6.2

6.1

6.0

5.9

5.8

5.6

5.5

5.4

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.4

2.4

2.3

2.3

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.1

3.0

3.0

2.9

2.9

2.8

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.6

3.6

3.6

3.5

3.5

3.4

3.4

3.3

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.1

4.1

4.0

4.0

3.9

3.9

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.7

4.7

4.6

4.6

4.6

4.5

4.5

4.4

6.7

6.7

6.7

6.7

6.6

6.6

6.5

6.4

6.3

6.2

6.1

6.0

5.9

5.7

5.6

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.8

2.8

2.8

2.7

2.7

2.6

2.6

2.5

3.5

3.5

3.5

3.5

3.4

3.4

3.4

3.4

3.3

3.3

3.2

3.2

3.2

3.1

3.1

4.0

4.0

4.0

4.0

4.0

4.0

3.9

3.9

3.9

3.8

3.8

3.8

3.7

3.7

3.6

4.6

4.6

4.6

4.5

4.5

4.5

4.5

4.4

4.4

4.4

4.3

4.3

4.2

4.2

4.1

7.1

7.1

7.0

7.0

6.9

6.8

6.8

6.7

6.6

6.5

6.4

6.3

6.1

6.0

5.8

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.5

2.5

2.5

2.4

2.4

2.3

2.3

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.0

3.0

3.0

2.9

2.9

2.8

3.8

3.8

3.8

3.7

3.7

3.7

3.7

3.6

3.6

3.6

3.5

3.5

3.4

3.4

3.3

4.3

4.3

4.3

4.3

4.2

4.2

4.2

4.2

4.1

4.1

4.1

4.0

4.0

3.9

3.9

8 - 23

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

S-24MK1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

7.3 kW

15 17

AIR FLOW 16.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.7

6.5

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.8

3.8

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.3

4.2

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.8

4.7

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.2

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.7

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.1

7.0

6.8

6.6

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.1

3.1

3.0

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.6

3.5

3.4

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.1

4.0

3.9

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.6

4.6

4.5

4.4

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.1

5.0

5.0

4.9

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.6

5.5

5.4

5.3

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.7

7.6

7.5

7.3

7.1

7.0

6.8

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.5

3.4

3.3

3.2

3.2

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.0

3.9

3.9

3.8

3.7

3.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.5

4.5

4.4

4.3

4.3

4.2

4.1

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

4.9

4.8

4.8

4.7

4.6

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.4

5.4

5.3

5.2

5.1

5.0

8.3

8.3

8.3

8.3

8.3

8.3

8.2

8.1

7.9

7.8

7.7

7.5

7.3

7.2

7.0

3.5

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.3

3.2

3.2

3.1

3.1

3.0

2.9

4.0

4.0

4.0

4.0

4.0

4.0

3.9

3.9

3.8

3.7

3.7

3.6

3.5

3.4

3.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.3

4.3

4.2

4.1

4.1

4.0

3.9

3.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.8

4.8

4.7

4.6

4.6

4.5

4.4

4.3

5.4

5.4

5.4

5.4

5.4

5.4

5.3

5.3

5.2

5.2

5.1

5.0

5.0

4.9

4.8

8.8

8.8

8.8

8.7

8.7

8.6

8.5

8.4

8.2

8.1

8.0

7.8

7.6

7.5

7.3

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.6

3.5

3.5

3.4

3.3

3.3

3.2

3.1

4.2

4.2

4.2

4.2

4.2

4.1

4.1

4.1

4.0

4.0

3.9

3.8

3.8

3.7

3.6

4.7

4.7

4.7

4.7

4.7

4.6

4.6

4.5

4.5

4.4

4.4

4.3

4.2

4.2

4.1

5.2

5.2

5.2

5.2

5.1

5.1

5.1

5.0

5.0

4.9

4.9

4.8

4.7

4.6

4.6

9.3

9.2

9.2

9.1

9.0

8.9

8.8

8.7

8.6

8.5

8.3

8.2

8.0

7.8

7.6

3.6

3.6

3.5

3.5

3.5

3.4

3.4

3.4

3.3

3.2

3.2

3.1

3.1

3.0

2.9

4.1

4.1

4.0

4.0

4.0

3.9

3.9

3.8

3.8

3.7

3.7

3.6

3.5

3.5

3.4

4.6

4.5

4.5

4.5

4.4

4.4

4.4

4.3

4.3

4.2

4.1

4.1

4.0

4.0

3.9

5.0

5.0

5.0

5.0

4.9

4.9

4.9

4.8

4.8

4.7

4.6

4.6

4.5

4.4

4.3

8 - 24

Capacity Table

2. Cooling Capacity of Indoor Unit

2-4. Ceiling Type (T1 Type)

S-12MT1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

3.6 kW

15 17

AIR FLOW 12.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.2

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.4

3.4

3.3

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.7

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.6

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.5

3.4

3.3

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.6

1.6

1.6

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.8

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.1

2.1

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.4

2.4

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.8

2.8

2.8

2.7

2.7

2.7

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

3.9

3.9

3.8

3.7

3.6

3.5

3.4

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.4

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.8

1.8

1.8

1.7

1.7

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.0

2.0

2.0

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.3

2.3

2.3

2.2

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.5

4.3

4.3

4.3

4.3

4.3

4.2

4.2

4.1

4.1

4.0

3.9

3.8

3.8

3.7

3.6

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.6

1.6

1.6

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.8

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.1

2.1

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.5

2.4

2.4

4.6

4.5

4.5

4.5

4.4

4.4

4.3

4.3

4.2

4.2

4.1

4.0

3.9

3.9

3.8

1.8

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.4

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.7

1.7

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.0

2.0

2.0

2.6

2.6

2.6

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.4

2.3

2.3

2.2

8 - 25

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

S-18MT1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

5.6 kW

15 17

AIR FLOW 13.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.0

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.8

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.6

3.6

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

3.9

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.2

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.5

5.4

5.2

5.1

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.3

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.8

2.7

2.7

2.6

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.0

3.0

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.4

3.4

3.3

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.8

3.7

3.7

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.2

4.1

4.1

4.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

5.9

5.8

5.7

5.6

5.5

5.3

5.2

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.6

2.5

2.5

2.4

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

2.9

2.8

2.8

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.3

3.3

3.2

3.2

3.1

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.6

3.5

3.4

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.0

4.0

3.9

3.9

3.8

6.4

6.4

6.4

6.4

6.4

6.4

6.3

6.2

6.1

6.0

5.9

5.8

5.6

5.5

5.4

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.5

2.5

2.4

2.4

2.3

2.2

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.8

2.8

2.7

2.7

2.6

2.6

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.2

3.2

3.2

3.1

3.0

3.0

2.9

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.6

3.6

3.6

3.5

3.4

3.4

3.3

3.3

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

3.9

3.9

3.8

3.8

3.7

3.7

3.6

6.7

6.7

6.7

6.7

6.6

6.6

6.5

6.4

6.3

6.2

6.1

6.0

5.9

5.7

5.6

2.9

2.9

2.9

2.9

2.9

2.8

2.8

2.8

2.7

2.7

2.6

2.6

2.5

2.5

2.4

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.1

3.0

3.0

2.9

2.9

2.8

2.7

3.6

3.6

3.6

3.6

3.6

3.5

3.5

3.4

3.4

3.4

3.3

3.3

3.2

3.2

3.1

3.9

3.9

3.9

3.9

3.9

3.9

3.8

3.8

3.8

3.7

3.7

3.6

3.6

3.5

3.4

7.1

7.1

7.0

7.0

6.9

6.8

6.8

6.7

6.6

6.5

6.4

6.3

6.1

6.0

5.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.5

2.5

2.4

2.4

2.3

2.2

3.1

3.1

3.1

3.1

3.0

3.0

3.0

3.0

2.9

2.8

2.8

2.8

2.7

2.6

2.6

3.5

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.2

3.2

3.2

3.1

3.1

3.0

2.9

3.8

3.8

3.8

3.8

3.7

3.7

3.7

3.6

3.6

3.6

3.5

3.4

3.4

3.3

3.3

8 - 26

Capacity Table

2. Cooling Capacity of Indoor Unit

S-24MT1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

7.3 kW

15 17

AIR FLOW 18.5 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

16

17

18

19

20

21

22

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.7

6.5

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.8

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.4

4.3

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

4.9

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.4

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.0

5.9

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.1

7.0

6.8

6.6

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.1

3.0

3.0

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.6

3.6

3.5

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.2

4.2

4.1

4.0

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.8

4.8

4.7

4.6

4.5

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.3

5.2

5.2

5.1

5.9

5.9

5.9

5.9

5.9

5.9

5.9

5.9

5.9

5.9

5.9

5.8

5.8

5.7

5.6

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.7

7.6

7.5

7.3

7.1

7.0

6.8

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.5

3.4

3.3

3.3

3.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.1

4.0

3.9

3.9

3.8

3.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.6

4.6

4.5

4.5

4.4

4.3

4.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.1

5.1

5.0

4.9

4.8

4.8

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.6

5.5

5.5

5.4

5.3

8.3

8.3

8.3

8.3

8.3

8.3

8.2

8.1

7.9

7.8

7.7

7.5

7.3

7.2

7.0

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.2

3.2

3.1

3.0

3.0

2.9

4.0

4.0

4.0

4.0

4.0

4.0

3.9

3.9

3.8

3.8

3.7

3.6

3.6

3.5

3.4

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.4

4.3

4.3

4.2

4.2

4.1

4.0

3.9

5.0

5.0

5.0

5.0

5.0

5.0

5.0

4.9

4.9

4.8

4.8

4.7

4.6

4.6

4.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.4

5.4

5.3

5.2

5.2

5.1

5.0

8.8

8.8

8.8

8.7

8.7

8.6

8.5

8.4

8.2

8.1

8.0

7.8

7.6

7.5

7.3

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.6

3.5

3.5

3.4

3.4

3.3

3.2

3.2

4.3

4.3

4.3

4.3

4.2

4.2

4.2

4.1

4.1

4.0

4.0

3.9

3.8

3.8

3.7

4.8

4.8

4.8

4.8

4.8

4.8

4.7

4.6

4.6

4.5

4.5

4.4

4.3

4.3

4.2

5.4

5.4

5.4

5.4

5.3

5.3

5.2

5.2

5.1

5.1

5.0

4.9

4.9

4.8

4.8

9.3

9.2

9.2

9.1

9.0

8.9

8.8

8.7

8.6

8.5

8.3

8.2

8.0

7.8

7.6

23

23

25

27

29

31

SHC

SHC

SHC

SHC

SHC

TC

23

25

27

29

31

SHC

SHC

SHC

SHC

SHC

TC

25

27

29

31

SHC

SHC

SHC

SHC

TC

25

27

29

31

SHC

SHC

SHC

SHC

21

23

25

27

29

SHC

SHC

SHC

SHC

SHC

TC

21

23

25

27

29

21

23

25

27

29

31

21

23

25

27

29

31

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

3.6

3.5

3.5

3.5

3.5

3.4

3.4

3.3

3.3

3.2

3.2

3.1

3.0

3.0

2.9

4.1

4.1

4.1

4.0

4.0

3.9

3.9

3.9

3.8

3.8

3.7

3.6

3.6

3.5

3.5

4.6

4.6

4.6

4.5

4.5

4.5

4.4

4.4

4.3

4.3

4.2

4.2

4.1

4.1

4.0

5.1

5.1

5.1

5.1

5.1

5.0

5.0

4.9

4.9

4.8

4.8

4.7

4.6

4.6

4.5

8 - 27

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

2-5. Low Silhouette Ducted Type (F1 Type), Slim Low Static Ducted Type (M1 Type)

S-07MF1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

2.2 kW

15 17

AIR FLOW 10.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.0

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

0.9

0.9

0.9

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.1

1.1

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.1

2.1

2.0

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.0

1.0

1.0

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.3

2.3

2.2

2.2

2.1

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

0.9

0.9

0.9

0.9

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.1

1.1

1.1

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.4

2.4

2.4

2.3

2.2

2.2

1.2

1.2

1.2

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.0

1.0

1.0

1.0

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

2.6

2.5

2.5

2.5

2.4

2.4

2.3

1.1

1.1

1.1

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

0.9

0.9

0.9

0.9

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.1

1.1

1.1

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

8 - 28

Capacity Table

2. Cooling Capacity of Indoor Unit

S-09MF1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

2.8 kW

15 17

AIR FLOW 10.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.6

2.5

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.1

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.6

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.8

2.7

2.7

2.6

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.3

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.5

1.5

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.1

2.0

2.0

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.0

3.0

2.9

2.9

2.8

2.7

2.7

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.1

1.1

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.4

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

1.7

1.6

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

2.1

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.2

3.2

3.1

3.1

3.0

2.9

2.9

2.8

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.3

1.2

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.5

1.5

1.5

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

1.8

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.1

2.1

2.0

2.0

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.3

3.3

3.2

3.2

3.1

3.1

3.0

2.9

1.4

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.2

1.1

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.9

1.9

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

1.7

1.6

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

8 - 29

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

S-12MF1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

3.6 kW

15 17

AIR FLOW 10.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.2

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.4

3.4

3.3

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.7

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.5

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.8

2.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.5

3.4

3.3

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.6

1.6

1.6

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.8

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.1

2.1

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.4

2.4

2.4

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.6

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

3.9

3.9

3.8

3.7

3.6

3.5

3.4

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.4

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.7

1.7

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.1

2.0

2.0

1.9

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.2

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.5

2.5

4.3

4.3

4.3

4.3

4.3

4.2

4.2

4.1

4.1

4.0

3.9

3.8

3.8

3.7

3.6

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

1.6

1.6

1.6

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

1.9

1.9

1.9

1.9

1.8

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.3

2.2

2.2

2.1

2.1

2.1

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.5

2.4

2.4

2.4

4.6

4.5

4.5

4.5

4.4

4.4

4.3

4.3

4.2

4.2

4.1

4.0

3.9

3.9

3.8

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.4

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.7

1.7

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.6

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.2

8 - 30

Capacity Table

2. Cooling Capacity of Indoor Unit

S-15MF1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

4.5 kW

15 17

AIR FLOW 12.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.0

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.8

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.4

4.3

4.2

4.1

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.8

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.2

2.2

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.5

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

2.9

2.9

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.6

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.7

4.6

4.5

4.4

4.3

4.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.0

2.0

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.4

2.4

2.3

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.8

2.8

2.7

2.7

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.2

3.1

3.1

3.0

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.6

3.6

3.6

3.5

3.5

3.4

3.4

5.1

5.1

5.1

5.1

5.1

5.1

5.0

5.0

4.9

4.8

4.7

4.6

4.5

4.4

4.3

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

1.9

1.9

1.8

1.8

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.3

2.3

2.3

2.2

2.2

2.1

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.6

2.6

2.5

2.5

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.1

3.0

3.0

2.9

2.9

2.8

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.4

3.3

3.3

3.3

3.2

5.4

5.4

5.4

5.4

5.3

5.3

5.2

5.1

5.1

5.0

4.9

4.8

4.7

4.6

4.5

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

2.1

2.1

2.0

2.0

2.0

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.6

2.5

2.5

2.4

2.4

2.4

2.3

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.8

2.8

2.8

2.7

2.7

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.2

3.2

3.1

3.1

3.0

5.7

5.7

5.6

5.6

5.6

5.5

5.4

5.4

5.3

5.2

5.1

5.0

4.9

4.8

4.7

2.2

2.2

2.2

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

1.9

1.9

1.8

1.8

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.3

2.3

2.3

2.2

2.2

2.1

2.9

2.9

2.9

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.6

2.6

2.6

2.5

3.3

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.1

3.1

3.0

3.0

2.9

2.9

2.9

8 - 31

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

S-18MF1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

5.6 kW

15 17

AIR FLOW 12.0 m

3

/min

CONDENSER

AMBIENT TEMP. ( o

C)

19 21 23 25 27 29 31 33 35 37 39 41 43

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

15

21

23

25

27

16

17

18

21

23

25

27

29

31

21

23

25

27

29

21

23

25

27

29

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.0

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.1

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.5

4.5

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.5

5.4

5.2

5.1

19

20

21

22

23

23

25

27

29

31

25

27

29

31

23

25

27

29

31

25

27

29

31

21

23

25

27

29

31

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.3

2.3

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.8

2.8

2.7

2.7

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.2

3.1

3.0

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.6

3.6

3.5

3.4

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

3.9

3.8

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.4

4.3

4.3

4.2

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

5.9

5.8

5.7

5.6

5.5

5.3

5.2

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.6

2.6

2.5

2.4

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.0

3.0

2.9

2.9

2.8

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.3

3.3

3.2

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

3.9

3.9

3.8

3.8

3.7

3.7

3.6

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.2

4.2

4.1

4.1

4.0

6.4

6.4

6.4

6.4

6.4

6.4

6.3

6.2

6.1

6.0

5.9

5.8

5.6

5.5

5.4

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.5

2.5

2.4

2.4

2.3

2.3

2.2

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.8

2.8

2.7

2.7

2.6

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.2

3.2

3.1

3.1

3.0

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.7

3.6

3.6

3.5

3.4

3.4

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.1

4.1

4.0

4.0

3.9

3.8

3.8

6.7

6.7

6.7

6.7

6.6

6.6

6.5

6.4

6.3

6.2

6.1

6.0

5.9

5.7

5.6

2.9

2.9

2.9

2.9

2.8

2.8

2.8

2.7

2.7

2.7

2.6

2.6

2.5

2.5

2.4

3.3

3.3

3.3

3.3

3.3

3.2

3.2

3.1

3.1

3.1

3.0

3.0

2.9

2.9

2.8

3.7

3.7

3.7

3.7

3.6

3.6

3.6

3.5

3.5

3.4

3.4

3.4

3.3

3.3

3.2

4.1

4.1

4.1

4.1

4.0

4.0

4.0

3.9

3.9

3.8

3.8

3.7

3.7

3.6

3.6

7.1

7.1

7.0

7.0

6.9

6.8

6.8

6.7

6.6

6.5

6.4

6.3

6.1

6.0

5.8

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.5

2.5

2.4

2.4

2.3

2.3

2.2

3.1

3.1

3.1

3.1

3.1

3.0

3.0

3.0

2.9

2.9

2.8

2.8

2.7

2.7

2.6

3.5

3.5

3.5

3.5

3.4

3.4

3.4

3.4

3.3

3.3

3.2

3.2

3.1

3.1

3.0

3.9

3.9

3.9

3.9

3.8

3.8

3.8

3.7

3.7

3.7

3.6

3.6

3.5

3.5

3.4

8 - 32

Capacity Table

2. Cooling Capacity of Indoor Unit

S-24MF1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

7.3 kW

15 17

AIR FLOW 19.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.3

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.7

6.5

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.8

3.7

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.2

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.7

4.6

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.1

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.6

5.5

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.1

7.0

6.8

6.6

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.1

3.0

3.0

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.5

3.4

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.1

3.9

3.9

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.6

4.6

4.5

4.4

4.3

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.0

5.0

4.8

4.8

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.5

5.5

5.4

5.3

5.2

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.7

7.6

7.5

7.3

7.1

7.0

6.8

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.5

3.4

3.3

3.2

3.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.0

3.9

3.8

3.8

3.7

3.6

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.4

4.4

4.3

4.2

4.1

4.1

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

4.9

4.8

4.7

4.7

4.6

4.5

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.3

5.2

5.1

5.0

5.0

8.3

8.3

8.3

8.3

8.3

8.3

8.2

8.1

7.9

7.8

7.7

7.5

7.3

7.2

7.0

3.5

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.3

3.3

3.2

3.1

3.0

3.0

2.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.8

3.8

3.7

3.7

3.6

3.5

3.4

3.4

4.4

4.4

4.4

4.4

4.4

4.4

4.3

4.3

4.2

4.2

4.1

4.1

3.9

3.9

3.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.7

4.7

4.6

4.6

4.5

4.4

4.3

4.3

5.3

5.3

5.3

5.3

5.3

5.3

5.2

5.2

5.1

5.1

5.0

5.0

4.8

4.8

4.7

8.8

8.8

8.8

8.7

8.7

8.6

8.5

8.4

8.2

8.1

8.0

7.8

7.6

7.5

7.3

3.8

3.8

3.8

3.8

3.7

3.7

3.7

3.6

3.5

3.5

3.4

3.4

3.3

3.2

3.1

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.1

4.0

3.9

3.9

3.8

3.7

3.7

3.6

4.7

4.7

4.7

4.7

4.6

4.6

4.6

4.5

4.4

4.4

4.3

4.3

4.2

4.1

4.0

5.1

5.1

5.1

5.1

5.1

5.1

5.0

5.0

4.9

4.8

4.8

4.7

4.6

4.6

4.5

9.3

9.2

9.2

9.1

9.0

8.9

8.8

8.7

8.6

8.5

8.3

8.2

8.0

7.8

7.6

3.6

3.6

3.6

3.5

3.5

3.5

3.4

3.4

3.3

3.3

3.2

3.1

3.1

3.0

2.9

4.1

4.1

4.0

4.0

4.0

3.9

3.9

3.8

3.8

3.7

3.7

3.6

3.5

3.4

3.4

4.5

4.5

4.5

4.4

4.4

4.4

4.3

4.3

4.2

4.2

4.1

4.1

4.0

3.9

3.8

5.0

5.0

4.9

4.9

4.9

4.8

4.8

4.7

4.7

4.6

4.6

4.5

4.4

4.3

4.3

8 - 33

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

S-36MF1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

10.6 kW

TC

15 17

AIR FLOW 30.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

16

21

23

25

27

29

17

18

19

20

21

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

SHC

SHC

SHC

SHC

SHC

TC

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

SHC

SHC

SHC

SHC

SHC

TC

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.8

9.5

SHC

SHC

SHC

SHC

SHC

SHC

TC

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

4.9

4.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.7

5.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.5

6.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.1

8.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

8.9

8.8

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.4

10.1

9.9

9.6

SHC

SHC

SHC

SHC

SHC

SHC

TC

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.6

4.5

4.4

4.3

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.4

5.3

5.2

5.1

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.1

6.0

5.9

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.1

7.1

6.9

6.8

6.7

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

7.8

7.7

7.7

7.5

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.6

8.6

8.4

8.3

11.3

11.3

11.3

11.3

11.3

11.3

11.3

11.3

11.2

11.0

10.8

10.6

10.4

10.1

9.8

SHC

SHC

SHC

SHC

SHC

TC

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.1

5.1

4.9

4.9

4.8

4.6

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.1

6.0

6.0

5.8

5.8

5.7

5.5

5.4

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.8

6.8

6.6

6.6

6.4

6.3

6.2

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.5

7.5

7.4

7.2

7.2

7.1

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.4

8.4

8.3

8.2

8.1

8.0

7.8

12.0

12.0

12.0

12.0

12.0

12.0

11.9

11.7

11.5

11.3

11.1

10.9

10.7

10.4

10.1

SHC

SHC

SHC

SHC

SHC

TC

5.0

5.0

5.0

5.0

5.0

5.0

4.9

4.8

4.8

4.7

4.6

4.5

4.4

4.3

4.2

5.8

5.8

5.8

5.8

5.8

5.8

5.7

5.7

5.6

5.5

5.4

5.3

5.2

5.1

5.0

6.6

6.6

6.6

6.6

6.6

6.6

6.5

6.4

6.4

6.3

6.2

6.1

6.0

5.9

5.8

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.2

7.2

7.1

7.0

6.9

6.8

6.7

6.6

8.2

8.2

8.2

8.2

8.2

8.2

8.1

8.1

8.0

7.9

7.8

7.7

7.7

7.5

7.4

12.7

12.7

12.7

12.7

12.6

12.4

12.3

12.1

12.0

11.8

11.5

11.3

11.1

10.8

10.6

22

23

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

5.5

5.5

5.5

5.4

5.4

5.4

5.3

5.2

5.2

5.1

5.0

4.9

4.8

4.7

4.6

6.3

6.3

6.3

6.3

6.2

6.1

6.1

6.0

6.0

5.9

5.8

5.7

5.6

5.5

5.4

7.1

7.1

7.1

7.1

7.0

6.9

6.9

6.8

6.8

6.7

6.6

6.5

6.4

6.3

6.2

7.9

7.9

7.9

7.8

7.8

7.8

7.7

7.7

7.6

7.5

7.4

7.3

7.2

7.1

7.0

13.4

13.4

13.3

13.2

13.1

13.0

12.8

12.6

12.5

12.3

12.1

11.8

11.6

11.3

11.1

SHC

SHC

SHC

SHC

5.1

5.1

5.1

5.1

5.0

4.9

4.9

4.8

4.8

4.7

4.6

4.5

4.5

4.3

4.2

6.0

5.9

5.9

5.8

5.8

5.8

5.7

5.7

5.5

5.5

5.4

5.3

5.2

5.1

5.1

6.8

6.8

6.7

6.7

6.6

6.6

6.5

6.4

6.4

6.3

6.2

6.1

6.0

6.0

5.8

7.5

7.5

7.5

7.5

7.4

7.4

7.3

7.2

7.2

7.1

7.1

6.9

6.9

6.8

6.6

8 - 34

Capacity Table

2. Cooling Capacity of Indoor Unit

S-48MF1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

14.0 kW

TC

15 17

AIR FLOW 33.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

15

21

23

25

27

SHC

SHC

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

SHC 9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

SHC 10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

TC 11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

16

21

23

25

27

29

17

18

19

20

21

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

SHC

SHC

7.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

SHC 9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

SHC 9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

SHC 10.9

10.9

10.9

10.9

10.9

10.9

10.9

10.9

10.9

10.9

10.9

10.9

10.9

10.9

10.9

TC 12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

SHC

SHC

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

6.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

SHC 8.8

8.8

8.8

8.8

8.8

8.8

8.8

8.8

8.8

8.8

8.8

8.8

8.8

8.8

8.8

SHC 9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

SHC 10.7

10.7

10.7

10.7

10.7

10.7

10.7

10.7

10.7

10.7

10.7

10.7

10.7

10.7

10.7

TC 13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

12.9

12.5

SHC

SHC

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.5

6.3

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.4

7.3

SHC

SHC

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.4

8.2

9.5

9.5

9.5

9.5

9.5

9.5

9.5

9.5

9.5

9.5

9.5

9.5

9.5

9.4

9.2

SHC 10.4

10.4

10.4

10.4

10.4

10.4

10.4

10.4

10.4

10.4

10.4

10.4

10.4

10.3

10.2

SHC 11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.3

11.1

TC 14.0

14.0

14.0

14.0

14.0

14.0

14.0

14.0

14.0

14.0

14.0

13.7

13.4

13.1

12.7

SHC

SHC

SHC

SHC

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.2

6.1

6.0

5.8

5.6

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.1

7.0

6.8

6.6

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.1

8.0

7.8

7.6

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.0

8.9

8.8

8.6

SHC 10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.0

9.9

9.7

9.5

SHC 11.1

11.1

11.1

11.1

11.1

11.1

11.1

11.1

11.1

11.1

11.1

11.0

10.9

10.7

10.5

TC 14.9

14.9

14.9

14.9

14.9

14.9

14.9

14.9

14.8

14.6

14.3

14.0

13.7

13.3

13.0

SHC

SHC

SHC

7.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

6.9

6.8

6.6

6.5

6.4

6.2

6.0

7.9

7.9

7.9

7.9

7.9

7.9

7.9

7.9

7.8

7.8

7.6

7.5

7.4

7.2

7.0

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.8

8.7

8.6

8.4

8.3

8.2

8.0

SHC 9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.8

9.7

9.5

9.4

9.3

9.2

9.0

SHC 10.8

10.8

10.8

10.8

10.8

10.8

10.8

10.8

10.7

10.7

10.5

10.4

10.3

10.1

9.9

TC 15.9

15.9

15.9

15.9

15.9

15.9

15.7

15.5

15.2

15.0

14.7

14.4

14.1

13.7

13.4

SHC

SHC

6.6

6.6

6.6

6.6

6.6

6.6

6.5

6.4

6.3

6.2

6.1

6.0

5.8

5.7

5.6

7.6

7.6

7.6

7.6

7.6

7.6

7.5

7.4

7.3

7.2

7.1

7.0

6.8

6.6

6.5

SHC 8.6

8.6

8.6

8.6

8.6

8.6

8.5

8.4

8.3

8.2

8.0

7.9

7.8

7.6

7.5

SHC 9.5

9.5

9.5

9.5

9.5

9.5

9.4

9.3

9.2

9.2

9.0

8.9

8.8

8.6

8.5

SHC 10.5

10.5

10.5

10.5

10.5

10.5

10.4

10.3

10.2

10.1

10.0

9.9

9.7

9.5

9.4

TC 16.8

16.8

16.8

16.7

16.6

16.4

16.2

16.0

15.8

15.5

15.3

15.0

14.6

14.3

13.9

22

23

25

27

29

31

25

27

29

31

SHC

SHC

7.2

7.2

7.2

7.2

7.2

7.0

7.0

6.9

6.8

6.7

6.6

6.4

6.3

6.2

6.0

8.2

8.2

8.2

8.2

8.1

8.0

8.0

7.9

7.8

7.6

7.6

7.4

7.3

7.2

7.0

SHC 9.2

9.2

9.2

9.2

9.1

9.0

9.0

8.8

8.8

8.6

8.5

8.4

8.3

8.1

8.0

SHC 10.1

10.1

10.1

10.1

10.1

9.9

9.9

9.8

9.7

9.6

9.5

9.3

9.2

9.1

9.0

TC 17.7

17.7

17.6

17.4

17.3

17.1

16.9

16.7

16.5

16.2

15.9

15.6

15.3

15.0

14.6

SHC

SHC

SHC

SHC

6.8

6.8

6.8

6.7

6.6

6.6

6.5

6.4

6.3

6.2

6.1

6.0

5.8

5.7

5.6

7.8

7.8

7.8

7.7

7.6

7.6

7.5

7.4

7.3

7.2

7.1

7.0

6.8

6.7

6.6

8.8

8.8

8.7

8.7

8.6

8.6

8.4

8.4

8.3

8.2

8.0

8.0

7.8

7.7

7.6

9.7

9.7

9.7

9.6

9.5

9.5

9.4

9.3

9.2

9.2

9.0

8.9

8.8

8.6

8.5

8 - 35

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

S-54MF1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

16.0 kW

TC

15 17

AIR FLOW 33.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

11.7

11.7

11.7

11.7

11.7

11.7

11.7

11.7

11.7

11.7

11.7

11.7

11.7

11.7

11.7

15

21

23

25

27

SHC

SHC

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

SHC 10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

10.0

SHC 11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

TC 12.8

12.8

12.8

12.8

12.8

12.8

12.8

12.8

12.8

12.8

12.8

12.8

12.8

12.8

12.8

16

21

23

25

27

29

17

18

19

20

21

22

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

SHC

SHC

7.9

7.9

7.9

7.9

7.9

7.9

7.9

7.9

7.9

7.9

7.9

7.9

7.9

7.9

7.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

SHC 9.8

9.8

9.8

9.8

9.8

9.8

9.8

9.8

9.8

9.8

9.8

9.8

9.8

9.8

9.8

SHC 10.8

10.8

10.8

10.8

10.8

10.8

10.8

10.8

10.8

10.8

10.8

10.8

10.8

10.8

10.8

SHC 11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

TC 13.9

13.9

13.9

13.9

13.9

13.9

13.9

13.9

13.9

13.9

13.9

13.9

13.9

13.9

13.9

SHC

SHC

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

SHC 9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

SHC 10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

SHC 11.6

11.6

11.6

11.6

11.6

11.6

11.6

11.6

11.6

11.6

11.6

11.6

11.6

11.6

11.6

TC 14.9

14.9

14.9

14.9

14.9

14.9

14.9

14.9

14.9

14.9

14.9

14.9

14.9

14.7

14.3

SHC

SHC

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.5

7.4

7.2

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.2

SHC 9.4

9.4

9.4

9.4

9.4

9.4

9.4

9.4

9.4

9.4

9.4

9.4

9.4

9.3

9.2

SHC 10.4

10.4

10.4

10.4

10.4

10.4

10.4

10.4

10.4

10.4

10.4

10.4

10.4

10.3

10.1

SHC 11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.3

11.1

SHC 12.4

12.4

12.4

12.4

12.4

12.4

12.4

12.4

12.4

12.4

12.4

12.4

12.4

12.3

12.1

TC 16.0

16.0

16.0

16.0

16.0

16.0

16.0

16.0

16.0

16.0

16.0

15.7

15.3

14.9

14.5

SHC 7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.0

6.9

6.7

6.5

SHC

SHC

8.2

9.2

8.2

9.2

8.2

9.2

8.2

9.2

8.2

9.2

8.2

9.2

8.2

9.2

8.2

9.2

8.2

9.2

8.2

9.2

8.2

9.2

8.0

9.0

7.9

8.8

7.7

8.7

7.5

8.5

SHC 10.2

10.2

10.2

10.2

10.2

10.2

10.2

10.2

10.2

10.2

10.1

10.0

9.8

9.7

9.5

SHC 11.1

11.1

11.1

11.1

11.1

11.1

11.1

11.1

11.1

11.1

11.1

11.0

10.8

10.6

10.5

SHC 12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.0

11.8

11.6

11.4

TC 17.1

17.1

17.1

17.1

17.1

17.1

17.1

17.1

16.9

16.6

16.3

16.0

15.6

15.2

14.8

SHC

SHC

SHC

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

7.9

7.8

7.6

7.4

7.2

7.1

6.9

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

8.9

8.7

8.6

8.4

8.2

8.1

7.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.8

9.7

9.5

9.4

9.2

9.0

8.9

SHC 10.9

10.9

10.9

10.9

10.9

10.9

10.9

10.9

10.8

10.7

10.5

10.4

10.2

10.0

9.8

SHC 11.9

11.9

11.9

11.9

11.9

11.9

11.9

11.9

11.8

11.7

11.5

11.3

11.2

11.0

10.8

TC 18.1

18.1

18.1

18.1

18.1

18.1

17.9

17.7

17.4

17.1

16.8

16.5

16.1

15.7

15.3

SHC

SHC

7.6

7.6

7.6

7.6

7.6

7.6

7.6

7.4

7.3

7.2

7.0

6.8

6.7

6.5

6.4

8.6

8.6

8.6

8.6

8.6

8.6

8.6

8.4

8.3

8.2

8.0

7.8

7.7

7.5

7.4

SHC 9.6

9.6

9.6

9.6

9.6

9.6

9.5

9.4

9.3

9.2

9.0

8.8

8.7

8.5

8.3

SHC 10.6

10.6

10.6

10.6

10.6

10.6

10.5

10.4

10.3

10.1

10.0

9.8

9.7

9.5

9.3

SHC 11.6

11.6

11.6

11.6

11.6

11.6

11.5

11.4

11.3

11.1

10.9

10.8

10.7

10.5

10.3

TC 19.2

19.2

19.2

19.1

19.0

18.8

18.6

18.3

18.0

17.7

17.4

17.1

16.7

16.3

15.9

SHC

SHC

8.3

8.3

8.3

8.3

8.2

8.1

8.0

7.9

7.8

7.6

7.5

7.4

7.2

7.0

6.8

9.3

9.3

9.3

9.3

9.2

9.1

9.0

8.9

8.8

8.6

8.5

8.4

8.2

8.0

7.8

SHC 10.3

10.3

10.3

10.2

10.1

10.1

9.9

9.9

9.7

9.6

9.5

9.3

9.2

9.0

8.8

SHC 11.3

11.3

11.3

11.2

11.1

11.1

10.9

10.9

10.7

10.6

10.5

10.3

10.1

10.0

9.8

TC 20.3

20.2

20.1

19.9

19.7

19.5

19.3

19.1

18.8

18.5

18.2

17.9

17.5

17.1

16.7

23

25

27

29

31

SHC

SHC

8.0

7.9

7.8

7.8

7.7

7.6

7.5

7.4

7.3

7.2

7.0

6.9

6.8

6.6

6.4

9.0

8.9

8.8

8.8

8.7

8.6

8.5

8.4

8.3

8.2

8.0

7.9

7.8

7.6

7.4

SHC 9.9

9.9

9.8

9.7

9.7

9.6

9.5

9.4

9.3

9.2

9.0

8.9

8.7

8.6

8.4

SHC 10.9

10.9

10.8

10.7

10.7

10.6

10.5

10.4

10.3

10.1

10.0

9.9

9.7

9.5

9.3

8 - 36

Capacity Table

2. Cooling Capacity of Indoor Unit

S-07MM1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

2.2 kW

15 17

AIR FLOW 8.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.0

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.0

1.0

1.0

1.0

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.0

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.0

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.1

2.1

2.0

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.2

1.2

1.1

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.5

1.5

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.0

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.1

2.1

2.0

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.3

2.3

2.2

2.2

2.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.0

1.0

1.0

1.0

1.0

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

2.0

2.0

1.9

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.2

2.2

2.1

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.4

2.4

2.4

2.3

2.2

2.2

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.1

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.5

1.5

1.5

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

1.8

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

2.6

2.5

2.5

2.5

2.4

2.4

2.3

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.0

1.0

1.0

1.0

1.0

1.5

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

2.0

2.0

2.0

8 - 37

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

S-09MM1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

2.8 kW

15 17

AIR FLOW 8.5 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.6

2.5

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.6

2.5

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.8

2.7

2.7

2.6

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.4

1.3

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.4

2.4

2.3

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.0

3.0

2.9

2.9

2.8

2.7

2.7

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.6

1.5

1.5

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.9

1.9

1.8

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.2

3.2

3.1

3.1

3.0

2.9

2.9

2.8

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.4

1.3

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.4

2.4

2.3

2.3

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.3

3.3

3.2

3.2

3.1

3.1

3.0

2.9

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.9

1.9

1.8

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

8 - 38

Capacity Table

2. Cooling Capacity of Indoor Unit

S-12MM1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

3.6 kW

15 17

AIR FLOW 9.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.2

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.8

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.2

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.4

3.4

3.3

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.2

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

3.0

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.4

3.3

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.5

3.4

3.3

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

1.7

1.7

1.7

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.0

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.5

2.4

2.4

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.9

2.8

2.8

2.8

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.2

3.2

3.1

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

3.9

3.9

3.8

3.7

3.6

3.5

3.4

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.5

1.5

1.5

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.8

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.2

2.2

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

2.6

2.6

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.1

3.1

3.1

3.0

3.0

3.0

2.9

4.3

4.3

4.3

4.3

4.3

4.2

4.2

4.1

4.1

4.0

3.9

3.8

3.8

3.7

3.6

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.6

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.0

2.0

2.7

2.7

2.7

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.5

2.4

2.4

2.4

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.9

2.8

2.8

2.8

2.7

4.6

4.5

4.5

4.5

4.4

4.4

4.3

4.3

4.2

4.2

4.1

4.0

3.9

3.9

3.8

1.8

1.8

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.5

1.5

1.5

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.8

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.2

2.2

2.9

2.9

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

2.6

2.6

8 - 39

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

S-15MM1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

4.5 kW

AIR FLOW 10.5 m

3

/min

CONDENSER

AMBIENT TEMP. ( o

C)

15 17 19 21 23 25 27 29 31 33 35 37 39 41 43

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

15

21

23

25

27

16

17

18

21

23

25

27

29

31

21

23

25

27

29

21

23

25

27

29

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.0

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.6

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.4

4.3

4.2

4.1

19

20

21

22

23

25

27

29

31

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

23

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.8

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.1

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.4

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.8

2.8

2.7

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.5

3.4

3.4

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.7

4.6

4.5

4.4

4.3

4.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.0

2.0

1.9

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.3

2.3

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.6

2.6

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.1

3.0

3.0

2.9

2.9

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.3

3.3

3.2

3.2

5.1

5.1

5.1

5.1

5.1

5.1

5.0

5.0

4.9

4.8

4.7

4.6

4.5

4.4

4.3

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

1.9

1.9

1.8

1.8

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.2

2.2

2.1

2.1

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.5

2.5

2.4

2.4

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

3.0

2.9

2.9

2.8

2.8

2.8

2.7

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.2

3.2

3.1

3.1

3.0

5.4

5.4

5.4

5.4

5.3

5.3

5.2

5.1

5.1

5.0

4.9

4.8

4.7

4.6

4.5

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

2.1

2.1

2.0

2.0

1.9

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.4

2.4

2.4

2.3

2.3

2.3

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.8

2.8

2.8

2.7

2.7

2.7

2.6

2.6

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.1

3.0

3.0

3.0

2.9

2.9

5.7

5.7

5.6

5.6

5.6

5.5

5.4

5.4

5.3

5.2

5.1

5.0

4.9

4.8

4.7

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.1

2.0

2.0

2.0

1.9

1.9

1.8

1.8

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.2

2.2

2.2

2.1

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.5

2.5

2.4

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

3.0

2.9

2.9

2.8

2.8

2.8

2.7

8 - 40

Capacity Table

2. Cooling Capacity of Indoor Unit

S-18MM1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

5.6 kW

15 17

AIR FLOW 12.5 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.0

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.5

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.1

5.0

5.0

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.5

5.4

5.2

5.1

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.3

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.8

2.8

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.3

3.3

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

3.9

3.8

3.8

3.7

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.4

4.3

4.3

4.2

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.8

4.8

4.7

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

5.9

5.8

5.7

5.6

5.5

5.3

5.2

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.6

2.6

2.5

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.2

3.1

3.1

3.0

3.0

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.6

3.5

3.5

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.2

4.2

4.1

4.1

4.0

4.0

3.9

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.6

4.6

4.5

4.5

4.4

6.4

6.4

6.4

6.4

6.4

6.4

6.3

6.2

6.1

6.0

5.9

5.8

5.6

5.5

5.4

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.4

2.4

2.3

2.3

2.2

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

3.0

2.9

2.9

2.8

2.8

2.7

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.5

3.4

3.4

3.4

3.3

3.3

3.2

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

4.0

3.9

3.9

3.8

3.8

3.7

3.7

4.6

4.6

4.6

4.6

4.6

4.6

4.5

4.5

4.4

4.4

4.4

4.3

4.3

4.2

4.2

6.7

6.7

6.7

6.7

6.6

6.6

6.5

6.4

6.3

6.2

6.1

6.0

5.9

5.7

5.6

2.9

2.9

2.9

2.9

2.9

2.9

2.8

2.8

2.8

2.7

2.7

2.6

2.6

2.5

2.5

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.2

3.2

3.1

3.1

3.0

3.0

3.9

3.9

3.9

3.9

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.6

3.5

3.5

3.4

4.4

4.4

4.4

4.3

4.3

4.3

4.3

4.2

4.2

4.2

4.1

4.1

4.0

4.0

3.9

7.1

7.1

7.0

7.0

6.9

6.8

6.8

6.7

6.6

6.5

6.4

6.3

6.1

6.0

5.8

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.6

2.5

2.5

2.4

2.4

2.4

2.3

2.3

3.2

3.2

3.2

3.1

3.1

3.1

3.1

3.0

3.0

3.0

2.9

2.9

2.8

2.8

2.7

3.7

3.7

3.6

3.6

3.6

3.6

3.6

3.5

3.5

3.4

3.4

3.4

3.3

3.3

3.2

4.2

4.1

4.1

4.1

4.1

4.1

4.0

4.0

4.0

3.9

3.9

3.8

3.8

3.7

3.7

8 - 41

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

2-6. High Static Pressure Ducted Type (E1 Type)

S-36ME1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

10.6 kW

TC

15 17

AIR FLOW 30.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

SHC

TC

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

7.0

8.1

8.1

8.1

8.1

8.1

8.1

8.1

8.1

8.1

8.1

8.1

8.1

8.1

8.1

8.1

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

SHC

SHC

SHC

SHC

SHC

TC

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

7.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.8

9.5

SHC

SHC

SHC

SHC

SHC

SHC

TC

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.1

5.1

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.2

6.1

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.4

7.3

7.2

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.4

8.3

8.2

9.5

9.5

9.5

9.5

9.5

9.5

9.5

9.5

9.5

9.5

9.5

9.5

9.5

9.4

9.3

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.8

9.5

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.4

10.1

9.9

9.6

SHC

SHC

SHC

SHC

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.7

4.6

4.5

4.4

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.7

5.5

5.5

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.8

6.8

6.6

6.5

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

8.0

7.9

7.8

7.7

7.6

SHC 9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

9.0

8.9

8.7

8.6

SHC 10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.0

9.9

9.8

9.6

TC 11.3

11.3

11.3

11.3

11.3

11.3

11.3

11.3

11.2

11.0

10.8

10.6

10.4

10.1

9.8

SHC

SHC

SHC

SHC

SHC

TC

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.2

5.2

5.1

5.0

4.9

6.5

6.5

6.5

6.5

6.5

6.5

6.5

6.5

6.4

6.4

6.3

6.2

6.1

6.0

5.9

7.6

7.6

7.6

7.6

7.6

7.6

7.6

7.6

7.5

7.5

7.4

7.3

7.2

7.1

7.0

8.6

8.6

8.6

8.6

8.6

8.6

8.6

8.6

8.6

8.5

8.4

8.4

8.3

8.1

8.1

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.7

9.6

9.6

9.5

9.4

9.3

9.2

9.1

12.0

12.0

12.0

12.0

12.0

12.0

11.9

11.7

11.5

11.3

11.1

10.9

10.7

10.4

10.1

SHC

SHC

SHC

SHC

SHC

TC

5.0

5.0

5.0

5.0

5.0

5.0

4.9

4.9

4.8

4.8

4.7

4.6

4.5

4.4

4.3

6.1

6.1

6.1

6.1

6.1

6.1

6.0

6.0

5.9

5.8

5.7

5.7

5.5

5.5

5.4

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.0

6.9

6.9

6.8

6.7

6.6

6.5

6.4

8.2

8.2

8.2

8.2

8.2

8.2

8.1

8.1

8.0

8.0

7.8

7.8

7.7

7.6

7.5

9.3

9.3

9.3

9.3

9.3

9.3

9.2

9.2

9.1

9.0

8.9

8.9

8.7

8.7

8.6

12.7

12.7

12.7

12.7

12.6

12.4

12.3

12.1

12.0

11.8

11.5

11.3

11.1

10.8

10.6

SHC

SHC

SHC

SHC

TC

5.6

5.6

5.6

5.6

5.5

5.5

5.5

5.4

5.4

5.3

5.2

5.1

5.0

4.9

4.8

6.7

6.7

6.7

6.7

6.6

6.6

6.5

6.4

6.4

6.3

6.3

6.2

6.1

6.0

5.9

7.8

7.8

7.8

7.7

7.7

7.7

7.6

7.5

7.5

7.4

7.3

7.2

7.2

7.1

7.0

8.8

8.8

8.8

8.8

8.7

8.7

8.7

8.6

8.5

8.4

8.4

8.3

8.2

8.1

8.0

13.4

13.4

13.3

13.2

13.1

13.0

12.8

12.6

12.5

12.3

12.1

11.8

11.6

11.3

11.1

SHC

SHC

SHC

SHC

5.2

5.1

5.1

5.1

5.1

5.0

4.9

4.9

4.8

4.8

4.7

4.6

4.5

4.5

4.3

6.2

6.2

6.1

6.1

6.1

6.0

6.0

6.0

5.9

5.8

5.7

5.7

5.6

5.5

5.4

7.3

7.3

7.2

7.2

7.2

7.1

7.1

7.0

6.9

6.9

6.8

6.8

6.6

6.6

6.4

8.4

8.3

8.3

8.3

8.2

8.2

8.1

8.1

8.0

8.0

7.8

7.8

7.7

7.6

7.5

8 - 42

Capacity Table

2. Cooling Capacity of Indoor Unit

S-48ME1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

14.0 kW

TC

15 17

AIR FLOW 36.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

15

21

23

25

27

SHC

SHC

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

9.6

9.6

9.6

9.6

9.6

9.6

9.6

9.6

9.6

9.6

9.6

9.6

9.6

9.6

9.6

SHC 10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

SHC 10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

10.3

TC 11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

16

21

23

25

27

29

17

18

19

20

21

22

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

SHC

SHC

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

9.2

SHC 10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

10.6

SHC 11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

SHC 11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

11.2

TC 12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

SHC

SHC

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

7.3

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

8.7

SHC 10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

10.1

SHC 11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

11.4

SHC 12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

12.1

TC 13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

12.9

12.5

SHC

SHC

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.9

6.8

6.7

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.2

8.0

SHC 9.6

9.6

9.6

9.6

9.6

9.6

9.6

9.6

9.6

9.6

9.6

9.6

9.6

9.5

9.4

SHC 11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

11.0

10.9

10.7

SHC 12.4

12.4

12.4

12.4

12.4

12.4

12.4

12.4

12.4

12.4

12.4

12.4

12.4

12.3

12.1

SHC 13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

13.1

12.9

12.5

TC 14.0

14.0

14.0

14.0

14.0

14.0

14.0

14.0

14.0

14.0

14.0

13.7

13.4

13.1

12.7

SHC 6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.2

6.1

5.9

5.8

SHC

SHC

7.7

9.1

7.7

9.1

7.7

9.1

7.7

9.1

7.7

9.1

7.7

9.1

7.7

9.1

7.7

9.1

7.7

9.1

7.7

9.1

7.7

9.0

7.6

9.0

7.5

8.8

7.3

8.7

7.2

8.5

SHC 10.5

10.5

10.5

10.5

10.5

10.5

10.5

10.5

10.5

10.5

10.4

10.3

10.2

10.1

9.9

SHC 11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.8

11.7

11.6

11.4

11.3

SHC 13.2

13.2

13.2

13.2

13.2

13.2

13.2

13.2

13.2

13.2

13.2

13.1

12.9

12.8

12.7

TC 14.9

14.9

14.9

14.9

14.9

14.9

14.9

14.9

14.8

14.6

14.3

14.0

13.7

13.3

13.0

SHC

SHC

SHC

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.2

7.0

6.9

6.8

6.7

6.5

6.4

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.5

8.4

8.3

8.2

8.0

7.9

7.8

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.9

9.8

9.8

9.7

9.5

9.4

9.3

9.1

SHC 11.3

11.3

11.3

11.3

11.3

11.3

11.3

11.3

11.2

11.1

11.1

10.9

10.8

10.6

10.5

SHC 12.7

12.7

12.7

12.7

12.7

12.7

12.7

12.7

12.6

12.5

12.4

12.3

12.2

12.0

11.9

TC 15.9

15.9

15.9

15.9

15.9

15.9

15.7

15.5

15.2

15.0

14.7

14.4

14.1

13.7

13.4

SHC

SHC

6.6

6.6

6.6

6.6

6.6

6.6

6.5

6.4

6.4

6.3

6.1

6.1

5.9

5.8

5.7

8.0

8.0

8.0

8.0

8.0

8.0

7.9

7.8

7.7

7.7

7.5

7.5

7.3

7.2

7.1

SHC 9.3

9.3

9.3

9.3

9.3

9.3

9.3

9.2

9.1

9.0

8.9

8.8

8.7

8.5

8.4

SHC 10.7

10.7

10.7

10.7

10.7

10.7

10.6

10.6

10.5

10.4

10.3

10.2

10.1

9.9

9.8

SHC 12.1

12.1

12.1

12.1

12.1

12.1

12.0

11.9

11.9

11.8

11.6

11.6

11.4

11.3

11.1

TC 16.8

16.8

16.8

16.7

16.6

16.4

16.2

16.0

15.8

15.5

15.3

15.0

14.6

14.3

13.9

SHC

SHC

7.4

7.4

7.4

7.4

7.3

7.2

7.2

7.1

7.0

6.9

6.9

6.7

6.6

6.5

6.4

8.8

8.8

8.8

8.8

8.7

8.6

8.5

8.5

8.4

8.3

8.2

8.1

8.0

7.9

7.7

SHC 10.1

10.1

10.1

10.1

10.1

10.0

9.9

9.8

9.8

9.7

9.6

9.5

9.3

9.3

9.1

SHC 11.5

11.5

11.5

11.5

11.4

11.4

11.3

11.2

11.1

11.1

10.9

10.9

10.7

10.6

10.5

TC 17.7

17.7

17.6

17.4

17.3

17.1

16.9

16.7

16.5

16.2

15.9

15.6

15.3

15.0

14.6

23

25

27

29

31

SHC

SHC

6.8

6.8

6.7

6.7

6.7

6.6

6.5

6.4

6.4

6.3

6.1

6.1

5.9

5.9

5.7

8.2

8.2

8.1

8.1

8.0

8.0

7.9

7.8

7.7

7.7

7.5

7.5

7.3

7.2

7.1

SHC 9.5

9.5

9.5

9.5

9.4

9.3

9.3

9.2

9.1

9.0

8.9

8.8

8.7

8.6

8.5

SHC 10.9

10.9

10.9

10.9

10.8

10.7

10.6

10.6

10.5

10.4

10.3

10.2

10.1

10.0

9.8

8 - 43

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

2-7. Floor Standing Type (P1 Type)

S-07MP1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

2.2 kW

15 17

AIR FLOW 7.0 m

3

/min

CONDENSER

AMBIENT TEMP. ( o

C)

19 21 23 25 27 29 31 33 35 37 39 41 43

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

15

21

23

25

27

16

17

18

21

23

25

27

29

31

21

23

25

27

29

21

23

25

27

29

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.0

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.0

19

21

23

25

27

29

31

20

21

22

23

25

27

29

31

23

25

27

29

31

23

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

0.9

0.9

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.1

1.1

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.1

2.1

2.0

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.0

1.0

1.0

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.3

2.3

2.2

2.2

2.1

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

0.9

0.9

0.9

0.9

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.1

1.1

1.1

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.5

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.4

2.4

2.4

2.3

2.2

2.2

1.2

1.2

1.2

1.2

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.0

1.0

1.0

1.0

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.4

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

2.6

2.5

2.5

2.5

2.4

2.4

2.3

1.1

1.1

1.1

1.1

1.0

1.0

1.0

1.0

1.0

1.0

1.0

0.9

0.9

0.9

0.9

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.1

1.1

1.1

1.5

1.5

1.5

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

8 - 44

Capacity Table

2. Cooling Capacity of Indoor Unit

S-09MP1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

2.8 kW

15 17

AIR FLOW 7.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.6

2.5

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.8

2.7

2.7

2.6

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.5

1.5

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.1

2.0

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.0

3.0

2.9

2.9

2.8

2.7

2.7

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.1

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

1.6

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

2.0

1.9

1.9

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.2

3.2

3.1

3.1

3.0

2.9

2.9

2.8

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.3

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.6

1.5

1.5

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.1

2.0

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.3

3.3

3.2

3.2

3.1

3.1

3.0

2.9

1.4

1.4

1.4

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.1

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

1.6

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

2.0

1.9

1.9

8 - 45

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

S-12MP1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

3.6 kW

15 17

AIR FLOW 9.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.2

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.2

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.4

3.4

3.3

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.8

1.8

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.1

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.8

2.8

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.2

3.2

3.1

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.5

3.4

3.3

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.6

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.0

2.0

2.0

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.4

2.3

2.3

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

2.9

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

3.9

3.9

3.8

3.7

3.6

3.5

3.4

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.4

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.8

1.8

1.8

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

2.1

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.4

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.9

2.8

2.8

2.8

4.3

4.3

4.3

4.3

4.3

4.2

4.2

4.1

4.1

4.0

3.9

3.8

3.8

3.7

3.6

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.6

1.6

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.0

2.0

2.0

2.0

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.4

2.3

2.3

2.9

2.9

2.9

2.9

2.9

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.6

2.6

4.6

4.5

4.5

4.5

4.4

4.4

4.3

4.3

4.2

4.2

4.1

4.0

3.9

3.9

3.8

1.8

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

2.1

2.1

2.1

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.8

1.8

1.8

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

2.1

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.5

8 - 46

Capacity Table

2. Cooling Capacity of Indoor Unit

S-15MP1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

4.5 kW

15 17

AIR FLOW 12.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

16

21

23

25

27

29

17

18

19

20

21

22

23

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.0

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.4

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.0

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.4

4.3

4.2

4.1

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.3

2.3

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.8

2.8

2.7

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.2

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.6

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.1

4.1

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.7

4.6

4.5

4.4

4.3

4.2

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.1

2.1

2.0

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.5

2.5

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.1

3.0

3.0

2.9

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.5

3.4

3.4

3.4

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

4.0

3.9

3.9

3.8

3.8

5.1

5.1

5.1

5.1

5.1

5.1

5.0

5.0

4.9

4.8

4.7

4.6

4.5

4.4

4.3

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

1.9

1.9

1.8

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.5

2.4

2.4

2.3

2.3

2.3

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.8

2.8

2.8

2.7

2.7

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.2

3.1

3.9

3.9

3.9

3.9

3.9

3.9

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.6

3.6

5.4

5.4

5.4

5.4

5.3

5.3

5.2

5.1

5.1

5.0

4.9

4.8

4.7

4.6

4.5

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.1

2.1

2.0

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.5

2.5

3.3

3.3

3.3

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.1

3.0

3.0

2.9

2.9

3.7

3.7

3.7

3.7

3.7

3.6

3.6

3.6

3.6

3.5

3.5

3.5

3.4

3.4

3.4

5.7

5.7

5.6

5.6

5.6

5.5

5.4

5.4

5.3

5.2

5.1

5.0

4.9

4.8

4.7

2.2

2.2

2.2

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

1.9

1.9

1.8

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.5

2.4

2.4

2.3

2.3

2.3

3.1

3.1

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.8

2.8

2.8

2.7

2.7

3.5

3.5

3.5

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.2

3.1

8 - 47

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

S-18MP1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

5.6 kW

15 17

AIR FLOW 15.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.0

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.8

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.4

4.4

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

4.9

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.0

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.5

5.4

5.2

5.1

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.3

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

3.0

2.9

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.6

3.6

3.5

3.5

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.1

4.0

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.7

4.6

4.6

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.3

5.3

5.2

5.1

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

5.9

5.8

5.7

5.6

5.5

5.3

5.2

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.8

2.8

2.7

2.7

2.6

2.6

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.1

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

3.9

3.9

3.9

3.8

3.8

3.7

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.5

4.5

4.4

4.4

4.3

4.3

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.1

5.1

5.0

5.0

4.9

4.9

4.8

6.4

6.4

6.4

6.4

6.4

6.4

6.3

6.2

6.1

6.0

5.9

5.8

5.6

5.5

5.4

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.5

2.5

2.4

2.4

2.3

2.3

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.0

3.0

3.0

2.9

2.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.6

3.6

3.5

3.5

3.4

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.2

4.2

4.2

4.1

4.1

4.0

4.0

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.8

4.8

4.7

4.7

4.6

4.6

4.6

6.7

6.7

6.7

6.7

6.6

6.6

6.5

6.4

6.3

6.2

6.1

6.0

5.9

5.7

5.6

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.8

2.8

2.7

2.7

2.7

2.6

2.6

3.6

3.6

3.6

3.5

3.5

3.5

3.5

3.4

3.4

3.3

3.3

3.3

3.2

3.2

3.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

4.0

3.9

3.9

3.9

3.8

3.8

3.7

3.7

4.7

4.7

4.7

4.7

4.6

4.6

4.6

4.6

4.5

4.5

4.4

4.4

4.4

4.3

4.2

7.1

7.1

7.0

7.0

6.9

6.8

6.8

6.7

6.6

6.5

6.4

6.3

6.1

6.0

5.8

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.5

2.5

2.4

2.4

2.4

2.3

3.3

3.3

3.3

3.3

3.2

3.2

3.2

3.1

3.1

3.1

3.0

3.0

3.0

2.9

2.9

3.9

3.9

3.8

3.8

3.8

3.8

3.7

3.7

3.7

3.6

3.6

3.6

3.5

3.5

3.4

4.4

4.4

4.4

4.4

4.4

4.3

4.3

4.3

4.2

4.2

4.2

4.1

4.1

4.0

4.0

8 - 48

Capacity Table

2. Cooling Capacity of Indoor Unit

S-24MP1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

7.1 kW

15 17

AIR FLOW 17.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.5

6.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.6

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.3

5.3

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

5.9

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.5

6.4

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.0

6.8

6.6

6.4

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.0

2.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.8

3.8

3.7

3.7

3.6

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.4

4.4

4.3

4.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.1

5.1

5.0

5.0

4.9

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.7

5.7

5.6

5.5

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.3

6.3

6.1

7.6

7.6

7.6

7.6

7.6

7.6

7.6

7.6

7.5

7.4

7.2

7.1

6.9

6.8

6.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.4

3.4

3.3

3.3

3.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.1

4.0

3.9

3.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.8

4.7

4.7

4.6

4.6

4.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.4

5.4

5.3

5.2

5.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.1

6.0

6.0

5.9

5.9

5.8

8.1

8.1

8.1

8.1

8.1

8.1

8.0

7.8

7.7

7.6

7.5

7.3

7.1

7.0

6.8

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.2

3.2

3.1

3.0

3.0

2.9

2.9

4.0

4.0

4.0

4.0

4.0

4.0

4.0

3.9

3.9

3.8

3.8

3.7

3.7

3.6

3.5

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.5

4.5

4.5

4.4

4.3

4.3

4.2

4.2

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.2

5.2

5.1

5.1

5.0

5.0

4.9

4.8

5.9

5.9

5.9

5.9

5.9

5.9

5.9

5.8

5.8

5.8

5.7

5.6

5.6

5.5

5.5

8.5

8.5

8.5

8.5

8.4

8.3

8.2

8.1

8.0

7.9

7.7

7.6

7.4

7.3

7.1

3.7

3.7

3.7

3.7

3.7

3.7

3.6

3.6

3.5

3.5

3.4

3.4

3.3

3.2

3.2

4.4

4.4

4.4

4.4

4.3

4.3

4.3

4.2

4.2

4.1

4.1

4.0

4.0

3.9

3.8

5.0

5.0

5.0

5.0

5.0

5.0

4.9

4.9

4.8

4.8

4.7

4.7

4.6

4.5

4.5

5.7

5.7

5.7

5.7

5.6

5.6

5.6

5.5

5.5

5.4

5.4

5.3

5.3

5.2

5.1

9.0

9.0

8.9

8.8

8.8

8.7

8.6

8.5

8.4

8.2

8.1

7.9

7.8

7.6

7.4

3.4

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.2

3.2

3.1

3.0

3.0

2.9

2.9

4.1

4.1

4.1

4.0

4.0

4.0

3.9

3.9

3.9

3.8

3.8

3.7

3.7

3.6

3.5

4.7

4.7

4.7

4.7

4.6

4.6

4.6

4.5

4.5

4.5

4.4

4.4

4.3

4.2

4.2

5.4

5.4

5.4

5.3

5.3

5.3

5.2

5.2

5.2

5.1

5.1

5.0

5.0

4.9

4.8

8 - 49

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

2-8. Concealed Floor Standing Type (R1 Type)

S-07MR1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

2.2 kW

AIR FLOW 7.0 m

3

/min

CONDENSER

AMBIENT TEMP. ( o

C)

15 17 19 21 23 25 27 29 31 33 35 37 39 41 43

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

15

21

23

25

27

16

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

21

23

25

27

29

25

27

29

31

25

27

29

31

23

25

27

29

31

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.0

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

0.9

0.9

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.1

1.1

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.1

2.1

2.0

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.0

1.0

1.0

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.3

2.3

2.2

2.2

2.1

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

0.9

0.9

0.9

0.9

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.1

1.1

1.1

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.5

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.4

2.4

2.4

2.3

2.2

2.2

1.2

1.2

1.2

1.2

1.1

1.1

1.1

1.1

1.1

1.1

1.1

1.0

1.0

1.0

1.0

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.4

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

2.6

2.5

2.5

2.5

2.4

2.4

2.3

1.1

1.1

1.1

1.1

1.0

1.0

1.0

1.0

1.0

1.0

1.0

0.9

0.9

0.9

0.9

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.1

1.1

1.1

1.5

1.5

1.5

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

8 - 50

Capacity Table

2. Cooling Capacity of Indoor Unit

S-09MR1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

2.8 kW

15 17

AIR FLOW 7.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.6

2.5

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.8

2.7

2.7

2.6

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.5

1.5

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.1

2.0

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.0

3.0

2.9

2.9

2.8

2.7

2.7

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.1

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

1.6

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

2.0

1.9

1.9

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.2

3.2

3.1

3.1

3.0

2.9

2.9

2.8

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.4

1.4

1.4

1.4

1.3

1.3

1.3

1.3

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.6

1.5

1.5

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.1

2.0

3.5

3.5

3.5

3.5

3.5

3.4

3.4

3.3

3.3

3.2

3.2

3.1

3.1

3.0

2.9

1.4

1.4

1.4

1.3

1.3

1.3

1.3

1.3

1.3

1.3

1.2

1.2

1.2

1.2

1.1

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

1.5

1.5

1.4

1.4

1.4

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.7

1.6

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

2.0

1.9

1.9

8 - 51

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

S-12MR1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

3.6 kW

15 17

AIR FLOW 9.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

1.9

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.2

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.7

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.4

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.2

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.4

3.4

3.3

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.5

1.5

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.8

1.8

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.1

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.8

2.8

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.2

3.2

3.1

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.5

3.4

3.3

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.6

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.0

2.0

2.0

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.4

2.3

2.3

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

2.9

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

3.9

3.9

3.8

3.7

3.6

3.5

3.4

1.7

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.4

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.8

1.8

1.8

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

2.1

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.4

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.9

2.8

2.8

2.8

4.3

4.3

4.3

4.3

4.3

4.2

4.2

4.1

4.1

4.0

3.9

3.8

3.8

3.7

3.6

1.9

1.9

1.9

1.9

1.9

1.8

1.8

1.8

1.8

1.8

1.7

1.7

1.7

1.6

1.6

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.1

2.1

2.0

2.0

2.0

2.0

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.4

2.4

2.3

2.3

2.9

2.9

2.9

2.9

2.9

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.6

2.6

4.6

4.5

4.5

4.5

4.4

4.4

4.3

4.3

4.2

4.2

4.1

4.0

3.9

3.9

3.8

1.8

1.7

1.7

1.7

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.6

1.5

1.5

1.5

2.1

2.1

2.1

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

1.9

1.8

1.8

1.8

2.4

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.2

2.1

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.5

8 - 52

Capacity Table

2. Cooling Capacity of Indoor Unit

S-15MR1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

4.5 kW

15 17

AIR FLOW 12.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

2.8

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.0

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.1

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

2.6

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.4

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.0

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.4

4.3

4.2

4.1

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.0

1.9

1.9

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.3

2.3

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.8

2.8

2.7

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.2

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.6

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.1

4.1

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.7

4.6

4.5

4.4

4.3

4.2

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.1

2.1

2.0

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.5

2.5

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.1

3.0

3.0

2.9

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.5

3.4

3.4

3.4

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

4.0

3.9

3.9

3.8

3.8

5.1

5.1

5.1

5.1

5.1

5.1

5.0

5.0

4.9

4.8

4.7

4.6

4.5

4.4

4.3

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

1.9

1.9

1.8

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.5

2.4

2.4

2.3

2.3

2.3

3.0

3.0

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.8

2.8

2.8

2.7

2.7

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.2

3.1

3.9

3.9

3.9

3.9

3.9

3.9

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.6

3.6

5.4

5.4

5.4

5.4

5.3

5.3

5.2

5.1

5.1

5.0

4.9

4.8

4.7

4.6

4.5

2.4

2.4

2.4

2.4

2.4

2.3

2.3

2.3

2.3

2.2

2.2

2.2

2.1

2.1

2.0

2.8

2.8

2.8

2.8

2.8

2.8

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.5

2.5

3.3

3.3

3.3

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.1

3.0

3.0

2.9

2.9

3.7

3.7

3.7

3.7

3.7

3.6

3.6

3.6

3.6

3.5

3.5

3.5

3.4

3.4

3.4

5.7

5.7

5.6

5.6

5.6

5.5

5.4

5.4

5.3

5.2

5.1

5.0

4.9

4.8

4.7

2.2

2.2

2.2

2.1

2.1

2.1

2.1

2.1

2.0

2.0

2.0

2.0

1.9

1.9

1.8

2.6

2.6

2.6

2.6

2.6

2.6

2.5

2.5

2.5

2.5

2.4

2.4

2.3

2.3

2.3

3.1

3.1

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.8

2.8

2.8

2.7

2.7

3.5

3.5

3.5

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.2

3.1

8 - 53

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

Capacity Table

2. Cooling Capacity of Indoor Unit

S-18MR1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

5.6 kW

15 17

AIR FLOW 15.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.0

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.0

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

2.7

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.8

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.4

4.4

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

4.9

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.0

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.5

5.4

5.2

5.1

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.4

2.4

2.3

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.1

3.0

3.0

3.0

2.9

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.6

3.6

3.5

3.5

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.1

4.0

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.8

4.7

4.6

4.6

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.3

5.3

5.2

5.1

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

5.9

5.8

5.7

5.6

5.5

5.3

5.2

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.9

2.8

2.8

2.7

2.7

2.6

2.6

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.1

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

4.0

3.9

3.9

3.9

3.8

3.8

3.7

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.5

4.5

4.4

4.4

4.3

4.3

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.1

5.1

5.0

5.0

4.9

4.9

4.8

6.4

6.4

6.4

6.4

6.4

6.4

6.3

6.2

6.1

6.0

5.9

5.8

5.6

5.5

5.4

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.5

2.5

2.4

2.4

2.3

2.3

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.0

3.0

3.0

2.9

2.8

3.8

3.8

3.8

3.8

3.8

3.8

3.8

3.7

3.7

3.6

3.6

3.6

3.5

3.5

3.4

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.2

4.2

4.2

4.1

4.1

4.0

4.0

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.8

4.8

4.7

4.7

4.6

4.6

4.6

6.7

6.7

6.7

6.7

6.6

6.6

6.5

6.4

6.3

6.2

6.1

6.0

5.9

5.7

5.6

3.0

3.0

3.0

3.0

3.0

2.9

2.9

2.9

2.8

2.8

2.7

2.7

2.7

2.6

2.6

3.6

3.6

3.6

3.5

3.5

3.5

3.5

3.4

3.4

3.3

3.3

3.3

3.2

3.2

3.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

4.0

3.9

3.9

3.9

3.8

3.8

3.7

3.7

4.7

4.7

4.7

4.7

4.6

4.6

4.6

4.6

4.5

4.5

4.4

4.4

4.4

4.3

4.2

7.1

7.1

7.0

7.0

6.9

6.8

6.8

6.7

6.6

6.5

6.4

6.3

6.1

6.0

5.8

2.7

2.7

2.7

2.7

2.7

2.7

2.6

2.6

2.6

2.5

2.5

2.4

2.4

2.4

2.3

3.3

3.3

3.3

3.3

3.2

3.2

3.2

3.1

3.1

3.1

3.0

3.0

3.0

2.9

2.9

3.9

3.9

3.8

3.8

3.8

3.8

3.7

3.7

3.7

3.6

3.6

3.6

3.5

3.5

3.4

4.4

4.4

4.4

4.4

4.4

4.3

4.3

4.3

4.2

4.2

4.2

4.1

4.1

4.0

4.0

8 - 54

Capacity Table

2. Cooling Capacity of Indoor Unit

S-24MR1U6

Power supply : 208 – 230V 1phase-60Hz

RATING CAPACITY:

EVAPORATOR

AIR INTAKE. TEMP

W.B.

D.B.

TC : Total Cooling Capacity (kW) , SHC : Sensible Heat Capacity (kW)

TC

7.1

kW

15 17

AIR FLOW 17.0 m

3

/min

19 21 23

CONDENSER

AMBIENT TEMP. ( o

C)

25 27 29 31 33 35 37 39 41 43

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

15

21

23

25

27

SHC

SHC

SHC

SHC

TC

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

16

21

23

25

27

29

17

18

19

20

21

22

23

23

25

27

29

31

21

23

25

27

29

31

21

23

25

27

29

31

23

25

27

29

31

21

23

25

27

29

25

27

29

31

25

27

29

31

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

SHC

SHC

SHC

SHC

SHC

TC

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

5.7

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

3.7

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

4.3

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.0

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

5.6

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.5

6.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.4

3.3

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.1

4.0

4.0

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.7

4.6

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.4

5.3

5.3

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

6.0

5.9

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.6

6.5

6.4

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.1

7.0

6.8

6.6

6.4

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.2

3.1

3.1

3.0

2.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.8

3.8

3.7

3.7

3.6

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.5

4.4

4.4

4.3

4.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.2

5.1

5.1

5.0

5.0

4.9

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.8

5.7

5.7

5.6

5.5

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.4

6.3

6.3

6.1

7.6

7.6

7.6

7.6

7.6

7.6

7.6

7.6

7.5

7.4

7.2

7.1

6.9

6.8

6.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.6

3.5

3.4

3.4

3.3

3.3

3.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.2

4.1

4.1

4.0

3.9

3.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.9

4.8

4.7

4.7

4.6

4.6

4.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

5.4

5.4

5.3

5.2

5.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.2

6.1

6.0

6.0

5.9

5.9

5.8

8.1

8.1

8.1

8.1

8.1

8.1

8.0

7.8

7.7

7.6

7.5

7.3

7.1

7.0

6.8

3.3

3.3

3.3

3.3

3.3

3.3

3.3

3.2

3.2

3.2

3.1

3.0

3.0

2.9

2.9

4.0

4.0

4.0

4.0

4.0

4.0

4.0

3.9

3.9

3.8

3.8

3.7

3.7

3.6

3.5

4.6

4.6

4.6

4.6

4.6

4.6

4.6

4.5

4.5

4.5

4.4

4.3

4.3

4.2

4.2

5.3

5.3

5.3

5.3

5.3

5.3

5.3

5.2

5.2

5.1

5.1

5.0

5.0

4.9

4.8

5.9

5.9

5.9

5.9

5.9

5.9

5.9

5.8

5.8

5.8

5.7

5.6

5.6

5.5

5.5

8.5

8.5

8.5

8.5

8.4

8.3

8.2

8.1

8.0

7.9

7.7

7.6

7.4

7.3

7.1

3.7

3.7

3.7

3.7

3.7

3.7

3.6

3.6

3.5

3.5

3.4

3.4

3.3

3.2

3.2

4.4

4.4

4.4

4.4

4.3

4.3

4.3

4.2

4.2

4.1

4.1

4.0

4.0

3.9

3.8

5.0

5.0

5.0

5.0

5.0

5.0

4.9

4.9

4.8

4.8

4.7

4.7

4.6

4.5

4.5

5.7

5.7

5.7

5.7

5.6

5.6

5.6

5.5

5.5

5.4

5.4

5.3

5.3

5.2

5.1

9.0

9.0

8.9

8.8

8.8

8.7

8.6

8.5

8.4

8.2

8.1

7.9

7.8

7.6

7.4

3.4

3.4

3.4

3.4

3.3

3.3

3.3

3.2

3.2

3.2

3.1

3.0

3.0

2.9

2.9

4.1

4.1

4.1

4.0

4.0

4.0

3.9

3.9

3.9

3.8

3.8

3.7

3.7

3.6

3.5

4.7

4.7

4.7

4.7

4.6

4.6

4.6

4.5

4.5

4.5

4.4

4.4

4.3

4.2

4.2

5.4

5.4

5.4

5.3

5.3

5.3

5.2

5.2

5.2

5.1

5.1

5.0

5.0

4.9

4.8

8 - 55

1

2

3

4

5

6

7

8

201201

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
