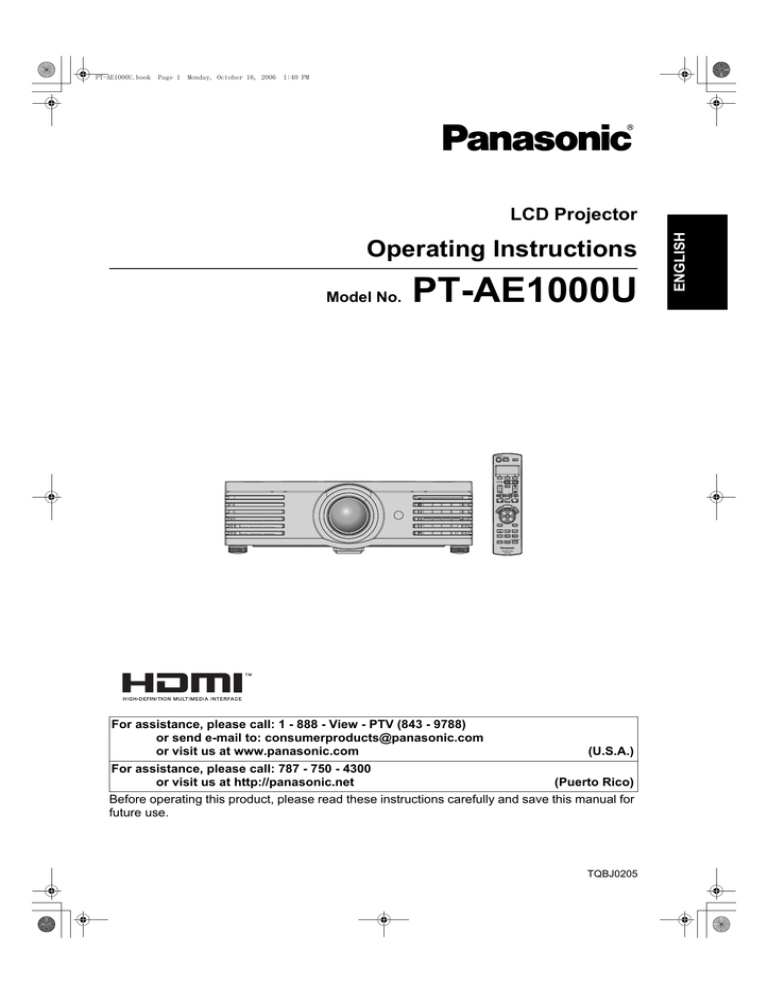

PT-AE1000U.book
Page 1
Monday, October 16, 2006
1:40 PM
Operating Instructions
Model No.
PT-AE1000U
For assistance, please call: 1 - 888 - View - PTV (843 - 9788)
or send e-mail to: [email protected]
or visit us at www.panasonic.com
(U.S.A.)
For assistance, please call: 787 - 750 - 4300
or visit us at http://panasonic.net
(Puerto Rico)
Before operating this product, please read these instructions carefully and save this manual for
future use.
TQBJ0205
ENGLISH
LCD Projector
PT-AE1000U.book
Page 2
Monday, October 16, 2006
1:40 PM
Important Safety Notice
Dear Panasonic Customer:
This instruction booklet provides all the necessary operating information that you might require.
We hope it will help you to get the most out of your new product, and that you will be pleased
with your Panasonic LCD projector.The serial number of your product may be found on its
bottom. You should note it in the space provided below and retain this booklet in case service is
required.
Model number:
PT-AE1000U
Serial number:
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DONOT
EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
Power Supply: This LCD Projector is designed to operate on 100 V - 240 V, 50 Hz/
60 Hz AC, house current only.
CAUTION:
The AC power cord which is supplied with the projector as an accessory can
only be used for power supplies up to 125 V, 7 A. If you need to use higher
voltages or currents than this, you will need to obtain a separate 250 V
power cord. If you use the accessory cord in such situations, fire may result.
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the product.
CAUTION:
2 - ENGLISH
This equipment is equipped with a three-pin
grounding-type power plug. Do not remove the
grounding pin on the power plug. This plug will only fit
a grounding-type power outlet. This is a safety feature.
If you are unable to insert the plug into the outlet,
contact an electrician. Do not defeat the purpose of
the grounding plug.
Do not remove
PT-AE1000U.book
Page 3
Monday, October 16, 2006
1:40 PM
Important Safety Notice
WARNING:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when
connecting to computers or peripheral devices. Any unauthorized
changes or modifications to this equipment will void the users authority to
operate.
If you use serial port to connect PC for external control of projector, you
must use optional RS-232C serial interface cable with ferrite core. Any
unauthorized changes or modifications to this equipment will void the
user’s authority to operate.
Indication based on the German law "Geräte- und Produktsicherheitsgesetz”
Directive 2001/95/EC (Article 5);
Panasonic Marketing Europe GmbH
Hagenauer Str. 43 65203 Wiesbaden F.R.GERMANY
WARNING:
Not for use in a computer room as defined in the Standard for the Protection
of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.
Declaration of Conformity
Model Number:
PT-AE1000U
Trade Name:
Panasonic
Responsible party: Panasonic North America
Address:
One Panasonic Way 4B - 9 Secaucus, New Jersey 07094
Telephone number: 1 - 888 - View - PTV (843 - 9788)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
ENGLISH - 3
PT-AE1000U.book
Page 4
Monday, October 16, 2006
1:40 PM
Contents
J Quick Steps
1. Set up your projector
See “Setting up” on page 14.
Important Safety Notice.............................. 2
Preparation
Precautions with regard to safety ............. 6
WARNINGS ........................................................... 6
CAUTIONS............................................................. 7
Before use.................................................... 9
2. Connect with other devices
See “Connections” on page 18.
Accessories............................................................ 9
Cautions when transporting ................................... 9
Cautions when installing ........................................ 9
Cautions on use ................................................... 10
About Your Projector................................ 11
Remote control..................................................... 11
Projector............................................................... 12
Getting Started
3. Prepare the Remote control
See “Remote control” on page 11.
Setting up................................................... 14
Screen size and throw distance ........................... 14
Projection method ................................................ 15
Front leg adjuster and throwing angle.................. 15
Lens shift and positioning..................................... 16
Connections .............................................. 18
4. Start projecting
See “Switching the projector on/off” on
page 19.
Before connection to the projector ....................... 18
Connecting with COMPONENT/VIDEO/S-VIDEO 18
Connecting with HDMI/PC ................................... 18
Basic Operation
Switching the projector on/off ................. 19
5. Adjust the image
See “Menu Navigation” on page 28.
Power cord ........................................................... 19
POWER indicator ................................................. 19
Switching on the projector.................................... 20
Switching off the projector.................................... 20
Projecting an image .................................. 21
Selecting the input signal ..................................... 21
Positioning the image........................................... 21
Remote control operation ........................ 22
Operating range ................................................... 22
Turning on the button backlight............................ 22
Resetting to the factory default settings ............... 22
Capturing an image.............................................. 22
Switching the input signal..................................... 23
Switching the aspect ratio .................................... 23
Adjusting the waveform of the input signal........... 24
Adjusting the focus and zoom .............................. 25
Switching the picture mode .................................. 25
Adjusting the image.............................................. 25
Switching off the projector automatically.............. 25
Loading a saved setting ....................................... 25
Setting your own color profile............................... 26
4 - ENGLISH
1:40 PM
w
Settings
Maintenance
Menu Navigation........................................28
TEMP and LAMP Indicators ..................... 40
Navigating through the MENU ..............................28
Main menu and Sub-menu....................................29
Controlling alerts .................................................. 40
H - POSITION .......................................................34
V - POSITION .......................................................34
DOT CLOCK .........................................................34
CLOCK PHASE.....................................................34
ASPECT................................................................35
WSS ......................................................................36
OVER SCAN .........................................................36
KEYSTONE...........................................................36
AUTO SETUP .......................................................36
LENS CONTROL Menu..............................37
ZOOM/FOCUS......................................................37
OPTION Menu ............................................38
INPUT GUIDE .......................................................38
OSD DESIGN........................................................38
OSD POSITION ....................................................38
BACK COLOR.......................................................38
STARTUP LOGO ..................................................38
AUTO SEARCH ....................................................38
HDMI SIGNAL LEVEL...........................................38
INSTALLATION.....................................................39
SLEEP...................................................................39
ALTITUDE.............................................................39
LAMP POWER......................................................39
LAMP RUNTIME ...................................................39
FUNCTION BUTTON............................................39
Troubleshooting........................................ 44
Appendix
Technical Information............................... 45
List of compatible signals ..................................... 45
Serial terminal ...................................................... 46
Menu structure ..................................................... 49
Specifications............................................ 50
Dimensions................................................ 52
Trademark acknowledgements................ 53
Index........................................................... 54
Settings
POSITION Menu.........................................34
Before cleaning .................................................... 41
Cleaning your projector ........................................ 41
Before replacing the Lamp unit ............................ 42
When to replace the Lamp unit ............................ 42
Replacing the lamp unit........................................ 42
Maintenance
PICTURE MODE...................................................31
CONTRAST ..........................................................31
BRIGHTNESS.......................................................31
COLOR .................................................................31
TINT ......................................................................31
SHARPNESS ........................................................31
COLOR TEMPERATURE .....................................31
DYNAMIC IRIS......................................................32
WAVEFORM MONITOR .......................................32
ADVANCED MENU...............................................32
MEMORY SAVE ...................................................33
MEMORY LOAD ...................................................33
SIGNAL MODE .....................................................33
Care and Replacement ............................. 41
Appendix
PICTURE Menu ..........................................31
Preparation
Monday, October 16, 2006
Getting Started
Page 5
Basic Operation
PT-AE1000U.book
ENGLISH - 5
PT-AE1000U.book
Page 6
Monday, October 16, 2006
1:40 PM
Preparation
Precautions with regard to safety
WARNINGS
If you notice smoke, strange smells or noise coming
from the projector, disconnect the power cord plug
from the wall outlet.
Do not continue to use the projector in such cases,
otherwise fire or electric shocks could result.
Check that no more smoke is coming out, and then
contact an Authorized Service Center for repairs.
Do not attempt to repair the projector yourself, as
this can be dangerous.
Do not install this projector in a place which is not
strong enough to take the full weight of the
projector.
If the installation location is not strong enough, it may
fall down or tip over, and severe injury or damage
could result.
Installation work (such as ceiling suspension)
should only be carried out by a qualified technician.
If installation is not carried out correctly, there is the
danger that injury or electric shocks may occur.
Do not use other than an authorized ceiling mount
bracket.
If foreign objects or water get inside the projector,
or if the projector is dropped or the cabinet is
broken, disconnect the power cord plug from the
wall outlet.
Continued use of the projector in this condition may
result in fire or electric shocks.
Contact an Authorized Service Center for repairs.
Do not do anything that might damage the power
cord or the power cord plug.
Do not damage the power cord, make any
modifications to it, place it near any hot objects, bend
it excessively, twist it, pull it, place heavy objects on
top of it or wrap it into a bundle.
If the power cord is used while damaged, electric
shocks, short-circuits or fire may result.
Ask an Authorized Service Center to carry out any
repairs to the power cord that might be necessary.
Do not handle the power cord plug with wet hands.
Failure to observe this may result in electric shocks.
Insert the power cord plug securely into the wall
outlet.
If the plug is not inserted correctly, electric shocks or
overheating could result.
Do not use plugs which are damaged or wall outlets
which are coming loose from the wall.
Do not place the projector on top of surfaces which
are unstable.
If the projector is placed on top of a surface which is
sloped or unstable, it may fall down or tip over, and
injury or damage could result.
Do not place the projector into water or let it become
wet.
Failure to observe this may result in fire or electric
shocks.
Do not overload the wall outlet.
If the power supply is overloaded (for example, by
using too many adapters), overheating may occur
and fire may result.
Do not place the projector on soft materials such as
carpets or sponge mats.
Doing so may cause the projector to overheat, which
can cause burns, fire or damage to the projector.
Do not remove the cover or modify it in any way.
High voltages can cause fire or electric shocks.
For any inspection, adjustment and repair work,
please contact an Authorized Service Center.
Do not place liquid containers on top of the
projector.
If water spills onto the projector or gets inside it, fire
or electric shocks could result.
If any water gets inside the projector, contact an
Authorized Service Center.
Clean the power cord plug regularly to prevent it
from becoming covered in dust.
If dust builds up on the power cord plug, the resulting
humidity can damage the insulation, which could
result in fire. Pull the power cord plug out from the
wall outlet and wipe it with a dry cloth.
If not using the projector for an extended period of
time, pull the power cord plug out from the wall
outlet.
6 - ENGLISH
Do not insert any foreign objects into the projector.
Do not insert any metal objects or flammable objects
into the projector or drop them onto the projector, as
doing so can result in fire or electric shocks.
Do not allow the + and - terminals of the batteries to
come into contact with metallic objects such as
necklaces or hairpins.
Failure to observe this may cause the batteries to
leak, overheat, explode or catch fire.
Store the batteries in a plastic bag and keep them
away from metallic objects.
Page 7
Monday, October 16, 2006
1:40 PM
Precautions with regard to safety
During a thunderstorm, do not touch the projector
or the cable.
Electric shocks can result.
Do not use the projector in a bath or shower.
Fire or electric shocks can result.
Do not place your skin into the light beam while the
projector is being used.
Strong light is emitted from the projector’s lens. If
you place directly into this light, it can hurt or
damage your skin.
Do not look into the lens while the projector is being
used.
Strong light is emitted from the projector’s lens. If
you look directly into this light, it can hurt and
damage your eyes.
Be especially careful not to let young children look
into the lens. In addition, turn off the power and
disconnect the power cord plug when you are away
from the projector.
Do not place your hands or other objects close to
the air outlet port.
Heated air comes out of the air outlet port. Do not
place your hands or face, or objects which cannot
withstand heat close to this port [allow at least
50 cm (20") of space], otherwise burns or damage
could result.
Replacement of the lamp is better to be carried out
by a qualified technician.
The lamp has high internal pressure. If improperly
handled, explosion might result.
The lamp can easily become damaged if struck
against hard objects or dropped, and injury or
malfunctions may result.
Preparation
PT-AE1000U.book
When replacing the lamp, allow it to cool for at least
one hour before handling it.
The lamp cover gets very hot, and touching it can
cause burns.
Before replacing the lamp, be sure to disconnect
the power cord plug from the wall outlet.
Electric shocks or explosions can result if this is not
done.
Do not allow infants or pets to touch the remote
control unit.
The accessory remote control unit can be used to
operate not only the projector but also other
appliances such as air conditioners and electrical
device by programing them using the learning
function. If the remote control unit operated
inappropriately, fire or injury may result.
Keep the remote control unit out of the reach of
infants and pets after using it.
CAUTIONS
Do not cover the air inlet port or the air outlet port.
Doing so may cause the projector to overheat, which
can cause fire or damage to the projector.
Do not place the projector in narrow, badly ventilated
places such as closets or bookshelves.
Do not place the projector on cloth or papers, as
these materials could be drawn into the air inlet port.
Do not set up the projector in humid or dusty places
or in places where the projector may come into
contact with oily smoke or steam.
Using the projector under such conditions may result
in fire, electric shocks or plastic deterioration. The
plastic deterioration may cause the falling down of
the projector which is mounted in the ceiling.
When disconnecting the power cord, hold the plug,
not the cord.
If the power cord itself is pulled, the cord will become
damaged, and fire, short-circuits or serious electric
shocks may result.
Always disconnect all cables before moving the
projector.
Moving the projector with cables still attached can
damage the cables, which could cause fire or electric
shocks to occur.
Do not place any heavy objects on top of the
projector.
Failure to observe this may cause the projector to
become unbalanced and fall, which could result in
damage or injury.
Do not short-circuit, heat or disassemble the
batteries or place them into water or fire.
Failure to observe this may cause the batteries to
overheat, leak, explode or catch fire, and burns or
other injury may result.
When inserting the batteries, make sure the
polarities (+ and -) are correct.
If the batteries are inserted incorrectly, they may
explode or leak, and fire, injury or contamination of
the battery compartment and surrounding area may
result.
Use only the specified batteries.
If incorrect batteries are used, they may explode or
leak, and fire, injury or contamination of the battery
compartment and surrounding area may result.
ENGLISH - 7
PT-AE1000U.book
Page 8
Monday, October 16, 2006
1:40 PM
Preparation
Precautions with regard to safety
Do not mix old and new batteries.
If the batteries are inserted incorrectly, they may
explode or leak, and fire, injury or contamination of
the battery compartment and surrounding area may
result.
Do not put your weight on this projector.
You could fall or the projector could break, and injury
may result.
Be especially careful not to let young children stand
or sit on the projector.
If not using the projector for an extended period of
time, disconnect the power cord plug from the mans
socket.
If dust builds up on the power cord plug, the resulting
humidity may damage the insulation, which could
result in fire.
Disconnect the power cord plug from the wall outlet
as a safety precaution before carrying out any
cleaning.
Electric shocks can result if this is not done.
If the lamp has broken, ventilate the room
immediately. Do not touch or bring your face close
to the broken pieces.
Failure to observe this may cause the user to absorb
the gas which was released when the lamp broke
and which contains nearly the same amount of
mercury as fluorescent lamps, and the broken pieces
may cause injury.
If you believe that you have absorbed the gas or that
the gas has got into your eyes or mouth, seek
medical advice immediately.
Ask your dealer about the replacement of the lamp
unit and check the inside of the projector.
Ask an Authorized Service Center to clean inside
the projector at least once a year.
If dust is left to build up inside the projector without
being cleaned out, it can result in fire or problems
with operation.
It is a good idea to clean the inside of the projector
before the season for humid weather arrives. Ask
your nearest Authorized Service Center to clean the
projector when required. Please discuss with the
Authorized Service Center regarding cleaning costs.
We are constantly making efforts to preserve and maintain a clean environment. Please take non repairable
units back to your dealer or a recycling company.
NOTE:
This product has a High Intensity Discharge (HID) lamp that contains a small amount of mercury. It also
contains lead in some components.
Disposal of these materials may be regulated in your community due to environmental considerations. For
disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance:
http://www.eiae.org.
8 - ENGLISH
PT-AE1000U.book
Page 9
Monday, October 16, 2006
1:40 PM
Preparation
Before use
Accessories
Make sure the following accessories are provided with your projector.
Remote control
(EUR7914Z40 x 1)
AA batteries for Remote control
(x 2)
Lens cover (TXFKK01VKD4)
Power cord for continental Europe (K2CG3FZ00008 x 1)
Cautions when transporting
Do not subject the projector to excessive vibration
or shocks.
The projector lens need to be handled with care.
Cover the lens with the lens cover when transporting
the projector.
When transporting the projector, hold the body at
the bottom securely.
Do not hold the adjuster legs or the top cover to
move the projector, as this may damage the
projector.
Cautions when installing
Avoid setting up in places which are subject to
vibration or shocks.
The internal parts can be damaged, which may
cause malfunctions or accidents.
Avoid setting up in places which are subject to
sudden temperature changes, such as near an air
conditioner or lighting equipment.
The life of the lamp may be shortened or the
projector may be turned off. See “TEMP indicator” on
page 40.
Do not set up the projector near high-voltage power
lines or near motors.
The projector may be subject to electromagnetic
interference.
If installing the projector to the ceiling, ask a
qualified technician to carry out all installation
work.
You will need to purchase the separate installation kit
(Model No. ET-PKX100, ET-PKE1000S).
Furthermore, all installation work is recommended to
be carried out by a qualified technician.
If using this projector at high elevations
(above 1 400 m), set the ALTITUDE to HIGH. See
“ALTITUDE” on page 39.
Failure to observe this may result in malfunctions or
the life of the lamp or the other components may be
shortened.
ENGLISH - 9
PT-AE1000U.book
Page 10
Monday, October 16, 2006
1:40 PM
Preparation
Before use
Cautions on use
In order to get the best picture quality
Draw curtains or blinds over any windows and turn
off any lights near the screen to prevent outside light
or light from indoor lamps from shining onto the
screen.
Do not touch the surfaces of the lens with your bare
hands.
If the surface of the lens becomes dirty from
fingerprints or anything else, this will be magnified
and projected onto the screen. Moreover, when not
using the projector, cover it with the lens cover.
Screen
Do not apply any volatile substances which may
cause discoloration to the screen, and do not let it
become dirty or damaged.
10 - ENGLISH
Lamp
The lamp may need to be replaced earlier due to
variables such as individual lamp characteristics,
usage conditions and the installation environment,
especially when the projector is subjected to
continuous use for more than 10 hours or the power
is frequently turned on and off.
Liquid crystal panel
Do not project the same image for long periods of
time, as this may remain as an afterimage on the
liquid crystal panel.
The liquid crystal panel of the projector is built with
very high precision technology to provide fine picture
details. Occasionally, a few stuck pixels may appear
on the screen as fixed points of blue, green or red.
Please note that this does not affect the performance
of your LCD.
PT-AE1000U.book
Page 11
Monday, October 16, 2006
1:40 PM
Preparation
About Your Projector
Remote control
J Front, back and top view
Remote control signal emitter
While the MAIN POWER is
on, switch between standby mode and project mode.
(page 20)
Turn the button
backlight of Remote
control on/off.
(page 22)
Display the Main menu.
Return to the previous
menu. (page 29)
Navigate through the
menus with F G H I,
and activate the menu
item with ENTER.
(page 28)
Function buttons
Assign the frequently used
functions from the option for
shortcut. (page 39)
Learning Remote control
buttons and LCD
Program and operate other
devices. See “Remote Control
Operating Guide”.
Reset some of the
settings to the factory
default settings.
(page 22)
Return to the previous
menu. (page 28)
Battery compartment
1. Press the tab and lift
up the cover.
Capture the projected
image as a still
picture. (page 22)
2. Insert the batteries
according to the
polarity diagram
indicated inside.
Switch to cycle through
the input method.
(page 23)
Adjust the focus and
size of the image.
(page 25)
Turn off the POWER
automatically by setting
the duration. (page 22)
Switch to cycle through
the aspect ratio.
(page 23)
Switch to cycle through
the PICTURE MODE.
(page 25)
Display the MEMORY
LOAD menu. (page 25)
Display the input
waveform. (page 24)
Display the PICTURE
menu. (page 25)
Display the COLOR
MANAGEMENT menu.
(page 26)
NOTE:
Do not drop the Remote control.
Avoid contact with liquids or moisture.
Remove the batteries if not using the Remote control for a long period of time.
Do not use rechargeable batteries.
Do not keep pressing the Remote control buttons as this may shorten battery life.
ENGLISH - 11
PT-AE1000U.book
Page 12
Monday, October 16, 2006
1:40 PM
Preparation
About Your Projector
Projector
J Top and front view
Air exhaust port
Heated air comes
out of this opening.
Lens shift dial/Vertical
(page 16)
Lens shift dial/Horizontal
(page 16)
Air filter (page 41)
MAIN POWER
Switch the projector on/off
(page 20)
Projection lens
Lens cover
Protects the Projection
lens from dust or dirt.
Remote control
signal receptor
(page 22)
Air exhaust port
Heated air comes
out of this opening.
INPUT SELECT
Switch to cycle through the
input method. (page 23)
Navigate through the menus with
F G H I, and activate the menu
item with ENTER. (page 28)
(Push to open/close the cover.)
POWER
While the MAIN POWER is on,
switch between stand-by mode
and project mode. (page 20)
MENU
Display the Main menu.
Return to the previous menu.
(page 28)
RETURN
Return to the previous menu.
(page 28)
FOCUS and ZOOM
Adjust the focus and size of
the image. (page 37)
NOTE:
Do not cover the ventilation openings or place anything within 50 cm (20") of them as this may cause
damage or injury.
While the projector is not in use, attach the Lens cover to protect the lens.
12 - ENGLISH
Page 13
Monday, October 16, 2006
1:40 PM
About Your Projector
J Back and bottom view
Air intake port
Security lock
Attach the commercial shackle
lock, manufactured by
Kensington, to protect your
projector. Compatible with the
Kensington MicroSaver Security
System.
Preparation
PT-AE1000U.book
Top cover
Hold at the back corner of the Top
cover and slightly push up to
open. (page 42)
Air intake port
AC IN
Connect the Power cord to
supply electronic power to
the projector. (page 19)
Lens cover attachment hole
Front leg adjusters
Screw up/down to adjust the
projection angle. (page 21)
SERIAL
Connect a compatible cable
for controlling the projector
remotely via your PC.
PC IN
Connect an RGB signal
cable from your PC.
COMPONENT 1 IN
Connect a YPBPR signal
cable.
S-VIDEO IN
Connect a S-VIDEO
signal cable.
VIDEO IN
Connect an RCA
composite video cable.
Connecting
terminals
(page 18)
HDMI IN
Connect HDMI signal cables.
COMPONENT 2 IN
Connect a YPBPR signal cable.
NOTE:
Do not cover the ventilation openings or place anything within 50 cm (20") of the vents as this may cause
damage or injury.
This projector should only be used with the attached Power cord to ensure optimum performance and avoid
damage to the projector.
Do not open the Top cover other than replacing the lamp unit.
ENGLISH - 13
PT-AE1000U.book
Page 14
Monday, October 16, 2006
1:40 PM
Setting up
Screen size and throw distance
Getting Started
SH
You can adjust the projection size with 2.0 power zoom lens. Calculate and define the throw distance as follows.
SD
SW
Screen
Projection size (16 : 9)
Diagonal length
(SD)
1.01 m
1.27 m
1.52 m
1.77 m
2.03 m
2.28 m
2.54 m
3.05 m
3.81 m
5.08 m
(40")
(50")
(60")
(70")
(80")
(90")
(100")
(120")
(150")
(200")
Screen height (SH)
0.50 m (1'7")
0.62 m
(2')
0.75 m (2'5")
0.87 m (2'10")
1.00 m (3'3")
1.12 m (3'8")
1.25 m (4'1")
1.49 m (4'10")
1.87 m (6'1")
2.49 m (8'2")
Throw distance (L)
Screen width (SW)
Minimum distance
(LW)
0.89 m (2'11")
1.11 m (3'7")
1.33 m (4'4")
1.55 m (5'1")
1.77 m (5'9")
1.99 m (6'6")
2.21 m (7'3")
2.66 m (8'8")
3.32 m (10'10")
4.43 m (14'6")
1.2 m
1.5 m
1.8 m
2.1 m
2.4 m
2.7 m
3.0 m
3.6 m
4.8 m
6.0 m
(3'11")
(4'11")
(5'10")
(6'10")
(7'10")
(8'10")
(9'10")
(11'9")
(15'8")
(19'8")
Maximum distance
(LT)
2.3 m
2.9 m
3.5 m
4.1 m
4.7 m
5.3 m
5.9 m
7.2 m
9.0 m
12.0 m
* All measurements above are approximate and may differ slightly from the actual measurements.
J Calculation methods for screen dimensions
You can calculate more detailed screen dimensions from the screen diagonal.
SW = SD x 0.872
SH = SD x 0.490
LW = 1.189 x SD - 0.04
LT = 2.378 x SD - 0.05
Unit: m
* The results above are approximate and may differ slightly from the actual measurements.
NOTE:
Do not use the projector at a raised or a horizontally tilted position as it may
cause malfunction of the projector.
Make sure the projector lens surface is parallel with the screen. You can tilt
the projector body approximately ± 30° vertically. Overtilting may result in
shortening the component’s life.
For the best quality of the projection image, install a screen where sun light or
room light does not shine directly onto the screen. Close window shades or
curtains to block the lights.
14 - ENGLISH
± 30°
- 30°
(7'6")
(9'6")
(11'5")
(13'5")
(15'8")
(17'4")
(19'4")
(23'7")
(29'6")
(39'4")
PT-AE1000U.book
Page 15
Monday, October 16, 2006
1:40 PM
Setting up
Projection method
J Setting on a desk/floor and
projecting from front
INSTALLATION: FRONT/DESK
J Mounting in the ceiling and
projecting from front
INSTALLATION: FRONT/CEILING
J Setting on a desk/floor and
projecting from rear
Getting Started
You can use the projector with any of the following 4 projection methods. To set the desired method in the projector,
see “INSTALLATION” on page 39.
INSTALLATION: REAR/DESK
J Mounting in the ceiling and
projecting from rear
INSTALLATION: REAR/CEILING
NOTE:
A translucent screen is required for REAR projection.
When mounting the projector in the ceiling, the optional ceiling mount bracket (ET-PKX100, ET-PKE1000S)
is required.
Front leg adjuster and throwing angle
You can adjust the throwing angle by screwing the front legs up/down.
This adjust the angle of the projector. See “Positioning the image” on page 21.
NOTE:
Heated air comes out of the Air exhaust port. Do not touch the Air exhaust port directly.
If keystone distortion occurs, see “KEYSTONE” on page 36.
ENGLISH - 15
PT-AE1000U.book
Page 16
Monday, October 16, 2006
1:40 PM
Setting up
Lens shift and positioning
If the projector is not positioned right in front of the center of the screen, you can adjust the projected image position
by moving the Lens shift dials within the shift range of the lens.
J Adjusting the Lens shift dials
Getting Started
Q Horizontal shift
You can place the projector where the projector lens is up to 40% horizontally off-center from the screen and
then adjust the image position with the Lens shift dial • Horizontal.
Up to about 40% Up to about 40%
of the projection of the projection
Screen
Turning the dial
clockwise:
Moving to screen’s right
Turning the dial
counterclockwise:
Moving to screen’s left
Q Vertical shift
You can place the projector where the projector lens is up to 100% vertically off-center from the screen and then
adjust the image position with the Lens shift dial • Vertical.
Turning the dial counterclockwise:
Moving to screen’s bottom
Up to about 100%
of the projection
Up to about 100%
of the projection
Screen
Turning the dial clockwise:
Moving to screen’s top
16 - ENGLISH
PT-AE1000U.book
Page 17
Monday, October 16, 2006
1:40 PM
Setting up
J Projector location range
You can determine where to locate the projector by considering the Lens shift dials possibilities. See
“Positioning the image” on page 21 for available placement.
Q After fixing the screen position
Getting Started
H
Placement
V
Vertical center
of screen
Center of lens
SH
SW
Q The adjustable projection range
100%
Shift range
Projection size
Standard position
100%
40%
Projection size
40%
NOTE:
When the projecting position is fully moved to the vertical limit of the shift range, you cannot move
horizontally, likewise when the projecting position is fully moved to the horizontal limit of the shift range, you
cannot move vertically.
When the projector is tilted and you adjust KEYSTONE, the center of the screen and the lens need to be
realigned.
Do not force the Lens shift dials to turn as this may damage the projector.
ENGLISH - 17
PT-AE1000U.book
Page 18
Monday, October 16, 2006
1:40 PM
Connections
Before connection to the projector
Getting Started
Read and follow the operating and connecting instructions of each peripheral device.
The peripheral devices must be turned off.
Use cables that match each peripheral device to be connected.
Confirm the type of video signals. See “List of compatible signals” on page 45.
Audio cables must be connected from each peripheral device directly to the audio reproduction system.
Connecting with COMPONENT/VIDEO/S-VIDEO
To video
output
To component
video output
DVD player
Video player
To S-video
output
DVD player
Connecting with HDMI/PC
RGB signal cable
HDMI cable
(RP-CDHG30: Optional)
To RGB output
To HDMI output
DVD player
PC
NOTE:
Make sure the HDMI cable is adapted to your HDMI device for proper performance.
A compatible cable is required for an HDMI 1 080p signal.
It is possible to connect with DVI devices via a HDMI/DVI conversion adapter, but some equipment may not
project the image properly or other problems could be encountered. See “Serial terminal” on page 46.
18 - ENGLISH
PT-AE1000U.book
Page 19
Monday, October 16, 2006
1:40 PM
Switching the projector on/off
Power cord
Ensure all the input devices are connected and turned off before connecting the Power cord.
J Connecting
J Disconnecting
Make sure to use the
Power cord which is
provided with the projector.
1. Ensure the shape of the
power cord plug and the
AC IN connector on the
side of the projector match, then push the
plug all the way in.
Make sure the MAIN POWER is switched off.
1. Hold the plug and unplug the Power cord
from the wall outlet.
2. Hold the plug and unplug the Power cord
from the AC IN connector on the side of the
projector.
2. Connect the Power cord to a wall outlet.
Basic Operation
NOTE:
Do not force the connector as this may damage the projector and/or the power cord.
Dirt or dust build-up around plugs may cause fire or electrical hazards.
Switch off the power to the projector when not in use.
POWER indicator
POWER indicator
Indicator status
No illumination or flashing
RED
Lit
Flashing
Status
The MAIN POWER is switched off.
The MAIN POWER is switched on and the projector is in standby.
The POWER is switched on and the projector is getting ready to project.
GREEN
Lit
The projector is ready to project.
Lit
The POWER is switched off and the projector is cooling the lamp.
ORANGE
Flashing
The POWER is switched on again when cooling the lamp and recovering
to projection mode. Recovery may take a while.
NOTE:
While the projector is cooling the lamp, do not switch the MAIN POWER off or unplug the Power cord.
The electric consumption in standby mode is 0.08 W.
ENGLISH - 19
PT-AE1000U.book
Page 20
Monday, October 16, 2006
1:40 PM
Switching the projector on/off
Switching on the projector
Power indicator
(1)
(3)
(2)
1. Switch the MAIN POWER on.
3. Press the POWER button.
Basic Operation
The power indicator lights up in RED.
2. Remove the Lens cover from the lens.
The power indicator lights up in GREEN after
flashing for a while.
The STARTUP LOGO is displayed on the
screen. See "STARTUP LOGO" on page 38.
NOTE:
Some small rattling or tinkling sound may be heard when starting up, but this is normal and does not affect
the performance of the projector.
Do not attach anything on the Lens cover which may cause burns, fire or damage to the projector.
Switching off the projector
Power indicator
(3)
(1)
(2)
1. Press the POWER button.
The confirmation screen is displayed.
To return to the projection, press ENTER to
select CANCEL or press MENU/RETURN.
2. Press I to select OK and press POWER or
ENTER.
The power indicator lights up in ORANGE while
cooling the lamp, then illuminates RED when it
is ready to switch off the MAIN POWER.
3. Switch off the MAIN POWER on the back of
the projector.
NOTE:
Press the POWER twice or for a long duration to switch the power.
20 - ENGLISH
PT-AE1000U.book
Page 21
Monday, October 16, 2006
1:40 PM
Projecting an image
Selecting the input signal
1. Switch on the connected devices.
Press the play button of the required device.
2. Press the INPUT button to select the required
input method if needed. See "Switching the input
signal" on page 23.
The image will be projected on the screen.
NOTE:
AUTO SEARCH is ON as default and the signal from the connected devices is detected automatically. See
"AUTO SEARCH" on page 38.
Positioning the image
2. Adjust the projected image with the Lens
shift dials. See "Lens shift and positioning"
on page 16.
4. Adjust the focus and the projected image
size.
Press +/- of the FOCUS and ZOOM buttons to
adjust.
Press the LENS button to adjust the focus and
zoom by Remote control. see “LENS
CONTROL Menu” on page 37
Basic Operation
1. Press ASPECT to select the required aspect
mode. See "Switching the aspect ratio" on
page 23.
3. Adjust the angle of the projector.
Screw down the Front leg adjuster and adjust
the angle vertically.
NOTE:
Do not touch the Air exhaust port as this may
cause burns or injury.
If keystone distortion occurs, see “KEYSTONE”
on page 36.
ENGLISH - 21
PT-AE1000U.book
Page 22
Monday, October 16, 2006
1:40 PM
Remote control operation
Operating range
You can operate the projector with the Remote control
within the remote range 7 m.
Q Facing to the projector
Ensure the Remote control emitter is facing to
the Remote control signal receptor on front of
the projector and press the required buttons to
operate.
Q Facing to the screen
Ensure the Remote control emitter is facing to
the screen and press the required buttons to
operate the projector. The signal will be reflected
off the screen. The operating range may differ due
to the screen material.
Basic Operation
NOTE:
The Remote control may malfunction under
strong light such as a fluorescent. Do not let
strong light shine onto the signal receptor.
If there are any obstacles between the remote
control unit and the receptor, the Remote control
may not operate correctly.
Turning on the button backlight
In a dark room, you can turn on the button
backlight to operate the Remote control.
Press the button on the upper right corner of
the unit to turn on the backlight and enter
the light-on mode.
After 30 seconds without any operation, the backlight
will go out. Press any but the LIGHT button to turn on
again. To escape from the light-on mode, press the
LIGHT button.
Resetting to the factory default settings
You can reset most of the customized
settings to the factory defaults by pressing
DEFAULT button of the Remote control.
Display the required sub menu or the menu
items and press the button again. See
"Main menu and Sub-menu" on page 29.
NOTE:
Some menu items are not available to reset by
pressing the DEFAULT button. Adjust each menu
items manually.
Capturing an image
When projecting an image, press FREEZE
to capture the projected image and display
it on the screen as a still picture. Press
again to escape.
22 - ENGLISH
NOTE:
Escaping from the freeze mode is available by
pressing any button except the LIGHT button.
PT-AE1000U.book
Page 23
Monday, October 16, 2006
1:40 PM
Remote control operation
You can switch the input method manually
by pressing the INPUT button. Press the
button several times or press I H to cycle
through the input methods as follows. The
actual projected image will be changed in a
while.
PC IN
COMPONENT1 IN
COMPONENT2 IN
S-VIDEO IN
COMPONENT1 IN
Connected to COMPONENT1
IN terminal equipment’s
signal
COMPONENT2 IN
Connected to COMPONENT2
IN terminal equipment’s
signal
HDMI2 IN
S-VIDEO IN
Connected to S-VIDEO IN
terminal equipment’s signal
HDMI1 IN
VIDEO IN
Connected to VIDEO IN
terminal equipment’s signal
HDMI1 IN
HDMI2 IN
Connected to HDMI IN
terminal equipment’s signal
VIDEO IN
Graphical guidance will be displayed on the upper right
of the display and you can confirm the selected input
method which is highlighted in yellow. See "INPUT
GUIDE" on page 38.
PC IN
Connected to PC IN terminal
equipment’s signal
NOTE:
If you select an unplugged input method, the
guidance will blink on and off several times.
See "List of compatible signals" on page 45.
See "Connections" on page 18.
Basic Operation
Switching the input signal
Switching the aspect ratio
The aspect ratio is selected automatically,
or you can switch it manually by pressing
the ASPECT button. Press the button
several times to cycle through the different
aspect type as follows. See "ASPECT" on
page 35.
VIDEO/
S-VIDEO/
COMPONENT
(YPBPR)
4:3
ZOOM2
16:9
ZOOM1
14:9
JUST
PC (RGB)
4:3
16:9
HDMI
4:3
16:9
NOTE:
If you project an image with an unmatched aspect
ratio, the image may distort or some portions may
be cropped. Select an aspect ratio which
preserves the intention of the image creator.
The order of ASPECT types is defined not only by
the input method but also by the input signals.
See "List of compatible signals" on page 45.
If you project a copyrighted image enlarged or
distorted by using ASPECT function in
commercial use in a public place, such as a
restaurant or hotel, you might infringe on the
copyright of the creator which is protected by
copyright law.
ENGLISH - 23
PT-AE1000U.book
Page 24
Monday, October 16, 2006
1:40 PM
Remote control operation
Adjusting the waveform of the input signal
You can monitor if the brightness and
contrast level of the input signal is in the
recommended range by displaying it in the
waveform monitor. See "WAVEFORM
MONITOR" on page 32.
1. Project a commercial adjusting signal.
2. Press the WAVEFORM button to display the
waveform monitor.
OFF
FULL SCAN
Basic Operation
SINGLE LINE
SCAN
Deactivate the waveform monitor.
Monitoring the waveform of
brightness and contrast of the
whole image.
Monitoring the waveform of
detailed brightness and contrast in
each horizontal line of the image.
Press F G to select the required
line.
3. Press ENTER button to select the required
adjusting mode.
FULL SCAN(Y)
SINGLE LINE SCAN(B)
FULL SCAN(R)
SINGLE LINE SCAN(G)
FULL SCAN(G)
SINGLE LINE SCAN(R)
FULL SCAN(B)
SINGLE LINE SCAN(Y)
J Adjusting the waveform
Make sure to adjust to the 0% line first. Any signal level
below the recommended range will be forced to 0%.
Q Adjusting in PICTURE menu
Press PIC. ADJUST button to display the
PICTURE menu and adjust BRIGHTNESS
(-32 to +32) and CONTRAST (-64 to +64) with
I H.
Adjust the bottom line of the
BRIGHTNESS
waveform to 0 % (0/7.5 IRE).
Adjust the top line of the waveform
CONTRAST
to 100 % (100 IRE).
Q Adjusting in ADVANCED menu
Press PIC. ADJUST twice to display the
ADVANCED menu and adjust BRIGHTNESS
(-16 to +16) and CONTRAST (-32 to +32) in red,
green and blue with I H.
In red
BRIGHTNESS R
CONTRAST R
In green
BRIGHTNESS G
CONTRAST G
4. Press F G I H to adjust the displaying
position of the waveform monitor.
In blue
5. Adjust the waveform in each menu.
BRIGHTNESS B
NOTE:
When you adjust the SINGLE LINE SCAN, the
position of the waveform is depends on the
position of the selected line.
When the WAVEFORM displayed, the COLOR
MANAGEMENT is disabled.
Adjust the bottom line of the
waveform to 0 % (0/7.5 IRE).
Adjust the top line of the waveform
to 100 % (100 IRE).
CONTRAST B
Adjust the bottom line of the
waveform to 0 % (0/7.5 IRE).
Adjust the top line of the waveform
to 100 % (100 IRE).
Adjust the bottom line of the
waveform to 0 % (0/7.5 IRE).
Adjust the top line of the waveform
to 100 % (100 IRE).
NOTE:
When the Main menu (except WAVEFORM and
individually displayed menu item) is displayed, the
waveform monitor will be halt.
When the waveform monitor is displayed, the
Main menu will be displayed in order not to
interfere the waveform monitor.
PC/HDMI (Expand)
100%
Adjust to 100%
50%
Adjust to 100%
0%
24 - ENGLISH
50%
0%
100%
Optimal
dynamic range
Monitor position
Adjust to 0%
Signal level
Signal level
100%
ENTER
50%
0%
Optimal
dynamic range
Monitor position
Adjust to 0%
PT-AE1000U.book
Page 25
Monday, October 16, 2006
1:40 PM
Remote control operation
Adjusting the focus and zoom
You can adjust the focus and zoom of the
projected image. Press the LENS button to
display the LENS control menu. See "LENS
CONTROL Menu" on page 37.
Switching the picture mode
You can switch the preset picture mode
settings by pressing the PIC. MODE
button. Press the button until the required
setting is selected. See "PICTURE MODE"
on page 31.
NORMAL
DYNAMIC
CINEMA3
CINEMA2
COLOR1
CINEMA1
Adjusting the image
You can display one of the PICTURE or
ADVANCED menu items by pressing the
PICTURE ADJUSTMENT button. Press
the button to switch between PICTURE
and ADVANCED menu. Press F G to
select the required menu item and I H to
adjust.
Q PICTURE menu items
PICTURE MODE, CONTRAST, BRIGHTNESS,
COLOR, TINT, SHARPNESS, COLOR
TEMPERATURE and DYNAMIC IRIS
Q ADVANCED menu items
GAMMA, CONTRAST, BRIGHTNESS, NR,
MPEG NR, CINEMA REALITY and TV-SYSTEM
NOTE:
For each menu items description, see “PICTURE
Menu” on page 31.
The screen will be cleared after 7 seconds without
any operation.
Basic Operation
COLOR2
Switching off the projector automatically
You can switch off the POWER
automatically by setting the SLEEP
feature. Press the SLEEP button several
times to cycle through the duration of time.
See "SLEEP" on page 39.
OFF
240MIN.
60MIN.
210MIN.
90MIN.
180MIN.
120MIN.
150MIN.
Loading a saved setting
You can access saved settings instantly.
See "MEMORY LOAD" on page 33.
1.Select the required setting from
MEMORY1 - 5.
Undefined setting will not be displayed.
NOTE:
If you have not saved any settings, MEMORY1 - 5
will not be displayed.
2. Press ENTER to activate the selected setting.
ENGLISH - 25
PT-AE1000U.book
Page 26
Monday, October 16, 2006
1:40 PM
Remote control operation
Setting your own color profile
You can adjust a selected color individually
and save and retrieve under the PICTURE
MODE setting. Press the COLOR
MANAGEMENT button to open the menu.
PROFILE
CURSOR
LOG
PROFILE SAVE
3. Select a menu item and the I H to adjust
each item level.
The result box is displayed on the right of the
cursor and shows the adjusted color.
NORMAL
CURSOR
RETURN
SELECT
ENTER
DEFAULT
COLOR
TINT
BRIGHTNESS
Adjusted color
J Create a new profile
Q Adjusting the selected color
Select a color and adjust COLOR, TINT and
BRIGHTNESS.
Basic Operation
1. Select the CURSOR menu and press
ENTER.
The projected image is captured, and the target
cursor is displayed.
When the LOG is fully stored, the target cursor
will not be displayed. See "Managing stored
logs" on page 26.
Adjust the vividness of the color.
Setting range: -30 to +30
Adjust the color tone.
TINT
Setting range: -30 to +30
Adjust the brightness of the color.
BRIGHTNESS
Setting range: -20 to +20
COLOR
4. Press ENTER to store the adjusted result.
“PROCESSING” is displayed for a few seconds
and the result is stored in LOG.
You can store up to 8 logs under LOG for each
PICTURE MODE setting.
Target cursor
5. Press MENU or RETURN to return to the
previous menu.
Repeat the steps above to store more
adjustment.
2. Move the cursor with F G I H to the
required place to select a color and press
ENTER.
The color at the center of the target cursor is
sampled and the sample box is displayed on
the left of the cursor. The menu items are
displayed on the upper part of the screen.
CURSOR
RETURN
SELECT
ENTER
DEFAULT
Sampled color
26 - ENGLISH
COLOR
TINT
BRIGHTNESS
PT-AE1000U.book
Page 27
Monday, October 16, 2006
1:40 PM
Remote control operation
Q Managing stored logs
You can edit or delete the stored logs of the
selected PICTURE MODE.
1. Select LOG and press ENTER.
The LOG menu is displayed.
J Loading saved profiles
When profiles are loaded under the PICTURE
MODE setting, you can keep them as you defined
until the PROFILE is set to NORMAL.
PICTURE MODE : CINEMA1
1. Select the required PICTURE MODE and
press ENTER.
POINT1
2. Press the COLOR MANAGEMENT button
and select the PROFILE menu.
The profile settings of the selected PICTURE
MODE will be displayed.
POINT2
POINT3
POINT4
POINT5
3. Select the required profile and press ENTER.
POINT7
POINT8
ALL DELETE
Sampled color
NORMAL
Adjusted color
2. Select the required log from 1 - 8 or ALL
DELETE, and press ENTER.
Select CHANGE to edit the log.
The cursor menu is displayed and you can
readjust the color.
Select DELETE to delete the log.
The confirmation screen will be displayed.
Select OK to delete.
When you select ALL DELETE, the "DELETE
ALL LOG." screen is displayed. Select OK to
delete all logs. The PROFILE setting will be set
to NORMAL.
Q Saving a log setting as a profile
Return to the COLOR MANAGEMENT menu and
save the stored log as a profile. Make sure that the
PICTURE MODE is not switched.
1. Select the PROFILE SAVE menu and press
ENTER
The PROFILE SAVE menu is displayed. You
can save the profile as USER1, USER2 and
USER3.
Return to the default setting of the
PICTURE MODE
USER1
USER2
Defined profile settings.
USER3
NOTE:
LOG and PROFILE SAVE are not displayed
before you apply COLOR MANAGEMENT.
If you load a profile with a different attribute mode
of the profile, the CURSOR and PROFILE SAVE
menus will not be displayed.
The approximate colors will be adjusted at the
same time. If you adjust the exact same color
differently, both colors will affect each other and
you might get unexpected results.
White, Black and Grey are not adjustable.
If you escape the COLOR MANAGEMENT menu
or attempt to perform another menu action before
you save the adjusted profile, the confirmation
screen will be displayed.
If you switch the input signal before you save the
profile, the setting will be cancelled without notice.
Basic Operation
POINT6
USER1
USER2
USER3
2. Press ENTER to save the profile
The confirmation screen is displayed. Press
ENTER again to save.
ENGLISH - 27
PT-AE1000U.book
Page 28
Monday, October 16, 2006
1:40 PM
Menu Navigation
The menu system allows you to access functions which do not have their own dedicated buttons on the Remote
control. The menu options are structured and categorized. You can navigate through the menu with F G I H
buttons.
Navigating through the MENU
J Displaying the Main menu
3. Press I H to adjust or set the selected item.
Press MENU button to display the Main menu
and the operating guidance.
Main menu
Sub menu
Current
settings
For items using a bar scale, the current
settings are displayed on the left of the bar
scale.
You can cycle through the options of an item
by pressing I H.
POSITION
LENS CONTROL
LANGUAGE
OPTION
RETURN
SELECT
ENTER
PICTURE MODE
CONTRAST
BRIGHTNESS
COLOR
TINT
SHARPNESS
COLOR TEMPERATURE
DYNAMIC IRIS
WAVEFORM MONITOR
ADVANCED MENU
MEMORY SAVE
MEMORY LOAD
NORMAL
POSITION
LENS CONTROL
ENGLISH
ON
RETURN
OFF
SELECT
ENTER
DEFAULT
4. Press MENU or RETURN to return to the previous
menu.
To continue projection, press the button
repeatedly until the menu disappears.
J Operating procedure
Settings
1. Press F G to scroll to the required Main menu
item and press ENTER to select.
The selected item is highlighted in orange and
the Sub-menu is displayed on the right. See
“Main menu and Sub-menu” on page 29.
Q About the bar scale items
The triangle mark under the bar indicates factory
default setting and the square indicates the current
setting.
Current
setting
2. Press F G to scroll to the required Sub-menu
item and press I H or ENTER to adjust.
The selected item is called up and the other
menu items disappear from the screen.
If there is a lower level, the next level will be
displayed.
POSITION
LENS CONTROL
LANGUAGE
OPTION
RETURN
SELECT
ENTER
28 - ENGLISH
H-POSITION
V-POSITION
ASPECT
WSS
OVER SCAN
KEYSTONE
ON
OPTION
Operating guidance
Contains the required buttons to adjust the settings.
H-POSITION
V-POSITION
ASPECT
WSS
OVER SCAN
KEYSTONE
BRIGHTNESS
Default
Q Returning to the previous menu
Press the MENU or RETURN button to return to
the previous menu. Press repeatedly to escape
the menu mode and return to the projection.
ON
PT-AE1000U.book
Page 29
Monday, October 16, 2006
1:40 PM
Menu Navigation
Main menu and Sub-menu
The Main menu has 5 options. Select the required menu item and press ENTER to display the Sub-menu.
NOTE:
Some default settings vary by the selected input signal.
J
See “PICTURE Menu” on page 31.
Sub-menu items
Default setting
PICTURE MODE
NORMAL
Sub-menu items
DYNAMIC IRIS
CONTRAST
0
WAVEFORM MONITOR
BRIGHTNESS
0
ADVANCED MENU
COLOR
0
MEMORY SAVE
TINT
0
MEMORY LOAD
SHARPNESS
0
SIGNAL MODE*1
COLOR TEMPERATURE
0
Default setting
ON
*1. PC/COMPONENT/HDMI signals only
POSITION
J
See “POSITION Menu” on page 34.
Default setting
Sub-menu items
*1
Default setting
ON
H - POSITION
0
WSS
V - POSITION
0
OVER SCAN
+7
DOT CLOCK*2
0
KEYSTONE
0
CLOCK PHASE*3
0
AUTO SETUP*4
16:9*5
ASPECT
*1.
*2.
*3.
*4.
*5.
J
Settings
Sub-menu items
VIDEO/S-VIDEO/COMPONENT signals only
PC signal only
COMPONENT/PC signals only
PC signal only
AUTO for NTSC signals
LENS CONTROL
See “LENS CONTROL Menu” on page 37.
Sub-menu items
ZOOM/FOCUS
ENGLISH - 29
PT-AE1000U.book
Page 30
Monday, October 16, 2006
1:40 PM
Menu Navigation
J
LANGUAGE
Press F G to select the required language and press ENTER.
J
OPTION
See “OPTION Menu” on page 38.
Sub-menu items
Default setting
INPUT GUIDE
DETAILED
OSD DESIGN
TYPE1
OSD POSITION
CENTER
BACK COLOR
BLUE
Sub-menu items
INSTALLATION
OFF
ALTITUDE
LOW
LAMP POWER
ON
LAMP RUNTIME
AUTO SEARCH
ON
FUNCTION BUTTON
Settings
30 - ENGLISH
NORMAL
FRONT/DESK
SLEEP
STARTUP LOGO
HDMI SIGNAL LEVEL
Default setting
NORMAL
PT-AE1000U.book
Page 31
Monday, October 16, 2006
1:40 PM
PICTURE Menu
COLOR
You can adjust the color saturation of the projected
image.
PICTURE MODE
Depending on the projection environment, you can use
these preset parameter settings to optimise image
projection. Press I H to cycle through the options.
NORMAL
Setting for a general image, such as
sports or games
DYNAMIC
Bright and sharp setting
CINEMA1
Hollywood style colors
CINEMA2
Deeper and more rich color setting
CINEMA3
Vivid and crisp color setting
COLOR1
Setting for HDTV standard in
ITU-R BT. 709 and color temperature
6 500K at the default setting of the
PICTURE menu items.
COLOR2
Setting for DCDM standard and color
temperature 6 300 K at the default
setting of the PICTURE menu items.
NOTE:
It may take for a while until the selected mode is
stabilized.
Darker
Setting range: -32 to +32
When PC is connected, this function is available with
1 125 (1 080)/60i, 1 125 (1 080)/50i,
1 125 (1 080)/60p and 1 125 (1 080)/50p signals
only.
TINT
You can adjust the skin tone in the projected image.
More
reddish
More
greenish
Setting range: -32 to +32
When PC is connected, this function is available with
1 125 (1 080)/60i, 1 125 (1 080)/50i,
1 125 (1 080)/60p and 1 125 (1 080)/50p signals
only.
SHARPNESS
You can adjust the sharpness of the projected image.
Less
sharp
More
sharp
Setting range will vary according to the selected
input signal
CONTRAST
You can adjust the contrast of the projected image.
Adjust the BRIGHTNESS in advance if necessary.
Lower
Lighter
Settings
See “Navigating through
the MENU” on page 28.
Higher
Setting range: -64 to +64
BRIGHTNESS
COLOR TEMPERATURE
You can adjust the white balance of the projected
image.
Less
bluish
Less
reddish
Setting range: -6 to +6
You can adjust the brightness of the projected image.
Darker
Brighter
Setting range: -32 to +32
ENGLISH - 31
PT-AE1000U.book
Page 32
Monday, October 16, 2006
1:40 PM
PICTURE Menu
DYNAMIC IRIS
ADVANCED MENU
You can switch automatic adjustment of the lamp and
the lens iris on/off.
• ON:
Automatic adjustment
• OFF:
No adjustment
WAVEFORM MONITOR
You can monitor whether or not the luminance level of
the input signal is in the recommended range by
displaying it in the waveform monitor. If the waveform is
not in the range, adjust it for the best quality. See
“Adjusting the waveform of the input signal” on page 24.
From the ADVANCED MENU, you can perform more
detailed image adjustment manually.
J GAMMA
You can adjust linear intensity at 3 levels. Press
I H to increase/decrease 1 point.
Levels
Default setting
GAMMA HIGH
0
GAMMA MID
0
GAMMA LOW
0
Setting range: -8 to +8
OFF
J CONTRAST
FULL SCAN(Y)
You can adjust the amount of contrast in RGB
colors individually. Press I H to
increase/decrease 1 point.
FULL SCAN(R)
FULL SCAN(G)
FULL SCAN(B)
SINGLE LINE SCAN(Y)
RGB
Default setting
CONTRAST R
0
CONTRAST G
0
CONTRAST B
0
SINGLE LINE SCAN(R)
SINGLE LINE SCAN(G)
SINGLE LINE SCAN(B)
MONITOR POSITION
UPPER LEFT
1. Press F G to move to the required waveform
style.
Settings
2. Press ENTER to select.
The WAVEFORM MONITOR will be
displayed.
3. Adjust the WAVEFORM MONITOR.
See “Adjusting the waveform of the input
signal” on page 24.
Setting range: -32 to +32
J BRIGHTNESS
You can adjust the brightness in RGB colors
individually. Press I H to increase/decrease
1 point.
RGB
Default setting
BRIGHTNESS R
0
BRIGHTNESS G
0
BRIGHTNESS B
0
Setting range: -16 to +16
J COLOR MANAGEMENT
You can manage your own defined color settings.
See “Setting your own color profile” on page 26.
J NR (Noise Reduction)
You can switch the automatic noise reduction
system on/off. Press I H to select the required
setting.
• ON:
Automatic noise reduction
• OFF:
No noise reduction
NOTE:
Applying noise reduction may affect image quality.
32 - ENGLISH
PT-AE1000U.book
Page 33
Monday, October 16, 2006
1:40 PM
PICTURE Menu
J MPEG NR
You can switch the automatic noise reduction
system for MPEG format images on/off. The
system minimizes block noise and mosquito noise
to eliminate jagged edges, providing an overall
smoother image. Press I H to select the required
setting.
• ON:
Active
• OFF:
Deactive
NOTE:
MPEG NR is for MPEG images only.
MPEG NR is not available with PC and HDMI
(VGA60) signals.
J CINEMA REALITY
1. Adjust the different items of the PICTURE menu.
2. Select MEMORY SAVE and press ENTER.
3. Select MEMORY1 - 5 to save and press ENTER.
The confirmation screen is displayed.
: In use
: Not in use
Select ALL DELETE to clear all the saved
settings.
J TV-SYSTEM
When the video signal is changed, the setting switches
automatically.
You can switch the setting manually to match the video
data. Press I H to cycle through the options.
NTSC
SECAM
NTSC 4.43
PAL-N
PAL
To cancel, select CANCEL and press ENTER,
or press the RETURN button.
VIDEO, S-VIDEO, COMPONENT,
HDMI (not including VGA60),
1 125 (1 080)/50i, 1 125 (1 080)/60i,
1 125 (1 080)/50p and
1 125 (1 080)/60p signals in PC
connection
MEMORY1 - 5
VGA60 in HDMI connection, PC not
including 1 125 (1 080)/50i,
MEMORY1 - 5
1 125 (1 080)/60i, 1 125 (1 080)/50p
and 1 125 (1 080)/60p
MEMORY LOAD
You can access saved settings instantly. See “Loading
a saved setting” on page 25.
Settings
NOTE:
CINEMA REALITY is available with interlace
signals only.
If the CINEMA REALITY is different from the
required setting of the image, select OFF.
PAL-M
You can save the adjusted PICTURE settings with up to
5 in each of 2 signal groups.
4. Select OK and press ENTER.
You can switch the automatic image synchronizer
on/off for 24 frames a second images, such as
movies. Press I H to select the required setting.
• ON:
Active
• OFF:
Deactive
AUTO
MEMORY SAVE
1. Select the required setting from MEMORY1 - 5.
Undefined setting will not be displayed.
2. Press ENTER to activate the selected setting.
NOTE:
If you have not saved any settings, MEMORY1 - 5
will not be displayed.
SIGNAL MODE
The current selected signal is displayed when
PC/COMPONENT/HDMI equipment is connected.
NOTE:
See “List of compatible signals” on page 45.
ENGLISH - 33
PT-AE1000U.book
Page 34
Monday, October 16, 2006
1:40 PM
POSITION Menu
DOT CLOCK
See “Navigating through
the MENU” on page 28.
If you have interference patterns on the projected
image, which is sometimes referred to as moire or
noise, you can minimize it by pressing I H to adjust the
clock frequency.
H - POSITION
You can move the projected image horizontally for fine
adjustment.
Move
left
Move
right
CLOCK PHASE
V - POSITION
You can move the projected image vertically for fine
adjustment.
Move
down
Settings
34 - ENGLISH
NOTE:
If the projecting signal’s dot clock frequency is
higher than 150 MHz, the adjustment may not
make a difference.
Move
up
If you require further adjustment for the same reason as
the DOT CLOCK adjustment, you can fine adjust the
timing of the clock. Press I H to adjust.
NOTE:
If the projecting signal’s dot clock frequency is
higher than 150 MHz, the adjustment may not
make a difference.
CLOCK PHASE is available with PC signals, and
1 125 (1 080)/50i, 1 125 (1 080)/60i,
1 125 (1 080)/50p, 1 125 (1 080)/60p,
1 125 (1 080)/24p, 750 (720)/50p and
750 (720)/60p signals of COMPONENT
connection.
PT-AE1000U.book
Page 35
Monday, October 16, 2006
1:40 PM
POSITION Menu
ASPECT
You can switch the aspect ratio manually when needed.
J Aspect ratio options and projection example
If you apply the aspect ratio options to the projected image, the result will be as follows. The result may differ
due to the input signals. See “Switching the aspect ratio” on page 23.
Q VIDEO/S-VIDEO/COMPONENT
Not available with 1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p, 1 125 (1 080)/60p,
1 125 (1 080)/24p, 750 (720)/50p and 750 (720)/60p signals.
4:3
Squeeze
signal
16:9
Letter box
14:9
2.35:1
Letter Box Cinescope
Original size
4:3
Projects at 4:3.
16:9
Adjusts horizontally to 16:9.
Adjusts horizontally to fit 16:9.
Closer to edge, more enlarged.
Not available with PC signals.
Adjusts to 16:9 size with
ZOOM/ preserving original ratio. Escape
ZOOM1 the menu mode and press FG to
adjust vertically.
Adjusts to cinescope size not
including letter box. Escape the
ZOOM2
menu mode and press FG to
adjust vertically.
14:9
Settings
JUST
Adjusts to 14:9.
Q COMPONENT signals
Available with 1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p, 1 125 (1 080)/60p, 1 125 (1 080)/24p,
750 (720)/50p and 750 (720)/60p signals
4:3
16:9
Cinescope
Original Size
H - FIT
Adjusts horizontally to 16:9.
V - FIT
Adjusts to 16:9 vertically. Escape and press F G to
scroll the image to adjust the edge vertically.
ZOOM
Adjusts to 16:9 size with preserving original ratio.
Escape the menu mode and press FG to adjust
vertically.
ENGLISH - 35
PT-AE1000U.book
Page 36
Monday, October 16, 2006
1:40 PM
POSITION Menu
J Aspect ratio depend on signals
Press I H to cycle through the aspect ratio
options. The cycle pattern depends on the
connected signals.
Settings
VIDEO/
S-VIDEO
4:3 \ 16:9 \ 14:9 \ JUST \
ZOOM1 \ ZOOM2
AUTO \ 4:3 \ 16:9 \ JUST \
ZOOM
NTSC signal
PC (RGB)
4:3 \ 16:9
4:3 \ 16:9
VGA or SVGA signals
Not switchable
WIDE480/600/720/768/768-2/800
/900 signals
HDMI
4:3 \ 16:9
16:9 \ H - FIT \ V - FIT \
ZOOM
1 125 (1 080)/50i,
1 125 (1 080)/60i,
1 125 (1 080)/50p,
1 125 (1 080)/60p,
1 125 (1 080)/24p, 750 (720)/50p
and 750 (720)/60p signals
4:3 \ 16:9 \ JUST \ ZOOM
525p (480p) and 625p (576p)
signals
COMPONENT
(YPBPR)
4:3 \ 16:9 \ 14:9 \ JUST \
ZOOM1 \ ZOOM2
625i (576i), 625p (576p)
AUTO \ 4:3 \ 16:9 \ JUST \
ZOOM
525i (480i), 525p (480p)
16:9 \ H - FIT \ V - FIT
1 125 (1 080)/50i,
1 125 (1 080)/60i,
1 125 (1 080)/50p,
1 125 (1 080)/60p,
1 125 (1 080)/24p, 750 (720)/50p,
750 (720)/60p signals
WSS
WSS (Wide Screen Signalling) detects if a
PAL/625p (576p)/625i (576i) signal is input and that
signal has an identification signal, and switch the aspect
ratio to required setting automatically. You can switch
the system off manually.
36 - ENGLISH
OVER SCAN
If the 4 edges of an image is partly dropped, you can use
this function to adjust and project it properly.
Shrink
Enlarge
Setting range: 0 to +10
OVER SCAN is not available with PC signals.
KEYSTONE
If the projector is aligned non-perpendicularly to the
screen, or if the projection screen has an angled
surface, you can vertically correct keystone.
Operation
Setting range: -32 to 32
NOTE:
You can correct the distortion ± 30 degrees from
the vertical plane. For a better quality image,
installing the projector with a minimum of
distortion is recommended.
Some distortion may be retained for Lens shift
adjustment.
The distortion of the Main menu screen is not
correctable.
The result of the keystone correction will affect the
aspect ratio and the size of the image.
AUTO SETUP
You can adjust V - POSITION, H - POSITION, DOT
CLOCK and CLOCK PHASE automatically when
connecting via PC. Press ENTER to adjust these at the
same time.
PT-AE1000U.book
Page 37
Monday, October 16, 2006
1:40 PM
LENS CONTROL Menu
ZOOM/FOCUS
You can use the 2 different test patterns to adjust the focus and zoom of the image. See “Lens shift and positioning”
on page 16.
1. Press ENTER to display test pattern 1.
Press F G to adjust the focus and I H to adjust the zoom.
RETURN
ENTER
FOCUS
ZOOM
2. Press ENTER to display test pattern 2.
Press F G to adjust the focus and I H to adjust the zoom.
RETURN
ENTER
FOCUS
ZOOM
3. Press ENTER to display the projected image.
You can confirm the adjustment is fit to the projected image.
NOTE:
When the projector and/or the screen is tilted, adjust the focus at the center of the image. The upper and
lower edge might be out of focus.
When the image is distorted in keystone, adjust the KEYSTONE in POSITION menu.
Settings
4. Press MENU or RETURN to return to the previous menu, or press repeatedly to escape the menu mode.
ENGLISH - 37
PT-AE1000U.book
Page 38
Monday, October 16, 2006
1:40 PM
OPTION Menu
OSD POSITION
You can change the position where to display the menu.
Press I H to cycle through the options.
See “Navigating through
the MENU” on page 28.
UPPER
LEFT
INPUT GUIDE
OFF
SIMPLE
DETAILED
Function
Turn off the guidance.
Display the input method by text.
The INPUT GUIDE will go out after
5 seconds without any operation.
Display the input method by
graphic.
The INPUT GUIDE will go out after
10 seconds without any operation.
Settings
OSD DESIGN
You can change the background color of the menu.
Press I H to cycle through the options.
Options
UPPER
RIGHT
CENTER
When you press INPUT or the INPUT SELECT button
to change the input method, the guidance appears in the
upper right corner of the screen. The following display
methods are available. Press I H to cycle through the
options.
Options
UPPER
CENTER
Function
TYPE1
Semi transparent black
TYPE2
Solid blue
TYPE3
Semi transparent dark blue
LOWER
LEFT
LOWER
CENTER
LOWER
RIGHT
BACK COLOR
You can choose a BLUE or BLACK screen for when the
projector is idle. Press I H to select an option.
STARTUP LOGO
You can switch the logo on/off that is displayed when
starting up the projector. Press I H to select an option.
• ON:
Active
• OFF:
Deactive
AUTO SEARCH
When the projector is turned on, the input terminals are
detected and an input signal is selected automatically.
You can switch the system on/off. Press I H to select
an option.
• ON:
Active
• OFF:
Deactive
NOTE:
When no signal is detected, the last used input
will be selected.
HDMI SIGNAL LEVEL
When an HDMI is selected, you can switch the HDMI
signal level NORMAL or EXPAND to display the image.
Press I H to select an option.
NOTE:
HDMI SIGNAL LEVEL is not available with some
equipments.
38 - ENGLISH
PT-AE1000U.book
Page 39
Monday, October 16, 2006
1:40 PM
OPTION Menu
LAMP RUNTIME
When installing the projector, select the projection
method according to the projector position. Press I H
to cycle through the options. See “Projection method”
on page 15.
FRONT/DESK
Setting on a desk/floor and
projecting from front
FRONT/CEILING
Mounting in the ceiling and
projecting from front
REAR/DESK
Setting on a desk/floor and
projecting from rear
REAR/CEILING
Mounting in the ceiling and
projecting from rear
You can check how long the lamp has been used.
NOTE:
LAMP RUNTIME is a relevant matter for lamp
replacement timing. See “Care and Replacement”
on page 41.
FUNCTION BUTTON
You can assign frequently used functions to each
function button and access the functions instantly.
FUNCTION BUTTON
SLEEP
You can select the required duration of time and set the
off timer to turn off the POWER of the projector
automatically. 3 minutes before turn-off, the countdown
of minutes will be displayed in the lower right corner.
Press I H to cycle through the options. See “Switching
off the projector automatically” on page 25.
ALTITUDE
If you use the projector at high elevations, set the fan
speed to HIGH. Press I H to select HIGH or LOW.
NOTE:
At 1 400 m (4593 ft) above sea level, the setting
must be HIGH.
LAMP POWER
You can adjust the power of the lamp to save on
electricity, prolong the lamp life and reduce the noise.
Options
NORMAL
ECO - MODE
Function
When higher luminance is
required such as movies
When lower luminance is
sufficient such as in a small room
NOTE:
When no input signal is detected, the function is
disabled.
FUNCTION BUTTON1
OFF
FUNCTION BUTTON2
OFF
FUNCTION BUTTON3
OFF
1. Press F G to select the required button to assign.
2. Press ENTER.
3. Press I H to select the required function to
assign.
4. Press RETURN or MENU to return to the previous
menu, or press repeatedly to return to the
projection.
DISABLED
SHUTTER
HDMI2 IN
AUTO SETUP
HDMI1 IN
VIDEO IN
PC IN
S-VIDEO IN
COMPONENT2 IN
COMPONENT1 IN
Settings
INSTALLATION
Q SHUTTER function
You can turn off the lamp and stop the projection
temporary for electrical power save. Press any
button except the LIGHT, DEVICE or Learning
Remote control buttons to return to the
projection.
NOTE:
See “Selecting the input signal” on page 21,
“AUTO SETUP” on page 36.
The function buttons are also used as Learning
Remote control buttons. Press the DEVICE button
to switch the control mode. See “Remote Control
Operating Guide” provided with the projector.
ENGLISH - 39
PT-AE1000U.book
Page 40
Monday, October 16, 2006
1:40 PM
TEMP and LAMP Indicators
Controlling alerts
If a problem should occur with the projector, the TEMP and/or LAMP indicators will alert you. Respond to the alert
as follows.
1. Confirm the POWER indicator status and turn off the projector in the proper way.
2. Find out the cause of the problem.
3. Follow the instructions for each indication below and solve the problem.
4. Turn on the projector in the correct way and confirm the indicator is not indicating a problem any longer.
NOTE:
If no problem is found or the problem remains, do not turn on the projector. Instead contact an Authorized
Service Center.
LAMP indicator
TEMP indicator
J TEMP indicator
Indicator and
projector
Problem
Cause
Remedy
Illuminating RED and still projecting
Flashing RED and POWER is turned off
The temperature inside and/or outside the projector is abnormally high.
The Air filter is excessively
dirty and the ventilation is
poor.
Maintenance
The ventilation ports are
covered.
The room temperature is too
high.
Remove the object(s) from
the ventilation ports or clear
around the projector.
Clean or replace the Air filter
Reinstall the projector at a
in the proper way. See
temperature controlled place.
“Cleaning the Air filter” on
See “Setting up” on page 14.
page 41.
J LAMP indicator
Indicator
Problem
Cause
Remedy
40 - ENGLISH
Illuminating RED
Flashing RED
LAMP RUNTIME has reached 1 800 hours
(with LAMP POWER set to NORMAL).
LAMP circuit failure, abnormal function or
LAMP is damaged.
Lamp unit will run out soon and needs to be
replaced.
The projector is switched off incorrectly.
Replace the Lamp unit. See “Before
replacing the Lamp unit” on page 42.
Let the LAMP cool down and turn on the
projector.
If the POWER does not turn on, contact an
Authorized Service Center.
PT-AE1000U.book
Page 41
Monday, October 16, 2006
1:40 PM
Care and Replacement
Before cleaning
Ensure the projector is switched off.
Unplug all the cables from the projector.
Cleaning your projector
J Cleaning the outer surface of the projector
Wipe off dirt and dust gently with a soft cloth.
If it is difficult to remove the dirt, soak a cloth in a neutral detergent diluted with water, wring the cloth well
and then wipe the projector. Dry off the projector with dry cloth.
If you use a chemical treated wipe, follow the instructions supplied with it.
J Cleaning the lens surface
Wipe off dirt and dust gently with a lint-free cloth.
Make sure no dirt or dust remains on the surface of the lens. It will be enlarged and projected onto a
screen.
J Cleaning the Air filter
If the Air filter is excessively dirty, the internal temperature of the projector increases and may cause
malfunction. Clean the Air filter regularly every 100 hours of usage.
1. Place a finger at the bottom of the Air filter.
2. Slightly push up and pull out the Air filter to remove.
Push up here
3. Vacuum dirt and dust from the Air filter.
Maintenance
Do not wash the Air filter.
4. Place and slightly slide in the Air filter in the Air intake port to attach.
Make sure the Air filter clicks into the place.
NOTE:
Do not use the projector without attaching the Air filter.
J Replacing the Air filter
The Air filter should be replaced when cleaning is ineffective and when replacing the Lamp unit. An
replacement Air filter is provided with a replacement lamp unit, ET-LAE1000. Contact an Authorized Service
Center for the optional Air filter.
ENGLISH - 41
PT-AE1000U.book
Page 42
Monday, October 16, 2006
1:40 PM
Care and Replacement
Before replacing the Lamp unit
Ensure the projector is switched off.
Unplug all the cables from the projector.
Prepare a Phillips-head screwdriver.
Contact an Authorized Service Center to purchase a replacement Lamp unit (ET-LAE1000).
NOTE:
Prior to replacing the lamp unit, allow it to cool down to prevent the risk of burns, damage and other hazards.
Do not attempt replacement with an unauthorized lamp unit.
When to replace the Lamp unit
The Lamp unit is consumable and the brightness decreases by duration of usage. The LAMP indicator will alert
you of the replacement timing at 1 800 hours, and at 2 000 hours, the projector will be turned off. 1 800 or
2 000 hours is a rough guidance and might be shortened by the usage conditions, characteristics of the lamp unit,
environmental conditions, and so on. You can check the duration of usage time using LAMP RUNTIME in the
OPTION menu.
On screen
Indication
LAMP indicator
REPLACE LAMP
Over 1 800 hours
"REPLACE LAMP" is displayed on the upper left of the
screen for 30 seconds.
To clear the screen immediately, press any button.
Over 2 000 hours
"REPLACE LAMP" is displayed on the upper left of the
screen, and until you respond it will stay.
To clear the screen, press any button.
Illuminates RED
Maintenance
NOTE:
The guide times, 1 800 and 2 000 hours, are rough estimates based on certain conditions and is not a
guaranteed time. The estimated condition is: LAMP POWER in OPTION menu set to NORMAL.
To prolong the lamp life, set the LAMP POWER in OPTION menu to ECO - MODE. See “LAMP POWER” on
page 39.
For more information about the Lamp unit, such as guaranteed time, see the “Replacement Instructions”
provided with the Lamp unit.
Replacing the lamp unit
J Opening the top cover
1. Turn off the MAIN POWER switch according to the procedure
“Switching the projector on/off” on page 19 and disconnect the
power cord plug from the wall outlet.
Make sure the Lamp unit and the surroundings are cooled
enough.
2. Open the top cover of the projector and remove aside.
Hold the top cover up and press one of the buttons of the
hinge parts each to remove.
Press here
Press here
42 - ENGLISH
PT-AE1000U.book
Page 43
Monday, October 16, 2006
1:40 PM
Care and Replacement
J Removing and replacing the lamp unit
1. Use a Phillips screw driver to loosen the 3 lamp unit fixing
screws until the screws turn freely.
Lamp unit
fixing screws
2. Hold the handle of the lamp unit and release the lamp unit
lock.
3. Pull out the lamp unit gently from the projector.
Lamp unit lock
4. Replace the new lamp unit while making sure that the
direction of insertion is correct.
Press the top of the lamp unit and make sure the unit is
installed securely.
Press here
Press here
5. Tighten the lamp unit fixing screws securely with a Phillips
screwdriver.
J Attaching the top cover
1. Attach the hinge parts of the top cover to the projector and press slightly
until it clicks.
2. Hook the tabs of the top cover to the projector and lift down slowly.
NOTE:
Be sure to install the lamp unit and the top cover of the projector securely. If they
are not securely installed, it may cause the protection circuit to operate so that the
power cannot be turned on.
Grip the handle and keep the lamp unit paralleled when you remove the Lamp unit.
Some parts of the lamp unit are sharpened and may cause injury.
Do not switch the power on while the top cover is opened.
When the projector is mounted in the ceiling, keep the lamp unit paralleled and
remove.
J Resetting the LAMP RUNTIME
If the lamp usage time has passed 2 000 hours (when LAMP POWER has been set to NORMAL), the projector will
switch to standby mode after approximately 10 minutes of operation. The resetting procedure should thus be
completed within 10 minutes. See “LAMP RUNTIME” on page 39.
1.
Connect the Power cord to the projector and a
wall socket, and switch the MAIN POWER on.
6.
Press and hold the ENTER button for
approximately 3 seconds.
2.
Switch the POWER button.
7.
3.
Press the MENU button to display the menu.
The confirmation screen will be displayed and
select OK.
4.
Press F G to select OPTION and press ENTER.
8.
5.
Press F G to select LAMP RUNTIME.
Switch off the POWER to reset the duration of the
LAMP RUNTIME.
9.
Confirm the duration of time in LAMP RUNTIME is
reset to “0”.
SLEEP
OFF
ALTITUDE
LOW
LAMP POWER
LAMP RUNTIME
Maintenance
3. Press the back corner of the top cover gently until it clicks.
NORMAL
1820H
FUNCTION BUTTON
ENGLISH - 43
PT-AE1000U.book
Page 44
Monday, October 16, 2006
1:40 PM
Troubleshooting
Should any problem persist, contact your dealer.
Problem
Cause
Power does not turn on.
The power cord may not be connected.
The MAIN POWER switch is turned off.
No electric supply is at the wall outlet.
TEMP indicator is lit or flashes.
LAMP indicator is lit or flashes.
The lamp unit cover has not been securely installed.
No picture appears.
The video signal input source may not be connected to a
terminal properly.
The input selection setting may not be correct.
The BRIGHTNESS adjustment setting may be at the
minimum setting.
The SHUTTER function may be in use.
The picture is fuzzy.
The lens cover may still be attached to the lens.
The lens focus may not have been set correctly.
The projector may not be at the correct distance from the
screen.
The lens may be dirty.
The projector may be tilted too much.
Reference
page
19
20
19
40
40
42
18
21
31
46
12
16
14
41
15
The color is pale or greyish.
COLOR or TINT adjustment may be incorrect.
The input source which is connected to the projector may not
be adjusted correctly.
31
21
The Remote control does
not operate.
The batteries may be weak.
The batteries may not have been inserted correctly.
The remote control signal receptor on the projector may be
obstructed.
The remote control unit may be out of the operation range.
11
22
The picture does not
display correctly.
The signal format (TV-SYSTEM) may not have been set
correctly.
There may be a problem with the VCR or other signal source.
A signal which is not compatible with the projector is being
input.
Maintenance
Picture from a computer
does not appear.
44 - ENGLISH
The cable may be too long.
The external video output from a laptop computer may not be
correct.
(You may be able to change the external output settings by
pressing the [Fn] + [F3] or [Fn] + [F10] keys simultaneously.
The actual method varies depending on the type of computer;
refer to the documentation provided with your computer for
further details.)
33
45
-
PT-AE1000U.book
Page 45
Monday, October 16, 2006
1:40 PM
Technical Information
Mode
NTSC/NTSC 4.43/
PAL-M/PAL60
PAL/PAL-N/SECAM
525i (480i)
625i (576i)
525p (480p)
625p (576p)
1 125 (1 080)/60i
1 125 (1 080)/50i
1 125 (1 080)/24p
1 125 (1 080)/60p
1 125 (1 080)/50p
750 (720)/60p
750 (720)/50p
VGA480
WIDE480
SVGA
WIDE600
WIDE720
XGA
WIDE768
MXGA
SXGA
SXGA60+
WIDE768-2
WIDE800
WIDE900
Display
resolution
(dots)*1
Scanning
frequency
H
(kHz)
V
(kHz)
720 x 480i
15.7
59.9
720 x 576i
720 x 480i
720 x 576i
720 x 483
720 x 576
1 920 x 1 080i
1 920 x 1 080i
1 920 x 1 080
1 920 x 1 080
1 920 x 1 080
1 280 x 720
1 280 x 720
640 x 480
640 x 480
640 x 480
640 x 480
856 x 480
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
1 072 x 600
1 280 x 720
1 024 x 768
1 024 x 768
1 024 x 768
1 024 x 768
1 024 x 768
1 280 x 768
1 152 x 864
1 152 x 864
1 280 x 1024
1 400 x 1 050
1 360 x 768
1 280 x 800
1 440 x 900
15.6
15.7
15.6
31.5
31.3
33.8
28.1
27.0
67.5
56.3
45.0
37.5
31.5
37.5
43.3
72.1
30.1
35.2
37.9
48.1
46.9
53.7
37.2
45.1
48.4
58.5
60.0
68.7
72.1
45.3
64.0
67.5
64.0
65.1
48.8
49.7
55.9
50.0
59.9
50.0
59.9
50.0
60.0
50.0
24.0
60.0
50.0
60.0
50.0
59.9
75.0
85.0
138.0
60.1
56.3
60.3
72.2
75.0
85.1
59.9
60.1
60.0
70.1
75.0
85.0
89.0
56.5
71.2
74.9
60.0
59.9
59.8
59.8
59.8
Dot clock
frequency
(MHz)
13.5
13.5
27.0
27.0
74.3
74.3
74.3
148.5
148.5
74.3
74.3
25.2
31.5
36.0
62.3
31.5
36.0
40.0
50.0
49.5
56.3
51.4
76.5
65.0
75.0
78.8
94.5
99.2
76.2
94.2
108.0
108.0
122.4
74.3
83.5
106.5
quality*2
Format
A
VIDEO/S-VIDEO
A
A
A
A
A
AA
AA
AA
AA
AA
AA
AA
A
A
A
A
A
A
A
A
A
A
A
AA
A
A
A
A
A
A
A
A
A
A
A
A
A
VIDEO/S-VIDEO
COMPONENT
COMPONENT
COMPONENT/HDMI
COMPONENT/HDMI
COMPONENT/PC/HDMI
COMPONENT/PC/HDMI
COMPONENT/HDMI
COMPONENT/PC/HDMI
COMPONENT/PC/HDMI
COMPONENT/HDMI
COMPONENT/HDMI
PC/HDMI
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
*1. The “i” appearing after the resolution indicates an interlaced signal.
*2. The following symbols are used to indicate picture quality.
AA Maximum picture quality can be obtained.
A
Signals are converted by the image processing circuit before picture is projected.
Appendix
List of compatible signals
ENGLISH - 45
PT-AE1000U.book
Page 46
Monday, October 16, 2006
1:40 PM
Technical Information
Serial terminal
The serial connector which is on the connector panel of the projector conforms to the RS-232C interface
specification, so that the projector can be controlled by a personal computer which is connected to this connecter.
J Connection
D-sub 9 pin (male)
Serial terminal
(male)
PC
NOTE:
You must use only an RS-232C Serial Interface Cable with a ferrite core, type ET-ADSER.
J Pin assignments and signal names
Pin No.
A
B
C
D
E
F
G
H
I
Signal name
Contents
NC
TXD
Transmitted data
RXD
Received data
NC
GND
Earth
NC
RTS
CTS
Connected internally
NC
J Communication settings
Signal level
Sync. method
Baud rate
Parity
Appendix
46 - ENGLISH
RS-232C
Character length
8 bits
Stop bit
1 bit
9 600 bps
X parameter
None
None
S parameter
None
Asynchronous
PT-AE1000U.book
Page 47
Monday, October 16, 2006
1:40 PM
Technical Information
J Control commands
Command
Control contents
PON
Power ON
POF
Power OFF
Remarks
In standby mode, all commands other than the PON command are
ignored.
The PON command is ignored during lamp ON control.
If a PON command is received while the cooling fan is operating after
the lamp has switched off, the lamp is not turned back on again straight
away in order to protect the lamp.
SVD = S-VIDEO IN
Parameter: (page 23)
HD1 = HDMI1 IN
VID = VIDEO IN
HD2 = HDMI2 IN
RG1 = PC IN
CP2 = COMPONENT2 IN
CP2 = COMPONENT1 IN
IIS
INPUT
OMN
MAIN
Displaying Main menu
OEN
ENTER
Activating the selected items in menu mode.
OBK
RETURN
Returning to the previous menu or escaping from the menu mode.
OCU/OCD/
OCL/OCR
Navigation buttons
OCU = F button
OCD = G button
OLE
LENS CONTROL
Activating the LENS CONTROL menu.
OST
DEFAULT
Resetting to the factory default setting. (page 22)
OFZ
FREEZE
OOT
SLEEP
OSH
SHUTTER
OVM
OWM
WAVEFORM
VPM
Freezing the projected screen.
Parameter:
0 = OFF
1 = ON
Setting the duration of time to turn off the power automatically.
0 = OFF
1 = 60 min.
2 = 90 min.
3 = 120 min. 4 = 150 min.
5 = 180 min. 6 = 210 min. 7 = 240 min. (page 25)
Turning off the projection temporarily.
Send the command to switch between ON and OFF.
Do not send the command consecutively.
Activating the PICTURE menu. Send the command to switch menu items.
(page 28)
Activating the WAVEFORM.
(page 24)
Parameter:
0 = OFF
5 = SINGLE LINE SCAN (Y)
1 = FULL SCAN (Y)
6 = SINGLE LINE SCAN (R)
2 = FULL SCAN (R)
7 = SINGLE LINE SCAN (G)
3 = FULL SCAN (G)
8 = SINGLE LINE SCAN (B)
4 = FULL SCAN (B)
ASPECT
Switch the aspect ratio. (page 23)
PICTURE MODE
Parameter: (page 25)
NAT=COLOR1
DYN=DYNAMIC
CN2=CINEMA2
VID=COLOR2
NOR=NORMAL
CN1=CINEMA1
CN3=CINEMA3
Appendix
VS1
OCL = I button
OCR = H button
ENGLISH - 47
PT-AE1000U.book
Page 48
Monday, October 16, 2006
1:40 PM
Technical Information
J Inquiry commands
Command
Control contents
Parameter
QPW
Power status
000 = OFF
001 = ON
QFZ
FREEZE status
0 = OFF
1 = ON
SVD = S-VIDEO IN
Parameter: (page 23)
HD1 = HDMI1 IN
VID = VIDEO IN
HD2 = HDMI2 IN
RG1 = PC IN
CP2 = COMPONENT2 IN
CP1 = COMPONENT1 IN
0 = OFF
1 = 60 min.
2 = 90 min.
3 = 120 min. 4 = 150 min.
5 = 180 min. 6 = 210 min. 7 = 240 min. (page 25)
Parameter: (page 25)
NOR = NORMAL
NAT = COLOR1
CN1 = CINEMA1
DYN = DYNAMIC
CN3 = CINEMA3
CN2 = CINEMA2
VID = COLOR2
QIN
Input signal status
QOT
SLEEP status
QPM
PICTURE MODE
status
QSH
SHUTTER status
0 = OFF
1 = ON
WAVEFORM status
Parameter: (page 24)
0 = OFF
1 = FULL SCAN (Y)
2 = FULL SCAN (R)
3 = FULL SCAN (G)
4 = FULL SCAN (B)
5 = SINGLE LINE SCAN (Y)
6 = SINGLE LINE SCAN (R)
7 = SINGLE LINE SCAN (G)
8 = SINGLE LINE SCAN (B)
QWM
J Basic format
STX
Command
Start byte
(02h)
3 bytes
:
1 byte
Parameter
1 byte 4 bytes
ETX
End
(03h)
The data streaming from the computer will
start with STX, and proceed to Command,
Parameter and end with ETX. You can
add the required parameter.
The projector can not receive any command for 10 seconds after the lamp is switched on. Wait 10 seconds
before sending the command.
If sending multiple commands, check that a response has been received from the projector for one command
before sending the next command.
When a command which does not require parameters to be sent, the colon (:) is not required.
If an incorrect command is sent from the personal computer, the ER401 command will be sent from the
projector to the personal computer.
J Cable specifications
(When connected to a a personal computer)
NC
NC
NC
NC
Projector
Appendix
48 - ENGLISH
PC (DTE)
NC
NC
NC
NC
PT-AE1000U.book
Page 49
Monday, October 16, 2006
1:40 PM
Technical Information
Menu structure
PICTURE Menu ....................... 31 H
PICTURE MODE ................... 31 H
CONTRAST........................... 31 H
BRIGHTNESS ....................... 31 H
COLOR.................................. 31 H
TINT....................................... 31 H
SHARPNESS ........................ 31 H
COLOR TEMPERATURE...... 31 H
DYNAMIC IRIS ...................... 32 H
WAVEFORM MONITOR ....... 32 H
ADVANCED MENU ............... 32 H
MEMORY SAVE.................... 33 H
MEMORY LOAD.................... 33 H
SIGNAL MODE...................... 33 H
NORMAL
DYNAMIC
CINEMA1
CINEMA2
CINEMA3
COLOR1
COLOR2
POSITION Menu ...................... 34 H
H - POSITION........................ 34 H
V - POSITION........................ 34 H
DOT CLOCK.......................... 34 H
CLOCK PHASE ..................... 34 H
ASPECT ................................ 35 H
WSS ...................................... 36 H
OVER SCAN ......................... 36 H
KEYSTONE ........................... 36 H
AUTO SETUP........................ 36 H
LENS CONTROL Menu ........... 37 H
4:3
16:9
JUST
ZOOM/ZOOM1
ZOOM2
14:9
H - FIT
V - FIT
FULL SCAN(Y)
FULL SCAN(R)
FULL SCAN(G)
FULL SCAN(B)
SINGLE LINE SCAN(Y)
SINGLE LINE SCAN(R)
SINGLE LINE SCAN(G)
SINGLE LINE SCAN(B)
GAMMA
CONTRAST
BRIGHTNESS
COLOR MANAGEMENT
NR (Noise Reduction)
MPEG NR
CINEMA REALITY
TV-SYSTEM
ZOOM/FOCUS ...................... 37 H
INPUT GUIDE ....................... 38 H
OSD DESIGN ........................ 38 H
OSD POSITION..................... 38 H
BACK COLOR ....................... 38 H
STARTUP LOGO .................. 38 H
AUTO SEARCH..................... 38 H
HDMI SIGNAL LEVEL ........... 38 H
INSTALLATION ..................... 39 H
SLEEP ................................... 39 H
ALTITUDE ............................. 39 H
LAMP POWER ...................... 39 H
LAMP RUNTIME ................... 39 H
FUNCTION BUTTON ............ 39 H
TYPE1
TYPE2
TYPE3
FRONT/DESK
FRONT/CEILING
REAR/DESK
REAR/CEILING
UPPER LEFT
LOWER LEFT
UPPER CENTER
CENTER
LOWER CENTER
UPPER RIGHT
LOWER RIGHT
Appendix
OPTION Menu ......................... 38 H
Sub-menu items vary according to the selected input signal.
ENGLISH - 49
PT-AE1000U.book
Page 50
Monday, October 16, 2006
1:40 PM
Specifications
Power supply
AC 100 - 240 V 50 Hz/60 Hz
Power consumption
240 W
During standby (when fan is stopped): 0.08 W
Amps
2.8 A - 1.2 A
LCD panel
Panel size (diagonal)
0.74 type (17.78 mm)
Aspect ratio
16 : 9
Display method
3 transparent LCD panels (RGB)
Drive method
Active matrix method
Pixels
2 073 600 (1 980 x 1 080) x 3 panels
Lens
Motorized zoom (2x)/Motorized focus
F 1.9 - 3.2, f 22.4 mm - 44.4 mm
Lamp
UHM lamp (165 W)
Luminosity
1 100 lm
Scanning frequency*1
(for RGB signal)
Horizontal scanning
frequency
30 kHz - 70 kHz
Vertical scanning
frequency
50 Hz - 87 Hz
Dot clock frequency
Less than 150 MHz
COMPONENT (YPBPR) signals
525i (480i), 525p (480p), 625i (576i), 625p (576p),
1 125 (1 080)/24p, 750 (720)/50p, 750 (720)/60p,
1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p,
1 125 (1 080)/60p
Color system
7 (NTSC/NTSC 4.43/PAL/PAL-M/PAL-N/SECAM)
Projection size
1 016 mm - 5 080 mm (40" - 200")
Throw distance
1.2 m - 12 m (3'11" - 39'4")
Screen aspect ratio
16 : 9
Installation
Front/Rear/Ceiling/Desk (Menu selection method)
*1. See “List of compatible signals” on page 45 for available signals.
Appendix
50 - ENGLISH
PT-AE1000U.book
Page 51
Monday, October 16, 2006
1:40 PM
Specifications
S-VIDEO IN
Single - line, Mini DIN 4p
Y: 1.0 V [p-p], C: 0.286 V [p-p], 75 Ω
VIDEO IN
Single - line, RCA pin jack
1.0 V [p-p], 75Ω
RGB
PC IN
Connectors
COMPONENT1 IN
COMPONENT2 IN
R.G.B.
0.7 V [p-p], 75 Ω
G.SYNC
1.0 V [p-p], 75 Ω
HD/SYNC
TTL high impedance, automatic
positive/negative polarity compatible
VD
TTL high impedance, automatic
positive/negative polarity compatible
Y, PB/CB, PR/CR
Y:
1.0 V [p-p] (including sync), 75 Ω
PB/CB, (PR/CR)
0.7 V [p-p], 75 Ω
Double - line, 19-pin HDMI connector
SERIAL
D-sub 9-pin RS-232C compatible
Moulded plastic (PC+ABS)
Dimensions
Width
460 mm (18 -3/32")
Height
130 mm (5 - 3/32")
Length
300 mm (11 - 25/32")
7.2 kg (15.9 lbs.)
Weight
Temperature
0 °C - 40 °C (32 °F - 104 °F)
When the ALTITUDE (page 39) is set
to HIGH: 0 °C - 35 °C (32 °F - 95 °F)
Humidity
20% - 80% (no condensation)
Operating environment
UL60950-1
FCC Class B
Certifications
C-UL
ICES-003
Power supply
3 V DC (AA battery x 2)
Operating range
Approx. 7 m (23') (when operated directly in front of signal
receptor)
Weight
170 g (6 ozs.) (including batteries)
Width
52 mm (2 - 1/32")
Length
200 mm (7 - 27/32")
Height
28.5 mm (1 - 3/32") (not including
surface projection parts)
Ceiling bracket
ET-PKX100
Projection screen
ET-SRW90CC
Cable cover
ET-PCE1000
ET-PKE1000S
Appendix
Dimensions
Options
Double - line, RCA pin jack x 3
HDMI1 IN/HDMI2 IN
Cabinet
Remote control
Single - line, D - sub HD 15-pin
(female)
ENGLISH - 51
PT-AE1000U.book
Page 52
Monday, October 16, 2006
1:40 PM
Dimensions
300 (11-25/32)
Units: mm (inch)
230 (9-1/32)
460 (18-3/32)
Appendix
52 - ENGLISH
130
(5-3/32)
110 (4-5/16)
147
(5-25/32)
60
(2-11/32)
15 (9/16)
PT-AE1000U.book
Page 53
Monday, October 16, 2006
1:40 PM
Trademark acknowledgements
VGA and XGA are trademarks of International Business Machines Corporation.
S-VGA is a registered trademark of the Video Electronics Standards Association.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing LLC.
The font used in the on-screen displays is a Ricoh bitmap font, which is manufactured and sold by Ricoh
Company, Ltd.
All other trademarks are the property of the various trademark owners.
Appendix
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the
correct method of disposal.
These Operating Instructions are printed on recycled paper.
ENGLISH - 53
PT-AE1000U.book
Page 54
Monday, October 16, 2006
1:40 PM
Index
A
Accessories ................................................9
ADVANCED MENU ...................................32
Air filter .....................................................41
ALTITUDE ................................................39
ASPECT ...................................................35
Options ..................................................35
Remote control ........................................23
Remote control button...............................11
Signals ..................................................36
G
H
HDMI SIGNAL LEVEL ............................... 38
I
INPUT
BRIGHTNESS .....................................31, 32
C
INPUT GUIDE ........................................ 38
Remote control ....................................... 23
Remote control button .............................. 11
Selecting signal ....................................... 21
BACK COLOR ...........................................38
Battery
Accessory ................................................9
Compartment ..........................................11
CINEMA REALITY .....................................33
Cleaning ...................................................41
CLOCK PHASE .........................................34
COLOR.....................................................31
COLOR MANAGEMENT ............................32
H- POSITION ............................................ 34
HDMI IN
Connection ............................................ 18
Terminal ................................................ 13
AUTO SEARCH ........................................38
AUTO SETUP ...........................................36
B
GAMMA ................................................... 32
INSTALLATION ........................................ 39
Projection method
K
................................... 15
KEYSTONE .............................................. 36
L
LAMP
Indicator status ................................. 40, 42
LAMP POWER ....................................... 39
LAMP RUNTIME ..................................... 39
Replacing .............................................. 42
Remote control ........................................26
Remote control button...............................11
LCD, Remote control ................................. 11
Learning Remote control buttons ................ 11
LENS CONTROL ...................................... 37
Connection .............................................18
Terminal ................................................13
Lens shift
COLOR TEMPERATURE ...........................31
COMPONENT1 IN
LENS, Remote control button ..................... 11
Horizontal shift ........................................ 16
Image positioning .................................... 21
Lens shift dial/Horizontal ........................... 12
Lens shift dial/Vertical .............................. 12
Positioning ............................................. 16
Vertical shift ........................................... 16
COMPONENT2 IN
Connection .............................................18
Terminal ................................................13
CONTRAST ........................................31, 32
D
DEFAULT
LIGHT
Dimensions ...............................................52
DOT CLOCK .............................................34
DYNAMIC IRIS ..........................................32
LOG
Remote control ....................................... 22
Remote control button .............................. 11
Remote control ........................................22
Remote control button...............................11
E
ENTER
Control panel button .................................12
Remote control button...............................11
F
FREEZE
Appendix
Remote control ........................................22
Remote control button...............................11
Front leg adjuster
Adjusting ................................................15
Image positioning.....................................21
FUNCTION BUTTON
Remote control buttons .............................11
Setting ...................................................39
54 - ENGLISH
Managing .............................................. 27
Saving .................................................. 27
M
MAIN POWER
Control panel button ................................. 12
On/Off ................................................... 19
MEMORY LOAD ....................................... 33
Remote control button .............................. 11
MEMORY SAVE ....................................... 33
MENU
Main menu ............................................. 29
Opening the menu ................................... 28
Remote control button .............................. 11
Menu structure .......................................... 49
MPEG NR................................................. 33
PT-AE1000U.book
Page 55
Monday, October 16, 2006
1:40 PM
Index
N
S
Navigation buttons
Control panel button .................................12
Remote control ........................................11
Basic format ........................................... 48
Cable specifications ................................. 48
Communication settings ............................ 46
Connection ............................................ 46
Control commands .................................. 47
Inquiry commands ................................... 48
Pin assignments...................................... 46
Terminal ................................................ 13
NR (Noise Reduction) ................................32
OPTION....................................................38
OSD DESIGN............................................38
OSD POSITION ........................................38
OVER SCAN .............................................36
P
SHARPNESS............................................ 31
SIGNAL MODE ......................................... 33
SLEEP ..................................................... 39
PC IN
Connection .............................................18
Terminal ................................................13
Remote control ....................................... 25
Remote control button .............................. 11
Operation ...............................................31
PIC. ADJUST, Remote control button ..........11
Remote control ........................................25
Specifications............................................ 50
STARTUP LOGO ...................................... 38
S-VIDEO IN
PICTURE MODE
PIC. MODE, Remote control button .............11
Setting ...................................................31
POSITION ................................................34
POWER
Connecting ............................................ 18
Terminal ................................................ 13
T
Indicator status ........................................19
On/Off ...................................................20
Remote control button ..............................11
Power cord
Accessory ................................................9
Connection .............................................19
V
PROFILE
Create new .............................................26
Loading .................................................27
R
Remote control
Accessory ................................................9
Buttons ..................................................11
Operating range ......................................22
Operation ...............................................22
Signal emitter ..........................................11
RETURN
TEMP indicator ......................................... 40
Throw distance ......................................... 14
Throwing angle ......................................... 15
TINT......................................................... 31
TV-SYSTEM ............................................. 33
V- POSITION ............................................ 34
VIDEO IN
Connecting ............................................ 18
Terminal ................................................ 13
W
WAVEFORM MONITOR ............................ 32
Remote control ....................................... 24
WAVEFORM, Remote control button ........... 11
WSS ........................................................ 36
Z
ZOOM/FOCUS ......................................... 37
Operation ...............................................28
Remote control button ..............................11
Appendix
O
Screen size ............................................... 14
SERIAL
ENGLISH - 55
PT-AE1000U.book
Page 56
Monday, October 16, 2006
1:40 PM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
