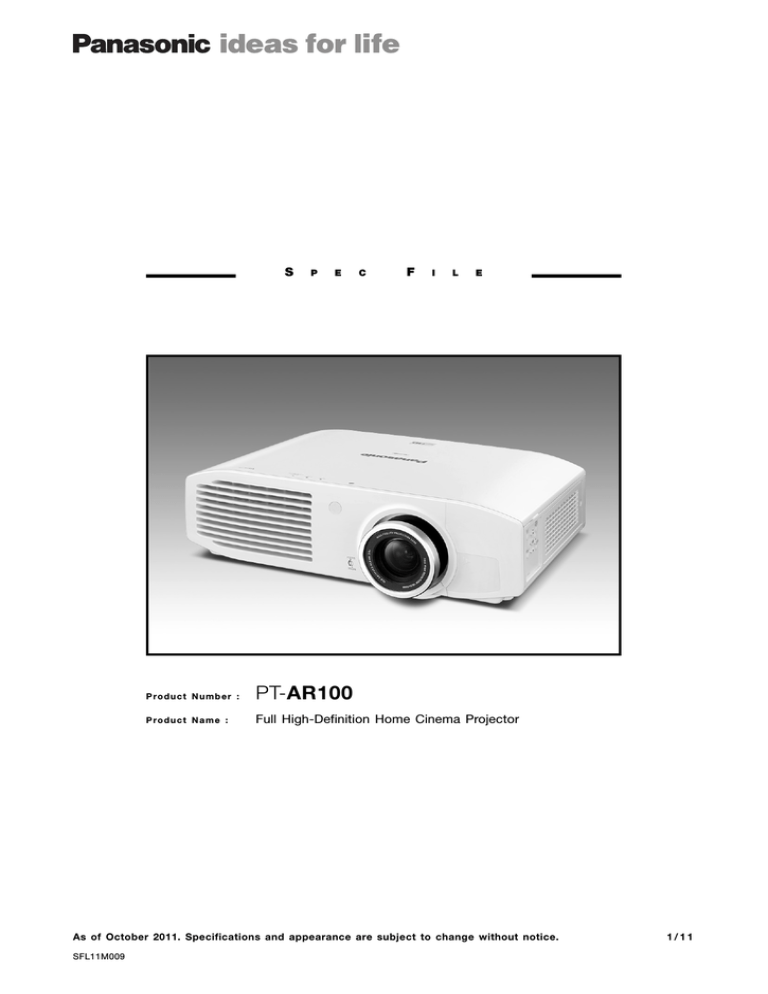

P ro d u c t N u m b e r :
PT-AR100
P ro d u c t N a m e :
Full High-Definition Home Cinema Projector
As of October 2011. Specifications and appearance are subject to change without notice.
SFL11M009
1/11
S
P
E
C
F
I
L
E
Full High-Definition Home Cinema Projector
PT-AR100
Specifications
Main unit
Power supply
Power consumption
LCD* 1 panel
Panel size
Display method
Drive method
Pixels
Lamp* 2
Lens
Projection size
Throw distance
Colors
Brightness* 3
Center-to-corner uniformity ratio* 3
Contrast ratio* 3
Resolution
Scanning frequency
RGB
YPBPR (YCBCR)
Video/S-Video
Optical axis shift* 6
Keystone correction range
Installation
On-screen menu languages
Terminals
HDMI IN
COMPUTER (RGB) IN
RGB signal
100 – 240 V AC, 50/60 Hz
350 W (0.08 W in standby mode)
18.7 mm (0.74 in) diagonal (16:9 aspect ratio)
Transparent LCD panel (× 3, R/G/B)
Active matrix
2,073,600 (1,920 × 1,080) × 3, total of 6,220,800 pixels
280 W UHM lamp
Manual zoom (1.33 – 2.69:1), manual focus lenses,
F 2.0 – 3.4, f 21.5 – 43.0 mm
1.02 –7.62 m (40 – 300 inches)
1.16 –18.08 m (3 ft 11 in to 59 ft 4 in)
Full color (1,073,741,824 colors)
2,800 lumens* 4
85%
50,000:1* 5 (full on/full off)
1,920 × 1,080 pixels
fH: 15 kHz – 74 kHz, fV: 24 Hz – 85 Hz, dot clock: 154 MHz or lower
525i (480i):
fH 15.75 kHz; fV 60 Hz,
625i (576i):
fH 15.63 kHz; fV 50 Hz,
525p (480p):
fH 31.50 kHz; fV 60 Hz,
625p (576p):
fH 31.25 kHz; fV 50 Hz,
750 (720)/60p:
fH 45.00 kHz; fV 60 Hz,
750 (720)/50p:
fH 37.50 kHz; fV 50 Hz,
1125 (1080)/60i: fH 33.75 kHz; fV 60 Hz,
1125 (1080)/50i: fH 28.13 kHz; fV 50 Hz,
1125 (1080)/24p: fH 27.00 kHz; fV 24 Hz,
1125 (1080)/60p: fH 67.50 kHz; fV 60 Hz,
1125 (1080)/50p: fH 56.25 kHz; fV 50 Hz
fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Vertical: ±65%, horizontal: ±26%
Vertical: approx. ±30°
Ceiling/desk, front/rear (menu selection)
English, French, German, Spanish, Italian, Chinese, Korean, Russian,
Swedish, Danish, Norwegian, Polish, Czech, Hungarian, Portuguese,
Thai, Japanese
HDMI connector × 2, HDMI™ (Deep Color, x.v.Color™ * 7 , CEC* 8 ),
HDCP compliant, supports HDAVI Control Version 5
D-sub HD 15-pin (female) × 1
R, G, B: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms,
HD/SYNC, VD: TTL (positive/negative polarity compatible)
NOTE: HD/SYNC, and VD terminals do not accept tri-level sync signals.
YPBPR/YCBCR signal Y: 1.0 Vp-p (including sync signal), PB/PR: 0.7 Vp-p, 75 ohms
COMPONENT IN
RCA pin (Y, PBP/CB, PR/CR) × 3
Y
1.0 Vp-p, 75 ohms,
PB/CB, PR/CR
0.7 Vp-p, 75 ohms
TRIGGER IN / TRIGGER OUT
M3 jack × 2
12 V, max. 100 mA (input/output selectable using on-screen menu)
VIDEO IN
RCA pin × 1, 1.0 Vp-p, 75 ohms
S-VIDEO IN
Mini DIN 4-pin × 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms
SERIAL IN
D-sub 9-pin × 1 for external control (RS-232C compliant)
Power cord length
3.0 m (9 ft 10 in)
Cabinet materials
Molded plastic (PC+ABS)
Dimensions (W × H × D)
470 mm × 151 mm × 380 mm* 9 (18-17/32˝ × 5-15/16˝ × 14-31/32˝ )* 9
10
Weight*
Approx. 8.6 kg (19.0 lbs)
Operation noise* 3
29 dB (lamp power: eco)
Operating temperature
0°– 40°C (32°–104°F)
Operating humidity
20%– 80% (no condensation)
As of October 2011
SFL11M009
2/11
S
P
E
C
F
I
L
E
Full High-Definition Home Cinema Projector
Remote control unit
Power supply
Operation range* 1 1
Dimensions (W × H × D)
Weight
PT-AR100
3 V DC (AA/R6 type battery × 2)
Approx. 7 m (23 ft) when operated from directly in front of the signal
receptor
48 × 138 × 28 mm (1-7/8˝ × 5-7/16˝ × 1-3/32˝ )
Approx. 125 g (4.4 oz) (including batteries)
Supplied accessories
Power cord (× 1) (× 2 for PT-AR100EA)
Wireless remote control unit (× 1)
Batteries for remote control (AA/R6 type × 2)
Lens cover (× 1)
Optional accessories
Replacement lamp unit
Ceiling mount bracket
ET-LAA110
ET-PKA110H (for high ceilings)
ET-PKA110S (for low ceilings)
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
*1
The projector uses a type of liquid crystal panel that typically consists of millions of pixels. This panel is built with very high-precision technology to provide the finest possible image. Occasionally, a few pixels may remain turned on (bright) or turned off (dark). Please note that this
is an intrinsic characteristic of the manufacturing technology that affects all products using LCD technology.
* 2 The projector uses a high-voltage mercury lamp that contains high internal pressure. This lamp may break, emitting a large sound, or fail to
illuminate, due to impact or extended use. The length of time that it takes for the lamp to break or fail to illuminate varies greatly depending
on individual lamp characteristics and usage conditions.
* 3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
* 4 In dynamic mode, with dynamic iris on.
* 5 In cinema 1 mode, with dynamic iris on.
* 6 Shift range is limited during simultaneous horizontal and vertical shifting.
* 7 Effective in Rec. 709 picture mode.
* 8 CEC is an abbreviation for Consumer Electronics Control. Operation may not be possible with some connected equipment or settings.
* 9 With legs at shortest position.
* 10 Average value. May differ depending on models.
* 11 Operation range differs depending on environments.
As of October 2011
SFL11M009
3/11
S
P
E
F
C
I
L
E
PT-AR100
Full High-Definition Home Cinema Projector
380 (14-31/32)
345 (13-19/32)
Dimensions
95
(3-3/4)
(5-15/16)
151
(9/16)
14
137
(5-13/32)
74
(2-15/16)
35 (1-3/8)
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
231 (9-1/8)
470 (18-17/32)
Terminals
1
2
3
9
As of October 2011
SFL11M009
4
5
7
8
1
2
3
4
5
6
7
8
9
HDMI 1 input
HDMI 2 input
Computer input
Component (YP B P R /YC B C R ) input
S-Video input
Video input
Trigger input / Trigger output 1
Trigger input / Trigger output 2
Serial input
6
4/11
S
P
E
C
F
I
L
E
PT-AR100
Full High-Definition Home Cinema Projector
Standard setting-up position
154
(6-1/16)
unit : mm (inch)
Upper edge of projected image
H
L
220
(8-21/32)
H
Projected image
L
Lower edge of projected image
W
65 (2-9/16)
52.5
(2-1/16)
70
(2-3/4)
L
Projected image
NOTE:
Illustrations show the projector installed
using optional ceiling mount bracket
ET-PKA110S.
This illustration is not drawn to scale.
Caution:
• All construction work should be done by a qualified technician.
• When mounting to the ceiling, use the special mounting bracket. To prevent the projector from swaying or dropping, attach the wire that is included with the projector between the mounting bracket and the ceiling.
Projection distance for 16:9 aspect ratio screen
Projection size (16:9)
Projection distance (L)
Diagonal length
Min (Wide)
1.0 2 m / 4 0 ˝
1. 2 7 m / 5 0 ˝
1.52 m / 6 0 ˝
1.11 m /
1.41 m /
1.70 m /
3´8 ˝
4´8 ˝
5´ 7 ˝
1.78
2.0 3
2. 2 9
2.5 4
3.0 5
m
m
m
m
m
/
/
/
/
/
70 ˝
80˝
90˝
10 0 ˝
12 0 ˝
1.9 9
2. 28
2.57
2.87
3.4 5
m
m
m
m
m
/ 6´6 ˝
/ 7 ´6 ˝
/ 8´5 ˝
/ 9´5 ˝
/ 11´4 ˝
3.81
5.0 8
6.3 5
7.6 2
m
m
m
m
/ 15 0 ˝
/ 200 ˝
/ 250 ˝
/ 300˝
4.3 3
5.79
7. 25
8.71
m
m
m
m
/
/
/
/
14´2 ˝
19´0 ˝
2 3´9 ˝
28´ 7 ˝
Max (Telephoto)
2. 2 9 m /
2.87 m /
3.4 6 m /
7 ´6 ˝
9´5 ˝
11´4 ˝
Height from the edge of screen
to center of lens
(H)
Width from the right edge of screen
to center of lens
(W)
- 0.0 8 m – 0.5 8 m /
- 0.0 9 m – 0.71 m /
- 0.11 m – 0.8 6 m /
-3 ˝ – 1´11˝
- 4 ˝ – 2´4 ˝
- 4 ˝ – 2´10 ˝
0. 21 m – 0.6 8 m / 8 ˝ –
0. 2 7 m – 0.8 4 m / 11˝ –
0.32 m – 1.01 m / 1´1˝ –
-5 ˝ –
-6˝ –
-7 ˝ –
-7 ˝ –
-9 ˝ –
2´3 ˝
2´9 ˝
3´4 ˝
4.0 4
4.6 2
5. 21
5.79
6.9 6
m
m
m
m
m
/
/
/
/
/
13´3 ˝
15´2 ˝
17 ´1˝
19´0 ˝
2 2´10 ˝
- 0.13
- 0.15
- 0.17
- 0.19
- 0. 2 2
m–
m–
m–
m–
m–
1.0 0
1.15
1. 2 9
1.4 4
1.71
m
m
m
m
m
/
/
/
/
/
3´3 ˝
3´9 ˝
4´3 ˝
4´9 ˝
5´ 7 ˝
0.37
0.42
0.4 8
0.5 3
0.6 4
m
m
m
m
m
– 1.18
– 1.3 5
– 1.51
– 1.6 8
– 2.0 2
m
m
m
m
m
/
/
/
/
/
1´3 ˝
1´5 ˝
1´ 7 ˝
1´9 ˝
2´1˝
– 3´10 ˝
– 4´5 ˝
– 4´11˝
– 5´6 ˝
– 6´8 ˝
8.70
11.6 2
14.5 3
17.4 5
m
m
m
m
/
/
/
/
28´ 7 ˝
3 8´1˝
47 ´8 ˝
57 ´3 ˝
- 0. 2 8
- 0.37
- 0.47
- 0.5 6
m – 2.15
m – 2.8 6
m – 3.5 8
m – 4.3 0
m
m
m
m
/ -11˝ – 7 ´1˝
/ -1´3 ˝ – 9´5 ˝
/ -1´ 7 ˝ – 11´9 ˝
/ -1´10 ˝ – 14´1˝
0.8 0
1.0 6
1.3 3
1.5 9
m
m
m
m
– 2.52
– 3.37
– 4. 2 0
– 5.0 5
m
m
m
m
/
/
/
/
2´ 7 ˝
3´6 ˝
4´4 ˝
5´3 ˝
– 8´3 ˝
– 11´1˝
– 13´9 ˝
– 16´ 7 ˝
NOTE: The values of L shown above vary due to characteristics of the zoom lens. Images may slightly distort due to characteristics of the zoom
lens when the zoom lens is set to the minimum throw distance.
Calculation of the projection distance
For a screen size different from the above, use the equation below to calculate the projection distance.
16:9
minimum
maximum
L (m) = (diagonal screen size in inches) × 0.0292 - 0.054
L (m) = (diagonal screen size in inches) × 0.0583 - 0.041
NOTE: The accuracy of calculated value by the formula shown above is ±5%.
As of October 2011
SFL11M009
5/11
S
P
E
C
F
I
L
E
PT-AR100
Full High-Definition Home Cinema Projector
Shift range
Optical axis shift function allows to shift the position of a projected image as shown below.
H
(Width of
projected image)
0.26H
V
(Height of
projected image)
0.65V
0.26H
0.65V
Standard position
of projected image
Installable angle
Install the projector at an angle within the range shown below.
-10° +10°
• Horizontal direction
The projector may be installed at a horizontal
angle of ±10°.
-30°
+30°
• Vertical direction
The projector may be installed at a vertical
angle of ±30°.
As of October 2011
SFL11M009
6/11
S
P
E
C
F
I
L
E
PT-AR100
Full High-Definition Home Cinema Projector
List of compatible signals
The signals that can be input to this projector are shown in the table below. Horizontal scanning frequencies of 15 kHz to 74 kHz, vertical scanning frequencies of 24 Hz to 85 Hz, and a dot clock of
154 MHz maximum can be input.
Compatible signal
Display mode
NTSC/NTSC4.43/PAL-M/PAL60
-
720 × 480i
15.7
59.9
-
PAL/PAL-N/SECAM
-
720 × 576i
15.6
50.0
-
525i (480i)
480i
720 × 480i
15.7
59.9
13.5
625i (576i)
576i
720 × 576i
15.6
50.0
13.5
525p (480p)
480p
720 × 483
31.5
59.9
27.0
625p (576p)
576p
720 × 576
31.3
50.0
27.0
750 (720)/60p
720/60p
1,280 × 720
45.0
60.0
74.3
750 (720)/50p
720/50p
1,280 × 720
37.5
50.0
74.3
Yes
1125 (1080)/60i
1080/60i
1,920 × 1,080i
33.8
60.0
74.3
Yes
1125 (1080)/50i
1080/50i
1,920 × 1,080i
28.1
50.0
74.3
Yes
1125 (1080)/24p
1080/24p
1,920 × 1,080
27.0
24.0
74.3
Yes
1125 (1080)/60p
1080/60p
1,920 × 1,080
67.5
60.0
148.5
Yes
1125 (1080)/50p
1080/50p
1,920 × 1,080
56.3
50.0
148.5
VGA
VGA60
640 × 480
31.5
59.9
25.2
VGA75
640 × 480
37.5
75.0
31.5
–
VGA85
640 × 480
43.3
85.0
36.0
–
SVGA56
800 × 600
35.2
56.3
36.0
–
SVGA60
800 × 600
37.9
60.3
40.0
–
SVGA72
800 × 600
48.1
72.2
50.0
–
SVGA75
800 × 600
46.9
75.0
49.5
–
SVGA85
800 × 600
53.7
85.1
56.3
–
XGA60
1,024 × 768
48.4
60.0
65.0
–
XGA70
1,024 × 768
56.5
70.1
75.0
–
XGA75
1,024 × 768
60.0
75.0
78.8
–
XGA85
1,024 × 768
68.7
85.0
94.5
–
MXGA70
1,152 × 864
64.0
71.2
94.2
–
MXGA75
1,152 × 864
67.5
74.9
108.0
–
1280 × 720
1280 × 720/60
1,280 × 720
44.8
59.9
74.5
–
1280 × 768
1280 × 768/60
1,280 × 768
47.8
59.9
79.5
–
1280 × 800
1280 × 800/60
1,280 × 800
49.7
59.8
83.5
–
SXGA
SXGA60
1,280 × 1,024
64.0
60.0
108.0
–
SXGA+
SXGA+60
1,400 × 1,050
65.2
60.0
122.6
–
WXGA+
WXGA+60
1,440 × 900
55.9
59.9
106.5
–
1920 × 1080
1920 × 1080/60
1,920 × 1,080 * 2
66.6
59.9
138.5
–
1920 × 1080/50
1,920 × 1,080
55.6
49.9
141.5
–
74.0
60.0
154.0
–
SVGA
XGA
MXGA
WUXGA
WUXGA60RB
Display
resolution
(dots) * 1
1,920 ×
1,200 * 2
Scanning frequency
H
V
(kHz)
(kHz)
Dot clock
frequency
(MHz)
Format
VIDEO/S-VIDEO
Plug-andplay HDMI
–
–
RGB/YP B P R
–
–
RGB/YC B C R /HDMI
Yes
Yes
RGB/YP B P R /HDMI
Yes
Yes
RGB
–
* 1 The “i” appearing after the resolution indicates an interlaced signal.
* 2 Compliant with VESA CVT-RB (Coordinated Video Timing-Reduced Blanking).
As of October 2011
SFL11M009
7/11
S
P
E
C
F
I
L
E
PT-AR100
Full High-Definition Home Cinema Projector
Serial connector
The serial connector complies with RS-232C. To control the projector from a personal computer, commands must be input through communication software, based on the format and satisfying the communication conditions shown below.
Pin assignments and signal names
No.
1
2
3
4
5
Signal name
–
TXD
RXD
–
GND
Description
NC
Transmitted data
Received data
NC
Ground
No.
6
7
8
9
Signal name
–
RTS
CTS
–
Description
NC
Connected internally
Connected internally
NC
D-sub 9-pin (female) Serial input
Communication conditions (factory setting)
Signal level
Synchronization method
Baud rate
Parity
Character length
Stop bit
X parameter
S parameter
RS-232C-compliant
Start-stop synchronization
9,600 bps
None
8 bits
1 bit
None
None
Basic format
Transmission from the computer begins with STX, then command, parameter, and ETX are sent in this
order. Add parameters according to the details of control.
STX
C1 C2 C3
Start
(1 byte)
:
Colon
(1 byte)
P1 P2 ... Pn
ETX
End
(1 byte)
Parameters
(undefined length)
Command
(3 bytes)
(Control and/or query commands)
CAUTION
• When sending multiple commands, be sure to send the next command after receiving a response from the projector.
• STX and ETX are character codes. Expressed in hexidecimals, STX is 02 and ETX is 03.
Cable specifications
Projector
1
PC (DTE)
NC
NC
3
3
4
NC
NC
SFL11M009
NC
NC
6
7
7
8
8
9
As of October 2011
4
5
5
6
1
2
2
NC
NC
9
8/11
S
P
E
C
F
I
L
E
PT-AR100
Full High-Definition Home Cinema Projector
Control commands
Command
Function
Parameter
PON * 1
POF * 1
IIS
OMN
OEN
OBK
OCU
OCD
OCL
OCR
OST
OFZ
FC1
OSH * 2
OVM
OWM
VS1
VPM
OOT
OEC
OMM
DPA
DCM
OVL
OSM
Standby power on
Standby power off
Input signal selection
Menu
Enter
Return
Cursor up
Cursor down
Cursor left
Cursor right
Default
Freeze
The same function as “FUNCTION” button
Blank on/off
Picture mode switch
Waveform monitor activate/off
Aspect switch
Picture mode
Off timer
The same function as “ECO” button
The same function as “MEMORY LOAD” button
The same function as “PICTURE ADJUSTMENT” button
Color management menu
The same function as “VIERA Link” button
The same function as “SUB MENU” button
–
–
CP1, SVD, VID,
–
–
–
–
–
–
–
–
0, 1
–
–
–
0, 1, 2, 3, 4,
–
NOR, DYN, GM1,
0, 1, 2, 3, 4,
–
–
–
–
–
–
Option Menu Command
VXX
Gamma output level (Y)
Gamma output level (R)
Gamma output level (G)
Gamma output level (B)
Gamma input level
Trigger 1 output
Trigger 2 output
HD1, HD2, HD3, RG1
5, 6, 7, 8
SPT, 709, CN1, VCN
5, 6, 7
AGOS0=010000 – AGOS0=090255
AGOS1=010000 – AGOS1=090255
AGOS2=010000 – AGOS2=090255
AGOS3=010000 – AGOS3=090255
AGIS0=01000 – AGOS0=09100
TROI0=+00000 – TROI0=+00001
TROI1=+00000 – TROI1=+00001
* 1 PON is the only command that is effective in standby mode; all other commands are invalid. The PON command is not accepted during lamp
on control. After the lamp has been turned off and while the cooling fan is still operating, lamp on control will not be activated for about 85
seconds in order to protect the lamp.
* 2 Do not send OSH commands continuously in a short period of time. Doing so may burst the lamp or shorten the lamp replacement cycle.
Control command parameters
Command
Size (Byte)
IIS
3
OFZ
OWM
1
1
VPM
3
OOT
QVX:AGOS0
1
6
AGOS1
6
AGOS2
6
AGOS3
6
AGIS0
5
TROI0
TROI1
6
6
As of October 2011
SFL11M009
Parameter
C P 1 = c o m p o n e nt, SVD = S-video, VID = video,
H D 1 = H D M I 1 , HD2 = HDMI2, RG1 = computer
0 = o f f , 1 = on
0 = o f f , 1 = full scan (Y), 2 = full scan (R), 3 = full scan (G),
4 = f u l l s c a n (B), 5 = single line scan (Y), 6 = single line scan (R),
7 = s i n g l e l i ne scan (G), 8 = single line scan (B)
N O R = n o r m a l , DYN = dynamic, GM1 = game 1, SPT = sports,
7 0 9 = R e c . 7 0 9, CN1 = cinema 1, VCN = vivid cinema
4 = 1 5 0 m i n , 5 = 180 min, 6 = 210 min, 7 = 240 min
A G O S 0 = p 1 p 2 d 1 d 2d3d4
p 1 p 2 = p o i n t number: 01 – 09, d1d2d3d4 = output: 0000 – 0255
A G O S 1 = p 1 p 2 d 1 d 2d3d4
p 1 p 2 = p o i n t number: 01 – 09, d1d2d3d4 = output: 0000 – 0255
A G O S 2 = p 1 p 2 d 1 d 2d3d4
p 1 p 2 = p o i n t number: 01 – 09, d1d2d3d4 = output: 0000 – 0255
A G O S 3 = p 1 p 2 d 1 d 2d3d4
p 1 p 2 = p o i n t number: 01 – 09, d1d2d3d4 = output: 0000 – 0255
A G I S 0 = p 1 p 2 d 1 d 2d3
p 1 p 2 = p o i n t number: 01 – 09, d1d2d3 = output: 001 – 099
T R O I 0 = + 0 0 0 0 0 = low, TROI0=+00001 = high
T R O I 1 = + 0 0 0 0 0 = low, TROI1=+00001 = high
9/11
S
P
E
C
F
I
L
E
PT-AR100
Full High-Definition Home Cinema Projector
Status request commands
Command
Description
Parameter
QPW
QIN
Standby power status
Input signal status
QPM
Picture mode status
QSH
QFZ
QOT
Blank function status
Freeze function status
Off timer status
QWM
Waveform monitor statusutton
000
CP1
HD1
NOR
SPT
VCN
0 =
0 =
0 =
4 =
7 =
0 =
3 =
5 =
7 =
Option Menu Command
Gamma output level (Y)
QVX: AGOS0=p1p2
Gamma output level (R)
AGOS1=p1p2
Gamma output level (G)
AGOS2=p1p2
Gamma output level (B)
AGOS3=p1p2
Gamma input level
AGIS0=p1p2
= off, 001 = on
= component, SVD = S-video, VID = video,
= HDMI1, HD2 = HDMI2, RG1 = computer
= normal, DYN = dynamic, GM1 = game 1,
= sports, 709 = Rec. 709, CN1 = cinema 1,
= vivid cinema
off, 1 = on
off, 1 = on
off, 1 = 60 min, 2 = 90 min, 3 = 120 min,
150 min, 5 = 180 min, 6 = 210 min,
240 min
off, 1 = full scan (Y), 2 = full scan (R),
full scan (G), 4 = full scan (B),
single line scan (Y), 6 = single line scan ( R ) ,
single line scan (G), 8 = single line scan ( B )
AGOS0= p1p2d1d2d3d4
p1p2 = point number: 01 –
d1d2d3d4 = output: 0000 –
AGOS1= p1p2d1d2d3d4
p1p2 = point number: 01 –
d1d2d3d4 = output: 0000 –
AGOS2= p1p2d1d2d3d4
p1p2 = point number: 01 –
d1d2d3d4 = output: 0000 –
AGOS3= p1p2d1d2d3d4
p1p2 = point number: 01 –
d1d2d3d4 = output: 0000 –
AGIS0= p1p2d1d2d3
p1p2 = point number: 01 –
d1d2d3 = input: 001 – 099
09
0255
09
0255
09
0255
09
0255
09
NOTE: If a wrong command is received, the projector will send an ER401 or ER402 command to the computer.
Command example
To set the input to HDMI 1, send the command as shown below.
STX
Start
IIS
:
Command
HD1
ETX
Parameter
End
NOTE: When sending commands without parameters, a colon (:) is not necessary.
As of October 2011
SFL11M009
10/11
S
P
E
C
F
I
L
E
PT-AR100
Full High-Definition Home Cinema Projector
Notes on projector placement and operation
The projector uses a high-wattage lamp that becomes very hot during operation. Please observe the
following precautions.
1.
Never place objects on top of the projector while it is operating.
2.
Make sure there is an unobstructed space of 100 mm (3-15/16˝ ) or more around the projector’s air
intake openings.
3.
If the projector is placed in a box or enclosure, ensure the temperature of the air surrounding the
projector is between 0°C and 35°C (32°F and 95°F). Also make sure the projector’s intake and
exhaust openings are not blocked. Take particular care to ensure that hot air from the exhaust
openings is not sucked into the intake openings.
100 mm ( 3-15/16 ˝ )
or more
100 mm ( 3-15/16 ˝ )
or more
100 mm ( 3-15/16 ˝ )
or more
Direction of air intake and exhaust
Intake
Exhaust
Operating the projector continuously
1.
If the projector is to be operated continuously 6 hours or more, lamp replacement cycle duration
becomes shorter.
2.
The lamp replacement cycle duration becomes shorter if the projector is operated repeatedly for short
periods.
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
Product availability differs depending on region and country. This product may be subject to export control regulations.
All other trademarks are the property of their respective trademark owners.
As of October 2011
SFL11M009
11/11
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
