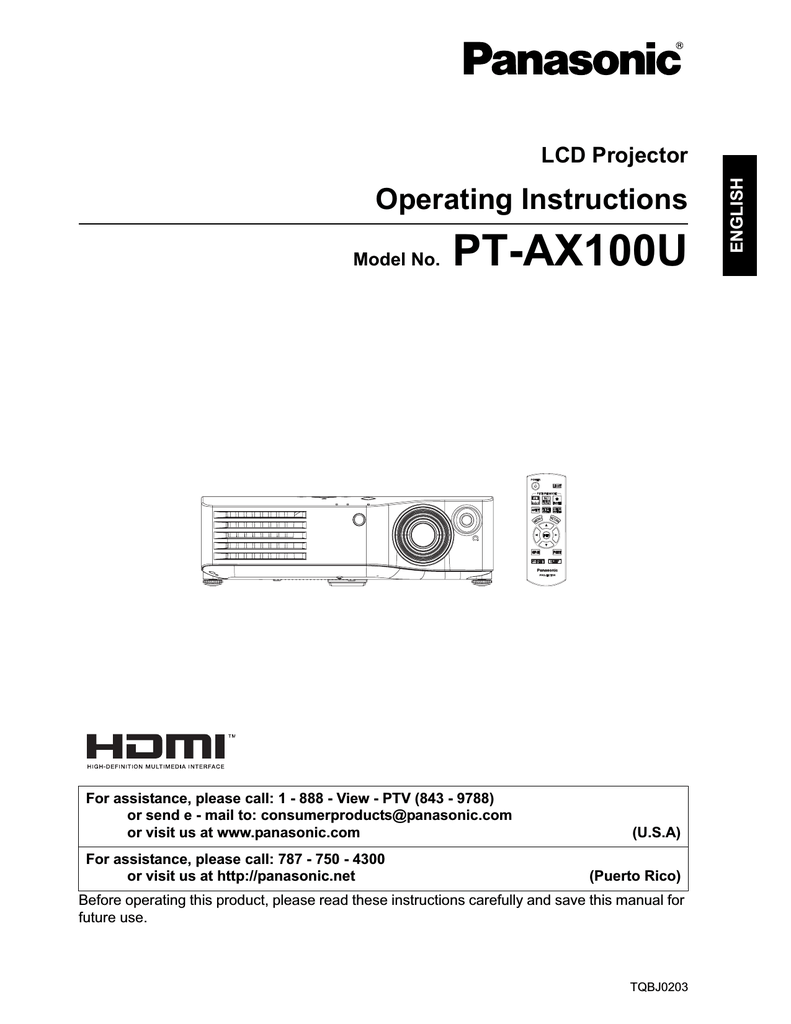

Panasonic PT-AX100U User's Manual

Operating Instructions
Model No.
PT-AX100U
For assistance, please call: 1 - 888 - View - PTV (843 - 9788)
or send e - mail to: [email protected]
or visit us at www.panasonic.com
For assistance, please call: 787 - 750 - 4300
or visit us at http://panasonic.net
(U.S.A)
(Puerto Rico)
Before operating this product, please read these instructions carefully and save this manual for
future use.
TQBJ0203
ENGLISH
LCD Projector
Important Safety Notice
Dear Panasonic Customer:
This instruction booklet provides all the necessary operating information that you might require.
We hope it will help you to get the most out of your new product, and that you will be pleased
with your Panasonic LCD projector.The serial number of your product may be found on its
bottom. You should note it in the space provided below and retain this booklet in case service is
required.
Model number:
PT-AX100U
Serial number:
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DONOT
EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
Power Supply: This LCD Projector is designed to operate on 100 V - 240 V, 50 Hz/
60 Hz AC, house current only.
CAUTION:
The AC power cord which is supplied with the projector as an accessory can
only be used for power supplies up to 125 V, 7 A. If you need to use higher
voltages or currents than this, you will need to obtain a separate 250 V
power cord. If you use the accessory cord in such situations, fire may result.
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the product.
CAUTION:
2 - ENGLISH
This equipment is equipped with a three-pin
grounding-type power plug. Do not remove the
grounding pin on the power plug. This plug will only fit
a grounding-type power outlet. This is a safety feature.
If you are unable to insert the plug into the outlet,
contact an electrician. Do not defeat the purpose of
the grounding plug.
Do not remove
Important Safety Notice
WARNING:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when
connecting to computers or peripheral devices. Any unauthorized
changes or modifications to this equipment will void the users authority to
operate.
If you use serial port to connect PC for external control of projector, you
must use optional RS-232C serial interface cable with ferrite core. Any
unauthorized changes or modifications to this equipment will void the
user’s authority to operate.
Indication based on the German law "Geräte- und Produktsicherheitsgesetz”
Directive 2001/95/EC (Article 5);
Panasonic Marketing Europe GmbH
Hagenauer Str. 43 65203 Wiesbaden F.R.GERMANY
WARNING:
Not for use in a computer room as defined in the Standard for the Protection
of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.
Declaration of Conformity
Model Number:
PT-AX100U
Trade Name:
Panasonic
Responsible party: Panasonic North America
Address:
One Panasonic Way 4B - 9 Secaucus, New Jersey 07094
Telephone number: 1 - 888 - View - PTV (843 - 9788)
This device complies with Part 15 of the FCC Rules, Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
ENGLISH - 3
Contents
J Quick Steps
1. Set up your projector
See “Setting up” on page 14.
Important Safety Notice.............................. 2
Preparation
Precautions with regard to safety ............. 6
WARNINGS ........................................................... 6
CAUTIONS............................................................. 8
Before use.................................................... 9
2. Connect with other devices
See “Connections” on page 18.
Accessories............................................................ 9
Cautions when transporting ................................... 9
Cautions when installing ........................................ 9
Cautions on use ................................................... 10
About Your Projector................................ 11
Remote control................................................... 11
Projector............................................................... 12
Getting Started
3. Prepare the Remote control
See “Remote control” on page 11.
Setting up................................................... 14
Screen size and throw distance ........................... 14
Projection method ................................................ 15
Front leg adjuster and throwing angle.................. 15
Lens shift and positioning..................................... 16
Connections .............................................. 18
4. Start projecting
See “Switching the projector on/off” on
page 19.
Before connection to the projector ....................... 18
Connecting with AV devices................................. 18
Connecting with HDMI/PC ................................... 18
Basic Operation
Switching the projector on/off ................. 19
5. Adjust the image
See “Menu Navigation” on page 26.
Power cord ........................................................... 19
POWER indicator ................................................. 19
Switching on the projector.................................... 20
Switching off the projector.................................... 20
Projecting an image .................................. 21
Selecting the input signal ..................................... 21
Positioning the image........................................... 21
Remote control operation ........................ 22
Operating range ................................................... 22
Input switching ..................................................... 22
Capturing an image.............................................. 22
Switching the aspect ratio .................................... 23
Switching off the projector automatically.............. 23
Resetting to the factory default settings ............... 23
Turning on the button backlight............................ 23
Switching the picture mode .................................. 23
Adjusting the image.............................................. 24
Setting your own color profile............................... 24
4 - ENGLISH
Menu Navigation........................................26
TEMP and LAMP Indicators ..................... 36
Navigating through the MENU ..............................26
Main menu ............................................................26
Sub-menu..............................................................27
Controlling alerts .................................................. 36
H - POSITION .......................................................31
V - POSITION .......................................................31
DOT CLOCK .........................................................31
CLOCK PHASE.....................................................31
ASPECT................................................................32
WSS ......................................................................33
OVER SCAN .........................................................33
KEYSTONE...........................................................33
AUTO SETUP .......................................................33
OPTION Menu ............................................34
INPUT GUIDE .......................................................34
OSD DESIGN........................................................34
OSD POSITION ....................................................34
BACK COLOR.......................................................34
STARTUP LOGO ..................................................34
AUTO SEARCH ....................................................34
HDMI SIGNAL LEVEL...........................................34
INSTALLATION.....................................................35
SLEEP...................................................................35
ALTITUDE.............................................................35
LAMP POWER......................................................35
LAMP RUNTIME ...................................................35
TEST PATTERN ...................................................35
Appendix
Technical Information............................... 41
List of compatible signals ..................................... 41
Serial terminal ...................................................... 42
Menu structure ..................................................... 45
Specifications............................................ 46
Dimensions................................................ 48
Trademark acknowledgements................ 49
Getting Started
Troubleshooting........................................ 40
Index........................................................... 50
Settings
POSITION Menu.........................................31
Before cleaning .................................................... 37
Cleaning your projector ........................................ 37
Before replacing the Lamp unit ............................ 38
When to replace the Lamp unit ............................ 38
Replacing the lamp unit........................................ 39
Maintenance
PICTURE MODE...................................................28
CONTRAST ..........................................................28
BRIGHTNESS.......................................................28
COLOR .................................................................28
TINT ......................................................................29
SHARPNESS ........................................................29
COLOR TEMPERATURE .....................................29
DYNAMIC IRIS......................................................29
LIGHT HARMONIZER ..........................................29
ADVANCED MENU...............................................29
FAVOURITE SAVE ...............................................30
FAVOURITE LOAD...............................................30
SIGNAL MODE .....................................................30
Care and Replacement ............................. 37
Appendix
PICTURE Menu ..........................................28
Preparation
Maintenance
Basic Operation
Settings
ENGLISH - 5
Preparation
Precautions with regard to safety
WARNINGS
If you notice smoke, strange smells or noise coming
from the projector, disconnect the power cord plug
from the wall outlet.
Do not continue to use the projector in such cases,
otherwise fire or electric shocks could result.
Check that no more smoke is coming out, and then
contact an Authorized Service Center for repairs.
Do not attempt to repair the projector yourself, as
this can be dangerous.
Do not install this projector in a place which is not
strong enough to take the full weight of the
projector.
If the installation location is not strong enough, it may
fall down or tip over, and severe injury or damage
could result.
Installation work (such as ceiling suspension)
should only be carried out by a qualified technician.
If installation is not carried out correctly, there is the
danger that injury or electric shocks may occur.
Do not use other than an authorized ceiling mount
bracket.
If foreign objects or water get inside the projector,
or if the projector is dropped or the cabinet is
broken, disconnect the power cord plug from the
wall outlet.
Continued use of the projector in this condition may
result in fire or electric shocks.
Contact an Authorized Service Center for repairs.
Do not do anything that might damage the power
cord or the power cord plug.
Do not damage the power cord, make any
modifications to it, place it near any hot objects, bend
it excessively, twist it, pull it, place heavy objects on
top of it or wrap it into a bundle.
If the power cord is used while damaged, electric
shocks, short-circuits or fire may result.
Ask an Authorized Service Center to carry out any
repairs to the power cord that might be necessary.
Do not handle the power cord plug with wet hands.
Failure to observe this may result in electric shocks.
Insert the power cord plug securely into the wall
outlet.
If the plug is not inserted correctly, electric shocks or
overheating could result.
Do not use plugs which are damaged or wall outlets
which are coming loose from the wall.
Do not place the projector on top of surfaces which
are unstable.
If the projector is placed on top of a surface which is
sloped or unstable, it may fall down or tip over, and
injury or damage could result.
Do not place the projector into water or let it become
wet.
Failure to observe this may result in fire or electric
shocks.
Do not overload the wall outlet.
If the power supply is overloaded (for example, by
using too many adapters), overheating may occur
and fire may result.
Do not place the projector on soft materials such as
carpets or sponge mats.
Doing so may cause the projector to overheat, which
can cause burns, fire or damage to the projector.
Do not remove the cover or modify it in any way.
High voltages can cause fire or electric shocks.
For any inspection, adjustment and repair work,
please contact an Authorized Service Center.
Do not place liquid containers on top of the
projector.
If water spills onto the projector or gets inside it, fire
or electric shocks could result.
If any water gets inside the projector, contact an
Authorized Service Center.
Clean the power cord plug regularly to prevent it
from becoming covered in dust.
If dust builds up on the power cord plug, the resulting
humidity can damage the insulation, which could
result in fire. Pull the power cord plug out from the
wall outlet and wipe it with a dry cloth.
If not using the projector for an extended period of
time, pull the power cord plug out from the wall
outlet.
6 - ENGLISH
Do not insert any foreign objects into the projector.
Do not insert any metal objects or flammable objects
into the projector or drop them onto the projector, as
doing so can result in fire or electric shocks.
Do not allow the + and - terminals of the batteries to
come into contact with metallic objects such as
necklaces or hairpins.
Failure to observe this may cause the batteries to
leak, overheat, explode or catch fire.
Store the batteries in a plastic bag and keep them
away from metallic objects.
During a thunderstorm, do not touch the projector
or the cable.
Electric shocks can result.
Do not use the projector in a bath or shower.
Fire or electric shocks can result.
Do not place your skin into the light beam while the
projector is being used.
Strong light is emitted from the projector’s lens. If
you place directly into this light, it can hurt or
damage your skin.
Do not look into the lens while the projector is being
used.
Strong light is emitted from the projector’s lens. If
you look directly into this light, it can hurt and
damage your eyes.
Be especially careful not to let young children look
into the lens. In addition, turn off the power and
disconnect the power cord plug when you are away
from the projector.
Do not place your hands or other objects close to
the air outlet port.
Heated air comes out of the air outlet port. Do not
place your hands or face, or objects which cannot
withstand heat close to this port [allow at least
10 cm (4") of space], otherwise burns or damage
could result.
Replacement of the lamp is better to be carried out
by a qualified technician.
The lamp has high internal pressure. If improperly
handled, explosion might result.
The lamp can easily become damaged if struck
against hard objects or dropped, and injury or
malfunctions may result.
Preparation
Precautions with regard to safety
When replacing the lamp, allow it to cool for at least
one hour before handling it.
The lamp cover gets very hot, and touching it can
cause burns.
Before replacing the lamp, be sure to disconnect
the power cord plug from the wall outlet.
Electric shocks or explosions can result if this is not
done.
Do not allow infants or pets to touch the remote
control unit.
The accessory remote control unit can be used to
operate not only the projector but also other
appliances such as air conditioners and electrical
device by programing them using the learning
function. If the remote control unit operated
inappropriately, fire or injury may result.
Keep the remote control unit out of the reach of
infants and pets after using it.
ENGLISH - 7
Preparation
Precautions with regard to safety
CAUTIONS
Do not cover the air inlet port or the air outlet port.
Doing so may cause the projector to overheat, which
can cause fire or damage to the projector.
Do not place the projector in narrow, badly ventilated
places such as closets or bookshelves.
Do not place the projector on cloth or papers, as
these materials could be drawn into the air inlet port.
Do not set up the projector in humid or dusty places
or in places where the projector may come into
contact with oily smoke or steam.
Using the projector under such conditions may result
in fire, electric shocks or plastic deterioration. The
plastic deterioration may cause the falling down of
the projector which is mounted in the ceiling.
When disconnecting the power cord, hold the plug,
not the cord.
If the power cord itself is pulled, the cord will become
damaged, and fire, short-circuits or serious electric
shocks may result.
Always disconnect all cables before moving the
projector.
Moving the projector with cables still attached can
damage the cables, which could cause fire or electric
shocks to occur.
Do not place any heavy objects on top of the
projector.
Failure to observe this may cause the projector to
become unbalanced and fall, which could result in
damage or injury.
Do not short-circuit, heat or disassemble the
batteries or place them into water or fire.
Failure to observe this may cause the batteries to
overheat, leak, explode or catch fire, and burns or
other injury may result.
When inserting the batteries, make sure the
polarities (+ and -) are correct.
If the batteries are inserted incorrectly, they may
explode or leak, and fire, injury or contamination of
the battery compartment and surrounding area may
result.
Use only the specified batteries.
If incorrect batteries are used, they may explode or
leak, and fire, injury or contamination of the battery
compartment and surrounding area may result.
Do not mix old and new batteries.
If the batteries are inserted incorrectly, they may
explode or leak, and fire, injury or contamination of
the battery compartment and surrounding area may
result.
Do not put your weight on this projector.
You could fall or the projector could break, and injury
may result.
Be especially careful not to let young children stand
or sit on the projector.
If not using the projector for an extended period of
time, disconnect the power cord plug from the wall
outlet.
If dust builds up on the power cord plug, the resulting
humidity may damage the insulation, which could
result in fire.
Disconnect the power cord plug from the wall outlet
as a safety precaution before carrying out any
cleaning.
Electric shocks can result if this is not done.
If the lamp has broken, ventilate the room
immediately. Do not touch or bring your face close
to the broken pieces.
Failure to observe this may cause the user to absorb
the gas which was released when the lamp broke
and which contains nearly the same amount of
mercury as fluorescent lamps, and the broken pieces
may cause injury.
If you believe that you have absorbed the gas or that
the gas has got into your eyes or mouth, seek
medical advice immediately.
Ask your dealer about the replacement of the lamp
unit and check the inside of the projector.
Ask an Authorized Service Center to clean inside
the projector at least once a year.
If dust is left to build up inside the projector without
being cleaned out, it can result in fire or problems
with operation.
It is a good idea to clean the inside of the projector
before the season for humid weather arrives. Ask
your nearest Authorized Service Center to clean the
projector when required. Please discuss with the
Authorized Service Center regarding cleaning costs.
We are constantly making efforts to preserve and maintain a clean environment. Please take non repairable
units back to your dealer or a recycling company.
8 - ENGLISH
Preparation
Before use
Accessories
Make sure the following accessories are provided with your projector.
Remote control (N2QAYB000064 x 1)
AA batteries for Remote control (x 2)
Power cord for continental Europe (K2CG3FR00001 x 1)
Cautions when transporting
Do not subject the projector to excessive vibration or shocks.
The projector lens need to be handled with care.
Cover the lens with the lens cover when transporting the projector.
Cautions when installing
Avoid setting up in places which are subject to
vibration or shocks.
The internal parts can be damaged, which may
cause malfunctions or accidents.
Avoid setting up in places which are subject to
sudden temperature changes, such as near an air
conditioner.
The life of the lamp may be shortened or the
projector may be turned off. See “TEMP indicator” on
page 36.
Do not set up the projector near high-voltage power
lines or near motors.
The projector may be subject to electromagnetic
interference.
If installing the projector to the ceiling, ask a
qualified technician to carry out all installation
work.
You will need to purchase the separate installation kit
(Model No. ET-PKX100). Furthermore, all installation
work should only be carried out by a qualified
technician.
If using this projector at high elevations
(above 1 400 m), set the ALTITUDE to HIGH. See
“ALTITUDE” on page 35.
Failure to observe this may result in malfunctions or
the life of the lamp or the other components may be
shortened.
ENGLISH - 9
Preparation
Before use
Cautions on use
In order to get the best picture quality
Draw curtains or blinds over any windows and turn
off any lights near the screen to prevent outside light
or light from indoor lamps from shining onto the
screen.
Do not touch the surfaces of the lens with your bare
hands.
If the surface of the lens becomes dirty from
fingerprints or anything else, this will be magnified
and projected onto the screen. Moreover, when not
using the projector, cover it with the lens cover.
Screen
Do not apply any volatile substances which may
cause discoloration to the screen, and do not let it
become dirty or damaged.
10 - ENGLISH
Lamp
The lamp may need to be replaced earlier due to
variables such as individual lamp characteristics,
usage conditions and the installation environment,
especially when the projector is subjected to
continuous use for more than 10 hours or the power
is frequently turned on and off.
Liquid crystal panel
Do not project the same image for long periods of
time, as this may remain as an afterimage on the
liquid crystal panel.
The liquid crystal panel of the projector is built with
very high precision technology to provide fine picture
details. Occasionally, a few stuck pixels may appear
on the screen as fixed points of blue, green or red.
Please note that this does not affect the performance
of your LCD.
Preparation
About Your Projector
Remote control
J Front, back and top view
POWER
Turn the POWER on/off.
(page 19)
Remote control
signal emitter
PICTURE MODE
THEATER ROOM
Switch to the best setting for a
darker room.
LIVING ROOM
Switch to the best setting for a
bright room.
FAVORITE
Display the FAVOURITE
LOAD menu.
(page 23)
LIGHT
Turn the button backlight of
Remote control on/off. (page 23)
COLOR MANAGEMENT
Display the COLOR
MANAGEMENT menu. (page 24)
PICTURE ADJUSTMENT
Display the PICTURE menu.
(page 24)
ASPECT
Switch to cycle through the
aspect ratio. (page 23)
Navigation buttons
Navigate through the menus with
F G H I, ENTER and
RETURN. (page 26)
MENU
Display the Main menu.
Return to the previous menu.
(page 26)
FREEZE
Capture the projected image and
display it on a screen as a still
picture. (page 22)
DEFAULT
Reset some of the settings to the
factory default settings. (page 23)
SLEEP
Turn off the POWER
automatically by setting the
duration. (page 23)
INPUT SELECT
Switch to cycle through the input
method. (page 22)
Battery compartment
1. Press the tab and
lift up the cover.
2. Insert the batteries
according to the
polarity diagram
indicated inside.
|
{
{
|
NOTE:
Do not drop the Remote control.
Avoid contact with liquids or moisture.
Remove the batteries if not using the Remote control for a long period of time.
Do not use rechargeable batteries.
Do not keep pressing the Remote control buttons as this may shorten battery life.
ENGLISH - 11
Preparation
About Your Projector
Projector
J Top and front view
Illuminates or flashes to
indicate the status of the
projector. (page 19)
POWER
Illuminates or flashes to
indicate the status of the lamp
unit. (page 36)
LAMP
TEMP
Turn the POWER on/off.
(page 19)
Senses the luminance for the
LIGHT HARMONIZER feature.
(page 29)
POWER
LUMINANCE SENSOR
Switch to cycle through the
INPUT SELECT method
options. (page 22)
INPUT SELECT
Display the menu on screen.
Return to the previous menu in
menu mode. (page 26)
MENU
Heated air comes out of this
opening.
Air exhaust port
Illuminates or flashes to
indicate the temperature status
of the lamp unit. (page 36)
Navigate through the menu
with F G H I, ENTER and
RETURN. (page 26)
Navigation buttons
Control panel
Turn the outer ring to adjust
the focus of the image.
(page 21)
Focus ring
Turn the inner ring to adjust
the image size. (page 21)
Zoom ring
Intake fresh air to control the
temperature inside.
Air intake port
Adjust the position of the
projected image.
Shift lever
2.0 power zoom lens.
Projection lens
Remote control
signal receptor
Receive a signal from the
Remote control. (page 22)
Protects the Projection lens
from dust or dirt.
Lens cover
NOTE:
Do not cover the ventilation openings or place anything within 10 cm (4") of them as this may cause damage
or injury.
While the projector is not in use, attach the Lens cover to protect the lens.
12 - ENGLISH
J Back and bottom view
Connect an RS-232C
compatible cable for
controlling the projector
remotely via your PC.
Connect an RGB signal cable
from your PC.
PC IN
SERIAL
Connect a YPBPR signal
cable.
Preparation
About Your Projector
COMPONENT IN
S-VIDEO IN
Connect a S-VIDEO signal
cable.
Connecting
terminals
HDMI IN
Connect an HDMI signal
cable.
Connect the Power cord to
supply electronic power to the
projector. (page 26)
AC IN
VIDEO IN
Connect an RCA composite
video cable.
Switch the projector on/off.
(page 19)
MAIN POWER
Air intake port
Intake fresh air to control the
temperature inside.
Lamp unit component
Houses the replaceable lamp
unit. Contact the projector
dealer or an authorized
service center for
replacement. (page 37)
Security lock
Attach the commercial shackle
lock, manufactured by
Kensington, to protect your
projector. Compatible with the
Kesington MicroSaver
Security System.
Front leg adjuster (L/R)
Screw up/down to adjust the
projection angle. (page 15)
NOTE:
Do not cover the ventilation openings or place anything within 10 cm (4") of the vents as this may cause
damage or injury.
This projector should only be used with the attached Power cord to ensure optimum performance and avoid
damage to the projector.
ENGLISH - 13
Setting up
Screen size and throw distance
You can adjust the projection size with 2.0 power zoom lens. Calculate and define the throw distance as follows.
Getting Started
Screen
Projection size (16 : 9)
Diagonal length
(SD)
1.01 m
1.27 m
1.52 m
1.77 m
2.03 m
2.28 m
2.54 m
3.05 m
3.81 m
5.08 m
(40")
(50")
(60")
(70")
(80")
(90")
(100")
(120")
(150")
(200")
Screen height (SH)
0.50 m (1'7")
0.62 m
(2')
0.75 m (2'5")
0.87 m (2'10")
1.00 m (3'3")
1.12 m (3'8")
1.24 m
(4')
1.49 m (4'10")
1.87 m (6'1")
2.49 m (8'2")
Throw distance (L)
Screen width (SW)
Minimum distance
(LW)
0.89 m (2'11")
1.11 m (3'7")
1.33 m (4'4")
1.55 m (5'1")
1.77 m (5'9")
1.99 m (6'6")
2.21 m (7'3")
2.66 m (8'8")
3.32 m (10'10")
4.43 m (14'6")
1.2 m
1.5 m
1.8 m
2.1 m
2.4 m
2.7 m
3.1 m
3.7 m
4.6 m
6.2 m
(3'11")
(4'11")
(5'10")
(6'10")
(7'10")
(8'10")
(10'2")
(12'1")
(15'1")
(20'4")
Maximum distance
(LT)
2.4 m
3.0 m
3.7 m
4.3 m
4.9 m
5.5 m
6.2 m
7.4 m
9.3 m
12.4 m
* All measurements above are approximate and may differ slightly from the actual measurements.
J Calculation methods for screen dimensions
You can calculate more detailed screen dimensions from the screen diagonal.
SW = SD x 0.872
SH = SD x 0.490
LW = 1.2244 x SD - 0.056
LT = 2.4449 x SD - 0.056
Unit: m
* The results above are approximate and may differ slightly from the actual measurements.
NOTE:
Do not use the projector at a raised or a horizontally tilted position as it may
cause malfunction of the projector.
Make sure the projector lens surface is parallel with the screen. You can tilt
the projector body approximately ± 30 degrees vertically. Overtilting may
result in shortening the component’s life.
For the best quality of the projection image, install a screen where sun light or
room light does not shine directly onto the screen. Close window shades or
curtains to block the lights.
14 - ENGLISH
(7'10")
(9'10")
(12'1")
(14'1")
(16')
(18')
(20'4")
(24'3")
(30'6")
(40'8")
Setting up
Projection method
J Setting on a desk/floor and
projecting from front
J Setting on a desk/floor and
projecting from rear
INSTALLATION: FRONT/DESK
J Mounting in the ceiling and
projecting from front
INSTALLATION: FRONT/CEILING
Getting Started
You can use the projector with any of the following 4 projection methods. To set the desired method in the projector,
see “INSTALLATION” on page 35.
INSTALLATION: REAR/DESK
J Mounting in the ceiling and
projecting from rear
INSTALLATION: REAR/CEILING
NOTE:
A translucent screen is required for REAR projection.
When mounting the projector in the ceiling, the optional ceiling mount bracket (ET-PKX100) is required.
Front leg adjuster and throwing angle
You can adjust the throwing angle by screwing the front legs up/down.
This adjust the angle of the projector.
NOTE:
Heated air comes out of the Air exhaust port. Do not touch the Air exhaust port directly.
If keystone distortion occurs, see “KEYSTONE” on page 33.
ENGLISH - 15
Setting up
Lens shift and positioning
If the projector is not positioned right in front of the center of the screen, you can adjust the projected image position
by moving the Shift lever within the shift range of the lens.
J Adjusting the Shift lever
Getting Started
1. Screw the Shift lever counterclockwise to unlock.
Unlock
2. Move the Shift lever to adjust the projected image position
3. Screw the Shift lever clockwise to lock.
Q Horizontal shift
You can place the projector where the projector lens is up to 25% horizontally off-center from the screen and
then adjust the image position with the Lens shift feature.
Screen Shifting the lever left:
Moving to screen’s right
Up to about 25%
of the projection
Up to about 25%
of the projection
Shifting lever right:
Moving to screen’s left
Q Vertical shift
You can place the projector where the projector lens is up to 63% vertically off-center from the screen and then
adjust the image position with the Lens shift feature.
Screen
Shifting the lever down:
Moving to screen’s bottom
Up to about 63%
of the projection
Up to about 63%
of the projection
Shifting the lever up:
Moving to screen’s top
16 - ENGLISH
Setting up
J Projector location range
You can determine where to locate the projector by considering the Lens shift possibilities. See “Positioning
the image” on page 21 for available placement.
Q After fixing the screen position
Getting Started
Vertical center
of screen
Placement
SH
Center of lens
SW
Q The adjustable projection range
Shift range
Projection
size
Standard position
Projection size
NOTE:
When the projector is located right in front of the screen and the Shift lever is centerd, you will get the best
quality of the projection image.
When the Shift lever is at the vertical limit of the shift range, you cannot move the lever to the horizontal limit,
likewise when the Shift lever is at the horizontal limit of the shift range, you cannot move the lever to the
horizontal limit.
When the projector is tilting and you adjust KEYSTONE, the center of the screen and the lens need to be
realigned.
Do not attempt to pull hard the Shift lever while adjusting.
ENGLISH - 17
Connections
Before connection to the projector
Getting Started
Read and follow the operating and connecting instructions of each peripheral device.
The peripheral devices must be turned off.
Use cables that match each peripheral device to be connected.
Confirm the type of video signals. See “List of compatible signals” on page 41.
Audio cables must be connected from each peripheral device directly to the audio reproduction system.
Connecting with AV devices
To component
video output
To S-video
output
To video output
DVD player
Video player
DVD player
Connecting with HDMI/PC
RGB signal cable
HDMI cable
(RP-CDHG30: Optional)
To RGB output
To HDMI output
DVD player
PC
NOTE:
Make sure the HDMI cable is adapted to your HDMI device for proper performance.
A compatible cable is required for an HDMI 1 080p signal.
It is possible to connect with DVI devices via a HDMI/DVI conversion adapter, but some equipment may not
project the image properly or other problems could be encountered. See “Serial terminal” on page 42.
18 - ENGLISH
Switching the projector on/off
Power cord
Ensure all the input devices are connected and turned off before connecting the Power cord.
J Connecting
J Disconnecting
1. Make sure the shape
of the power cord plug
and the AC IN
connector on the back
of the projector match,
then push the plug all the way in.
1. Make sure the MAIN POWER is switched off
and unplug the Power cord from the wall
socket.
2. Hold the plug and unplug the Power cord
from the AC IN connector on the back of the
projector.
2. Connect the Power cord to a wall socket.
Basic Operation
NOTE:
Do not use any other Power cord than the one supplied with the projector.
Do not force the connector as this may damage the projector and/or the power cord.
Dirt or dust build-up around plugs may cause fire or electrical hazards.
Switch off the power to the projector when not in use.
POWER indicator
POWER indicator
Indicator status
No illumination or flashing
RED
Lit
Flashing
Status
The MAIN POWER is switched off.
The MAIN POWER is switched on and the projector is standby.
The POWER is switched on and the projector is getting ready to project.
GREEN
Lit
The projector is ready to project.
Lit
The POWER is switched off and the projector is cooling the lamp.
ORANGE
Flashing
The POWER is switched on again when cooling the lamp and recovering
to projection mode. Recovery may take a while.
NOTE:
While the projector is cooling the lamp, do not switch the MAIN POWER off or unplug the Power cord.
ENGLISH - 19
Switching the projector on/off
Switching on the projector
Power indicator
1. Switch the MAIN POWER on.
Basic Operation
The power indicator lights up in RED.
2. Remove the Lens cover from the lens.
3. Press the POWER button.
The power indicator lights up in GREEN after
flashing for a while.
The STARTUP LOGO is displayed on the
screen.
NOTE:
See page 34 about switching on/off the STARTUP LOGO.
Some small rattling or tinkling sound may be heard when starting up, but this is normal and does not affect
the performance of the projector.
Switching off the projector
Power indicator
1. Press the POWER button.
The confirmation screen is displayed.
To return to the projection, press ENTER to
select CANCEL or press MENU/RETURN.
2. Press I to select OK and press POWER or
ENTER.
The power indicator lights up in ORANGE while
cooling the lamp, then illuminates RED when it
is ready to switch off the MAIN POWER.
3. Switch off the MAIN POWER on the back of
the projector.
NOTE:
Press the POWER twice or for a long duration to switch the power.
20 - ENGLISH
Projecting an image
Selecting the input signal
1. Switch on the connected devices.
Press the play button of the required device.
2. Press the INPUT SELECT button to select the
required input method if needed.See "Input
switching" on page 22.
The image will be projected on the screen.
NOTE:
AUTO SEARCH is ON as default and the signal from the connected devices is detected automatically. See
"AUTO SEARCH" on page 34.
Positioning the image
2. Adjust the projected image with the Shift
lever. See "Lens shift and positioning" on
page 16.
4. Adjust the focus and the projected image
size.
Turn the Focus ring and Zoom ring to adjust
the image.
You can confirm the result with TEST
PATTERN.
Focus ring
Zoom ring
Basic Operation
1. Press ASPECT to select the required aspect
mode. See "ASPECT" on page 32.
Unlock
3. Adjust the angle of the projector.
Screw down the Front leg adjuster and adjust
the angle vertically.
NOTE:
Do not touch the Air exhaust port as this may
cause burns or injury.
If keystone distortion occurs, see “KEYSTONE”
on page 33.
ENGLISH - 21
Remote control operation
Input switching
You can switch the input method
manually by pressing the INPUT
SELECT button. Press the button
several times or press I H to cycle
through the input methods as follows.
The actual projected image will be
changed in a while.
COMPONENT IN
I
H
S-VIDEO IN
FG
FG
PC IN
I
H
HDMI IN
Basic Operation
COMPONENT IN
Operating range
You can operate the projector with the Remote control
within the remote range 7 m.
Q Facing to the projector
Ensure the Remote control emitter is facing to
the Remote control signal receptor on front of
the projector and press the required buttons to
operate.
Q Facing to the screen
Ensure the Remote control emitter is facing to
the screen and press the required buttons to
operate the projector. The signal will be reflected
off the screen. The operating range may differ due
to the screen material.
NOTE:
The Remote control may malfunction under
strong light such as a fluorescent. Do not let
strong light shine onto the signal receptor.
If there are any obstacles in between the remote
control unit and the receptor, the Remote control
may not operate correctly.
22 - ENGLISH
I
H
VIDEO IN
Connected to COMPONENT
IN terminal equipment’s
signal
S-VIDEO IN
Connected to S-VIDEO IN
terminal equipment’s signal
VIDEO IN
Connected to VIDEO IN
terminal equipment’s signal
HDMI IN
Connected to HDMI terminal
equipment’s signal
PC IN
Connected to PC IN terminal
equipment’s signal
Graphical guidance will be displayed on the upper right
of the display and you can confirm the selected input
method which is hilighted in yellow. See "INPUT
GUIDE" on page 34.
NOTE:
If you select an unplugged input method, the
guidance will blink on and off several times.
See "List of compatible signals" on page 41.
See "Connecting terminals" on page 13.
Capturing an image
When projecting an image, press FREEZE
to capture the projected image and display
it on the screen as a still picture. Press
again to escape.
NOTE:
Escaping from the freeze mode is available by
pressing any button except the LIGHT button.
Remote control operation
The aspect ratio is selected automatically,
or you can switch it manually by pressing
the ASPECT button. Press the button
several times to cycle through the different
aspect type as follows. See "ASPECT" on
page 32.
VIDEO/
S-VIDEO/
COMPONENT
(YPBPR)
I
H
4:3
FG
I
H
ZOOM2
14:9
FG
ZOOM1
I
H
4:3
PC (RGB)
16:9
I
H
I
H
JUST
16:9
FG
FG
V SCROLL
HDMI
4:3
I
H
16:9
NOTE:
If you project an image with an unmatched aspect
ratio, the image may distort or some portions may
be cropped. Select an aspect ratio which
preserves the intention of the image creator.
The order of ASPECT types is defined not only by
the input method but also by the input signals.
See "List of compatible signals" on page 41.
If you project a copyrighted image enlarged or
distorted by using ASPECT function in
commercial use in a public place, such as a
restaurant or hotel, you might infringe on the
copyright of the creator which is protected by
copyright law.
Switching off the projector
automatically
You can switch off the POWER
automatically by setting the SLEEP
feature. Press the SLEEP button
several times to cycle through the
duration of time. See "SLEEP" on
page 35.
I
H
I
H
I
OFF
60MIN. 90MIN. H120MIN.
FG
FG
I
I
I
240MIN.H210MIN.H180MIN.H150MIN.
Resetting to the factory
default settings
You can reset most of the customized
settings to the factory defaults by
pressing DEFAULT button of the
Remote control. Display the
required sub menu or the menu
items and press the button again.
NOTE:
Some menu items are not available to reset by
pressing the DEFAULT button. Adjust each menu
items manually.
Turning on the button
backlight
In a dark room, you can turn on the
button backlight to operate the
Remote control. Press the button on
the upper right corner of the unit to
turn on the backlight and enter the
light-on mode. After 5 seconds
without any operation, the backlight is
faded, and it will go out after another 5
seconds. Press any but LIGHT to turn
on again. To escape from the light-on
mode, press the LIGHT button.
Basic Operation
Switching the aspect ratio
Switching the picture
mode
You can switch the preset settings by pressing the
THEATER ROOM, LIVING ROOM and FAVORITE
buttons. See "PICTURE MODE" on page 28.
I
H
CINEMA2
NATURAL
I
H
VIDEO
NORMAL
I
H
DYNAMIC
CINEMA1
FG
FG
FG
FG
VIVID CINEMA
Display the FAVOURITE LOAD menu.
See "FAVOURITE LOAD" on page 30.
ENGLISH - 23
Remote control operation
Adjusting the image
You can display one of the PICTURE or
ADVANCED menu items by pressing
the PICTURE ADJUSTMENT button.
Press the button to switch between
PICTURE and ADVANCED menu.
Press F G to select the required menu
item and I H to adjust.
Q PICTURE menu items
PICTURE MODE, CONTRAST, BRIGHTNESS,
COLOR, TINT, SHARPNESS, COLOR
TEMPERATURE and DYNAMIC IRIS
J Create a new profile
Q Adjusting the selected color
Select a color and adjust COLOR, TINT and
BRIGHTNESS.
1. Select the CURSOR menu and press
ENTER.
The projected image is captured, and the target
cursor is displayed.
When the LOG is fully stored, the target cursor
will not be displayed. See "Managing stored
logs" on page 25.
Target cursor
Q ADVANCED menu items
Basic Operation
GAMMA, CONTRAST, BRIGHTNESS, COLOR
MANAGEMENT, NR, MPEG NR, CINEMA
REALITY and TV-SYSTEM
NOTE:
For each menu items description, see “Menu
Navigation” on page 26.
The screen will be cleared after 7 seconds without
any operation.
Setting your own color
profile
You can adjust a selected color
individually and save and retrieve
under the PICTURE MODE setting.
Press the COLOR MANAGEMENT
button to open the menu.
2. Move the cursor with F G I and H to the
required place to select a color and press
ENTER.
The color at the center of the target cursor is
sampled and the sample box is displayed on
the left of the cursor. The menu items are
displayed on the upper part of the screen.
CURSOR
RETURN
SELECT
ENTER
DEFAULT
COLOR
TINT
BRIGHTNESS
Sampled color
PROFILE
CURSOR
LOG
PROFILE SAVE
NORMAL
3. Select a menu item and the I H to adjust
each item level.
The result box is displayed on the right of the
cursor and shows the adjusted color.
CURSOR
RETURN
SELECT
ENTER
DEFAULT
COLOR
TINT
BRIGHTNESS
Adjusted color
24 - ENGLISH
Remote control operation
COLOR
Adjust the color tone.
Setting range: -30 to +30
Default: 0
TINT
BRIGHTNES
S
Adjust the brightness of the color.
Setting range: -20 to +20
Default: 0
4. Press ENTER to store the adjusted result.
“PROCESSING” is displayed for a few seconds
and the result is stored in LOG.
You can store up to 8 logs under LOG for each
PICTURE MODE setting.
5. Press MENU or RETURN to return to the
previous menu.
Repeat the steps above to store more
adjustment.
Q Managing stored logs
You can edit or delete the stored logs of the
selected PICTURE MODE.
1. Select LOG and press ENTER.
The LOG menu is displayed.
1. Select the PROFILE SAVE menu and press
ENTER
The PROFILE SAVE menu is displayed. You
can save the profile as USER1, USER2 and
USER3.
USER1
USER2
USER3
2. Press ENTER to save the profile
The confirmation screen is displayed. Press
ENTER again to save.
J Loading saved profiles
When profiles are loaded under the PICTURE
MODE setting, you can keep them as you defined
until the PROFILE is set to NORMAL.
1. Select the required PICTURE MODE and
press ENTER.
2. Press the COLOR MANAGEMENT button
and select the PROFILE menu.
The profile settings of the selected PICTURE
MODE will be displayed.
3. Select the required profile and press ENTER.
NORMAL
PICTURE MODE : CINEMA1
Basic Operation
Adjust the vividness of the color.
Setting range: -30 to +30
Default: 0
Return to the default setting of the
PICTURE MODE
USER1
POINT1
USER2
POINT2
Defined profile settings.
POINT3
USER3
POINT4
POINT5
POINT6
POINT7
POINT8
ALL DELETE
Sampled color
Adjusted color
2. Select the required log from 1 - 8 or ALL
DELETE, and press ENTER.
Select CHANGE to edit the log.
The cursor menu is displayed and you can
readjust the color.
Select DELETE to delete the log.
The confirmation screen will be displayed.
Select OK to delete.
When you select ALL DELETE, the "DELETE
ALL LOG." screen is displayed. Select OK to
delete all logs. The PROFILE setting will be set
to NORMAL.
NOTE:
LOG and PROFILE SAVE are not displayed
before you apply COLOR MANAGEMENT.
If you load a profile with a different attribute mode
of the profile, the CURSOR and PROFILE SAVE
menus will not be displayed.
The approximate colors will be adjusted at the
same time. If you adjust the exact same color
differently, both colors will affect each other and
you might get unexpected results.
White, Black and Grey are not adjustable.
If you escape the COLOR MANAGEMENT menu
or attempt to perform another menu action before
you save the adjusted profile, the confirmation
screen will be displayed.
If you switch the input signal before you save the
profile, the setting will be cancelled without notice.
Q Saving a log setting as a profile
Return to the COLOR MANAGEMENT menu and
save the stored log as a profile. Make sure that the
PICTURE MODE is not switched.
ENGLISH - 25
Menu Navigation
The menu system allows you to access functions which
do not have their own dedicated buttons on the Remote
control. The menu options are structured and
categorized. You can navigate through the menu with
F G I H buttons.
Navigating through the
MENU
3. Press I H to adjust or set the selected item.
For items using a bar scale, the current
settings are displayed on the left of the bar
scale.
You can cycle through the options of an item
by pressing I H.
H-POSITION
V-POSITION
ASPECT
WSS
OVER SCAN
KEYSTONE
POSITION
J Displaying the Main menu
ENGLISH
Press MENU button to display the Main
menu and the operating guidance.
OPTION
ON
RETURN
Main menu
POSITION
LANGUAGE
OPTION
RETURN
SELECT
ENTER
Sub menu
PICTURE MODE
CONTRAST
BRIGHTNESS
COLOR
TINT
SHARPNESS
COLOR TEMPERATURE
DYNAMIC IRIS
LIGHT HARMONIZER
ADVANCED MENU
FAVORITE SAVE
FAVORITE LOAD
Current
settings
NORMAL
SELECT
ENTER
DEFAULT
4. Press MENU or RETURN to return to the previous
menu.
To continue projection, press the button
repeatedly until the menu disappears.
Q About the bar scale items
ON
OFF
Settings
Operating guidance
Contains the required buttons to adjust the settings.
The triangle mark under the bar indicates factory
default setting and the square indicates the current
setting.
Current
setting
BRIGHTNESS
J Operating procedure
Default
1. Press F G to scroll to the required Main menu
item and press ENTER to select.
The selected item is highlighted in orange and
the Sub-menu is displayed on the right. See
“Sub-menu” on page 27.
2. Press F G to scroll to the required Sub-menu
item and press I H or ENTER to adjust.
Main menu
The Main menu has 4 options. Select the required
option and press ENTER to display the Sub-menu.
The selected item is called up and the other
menu items disappear from the screen.
POSITION
If there is a lower level, the next level will be
displayed.
LANGUAGE
H-POSITION
V-POSITION
ASPECT
WSS
OVER SCAN
KEYSTONE
POSITION
LANGUAGE
OPTION
RETURN
SELECT
ENTER
26 - ENGLISH
OPTION
ON
Menu Navigation
Sub-menu
Sub-menu items vary by the selected input signal.
J PICTURE menu
J LANGUAGE menu
Select the required language option.
See “PICTURE Menu” on page 28.
Sub-menu items
PICTURE MODE
Default setting1
NORMAL
CONTRAST
0
BRIGHTNESS
0
COLOR
0
TINT
0
SHARPNESS
0
COLOR TEMPERATURE
0
DYNAMIC IRIS
ON
LIGHT HARMONIZER
AUTO
ADVANCED MENU
FAVOURITE SAVE
FAVOURITE LOAD
1. The default settings vary by the selected PICTURE MODE.
2. PC/COMPONENT/HDMI signals only
J POSITION menu
J OPTION menu
See “OPTION Menu” on page 34.
See “POSITION Menu” on page 31.
Sub-menu items
Sub-menu items
Default setting
V - POSITION
0
H - POSITION
0
1
0
DOT CLOCK
CLOCK
Settings
SIGNAL MODE2
PHASE2
0
Default setting
INPUT GUIDE
DETAILED
OSD DESIGN
TYPE1
OSD POSITION
CENTRE
BACK COLOR
BLUE
STARTUP LOGO
ON
AUTO
AUTO SEARCH
ON
ON
INSTALLATION
FRONT/DESK
OVER SCAN
+7
SLEEP
OFF
KEYSTONE
ON
ALTITUDE
LOW
ASPECT
WSS
4
AUTO SETUP5
3
LAMP POWER
NORMAL
LAMP RUNTIME
1.
2.
3.
4.
5.
PC signal only
COMPONENT/PC signals only
16:9 for PC or HDMI signals
VIDEO/S-VIDEO/COMPONENT signals only
PC signal only
TEST PATTERN
ENGLISH - 27
PICTURE Menu
J Reproducing color of an sRGB
For reproducing the original color of S-VIDEO
images precisely, set as follows.
1. Press PICTURE ADJUSTMENT and select
NATURAL.
2. Press DEFAULT to reset the other Sub-menu
menu items
3. Press RETURN once to return to the Main menu
and select OPTION
4. Switch the LAMP POWER to NORMAL
NOTE:
It may take for a while until the selected mode is
stabilized.
See “Navigating through
the MENU” on page 26.
PICTURE MODE
Depending on the projection environment, you can use
these preset parameter settings to optimise image
projection. Press I H to cycle through the options.
Settings
For a bright room
NORMAL
Setting for a general image, such as
sports or games
DYNAMIC
Bright and sharp setting
VIVID
CINEMA
Vivid and crisp color setting
For a dark room
CINEMA1
Hollywood style colors
CINEMA2
Deeper and more rich color setting
VIDEO
Setting for active images, such as
music or concert
NATURAL
Reproduces the original color of the
CONTRAST
You can adjust the contrast of the projected image.
Adjust the BRIGHTNESS in advance if necessary.
Lower
Higher
Setting range: -32 to +32
BRIGHTNESS
You can adjust the brightness of the projected image.
Darker
Brighter
Setting range: -32 to +32
COLOR
You can adjust the color saturation of the projected
image.
Lighter
Darker
Setting range: -32 to +32
When PC is connected, this function is available with
1 125 (1 080)/60i, 1 125 (1 080)/50i,
1 125 (1 080)/60p and 1 125 (1 080)/50p signals
only.
28 - ENGLISH
PICTURE Menu
You can adjust the skin tone in the projected image.
More
reddish
More
greenish
Setting range: -32 to +32
When PC is connected, this function is available with
1 125 (1 080)/60i, 1 125 (1 080)/50i,
1 125 (1 080)/60p and 1 125 (1 080)/50p signals
only.
SHARPNESS
You can adjust the sharpness of the projected image.
Less
sharp
More
sharp
Setting range is vary according to the selected input
signal
COLOR TEMPERATURE
You can adjust the white balance of the projected
image.
Less
bluish
Less
reddish
Setting range: -6 to +6
NOTE:
To assure correct performance of the LIGHT
HARMONIZER, do not interrupt the light onto the
LUMINANCE SENSOR.
ADVANCED MENU
From the ADVANCED MENU, you can perform more
detailed image adjustment manually.
J GAMMA
You can adjust linear intensity at 3 levels. Press
I H to increase/decrease.
Levels
Default setting
GAMMA HIGH
0
GAMMA MID
0
GAMMA LOW
0
Setting range: -8 to +8
J CONTRAST
You can adjust the amount of contrast in RGB
colors individually. Press I H to
increase/decrease.
RGB
Default setting
CONTRAST R
0
CONTRAST G
0
CONTRAST B
0
Setting range: -16 to +16
DYNAMIC IRIS
J BRIGHTNESS
You can switch automatic adjustment of the lamp and
the lens iris on/off.
• ON:
Automatic adjustment
• OFF:
No adjustment
LIGHT HARMONIZER
LUMINANCE SENSOR detects the brightness of the
room and keeps the luminance in balance
automatically. If needed, you can switch on/off this
function or adjust it manually. Press I H to cycle
through the options.
LIGHT HARMONIZER
MODE
MANUAL ADJUST
Settings
TINT
You can adjust the brightness in RGB colors
individually. Press I H to increase/decrease.
RGB
Default setting
BRIGHTNESS R
0
BRIGHTNESS G
0
BRIGHTNESS B
0
Setting range: -16 to +16
J COLOR MANAGEMENT
You can manage your own defined color settings.
See “Setting your own color profile” on page 24.
AUTO
• OFF
No adjustment
• AUTO:
Automatic adjustment
• MANUAL: Manual adjustment (0 - +8)
ENGLISH - 29
PICTURE Menu
J NR (Noise Reduction)
You can switch the automatic noise reduction
system on/off. Press I H to select the required
setting.
• ON:
Automatic noise reduction
• OFF:
No noise reduction
FAVOURITE SAVE
You can save the adjusted PICTURE settings with up to
3 in each of 2 signal groups.
1. Adjust the different items of the PICTURE menu.
2. Select FAVOURITE SAVE and press ENTER.
NOTE:
Applying noise reduction may affect image quality.
3. Select FAVOURITE 1, FAVOURITE 2 or
FAVOURITE 3 to save and press ENTER.
The confirmation screen is displayed.
J MPEG NR
You can switch the automatic noise reduction
system for MPEG format images on/off. The
system minimizes block noise and mosquito noise
to eliminate jagged edges, providing an overall
smoother image. Press I H to select the required
setting.
• ON:
Active
• OFF:
Deactive
NOTE:
MPEG NR is for MPEG images only.
MPEG NR is not available with PC and HDMI
(VGA480) signals.
4. Select OK and press ENTER.
To cancel, select CANCEL and press ENTER,
or press the RETURN button.
VIDEO, S-VIDEO, COMPONENT,
HDMI (not including VGA480),
1 125 (1 080)/50i, 1 125 (1 080)/60i,
1 125 (1 080)/50p and
1 125 (1 080)/60p signals in PC
connection
FAVOURITE 1
FAVOURITE 2
FAVOURITE 3
VGA480 in HDMI connection, PC
not including 1 125 (1 080)/50i,
1 125 (1 080)/60i, 1 125 (1 080)/50p
and 1 125 (1 080)/60p
FAVOURITE 1
FAVOURITE 2
FAVOURITE 3
J CINEMA REALITY
Settings
You can switch the automatic image synchronizer
on/off for 24 frames a second images, such as
movies. Press I H to select the required setting.
• ON:
Active
• OFF:
Deactive
FAVOURITE LOAD
You can access saved FAVOURITE settings instantly.
1. Select the required setting from FAVOURITE 1,
FAVOURITE 2 or FAVOURITE 3.
Undefined setting will not be displayed.
NOTE:
S-VIDEO, VIDEO, PC. COMPONENT available
signals are 525i (480i), 625i (576i),
1 125 (1 080)/50i, 1 125 (1 080)/60i,
1 125 (1 080)/50p and 1 125 (1 080)/60p, while
HDMI available signals are 1 125 (1 080)/60i,
1 125 (1 080)/50i.
If the CINEMA REALITY is different from the
required setting of the image, select OFF.
J TV-SYSTEM
When the video signal is changed, the setting switches
automatically.
You can switch the setting manually to match the video
data. Press I H to cycle through the options.
AUTO
FG
IH
NTSC
FG
SECAM
FG
NTSC 4.43
FG
FG
PAL-N
PAL-M
30 - ENGLISH
IH
PAL
2. Press ENTER to activate the selected setting.
NOTE:
If you have not saved any settings,
FAVOURITE 1, FAVOURITE 2 and
FAVOURITE 3 are not displayed.
SIGNAL MODE
The current selected signal is displayed when
PC/COMPONENT/HDMI equipment is connected.
NOTE:
See “List of compatible signals” on page 41.
POSITION Menu
DOT CLOCK
If you have interference patterns on the projected
image, which is sometimes referred to as moire or
noise, you can minimize it by pressing I H to adjust the
clock frequency.
NOTE:
If the projecting signal’s dot clock frequency is
higher than 150 MHz, the adjustment may not
make a difference.
See “Navigating through
the MENU” on page 26.
You can move the projected image horizontally for fine
adjustment.
Move
right
V - POSITION
NOTE:
If the projecting signal’s dot clock frequency is
higher than 150 MHz, the adjustment may not
make a difference.
CLOCK PHASE is not available with
1 125 (1 080)/50i, 1 125 (1 080)/60i,
1 125 (1 080)/50p, 1 125 (1 080)/60p,
1 125 (1 080)/24p, 750 (720)/50p and
750 (720)/60p signals using the COMPONENT
connection.
Settings
If you require further adjustment for the same reason as
the DOT CLOCK adjustment, you can fine adjust the
timing of the clock. Press I H to adjust.
H - POSITION
Move
left
CLOCK PHASE
You can move the projected image vertically for fine
adjustment.
Move
down
Move
up
ENGLISH - 31
POSITION Menu
ASPECT
You can switch the aspect ratio manually when needed.
J Aspect ratio options and projection example
If you apply the aspect ratio options to the projected image, the result will be as follows. The result may differ
due to the input signals. See “Switching the aspect ratio” on page 23.
Q VIDEO/S-VIDEO/COMPONENT
Not available with 1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p, 1 125 (1 080)/60p,
1 125 (1 080)/24p, 750 (720)/50p and 750 (720)/60p signals.
4:3
Squeeze
signal
16:9
Letter box
14:9
2.35:1
Letter Box Cinescope
Original size
4:3
Projects at 4:3.
16:9
Adjusts horizontally to
16:9.
JUST
Adjusts horizontally to fit
16:9. Closer to edge,
more enlarged. Not
available with PC signals.
Settings
ZOOM/ZOOM1
Adjusts to 16:9 size
including letter box.
Escape the menu mode
and press FG to adjust
vertically.
ZOOM2
Adjusts to cinescope size
not including letter box.
Escape the menu mode
and press FG to adjust
vertically.
14:9
Adjusts to 14:9.
Q COMPONENT signals
Available with 1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p, 1 125 (1 080)/60p, 1 125 (1 080)/24p,
750 (720)/50p and 750 (720)/60p signals
4:3
16:9
Cinescope
Original Size
H - FIT
Adjusts horizontally to 16:9.
V - FIT
Adjusts to 16:9 vertically. Escape and press F G to
scroll the image to adjust the edge vertically.
V SCROLL: Escape and press F G to scroll the image of PC signals to adjust the edge vertically.
32 - ENGLISH
POSITION Menu
Press I H to cycle through the aspect ratio
options. The cycle pattern depends on the
connected signals.
VIDEO/
S-VIDEO
4:3 \ 16:9 \ 14:9 \ JUST \
ZOOM1 \ ZOOM2
AUTO \ 4:3 \ 16:9 \ JUST \
ZOOM
NTSC signal
PC (RGB)
4:3 \ 16:9 \ V SCROLL
4:3 \ 16:9
VGA or SVGA signals
V SCROLL only
WIDE768
Not switchable
WIDE480/600/720/768-2 signals
HDMI
4:3 \ 16:9
16:9 \ H - FIT \ V - FIT \ ZOOM
1 125 (1 080)/50i, 1 125 (1 080)/60i,
1 125 (1 080)/50p, 1 125 (1 080)/60p,
1 125 (1 080)/24p, 750 (720)/50p and
750 (720)/60p signals
4:3 \ 16:9 \ JUST \ ZOOM
525p (480p) and 625p (576p) signals
YPBPR
4:3 \ 16:9 \ 14:9 \ JUST \
ZOOM1 \ ZOOM2
625i (576i), 625p (576p)
AUTO \ 4:3 \ 16:9 \ JUST \
ZOOM
525i (480i), 525p (480p)
16:9 \ H - FIT \ V - FIT
1 125 (1 080)/50i, 1 125 (1 080)/60i,
1 125 (1 080)/50p, 1 125 (1 080)/60p,
1 125 (1 080)/24p, 750 (720)/50p,
750 (720)/60p signals
WSS
KEYSTONE
If the projector is aligned non-perpendicularly to the
screen, or if the projection screen has an angled
surface, you can vertically correct keystone.
Operation
Setting range: -32 to 32
NOTE:
You can correct the distortion ± 30 degrees from
the vertical plane. For a better quality image,
installing the projector with a minimum of
distortion is recommended.
Some distortion may be retained for Lens shift
adjustment.
The distortion of the Main menu screen is not
correctable.
The result of the keystone correction will affect on
the aspect ratio and the size of the image.
AUTO SETUP
You can adjust V - POSITION, H - POSITION, DOT
CLOCK and CLOCK PHASE automatically when
connecting via PC. Press ENTER to adjust these at the
same time.
Settings
J Aspect ratio depend on signals
If a PAL/625p (576p)/625i (576i) signal is input and that
signal has an identification signal, the aspect ratio is
automatically switched to the required setting. You can
switch the system off manually.
OVER SCAN
If the 4 edges of an image is partly dropped, you can use
this function to adjust and project it properly.
Shrink
Enlarge
Setting range: 0 to +10
OVER SCAN is not available with PC signals.
ENGLISH - 33
OPTION Menu
OSD POSITION
You can change the position where to display the menu.
Press I H to cycle through the options.
UPPER
LEFT
UPPER
CENTRE
UPPER
RIGHT
CENTRE
LOWER
LEFT
See “Navigating through
the MENU” on page 26.
Settings
When you press INPUT or the INPUT SELECT button
to change the input method, the guidance is indicated in
the upper right corner of the screen. The following
display methods are available. Press I H to cycle
through the options.
OFF
SIMPLE
DETAILED
BACK COLOR
STARTUP LOGO
You can switch on/off the logo that is displayed when
starting up. Press I H to select an option.
• ON:
Active
• OFF:
Deactive
Function
Turn off the guidance.
Display the input method by text.
The INPUT GUIDE will go out
after 5 seconds without any
operation.
Display the input method by
graphic.
The INPUT GUIDE will go out
after 10 seconds without any
operation.
OSD DESIGN
You can change the background color of the menu.
Press I H to cycle through the options.
Options
Function
TYPE1
Semi transparent black
TYPE2
Solid blue
TYPE3
Semi transparent dark blue
34 - ENGLISH
LOWER
RIGHT
You can choose a BLUE or BLACK screen for when the
projector is idle. Press I H to select an option.
INPUT GUIDE
Options
LOWER
CENTRE
AUTO SEARCH
When the projector is turned on, the input terminals are
detected and an input signal is selected automatically.
You can switch on/off the system. Press I H to select
an option.
• ON:
Active
• OFF:
Deactive
NOTE:
When no signal is detected, the last used input
method will be selected.
HDMI SIGNAL LEVEL
You can switch the HDMI signal level NORMAL or
EXPAND when an HDMI (RGB) signal selected. Press
I H to select an option.
OPTION Menu
INSTALLATION
LAMP RUNTIME
When installing the projector, select the projection
method according to the projector position. Press I H
to cycle through the options. See “Projection method”
on page 15.
FRONT/DESK
Setting on a desk/floor and
projecting from front
FRONT/CEILING
Mounting in the ceiling and
projecting from front
REAR/DESK
Setting on a desk/floor and
projecting from rear
REAR/CEILING
Mounting in the ceiling and
projecting from rear
You can check how long time has been the lamp used.
NOTE:
LAMP RUNTIME is a relevant matter for lamp
replacement timing. See “Care and Replacement”
on page 37.
TEST PATTERN
You can use the 2 different of test pattern to adjust the
focus of the image. The PICTURE MODE is switched to
DYNAMIC temporarily, and return to the last used
setting when return to projection.
1. Press ENTER to display test pattern 1 and adjust
the focus with the Focus ring.
You can select the required duration of time and set the
off timer to turn off the POWER of the projector
automatically. 3 minutes before turn-off, the countdown
of minutes will be displayed in the lower right corner.
Press I H to cycle through the options. See “Switching
off the projector automatically” on page 23.
ALTITUDE
2. Press ENTER to display test pattern 2 and adjust
the focus with the Focus ring again.
If you use the projector at high elevations, set the fan
speed to HIGH. Press I H to select HIGH or LOW.
NOTE:
At 1 400 m (4593 ft) above sea level, the setting
must be HIGH.
3. Press MENU or RETURN to return to the previous
menu, or press repeatedly to return to the screen.
Settings
SLEEP
LAMP POWER
You can adjust the power of the lamp to save on
electricity, prolong the lamp life and reduce the noise.
Options
NORMAL
ECO - MODE
Function
When higher luminance is
required such as movies
When lower luminance is
sufficient such as in a small room
NOTE:
While a test pattern is displayed, the PICTURE
MODE is changed temporarily to DYNAMIC.
When the projector and/or the screen is tilted,
adjust the focus at the center of the image. The
upper and lower edge might be out of focus.
When the image is distorted in keystone, adjust
the KEYSTONE in POSITION menu.
NOTE:
When no input signal is detected, the function is
disabled.
ENGLISH - 35
TEMP and LAMP Indicators
Controlling alerts
If a problem should occur with the projector, the TEMP and/or LAMP indicators will alert you. Respond to the alert
as follows.
1. Confirm the POWER indicator status and turn off the projector in the proper way.
2. Find out the cause of the problem.
3. Follow the instructions for each indication below and solve the problem.
4. Turn on the projector in the correct way and confirm the indicator is not indicating a problem any longer.
NOTE:
If no problem is found or the problem remains, do not turn on the projector. Instead contact an Authorized
Service Center.
LAMP indicator
TEMP indicator
J TEMP indicator
Indicator and
projector
Problem
Cause
Remedy
Illuminating RED and still projecting
Flashing RED and POWER is turned off
The temperature inside and/or outside the projector is abnormally high.
The Air filter is excessively
dirty and the ventilation is
poor.
Maintenance
The ventilation ports are
covered.
The room temperature is too
high.
Remove the object(s) from
the ventilation ports or clear
around the projector.
Clean or replace the Air filter
Reinstall the projector at a
in the proper way. See
temperature controlled place.
“Cleaning the Air filter” on
See “Setting up” on page 14.
page 37.
J LAMP indicator
Indicator
Problem
Cause
Remedy
36 - ENGLISH
Illuminating RED
Flashing RED
LAMP RUNTIME has reached 1 800 hours
(with LAMP POWER set to NORMAL).
LAMP circuit failure or abnormal function.
Lamp unit will run out soon and needs to be
replaced.
The projector is switched off incorrectly.
Replace the Lamp unit. See “Before
replacing the Lamp unit” on page 38.
Let the LAMP cool down and turn on the
projector.
If the POWER does not turn on, contact an
Authorized Service Center.
Care and Replacement
Before cleaning
Ensure the projector is switched off.
Unplug all the cables from the projector.
Cleaning your projector
J Cleaning the outer surface of the projector
Wipe off dirt and dust gently with a soft cloth.
If it is difficult to remove the dirt, soak a cloth in a neutral detergent diluted with water, wring the cloth well
and then wipe the projector. Dry off the projector with dry cloth.
If you use a chemical treated wipe, follow the instructions supplied with it.
J Cleaning the lens surface
Wipe off dirt and dust gently with a lint-free cloth.
Make sure no dirt or dust remains on the surface of the lens. It will be enlarged and projected onto a
screen.
J Cleaning the Air filter
If the Air filter is excessively dirty, the internal temperature of the projector increases and may cause
malfunction. Clean the Air filter regularly every 100 hours of usage.
1. Turn the projector upside down and place it gently on a soft cloth.
2. Press the tab and slightly slide up the Air filter to remove.
3. Vacuum dirt and dust from the Air filter.
Maintenance
Do not wash the Air filter.
4. Place and slightly slide in the Air filter in the Air intake port to attach.
Make sure the Air filter clicks into the place.
NOTE:
Do not use the projector without attaching the Air filter.
J Replacing the Air filter
The Air filter should be replaced when cleaning is ineffective and when replacing the Lamp unit. An
replacement Air filter is provided with a replacement lamp unit, ET - LAX100. Contact an Authorized Service
Center for the optional Air filter.
ENGLISH - 37
Care and Replacement
Before replacing the Lamp unit
Ensure the projector is switched off.
Unplug all the cables from the projector.
Prepare a Phillips-head screwdriver.
Contact an Authorized Service Center to purchase a replacement Lamp unit (ET-LAX100).
NOTE:
Prior to replacing the lamp unit, allow it to cool down to prevent the risk of burns, damage and other hazards.
Do not attempt replacement with an unauthorized lamp unit.
When to replace the Lamp unit
The Lamp unit is consumable and the brightness decreases by duration of usage. The LAMP indicator will alert
you of the replacement timing at 1 800 hours, and at 2 000 hours, the projector will be turned off. 1 800 or
2 000 hours is a rough guidance and might be shortened by the usage conditions, characteristics of the lamp unit,
environmental conditions, and so on. You can check the duration of usage time using LAMP RUNTIME in the
OPTION menu.
On screen
LAMP indicator
REPLACE LAMP
Indication
Over 1 800 hours
"REPLACE LAMP" is displayed on the
upper left of the screen for 30 seconds.
To clear the screen immediately, press any
button.
Over 2 000 hours
"REPLACE LAMP" is displayed on the
upper left of the screen, and until you
respond it will stay.
To clear the screen, press any button.
Illuminates RED
Maintenance
NOTE:
The guide times, 1 800 and 2 000 hours, are rough estimates based on certain conditions and is not a
guaranteed time. The estimated condition is: LAMP POWER in OPTION menu set to NORMAL.
To prolong the lamp life, set the LAMP POWER in OPTION menu to ECO - MODE. See “LAMP POWER” on
page 35.
For more information about the Lamp unit, such as guaranteed time, see the “Replacement Instructions”
provided with the Lamp unit.
38 - ENGLISH
Care and Replacement
Replacing the lamp unit
J Replacing
1. Turn off the MAIN POWER switch according to the procedure
“Switching the projector on/off” on page 19, and then disconnect the
power cord plug from the wall outlet and check that the area around
the lamp unit has cooled down.
Lamp unit cover fixing screws
2. Use a Phillips screwdriver to turn the lamp unit cover fixing screws at
the bottom of the projector, and then remove the lamp unit cover.
3. Use a Phillips screw driver to loosen the two lamp unit fixing screws
until the screws turn freely. Then hold the handle of the lamp unit and
gently pull it out from the projector.
4. Insert the new lamp unit while making sure that the direction of
insertion is correct, and then use a Phillips screwdriver to securely
tighten the lamp unit fixing screw.
5. Install the lamp unit cover, and then use a Phillips screwdriver to
securely tighten the lamp unit cover fixing screws.
Lamp unit cover
Lamp unit fixing screws
Press
here
Press
here
Handle
NOTE:
Be sure to install the lamp unit and the lamp unit cover securely. If they
are not securely installed, it may cause the protection circuit to operate so
that the power cannot be turned on.
Grip the handle when you remove the lamp unit. Some parts of the lamp
unit are sharpened and may cause injury.
J Resetting the LAMP RUNTIME
If the lamp usage time has passed 2 000 hours (when LAMP POWER has been set to NORMAL), the
projector will switch to standby mode after approximately 10 minutes of operation. The resetting procedure
should thus be completed within 10 minutes.
2. Press the POWER button so that a picture is projected onto
the screen.
3. Press the MENU button to display the menu screen, and
then press the F or G button to select the OPTION menu.
4. Press the ENTER button, and then press the F or G button
to select LAMP RUNTIME.
5. Press and hold the ENTER button for approximately
3 seconds. The confirmation screen, “LAMP RUNTIME
RESET.” is displayed and select OK.
INPUT GUIDE
OSD DESIGN
OSD POSITION
BACK COLOUR
STARTUP LOGO
AUTO SEARCH
HDMI SIGNAL LEVEL
INSTALLATION
SLEEP
ALTITUDE
LAMP POWER
LAMP RUNTIME
TEST PATTERN
DETAILED
TYPE1
CENTRE
BLUE
ON
ON
NORMAL
FRONT/DESK
OFF
LOW
NORMAL
Maintenance
1. Insert the power cord plug into the wall outlet and then
press the MAIN POWER switch.
1820H
6. Turn off the power.
This will reset the cumulative usage time for the lamp
unit to zero.
ENGLISH - 39
Troubleshooting
Should any problem persist, contact your dealer.
Problem
Cause
Power does not turn on.
The power cord may not be connected.
The MAIN POWER switch is turned off.
No electric supply is at the wall outlet.
TEMP indicator is lit or flashes.
LAMP indicator is lit or flashes.
The lamp unit cover has not been securely installed.
No picture appears.
The video signal input source may not be connected to a
terminal properly.
The input selection setting may not be correct.
The BRIGHTNESS adjustment setting may be at the
minimum setting.
The SHUTTER function may be in use.
The picture is fuzzy.
The lens cover may still be attached to the lens.
The lens focus may not have been set correctly.
The projector may not be at the correct distance from the
screen.
The lens may be dirty.
The projector may be tilted too much.
Reference
page
19
20
19
36
36
39
18
22
28
42
12
21
14
37
14
The color is pale or greyish.
COLOR or TINT adjustment may be incorrect.
The input source which is connected to the projector may not
be adjusted correctly.
28
18
The Remote control does
not operate.
The batteries may be weak.
The batteries may not have been inserted correctly.
The remote control signal receptor on the projector may be
obstructed.
The remote control unit may be out of the operation range.
11
22
The picture does not
display correctly.
The signal format (TV-SYSTEM) may not have been set
correctly.
There may be a problem with the VCR or other signal source.
A signal which is not compatible with the projector is being
input.
Maintenance
Picture from a computer
does not appear.
40 - ENGLISH
The cable may be too long.
The external video output from a laptop computer may not be
correct.
(You may be able to change the external output settings by
pressing the [Fn] + [F3] or [Fn] + [F10] keys simultaneously.
The actual method varies depending on the type of computer;
refer to the documentation provided with your computer for
further details.)
30
43
-
Technical Information
Mode
Display
resolution
(dots)1
Scanning
frequency
Dot clock
frequency
(MHz)
quality2
Format
A
VIDEO/S-VIDEO
VIDEO/S-VIDEO
COMPONENT
COMPONENT
COMPONENT/HDMI
COMPONENT/HDMI
COMPONENT/PC/
HDMI
COMPONENT/PC/
HDMI
COMPONENT/HDMI
COMPONENT/PC
/HDMI
COMPONENT/PC/
HDMI
COMPONENT/HDMI
COMPONENT/HDMI
PC/HDMI
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
PC
H
(kHz)
V
(kHz)
720 x 480i
15.7
59.9
720 x 576i
720 x 480i
720 x 576i
720 x 483
720 x 576
15.6
15.7
15.6
31.5
31.3
50.0
59.9
50.0
59.9
50.0
13.5
13.5
27.0
27.0
A
A
A
A
A
1 125 (1 080)/60i
1 920 x 1 080i
33.8
60.0
74.3
AA
1 125 (1 080)/50i
1 920 x 1 080i
28.1
50.0
74.3
AA
1 125 (1 080)/24p
1 920 x 1 080
27.0
24.0
74.3
AA
1 125 (1 080)/60p
1 920 x 1 080p
67.5
60.0
148.5
AA
1 125 (1 080)/50p
1 920 x 1 080p
56.3
50.0
148.5
AA
750 (720)/60p
750 (720)/50p
VGA480
1 280 x 720
1 280 x 720
640 x 480
640 x 480
640 x 480
640 x 480
856 x 480
800 x 600
800 x 600
800 x 600
800 x 600
800 x 600
1 072 x 600
1 280 x 720
1 024 x 768
1 024 x 768
1 024 x 768
1 024 x 768
1 024 x 768
1 280 x 768
1 152 x 864
1 152 x 864
1 280 x 1024
1 366 x 768
45.0
45.0
31.5
37.5
43.3
72.1
30.1
35.2
37.9
48.1
46.9
53.7
37.2
45.1
48.4
58.5
60.0
68.7
72.1
45.3
64.0
67.5
64.0
48.8
60.0
50.0
59.9
75.0
85.0
138.0
60.1
56.3
60.3
72.2
75.0
85.1
59.9
60.1
60.0
70.1
75.0
85.0
89.0
56.5
71.2
74.9
60.0
59.8
74.3
74.3
25.2
31.5
36.0
62.3
31.5
36.0
40.0
50.0
49.5
56.3
51.4
76.5
65.0
75.0
78.8
94.5
99.2
76.2
94.2
108.0
108.0
73.8
AA
AA
A
A
A
A
A
A
A
A
A
A
A
AA
A
A
A
A
A
A
A
A
A
A
NTSC/NTSC 4.43/
PAL-M/PAL60
PAL/PAL-N/SECAM
525i (480i)
625i (576i)
525p (480p)
625p (576p)
WIDE480
SVGA
WIDE600
WIDE720
XGA
WIDE768
MXGA
SXGA
WIDE768-2
1. The “i” appearing after the resolution indicates an interlaced signal.
2. The following symbols are used to indicate picture quality.
AA Maximum picture quality can be obtained.
A
Signals are converted by the image processing circuit before picture is projected.
Appendix
List of compatible signals
ENGLISH - 41
Technical Information
Serial terminal
The serial connector which is on the connector panel of the projector conforms to the RS-232C interface
specification, so that the projector can be controlled by a personal computer which is connected to this connecter.
J Connection
DIN 8 pin (male)
PC
Serial terminal adapter
(ET-ADSER: Optional)
Serial terminal
(male)
NOTE:
You must use only an RS-232C Serial Interface Cable with a ferrite core, type ET-ADSER.
J Pin assignments and signal names
Pin No.
C
D
E
A
B
F
G
H
Signal name
Contents
RXD
Received data
GND
Earth
TXD
Transmitted data
Connected internally
NC
NC
J Communication settings
Signal level
Sync. method
Baud rate
Parity
Appendix
42 - ENGLISH
RS-232C
Character length
8 bits
Stop bit
1 bit
9 600 bps
X parameter
None
None
S parameter
None
Asynchronous
Technical Information
J Basic format
STX
Command
Start byte
(02h)
3 bytes
:
1 byte
Parameter
1 byte 4 bytes
ETX
End
(03h)
The data streaming from the computer will
start with STX, and proceed to Command,
Parameter and end with ETX. You can
add the required parameter.
The projector can not receive any command for 10 seconds after the lamp is switched on. Wait 10 seconds
before sending the command.
If sending multiple commands, check that a response has been received from the projector for one command
before sending the next command.
When a command which does not require parameters to be sent, the colon (:) is not required.
If an incorrect command is sent from the personal computer, the ER401 command will be sent from the
projector to the personal computer.
J Control commands
Control contents
PON
Power ON
POF
Power OFF
IIS
Input signal
selection
OMN
Menu screen
OEN
ENTER
OBK
RETURN
Remarks
In standby mode, all commands other than the PON command are
ignored.
The PON command is ignored during lamp ON control.
If a PON command is received while the cooling fan is operating after
the lamp has switched off, the lamp is not turned back on again straight
away in order to protect the lamp.
Parameter:
VID = VIDEO IN
SVD = S-VIDEO IN
RG1 = PC IN
YUV = COMPONENT IN
HDM = HDMI IN
The menu screen will be displayed.
Use this command to accept and to activate items selected in the onscreen menus.
Use this command to return to a previous menu screen or to clear the
menu screen.
Navigation buttons
OCU = F button
OCD = G button
OST
Returning to the
default setting
Use this command to return the setting to the factory default. (page 23)
OFZ
Freeze function
OSH
Shutter function
OVM
MAIN
Use this command to display an item in the PICTURE menu. (page 28)
VS1
Aspect ratio
selection
VPM
Picture mode
selection
OOT
SLEEP selection
The aspect ratio will be switched each time the command is sent.
(page 23)
Parameter:
NOR=NORMAL
NAT=NATURAL
CN1=CINEMA1
DYN=DYNAMIC
CN3=VIVID CINEMA
CN2=CINEMA2
VID=VIDEO (page 28)
Setting the duration of time to turn off the power automatically.
0 = OFF
1 = 60 min.
2 = 90 min.
3 = 120 min. 4 = 150 min.
5 = 180 min. 6 = 210 min. 7 = 240 min. (page 23)
OCU/OCD/
OCL/OCR
OCL = I button
OCR = H button
The picture being projected will be paused.
Parameter:
0 = OFF
1 = ON
Use this command to momentarily turn off the picture.
Operation will be switched between ON and OFF each time the command
is sent. Do not switch operation ON and OFF after only short periods of
time.
Appendix
Command
ENGLISH - 43
Technical Information
J Inquiry commands
Command
QPW
QIN
Control contents
Parameter
Power condition
000 = OFF
001 = ON
Input signal
VID = VIDEO IN
RG1 = PC IN
SVD = S-VIDEO IN
YUV = COMPONENT IN
HDM = HDMI IN
QPM
Picture mode
Parameter:
NAT=NATURAL
DYN=DYNAMIC
CN2=CINEMA2
VID=VIDEO (See page 33)
QSH
Shutter function
0 = OFF
1 = ON
QFZ
Freeze function
0 = OFF
1 = ON
QOT
SLEEP function
0 = OFF
1 = 60 min.
2 = 90 min.
3 = 120 min. 4 = 150 min.
5 = 180 min. 6 = 210 min. 7 = 240 min. (page 23)
NOR=NORMAL
CN1=CINEMA1
CN3=VIVID CINEMA
J Cable specifications
(When connected to a a personal computer)
Projector
Appendix
44 - ENGLISH
PC (DTE)
Technical Information
Menu structure
PICTURE Menu ....................... 28 H
NORMAL
DYNAMIC
VIVID CINEMA
CINEMA1
CINEMA2
VIDEO
NATURAL
PICTURE MODE ................... 28 H
CONTRAST........................... 28 H
BRIGHTNESS ....................... 28 H
COLOR.................................. 28 H
TINT....................................... 29 H
SHARPNESS ........................ 29 H
COLOR TEMPERATURE...... 29 H
DYNAMIC IRIS ...................... 29 H
LIGHT HARMONIZER........... 29 H
ADVANCED MENU ............... 29 H
FAVOURITE SAVE ............... 30 H
FAVOURITE LOAD ............... 30 H
SIGNAL MODE...................... 30 H
POSITION Menu ...................... 31 H
4:3
16:9
JUST
ZOOM/ZOOM1
ZOOM2
14:9
V SCROLL
H - FIT
V - FIT
H - POSITION........................ 31 H
V - POSITION........................ 31 H
DOT CLOCK.......................... 31 H
CLOCK PHASE ..................... 31 H
ASPECT ................................ 32 H
WSS ...................................... 33 H
OVER SCAN ......................... 33 H
KEYSTONE ........................... 33 H
AUTO SETUP........................ 33 H
OPTION Menu ......................... 34 H
INPUT GUIDE ....................... 34 H
OSD DESIGN ........................ 34 H
OSD POSITION..................... 34 H
BACK COLOR ....................... 34 H
STARTUP LOGO .................. 34 H
AUTO SEARCH..................... 34 H
HDMI SIGNAL LEVEL ........... 34 H
INSTALLATION ..................... 35 H
SLEEP ................................... 35 H
ALTITUDE ............................. 35 H
LAMP POWER ...................... 35 H
LAMP RUNTIME ................... 35 H
TEST PATTERN.................... 35 H
GAMMA
CONTRAST
BRIGHTNESS
COLOR MANAGEMENT
NR (Noise Reduction)
MPEG NR
CINEMA REALITY
TV-SYSTEM
TYPE1
TYPE2
TYPE3
UPPER LEFT
LOWER LEFT
UPPER CENTRE
CENTRE
LOWER CENTRE
UPPER RIGHT
LOWER RIGHT
FRONT/DESK
FRONT/CEILING
REAR/DESK
REAR/CEILING
Appendix
Sub-menu items vary according to the selected input signal.
ENGLISH - 45
Specifications
Power supply
AC 100 - 240 V 50 Hz/60 Hz
Power consumption
290 W
During standby (when fan is stopped): 0.08 W
Amps
3.5 A - 1.5 A
LCD panel
Panel size (diagonal)
0.7 type (17.78 mm)
Aspect ratio
16 : 9
Display method
3 transparent LCD panels (RGB)
Drive method
Active matrix method
Pixels
921 600 (1 280 x 720) x 3 panels
Lens
Manual zoom (2 x)/Manual focus
F 1.9 - 3.1, f 21.7 mm - 43.1 mm
Lamp
UHM lamp (220 W)
Luminosity
2 000 lm
Scanning frequency
(for RGB signal)
Horizontal scanning
frequency
30 kHz - 70 kHz
Vertical scanning
frequency
50 Hz - 87 Hz
Dot clock frequency
Less than 150 MHz
COMPONENT (YPBPR) signals
525i (480i), 525p (480p), 625i (576i), 625p (576p),
1 125 (1 080)/24p, 750 (720)/50p, 750 (720)/60p,
1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p,
1 125 (1 080)/60p
Color system
7 (NTSC/NTSC 4.43/PAL/PAL-M/PAL-N/SECAM)
Projection size
1 016 mm - 5 080 mm (40" - 200")
Throw distance
1.2 m - 12.4 m (3'11" - 40'8")
Screen aspect ratio
16 : 9
Installation
Front/Rear/Ceiling/Desk (Menu selection method)
Appendix
46 - ENGLISH
Specifications
S-VIDEO IN
Single - line, Mini DIN 4p
Y: 1.0 V [p-p], C: 0.286 V [p-p], 75 ȍ
VIDEO IN
Single - line, RCA pin jack
1.0 V [p-p], 75ȍ
RGB
PC IN
Connectors
R.G.B.
0.7 V [p-p], 75 ȍ
G.SYNC
1.0 V [p-p], 75 ȍ
HD/SYNC
TTL high impedance, automatic
positive/negative polarity compatible
VD
TTL high impedance, automatic
positive/negative polarity compatible
Y, PB/CB, PR/CR
COMPONENT IN
Y:
1.0 V [p-p] (including sync), 75 ȍ
PB/CB, (PR/CR)
0.7 V [p-p], 75 ȍ
Single - line, 19-pin HDMI connector
SERIAL
DIN 8-pin RS-232C compatible
Moulded plastic (ABS/PC)
Dimensions
Width
395 mm (15 -17/32")
Height
112 mm (4 - 13/32")
Length
300 mm (11 - 25/32")
4.9 kg (10.8 lbs.)
Weight
Temperature
0 °C - 40 °C (32 °F - 104 °F)
When the ALTITUDE (page 35) is set
to HIGH: 0 °C - 35 °C (32 °F - 95 °F)
Humidity
20% - 80% (no condensation)
Operating environment
UL60950-1
FCC Class B
Certifications
C-UL
ICES-003
Power supply
3 V DC (AA battery x 2)
Operating range
Approx. 7 m (23') (when operated directly in front of signal
receptor)
Weight
125 g (4.4 ozs.) (including batteries)
Width
48 mm (1 - 7/8")
Length
138 mm (5 - 13/32")
Height
28.35 mm (1-3/32") (not including
projecting parts)
Ceiling bracket
ET-PKX100
Projection screen
ET-SRW90CT
Serial adapter
ET-ADSER (DIN 8-pin/D-sub 9-pin)
Appendix
Dimensions
Options
Single - line, RCA pin jack x 3
HDMI IN
Cabinet
Remote control
Single - line, D - sub HD 15-pin
(female)
ENGLISH - 47
Dimensions
102.5 (4-1/32)
395 (15-17/32)
Appendix
48 - ENGLISH
112 (4-13/32)
121 (4-3/4)
69
(2-11/16)
300 (11-5/8)
271.1 (10-21/32)
Units: mm (inch)
Trademark acknowledgements
VGA and XGA are trademarks of International Business Machines Corporation.
S-VGA is a registered trademark of the Video Electronics Standards Association.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing LLC.
The font used in the on-screen displays is a Ricoh bitmap font, which is manufactured and sold by Ricoh
Company, Ltd.
All other trademarks are the property of the various trademark owners.
Appendix
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the
correct method of disposal.
These Operating Instructions are printed on recycled paper.
ENGLISH - 49
Index
A
F
AC IN ............................................................13
Accessories .....................................................9
ADVANCED MENU........................................29
Air exhaust port .............................................12
Air filter .........................................................37
Air intake port ..........................................12, 13
ALTITUDE.....................................................35
ASPECT .......................................................32
FAVOURITE
Options .....................................................32
Remote control button ..................................11
Signals .....................................................33
Switching ..................................................23
FAVOURITE LOAD..................................... 30
Opening the menu ...................................... 23
Remote control button ................................. 11
FAVOURITE SAVE........................................ 30
Focus ring ..................................................... 12
Image positioning ....................................... 21
FREEZE
Capturing .................................................. 22
Remote control button ................................. 11
Front leg adjuster .......................................... 13
Adjusting .................................................. 15
Image positioning ....................................... 21
AUTO SEARCH .............................................34
AUTO SETUP ...............................................33
G
B
GAMMA ........................................................ 29
BACK COLOR ...............................................34
Battery
H
Accessory ...................................................9
Compartment .............................................11
H- POSITION ................................................ 31
HDMI
Connecting................................................ 18
SIGNAL LEVEL .......................................... 34
Terminal ................................................... 13
BRIGHTNESS .........................................28, 29
C
CINEMA REALITY .........................................30
Cleaning .......................................................37
CLOCK PHASE .............................................31
COLOR .........................................................28
COLOR MANAGEMENT ................................29
Adjusting ...................................................24
Opening the menu ......................................24
Remote control button ..................................11
I
INPUT
Button on the projector ................................ 12
INPUT GUIDE ........................................... 34
Remote control button ................................. 11
Selecting signal .................................... 21, 22
INSTALLATION ............................................. 35
Projection method....................................... 15
COLOR TEMPERATURE ...............................29
COMPONENT IN
K
Connecting ................................................18
Terminal ...................................................13
L
CONTRAST ............................................28, 29
D
DEFAULT
Remote control button ..................................11
Resetting ..................................................23
DOT CLOCK .................................................31
DYNAMIC IRIS ..............................................29
E
ENTER
Button ......................................................12
Remote control button ..................................11
Appendix
50 - ENGLISH
KEYSTONE .................................................. 33
LAMP
Indicator ................................................... 12
Indicator status .................................... 36, 38
LAMP POWER .......................................... 35
LAMP RUNTIME ........................................ 35
Lamp unit component .................................. 13
Replacing ................................................. 38
LANGUAGE .................................................. 27
Lens cover .................................................... 12
LIGHT
On/Off ...................................................... 23
Remote control button ................................. 11
LIGHT HARMONIZER ................................... 29
LIVING ROOM
Remote control button ................................. 11
Switching .................................................. 23
LOG
Managing.................................................. 25
Setting as a profile ...................................... 25
LUMINANCE SENSOR .................................. 12
Index
M
S
MAIN POWER
Screen size ................................................... 14
Security lock ................................................. 13
SERIAL
On/Off ......................................................19
Switch ......................................................13
MENU
Button on the projector .................................12
Main menu ................................................26
Opening the menu ......................................26
Remote control button..................................11
Connecting................................................ 42
Terminal ................................................... 13
SHARPNESS ................................................ 29
Shift lens
Image positioning ....................................... 21
Positioning ................................................ 16
MPEG NR .....................................................30
N
NR (Noise Reduction) ....................................30
O
Shift lever ..................................................... 12
SIGNAL MODE ............................................. 30
SLEEP ......................................................... 35
Remote control button ................................. 11
Setting ..................................................... 23
OPTION
Operation ..................................................34
Sub-menu .................................................27
OSD DESIGN ................................................34
OSD POSITION .............................................34
OVER SCAN .................................................33
P
PC IN
Connecting ................................................18
Terminal ...................................................13
Operation ..................................................28
Sub-menu .................................................27
PICTURE ADJUSTMENT
Opening the menu ......................................24
Remote control button..................................11
PICTURE MODE ...........................................28
Switching ..................................................23
POSITION
Operation ..................................................31
Sub-menu .................................................27
STARTUP LOGO .......................................... 34
S-VIDEO IN
Connecting................................................ 18
Terminal ................................................... 13
T
TEMP
Indicator ................................................... 12
Indicator status .......................................... 36
TEST PATTERN ........................................... 35
THEATER ROOM
Remote control button ................................. 11
Switching .................................................. 23
Throw distance .............................................. 14
Throwing angle.............................................. 15
TINT ............................................................. 29
TV-SYSTEM ................................................. 30
V
V- POSITION ................................................ 31
VIDEO IN
POWER
Indicator....................................................12
Indicator status ...........................................19
On/Off ......................................................20
Power cord
Accessory ...................................................9
Connection ................................................19
PROFILE
Connecting................................................ 18
Terminal ................................................... 13
W
WSS............................................................. 33
Z
Zoom ring ..................................................... 12
Image positioning ....................................... 21
Create new ................................................24
Loading ....................................................25
Projection lens ...............................................12
R
Operating range .........................................22
Operation ..................................................22
Signal emitter .............................................11
Signal receptor ...........................................12
RETURN
Button ......................................................12
Remote control button..................................11
Appendix
Remote control ..............................................11
ENGLISH - 51

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
