I L E

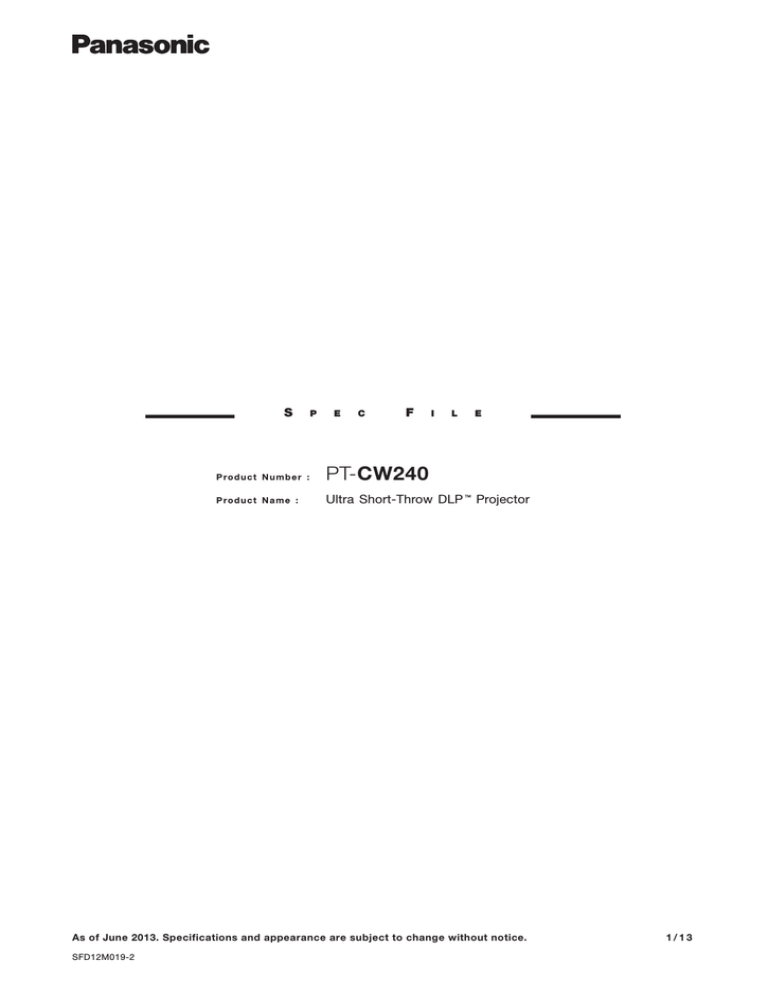

P r o d u c t N u m b e r :

PT-CW240

P r o d u c t N a m e :

Ultra Short-Throw DLP ™ Projector

As of June 2013. Specifications and appearance are subject to change without notice.

SFD12M019-2

1 / 1 3

S

P E C

F

I L E

Ultra Short-Throw DLP ™ Projector

PT-CW240

Specifications

Main unit

Power supply

Power consumption

DLP™ chip

Lens

Lamp

Screen size

Colors

Brightness* 2

Center-to-corner uniformity* 2

Contrast* 2

Resolution

Scanning frequency

Panel size

Display method

Pixels

HDMI

RGB

YP

B

P

R

(YC

B

C

R

)

100 –240 V AC, 50/60 Hz

310 W

(0.5 W when

STANDBY MODE set to

ECO

,* 1 6.0 W when

STANDBY MODE set to

NETWORK

.)

16.5 mm (0.65 inches) diagonal (16:10 aspect ratio)

DLP™ chip × 1, DLP™ system

1,024,000 (1,280 × 800) pixels

Fixed (0.35:1 throw ratio), manual focus, F 2.6, f 5.27 mm

240 W UHM lamp × 1

1.78 – 2.54 m (70 – 100 inches) diagonally, 16:10 aspect ratio

Full color (16,777,216 colors)

2,600 lumens (

LAMP POWER

:

NORMAL

)

80%

8,000:1 (full on/off, During RGB signal input,

LAMP POWER

:

NORMAL

)

1,280 × 800 pixels (Input signals that exceed this resolution will be converted to 1,280 × 800 pixels.) f

H

: 15 kHz – 100 kHz, f

V

: 24 Hz–120 Hz, dot clock: 25 MHz– 162 MHz f

H

: 15 kHz – 100 kHz, f

V

: 24 Hz–120 Hz, dot clock: 162 MHz or lower

525i (480i):

625i (576i): f f

H

H

15.75 kHz; f

15.63 kHz; f

V

V

60 Hz,

50 Hz,

525p (480p):

625p (576p): f

H

31.50 kHz; f

V

60 Hz, f

H

31.25 kHz; f

V

50 Hz,

750 (720)/60p: f

H

45.00 kHz; f

V

60 Hz,

750 (720)/50p: f

H

37.50 kHz; f

V

50 Hz,

1125 (1080)/60i: f

H

33.75 kHz; f

V

60 Hz,

1125 (1080)/50i: f

H

28.13 kHz; f

V

50 Hz

1125 (1080)/24p: f

H

27.00 kHz; f

V

24 Hz

1125 (1080)/60p: f

H

67.50 kHz; f

V

60 Hz

1125 (1080)/50p: f

H

56.25 kHz; f

V

50 Hz

Keystone correction range

Installation

Built-in speaker

Terminals

Video/S-Video

Size

Output power

HDMI IN

COMPUTER (RGB) 1/2 IN

R, G, B

Y, P

B

(C

MONITOR (RGB) OUT

R, G, B

B

), P

R

(C

R

) f

H

: 15.75/15.63 kHz, f

V

: 50/60 Hz

[NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM]

Vertical: ±15°

Ceiling/floor, front/rear (Menu setting)

7 x 3 cm (2-3/4 x 1-3/16 inches) (oval-shaped) × 1

10 W (monaural)

HDMI 19-pin × 1, HDCP compatible, Deep color compatible

525p (480p), 625p (576p), 525p (480p), 625p (576p), 750 (720)/60p,

750 (720)/50p, 1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/24p,

1125 (1080)/60p, 1125 (1080)/50p

VGA (640 × 480) – WSXGA+ (1,680 × 1,050), Audio signal: linear

PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)

D-sub HD 15-pin (female) × 2

G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms;

B, R: 0.7 Vp-p, 75 ohms;

HD/VD, SYNC: high impedance, TTL, positive/negative automatic

Y: 1.0 Vp-p (including sync signal);

P

B

(C

B

), P

R

(C

R

): 0.7 Vp-p, 75 ohms

D-sub HD 15-pin (female) × 1

(Outputs signals selected from RGB input 1/2.)

G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms;

B, R: 0.7 Vp-p, 75 ohms;

HD/VD, SYNC: high impedance, TTL, positive

Y, P

B

(C

B

), P

R

(C

R

) Y: 1.0 Vp-p (including sync signal);

VIDEO IN

S-VIDEO IN

P

B

(C

B

), P

R

(C

R

): 0.7 Vp-p, 75 ohms

Pin jack × 1, 1.0 Vp-p, 75 ohms

Mini DIN 4-pin × 1, Y: 1.0 Vp-p; C: 0.286 Vp-p, 75 ohms

As of June 2013

SFD12M019-2

2 / 1 3

S

P E C

F

I L E

Ultra Short-Throw DLP ™ Projector

PT-CW240

Power cord length

Cabinet materials

Dimensions (W × H × D)

Weight

Operation noise

Operating temperature

Operating humidity

COMPUTER 1 AUDIO IN

COMPUTER 2 AUDIO IN

M3 (L, R) × 1, 0.5 Vrms

M3 (L, R) × 1, 0.5 Vrms

VIDEO/S-VIDEO AUDIO IN

Pin jack × 2 (L/R × 1), 0.5 Vrms

AUDIO OUT

SERIAL IN

LAN

MiniUSB

M3 (L, R) × 1 (monitor out: 0 – 2.0 Vrms, variable)

D-sub 9-pin (female) × 1, for external control (RS-232C compliant)

RJ-45 × 1, for network connection, 100Base-TX/10Base-T, compliant with PJLink™

MiniUSB x 1 (For service technician)

3.0 m (9 ft 10 in)

Molded plastic (PC)

357 mm × 250 mm* 3 × 367 mm

(14-1/16 × 9-27/32* 3 × 14-7/16 inches)

Approximately 7.5 kg (16.53 lbs)

37 dB (

LAMP POWER

:

NORMAL

), 30 dB (

LAMP POWER

:

ECO

)

5–40 °C (41–104 °F) up to 750 m (2,500 ft) above sea level,

5–35 °C (41–95 °F) between 750 m and 1,500 m (2,500 ft and

5,000 ft) above sea level.

5–30 °C (41–86 °F) between 1,500 m and 3,000 m (5,000 ft and

10,000 ft) above sea level.

20%– 80% (no condensation)

Remote control unit

Power supply

Operation range* 4

Dimensions (W × H × D)

Weight

Supplied accessories

3 V DC (Lithium coin cell battery × 1)

Approximately 8 m (26.3 ft) when operated from directly in front of the signal receptor

41 × 87 × 7 mm (1-5/8 × 3-7/16 × 9/32 inches)

Approx. 23 g (0.8 oz) (including Lithium coin cell battery)

Power cord (× 1) (× 2 for PT-CW240EA)

Power code cover (× 1)

Power code holder (× 1)

Wireless remote control unit (× 1)

Lithium coin cell battery for remote control (× 1)

Computer cable (1.8 m) (× 1)

Optional accessories

Ceiling mount bracket

Bracket assembly

Wall mount bracket

Replacement lamp unit

ET-PKV100H (for high ceilings)

ET-PKV100S (for low ceilings)

ET-PKC200B

ET-PKC200W

ET-LAC200

Weights and dimensions shown are approximate. Specifications subject to change without notice.

*1

When the standby mode is set to eco, network functions such as LAN Standby On and MONITOR OUT/AUDIO OUT terminals do not work.

*2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.

*3 With legs at shortest position.

*4 Operation range differs depending on environments.

As of June 2013

SFD12M019-2

3 / 1 3

S

P E C

F

I L E

Ultra Short-Throw DLP ™ Projector

Dimensions

PT-CW240 unit : mm (inch)

NOTE: This illustration is not drawn to scale.

45

(1-25/32)

335

(13-3/16)

357

(14-1/16)

Terminals

1 2 3 5 4 6 7 8

9 10 11 12 13 14

1 MiniUSB

2 HDMI input

3 Monitor output

4 LAN connector

5 Computer 1 input

6 Audio input for computer 1

7 S-Video input

8 Audio input for S-Video

9 Serial input

10 Computer 2 input

11 Audio input for computer 2

12 Video input

13 Audio input for video

14 Audio output

As of June 2013

SFD12M019-2

4 / 1 3

S

P E C

F

I L E

Ultra Short-Throw DLP ™ Projector

Standard setting-up position

∅38 (1-1/2)

Upper edge of projected image

Projected image

Lower edge of projected image

B

B

232

(9-1/8)

A

A

102.5

(4-1/32)

PT-CW240

NOTE:

Illustrations show the projector installed using optional ceiling mount bracket ET-PKV100H and bracket assembly ET-PKC200B.

This illustration is not drawn to scale.

Projected image

100

(3-15/16)

200

(7-7/8)

100

(3-15/16) unit : mm (inch)

C a u t i o n :

• All construction work should be done by a qualified technician.

• When mounting to the ceiling, use the special mounting bracket.

Furthermore, in order to prevent it from falling down from the ceiling, use the supplied wire on the mounting bracket.

As of June 2013

SFD12M019-2

5 / 1 3

S

P E C

F

I L E

Ultra Short-Throw DLP ™ Projector

PT-CW240

Projection distance for 16:10 aspect ratio screen

Screen size

(inch, diagonal)

70

80

90

100

A: Distance from the edge of the projection window to the screen

0.52

0.60

0.68

0.76

Screen size

(inch, diagonal)

70

80

90

100

A: Distance from the edge of the projection window to the screen

1.7

2.0

2.2

2.5

B: Distance from the projector front to the screen

0.18

0.26

0.34

0.42

E: Height from the edge of the screen to the top of the projector

0.15

0.19

0.22

0.25

B: Distance from the projector front to the screen

0.6

0.9

1.1

1.4

E: Height from the edge of the screen to the top of the projector

0.5

0.6

0.7

0.8

Unit: meters

F: Height from the edge of the screen to the bottom of the projector

0.30

0.34

0.37

0.41

Unit: feet

F: Height from the edge of the screen to the bottom of the projector

1.0

1.1

1.2

1.3

Projection distance for 16:9 aspect ratio screen

Screen size

(inch, diagonal)

70

80

90

A: Distance from the edge of the projection window to the screen

0.53

0.61

0.70

Screen size

(inch, diagonal)

70

80

90

A: Distance from the edge of the projection window to the screen

1.7

2.0

2.3

B: Distance from the projector front to the screen

0.20

0.28

0.36

E: Height from the edge of the screen to the top of the projector

0.21

0.25

0.29

B: Distance from the projector front to the screen

0.7

0.9

1.2

E: Height from the edge of the screen to the top of the projector

0.7

0.8

1.0

Unit: meters

F: Height from the edge of the screen to the bottom of the projector

0.36

0.40

0.44

Unit: feet

F: Height from the edge of the screen to the bottom of the projector

1.2

1.3

1.5

Calculation of the projection distance

For a screen size different from the above, use the equation below to calculate the projection distance.

Aspect ratio 16:10

A (m) = (diagonal screen size in inches) × 0.00810 – 0.0508

Aspect ratio 16:9

A (m) = (diagonal screen size in inches) × 0.00832 – 0.0507

NOTE:

Distances calculated with the above equations will include a slight error.

As of June 2013

SFD12M019-2

6 / 1 3

S

P E C

F

I L E

Ultra Short-Throw DLP ™ Projector

Installable angle

Install the projector at an angle within the range shown below.

• Vertical direction

The projector may be installed at a vertical angle of ±10° .

PT-CW240

+10°

-10°

• Horizontal direction

The projector may be installed at a horizontal angle of ±10° .

+10°

-10°

As of June 2013

SFD12M019-2

7 / 1 3

S

P E C

F

I L E

Ultra Short-Throw DLP ™ Projector

PT-CW240

List of compatible signals

The signals that can be input to this projector are shown in the table below. Horizontal scanning frequencies of 15 kHz to 100 kHz, vertical scanning frequencies of 24 Hz to 120 Hz, and a dot clock of

162 MHz maximum can be input.

NOTE: The native resolution of this projector is 1,280 × 800 pixels. If the display resolution of the input signal is different from the native resolution, image compression or expansion will be used to convert the input signal to a level within the native resolution.

Display mode

NTSC/NTSC4.43/PAL-M/PAL60

PAL/PAL-N/SECAM

525i (480i)

625i (576i)

525p (480p)

625p (576p)

750(720)/60p

750(720)/50p

1125(1080)/60i

1125(1080)/50i

1125(1080)/24p

1125(1080)/60p

1125(1080)/50p

VGA

SVGA

MAC16

XGA

WXGA

MAC21

SXGA

SXGA+

UXGA

WSXGA+

Display resolution

(dots)

1

720 × 480i

720 × 576i

720 × 480i

720 × 576i

720 × 483

720 × 576

1280 × 720

1920 × 1080i

1920 × 1080

640 × 480

720 × 400

800 × 600

832 × 624

1024 × 768

1280 × 720

1280 × 800

1366 × 768

1440 × 900

1152 × 870

1280 × 960

1280 × 1024

1400 × 1050

1600 × 1200

1680 × 1050

Scanning frequency

H V

(kHz) (Hz)

60.0

50.0

59.9

66.7

75.0

72.8

85.0

120.0

70.1

56.3

60.3

75.0

72.2

85.1

119.9

59.9

50.0

59.9

59.9

50.0

50.0

59.9

50.0

60.0

50.0

60.0

50.0

24.0

74.6

60.0

70.1

75.0

85.0

119.8

60.0

59.8

59.8

59.9

75.1

60.0

75.0

60.0

72.0

75.0

60.0

60.0

60.0

61.9

31.5

35.1

37.9

46.9

48.1

53.7

77.4

27.0

67.5

56.3

31.5

35.0

37.5

37.9

43.3

15.7

15.6

15.7

15.7

15.6

15.6

31.5

31.3

45.0

37.5

33.8

28.1

49.1

48.4

56.5

60.0

68.7

99.0

44.8

49.7

47.7

55.9

68.7

60.0

75.2

64.0

77.0

80.0

65.3

75.0

65.3

*1 The “i” appearing after the resolution indicates an interlaced signal.

Dot clock frequency

(MHz)

27.0

74.3

74.3

74.3

74.3

148.5

148.5

25.2

30.2

31.5

13.5

27.0

13.5

27.0

27.0

74.3

31.5

36.0

52.5

28.3

36.0

40.0

49.5

50.0

56.3

83.0

57.3

65.0

75.0

78.8

94.5

137.8

74.5

83.5

84.8

106.5

100.0

108.0

130.0

108.0

133.0

135.0

121.8

162.0

146.3

Format

VIDEO/S-VIDEO

HDMI

YC

B

C

R

HDMI

YC

B

C

R

HDMI/YP

B

P

R

HDMI/RGB

As of June 2013

SFD12M019-2

8 / 1 3

S

P E C

F

I L E

Ultra Short-Throw DLP ™ Projector

PT-CW240

3D-compliant signal list

The 3D signals that can be input to this projector are as follows.

Display mode Display resolution

(dots)

1

1280 × 720 750(720)/60p

750(720)/50p

1125(1080)/60i

1125(1080)/50i

1125(1080)/24p

VGA

SVGA

XGA

Video/S-Video

1920 × 1080i

1920 × 1080

640 × 480

800 × 600

1024 × 768

Scanning frequency

H V

(kHz) (Hz)

45.0

37.5

33.8

28.1

27.0

61.9

77.4

99.0

60.0

50.0

60.0

50.0

24.0

119.5

119.9

119.8

Dot clock frequency

(MHz)

74.3

74.3

74.3

74.3

74.3

52.5

83.0

137.8

HDMI

Frame packing

×

×

×

×

×

×

Side by side

Top and bottom

×

×

×

×

×

×

×

×

×

×

×

×

×

Frame sequential

×

×

×

×

×

RGB1/RGB

Frame sequential

×

×

×

×

×

×

Video/S-Video

Frame sequential

Filled sequential

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Serial connector

The serial connector complies with RS-232C. To control the projector from a personal computer, commands must be input through communication software, based on the format and satisfying the communication conditions shown below.

Pin assignments and signal names

1

6 9

5

3

4

5

No.

1

2

Signal name

TXD

RXD

GND

D-sub 9-pin (female) Serial input

Description

NC

Send data

Receive data

NC

Ground

8

9

No.

6

7

Signal name

CTS

RTS

Description

NC

Connected internally

Connected internally

NC

Communication conditions (factory setting)

Signal level

Synchronization method

Baud rate

Parity

Character length

Stop bit

X parameter

S parameter

RS-232C-compliant

Start-stop synchronization

19,200 bps

None

8 bits

1 bit

None

None

As of June 2013

SFD12M019-2

9 / 1 3

S

P E C

F

I L E

Ultra Short-Throw DLP ™ Projector

PT-CW240

Basic format

Transmission from the computer begins with STX, then the ID, command, parameter, and ETX are sent in this order. Add parameters according to the details of control.

STX : C1 C2 C3 : P1 P2 ... Pn ETX

Start

(1 byte)

Colon

(1 byte)

Colon

(1 byte)

End

(1 byte)

Parameters

(undefined length)

Command

(3 bytes)

(Control and/or query commands)

* STX and ETX are character chords. STX is 02 and ETX is 03 when expressed in hexadecimal.

CAUTION

• It may not be possible to send or receive commands for about 10 to 60 seconds when the lamp is first turned on. If this occurs, wait for 60 seconds, then try sending or receiving again.

• When sending multiple commands, be sure to wait for at least 0.5 second after receiving a response from the projector before sending the next command.

• Additional time is sometimes required for response due to processing inside the projector. Set the time-out period for command response to 10 seconds or more.

Cable specifications Projector

1

2

3

6

7

4

5

8

9

NC

NC

NC

NC

NC

NC

NC

NC

PC (DTE)

1

2

3

6

7

4

5

8

9

Control commands

Command : Parameter

P O N

P O F

I I S : H D 1

I I S : R G 1

I I S : R G 2

I I S : V I D

I I S : S V D

O S H : 0

O S H : 1

Function

POWER (STANDBY)

INPUT SELECT

AV MUTE

Standby power on

Standby power off

HDMI

RGB 1

RGB 2

Video

S-Video

AV mute off

AV mute on

Callback

P O N

P O F

I I S : H D 1

I I S : R G 1

I I S : R G 2

I I S : V I D

I I S : S V D

O S H : 0

O S H : 1

* Do not send PON, POF or OSH commands continuously in a short period of time. Doing so may burst the lamp or shorten the lamp replacement cycle.

* When a command that cannot be executed during standby mode is sent, the projector will send an ER401 command in reply.

As of June 2013

SFD12M019-2

1 0 / 1 3

S

P E C

F

I L E

Ultra Short-Throw DLP ™ Projector

PT-CW240

Status request commands

Command : Parameter

Q P W

Q $ S

Q S H

Q I N

Q V X : R T M I 0

Q $ L

Q T M : 0

Function

Main power status

Lamp on status

AV mute function status

Input signal status

Projector run time

Lamp run time

Temperature status

Callback

1

2

3

0

1

0 0 0

0 0 1

0

H D 1

R G 1

R G 2

V I D

S V D p 1 p 2 p 3 p 4 p 5 p 1 p 2 p 3 p 4 p 1 p 2 p 3 p 4 / p 5 p 6 p 7 p 8

(*1)

Description

Standby

On

Standby

Lamp on control in progress

Lamp on

Lamp off control in progress

Off

On

HDMI

RGB 1

RGB 2

Video

S-Video

00000h –99999h

0000h – 9999h p0 = Internal temperature

*

1 p1p2p3p4: Celsius (°C), p5p6p7p8: Fahrenheit (°F)

NOTE: If a wrong command is received, the projector will send an ER401 or ER402 command to the computer.

Command example

To s et the AV mute function off, send the command as shown below.

STX OSH : 0 ETX

Start Command Parameter End

NOTE: When sending commands without parameters, a colon (:) is not necessary.

As of June 2013

SFD12M019-2

1 1 / 1 3

S

P E C

F

I L E

Ultra Short-Throw DLP ™ Projector

PT-CW240

Notes on projector placement and operation

The projector uses a high-wattage lamp that becomes very hot during operation. Please observe the following precautions.

1.

Never place objects on top of the projector while it is operating.

2.

Make sure there is the unobstructed space as shown below or more around the projector’s exhaust openings. In addition to this space, also ensure that there is a sufficient work space for removing and installing the lamp, air filter and other parts.

3.

Make sure that nothing blocks the projector’s air intake and exhaust openings. Also, install the projector so that cool or hot air from other air conditioning equipment does not flow directly toward the projector’s air intake or exhaust openings.

4.

Do not install the projector in an enclosed space. If it is necessary to install it in an enclosed space, add a separate ventilation system. If ventilation is insufficient, hot air will accumulate at the intake opening. This may cause the projector’s protective circuit to interrupt projector operation.

100 mm (3-15/16˝) or more

500 mm (19-11/16˝) or more

1000 mm (39-3/8˝) or more

Direction of air intake and exhaust

Intake

Exhaust

1 2 / 1 3 As of June 2013

SFD12M019-2

S

P E C

F

I L E

Ultra Short-Throw DLP ™ Projector

PT-CW240

Operating the projector continuously

1. If the projector is to be operated continuously 22 hours or more, lamp replacement cycle duration becomes shorter.

2. The lamp replacement cycle duration becomes shorter if the projector is operated repeatedly for short periods (one hour or less).

Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.

Product availability differs depending on region and country. This product may be subject to export control regulations.

DLP and the DLP logo are trademarks of Texas Instruments.

PJLink is a registered trademark, or a trademark application has been filed, in Japan, the United States, and other countries and regions.

All other trademarks are the property of their respective trademark owners.

As of June 2013

SFD12M019-2

1 3 / 1 3

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals
