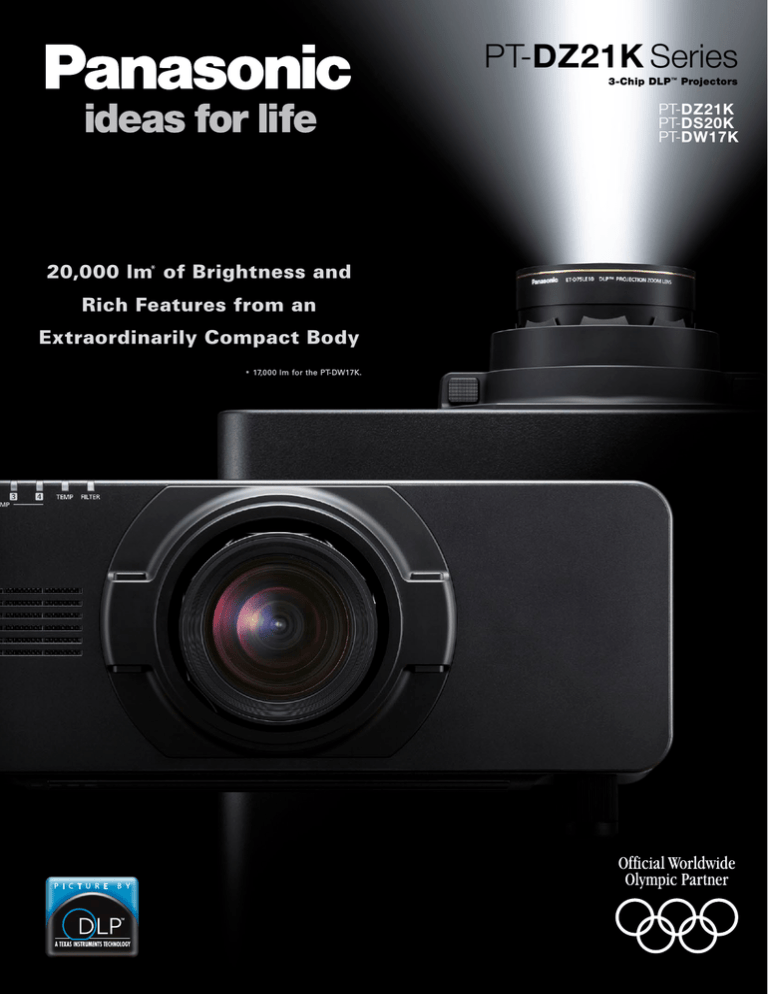

PT-DZ21K Series
3-Chip DLP™ Projectors
PT-DZ21K
PT-DS20K
PT-DW17K
20,000 lm* of Brightness and
Rich Features from an
Extraordinarily Compact Body
* 17,000 lm for the PT-DW17K.
Splendid Images from a
Compact Body
ponents of the extracted image information. The
resulting images have more natural, lifelike
expression.
Incredible 20,000 lm*1 of Brightness
Panasonic’s unique quad-lamp system, with its
new high-power UHM
lamps, has helped to
make the body extremely compact while
providing an astounding 20,000 lm*1 of
brightness.
System Daylight View 2 for Enhanced
Color Perception
This unique Panasonic technology optimizes
image quality to improve the color perception of
the projected image in bright rooms. With a
brightness of 20,000 lm*1, it provides highly
comfortable viewing even in bright lighting,
and allows viewers to concentrate easily on
the images.
Lamp mode
Brightness (lumens)
PT-DZ21K
PT-DW17K
PT-DS20K
DICOM Simulation Mode*4
This imaging mode is similar to DICOM part 14,
which is a medical imaging standard. It reproduces X-ray images with remarkable clarity.
Lamp
replacement
cycle (hours) * 2
Quad
20,000
17,000
2,000
Triple
15,000
12,750
2,600
Dual
10,000
8,500
4,000
Single
5,000
4,250
8,000
Dynamic Iris for a High 10,000:1* 3
Contrast Ratio
Panasonic’s Dynamic Iris
uses a scene-linking aperture mechanism to achieve
a remarkable 10,000:1* 3
contrast without lowering its
high brightness. This helps
to reproduce deeper, richer
blacks, and provides images
with more detailed textures.
Detail Clarity Processor 3 Gives Natural
Clarity to Even the Finest Details
This unique Panasonic circuit optimizes the
sharpness of each image, based on the superhigh-, high-, medium-, and low-frequency com-
Normal mode
Without System Daylight View 2
With System Daylight View 2
DICOM simulation mode
Active 3D Projection Capability
(PT-DZ21K/DS20K)
Waveform Monitor Function
When the output level of the source device fluctuates due to the performance of the device or
its cable connections, the original black and
white levels of the image content cannot be
reproduced correctly. With the PT-DZ21K Series
projector you can view the waveforms on the
screen and adjust the settings either automatically or manually as you prefer.
White Level Adjustment
Before
After
The series is compatible with
both passive and active 3D
projection systems. It combines with either a separate,
external 100/120/144 Hz drive with IR emitter
and active shutter glasses, or an active filter and
passive glasses, for viewing 3D images.
Advanced Technologies for
Excellent Image Quality
• 3D color management system • Full 10-bit
image processing • Progressive cinema scan
(3:2 pulldown) • Dynamic sharpness control
• Digital noise reduction • IP conversion
• AI scene control • 2:2 pulldown mode
• sRGB compatibility • Fine-adjustable color
temperature
High Reliability and Low TCO
with Easy Maintenance
Conventional sharpness control
Black Level Adjustment
Before
After
Low TCO and an Environmentally
Friendly Design
The PT-DZ21K Series projectors lower the total
cost of ownership (TCO) because they have a
lamp replacement cycle of up to 2,000 hours*2.
Their environmentally friendly design also
includes a low power consumption of 2,300 W.
Detail Clarity Processor 3
* 1 The PT-DW17K has 17,000 lm of brightness. * 2 The usage environment affects the lamp replacement cycle. * 3 Full on /off, with dynamic iris set to “3”. *4 This product is not a
medical instrument. Do not use it for actual medical diagnosis.
The Panasonic PT-DZ21K Series of flagship models feature
breathtakingly beautiful images and reliable operation.
A host of creative capabilities meet the
projection needs of highly critical professionals.
Four-Lamp System Enables Stable,
Extended Operation
The four-lamp system allows the projector to
keep working even if a lamp should fail. The
Lamp Relay mode also operates the lamps alternately to enable 24/7 projection. Quad, Triple,
Dual and Single Lamp modes can be used.
Easy Lamp Replacement
For easier maintenance, you can replace the
lamp from the rear. This makes it easy to replace
a lamp while the projector is still in the mounting
bracket or dual stacked.
Liquid Cooling System Attains a High Level
of Reliability
This new liquid cooling system directly cools the
DLP™ chip to improve performance and enable
operation up to 45 °C (113 °F).*5 It allows quiet
(49 dB) and versatile use while stabilizing performance. It also helps to make the body compact.
And the system is hermetically sealed, so you
don’t need to replenish the liquid.
System and Installation Flexibility with Diverse Functions
Flexible Installation
The wide adjustment
range of the powered
horizontal/vertical lens
shift function can be easily adjusted with the
360°
remote control. The unit
can also be rotated 360°
vertically*8, to accommodate various installation
conditions. The lens-centered design contributes
to easy installation.
Multi-Screen Support System Seamlessly
Connects Multiple Screens
• Edge Blending: The edges of adjacent screens
can be blended and their luminance controlled.
• Color Matching: This function corrects for slight
variations in the color reproduction range of individual projectors. The PC software assures easy,
accurate control.
• Multi-Screen Processor: The PT-DZ21K Series
can project large, multi-screen images without
any additional equipment. Up to 100 units (10 ×
10) can be edge-blended at a time.
Color matching
With edge blending
Without edge blending
Multi-Unit Brightness Control
This function automatically corrects the brightness fluctuations that occur over time in the
individual projectors of a multi-screen system. Up
to eight projectors can be controlled by connecting to each other via a hub, and this can be
increased to a maximum of 2,048 projectors by
using “Multi Projector Monitoring & Control Software Ver. 2.7.”
■ Conventional Projector
Edge blending
Source
Overlapping
image edges
PT-DZ21K Series
■ Multi-Unit Brightness Control “ON”
At the time when the projectors are installed (A)
At the time when the projectors are installed (A´)
Reservoir tanks
Embedded
pumps
Projector 1
Projector 2
After a certain time has passed (B)
Projector 1
Projector 2
After a certain time has passed (B´ )
Large radiator
Eco Filter that Needs No Maintenance for
up to 12,000 Hours*6
The Eco Filter has an electrostatic Micro Cut
Filter that collects minute dust particles with an
ion effect. It combines with the dust-resistant
cabinet to enable long-term use even under
harsh conditions. Its maintenance cycle of up to
12,000 hours reduces
hassle, and the environmental design lets you
wash the filter with water
and reuse it.* 7
Projector 1
Projector 2
Brightness
Projector 2
Preset
brightness
Image from the
projector 1
Image from the
projector 2
(A)
Projector 1
Brightness
( B)
* 5 The operating temperature range is 0 °C to 40 °C (32 °F to 104 °F ) when the fan control is set to
Brightness
fluctuations occur.
Time
Images from the
projector 1 and 2
(A´ )
( B´ )
Time
HIG H A LT I T U DE MODE (for altitudes from 1,400 m to 2,700 m (4,593 ft to 8,858 ft)
above sea level). When the projector is used with the ET-SFR510 Smoke Cut Filter, the operating temperature range is 0 °C to 35 °C (32 °F to 95 °F ), and the projector cannot be used
in places at high altitude. * 6 The usage environment affects the filter maintenance cycle.* 7 When washing with water, please follow the procedures listed in the operating instructions.
Also, we recommend replacing the filter with a new one after it has been washed and reused twice. If the filter is not sufficiently clean after washing, replace it with a new one.
* 8 A special fixture must be attached to the lamp case when the projector is placed at an angle within ±30° (upward /downward) of the vertical.
Geometric Adjustment for Specially Shaped
Screens (PT-DZ21K/DS20K)
This function adjusts the image for projection
onto spherical, cylindrical and other specially
shaped screens. You can make the adjustment
easily using only the remote control, with no
external equipment needed.
Optional Upgrade Kit (ET-UK20) Featuring
Geometry Manager Pro (PT-DZ21K/DS20K)
The new Geometry Manager Pro software included in the optional upgrade kit supports Color
Matching, Edge Blending, uniformity correction,
and other useful functions for multiprojector setups (max. 32 units). It also allows creative masking using four lines or bitmap data. And its flexible and complex geometric adjustment capability
suits a wide variety of screen shapes.
Portrait Mode Capability (Option)* 9
Portrait projection is possible by mounting the
optional ET-LAD510P or ET-LAD510PF lamp
units, updating the projector’s firmware to MAIN
Ver. 2.00 or later, and installing the projector
with its terminal side surface facing downward.
Multi Projector Monitoring & Control
Software Ver. 2.7
Panasonic’s original Multi Projector Monitoring &
Control Software Ver. 2.7 freeware lets you
control and monitor multiple projectors at the
same time over a wired LAN. If a problem
occurs, an alarm message is sent to the monitoring/controlling PC.
Other Valuable Features
Create masking data...
Line masking
Use it to overlap the
projection image...
Bitmap masking:
Detailed masking is also
possible with an image of up
to 1,920 by 1,200 pixels for the
PT-DZ21K and 1,400 by 1,050
pixels for the PT-DS20K.
• Mechanical lens shutter with fade in/out effect
• P-in-P function* 10 • 30 m (98.4 ft) long-range
wireless remote control with LED backlight • ID
assignment for up to 64 units • Control device
setup function • Built-in test pattern • Selectable
10-language on-screen menu (English, German,
French, Spanish, Italian, Portuguese, Russian, Japanese, Chinese, Korean) • RoHS Directive compliant
• Anti-theft features with chain opening
Ecology-Conscious Design
• No halogenated flame retardants are used in the
cabinet.
• Lead-free solder is used to mount components
to the printed circuit boards.
And the image is projected
only in the designated areas.
Multiple Terminals
The PT-DZ21K Series has an array of terminals,
including DVI-D, HDMI and two RGB inputs. The
PT-DZ21K and PT-DS20K feature a 3D-ready
HD/SD-SDI input and 3D sync terminals to
connect an emitter for 3D projection.
• Stand-by power consumption of only 0.3 W* 11.
• Auto Power Save activates standby mode when
no signal is input.
All PT-DZ21K Series projectors are
carefully manufactured at the Panasonic
factory in Japan, under strict quality
control. This is another, very important
advantage of a Panasonic projector.
* 9 Please contact the sales representative with regard to the frame for portrait orientation. Installation is possible only
with the terminal side facing downward. Horizontal rotation and vertical rotation are both limited to 15 degrees. Also, the
lamp replacement cycle becomes 500 hours, and this cycle is affected by the usage environment. * 10 This function
cannot be used with some input signals and selected inputs. * 11 With the S TA N D BY M O D E set to EC O . When the S TA N D BY
M O D E is set to EC O , network functions such as power on over the L AN will not operate. Also, only certain commands can
be received for external control using the serial terminal.
The PT-DZ21K Series lit up the house
in the center of the Olympic Stadium.
PT-DZ21K Series Projectors Lit Up the Opening
Ceremony of the London 2012 Olympic Games
The opening ceremony, which was titled “Isles of Wonder,” used 26 PT-DZ21K
Series projectors to wrap this colorful house with bright, incredibly vivid images.
Thirteen PT-DZ21K
Series projectors were
installed in portrait
mode. Each unit was
covered with a roof to
protect against rain.
Terminals
Optional Accessories
1
2
3
1
2
3
4
5
6
7
8
9
10
11
4
5
6
7
8
9
10 11
Remote 1 input/output
Remote 2 input
Serial input/output
SDI 1 input (PT-DZ21K/DS20K only)
SDI 2 input (PT-DZ21K/DS20K only)
HDMI input
RGB 1 input
DVI-D input
RGB 2 input
Video input
3D sync 1 input/output
(PT-DZ21K/DS20K only)
12 3D sync 2 output
(PT-DZ21K/DS20K only)
13 LAN connector
12 13
ET-D75LE6
Zoom lens
ET-PKD510H
High-ceiling
mount bracket
ET-D75LE10
Zoom lens
Projection Distance
unit: meters (feet)
PT-DZ21K (16:10 aspect ratio)
Diagonal
image size
1.78
[ 70 ˝ ]
2.54 [100 ˝ ]
3.81 [150 ˝ ]
5.08 [200 ˝ ]
7.62 [ 300 ˝ ]
10.16 [400 ˝ ]
12.70 [ 500 ˝ ]
15.24 [ 600 ˝ ]
E T-D75LE6
0.9 –1.1:1
min.
max.
1.35
(4.5 )
1.96
( 6.5 )
2.96
( 9.8 )
3.97
(13.1)
5.99
(19.7)
8.00
( 26.3 )
10.01
( 32.9 )
12.03
( 39.5 )
1.62
( 5.3 )
2.34
(7.7)
3.55
(11.7)
4.75
(15.6 )
7.17
( 23.6 )
9.58
( 31.5 )
11.99
( 39.4 )
14.40
(47.3 )
E T-D75LE10
1.3 –1.7:1
min.
max.
1.90
( 6.3 )
2.76
( 9.1)
4.18
(13.8 )
5.60
(18.4 )
8.44
( 27.7)
11.28
( 37.1)
14.12
(46.4 )
16.96
( 55.7)
2.46
( 8.1)
3.56
(11.7)
5.40
(17.8 )
7.24
( 23.8 )
10.91
( 35.8 )
14.58
(47.9 )
18.25
( 59.9 )
21.93
(72.0 )
Throw distance
E T-D75LE30
E T-D75LE20
2.4 – 4.7:1
1.7–2.4:1
min.
max.
3.58
2.46
(11.8 )
( 8.1)
5.17
3.55
(17.0 )
(11.7)
7.81
5.37
( 25.7)
(17.7)
10.45
7.19
( 23.6 ) ( 34.3 )
15.73
10.82
( 51.7)
( 35.6 )
21.01
14.46
(47.5 ) ( 69.0 )
26.29
18.09
( 59.4 ) ( 86.3 )
31.58
21.73
(71.3 ) (103.6 )
min.
max.
6.94
3.56
(11.7) ( 22.8 )
9.99
5.13
(16.9 ) ( 32.8 )
15.08
7.75
( 25.5 ) (49.5 )
20.17
10.38
( 34.1) ( 66.2 )
30.34
15.62
( 51.3 ) ( 99.6 )
40.51
20.86
( 68.5 ) (132.9 )
50.68
26.11
( 85.7) (166.3 )
60.85
31.35
(102.9 ) (199.7)
E T-D75LE40
4.6 –7.4:1
min.
max.
11.05
6.87
( 22.6 ) ( 36.2 )
15.85
9.88
( 32.4 ) ( 52.0 )
23.85
14.90
(48.9 ) (78.3 )
31.86
19.93
( 65.4 ) (104.5 )
47.87
29.97
( 98.3 ) (157.0 )
63.87
40.01
(131.3 ) ( 209.6 )
79.88
50.05
(164.2 ) ( 262.1)
95.89
60.09
(197.2 ) ( 314.6 )
E T-D75LE8
7.3 –13.8 :1
min.
max.
10.78
( 35.4 )
15.57
( 51.1)
23.54
(77.3 )
31.52
(103.5 )
47.47
(155.8 )
63.42
( 208.1)
79.37
( 260.5 )
95.32
( 312.8 )
20.56
( 67.5 )
29.53
( 96.9 )
44.47
(146.0 )
59.41
(195.0 )
89.30
( 293.0 )
119.19
( 391.1)
149.08
(489.1)
178.96
( 587.2 )
E T-D75LE50
0.7:1
1.01
( 3.3 )
1.47
(4.8 )
2.24
(7.4 )
3.01
( 9.9 )
4.56
(15.0 )
–
(–)
–
(–)
–
(–)
1.78
[ 70 ˝ ]
2.54 [100 ˝ ]
3.81 [150 ˝ ]
5.08 [200 ˝ ]
7.62 [ 300 ˝ ]
10.16 [400 ˝ ]
12.70 [ 500 ˝ ]
15.24 [ 600 ˝ ]
E T-D75LE6
1.0 –1.2:1
min.
max.
1.39
(4.6 )
2.01
( 6.7)
3.05
(10.0 )
4.08
(13.4 )
6.15
( 20.2)
8.22
( 27.0 )
10.29
( 33.8 )
12.36
(40.6 )
1.66
( 5.5 )
2.41
(7.9 )
3.65
(12.0 )
4.89
(16.1)
7.37
( 24.2)
9.85
( 32.4 )
12.33
(40.5 )
14.81
(48.6 )
E T-D75LE10
1.4 –1.8 :1
min.
max.
1.95
( 6.4 )
2.82
( 9.3 )
4.27
(14.0 )
5.72
(18.8 )
8.62
( 28.3 )
11.52
( 37.9 )
14.42
(47.4 )
17.33
( 56.9 )
2.52
( 8.3 )
3.64
(12.0 )
5.52
(18.2)
7.39
( 24.3 )
11.14
( 36.6 )
14.90
(48.9 )
18.65
( 61.2 )
22.40
(73.5 )
Throw distance
E T-D75LE30
E T-D75LE20
2.6 – 5.1:1
1.8 –2.6 :1
min.
max.
3.66
2.52
(12.1)
( 8.3 )
5.28
3.63
(17.4 )
(12.0 )
7.98
5.49
(18.0 ) ( 26.2 )
10.67
7.34
( 35.1)
( 24.1)
16.07
11.06
( 36.3 ) ( 52.8 )
21.46
14.77
(70.5 )
(48.5 )
26.86
18.48
( 60.7) ( 88.2 )
32.25
22.20
(72.9 ) (105.9 )
min.
max.
7.10
3.64
(12.0 ) ( 23.3 )
10.21
5.24
(17.3 ) ( 33.6 )
15.41
7.92
( 26.0 ) ( 50.6 )
20.60
10.60
( 67.6 )
( 34.8 )
30.99
15.96
( 52.4 ) (101.7)
41.38
21.31
(70.0 ) (135.8 )
51.77
26.67
( 87.5 ) (169.9 )
62.15
32.03
(105.1) ( 204.0 )
ET-D75LE30
Zoom lens
ET-PFD510
Frame
E T-D75LE40
5.0 – 8.0 :1
min.
max.
11.29
7.02
( 37.0 )
( 23.0 )
16.19
10.10
( 53.1)
( 33.1)
24.37
15.23
( 50.0 ) ( 80.0 )
32.54
20.36
( 66.8 ) (106.8 )
48.89
30.61
(100.4 ) (160.4 )
65.25
40.87
(134.1) ( 214.1)
81.60
51.12
(167.7) ( 267.7)
97.95
61.38
( 201.4 ) ( 321.4 )
E T-D75LE8
7.9 –15.0 :1
min.
max.
11.09
( 36.4 )
16.01
( 52.6 )
24.21
(79.5 )
32.40
(106.4 )
48.80
(160.2 )
65.19
( 213.9 )
81.59
( 267.7)
97.98
( 321.5 )
21.14
( 69.4 )
30.36
( 99.6 )
45.72
(150.0 )
61.08
( 200.4 )
91.79
( 301.2 )
122.51
(402.0 )
153.23
( 502.8 )
183.95
( 603.6 )
E T-D75LE50
0.8 :1
1.03
( 3.4 )
1.50
(4.9 )
2.29
(7.5 )
3.08
(10.1)
4.65
(15.3 )
–
(–)
–
(–)
–
(–)
ET-D75LE8
Zoom lens
ET-D75LE50
Fixed-focus lens
1.78
[ 70 ˝ ]
2.54 [100 ˝ ]
3.81 [150 ˝ ]
5.08 [200 ˝ ]
7.62 [ 300 ˝ ]
10.16 [400 ˝ ]
12.70 [ 500 ˝ ]
15.24 [ 600 ˝ ]
E T-D75LE6
1.0 –1.2:1
min.
max.
1.56
( 5.2)
2.25
(7.4 )
3.41
(11.2 )
4.56
(15.0 )
6.87
( 22.6 )
9.18
( 30.2 )
11.49
( 37.8 )
13.80
(45.3 )
1.87
( 6.2)
2.70
( 8.9 )
4.08
(13.4 )
5.47
(18.0 )
8.24
( 27.1)
11.01
( 36.2 )
13.78
(45.2)
16.55
( 54.3 )
E T-D75LE10
1.4 –1.9 :1
min.
max.
2.18
(7.2 )
3.16
(10.4 )
4.78
(15.7)
6.40
( 21.0 )
9.64
( 31.7)
12.88
(42.3 )
16.12
( 52.9 )
19.36
( 63.6 )
2.82
( 9.3 )
4.08
(13.4 )
6.18
( 20.3 )
8.27
( 27.2 )
12.46
(40.9 )
16.65
( 54.7)
20.84
( 68.4 )
25.02
( 82.1)
Throw distance
E T-D75LE30
E T-D75LE20
2.7– 5.2:1
1.8 –2.7:1
min.
max.
2.82
( 9.3 )
4.06
(13.4 )
6.14
( 20.2 )
8.21
( 27.0 )
12.36
(40.6 )
16.50
( 54.2 )
20.65
( 67.8 )
24.80
( 81.4 )
4.10
(13.5 )
5.91
(19.4 )
8.92
( 29.3 )
11.93
( 39.2 )
17.96
( 59.0 )
23.98
(78.7)
30.01
( 98.5 )
36.03
(118.3 )
min.
max.
7.94
4.07
( 26.1)
(13.4 )
11.42
5.87
( 37.5 )
(19.3 )
17.23
8.86
( 29.1) ( 56.6 )
23.03
11.85
(75.6 )
( 38.9 )
34.63
17.83
( 58.6 ) (113.7)
46.23
23.81
(78.2 ) (151.7)
57.83
29.80
( 97.8 ) (189.8 )
69.43
35.78
(117.4 ) ( 227.8 )
E T-D75LE40
5.1– 8.2:1
min.
max.
12.62
7.86
(41.4 )
( 25.8 )
18.10
11.30
( 37.1) ( 59.4 )
27.23
17.02
( 55.9 ) ( 89.3 )
36.36
22.75
(74.6 ) (119.3 )
54.62
34.20
(112.2 ) (179.2 )
72.88
45.66
(149.8 ) ( 239.1)
91.14
57.11
(187.4 ) ( 299.0 )
68.56 109.40
( 225.0 ) ( 358.9 )
E T-D75LE8
8.2–15.4:1
min.
max.
12.43
(40.8 )
17.92
( 58.9 )
27.08
( 88.9 )
36.23
(118.9 )
54.54
(179.0 )
72.85
( 239.1)
91.16
( 299.1)
109.47
( 359.2 )
23.65
(77.6 )
33.94
(111.4 )
51.10
(167.7)
68.25
( 224.0 )
102.55
( 336.5 )
136.85
(449.0 )
171.16
( 561.6 )
205.46
( 674.1)
E T-D75LE50
0.8 :1
1.16
( 3.8 )
1.69
( 5.5 )
2.57
( 8.4 )
3.45
(11.3 )
5.21
(17.1)
–
(–)
–
(–)
–
(–)
ET-LAD510
Replacement
lamp unit
(one bulb)
ET-LAD510F
Replacement lamp unit
(a set of four bulbs)
ET-LAD510P
Replacement
lamp unit for
portrait mode
(one bulb)
ET-LAD510PF
Replacement lamp unit
for portrait mode
(a set of four bulbs)
PT-DW17K (16:9 aspect ratio)
Diagonal
image size
ET-PKD510S
Low-ceiling
mount bracket
ET-D75LE40
Zoom lens
PT-DS20K (4:3 aspect ratio)
Diagonal
image size
ET-D75LE20
Zoom lens
ET-UK20
Upgrade Kit
(Geometry Manager Pro
included)
ET-EMF510
Replacement
filter
ET-SFR510
Smoke cut
filter
Specifications
Model
Power supply
Power consumption
Dissipation BTU
DLP™ chip
PT-DZ21K
PT-DS20K
PT-DW17K
200 –240 V AC, 50 / 60 Hz ( Max current requirements: 12 A @ 200 V )
2,300 W ( 0.3 W with STANDBY MODE set to ECO ,* 1 9 W with STANDBY MODE set to NORMAL .)
Max. 7,848 BT U /hour ( without light output: 7,585 BT U /hour)
24.1 mm ( 0.95 in ) diagonal (4:3 aspect ratio )
24.4 mm ( 0.96 in ) diagonal (16 :10 aspect ratio )
DLP™ chip × 3, DLP™ projection system
DLP™ chip × 3, DLP™ projection system
1,470,000 (1,400 × 1,050 ) × 3,
2,304,000 (1,920 × 1,200 ) × 3,
total of 4,410,000 pixels
total of 6,912,000 pixels
21.6 mm ( 0.85 in ) diagonal (16 : 9 aspect ratio )
DLP™ chip × 3, DLP™ projection system
1,049,088 (1,366 × 768 ) × 3,
total of 3,147,264 pixels
Brightness* 3
Optional powered zoom and fixed-focus lenses
465 W UHM lamp × 4, replacement cycle of up to 2,000 hours* 2
1.78 –15.24 m ( 70 – 600 in ),
1.78 –15.24 m ( 70 – 600 in ),
1.78 – 7.62 m ( 70 –300 in ) with the E T-D75LE50,
1.78 – 7.62 m ( 70 –300 in ) with the E T-D75LE50,
4:3 aspect ratio
16 :10 aspect ratio
20,000 lm (four-lamp )
1.78 –15.24 m ( 70 – 600 in ),
1.78 – 7.62 m ( 70 –300 in ) with the E T-D75LE50,
16 : 9 aspect ratio
17,000 lm (four-lamp )
Center-to-corner uniformity* 3
Contrast* 3
Resolution
90 %
10,000 :1 (full on /off, with dynamic iris set to “3” )
1,920 × 1,200 pixels
Panel size
Display method
Pixels
Lens
Lamp
Screen size (diagonal)
Scanning frequency
SDI
SD-SDI
HD-SDI
Dual-link HD-SDI
3G-SDI
HDMI/DVI-D
RGB
YPBPR (YCBCR)
Optical axis shift* 5
Video / Y/C
Vertical
Horizontal
Keystone correction range
Keystone correction range
with optional Upgrade Kit
Installation
Terminals
SDI 1 IN
SDI 2 IN
3D SYNC IN/OUT
3D SYNC OUT
DVI-D IN
HDMI IN
RGB 1 IN
RGB 2 IN
VIDEO IN
SERIAL IN
SERIAL OUT
REMOTE 1 IN
REMOTE 1 OUT
REMOTE 2 IN
LAN
Cabinet materials
Dimensions (W × H × D)
Weight * 10
Shipping dimensions (W × H × D)
Shipping weight
Operation noise* 3
Operating environment
Applicable software
Supplied accessories
unit: mm (inches)
f V:
f V:
f V:
f V:
f V:
24
48
30
60
50
Hz
Hz
Hz
Hz
Hz
[1080/24p]
[1080/24sF]
[1080/30p]
[1080/60p]
[1080/50p]
f H : 15.75 kHz, f V : 60 Hz [ NTSC / NTSC4.43 / PAL-M / PAL60 ] , f H : 15.63 kHz, f V : 50 Hz [ PAL / PAL-N / SECAM ]
± 50 % (±40 % with the E T-D75LE6 )
± 55 % (±44 % with the E T-D75LE6 )
from center of screen ( powered )
from center of screen ( powered )
±30 % (±20 % with the E T-D75LE6 )
±20 % (±15 % with the E T-D75LE6 )
from center of screen ( powered )
from center of screen ( powered )
Vertical: ±40° * 6 , horizontal: ±15°
±70 % (± 60 % with the E T-D75LE6 )
from center of screen ( powered )
±30 % (±20 % with the E T-D75LE6 )
from center of screen ( powered )
Vertical: ±40° * 6
Vertical: ±45° * 6 * 8 , horizontal: ±40° * 7 * 8
–
Ceiling /floor, front /rear
BNC × 1 ( 3G/HD/SD-SDI)
BNC × 1 ( HD/SD-SDI)
–
BNC × 1 ( 3D timing signal )
BNC × 1 ( 3D timing signal )
DVI-D 24-pin × 1 ( DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
HDMI 19-pin × 1 ( Deep Color, compatible with HDCP)
BNC × 5 ( RGB / YPBPR/ YCBCR/ YC × 1)
D-Sub HD 15-pin (female ) × 1 ( RGB / YPBPR/ YCBCR × 1)
BNC × 1 ( composite video )
D-sub 9-pin (female ) × 1 for external control ( RS-232C compliant)
D-sub 9-pin ( male ) × 1 for link control
M3 × 1 for wired remote control
M3 × 1 for link control (for wired remote control )
D-sub 9-pin (female ) × 1 for external control ( parallel )
RJ-45 × 1 (for network connection, 10Base-T/100Base-T X, compliant with PJLink™ )
Molded plastic
620 × 291* 9 × 800 mm ( 24-7/16 × 11-15 / 32* 9 × 31-1/2 in ) ( optional lens not included )
Approximately 43 kg ( 94.8 lbs ) ( optional lens not included )
U / EJ models: 965 × 418 × 865 mm ( 38 × 16-15 /32 × 34-1/16 in ), E models: 946 × 402 × 846 mm ( 38 × 15-13 /16 × 33-5 /16 in ).
U models: 53 kg (116.8 lbs ), EJ models: 54 kg (119.0 lbs ), E models: 51 kg (112.4 lbs )
49 dB ( quad lamp operation )
Operating temperature: 0 – 45 °C ( 32 –113 °F )* 11, operating humidity: 10 – 80 % ( no condensation )
Logo Transfer Software, Multi Projector Monitoring & Control Software,
Logo Transfer Software, Multi Projector
Geometry Manager Pro ( included in the E T-UK 20 )
Monitoring & Control Software
Power cord with secure lock, wireless /wired remote control unit, batteries ( R6 /A A type × 2 )
291
(11-15/32)
620
(24-7/16)
1,366 × 768 pixels
( Input signals that exceed this resolution will
be converted to 1,366 × 768 pixels.)
SMPTE ST 259 compliant, [ YCBCR 4:2:2 10-bit] 480i, 576i
SMPTE ST 292 compliant, [ YCBCR 4:2:2 10-bit] 720 / 50p, 720 / 60p, 1035 / 60i, 1080 / 50i,
–
1080 / 60i, 1080 /25p, 1080 /24p, 1080 /24sF, 1080 / 30p
SMPTE ST 372 compliant, [ RGB 4:4:4 12-bit /10-bit] 1080 / 50i, 1080 / 60i, 1080 /25p, 1080 /24p,
1080 /24sF, 1080 / 30p, [ X´ Y´ Z´ 4:4:4 12-bit] 2,048 × 1,080 /24p, 2,048 × 1,080 /24sF
SMPTE ST 424 compliant, [ YPBPR 4:2:2 10-bit] 1080 / 50p, 1080 / 60p, [ RGB 4:4:4 12-bit /10-bit]
1080 / 50i, 1080 / 60i, 1080 /25p, 1080 /24p, 1080 /24sF, 1080 / 30p
480p, 576p, 720 / 60p, 720 / 50p, 1080 / 60i, 1080 / 50i, 1080 /24p, 1080 /24sF, 1080 /25p, 1080 / 30p, 1080 / 60p, 1080 / 50p
VG A ( 640 × 480 ) –WUXG A* 4 (1,920 × 1,200 ), compatible with non-interlaced signals only, dot clock: 25 –162 MHz
f H : 15 –100 kHz, f V: 24 –120 Hz, dot clock: 20 –162 MHz
f H : 27.00 kHz,
f H : 15.75 kHz, f V : 60 Hz [480i (525i)]
f H : 37.50 kHz, f V : 50 Hz [720 (750)/50p]
f H : 27.00 kHz,
f H : 31.50 kHz, f V : 60 Hz [480p (525p)]
f H : 33.75 kHz, f V : 60 Hz [1035/60i]
f H : 33.75 kHz,
f H : 15.63 kHz, f V : 50 Hz [576i (625i)]
f H : 33.75 kHz, f V : 60 Hz [1080 (1125)/60i]
f H : 67.50 kHz,
f H : 31.25 kHz, f V : 50 Hz [576p (625p)]
f H : 28.13 kHz, f V : 50 Hz [1080 (1125)/50i]
f H : 56.25 kHz,
f H : 45.00 kHz, f V : 60 Hz [720 (750)/60p]
f H : 28.13 kHz, f V : 25 Hz [1080/25p]
* 1 When the S TA N D B Y M O D E is set to E C O , network functions such as power on over the LAN
will not operate. Also, only certain commands can be received for external control using
the serial terminal. * 2 The usage environment affects the lamp replacement cycle.
* 3 Measurement, measuring conditions, and method of notation all comply with ISO 21118
international standards. * 4 WUXGA resolution is supported only when the signals are
compliant with VESA CVT-RB (Coordinated Video Timing-Reduced Blanking). * 5 Optical axis
shift cannot be operated with the ET-D75LE50. * 6 ±22° with the ET-D75LE50, ±28° with
the ET-D75LE6, and ±40° with the ET-D75LE10 and ET-D75LE20. * 7 Up to ±15° with the
ET-D75LE50 and ET-D75LE6. * 8 Up to a total of ±55° during simultaneous horizontal and
vertical correction. * 9 With legs at shortest position. * 10 Average value. May differ
depending on the actual unit. * 11 The operating temperature range is 0 °C to 40 °C (32
°F to 104 °F) when the FA N C O N T R O L is set to H I G H A LT I T U D E M O D E (for altitudes from 1,400 m to
2,700 m (4,593 ft to 8,858 ft) above sea level). When the projector is used with the
ET-SFR510 Smoke Cut Filter, the operating temperature range is 0 °C to 35 °C (32 °F to
95 °F), and the projector cannot be used in places at high altitude. W I T H T H E ET-LAD510P/
LAD510PF M O U N T E D F O R T H E P O RT R A I T M O D E : The operating temperature range is 0 °C to 40 °C
(32 °F to 104 °F). The operating temperature range is 0 °C to 35 °C (32 °F to 95 °F)
when the FA N C O N T R O L is set to H I G H A LT I T U D E M O D E (for altitudes from 1,400 m to 2,700 m
(4,593 ft to 8,858 ft) above sea level). When the projector is used with the ET-SFR510
Smoke Cut Filter, the operating temperature range is 0 °C to 30 °C (32 °F to 86 °F), and
the projector cannot be used in places at high altitude.
Dimensions
1,400 × 1,050 pixels
( Input signals that exceed this resolution will
be converted to 1,400 × 1,050 pixels.)
800
(31-1/2)
NOTES ON USE
1. Do not install the projector in locations that are subject to excessive water, humidity, steam,
or oily smoke. Doing so may result in fire, malfunction, or electric shock.
2. The projector uses a high-voltage mercury lamp that contains high internal pressure. This
lamp may break, emitting a large sound, or fail to illuminate, due to impact or extended use.
3. The projector uses of high-wattage lamp that becomes very hot during operation. Please
observe the following precautions:
• Never place objects on top of the projector while it is operation.
• Make sure there is an unobstructed space of 500 mm (19-11/16 inches ) or more around
the projector’s exhaust openings.
• Do not stack projector units directly on top of one another for the purpose of multiple
( stacked ) projection. When stacking projector units, be sure to provide the amount of
space indicated between them. These space requirements also apply to installation where
only one projector unit is operating at one time and the other unit is used as a backup.
• If the projector is placed in a box or enclosure, temperature of the air surrounding the
projector must be between 0 °C ( 32 °F ) and 35 °C ( 95 °F ). Also make sure the projector’s intake and exhaust openings are not blocked. Take particular care to ensure that hot
air from the exhaust openings is not sucked into the intake.
4. If the projector is to be operated continuously 24 hours a day / 7 days a week, use the multi-lamp optical system’s alternating lamp operation ( lamp changer) function. The projector
can be operated continuously 24 hours a day / 7 days a week in four-lamp operation mode,
but it will automatically operate with three lamps for 8 hours of the 24 hours / 7 days.
5. The lamp replacement cycle duration becomes shorter if the projector is operated repeatedly
for short periods.
• The length of time that it takes for the lamp to break or fail to illuminate varies greatly
depending on individual lamp characteristics and usage conditions.
• The brightness of the lamp will gradually decrease with use.
6. Because the E T-D75LE50 is a fixed short-throw lens, the lens shift function cannot be used
with it.
7. Due to natural characteristics of lamps, screen brightness may vary (flicker). This is not an
indication of faulty lamp performance.
The compact size, light weight, and low
operating noise of the PT-DZ21K Series
realize brighter images more applications.
For more information about Panasonic projectors, please visit:
Projector Global Web Site – panasonic.net/avc/projector
Facebook – www.facebook.com/panasonicprojector
YouTube – www.youtube.com/user/PanasonicProjector
Weights and dimensions shown are approximate. Specifications and appearance are subject to
change without notice. Product availability differs depending on region and country. This product
may be subject to export control regulations. DLP, DLP logo and DLP Medallion logo are trademarks
or registered trademarks of Texas Instruments. The projection distances and throw ratios given in
this leaflet are for use only as guidelines. For more detailed information, please consult the dealer
from whom you are purchasing the product. The PJLink trademark is an application trademark in
Japan, the United States, and other countries and regions or registered trademarks. All other
trademarks are the property of their respective trademark owners. Projection images simulated.
TM USOC 36USC220506
© 2012 Panasonic Corporation. All rights reserved.
JQA-QMA14392
EC98J2010
051
Factories of Business Solutions Business Group have received ISO
14001:2004—the Environmental Management System certification
(except for third parties’ peripherals).
All information included here is valid as of September 2012.
PT-DZ21KG2 Printed in Japan.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
