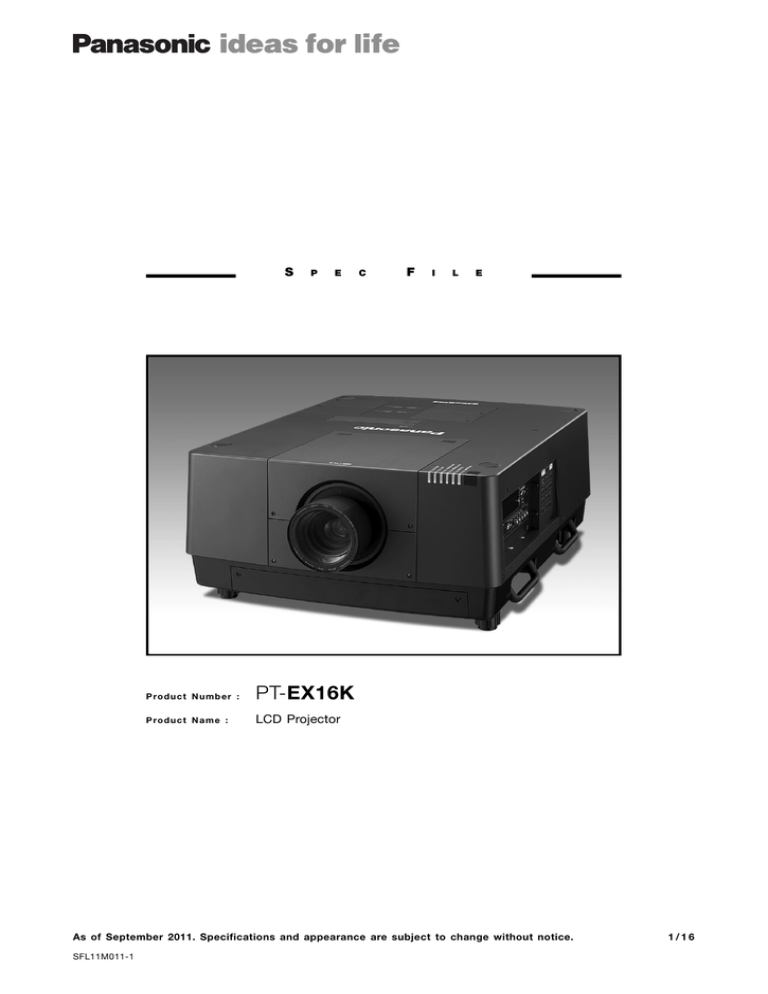

Panasonic PT-EX16KU Specification Sheet | Manualzz

S

P E C

F

I L E

P r o d u c t N u m b e r :

PT-EX16K

P r o d u c t N a m e :

LCD Projector

As of September 2011. Specifications and appearance are subject to change without notice.

SFL11M011-1

1 / 1 6

S P E C

LCD Projector

F I L E

PT-EX16K

Specifications

Main unit

Power supply 200 –240 V AC, 11 A, 50/60 Hz (3-wire single-phase)

NOTE: The projector should be connected to an independent circuit. Please consult your electrician for more details.

Power consumption

LCD panel

Pure color control device

Lens

Lamp

Screen size

Brightness* 1

Panel size

Display method

Pixels

Pixel configuration

Center-to-corner uniformity*

Contrast* 1

Resolution

Scanning frequency

1

HDMI/DVI-I

RGB

YP

B

P

R

(YC

B

C

R

)

1,850 W (18 W with standby mode)

46 mm (1.8 inches) diagonal (4:3 aspect ratio)

Transparent LCD panel (× 3, R/G/B)

786,432 (1,024 × 768) × 3, total of 2,359,296 pixels

Stripe

× 1

Optional powered zoom/focus lenses

380 W UHM lamp × 4

1.02 –15.24 m (40 – 600 inches) diagonally, 4:3 aspect ratio

(2.54 –15.24 m (100 – 600 inches) with the ET-ELS03, 4:3 aspect ratio)

16,000 lumens (four lamp, normal/auto mode, with ET-ELS03)

90%

2,500:1 (full on/full off, four lamp, auto mode, with ET-ELS03)

1,024 × 768 pixels (Input signals that exceed this resolution will be converted to 1,024 × 768 pixels.) f

H

: 26 kHz – 80 kHz, f

V

: 23 Hz – 85 Hz, dot clock: 162 MHz or lower f

H

: 15 kHz –120 kHz, f

V

: 48 Hz –120 Hz, dot clock: 230 MHz or lower

525i (480i): f

H

15.75 kHz; f

V

60 Hz,

625i (576i):

525p (480p):

625p (576p):

750 (720)/60p: f f f f

H

H

H

H

15.63 kHz; f

31.50 kHz; f

31.25 kHz; f

45.00 kHz; f

V

V

V

V

50 Hz,

60 Hz,

50 Hz,

60 Hz,

750 (720)/50p:

1035/60i: f

H

37.50 kHz; f

V

50 Hz, f

H

33.75 kHz; f

V

60 Hz,

1125 (1080)/60i: f

H

33.75 kHz; f

V

60 Hz,

1125 (1080)/50i: f

H

28.13 kHz; f

V

50 Hz,

1125 (1080)/25p: f

H

28.13 kHz; f

V

25 Hz,

1125 (1080)/25psf: f

H

28.13 kHz; f

V

50 Hz,

1125 (1080)/24p: f

H

27.00 kHz; f

V

24 Hz,

1125 (1080)/24psf: f

H

27.00 kHz; f

V

48 Hz,

Optical axis shift

Keystone correction range

Installation

1125 (1080)/30p: f

H

33.75 kHz; f

V

30 Hz,

1125 (1080)/30psf: f

H

33.75 kHz; f

V

30 Hz,

1125 (1080)/60p: f

H

67.50 kHz; f

V

60 Hz,

1125 (1080)/50p: f

H

56.25 kHz; f

V

50 Hz

Video/S-Video f

H

: 15.75 kHz, f

V

: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60] f

H

: 15.63 kHz, f

V

: 50 Hz [PAL/PAL-N/SECAM]

Powered,

Vertical: ±39% from center of screen ET-ELW06

ET-ELW02/ELW04/ELS03/ELM01/ELT02/ELT03

Vertical: ±39% from center of screen,

ET-ELS02

Horizontal: ±10% from center of screen

Vertical: ±50% from center of screen,

Horizontal: ±10% from center of screen

Vertical: ±40° (ET-ELS03, with vertical correction only)

Horizontal: ±40° (ET-ELS03, with horizontal correction only)

Ceiling/desk, front/rear

As of September 2011

SFL11M011-1

2 / 1 6

S P E C

LCD Projector

F I L E

PT-EX16K

Terminals INPUT 1

HDMI IN

DVI-D IN

RGB IN

INPUT 2

RGB IN

S-VIDEO IN

SERIAL IN

SERIAL OUT

REMOTE 1 IN

LAN

VIDEO IN

USB* 3

R, G, B

R, G, B

Y, P

B

(C

B

), P

R

(C

R

)

Optional board slot

With ET-MD16SD1 installed

SERIAL IN (SDI IN 1/2)

Menu selection

HDMI 19-pin × 1, Deep Color, HDCP compatible

525i (480i), 625i (576i), 525p (480p), 625p (576p), 750 (720)/60p,

750 (720)/50p, 1035/60i, 1125 (1080)/60i, 1125 (1080)/50i,

1125 (1080)/25p, 1125 (1080)/25psf, 1125 (1080)/24p,

1125 (1080)/24psf, 1125 (1080)/30p, 1125 (1080)/30psf,

1125 (1080)/60p, 1125 (1080)/50p,

VGA (640 × 480) – WUXGA* 2 (1,920 × 1,200)

DVI-D 29-pin × 1, DVI 1.0 compliant, compatible with HDCP, compatible with single link only

525i (480i), 625i (576i), 525p (480p), 625p (576p), 750 (720)/60p,

750 (720)/50p, 1035/60i, 1125 (1080)/60i, 1125 (1080)/50i,

1125 (1080)/25p, 1125 (1080)/25psf, 1125 (1080)/24p,

1125 (1080)/24psf, 1125 (1080)/30p, 1125 (1080)/30psf,

1125 (1080)/60p, 1125 (1080)/50p,

VGA (640 × 480) – WUXGA* 2 (1,920 × 1,200)

D-sub HD 15-pin (female) × 1

G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms;

B, R: 0.7 Vp-p, 75 ohms;

HD/VD, SYNC: high impedance, TTL (positive/negative)

NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.

Menu selection

BNC × 5 (RGB/YP

B

P

R

/YC

B

C

R

× 1)

G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms;

B, R: 0.7 Vp-p, 75 ohms;

HD/VD, SYNC: high impedance, TTL (positive/negative)

NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.

Y: 1.0 Vp-p (including sync signal);

P

B

(C

B

), P

R

(C

R

): 0.7 Vp-p, 75 ohms

BNC × 1, 1.0 Vp-p, 75 ohms

Mini DIN 4-pin × 1, Y: 1.0 Vp-p; C: 0.286 Vp-p, 75 ohms

D-sub 9-pin × 1, for external control (RS-232C compliant)

D-sub 9-pin × 1, for for link control

M3 jack × 1 for wired remote control

RJ-45 × 1, for network connection, 100Base-TX/10Base-T, compliant with PJLink™

USB type-B (USB connector) × 1

× 2 (INPUT 3/4)

Power cord length

Weight

Operation noise

Operating temperature

Operating humidity

SERIAL OUT (SDI OUT)

Cabinet materials

Dimensions (W × H × D)

BNC × 2

SD-SDI signal (YC

B

C

R

4:2:2 10-bit),

SMPTE 259M-C compliant: 480i, 576i

Single-link HD-SDI signal (YP

B

P

R

4:2:2 10-bit),

SMPTE 292M compliant: 720/50p, 720/60p, 1035/60i, 1080/50i,

1080/60i, 1080/25p, 1080/25psf, 1080/24p, 1080/24psf,

1080/30p, 1080/30psf

BNC × 1, active through

3.0 m (9 ft 10 in)

Molded plastic (PC + ABS)

650 mm × 349 mm* 4 × 815 mm

(25-19/32 × 13-3/4* 4 × 32-3/32 inches) (without lens)

Approximately 46.5 kg (102.5 lbs) (without lens)

51 dB (lamp power: normal / eco 2), 48 dB (lamp power: eco 1)

5°–40°C (41°–104°F)* 5

20%– 80% (no condensation)

As of September 2011

SFL11M011-1

3 / 1 6

S P E C

LCD Projector

F I L E

Remote control unit

Power supply

Operation range* 6

Dimensions (W × H × D)

Weight

Supplied accessories

Optional accessories

Zoom lens (1.2 – 1.5:1)

Zoom lens (1.4 – 1.8:1)

Zoom lens (1.5 – 2.0:1)

Zoom lens (2.0 – 2.6:1)

Zoom lens (2.6 – 3.5:1)

Zoom lens (3.5 – 4.5:1)

Zoom lens (4.4 – 6.2:1)

Zoom lens (6.3 – 9.0:1)

Fixed focus lens (0.8:1)

HD/SD-SDI board

Ceiling mount bracket

Bracket assembly

Smoke cut filter unit

Replacement smoke cut filter

Replacement lamp unit

Replacement filter unit

PT-EX16K

3 V DC (R03/LR03/AAA type battery × 2)

Approximately 5 m (16 ft 5 in) when operated from directly in front of the signal receptor

48 × 145 × 27 mm (1-7/8˝ × 5-23/32˝ × 1-1/16˝)

Approx. 102 g (3.6 oz) (including batteries)

Power cord × 1 (× 2 for PT-EX16KE)

Power cord holder/power cord cover (× 1 set)

Wireless/wireled remote control unit (× 1)

Batteries for remote control (AAA/R03/LR03 type × 2)

VGA cable (× 1)

Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring

& Control Software, Real Color Manager Pro) (× 1)

Lens attachment (× 1 set)

Lens lock lever fixing bracket (× 1 set)

Lightshielding plate (× 3 set)

Spacer (× 1 set)

Cable tie (× 3)

ET-ELW06

ET-ELW02

ET-ELW04

ET-ELS02

ET-ELS03

ET-ELM01

ET-ELT02

ET-ELT03

ET-ELW03

ET-MD16SD1

ET-PKE16H (for high ceilings)

ET-PKE16S (for low ceilings)

ET-PKE16B

ET-SFE16

ET-SRE16

ET-LAE16

ET-RFE16

Weights and dimensions shown are approximate. Specifications subject to change without notice.

*1 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.

*2 WUXGA resolution is supported only when the signals are compliant with VESA CVT-RB (Coordinated Video Timing-Reduced Blanking).

*3 This port is for use by service personnel only. The USB interface may not operate with all USB compatible equipment.

*4 With legs at shortest position.

*5 The operating temperature range is 5°C–30°C (41°F–86°F) when used at the place where is between 1,800 m and 2,700 m (5,906 ft and 8,858 ft) above sea level.

*6 Operation range differs depending on environments.

As of September 2011

SFL11M011-1

4 / 1 6

S P E C

LCD Projector

F I L E

Dimensions

PT-EX16K unit : mm (inch)

NOTE: This illustration is not drawn to scale.

Terminals

325

(12-25/32)

275

(10-13/16 )

25

( 31/32)

275

(10-13/16 )

650 ( 25-19 /32)

1 2 3 4

115

(4-17/32)

620 ( 24-13/32)

11

10

9

8

7

6

5

1 DVI-D input

2 HDMI input

3 RGB input

4 RGB input / Video input

5 S-Video input

6 LAN connector

7 Remote input

8 Serial output

9 USB connector

10 Serial input

11 Optional board slots

As of September 2011
