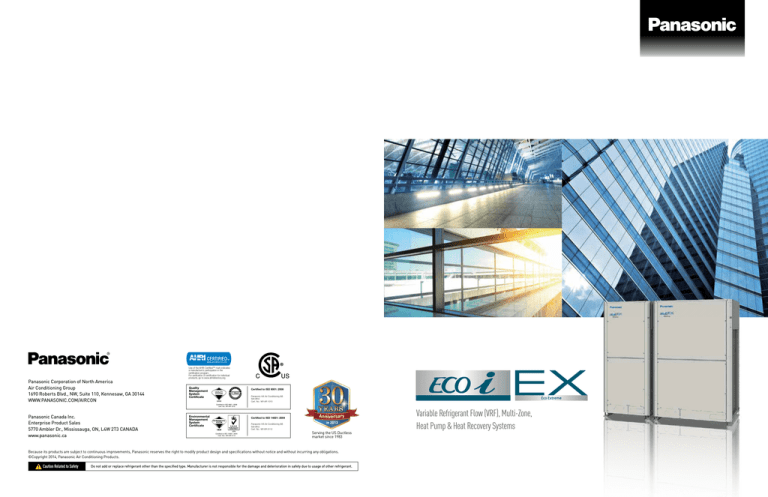

Panasonic | S-07MD1U6 | Brochure | Panasonic S-07MD1U6 Brochure

Panasonic Corporation of North America
Air Conditioning Group
1690 Roberts Blvd., NW, Suite 110, Kennesaw, GA 30144
WWW.PANASONIC.COM/AIRCON
Use of the AHRI Certified™ mark indicates
a manufacture's participation in the
certification program.
For verification of certification for individual
products, go to www.ahridirectory.org
Quality
Management
System
Certificate
Certified to ISO 9001: 2008
Panasonic HA Air-Conditioning (M)
Sdn.Bhd.
Cert. No.: MY-AR 1010
Certified to ISO 9001: 2008
Cert. No.: MY-AR 1010
Panasonic Canada Inc.
Enterprise Product Sales
5770 Ambler Dr., Mississauga, ON, L4W 2T3 CANADA
www.panasonic.ca
Environmental
Management
System
Certificate
Certified to ISO 14001: 2004
Panasonic HA Air-Conditioning (M)
Sdn.Bhd.
Cert. No.: MY-ER 0112
Certified to ISO 14001: 2004
Cert. No.: MY-ER 0112
Serving the US Ductless
market since 1983
Because its products are subject to continuous improvements, Panasonic reserves the right to modify product design and specifications without notice and without incurring any obligations.
©Copyright 2014, Panasonic Air Conditioning Products.
Caution Related to Safety
Do not add or replace refrigerant other than the specified type. Manufacturer is not responsible for the damage and deterioration in safety due to usage of other refrigerant.
Variable Refrigerant Flow (VRF), Multi-Zone,
Heat Pump & Heat Recovery Systems
Table of Contents
ECOi™ – Your Building Life Tool.
A Better Life, A Better World
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Since the founding of Panasonic Corporation, our management
philosophy has driven us to contribute to people’s lives and the progress
of society.
ECOi™ VRF series Lineup . . . . . . . . . . . . . . . . . . . . . 4
New ECOi EX™ series (ME2)
Product Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Core Technologies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
High-spec Wired Remote Controller . . . . . . . . . . . . . . . 10
New ECOi EX™ series Specifications . . . . . . . . . 12
ECOi™ OUTDOOR Unit Lineup
MF 3-Way ECOi™ VRF Heat Pump . . . . . . . . . . . . . . 14
Combined MF 3-Way ECOi™ VRF Heat Recovery . . . 16
LE Mini 2-way ECOi™ VRF Heat Pump . . . . . . . . . . . 19
ME1 series 2-Way ECOi™ VRF Heat Pump . . . . . . . . 20
Combined ME1 2-Way ECOi™ VRF Heat Pump . . . . 22
INDOOR Unit Lineup . . . . . . . . . . . . . . . . . . . . . 24
MK Wall Mounted . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
MY Series 4-Way Ceiling Cassette . . . . . . . . . . . . . . . 27
MU Series 4-Way Ceiling Cassette . . . . . . . . . . . . . . . 28
MD Series 1-Way Ceiling Cassette . . . . . . . . . . . . . . . 29
MT Series Ceiling Suspended . . . . . . . . . . . . . . . . . . . 30
MP / MR Floor Mounted . . . . . . . . . . . . . . . . . . . . . . . . 31
In 2018, Panasonic will celebrate its 100th anniversary. As we prepare to
greet a new century in business, the world is witnessing a major turning
point in the way we live. It is no longer practical to pursue extravagant
lifestyles that consume large amounts of natural resources and energy.
We must create a new way of living that minimizes the burden we place
on the environment, while raising our standard of living. This is Panasonic’s
mission – the creation of new lifestyle values.
Through our complete HVAC solutions, we are committed to delivering
“A Better Life, A Better World” to every customer.
A partner in the lives of people all over the world.
For the Living Inside & Out
ECOi™ – Your Building Life Tool
Contractors. Building Support.
At Panasonic, we realize contractors are looking for turnkey installation
and support. ECOi™ is quite simply the perfect building solution. With its
modular design and ease of installation, it’s a solution that can grow with
any building project. In fact, ECOi may just remind you why you got into
the business in the first place.
ECOi has a number of diverse features to meet all your air conditioning
needs, including flexible combinations. ECOi allows multiple indoor
unit combinations that provide you with the utmost flexibility.
The system also allows multiple unit connectivity providing up to 200%
of the total capacity of the condensing unit. This provides 20-39 (6-12 tons)
connected to one condensing unit.
Engineers. Designing Confidence.
ECOi™ is absolute confidence. Its flexibility allows multiple applications
and installation configurations. With a maximum pipe length of up to
3,280 feet and up to 64 units connected to one outdoor system you can
engineer a perfect solution for all your needs. ECOi is a superior modular
option that provides for floor-by-floor commissioning.
Inverter Control Compressor: All ECOi systems utilize highly advanced
inverter controlled compressor technology. By varying the rotational speed
of the compressor, the inverter control can precisely match the amount of
refrigerant being delivered to each zone. This intelligent approach helps
realize the highest efficiencies during partial-load conditions. This allows
all occupants to enjoy consistent room temperature regardless of any
increases or decreases in the heat load during the day. ECOi quite simply
knows what you need, and when you need it throughout the day.
Architects. Design Freedom. Now There’s An Idea.
Nobody understands design freedom more than architects. That’s why
the ECOi HVAC system provides more freedom to meet any design need.
With space-saving environmentally-friendly designs, you can design your
vision first then marry our system within your plans.
MM Concealed Duct . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
MF Concealed Duct . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
ME Concealed Duct . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
MVA Concealed Duct – Vertical Multi Poise series . . . 35
CONTROL SYSTEM . . . . . . . . . . . . . . . . . . . . . . . 36-39
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
SERVICES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Efficiency Rating . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Owners & Tenants.
Immediate response to changing room capacity, heat loads, and varying
sun exposures throughout the day means everybody stays cool and
comfortable. ECOi ensures individual zone temperature control so each
office or room can be adjusted for personalized comfort. ECOi can grow
with you. As remodeling occurs and building extensions are planned,
ECOi’s modularity lets you simply add on to the system. With intelligent
controllers, VRF technology and R410A refrigerant, ECOi guarantees
continued energy savings and environmental friendship for years to come.
Lower running and life cycle costs: ECOi VRF systems are among the most
efficient systems on the market, offering COPs in excess of 4.0 at full
load conditions. Using our intelligent control sequence, all VRF systems
are designed to minimize running costs. This is done by the most efficient
combination of compressor, fan, and refrigeration management criteria.
Improved defrost sequencing reduces running cost and defrost cycle.
Panasonic commercial HVAC history . . . . 45
2
3
ECOiTM VRF Series
ECOi™ VRF Series
NEW
ME2series 2-WAY ECOi EXTM VRF HEAT PUMP
MF 3-WAY ECOiTM VRF HEAT RECOVERY SERIES
Panasonic’s combined ECOi EX 2-Way conditioning solution offers superior
heating and cooling coupled with cost effective installation. A smart
conditioning solution for large capacity jobs.
•Dual large-capacity inverter compressors (models above U-120MEU9)
•Outstanding energy saving performance: IEER : 19.1 / EER : 12.3 (in the
case of 6 tons)
•E xceptional flexible piping design:
Maximum total piping length - 3,280 Feet
Maximum outdoor to most distant indoor unit - 164 Feet
•E xtended operating range (Outdoor Temperature)
- Cooling 14 °F DB to 122 °F DB
- Heating -4 °F WB to 64 °F WB
•Maximum outdoor unit connects as many as 64 indoor units (50%-200%
ratio of indoor to outdoor capacity)
•Expanded system capacity range (up to 30 tons)
LE
Commercial office buildings are subject to fluctuating heat levels generated from office
equipment, lighting and varying occupant levels. Also, hotels, nursing homes and other
commercial living spaces often have times when occupants will want either heating or
cooling at the same time. The heat recovery system offers the perfect solution for stabilizing
air temperature by providing all the features of a heat pump system and the added flexibility
of simultaneous cooling and heating from one refrigerant pipe network.
NEW ME2 series 2way ECOi EX™
• Ultra high performance: efficient individual air conditioning is possible in buildings
having diverse room temperatures for simultaneous heating/cooling and individual
operation of each indoor unit.
• Effective heat recovery system enables higher energy savings
• Improves discharge air temperature of indoor units during heating and simultaneous
mode operation
• Flexible system design with Solenoid Valve Kit (can be piped up to 98 ft. from indoor unit)
Cooling and Heating
Simultaneous Type
Simultaneous Heating & Cooling Operation
System example
2-WAY MINI ECOiTM VRF HEAT PUMP
Panasonic 2-WAY mini ECOi is a 2-pipe heat pump specifically designed for numerous
commercial and premium residential applications. Mini ECOi is available in 2 sizes
with cooling capacities ranging with up to 9 indoor units connectable.
• Inverter Driven Twin Rotary Compressor
• One outdoor unit connects as many as 9 indoor units (50%-130% ratio of indoor to
outdoor capacity)
• Nominal operating range (outdoor ambient)
- Cooling 14 °F DB to 113°F DB
- Heating -4 °F WB to 59 °F WB
• F lexible piping design:
Maximum total piping length - 656 Feet
Maximum outdoor to most distant indoor unit - 164 Feet
Cooling
3-Way ECO-i™ MULTI
enables simultaneous
heating and cooling
operationby each
solenoid valve kit.
[Stop]
MU
Cooling and Heating Type
LE 2-WAY
[Heating]
MK
[Cooling]
MF
[Heating]
MD
[Cooling]
ME
[Heating]
MT
Liquid pipe
Suction pipe
Discharge pipe
medium temperature,
medium-pressure liquid pipe
low temperature,
low-pressure gas pipe
high temperature,
high-pressure gas pipe
Solenoid valve kit
Heating
• CZ-P56HR1U (For 7,500 BTU/H to
19,000 BTU/H)
• CZ-P160HR1U (For 19,100 BTU/H to
54,600 BTU/H)
* For conference rooms and other
locations where low noise is required,
pay attention to the installation location
and install in a corridor etc.
For the buildings requiring
simultaneous heating and
cooling, Panasonic 3-Way
ECOi™ system provides
the perfect solution.
4
5
Product Advantages
Outstanding
Energy-Saving
Performance
IEER19.3 / EER 12.3 (6, 8, 10, 12 tons) top level in the industry
Thanks to the all inverter compressors combinations with improved combined triple-surface heat
exchanger and medium cooling capacity, the new ME2 Series achieved the industry’s top level
energy saving performance.
[EER]
12.0
[IEER]
Top
Class
Top
Class
As of June 2014
13.0
As of June 2014
12.3
20.0
11.9
10.9 10.9
11.0
16.7
6 tons
8 tons
10 tons
15.0
12 tons
16.7
16.3
NEW
CURRENT
16.0
NEW
CURRENT
9.0
18.7
18.0
17.0
10.0
19.3
19.3
19.1
19.0
11.5
11.5
11.1
6 tons
8 tons
10 tons
12 tons
North American IEER
North American EER
Exceptional
Design Flexibility
ECOi EXTM ME2 Series
NEW ECOi EX™ Series
[Seasonal Efficiency]
Up to 30 tons large-capacity single system
Combined outdoor units delivering a maximum of up to
30 tons. (Ducted combination)
Long actual piping length max. of 656 ft
The accumulator, compressor and oil separator are
combined in a single unit to enable long 656 ft
piping (equivalent to 689 ft), 164 ft after first
branch. This extends the piping distance between
indoor units and outdoor units.
(Current models: 492/574 ft, 131 ft after branching)
*1: 131 ft if the outdoor unit is
below the indoor unit.
Extended
Operating Range
Max. total length: 3280 ft
Cooling operation range: 14˚F (WB) to 122˚F (DB)
The cooling operation range has been extended up to 122˚F (DB) (Up to 113°F with current models).
Cooling is also possible when the outdoor
Cooling
temperature is 14˚F (WB). Suitable for use
14°F
Current [ME1]
113°F
in cold regions where year-round cooling
New [ME2]
14°F
122°F
is required, as well as in the hot regions
10
20
30
40
50
60
70
80
90
100
110
120 (°C DB)
where cooling is needed the most.
Heating operation range: -4˚F to 64˚F
The heating operation range has been extended
to -4˚F to 64˚F by use of a compressor with a
high-pressure vessel. Provides powerful heating
even in the extremely cold regions.
Heating
Current [ME1]
-4°F
-4°F
-5
0
59°F
64°F
New [ME2]
10
20
30
40
50
60 (°F WB)
7
Core Technologies
Outstanding
Energy-saving
Technology
4
ECOi EXTM ME2 Series
NEW ECOi EX™ Series
1 Dual large-capacity inverter compressors
Two independently controlled inverter compressors
achieve high efficiency (For models U-120ME2U9
and above).
2 Enlarged heat exchanger surface area
with triple surface
6
• The new large size heat exchanger features
a 3-sides construction. Compared to the
conventional 2 (upper/lower) compartments
outdoor unit structure, the new model has more
efficient heat exchanging performance.
5
Current model [ME1] New model [ME2]
10, 12 tons
3 Gas-liquid separation + oil separation for increased efficiency
2
• Accumulator: Increases gas-liquid separation efficiency to reduce compressor pressure loss.
• Oil separator: Efficiently separates and absorbs refrigeration oil to prevent it flowing into the
heat exchanger.
Redesigned
for Smooth
and Better
Air Discharge
1
4 Large air discharge area with new flush surface top panel.
To reduce air resistance, a new large flat fan guard
design (instead of a tubular fan design), flush with
the top panel, is employed.
This design leads to improvements in air resistance,
and contributes to better appearance.
Current model [ME1]
New model [ME2]
3
5 Newly designed curved air discharge bell mouth for better aerodynamics
The new curved shape with integrated top
and bottom assure smooth air discharge flow.
Minimal swirling means an increased flow rate.
Current model [ME1]
New model [ME2]
6 High 80Pa external static pressure – large diameter fan (27-1/2")
A large, newly-designed 27-1/2" diameter fan.
High 80Pa external static pressure maintains
performance in winds around large buildings.
Ideal for high-rise buildings.
8
Max. 80Pa external
static pressure
9
High-spec Wired
Remote Controller
Multiple Control
Setting Functions
for More Energy
Saving
ECOi EXTM ME2 Series
NEW ECOi EX™ Series
Temperature Auto Return
Even if you change the temperature setting, after a set time
it automatically returns to the original temperature setting.
You can set temperature auto return in 10-minute intervals
within a period of 4 hours.
Temperature Setting Range
Both maximum and minimum temperature settings can be
limited. Doing this helps reduce power consumption due to over
cooling or heating. Setting is possible in the Cooling, Heating and
Dry modes.
NEW
Auto Shutoff
Air conditioning operation can be programmed to stop its operation
automatically after a set time, so you don’t have to remember to
manually switch the unit off. Even if you manually switch the unit
back on after it has stopped, the program will continue to activate and
continue to switch off the operation after a set time.
1
Other Convenient
Controls
Individual Louver Control
(Lock individual flap only for 4-way cassette MU type)
Each of the 4-directional outlets can be selected and locked to
provide efficient air distribution that matches the indoor unit
layout. Indoor units can be set individually.
Weekly Timer
2
This lets you select 8 Start/Stop times and temperature presets
for each day of the week.
Service Contact Address
(CZ-RTC3)
1
10
Once you have registered service contact details, they are
automatically displayed if a problem occurs. This helps you
address the situation quickly.
2
Large 3.5" Full-dot LCD with
White LED Backlight
Stylish, Easy-to-use
Touch Key Design
Characters and icons are clearly displayed for
improved visibility. The display is also large enough
to provide a wide range of information for easy
confirmation of operation conditions.
The elegant, flat design features
large touch keys in a simple layout
enabling easy, intuitive operation.
Menu items
• Basic instructions
• FLAP
• Individual louver control
(Lock individual flap only
for 4-way cassette MU type)
• ON/ OFF timer
• Weekly timer
• Filter information
• Outing function
• Quiet operation mode
• Energy saving
• Initial settings
• Ventilation
Energy Saving
Maintenance Function
• Temperature auto return
• Temperature setting range
• Auto shutoff
• Schedule peak cut
• Repeat off timer
• ECONAVI on/ off
• Outdoor unit error data
• Service Contact address
• RC setting mode
• Test Run
• Sensor Information
• Service check
• Simple/ Detailed Settings
• Auto address
11
ME 2 SERIES
™
ECOi EX
ECOi EXTM ME2 Series
NEW ECOi EX™ Series
KEY FEATURES: SINGLE OUTDOOR
* Wide range of systems from 6 ton to 30 ton
* Top class IEER: 19.3 (for 8 ton system)
* Longer max piping length (up to 3,280 ft)
* Increased max number of connectable indoor units (up to 64)
* Increased connectable indoor/outdoor capacity ratio up to 200%
* External static pressure increased to 80Pa
* E xtended operation range allowing cooling operation to continue
even when outdoor temperature is as high as 122°F DB
* Heating operation possible down to outdoor temperature of -4°F WB
2-WAY VRF HEAT PUMP
The New Panasonic ECOi EX VRF system, redesigned with new DC inverter
compressor combination operations. Perfected original active oil control
system brings quality, efficiency and reliability you can count on.
MODEL NAME
U-72ME2U9
U-96ME2U9
U-120ME2U9
U-144ME2U9
WU-168ME2U9
WU-192ME2U9
WU-216ME2U9
WU-240ME2U9
WU-264ME2U9
WU-288ME2U9
WU-312ME2U9
WU-336ME2U9
WU-360ME2U9
U-144ME2U9
+U-144ME2U9
U-72ME2U9
+U-120ME2U9
+U-120ME2U9
U-96ME2U9
+U-120ME2U9
+U-120ME2U9
U-120ME2U9
+U-120ME2U9
+U-120ME2U9
26
28
30
312,000
91.4
351,000
102.8
336,000
98.4
378,000
110.8
360,000
105.5
405,000
118.7
U-72ME2U9
U-96ME2U9
U-120ME2U9
U-144ME2U9
U-72ME2U9
+U-96ME2U9
U-96ME2U9
+U-96ME2U9
U-96ME2U9
+U-120ME2U9
U-120ME2U9
+U-120ME2U9
U-120ME2U9
+U-144ME2U9
6
8
12
14
16
18
20
22
Btu/h
kW
Btu/h
kW
72,000
21.1
81,000
23.7
96,000
28.1
108,000
31.6
144,000
42.2
162,000
47.5
168,000
49.2
189,000
55.4
192,000
56.3
216,000
63.3
216,000
63.3
243,000
71.2
240,000
70.3
270,000
79.1
Btu/h
69,000 | 69,000
12.3 | 12.6
19.1 | 22.1
77,000 | 77,000
3.56 | 3.86
52,000 | 52,000
2.56 | 2.63
92,000 | 92,000
11.9 | 11.9
19.3 | 23.1
103,000 | 103,000
3.54 | 3.75
67,000 | 67,000
2.42 | 2.59
138,000 | 138,000
10.9 | 10.7
18.7 | 22.6
154,000 | 154,000
3.27 | 3.35
100,000 | 100,000
2.18 | 2.41
160,000 | 160,000
11.7 | 11.6
19.0 | 23.2
180,000 | 180,000
3.45 | 3.50
119,000 | 119,000
2.30 | 2.38
184,000 | 184,000
11.2 | 11.1
18.4 | 22.6
206,000 | 206,000
3.40 | 3.39
134,000 | 134,000
2.25 | 2.26
206,000 | 206,000
11.0 | 10.9
18.0 | 22.3
232,000 | 232,000
3.38 | 3.35
142,000 | 142,000
2.23 | 2.34
228,000 | 228,000
10.7 | 10.8
17.7 | 22.8
258,000 | 258,000
3.29 | 3.25
150,000 | 150,000
2.18 | 2.22
14.3 / 13.1
4.49 / 4.49
87 / 86
16.7 / 15.2
5.22 / 5.22
87 / 86
15.7 / 14.4
4.92 / 4.92
87 / 86
16.8 / 15.4
5.28 / 5.28
87 / 86
19.0 / 17.4
6.36 / 6.36
93 / 92
21.6 / 19.8
7.16 / 7.16
92 / 91
21.0 / 19.2
7.04 / 7.04
93 / 92
22.2 / 20.3
7.36 / 7.36
92 / 91
10
AHRI Standard 1230
3φ 208/230V 60Hz
120,000
35.2
135,000
39.6
Ducted | Non-ducted
114,000 | 114,000
11.5 | 11.8
19.3 | 24.8
129,000 | 129,000
3.40 | 3.60
75,000 | 75,000
2.30 | 2.40
208 / 230
24.4 / 22.3
8.25 / 8.25
94 / 93
27.9 / 25.5
9.45 / 9.45
94 / 93
26.4 / 24.1
8.94 / 8.94
94 / 93
28.9 / 26.4
9.78 / 9.78
94 / 93
1/1
31.9 / 28.8
10.8 / 10.8
94 / 94
35.1 / 31.8
11.9 / 11.9
94 / 94
35.7 / 32.3
12.1 / 12.1
94 / 94
37.5 / 33.9
12.7 / 13.7
94 / 94
35.8 / 32.7
11.6 / 11.6
90 / 89
40.7 / 37.2
13.2 / 13.2
90 / 89
40.1 / 36.7
13.0 / 13.0
90 / 89
44.1 / 40.3
14.3 / 14.3
90 / 89
42.1 / 38.5
14.1 / 14.1
93 / 92
46.5 / 42.5
15.4 / 15.4
92 / 91
47.2 / 43.1
15.8 / 15.8
93 / 92
51.3 / 46.9
17.0 / 17.0
92 / 91
47.5 / 43.5
16.1 / 16.1
94 / 93
52.2 / 47.8
17.5 / 17.5
93 / 92
53.2 / 48.6
18.0 / 18.0
94 / 93
57.9 / 52.9
19.4 / 19.4
93 / 92
55.2 / 50.5
18.7 / 18.7
94 / 93
58.8 / 53.7
19.9 / 19.9
94 / 93
59.7 / 54.5
20.2 / 20.2
94 / 93
66.1 / 60.5
22.4 / 22.4
94 / 93
Inverter driven
Rotary 1+1
6,000+6,200
Inverter driven
Rotary 1+1
6,200+6,200
Inverter driven
Rotary 1+2
6,200+7,900
Inverter driven
Rotary 2+2
7,900+7,900
R410A / 22.7+18.7
R410A / 18.7+18.7
Consisted of
Appearance
Nominal Tons
Performance test condition
Power supply
Cooling capacity
Heating capacity
Indoor unit
Cooling
Rating Standard
AHRI 1230
High heating 47°F
Low heating 17°F
Capacity
EER
IEER
Capacity
COP
Capacity
COP
Voltage
Ducted cooling
Ducted heating
Electrical ratings
Outdoor unit only
Non-ducted
cooling
Non-ducted
heating
Running current
Power input
Power factor
Running current
Power input
Power factor
Running current
Power input
Power factor
Running current
Power input
Power factor
Starting current
Btu/h
Btu/h
V
A
kW
%
A
kW
%
A
kW
%
A
kW
%
A
Compressor type/quantity
Inverter driven Rotary×1
Air flow rate
External static pressure
CFM
Pa (in. WC)
Refrigerant amount at shipment*2
lbs
6,200
7,900
80
7,900
R410A / 20.1
R410A / 22.7
R410A / 18.7
R410A / 26.0
inch
72-33/64" x 30-5/16" x 39-3/8"
Net weight
Ambient temperature operating range
lbs
503
inch
inch
inch
3/4"
3/8"
1/4"
Piping
Gas
Liquid
Balance
Connecting method
Max total pipe length
Elevation difference (OD upper/ OD lower)
Operation sound (Normal/Quiet mode)
Maximum allowable indoor unit connection
* NOTE:
12
6,000
Dimensions H x W x D
Diameter
Ft
Ft
dB
Inverter driven Rotary×2
54.5 / 51.5
20
72-33/64" x 46-29/64" x 39-3/8"
560
664
721
Cooling: 14~122°F DB, Heating: -4~64°F WB
7/8"
1-1/8"
1-1/8"
3/8"
1/2"
1/2"
1/4"
1/4"
1/4"
(Liquid,Balance)Flared, (Gas)Brazing
~3,280
164 / 131
58.0 / 55.0
59.5 / 56.5
61.0 / 58.0
25
32
39
*1 If the longest tubing equivalent length exceeds 295 ft. (90 m), increase the sizes of the main tubes by 1 rank for gas tubes and liquid tubes.
*2 It’s necessary to charge additional refrigerant of 70.5 oz (2.0 kg) per one outdoor unit.
R410A / 20.1+22.7
R410A / 22.7+22.7
72-33/64" x 62-63/64"
x 39-3/8"
503 + 560
72-33/64" x 62-63/64"
x 39-3/8"
560 + 560
72-33/64" x
79-9/64" x 39-3/8"
560 + 664
664 + 664
1-1/8"
5/8"
1/4"
1-1/8"
5/8"
1/4"
1-1/8"
5/8"
1/4"
1-3/8"
3/4"
1/4"
60.0 / 57.0
45
61.0 / 58.0
50
62.0 / 59.0
55
62.5 / 59.5
64
* NOTE:
24
AHRI Standard 1230
3φ 208/230V 60Hz
264,000
288,000
77.4
84.4
297,000
324,000
87.0
94.9
Ducted | Non-ducted
252,000 | 252,000
274,000 | 274,000
10.2 | 10.1
9.8 | 9.6
17.3 | 20.8
16.9 | 19.5
284,000 | 284,000
308,000 | 308,000
3.35 | 3.22
3.28 | 3.20
176,000 | 176,000
200,000 | 200,000
2.16 | 2.12
2.14 | 2.06
208 / 230
65.3 / 59.0
74.7 / 67.6
22.1 / 22.1
25.3 / 25.3
94 / 94
94 / 94
65.6 / 59.3
73.5 / 66.5
22.2 / 22.2
24.9 / 24.9
94 / 94
94 / 94
70.9 / 64.1
81.2 / 73.4
24.0 / 24.0
27.5 / 27.5
94 / 94
94 / 94
73.5 / 66.5
80.3 / 72.6
24.9 / 24.9
27.2 / 27.2
94 / 94
94 / 94
1/1
Inverter driven
Inverter driven
Rotary 2+2
Rotary 2+2
7,900+7,900
7,900+7,900
80
R410A / 18.7+26.0
R410A / 26.0+26.0
72-33/64" x 95-9/32" x
39-3/8"
664 + 721
721 + 721
Cooling: 14~122°F DB, Heating: -4~64°F DB
1-3/8"
1-3/8"
3/4"
3/4"
1/4"
1/4"
(Liquid,Balance)Flared, (Gas)Brazing
~3,280
164 / 131
63.5 / 60.5
64.0 / 61.0
64
64
298,000 |
10.4 |
17.7 |
334,000 |
3.27 |
202,000 |
2.16 |
-
320,000 |
10.3 |
17.2 |
360,000 |
3.23 |
218,000 |
2.13 |
-
342,000 |
10.1 |
16.6 |
386,000 |
3.20 |
226,000 |
2.10 |
-
77.5 / 70.9
25.7 / 25.7
92 / 91
81.5 / 74.5
27.0 / 27.0
92 / 91
-
82.7 / 75.6
28.0 / 28.0
94 / 93
88.3 / 80.8
29.6 / 29.6
93 / 92
-
90.7 / 82.9
30.7 / 30.7
94 / 93
95.1 / 86.9
32.2 / 32.2
94 / 93
-
Inverter driven
Rotary 1+2+2
6,000+7,900+7,900
Inverter driven
Rotary 1+2+2
6,200+7,900+7,900
Inverter driven
Rotary 2+2+2
7,900+7,900+7,900
R410A /
20.1+18.7+18.7
R410A /
22.7+18.7+18.7
503 + 664 + 664
560 + 664 + 664
R410A /
18.7+18.7+18.7
72-33/64" x144-3/32"
x 39-3/8"
664 + 664 + 664
1-3/8"
3/4"
1/4"
1-3/8"
3/4"
1/4"
1-5/8"
3/4"
1/4"
63.5 / 60.5
64
64.0 / 61.0
64
64.5 / 61.5
64
72-33/64" x 127-61/64" x 39-3/8"
*1 If the longest tubing equivalent length exceeds 295 ft. (90 m), increase the sizes of the main tubes by 1 size for both gas tubes and liquid tubes.
*2 It’s necessary to charge additional refrigerant of 70.5 oz (2.0 kg) per one outdoor unit.
13
MF 3-WAY ECOiTM VRF HEAT RECOVERY SERIES
MF 3-WAY ECOiTM VRF HEAT RECOVERY SERIES
DESCRIPTION
U-96MF1U9
ECOi Heat Recovery series offers the
ability to heat and cool different zones
simultaneously.
KEY FEATURES:
* 3-Way Heat Recovery System. Simultaneous Heating and Cooling.
* ECO Friendly R410A Refrigerant
* O ne Outdoor Unit Connects As Many As 16 Indoor Units
(50%-130% ratio of indoor to outdoor capacity)
* U-72MF1U9 includes one inverter driven Rotary compressor
* U -96MF1U9 includes one inverter driven Rotary compressor
and one AC Constant Speed Scroll Compressor
* N ominal Operating Range (Outdoor Ambient)
- Cooling 14°F DB to 113°F DB
- Heating -4°F WB to 59°F WB
* Ultra Quiet Operation As Low As 51.5 dB(a)
* Variable Speed DC Fan Motor (ESP adjustable to 0.24" wc)
* F lexible Piping Design:
- 984 Feet - Maximum Total Liquid Line
- 492 Feet - Maximum Outdoor To Most Distant Indoor Unit
- 164 Feet - Maximum Vertical Between Indoor and Outdoor (Outdoor Above Indoor)
- 131 Feet - Maximum Vertical Between Indoor and Outdoor (Outdoor Below Indoor)
Panasonic was the first manufacturer in the
world to develop this energy saving heat
recovery solution. Offering all the features
of our standard heat pump series, the
3-Way solution can offer even higher energy
savings for the building owner.
PERFORMANCE
COOLING CAPACITY: BTU/H
POWER INPUT: kW
HEATING CAPACITY: BTU/H
POWER INPUT: kW
ELECTRICAL RATINGS
VOLTAGE RATING
COOLING RUNNING AMPERES
HEATING RUNNING AMPERES
MIN. CIRCUIT AMPACITY
MAX. OVERCURRENT PROTECTION (MOCP): (A)
COMPRESSOR
TYPE - QUANTITY
MOTOR OUTPUT
REFRIGERATION OIL TYPE
REFRIGERATION OIL CHARGE AMOUNT
CRANKCASE HEATER
REFRIGERANT AMOUNT AT SHIPMENT
REFRIGERANT CONTROL
DEFROST METHOD
HEAT EXCHANGER
CAPACITY CONTROL
FAN DEVICE
TYPE - QUANTITY
MOTOR OUTPUT
PROTECTIVE DEVICES
CFM
EXTERNAL STATIC PRESSURE
MODELS
(Type: Nominal Cooling
Capacity, Ducted)
U-72MF1U9
72,000 BTU Heat Recovery
U-96MF1U9
95,000 BTU Heat Recovery
Nominal
Tons
Volt
PH
Connectable
Indoor Units (Max.)
6
208-230V/60 HZ
3
12
8
208-230V/60 HZ
3
16
TUBING
REFRIGERANT TUBING GAS TUBE
REFRIGERANT TUBING LIQUID TUBE
REF. TUBING DISCHARGE TUBE
REFRIGERANT TUBING BALANCE TUBE
EXTERNAL AIR TEMP. OPERATION RANGE
OPERATION SOUND (HI)
UNIT DIMENSIONS
Inches (") / lbs.
Color (Munsell code)
* NOTE: *460 Volt Step Down Transformers (460-230) available for 6 and 8 ton condensers
14
U-72MF1U9
U-96MF1U9
72,000
5.3
81,000
5.79
95,000
7.75
106,500
8.6
208
15.1
16.5
24 A
40 A
-
230 V
14.2 A
15.5 A
208
23.2
25.4
34 A
45 A
-
230 V
21.6 A
23.7 A
Inverter Driven Rotary Type
4.1 kW
FV68S (Ether oil - PVE)
1.4 gal
25 w
R410A - 25.9 lbs
Electronic expansion valve
Reverse-cycle, outdoor unit cycle
Aluminum plate fin / Copper tube
10-100%
Inverter Driven Rotary 1 Fixed Scroll Hermetic
(2.7 + 3.5) kW
FV68S (Ether oil - PVE)
1.96 gal
25 + 32 w
R410A - 25.9 lbs
Electronic expansion valve
Reverse-cycle, outdoor unit cycle
Aluminum plate fin / Copper tube
8-100%
Propeller fan x 1
0.7 kW
Propeller fan x 1
0.7 kW
High pressure switch, overcurrent (CT method)
5,300
0.0 / 0.24 WC
High pressure switch, overcurrent (CT method)
5,650
0.0 / 0.24 WC
3/4" (Brazing)
ø3/8" (Brazing)
ø5/8" (Brazing)
ø3/8" (Flare)
ø7/8" (Brazing)
ø3/8" (Brazing)
ø3/4" (Brazing)
ø3/8" (Flare)
Cooling: 14 to 113 (DB) / Heating: -4 to 59 (WB) °F
Cooling: 14 to 113 (DB) / Heating: -4 to 59 (WB) °F
54.5 (Quiet mode: 51.5) dB-A
55.0 (Quiet mode: 52.0) dB-A
82.5"/ 35"/ 35"/ 573 lbs.
Height/ Width/ Depth/ Net Weight
Silky shade (1y 8.5/0.5)
82.5"/ 35"/ 35"/ 672 lbs.
Height/ Width/ Depth/ Net Weight
Silky shade (1y 8.5/0.5)
ECOi™ OUTDOOR
U-72MF1U9
* NOTE: *460 Volt Step Down Transformers (460-230) available for 6 and 8 ton condensers
NOTE: Values represent nominal capacities for Ducted combinations.
15
COMBINED MF 3-WAY ECOiTM VRF HEAT RECOVERY SERIES
WU-144MF1U9 / WU-168MF1U9 / WU-192MF1U9-1
WU 144
WU 168
WU 192
WU 216
WU 240
WU 264
WU 288
Panasonic’s Combined ECOi 3-Way conditioning solution offers
superior heating and cooling coupled with cost effective installation.
Providing a single refrigerant pipe network means there’s only one
penetration into the building and ultimately less piping material
required, saving you time and money. A smart conditioning solution for
large capacity jobs that require simultaneous heating and cooling.
WU-216MF1U9 / WU-240MF1U9
WU-264MF1U9 / WU-288MF1U9
KEY FEATURES:
* Three-Way Heat Recovery
* Combine 3 outdoor units up to 24 tons
* ECO Friendly R410A Refrigerant
* 208/230V, 3 Phase, 60Hz
* Multiple Compressors For Extra Reliability and Partial Redundancy
* N ominal Operating Range (Outdoor Ambient)
-Cooling 14 °F DB to 113 °F DB
-Heating -4 °F WB to 59 °F WB
* Ultra Quiet Operation As Low As 55 dB(a)
* Variable Speed DC Fan Motors
* F lexible Piping Design:
- 984 Feet - Maximum Total Liquid Line
- 492 Feet - Maximum Outdoor To Most Distant Indoor Unit
- 164 Feet - Maximum Vertical Between Indoor and Outdoor
(Outdoor Above Indoor)
- 131 Feet - Maximum Vertical Between Indoor and Outdoor
(Outdoor Below Indoor)
WU HEAT RECOVERY COMBINED SERIES.
WU-192MF1U9-1
Includes (1) U-72MF1U9 and
(1) U-72MF1U9
Includes (1) U-72MF1U9 and
(1) U-96MF1U9
Includes (1) U-96MF1U9 and
(1) U-96MF1U9
139,000
10.6
157,000
11.6
164,000
13.1
184,000
14.4
180,000
14.4
202,000
16.2
COOLING MODE NOMINAL CONDITIONS
INDOOR: °F WB/ °F DB
OUTDOOR: °F DB
PIPE LENGTH: FEET
LEVEL DIFFERENCE: FEET
80/67
95
25
0
80/67
95
25
0
80/67
95
50
0
HEATING MODE NOMINAL CONDITIONS
INDOOR: °F DB
OUTDOOR: °F DB/ °F WB
PIPE LENGTH: FEET
LEVEL DIFFERENCE: FEET
70
47/43
25
0
70
47/43
25
0
70
47/43
50
0
14 to 113
-4 to 59
14 to 113
-4 to 59
14 to 113
-4 to 59
2 Inverter driven Twin Rotary
6 - 100%
2 Inverter driven Twin Rotary
& 1 fixed speed scroll
6 - 100%
2 Inverter driven Twin Rotary
& 2 fixed speed scroll
6 - 100%
1 Propeller (ea)
0.7 kW (ea)
0.0 / 0.24 WC
1 Propeller (ea)
0.7 kW (ea)
0.0 / 0.24 WC
1 Propeller (ea)
0.7 kW (ea)
0.0 / 0.24 WC
208 - 230 / 3 / 60
52
80
208 - 230 / 3 / 60
60
85
208 - 230 / 3 / 60
68
90
1,146
1,245
1,344
29.5(ea)
4(ea)
29.5(ea)
4(ea)
29.5(ea)
4(ea)
Yes
Yes
Yes
25 + 25
25 + 25 + 32
(25 + 32) x 2
PERFORMANCE
COOLING CAPACITY: BTU/H
POWER INPUT: kW
HEATING CAPACITY: BTU/H
POWER INPUT: kW
NOMINAL OPERATING RANGE
COOLING: °F DB
HEATING: °F WB
COMPRESSOR
TYPE/QUANTITY
CAPACITY CONTROL RANGE: %
Power input
Control
Range
Connectable
Indoor Units
(Max)
10.6 / 11.6 kW
6 - 100%
24
Outdoor Unit
Cooling &
Heating Ducted
Nominal
Tons
WU-144MF1U9
U-72MF1U9 (quantity of 2)
139,000 & 157,000
BTU/H
12
WU-168MF1U9
U-72MF1U9
U-96MF1U9
164,000 & 184,000
BTU/H
14
13.1 / 14.4 kW
6 - 100%
29
WU-192MF1U9-1
U-96MF1U9 (quantity of 2)
180,000 & 202,000
16
14.37 / 16.2 kW
6 - 100%
33
WU-216MF1U9
U-72MF1U9 (quantity of 3)
203,000 & 228,000
BTU/H
18
15.9 / 17.4 kW
6 - 100%
37
U-72MF1U9 (quantity of 2)
U-96MF1U9
230,000 & 265,000
BTU/H
20
WU-264MF1U9
U-96MF1U9 (quantity of 2)
U-72MF1U9
258,000 & 288,000
BTU/H
22
20.8 / 23.0 kW
6 - 100%
40
WU-288MF1U9
WU-96MF1U9 (quantity of 3)
281,000 & 312,000
BTU/H
24
23.3 / 25.8 kW
6 - 100%
40
SYSTEM
WU-168MF1U9
DESCRIPTION WU-144MF1U9
FAN
TYPE/QUANTITY
FAN MOTOR OUTPUT: (kW)
EXTERNAL STATIC PRESSURE
POWER SUPPLY
V/PH/HZ
MINIMUM CIRCUITS AMPS (MCA): (A)
MAX. OVERCURRENT PROTECTION (MOCP): (A)
WEIGHT: (LBS)
WU-240MF1U9
16
18.4 / 20.2 kW
6- 100%
* NOTE: *460 Volt Step Down Transformers (460-230) available for 6 and 8 ton condensers
40
COIL
COIL FACE AREA: (SQ. FT.)
NUMBER OF ROWS:
PROTECTION DEVICES
HIGH PRESSURE SWITCH/OVERCURRENT
(CT METHOD)
CRANKCASE HEATERS: (W)
ECOi™ OUTDOOR
COMBINED MF 3-WAY ECOiTM VRF HEAT RECOVERY SERIES
EACH OUTDOOR UNIT REQUIRES A SEPARATE ELECTRICAL FUSED DISCONNECT,
SEE INDIVIDUAL OUTDOOR REQUIREMENTS.
* NOTE: *460 Volt Step Down Transformers (460-230) available for 6 and 8 ton condensers
NOTE: Values represent nominal capacities for Ducted Indoor Units.
17
DESCRIPTION WU- 216MF1U9
WU- 240MF1U9
WU- 264MF1U9
WU- 288MF1U9
Includes
(3) U-72MF1U9
Includes (2)
U-72MF1U9 and
(1) U-72MF1U9
Includes
(1) U-72MF1U9 and
(2) U-96MF1U9
Includes
(3) U-96MF1U9
203,000
15.9
228,000
17.4
230,000
18.4
265,000
20.2
258,000
20.8
288,000
23.0
281,000
23.3
312,000
25.8
COOLING MODE NOMINAL CONDITIONS
INDOOR: °F WB/ °F DB
OUTDOOR: °F DB
PIPE LENGTH: FEET
LEVEL DIFFERENCE: FEET
80/67
95
25
0
80/67
95
25
0
80/67
95
25
0
80/67
95
25
0
HEATING MODE NOMINAL CONDITIONS
INDOOR: °F DB
OUTDOOR: °F DB/ °F WB
PIPE LENGTH: FEET
LEVEL DIFFERENCE: FEET
70
47/43
25
0
70
47/43
25
0
70
47/43
25
0
70
47/43
25
0
PERFORMANCE
COOLING CAPACITY: BTU/H
POWER INPUT: kW
HEATING CAPACITY: BTU/H
POWER INPUT: kW
NOMINAL OPERATING RANGE
COOLING: °F DB
HEATING: °F WB
COMPRESSOR
TYPE/QUANTITY
CAPACITY CONTROL RANGE: %
FAN
TYPE/QUANTITY
FAN MOTOR OUTPUT: (kW)
EXTERNAL STATIC PRESSURE
POWER SUPPLY
V/PH/HZ
MINIMUM CIRCUITS AMPS (MCA): (A)
MAX. OVERCURRENT PROTECTION (MOCP): (A)
WEIGHT: (LBS)
COIL
COIL FACE AREA: (SQ. FT.)
NUMBER OF ROWS:
PROTECTION DEVICES
HIGH PRESSURE SWITCH/OVERCURRENT (CT METHOD)
CRANKCASE HEATERS: (W)
U-36LE1U6 / U-52LE1U6
KEY FEATURES:
* Single Phase 208/230 volts
* O ne Outdoor Unit Connects As Many As 9 Indoor Units
(50%-130% ratio of indoor to outdoor capacity)
* Inverter Driven Twin Rotary Compressor
* N ominal Operating Range (Outdoor Ambient)
- Cooling 14 °F DB to 113 °F DB
- Heating -4 °F WB to 59 °F WB
* Ultra Quiet Operation As Low As 48 dB(a)
* Variable Speed DC Fan Motor
* Piping:
-656 Feet - Maximum Total Liquid Line
-164 Feet - Maximum Vertical Between Indoor and Outdoor (Outdoor Above Indoor)
-131 Feet - Maximum Vertical Between Indoor and Outdoor (Outdoor Below Indoor)
* Defrost control, reverse cycle, microprocessor control
* External finish: Galvanized steel plate with powder paint
* Refrigerant control: Electronic expansion valve
* Control Range 10 - 100%
Panasonic’s Mini ECOi is suited
for numerous commercial and
premium residential applications.
U-36LE1U6
U-52LE1U6
208-230V/1PH/60Hz
208-230V/1PH/60Hz
DESCRIPTION
14 to 113
-4 to 59
14 to 113
-4 to 59
14 to 113
-4 to 59
14 to 113
-4 to 59
3 Inverter driven Twin
Rotary
6 - 100%
3 Inverter driven Twin
Rotary & 1 fixed speed
scroll 6 - 100%
3 Inverter driven Twin
Rotary & 2 fixed speed
scroll 6 - 100%
3 Inverter driven Twin
Rotary & 3 fixed speed
scroll 6 - 100%
1 Propeller (ea)
0.7 kW
0.0 / 0.24 WC
1 Propeller (ea)
0.7 kW
0.0 / 0.24 WC
1 Propeller (ea)
0.7 kW
0.0 / 0.24 WC
1 Propeller (ea)
0.7 kW
0.0 / 0.24 WC
208 - 230 / 3 / 60
78
120
208 - 230 / 3 / 60
86
125
208 - 230 / 3 / 60
94
130
208 - 230 / 3 / 60
102
135
1,719
1,818
1,917
2,016
29.5(ea)
4 (ea)
29.5 (ea)
4
29.5 (ea)
4
29.5 (ea)
4
Yes
25 + 25 + 25
Yes
25 + 25 + 25 + 32
Yes
(2 X 25 + 32) + 25
Yes
3 x 25 + 32
EACH OUTDOOR UNIT REQUIRES A SEPARATE ELECTRICAL FUSED DISCONNECT,
SEE INDIVIDUAL OUTDOOR REQUIREMENTS.
18
LE MINI ECOiTM MULTI SPLIT VRF HEAT PUMP SERIES
* NOTE: *460 Volt Step Down Transformers (460-230) available for 6 and 8 ton condensers
NOTE: Values represent nominal capacities for Ducted Indoor Units.
POWER SOURCE
PERFORMANCE
COOLING CAPACITY
SEER
HEATING CAPACITY
HSPF
AIR CIRCULATION (HI)
ELECTRICAL RATINGS
VOLTAGE RATING
AVAILABLE VOLTAGE RANGE
RUNNING AMPERES
MAX. RUNNING AMPERES
POWER INPUT
MAX. POWER INPUT
MIN. CIRCUIT AMPACITY
MAX. OVERCURRENT PROTECTION (MOCP)
REFRIGERANT TUBING
LIMIT OF TUBING LENGTH
LIMIT OF ELEVATION DIFFERENCE
BETWEEN THE 2 UNITS
Ducted Non-Ducted
37,000
39,000
13.10
17.00
38,500
43,000
7.80
9.80
3,530 CFM
Mix
38,000 BTU/H
15.00
40,750 BTU/H
8.80
Ducted
Non-Ducted
51,500
52,000
14.6
17.4
57,500
58,500
7.7
9.6
3,530 CFM
COOLING
208 / 230 V
187—253 V
14.6 / 13.6 A
23.6 / 23.6 A
2.76 / 2.76 kW
4.85 / 4.85 kW
18 A
30 A
HEATING
208 / 230 V
187—253 V
14.6 / 13.6 A
23.6 / 23.6 A
2.88 / 2.88 kW
4.85 / 4.85 kW
COOLING
208 / 230 V
187—253 V
23.5 / 21.9 A
28 / 28 A
4.57 / 4.57 kW
5.72 / 5.72 kW
29 A
50 A
Mix
51,750 BTU/H
16.0
58,000 BTU/H
8.6
HEATING
208 / 230 V
187—253 V
23.5 / 21.9 A
28 / 28 A
4.58 / 4.58 kW
5.7 2 / 5.72 kW
656 ft
Outdoor unit is higher than indoor unit: 164
Outdoor unit is lower than indoor unit: 131
656 ft
Outdoor unit is higher than indoor unit: 164
Outdoor unit is lower than indoor unit: 131
3 / 8"
5 / 8"
3 / 8"
3 / 4"
Height/ Width/ Depth/ Net Weight
49" / 37" / 14" / 229 lbs.
247 lbs. / 19.8 ft.3
Height/ Width/ Depth/ Net Weight
49" / 37" / 14" / 229 lbs.
247 lbs. / 19.8 ft.3
EXTERNAL AIR TEMP. OPERATION RANGE
Cooling:14 to 113 (DB)/Heating: -4 to 59 (WB)
Cooling:14 to 113 (DB)/Heating: -4 to 59 (WB)
CONNECTABLE INDOOR UNITS (MAX)
6
9
REFRIGERANT TUBE DIAMETER
LIQUID TUBE IN.
GAS TUBE IN.
UNIT DIMENSIONS
INCHES (") / LBS.
SHIPPING WEIGH / VOLUME
CERTIFICATION STANDARD
ECOi™ OUTDOOR
COMBINED MF 3-WAY ECOiTM VRF HEAT RECOVERY SERIES
AHRI 210 / 240
19
U-72ME1U9
U-96ME1U9
Panasonic’s ECOi is an all-in-one
modular conditioning solution. Suited
for numerous commercial and industrial
applications, it offers flexible installation,
superior heating and cooling.
DESCRIPTION
DESCRIPTION
KEY FEATURES:
* O ne Outdoor Unit Connects As Many As 16 Indoor Units
(50%-130% ratio of indoor to outdoor capacity)
* U-72ME1U9 one Inverter Driven Rotary Compressor
* U -96ME1U9 includes one Inverter Driven Rotary Compressor
and One AC Constant Speed Scroll Compressor
* N ominal Operating Range (Outdoor Ambient)
- Cooling 14 °F DB to 113 °F DB
- Heating -4 °F WB to 59 °F WB
* Ultra Quiet Operation As Low As 52 dB(a)
* Variable Speed DC Fan Motor (ESP adjustable to 0.24" wc)
* F lexible Piping Design:
- 984 Feet - Maximum Total Liquid Line
- 492 Feet - Maximum Outdoor To Most Distant Indoor Unit
- 164 Feet - Maximum Vertical Between Indoor and Outdoor (Outdoor Above Indoor)
- 131 Feet - Maximum Vertical Between Indoor and Outdoor (Outdoor Below Indoor)
(Type: Nominal Cooling
Capacity, Ducted)
ME1 series 2-WAY ECOiTM VRF HEAT PUMP SERIES
Nominal
Tons
Volt
PH
Connectable
Indoor Units
(Max)
U-72ME1U9 *
72,000 BTU Heat Pump
6
208-230V/60 HZ
3
12
U-96ME1U9 *
95,000 BTU Heat Pump
8
208-230V/60 HZ
3
16
PERFORMANCE
COOLING CAPACITY: BTU/H
POWER INPUT: kW
HEATING CAPACITY: BTU/H
POWER INPUT: kW
ELECTRICAL RATINGS
VOLTAGE RATING
COOLING RUNNING AMPERES
HEATING RUNNING AMPERES
MIN. CIRCUIT AMPACITY
MAX. OVERCURRENT PROTECTION (MOCP)
COMPRESSOR
TYPE - QUANTITY
MOTOR OUTPUT
REFRIGERATION OIL TYPE
REFRIGERATION OIL CHARGE AMOUNT
CRANKCASE HEATER
REFRIGERANT AMOUNT AT SHIPMENT
REFRIGERANT CONTROL
DEFROST METHOD
HEAT EXCHANGER
CAPACITY CONTROL
FAN DEVICE
TYPE - QUANTITY
MOTOR OUTPUT
PROTECTIVE DEVICES
CFM
EXTERNAL STATIC PRESSURE
TUBING
REFRIGERANT TUBING GAS TUBE
REFRIGERANT TUBING LIQUID TUBE
REFRIGERANT TUBING BALANCE TUBE
EXTERNAL AIR TEMP. OPERATION RANGE
OPERATION SOUND (HI)
UNIT DIMENSIONS
Inches (") / lbs.
Color (Munsell code)
* NOTE: *460 Volt Step Down Transformers (460-230) available for 6 and 8 ton condensers
20
U-72ME1U9
U-96ME1U9
72,000
5.28
81,000
5.79
95,000
7.69
106,500
8.6
208
15.1
16.5
26 A
40 A
-
230 V
14.1 A
15.5 A
208
23.0
25.4
34 A
45 A
-
230 V
21.4 A
23.7 b A
Inverter Driven Twin Rotary Type
4.1 kW
FV68S (Ether oil - PVE)
1.4 gal
25 w
R410A - 25.9 lbs
Electronic expansion valve
Reverse-cycle, outdoor unit cycle
Aluminum plate fin / Copper tube
10-100%
Inverter Driven Twin Rotary and
1 Fixed Speed Scroll
(3 + 3.75) kW
FV68S (Ether oil)
1.56 gal
25 + 32 w
R410A - 25.9 lbs
Electronic expansion valve
Reverse-cycle, outdoor unit cycle
Aluminum plate fin / Copper tube
8-100%
Propeller fan x 1
0.7 kW
Propeller fan x 1
0.7 kW
High pressure switch, overcurrent (CT method)
5.300
0.0 / 0.24 WC
High pressure switch, overcurrent (CT method)
5.650
0.0 / 0.24 WC
ø3/4" (Brazing)
ø3/8" (Brazing)
ø3/8" (Flare)
Cooling: 14 to 113 (DB) / Heating: -4 to 59 (WB) °F
54.5 (Quiet mode: 51.5) dB-A
82.5" / 35" / 35" / 584 lbs.
Height / Width / Depth / Net Weight
Silky shade (1y 8.5/0.5)
ECOi™ OUTDOOR
ME1 series 2-WAY ECOiTM VRF HEAT PUMP SERIES
7/8" (Brazing)
3/8" (Brazing)
ø3/8" (Flare)
Cooling: 14 to 113 (DB) / Heating: -4 to 38 (WB) °F
55.0 (Quiet mode: 52.0) dB-A
82.5" / 35" / 35" / 683 lbs.
Height / Width / Depth / Net Weight
Silky shade (1y 8.5/0.5)
* NOTE: *460 Volt Step Down Transformers (460-230) available for 6 and 8 ton condensers
NOTE: Values represent nominal capacities for Ducted Indoor Units.
21
COMBINED
ME 1-WAY ECOiTM VRF HEAT PUMP SERIES
WU-144ME1U9 / WU-168ME1U9
WU 216ME
WU 240ME
WU 264ME
WU 288ME
Panasonic’s Combined ECOi outdoor units offer superior
heating and cooling coupled with cost effective installation.
Providing a single refrigerant pipe network means there’s
only one penetration into the building and less piping
material required, saving you time and money. A smart
conditioning solution for large capacity jobs.
WU-216ME1U9 / WU-240ME1U9
WU-264ME1U9 / WU-288ME1U9
KEY FEATURES:
* Heat Pump
* Combine 3 outdoor units up to 24 tons
* C ombined Series Allows Up to 40 Indoor Units (50%-130% ratio of
indoor to outdoor capacity)
* ECO Friendly R410A Refrigerant
* 208/230V, 3 Phase, 60Hz
* Multiple Compressors For Precise and Efficient Operation
* N ominal Operating Range (Outdoor Ambient)
-Cooling 14 °F DB to 113 °F DB
-Heating -4 °F WB to 59 °F WB
* Ultra Quiet Operation As Low As 51.5 dB(a)
* Variable Speed DC Fan Motors
* Flexible Piping Design:
- 984 Feet - Maximum Total Liquid Line
- 492 Feet - Maximum Outdoor To Most Distant Indoor Unit
- 164 Feet - Maximum Vertical Between Indoor and Outdoor
(Outdoor Above Indoor)
- 131 Feet - Maximum Vertical Between Indoor and Outdoor
(Outdoor Below Indoor)
ECOi™ OUTDOOR
WU 144ME
WU 168ME
ME COMBINED SERIES
SYSTEM
Outdoor Unit
Cooling &
Heating
WU-144ME1U9
U-72ME1U9 (quantity of 2)
139,000 & 157,000
BTU/H
WU-168ME1U9
U-72ME1U9
U-96ME1U9
WU-216ME1U9
Nominal
Tons
Power input
208/230
Control
Range
Connectable
Indoor Units
(Max)
12
10.56/ 11.58 kW
6 - 100%
24
164,000 & 184,000
BTU/H
14
12.97/ 14.39 kW
6 - 100%
29
U-72ME1U9 (quantity of 3)
203,000 & 228,000
BTU/H
18
15.84/ 17.37 kW
6 - 100%
37
WU-240ME1U9
U-72ME1U9 (quantity of 2)
U-96ME1U9
230,000 & 265,000
BTU/H
20
18.25/ 20.18 kW
6- 100%
40
WU-264MEIU9
U-96ME1U9 (quantity of 2)
U-72ME1U9
258,000 & 288,000
BTU/H
22
20.66/ 22.99 kW
6 - 100%
40
WU-288ME1U9
U-96ME1U9 (quantity of 3)
281,000 & 312,000
BTU/H
24
23.07/ 25.8 kW
6 - 100%
40
* NOTE: *460 Volt Step Down Transformers (460-230) available for 6 and 8 ton condensers
NOTE: Values represent nominal capacities for Ducted Indoor Units.
22
23
INDOOR UNITS LINEUP
Panasonic introduced its first VRF to the US market in 2001 with 16 different indoor units.
Panasonic has continued to refine and expand VRF indoor model offerings, and today the lineup totals
49 models. Whether it’s an office, a hotel, or other applications, Panasonic offers wide versatility in solving
your air conditioning requirements.
Actual Installation Examples
Cooling
Nominal Cooling Capacity
Type
Btu/h class
MF TYPE
Cooling
7,500
9,000
12,000
15,000
S-07MK1U6
S-09MK1U6
S-12MK1U6
S-18MK1U6
S-19MK1U6
S-12MY1U6
S-18MY1U6
MK TYPE
Wall Mounted
18,000
(Special Order)
24,000
36,000
MVA: 30,000 / 36,000
48,000
MVA: 42,000 / 48,000
54,000
MVA: 60,000
S-24MK1U6
MD TYPE
MU TYPE
4-way ceiling
cassette
33" x 33"
S-24MU1U6
S-36MU1U6
MD TYPE
1 way ceiling
cassette
S-07MD1U6
S-09MD1U6
Panasonic
4-way ceiling
cassette
23" x 23"
INDOOR
MY TYPE
S-12MD1U6
MT TYPE
Ceiling Suspended
S-12MT1U6
S-18MT1U6
S-24MT1U6
MP TYPE
Floor Mounted
without decorative panel
MU TYPE
S-07MP1U6
S-09MP1U6
S-12MP1U6
S-15MP1U6
S-18MP1U6
S-24MP1U6
S-07MR1U6
S-09MR1U6
S-12MR1U6
S-15MR1U6
S-18MR1U6
S-24MR1U6
S-07MM1U6
S-09MM1U6
S-12MM1U6
S-15MM1U6
S-18MM1U6
S-07MF1U6
S-09MF1U6
S-12MF1U6
S-15MF1U6
S-18MF1U6
MR TYPE
Floor Mounted
without decorative panel
MM TYPE
Concealed Duct –
Low Profile
MF TYPE
Concealed Duct –
Medium Static
S-24MF1U6
S-36MF1U6
S-48MF1U6
S-36ME1U6
S-48ME1U6
MVA30FBAS6HBCP
MVA36FBAS6HBCP
MVA42FBAS6HBCP
MVA48FBAS6HBCP
S-54MF1U6
ME TYPE
ME TYPE
Concealed Duct –Medium-High Static
MVA TYPE
Vertical Air Handler
NEW
MVA18FBAS6HBCP
24
MVA24FBAS6HBCP
MVA60FBAS6HBCP
25
MY SERIES 4-WAY CEILING CASSETTE 23" X 23" WITH CONDENSATE PUMP
S-12MY1U6 / S-18MY1U6
S-07MK1U6 / S-09MK1U6 / S-12MK1U6/S-18MK1U6
S-19MS1U6 / S-24MK1U6
KEY FEATURES:
* ECO Friendly R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Easy Wall Mount for Any Application
* Washable Long Life Filter
* Electronic Expansion Valve (EEV)
for Accurate Refrigerant Control
* Light Weight, Only 31 lbs. (S-24MK1U6 is 46 lbs.)
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed control
* Easy Service
Panasonic’s wall-mounted units work well with any interior
design. Flexible and compact, offering individualized zoned
comfort for complete temperature control throughout the day.
Over five different air flow directions and wireless remotes
provide control in the palm of your hand.
MODELS
S-07MK1U6
S-09MK1U6
S-12MK1U6
S-18MK1U6
S-19MS1U6
S-24MK1U6
CZ-P56SVK1U
(Type: Nominal Cooling Capacity, etc)
Volt
PH
7,500 BTU
208-230V/60 HZ
1
9,600 BTU
208-230V/60 HZ
1
12,000 BTU
208-230V/60 HZ
1
18,000 BTU
208-230V/60 HZ
1
19,000 BTU (special order)
208-230V/60 HZ
1
25,000 BTU
208-230V/60 HZ
1
External EEV (required for use with S-19MS1U6)
N/A
N/A
DESCRIPTION S-07MK1U6 S-09MK1U6 S-12MK1U6 S-18MK1U6
SYSTEM/MODEL
S-12MY1U6
S-18MY1U6
S-24MK1U6
PERFORMANCE
COOLING CAPACITY
HEATING CAPACITY
7,500 BTU/H
8,500 BTU/H
9,600 BTU/H
11,000 BTU/H
12,000 BTU/H
14,000 BTU/H
18,000 BTU/H
20,000 BTU/H
19,000 BTU/H
21,000 BTU/H
25,000 BTU/H
27,000 BTU/H
CURRENT
COOLING
HEATING
0.20/0.21 A
0.20/0.21 A
0.20/0.21 A
0.20/0.21 A
0.20/0.21 A
0.20/0.21 A
0.30/0.32 A
0.30/0.32 A
0.30/0.32 A
0.30/0.32 A
0.37/0.39 A
0.38/0.32 A
50/56 W
50/56 W
50/56 W
50/56 W
50/56 W
50/56 W
61/72 W
61/72 W
61/72 W
61/72 W
72/83 W
72/83 W
POWER INPUT
COOLING
HEATING
HEAT EXCHANGER
FAN TYPE X QUANTITY
FAN AIRFLOW RATE CFM-(H/M/L)
FAN MOTOR TYPE
FAN MOTOR OUTPUT
REFRIGERANT PIPE DIMENSIONS
LOW PRESSURE (FLARE)
HIGH PRESSURE (FLARE)
UNIT DIMENSIONS
Inches (") / lbs.
CROSS FLOW X1
350/280/210
AC
30 W
CROSS FLOW X1
350/280/210
AC
30 W
CROSS FLOW X1
350/280/210
AC
30 W
CROSS FLOW X1
565/495/353
AC
30 W
CROSS FLOW X1
565/495/353
AC
30 W
CROSS FLOW X1
565/495/350
AC
30 W
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
3/8"
5/8"
11.5"/ 39.5"/ 8"/ 31 LBS.
13"/ 45"/ 9"/ 46 LBS.
HEIGHT/ WIDTH/ DEPTH/ NET WEIGHT
HEIGHT/ WIDTH/ DEPTH/ NET WEIGHT
DRAINPIPE DIMENSION
SOUND LEVELS
(LOW-MED-HIGH) DB(A) @ 230V
26
S-19MS1U6
needs CZ-P56SVK1U
Panasonic’s 4-Way semi-concealed ceiling
units are flexible, efficient and space-saving.
Now available to fit within standard
24"x24"ceiling grids.
28/32/36
28/32/36
35/38/42
(Type: Nominal Cooling Capacity, etc)
35/38/42
35/38/42
Volt
PH
System
12,000 BTU 4-Way Ceiling cassette 25" x 25" (includes grille)
208-230V/1ø/60 HZ
1
S-12MY1U6
cassette
208-230V/1ø/60 HZ
1
CZ-18KPY1U
grille
System
18,000 BTU 4-way Ceiling cassette 25" x 25" (includes grille)
208-230V/1ø/60 HZ
1
S-18MY1U9
cassette
208-230V/1ø/60 HZ
1
CZ-18KPY1U
grille
S-12MY1U6
S-18MY1U6
12,000 BTU/H
14,000 BTU/H
19,000 BTU/H
21,000 BTU/H
0.22/0.20 A
0.19/0.17 A
0.30/0.32 A
0.27/0.30 A
38/43 W
30/35 W
52/56 W
48/47 W
HEAT EXCHANGER
FAN TYPE X QUANTITY
FAN AIRFLOW RATE CFM-(H/M/L)
FAN MOTOR TYPE
FAN MOTOR OUTPUT
TURBO X1
320/280/250
DC
20 W
TURBO X1
440/370/320
DC
20 W
REFRIGERANT PIPE DIMENSIONS
LOW PRESSURE (FLARE)
HIGH PRESSURE (FLARE)
1/4"
1/2"
1/4"
1/2"
DESCRIPTION
PERFORMANCE
COOLING CAPACITY
HEATING CAPACITY
CURRENT
COOLING
HEATING
POWER INPUT
COOLING
HEATING
UNIT DIMENSIONS
Inches (") / lbs.
12.5"/ 23"/ 23"/ 41 LBS.
HEIGHT/ WIDTH/ DEPTH/ NET WEIGHT
DRAINPIPE DIMENSION
3/4" OD
28/32/36
Components
INDOOR
KEY FEATURES:
* ECO Friendly R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Four Way Air Throw
* Washable Long Life Air Filter
* Built-In Drain Pump – 25" Lift
* Electronic Expansion Valve (EEV) for Accurate Refrigerant Control
* A Low Profile Unit Perfectly Suited for
Compact Ceiling Voids (as little as 12-14")
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed control
* Easy Service
* Optional Outside Air Intake
SOUND LEVELS
(LOW-MED-HIGH) DB(A) @ 230V
Panasonic
MK WALL MOUNTED UNIT
1 1/4" OD
27/29/31
33/37/41
4-WAY AIR DISCHARGE
25" X 25" SYSTEM
(INCLUDES GRILLE)
27
S-24MU1U6 / S-36MU1U6
S-07MD1U6 / S-09MD1U6 / S-12MD1U6
KEY FEATURES:
* ECO Friendly R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Four Way Air Throw
* Washable Long Life Air Filter
* Built-In Drain Pump – 25" Lift
* Electronic Expansion Valve (EEV) for Accurate Refrigerant Control
* A Low Profile Unit Perfectly Suited for
Compact Ceiling Voids (as little as 12-14")
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed control
* Easy Service
* Branch Duct Available
* Optional Outside Air Intake
KEY FEATURES:
* ECO Friendly R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* One-Way Air Throw – Perfect for Small Spaces
* Washable Long Life Air Filter
* Built-In Drain Pump – 24" Lift
* Electronic Expansion Valve (EEV) for Accurate Refrigerant Control
* O nly 13" Tall (Not Including Decorative Panel), 30" Wide and
25" Deep
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed control
* Optional Outside Air Intake
* Easy Service
Panasonic’s semi-concealed ceiling
units are flexible and space-saving.
A perfect conditioning solution
for small spaces. Barely visible,
the unit blends with any interior
design. Powerful enough to cool
and comfort those inside.
SYSTEM/MODEL
SYSTEM/MODEL
S-24MU1U6
S-36MU1U6
Components
(Type: Nominal Cooling Capacity, etc)
Volt
PH
System
25,000 BTU 4-Way Ceiling cassette 37-1/2" x 37-1/2" (includes grille)
208-230V/60 HZ
1
208-230V/60 HZ
1
S-24MU1U6
cassette
CZ-36KPU2U
grille
System
36,000 BTU 4-Way Ceiling cassette 37-1/2" x 37-1/2" (includes grille)
S-36MU1U6
cassette
CZ-36KPU2U
grille
DESCRIPTION
PERFORMANCE
COOLING CAPACITY
HEATING CAPACITY
S-24MU1U6
S-09MD1U6
208-230V/60 HZ
208-230V/60 HZ
S-36MU1U6
(Type: Nominal Cooling Capacity, etc)
Volt
PH
System
7,500 BTU 1-Way Ceiling cassette (includes grille)
208-230V/60 HZ
1
208-230V/60 HZ
1
S-07MD1U6
cassette
CZ-12KPD1U
grille
System
9,000 BTU 1-Way Ceiling cassette (includes grille)
208-230V/60 HZ
1
S-09MD1U6
cassette
208-230V/60 HZ
1
1
CZ-12KPD1U
grille
1
System
12,000 BTU 1-Way Ceiling cassette (includes grille)
208-230V/60 HZ
1
S-12MD1U6
cassette
208-230V/60 HZ
1
CZ-12KPD1U
grille
S-12MD1U6
DESCRIPTION S-07MD1U6
PERFORMANCE
COOLING CAPACITY
HEATING CAPACITY
CURRENT
COOLING
HEATING
S-09MD1U6
S-12MD1U6
7,500 BTU/H
8,500 BTU/H
9,600 BTU/H
11,000 BTU/H
12,000 BTU/H
14,000 BTU/H
0.29/0.28 A
0.28/0.26 A
0.29/0.28 A
0.28/0.26 A
0.32/0.31 A
0.34/0.32 A
48/50 W
44/46 W
48/50 W
44/46 W
52/55 W
50/52 W
CENTRIFUGAL X1
282/247/212
0 IN. WC
DC
60 W
CENTRIFUGAL X1
320/280/250
0 IN. WC
DC
60 W
1/4"
1/2"
1/4"
1/2"
25,000 BTU/H
27,000 BTU/H
36,000 BTU/H
39,000 BTU/H
0.29/0.26 A
0.30/0.31 A
0.51/0.46 A
0.54/0.49 A
38/40 W
33/33 W
74/79 W
76/76 W
POWER INPUT
COOLING
HEATING
HEAT EXCHANGER
FAN TYPE X QUANTITY
FAN AIRFLOW RATE CFM-(H/M/L)
FAN MOTOR TYPE
FAN MOTOR OUTPUT
TURBO X1
705/565/495
DC
50 W
TURBO X1
990/810/740
DC
90 W
REFRIGERANT PIPE DIMENSIONS
LOW PRESSURE (FLARE)
HIGH PRESSURE (FLARE)
HEAT EXCHANGER
FAN TYPE X QUANTITY CENTRIFUGAL X1
282/247/212
FAN AIRFLOW RATE CFM-(H/M/L)
0 IN. WC
FAN EXT. STATIC PRESS (230V)
DC
FAN MOTOR TYPE
60 W
FAN MOTOR OUTPUT
3/8"
5/8"
3/8"
5/8"
12"/ 33"/ 33"/ 58 LBS.
12" / 33" / 33" / 58 LBS.
HEIGHT/WIDTH/DEPTH/NET WEIGHT
CURRENT
COOLING
HEATING
POWER INPUT
COOLING
HEATING
UNIT DIMENSIONS
Inches (") / lbs.
HEIGHT/ WIDTH/ DEPTH/ NET WEIGHT
DRAINPIPE DIMENSION
SOUND LEVELS
(LOW-MED-HIGH) DB(A) @ 230V
28
S-07MD1U6
Components
1 1/4 "OD
28/31/34
33/36/39
REFRIGERANT PIPE DIMENSIONS
LOW PRESSURE (FLARE)
HIGH PRESSURE (FLARE)
UNIT DIMENSIONS
Inches (") / lbs.
1/4"
1/2"
INDOOR
Panasonic’s 4-Way semi-concealed ceiling
units are flexible, efficient and
space-saving. Two sides can be adjusted
simply to accommodate corner airflow.
MD SERIES 1-WAY CEILING CASSETTE WITH CONDENSATE PUMP
Panasonic
MU SERIES 4-WAY CEILING CASSETTE 33" X 33" WITH CONDENSATE PUMP
13"/ 30"/ 24.5"/ 43 LBS.
HEIGHT/ WIDTH/ DEPTH/ NET WEIGHT
DRAINPIPE DIMENSION
1 1/4" OD
SOUND LEVELS
(LOW-MED-HIGH) DB(A) @ 230V
29/31/33
29
MT SERIES CEILING SUSPENDED UNIT
MP/MR FLOOR MOUNTED SERIES
S-07MP1U6 / S-09MP1U6 / S-12MP1U6
S-15MP1U6 / S-18MP1U6 / S-24MP1U6
S-12MT1U6 / S-18MT1U6 / S-24MT1U6
KEY FEATURES:
* ECO Friendly R410A Refrigerant
KEY FEATURES:
* ECO Friendly R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Electronic Expansion Valve (EEV)
for Accurate Refrigerant Control
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed Control
* Easy Service
* Washable Long Life filter
* 208/230V, 1 Phase, 60Hz
* L ow Profile Design Fits Into Numerous Ceiling
Suspended Locations
* O ne Way Air Discharge with Vanes and
FLOOR MOUNTED
WITH DECORATIVE PANEL
Auto Louvre for Efficient Air Distribution
* Washable Long Life Air Filter
* Electronic Expansion Valve (EEV) for Accurate
Refrigerant Control
* L ess Than 9" Tall and Less than 36"
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed control
KEY FEATURES:
* ECO Friendly R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Electronic Expansion Valve (EEV)
for Accurate Refrigerant Control
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed Control
* Easy Service
* Washable Long Life filter
* Easy Service
MODELS
(Type: Nominal Cooling Capacity, etc)
Volt
PH
S-12MT1U6
12,000 BTU
208-230V/60 HZ
1
S-18MT1U6
18,000 BTU
208-230V/60 HZ
1
S-24MT1U6
24,000 BTU
208-230V/60 HZ
1
S-18MT1U6
S-24MT1U6
CAPACITY
COOLING
HEATING
12,000 BTU
14,000 BTU
19,000 BTU
21,000 BTU
25,000 BTU
27,000 BTU
CURRENT
COOLING
HEATING
0.14/0.17 A
0.14/0.15 A
0.15/0.14 A
0.15/0.17 A
0.34/0.31 A
0.34/0.36 A
15/16 W
15/16 W
16/16 W
16/18 W
38/37 W
40/40 W
POWER INPUT
COOLING
HEATING
UNIT DIMENSIONS
Inches (") / lbs.
HEAT EXCHANGER
FAN TYPE X QUANTITY
FAN AIRFLOW RATE CFM-(H/M/L)
FAN MOTOR TYPE
FAN MOTOR OUTPUT
8.5"/ 36"/ 27"/ 46 lbs.
8.5"/ 46.5"/ 27"/ 55 lbs.
Height/ Width/ Depth/ Net Weight
Height/ Width/ Depth/ Net Weight
CENTRIFUGAL X1
450/390/320
DC
60 - W
CENTRIFUGAL X1
450/390/320
DC
60 - W
CENTRIFUGAL X1
653/530/495
DC
60 - W
REFRIGERANT PIPE DIMENSIONS
LOW PRESSURE (FLARE)
HIGH PRESSURE (FLARE)
1/4"
1/2"
1/4"
1/2"
3/8"
5/8"
DRAINPIPE DIMENSION
1" OD
1" OD
1" OD
30/32/35 - DB(A) @ 230V
30/33/36 - DB(A) @ 230V
33/36/38 - DB(A) @ 230V
SOUND LEVELS
(LOW-MED-HIGH)
30
FLOOR MOUNTED
WITHOUT DECORATIVE PANEL
S-12MT1U6
DESCRIPTION
INDOOR
S-07MR1U6 / S-09MR1U6 / S-12MR1U6
S-15MR1U6 / S-18MR1U6 / S-24MR1U6
Wide (47" Wide For S-24MT1U6)
Panasonic
Panasonic’s ceiling suspended units are an ideal solution
for any medium to light commercial application. Well
suited for retail stores, schools, and restaurants.
These units utilize large supply air openings to provide
comfortable airflow and ultra quiet operation.
S-07MP1U6 /
S-07MR1U6
S-09MP1U6 /
S-09MR1U6
S-12MP1U6 /
S12MR1U6
S-15MP1U6 /
S15MR1U6
S-18MP1U6 /
S18MR1U6
S-24MP1U6 /
S-24MR1U6
CAPACITY
COOLING
HEATING
7,500 BTU
8,500 BTU
9,600 BTU
11,000 BTU
12,000 BTU
14,000 BTU
15,000 BTU
17,000 BTU
19,000 BTU
21,000 BTU
24,000 BTU
27,000 BTU
CURRENT
COOLING
HEATING
0.22/0.24 A
0.22/0.23 A
0.22/0.24 A
0.22/0.23 A
0.42/0.44 A
0.40/0.42 A
0.58/0.60 A
0.53/0.55 A
0.58/0.60 A
0.53/0.55 A
0.61/0.63 A
0.56/0.58 A
45/54 W
43/50 W
45/54 W
43/50 W
86/101 W
83/96 W
116/134 W
106/122 W
116/134 W
106/122 W
119/138 W
109/125 W
24.25"/42"/9"/64 lbs.
HT / W / D / NT WT
24.2"/42"/9"/64 lbs.
HT / W / D / NT WT
24.2"/42"/9"/64 lbs.
HT / W / D / NT WT
24.0"/54.5"/9"/86 lbs.
HT / W / D / NT WT
24.0"/54.5"/9"/86 lbs.
HT / W / D / NT WT
24.0"/54.5"/9"/86 lbs.
HT / W / D / NT WT
FMHX UNIT DIMENSIONS
Inches (") / lbs.
24.25"/35.5"/9"/46 lbs.
HT / W / D / NT WT
24.25"/35.5"/9"/46 lbs.
HT / W / D / NT WT
24.25"/35.5"/9"/46 lbs.
HT / W / D / NT WT
24.25"/48"/9"/62 lbs.
HT / W / D / NT WT
24.25"/48"/9"/62 lbs.
HT / W / D / NT WT
24.25"/48"/9"/62 lbs.
HT / W / D / NT WT
HEAT EXCHANGER
FAN TYPE X QUANTITY
FAN AIRFLOW RATE CFM-(H/M/L)
FAN MOTOR OUTPUT
Centrifugal
247/212/177
10 W
Centrifugal
247/212/177
10 W
Centrifugal
318/247/212
20 W
Centrifugal
424/318/283
20 W
Centrifugal
530/459/389
30 W
Centrifugal
601/495/424
60 W
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
3/8"
5/8"
DRAINPIPE DIMENSION
1 1/4" OD
1 1/4" OD
1 1/4" OD
1 1/4" OD
1 1/4" OD
1 1/4" OD
SOUND LEVELS
(LOW-MED-HIGH)
28/30/33
28/30/33
29/35/39
31/35/38
31/36/39
35/38/41
DESCRIPTION
POWER INPUT
COOLING
HEATING
FHX UNIT DIMENSIONS
Inches (") / lbs.
REFRIGERANT
PIPE DIMENSIONS
LOW PRESSURE (FLARE)
HIGH PRESSURE (FLARE)
31
MODELS
S-07MM1U6 / S-09MM1U6 / S-12MM1U6 /
S-15MM1U6 / S-18MM1U6
S-07MF1U6 / S-09MF1U6 / S-12MF1U6
S-15MF1U6 / S-18MF1U6 / S-24MF1U6
S-36MF1U6 / S-48MF1U6 / S-54MF1U6
KEY FEATURES:
* ECO Friendly R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* E lectronic Expansion Valve (EEV)
for Accurate Refrigerant Control
* Adjustable External Static Pressure
* Built-In Drain Pump – 20" Lift
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed Control
* Bottom or Rear Return Air
* Easy Service
* 8" high
* Low Profile fits into tight ceiling spaces
* Optional Outside Air Intake
* Washable Long Life Filter
KEY FEATURES:
(Type: Nominal Cooling Capacity, etc)
Panasonic’s concealed ceiling units are
compact and space saving with advanced zoning
capabilities and efficient design. A perfect
conditioning solution for shorter duct runs.
Volt
PH
S-07MM1U6
7,500 BTU
ESP = 0.04 / 0.12
208-230V/60 HZ
1
S-09MM1U6
9,600 BTU
ESP = 0.06 / 0.12
208-230V/60 HZ
1
S-12MM1U6
12,000 BTU
ESP = 0.06 / 0.16
208-230V/60 HZ
1
S-15MM1U6
15,000 BTU
ESP = 0.06 / 0.16
208-230V/60 HZ
1
S-18MM1U6
19,000 BTU
ESP = 0.06 / 0.16
208-230V/60 HZ
1
MODELS
PERFORMANCE
COOLING CAPACITY
HEATING CAPACITY
7,500 BTU/H
8,500 BTU/H
9,600 BTU/H
11,000 BTU/H
12,000 BTU/H
14,000 BTU/H
15,000 BTU/H
17,000 BTU/H
19,000 BTU/H
21,000 BTU/H
CURRENT
COOLING
HEATING
0.22/0.21 A
0.23/0.22 A
0.26/0.25 A
0.28/0.28 A
0.28/0.26 A
0.30/0.37 A
0.34/0.33 A
0.36/0.35 A
0.47/0.43 A
0.51/0.47 A
POWER INPUT
COOLING
HEATING
HEAT EXCHANGER
FAN TYPE
FAN AIRFLOW RATE CFM-(H/M/L)
FAN EXT. STATIC PRESS (230V)
FAN MOTOR TYPE
FAN MOTOR OUTPUT
REFRIGERANT PIPE DIMENSIONS
LOW PRESSURE (FLARE)
HIGH PRESSURE (FLARE)
32/30 W
32/30 W
35/37 W
37/40 W
37/39 W
39/40 W
44/46 W
47/49 W
59/61 W
63/64 W
CENTRIFUGAL
212 / 247 / 283
0.04 / 0.12 IN. WC
DC
50 W
CENTRIFUGAL
230 / 265 / 300
0.06 / 0.12 IN. WC
DC
50 W
CENTRIFUGAL
247 / 283 / 318
0.06 / 0.16 IN. WC
DC
50 W
CENTRIFUGAL
283 / 336 / 371
0.06 / 0.16 IN. WC
DC
50 W
CENTRIFUGAL
0353 / 406 / 442
0.06 / 0.16 IN. WC
DC
50 W
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
UNIT DIMENSIONS
Inches (") / lbs.
DRAINPIPE DIMENSION
SOUND LEVELS
(LOW-MED-HIGH) DB(A) @ 230V
32
25/27/28
27/29/30
28/30/32
9,600 BTU
0.28 / 0.40 ESP
208-230V/60 HZ
1
12,000 BTU
0.28 / 0.40 ESP
208-230V/60 HZ
1
15,000 BTU
0.28 / 0.44 ESP
208-230V/60 HZ
1
19,000 BTU
0.32 / 0.48 ESP
208-230V/60 HZ
1
25,000 BTU
0.32 / 0.48 ESP
208-230V/60 HZ
1
36,000 BTU
0.32 / 0.49 ESP
208-230V/60 HZ
1
48,000 BTU
0.31 / 0.45 ESP
208-230V/60 HZ
1
54,600 BTU
0.31 / 0.45 ESP
208-230V/60 HZ
1
S-09MF1U6
S-12MF1U6
S-15MF1U6
S-18MF1U6
S-24MF1U6
S-36MF1U6
S-48MF1U6
S-54MF1U6
7,500 BTU/H
8,500 BTU/H
9,600 BTU/H
11,000 BTU/H
12,000 BTU/H
14,000 BTU/H
15,000 BTU/H
17,000 BTU/H
19,000 BTU/H
21,000 BTU/H
25,000 BTU/H
27,000 BTU/H
36,000 BTU/H
39,000 BTU/H
47,800 BTU/H
54,600 BTU/H
54,600 BTU/H
61,400 BTU/H
CURRENT
COOLING
HEATING
0.45/0.49 A
0.42/0.46 A
0.45/0.49 A
0.42/0.46 A
0.52/0.55 A
0.49/0.54 A
0.52/0.55 A
0.49/0.54 A
0.90/0.96 A
0.89/0.95 A
0.90/0.96 A
0.89/0.95 A
1.15/1.25 A
1.10/1.18 A
1.25/1.34 A
1.13/120 A
1.25/1.34 A
1.13/120 A
POWER INPUT
COOLING
HEATING
92/112 W
87/104 W
92/112 W
87/104 W
107/125 W
100/122 W
107/125 W
100/122 W
183/219 W
182/214 W
183/219 W
182/214 W
235/282 W
224/267 W
254/301 W
230/271 W
254/301 W
230/271 W
CENTRIFUGAL X1
1166/1060/883
0.45 IN. WC
AC
140 W
1166/1060/883
0.45 IN. WC
AC
140 W
CENTRIFUGAL X1
1166/1060/883
0.45 IN. WC
AC
140 W
1166/1060/883
0.45 IN. WC
AC
140 W
3/8"
5/8"
3/8"
5/8"
1/4"
1/2"
UNIT DIMENSIONS
Inches (") / lbs.
30/32/34
1
S-07MF1U6
REFRIGERANT PIPE DIMENSIONS
LOW PRESSURE (FLARE)
HIGH PRESSURE (FLARE)
1 1/4" OD
208-230V/60 HZ
PERFORMANCE
COOLING CAPACITY
HEATING CAPACITY
FAN MOTOR OUTPUT
HEIGHT/ WIDTH/ DEPTH/ NET WEIGHT
PH
0.28 / 0.40 ESP
DESCRIPTION
HEAT EXCHANGER
CENTRIFUGAL X1
FAN TYPE
353/300/247
FAN AIRFLOW RATE CFM-(H/M/L)
0.40 IN. WC
FAN EXT. STATIC PRESS (230V)
AC
FAN MOTOR TYPE
50 W
7 7/8", 29 17/32", 25 13/64", 42 LBS
Volt
7,500 BTU
(Type: Nominal Cooling Capacity, etc)
S-07MF1U6
S-09MF1U6
S-12MF1U6
S-15MF1U6
S-18MF1U6
S-24MF1U6
S-36MF1U6
S-48MF1U6
S-54MF1U6
DESCRIPTION S-07MM1U6 S-09MM1U6 S-12MM1U6 S-15MM1U6 S-18MM1U6
* ECO Friendly R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Includes 8" round duct connections (two 8" duct collars for 7-15,000 BTU units
three 8" duct collars for 18-24,000 BTU unit and four 8" duct collars
for 36-54,000 BTUs units) can be removed for plenum ducting.
* Electronic Expansion Valve (EEV) for Accurate Refrigerant Control
* Adjustable External Static Pressure
* Built-In Drain Pump – 20" Lift
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed Control
* Bottom or Rear Return Air
* Easy Service
* Optional Outside Air Intake
CENTRIFUGAL X1
353/300/247
0.40 IN. WC
AC
50 W
CENTRIFUGAL X1
424/371/318
0.40 IN. WC
AC
70 W
CENTRIFUGAL X1
424/371/318
0.44 IN. WC
AC
70 W
CENTRIFUGAL X1
671/565/459
0.48 IN. WC
AC
100 W
CENTRIFUGAL X1
671/565/459
0.48 IN. WC
AC
100 W
CENTRIFUGAL X1
1060/919/742
0.49 IN. WC
AC
140 W
1060/919/742
0.49 IN. WC
AC
140 W
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
1/4"
1/2"
3/8"
5/8"
3/8"
5/8"
12.5"/ 27.5"/ 25"/ 53 LBS.
HEIGHT/ WIDTH/ DEPTH/ NET WEIGHT
12.5"/ 39.5"/ 25"/ 71 LBS.
HEIGHT/ WIDTH/ DEPTH/ NET WEIGHT
DRAINPIPE DIMENSION
31/33/35
SOUND LEVELS
(LOW-MED-HIGH) DB(A) @ 230V
INDOOR
8 inches high - Low Profile fits into tight ceiling spaces.
Panasonic’s MM units are ideal for drop ceiling applications including
apartments, condominiums, and hotel rooms. Compact design permits
installation within conditioned space.
MF CONCEALED DUCT – MEDIUM STATIC SERIES
Panasonic
MM CONCEALED DUCT – LOW PROFILE WITH CONDENSATE PUMP SERIES
12.5"/58.5"/ 25" 104 LBS.
HEIGHT/ WIDTH/ DEPTH/ NET WEIGHT
1 1/4" OD
24/28/31
24/28/31
24/28/31
26/30/33
27/32/36
27/32/36
31/33/38
33/37/40
33/37/40
33
ME CONCEALED DUCT – MEDIUM-HIGH STATIC SERIES
MVA CONCEALED DUCT – VERTICAL MULTI POISE SERIES
NEW
KEY FEATURES:
* ECO Friendly R410A Refrigerant
* 208/230V, 1 Phase, 60Hz
* Electronic Expansion Valve (EEV) for
Accurate Refrigerant Control
* Perfect for Long Duct Runs
* Wired or Wireless Remote Control
* Automatic or Fixed Fan Speed Control
* Easy Service
* Built-in float safety
Panasonic’s concealed ceiling units are flexible and space
saving, helping maximize floor and wall space. Advanced
zoning capabilities condition large areas simply and
efficiently. Completely concealed, they offer easy
installation.
MODELS
S-36ME1U6
S-48ME1U6
Volt
PH
36,000 BTU
ESP = 0.70"
208-230V/60 HZ
1
48,000 BTU
ESP = 0.67"
208-230V/60 HZ
1
S-36ME1U6
S-48ME1U6
CAPACITY
COOLING
HEATING
36,000 BTU
39,000 BTU
47,800 BTU
54,600 BTU
CURRENT
COOLING
HEATING
2.84/2.89 A
2.74/2.80 A
3.24/3.19 A
3.17/3.42 A
POWER INPUT
COOLING
HEATING
548/620 W
528/602 W
644/695 W
627/756 W
16.5"/ 42"/ 24.5"/ 110 lbs.
Height/ Width/ Depth/ Net Weight
18"/ 42"/ 24.5"/ 119 lbs.
Height/ Width/ Depth/ Net Weight
CENTRIFUGAL X1
1,060/988/883
0.70 - In. WC
AC
200 - W
CENTRIFUGAL X1
1,272/1,237/1,160
0.67 - In. WC
AC
400 - W
DESCRIPTION
UNIT DIMENSIONS
Inches (") / lbs.
HEAT EXCHANGER
FAN TYPE X QUANTITY
FAN AIRFLOW RATE CFM-(H/M/L)
FAN EXT. STATIC PRESS (230V)
FAN MOTOR TYPE
FAN MOTOR OUTPUT
REFRIGERANT PIPE DIMENSIONS
LOW PRESSURE (FLARE)
HIGH PRESSURE (FLARE)
DRAINPIPE DIMENSION
SOUND LEVELS
(LOW-MED-HIGH)
MVA Vertical Air Handlers are compact and efficient. With 4
thermistors (Air intake/outlet, & 2 HEX sensors) more precise
control is possible. Optional electric heater is available to
accommodate comfortable heating even in the harshest winter.
A PERFECT APPLICATION FOR
LONGER DUCT RUN INSTALLATIONS
(Type: Nominal Cooling Capacity, etc)
3/8"
5/8"
3/8"
5/8"
1 1/4" OD
1 1/4" OD
42/44/45 - DB(A) @ 230V
44/46/47 - DB(A) @ 230V
KEY FEATURES:
* Eco-Friendly R410A Refrigerant
* 208/230V, 1 phase, 60Hz
* Electronic Expansion Valve (EEV) for Accurate
Refrigerant Control
* Multi-position (Horizontal/Vertical) possible
* High efficient ECM(DC) fan motor
* Optional Electric Heater available (Field installed)
* 19 gauge galvanized external panel with baked
on polyester powder coating
* Adjustable External Static
* With 1" filter rack
* Optional filter available. (2" or 4" Filter RACK)
MODELS
MVA18FBAS6HBCP
MVA24FBAS6HBCP
MVA30FBAS6HBCP
MVA36FBAS6HBCP
MVA42FBAS6HBCP
MVA48FBAS6HBCP
MVA60FBAS6HBCP
Nominal Cooling Capacity
19,800 BTU/h
24,700 BTU/h
32,000 BTU/h
36,000 BTU/h
42,000 BTU/h
48,000 BTU/h
60,000 BTU/h
Static std / Max
0.3 / 0.5
0.3 / 0.5
0.3 / 0.5
0.3 / 0.5
0.3 / 0.5
0.3 / 0.5
0.3 / 0.5
Volt
208/230V 60Hz
208/230V 60Hz
208/230V 60Hz
208/230V 60Hz
208/230V 60Hz
208/230V 60Hz
208/230V 60Hz
NOTE:
When connecting MVA model(s) in the system (mix or all), the maximum connectable indoor/outdoor capacity ratio will be limited to 130%.
DESCRIPTION
MVA18
FBAS6HBCP
MVA24
FBAS6HBCP
MVA30
FBAS6HBCP
MVA36
FBAS6HBCP
MVA42
FBAS6HBCP
MVA60
FBAS6HBCP
PERFORMANCE
COOLING CAPACITY 19,800 BTU/H 24,700 BTU/H 32,000 BTU/H 36,000 BTU/H 42,000 BTU/H 48,000 BTU/H
60,000 BTU/H
HEATING CAPACITY 23,900 BTU/H 28,000 BTU/H 37,000 BTU/H 40,000 BTU/H 49,000 BTU/H 54,000 BTU/H
68,000 BTU/H
FULL LOAD AMP.
3.0 A
3.0 A
3.6 A
3.6 A
4.9 A
6.0 A
7.6 A
FAN MOTOR OUTPUT
224 W
396 W
309 W
440 W
567 W
1040 W
1110 W
FAN TYPE CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL
FAN MOTOR TYPE
DC
DC
DC
DC
DC
DC
DC
AIRFLOW CFM (H/M/L) 690/675/621
882/769/718
1037/952/837
1229/1067/978 1335/1213/1133 1597/1378/1238 1932/1658/1500
EXT. STATIC PRESS. STD/MAX 0.3/0.5 IN. W. G. 0.3/0.5 IN. W. G. 0.3/0.5 IN. W. G. 0.3/0.5 IN. W. G. 0.3/0.5 IN. W. G. 0.3/0.5 IN. W. G. 0.3/0.5 IN. W. G.
REFRIGERANT PIPE SIZE
1/2"
5/8"
5/8"
5/8"
5/8"
5/8"
5/8"
GAS PIPE SIZE
1/4"
3/8"
3/8"
3/8"
3/8"
3/8"
3/8"
LIQUID PIPE SIZE
PIPE CONNECTION SIZE
7/8"
7/8"
7/8"
7/8"
7/8"
7/8"
1-1/8"
LOW PRESSURE(BRAZING)
3/8"
3/8"
3/8"
3/8"
3/8"
3/8"
3/8"
HIGH PRESSURE(BRAZING)
DIMENSIONS (H×W×D) INCH 46.9×17.7×22.2 46.9×17.7×22.2 51.9×20.2×25.2 51.9×20.2×25.2 55.9×22.2×27.2 55.9×22.2×27.2
57.9×24.2×31.2
WEIGHT
135 LBS
135 LBS
145 LBS
145 LBS
158 LBS
158 LBS
190 LBS
3/4"
DRAIN PIPE CONNECTION
AVAILABLE OPTIONAL HEATER SIZE
3, 5, 6, 8, 10 kW
8KW, 10 kW
ELECTRONIC EXP. VALVE
METERING DEVICE
Heater Capacity (kW)
PART NO.
012-000458-001
012-000458-002
012-000458-003
012-000458-004
012-000458-005
240V
208V
3
5
6
8
9.5
2.3
3.8
4.5
6
7.5
ACCESSORY HEATER
Applications on MVA models
MVA18
FBAS6HB CP
x
x
x
x
x
MVA24
FBAS6HB CP
x
x
x
x
x
MVA30
FBAS6HB CP
x
x
x
x
x
MVA36
FBAS6HB CP
x
x
x
x
x
MVA42
FBAS6HB CP
MVA48
FBAS6HB CP
MVA60
FBAS6HB CP
x
x
x
x
x
x
Only qualified personnel must install the electrical service. Refer to manuals for more details.
34
MVA48
FBAS6HBCP
PH
1
1
1
1
1
1
1
INDOOR
MVA18FBAS6HBCP/ MVA24FBAS6HBCP
MVA30FBAS6HBCP/ MVA36FBAS6HBCP
MVA42FBAS6HBCP/ MVA48FBAS6HBCP
MVA60FBAS6HBCP
Panasonic
S-36ME1U6 / S-48ME1U9
(Single stage electric heater)
35
CONTROL SYSTEMS SIMPLE SYSTEM CONTROL NETWORK
Panasonic’s system control network is the heart and
soul of the ECOi™ unit. With a simple two-wire loop
installation, we put control in your hands, literally.
No outside specialists required, it’s an all-in-one
solution, and a way to further build profits by
keeping installation in-house. The logic resides in
the ECOi system and the control is in the gateway.
CONTROL SYSTEMS
SIMPLE SYSTEM CONTROL NETWORK
WIRELESS REMOTES
CONTROL IN THE PALM
OF YOUR HAND
CZ-RTC3 / CZ-RTC2 / CZ-RWSC3 / CZ-RWSU1U
CZ-RWST1U / CZ-RWSY1U
CZ-RWSK1U / CZ-RE2C2 / CZ-64ESMC1U
CZ-ESWC2 / CZ-256ESMC1U / CZ-CFUNC1U
CZ-CSRC2 / CZ-CLNC1U / BMS-CTRL1
CZ-CSWKC1U / CZ-CSWAC1U / CZ-CSWGC1U
CZ-RWSY1U
CZ-RWSU1U
Users can truly take control of the entire system,
including mode, temperature, airflow, and system
diagnosis, all from an easy-to-read LCD display.
For Use With MY Series
For Use With MU Indoor Units
CZ-CSWBC1U / CZ-CSWWC1U
PART NUMBER DESCRIPTION
NEW
CZ-RTC3
HIGH-SPEC WIRED REMOTE CONTROLLER
Touch pad operation, weekly timer, energy saving functions etc. (Ref.P10-11)
CZ-RTC2
WIRED REMOTE CONTROLLER — 7- day setback, mode, temp, service, etc
CZ-RWSC3
WIRELESS REMOTE CONTROLLER — For use with MU models
CZ-RWST1U
WIRELESS REMOTE CONTROLLER — For use with MD and MT models
CZ-RWSY1U
WIRELESS REMOTE CONTROLLER — For use with MY models
CZ-RWSK1U
WIRELESS REMOTE CONTROLLER — For use with MK models & for use with CZ-RWSC3
CZ-RELC2
SIMPLE REMOTE CONTROLLER — with Back Light
CZ-RE2C2
SIMPLE REMOTE CONTROLLER (wired) — on/off, Mode, Temp, Fan Speed, Flap, Service Function
CZ-ESWC2
CZ-256ESMC1U
CZ-CFUNC1U
CZ-CSRC2
CZ-RWSK1U
For Use With MK Indoor
Units for CZ-RWSC3
Remote Controller Receiver to be
used with CZ-RWSK1U MM, MF,
ME, MP and MR Indoor Units
Panasonic’s wireless remotes control more than comfort.
NEW
CZ-RTC3
Easy-to-use remotes offer control where
minimal user functionality is preferred.
Panasonic’s Standard Remote with 7-Day
Timer is perfectly suited for those requiring
more programmed management over
multiple zones. With immediate diagnostics
and up to six daily set temperature
schedules, it’s a perfectly controlled
solution offering intuitive simplicity.
High-spec
Wired Remote Controller
SCHEDULE TIMER — Thermal On/Off at program times only, no set back temperature
INTELLIGENT CONTROLLER ( Web Enabled ) — Controls Max of 256 indoor units with CZ-CFUNC1U
COMMUNICATIONS ADAPTER — Used with INTELLIGENT CONTROLLER and BMS interface
REMOTE SENSOR
LONWORKS INTERFACE — Maximum of 16 indoor units
BMS-CTRL1
BMS INTERFACE — BACnet, LONworks, N2 or MODBUS (also requires CZ-CFUNC1U)
P-AIMS — Base Software Package
CZ-RELC2
CZ-RE2C2
CZ-CSWAC1U
P-AIMS — Electrical Power Distribution Proportioning Software (also requires CZ-CFUNC1U)
Simple Remote
Controller with
Back Light
Simple Remote
Controller
CZ-CSWGC1U
P-AIMS — Layout Graphic Display Software (also requires CZ-CFUNC1U)
CZ-CSWBC1U
P-AIMS — BACnet Interface Software (also requires CZ-CFUNC1U)
CZ-CSWWC1U
CZ-RWSC3
SYSTEM CONTROLLER — Set individual indoor unit temps for up to 4 zones, 16 indoor units max per zone
CZ-CLNC1U
CZ-CSWKC1U
36
For Use With MD and MT Indoor Units
REMOTE CONTROLLER RECEIVER — To be used with CZ-RWSK1U
CZ-RWSU1U
CZ-64ESMC1U
CZ-RWST1U
P-AIMS — Web Enabling Software (also requires CZ-CFUNC1U)
CZ-RTC2
Standard Remote/7-Day Timer
For Use With All Indoor Units
Panasonic’s wired remote controls offer multiple conditioning solutions
to meet the needs of any project.
WIRED REMOTES
SIMPLE TO INSTALL
KEY FEATURES (STANDARD REMOTE/7-DAY TIMER):
* Thin and Easy To Read
* Simple To Install and Use
* Can Be Adapted for Use On All ECOi Indoor Units
* F an Speed Control: Including Automatic or Fixed Set
Temperature
* Airflow Direction
* Operating Mode (Heating/Cooling/Auto/Dry/Fan)
* Vacation Mode for Continued Energy Efficiencies
* Full 7-Day Set-Back Functionality, With Up To 6 Time
Periods/Day
* Full System Diagnostic Capability
(Diagnostic History Provides Immediate View of System
Past and Present.)
CONTROL SYSTEM
AN ALL-IN-ONE SOLUTION, NO OUTSIDE SPECIALISTS REQUIRED.
KEY FEATURES:
* Thin and Easy To Read
* Simple To Install and Use
* Can Be Adapted for Use On All ECOi Indoor Units
* Fan Speed Control
* Timer Mode Start/Stop
* Timer Mode On/Off
* Operating Mode
* Inspection/Test Indication
* Remote Can Be Configured To Sense Temperature
KEY FEATURES (SIMPLE REMOTE):
* Thin and Easy To Read
* Simple To Install and Use
* Can Be Adapted for Use On All ECOi Indoor Units
* Operating Mode (Heating/Cooling/Auto/Dry/Fan)
* Vacation Mode for Continued Energy Efficiencies
(CZ-RE2C2 & CZ-RTC2 only)
* F an Speed Control: Including Automatic or Fixed
Set Temperature
* On/Off
* Airflow Direction
* Perfectly Suited for Applications Where Simpler
Functionality is Required (ie: Hotel Rooms, Nursing
Homes, Offices)
37
CONTROL SYSTEMS
SIMPLE SYSTEM CONTROL NETWORK
CONTROL SYSTEMS
BUILDING MANAGEMENT INTEGRATION
LONWORKS INTERFACE
SINGLE POINT OF CONTROL
MULTIPLE ZONE
CONTROLLERS
THE HEART AND SOUL
OF CONDITIONING.
KEY FEATURES:
* Communicate With LonWorks Compatible Systems
* Start/Stop
KEY FEATURES (SYSTEM CONTROL):
*C
ontrols Up To 64 Units Into
4 Individualized Zones
* Alarm and Operational Signal Output
*S
ingle Access Points for All Connected
Wired Remotes
* System Control Timer Available
* Controls Up To 16 Groups (Maximum 64 Indoor Units)
CZ-CLNC1U
* F or 17 or more groups of indoor units connect additional
LonWorks Interface
Panasonic’s LonWorks interface integrates into many
compatible Building Management Systems. Single point of
control. Access to all of the ECOi™ conditioning mechanics.
interface units.
* Temperature Setting, Fan Speed, etc.
* Schedule Time Setting
* Alarm Notification
BMS CONTROLLER
BMS-CTRL1
KEY FEATURES:
*A
ble to provide BMS integration to a variety of BMS
CZ-64ESMC1U
*C
ommunicates with up to 90 indoor units and
BMS-CTRL1
BACnet Interface
Controls Up To 64 Units Into 4 Individualized Zones
Panasonic’s system and intelligent controls are the central nervous system
of the conditioning system. The gateway to all data, temperature, and
system diagnostics.
Panasonic’s BMS Controller sets a new standard for multiple
equipment protocol conversion.
CONTROLS UP TO
256 INDOOR UNITS
10 Refrigerent Circuits (note; N2 can communicate with
40 indoor and 10 outdoor units)
* Provides control of operating mode, fan, set temperature
* Provides status of operating modes and alarm status
CONTROL SYSTEM
protocols including BACnet, Modbus, LonWorks and N2
System Controller
NETWORK DIAGRAM
KEY FEATURES (INTELLIGENT CONTROL):
* 6.5" Touch Screen Panel
* C ontrols up to 256 Indoor units with added
CZ-256ESMC1U
Intelligent Controller
Web Accessible/Real Time Diagnostics Through Individual IP Address
38
Communication Adapter (128 indoors without)
*N
ew Control Wiring System (S Net) Connects Up
To 64 Units To a Single Control Line
*O
ffers a Maximum Installation of Two System
Controls (One Main, One Sub)
* P rovides Individual Tenant Billing data for
3 systems (use Communication Adapters to add
more systems). Requires watt hour meters
* P rovides Individual Tenant Billing Data Through
Calculations Based on a Per-Tenant Basis
* Individual Zone Override Feature
(High/Low Setting)
*W
eb Accessible/Real Time Diagnostics
Through Individual IP Address
* Diagnostic History of System Past and Present
Building Automation
System
Communication
Adapter
BACnet
LonWorks
Modbus
N2
BMS-CTRL1
BMS-CTRL1
(Up to 10 outdoor units &
90 indoor units)
Outdoor unit
Group control
Remote
Controller
Remote
Controller
Schedule Group control
Timer
39
PART NUMBER
DESCRIPTION
2-Way Distribution Kits
CZ-P160BK1U
DISTRIBUTION JOINT KIT
Used with 2 Pipe indoor Unit Piping - Up to 76,400 BTUs
CZ-P680BK1U
DISTRIBUTION JOINT KIT
Used with 2 Pipe indoor Unit Piping - 76,500 to 232,000 BTUs
CZ-P1350BK1U
DISTRIBUTION JOINT KIT
Used with 2 Pipe indoor Unit Piping - 232,200 to 460,700 BTUs
CZ-P680PJ1U
DISTRIBUTION JOINT KIT
Used to Connect Multiple 2 Pipe Outdoor Units - Up to 232,000 BTUs
CZ-P1350PJ1U
DISTRIBUTION JOINT KIT
Used to Connect Multiple 2 Pipe Outdoor Units - 232,200 to 460,700 BTUs
3-Way Distribution Kits
CZ-P224BH1U
DISTRIBUTION JOINT KIT CUT TO FIT
Used with 3 Pipe Indoor Unit Piping - Up to 76,400 BTUs
CZ-P680BH1U
DISTRIBUTION JOINT KIT CUT TO FIT
Used with 3 Pipe Indoor Unit Piping - 76,500 to 232,000 BTUs
CZ-P1350BH1U
DISTRIBUTION JOINT KIT CUT TO FIT
Used with 3 Pipe Indoor Unit Piping - 232,200 to 460,700 BTUs
CZ-P900PH1U
DISTRIBUTION JOINT KIT CUT TO FIT
Used to Connect Multiple 3 Pipe Outdoor Units - Up to 307,100 BTUs
CZ-P160HR1U
SOLENOID VALVE KIT
Total Indoor Capacity of 19,100 to 54,600 BTUs (for 3 Pipe System)
CZ-P56HR1U
SOLENOID VALVE KIT
Total Indoor Capacity of Less than 19,000 BTUs (for 3 Pipe System)
3-Way Solenoid Valve Kits
Ball Valves
623 303 9831
PART NUMBER
ECO-SC-4
IC-SC-1
IC-SC-INDOOR
LW-SC-1
LW-SC-INDOOR
PP-SC-1
PP-SC-INDOOR
CA-SC-1
CA-SC-INDOOR
P-AIMS-SC-1
P-AIMS-SC-INDOOR
Pac Checker Service & diagnostics tool for all ECOi and Panasonic Splits greater than 26,000 BTUs
DESCRIPTION
ECOi COMMISSIONING (Per normal business day, up to 24 tons)
COMMISSIONING OF INTELLIGENT CONTROLLER (Base fee for each Intelligent Controller)
COMMISSIONING OF INTELLIGENT CONTROLLER (Indoor Units)
COMMISSIONING OF LONWORKS INTERFACE MODULE (Base fee)
COMMISSIONING OF LONWORKS INTERFACE (Indoor Units fee)
COMMISSIONING OF INTELLIGENT BACnet INTERFACE (Base fee for each BMS-CTRL 1)
COMMISSIONING OF INTELLIGENT BACnet (Indoor Units fee)
COMMISSIONING OF COMMUNICATIONS ADAPTER (Base fee for each Comm. Adapter)
COMMISSIONING OF COMMUNICATIONS ADAPTER (Indoor Units fee)
COMMISSIONING OF P-AIMS MANAGEMENT SYSTEM (Base fee for each overall system)
COMMISSIONING OF P-AIMS MANAGEMENT SYSTEM (Indoor Units fee)
BVT 14
BVT 38
1/4" Ball Valve
With Access Port Fitting
3/8" Ball Valve
With Access Port Fitting
BVT 12
1/2" Ball Valve
With Access Port Fitting
BVT 58
5/8" Ball Valve
With Access Port Fitting
IPO-SC-1
BVT 34
3/4" Ball Valve
With Access Port Fitting
IPO-SC-INDOOR
PROGRAM “IGNORE INDOOR POWER OFF FAILURE” FOR 2-WAY SYSTEM (Indoor Units fee)
BVT 78
7/8" Ball Valve
With Access Port Fitting
CNBH
COMMISSIONING COMPLETED DURING NON-BUSINESS HOURS OR NON-BUSINESS DAYS
BVT 118
1-1/8" Ball Valve
With Access Port Fitting
COUS
ALL COMMISSIONING OF SYSTEMS OR COMPONENTS OUTSIDE CONTINENTAL U.S.
BVT 138
1-3/8" Ball Valve
With Access Port Fitting
BVT 158
1-5/8" Ball Valve
With Access Port Fitting
Univolt Mini Condensate Pumps
AC-SC-1
AC-SC-INDOOR
TRAINING - MINI SPLIT SYSTEMS (2 classes / same location / same day)
ECOi-IST
ASP-MOUNI
100 - 250 VOLT MINI ORANGE ASPEN CONDENSATE PUMP Max 26' Lift, 3.7 GPH @ 0 Lift, 0.8 GPH @ 26'
ECOi-SERT
ASP-MLUNI
100 - 250 VOLT MINI LIME ASPEN CONDENSATE PUMP
Max 26' Lift, 3.7 GPH @ 0 Lift, 0.8 GPH @ 26'
100 - 250 VOLT MINI WHITE ASPEN CONDENSATE PUMP
Max 26' Lift, 3.7 GPH @ 0 Lift, 0.8 GPH @ 26'
CZ-FDU1U
460 Transformers
ACC-195674
460V TO 230V, 11 KVA TRANSFORMER
For Use With 72,000 (6 Ton) BTU/HR Outdoor Unit
ACC-195679
460V TO 230V, 14 KVA TRANSFORMER
For Use With 95,000 (8 Ton) BTU/HR Outdoor Unit
Electric Heater
012-000458-00X
PROGRAM “IGNORE INDOOR POWER OFF FAILURE” FOR 2-WAY SYSTEM (Base fee /Indoor Units fee)
RP-SIT-2
Max 26' Lift, 3.7 GPH @ 0 Lift, 0.8 GPH @ 26'
For Use With S-24MU1U6 and S-36MU1U6 Indoor Units Only (Requires CZ-ATU1U)
PROGRAM 2-WAY SYSTEM TO ENABLE AUTO CHANGEOVER OF MODE (Indoor Units fee)
TRAINING - MINI SPLIT SYSTEMS (1 class per day at Customer Location)
100 - 250 VOLT MINI AQUA ASPEN CONDENSATE PUMP
FRESH AIR CHAMBER
PROGRAM 2-WAY SYSTEM TO ENABLE AUTO CHANGEOVER OF MODE (Base fee /Indoor Units fee)
RP-SIT-1
ASP-MAUNI
ASP-MWUNI
40
SERVICES ECOiTM SYSTEM
TOUS
ECO-SIT-4
TRAINING - ECOi INSTALLATION AND COMMISSIONING TRAINING (at customer location)
TRAINING - ECOi SERVICE TRAINING (at customer location)
TRAINING (Conducted outside of the Continental U.S.)
TRAINING (On-Site Supervised ECOi installation training)
ECO-SIT-NR
TRAINING (Supervised installation On-Site training where attendees did not show up as agreed upon)
ECO-SIT-OS
TRAINING (Supervised installation Training Outside Continental U.S.)
WARRANTY
SERVICES ACCESSORIES
ACCESSORIES ECOiTM SYSTEM
6 Year Compressor
1 Year Parts
ELECTRIC HEATER FOR MVA SERIES (REFER TO PAGE 35 FOR DETAILS)
41
ECOiTM System Certified Efficiency Ratings
IEER INTEGRATED ENERGY EFFICIENCY RATIO
MF SERIES 3-WAY ECOi Heat Recovery System
Rating Standard: AHRI 1230
IEER is intended to be used as a representation of part load performance
for energy comparisons of similar systems. For Variable Refrigerant Flow
(VRF) Multi Split systems AHRI Standard 1230 defines the process to
calculate IEER. In a most simplistic form IEER is calculated by operating
the system at 4 different capacities and applying a formula. The basic
calculation is as follows:
IEER = (0.02 * A) + (0.617 * B) + (0.238 * C) + (0.125 * D)
Some points to recognize from this calculation:
1. Full load EER (100% capacity) represents only 2% of
the overall IEER rating because the system would rarely
operate at this condition.
Where as:
A = EER at 100% net capacity at AHRI standard condition (95°F)
B = EER at 75% net capacity and reduced ambient (81.5°F)
C = EER at 50% net capacity and reduced ambient (68°F)
D = EER at 25% net capacity and reduced ambient (65°F)
2. As overall capacity is reduced the system EER
increases significantly.
3. An ECOi system operating at 50% part load could
result in an efficiency increase of more than 70% over
the rated full load EER value.
Example:
A = 11.0 EER B = 16.0 EER C = 19.0 EER D = 23.0 EER
IEER = (0.02 * 11) + (0.617 * 16) + (0.238 * 19) + (0.125 * 23)
IEER = 0.2 + 9.8 + 4.5 + 2.9 = 17.4 IEER
4. Your actual efficiency could exceed the IEER rating
depending upon equipment sizing, environment and use
of the system.
ECOi System Certified Efficiency Ratings
TM
ME2 SERIES 2-WAY ECOi HEAT PUMP
Rating Standard: AHRI 1230
COOLING PERFORMANCE
System Model Number
42
Capacity
Btu/h
EER
95F°
System Model
Number
Type
Indoor Unit Rating
Type
Capacity
(Btu/h)
EER
IEER
Capacity
(Btu/h)
COP
Low Heating 17°F
Capacity
(Btu/h)
SIMULTANEOUS
OPERATION
PERFORMANCE
COP
Simultaneous
Cooling-Heating
Efficiency (SCHE)
Heat Recovery
U-72MF1U9
Ducted
72,000
11.4
16.4
81,000
3.5
47,000
2.28
24.0
Heat Recovery
U-72MF1U9
Mixed
71,000
11.2
16.8
79,500
3.41
44,500
2.27
24.4
Heat Recovery
U-72MF1U9
Non-Ducted
69,000
10.9
17.1
77,000
3.31
42,000
2.25
24.7
Heat Recovery
U-96MF1U9
Ducted
95,000
11.0
16.0
106,000
3.3
69,000
2.25
23.1
Heat Recovery
U-96MF1U9
Mixed
94,000
11.0
16.4
104,500
3.31
63,500
2.25
23.3
Heat Recovery
U-96MF1U9
Non-Ducted
93,000
10.9
16.7
103,000
3.31
58,500
2.25
23.5
Heat Recovery
WU-144MF1U9
Ducted
138,000
10.8
16.4
156,000
3.21
93,000
2.05
23.1
Heat Recovery
WU-144MF1U9
Mixed
137,000
10.9
16.8
153,000
3.26
88,000
2.15
23.5
Heat Recovery
WU-144MF1U9
Non-Ducted
136,000
10.9
17.1
150,000
3.31
83,000
2.25
23.8
Heat Recovery
WU-168MF1U9
Ducted
164,000
10.7
16.1
184,000
3.21
114,000
2.05
22.6
Heat Recovery
WU-168MF1U9
Mixed
162,000
10.6
16.5
181,000
3.21
106,000
2.05
23.0
Heat Recovery
WU-168MF1U9
Non-Ducted
160,000
10.5
16.9
178,000
3.21
98,000
2.05
23.3
Heat Recovery
WU-192MF1U9-1
Ducted
180,000
10.6
16.0
202,000
3.21
132,000
2.05
22.3
Heat Recovery
WU-192MF1U9-1
Non-Ducted
174,000
10.5
16.7
196,000
3.21
114,000
2.05
22.8
Heat Recovery
WU-192MF1U9-1
Mixed
176,000
10.55
16.4
198,000
3.21
123,000
2.05
22.6
Heat Recovery
WU-216MF1U9
Ducted
202,000
10.6
16.0
228,000
3.21
136,000
2.05
22.2
Heat Recovery
WU-216MF1U9
Mixed
200,000
10.6
16.3
224,000
3.21
128,000
2.05
22.6
Heat Recovery
WU-216MF1U9
Non-Ducted
198,000
10.5
16.6
220,000
3.21
120,000
2.05
22.9
Heat Recovery
WU-240MF1U9
Ducted
230,000
10.5
16.0
264,000
3.21
158,000
2.05
22.0
Heat Recovery
WU-240MF1U9
Mixed
225,000
10.5
16.2
255,000
3.21
147,000
2.05
22.2
Heat Recovery
WU-240MF1U9
Non-Ducted
220,000
10.5
16.4
246,000
3.21
136,000
2.05
22.4
Heat Recovery
WU-264MF1U9
Ducted
258,000
9.7
15.9
288,000
3.21
176,000
2.05
21.6
Heat Recovery
WU-264MF1U9
Mixed
255,000
9.6
16.1
278,000
3.21
163,000
2.05
21.8
Heat Recovery
WU-264MF1U9
Non-Ducted
252,000
9.4
16.3
268,000
3.21
150,000
2.05
22.0
Heat Recovery
WU-288MF1U9
Ducted
280,000
9.6
15.8
312,000
3.21
194,000
2.05
21.2
Heat Recovery
WU-288MF1U9
Mixed
277,000
9.5
16.0
302,000
3.21
179,000
2.05
21.4
Heat Recovery
WU-288MF1U9
Non-Ducted
274,000
9.4
16.2
292,000
3.21
164,000
2.05
21.6
HEATING PERFORMANCE
High Heating 47°F
Indoor Unit
Rating Type
HEATING PERFORMANCE
High Heating 47°F
IEER
Capacity
(Btu/h)
Low Heating 17°F
COP
Capacity
(Btu/h)
COP
U-72ME2U9
Ducted
69,000
12.3
19.1
77,000
3.56
52,000
2.56
U-72ME2U9
Mixed Ducted
69,000
12.5
20.6
77,000
3.71
52,000
2.60
U-72ME2U9
Non Ducted
69,000
12.6
22.1
77,000
3.86
52,000
2.63
U-96ME2U9
Ducted
92,000
11.9
19.3
103,000
3.54
67,000
2.42
U-96ME2U9
Mixed Ducted
92,000
11.9
21.2
103,000
3.65
67,000
2.51
LE Series MINI ECOiTM MULTI SPLIT 2-WAY VRF HEAT PUMP SERIES
System Model Number
Indoor Unit
Rating Type
High Cooling 95°F
Capacity
(Btu/h)
EER(95F)
High Heating 47°F
SEER
Capacity
(Btu/h)
HSPF
Low Heating 17°F
Capacity (Btu/h)
U-36LE1U6
Non-Ducted
39,000
11.5
17.0
43,000
9.8
28,000
U-36LE1U6
Ducted
37,000
9.6
13.1
38,500
7.8
25,000
U-36LE1U6
Mixed
38,000
10.55
15.05
40,750
8.8
26,500
U-96ME2U9
Non Ducted
92,000
11.9
23.1
103,000
3.75
67,000
2.59
U-120ME2U9
Ducted
114,000
11.5
19.3
129,000
3.40
75,000
2.30
U-120ME2U9
Mixed Ducted
114,000
11.7
22.1
129,000
3.50
75,000
2.35
U-52LE1U6
Ducted
51,500
9.4
14.6
57,500
7.7
32,000
U-120ME2U9
Non Ducted
114,000
11.8
24.8
129,000
3.60
75,000
2.40
U-52LE1U6
Non-Ducted
52,000
10.2
17.4
58,500
9.6
32,000
U-144ME2U9
Ducted
138,000
10.9
18.7
154,000
3.27
100,000
2.18
U-52LE1U6
Mixed
51,750
9.8
16.0
58,000
8.65
32,000
U-144ME2U9
Mixed Ducted
138,000
10.8
20.7
154,000
3.31
100,000
2.30
U-144ME2U9
Non Ducted
138,000
10.7
22.6
154,000
3.35
100,000
2.41
WU-168ME2U9
Ducted
160,000
11.7
19.0
180,000
3.45
119,000
2.30
WU-168ME2U9
Mixed Ducted
160,000
11.7
21.1
180,000
3.48
119,000
2.34
WU-168ME2U9
Non Ducted
160,000
11.6
23.2
180,000
3.50
119,000
2.38
WU-192ME2U9
Ducted
184,000
11.2
18.4
206,000
3.40
134,000
2.25
WU-192ME2U9
Mixed Ducted
184,000
11.2
20.5
206,000
3.40
134,000
2.26
WU-192ME2U9
Non Ducted
184,000
11.1
22.6
206,000
3.39
134,000
2.26
WU-216ME2U9
Ducted
206,000
11.0
18.0
232,000
3.38
142,000
2.23
WU-216ME2U9
Mixed Ducted
206,000
11.0
20.2
232,000
3.37
142,000
2.29
WU-216ME2U9
Non Ducted
206,000
10.9
22.3
232,000
3.35
142,000
2.34
WU-240ME2U9
Ducted
228,000
10.7
17.7
258,000
3.36
150,000
2.18
WU-240ME2U9
Mixed Ducted
228,000
10.8
20.3
258,000
3.31
150,000
2.20
WU-240ME2U9
Non Ducted
228,000
10.8
22.8
258,000
3.25
150,000
2.22
WU-264ME2U9
Ducted
252,000
10.2
17.3
284,000
3.35
176,000
2.16
WU-264ME2U9
Mixed Ducted
252,000
10.2
19.1
284,000
3.29
176,000
2.14
WU-264ME2U9
Non Ducted
252,000
10.1
20.8
284,000
3.22
176,000
2.12
WU-288ME2U9
Ducted
274,000
9.8
16.9
308,000
3.28
200,000
2.14
WU-288ME2U9
Mixed Ducted
274,000
9.7
18.2
308,000
3.24
200,000
2.10
WU-288ME2U9
Non Ducted
274,000
9.6
19.5
308,000
3.20
200,000
2.06
WU-312ME2U9
Ducted
298,000
10.4
17.7
334,000
3.27
202,000
2.16
WU-336ME2U9
Ducted
320,000
10.3
17.2
360,000
3.23
218,000
2.13
WU-360ME2U9
Ducted
342,000
10.1
16.6
386,000
3.20
226,000
2.10
Efficiency Rating
Part load performance of commercial HVAC
systems was represented as Integrated Part Load
Performance (IPLV) which was used until January 1, 2010.
A new methodology was then adopted and defined as
Integrated Energy Efficiency Ratio (IEER).
COOLING PERFORMANCE
43
ECOiTM System Certified Efficiency Ratings
Panasonic commercial AC History
ME1 SERIES 2-WAY ECOi HEAT PUMP
Rating Standard: AHRI 1230
COOLING PERFORMANCE
HEATING PERFORMANCE
High Heating 47F
Type
System Model Number
Indoor Unit Rating
Type
Capacity
(Btuh)
EER
IEER
Capacity
(Btuh)
COP
Low Heating 17F
Capacity
(Btuh)
COP
Heat Pump
U-72ME1U9
Ducted
72,000
11.5
16.7
81,000
3.53
47,000
2.31
Heat Pump
U-72ME1U9
Mixed
71,000
11.3
17.1
79,500
3.42
44,500
2.28
Heat Pump
U-72ME1U9
Non-Ducted
69,000
11.0
17.4
77,000
3.31
42,000
2.25
Heat Pump
U-96ME1U9
Ducted
95,000
11.1
16.3
106,000
3.32
69,000
2.26
Heat Pump
U-96ME1U9
Mixed
94,000
11.1
16.7
104,500
3.32
63,500
2.26
Heat Pump
U-96ME1U9
Non-Ducted
93,000
11.0
17.0
103,000
3.31
58,500
2.25
Heat Pump
WU-144ME1U9
Ducted
138,000
10.9
16.7
156,000
3.24
93,000
2.05
Heat Pump
WU-144ME1U9
Mixed
137,000
11.0
17.1
153,000
3.28
88,000
2.15
Heat Pump
WU-144ME1U9
Non-Ducted
136,000
11.0
17.4
150,000
3.31
83,000
2.25
Heat Pump
WU-168ME1U9
Ducted
164,000
10.8
16.4
184,000
3.22
114,000
2.05
Heat Pump
WU-168ME1U9
Mixed
162,000
10.7
16.8
181,000
3.22
106,000
2.05
Heat Pump
WU-168ME1U9
Non-Ducted
160,000
10.6
17.2
178,000
3.21
98,000
2.05
Heat Pump
WU-216ME1U9
Ducted
202,000
10.7
16.3
228,000
3.22
136,000
2.05
Heat Pump
WU-216ME1U9
Mixed
200,000
10.7
16.6
224,000
3.22
128,000
2.05
Heat Pump
WU-216ME1U9
Non-Ducted
198,000
10.6
16.9
220,000
3.21
120,000
2.05
Heat Pump
WU-240ME1U9
Ducted
230,000
10.6
16.3
264,000
3.22
158,000
2.05
Heat Pump
WU-240ME1U9
Mixed
225,000
10.6
16.5
255,000
3.22
147,000
2.05
Heat Pump
WU-240ME1U9
Non-Ducted
220,000
10.6
16.7
246,000
3.21
136,000
2.05
Heat Pump
WU-264ME1U9
Ducted
258,000
9.8
16.2
288,000
3.22
176,000
2.05
Heat Pump
WU-264ME1U9
Mixed
255,000
9.7
16.4
278,000
3.22
163,000
2.05
Heat Pump
WU-264ME1U9
Non-Ducted
252,000
9.5
16.6
268,000
3.21
150,000
2.05
Heat Pump
WU-288ME1U9
Ducted
280,000
9.7
16.1
312,000
3.22
194,000
2.05
Heat Pump
WU-288ME1U9
Mixed
277,000
9.6
16.3
302,000
3.22
179,000
2.05
Heat Pump
WU-288ME1U9
Non-Ducted
274,000
9.5
16.5
292,000
3.21
164,000
2.05
SIMULTANEOUS
OPERATION
PERFORMANCE
Simultaneous
Cooling-Heating
Efficiency (SCHE)
A GLOBALLY TRUSTED AIR CONDITIONING BRAND
With roots going back 56 years, the Panasonic Air Conditioning Business Division has grown to become a multinational company
recognized around the world. Driven by a never-ending quest for product innovation, the group has evolved from manufacturing
compressors to providing comprehensive air conditioning solutions. Panasonic has become a brand that people trust to deliver products
with superior quality and reliability.
1971
1985
1989
1993
1995
Introduces first GHP (gas heat pump) VRF air conditioner
Introduces world’s first simultaneous 3-pipe heating/cooling
VRF system
Releases world’s first large-capacity modular combination VRF
system
Releases world’s first large-capacity modular combination VRF
system with simultaneous heating/cooling
Launched VRF Eco-Multi to the US market
VRF Eco-Multi, the new individual air-conditioning system that effectively combines a power
control compressor and an electronic refrigerant control valve, was displayed at the 2001AHR
show. Eco Multi was a new technology to the US market and further secured our leadership
position in the ductless market.
HISTORY
2001
Starts production of absorption chillers
44
45
NOTES
46
47
Download PDF

advertising
