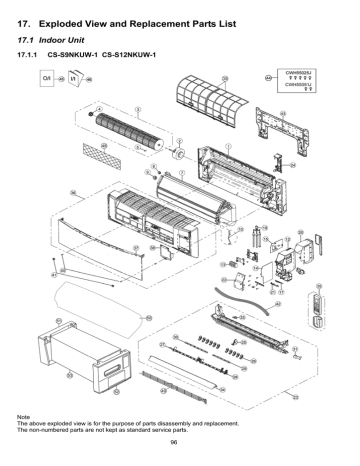

17. Exploded View and Replacement Parts List
17.1 Indoor Unit
17.1.1
CS-S9NKUW-1 CS-S12NKUW-1
Note
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
96
REF. NO.
PART NAME & DESCRIPTION
QTY.
CS-S9NKUW-1
CS-S12NKUW-1
REMARK
1
CHASSIS COMPLETE
1
CWD50C1633
←
2
FAN MOTOR
1
L6CBYYYL0055
←
3
CROSS-FLOW FAN COMPLETE
1
CWH02C1076
←
4
BEARING ASSY
1
CWH64K007
←
5
SCREW - CROSS-FLOW FAN
1
CWH551146
←
7
EVAPORATOR
1
CWB30C3181
CWB30C3182
8
FLARE NUT (LIQUID)
1
CWT251030
←
9
FLARE NUT (GAS)
1
CWT251031
CWT251032
10
CLIP FOR SENSOR
1
CWH32143
←
12
CONTROL BOARD CASING
1
CWH102370A
←
13
TERMINAL BOARD COMPLETE
1
CWA28C2357
←
O
14
ELECTRONIC CONTROLLER - MAIN
1
CWA73C6135
CWA73C6136
O
15
ELECTRONIC CONTROLLER - POWER
1
CWA745811
←
O
17
ELECTRONIC CONTROLLER - INDICATOR
1
CWA745740
←
O
19
SENSOR COMPLETE
1
CWA50C2135
←
O
20
CONTROL BOARD TOP COVER
1
CWH131350
←
21
INDICATOR HOLDER
1
CWD933021
←
22
CONTROL BOARD FRONT COVER CO.
1
CWH13C1201
←
23
DISCHARGE GRILLE COMPLETE
1
CWE20C3038
←
24
BACK COVER CHASSIS
1
CWD933233B
←
25
FULCRUM
1
CWH621102
←
26
VERTICAL VANE
11
CWE241287
←
27
CONNECTING BAR
1
CWE261152
←
28
CONNECTING BAR
1
CWE261154
←
29
CONNECTING BAR
1
CWE261155
←
30
CONNECTING BAR
1
CWE261153
←
31
AIR SWING MOTOR
1
CWA981240
←
33
CAP - DRAIN TRAY
1
CWH521096
←
34
HORIZONTAL VANE COMPLETE
1
CWE24C1268
←
35
REMOTE CONTROL COMPLETE
1
CWA75C3580
←
O
36
FRONT GRILLE COMPLETE
1
CWE11C4512
←
O
37
INTAKE GRILLE COMPLETE
1
CWE22C1507
←
O
38
GRILLE DOOR COMPLETE
1
CWE14C1029
←
39
AIR FILTER
2
CWD001279
←
40
SCREW - FRONT GRILLE
2
XTT4+16CFJ
←
41
CAP - FRONT GRILLE
2
CWH521194
←
42
DRAIN HOSE
1
CWH851173
←
43
INSTALLATION PLATE
1
CWH361097
←
44
BAG COMPLETE - INSTALLATION SCREW
1
CWH82C1705
←
45
OPERATING INSTRUCTION
1
CWF568314
←
46
INSTALLATION INSTRUCTION
1
CWF615165
←
48
AIR PURIFYING FILTER
1
CWD00C1141
←
49
WIRE NET
1
CWD041144A
←
50
BAG
1
CWG861497
←
51
SHOCK ABSORBER (L)
1
CWG712940
←
52
SHOCK ABSORBER (R)
1
CWG712941
←
53
C.C.CASE
1
CWG565009
←
(Note)
• All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).
• “O” marked parts are recommended to be kept in stock.
97
O
O
17.1.2
CS-S18NKU-1 CS-S22NKU-1
Note
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
98
REF. NO.
PART NAME & DESCRIPTION
QTY.
CS-S18NKU-1
CS-S22NKU-1
REMARK
1
CHASSIS COMPLETE
1
CWD50C1637
←
2
FAN MOTOR
1
L6CBYYYL0056
←
3
CROSS-FLOW FAN COMPLETE
1
CWH02C1077
←
4
BEARING ASSY
1
CWH64K007
←
5
SCREW - CROSS-FLOW FAN
1
CWH551146
←
7
EVAPORATOR
1
CWB30C3771
CWB30C3772
8
FLARE NUT (LIQUID)
1
CWT251030
←
9
FLARE NUT (GAS)
1
CWT251032
CWT251033
11
CLIP FOR SENSOR
1
CWH32143
←
12
CONTROL BOARD CASING
1
CWH102370A
←
13
TERMINAL BOARD COMPLETE
1
CWA28C2357
←
O
14
ELECTRONIC CONTROLLER - MAIN
1
CWA73C6143
CWA73C6144
O
15
ELECTRONIC CONTROLLER - POWER
1
CWA745811
←
O
17
ELECTRONIC CONTROLLER - INDICATOR
1
CWA745740
←
O
19
SENSOR COMPLETE
1
CWA50C2135
←
O
20
CONTROL BOARD TOP COVER
1
CWH131350
←
21
INDICATOR HOLDER
1
CWD933021
←
22
CONTROL BOARD FRONT COVER CO.
1
CWH13C1201
←
23
DISCHARGE GRILLE COMPLETE
1
CWE20C3049
←
24
FULCRUM
2
CWH621103
←
25
VERTICAL VANE
15
CWE241289
←
26
CONNECTING BAR
1
CWE261156
←
27
CONNECTING BAR
1
CWE261158
←
28
CONNECTING BAR
1
CWE261157
←
29
CONNECTING BAR
1
CWE261159
←
30
CONNECTING BAR
1
CWE261160
←
31
AIR SWING MOTOR
1
CWA98K1014
←
O
32
AIR SWING MOTOR
1
CWA981241
←
O
34
CAP - DRAIN TRAY
1
CWH521096
←
35
HORIZONTAL VANE COMPLETE
1
CWE24C1295
←
36
BACK COVER CHASSIS
1
CWD933031B
←
37
REMOTE CONTROL COMPLETE
1
CWA75C3582
←
O
38
FRONT GRILLE COMPLETE
1
CWE11C4514
←
O
39
INTAKE GRILLE COMPLETE
1
CWE22C1483
←
O
40
GRILLE DOOR COMPLETE
1
CWE14C1029
←
41
AIR FILTER
2
CWD001283
←
42
SCREW - FRONT GRILLE
3
XTT4+16CFJ
←
43
CAP - FRONT GRILLE
3
CWH521194
←
44
DRAIN HOSE
1
CWH851173
←
45
INSTALLATION PLATE
1
CWH361098
←
46
BAG COMPLETE - INSTALLATION SCREW
1
CWH82C1705
←
47
OPERATING INSTRUCTION
1
CWF568314
←
48
INSTALLATION INSTRUCTION
1
CWF615166
←
49
WIRE NET
1
CWD041145A
←
50
AIR PURIFYING FILTER
1
CWD00C1141
←
51
BAG
1
CWG861498
←
52
SHOCK ABSORBER (L)
1
CWG713033
←
53
SHOCK ABSORBER (R)
1
CWG713034
←
54
C.C.CASE
1
CWG565069
←
(Note)
• All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).
• “O” marked parts are recommended to be kept in stock.
99
O
17.2 Outdoor Unit
17.2.1
CU-S9NKU-1 CU-S12NKU-1
Note
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
100
REF. NO.
PART NAME & DESCRIPTION
QTY.
CU-S9NKU-1
CU-S12NKU-1
REMARK
1
CHASSIS ASSY
1
CWD50K2206A
←
2
FAN MOTOR BRACKET
1
CWD541030
←
3
SCREW - FAN MOTOR BRACKET
2
CWH551217
←
4
FAN MOTOR
1
CWA951466
←
5
SCREW - FAN MOTOR MOUNT
4
CWH55406J
←
6
PROPELLER FAN ASSY
1
CWH03K1010
←
7
NUT - PROPELLER FAN
1
CWH56053J
←
8
COMPRESSOR
1
5RS102XBC01
←
9
ANTI - VIBRATION BUSHING
3
CWH50077
←
10
NUT - COMPRESSOR MOUNT
3
CWH56000J
←
11
CONDENSER
1
CWB32C3010
←
12
TUBE ASSY CO. (CAP./CHK VALVE)
1
CWT01C4383
CWT01C4384
13
DISCHARGE MUFFLER (EXP VALVE)
1
CWB121010
←
14
HOLDER COUPLING
1
CWH351015A
←
15
2-WAYS VALVE (LIQUID)
1
CWB021301
←
O
16
3-WAY VALVE (GAS)
1
CWB011374
CWB011367
O
17
TERMINAL COVER
1
CWH171039A
←
18
NUT - TERMINAL COVER
1
CWH7080300J
←
19
SOUND PROOF BOARD
1
CWH151172A
←
20
SOUND PROOF MATERIAL
1
CWG302314
←
21
SOUND PROOF MATERIAL
1
CWG302563
←
21A
SOUND PROOF MATERIAL
1
CWG302315
←
21B
SOUND PROOF MATERIAL
1
CWG302316
←
22
SENSOR CO-COMP TEMP
1
CWA50C2340
←
23
CONTROL BOARD COVER - TOP
1
CWH131264
←
24
ELECTRONIC CONTROLLER - MAIN
1
CWA73C6151R
CWA73C6152R
O
26
TERMINAL BOARD ASSY
1
CWA28K1154
←
O
27
CABINET SIDE PLATE CO.
1
CWE04C1226
←
28
SENSOR CO-AIR TEMP AND PIPE TEMP
1
CWA50C2670
←
29
CABINET SIDE PLATE (L)
1
CWE041492A
←
30
CABINET FRONT PLATE CO.
1
CWE06C1142
←
31
CABINET TOP PLATE
1
CWE031018A
←
32
PLATE - C. B. COVER TERMINAL
1
CWH131301
←
33
CONTROL BOARD COVER CO.
1
CWH13C1208
←
36
REACTOR
1
CWA421050
G0A193M00001
37
4-WAYS VALVE
1
CWB001058
←
38
WIRE NET
1
CWD041111A
←
39
BAG
1
CWG861078
←
40
BASE BOARD - COMPLETE
1
CWG50C2388
←
41
SHOCK ABSORBER (RIGHT)
1
CWG712209
←
42
SHOCK ABSORBER (LEFT)
1
CWG712210
←
43
C.C.CASE
1
CWG565107
←
(Note)
• All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).
• “O” marked parts are recommended to be kept in stock.
101
O
O
O
O
17.2.2
CU-S18NKU-1 CU-S22NKU-1
Note
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.
102
REF. NO.
PART NAME & DESCRIPTION
QTY.
CU-S18NKU-1
CU-S22NKU-1
1
CHASSIS ASSY
1
CWD52K1227A
←
2
ANTI - VIBRATION BUSHING
3
CWH50077
←
3
COMPRESSOR
1
5CS130XAD04
←
4
NUT - COMPRESSOR MOUNT
3
CWH56000J
←
5
FAN MOTOR BRACKET
1
CWD541126
←
6
FAN MOTOR
1
CWA951686
←
7
SCREW - FAN MOTOR BRACKET
2
CWH551217
←
8
SCREW - FAN MOTOR MOUNT
3
CWH551040J
←
9
PROPELLER FAN ASSY
1
CWH001019
←
10
NUT - PROPELLER FAN
1
CWH561038J
←
11
CONDENSER
1
CWB32C2864
CWB32C2865
REMARK
O
O
12
EXPANSION VALVE
1
CWB051016J
←
13
RECEIVER
1
CWB141053
-
14
4-WAYS VALVE
1
CWB001057
←
15
STRAINER
1
CWB111061
←
16
HOLDER COUPLING
1
CWH351056A
←
17
3-WAY VALVE (GAS)
1
CWB011338
CWB011623
O
18
2-WAYS VALVE (LIQUID)
1
CWB021292
←
O
19
SOUND PROOF BOARD
1
CWH151225
←
20
TERMINAL COVER
1
CWH171039A
←
21
NUT - TERMINAL COVER
1
CWH7080300J
←
22
V-COIL COMPLETE
1
CWA43C2393
←
23
SENSOR CO - COMP TEMP
1
CWA50C2689
←
O
24
SENSOR CO - AIR TEMP AND PIPE TEMP
1
CWA50C2710
←
O
25
REACTOR
1
G0C153J00007
←
O
26
CONTROL BOARD COVER-TOP
1
CWH131333
←
27
TERMINAL BOARD ASSY
1
CWA28K1154
←
O
28
ELECTRONIC CONTROLLER - MAIN
1
CWA73C6155R
CWA73C6156R
O
29
CONTROL BOARD COVER - COMPLETE
1
CWH13C1210
←
30
CABINET SIDE PLATE
1
CWE041489A
CWE041490A
31
HANDLE
1
CWE161010
←
32
CABINET SIDE PLATE CO.
1
CWE041487A
←
33
CABINET FRONT PLATE CO.
1
CWE06K1069
←
34
WIRE NET
1
CWD041128A
←
35
CABINET TOP PLATE
1
CWE031131A
←
36
CAPACITOR
1
DS441305NPQA
DS441355NPQA
37
ACCUMLATOR
1
CWB131024
←
38
SOUND PROOF MATERIAL
1
CWG302302
CWG302270
39
SOUND PROOF MATERIAL
1
CWG302513
CWG302300
40
SOUND PROOF MATERIAL
1
CWG302503
-
41
PLATE - C. B. COVER TERMINAL
1
CWH131332
←
42
BAG
1
CWG861154
←
43
BASE BOARD - COMPLETE
1
CWG62C1082
←
44
SHOCK ABSORBER (RIGHT)
1
CWG712879
←
45
SHOCK ABSORBER (LEFT)
1
CWG712880
←
46
C.C.CASE
1
CWG565614
←
O
(Note)
• All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).
“O” marked parts are recommended to be kept in stock.
Printed in Malaysia
SB1011-00
103
