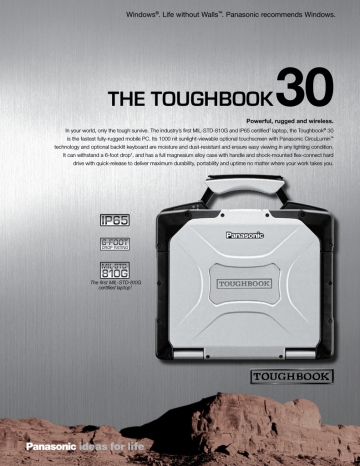

THE TOUGHBOOK
30
Powerful, rugged and wireless.
In your world, only the tough survive. The industry’s first MIL-STD-810G and IP65 certified1 laptop, the Toughbook® 30
is the fastest fully-rugged mobile PC. Its 1000 nit sunlight-viewable optional touchscreen with Panasonic CircuLumin™
technology and optional backlit keyboard are moisture and dust-resistant and ensure easy viewing in any lighting condition.
It can withstand a 6-foot drop1, and has a full magnesium alloy case with handle and shock-mounted flex-connect hard
drive with quick-release to deliver maximum durability, portability and uptime no matter where your work takes you.
The first MIL-STD-810G
certified laptop1.
Windows®. Life without Walls™. Panasonic recommends Windows.
The Panasonic Toughbook
DURABILITY FEATURES
•M
IL-STD-810G certified (6' drop, shock, vibration, rain, dust, sand, altitude, freeze/
thaw, high/low temperature, temperature shock, humidity, explosive atmosphere)1
MIL-STD-461F certified (requires special AC adapter)1
IP65 certified sealed all-weather design1
UL1604 class I, division 2, groups ABCD certified model
CCX Certified v4
LCD heater (only with touchscreen model)
HDD heater
Full magnesium alloy case with handle
Shock-mounted flex-connect hard drive with quick-release
Pre-installed replaceable screen film for touchscreen protection
Genuine Windows Vista® Business (with XP downgrade option)
Setup, Diagnostics, PC Information Viewer, Online Reference Manual,
Adobe® Reader, Panasonic Handwriting, Zoom Utility, Concealed Mode
Utility, Hard Disk Data Erase Utility, Recovery DVD
• Intel® Core™2 Processor with vPro™ technology SL9300
– Processor speed 1.6GHz
– 6MB L2 cache
– 1066MHz FSB
• 2048MB SDRAM (DDR2-667MHz) standard, expandable to 4096MB2
• 160GB HDD (shock-mounted flex-connect with quick-release)3
• 13.3" 1024 x 768 XGA daylight-readable LCD (sunlight-viewable with
optional touchscreen)
– Touchscreen with Panasonic CircuLumin™ technology:
9-1000 nit, AR, AG, circular polarizer
– Non-touchscreen: 9-500 nit, AR, AG
• External video support up to 1280 x 1024 at 16.7 million colors
• Intel® GS45 (GMA 4500MHD video controller), max. 1024MB UMA VRAM on XP2
• Concealed mode
• Intel® high-definition audio compliant
• Integrated front-facing speaker
• Convenient keyboard volume and mute controls
• Touchscreen LCD (only with touchscreen model)
• Integrated stylus holder (only with touchscreen model)
• 87-key with dedicated Windows® key
• Pressure-sensitive touchpad with vertical scrolling support
• Will accept optional Combo or DVD Super MULTI Drive, or 2nd battery
• PC card type II x 1
• SD card (SDHC)
• ExpressCard/54 x 1
• Port replicator 80-pin (reinforced)
• External video D-sub 15-pin
• Headphones/speaker Mini-jack stereo
• Microphone/line in Mini-jack stereo
• Serial D-sub 9-pin
• Ext. antenna conn. 50 ohm coaxial
• USB 2.0 (x 3) 4-pin
• IEEE 1394a (FireWire) 4-pin
• 10/100/1000 Ethernet RJ-45
• 56K modem RJ-11
•
•
•
•
•
•
•
•
•
•
•
software CPU STORAGE & MEMORY DISPLAY AUDIO KEYBOARD & INPUT multimedia pocket
expansion slots INTERFACE WIRELESS •
•
•
•
•
•
•
•
•
•
•
POWER SUPPLY POWER MANAGEMENT •
SECURITY FEATURES •
•
•
•
•
•
WARRANTY •
DIMENSIONS & WEIGHT •
•
IntegRATED OPTIONs 6 •
•
•
•
•
•
•
1.800.662.3537
30.
/
Optional integrated Gobi™ mobile broadband
Intel® Wireless WiFi Link 5100 802.11a/b/g/draft-n
Bluetooth® v2.0 + EDR (Class 1)
Security
– Authentication: LEAP, WPA, 802.1x, EAP-TLS, EAP-FAST, PEAP
– Encryption: CKIP, TKIP, 128-bit and 64-bit WEP, Hardware AES
High-gain antenna pass-through (single standard, dual optional)
Slide on/off switch
Lithium ion battery pack (10.65V, 8550mAh)
Battery operation: 9 hours (Vista), 10 hours (XP)—12.5 hours (Vista),
14 hours (XP) including optional 2nd battery4
Battery charging time: 5 hours off, 8.5 hours on4
AC Adapter: AC 100V-240V 50/60Hz, auto sensing/switching worldwide
power supply
Pop-up, on-screen battery status reporting
Suspend/Resume Function, Hibernation, Standby, ACPI BIOS
Password Security: Supervisor, User, Hard Disk Lock
Kensington cable lock slot
Trusted platform module (TPM) security chip v.1.2
Computrace® theft protection agent in BIOS5
Optional fingerprint reader
Optional SmartCard reader
3-year limited warranty, parts and labor
11.5"(L) x 11.9"(W) x 2.7-2.8"(H)
8.4 lbs.
Gobi™ mobile broadband (EV-DO Rev. A, HSPA)
250GB HDD (shock-mounted)
GPS receiver
Backlit keyboard – sealed rubber or plastic emissive
SmartCard reader
Fingerprint reader
HDD and battery lock
panasonic.com/toughbook/30
Financing options now available from Panasonic Finance Solutions;
please call number above for more details.
Panasonic is constantly enhancing product specifications and accessories. Specifications subject to change without notice.
Trademarks are property of their respective owners. ©2010 Panasonic Corporation of North America. All rights reserved.
ss30 03/10
■
■
■
■
■
■
he First MIL-STD-810G Certified Laptop1
T
6-foot Drop and IP65 Certified1
Sunlight-viewable Display with
Panasonic CircuLuminTM Technology
Full Magnesium Alloy Case with Handle
Shock-mounted Flex-connect Hard Drive
with Quick-release
3G Mobile Broadband and GPS-ready Design
Accessories6
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
AC Adapter (3-pin) MIL-461E Compliant AC Adapter Battery Charger Touchscreen Large Stylus
with Tether Hole InfoCase ComUniversal
Carrying Case (large capacity) InfoCase Backpack
InfoCase Sling 30 Case Combo Drive (DVD-ROM/CD-RW) DVD Super MULTI Drive Lithium Ion Battery Pack Lithium Ion Battery Pack
for Multimedia Pocket 32GB Solid State Drive (SSD)
Memory Cards
– 1GB – 2GB Desktop Port Replicator Vehicle Port Replicator
(no pass-through) Vehicle Port Replicator
(single pass-through) Vehicle Port Replicator
(dual pass-through)
13.3" LCD Protector Film CF-AA1653AM
CF-AA1653ASM
CF-VCBTB1W
CF-VNP009U
7540-P
TM-UNIVBPK-P
TM30-P
CF-VDR302U
CF-VDM302U
CF-VZSU46U
CF-VZSU1430U
CF-WSD300321
CF-WMBA801G
CF-WMBA802G
CF-VEB272A2W
CF-WEB301M
CF-WEB301MA
CF-WEB301MB
CF-VPF14U
Please consult your reseller or Panasonic representative before purchasing.
by national independent third party lab following MIL-STD-810G
Method 516.6 Procedure IV for transit drop test and IEC 60529 Sections
13.4, 13.6.2, 14.2.5 and 14.3 for IP65.
2 Total usable memory will be less depending upon actual system configuration.
Vista max. VRAM is 797MB with 2GB of memory, or 1551MB with 4GB of memory.
3 1GB = 1,000,000,000 bytes.
4 Battery performance features such as charge time and life span can vary according
to the conditions under which the computer and battery are used. Battery
operation and recharge times will vary based on many factors, including screen
brightness, applications, features, power management, battery conditioning
and other customer preferences. Battery testing results from MobileMark 2007.
5 Requires software and activation to enable theft protection.
6 Accessories and Integrated Options may vary depending on your notebook
configuration.
1 Tested
