Panasonic Toughbook 35 User's manual

Panasonic Toughbook 35 User's manual

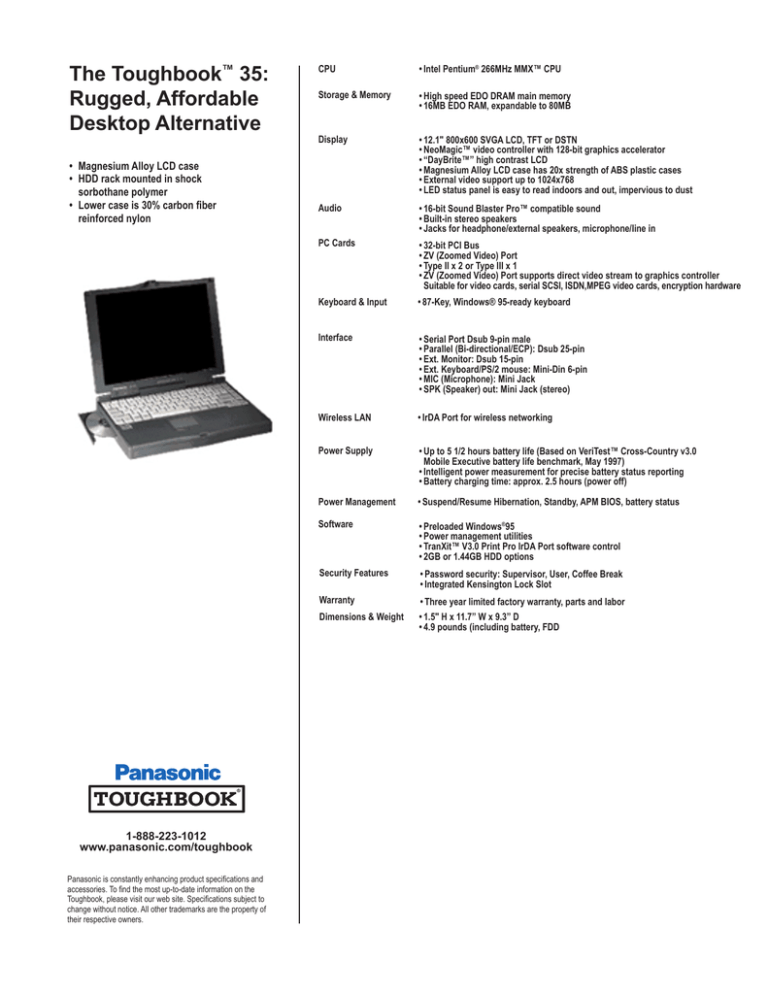

The Toughbook™ 35:
Rugged, Affordable
Desktop Alternative
• Magnesium Alloy LCD case
• HDD rack mounted in shock
sorbothane polymer
• Lower case is 30% carbon fiber
reinforced nylon
Panasonic is constantly enhancing product specifications and
accessories. To find the most up-to-date information on the
Toughbook, please visit our web site. Specifications subject to
change without notice. All other trademarks are the property of
their respective owners.
•Intel Pentium® 266MHz MMX™ CPU
Storage & Memory
•High speed EDO DRAM main memory
•16MB EDO RAM, expandable to 80MB
•12.1" 800x600 SVGA LCD, TFT or DSTN
•NeoMagic™ video controller with 128-bit graphics accelerator
•“DayBrite™” high contrast LCD
•Magnesium Alloy LCD case has 20x strength of ABS plastic cases
•External video support up to 1024x768
•LED status panel is easy to read indoors and out, impervious to dust
•16-bit Sound Blaster Pro™ compatible sound
•Built-in stereo speakers
•Jacks for headphone/external speakers, microphone/line in
PC Cards
•32-bit PCI Bus
•ZV (Zoomed Video) Port
•Type II x 2 or Type III x 1
•ZV (Zoomed Video) Port supports direct video stream to graphics controller
Suitable for video cards, serial SCSI, ISDN,MPEG video cards, encryption hardware
Keyboard & Input
•87-Key, Windows® 95-ready keyboard
•Serial Port Dsub 9-pin male
•Parallel (Bi-directional/ECP): Dsub 25-pin
•Ext. Monitor: Dsub 15-pin
•Ext. Keyboard/PS/2 mouse: Mini-Din 6-pin
•MIC (Microphone): Mini Jack
•SPK (Speaker) out: Mini Jack (stereo)
Wireless LAN
•IrDA Port for wireless networking
Power Supply
•Up to 5 1/2 hours battery life (Based on VeriTest™ Cross-Country v3.0
Mobile Executive battery life benchmark, May 1997)
•Intelligent power measurement for precise battery status reporting
•Battery charging time: approx. 2.5 hours (power off)
Power Management
•Suspend/Resume Hibernation, Standby, APM BIOS, battery status
•Preloaded Windows®95
•Power management utilities
•TranXit™ V3.0 Print Pro IrDA Port software control
•2GB or 1.44GB HDD options
Security Features
•Password security: Supervisor, User, Coffee Break
•Integrated Kensington Lock Slot
•Three year limited factory warranty, parts and labor
Dimensions & Weight
•1.5" H x 11.7” W x 9.3” D
•4.9 pounds (including battery, FDD
