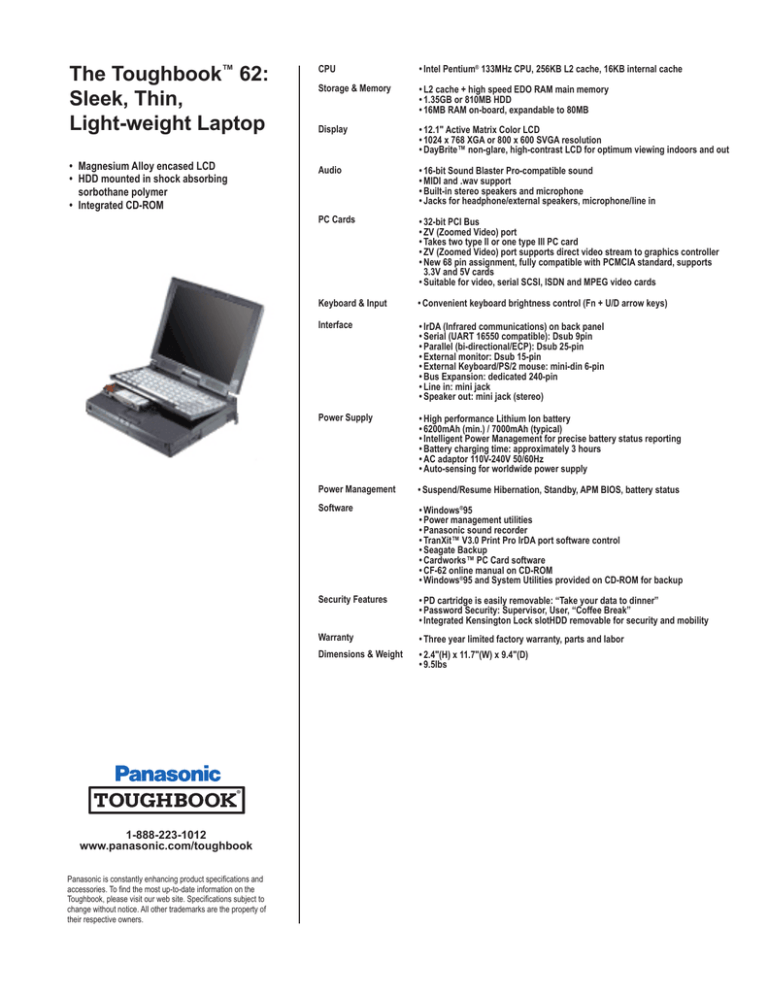

The Toughbook™ 62:
Sleek, Thin,
Light-weight Laptop
• Magnesium Alloy encased LCD
• HDD mounted in shock absorbing
sorbothane polymer
• Integrated CD-ROM
Panasonic is constantly enhancing product specifications and
accessories. To find the most up-to-date information on the
Toughbook, please visit our web site. Specifications subject to
change without notice. All other trademarks are the property of
their respective owners.
•Intel Pentium® 133MHz CPU, 256KB L2 cache, 16KB internal cache
Storage & Memory
•L2 cache + high speed EDO RAM main memory
•1.35GB or 810MB HDD
•16MB RAM on-board, expandable to 80MB
•12.1" Active Matrix Color LCD
•1024 x 768 XGA or 800 x 600 SVGA resolution
•DayBrite™ non-glare, high-contrast LCD for optimum viewing indoors and out
•16-bit Sound Blaster Pro-compatible sound
•MIDI and .wav support
•Built-in stereo speakers and microphone
•Jacks for headphone/external speakers, microphone/line in
PC Cards
•32-bit PCI Bus
•ZV (Zoomed Video) port
•Takes two type II or one type III PC card
•ZV (Zoomed Video) port supports direct video stream to graphics controller
•New 68 pin assignment, fully compatible with PCMCIA standard, supports
3.3V and 5V cards
•Suitable for video, serial SCSI, ISDN and MPEG video cards
Keyboard & Input
•Convenient keyboard brightness control (Fn + U/D arrow keys)
•IrDA (Infrared communications) on back panel
•Serial (UART 16550 compatible): Dsub 9pin
•Parallel (bi-directional/ECP): Dsub 25-pin
•External monitor: Dsub 15-pin
•External Keyboard/PS/2 mouse: mini-din 6-pin
•Bus Expansion: dedicated 240-pin
•Line in: mini jack
•Speaker out: mini jack (stereo)
Power Supply
•High performance Lithium Ion battery
•6200mAh (min.) / 7000mAh (typical)
•Intelligent Power Management for precise battery status reporting
•Battery charging time: approximately 3 hours
•AC adaptor 110V-240V 50/60Hz
•Auto-sensing for worldwide power supply
Power Management
•Suspend/Resume Hibernation, Standby, APM BIOS, battery status
•Power management utilities
•Panasonic sound recorder
•TranXit™ V3.0 Print Pro IrDA port software control
•Seagate Backup
•Cardworks™ PC Card software
•CF-62 online manual on CD-ROM
•Windows®95 and System Utilities provided on CD-ROM for backup
Security Features
•PD cartridge is easily removable: “Take your data to dinner”
•Password Security: Supervisor, User, “Coffee Break”
•Integrated Kensington Lock slotHDD removable for security and mobility
•Three year limited factory warranty, parts and labor
Dimensions & Weight
•2.4"(H) x 11.7"(W) x 9.4"(D)
