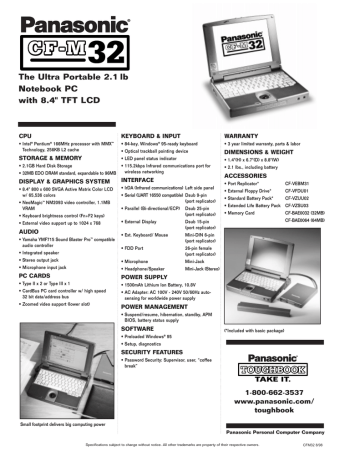

Panasonic Toughbook M32 User's manual

Panasonic Toughbook M32 User's manual
The Ultra Portable 2.1 lb
Notebook PC
with 8.4" TFT LCD
CPU
KEYBOARD & INPUT
WARRANTY
• Intel® Pentium® 166MHz processor with MMX™
Technology, 256KB L2 cache
• 84-key, Windows® 95-ready keyboard
• 3 year limited warranty, parts & labor
• Optical trackball pointing device
DIMENSIONS & WEIGHT
STORAGE & MEMORY
• LED panel status indicator
• 1.4"(H) x 6.7"(D) x 8.8"(W)
• 2.1GB Hard Disk Storage
• 2.1 lbs., including battery
• 32MB EDO DRAM standard, expandable to 96MB
• 115.2kbps Infrared communications port for
wireless networking
DISPLAY & GRAPHICS SYSTEM
INTERFACE
• 8.4" 800 x 600 SVGA Active Matrix Color LCD
w/ 65,536 colors
• IrDA (Infrared communications) Left side panel
• NeoMagic™ NM2093 video controller, 1.1MB
VRAM
• Serial (UART 16550 compatible) Dsub 9-pin
(port replicator)
• Parallel (Bi-directional/ECP)
• Keyboard brightness control (Fn+F2 keys)
Dsub 25-pin
(port replicator)
• External Display
Dsub 15-pin
(port replicator)
• Ext. Keyboard/ Mouse
Mini-DIN 6-pin
(port replicator)
• FDD Port
26-pin female
(port replicator)
• Stereo output jack
• Microphone
Mini-Jack
• Microphone input jack
• Headphone/Speaker
Mini-Jack (Stereo)
PC CARDS
POWER SUPPLY
• Type II x 2 or Type III x 1
• 1500mAh Lithium Ion Battery, 10.8V
• CardBus PC card controller w/ high speed
32 bit data/address bus
• AC Adapter: AC 100V - 240V 50/60Hz autosensing for worldwide power supply
• Zoomed video support (lower slot)
POWER MANAGEMENT
• External video support up to 1024 x 768
AUDIO
• Yamaha YMF715 Sound Blaster Pro™ compatible
audio controller
• Integrated speaker
ACCESSORIES
• Port Replicator*
CF-VEBM31
• External Floppy Drive*
CF-VFDU01
• Standard Battery Pack*
CF-VZUU02
• Extended Life Battery Pack
CF-VZSU03
• Memory Card
CF-BAE0032 (32MB)
CF-BAE0064 (64MB)
• Suspend/resume, hibernation, standby, APM
BIOS, battery status supply
SOFTWARE
(*Included with basic package)
• Preloaded Windows® 95
• Setup, diagnostics
SECURITY FEATURES
• Password Security: Supervisor, user, “coffee
break”
1-800-662-3537
www.panasonic.com/
toughbook
Small footprint delivers big computing power
Panasonic Personal Computer Company
Specifications subject to change without notice. All other trademarks are property of their respective owners.
CFM32 8/98
