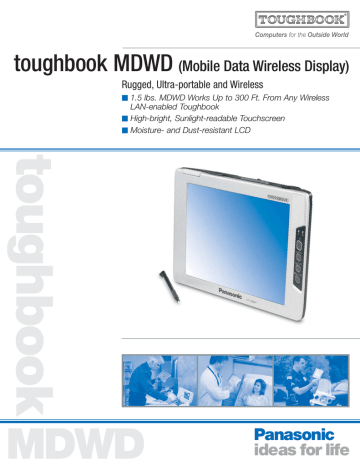

toughbook MDWD (Mobile Data Wireless Display)
Rugged, Ultra-portable and Wireless
■ 1.5 lbs. MDWD Works Up to 300 Ft. From Any Wireless
LAN-enabled Toughbook
■ High-bright, Sunlight-readable Touchscreen
■ Moisture- and Dust-resistant LCD
toughbook
MDWD
Panasonic
ideas for life
toughbook MDWD (Mobile Data Wireless Display)
Rugged, Ultra-portable and Wireless
toughbook
Toughbook MDWD
DURABILITY FEATURES
•
•
•
•
Designed using MIL-STD-810F test procedures
Full magnesium alloy case
Moisture- and dust-resistant LCD
Sealed port and connector covers
DISPLAY
• 8.4" 800 x 600 (SVGA) High-bright, sunlight-readable TFT
Active Matrix Color LCD with Touchscreen
KEYBOARD & INPUT
•
•
•
•
SWITCHES
• Power, Menu, Right Mouse Click, Screen Capture
WIRELESS LAN
• 802.11b
• Security: Encryption
– 128-bit, 64-bit WEP
– 256-bit, 192-bit, 128-bit AES
POWER SUPPLY
• Lithium Ion battery pack (1800mAH/7.4V)
• Battery operation: up to 2.5 hours (Backlight on, Low),
up to 1.5 hours (Backlight on, High)*
• Battery charging time: approximately 2 hours (Power off),
5 hours (Power on)
Touchscreen LCD
Pop-up on-screen keyboard
Built-in stylus
Serial port (9-pin)
WARRANTY
• 3-year limited warranty, parts & labor
DIMENSIONS & WEIGHT
• 6.4"(H) x 8.7"(W) x 1.2"(D)
• 1.5 lbs.
ACCESSORIES**
•
•
•
•
•
•
•
AC Adapter (3 pin)
Lithium Battery Pack
CF-P1/MDWD Stylus
Three Bay Battery Charger
FieldMate Always-on Carry Case
Holster and Belt
8.4" LCD Protector Film
CF-AA1623AM
CF-VZSU21W
CF-VNP003U
CF-VCB071AW
CF-FMAOMDWD
CF-FMHB
CF-VPF01U
■ 1.5 lbs. MDWD Works Up to 300 Ft. From Any
Wireless LAN-enabled Toughbook
■ High-bright, Sunlight-readable Touchscreen
■ Moisture- and Dust-resistant LCD
**Battery performance features such as charge time and life span can
vary according to the conditions under which the computer and battery
are used. Battery operation and recharge times will vary based on many
factors including screen brightness, applications, features, power
management, battery conditioning and other customer preferences.
**Accessories may vary depending on your notebook configuration.
Please consult your reseller or Panasonic representative before purchasing.
MDWD
Toughbook MDWD with Magnetic Stripe Reader and Fingerprint Scanner
(same features as model above except as noted below)
MAGNETIC STRIPE READER*
•
•
•
•
•
Data Standards
Operation
Read Direction
Read Passes
Card Specifications
AAMVA
CA DMV
FINGERPRINT SCANNER*
• Resolution
• Grey Levels
• Sensor Area
ISO7810, ISO7811, CA DMV and AAMVA
Manual Swipe/Read only
Bi-Directional
300,000
Track 1:82 Characters/7 Bits
Track 2:40 Characters/6 Bits
Track 3:82 Characters/7 Bits
Track 1:104 Chracters/6 Bits
Track 2:34 Characters/5Bits
Track 3:104 Characters/6 Bits
500 dpi x 500 dpi
256 Levels
0.6" x 0.6"
KEYBOARD & INPUT
• Touchscreen LCD
• Pop-up on-screen keyboard
• Built-in stylus
DIMENSIONS & WEIGHT
• 6.4"(H) x 8.9"(W) x 1.6"(D)
• 2.2 lbs.
MDWD with
Magnetic Stripe Reader
MDWD with
Fingerprint Scanner
SOFTWARE DEVELOPMENT KIT
• API for magnetic stripe reader,
fingerprint scanner and
signature box definition**
CF-VDW07RFHM
ACCESSORIES***
• AC Adapter
• Battery Pack
• CF-P1/MDWD Stylus
• Holster and Belt
• Three Bay Battery Charger
• 8.4" LCD Protector Film
CF-AA1639AM
CF-VZSU21W
CF-VNP003U
CF-FMHB
CF-VCB071AW
CF-VPF01U
*Requires the purchase of software development kit (CF-VDW07RFHM).
**Purchase software directly from Panasonic.
***Accessories may vary depending on your notebook configuration.
Please consult your reseller or Panasonic representative before purchasing.
For more information call 1-800-662-3537 or visit us
on the Web at panasonic.com/toughbook.
Panasonic is constantly enhancing product specifications and accessories. To find the most up-to-date
information on the MDWD and Panasonic Toughbooks, please visit our website. Specifications subject
to change without notice. Trademarks are property of their respective owners. ©2005 Panasonic Computer
Solutions Company, Unit of Panasonic Corporation of North America. All rights reserved.
ssMDWD 1/06
