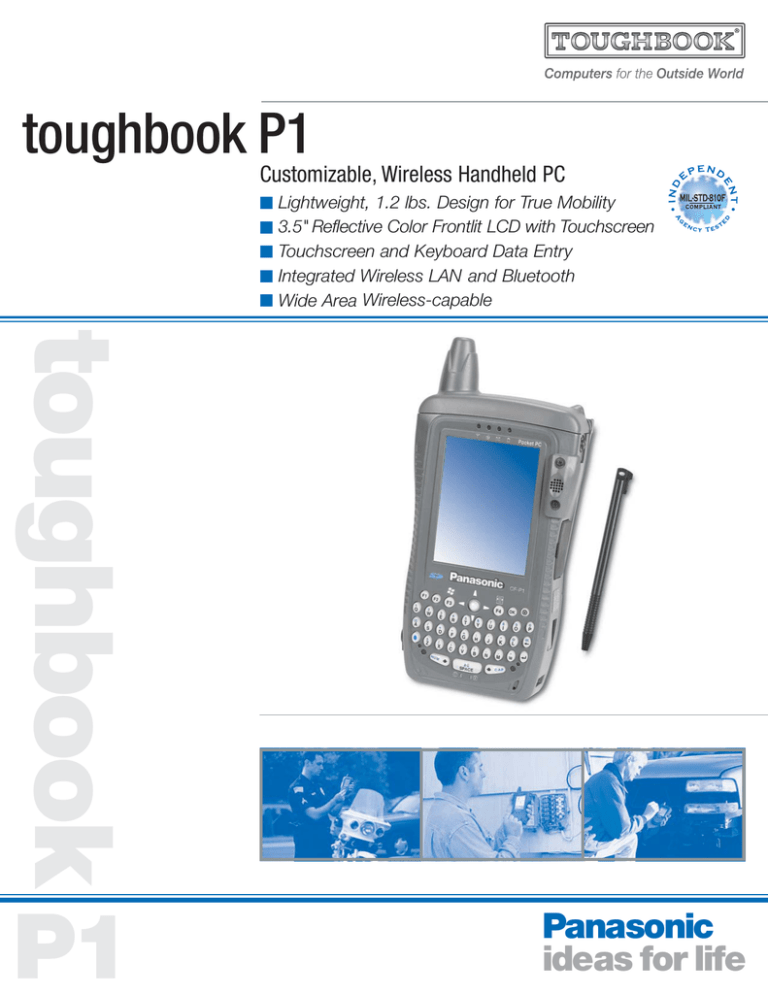

toughbook P1
Customizable, Wireless Handheld PC
■
■
■
■
■
Lightweight, 1.2 lbs. Design for True Mobility
3.5" Reflective Color Frontlit LCD with Touchscreen
Touchscreen and Keyboard Data Entry
Integrated Wireless LAN and Bluetooth
Wide Area Wireless-capable
toughbook
P1
Panasonic
ideas for life
toughbook P1
Customizable, Wireless Handheld PC
DURABILITY FEATURES
•
•
•
•
•
Designed using MIL-STD-810F test procedures
Dust- and moisture-resistant casing
Sealed port and connector covers
Scratch-resistant case and screen
Drop shock-resistant design
CPU
• Intel® XScale PXA263 Microprocessor 400MHz
• 32KB I-cache, 32KB D-cache
• Companion Chip: MediaQ LCD and Peripheral Controller
STORAGE & MEMORY
• 64MB SDRAM
• 64MB Flash EPROM
• Secure Digital (SD) Card/Multimedia Card x 1
DISPLAY
• 3.5" 240 x 320 (QVGA) reflective, sunlight-readable TFT Active Matrix Color
frontlit LCD with Touchscreen
KEYBOARD & INPUT
•
•
•
•
•
38-key backlit keyboard
4 programmable function keys
4-direction cursor control button
Touchscreen LCD
Built-in stylus
■ Lightweight, 1.2 lbs. Design for True Mobility
■ 3.5" Reflective Color Frontlit LCD with
Touchscreen
■ Touchscreen and Keyboard Data Entry
■ Integrated Wireless LAN and Bluetooth
■ Wide Area Wireless-capable
• Expansion Connector
• Headphones/Speaker
• Infrared IrDA SiR
16 pin
Mini-jack
115.2Kbps
WIRELESS
• Wireless LAN 802.11b
• Bluetooth™
POWER SUPPLY
• Lithium Ion Rechargeable Battery (7.4V, 2100mAh)
• Battery operation: up to 8 hours (Frontlight on), up to 24 hours (Frontlight off)*
• Battery charging time: approximately 3 hours*
• AC Adapter: AC 100V-240V 50/60Hz, Auto Sensing/Switching worldwide
power supply
• Sub-Battery: Lithium Rechargeable Backup Battery (3.0V, 100mAh)
POWER MANAGEMENT
• Suspend/Resume Function
SOFTWARE
• Microsoft® Windows® Mobile™ 2003 Software for Pocket PC
• Setup, Diagnostics
SECURITY FEATURES
• Password Security
WARRANTY
• 1-year limited warranty, parts & labor
DIMENTIONS & WEIGHT
• 6.8"(H) x 3.9"(W) x 1.6"(D)
• 1.2 lbs.
DESKTOP CRADLE
• Expansion Connector –16 pin
• DC-In
• USB ActiveSync® cable included
toughbook
INTERFACE
P1
For more information call 1-800-662-3537 or visit us
on the Web at panasonic.com/toughbook.
Panasonic is constantly enhancing product specifications and accessories. To find the most up-to-date
information on the Toughbook P1, please visit our website. Specifications subject to change without notice.
Trademarks are property of their respective owners. ©2005 Panasonic Computer Solutions Company,
Unit of Panasonic Corporation of North America. All rights reserved.
ssP1 02/05
INTEGRATED OPTIONS**
• Wide Area Wireless Solutions
– GSM/GPRS with easily accessible
SIM slot (availability may vary)
– Voice communications-capable
w/GPRS option (allows hands-free
and speakerphone use)
– 1xRTT/CDMA 2000
(availability may vary)
• 2D Barcode reader
ACCESSORIES**
• AC Adapter
CF-AA1623AM
• Additional Desktop Cradle
CF-VEBP12U
• Battery Charger
CF-VCBP11M
• Three Bay Battery Charger
CF-VCBP12U
• Battery Pack
CF-VZSU28W
• Holster, Belt Mount and Stylus Tether
CF-FMP1BST
• Serial ActiveSync® Cable
CF-KP1CB001
• Serial Host (RS-232C) Cable
CF-KP1CB002
• CF-P1/MDWD Stylus
CF-VNP002U
• Tether
CF-STP1
• Universal Cable Connection Protector
CF-VCCP11U
• USB ActiveSync® Cable
CF-KP1CB004
• USB Host (4 pin) Cable
CF-KP1CB003
*Battery performance features such as charge time and life span can
vary according to the conditions under which the computer and battery
are used. Battery operation and recharge times will vary based on many
factors including screen brightness, applications, features, power
management, battery conditioning and other customer preferences.
**Accessories and Integrated Options may vary depending on your
handheld configuration.
Please consult your reseller or Panasonic representative before purchasing.
