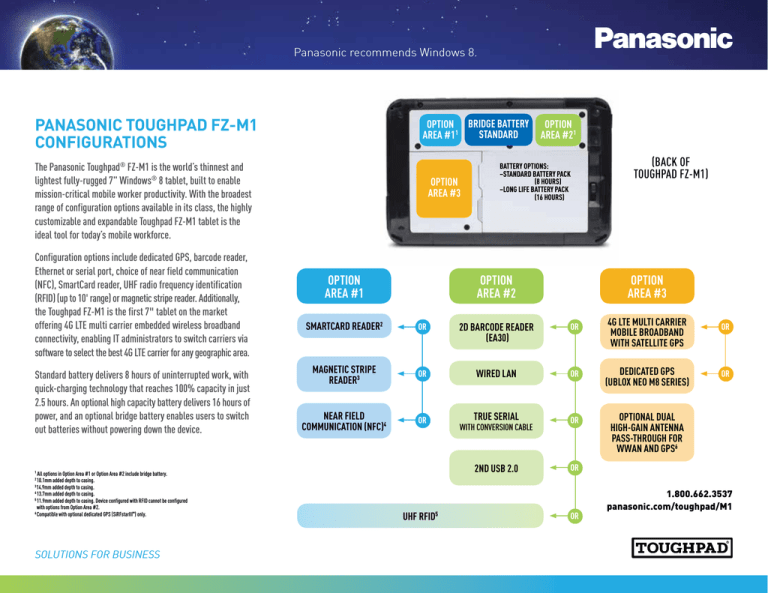

PANASONIC TOUGHPAD FZ-M1
CONFIGURATIONS
OPTION BRIDGE BATTERY
STANDARD
AREA #1 1
The Panasonic Toughpad® FZ-M1 is the world’s thinnest and
lightest fully-rugged 7" Windows® 8 tablet, built to enable
mission-critical mobile worker productivity. With the broadest
range of configuration options available in its class, the highly
customizable and expandable Toughpad FZ-M1 tablet is the
ideal tool for today’s mobile workforce.
Configuration options include dedicated GPS, barcode reader,
Ethernet or serial port, choice of near field communication
(NFC), SmartCard reader, UHF radio frequency identification
(RFID) (up to 10' range) or magnetic stripe reader. Additionally,
the Toughpad FZ-M1 is the first 7" tablet on the market
offering 4G LTE multi carrier embedded wireless broadband
connectivity, enabling IT administrators to switch carriers via
software to select the best 4G LTE carrier for any geographic area.
Standard battery delivers 8 hours of uninterrupted work, with
quick-charging technology that reaches 100% capacity in just
2.5 hours. An optional high capacity battery delivers 16 hours of
power, and an optional bridge battery enables users to switch
out batteries without powering down the device.
All options in Option Area #1 or Option Area #2 include bridge battery.
10.1mm added depth to casing.
3
14.9mm added depth to casing.
4
13.7mm added depth to casing.
5
11.9mm added depth to casing. Device configured with RFID cannot be configured
with options from Option Area #2.
6
Compatible with optional dedicated GPS (SiRFstarIII™) only.
OPTION
AREA #3
OPTION
AREA #1
OPTION
AREA #2 1
BATTERY OPTIONS:
–STANDARD BATTERY PACK
(8 HOURS)
–LONG LIFE BATTERY PACK
(16 HOURS)
OPTION
AREA #2
(BACK OF
TOUGHPAD FZ-M1)
OPTION
AREA #3
4G LTE MULTI CARRIER
MOBILE BROADBAND
WITH SATELLITE GPS
SMARTCARD READER2
OR
2D BARCODE READER
(EA30)
OR
MAGNETIC STRIPE
READER3
OR
WIRED LAN
OR
DEDICATED GPS
(UBLOX NEO M8 SERIES)
NEAR FIELD
COMMUNICATION (NFC)4
OR
TRUE SERIAL
OR
OPTIONAL DUAL
HIGH-GAIN ANTENNA
PASS-THROUGH FOR
WWAN AND GPS6
WITH CONVERSION CABLE
2ND USB 2.0
1
OR
OR
OR
2
SOLUTIONS FOR BUSINESS
UHF RFID5
OR
1.800.662.3537
panasonic.com/toughpad/M1
Panasonic recommends Windows 8.
PANASONIC TOUGHPAD FZ-M1 CONFIGURATION PROFILES
The Panasonic Toughpad® FZ-M1 can be configured with a variety of integrated options. The options selected for Area #1 will change the dimensions of the tablet, as illustrated below.
SCR
MSR
10.1 mm (SCR)
SCR
NFC
14.9 mm (MSR)
MSR
SOLUTIONS FOR BUSINESS
Options are sold as SKU configurations and not sold separately. SKU availability is based on customer demand. Please consult with a Panasonic representative to verify SKU availability.
All configurations are factory installed options, and are not user-interchangeable. ©2014 Panasonic Corporation of North America. All rights reserved. Toughpad FZ-M1 Configuration PDF_06/14
13.7 mm (NFC)
NFC
UHF RFID
11.9 mm (UHF RFID)
UHF
RFID
