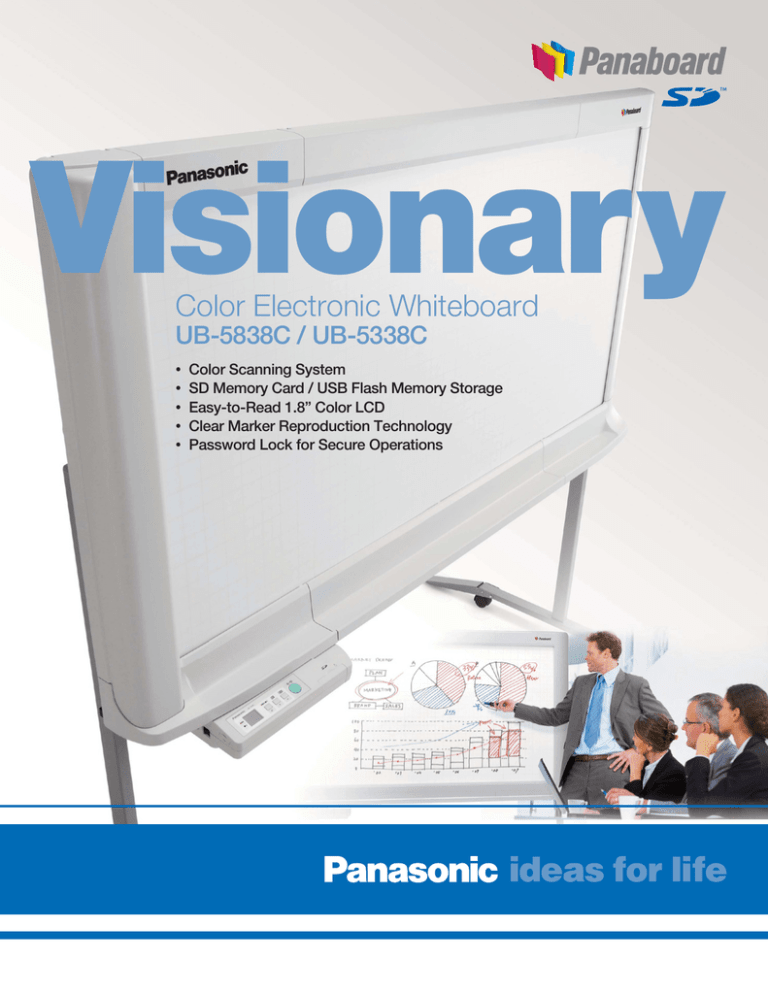

Visionary
Color Electronic Whiteboard
UB-5838C / UB-5338C
•
•
•
•
•
Color Scanning System
SD Memory Card / USB Flash Memory Storage
Easy-to-Read 1.8” Color LCD
Clear Marker Reproduction Technology
Password Lock for Secure Operations
View, Save and
Share -- All in Color.
This advanced color Panaboard supports a variety of
business situations with a wide range of functions. You
can save the information written on the board onto a PC,
an SD Memory Card, or USB flash memory, and
distribute it as electronic data to your colleagues from a
PC, all in color. Operation is done using
easy-to-understand icons. Panaboard gives you
maximum power in presentations and conferences.
Paperless, Data-Based Solutions
Save directly to memory
Save directly to a PC
Scanned data can be saved in PDF or JPEG
formats on an SD Memory Card or USB
flash memory, then transferred to your PC.
You can easily edit it using the bundled
Panasonic Document Management System
software.
Simply connect the board to a PC with the USB cable
to save the board content without having to install any special
software. The board imitates USB flash memory, so no
additional software is needed to store the scanned images.
PC-Free Data Storage Solution Direct PC Connectivity Solution
LAN
USB
Environmentally conscious
Accurate text scanning, even of blurry text
Eco-Friendly Design
Clear Marker
Reproduction Technology
Save paper by directly downloading your written content
onto a PC. Wasteful printouts are unnecessary, because
it's equipped with a color LCD for confirming the scanned
data. And it's also gentle on the environment because its
low energy usage saves resources.
The blurry marker text that was so difficult to scan
can now be accurately scanned to produce
easy-to-read conference notes.
Conventional saved images
Images saved by
the UB-5838C / UB-5338C
Easy-to-Read 1.8” LCD
Flexible installation
Helps prevent data leaks
Thin and Lightweight
Password Lock for Operation
This thin, lightweight board is ideal for wall mounting.
Rear panel protrusions have been reduced to enable
neater, more attractive mounting. The design is a great
match for today's modern offices and conference rooms.
With this feature data can
only be saved with entry
of a four-letter password
(requires prior password
setup).
Operation Password function
Scroll with one button.
By turning on the Screen
Erase Announce function,
an icon appears on the
LCD when scanning is
finished as a reminder
that the board has not
been erased.
Screen Erase Announce function
Versatile Color Printing Solutions
Printing without a PC
On-the-spot printing
PC-Free Printing Solution
Direct Color Printing Solution
You don't need a PC to print a copy of the material written on
the board. If your printer is equipped with an SD Card slot or
USB flash memory slot, you can print data without using a PC.
Just plug the storage memory device into the printer and press
the Print button.
The UB-5838C / UB-5338C come standard with a USB printer
port. You can connect a printer* directly to the board using a
USB printer cable and print data in vivid color.
* For information regarding available printers, refer to the following site
http://panasonic.co.jp/pcc/products/en/eboard/ub-5838C_info.htm
USB
Color printouts
Color printouts
DP-C406 Series / DP-MC210
UB-5838C / UB-5338C Specifications
General
Printer Output
Power Supply
AC 100-120 V, 50/60 Hz
Interface
USB 2.0 (Full Speed, USB Master, A-Type Connector)
Power Consumption
Less than 0.35A / Less than 0.15A (Operational/Standby)
Support Protocol
PCL 3 GUI (Most HP Color Ink-Jet Printers)*2
Display
1.8" Color LCD
Supported Printers
Refer to the Internet home page*2
Dimensions*1 (H
Print Resolution
300 dpi x 300 dpi
UB-5838C
44.3 in. x 78.6 in. x 8.8 in. (1,125 mm x 1,998 mm x 224 mm)
Continuous Printing
1 to 9 sheets
UB-5338C
44.3 in. x 64.4 in. x 8.8 in. (1,125 mm x 1,636 mm x 224 mm)
Print Size
External
x W x D, without stand)
Weight*1 (without stand)
UB-5838C
Letter Size
UB-5838C
62 lbs. (28 kg)
UB-5338C
Letter Size
UB-5338C
58 lbs. (26 kg)
PC Interface
Interface
Ambient Operating Conditions Temperature: 50 °F to 95 °F (10 °C to 35 °C)
USB 2.0 (Full Speed, USB Slave, B-Type Connector)
Windows Vista®, Windows® XP (SP2 or higher)
Operating System
Humidity: 30 % to 80 % RH
Windows® 2000(SP4 or higher)
Input Block
Panel Dimensions (H x W)*1
Included Accessories & Consumables
UB-5838C
33.0 in. x 68.5 in (838 mm x 1,740 mm)
Clock Battery (CR2032) ,USB cable (7 ft. / 2.4 m)
UB-5338C
33.0 in. x 54.2 in (838 mm x 1,378 mm)
Markers (1 black, 1 red and 1 blue), 1 Eraser
2 (endless scroll type)
Optional Consumables
Panel Surface
Scanning Area (H x W)
UB-5838C
31.1 in. x 67.7 in. (790 mm x 1,722 mm)
UB-5338C
31.1 in. x 53.5 in. (790 mm x 1,360 mm)
Scanning System
Contact Image Sensors
Scanning Modes
Color / Black and White
Standard-size / Full-size
UB-5338C
Standard-size
Standard-size : 41 dpi x 41 dpi (1.6 dot/mm x 1.6 dot/mm)
Full-size
UB-5338C
Scanning Time
(Until the scanning is finished)
UE-608035
Microsoft®, Windows®, Windows Vista® and the Windows logo are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries.
SD Logo is a trademark.
All other brand or product names are the property of their respective holders.
Design and specifications are subject to change without notice.
Scanning Resolution (H x W)
UB-5838C
KX-B035 (1 black, 1 red, 1 blue markers and 1 eraser)
Stand
*1 Dimensions and weights are approximate.
*2 For information regarding available USB flash memory devices, SD Memory Cards, and printers,
refer to the following site: http://panasonic.co.jp/pcc/products/en/eboard/ub-5838C_info.htm
Scanning Size
UB-5838C
Markers and Eraser Set
: 62 dpi x 41 dpi (2.5 dot/mm x 1.6 dot/mm)
Standard-size : 56 dpi x 56 dpi (2.1 dot/mm x 2.1 dot/mm)
Color : 30 seconds
Black and White : 20 seconds
Memory Output
Supported Memory Types*2
Support Format
SD Memory Card, USB flash memory (Not included)
SD Memory Card: FAT16 format, Maximum capacity 2 GB
USB flash memory: FAT (FAT16) / FAT32 format, Maximum capacity 32 GB
USB Flash Memory Interface
SD Specification
USB 2.0 (Full Speed, USB Master, A-Type Connector)
Version 1.10
*SDHC Memory Card and SD I/O standard is not supported.
Store File Format
Color Scanning: PDF or JPEG (JPEG Compression)
Black and White Scanning: PDF or JPEG (JPEG Compression)
Options / Consumables
Dimensions (Including optional stand)
78.6 in. (1,998 mm)
Markers and eraser set (KX-B035)
(1 black, 1 red, 1 blue, 1 eraser)
68.5 in. (1,740 mm)
33.0 in.
(838 mm)
64.4 in. (1,636 mm)
54.2 in. (1,378 mm)
33.0 in.
(838 mm)
44.3 in.
(1,125 mm)
72.1 in.
(1,830 mm)
44.3 in.
(1,125 mm)
72.1 in.
(1,830 mm)
Stand (UE-608035)
8.8 in.
(224 mm)
8.8 in.
(224 mm)
47.6 in.
(1,207mm)
UB-5838C
47.6 in.
(1,207mm)
UB-5338C
This product is designed to reduce hazardous chemical substances along with the RoHS directive.
UB-5838C200906BRO Printed in Japan
