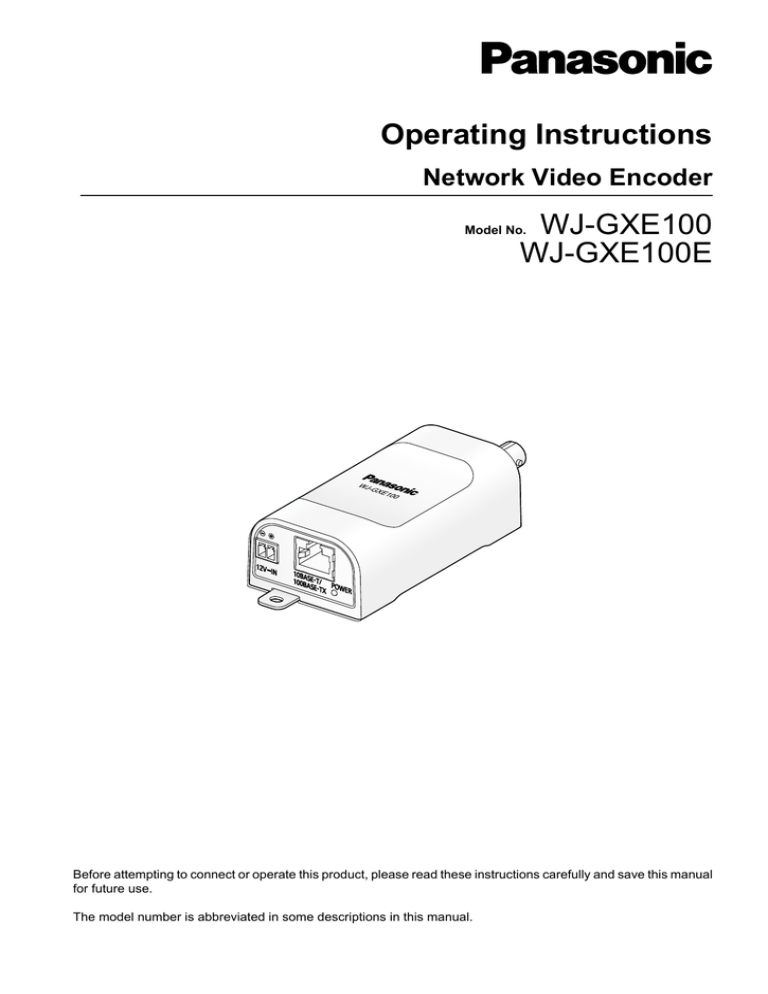

Operating Instructions
Network Video Encoder
WJ-GXE100
WJ-GXE100E
Model No.
Before attempting to connect or operate this product, please read these instructions carefully and save this manual
for future use.
The model number is abbreviated in some descriptions in this manual.
Preface
Preface
About the user manuals
There are 2 sets of operating instructions for the WJ-GXE100 (P model), WJ-GXE100E (E model) as follows.
Installation Guide: Explains how to install and connect devices.
Operating Instructions: Explains how to perform the settings and how to operate this unit.
The model number is abbreviated in some descriptions in this manual.
The screens used in these operating instructions show the case of WJ-GXE100 (P model). Depending on the
model used, the screens shown in the explanations may differ to the actual unit screens.
•
•
Trademarks and registered trademarks
•
•
•
•
•
•
Microsoft, Windows, Windows Vista, Internet Explorer, ActiveX and DirectX are either registered
trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Microsoft product screen shot(s) reprinted with permission from Microsoft Corporation.
iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
Android is a trademark of Google Inc.
Firefox is a registered trademark of the Mozilla Foundation.
All other trademarks identified herein are the property of their respective owners.
Abbreviations
The following abbreviations are used in these operating instructions.
Microsoft® Windows® 7 is described as Windows 7.
Microsoft® Windows Vista® is described as Windows Vista.
Microsoft® Windows® XP SP3 is described as Windows XP.
Windows® Internet Explorer® 9.0, Windows® Internet Explorer® 8.0, Windows® Internet Explorer® 7.0 and
Microsoft® Internet Explorer® 6.0 are described as Internet Explorer.
Universal Plug and Play is described as UPnP™.
2
Operating Instructions
Preface
Viewer software
It is necessary to install the viewer software “Network Camera View 4S” (ActiveX®) to display images on a PC.
This software can be installed directly from the unit or by selecting the [Install] button next to [Viewer
Software] on the menu of the CD-ROM provided, and then following the on-screen instructions.
IMPORTANT
•
•
•
•
The default setting of “Automatic installation of viewer software” is “On”. Follow the instructions on
page 130 when the message is displayed on the information bar of the browser.
When the “Live” page is displayed for the first time, the install wizard of the ActiveX control required to
display images from the camera will be displayed. Follow the instructions of the wizard.
When the install wizard is displayed again even after completing the installation of the ActiveX, restart
the PC.
The viewer software used on each PC should be licensed individually. The number of installations of
the viewer software from the unit can be checked on the [Upgrade] tab of the “Maintenance” page
(®page 106). Refer to your dealer for the software licensing.
Operating Instructions
3
Table of Contents
Table of Contents
1 Monitor images on a PC ..........................................................................7
1.1
1.2
1.3
Monitor images from a single camera .............................................................................7
About the “Live” page ......................................................................................................9
Monitor images from multiple cameras ........................................................................13
2 Monitor images on a cellular phone/mobile terminal .........................14
2.1
2.2
Monitor images on a cellular phone ..............................................................................14
Monitor images on a mobile terminal ............................................................................15
3 Action at an alarm occurrence ..............................................................18
3.1
3.2
Alarm type ........................................................................................................................18
Action at an alarm occurrence .......................................................................................18
4 Transmit images onto an FTP server ...................................................19
4.1
4.2
Transmit an alarm image at an alarm occurrence (Alarm image
transmission) ...................................................................................................................19
Transmit images at a designated interval or period (FTP periodic image
transmission) ...................................................................................................................19
5 About the network security ...................................................................20
5.1
Equipped security functions ..........................................................................................20
6 Display the setup menu from a PC .......................................................21
6.1
6.2
6.3
How to display the setup menu .....................................................................................21
How to operate the setup menu .....................................................................................23
About the setup menu window ......................................................................................25
7 Configure the basic settings of the unit [Basic] .................................27
7.1
7.2
Configure the basic settings [Basic] .............................................................................27
Configure the Internet settings [Internet] .....................................................................30
8 Configure the settings relating to images [Image] .............................32
8.1
8.2
8.3
8.4
8.5
Configure the settings relating to the Picture (Camera) mode/Video input [JPEG/H.
264] ...................................................................................................................................32
Configure the settings relating to JPEG images [JPEG/H.264] ..................................33
Configure the settings relating to H.264 images [JPEG/H.264] ..................................35
Configure the settings relating to image and positions [Image/Position] .................40
Configure the settings relating to RS485 [RS485] .......................................................41
9 Configure the multi-screen settings [Multi-screen] ............................44
10 Configure the alarm settings [Alarm] ...................................................46
10.1
10.2
10.3
10.3.1
10.4
10.5
Configure the settings relating to the alarm action [Alarm] .......................................46
Configure the settings relating to the alarm image [Alarm] ........................................47
Configure the VMD settings [VMD area] .......................................................................48
Set the VMD areas [VMD area] ......................................................................................50
Configuration of the settings relating to the E-mail notification [Notification] .........52
Configure the settings relating to Panasonic alarm protocol [Notification] .............53
11 Configure the settings relating to the authentication [User
mng.] .......................................................................................................56
11.1
4
Configure the settings relating to the user authentication [User auth.] ....................56
Operating Instructions
Table of Contents
11.2
11.3
Configure the settings relating to the host authentication [Host auth.] ....................57
Configure the settings relating to the priority stream [System] .................................58
12 Configure the settings of the servers [Server] ....................................61
12.1
12.2
12.3
Configure the settings relating to the E-mail server [E-mail] .....................................61
Configure the settings relating to the FTP server [FTP] .............................................62
Configure the settings relating to the NTP server [NTP] .............................................64
13 Configuring the network settings [Network] .......................................66
13.1
13.2
13.2.1
13.2.2
13.2.3
13.2.4
13.2.5
13.3
13.3.1
13.4
13.4.1
13.4.2
13.4.3
13.4.4
13.4.5
13.4.6
13.5
13.6
13.7
13.7.1
13.7.2
Configure the network settings [Network] ....................................................................66
Configure the HTTPS settings .......................................................................................74
Generation of the CRT key (SSL encryption key) ..........................................................75
Generation of the self-signed certificate (security certificate) .........................................76
Generation of CSR (Certificate Signing Request) ..........................................................78
Installation of the server certificate .................................................................................79
Configuration of the connection protocol ........................................................................80
Access the unit using the HTTPS protocol ..................................................................81
Install the security certificate ..........................................................................................81
Configure the settings relating to DDNS [DDNS] .........................................................91
Configuration of the DDNS service (Example of the “Viewnetcam.com” service) ..........92
When using the “Viewnetcam.com” service ...................................................................93
Procedure to register information for the “Viewnetcam.com” service .............................94
Checking the information registered for the “Viewnetcam.com” service ........................97
When using “Dynamic DNS Update” ..............................................................................97
When using “Dynamic DNS Update(DHCP)” .................................................................97
Configure the settings relating to SNMP [SNMP] ........................................................98
Configure the settings relating to the FTP periodic image transmission [FTP img.
trans.] ...............................................................................................................................99
Configure the schedule settings of the FTP periodic image transmission [FTP img.
trans.] .............................................................................................................................100
How to set the schedules .............................................................................................101
How to delete the set schedule ....................................................................................102
14 Configure the settings relating to the schedules [Schedule] ..........103
15 Maintenance of the unit [Maintenance] ..............................................106
15.1
15.2
15.3
15.4
Check the system log [System log] .............................................................................106
Upgrade the firmware [Upgrade] .................................................................................106
Check the status [Status] .............................................................................................108
Reset the settings/Reboot the unit [Default reset] .....................................................109
16 Functional restrictions ........................................................................111
16.1
Functional restrictions when “D1” is selected ...........................................................111
17 Number of users that can concurrently access the unit ..................112
18 Using the CD-ROM ...............................................................................113
18.1
18.2
18.3
18.4
18.5
About the CD launcher .................................................................................................113
Installing Panasonic “IP Setting Software” ................................................................114
Installing the manuals ..................................................................................................115
Installing the Viewer software ......................................................................................115
Configure the network settings of the unit using the Panasonic “IP Setting
Software” .......................................................................................................................116
19 About the displayed system log .........................................................118
Operating Instructions
5
Table of Contents
20 Troubleshooting ...................................................................................122
6
Operating Instructions
1 Monitor images on a PC
1 Monitor images on a PC
The following are descriptions of how to monitor images from the camera on a PC.
1.1 Monitor images from a single camera
1. Start up the web browser.
2. Enter the IP address designated using the Panasonic “IP Setting Software” in the address box of the
browser.
• Example when entering an IPv4 address: http://URL registered using IPv4 address
http://192.168.0.10/
• Example when entering an IPv6 address: http://[URL registered using IPv6 address]
http://[2001:db8::10]/
<Example of IPv4 access>
<Example of IPv6 access>
IMPORTANT
•
•
When the HTTP port number is changed from “80”, enter “http://IP address of the unit + : (colon)
+ port number” in the address box of the browser. (Example: http://192.168.0.11:8080)
When the PC is in a local network, configure the proxy server setting of the web browser (under
[Internet Options...] under [Tools] of the menu bar) to bypass the proxy server for the local address.
Note
•
Refer to page 81 for further information about the case in which “HTTPS” is selected for
“HTTPS” - “Connection” on the [Network] tab of the “Network” page (®page 66).
Operating Instructions
7
1 Monitor images on a PC
3. Press the [Enter] key on the keyboard.
→ The “Live” page will be displayed. Refer to page 9 for further information about the “Live” page.
When “On” is selected for “User auth.”, the authentication window will be displayed before displaying live
images for the user name and password entries. The default user name and password are as follows.
User name: admin
Password: 12345
IMPORTANT
•
•
To enhance the security, change the password for the user name “admin”. It is recommended to change
this password periodically.
When displaying multiple H.264 images on a PC, images may not be displayed depending on the
performance of the PC.
Note
•
•
•
8
The maximum number of concurrent access user is 14 including users who is receiving H.264 images
and users who are receiving JPEG images. Depending on the set values for “Bandwidth control(bit
rate)” and “Max bit rate (per client)”, the maximum concurrent access number may be 14 or less users.
When 14 users are concurrently accessing, the access limit message will be displayed for users who
subsequently attempt to access. When “Multicast” is selected for “Transmission type” of “H.264”, only
the first user who accessed to monitor H.264 images will be included in the maximum number. The
second and subsequent users who are monitoring H.264 images will not be included in the maximum
number.
When “On” is selected for “H.264 transmission” (®page 36), H.264 images will be displayed. When
“Off” is selected, a JPEG image will be displayed. It is possible to display a JPEG image even when
“On” is selected for “H.264 transmission”. In this case, the refresh interval of JPEG images will be
limited.
The refresh interval may become longer depending on a network environment, PC performance,
photographic subject, access traffic, etc.
<Refresh interval of JPEG images>
When “On” is selected for “H.264 transmission”
NTSC: Max. 5 fps, PAL: Max. 4.2 fps
When “Off” is selected for “H.264 transmission”
NTSC: Max. 30 fps, PAL: Max. 25 fps
Operating Instructions
1 Monitor images on a PC
1.2 About the “Live” page
P Q
O
R
A
B
C
D
E
S
F
G
H
M
N
I
J
K
L
[select language] pull-down-menu
The unit’s display language can be selected. The default language can be set in the [Language] in the
[Basic] settings. (®page 27)
[Setup] button*1
Displays the setup menu. The button will turn green and the setup menu will be displayed.
[Live] button
Displays the “Live” page. The button will turn green and the “Live” page will be displayed.
[Multi-screen] buttons
Images from multiple cameras can be displayed on a multi-screen by registering units/network cameras
on the setup menu. (®page 13)
[Compression] buttons
• [H.264] button: The characters “H.264” on the button will turn green and an H.264 image will be
displayed. When “On” is selected for “H.264 transmission” of “H.264(1)”, “H.264(2)”, the [H.264] button
will be displayed. (®page 36)
• [JPEG] button: The characters “JPEG” on the button will turn green and a JPEG image will be
displayed.
[Stream] buttons
These buttons will be displayed only when an H.264 image is displayed.
• [1] button: The character “1” will turn green and images in the main area will be displayed in
accordance with the setting of “H.264(1)”. (®page 36)
• [2] button: The character “2” will turn green and images in the main area will be displayed in
accordance with the setting of “H.264(2)”. (®page 36)
Operating Instructions
9
1 Monitor images on a PC
[Image capture size] buttons
These buttons will be displayed only when a JPEG image is displayed.
[VGA]
The characters “VGA” will turn green and images in the main area will be
displayed in VGA size.
[QVGA]
The characters “QVGA” will turn green and images in the main area will be
displayed in QVGA size.
[640x360]
The characters “640x360” will turn green and images in the main area will be
displayed in 640x360 (pixels).
[320x180]
The characters “320x180” will turn green and images in the main area will be
displayed in 320x180 (pixels).
[D1]
The characters “D1” will turn green and images in the main area will be displayed
in D1 (NTSC: 720x480 pixels, PAL: 720x576 pixels).
Note
•
The buttons [VGA] and [QVGA] are displayed only when “VGA [4:3]” is selected for “Picture
(Camera) mode”.
• The buttons [640x360] and [320x180] are displayed only when “VGA [16:9]” is selected for “Picture
(Camera) mode”.
• The [D1] button will be displayed only when “D1” is selected for “Picture (Camera) mode”.
[Image quality] buttons
These buttons will be displayed only when a JPEG image is displayed.
• [1] button: Images in the main area will be displayed in accordance with the setting for “Quality1” of
“Image quality setting”. (®page 33)
• [2] button: Images in the main area will be displayed in accordance with the setting for “Quality2” of
“Image quality setting”. (®page 33)
[Zoom] buttons*2
•
: Click this button to adjust the zoom ratio to the “Wide” side.
•
: Click this button to set the zoom ratio to x1.0.
•
: Click this button to adjust the zoom ratio to the “Tele” side.
[Focus] buttons*2
•
•
•
: Click this button to adjust the focus automatically.
: Click this button to adjust the focus to the “Near” side.
: Click this button to adjust the focus to the “Far” side.
[Auto mode]*2
Select an operation from the pull-down menu and click the [Start] button. The selected operation will start.
Click the [Stop] button to stop the operation.
The selected operation will stop when the camera (panning/tilting/zooming/focusing) is operated.
• Auto track: Automatically performs tracking for cameras that supports auto track.
• Auto pan: Automatically pans between the start position and the end position set in advance.
Even when the camera is operated for zooming or focusing, the camera continues panning.
(However, panning will stop when the zoom button (x1) is clicked.)
• Preset sequence: Automatically moves to the preset positions orderly (start from the lowest preset
position number).
• Patrol 1-4: Performs patrols 1-4 that were set in advance.
Note
•
10
To check if the camera supports auto track, refer to the operating instructions of the camera.
Operating Instructions
1 Monitor images on a PC
•
While a camera controlled via RS485 communication is executing a patrol function, it is impossible
to start another one. Stop the current patrol function before starting a new one.
• To activate auto pan, sort, preset position sequence or patrol 1-4, it is required to perform the
settings on the setup menu of camera in advance. (®page 40)
Control pad/buttons*2
• Left-click on the control pad or buttons to adjust the horizontal/vertical position of the camera (panning/
tilting). Panning/tilting speed will be faster if a clicked point gets farther from the center point of the
control pad.
It is also possible to pan/tilt the camera by dragging the mouse.
Zoom and focus can be adjusted by right-clicking. When an upper/lower area of the control pad is
right-clicked, the displayed image will be zoomed in/out on. When a left/right area is right-clicked, the
focus will be adjusted to the Near/Far side.
Zoom can also be adjusted using the mouse wheel.
[Brightness] buttons*2
•
•
•
button: Image become darker.
button: The adjusted brightness will return to the default brightness.
button: Image become brighter.
[Preset]
Select a preset position from the pull-down menu and click the [Go] button. The camera will move to the
selected preset position. When “Home position” is selected, the camera will move to the home position.
Preset positions and the home position can be registered in the camera's setup menu. (®page 40)
Unit title
The title entered for “Unit title” on the [Basic] tab will be displayed. (®page 27)
Alarm occurrence indication button*2
This button will be displayed and will blink when an alarm has occurred. When this button is clicked, this
button will disappear. (®page 18)
Full screen button
Images will be displayed on a full screen. To return to the “Live” page, press the [Esc] key. The aspect ratio
of displayed images will be adjusted in accordance with the monitor.
Snap shot button
Click this button to take a picture (a still picture). The picture will be displayed on a newly opened window.
When right-clicking on the displayed image, the pop-up menu will be displayed. It is possible to save the
image on the PC by selecting “Save” from the displayed pop-up menu.
When “Print” is selected, printer output is enabled.
*2
Note
•
For the case of using Windows 7 or Windows Vista, the following settings may be required.
Open Internet Explorer, click [Tools] ® [Internet Options] ® [Security] ® [Trusted Sites] ®
[Sites]. Register the unit address on [Website] of the displayed trusted widows.
Main area
Images from the camera will be displayed in this area.
The current time and date will be displayed according to the settings configured for “Time display format”
and “Date/time display format”. (®page 27)
When clicking a desired point while displaying live images in the main area, the camera will move to locate
the clicked point at the center of the main area.
Note
•
•
When operated by a lower access level user, images displayed on the screen may be changed
temporarily. This does not affect operation of the unit.
Depending on the PC in use, screen tearing* may occur when the shooing scene drastically changes
due to the GDI restrictions of the OS.
Operating Instructions
11
1 Monitor images on a PC
*A phenomenon in which portions of the screen are displayed out of alignment.
*1
*2
12
Only operable by users whose access level is “1. Administrator”.
Only operable by users whose access level is “1. Administrator” or “2. Camera control” when “On” is selected for “User auth.”
(®page 56)
Operating Instructions
1 Monitor images on a PC
1.3 Monitor images from multiple cameras
Images from multiple cameras can be displayed on a multi-screen. Images from 4 cameras (up to 16 cameras)
can be displayed simultaneously. In order to use multi-screen, IP addresses of network cameras and units
used to connect to cameras must be configured to the unit. 4 cameras can be registered as a group and up to
4 groups (16 cameras) can be registered. (®page 44)
IMPORTANT
•
•
When displaying images on a 16-screen, panning, tilting and zooming operations become unavailable
for images from cameras with Pan/Tilt/Zoom functions.
When the power is turned off or the LAN cable is disconnected while displaying images, displaying
images on a multi-screen from the “Live” page will become unavailable.
Note
•
•
•
•
When displaying images on a 4-screen, panning, tilting and zooming operations become available only
for images from cameras with Pan/Tilt/Zoom functions. Refer to our website
(http://panasonic.net/pss/security/support/info.html) for further information about the compatible
cameras and their versions.
Only JPEG images can be displayed on a multi-screen.
When displaying images on multi-screen from cameras that have the aspect ratio configured to a setting
other than “4:3”, the image will be displayed altered to the aspect ratio of “4:3”.
“Network Camera Recorder with Viewer Software Lite” which supports live monitoring and recording
images from multiple cameras is available. For further information, refer to our website
(http://panasonic.net/pss/security/support/info.html).
1. Click the desired [Multi-screen] button.
→ Images from the registered cameras will be displayed on a selected multi-screen (screen can be split
up to 16 areas). The following are instructions when displaying on a 4-split screen.
A
B
C
To show 1 camera screen, click the [Live] button.
You can also click “1” below “Multi-screen” to display the live image from the camera.
Click the [Multi-screen] button to display images from cameras in a multi-screen of 4 to 16 screens.
Click a camera title. Live images from the camera corresponding to the clicked camera title will be
displayed on the “Live” page of the newly opened window.
Operating Instructions
13
2 Monitor images on a cellular phone/mobile terminal
2 Monitor images on a cellular phone/mobile
terminal
2.1 Monitor images on a cellular phone
It is possible to connect to the unit using a cellular phone via the Internet and monitor images (JPEG only) from
the unit on the screen of the cellular phone. It is also possible to refresh images to display the latest image.
IMPORTANT
•
•
When the authentication window is displayed, enter the user name and password. The default user
name and password are as follows.
User name: admin
Password: 12345
To enhance the security, change the password for the user “admin”. (®page 56)
If the cellular phone in use is not compatible with UTF-8 encode, it is impossible to display the screen
correctly.
Note
•
It is necessary to configure the network settings of the cellular phone in advance to connect to the
Internet and monitor images from the unit. (®page 66)
1. Access to “http://IP address/mobile”*1 or “http://Host name registered in the DDNS server/mobile” using a
cellular phone.
→ Images from the unit will be displayed.
A
B
C
Manual Refresh/Auto Refresh
Press the dial key “5” or the [Manual Refresh] button to refresh the camera images.
Press the [Auto Refresh] button to refresh the images from the camera in 5-second intervals.
14
Operating Instructions
2 Monitor images on a cellular phone/mobile terminal
When the dial key “5” or the [Manual Refresh] button is pressed again, the refresh mode of the camera
will return to manual refresh.
IMPORTANT
•
•
Transmission will be periodically performed when “Auto Refresh” is selected for the camera
image. Confirm the contract plan of the cellular phone in use before using this function.
Depending on the cellular phone in use, “Auto Refresh” may be unavailable.
Resolution control
Changes the image capture size by pressing the dial key “0”.
When “D1” is selected for “Picture (Camera) mode”, “Resolution” will not be displayed.
Picture (Camera) mode VGA [4:3]
320x240 (default)/640x480
Picture (Camera) mode VGA [16:9]
320x180 (default)/640x360
Image quality control
It is possible to change the image quality between “Quality1” and “Quality2”. (®page 33)
Note
•
•
•
•
•
•
•
*1
The pan/tilt/zoom/focus functions of cameras connected to the unit cannot be operated from cellular
phones.
Some cellular phones cannot change the image capture size even when resolution is changed by
resolution control.
When the HTTP port number is changed from “80”, enter “http://IP address: (colon) + port number/
mobile”*1 in the address box of the browser. When using the DDNS function, access to “http://Host
name registered in the DDNS server: (colon) + port number/mobile”.
When the authentication window is displayed, enter the user name of an administrator or user and
password. Depending on the cellular phone in use, password entry may be required each time the
screen is switched.
Depending on the cellular phone in use, larger size images may not be displayed. In this case, selecting
“9 Low” for “Image quality setting” of “JPEG” (®page 33) may sometimes solve this problem.
Depending on the cellular phone in use or its contract plan, it may be impossible to access.
When “HTTPS” is selected for “HTTPS” - “Connection” on the [Network] tab of the “Network” page,
enter as follows.
“https://IP address: (colon) + port number/mobile” or “https://Host name registered in the DDNS server:
(colon) + port number/mobile”
IP address is the global WAN IP address of the router that can be accessed via the Internet.
2.2 Monitor images on a mobile terminal
It is possible to connect to the unit using a mobile terminal via the Internet and monitor images (MJPEG only)
from the unit on the screen of the mobile terminal. Images are refreshed automatically to display the latest
image.
The compatible mobile terminals are shown as follows. (As of December, 2012)
– iPad, iPhone, iPod touch (iOS 4.2.1 or later)
– Android™ mobile terminals
When an Android terminal is used, an MJPEG format image is displayed by the Firefox® browser, but a JPEG
format image is displayed by the standard browser.
For further information about compatible devices, refer to our website
(http://panasonic.net/pss/security/support/info.html).
Operating Instructions
15
2 Monitor images on a cellular phone/mobile terminal
IMPORTANT
•
When the authentication window is displayed, enter the user name and password. The default user
name and password are as follows.
User name: admin
Password: 12345
To enhance the security, change the password for the user “admin”. (®page 56)
Note
•
It is necessary to configure the network settings of the mobile terminal in advance to connect to the
Internet and monitor images from the unit. (®page 66)
1. Access to “http://IP address/cam”*1 or “http://Host name registered in the DDNS server/cam”*2 using a
mobile terminal.
→ Images from the unit will be displayed.
A
B
Live images area
Displays images from the camera.
Resolution control
The resolution can be changed by selecting a resolution setting from the buttons.
When “D1” is selected for “Picture (Camera) mode”, the resolution control buttons will not be displayed.
Picture (Camera) mode VGA [4:3]
320x240/640x480 (default)
Picture (Camera) mode VGA [16:9]
320x180/640x360 (default)
Note
•
•
16
You can change the image size displayed on the mobile terminal by accessing the following addresses.
– Large display: http://IP address/cam/dl
– Medium display: http://IP address/cam/dm
– Small display: http://IP address/cam/ds
The pan/tilt/zoom/focus functions of cameras connected to the unit cannot be operated from mobile
terminals.
Operating Instructions
2 Monitor images on a cellular phone/mobile terminal
•
•
•
•
•
•
*1
*2
When the resolution is changed by the resolution control, the displayed resolution changes but the
image size remains the same.
When the HTTP port number is changed from “80”, enter “http://IP address: (colon) + port number/
cam”*1 in the address box of the browser. When using the DDNS function, access to “http://Host name
registered in the DDNS server: (colon) + port number/cam”*2.
When “HTTPS” is set in “HTTPS” - “Connection” on the [Network] tab of the “Network” page, enter the
following:
“https://IP address: (colon) + port number/cam” or “https://Host name registered in the DDNS server:
(colon) + port number/cam”.
When the authentication window is displayed, enter the user name of an administrator or user and
password. Depending on the mobile terminal in use, password entry may be required each time the
screen is switched.
Depending on the mobile terminal in use, larger size images may not be displayed. In this case,
selecting “9 Low” for “Image quality setting” of “JPEG” (®page 33) may sometimes solve this
problem.
Depending on the mobile terminal in use or its contract plan, it may be impossible to access.
IP address is the global WAN IP address of the router that can be accessed via the Internet. However, when accessing the same
LAN as the unit with a wireless compatible mobile terminal, the IP address is the local IP address.
Only when accessing the unit through the Internet.
Operating Instructions
17
3 Action at an alarm occurrence
3 Action at an alarm occurrence
The alarm action (action at an alarm occurrence) will be performed when the following alarms occur.
3.1 Alarm type
•
•
•
VMD alarm: When motion is detected in the set VMD area, the alarm action will be performed.
*VMD stands for “Video Motion Detection”.
Command alarm: When a Panasonic alarm protocol is received from the connected device via a network,
the alarm action will be performed.
Video loss alarm: The alarm will be activated when there is a loss of video input signals due to
disconnection of the coaxial cable or camera problems.
3.2 Action at an alarm occurrence
Display the alarm occurrence indication button on the “Live” page
The alarm occurrence indication button will be displayed on the “Live” page at an alarm occurrence.
(®page 9)
IMPORTANT
•
When “Polling(30s)” is selected for “Alarm status update mode” (®page 27), the Alarm occurrence
indication button will be refreshed in 30-second intervals. For this reason, it may take a maximum of
30 seconds until the alarm occurrence indication button is displayed on the “Live” page at an alarm
occurrence.
Transmit an image onto a server automatically
An alarm image can be transmitted at an alarm occurrence to the server designated in advance. The settings
required to transmit an alarm image to a server can be configured in the “Alarm image” section on the
[Alarm] tab of the “Alarm” page (®page 47) and the [FTP] tab of the “Server” page (®page 62). However,
when “D1” is selected for “Picture (Camera) mode”, images cannot be transmitted.
Notify of alarm occurrences by E-mail
Alarm E-mail (alarm occurrence notification) can be sent at an alarm occurrence to the E-mail addresses
registered in advance. Up to 4 addresses can be registered as recipients of the alarm E-mail. The settings for
alarm E-mail can be configured in the “E-mail notification” section on the [Notification] tab of the [Alarm] page
(®page 52) and the [E-mail] tab of the “Server” page (®page 61).
Notify of alarm occurrences to the designated IP addresses (Panasonic
alarm protocol notification)
This function is available only when a Panasonic device, such as the network disk recorder, is connected to
the system. When “On” is selected for “Panasonic alarm protocol notification”, the connected Panasonic device
will be notified that the unit is in the alarm state. The settings for Panasonic alarm protocol can be configured
in the Panasonic alarm protocol section of the [Notification] tab of the [Alarm] page. (®page 53)
18
Operating Instructions
4 Transmit images onto an FTP server
4 Transmit images onto an FTP server
Images can be transmitted to an FTP server. By configuring the following settings, transmission of images
captured at an alarm occurrence or captured at a designated interval to an FTP server will become available.
IMPORTANT
•
•
When using this function, set the user name and the password to access the FTP server to restrict
users who can log into the FTP server.
When “D1” is selected for “Picture (Camera) mode”, images cannot be transmitted to the FTP server.
4.1 Transmit an alarm image at an alarm occurrence
(Alarm image transmission)
An alarm image can be transmitted at an alarm occurrence to the FTP server. To transmit alarm images to an
FTP server, it is necessary to configure the settings in advance.
The settings for the FTP server can be configured on the [FTP] tab of the “Server” page. (®page 62)
The alarm image transmission function can be turned on/off in the “Alarm image” section of the [Alarm] tab of
the “Alarm” page. (®page 47)
Note
•
Depending on the line speed or the traffic, the number of the transmitted images may not reach the set
number of images to be transmitted.
4.2 Transmit images at a designated interval or
period (FTP periodic image transmission)
Images can be transmitted at a designated interval or period. To transmit images at a designated interval or
period, it is necessary to configure the settings in advance.
The settings for the FTP server can be configured on the [FTP] tab of the “Server” page. (®page 62)
It is possible to determine whether or not to use the FTP periodic image transmission function and to configure
the settings relating to alarm images and the schedule on the “FTP img. trans.” tab of the “Network” page.
(®page 99)
Note
•
•
Depending on the line speed or the traffic, images may not be transmitted at the designated interval.
When “On” is selected for both the alarm image transmission function and the FTP periodic image
transmission function, the alarm image transmission function will be given priority over the FTP periodic
image transmission function. Therefore, images may not be transmitted at the interval designated on
the “FTP periodic image transmission” setting.
Operating Instructions
19
5 About the network security
5 About the network security
5.1 Equipped security functions
The following security functions are featured in this unit.
Access restrictions by the host authentication and the user authentication
It is possible to restrict users from accessing the unit by setting the host authentication and/or the user
authentication to “On”. (®page 56, page 57)
Access restrictions by changing the HTTP port
It is possible to prevent illegal access such as port scanning, etc. by changing the HTTP port number.
(®page 69)
Access encryption by the HTTPS function
It is possible to enhance the network security by encrypting the access to units using the HTTPS function.
(®page 74)
IMPORTANT
•
•
•
Design and enhance security countermeasures to prevent leakage of information such as image data,
authentication information (user name and password), alarm E-mail information, FTP server
information, DDNS server information, etc. Perform the countermeasure such as access restriction
(using the user authentication) or access encryption (using the HTTPS function).
After the unit is accessed by the administrator, make sure to close all the browsers for added security.
Change the administrator password periodically for added security.
Note
•
20
When user authentication (authentication error) has failed to pass 8 times within 30 seconds using the
same IP address (PC), access to the unit will be denied for a while.
Operating Instructions
6 Display the setup menu from a PC
6 Display the setup menu from a PC
The settings of the unit can be configured on the setup menu.
IMPORTANT
•
The setup menu is only operable by users whose access level is “1. Administrator”. Refer to
page 56 for how to configure the access level.
6.1 How to display the setup menu
1. Display the “Live” page. (®page 7)
2. Click the [Setup] button on the “Live” page.
→ The window with the user name and password entry fields will be displayed.
3. Click the [OK] button after entering the user name and the password.
The default user name and password are as follows.
User name: admin
Password: 12345
Operating Instructions
21
6 Display the setup menu from a PC
→ The setup menu will be displayed. Refer to page 25 for further information about this menu.
22
Operating Instructions
6 Display the setup menu from a PC
6.2 How to operate the setup menu
A
B
Menu buttons
Setup page
1. Click the desired button in the frame on the left of the window to display the respective setup menu.
When there are tabs at the top of the “Setup” page displayed in the frame on the right of the window, click
the desired tab to display and configure the setting items relating to the name of the tab.
2. Complete each setting item displayed in the frame on the right of the window.
3. After completing each setting item, click the [Set] button to apply them.
IMPORTANT
•
When there are two or more [Set] and [Execute] buttons on the page, click the respective button to the
edited setting item.
Operating Instructions
23
6 Display the setup menu from a PC
<Example>
A
B
C
D
E
F
When completing the setting items in field A, click the [Set] button (B) below field (A).
The edited settings in field A will not be applied unless the [Set] button (B) below field (A) is clicked.
In the same manner as above, click the [Set] button (D and F) below field C and E when completing
the setting items in field C and E.
24
Operating Instructions
6 Display the setup menu from a PC
6.3 About the setup menu window
L
A
B
C
D
E
F
M
G
H
I
J
K
[Setup] button
Displays the “Setup” page.
[Live] button
Displays the “Live” page.
[Basic] button
Displays the “Basic” page. The basic settings such as time and date and the unit title, and the settings
required to connect the unit to the Internet can be configured on the “Basic” page. (®page 27)
[Image] button
Displays the “Image” page. The settings relating to image quality, image capture size, etc. of JPEG/H.264
camera images can be configured on the “Image” page. (®page 32)
[Multi-screen] button
Displays the “Multi-screen” page. The cameras from which images are to be displayed on a multi-screen
can be registered on the “Multi-screen” page. (®page 44)
[Alarm] button
Displays the “Alarm” page. The settings relating to alarm occurrences such as settings for the alarm action
at an alarm occurrence, the alarm occurrence notification, and the VMD area settings can be configured
on the “Alarm” page. (®page 46)
[User mng.] button
Displays the “User mng.” page. The settings relating to the authentication such as users and PCs
restrictions for accessing the unit can be configured on the “User mng.” page. (®page 56)
[Server] button
Displays the “Server” page. The settings relating to the E-mail server, the FTP server and the NTP server
to which the unit accesses can be configured on the “Server” page. (®page 61)
Operating Instructions
25
6 Display the setup menu from a PC
[Network] button
Displays the “Network” page. The network settings and the settings relating to DDNS (Dynamic DNS),
SNMP (Simple Network Management Protocol) and the FTP (File Transfer Protocol) periodic transmission
can be configured on the “Network” page. (®page 66)
[Schedule] button
Displays the “Schedule” page. On the “Schedule” page, it is possible to designate time zones to allow to
activate the VMD detection function. (®page 103)
[Maintenance] button
Displays the “Maintenance” page. System log check, firmware upgrade, status check and initialization of
the setup menu can be carried out on the “Maintenance” page. (®page 106)
Unit title
The title of the unit whose settings are currently being configured will be displayed.
Setup page
Pages of each setup menu will be displayed. There are tabs for some setup menus.
26
Operating Instructions
7 Configure the basic settings of the unit [Basic]
7 Configure the basic settings of the unit
[Basic]
The settings relating to configuring the unit title, time and date, and connecting to the Internet can be configured
on the “Basic” page.
The “Basic” page has 2 tabs; the [Basic] tab and the [Internet] tab.
7.1 Configure the basic settings [Basic]
Click the [Basic] tab of the “Basic” page. (®page 21, page 23)
The settings such as the unit title, time and date, etc. can be configured on this page.
[Unit title]
Enter the title of the unit. Click the [Set] button after entering the title of the unit. The entered title will be displayed
in the unit title field.
• Available number of characters: 0 - 20 characters
• Unavailable characters: " &
• Default: WJ-GXE100
Operating Instructions
27
7 Configure the basic settings of the unit [Basic]
[Date/time]
Enter the current time and date. When “12h” is selected for “Time display format”, “AM” or “PM” can be selected.
• Available range: Jan/01/2010 00:00:00 - Dec/31/2035 23:59:59
IMPORTANT
•
Use an NTP server when the more accurate time & date setting is required for the system operation.
(®page 64)
[Time display format]
Select the time display format from “24h”, “12h” and “Off”. Enter the current hour reflecting this setting when
entering the current time and date for “Date/time”. To hide time and date, select “Off”.
• Default: 24h
[Date/time display format]
Select a date/time display format. When “2010/04/01 13:10:00” is set for “Date/time” after selecting “24h” for
“Date/time display format”, time & date will be respectively displayed as follows.
• DD/MM/YYYY: 01/04/2010 13:10:00
• MM/DD/YYYY: 04/01/2010 13:10:00
• DD/Mmm/YYYY: 01/Apr/2010 13:10:00
• YYYY/MM/DD: 2010/04/01 13:10:00
• Mmm/DD/YYYY: Apr/01/2010 13:10:00
• Default:
– Mmm/DD/YYYY (P model)
– DD/MM/YYYY (E model)
[Summer time (daylight saving)]
Select “In”, “Out” or “Auto” to determine whether or not to apply daylight saving time. Configure this setting if
the summer time (daylight saving time) is applied in the location where the unit is in use.
• In: Applies summer time. An asterisk (*) will be displayed on the left side of the displayed time and date.
• Out: Does not apply summer time.
• Auto: Applies summer time in accordance with the settings for “Start time & date” and “End time & date”
(month, week, day of the week, time).
• Default: Out
[NTP/Time zone]
When “NTP >>” is clicked, the [NTP] tab of the “Server” page will be displayed. (®page 64)
[Start time & date] [End time & date]
When “Auto” is selected for “Summer time (daylight saving)”, select the time & date for the start time and the
date time (month, week, day of the week, time).
[Camera title on screen]
Select “On” or “Off” to determine whether or not to display the camera title on the screen. When “On” is selected,
the character string entered for “Camera title on screen (0-9, A-Z)” will be displayed at the position selected
for “OSD”.
• Default: Off
[Camera title on screen (0-9, A-Z)]
Enter a character string to be displayed on the image.
• Available number of characters: 0 - 20 characters
• Available characters: 0-9, A-Z and the following marks.
!"#$%&'()*+,-./:;=?
28
Operating Instructions
7 Configure the basic settings of the unit [Basic]
•
Default: None (blank)
[OSD] - [Position]
Select the position where the time and date and a character string to be displayed on the image of the “Live”
page.
• Upper left: The above information will be displayed at the upper left corner of the main area on the
“Live” page.
• Lower left: The above information will be displayed at the lower left corner of the main area on the
“Live” page.
• Upper right: The above information will be displayed at the upper right corner of the main area on the
“Live” page.
• Lower right: The above information will be displayed at the lower right corner of the main area on the
“Live” page.
• Default: Upper left
[Indicator]
Determine whether or not to use the live indicator (POWER).
• On: The indicator lights up or blinks in the following manner when the power is turned on.
•
•
When the power is turned on
Lights green
When connected to a network (not accessed)
Lights orange
When connected to a network (accessed)
Blinks orange/Blinks green
Off: The indicator is turned off at all times.
Default: On
[Alarm status update mode]
Select an interval of the unit status notification from the following.
When the status of the unit changes, the alarm occurrence indication button will be displayed to notify of the
unit status.
• Polling(30s): Updates the status each 30 seconds and provide notification of the unit status.
• Real time: Provide notification of the unit status when the status has changed.
• Default: Real time
Note
•
•
Depending on the network environment, notification may not be provided in real time.
When multiple cameras are using the same “Alarm status reception port”, even if “Real time” is selected
for “Alarm status update mode”, status notification is not provided in real time. In this case, change the
“Alarm status reception port” settings.
[Alarm status reception port]
When selecting “Real time” for “Alarm status update mode”, designate a port number to which the status change
notification is to be sent.
• Available port number: 1 - 65535
• Default: 31004
The following port numbers are unavailable since they are already in use.
20, 21, 23, 25, 42, 53, 67, 68, 69, 80, 110, 123, 161, 162, 443, 995, 10669, 10670
[Automatic installation of viewer software]
Determine whether or not to install the viewer software from this unit.
• On: Installs the viewer software from the unit automatically.
• Off: The viewer software cannot be installed from the unit.
Operating Instructions
29
7 Configure the basic settings of the unit [Basic]
•
Default: On
IMPORTANT
•
•
It is impossible to display images between the camera and the PC when the viewer software “Network
Camera View 4S” is not installed on the PC.
The number of the viewer software installations can be checked on the [Upgrade] tab of the
“Maintenance” page.
[Language]
Select the language to initially display when the unit is accessed from the following.
English/Japanese/Italian/French/German/Spanish/Chinese/Russian
• Default: English
The language displayed on the “Live” page can also be changed. (®page 9)
7.2 Configure the Internet settings [Internet]
Click the [Internet] tab of the “Basic” page. (®page 21, page 23)
The settings relating to UPnP (Auto port forwarding), DDNS (Viewnetcam.com), and network settings for the
Internet can be configured on this page.
[UPnP (Auto port forwarding)]
Select “On” or “Off” to determine whether or not to use the port forwarding function of the router.
To use the auto port forwarding function, the router in use must support UPnP and the UPnP must be enabled.
• Default: Off
Note
•
•
•
•
Due to auto port forwarding, the port number may sometimes be changed. When the number is
changed, it is necessary to change the port numbers registered in the PC and recorders, etc.
The UPnP function is available when the unit is connected to the IPv4 network. IPv6 is not supported.
To check if auto port forwarding is properly configured, click the [Status] tab on the “Maintenance” page,
and check that the “Enable” is displayed for “Status” of “UPnP”. (®page 108)
When “Enable” is not displayed, refer to “Cannot access the unit via the Internet.” in
20 Troubleshooting.
When the “UPnP (Auto port forwarding)” setting is changed, the “Auto port forwarding” setting under
“UPnP” on the [Network] tab of the “Network” page also changes to the same setting.
[DDNS]
Select “Viewnetcam.com” or “Off” to determine whether or not to use “Viewnetcam.com”.
30
Operating Instructions
7 Configure the basic settings of the unit [Basic]
By selecting “Viewnetcam.com” and clicking the [Set] button, the registration window for “Viewnetcam.com”
will be displayed in a newly opened window.
Follow the on-screen instructions to register with “Viewnetcam.com”.
Refer to page 94 or the “Viewnetcam.com” website (http://www.viewnetcam.com/) for further information.
• Default: Off
Note
•
When the “DDNS” setting is changed, the “DDNS” setting on the [DDNS] tab of the “Network” page
also changes to the same setting.
[Recommended network setting for internet]
The recommended settings for connecting to the Internet are performed here.
By clicking the [Set] button, a dialog displaying how the following settings will change is displayed.
Click the [OK] button after checking the settings to change the settings to the displayed values.
– [JPEG/H.264] tab on the “Image” page
[H.264(1)]/[H.264(2)]
[Internet mode (over HTTP)]: On
[Transmission priority]: Best effort
[Max bit rate (per client)*]: Max. 1024 kbps, Min. 128 kbps
[H.264(1)]
[Image capture size]: VGA
[H.264(2)]
[Image capture size]: QVGA
– [Network] tab on the “Network” page
[Common]
[Max RTP packet size]: Limited(1280byte)
[HTTP max segment size(MSS)]: Limited(1280byte)
Note
•
When “D1” is selected for “Picture (Camera) mode”, the resolution remains D1.
Operating Instructions
31
8 Configure the settings relating to images [Image]
8 Configure the settings relating to images
[Image]
The JPEG and H.264 image settings and settings relating to image quality and RS485 can be configured on
this page.
The “Image” page has 3 tabs; the [JPEG/H.264] tab, the [Image/Position] tab and the [RS485] tab.
8.1 Configure the settings relating to the Picture
(Camera) mode/Video input [JPEG/H.264]
Click the [JPEG/H.264] tab on the “Image” page. (®page 21, page 23)
[Video input]
Select the camera video input from the following.
NTSC/PAL
• Default: NTSC (P model), PAL (E model)
Note
•
•
When “NTSC” is selected for “Video input”, the maximum frame rate is 30 fps. When “PAL” is selected,
the maximum frame rate is 25 fps.
When the [Set] button is pressed after changing the “Video input” setting, the settings are reset to the
default and the unit is rebooted. Note that the network settings will not be reset.
[Picture (Camera) mode]
Select the picture (camera) mode from the following.
VGA [4:3]/ VGA [16:9]/ D1
• Default: VGA [4:3]
Note
•
•
•
•
32
When “Picture (Camera) mode” is changed to “D1” or the mode is changed from “D1” to another mode,
the unit will reboot automatically.
When “D1” is selected for “Picture (Camera) mode”, some of the functions will not be available.
(®page 111)
Refer to our website (http://panasonic.net/pss/security/support/info.html) for further information about
the support of Panasonic network disk recorders when “D1” is selected for “Picture (Camera) mode”.
Image/Position adjustment function is activated for the angle of view in “VGA [4:3]” even when “VGA
[16:9]” is selected for “Picture (Camera) mode”. Because a part of the connected camera's setup menu
will not be displayed in this case, we recommend changing the “Picture (Camera) mode” setting to
“VGA [4:3]”.
Operating Instructions
8 Configure the settings relating to images [Image]
8.2 Configure the settings relating to JPEG images
[JPEG/H.264]
Click the [JPEG/H.264] tab on the “Image” page. (®page 21, page 23)
JPEG
Configure the settings such as “Refresh interval (JPEG)*”, “Image capture size” and “Image quality” on this
section. Refer to page 35 for further information about the settings relating to H.264 images.
"Live" page (Initial display)
Configure the settings relating to the JPEG images displayed on the “Live” page.
[Refresh interval (JPEG)*]
Select an interval to refresh the displayed JPEG image from the following.
NTSC: 0.1fps/ 0.2fps/ 0.33fps/ 0.5fps/ 1fps/ 2fps/ 3fps/ 5fps/ 6fps */ 10fps */ 15fps */ 30fps *
PAL: 0.08fps/ 0.17fps/ 0.28fps/ 0.42fps/ 1fps/ 2.1fps/ 3.1fps/ 4.2fps/ 5fps */ 8.3fps */ 12.5fps */ 25fps *
• Default:
– 5fps (NTSC)
– 4.2fps (PAL)
Note
•
•
•
When “On” is selected for “H.264 transmission”, the refresh interval may be longer than the set value
when any value with an asterisk (*) on the right is selected.
Depending on factors such as the network environment, the resolution, the image quality, or the number
of computers concurrently accessing the unit, the transmission interval may be longer than the set
value.
If images are not delivered in the specified transmission interval, you can make the images be delivered
closer to the specified interval by lowering the resolution or image quality.
[Image capture size]
Select the image capture size to display the JPEG image on the “Live” page for the first time.
•
Picture (Camera) mode VGA [4:3]
QVGA/VGA
Picture (Camera) mode VGA [16:9]
320x180/640x360
Picture (Camera) mode D1
D1
Default: VGA
Operating Instructions
33
8 Configure the settings relating to images [Image]
[Image quality]
Select the image quality of JPEG images displayed initially on the “Live” page.
• Default: Quality1
[Image quality setting]
Select two types of image quality of JPEG images for each image capture size.
0 Super fine/ 1 Fine/ 2/ 3/ 4/ 5 Normal/ 6/ 7/ 8/ 9 Low
• Default:
– Quality1: 5 Normal
– Quality2: 8
The setting for “Quality1” is activated for FTP periodic image transmission.
34
Operating Instructions
8 Configure the settings relating to images [Image]
8.3 Configure the settings relating to H.264 images
[JPEG/H.264]
Click the [JPEG/H.264] tab on the “Image” page. (®page 21, page 23)
Configure the settings relating to H.264 image such as “Max bit rate (per client)”, “Image capture size”, “Image
quality”, etc. in this section. Refer to page 33 for the settings relating to JPEG images.
Operating Instructions
35
8 Configure the settings relating to images [Image]
H.264(1)/H.264(2)
[H.264 transmission]
Select “On” or “Off” to determine whether or not to transmit H.264 images.
• On: Transmits H.264 images.
• Off: Does not transmit H.264 images.
• Default: On
Note
•
•
•
When “On” is selected for “H.264 transmission” in “H.264(1)” or “H.264(2)”, displaying of H.264 images
or JPEG images on the “Live” page will become available.
When “On” is selected for “H.264 transmission” in “H.264(1)” and “H.264(2)”, H.264 images are
viewable using other devices with each setting.
When “On” is selected for “H.264 transmission” in “H.264(1)” or “H.264(2)”, the transmission interval
of JPEG images may sometimes become longer.
[Internet mode (over HTTP)]
Select “On” when transmitting H.264 images via the Internet. It is possible to transmit H.264 images without
changing the broadband router settings configured for JPEG image transmission.
• On: H.264 images will be transmitted using the HTTP port. Refer to page 69 for further information about
the HTTP port number settings.
• Off: H.264 images will be transmitted using the UDP port.
• Default: Off
Note
•
•
•
•
When “On” is selected, only “Unicast port (AUTO)” will be available for “Transmission type”.
When “On” is selected, it may take time to start displaying H.264 images.
When “On” is selected, H.264 images may not be displayed depending on the number of the concurrent
access user, etc.
When “On” is selected, only IPv4 access is available.
[Image capture size]
Select the image capture size from the following.
•
Picture (Camera) mode VGA [4:3]
QVGA/VGA
Picture (Camera) mode VGA [16:9]
320x180/640x360
Picture (Camera) mode D1
D1
Default: VGA
[Transmission priority]
Select a transmission priority for H.264 images from the following.
• Constant bit rate: H.264 images will be transmitted with the bit rate selected for “Max bit rate (per
client) *”.
• Frame rate: H.264 images will be transmitted with the frame rate selected for “Frame rate*”.
• Best effort: In accordance with the network bandwidth, H.264 images will be transmitted with the bit rate
varying between the maximum and minimum bit rates that are set for “Max bit rate (per client)*”.
• Default: Frame rate
Note
•
36
When “Frame rate” is selected for “Transmission priority”, number of users who can access the unit
may be limited more (may become less than 10).
Operating Instructions
8 Configure the settings relating to images [Image]
[Frame rate*]
Select a frame rate for H.264 images from the following.
NTSC: 1fps/ 3fps/ 5fps */7.5fps */ 10fps */ 15fps */ 20fps */ 30fps *
PAL: 1fps/ 3.1fps/ 4.2fps */ 6.25fps */ 8.3fps */ 12.5fps */ 20fps */ 25fps *
• Default:
– 30fps * (NTSC)
– 25fps * (PAL)
Note
•
•
When “Frame rate” is selected for “Transmission priority”, this setting is available.
“Frame rate*” is restricted by “Max bit rate (per client)*”. For this reason, the frame rate may be lower
than the specified value when any value marked with an asterisk (*) is selected.
[Max bit rate (per client)*]
Select an H.264 bit rate per a client from the following. When “Best effort” is selected for “Transmission
priority”, set the maximum and minimum bit rates.
64kbps/ 128kbps*/ 256kbps*/ 384kbps*/ 512kbps*/ 768kbps*/ 1024kbps*/ 1536kbps*/ 2048kbps*/ 3072kbps*/
4096kbps*/ Unlimited*
• Default: 1536kbps*
“Unlimited*” is available only when “Frame rate” is selected for “Transmission priority”.
Note
•
•
•
When “Unlimited*” is selected, the number of users who can access H.264 images will be limited to
“1”. (Only a single user can access H.264 images.)
The H.264 bit rate is restricted by “Bandwidth control(bit rate)” on the [Network] tab on the “Network”
page (®page 66). For this reason, the bit rate may be lower than the value when any value with an
asterisk (*) on the right is selected.
It is impossible to select “Unlimited*” for both “H.264(1)” and “H.264(2)”.
[Image quality]
Select the image quality of H.264 images from the following.
Low(Motion priority)/ Normal/ Fine(Image quality priority)
• Default: Normal
Note
•
When “Constant bit rate” or “Best effort” is selected for “Transmission priority”, this setting is available.
[Refresh interval]
Select an interval (I-frame interval; 0.2 - 5 seconds) to refresh the displayed H.264 images.
If using under a network environment with frequent error occurrences, shorten the refresh interval for H.264
to diminish image distortions. However, the refresh interval may be longer than the set value.
0.2s/ 0.25s/ 0.33s/ 0.5s/ 1s/ 2s/ 3s/ 4s/ 5s
• Default: 1s
[Transmission type]
Select the transmission type of H.264 images from the following.
• Unicast port (AUTO): Up to 14 users can access a single unit concurrently. “Unicast port” will automatically
be selected when transmitting images from the unit. When it is unnecessary to fix the port number for H.
264 image transmission such as when using in a particular LAN environment, it is recommended to select
“Unicast port (AUTO)”.
• Unicast port (MANUAL): Up to 14 users can access a single unit concurrently. It is necessary to select
“Unicast port” manually to transmit images from the unit.
Operating Instructions
37
8 Configure the settings relating to images [Image]
•
•
It is possible to fix the port number of the router used for H.264 image transmission via the Internet by
setting “Unicast port (MANUAL)” (®page 66). Refer to the operating instructions of the router in use.
Multicast: Unlimited number of users can access a single unit concurrently. Complete the entry field of
“Multicast address”, “Multicast port” and “Multicast TTL/HOPLimit” when transmitting H.264 images with
multicast. Refer to page 7 for further information about the maximum concurrent access number.
Default: Unicast port (AUTO)
[Unicast port]*1
Enter the unicast port number (used to transmit images from the unit).
• Available port number: 1024 - 50000 (Only even numbers are available.)
• Default:
– H.264(1): 32004
– H.264(2): 32014
[Multicast address]*2
Enter the multicast IP address. Images will be transmitted to the designated IP address.
• Available IPv4 address: 224.0.0.0 - 239.255.255.255
• Available IPv6 address: Multicast address starting with “FF”
• Default:
– H.264(1): 239.192.0.20
– H.264(2): 239.192.0.21
Note
•
Enter a multicast IP address after checking available multicast address.
[Multicast port]*2
Enter the multicast port number (used to transmit images from the unit).
• Available port number: 1024 - 50000 (Only even numbers are available.)
• Default: 37004
Note
•
The following port numbers are unavailable since they are already in use.
10669, 10670
[Multicast TTL/HOPLimit]*2
Enter a value for “Multicast TTL/HOPLimit”.
• Available value: 1-254
• Default: 16
IMPORTANT
•
•
When transmitting an H.264 image via a network, the transmitted image sometimes may not be
displayed depending on the settings of a proxy server or a firewall. In this case, refer to the network
administrator.
When two or more network interface cards are installed on the PC in use, the network interface card(s)
not used for receiving images should be invalidated when displaying images using the multicast port.
[Smoother live video display on the browser (buffering)]
Perform settings to display unit images on the viewer software.
• On: Images are temporarily stored on the computer and are displayed smoother.
• Off: Images are displayed in real-time and are not stored on the computer.
• Default: Off
38
Operating Instructions
8 Configure the settings relating to images [Image]
IMPORTANT
•
*1
*2
If it appears that there is a delay in the images being displayed, select “Off”.
It is necessary to designate the unicast port number when “Unicast port (MANUAL)” is selected for “Transmission type”.
It is necessary to designate the multicast IP address when “Multicast” is selected for “Transmission type”.
Operating Instructions
39
8 Configure the settings relating to images [Image]
8.4 Configure the settings relating to image and
positions [Image/Position]
Click the [Image/Position] tab on the “Image” page. (®page 21, page 23)
The image quality and position settings can be configured on this page, by displaying the setup menu on the
image using the camera connected to the unit and RS485 communication.
Note
•
•
•
It is necessary to connect the RS485 cable of the camera to the unit and to set RS485 on the
[RS485] tab on the “Image” page. (®page 41)
Refer to the manuals provided with the camera for the camera setup menu.
Image/Position adjustment function is activated for the angle of view in “VGA [4:3]” even when “VGA
[16:9]” is selected for “Picture (Camera) mode”. Because a part of the connected camera's setup menu
will not be displayed in this case, we recommend changing the “Picture (Camera) mode” setting to
“VGA [4:3]”. (®page 32)
Example: when the connected camera is WV-CW590
G
H
B
A
C
D
E
F
Display the camera's setup menu on the image, and use each button to perform operations as necessary. The
displayed setup menu differs depending on the connected camera.
[Menu] buttons
• [On] button: Click this button to display the setup menu of camera.
• [Off] button: Click this button to close the setup menu of camera.
Arrow buttons/[Set] button
•
•
•
40
/
: Click these buttons to move the cursor.
/
: Click these buttons to select the parameters.
[Set] button: Click this button to move the submenu.
Operating Instructions
8 Configure the settings relating to images [Image]
[Esc] button
Click this button to return to the previous page.
[All Reset] button
Display the camera's setup menu, and then click the [All Reset] button after moving the cursor onto
“CAMERA RESET” on the SPECIAL SETUP menu to reset to the default setting. Refer to the operating
instructions of each camera for further information about the settings to be reset.
[Reset/Special] button
Display the setup menu of camera, move the cursor onto “SPECIAL”, and click this button to move to the
SPECIAL SETUP menu.
Move the cursor onto “REFRESH” on the SPECIAL SETUP menu, and click this button to refresh the
camera position.
Item names and operations may differ depending on the cameras. Refer to the operating instructions of
the camera for further information.
[Focus] buttons
•
•
•
: Click this button to adjust the focus automatically.
•
: Click this button to adjust the zoom ratio to the “Wide” side.
•
: Click this button to set the zoom ratio to x1.0.
: Click this button to adjust the focus to the “Near” side.
: Click this button to adjust the focus to the “Far” side.
[Zoom] buttons
•
: Click this button to adjust the zoom ratio to the “Tele” side.
Control pad/buttons
• Left-click on the control pad or buttons to adjust the horizontal/vertical position of the camera (panning/
tilting).
Panning/tilting speed will be faster if a clicked point gets farther from the center point of the control pad.
It is also possible to pan/tilt the camera by dragging the mouse.
Zoom and focus can be adjusted by right-clicking. When an upper/lower area of the control pad is
right-clicked, the displayed image will be zoomed in/out on. When a left/right area is right-clicked, the
focus will be adjusted to the Near/Far side.
Zoom can also be adjusted using the mouse wheel.
8.5 Configure the settings relating to RS485 [RS485]
Click the [RS485] tab on the “Image” page. (®page 21, page 23)
The RS485 settings can be configured on this page to control the camera connected to the unit.
Note
•
•
•
When cameras with different RS485 protocols (for example, cameras manufactured by Panasonic and
Pelco, Inc.) are in the same RS485 communication line, the cameras will not work correctly.
Select “4-line” or “2-line” according to the RS485 communication method specifications of the
connected cameras.
Refer to our website (http://panasonic.net/pss/security/support/info.html) for further information about
the control command (command table) of RS485.
Operating Instructions
41
8 Configure the settings relating to images [Image]
•
The data sent from a PC to the unit through port 52000 of the UDP can be sent to the camera through
RS485 to control the camera.
[RS485 transmission]
Select “On” or “Off” to determine whether or not to control the camera using RS485.
• Default: On
[Communication method]
Select the communication method of the RS485 cable from 4-line and 2-line.
• Default: 4-line
[Baud rate]
Select the line speed for RS485 transmission from the following.
2400bps/4800bps/9600bps/19200bps/38400bps
• Default: 19200bps
[Data bit]
Select the data bit from 7bit or 8bit.
• Default: 8bit
[Parity check]
Select from the following to determine whether or not to perform the parity check.
None/Odd/Even
• Default: None
[Protocol]
Select the RS485 control command for the camera from the following.
Panasonic/Pelco-D/Pelco-P/Custom
• Default: Panasonic
Note
•
•
•
42
When using RS485 control commands other than Panasonic, Pelco-D, and Pelco-P, select “Custom”
for “Protocol” and upload the command table to the unit via an FTP server. The unit must be rebooted
after the upload is completed.
If Pan/Tilt/Zoom functions cannot be operated for Panasonic cameras, you must select “Custom” for
“Protocol” and upload the command table to the unit. For further information, refer to our website
(http://panasonic.net/pss/security/support/info.html).
Refer to our website (http://panasonic.net/pss/security/support/info.html) for further information about
how to upload command tables and cases when RS485 cannot control cameras.
Operating Instructions
8 Configure the settings relating to images [Image]
•
Command table settings are initialized when the unit is initialized. In this case, upload the command
tables again as necessary.
[Unit address]
Specify the unit address of the camera connected to the unit.
• Default: 01
Operating Instructions
43
9 Configure the multi-screen settings [Multi-screen]
9 Configure the multi-screen settings
[Multi-screen]
Network cameras and units used to display images on a multi-screen can be registered on the
“Multi-screen” page. (®page 21, page 23)
[IP address]
Enter the IP address or the host name of the unit or network camera to be used for the multi-screen. 4 cameras
can be registered as a group and up to 4 groups (16 cameras) can be registered.
When the HTTP port number for the unit or network camera of which images are to be displayed had been
changed, enter as follows:
Example of entry:
– Example when entering an IPv4 address: http://192.168.0.10:8080
– Example when entering an IPv6 address: http://[2001:db8:0:0:0:0:0:1]:8080
44
Operating Instructions
9 Configure the multi-screen settings [Multi-screen]
To access the units using the HTTPS protocol, enter as follows:
Example of entry: https://192.168.0.10/
• Available number of characters: 1 - 128 characters
• Default: (Cam. 1) selfcamera, (Cam. 2 - 16) not registered
IMPORTANT
•
•
•
This unit is specified when “selfcamera” is displayed for the IP address or host name.
“Network Camera Recorder with Viewer Software Lite” which supports live monitoring and recording
images from multiple cameras is available. For further information, refer to our website
(http://panasonic.net/pss/security/support/info.html).
When accessing the unit using the HTTPS protocol, install the security certificate of the camera to
display images on the monitor. (®page 81)
Note
•
When using the host name, it is necessary to configure the DNS settings of the PC to be used for the
multi-screen display. Refer to the network administrator for information on the DNS setting of PCs.
[Camera title]
Enter the title of the camera. The entered camera title will be displayed on a multi-screen.
• Available number of characters: 0 - 20 characters
• Unavailable characters: " &
• Default: (Cam. 1) WJ-GXE100, (Cam. 2 - 16) None (blank)
Note
•
•
When selecting a 16 split-screen, some characters of the camera title to be displayed may not be
displayed.
When displaying images on multi-screen from the unit or network cameras that have the aspect ratio
configured to a setting other than “4:3”, the image will be displayed altered to the aspect ratio of “4:3”.
Operating Instructions
45
10 Configure the alarm settings [Alarm]
10 Configure the alarm settings [Alarm]
The settings relating to alarm occurrences such as settings for the alarm action at an alarm occurrence, the
VMD area settings, and the alarm occurrence notification can be configured on this page.
The “Alarm” page has 3 tabs; the [Alarm] tab, the [VMD area] tab and the [Notification] tab.
10.1 Configure the settings relating to the alarm
action [Alarm]
Click the [Alarm] tab on the “Alarm” page. (®page 21, page 23)
The settings relating to the alarm can be configured in this section. Refer to page 47 for further information
about the settings relating to the alarm images.
Alarm
[VMD alarm]
When clicking “VMD >>”, the [VMD area] tab of the “Alarm” page will be displayed.
[Command alarm]
Select “On” or “Off” to determine whether or not to receive the command alarm.
The command alarm is the function that provides notification of a Panasonic protocol alarm from the other
cameras. When “On” is selected, alarm actions will be performed between multiple cameras.
• Default: Off
[Originating port number]
Select a port number to be used to receive the command alarm.
• Available range: 1-65535
• Default: 8181
The following port numbers are unavailable since they are already in use.
20, 21, 23, 25, 42, 53, 67, 68, 69, 80, 110, 123, 161, 162, 443, 554, 995, 10669, 10670, 52000, 59000-61000
[Video loss alarm]
Select “On” or “Off” to determine whether or not to activate the alarm when a video loss occurs.
• Default: Off
46
Operating Instructions
10 Configure the alarm settings [Alarm]
10.2 Configure the settings relating to the alarm
image [Alarm]
Click the [Alarm] tab on the “Alarm” page. (®page 21, page 23)
The settings relating to the alarm image to be transmitted to an FTP server can be configured in this section.
The alarm image will be transmitted to an FTP server. To transmit alarm images to an FTP server, it is
necessary to configure the settings in advance. (®page 62)
IMPORTANT
•
•
When “D1” is selected for “Picture (Camera) mode”, alarm images cannot be transmitted.
Depending on the network line speed or the network traffic, images may not be transmitted at the exact
designated interval or period.
Alarm image
[FTP >>]
When “FTP >>” is clicked, the [FTP] tab of the “Server” page will be displayed. (®page 62)
[Alarm image FTP transmission]
Select “On” or “Off” to determine whether or not to transmit the alarm image to the FTP server.
• Default: Off
[Directory name]
Enter the directory name where the alarm images are to be saved.
For example, enter “/ALARM” to designate the directory “ALARM” under the root directory of the FTP server.
• Available number of characters: 1 - 256 characters
• Unavailable characters: " & ;
• Default: None (blank)
[File name]
Enter the file name used for the alarm image to be transmitted to an FTP server. The file name will be as
follows.
File name: [“Entered file name” + “Time and date (year/ month/ day/ hour/ minute/ second)”] + “Serial
number”
• Available number of characters: 1 - 32 characters
• Unavailable characters: " & * / : ; < > ? \ |
• Default: None (blank)
Operating Instructions
47
10 Configure the alarm settings [Alarm]
[Post alarm]
• Transmission interval
•
•
Select the transmission interval for the alarm image transmission to the FTP server from the following.
NTSC: 0.1fps/ 0.2fps/ 0.33fps/ 0.5fps/ 1fps
PAL: 0.08fps/ 0.17fps/ 0.28fps/ 0.42fps/ 1fps
• Default: 1fps
Number of images
Select the number of images to be transmitted from the following.
1pic/ 2pics/ 3pics/ 4pics/ 5pics/ 6pics/ 7pics/ 8pics/ 9pics/ 10pics/ 20pics/ 30pics/ 50pics/ 100pics/ 200pics/
300pics/ 500pics/ 1000pics/ 2000pics/ 3000pics
• Default: 100pics
Recording duration
Approximate time to be taken to save the set “Number of images” with the set “Transmission interval” will
be displayed.
[Image capture size]
Select the capture size of images to be transmitted to the FTP server or of an image to be attached to the
alarm E-mail.
•
Picture (Camera) mode VGA [4:3]
QVGA/VGA
Picture (Camera) mode VGA [16:9]
320x180/640x360
Default: VGA
[Image compression rate upon alarm detection]
Select “On” or “Off” to determine whether or not to change the image quality of “Quality1” (®page 33) upon
alarm detection.
• On: Images will be transmitted with the image quality selected for “Image quality upon alarm detection”.
• Off: Does not change the image quality upon alarm detection.
• Default: Off
[Image quality upon alarm detection]
Image quality can be changed upon an alarm occurrence. Select the image quality from the following.
0 Super fine/ 1 Fine/ 2/ 3/ 4/ 5 Normal/ 6/ 7/ 8/ 9 Low
• Default: 5 Normal
10.3 Configure the VMD settings [VMD area]
Click the [VMD area] tab on the “Alarm” page. (®page 21, page 23)
The VMD areas can be set on this page.
Up to 4 areas can be set. When motion is detected in the set area, it will be regarded as an alarm.
IMPORTANT
•
•
•
48
The alarm occurrence indication button (®page 9) will be displayed when motion is detected by the
VMD function.
The alarm occurrence indication button will be displayed when receiving a command alarm or video
loss alarm.
Depending on the network environment, notification may be delayed even when “Real time” is selected
for “Alarm status update mode” on the [Basic] tab of the “Basic” page (®page 27).
Operating Instructions
10 Configure the alarm settings [Alarm]
•
The VMD function is not the dedicated function to prevent thefts, fires, etc. We are not responsible for
any accidents or damages occurring in case.
[Area]
When selecting a VMD area in the screen, it will be numbered as area 1. (Subsequent areas will be numbered
in the order of selection.)
[All areas] button
When the [All areas] button is clicked, the whole area will become the VMD area, and “1(White)” will be
automatically applied to “Area”.
[Status]
Select “On” or “Off” to determine whether or not to perform video motion detection.
• On: Performs video motion detection.
• Off: Does not perform video motion detection.
• Default: Off
Operating Instructions
49
10 Configure the alarm settings [Alarm]
[Detection area]
Adjust the size of the VMD area using the slider. The smaller the selected value is, the higher the sensitivity
of VMD area becomes. The current value (1-10) will be displayed on the right of the slider.
• Default: 1
[Detection sensitivity]
Adjust the sensitivity of motion detection in the VMD area using the slider. The settings can be configured for
each area individually. The larger the value is set, the higher the sensitivity level becomes.
The current value (1 (low) - 15 (high)) will be displayed below the slider.
• Default: 8
[Delete] button
Click the [Delete] button corresponding to the area to be deleted. The outline of the selected area will be
deleted.
[Area No. notification]
When “Panasonic alarm protocol notification >>” is clicked, the [Notification] tab of the “Alarm” page will be
displayed. (®page 53)
VMD information addition
[Information addition]
Select “On” or “Off” to determine whether or not to add VMD information to superimposed image data.
The VMD information can be searched by some of Panasonic network disk recorders. Refer to the operating
instructions of the connected devices for further information about the functions and settings.
• Default: Off
Note
•
When the camera is performing pan, tilt, zoom, or focus operations, adjusting the brightness, or
operating in auto mode, VMD information is added.
10.3.1 Set the VMD areas [VMD area]
Set the areas to activate the VMD function.
IMPORTANT
•
50
When the settings are being configured on the setup menu, sometimes the VMD function may not work
correctly.
Operating Instructions
10 Configure the alarm settings [Alarm]
1. Set the video motion detection area by dragging the mouse on the screen.
→ The designated area will become the VMD area “1(White)” and the outline will be displayed. When 2
- 4 VMD areas are set, each area will be numbered in order. The areas will be identified by the
respective outline colors. The “Status” of the outline to be set for the area will become “On”.
2. Adjust “Detection area” and “Detection sensitivity” using the slider. “Detection area” can be adjusted by
moving the slider between the left end position and the center position. “Detection sensitivity” can be
adjusted by moving the slider between the left end position and the right end position.
Refer to page 48 for further information about the “Detection sensitivity” and “Detection area”.
The currently displayed area and its detection sensitivity will be displayed in the “Detection area” section.
When the status bar exceeds the setting position of slider, the alarm action will be performed. Change
areas and the settings of “Detection area” and “Detection sensitivity” as necessary.
Note
•
When “Detection area” cannot be adjusted properly by moving the slider, adjust “Detection
sensitivity” while checking the motion detection status.
Operating Instructions
51
10 Configure the alarm settings [Alarm]
3. Click the [Set] button after completing the settings.
IMPORTANT
•
The setting will not be applied unless the [Set] button is clicked.
4. To invalidate the VMD area, click the [Set] button after selecting “Off” for “Status” of the VMD area to be
invalidated.
→ The outline of the invalidated VMD area will turn to a dotted line. When the VMD area is invalidated,
no alarm will occur even when a motion can be recognized in the area.
5. To delete the VMD area, click the [Delete] button corresponding to the area to be deleted.
→ The outline of the respective VMD area will disappear.
6. Click the [Set] button.
→ The edited settings will be applied.
10.4 Configuration of the settings relating to the
E-mail notification [Notification]
Click the [Notification] tab on the “Alarm” page. (®page 21, page 23)
The settings relating to the alarm E-mail can be configured. It is necessary to configure the settings of the
E-mail server to perform the E-mail notification. (®page 61)
E-mail notification
[E-mail server >>]
When “E-mail server >>” is clicked, the [E-mail] tab of the “Server” page will be displayed. (®page 61)
[E-mail notification]
Select “On” or “Off” to determine whether or not to provide notification by E-mail according to the settings for
the “Alarm” and “Diag.” checkboxes of “Destination of notification” below.
52
Operating Instructions
10 Configure the alarm settings [Alarm]
– When an alarm is detected (“Alarm”)
• Default: Off
Destination of notification
[Address 1] - [Address 4]
Enter the destination E-mail address. Up to 4 destination E-mail addresses can be registered.
• [Alarm] checkbox: When the checkbox is selected, the E-mail notification will be sent when an alarm
occurs or when a video loss is recovered.
• [Destination E-mail address]: Enter the destination E-mail address.
– Available number of characters: 3 - 128 characters
– Available characters: Alphanumeric characters, the at sign (@), the period (.), the underscore (_),
and the hyphen (-).
– Default: None (blank)
To delete the registered address, click the [Delete] button respective to the desired address.
[E-mail subject]
Enter the E-mail subject.
• Available number of characters: 0 - 50 characters
• Default: None (blank)
[E-mail body]
Enter the E-mail body.
• Available number of characters: 0 - 200 characters
• Default: None (blank)
10.5 Configure the settings relating to Panasonic
alarm protocol [Notification]
Click the [Notification] tab on the “Alarm” page. (®page 21, page 23)
Operating Instructions
53
10 Configure the alarm settings [Alarm]
The settings relating to Panasonic alarm protocol can be configured in this section.
Panasonic alarm protocol notification
[Panasonic alarm protocol]
Select “On” or “Off” to determine whether or not to provide notification by Panasonic alarm protocol according
to the settings for the “Alarm” and “Diag.” checkboxes of “Destination of notification” below.
– When an alarm is detected (“Alarm”)
– When a video loss is recovered (“Alarm”)
• Default: Off
Note
•
When “On” is selected, notification of the alarm occurrence will be provided to the registered destination
server addresses in order (to IP address 1 first, to IP address 8 last).
[Additional alarm area data(VMD)]
Determine whether or not to send notifications for the alarm area number of VMD alarm with the Panasonic
alarm protocol by selecting On/Off.
• Default: Off
[Destination port]
Select a destination port for the Panasonic alarm protocol from the following.
• Available range: 1 - 65535
• Default: 1818
The following port numbers are unavailable since they are already in use.
20, 21, 23, 25, 42, 53, 67, 68, 69, 80, 110, 123, 161, 162, 443, 995, 10669, 10670
[Retry times]
Select a retry time for the Panasonic alarm protocol.
54
Operating Instructions
10 Configure the alarm settings [Alarm]
•
•
Available range: 0-30
Default: 2
Destination of notification
[Address 1] - [Address 8]
Enter the destination IP address or host name of the Panasonic alarm protocol from the following. Host name
is unavailable for the IP address. Up to 8 destination server addresses can be registered.
• [Alarm] checkbox: When the checkbox is selected, the Panasonic alarm notification will be sent when an
alarm occurs or when a video loss is recovered.
• [Destination server address]: Enter the destination server address or host name.
– Available characters: Alphanumeric characters, the colon (:), the period (.), the underscore (_), and
the hyphen (-).
– Default: None (blank)
To delete the registered destination server address, click the [Delete] button respective to the desired
destination server address.
IMPORTANT
•
•
When entering the host name of the “Destination server address”, the DNS settings on the [Network]
tab of the “Network” page must be configured. (®page 66)
Confirm that the destination IP addresses are registered correctly. When a registered destination does
not exist, notification may be delayed.
Operating Instructions
55
11 Configure the settings relating to the authentication [User mng.]
11 Configure the settings relating to the
authentication [User mng.]
The settings relating to the authentication such as users and PCs restrictions for accessing the unit with a PC
or cellular phone/mobile terminal can be configured on the “User mng.” page.
The “User mng.” page has 3 tabs; the [User auth.] tab, the [Host auth.] tab and the [System] tab.
11.1 Configure the settings relating to the user
authentication [User auth.]
Click the [User auth.] tab on the “User mng.” page. (®page 21, page 23)
The settings relating to the authentication of users who can access this unit from the PC or a cellular phone/
mobile terminal can be configured on this page. Up to 18 users can be registered.
Note
•
When user authentication has failed to pass (authentication error) 8 times within 30 seconds using the
same IP address (PC), access to the unit will be denied for a while.
[User auth.]
Select “On” or “Off” to determine whether or not to authenticate the users.
• Default: Off
[Authentication]
Set the user authentication method.
Digest or Basic: Uses Digest or Basic authentication.
Digest: Uses Digest authentication.
Basic: Uses Basic authentication.
• Default: Digest or Basic
Note
•
56
When the [Authentication] setting has been changed, close the web browser, and then access the unit
again.
Operating Instructions
11 Configure the settings relating to the authentication [User mng.]
•
For other devices such as network disk recorders, unless otherwise stated, Digest authentication is
not supported. (As of December, 2012)
[User name]
Enter a user name.
• Available number of characters: 1 - 32 characters
• Unavailable characters: " & : ; \
[Password] [Retype password]
Enter a password.
• Available number of characters: 4 - 32 characters
• Unavailable characters: " &
Note
•
When the user name already in use is entered and the [Set] button is clicked, the respective user
information will be overwritten.
[Access level]
Select the access level of the user from the following.
• 1. Administrator: Allowed all available operations of the unit.
• 2. Camera control: Allowed to display images from the camera and to control the unit. The unit setting
configuration is unavailable.
• 3. Live only: Only displaying live images is available. The unit setting configuration and unit control are
unavailable.
• Default: 3. Live only
[User check]
From the pull-down menu of “User check”, the registered user can be selected and the selected user’s
information can be checked.
The registered user will be displayed with the access level.
(Example: admin [1])
To delete the registered user, click the [Delete] button after selecting the user to be deleted.
11.2 Configure the settings relating to the host
authentication [Host auth.]
Click the [Host auth.] tab on the “User mng.” page. (®page 21, page 23)
Operating Instructions
57
11 Configure the settings relating to the authentication [User mng.]
The restriction settings of PCs (IP address) from accessing the unit can be configured on this page.
[Host auth.]
Select “On” or “Off” to determine whether or not to authenticate the host.
• Default: Off
[IP address]
Enter the IP address of the PC to be allowed to access the camera. Host name cannot be entered for the IP
address.
Note
•
•
When “IP address/subnet mask” is entered, it is possible to restrict PCs in each subnet. For example,
when “192.168.0.1/24” is entered and “2. Camera control” is selected for the access level, the PCs
whose IP address is between “192.168.0.1” - “192.168.0.254” can access the camera with the access
level “2. Camera control”.
When the IP address already in use is entered and the [Set] button is clicked, the respective host
information will be overwritten.
[Access level]
Select the access level of the host from the following.
1. Administrator/ 2. Camera control/ 3. Live only
Refer to page 56 for further information about the access level.
• Default: 3. Live only
[Host check]
From the pull-down menu of “Host check”, the registered host can be selected and the selected host’s IP
address can be checked.
The registered IP address will be displayed with the access level.
(Example: 192.168.0.21 [1])
To delete the registered host, click the [Delete] button after selecting the IP address to be deleted.
11.3 Configure the settings relating to the priority
stream [System]
Click the [System] tab on the “User mng.” page. (®page 21, page 23)
58
Operating Instructions
11 Configure the settings relating to the authentication [User mng.]
The description below is the configuration of the priority stream that can transmit images without deteriorating
the image quality and refresh interval even when multiple users access concurrently.
Priority stream
[Activation]
Select “On” or “Off” to determine whether or not to use the priority stream.
• Default: Off
Note
•
When “On” is selected for “Activation” of “Priority stream”, number of users who can access the camera
may be limited.
[Destination IP address(1)]
Enter the first destination IP address.
• Default: None (blank)
[Destination IP address(2)]
Enter the second destination IP address.
• Default: None (blank)
[Stream type]
Select either “JPEG”, “H.264(1)” or “H.264(2)”.
• JPEG: JPEG images will be transmitted.
• H.264(1): H.264(1) images will be transmitted.
• H.264(2): H.264(2) images will be transmitted.
• Default: JPEG
Note
•
When “Best effort” is selected for “Transmission priority” of “H.264”, bit rate will vary between the
maximum and minimum rates while images are being transmitted.
[Refresh interval*]
Select the refresh interval from the following.
This setting is validated only when “JPEG” is selected for “Stream type”.
NTSC: 0.1fps/ 0.2fps/ 0.33fps/ 0.5fps/ 1fps/ 2fps/ 3fps/ 5fps/ 6fps */ 10fps */ 15fps */ 30fps *
PAL: 0.08fps/ 0.17fps/ 0.28fps/ 0.42fps/ 1fps/ 2.1fps/ 3.1fps/ 4.2fps/ 5fps */ 8.3fps */ 12.5fps */ 25fps *
• Default: 1fps
Operating Instructions
59
11 Configure the settings relating to the authentication [User mng.]
Note
•
When “On” is selected for “H.264 transmission”, the transmission interval may be longer than the set
value when any value with an asterisk (*) on the right is selected.
[Image capture size]
Select the image capture size from the following.
This setting is validated only when “JPEG” is selected for “Stream type”.
•
60
Picture (Camera) mode VGA [4:3]
QVGA/VGA
Picture (Camera) mode VGA [16:9]
320x180/640x360
Picture (Camera) mode D1
D1
Default: VGA
Operating Instructions
12 Configure the settings of the servers [Server]
12 Configure the settings of the servers
[Server]
The settings relating to the E-mail server, the FTP server and the NTP server can be configured on this page.
The “Server” page has 3 tabs; the [E-mail] tab, the [FTP] tab and the [NTP] tab.
12.1 Configure the settings relating to the E-mail
server [E-mail]
Click the [E-mail] tab on the “Server” page. (®page 21, page 23)
The settings relating to the E-mail server used to send the alarm E-mail can be configured on this page.
IMPORTANT
•
When a terminal that receives E-mails is not compatible with UTF-8 encode, it is impossible to receive
alarm E-mails correctly.
[SMTP server address]
Enter the IP address or the host name of the SMTP server used to send E-mails.
• Available number of characters: 1 - 128 characters
• Available characters: Alphanumeric characters, the colon (:), the period (.), the underscore (_), and the
hyphen (-).
• Default: None (blank)
[SMTP port]
Enter the port number to which E-mails are sent.
• Available port number: 1-65535
• Default: 25
The following port numbers are unavailable since they are already in use.
20, 21, 23, 42, 53, 67, 68, 69, 80, 110, 123, 161, 162, 443, 995, 10669, 10670
[POP server address]
When “POP before SMTP” is selected for “Type”, enter the IP address or the host name of the POP server.
• Available number of characters: 1 - 128 characters
• Available characters: Alphanumeric characters, the colon (:), the period (.), the underscore (_), and the
hyphen (-).
Operating Instructions
61
12 Configure the settings of the servers [Server]
•
Default: None (blank)
IMPORTANT
•
When entering the host name for “SMTP server address” or “POP server address”, it is necessary to
configure the DNS settings on the [Network] tab of the “Network” page. (®page 66)
[Authentication]
• Type
Select the authentication method to send E-mails from the following.
– None: It is not necessary to clear any authentication to send E-mails.
– POP before SMTP: It is necessary to first clear the POP server authentication to use the SMTP server
to send E-mails.
– SMTP: It is necessary to clear the SMTP server authentication to send E-mails.
– Default: None
Note
•
•
•
When you don’t know the authentication method to send E-mails, refer to the network administrator.
User name
Enter the user name to access the server.
– Available number of characters: 0 - 32 characters
– Unavailable characters: " & : ; \
– Default: None (blank)
Password
Enter the password to access the server.
– Available number of characters: 0 - 32 characters
– Unavailable characters: " &
– Default: None (blank)
[Sender’s E-mail address]
Enter the E-mail address of a sender.
The entered E-mail address will be displayed in the “From” (sender) line of the sent E-mails.
• Available number of characters: 3 - 128 characters
• Available characters: Alphanumeric characters, the at sign (@), the period (.), the underscore (_), and
the hyphen (-).
• Default: None (blank)
12.2 Configure the settings relating to the FTP server
[FTP]
Click the [FTP] tab on the “Server” page. (®page 21, page 23)
62
Operating Instructions
12 Configure the settings of the servers [Server]
The settings relating to the FTP server used to transmit the alarm images can be configured on this page.
[FTP server address]
Enter the IP address or the host name of the FTP server.
• Available number of characters: 1 - 128 characters
• Available characters: Alphanumeric characters, the colon (:), the period (.), the underscore (_), and the
hyphen (-).
• Default: None (blank)
IMPORTANT
•
When entering the host name for “FTP server address”, it is necessary to configure the DNS settings
on the [Network] tab of the “Network” page. (®page 66)
[User name]
Enter the user name (login name) to access the FTP server.
• Available number of characters: 1 - 32 characters
• Unavailable characters: " & : ; \
• Default: None (blank)
[Password]
Enter the password to access the FTP server.
• Available number of characters: 0 - 32 characters
• Unavailable characters: " &
• Default: None (blank)
[Control port]
Enter a control port number to be used for the FTP server.
• Available port number: 1-65535
• Default: 21
The following port numbers are unavailable since they are already in use.
20, 23, 25, 42, 53, 67, 68, 69, 80, 110, 123, 161, 162, 443, 995, 10669, 10670
[FTP mode]
Select “Passive” or “Active” for the FTP mode.
Normally, select “Passive”. When it is impossible to connect after select “Passive”, try to connect after selecting
“Active”.
• Default: Passive
Operating Instructions
63
12 Configure the settings of the servers [Server]
12.3 Configure the settings relating to the NTP server
[NTP]
Click the [NTP] tab on the “Server” page. (®page 21, page 23)
The settings relating to the NTP server such as the NTP server address, port number, etc. can be configured
on this page.
IMPORTANT
•
Use an NTP server when the more accurate time & date setting is required for the system operation.
[Time adjustment]
Select the time adjustment method from the following. Time adjusted by the selected method will be used as
the standard time of the unit.
• Manual: Time set on the [Basic] tab on the “Basic” page will be used as the standard time of the unit.
• Synchronization with NTP server: Time automatically adjusted by synchronizing with the NTP server
will be used as the standard time of the unit.
• Default: Manual
[NTP server address setting]
When “Synchronization with NTP server” is selected for “Time adjustment”, select the method of how to obtain
the NTP server address from the following.
• Auto: Obtains the NTP server address from the DHCP server.
• Manual: The NTP server address will be entered manually on “NTP server address”.
• Default: Manual
IMPORTANT
•
When obtaining the NTP server address from the DHCP server, it is necessary to select “DHCP”,
“Auto(AutoIP)”, or “Auto(Advanced)” for “Network Settings” on the [Network] tab of the “Network” page.
(®page 66)
[NTP server address]
When “Manual” is selected for “NTP server address setting”, enter the IP address or the host name of the NTP
server.
• Available number of characters: 1 - 128 characters
• Available characters: Alphanumeric characters, the colon (:), the period (.), the underscore (_), and the
hyphen (-).
• Default: None (blank)
64
Operating Instructions
12 Configure the settings of the servers [Server]
IMPORTANT
•
When entering the host name for “NTP server address”, it is necessary to configure the DNS settings
on the [Network] tab of the “Network” page. (®page 66)
[NTP port]
Enter a port number of the NTP server.
• Available port number: 1 - 65535
• Default: 123
The following port numbers are unavailable since they are already in use.
20, 21, 23, 25, 42, 53, 67, 68, 69, 80, 110, 161, 162, 443, 995, 10669, 10670
[Time adjustment interval]
Select an interval (1 - 24 hours: in 1 hour intervals) of synchronization with the NTP server.
• Default: 1h
[Time zone]
Select a time zone corresponding to the location where the unit is in use.
• Default: (GMT) Greenwich Mean Time: Dublin, Edinburgh, Lisbon, London
Operating Instructions
65
13 Configuring the network settings [Network]
13 Configuring the network settings [Network]
The network settings and the settings relating to DDNS (Dynamic DNS), SNMP (Simple Network management
Protocol), and FTP image transfer can be configured on the “Network” page.
The “Network” page has 4 tabs; the [Network] tab, the [DDNS] tab, the [SNMP] tab and the [FTP img. trans.]
tab.
13.1 Configure the network settings [Network]
Click the [Network] tab on the “Network” page. (®page 21, page 23)
The following information is required to configure the network settings. Contact the network administrator or
your Internet service provider.
• IP address
• Subnet mask
• Default gateway (when using the gateway server/router)
• HTTP port
• Primary DNS address, Secondary DNS address (when using DNS)
66
Operating Instructions
13 Configuring the network settings [Network]
IPv4 network
[Network Settings]
Select the method of how to configure the IP address from the following.
• Static: The IP address is configured by entering manually on “IP address(IPv4)”.
• DHCP: The IP address is configured using the DHCP function.
• Auto(AutoIP): The IP address is configured using the DHCP function. When the DHCP server is not found,
the IP address is automatically configured.
• Auto(Advanced): Using the DHCP function, network address information is referred to, and an unused
IP address is configured to the unit as a static IP address. The configured IP address is automatically
determined within the subnet mask range by the unit. When the DHCP server is not found, the IP address
is set to 192.168.0.10.
Operating Instructions
67
13 Configuring the network settings [Network]
•
Default: Auto(Advanced)
Note
•
When “Auto(AutoIP)” is selected and the IP address cannot be obtained from the DHCP server, an IP
address not used in the same network will be searched within 169.254.1.0 - 169.254.254.255.
[IP address(IPv4)]
When not using the DHCP function, enter the IP address of the unit. Do not enter an IP address already in use
(for the PCs and the other network cameras).
• Default: 192.168.0.10
Note
•
Multiple IP addresses are unavailable even when using the DHCP function. Refer to the network
administrator for further information about the settings of the DHCP server.
[Subnet mask]
When not using the DHCP function, enter the subnet mask of the unit.
• Default: 255.255.255.0
[Default gateway]
When not using the DHCP function, enter the default gateway of the unit.
• Default: 192.168.0.1
Note
•
Multiple IP addresses for the default gateway are unavailable even when using the DHCP function.
Refer to the network administrator for further information about the settings of the DHCP server.
[DNS]
Determine how to set the address of the DNS server by selecting “Auto” (obtain the address automatically) or
“Manual” (enter the address of the DNS server). When “Manual” is selected, it is necessary to configure the
settings for the DNS.
When using the DHCP function, it is possible to obtain the DNS address automatically by selecting “Auto”.
Refer to the network administrator for further information about the settings.
• Default: Auto
[Primary server address], [Secondary server address]
When “Manual” is selected for “DNS”, enter the IP address of the DNS server.
Refer to the network administrator about the IP address of the DNS server.
• Default: None (blank)
IPv6 network
[Manual]
Select “On” or “Off” to determine whether or not to manually configure the IP address for IPv6 network (IPv6
address).
• On: Enter an IPv6 address manually.
• Off: Manual entry of an IPv6 address will become unavailable.
• Default: Off
[IP address(IPv6)]
When “On” is selected for “Manual”, manual entry of the IPv6 address is required. Do not enter an address
already in use.
68
Operating Instructions
13 Configuring the network settings [Network]
Note
•
When connecting to the manually configured IPv6 address beyond the router, use an IPv6 compatible
router and turn on the automatic IPv6 address assignment function. In this case, it is necessary to
configure IPv6 address including prefix information provided from the IPv6 compatible router. Refer to
the manuals provided with the router for further information.
[Default gateway]
When “On” is selected for “Manual” of IPv6 network, enter the default gateway of IPv6 network of the unit.
• Default: None (blank)
[DHCPv6]
Select “On” or “Off” to determine whether or not to use the IPv6 DHCP function.
Configure the DHCP server not to assign the same IP addresses used for the other network cameras and PCs
whose IP address is unique. Refer to the network administrator for further information about the settings of the
server.
• Default: Off
[Primary DNS server address], [Secondary DNS server address]
Enter the IPv6 address of the DNS server. Refer to the network administrator about the IPv6 address of the
DNS server.
• Default: None (blank)
Common
[HTTP port]
Assign the port numbers independently.
• Available port number: 1 - 65535
• Default: 80
The following port numbers are unavailable since they are already in use.
20, 21, 23, 25, 42, 53, 67, 68, 69, 110, 123, 161, 162, 443, 554, 995, 10669, 10670, 52000, 59000 - 61000
[Line speed]
Select the line speed for data transmission from the following. It is recommended to use with the default
“Auto”.
• Auto: Line speed will be applied automatically.
• 100M-Full: 100 Mbps full-duplex
• 100M-Half: 100 Mbps half-duplex
• 10M-Full: 10 Mbps full-duplex
• 10M-Half: 10 Mbps half-duplex
• Default: Auto
[Max RTP packet size]
Select “Unlimited(1500byte)” or “Limited(1280byte)” to determine whether or not to restrict the RTP packet size
when viewing images from the camera using the RTP protocol. It is recommended to use with the default
“Unlimited(1500byte)”.
When the RTP packet size is restricted in the network line in use, select “Limited(1280byte)”. Refer to the
network administrator for further information about the maximum packet size in the network line.
• Default: Unlimited(1500byte)
Operating Instructions
69
13 Configuring the network settings [Network]
[HTTP max segment size(MSS)]
Select “Unlimited(1460byte)”, “Limited(1280byte)”, or “Limited(1024byte)” to determine whether or not to
restrict the maximum segment size (MSS) when viewing images from the camera using the HTTP protocol.
We recommended that you use this feature with the default setting.
When the MSS is restricted in the network line in use, select “Limited(1024byte)” or “Limited(1280byte)”. Refer
to the network administrator for further information about the MSS in the network line.
• Default: Unlimited(1460byte)
UPnP
This unit support UPnP (Universal Plug and Play). By using the UPnP function, it becomes possible to configure
the following automatically.
• Configuration of the port forwarding function of the router (However, a router supporting UPnP is required.)
This configuration is useful when accessing the unit via the Internet, or from a cellular phone/mobile
terminal.
• Automatic refreshment of the shortcut to the unit that is created on the [My Network Places] folder
([Network] folder when using Windows Vista or Windows 7) of the PC even when the IP address of the unit
changes.
[Auto port forwarding]
Select “On” or “Off” to determine whether or not to use the port forwarding function of the router.
To use the port forwarding function, the router in use must support UPnP and the UPnP must be enabled.
• Default: Off
Note
•
•
•
Due to port forwarding, the port number may sometimes be changed. When the number is changed,
it is necessary to change the port numbers registered in the PC and recorders, etc.
The UPnP function is available when the unit is connected to the IPv4 network. IPv6 is not supported.
To check if auto port forwarding is properly configured, click the [Status] tab on the “Maintenance” page,
and check that the “Enable” is displayed for “Status” of “UPnP”. (®page 108)
When “Enable” is not displayed, refer to “Cannot access the unit via the Internet.” in the
“20 Troubleshooting” section. (®page 122)
[Short cut to unit]
Select whether or not to create the shortcut to the unit on the [My Network Places] folder ([Network] folder
when using Windows Vista or Windows 7) of the PC. When creating the shortcut, select “On”.
To use the shortcut function to the unit, enable the UPnP function on the PC in advance.
• Default: Off
Note
•
70
To display the shortcut to the unit on the [My Network Places] folder ([Network] folder when using
Windows Vista or Windows 7) of the PC, it is necessary to add the Windows component. Refer to the
following to enable the UPnP function.
For Windows XP
[Start] ® [Settings] ® [Control Panel] ® [Add or Remove Programs] ® [Add/Remove Windows
Components] ® select [Networking Services] ® [Details] ® check [Internet Gateway Device Discovery
and Control Client] and [UPnP User Interface] ® [OK] ® [Next] ® Complete
For Windows Vista
[Start] ® [Control Panel] ® [Network and Internet] ® [Network and Sharing Center] ® expand the
section of [Network discovery] of [Sharing and Discovery] ® select [Turn on network discovery] ® click
[Apply] ® Complete
For Windows 7
Operating Instructions
13 Configuring the network settings [Network]
[Start] ® [Control Panel] ® [Network and Internet] ® [Network and Sharing Center] ® select [Turn on
network discovery] of [Network discovery] of [Change advanced sharing settings] ® click [Save
changes] ® Complete
HTTPS
It is possible to enhance the network security by encrypting the access to units using the HTTPS function.
Refer to page 74 for how to configure the HTTPS settings.
[CRT key generate]
CRT key (SSL encryption key) used for the HTTPS protocol is generated. To generate the CRT key, click the
[Execute] button to display “CRT key generate” dialog box.
[Self-signed Certificate - Generate]
The unit itself generates the security certificate used for the HTTPS protocol. (Self-signed certificate)
To generate the self-signed certificate, click the [Execute] button to display the “Self-signed Certificate Generate” dialog box.
[Self-signed Certificate - Information]
Displays the information of the self-signed certificate.
When the [Confirm] button is clicked, the registered information of the self-signed certificate will be displayed
in the “Self-signed Certificate - Confirm” dialog box.
When the [Delete] button is clicked, the generated self-signed certificate will be deleted.
[CA Certificate - Generate Certificate Signing Request]
When using the security certificate issued by CA (Certificate Authority) as the security certificate used for the
HTTPS protocol, the CSR (Certificate Signing Request) will be generated.
To generate the CSR, click the [Execute] button to display the “CA Certificate - Generate Certificate Signing
Request” dialog window.
[CA Certificate - CA Certificate install]
Installs the server certificate (security certificate) issued by CA (Certificate Authority) and displays the
information of the installed server certificate.
To install the server certificate, click the [Browse...] button to display the [Open] dialog box, and select the file
of the server certificate issued by CA, and click the [Execute] button.
If the server certificate is already installed, the file name of the installed server certificate will be displayed.
[CA Certificate - Information]
Displays the information of the server certificate.
When the [Confirm] button is clicked, the registered information of the installed server certificate will be
displayed in the “CA Certificate - Confirm” dialog box. If the server certificate is not installed, the content of the
generated CSR file will be displayed.
When the [Delete] button is clicked, the installed server certificate will be deleted.
IMPORTANT
•
Before deleting the valid server certificate (security certificate), confirm that there is a backup file on
the PC or another media. The backup file will be required when installing the server certificate again.
[Connection]
Select the protocol used to connect the unit.
• HTTP: Only the HTTP connection is available.
• HTTPS: Only the HTTPS connection is available.
• Default: HTTP
Operating Instructions
71
13 Configuring the network settings [Network]
[HTTPS port]
Designate the HTTPS port number to be used.
• Available port number: 1 - 65535
• Default: 443
The following port numbers are unavailable since they are already in use.
20, 21, 23, 25, 42, 53, 67, 68, 69, 80, 110, 123, 161, 162, 554, 995, 10669, 10670, 52000, 59000-61000
Note
•
•
•
•
•
•
•
The unit will restart after the connection setting is changed.
When using the self-signed certificate:
If the unit is accessed using the HTTPS protocol for the first time, the warning window will be displayed.
In this case, follow the instructions of the wizard to install the self-signed (security) certificate.
(®page 81)
When using the server certificate:
In advance, install the root certificate and intermediate certificate on the browser in use. Follow the
instructions of CA for how to obtain and install these certificates.
When the unit is accessed using the HTTPS protocol, the refresh interval and frame rate of images
may be lower.
When the unit is accessed using the HTTPS protocol, it may take time to display images.
When the unit is accessed using the HTTPS protocol, the images may be distorted.
The maximum number of concurrent access user varies depending on the maximum image size and
transmission format.
[FTP access to unit]
Select “Allow” or “Forbid” to determine whether to allow or forbid the FTP access to unit.
• Default: Forbid
[Bandwidth control(bit rate)]
Select the total bit rate for data transmission from the following.
Unlimited/ 64kbps/ 128kbps/ 256kbps/ 384kbps/ 512kbps/ 768kbps/ 1024kbps/ 2048kbps/ 4096kbps/
8192kbps
• Default: Unlimited
Note
•
•
Select “128kbps” or a faster rate to carry out the live transmission of JPEG images and the FTP periodic
image transmission simultaneously.
When “Bandwidth control(bit rate)” is set low, taking a picture using the snap shot button may not
function depending on the use environment. In this case, select “QVGA” for “Image capture size” of
“JPEG” on the [JPEG/H.264] tab or set “Image quality setting” of “JPEG” lower.
[Easy IP Setup accommodate period]
Select “20min” or “Unlimited” to determine how long the network setting operation using the Panasonic “IP
Setting Software” can be allowed.
• 20min: The network setting operation using the Panasonic “IP Setting Software” are allowed for 20 minutes
since the unit starts up.
• Unlimited: The network setting operation using the Panasonic “IP Setting Software” are allowed without
time limitation.
• Default: 20min
72
Operating Instructions
13 Configuring the network settings [Network]
Note
•
•
•
•
The camera information display using the Panasonic “IP Setting Software” is allowed without time
limitation, and unit images can be opened.
Refer to the network administrator for the addresses of each server.
The port forwarding function changes a global IP address to a private IP address, and “Static IP
masquerade” and “Network Address Translation (NAT)” have this function. This function is to be set in
a router.
To access the unit via the Internet by connecting the unit to a router, it is necessary to assign a
respective HTTP port number for each unit and address translation by using the port forwarding function
of the router. For further information, refer to the operating instructions of the router in use.
Enter [Global IP address + :
(colon) + port number] in the
"Address" box of the browser
via the Internet.
vvv.xxx.yyy.zzz:50000
vvv.xxx.yyy.zzz:50001
WAN
Global address
vvv.xxx.yyy.zzz
Router
LAN
Private address
192.168.0.254
Address translation using the port
forwarding function
vvv.xxx.yyy.zzz:50000 A 192.168.0.1:50000
Internet
(WAN)
Cable modem
XDSL modem
Private address
192.168.0.1
Port number: 50000
Address translation using the port
forwarding function
vvv.xxx.yyy.zzz:50001 A 192.168.0.2:50001
Private address
192.168.0.2
Port number: 50001
Operating Instructions
73
13 Configuring the network settings [Network]
13.2 Configure the HTTPS settings
Click the [Network] tab on the “Network” page. (®page 21, page 23)
The settings relating to the HTTPS protocol that can enhance the network security by encrypting the access
to units on this page.
The HTTPS settings will be configured in the following procedure.
Generation of the CRT key (SSL encryption key)
When using the self-signed certificate
When using the server certificate
Generation of the self-signed certificate
Generation of CSR (Certificate Signing Request)
Application for the approval by CA
(Certificate Authority) - Issue of the server certificate
Installation of the server certificate
Configuration of the connection protocol
Access to the units using the HTTPS protocol
A
B
C
D
E
Generation of the CRT key (SSL encryption key) (®page 75)
Generation of the self-signed certificate (®page 76)
Generation of CSR (Certificate Signing Request) (®page 78)
Installation of the server certificate (®page 79)
Configuration of the connection protocol (®page 80)
74
Operating Instructions
13 Configuring the network settings [Network]
Note
•
•
To use the server certificate, you need to apply for the approval and the issue of server certificate by
CA.
Either of the self-signed certificate or the server certificate is available. If both of them are installed, the
server certificate will be used prior to the self-signed certificate.
13.2.1 Generation of the CRT key (SSL encryption key)
IMPORTANT
•
•
•
When the self-signed certificate or server certificate is valid, it is impossible to generate the CRT key.
When the server certification is used, the available key size varies depending on the Caches the
available key size in advance.
To generate the CRT key, it may take about 1 minute when the key size is 1024 bit and about 2 minutes
when the key size is 2048 bit. Do not operate the web browser until the generation of CRT key is
complete. While the CRT key is being generated, the refresh interval and line speed may be lower.
1. Click the [Execute] button of “CRT key generate”.
→ The “CRT key generate” dialog box will be displayed.
2. Select “1024bit” or “2048bit” for the length of the CRT to generate for “CRT key generate” - “RSA key
size”.
Note
•
To use the server certificate, follow the requests from the CA about the RSA key size.
3. Click the [Execute] button.
→ The generation of CRT key will be started. When the generation is finished, the key size and generation
time & date of the generated key will be displayed on “Current CRT key”.
Note
•
•
To change (or update) the generated CRT key, perform step 1 to 3. The CRT key, self-signed certificate
and server certification are valid in a set. When the CRT key is changed, it is necessary to re-generate
the self-signed certificate or re-apply for the server certificate.
When the CRT key is updated, the log of the previous CRT key is saved. When the [History] button of
“Current CRT key” on the “CRT key generate” dialog box is clicked, the “Previous CRT key” dialog box
will be displayed, and it is possible to check the key size and generation time & date of the previous
Operating Instructions
75
13 Configuring the network settings [Network]
key. When the [Apply] button is clicked on the “Previous CRT key” dialog box, it is possible to replace
the current CRT key with the previous one.
13.2.2 Generation of the self-signed certificate (security
certificate)
IMPORTANT
•
If the CRT key is not generated, it is impossible to generate the self-signed certificate.
1. Click the [Execute] button of “Self-signed Certificate - Generate”.
→ The “Self-signed Certificate - Generate” dialog box will be displayed.
2. Enter the information of the certificate to be generated.
Description
Item
Available number of characters
[Common Name]
Enter the unit address or host name.
64 characters
[Country]
Enter the country name. (Omission is OK.)
2 characters (Country code)
[State]
Enter the state name. (Omission is OK.)
128 characters
[Locality]
Enter the locality name. (Omission is OK.)
128 characters
[Organization]
Enter the organization name. (Omission is OK.)
64 characters
76
Operating Instructions
13 Configuring the network settings [Network]
Item
Description
Available number of characters
[Organizational
Unit]
Enter the unit name of the organization.
(Omission is OK.)
[CRT key]
Displays the key size and generation time & date
of the current key.
64 characters
Note
•
•
•
The available characters for [Common Name], [State], [Locality], [Organization], [Organizational
Unit] are 0-9, A-Z, a-z and the following marks.
-._,+/()
When the unit is connected to the Internet, enter the address name or host name to access via the
Internet for “Common Name”. In this case, the security alert window will be displayed each time
the unit is locally accessed, even if the security certificate is installed.
When entering the IPv6 address for “Common Name”, put the address in brackets [ ].
Example: [2001:db8::10]
3. Click the [OK] button after entering the items.
→ The self-signed certificate will be generated.
Note
•
The information of the generated self-signed certificate will be displayed on “Self-signed
Certificate” - “Information”.
Depending on the status of the self-signed certificate, the following are displayed.
Indication
•
Description
Not generated
The self-signed certificate are not generated.
Invalid (Reason: CA Certificate installed)
The self-signed certificate has already been
generated, and the server certificate has been
installed.
• In this case, the server certificate is validated.
Common name of the self-signed
certificate
The self-signed certificate has already been
generated and validated.
When the [Confirm] button is clicked, the registered information of the self-signed certificate
(security certificate) will be displayed in the “Self-signed Certificate - Confirm” dialog box.
Operating Instructions
77
13 Configuring the network settings [Network]
•
•
When the [Delete] button is clicked, the generated self-signed certificate (security certificate) will
be deleted.
When “HTTPS” is selected for “Connection”, it is impossible to delete the self-signed certificate.
13.2.3 Generation of CSR (Certificate Signing Request)
IMPORTANT
•
•
If the CRT key is not generated, it is impossible to generate the CSR.
Before generating the CSR file, configure the following settings on [Internet Options] of the web browser
in advance. Click [Internet Options...] under [Tools] of the menu bar of Internet Explorer, and then click
the [Security] tab.
– Register the unit for [Trusted Sites].
– Click the [Custom Level...] button to open the [Security Setting] window, and check the [Enable]
radio button of [File Download] under [Downloads].
– Click the [Custom Level...] button to open the [Security Setting] window, and check the [Enable]
radio button of [Automatic prompting for file downloads] under [Downloads].
1. Click the [Execute] button of “CA Certificate - Generate Certificate Signing Request”.
→ The “CA Certificate - Generate Certificate Signing Request” dialog box will be displayed.
2. Enter the information of the certificate to be generated.
Description
Item
Available number of characters
[Common Name]
Enter the unit address or host name.
64 characters
[Country]
Enter the country name.
2 characters (Country code)
[State]
Enter the state name.
128 characters
[Locality]
Enter the locality name.
128 characters
[Organization]
Enter the organization name.
64 characters
[Organizational
Unit]
Enter the unit name of the organization.
64 characters
78
Operating Instructions
13 Configuring the network settings [Network]
Item
Description
[CRT key]
Available number of characters
Displays the key size and generation time & date
of the current key.
Note
•
•
To use the server certificate, follow the requests from the CA about the information to be entered.
The available characters for [Common Name], [State], [Locality], [Organization], [Organizational
Unit] are 0-9, A-Z, a-z and the following marks.
-._,+/()
3. Click the [OK] button after entering the items.
→ The [Save As] dialog box will be displayed.
4. Enter a file name for the CSR in the [Save As] dialog box to save on the PC.
→ The saved CSR file will be applied to the CA.
IMPORTANT
•
The server certificate will be issued for the set of the generated CSR and CRT key. If the CRT key is
re-generated or updated after applying to the CA, the issued server certificate will be invalidated.
Note
•
This unit generates the CSR file in the PEM format.
13.2.4 Installation of the server certificate
IMPORTANT
•
If the CSR file is not generated, it is impossible to install the server certificate (security certificate). For
the installation, the server certificate issued by CA is required.
1. Click the [Browse...] button of “CA Certificate - CA Certificate install”.
→ The [Open] dialog box will be displayed.
2. Select the server certification file and click the [Open] button. Then, click the [Execute] button.
→ The server certification will be installed.
Note
•
The host name registered in the installed server certificate will be displayed on “CA Certificate Information”. Depending on the status of the server certificate, the following are displayed.
Indication
Description
Invalid
The server certification is not installed.
Common name of the server certificate
The server certificate has already been installed
and validated.
Expired
The server certification has already expired.
Operating Instructions
79
13 Configuring the network settings [Network]
•
When the [Confirm] button is clicked, the registered information of the installed server certificate
will be displayed in the “CA Certificate - Confirm” dialog box. (Only “Organizational Unit” will be
displayed with an asterisk (*).)
•
•
•
When the [Delete] button is clicked, the installed server certificate will be deleted.
When “HTTPS” is selected for “Connection”, it is impossible to delete the server certificate.
To change (or update) the server certificate, perform step 1 and 2.
IMPORTANT
•
•
•
Before deleting the valid server certificate (security certificate), confirm that there is a backup file on
the PC or another media. The backup file will be required when installing the server certificate again.
When the server certificate has expired, the HTTPS function will become unavailable. When the unit
is restarted, the connection protocol will be changed to HTTP. Update the server certificate before it
expires.
The expiration date of the server certificate can be checked by double-clicking the server certification
file issued by CA.
13.2.5 Configuration of the connection protocol
1. Select “HTTP” or “HTTPS” for “Connection” to determine the protocol used to access the unit.
• HTTP: Only the HTTP connection is available.
• HTTPS: Only the HTTPS connection is available.
2. Designate the HTTPS port number to be used for “HTTPS port”.
• Available port number: 1 - 65535
• Default: 443
The following port numbers are unavailable since they are already in use.
20, 21, 23, 25, 42, 53, 67, 68, 69, 80, 110, 123, 161, 162, 554, 995, 10669, 10670, 52000, 59000 - 61000
3. Click the [Set] button.
→ The unit will restart, and it will become possible to access to the units using the HTTPS protocol.
(®page 7, page 14, page 15)
Note
•
•
80
The unit will restart after the connection setting is changed.
When using the self-signed certificate:
If the unit is accessed using the HTTPS protocol for the first time, the warning window will be displayed.
In this case, follow the instructions of the wizard to install the self-signed (security) certificate.
(®page 81)
Operating Instructions
13 Configuring the network settings [Network]
•
•
•
•
•
When using the server certificate:
In advance, install the root certificate and intermediate certificate on the browser in use. Follow the
instructions of CA for how to obtain and install these certificates.
When the unit is accessed using the HTTPS protocol, the refresh interval and frame rate of images
may be lower.
When the unit is accessed using the HTTPS protocol, it may take time to display images.
When the unit is accessed using the HTTPS protocol, the images may be distorted.
When the unit is accessed using the HTTPS protocol, the number of users that can access the unit
may be reduced. The maximum number of concurrent access user varies depending on the maximum
image size and transmission format.
13.3 Access the unit using the HTTPS protocol
1. Start up the web browser.
2. Enter the IP address of the unit in the address box of the browser.
• Example of entry: https://192.168.0.10/
IMPORTANT
•
•
When the HTTPS port number is changed from “443”, enter “https://IP address of the unit + : (colon)
+ port number” in the address box of the browser.
(Example: https://192.168.0.11:61443)
When the unit is in a local network, configure the proxy server setting of the web browser (under
[Internet Options...] under [Tools] of the menu bar) to bypass the proxy server for the local address.
3. Press the [Enter] key on the keyboard.
→ The “Live” page will be displayed.
When the security alert window is displayed, install the security certificate. (®page 82 - page 88)
When “On” is selected for “User auth.”, the authentication window will be displayed before displaying
live images for the user name and password entries.
IMPORTANT
•
When the unit is accessed using the HTTPS protocol, the refresh interval and frame rate of images
may be lower.
13.3.1 Install the security certificate
When the security certificate of the unit to access is not installed on the PC, the security alert window will be
displayed each time the unit is accessed using the HTTPS protocol. To have the security alert window not
displayed, it is necessary to install the security certificate in the following procedure. If the certificate is not
installed, the alert window will be displayed each time the unit is accessed.
Note
•
•
•
The security certificate is installed on the PC with the information registered for “Common Name”.
Therefore, the information registered for “Common Name” must be same as the address or host name
for the unit access. If the certificate is not the same, the security alert window will be displayed each
time the unit is accessed.
When the address or host name of the unit is changed, the security alert window will be displayed each
time the unit is accessed even if the security certificate is installed. Install the security certificate again.
When the unit access is open to the Internet, enter the address name or host name to access via the
Internet for “Common Name”. In this case, the security alert window will be displayed each time the
unit is locally accessed, even if the security certificate is installed.
Operating Instructions
81
13 Configuring the network settings [Network]
•
When the security certificate is properly installed, a key icon is displayed in the address box of the web
browser that has accessed the unit. (When using Internet Explorer 7, Internet Explorer 8, or Internet
Explorer 9)
When using Internet Explorer 7, Internet Explorer 8, or Internet Explorer 9
When using Internet Explorer 7 or Internet Explorer 8 with Windows XP, note that some of the displayed
windows may differ from the following descriptions.
1. Access the unit using the HTTPS protocol.
2. When the security alert window is displayed, click “Continue to this website (not recommended).”
→ The “Live” page will be displayed. If an authentication window is displayed, enter the user name and
password.
Note
•
82
If this window is displayed when accessing a device other than the unit or a website, a security
problem may have occurred. In this case, check the system status.
Operating Instructions
13 Configuring the network settings [Network]
3. Click “Certificate Error” over the URL, and click “View certificates”.
Operating Instructions
83
13 Configuring the network settings [Network]
4. Click “Install Certificate...”.
Note
•
84
If [Install Certificate...] is not displayed, close Internet Explorer once, and select [Run as
Administrator] to launch Internet Explorer again. Click [Start] ® [All Programs] ® right click [Internet
Explorer] ® click [Run as Administrator].
Operating Instructions
13 Configuring the network settings [Network]
5. Click “Next” displayed on “Certificate Import Wizard”.
6. Select “Place all certificates in the following store”, and click “Browse...”.
Operating Instructions
85
13 Configuring the network settings [Network]
7. Select “Trusted Root Certificate Authorities”, and click “OK”.
8. Click “Next”.
86
Operating Instructions
13 Configuring the network settings [Network]
9. Click “Finish”.
10. Click “Yes”.
→ When the import is successfully completed, the screen “The import was successful.” will be displayed.
Operating Instructions
87
13 Configuring the network settings [Network]
11. Click “OK”.
→ When the browser is restarted after the certificate is imported, “Certificate Error” will not be displayed.
OS: Windows XP, Web browser: When using Internet Explorer 6
1. Access the unit using the HTTPS protocol.
2. Click “View Certificate”.
Note
•
88
If this window is displayed when accessing a device other than the unit or a website, a security
problem may have occurred. In this case, check the system status.
Operating Instructions
13 Configuring the network settings [Network]
3. Click “Install Certificate...”.
4. Click “Next” according to the procedures displayed on the displayed on “Certificate Import Wizard”.
Operating Instructions
89
13 Configuring the network settings [Network]
5. Click “Finish”.
90
Operating Instructions
13 Configuring the network settings [Network]
6. When the security alert window is displayed, click “Yes”.
→ When the import is successfully completed, the screen “The import was successful.” will be displayed.
7. Click “OK”.
→ When the browser is restarted after the certificate is imported, “Certificate Error” will not be displayed.
13.4 Configure the settings relating to DDNS [DDNS]
Click the [DDNS] tab on the “Network” page. (®page 21, page 23)
To access this unit via the Internet, it is necessary to configure the settings for the DDNS function.
When activating the DDNS function using the camera, either of the following DDNS services is available.
• “Viewnetcam.com” service
• Dynamic DNS Update (RFC2136 compliant)
IMPORTANT
•
•
Before using the DDNS service, it is necessary to perform the port forwarding setting for the router.
About Dynamic DNS Update (RFC2136 compliant)
Operation using DDNS services other than the “Viewnetcam.com” service is not guaranteed. We are
not responsible for any troubles or accidents on the circumstances where the unit is used arising out
of such services.
Refer to the DDNS service providers for the selection and configuration of the DDNS services other
than the “Viewnetcam.com” service.
Note
•
“Viewnetcam.com” is a Dynamic DNS service designed for use with Panasonic Network Cameras.
Refer to the “Viewnetcam.com” website (http://www.viewnetcam.com/) for further information about
the service.
About DDNS services (IPv4/IPv6)
By using a DDNS service, it becomes possible to view camera images via the Internet.
The DDNS service associates dynamic global addresses and domain names.
Operating Instructions
91
13 Configuring the network settings [Network]
It is possible to configure the settings for the “Viewnetcam.com” or Dynamic DNS Update (RFC2136 compliant).
In most of the DNS services offered by providers, global addresses are not static but dynamic. Therefore,
access to the unit via an old global address may be invalidated after a certain period of time. Either of the
following services is required when accessing a unit whose global address is not static via the Internet.
• DDNS service (such as “Viewnetcam.com”)
It is possible to access via a registered and static domain name (example: *****.viewnetcam.com) even
after the global address is changed. Enrollment in a domain name service is required even when using the
IPv6 connection.
Refer to the “Viewnetcam.com” website (http://www.viewnetcam.com/) for further information about the
service.
• Static IP address service (such as a service offered by a contracted provider)
In this service, global addresses are static (not changed).
13.4.1 Configuration of the DDNS service (Example of the
“Viewnetcam.com” service)
C
A
C
D
D
B
B
A
E
E
A.
B.
C.
D.
E.
92
DNS server
Internet
Provider
“Viewnetcam.com” service server
Remote site
Global address is changed.
The contracted provider allocates a global address to the router (or the unit). The global address is not
static but dynamic.
“*****.viewnetcam.com” and the current global address is automatically registered.
If you are enrolled in “Viewnetcam.com”, the unique “domain name” (example: *****.viewnetcam.com) will
be allocated. The “Viewnetcam.com” service server automatically manages the domain name of unit and
the global address of router (or unit) when a unit automatically notifies the service server of the global
address.
Current global address is automatically registered via “*****.viewnetcam.com”.
The “Viewnetcam.com” service server registers the global address and the domain name of router (or unit)
in the DNS server.
Operating Instructions
13 Configuring the network settings [Network]
Global address is obtained via the URL (domain name).
By entering the URL (including the domain name) on the web browser when accessing the unit via the
Internet, the DNS server identifies the registered global address of router (or unit).
Access using the current global address
The identified global address is used for accessing the router (or unit) to monitor images.
Note
•
•
Refer to the contracted provider whether the current IP address is static or not.
Depending on the provider, local addresses may be allocated. In this case, the DDNS service is
unavailable. Refer to the contract provider for further information.
[DDNS]
Select the DDNS service to determine whether or not to use DDNS.
• Off: Does not use the DDNS function.
• Viewnetcam.com: Uses the “Viewnetcam.com” service.
• Dynamic DNS Update: Uses Dynamic DNS Update (RFC2136 compliant) without the DHCP cooperation.
• Dynamic DNS Update(DHCP): Uses Dynamic DNS Update (RFC2136 compliant) with the DHCP
cooperation.
• Default: Off
Note
•
When using Dynamic DNS Update (RFC2136 compliant), refer to the network administrator for whether
or not to cooperate with the DHCP.
13.4.2 When using the “Viewnetcam.com” service
[Personal(Unit) URL]
The URL of the unit registered for “Viewnetcam.com”.
[Your Account Link]
When the displayed URL is clicked, the registration window for the “Viewnetcam.com” service will be displayed
in a newly opened window.
Register the information in the registration window to enroll in the “Viewnetcam.com” service.
Operating Instructions
93
13 Configuring the network settings [Network]
[Access interval]
Select the interval to access the “Viewnetcam.com” service server to check the IP address and the host name
from the following.
10min/ 20min/ 30min/ 40min/ 50min/ 1h
• Default: 1h
[Global IP Address Notification Method]
Typically [Global IP Address Notification Method] should be set to “Normal”.
If you cannot access the unit using the registered URL 30 minutes after registering with “Viewnetcam.com”,
select “Advanced”.
In this case, UPnP (®page 70) must be enabled for the unit and for the router.
• Default: Normal
13.4.3 Procedure to register information for the
“Viewnetcam.com” service
There are 2 methods to configure the “Viewnetcam.com” service.
• Configure from the [Internet] tab of the “Basic” page:
“UPnP (Auto port forwarding)” and “Viewnetcam.com” can both be configured on the [Internet] tab.
• Configure from the [DDNS] tab of the “Network” page:
Only “Viewnetcam.com” can be configured on the [DDNS] tab.
Configuring from the [Internet] tab of the “Basic” page
1. Click the [Internet] tab of the “Basic” page.
2. Select “On” for “UPnP (Auto port forwarding)”, and select “Viewnetcam.com” for “DDNS”, then click [Set].
94
Operating Instructions
13 Configuring the network settings [Network]
3. When “UPnP (Auto port forwarding) setup is complete.” is displayed, click “Go to Viewnetcam.com
Registration page”.
→ The registration window for “Viewnetcam.com” will be displayed in a newly opened window.
Refer to step 3 of “Configuring from the [DDNS] tab of the “Network” page” for the required settings.
Configuring from the [DDNS] tab of the “Network” page
Select “On” for “Auto port forwarding” of the UPnP function on the [Network] tab of the “Network” page, and
then complete the port forwarding settings for the router. (®page 70) After this, register the information for the
“Viewnetcam.com” service in the following steps.
1. Select [Viewnetcam.com] for [DDNS] and click the [Set] button.
→ A URL is displayed in [Your Account Link].
If a URL is not displayed in [Your Account Link], confirm the unit's network settings and Internet
connection, then click [Set] again.
2. Click the URL displayed in [Your Account Link].
→ The registration window for “Viewnetcam.com” will be displayed in a newly opened window.
When the registration window is not displayed, check that the PC is being connected to the Internet,
and click the reload button of the browser.
3. Register the information for “Viewnetcam.com” by following the instructions of the wizard.
→ When the message “The new camera is successfully registered to Viewnetcam.com” is displayed, close
the registration window.
Operating Instructions
95
13 Configuring the network settings [Network]
The URL set at the time of registration can be used for unit access. However, this URL is unavailable
when accessing the unit from the PC connected to the same network (LAN).
Note
•
•
•
•
•
•
When the registration for the “Viewnetcam.com” service is completed, the URL registered for
“Personal(Unit) URL” is displayed. It may take up to about 30 minutes until the URL of the registered
unit is validated.
To cancel the enrollment in the “Viewnetcam.com” service, access the “Viewnetcam.com” website
(http://www.viewnetcam.com/) later.
When “Expired” is displayed in the URL of “Viewnetcam.com” in the viewnetcam settings page or the
status page, restart the unit after registering the “Viewnetcam.com” service. After restarting the unit,
check that the registered URL is displayed in the URL of “Viewnetcam.com” of [Status] [Viewnetcam.com] on the “Maintenance” page.
It is possible to check the information registered for the “Viewnetcam.com” service by accessing the
URL displayed beside “Your Account Link”. When the URL is not displayed, check that the PC is being
connected to the Internet, and click the [Set] button.
If access often fails due to the change in the global address of router, set a smaller value for “Access
interval”.
If images are not correctly displayed, click [Set] for “Recommended network setting for internet” on the
[Internet] tab of the “Basic” page.
Configuring port forwarding when not using UPnP
When using a router that does not support UPnP, port forwarding must be manually configured for the router.
1. Click the [Network] tab of the “Network” page.
2. Select “Static” for “Network Settings”.
3. Confirm the IP address, port number, and other information displayed here, and change the settings as
necessary. (This information is required when configuring port forwarding on the router.)
4. Click the [Set] button.
5. Refer to the manuals provided with the router when configuring port forwarding on the router.
• When configuring port forwarding on the router, use the IP address and port number information
confirmed in step 3.
• The port forwarding function may also be called “Address translation”, “Static IP masquerade”, “Virtual
server”, or “Port mapping” depending on the router used.
Note
•
96
When manually configuring port forwarding on the router, make sure to select “Off” for “Auto port
forwarding”.
Operating Instructions
13 Configuring the network settings [Network]
13.4.4 Checking the information registered for the
“Viewnetcam.com” service
It is possible to check if the unit has been registered for the “Viewnetcam.com” service. (®page 108)
13.4.5 When using “Dynamic DNS Update”
[Host name]
Enter the host name to be used for the Dynamic DNS Update service.
• Available number of characters: 3 - 250 characters
Enter in the form of “(host name). (domain name)”.
• Available characters: Alphanumeric characters, the colon (:), the period (.), the underscore (_), and the
hyphen (-).
• Default: None (blank)
Note
•
Refer to the network administrator for further information about the available host names.
[Access interval]
Select the interval to access the Dynamic DNS Update service server to check the IP address and the host
name from the following.
10min/ 20min/ 30min/ 40min/ 50min/ 1h/ 6h/ 24h
• Default: 24h
13.4.6 When using “Dynamic DNS Update(DHCP)”
[Host name]
Enter the host name to be used for the Dynamic DNS Update service.
• Available number of characters: 3 - 250 characters
Enter in the form of “(host name). (domain name)”.
• Available characters: Alphanumeric characters, the colon (:), the period (.), the underscore (_), and the
hyphen (-).
Operating Instructions
97
13 Configuring the network settings [Network]
•
Default: None (blank)
Note
•
Refer to the network administrator for further information about the available host names.
13.5 Configure the settings relating to SNMP
[SNMP]
Click the [SNMP] tab on the “Network” page. (®page 21, page 23)
The settings relating to SNMP can be configured on this page. It is possible to check the status of the unit by
connecting to the SNMP manager. When using the SNMP function, contact the network administrator.
[Community]
Enter the community name to be monitored.
• Available number of characters: 0 - 32 characters
• Default: None (blank)
IMPORTANT
•
When using the SNMP function, it is necessary to enter the community name. When no community
name is entered, the SNMP function will not work.
[System name]
Enter a system name to be used to manage the unit with the SNMP function.
• Available number of characters: 0 - 32 characters
• Default: None (blank)
[Location]
Enter the name of the location where the unit is installed.
• Available number of characters: 0 - 32 characters
• Default: None (blank)
[Contact]
Enter the E-mail address or the phone number of the SNMP manager.
• Available number of characters: 0 - 255 characters
• Default: None (blank)
98
Operating Instructions
13 Configuring the network settings [Network]
13.6 Configure the settings relating to the FTP
periodic image transmission [FTP img. trans.]
Click the [FTP img. trans.] tab on the “Network” page. (®page 21, page 23)
The settings relating to the periodic transmission of images to an FTP server can be configured on this page.
To transmit images to an FTP server periodically, it is necessary to configure the settings of the FTP server in
advance (®page 62). Refer to page 100 for descriptions of how to configure schedules of image transmission.
IMPORTANT
•
•
•
When “D1” is selected for “Picture (Camera) mode”, the FTP periodic image transmission will not be
possible.
Depending on the network line speed or the network traffic, images may not be transmitted at the exact
designated interval or period.
When “On” is selected for both of the alarm image transmission function and the FTP periodic image
transmission function, the alarm image transmission function will be given priority over the FTP periodic
image transmission function. For this reason, images may not be transmitted at the exact designated
interval or period if alarms occur frequently.
FTP periodic image transmission
[FTP >>]
When “FTP >>” is clicked, the [FTP] tab of the “Server” page will be displayed. (®page 62)
[FTP periodic image transmission]
Select “On” or “Off” to determine whether or not to transmit images using the FTP periodic image transmission
function.
When “On” is selected, it is necessary to configure the settings of the FTP server. (®page 62)
• Default: Off
[Directory name]
Enter the directory name where the images are to be saved.
For example, enter “/img” to designate the directory “img” under the root directory of the FTP server.
• Available number of characters: 1 - 256 characters
• Unavailable characters: " & ;
• Default: None (blank)
Operating Instructions
99
13 Configuring the network settings [Network]
[File name]
Enter the file name (name of the image file to be transmitted) and select the naming option from the following.
• Name w/time&date: File name will be [“Entered file name” + “Time and date (year/ month/ day/ hour/
minute/ second)” + “Serial number (starting from 00)”].
• Name w/o time&date: File name will be the characters entered for “File name” only. When “Name w/o
time&date” is selected, the file will be overwritten each time a file is newly transmitted.
• Available number of characters: 1 - 32 characters
• Unavailable characters: " & ; : / * < > ? \ |
• Default: None (blank)
Note
•
When “Name w/time&date” is selected, the file name will be [“Entered file name” + “Time and date
(year/ month/ day/ hour/ minute/ second)” + “Serial number (starting from 00)”] + “s” during summer
time.
[Transmission interval]
Select the interval for the FTP periodic image transmission from the following.
1s/ 2s/ 3s/ 4s/ 5s/ 6s/ 10s/ 15s/ 20s/ 30s/ 1min/ 2min/ 3min/ 4min/ 5min/ 6min/ 10min/ 15min/ 20min/ 30min/
1h/ 1.5h/ 2h/ 3h/ 4h/ 6h/ 12h/ 24h
• Default: 1s
[Image capture size]
Select the capture size of images to be transmitted from the following.
•
Picture (Camera) mode VGA [4:3]
QVGA/VGA
Picture (Camera) mode VGA [16:9]
320x180/640x360
Default: VGA
13.7 Configure the schedule settings of the FTP
periodic image transmission [FTP img. trans.]
Click the [FTP img. trans.] tab on the “Network” page. (®page 21, page 23)
The schedule settings of the FTP periodic image transmission can be configured in this section. Refer to
page 99 for further information about the settings relating to the FTP periodic image transmission.
IMPORTANT
•
100
When “D1” is selected for “Picture (Camera) mode”, the schedule settings of the FTP periodic image
transmission are unavailable.
Operating Instructions
13 Configuring the network settings [Network]
13.7.1 How to set the schedules
1. Check the check box of the desired day of the week of “FTP image transmission schedule”.
→ The selected day of the week will be validated for the schedule.
2. To designate time, select the desired “hour” and “minute” from the pull-down menu.
When not designating time, check the checkbox of “24h”.
3. Click the [Set] button after completing the settings.
→ The result will be displayed at the bottom of the window.
Operating Instructions
101
13 Configuring the network settings [Network]
13.7.2 How to delete the set schedule
1. Uncheck the check box of the set day of the week.
2. Click the [Set] button after completing the settings.
→ The schedule of the selected day of the week is deleted.
102
Operating Instructions
14 Configure the settings relating to the schedules [Schedule]
14 Configure the settings relating to the
schedules [Schedule]
On the “Schedule” page, it is possible to configure the settings relating to schedules as follows.
• VMD permission (Video motion detection will be active only in the specified schedule.)
• Access permission (Access to the unit will be allowed only in the specified schedule.)
The “Schedule” page has only the [Schedule] tab.
Operating Instructions
103
14 Configure the settings relating to the schedules [Schedule]
Up to 5 schedules can be set.
1. Select an action to be assigned to the schedule from “Schedule mode”.
“Off” is selected at the default.
• Off: No action will be taken for the respective schedule.
• VMD permission: The video motion detection (VMD) function will be active during the period of the
schedule.
104
Operating Instructions
14 Configure the settings relating to the schedules [Schedule]
•
Access permission: Users whose access level is set to 2 and 3 on the “User auth.” tab (®page 56)
can access the unit only in the period of schedule.
Note
•
Select “On” for “User auth.” on the [User auth.] tab of “User mng.” page (®page 56) and “Off” for
“Host auth.” on the “Host auth.” page (®page 57) to validate “Access permission”.
2. Select days of a week by checking the respective checkboxes.
3. From the pull-down menu, select the start time and the end time of the schedule.
When not designating time, check the checkbox of “24h”.
4. Click the [Set] button after completing the settings.
→ The result will be displayed at the bottom of the window.
Note
•
The schedules displayed at the bottom of the window can be identified by colors assigned to each
schedule.
Operating Instructions
105
15 Maintenance of the unit [Maintenance]
15 Maintenance of the unit [Maintenance]
System log check, firmware upgrade, status check and initialization of the setup menu can be performed on
this page.
The “Maintenance” page has 4 tabs; the [System log] tab, the [Upgrade] tab, [Status] tab and the [Default
reset] tab.
15.1 Check the system log [System log]
Click the [System log] tab of the “Maintenance” page. (®page 21, page 23)
Up to 100 system logs can be saved on the built-in memory of the unit. When the saved system logs have
reached the maximum number, the newer logs will overwrite the older system logs. In this case, the oldest log
is the first to be overwritten.
[No.]
The serial number of the system log will be displayed.
[Time & date]
Time and date at the error occurrence will be displayed.
Note
•
When “Off” is selected for “Time display format” on the [Basic] tab (®page 27), time & date of logs will
be displayed in 24-hour format.
[Description]
The descriptions about the system log will be displayed. Refer to page 118 for further information about the
system logs.
15.2 Upgrade the firmware [Upgrade]
Click the [Upgrade] tab of the “Maintenance” page. (®page 21, page 23)
106
Operating Instructions
15 Maintenance of the unit [Maintenance]
The current firmware can be checked and upgraded to the latest version on this page. Contact the dealer for
further information about the firmware upgrade.
[Model no.], [MAC address], [Serial no.], [Firmware version], [IPL version], [HTML version],
[IP address(IPv6)], [Viewer software installation counter]
Information of each item will be displayed.
1. Download the latest software to the hard disk of the PC from our website
(http://panasonic.net/pss/security/support/info.html).
IMPORTANT
•
A blank (space) cannot be used for the name of the directory where the downloaded firmware to
be saved.
2. Click the [Browse...] button and designate the downloaded firmware.
3. Click the radio button respective to the desired option to determine whether or not to initialize the settings
after completing the firmware upgrade.
Note
•
Note that the settings cannot be restored after an initialization is operated.
4. Click the [Execute] button.
→ The confirmation window will be displayed.
Operating Instructions
107
15 Maintenance of the unit [Maintenance]
IMPORTANT
•
•
•
•
•
•
•
•
After completing the upgrade, delete temporary internet files. (®page 122)
Upgrade the firmware using a PC in the same subnet as the unit.
Follow the instructions from the dealer when upgrading the firmware.
When upgrading the application software, use the designated file (extension: img) for the firmware
upgrade.
The name of the firmware to be used for the upgrade should be “model name (Use small letters.
“WJ-” is not required.)_xxxxx.img”.
* (“xxxxx” indicates the version of the firmware.)
Do not turn off the power of the unit during the upgrade process.
Do not perform any operation during upgrading and wait until it completes.
The following network settings will not be reset when upgrading the firmware after selecting “Reset the
settings to the default after completing the upgrade. (Except the network settings)”.
On/Off for DHCP, IP address, subnet mask, default gateway, DNS, primary server address, secondary
server address, HTTP port, HTTPS port, connection protocol (HTTP/HTTPS), CRT key, server
certificate, UPnP setting, line speed, bandwidth control (bit rate), time & date
The viewer software used on each PC should be licensed individually. Refer to your dealer for the
software licensing.
15.3 Check the status [Status]
Click the [Status] tab of the “Maintenance” page. (®page 21, page 23)
The status of this unit can be checked on this page.
[Viewnetcam.com]
• Server: The URL of the “Viewnetcam.com” service server will be displayed.
• Status: The registration status for the “Viewnetcam.com” will be displayed.
• Personal(Unit) URL: The URL of the unit registered for “Viewnetcam.com” will be displayed.
108
Operating Instructions
15 Maintenance of the unit [Maintenance]
[UPnP]
• Port number(HTTP), Port number(HTTPS): The port number that is set for UPnP port forwarding will be
•
•
displayed.
Status: The port forwarding status will be displayed.
Router global address: The global address of router will be displayed.
[Self check]
The self check result of the hardware will be displayed.
Note
•
Refer to our website (http://panasonic.net/pss/security/support/info.html) for further information about
the contents of the displayed statuses (relating to the “Viewnetcam.com” service, the UPnP function,
or the self check).
15.4 Reset the settings/Reboot the unit [Default
reset]
Click the [Default reset] tab of the “Maintenance” page. (®page 21, page 23)
The settings and the HTML data of the unit can be initialized and reboot of the camera and unit can be
performed on this page.
[Reset to the default (Except the network settings)]
Click the [Execute] button to reset the settings to the default. Note that the network settings will not be reset.
It is impossible to operate the unit for about 3 minutes after the initialization.
[Load the default HTML files (setup menu).]
Click the [Execute] button to reset the HTML files to the default.
It is impossible to operate the unit for about 3 minutes after the initialization.
[Reset to the default and load the default HTML files.]
Click the [Execute] button to reset the settings of the unit and the HTML files to the default. Note that the
network settings will not be reset.
It is impossible to operate the unit for about 3 minutes after the initialization.
[Camera restart]
Click the [Execute] button to reboot the camera connected to the unit. You will not be able to operate the camera
for approximately 1 minute after the reboot.
Because reboot is performed by “RS485 transmission”, the RS485 cable must be connected and “On” must
be selected for “RS485 transmission”. (®page 41)
Operating Instructions
109
15 Maintenance of the unit [Maintenance]
[Unit restart]
Click the [Execute] button to reboot the unit. It is impossible to operate the unit for about 2 minutes after
rebooting the unit.
Note
•
110
To initialize the network settings (®page 66), turn off the power of the unit, then turn on the power
again while holding down the INITIAL SET button on the unit, and keep the INITIAL SET button held
down for about 5 seconds. Wait about 3 minutes after releasing the button. The unit will start up and
the settings including the network settings will be initialized. Do not turn off the power of the unit about
3 minutes after turning on the power.
Operating Instructions
16 Functional restrictions
16 Functional restrictions
16.1 Functional restrictions when “D1” is selected
When “D1” is selected for “Picture (Camera) mode” on the [JPEG/H.264] tab of the “Image” page, the following
functions are unavailable.
• FTP periodic image transmission
• Alarm image FTP transmission
Operating Instructions
111
17 Number of users that can concurrently access the unit
17 Number of users that can concurrently
access the unit
The maximum number of users that can concurrently access the unit is 14, including users who receive H.264
images and users who receive JPEG images. (When “On” is selected for “Activation” of “Priority stream” on
the [System] tab of the “User mng.” page.) The number of users that can concurrently access the unit may
change according to the network environment and camera settings. Take the following into consideration.
• If “Frame rate” is selected for “Transmission priority” in “H.264(1)” or “H.264(2)” on the [JPEG/H.264] tab
of the “Image” page, the number of users that can concurrently access the unit may be reduced.
• If the setting of “Max bit rate (per client)*” is increased in “H.264(1)” or “H.264(2)” on the [JPEG/H.264] tab
of the “Image” page, the number of users that can concurrently access the unit may be reduced.
• If “Unlimited*” is selected for “Max bit rate (per client)*” in “H.264(1)” or “H.264(2)” on the [JPEG/H.264]
tab of the “Image” page, the number of users that can concurrently access the unit will be limited to 1 user.
• If the “Bandwidth control(bit rate)” on the [Network] tab of the “Network” page is restricted, the number of
users that can concurrently access the unit may be reduced.
Number of users that can
concurrently access the unit
Increase
Decrease
H.264 connections:
about 7 people
“Transmission priority” in “H.
264(1)” or “H.264(2)” on the
[JPEG/H.264] tab
Constant bit rate/
Best effort
Frame rate
Frame rate
“Max bit rate (per client)*” in “H.
264(1)” or “H.264(2)” on the
[JPEG/H.264] tab
64kbps
Unlimited*
1536kbps*
“Bandwidth control(bit rate)”
on the [Network] tab
Unlimited
64kbps
Unlimited
Note
•
•
•
112
When “Multicast” is selected for “Transmission type” in “H.264(1)” or “H.264(2)” on the [JPEG/H.264]
tab of the “Image” page, only the first user who accessed to monitor H.264 images will be included in
the maximum number. The second and subsequent users who monitor H.264 images will not be
included in the maximum number.
When “On” is selected for “Activation” of “Priority stream” on the [System] tab of the “User mng.” page,
because network bandwidth is constantly reserved for “Priority stream”, the number of users that can
concurrently access the unit may be reduced. When “Off” is selected for “Activation” of “Priority
stream”, a maximum of 12 users can concurrently access the unit.
When “HTTPS” is selected for “HTTPS” - “Connection” on the [Network] tab of the “Network” page, the
number of users that can concurrently access the unit may be reduced.
Operating Instructions
18 Using the CD-ROM
18 Using the CD-ROM
18.1 About the CD launcher
By inserting the provided CD-ROM into the CD-ROM drive of your PC, the CD launcher is automatically started
and the license agreement is displayed. Read the agreement and select “I accept the terms in the license
agreement”, and then click “OK”.
The CD launcher window is displayed.
• If the launcher window is not displayed, double click the “CDLauncher.exe” file on the CD-ROM.
A
B
C
D
E
Using the supplied CD-ROM, the following actions can be performed.
The Panasonic “IP Setting Software” can be installed on the PC. (®page 114)
Settings related to the unit’s network can be set from the Panasonic “IP Setting Software”. (®page 116)
The manuals can be installed on the PC. (®page 115)
You can also view the manuals without installing them to the PC by clicking the [Open] button.
The Viewer software can be installed on the PC. (®page 115)
Make sure to read the [Readme] file on the provided CD-ROM before using the software.
Operating Instructions
113
18 Using the CD-ROM
18.2 Installing Panasonic “IP Setting Software”
On the CD launcher window, click the [Install] button next to [IP Setting Software] to display the Panasonic “IP
Setting Software” installation window. Confirm the following settings before starting the installation.
A
B
C
D
Select the Panasonic “IP Setting Software” to install.
Select where to create the Panasonic IP setting shortcut icon when the Panasonic “IP Setting Software”
is installed.
Specify which folder on the PC to install the Panasonic “IP Setting Software” to.
Click the [Install] button to start the installation.
Note
•
114
To uninstall the Panasonic “IP Setting Software” delete the shortcut icon from where you specified it
to be installed (the default is on the desktop) during installation and the [EasyIPConfig] folder from the
folder (the default is C:\Panasonic) you specified during installation.
Operating Instructions
18 Using the CD-ROM
18.3 Installing the manuals
On the CD launcher window, click the [Install] button next to [Manual] to display the Manual installation window.
Confirm the following settings before starting the installation.
A
B
C
D
E
Select which manuals to install. The models that the manuals support are displayed in B “Model List”.
The models that are supported by the manuals selected in A are displayed here.
Select where to create the manuals shortcut icon when the manuals are installed.
Specify which folder on the PC to install the manuals to.
Click the [Install] button to start the installation.
Note
•
To uninstall the manuals delete the shortcut icon from where you specified it to be installed (the default
is on the desktop) during installation and the [Manual] folder from the folder (the default is C:
\Panasonic) you specified during installation.
18.4 Installing the Viewer software
The Viewer software (Network Camera View 4S) must be installed on the PC in order to display unit images.
On the CD launcher window, click the [Install] button next to [Viewer Software], and follow the instructions
displayed on the window to install the software. A message is displayed if a PC that does not have the Viewer
software installed tries to access the unit. Install the software by following the instructions displayed on the
window. Refer to page 3 for further information.
Note
•
To uninstall the Viewer software, follow the steps below depending on the OS used on your PC.
For Windows XP
Delete [Network Camera View 4S] from [Control Panel] - [Add or Remove Programs].
For Windows Vista/Windows 7
Delete [Network Camera View 4S] from [Control Panel] - [Programs] - [Uninstall a program].
Operating Instructions
115
18 Using the CD-ROM
18.5 Configure the network settings of the unit using
the Panasonic “IP Setting Software”
It is possible to perform the network settings of the unit using the “IP Setting Software” on the provided
CD-ROM. When using multiple units, it is necessary to configure the network settings of each unit
independently. If the Panasonic “IP Setting Software” does not work, access the “Network” page from the setup
menu of the unit in the browser and perform settings separately. (®page 66)
IMPORTANT
•
•
•
•
When using Windows 7 or Windows Vista, the “Windows Security Alert” window may be displayed
when starting the “IP Setting Software”. In this case, disable “User Account Control” from the control
panel.
Panasonic “IP Setting Software” is inoperable in other subnets via the same router.
This unit cannot be displayed or set with an older version of the “IP Setting Software” (version 2.xx).
Due to security enhancements in “IP Setting Software”, “Network Settings” of the unit to be configured
cannot be changed when around 20 minutes have passed after turning on the power of the unit. (When
the effective period is set to “20min” in the “Easy IP Setup accommodate period”.) However, settings
can be changed after 20 minutes for units in the initial set mode.
1. To start the Panasonic “IP Setting Software”, click the [Run] button next to [IP Setting Software] from the
CD launcher menu window, or double-click on the shortcut icon created after installing the software on the
PC.
• The License Agreement will be displayed. Read the Agreement and choose “I accept the terms in the
license agreement”, and click [OK].
• The “IP Setting Software” screen is displayed. If a unit is found, information about it, such as the MAC
address and IP address, is displayed.
2. Click the [Access Camera] button after selecting the MAC address/IP address of the unit to be configured.
Note
•
•
•
•
116
When using a DHCP server, the IP address assigned to the unit can be displayed by clicking the
[Search] button of the “IP Setting Software”.
When duplicate IP addresses are used, the number of the unit with the duplicate address is
displayed in overlap.
It is possible to change the “Camera list” display between IPv4 addresses and IPv6 addresses in
accordance with the protocol in use.
The information displayed can be sorted by clicking the title of each displayed item.
Operating Instructions
18 Using the CD-ROM
•
When the [Network Settings] button is clicked, the “Network Settings” screen is displayed and
network settings can be changed. For further information, refer to page 117.
3. The viewer software “Network Camera View 4S” must be installed in order to view images. Follow the
on-screen instructions to install the software.
• The “Live” page of the unit is displayed.
Changing Network Settings
When changing settings related to the network settings, such as connection mode, IP address, and subnet
mask, click the [Network Settings] button in [IP Setting Software] screen.
The “Network Settings” screen is displayed. Enter each item and then click the [Save] button.
Note
•
•
By unchecking the “Wait for camera restarting.” checkbox, multiple cameras can be continuously
configured.
For further information about each setting of the “Network Settings” page, refer to page 66.
IMPORTANT
•
•
It may take for around 2 minutes to complete to upload the settings to the unit after clicking the
[Save] button. The settings may be invalidated when the LAN cable is disconnected before
completing the upload. In this case, perform the settings again.
When using a firewall (including software), allow access to all UDP ports.
Operating Instructions
117
19 About the displayed system log
19 About the displayed system log
Error indications relating to SMTP
Category
POP3 server error
Indication
Description
Authentication error.
•
Entered user name or password may be
incorrect. Check if the E-mail settings are
configured correctly.
Failed to find the POP3 server.
•
The IP address of the server may be
incorrect. Check if the IP address of the
server is configured correctly.
The POP3 server may be down. Ask the
network administrator.
•
SMTP server error
Authentication error.
•
Entered user name or password may be
incorrect. Check if the E-mail settings are
configured correctly.
Failed to resolve the E-mail server
address from DNS.
•
The designated IP address of the DNS
may be incorrect. Check if the DNS
settings are configured correctly.
The DNS server may be down. Ask the
network administrator.
•
Failed to find the SMTP server.
•
•
Internal error
Undefined error.
•
The IP address of the server may be
incorrect. Check if the IP address of the
server is configured correctly.
The SMTP server may be down. Ask the
network administrator.
An error occurred in the E-mail function.
Check if the E-mail settings are configured
correctly.
Error indications relating to FTP
Category
FTP server error
Connection error
Indication
Description
Failed to resolve the FTP server
address from DNS.
•
The FTP server may be down. Ask the
network administrator.
Failed to find the FTP server.
•
The IP address of the server may be
incorrect. Check if the IP address of the
server is configured correctly.
File transfer error.
•
The FTP server settings may be incorrect.
Check if the FTP settings are configured
correctly.
The settings relating to the indicated item
may be incorrect. Check if the FTP
settings are configured correctly.
Passive mode error.
Log out failed.
Failed to change the directory.
User name or password isn’t correct.
118
Operating Instructions
•
19 About the displayed system log
Category
Internal error
Indication
Undefined error.
Description
•
An error occurred in the FTP function.
Check if the FTP settings are configured
correctly.
Error indications relating to “Viewnetcam.com”
Category
Viewnetcam.com
server error
Indication
Failed to resolve the
Viewnetcam.com server address
from DNS.
Description
•
•
Connection error
No response from the
Viewnetcam.com server.
The designated IP address of the DNS
may be incorrect. Check if the DNS
settings are configured correctly.
The DNS server may be down. Ask the
network administrator.
•
The “Viewnetcam.com” server may be
down. Ask the network administrator.
•
An error relating to the
“Viewnetcam.com” function occurred.
Check if the “Viewnetcam.com” settings
are configured correctly.
File transfer error.
Internal error
Undefined error.
Error indications relating to Dynamic DNS Update
Category
DDNS server error
Indication
Failed to resolve the DDNS server
address from DNS.
Description
•
•
Connection error
Internal error
The designated IP address of the DNS
may be incorrect. Check if the DNS
settings are configured correctly.
The DNS server may be down. Ask the
network administrator.
No response from the DDNS server.
•
The DDNS server may be down. Ask the
network administrator.
Same host name has registered.
•
The same host name has already been
registered in the DDNS server. Check if
the DDNS Update settings are configured
correctly.
Undefined error.
•
An error occurred in the DDNS function.
Check if the DDNS Update settings are
configured correctly.
Operating Instructions
119
19 About the displayed system log
Error indications relating to NTP
Category
Connection error
Indication
No response from the NTP server.
Description
•
•
The IP address of the server may be
incorrect. Check if the IP address of the
server is configured correctly.
The NTP server may be down. Ask the
network administrator.
Internal error
Undefined error.
•
An error occurred in the NTP function.
Check if the NTP settings are configured
correctly.
Synchronizing with
NTP succeeded.
NTP update succeeded.
•
Time correction succeeded.
Log indications relating to HTTPS
Category
HTTPS
Indication
Description
Self-signed Certificate - Generated
•
Generation of the self-signed certificate is
complete.
Self-signed Certificate - Deleted
•
Deletion of the self-signed certificate is
complete.
Certificate Signing Request Generated
•
Generation of the CSR (Certificate Signing
Request) is complete.
CA Certificate - Installed
•
Installation of the server certificate is
complete.
CA Certificate - Deleted
•
Deletion of the server certificate is
complete.
Previous CRT key - Applied
•
Previous CRT key is applied.
CRT key - Generated
•
Generation of the CRT key is complete.
Log indications relating to login
Category
Login
Indication
User name or IP address
Description
•
•
120
Operating Instructions
The login user name will be displayed
when “On” is selected for “User auth.”.
The IP address of the PC currently
accessing to the unit will be displayed
when “On” is selected for “Host auth.”.
19 About the displayed system log
Error indications relating to Panasonic alarm protocol notification
Category
Panasonic alarm
protocol notification
error
Indication
Failed to find destination of
notification
Description
•
•
Cannot resolve notification
addresses from DNS
•
•
The IP address of the destination of
notification may be incorrect. Check if the
IP address of the destination of notification
is configured correctly.
The destination of notification may be
down. Ask the network administrator.
The DNS server settings may be incorrect.
Check if the DNS settings are configured
correctly.
The DNS server may be down. Ask the
network administrator.
Operating Instructions
121
20 Troubleshooting
20 Troubleshooting
Before asking for repairs, check the symptoms with the following table.
Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a
problem is not described below.
Symptom
Cannot access from the web
browser.
122
Operating Instructions
Cause/solution
Reference
pages
•
Is the power of the unit on?
Check if the power of the unit is turned on.
Installation Guide
•
Is the LAN cable (category 5 or better, straight, STP*)
firmly connected to the network connector of the unit?
*E model only
Installation Guide
•
Is the live indicator lit?
When it is not lit, connection to a LAN may not be
established or a network may be not working correctly.
Check if the cables have any contact failure or if the
wiring is correct or not.
Installation Guide
•
Are the set IP addresses valid?
•
Are you accessing the wrong IP address?
Check the connection as follows.
With the Windows command prompt, > ping “IP
address of the unit”.
If there is reply from the unit, the connection is normal.
If there is no reply, check the connection with the
following methods using a computer connected to the
same network as the unit. If the firewall settings on the
PC are enabled, temporarily disable them before
performing settings on the unit.
– Start the Panasonic “IP Setting Software”, confirm
the unit's IP address, and then access that IP
address.
– If the network settings (IP address, subnet mask,
and default gateway) are incorrect, reboot the unit
and change the network settings by using the
Panasonic “IP Setting Software” within 20 minutes
after the restart.
– In networks that do not have a DHCP server, the
IP address of the unit will be configured to
“192.168.0.10” when the unit is rebooted by
holding the INITIAL SET button on the unit. After
the unit is initialized, access the unit and set the IP
address again. (When the unit is initialized, all the
settings of the unit previously configured on the
setup menus will be initialized.)
66
116
Installation Guide
20 Troubleshooting
Symptom
Cannot access from the web
browser.
Cannot access the unit via the
Internet.
Reference
pages
Cause/solution
•
Is “554” selected for the HTTP port number?
For the HTTP port number, select a port number other
than the following port numbers used by the unit. The
number used by the unit: 20, 21, 23, 25, 42, 53, 67, 68,
69, 110, 123, 161, 162, 443, 554, 995, 10669, 10670,
52000, 59000 - 61000
69
•
Is the same IP address provided to other devices?
Are there contradictions between the address and the
network subnet to be accessed?
When the unit and the PC are connected in the
same subnet:
Are the IP addresses of the unit and the PC set in a
common subnet? Or is “Use Proxy Server” for the
settings of the web browser checked?
When accessing the unit in the same subnet, it is
recommended to enter the address of the unit in the
“Don’t Use Proxy For These Addresses” box.
When the unit and the PC are connected in the
different subnet:
Is the IP address of the default gateway set for the unit
correct?
-
•
Is the name currently used to access the unit different
from the name registered for the “Viewnetcam.com”
service?
Access the unit again with the registered name.
93
•
Did you access “http://” while using the HTTPS
function?
To use the HTTPS function, access “https://”. It is also
necessary to enter the port number.
81
•
Are the network settings of the unit correct?
Set the default gateway or DNS server address
correctly. To use the DDNS service, check that the
settings are correct.
Is the setting for “Default gateway” on the “Network”
page configured? Or is the setting correct?
When communicating using IPv4:
Configure the setting for “Default gateway” of “IPv4
network” on the [Network] tab of the setup menu.
66
•
Operating Instructions
123
20 Troubleshooting
Symptom
Cause/solution
•
Reference
pages
Is the setting of port forwarding configured for the
router?
To enable the access to the unit via the Internet, it is
necessary to perform the port forwarding setting when
the router in use does not support the UPnP function.
Refer to the manuals provided with the router for
further information.
Is UPnP function of the router disabled?
Refer to the manuals provided with the router in use to
enable the UPnP function.
Is packet filtering set for the router to forbid the access
via the Internet?
Configure the settings of the router in use to enable the
access via the Internet. Refer to the manuals provided
with the router for further information about the
settings.
70
•
Are you accessing the unit using the local address (the
IP address used in a local network)?
When accessing the unit, use the global address (or
the URL registered in the DDNS service) and the port
number of the unit as the IP address to be used in the
Internet.
67
68
91
Cannot access the unit via the
URL of the
“Viewnetcam.com” service.
•
Is the global address of unit (or router) notified to the
“Viewnetcam.com” service server?
Log into the “My Account” page of “Viewnetcam.com”
website (http://www.viewnetcam.com/) to check the
information of the registered unit. If the global address
is not displayed for the IP address, access the unit, and
register the user information for the
“Viewnetcam.com” service on the [DDNS] tab on the
“Network” page of the setup menu. In addition, check
the “Status” of “Viewnetcam.com” (on the [Status] tab)
and the system log (on the [System log] tab) of the
“Maintenance” page of the setup menu.
94
108
Authentication window is
displayed repeatedly.
•
Is the user name and password changed?
While accessing the unit, when changing the user
name and password of another user logging into the
unit on another web browser, the authentication
window will be displayed each time the screen is
changed or refreshed.
Have you changed the [Authentication] setting?
When the [Authentication] setting has been changed,
close the web browser, and then access the unit again.
-
Are you accessing the unit in the HTTPS mode?
In this mode, the refresh interval becomes slower due
to decode procession.
-
•
•
•
It takes time to display the
screen.
124
Operating Instructions
•
20 Troubleshooting
Symptom
Cannot access the unit from a
cellular phone.
Cannot access the unit from a
mobile terminal.
A cookie error was displayed
when performing user
registration for
“Viewnetcam.com”.
Reference
pages
Cause/solution
•
Are you accessing another unit in the same local
network via a proxy server?
Configure the web browser to not use the proxy server.
-
•
Are two or more users browsing the camera images
simultaneously?
It may take time to display the screen or refresh interval
may become slower when two or more users browse
the camera images simultaneously.
-
•
Is the URL correct? Or is “/mobile” missing at the end
of the URL?
Check if the URL is entered correctly. When accessing
the unit from a cellular phone, it is necessary to enter
“/mobile” at the end of the URL that is used for the unit
access from a PC.
14
•
Is the SSL encryption method different from that of the
unit?
Select “HTTP” (Do not select “HTTPS”) for “HTTPS” “Connection” on the “Network” page - the [Network]
tab, and access the unit again.
71
•
Did you access “http://” while using the HTTPS
function?
To use the HTTPS function, access “https://”. It is also
necessary to enter the port number.
81
•
Is the URL correct? Or is “/cam” missing at the end of
the URL?
Check if the URL is entered correctly. When accessing
the unit from a mobile terminal, it is necessary to enter
“/cam” at the end of the URL that is used for the unit
access from a PC.
15
•
Is the SSL encryption method different from that of the
unit?
Select “HTTP” (Do not select “HTTPS”) for “HTTPS” “Connection” on the “Network” page - the [Network]
tab, and access the unit again.
71
•
Did you access “http://” while using the HTTPS
function?
To use the HTTPS function, access “https://”. It is also
necessary to enter the port number.
81
•
Is the web browser configured to allow cookies?
Configure the web browser to allow cookies. In Internet
Explorer, from [Tools] select [Internet Options] and
configure the cookies setting in the [Privacy] tab.
-
Operating Instructions
125
20 Troubleshooting
Symptom
Cause/solution
Reference
pages
User registration for the
“Viewnetcam.com” service
fails.
•
Is the registered E-mail address correct?
When an E-mail with the “Viewnetcam.com” website
link is not received, the registered E-mail address may
be incorrect. Visit the “Viewnetcam.com” website
(http://www.viewnetcam.com/) to register the correct
E-mail address.
-
No image is displayed.
•
Is the viewer software installed on the PC?
Install the viewer software on a PC.
3
•
Is the power of the connected camera turned on?
Turn the power on for the connected camera.
Is the BNC coaxial cable connected correctly to the
video input?
Check the video input connection.
•
No image is displayed. / Older
images or logs are displayed.
126
Operating Instructions
Installation Guide
•
Is the version of DirectX® 9.0c or later?
Check the version of DirectX as follows.
1. Select “Run...” from the start menu of Windows.
2. Enter “dxdiag” in the displayed dialog box and click
the [OK] button.
If the version of DirectX is older than 9.0c, upgrade
it.
-
•
Is the cellular phone in use support the 320´240, 640
´480, D1 (720´480) (NTSC), or D1 (720´576) (PAL)
resolution? Or is the image data size too big to display
images on the cellular phone?
Refer to the manuals provided with the cellular phone
in use for the restrictions of image data sizes.
-
•
When [Every time I visit the webpage] is not selected
for [Check for newer versions of stored pages:] in the
[Temporary Internet Files] section, images sometimes
may not be displayed on the “Live” page.
In this case, do the following.
1. Select [Internet Options...] from [Tools] on the
menu bar of Internet Explorer. The [Internet
Options] window will be displayed.
2. When using Internet Explorer 7.0, Internet
Explorer 8.0, or Internet Explorer 9.0:
Click the [Settings] button in the [Browsing history]
section on the [General] tab, and then select [Every
time I visit the webpage] for [Check for newer
versions of stored pages:] in the [Temporary
Internet Files] section on the [Temporary Internet
Files and History Settings] window.
When using Internet Explorer 6.0:
Click the [Settings...] button in the [Temporary
Internet Files] section on the [General] tab, and
then select [Every visit to the page] for [Check for
newer versions of stored pages:] on the [Settings]
window.
-
20 Troubleshooting
Symptom
Reference
pages
Cause/solution
Images are not displayed
correctly.
•
Do the video input settings (NTSC or PAL) of the
connected camera match the “Video input” settings on
the [JPEG/H.264] tab of the “Image” page?
Change the “Video input” settings (NTSC or PAL) to
match the settings of the camera.
32
Images are displayed blurry,
not displayed (or too dark), or
washed out.
•
Adjust the settings of the camera connected to the unit.
9
40
The image is not being
refreshed.
•
Depending on the version of your browser, there might
be difficulties refreshing the picture, etc.
Installation Guide
•
Depending on the traffic of the network or the
concentration of access to the unit, there might be
difficulties displaying the camera picture. Request the
camera picture using the web browser such as by
pressing the [F5] key, etc.
-
The alarm occurrence
indication button on the
“Live” page do not display the
current status in real time.
•
Is the viewer software installed on the PC?
Confirm that the viewer software “Network Camera
View 4S” is installed.
3
•
Is “Real time” selected for “Alarm status update
mode”?
27
No image is displayed on the
“Live” page.
•
Press the [F5] key on the keyboard of the PC or click
the [Live] button.
9
Shortcut icon of the unit is not
displayed on “My Network
Places” of the PC.
•
Is the Windows component of UPnP added?
Add the component to the PC in use.
70
Images are not displayed or
not refreshed smoothly.
•
Delete temporary internet files as follows.
1. Select “Internet Options...” under “Tools” on the
menu bar of Internet Explorer. The “Internet
Options” window will be displayed.
2. Click the [Delete Files...] button in the “Temporary
Internet Files” section on the [General] tab.
-
•
The firewall function of the anti-virus software may be
filtering the port of the unit.
Exclude the port number of the unit from the list of the
port numbers to be filtered by the anti-virus software.
-
The live indicator is not lit.
•
Is “Off” selected for “Indicator” on the “Basic” page?
Select “On” for “Indicator”.
27
H.264 images are not
displayed.
•
When “Network Camera View 4S” is deleted from a PC
on which both the viewer software “Network Camera
View 3” and “Network Camera View 4” are installed, H.
264 images may not be displayed.
In this case, delete “Network Camera View 3” from the
PC and then install “Network Camera View 4S”.
3
Operating Instructions
127
20 Troubleshooting
Symptom
Cause/solution
Reference
pages
Displayed images are
distorted.
•
Images may be distorted when non-interlace signals,
VCR (VTR) signals or signals not compliant with the
standard in your locality are transmitted.
-
Black bars are displayed on
both edges of the screen.
•
When the picture (camera) mode is D1, due to the
standard of video signal, black bars appear instead of
images on both edges of the screen. Black bar(s) also
appear(s) even in the VGA mode when signals not
compliant with the standard in your locality are
transmitted.
-
The connected camera
cannot be controlled.
•
Confirm that “On” is selected for “RS485
transmission” on the [RS485] tab.
Confirm that each of the settings on the [RS485] tab
match the settings of the connected camera.
If Pan/Tilt/Zoom functions cannot be operated for
Panasonic cameras, you must select “Custom” for
“Protocol” on the [RS485] tab of the “Image” page and
upload the command table to the unit. For further
information, refer to our website
(http://panasonic.net/pss/security/support/info.html).
41
•
•
128
Operating Instructions
20 Troubleshooting
Symptom
When displaying H.264
images on two or more web
browser windows, images
from two or more cameras are
displayed in sequence on a
single browser window.
Reference
pages
Cause/solution
•
This may occur due to the display adapter and driver
combination.
When this has occurred, first update the driver of the
display adapter to the latest version.
If updating the driver does not solve the problem,
adjust the hardware acceleration as follows.
The following are descriptions for when Windows XP
is installed on the PC in use.
1. Right-click on the desktop and select “Properties”
from the displayed pop-up menu.
2. Select “Settings” from “Display Properties”, and
then click the [Advanced] button.
3. Click the [Troubleshoot] tab and disable the
DirectDraw acceleration by adjusting the level of
Hardware acceleration.
-
Operating Instructions
129
20 Troubleshooting
Information Bar
Depending on the OS installed on the PC, the following may occur. Follow the instructions below when the
following has occurred. By performing the following solutions, other applications may not be affected.
When using Internet Explorer 9.0:
The “Information Bar” (A) expressed in the following symptom and solutions will be displayed just below the
address bar only when there is information to communicate.
A
When using Internet Explorer 6.0, Internet Explorer 7.0, or Internet Explorer 8.0:
The “Information Bar” (B) expressed in the following symptom and solutions will be displayed just below the
address bar only when there is information to communicate.
ԙ
Cause/solution
Symptom
Reference pages
The following message is
displayed on the information
bar.
“Pop-up blocked. To see this
pop-up or additional options,
click here...” (Internet
Explorer 6, Internet Explorer
7, or Internet Explorer 8)
•
Click the information bar and select “Always
Allow Pop-ups from This Site...”. The dialog
window saying “Allow pop-ups from this site?” will
be displayed. Click the [Yes] button.
-
The following message is
displayed on the information
bar.
“This webpage wants to run
the following add-on:
`WebVideo Module' from
`Panasonic System Networks
Co.,Ltd.`.” (Internet Explorer
9)
•
Select [Allow].
-
The following message is
displayed on the information
bar.
“This site might require the
following ActiveX control
'nwcv4Ssetup.exe' from
'Panasonic System Networks
Co.,Ltd.'. Click here to
install...” (Internet Explorer 6,
Internet Explorer 7, or Internet
Explorer 8)
•
Click the information bar and select “Install
ActiveX Control”.
The “Security Warning” window will be displayed.
Click the [Install] button on the displayed
“Security Warning” window.
-
130
Operating Instructions
20 Troubleshooting
Symptom
Cause/solution
Reference pages
The following message is
displayed on the information
bar.
“This webpage wants to install
the following add-on:
`nwcv4Ssetup.exe' from
`Panasonic System Networks
Co.,Ltd.`.” (Internet Explorer
9)
•
Select [Install]. The “Security Warning” window
will be displayed. Click the [Install] button on the
displayed “Security Warning” window.
-
An unnecessary status bar or
scroll bar is displayed on the
pop-up window.
•
Click “Internet Options...” under “Tools” of the
menu bar of Internet Explorer, and then click the
[Security] tab. Click “Internet” in the “Select a
Web content zone to specify its security
settings:” section. Then, click the [Custom
Level...] button to open the “Security Setting”
window. Under “Miscellaneous”, select “Enable”
for “Allow script-initiated windows without size or
position constraints”. Click the [OK] button.
When the warning window is displayed, click the
[Yes] button.
-
Images are not fit in the
frames.
•
When “120 DPI” is selected for “DPI setting”, they
may not be displayed correctly.
Click the “Settings” tab on the “Properties”
window of “Screen” (in the control panel), and
then click the [Advanced] button. Change the
“DPI setting” as necessary.
-
Operating Instructions
131
For U.S. and Canada:
Panasonic System Communications Company of North America,
Unit of Panasonic Corporation of North America
www.panasonic.com/business/
For customer support, call 1.800.528.6747
Three Panasonic Way, Secaucus, New Jersey 07094 U.S.A.
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada
(905)624-5010
www.panasonic.ca
For Europe and other countries:
http://panasonic.net
Importer's name and address to follow EU rules:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
© Panasonic System Networks Co., Ltd. 2012
PGQP1403ZA C1212-0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
