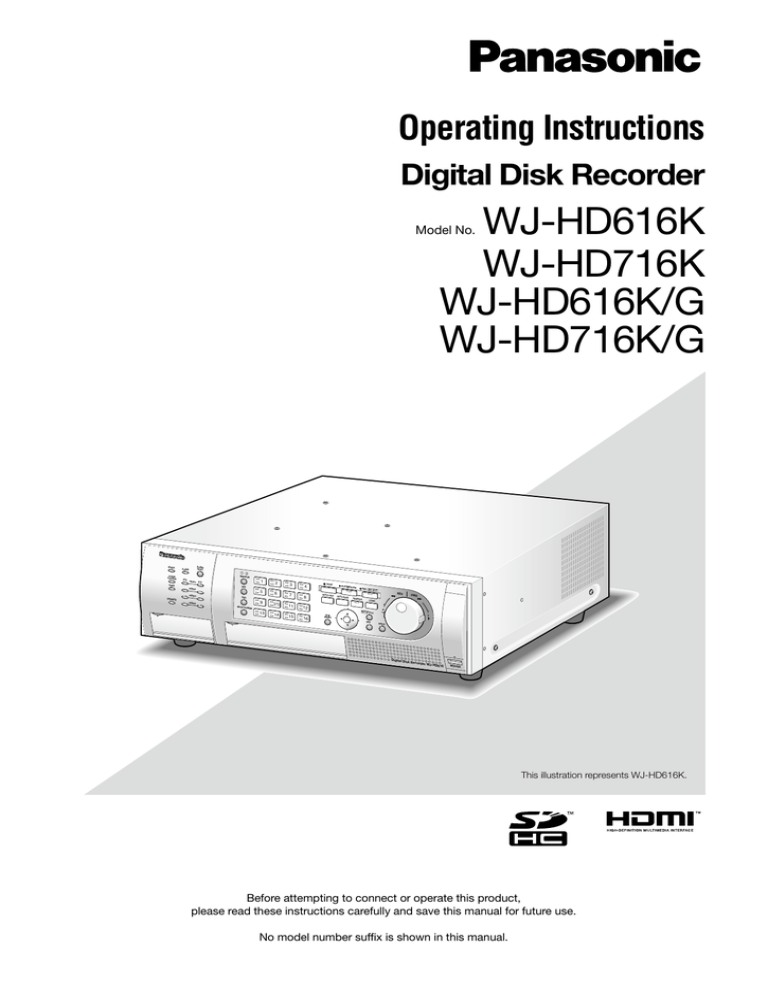

Operating Instructions
Digital Disk Recorder
WJ-HD616K
WJ-HD716K
WJ-HD616K/G
WJ-HD716K/G
Model No.
ERROR
ALARM
SUSPEND
ALARM
RESET
ALARM
STS
MONITOR
HDD1 A/F
TIMER
HDD2
OPERATE
HDD3
1
2
3
4
5
6
7
8
11
12
SEQ
OSD
9
HDD4
MULTI SCRE
0/10
EN
13
14
15
16
STOP
GOTO LAST
SUB
MENU
PLAY PAUS
E
GOTO DATE
REC REC
STOP
REV
SEARCH
FWD
COPY
SETUP ESC
SET
HOLD
Digital Dis
k Record
er WJ-HD
616
MOUSE
This illustration represents WJ-HD616K.
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
No model number suffix is shown in this manual.
CONTENTS
Preface........................................................................ 4
About the user manuals.......................................... 4
System requirements for a PC................................ 4
Trademarks and registered trademarks.................. 5
Abbreviations.......................................................... 5
Restrictions upon display of images....................... 6
Before using this product............................................ 7
Video Motion Detection (VMD) function.................. 7
Time display of recorded images............................ 7
Black screen displayed when playing recorded
images..................................................................... 7
Recording mode...................................................... 8
Event type............................................................... 8
Major operating controls and their functions.............. 9
Front view................................................................ 9
About the operation window..................................... 14
Monitor 1............................................................... 14
Monitor 2............................................................... 15
Basic operation......................................................... 20
Operations using the buttons on the front
panel...................................................................... 20
Operations using a mouse.................................... 23
Login operation at startup......................................... 27
Monitor live images from cameras............................ 28
Select a monitor (monitor 1/monitor 2)................. 29
Display images on a 1-screen............................... 30
Display/Hide the camera title and the
status bar.............................................................. 30
Display images on a multiscreen........................... 32
Display images from multiple cameras
sequentially (sequence display)............................ 34
Record images.......................................................... 35
Recording areas on the hard disk drive................ 35
Record images (Manual recording)....................... 36
Emergency recording............................................ 37
Play recorded images................................................ 38
Play images from a designated point........................ 43
Play image recorded at a designated time and
date....................................................................... 43
Search and play......................................................... 45
Search and play recording events (recording
event search)......................................................... 45
Search filter........................................................... 45
Search for copied recorded images and play
(copy data search)................................................. 48
Copied data list window........................................ 48
Search for time and date when a motion was
detected from recorded images and play (VMD
search)................................................................... 51
2
Event function........................................................... 56
Event action........................................................... 56
Cancel the alarm action........................................ 57
Suspend the alarm action..................................... 58
Cancel the error action.......................................... 58
Copy recorded images.............................................. 59
Operation and configuration when connecting the
recorders in cascading connection........................... 62
Configuration......................................................... 62
Operation using the buttons on the front panel.... 63
Operate using the system controller..................... 63
Operate the camera.................................................. 64
Display the camera control panel.......................... 64
Panning/Tilting...................................................... 65
Zooming ............................................................... 65
Focus adjustment.................................................. 66
Iris adjustment....................................................... 66
Preset position function........................................ 67
Auto functions (Auto panning, etc.)....................... 69
Operate the setup menu of the camera................ 70
Disk management .................................................... 71
Delete images recorded on the hard disk drives
manually .............................................................. 71
Format (initialize) an SDHC/SD memory card....... 73
Configure the network settings................................. 74
Configure the network settings of the recorder.... 74
Configure the network settings of the PC............. 74
Network security of the recorder............................... 76
The security function of the recorder.................... 76
To enhance the network security.......................... 76
Display the operation window................................... 77
About the operation window..................................... 78
Top Page............................................................... 78
[Control] button..................................................... 79
Status display area................................................ 81
Download operation area...................................... 82
[HDD] tab............................................................... 82
[CAM] tab.............................................................. 83
Monitor live images from cameras............................ 85
Display images on a 1-screen............................... 85
Display images on a multiscreen........................... 87
Display images from multiple cameras
sequentially (sequence display)............................ 88
Record images.......................................................... 89
Record images (Manual recording)....................... 89
Play recorded images................................................ 90
Play image recorded at a designated time and
date........................................................................... 92
Search and play......................................................... 93
Search and play recording events (recording
event search)......................................................... 93
Search for time and date when a motion was
detected from recorded images and play (VMD
search)................................................................... 96
Check a list of copied recorded images................ 98
Event function......................................................... 100
Event action......................................................... 100
Cancel the alarm action...................................... 102
Suspend the alarm action................................... 102
Cancel an error action......................................... 103
Copy recorded images............................................ 104
Download recorded images currently being
played...................................................................... 106
Play the copied/downloaded recorded images...... 108
Viewer software to play recorded images copied
on an SDHC/SD memory card or a DVD............. 108
Viewer software to play recorded images
downloaded using a web browser...................... 108
Download the viewer software ........................... 108
Install the viewer software................................... 109
Uninstall the viewer software.............................. 110
Play the downloaded recorded images............... 111
Save the displayed image................................... 112
Print the displayed image.................................... 112
Alteration detection............................................. 113
Operate the camera................................................ 114
Panning/Tilting.................................................... 114
Zooming.............................................................. 115
Focus adjustment................................................ 115
Iris adjustment..................................................... 116
Preset position function...................................... 116
Auto functions (Auto panning, etc.)..................... 117
Operate the setup menu of the camera.............. 118
Disk management................................................... 119
Delete images recorded on the hard disk drives
manually.............................................................. 119
Format (initialize) an SDHC/SD memory card..... 121
Notification by e-mail.............................................. 122
Alarm mail........................................................... 122
Warning mail........................................................ 123
Troubleshooting....................................................... 124
Glossary.................................................................. 129
3
Preface
The digital disk recorder WJ-HD616K, WJ-HD716K, WJ-HD616K/G and WJ-HD716K/G (hereinafter
WJ-HD616K or WJ-HD716K), are designed for use within a surveillance system, and record images from up to
16 cameras on the hard disk drives.
This product supports HDMI (High-Definition Multimedia Interface) standard which allows displaying playback/
live images with superior quality when connecting to a high-definition monitor using an optional HDMI cable.
It is possible to operate cameras from this product to display images from multiple cameras or switch cameras
from which images are to be displayed, etc.
About the user manuals
The following 3 manuals are provided for the WJ-HD616K and the WJ-HD716K.
Installation Guide:Contains descriptions of how to install/connect this product
and how to configure the required settings.
Operating Instructions (PDF) (this document):
Contains descriptions of how to operate this product.
(Both operations using the interface on the product and using
a PC via a network are provided)
Quick Reference Guide:Contains descriptions of how to configure the basic settings
and to operate functions frequently used.
Adobe® Reader® is required to read the PDF files on the provided CD-ROM. When Adobe® Reader® is not
installed on the PC, download the latest Adobe® Reader® from the Adobe web site and install it.
This product is described as "HD616K" or "HD716K" in the manuals and on the setup menus.
Refer to "readme.txt" on the provided CD-ROM for further information about the optional dedicated software,
compatible cameras and their versions.
A DVD drive (WJ-HDB611) and RAID board (WJ-HDB601) are optional.
When these optional products are installed, the following functions will become avaialable.
• Built-in DVD drive:Copying of recorded images and audio onto a DVD disc
Playback of recorded images and audio copied on a DVD
• RAID board:
Switching of the operational mode to RAID 5 or RAID 6 and running system with RAID
5 or RAID 6
In these operating instructions, instructions are provided on the assumption that both the optional DVD drive
and RAID board are installed.
System requirements for a PC
It is recommended to operate this unit using a PC that meets the following system requirements.
OS:
Microsoft® Windows Vista® Business SP1 (32-bit)
Microsoft® Windows® XP Professional SP3
Microsoft® Windows® XP Home Edition SP3
CPU:
Intel® Core™ 2 Duo 2.66 GHz or faster
Memory:
1 GB or more (512 MB or more when using Windows® XP)
Monitor:
1 024 x 768 pixels or more, 24-bit True color or better
Network interface:
A 10/100 Mbps network interface card must be installed.
Web browser:
Windows® Internet Explorer® 7.0*
Microsoft® Internet Explorer® 6.0 SP3
Audio:
Sound card (When using the audio function)
4
Other:
CD-ROM drive: It is necessary to refer to the operating instructions on the provided
CD-ROM.
DirectX® 9.0c or later
Adobe® Reader®: It is necessary to refer to the operating instructions on the provided
CD-ROM.
®
®
®
* When using Microsoft Windows Vista
Important:
• If using a PC that does not meet the above system requirements, it may cause problems such as slow imaging or the browser becomes inoperable.
• Audio will not be heard if a sound card is not installed on a PC.
• Microsoft® Windows® XP Professional x64 Edition is not supported.
Note:
• Refer to "Notes on Windows Vista®" (PDF) on the provided CD-ROM for further information about system
requirements for a PC and precautions when using Microsoft® Windows Vista®.
Trademarks and registered trademarks
• Adobe, Adobe logo and Reader are either registered trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other countries.
• Microsoft, Windows, Windows Vista, Internet Explorer, ActiveX and DirectX are either registered trademarks
or trademarks of Microsoft Corporation in the United States and other countries.
• Intel and Intel Core are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the
United States and other countries.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing LLC.
• SDHC logo is a trademark.
• Other names of companies and products contained in these operating instructions may be trademarks or
registered trademarks of their respective owners.
Abbreviations
The following abbreviations are used in this manual.
Microsoft® Windows Vista® Business SP1 (32-bit) is described as Windows Vista.
Microsoft® Windows® XP Professional SP3 and Microsoft® Windows® XP Home Edition SP3 are described as
Windows XP.
Windows® Internet Explorer® 7.0 and Microsoft® Internet Explorer® 6.0 SP3 are described as Internet Explorer.
SDHC memory card and SD memory card are described as SDHC/SD memory card.
5
Restrictions upon display of images
When displaying images using this product, some functions have restrictions as follows. Before using this product, keep the following in mind.
When displaying live images from the camera on a web browser
• Black screen may be displayed for the first few seconds (*) when the following operations are performed
while displaying live images.
• When live images are displayed (by switching camera channel, etc.)
• When image is zoomed in or out
• When displaying images sequentially, images may sometimes not be exactly displayed at the configured
dwell time.
When playing recorded images
• Displayed playback time may be fast for several seconds (*) when the following operations are performed
while playing recorded images.
• When camera channels are switched
• When image is zoomed in or out (When operating to zoom in/out a paused recorded image, image of
several seconds later than the displayed image may be zoomed in.)
• When the [PLAY] button is clicked again while playing images
• When the first frame is displayed by starting the frame by frame playback during pausing
• Playback may be performed in several seconds intervals (*) when the following operations are performed.
Refer to the "Functions during playback" section on pages 40 - 41 for how to control playback.
• Fast playback/Fast reverse playback
• Reverse frame playback
• When playing images by designating time and date, playback may start from a point several seconds (*)
after the designated time and date or from the first frame of the next record.
• When playing images after searching for the latest recorded images, playback may start from a point several
seconds (*) before/after the start time and date of the latest recorded images.
When recording images
• The actual time of recording trigger (event occurrence time, start time of the schedule recording, etc.) and
the recording start time (time displayed on the recording event list) may not exactly be the same.
• When pre-event recording is set to be performed, pre-event recording duration may be longer than the set
duration.
When copying images
Copying of recorded images may start from a point several seconds (*) before the designated start time when
copying recorded images.
When downloading recorded images
Downloading of recorded images being played may start from a point several seconds (*) later than the designated start time when downloading recorded images being played.
When transferring images recorded at an event occurrence to the FTP server
Duration of images to be transmitted to the FTP server, which are recorded at an event occurrence, may not be
exactly the same as the duration set for "Duration-Pre" and "Duration-Post".
* Time (seconds) differs depending on the frame rate for recording.
6
Before using this product
Video Motion Detection (VMD) function
The VMD function of this product detects motions referring to changes of brightness in the areas set in
advance.
The VMD function will not effectively work in the following situations or may sometimes be malfunctioning.
• When there is a very little difference in luminance (brightness) between a background and a subject
• When brightness of images is low such as at night
• When a subject moves very slow
• When a subject is very small
• When the amount of rays of light incidence changes frequently such as at a window or outdoor
• When light such as sunlight or car headlight comes from outside
• When a fluorescent lamp flickers
• When a subject has depth
When configuring the VMD settings, check the function performance both in daytime and at night after appropriately configuring the area settings and the sensitivity settings according to the camera installation conditions
and possible movement of subjects. When the detection function does not work or false detection occurs, use
a sensor separately.
Time display of recorded images
When displaying recorded images, the displayed time and date may sometimes skips. This is not malfunction.
The displayed time and date on the monitor and the recorder may sometimes not be exactly the same. This is
also not malfunction.
Black screen displayed when playing recorded images
In the following cases, a black screen may be displayed during playing recorded images. However, this is not
malfunction.
• When changing camera channels or screen patterns during playback or pausing
• When skipping/reverse skipping during playback
• When fast forwarding/reverse fast forwarding during playback
• When the [GO TO LAST] button is pressed during playback on a multiscreen
• When going to the next recording event list by fast forwarding/reverse fast forwarding or skipping/reverse
skipping during playback
• When playback operation is affected by another operation (such as when receiving multiple alarms sequentially or when copying is being performed simultaneously)
7
Recording mode
It is possible to directly connect up to 16 cameras to the recorder and record images from them on the hard
disk drives.
The following recording modes are available.
Emergency recording:Recording that is performed manually using an external switch, etc. when an emergency occurs
Manual rec. operation: Recording that is started and stopped manually
Schedule recording:Recording that is automatically performed at the designated time range on the designated day of the week
Event recording:Recording that is automatically performed at an event occurrence (such as VMD, terminal alarm/camera site alarm, video loss, etc.)
Important:
• Recording may not be performed around for 1 second in the following cases. However, this is not a malfunction.
• When the settings are changed and the setup menu is closed during recording
• When the image capture size, image quality or the recording rate is changed during recording
• When a post-event recording or an emergency recording starts/ends during recording
Event type
Event recording types displayed on a list on various windows are as follows.
MAN: Manual recording
SCH: Schedule recording
EMR: Emergency recording
The following are detailed event recording types.
VMD: Displayed when a motion is detected
LOSS: Displayed when a video loss occurred
COM: Displayed when a command alarm occurred
TRM: Displayed when a terminal alarm occurred
SITE: Displayed when a camera site alarm occurred
CMTN: Displayed when a motion is detected (SD5Link camera)
CRMV: When an object appears/disappears (SD5Link camera)
CSTY: Displayed when a staying object is detected (SD5Link camera)
CDRT: Displayed when a object moving to the specified direction is detected (SD5Link camera)
CTRM: Displayed when a camera terminal alarm occurred (SD5Link camera)
CSCD: Displayed when an interference with the camera is detected (SD5Link camera)
PRE: Pre-event recording
8
Major operating controls and their functions
Front view
q
w
ERROR
ALARM
SUSPEND
ALARM
RESET
ALARM
STS HDD 1
TIMER
HDD 2
A/F
e
MONITOR
SEQ
OSD
HDD 3
OPERATE
HDD 4
MULTI SCREEN
1
2
r
3
STOP
PLAY
GOTO LAST
GOTO DATE
t
PAUSE
REC REC STOP
5
6
7
8
9
0/10
11
12
SEARCH
14
15
FWD
COPY
SETUP /ESC
MAINTENANCE
SUB
MENU
13
REV
4
SET
16
HOLD
Digital Disk Recorder WJ-HD616
i
o
!1
!0
!4
u
y
MOUSE
MOUSE
!2
!3
STS A/F
STS A/F
STS A/F
STS A/F
MAINTENANCE
MOUSE
SDHC/SD memory
card slot
VIDEO OUT
AUDIO OUT
!5
q Status indicators
ERROR: Blinks when an error that can become a
problem for the recorder to run the system
occurs.
Blinks red: System error
Blinks orange: Thermal error, cooling fan malfunction, etc.
ALARM: Blinks when an alarm occurs, and lights
when the alarm output stops. The blinking or
lighting indicator will go off when the alarm
reset button is pressed.
ALARM SUSPEND: Lights when the alarm suspension mode is selected. (☞ Pages 58 and
102)
TIMER: Lights when a schedule is set, and blinks
while the schedule recording is being performed.
OPERATE: Lights when the power is on.
w Alarm reset button [ALARM RESET]
Press this button to reset the alarm.
e Camera selection buttons
Press the desired camera selection button to display images from the respective camera. The
camera selection buttons indicates the status of
the respective cameras as follows.
Lights green: Indicates the camera channel
from which images are currently being displayed on a monitor
Blinks orange: Indicates the camera channel
of which images are currently being recorded
r Recording/Playback operation button
[■ STOP] button: Press this button to stop playback.
[B PLAY h PAUSE] button: Press this button to
start playback. Playback will be paused by
pressing this button during playback. (During
playback: Lights green, During pausing: Blinks
green)
[● REC] button: Starts manual recording.
Recording will stop by holding down this button for 2 seconds or more during the manual
recording. (During recording: Lights orange)
t Jog dial (inside)/Shuttle ring (outside)
Jog dial: The following functions are provided.
• Frame by frame playback can be performed
during pausing.
• Skip can be performed during playback.
9
Shuttle ring: The following functions are provided.
• Fast forward/reverse playback can be performed during playback.
y Hold button [HOLD]
Press this button during fast forward/reverse playback started by the shuttle ring to hold the current
playback speed (hold playback speed function).
(During hold playback: Blinks green)
This button can also be used for the panning/tilting operation of the camera. (During low-speed
panning/tilting control: Lights green)
u Maintenance port [MAINTENANCE]
The maintenance port that can be used for connection with a PC is provided inside the cover. Do
not use for any operation other than maintenance.
i HDD indicators (HDD1 - HDD4)
STS (status): Indicates the operational statuses of
the respective hard disk drive.
Lights green: Indicates that the power of the
respective hard disk drive (formatted) is on.
Blinks green: Indicates that the respective
hard disk drive is for playback use only.
(Recording is unavailable using the respective hard disk drive.)
Blinks orange: Indicates that the respective
hard disk drive is currently being formatted.
Lights red: Indicates that formatting of the
respective hard disk drive has failed.
Off: Indicates that the power of the respective
hard disk drive is off, or that the hard disk
drive is not connected/recognized.
A/F (HDD access/failure): Indicates the status
(access/failure) of the respective hard disk
drive.
Blinks green: Indicates that the respective
hard disk drive is being accessed.
Lights red: The respective built-in hard disk
drive is faulty (Data recovery is possible by
replacement.)
Blinks red: The respective built-in hard disk
drive is faulty (Data recovery is possible by
replacement.)
Lights red and orange alternately: Indicates
that the respective hard disk drive is currently being recovered in the RAID 5/RAID
6 mode. (It may appear that the indicator
lights orange when recovery is being processed at high speed.)
Off: Indicates that the respective hard disk
drive is not being accessed.
10
Important:
• When operating in the RAID5/RAID6 mode and
the HDD indicator lights red, replace the faulty
hard disk drive promptly. Contact your dealer for
replacement of hard disk drives.
In the RAID 5 mode:
When 2 or more HDD indicators light/blink red, it
is impossible to recover data on the faulty hard
disk.
In the RAID 6 mode:
When 3 or more HDD indicators light/blink red, it
is impossible to recover data on the faulty hard
disk.
o Monitor operation buttons
[MONITOR] button: Press this button to change
the monitor to be operated. The monitor number will light to indicate the monitor currently
being selected.
[SEQ] button: Press this button to start/stop the
sequence. (During the sequence: Lights green)
[OSD] button: Press this button to display/hide
information such as the camera title.
[MULTI SCREEN] button: Press this button to
change the display pattern of multi-screen.
(The display pattern of multi-screen will
change each time this button is pressed.)
!0 Playback control function button
[GOTO LAST] button: Press this button to jump
the playback point to the top of the latest
recorded image.
[GOTO DATE] button: Press this button to designate time and date of recorded images to be
played.
[SEARCH] button: Press this button to play
recorded images after the recording event
search or the VMD search. (During search and
playback: Lights green)
[COPY] button: Press this button to display the
menu on which it is possible to copy data onto
a DVD or an SDHC/SD memory card. (☞ Page
59)
!1 [SUB MENU] button
Press this button to display the submenu used for
camera operation and the electronic zoom.
(☞ Page 16)
!2 Menu operation button
Arrows button: Use this button to move the cursor on the setup menu, the search menu, etc.
[SETUP/ESC] button: Hold down this button for
2 seconds or more to display the setup menu.
When the setup menu is being displayed,
press this button to go back to the previous
page.
[SET] button: Press this button to determine the
edited settings on the setup menu.
This button also can be used to turn the
alarm suspension on/off. (☞ Page 58)
!3 Mouse port [MOUSE]
Use this port to connect a USB mouse (commercially available). (No device other than a mouse
can be connected.)
* It is impossible to connect a mouse to the mouse
connection port if the connector from the mouse
is upside down. When it is hard to connect, check
the upside down position of the connector from
the mouse.
!4 SDHC/SD memory card slot/External output
connector (AUDIO OUT, VIDEO OUT)
The video output connector to be used for output
to a VCR, audio output connector (RCA pin jack)
and SDHC/SD memory card slot are provided
inside the cover.
!5Built-in DVD
It is possible to install an optional built-in DVD
(WJ-HDB611).
11
Insert an optional SDHC/SD memory card
Step 1
Insert a DVD disc (commercially available)
Step 1
Open the SDHC/SD memory card slot.
Pull the tab
down.
Open the DVD drive cover.
Pull the tab down.
SDHC/SD memory
card slot
Step 2
Insert an SDHC/SD memory card to the slot until it
clicks.
When inserting an SDHC/SD
memory card, confirm that the
label on the SDHC/SD memory
card is upside and only the
upper right corner of the card
has different shape.
Step 3
Close the cover of the SDHC/SD memory card slot.
Note:
• When removing the SDHC/SD memory card from
the slot, push the card until it clicks and pull it up
straight.
12
Step 2
After confirming that the power of the recorder is on,
press the eject button located at the center of the
DVD drive and pull the disc tray gently.
Eject button
Note:
• After copying the recorded data on a DVD, perform the procedure to eject the DVD. (☞ Page 61)
Otherwise, the tray may not open even after the
eject button is pressed.
Step 3
Place a disc with the label side up and fit the hole of
the disc to the center (spindle) of the tray. Then, push
the tray gently. Click sound will be heard and the
inserted disk will be set.
Spindle
Step 4
Push the tray to the end. Click sound will be heard
and the tray will be fixed.
Step 5
Close the DVD drive cover.
Important:
• When opening/closing the DVD drive tray, do not
apply force on the tray.
• When not using the DVD drive, close the disc tray.
• When removing the disc from the tray, press the
spindle to detach the disc. If trying to detach the
disc forcibly, it can damage both the disc and the
DVD drive.
13
About the operation window
Monitor 1
(Monitor to display live images only)
The default positions are indicated by the circled
numbers. (Broken lined circles are not the default
positions.)
Important:
• The setup menu will not be displayed on monitor
1.
q Camera title
The set camera title will be displayed. The camera
title display position can be selected from "Upper
left", "Lower left", "Upper right" and "Lower right".
At the default, the camera title will be displayed at
upper right (R-Upper).
Note:
• The camera title will be displayed with up to 14
characters.
w Time and date display
The current time (hour, minute, second) and date
(year, month, day) will be displayed.
The time and date display position can be selected from "Upper left", "Lower left", "Upper right"
and "Lower right".
At the default, the time and date will be displayed
at upper left (L-Upper).
Note:
• When the display position of the camera title and
the time and date are set at the same position, the
time and date will be displayed at the selected
position.
• When selecting monitor 1, it is possible to display/
hide the camera title and the time and date by
pressing the [OSD] button.
14
e Event display
The event display will be display at the opposite
side of the time and date display.
When the time and date is displayed at the lower
left, the event display will be at the lower right. At
the default, the event occurrence will be displayed
at upper right (R-UPPER).
The event occurrence will be displayed as follows.
"*" indicates the camera channel (1 - 16).
"#" indicates the alarm number.
VMD-*: Displayed when a motion is detected
LOSS-*: Displayed when a video loss occurred
COM-#: Displayed when a command alarm
occurred
TRM-#: Displayed when a terminal alarm occurred
EMR: Displayed during the emergency recording
SITE-*: Displayed when a camera site alarm
occurred
CMTN-*: Displayed when a motion is detected
(SD5Link camera)
CRMV-*: When an object appears/disappears
(SD5Link camera)
CSTY-*: Displayed when a staying object is
detected (SD5Link camera)
CDRT-*: Displayed when a object moving to the
specified direction is detected (SD5Link camera)
CTRM-*: Displayed when a camera terminal alarm
occurred (SD5Link camera)
CSCD-*: Displayed when an interference with the
camera is detected (SD5Link camera)
Note:
• Refer to page 56 for further information about
each event and their event actions.
Monitor 2
(Monitor to display live images, recorded images and the setup menu)
Normal display
Camera
control
Playback
El-zoom
The default positions are indicated by the circled
numbers. (Broken lined circles are not the default
positions.)
q Camera title
The set camera title will be displayed. The camera
title display position can be selected from "Upper
left", "Lower left", "Upper right" and "Lower right".
At the default, the camera title will be displayed at
upper right (R-Upper).
w Status bar
The current status will be displayed.
The display position can be selected from "Upper"
and "Lower".
The default display position is "Lower".
Note:
• The camera title will be displayed with up to 14
characters.
• When selecting monitor 2, it is possible to display/
hide the camera title display and the status bar
respectively by pressing the [OSD] button.
• Images recorded with the "Time embed" setting
"On" will be played in the embedded recording
mode.
EVT: Pre-event recording/Post-event recording
EMR: Emergency recording
e Shortcut launcher
It is possible to execute a function such as playback by simply pressing each button on the shortcut launcher.
The shortcut launcher will be displayed only when
a mouse (commercially available) is connected.
Minimum display
Time and date
search
Minimum display/
Normal display
Latest recorded
Minimum display/Normal display: When the triangle
is clicked, display of the shortcut launcher will be
switched between the normal display and the
minimum display.
Time and date search: When this button is clicked,
the "Go to date" window will be displayed.
(☞ Page 43)
Latest recorded image: When this button is clicked,
playback of the latest recorded images will start
and the "REC & Playback" panel will be displayed.
(☞ Page 44)
Playback: When this button is clicked, playback will
start and the "REC & Playback" panel will be displayed. (☞ Page 39)
El-zoom: When this button is clicked, the displayed
images will be displayed at x2 and the "El-zoom"
panel will be displayed. This button will work only
when images are being displayed on a 1-screen.
(☞ Page 31)
Camera control: When this button is clicked, the
camera control panel will be displayed. (☞ Page
64)
Note:
• The shortcut launcher will be displayed (or hidden)
when the status bar is displayed (or hidden).
When the status bar is displayed at the bottom of
the screen (Lower), the shortcut launcher will be
displayed at the lower right corner. When the status bar is displayed at the top of the screen
(Upper), the shortcut launcher will be displayed at
the upper right corner.
• When a panel such as the operation panel is displayed, the shortcut launcher will be hidden.
15
Description of the status bar
w
r
y
q
e
t
q Submenu button [S.Menu]
The submenu window will be displayed.
In the submenu window, the following menu buttons
are provided.
Camera control
The camera control panel and the camera menu
panel will be displayed. It is possible to control a
camera, such as panning/tilting, preset position
movement, on the camera control panel. On the camera menu panel, it is possible to operate the camera
setup menu.
El-zoom
The electronic zoom panel will be displayed. It is possible to enlarge images from the camera and to move
the angular field of view using the electronic zoom.
REC & Playback
The recording/playback panel will be displayed. It is
possible to perform operations relating to recording
and playback.
* The recording/playback panel cannot be operated
using the buttons on the front panel of the recorder.
16
Go to last
The latest recorded image will be played. Playback
will start from the point set in advance of the latest
recorded image. Refer to the Installation Guide for
further information about the point of the latest
recorded image.
Search & Copy
It is possible to perform operations relating to search
and playback and relating to copying of data (onto a
DVD or an SDHC/SD memory card), etc. The search
conditions panel or the data copy panel will be displayed. It is also possible to cancel the search filters
and to validate the DVD eject button from this menu.
Setup Menu
The setup menu will be displayed. Refer to the
Installation Guide for further information about the
setup menu.
Logout
It is possible to log out from the recorder from this
menu.
w Status display area
Indication
Description
Indication
Live
: Currently live images are
Indicates that live images are currently being
displayed. The sequence display function is
(No indica- being displayed
the function that can automatically switch and tion)
: Currently live images are
display images from multiple cameras
being displayed in sequence
sequentially.
Playback
Indicates that recorded images are currently
being played. When playback is being performed not at normal speed, the playback
speed also will be displayed.
When the playback speed is being held, the
playback speed will be displayed in orange.
: ­Currently recorded images
are being played
: Currently recorded images
are being played reversely
: Currently playback is paused
: Currently recorded images
are being played at a specified playback speed
: Currently recorded images
are being played reversely at
a specified playback speed
e Copy/Delete icon, source disk selection, mirror/RAID recovery display area
Indication
Description
Indication
Copy
Indicates that copying is currently being performed.
: Currently data is being copied
Delete
Indicates that data is currently being deleted
: Currently data is being deleted
RECOVER
Indicates that RAID recovery is currently being
performed
: Currently RAID recovery is
being performed
DVD selection
Indicates that an optional DVD drive
(WJ-HDB611) is currently being selected
: Currently the DVD drive is
being selected
SDHC/SD
memory card
selection
Indicates that an SDHC/SD memory card is
currently being selected
: Currently the SDHC/SD
memory card (optional) is
being selected
r Live/Playback time and date display area
Indication
Description
Time
Time and date of the displayed images will be
displayed.
When live images are being displayed: The
current time and date will be displayed.
When recorded images are being played: The
time and date when the images were recorded will be displayed.
The asterisk "*" will be displayed before time
and date during the summertime.
Indication
Year,
month,
day
Hour,
minute,
second
17
t Alarm display area
Indication
Description
Alarm
Indicates that an alarm occurred.
"*" indicates the camera channel (1 - 16).
"#" indicates the alarm number.
VMD-*: Displayed when a motion is detected
LOSS-*: Displayed when a video loss occurred
COM-#: Displayed when a command alarm
occurred
TRM-#: Displayed when a terminal alarm
occurred
SITE-*: D
isplayed when a camera site alarm
occurred
CMTN-*: Displayed when a motion is detected
(SD5Link camera)
CRMV-*: When an object appears/disappears
(SD5Link camera)
CSTY-*: Displayed when a staying object is
detected (SD5Link camera)
CDRT-*: Displayed when a object moving to the
specified direction is detected (SD5Link
camera)
CTRM-*: Displayed when a camera terminal
alarm occurred (SD5Link camera)
CSCD-*: Displayed when an interference with the
camera is detected (SD5Link camera)
EMR: Displayed when an emergency recording
started
Indication
Indicates an event occurrence.
Alarm icon
Note:
• Refer to page 56 for further information about each event and their event actions.
y Error display area
18
Indication
Description
Error
Indicates that an error occurred.
ALT-*:
Alteration is detected
SMART:HDD early warning (predictable failure)
H-METER:Reached the set time for the hour
meter warning
When the HDD operation time
reached the set time
THERMAL: Thermal error occurred
POWER: Power outage is detected
C-**%:
Remaining capacity warning
C-FULL: No disk space
CPY-ERR: Copy error (Destination)
REMOVE:When the HDD on which an access
error occurred was automatically
removed
Indication
Indicates an error occurrence.
Error icon
Partitions indicated by "C"
Partition
Normal recording area
Indication
NML
Event recording area
EVT
Indication
Error
Description
Indication
1DOWN:A single hard disk drive in RAID
(RAID 5/RAID 6) is faulty (which can
be recovered by replacing the hard
disk drive)
2DOWN:2 hard disk drives in RAID (RAID 5/
RAID 6) are faulty (which can be
recovered by replacing the hard
disk drives when operating in the
RAID 6 mode)
3DOWN:3 hard disk drives in the RAID 6
mode are faulty (which cannot be
recovered by replacing the hard
disk drives)
FAN:
Cooling fan error occurred
SWAR-ERR:A hard disk drive was removed
without pressing the [USE] button
during the recording is running
R-FAIL:RAID recovery failed (RAID 5/RAID
6)
F-FAIL:
Failed to format the hard disk drive
"*" indicates the camera channel (1 - 16).
"C" indicates the partition (See the descriptions.)
"**" indicates a number (%) of the remaining disk
Note:
• Refer to the Installation Guide for further information about each error.
19
Basic operation
To directly operate the recorder, there are 2 ways of how to operate it: operations using the buttons on the front
panel and operations using a mouse connected to the recorder.
The following are descriptions of how to perform the basic operation in these 2 ways.
Important:
• The instructions in this manual are mainly using the buttons on the front panel. Instructions for both are provided for operations only when different procedures are to be made depending on whether using the buttons on the front panel or the mouse.
When preferring to use the mouse, operate the recorder using the mouse by referring the instructions of how
to operate the recorder using the buttons on the front panel after understanding how to operate the recorder
using the mouse by referring the instructions in the "Operate using the mouse" chapter.
Operations using the buttons on the front panel
The recorder can be operated using the buttons on the front panel to which the functions are assigned.
Refer to the "Major operating controls and their functions" section (☞ page 9) for further information about the
functions assigned to each button.
Operations of the submenu
The submenu will be displayed by pressing the [SUB MENU] button on the front panel.
Refer to page 16 for further information about the functions operable on the submenu and the descriptions
about them.
The following are instructions for how to operate the submenu window and a panel displayed by selecting a
submenu (camera control panel, camera menu panel, El-zoom panel, REC & playback panel).
Menu selection
Move the cursor using the arrows button (C D A B),
and then press the [SET] button. The panel of the
selected menu will be displayed.
Close the submenu window
Press the [SETUP/ESC] button. It is also possible to
close the submenu window by pressing the [SET]
button after moving the cursor onto the [Cancel] button.
20
Tab selection on a panel
When a number (1 - 4) is provided for the tab name,
press the camera selection button (1 - 4) to select the
tab.
When no number is provided for the tab name, press
the [SET] button after moving the cursor using the
arrows button (C D A B).
Move the position of a panel
It is possible to move a panel to the other corner of
the screen by rotating the jog dial (inside). When
rotating the jog dial (inside) clockwise, the panel will
move to the next corner in order clockwise. When
rotating the jog dial counterclockwise, it will move
counterclockwise.
• Enlarge images from the camera using the electronic zoom
Each time the [SET] button is pressed, the zoom
factor will change between x2, x4 and x1.
• Move the display area of images from cameras
When the zoom factor is x2 or x4, it is possible to
move the image display area by pressing the
arrows button (C, D, A, B).
Operations on panels
Panels can be operated by pressing buttons on the
front panel including the arrows button (C, D, A, B).
Close the panel
Press the [SETUP/ESC] button.
Example: When operating the El-zoom panel
Operations of the software keyboard for time and date entry
When it is necessary to designate time and date such as when searching for a recording event, use the software keyboard for time and date entry that can be displayed by pressing the [SET] button after moving the cursor onto the time and date entry field.
Note:
• When the [SET] button is pressed after moving the
cursor onto the [Current time] button, the current
time and date will be entered.
The software keyboard for time and date entry can be operated as follows.
Step 1
Move the cursor onto each entry field (year, month,
day, time) using the arrows button (C, D, A, B), and
select values for them using the jog dial (inside).
→ When the time and date are set, the date mark on
the calendar will move to the appropriate position.
Step 2
Move the cursor onto the [Enter] button using the
arrows button (C D A B), and then press the [SET]
button.
→ The set time and date will be applied and the software keyboard for time and date entry will close.
21
Operations of the software keyboard for character entry
When it is necessary to enter characters such as when setting the camera titles on the setup menu, use the
software keyboard for character entry that can be displayed by pressing the [SET] button after moving the cursor onto the entry field.
Console
Functions of each button on the right of the software keyboard are as follows.
[← →] button
Moves the cursor to the right and left in the console
on the upper side of the keyboard.
[Del] button
Deletes a character on the cursor in the console.
[A/a] button
Changes the letter entry mode of the keyboard
between the capital letter entry, the lower-case letter
entry and the mark entry.
The software keyboard for character entry can be operated as follows.
Up to 255 characters can be entered.
Step 1
Move the cursor onto a desired character using the
arrows button (C D A B), and then press the [SET]
button.
→ The selected character will be displayed in the
console and the cursor will move to the right.
Step 3
Move the cursor onto the [Enter] button using the
arrows button (C D A B) when the character entry
is complete, and then press the [SET] button.
→ The entered characters will be applied and the
software keyboard for character entry will close.
Note:
• It is possible to delete a character on the cursor in
the console by pressing the [STOP] button on the
front panel.
• It is also possible to delete all characters in the
console by holding down the [STOP] button for 2
seconds or more.
Step 2
Repeat step 1 to continue entering characters.
22
Operations using a mouse
The recorder can be operated using a mouse connected to the mouse port (☞ page 11) on the front panel.
Move the mouse cursor onto a button or a tab on the screen, and then click on it.
Note:
• When no operation is made for 10 seconds or more, the mouse cursor will be hidden. The mouse cursor will
be displayed when the mouse is moved.
• It is impossible to connect a mouse to the mouse connection port if the connector from the mouse is upside
down. When it is hard to connect, check the upside down position of the connector from the mouse.
Operations of the operation panel
When right-clicking, the operation panel representing the front panel (the monitor operation button and the
camera selection button on the front panel) will be displayed.
Operations on panels
The following operations can be made by clicking each button.
Refer to the respective pages for further information about each function.
• Change camera channels (☞ page 30)
• Select the monitor (monitor 1/monitor 2) to operate (☞ page 29)
• Start/stop the sequence ((☞ page 34)
• Display/hide the camera title and the status bar (☞ page 30)
• Change the screen pattern of the multiscreen (☞ page 32)
Close the panel
Click anywhere outside the operation panel.
23
Operations of the submenu
The submenu will be displayed by clicking the [S.Menu] button (☞ page 16) on the status bar.
The submenu window is the same window that can be displayed when operating the buttons on the front panel.
Refer to page 16 for further information about the functions operable on the submenu and the descriptions
about them.
The following are instructions for how to operate the submenu window and a panel displayed by selecting a
submenu (camera control panel, camera menu panel, El-zoom panel, REC & playback control panel).
Menu selection
Click any of the menu buttons. The panel of the
selected menu will be displayed.
Operations on panels
Panels can be operated by clicking buttons on the
panel including the arrows button (C, D, A, B).
Close the submenu window.
Click the [x] button or the [Cancel] button.
Example: When operating the El-zoom panel
Tab selection on a panel
Click a desired tab.
Move the position of a panel
Click the [Position] button. Each time the [Position]
button is clicked, the panel will move to the next corner clockwise.
• Enlarge images from the camera using the electronic zoom
Each time the [SET] button is clicked, the zoom
factor will change between x2, x4 and x1.
• Move the display area of images from cameras
When the zoom factor is x2 or x4, it is possible to
move the image display area by clicking the
arrows button (C, D, A, B).
Close the panel
Click the [x] button.
24
Operations of the software keyboard for time and date entry
When it is necessary to designate time and date such as when searching for images recorded at the specified
time and date, use the software keyboard for time and date entry that can be displayed by clicking the icon
on the right of the console.
Note:
• When the [Current time] button is clicked, the current time and date will be entered.
• It is possible to move the time and date forward/
backward faster by holding down the [D] or [C]
button.
The software keyboard for time and date entry can be operated as follows.
Step 1
Set time and date (year, month, day, time) by clicking
[C] and [D] provided for each of them.
It is also possible to set time and date by clicking the
calendar.
Step 2
Click the [Enter] button.
→ The set time and date will be applied and the software keyboard for time and date entry will close.
Operations of the software keyboard for character entry
When it is necessary to enter characters such as when setting the camera titles on the setup menu, use the
software keyboard for character entry that can be displayed by clicking the icon
on the right of the console.
Console
Functions of each button on the right of the software keyboard are as follows.
[A/a] button
[← →] button
Changes the letter entry mode of the keyboard
Moves the cursor to the right and left in the console
between the capital letter entry, the lower-case letter
on the upper side of the keyboard.
entry and the mark entry.
[Del] button
Deletes a character on the cursor in the console.
25
The software keyboard for character entry can be operated as follows.
Up to 255 characters can be entered.
Step 1
Select a desired character by clicking it.
→ The selected character will be displayed in the
console and the cursor will move to the right.
Step 2
Repeat step 1 to continue entering characters.
Step 3
Click the [Enter] button when the character entry is
complete.
→ The entered characters will be applied and the
software keyboard for character entry will close.
26
Login operation at startup
When "Off" is selected for "Auto login", the login window will be displayed by pressing any button on the front
panel after completing the system check.
Enter a user name and password as follows when the login window is displayed.
Step 1
Step 2
Enter a user name and password. When the [SET]
button is pressed after moving the cursor to the entry
field, the software keyboard for character entry will be
displayed.
• Refer to pages 22 and 25 for how to operate the
software keyboard for character entry.
• Refer to the Installation Guide for how to register
users.
Note:
• When "On" is selected for "Quick login", the user
name can be selected from the displayed list.
(☞ Installation Guide)
Move the cursor onto the [OK] button using the
arrows button (C D A B), and then press the [SET]
button.
→ When the entered user name and password are
correct, the login window will disappear and live
images will be displayed. When the entered user
name or password is incorrect, the login window
will be displayed again.
Note:
• The default administrator name and password are
as follows.
Administrator name: ADMIN
Password: 12345
• To enhance the security, change the default
administrator name and password before running
the recorder. Change the password periodically.
Refer to the Installation Guide for how to change
the password.
• To log out, select "Logout" from the submenu.
Refer to page 16 for further information about the
submenu.
27
Monitor live images from cameras
When the recorder started up, live images from cameras will be displayed according to the configured settings.
Live images from cameras are displayed via the recorder.
Image data
Camera
Monitor 1
Recorder
Monitor 2
It is possible to display live images on a 1-screen or on a multiscreen. It is also possible to display live images
from multiple cameras sequentially by switching the camera channels in order (sequence display).
28
Select a monitor (monitor 1/monitor 2)
Live images can be displayed on both monitor 1 and monitor 2. When switching between a 1-screen and a multiscreen or when changing the camera channels for live images, it is firstly necessary to select a monitor (monitor 1 or monitor 2) to operate.
Operation using the buttons on the front panel
Step 1
Press the [MONITOR] button.
Each time the [MONITOR] button is pressed, the
monitor selection will change.
→ The monitor number will light to indicate the monitor currently being selected.
Operations using a mouse
Step 1
Display the operation panel by right-click, and then
press the [MONITOR] button.
→ The monitor number will light to indicate the monitor currently being selected.
Note:
• When displaying the operation panel or the other
panel (camera control panel, camera menu panel,
El-zoom panel) during monitor 1 is being selected,
the indication "Monitor 1 selected" will be displayed on monitor 2. During the indication
"Monitor 1 selected" is being displayed, monitor 1
can be operated using the operation panel displayed on monitor 2.
• The operation panel will not be displayed on monitor 1.
29
Display images on a 1-screen
To display live images on a 1-screen, take the following procedures.
Operation using the buttons on the front panel
Step 1
Select a monitor to display images. (☞ Page 29)
Step 2
Select a camera channel from which images are to be
displayed on the selected monitor by pressing the
camera selection button (1 - 16).
→ The selected camera selection button will light
and live images will be displayed on the selected
monitor.
Operations using a mouse
Step 1
Select a monitor to display images. (☞ Page 29)
Step 2
Display the operation panel by right-click, and then
select a camera channel by clicking the camera
selection button (1 - 16).
→ The selected camera selection button will light
and live images will be displayed on the selected
monitor.
Display/Hide the camera title and the status bar
It is possible to display/hide the camera title and the status bar displayed on the monitor.
Operation using the buttons on the front panel
Step 1
Press the [OSD] button.
→ Action (display/hide) of the camera title and the
status bar will be taken differently according to the
monitor (monitor 1/monitor 2).
When monitor 1 is being selected
The camera title and the time display will be displayed/hidden by pressing the [OSD] button.
30
Operations using a mouse
Step 1
Display the operation panel by right-click, and then
click the [OSD] button.
→ Action (display/hide) of the camera title and the
status bar will be taken differently according to the
monitor (monitor 1/monitor 2).
When monitor 1 is being selected
The camera title and the time display will be displayed/hidden by clicking the [OSD] button.
When monitor 2 is being selected
Each time the [OSD] button is pressed, display of
the camera title and the status bar will change as
follows.
Display the camera title and hide the status bar →
Hide the camera title and display the status bar →
Hide both the camera title and the status bar →
Display both the camera title and the status bar
When monitor 2 is being selected
Each time the [OSD] button is clicked, display of
the camera title and the status bar will change as
follows.
Display the camera title and hide the status bar →
Hide the camera title and display the status bar →
Hide both the camera title and the status bar →
Display both the camera title and the status bar
Use the electronic zoom
When displaying images on a 1-screen, it is possible to enlarge the displayed live images using the electronic
zoom. It is also possible to move the area of the enlarged image to be displayed.
Step 1
Press the [SUB MENU] button.
→ The submenu window will be displayed.
Step 2
Move the cursor onto [El-zoom], and then press the
[SET] button.
→ Images will be displayed at x2 and the El-zoom
panel will be displayed.
Step 3
When the [SET] button is pressed, images will be displayed at x4.
Each time the [SET] button is pressed, the zoom factor will change as follows.
x4 → x1 → x2
Note:
• When the zoom factor is x2 or x4, it is possible to
move the area of the enlarged image to be displayed by pressing the arrows button (C, D, A,
B).
31
Display images on a multiscreen
To display live images on a multiscreen (4-, 7-, 8-, 9-, 12-, 16-screen), take the following procedures.
Images will be displayed on a multiscreen with the screen pattern selected on the setup menu ("Camera setup"
under "Multi screen setup" on the "Common" tab under "Display" (☞ Installation Guide)).
Note:
• Black zones will be displayed on the right and left or on the top and bottom depending on the connected
monitor.
• The multiscreen pattern will change as follows.
16-screen → 4-screen → 7-screen → 8-screen → 9-screen → 12-screen → 16-screen
• When audio is being input, audio assigned to the camera from which images are displayed on the segment
at upper left corner will be heard. When no audio is assigned to the camera (from which images are displayed on the segment at upper left corner), audio to be output will be determined in order of priority. The
order of priority is as follows.
Upper left (highest priority) → Lower right (Lowest priority)
Example: When displaying images on an 8-screen, the order of priority will be as follows.
1
2
3
4
5
6
7
8
When no audio is assigned to any of the camera channels from which images are currently being displayed
on a multiscreen, audio being input to audio input connector 1 (AUDIO IN 1) will be heard.
32
Operation using the buttons on the front panel
Step 1
Select a monitor to display images.
(☞ Page 29)
Step 2
Press the [MULTI SCREEN] button.
→ Each time the button is pressed, the screen pattern of the multiscreen will change.
Operations using a mouse
Step 1
Select a monitor to display images.
(☞ Page 29)
Step 2
Display the operation panel by right-click, and then
click the [MULTI SCREEN] button.
Step 3
To display images on a 1-screen, press any of the
camera selection button (1 - 16).
→ Each time the button is clicked, the screen pattern
of the multiscreen will change.
Step 3
To display images on a 1-screen, do either of the following.
• Click the camera selection button (1 - 16).
• Click a segment (on the multiscreen) to be displayed on a 1-screen.
(When the screen is clicked again, the multiscreen
will be displayed again.)
33
Display images from multiple cameras sequentially (sequence
display)
The sequence display function is the function that can automatically switch and display images from multiple
cameras sequentially.
The sequence display will be performed according to the settings configured in advance.
The setting for the sequence display can be configured on "Live sequence" on the "Monitor 1" tab (or "Monitor
2" tab) under "Display" of the setup menu. (☞ Installation Guide)
Operation using the buttons on the front panel
Step 1
Select a monitor to display images.
(☞ Page 29)
Step 2
Press the [SEQ] button.
→ The sequence display will be performed according
to the configured settings.
The [SEQ] button will light during the sequence
display.
Operations using a mouse
Step 1
Select a monitor to display images.
(☞ Page 29)
Step 2
Display the operation panel by right-click, and then
press the [SEQ] button.
Step 3
To stop the sequence display, press the [SEQ] button
again.
To resume the sequence display, press the [SEQ] button.
When the sequence display is resumed, the sequence
display will be performed from step 1 again.
→ The sequence display will be performed according
to the configured settings.
The [SEQ] button will light during the sequence
display.
Step 3
To stop the sequence display, click the [SEQ] button
again.
To resume the sequence display, click the [SEQ] button. When the sequence display is resumed, the
sequence display will be performed from step 1
again.
Note:
• The sequence display on monitor 1 will be paused until the setup menu is displayed on monitor 2.
34
Record images
Live images can be recorded on the recorder. Images from up to 16 cameras can be recorded on a single
recorder.
Camera
Image data
Hard disk drive
Recorder
Recording areas on the hard disk drive
The hard disk drives in the recorder are managed as the following 3 recording areas configured virtually.
The settings of the recording areas can be configured on the "Disk config." Window. (☞ Installation Guide)
Only a single recording area can be set to a single hard disk drive.
Hard disk drive
Recording area used for manual
recording/schedule recording
Normal recording area
Recording area used for event recording
(recording to be performed at an event
occurrence)
Event recording area
Pre-event recording area
Recording area used for pre-event
recording
Normal recording area
Recording area used for manual recording/schedule recording (recordings other than event recording)
Event recording area
Recording area used for event recording (post-event recording, emergency recording)
Pre-event recording area
Recording area used for pre-event recording (recording images before an event occurrence)
35
Record images (Manual recording)
Recording can be started and stopped manually.
Operation using the buttons on the front panel
Step 1
Press the [REC] button.
→ The [REC] button will light and recording will start.
Step 2
To stop recording, hold down the [REC] button for 2
seconds or more.
→ The [REC] button will go off and recording will
stop.
Operations using a mouse
Step 1
Click the [S.Menu] button.
→ The submenu window will be displayed.
Step 2
Click the [REC & Playback] button.
→ The REC & playback panel will be displayed.
Step 3
Click the [Rec Start] button.
→ Recording will start.
Step 4
To stop recording, press the [Rec Stop] button.
→ When the [OK] button on the displayed confirmation window is clicked, recording will stop.
36
Note:
• When a recording with higher priority than manual recording is being performed, manual recording will be
suspended until that recording finishes. Refer to the "Recording mode and its priority level" section below
for further information about the priority of the recording mode.
• When trying to stop manual recording by holding down the [REC] button for 2 seconds or more while another recording with a different recording mode (emergency recording, event recording and schedule recording)
is being performed, the [REC] indicator (on the [REC] button) will remain lit and the other recording will continue.
• No image will be recorded when no image data is being sent from the camera. When image data is sent,
recording will start.
• Images (data) recorded by manual recording or schedule recording will be divided into multiple files every
hour on the hour. In that moment, recording may sometimes be interrupted around for 1 second.
Recording mode and its priority level
There are 5 recording modes. The recording modes and their priority levels are as follows.
When two or more recordings with different recording modes started simultaneously, only recording with the
higher priority will start.
Recording mode
Priority level
Emergency recording
1
Post-event recording
2
Manual rec. operation
3
Schedule recording
4
Pre-event recording
5
Emergency recording
Recording that is performed manually using an external switch, etc. when an emergency occurs.
For example, when an external switch is installed at the reception area, it is possible to start recording by pressing the installed external switch if a receptionist thinks suspicious about a person around the reception area,
etc.
Step 1
Note:
Press the external switch to start recording.
• The emergency recording is the recording mode
→ The [REC] button will light and the emergency
with the highest priority.
recording will start.
Even when another recording is being performed,
the emergency recording will be performed prior
Step 2
to that recording.
•
When
"Continue" is selected for "Recording duraWhen the set recording duration has passed, the
tion" (☞ Installation Guide) on the "Emergency
emergency recording will automatically stop.
recording" tab under "Emergency recording" of
The recording duration for the emergency recording
the setup menu, it is necessary to press the
can be set on the setup menu ("Recording duration"
[ALARM RESET ] button to stop the emergency
on the "Emergency recording" tab under "Basic"
recording. The [REC] button will go off and record(☞ Installation Guide)).
ing will stop.
37
Play recorded images
Images recorded on the recorder will be displayed on monitor 2.
Playback images will be displayed on monitor 2. Playback operation can be made while recording.
Image data
Monitor 2
Hard disk drive
Recorder
Operation using the buttons on the front panel
Step 1
Press the [PLAY/PAUSE] button.
→ The [PLAY/PAUSE] button will light and playback
of images recorded using the selected camera
channel will start.
The playback start point varies depending on how
many times playback is performed after the login as
follows.
• The first playback after logging in to the
recorder
The latest recorded image will be played. The
playback start point can be set on the setup menu
("Latest image position" on the "Basic" tab under
"Basic") (☞ Installation Guide). "30 seconds
before the latest" is selected at the default.
• Other than above (The second and subsequent
playback after logging in to the recorder.)
Playback will start from the point at which the last
playback was stopped (time and date).
Operations using a mouse
Step 1
Click the [S.Menu] button.
→ The submenu window will be displayed.
Step 2
Click the [REC & Playback] button.
→ The REC & playback control panel will be displayed.
38
Operation using the buttons on the front panel
Step 2
To stop the playback, press the [STOP] button.
→ The [PLAY/PAUSE] button will go off and playback
will stop. Playback on monitor 2 will be switched
to live image display.
Operations using a mouse
Step 3
Click the [Play] button.
→ Playback will start.
The playback start point varies depending on how
many times playback is performed after the login as
follows.
• The first playback after logging in to the
recorder
The latest recorded image will be played. The
playback start point can be set on the setup menu
("Latest image position" on the "Basic" tab under
"Basic") (☞ Installation Guide). "30 seconds
before the latest" is selected at the default.
• Other than above (The second and subsequent
playback after logging in to the recorder.)
Playback will start from the point at which the last
playback was stopped (time and date).
Step 4
To stop playback, press the [Stop] button.
→ Playback will stop.
Playback on monitor 2 will be switched to live
image display.
39
Functions during playback (when using the buttons on the front panel)
Function
Button
Operation
Pause
[PLAY/PAUSE]
button
• Playback will resume when this button is pressed during pause.
• The [PLAY/PAUSE] button will blink during pausing.
Frame by frame playback/Reverse frame by
frame playback
Jog dial (Inside)
• When rotating the jog dial (inside) during pausing, frame by
frame playback will be performed.
• When rotating the jog dial clockwise, the next frame will be displayed. When rotating the jog dial counterclockwise, the previous frame will be displayed.
Fast forward/Fast rewind Shuttle ring
(Outside)
• When rotating the shuttle ring (outside), the playback speed will
change (1/2x, 1x, 2x, 5x, 10x, 20x) according to how much
(angle) the shuttle ring is rotated.
When the playback continued at 20x (rotated the shuttle ring to
the end) for 10 seconds, the playback speed will change to
50x. When the playback continued at 50x for 10 seconds, the
playback speed will change to 100x.
• When rotating the shuttle ring clockwise, fast forward playback
will be performed. When rotating the jog dial counterclockwise,
fast reverse playback will be performed. When the shuttle ring
position is returned to the normal position (center), the playback speed will return to 1x.
Hold playback speed
(Fast forward/Fast
rewind)
[HOLD] button
• When the [HOLD] button is pressed while rotating the shuttle
ring (outside) during playback, the playback speed determined
by the shuttle ring position will be held. (Even when the shuttle
ring (outside) is released, playback will continue with the determined playback speed.) The indicator will blink during the hold
playback.
• When the [HOLD] button is pressed during the playback speed
is held, the held playback speed will return to x1.
Skip
Jog dial (Inside)
• When the jog dial (inside) is rotated during playback, playback
point will skip to the top of the next or previous recorded data
and start playback.
• When rotating the jog dial (inside) clockwise during playback,
the playback point will skip to the top of the next recorded
data. When rotating the jog dial (inside) counterclockwise during playback, the playback point will skip to the top of the previous recorded data.
• When trying to skip forward even during reverse playback, the
playback point will skip to the top of the next recorded data
(start time of the next recorded data). However, skipping to the
next recorded data works only this time and the subsequent
skip operation will not work.
• When no next or previous recorded data, the current playback
will continue.
Skip to the latest record- [GOTO LAST] button • When this button is pressed, playback from the top of the latest
ed data
recorded data will start. At the default, pressing this button
skips the playback point to a point that is 30 seconds before
the top of the latest recorded data.
Note: Playback of the latest recorded data may sometimes not
start when the [GOTO LAST] button is pressed during recording.
40
Multiscreen playback
[MULTI SCREEN]
button
• Press the [MULTI SCREEN] button. Each time the [MULTI
SCREEN] button is pressed, the screen pattern will change
according to the setting configured on the setup menu
("Camera setup" under "Multi screen setup" on the "Common"
tab under "Display" (☞ Installation Guide)).
Camera title display
[OSD] button
• Press this button to display/hide the camera title and the status
bar embedded on the recorded data. (☞ Page 30)
Functions during playback (when using the mouse)
Function
Operation
Pause
Select "REC & Playback" from the submenu, and then operate the displayed "REC &
Frame by frame playPlayback" panel.
back/Reverse frame by
frame playback
Fast forward/Fast rewind
Skip
Skip to the latest record- Select "Go to last" from the submenu.
ed data
Multiscreen playback
Camera title display
Operate on the operation panel.
41
Note:
• When using the mouse, the playback speed will change each time the [Rew] button or the [FF] button is
clicked. When the [Rew] button or the [FF] button is clicked during pausing, the playback speed will be 1/2.
• When displaying images on a 1-screen, audio assigned to the camera channel from which images are currently being displayed will be heard.
• When displaying images on a multiscreen, audio assigned to the camera channel from which images are
currently being displayed at the upper left corner will be heard. When no audio is assigned to the camera
(from which images are displayed on the segment at upper left corner), audio to be output will be determined in order of priority. When no audio is assigned to any of the camera channels from which images are
currently being displayed on a multiscreen, no audio will be heard.
• When recording and playback is performed simultaneously, playback will be paused when the playback
point reaches the current recording point (current time).
• When playing images recorded at a higher recording rate, the playback speed may sometimes become
unstable or interrupted audio may be heard, etc.
• A black screen may sometimes be displayed during fast forward/fast rewind or fast forward playback/fast
reverse playback. However, this is caused resulting from the internal process of the recorder and is not malfunction.
42
Play images from a designated point
It is possible to start playback from a designated time and date or the latest recorded image.
Playback operation can be made while recording.
Playback images will be displayed on monitor 2.
Play image recorded at a designated time and date
Start playback by designating the desired time and date of a recorded image.
Step 1
Step 3
Press the [GOTO DATE] button on the front panel.
→ The "Go to date" window will be displayed.
Note:
• When using the mouse, click "Go to date" from
the submenu to display the "Go to date" window.
Move the cursor onto the [B] (play) button on the "Go
to date" window, and then press the [SET] button.
→ The "Go to date" window will close and playback
of recorded image from the entered time and date
will start.
Note:
• When no image is found at the designated time
and date, the following action will be taken.
• When images recorded after the designated
time and date are found, playback will start
from the oldest recorded image among them.
• When no image was recorded after the designated time and date, playback will start from
the latest image recorded before the designated time and date.
Step 4
To stop the playback, press the [STOP] button on the
front panel.
→ Playback will stop. Playback on monitor 2 will be
switched to live image display.
Step 2
Set time and date by rotating the jog dial (inside).
Note:
• When the [SET] button is pressed after moving the
cursor onto the [Current time] button, the current
time and date will be entered.
43
Play the latest recorded image
Start playback of the latest recorded image.
The playback start point can be set on the setup menu ("Latest image position" on the "Basic" tab under
"Basic") (☞ Installation Guide).
"30 seconds before the latest" is selected at the default.
Operation using the buttons on the front panel
Step 1
Press the [GOTO LAST] button when displaying live
images.
→ The latest recorded image will be played.
Operations using a mouse
Step 1
Click the [S.Menu] button.
→ The submenu window will be displayed.
Step 2
Step 2
Click the [Go to last] button.
To stop the playback, press the [STOP] button on the
front panel.
→ Playback will stop. Playback on monitor 2 will be
switched to live image display.
→ The latest recorded image will be played.
Step 3
To stop the playback, display the "REC & Playback"
panel and stop playback on it. (☞ Page 38)
44
Search and play
Search a desired recorded image and play it. There are the following 3 searching methods.
• Search for recording events and play (recording event search)
• Search for time and date when a motion was detected from recorded images and play (VMD search)
• Search for copied recorded images and play (copy data search)
Playback images will be displayed on a 1-screen on monitor 2. To play recorded images on a multiscreen,
switch to a multiscreen after starting playback.
Search and play recording events (recording event search)
Display a list of recording events, and then select a desired recording event to play from the list.
It is also possible to filter recording events using the following search filters.
Search filter
Search filter
Description
Time & date
Search for images recorded in a time range designated by selecting the start time
and the end time
Event
Search for images recorded by the selected recording mode only.
• Recording mode/Event
Manual recording, schedule recording, emergency recording, video loss, terminal
alarm, command alarm, video motion detection (VMD), camera site alarm
• i-VMD camera alarm
Motion detection, object appearance/disappearance, terminal alarm, residence
detection, direction detection, interruption detection
Camera
Search for images recorded using the selected camera channels only.
Recording event list
[Filtering]
Displays the search filter window on which the search
filters can be specified.
[Select Medium] button
Displays the disk selection window on which a media
(HDD, DVD, SDHC/SD memory card) subject to play
can be selected.
45
Time & date
Displays the start time and date of the recording.
Time and date range of the listed data
Displays a time and date range of the listed data.
Ch
Displays the camera channel used for recording.
Playback of images recorded using the displayed
camera channel will start on a 1-screen.
Number of the listed data (Total)
Displays the total number of listed data. When more
than 10 000 data matched, the ">10000" indication
will be displayed.
Event
Displays the event type. Refer to page 8 for further
information about the event type.
[Prev page] button
Displays the previous page.
HDD
Displays the hard disk drive number on which images
were recorded.
Audio
Displays the icon to indicate whether audio is
attached to the data or not.
[Next page] button
Displays the next page.
[B] (play) button
Starts playback of recorded images of the selected
recording event.
How to operate
Step 1
Press the [SEARCH] button on the front panel.
→ The recording event list window will be displayed.
Note:
• When using the mouse, click "Search" from the
submenu to display the recording event list window.
Step 2
Select search filters. Move the cursor onto [Filtering]
by pressing the [SET] button on the front panel, and
then press the [SET] button on the front panel.
→ The "Filtering" window will be displayed.
46
Step 3
Specify the search conditions (filters).
Step 4
Move the cursor onto [OK] after specifying the search
conditions (filters), and then press the [SET] button on
the front panel.
→ Recording events matched the search conditions
will be displayed in the recording event list.
Step 5
Select the desired recording event to play. To select a
recording event, rotate the jog dial (inside).
Date and time range: Designate the recording start
time and date and the end time and date of
recorded images to be searched for by rotating
the jog dial (inside).
Move the cursor onto the entry field, and then
press the [SET] button. The software keyboard (for
time and date entry) will be displayed and the time
and date can be entered using it. Refer to pages
21 and 25 for how to use the software keyboard
(for time and date entry).
REC event: Select an event type of recorded images
to be searched for from the following. The checkbox respective to the selected event type will be
checked. (When selecting "All", all the checkboxes will be checked.)
• Event
Manual recording, schedule recording, emergency recording, video loss, terminal alarm,
command alarm, video motion detection
(VMD), camera site alarm
• i-VMD
Motion detection, object appearance/disappearance, terminal alarm, residence detection,
direction detection, interruption detection
Camera: Select the desired camera channel used for
recording to be searched.
The checkbox respective to the selected camera
channel will be checked. To select all camera
channels, select "All".
[Clear Filtering] button: Cancels the specified
search conditions (filters).
Values for the start time and the end time of "Date
and time range" will become the same, and all the
checkboxes for "REC event" and "Camera" will be
checked.
Note:
• When the shuttle ring (outside) is rotated, the previous/next page of the list will be displayed.
Step 6
Move the cursor onto the [B] (play) button, and then
press the [SET] button on the front panel.
→ Playback of recorded images of the selected
recording event will start.
Step 7
To stop the playback, press the [STOP] button on the
front panel.
→ Playback will stop. Playback on monitor 2 will be
switched to live image display.
Note:
• When starting playback from the displayed
recording event list after filtering, only recorded
images of the listed recording events are subject
to play. It is possible to make all recorded images
available to play by stopping the playback and
starting playback again.
47
Search for copied recorded images and play (copy data
search)
Display a list of copied data (copied recorded images) on an SDHC/SD memory card or a DVD, and then select
a desired recorded image to play from the list.
It is possible to search for copied data using the filters. Available filters are "Time & date" and "Ch". Refer to
page 59 for how to copy recorded images.
Copied data list window
[Filtering] button
Displays the search filter window on which the search
filters can be specified.
[Select Medium] button
Displays the disk selection window on which a media
(HDD, SDHC/SD memory card, DVD) subject to play
can be selected.
Time & date
Displays the start time and date of the copied data
(time and date when copying started) will be displayed.
Ch
Displays the camera channel used for recording (of
which copied recorded images). Playback of images
recorded using the displayed camera channel will
start on a 1-screen.
Event
Displays the event type. Refer to page 8 for further
information about the event type.
48
Number of the listed data
Displays a time and date range of the listed data.
Number of the listed data (Total)
Displays the total number of listed copied data. When
more than 10 000 data matched, the ">10000" indication will be displayed.
[Prev page] button
Displays the previous page.
[Next page] button
Displays the next page.
[B] (play) button
Starts playback of recorded images of the selected
copied data.
How to operate
Step 1
Press the [SEARCH] button on the front panel.
→ The recording event list window will be displayed.
Step 3
Select the media to be searched. Select "DVD Drive"
or "SD memory card" by pressing the [SET] button,
and then press the [SET] button again after moving
the cursor onto the [OK] button.
→ The copied data list window will be displayed.
Step 2
Move the cursor into the recording event tab and
move the cursor onto the [Select Medium] button.
Then, press the [SET] button on the front panel.
→ The "Select Medium" window will be displayed.
Note:
• When selecting "DVD Drive" even though an
optional built-in DVD drive is not installed, the
error message of "No media is inserted" will be
displayed.
Step 4
Select search filters. Move the cursor onto the
[Filtering] button, and then press the [SET] button on
the front panel.
→ The "Filtering" window will be displayed.
Step 5
Specify the search conditions (filters). Refer to page
47 for further information about the search filters.
49
Step 6
After specifying the search conditions (filters), press
the [SET] button after moving the cursor onto the [OK]
button.
→ Copied data matched the search conditions (filters) will be displayed on the copied data list window.
Step 8
Move the cursor onto the [B] (play) button, and then
press the [SET] button.
→ Playback of recorded images of the selected copied data will start.
Step 7
Select the desired copied data to play. To select a
copied data, rotate the jog dial (inside).
Important:
• Do not remove the SDHC/SD memory card during
playback of copied data on the SDHC/SD memory
card. It may damage data on the SDHC/SD memory card.
Note:
• The following operations are unavailable duing
playback of copied recorded images.
• Go to last
• Playback on a multiscreen
• Playback of audio
• When there are multiple copied data that has the
same start time, camera channel and event, only
the data copied first will be played when any of
them is selected.
Step 9
Note:
• When the shuttle ring (outside) is rotated, the previous/next page of the list will be displayed.
50
To stop the playback, press the [STOP] button on the
front panel.
→ Playback will stop. Playback on monitor 2 will be
switched to live image display.
Note:
• When starting playback from the displayed copied
data list after filtering, only recorded images of the
listed copied data are subject to play. It is possible
to make all recorded images available to play by
stopping the playback and starting playback
again.
• When starting playback after inserting the other
SDHC/SD memory card, select "Hard disk drive"
on the "Select Medium" window first and then
select "SD memory card".
Search for time and date when a motion was detected from
recorded images and play (VMD search)
Display a list of time and date when a motion was detected (by the VMD function) from images recorded by all
the recording modes (☞ page 37), and then select a desired recorded image to play from the list.
Camera channels, time and date when a motion was detected, detection area and detection sensitivity can be
used as the filters for the VMD search.
VMD search list window
[VMD search] button
Displays the search filter window on which the search
filters can be specified.
Audio
Displays the icon to indicate whether audio is
attached to the data or not.
[Select Medium] button
Displays the disk selection window on which a media
(HDD, DVD, SDHC/SD memory card) subject to play
can be selected.
Number of the listed data
Displays a time and date range of the listed data.
Time & date
The time and date when the images were recorded
will be displayed.
Ch
Displays the camera channel used for recording.
Playback of images recorded using the displayed
camera channel will start on a 1-screen.
Event
Displays the event type. Refer to page 8 for further
information about the event type.
Number of the listed data (Total)
Displays the total number of listed data. When more
than 200 data matched, the ">200" indication will be
displayed.
[Prev page] button
Displays the previous page.
[Next page] button
Displays the next page.
[B] (play) button
It is possible to play the selected recorded image.
HDD
Displays the hard disk drive number on which images
were recorded.
51
How to operate
Step 1
Press the [SEARCH] button on the front panel.
→ The recording event list window will be displayed.
Step 2
Move the cursor onto the [VMD] tab, and then press
the [SET] button on the front panel.
→ The "VMD" tab page will be displayed.
Step 3
Designate the search filters.
Move the cursor onto the [VMD search] button, and
then press the [SET] button on the front panel.
→ The search filter window will be displayed.
Step 4
Specify the VMD search conditions.
When the [SET] button is pressed after moving the
cursor onto a button relating to a search condition,
the setup window respective to the selected search
condition.
When completing the VMD search condition setting,
press the [SET/ESC] button to close the search filter
window.
Select camera channels
Move the cursor onto the [Ch] button, and then press
the [SET] button.
→ The camera channel setup menu will be displayed.
To select a camera channel, rotate the jog dial
(inside).
52
Specify the time range
Move the cursor onto the [Time & date] button, and
then press the [SET] button.
→ The time & date setup menu will be displayed.
1. Move the cursor onto the [Area] button of any of
the detection area (A - D), and then press the
[SET] button.
2. Set the start point of the detection area.
Move the cursor to a point to be set as the start
point of the detection area using the arrows button (C D A B), and then press the [SET] button.
Specify the time range by rotating the jog dial (inside).
Move the cursor onto the entry field, and then press
the [SET] button. The software keyboard (for time and
date entry) will be displayed and the time and date
can be entered using it. Refer to pages 21 and 25 for
how to use the software keyboard (for time and date
entry).
Filter by detection area or detection sensitivity
Move the cursor onto the [Sensitivity] button, and
then press the [SET] button.
→ The sensitivity setup menu will be displayed.
3. Set the end point of the detection area.
Move the cursor to a point to be set as the end
point of the detection area using the arrows button (C D A B), and then press the [SET] button.
Up to 4 detection areas can be set by repeating
steps 1 - 3.
Up to 4 detection areas (A - D) can be set. It is also
possible to set the whole displayed area as the detection area by pressing the [SET] button after moving
the cursor onto the [All Area] button.
Set detection areas and detection sensitivities for
each of them as follows.
→ The area setup window will be displayed again.
Note:
• Whencreatingadetectionarea,dragtothelower
right from the start point to determine the end
point. It is impossible to determine the end point
when dragging to any direction other than to the
lower right.
53
Note:
• Todeletethesetdetectionarea,takethefollowing
procedures.
1. Move the cursor onto the [Area delete] button
on the search filter window, and then press the
[SET] button.
2. Move the cursor onto the [Area] button of any
of the detection area (A - D), and then press
the [SET] button.
Step 5
After specifying the search conditions (filters), press
the [SET] button after moving the cursor onto the [B]
button.
→ Data matched the search conditions (filters) will be
displayed on the VMD search list window.
Step 6
4. Set the detection sensitivity of each detection
area.
Move the cursor onto "Sensitivity" of the detection
area to be set, and then rotate the jog dial (inside)
to select the detection sensitivity from the following.
Off: Does not detect motion in the selected area.
Low: Low sensitivity
Mid: Standard sensitivity
High: High sensitivity
5. Set the mask duration of each detection area.
When the mask duration is set, any motion will not
be detected for the set duration after a motion
detection. Use the mask duration when it takes
time to detect motion or when motion is detected
frequently.
Rotate the jog dial (inside) to select the detection
sensitivity from the following.
1 s, 1 min, 1 h, 24h
54
Select time and date of recorded data from the list to
play. To select a recorded data in which motion was
detected, rotate the jog dial (inside).
Note:
• Whentheshuttlering(outside)isrotated,theprevious/next page of the list will be displayed.
Step 7
Move the cursor onto the [B] (play) button, and then
press the [SET] button. (Or press the [PLAY] button on
the front panel.)
→ Playback of the selected recorded data (in which
motion was detected) will be displayed.
Note:
• When selected time and date is too close to the
current time and date, playback may sometimes
not start. In this case, wait for a while and try to
play again.
Step 8
To stop the playback, press the [STOP] button on the
front panel.
→ Playback will stop. Playback on monitor 2 will be
switched to live image display.
Note:
• When starting playback from the displayed VMD
search list, only recorded images of the listed data
are subject to play.
To make all recorded images available to play,
stop playback and start playback again.
55
Event function
The recorder will take an event action when any of the following events occur.
• Terminal alarm: Regarded as an event when an alarm input signal is supplied from an external device such
as a door sensor to the alarm input terminal on the rear of the recorder.
• Video Motion Detection (VMD): Regard as an event when a motion is detected in images by the video
motion detection function. (See below about the VMD function.)
• Video loss: Regard as an event when the video input signal is lost, such as by the camera cable disconnection, malfunction of the camera, etc.
• i-VMD camera alarm: Regarded as an event when an alarm (motion detection, object appearance/disappearance, etc.) is detected by the SD5Link camera.
• Camera site alarm: Regarded as an event when an alarm (motion detection, etc.) is detected by a camera.
• Command alarm: Regarded as an alarm when receiving an alarm from a PC, etc. via a network.
Note:
• Video Motion Detection (VMD) function
When a motion (luminance change) is detected in the specified area (detection area), the recorder will regard
this as an alarm detection.
Refer to the Installation Guide for the settings required to use the video motion detection function.
• When the recorder is just after rebooted, an alarm detected by an SD5Link camera may sometimes be displayed as a camera site alarm. In a similar way, an alarm detected by an SD5Link camera connected to the
encoder (WJ-MP204C) may be displayed as a command alarm.
• Cameras will provide a notification only when an alarm input is detected. Therefore, the recorder will not display an alarm occurrence indication when the recorder is booted while an alarm input is being supplied.
Event action
When an event occurs and the recorder detects the event occurrence, the recorder will take the event action
according to the settings configured in advance.
The event action mode can be selected from the alarm mode (ALM), activity detection mode (ADM) and Off.
(☞ Installation Guide)
Refer to a system administrator for further information. A different event action will be taken depending on the
selected event action mode.
When selecting the alarm mode (ALM), the recorder will take an alarm action.
Event action mode
• Alarm mode (ALM)
When the alarm mode (ALM) is selected, notification of an event occurrence will be provided to outside the
system. In this manual, event actions to be taken in the alarm mode are called "alarm action".
• Activity detection mode (ADM)
When the activity detection mode (ADM) is selected, only recording and indication of an alarm occurrence
will be performed at an event occurrence. No notification of event occurrence will be provided to any external device in the activity detection mode (ADM).
• Off
Only filing logs of event occurrences will be performed. No other event action will be taken.
56
Event action
Alarm mode
Activity detection mode
Off
Start recording
b
b
X
Display event information on the screen
b
X
X
Blink the alarm indicator
b
X
X
Sound the buzzer
b
X
X
Switch to the camera channel in which an alarm occurred
b
X
X
Move a camera to the preset position
b
b
X
Send a mail that notifies of an event occurrence
b
X
X
Send a PS·Data command that notifies of an event occurrence
b
X
X
Output signals from the ALARM connector and the ALARM/
CONTROL connector on the rear of the recorder
b
X
X
File event logs
b
b
b
Send recorded images to an FTP server
b
X
X
Provide an alarm notification to a PC according to the
Panasonic alarm protocol setting
b
X
X
Cancel the alarm action
The recorder will take an alarm action according to the settings configured in advance when an event occurs in
the alarm mode (ALM). To cancel the alarm action, press the [Alarm reset] button on the front panel or click the
alarm icon on the status bar displayed on monitor 2.
When the "Alarm auto reset" setting on the "Common" tab under "Event" of the setup menu is set to "2s", "5s",
"10s", "20s", "30s", "1min", "3min"or "5min" (☞ Installation Guide), the following actions will automatically be
taken without canceling the alarm action by pressing the [Alarm reset] button.
• The alarm indicator on the front panel will stop blinking and light steadily.
• The event information displayed on the monitor will disappear.
• The sounding buzzer and the alarm output will stop.
• The camera where the alarm had occurred will return to the previous status.
Step 1
Press the [ALARM RESET] button. Press the [ALARM
RESET] button or click the [ALM] icon on the status
bar displayed on monitor 2.
→ The alarm action will be canceled and the alarm
indicator will go off.
Note:
• When the alarm action is canceled, the event
recording will stop and return to the operational
status just before the event occurred.
57
Suspend the alarm action
Configure the settings to not to perform the alarm action even when an event occurs.
It is useful to suspend the alarm action for a certain period such as when configuring the settings of the recorder.
However, recording filing of event logs, preset position function and alarm occurrence indication (on monitor)
will be performed even though the alarm action is being suspended.
Step 1
Important:
Press the [ALARM RESET] button and the [SET] but • It is impossible to suspend alarm actions using
ton on the front panel simultaneously.
the mouse.
→ The alarm action will be suspended. The alarm
suspension indicator will light.
Note:
• It is possible to disable the alarm actions by conStep 2
necting an external switch to the ALARM/
CONTROL connector (pin no. 22: alarm suspenTo cancel the alarm suspension, press the [ALARM
sion input terminal) on the rear of the recorder.
RESET] button and the [SET] button simultaneously
When setting the external switch to "On", the
again.
alarm action will be suspended. To cancel the
→ The alarm suspension will be canceled and the
alarm suspension, set the external switch to "Off".
alarm suspension indicator will go off.
Cancel the error action
When an error (trouble) occurred on the recorder, the recorder will take the error action. To cancel the error
action, press the [ALARM RESET] button on the front panel or click the error icon on the status bar displayed
on monitor 2.
Note:
• Depending on the error type, the error indication by the status indicator on the front panel will not go off
even when canceling the error action.
58
Copy recorded images
It is possible to manually copy images recorded in the recorder onto a DVD (DVD–R, DVD+R) or an SDHC/SD
memory card.
It is recommended to make back-up copies on a regular basis for unexpected situations such as malfunction of
the hard disk drives.
It is impossible to copy recorded images when the recorder is in the following statuses.
• When the copy window is being opened by other user
• When the media (SDHC/SD memory card/DVD) is being selected by other user
• When the setup menu is being displayed
The copied recorded images can be played on the recorder or on a PC using the dedicated viewer software.
The viewer software will automatically be copied on a media (DVD, SDHC/SD memory card) on which recorded
images are copied.
Refer to page 108 for how to operate the viewer software.
Refer to page 48 for how to play the copied recorded images on the recorder.
Note:
• Pause the playback before starting copying when playing recorded images on the recorder.
• To copy recorded images onto an SDHC/SD memory card, it is necessary to use the formatted SDHC/SD
memory card. Refer to page 73 for how to format an SDHC/SD memory card.
• Required time for copying varies depending on the data size to be copied. It will take longer time to copy
recorded images when they were recorded with a larger image capture size, in a higher quality or at a higher
recording rate even though the same number of camera and the same duration are set for copying.
• Copying of recorded images may sometimes be performed incorrectly when there exist 2 or more images
recorded at the same time and date resulting in change of the time and date setting or the auto time adjustment function.
• In the following cases, the copying currently being performed will stop.
• When any of the settings of the recorder is changed
• When a user who started manual copy logged out (It will take around 90 seconds until copying is
stopped after the web browser is closed.)
• When the original data (source for copying) is lost (overwritten or malfunction of the hard disk drive)
• Copied data may contain private information. To prevent leakage of private information, manage media
with great caution.
Step 1
Set a destination media (DVD, SDHC/SD memory
card). (☞ Installation Guide)
Note:
• When using a mouse, select "Data copy" from the
submenu to display the data copy window.
Step 2
Press the [Copy] button on the front panel.
→ The data copy window will be displayed.
59
Step 3
Specify the detailed conditions of recorded images to
be copied.
Date and time range: Designate the start time and
date and the end time and date of recorded images to be copied by rotating the jog dial (inside).
Move the cursor onto the entry field, and then
press the [SET] button. The software keyboard (for
time and date entry) will be displayed and the time
and date can be entered using it.
Refer to pages 21 and 25 for how to use the software keyboard (for time and date entry).
Copy drive: Select a DVD or an SDHC/SD memory
card as a copying destination.
Move the cursor onto "HDD → DVD" or "HDD →
SDHC/SD memory card", and then press the
[SET] button.
REC event: Select an event type of recorded images
to be copied from the following. The checkbox
respective to the selected event type will be
checked. (When selecting "All", all the checkboxes will be checked.)
• REC event
Manual recording, schedule recording, emergency recording, video loss, terminal alarm,
command alarm, motion auto-detection, camera site alarm
• i-VMD
Motion detection, object appearance/disappearance, terminal alarm, residence detection,
direction detection, interruption detection
Camera: Select a camera channel used for recording.
Check the checkbox corresponding to the
desired camera channel.
Alter detect: Determine whether or not to attach the
alteration detection code to the recorded images
to be copied.
When the alteration detection code is attached, it
is possible to check if the copied recorded images
have been altered or not when playing the copied
recorded images using the viewer software.
Move the cursor onto "Alteration detection", and
then select "On" or "Off" by rotating the jog dial
(inside).
60
Note:
• Select the [Cancel] button to cancel the conditions for copying.
• When selecting "DVD" as the destination media
even though an optional built-in DVD drive is not
installed, the error message of "No media is
inserted" will be displayed.
Step 4
Move the cursor onto [OK], and then press the [SET]
button.
→ The copy data list will be displayed and the
recorded images matched the set conditions will
be displayed in list form on it.
Copying destination: The copying destination selected on
the copy data window will be displayed.
DVD/SD
Data size: The total size of the listed recorded images will be displayed.
The displayed total size includes the viewer software. It may take several minutes to display the
total size.
Remaining capacity: The remaining capacity of the
destination media (DVD/SD) will be displayed.
List display: 8 recorded images matched to the set
conditions will be displayed in reverse chronological order from the top. The following information
of recorded images will be displayed.
Time and date when images were recorded, camera channel, event and hard disk drive number
Time range of the listed data: Displays a time and
date range of the listed data.
Number of the listed data (Total): Displays the total
number of listed copied data. When more than 10
000 data matched, the ">10000" indication will be
displayed.
[Prev page] button: Displays the previous page.
[Next page] button: Displays the next page.
Note:
• When the shuttle ring (outside) is rotated, the previous/next page of the list will be displayed.
Step 5
After checking the size of the data to be copied and
the remaining capacity, press the [SET] button after
moving the cursor onto the [Copy] button.
→ The copy data list window will close. Copying will
start and the [COPY] icon will be displayed on the
task bar on monitor 2. When copying is complete,
the [COPY] icon will disappear.
Important:
• Do not remove the SDHC/SD memory card during
copying data onto the SDHC/SD memory card. It
may damage data on the SDHC/SD memory card.
• In the following cases, copying will not start even
when the [SET] button is pressed after moving the
cursor onto the [Copy] button.
• When the end time is set earlier than the start
time
• Copying will be performed even when the remaining capacity of the destination media is not
enough for copying.
• When pressing the [COPY] button on the front
panel during copying, the confirmation window for
cancellation of the current copying will be displayed. It is possible to cancel the current copying
on this window. Copying continues even during
the confirmation window is being displayed. When
the power of the recorder is turned off during
copying, the media used for copying may become
unusable.
Step 6
When copying on a DVD, it is necessary to complete
copying by removing the DVD. (When copying on an
SDHC/SD memory card, it is unnecessary to take the
following procedures to complete copying.)
When the [Copy] button on the front panel is pressed,
the "Eject media" menu will be displayed. Select
"Eject media", and then press the [SET] button.
Note:
• It is impossible to play copied data if the copied
data is finalized by the copy completion process
even when copying onto a DVD is complete.
• It is also possible to remove the DVD in the following procedures.
• Move the cursor onto the [Search & Copy] button of the submenu.
→ The menu list will be displayed.
• Move the cursor onto "Eject media" on the
displayed menu list, and then press the [SET]
button.
Step 7
The DVD can be removed when the tray lock is
released by pressing the button at the center of the
DVD drive.
1
5
9
13
2
6
10
14
3
7
11
15
4
8
12
16
Eject button
Important:
• Once a DVD is used for copying and removed
from the recorder, it is impossible to copy another
data on it.
Note:
• The tray will not come out even when the eject
button is pressed if the operation described in
step 6 is not performed to complete copying.
→ The copy completion process will start. When the
copy completion process ended, the completion
notification window will be displayed and the DVD
will become ready to remove.
61
Operation and configuration when connecting
the recorders in cascading connection
When connecting the recorders (up to 5 recorders) in cascading connection, all images managed by the connected recorders can be monitored on a single monitor.
The following are descriptions of how to operate when the recorders are connected in cascading connection. To
operate the recorders connected in cascading connection, it is necessary to configure the settings in advance.
Refer to the Installation Guide for further information.
Important:
• Audio cables can also be connected in cascading connection.
Configuration
Configure the settings required for cascading connection. Operations and settings of the WJ-HD716K are the
same as that of the WJ-HD616K.
For WJ-HD616K
Select "On" for "Cascade" on the "Cascade" tab under "Display" of the setup menu of the recorder to be connected in cascading connection. Set the unit addresses of recorders as follows.
WJ-HD616K
Unit address (system)
First recorder
001
Second recorder
002
Third recorder
003
Fourth recorder
004
Fifth recorder
005
Unit address (controller)
Select a number except 001 - 004 and not used
for the other devices.
Settings of a system controller
Set the unit addresses of system controllers as follows.
System controller
Remarks
First system controller
001
It is possible to operate all monitor 1 and monitor
2 connected to the first through fifth WJ-HD616K.
Second system controller
002
Third system controller
003
Fourth system controller
004
Monitor 1 and monitor 2 connected to the first
through the fifth WJ-HD616K are available to operate. However, camera selection on monitor 2 is
unavailable.
62
Unit address
Example of video output (analog) connection
PS·Data compatible
system controller
Monitor 2
(Unit address: 001)
Monitor 1
1
2
3
Unit address (system): 001
First recorder
4
5
6
7
8
9
0/10
11
12
13
14
15
16
Digital Disc Recorder WJ-HD616
MOUSE
Monitor 1
1
2
3
4
5
6
7
8
9
0/10
11
12
13
14
15
16
Digital Disc Recorder WJ-HD616
Unit address (system): 002
Second recorder
(Unit address: 002)
Unit address (system): 003
Third recorder
(Unit address: 003)
Unit address (system): 004
Fourth recorder
(Unit address: 00)
MOUSE
Monitor 1
1
2
3
4
5
6
7
8
9
0/10
11
12
13
14
15
16
Digital Disc Recorder WJ-HD616
MOUSE
Monitor 1
1
2
3
4
5
6
7
8
9
0/10
11
12
13
14
15
16
Digital Disc Recorder WJ-HD616
MOUSE
* Do not assign unit address numbers (controller) 001 - 004 and also numbers used for the other devices to each the WJ-HD616K.
Operation using the buttons on the front panel
It is possible to operate using the buttons on the front panel. When selecting monitor 2, images will be displayed on monitor 2 connected to the first WJ-HD616K. When selecting monitor 1, images will be displayed on
monitor 1 connected to the WJ-HD616K currently being operated.
Only the WJ-HD616K currently being operated is subject to operation. It is impossible to operate the other
WJ-HD616K using the buttons on another WJ-HD616K.
Operate using the system controller
• When using the system controller whose unit address is 001
It is possible to operate all the WJ-HD616K/WJ-HD716K in cascading connection by designating the unit
number from a PS·Data compatible system controller.
Refer to the operating instructions of the system controller for how to control it in the PS·Data mode.
• When using the system controller whose unit address is 002 - 004
It is possible to operate all the WJ-HD616K/WJ-HD716K using the PS·Data compatible system controller.
However, camera selection on monitor 2 is unavailable.
63
Operate the camera
It is possible to operate the following camera operations when displaying live images from a camera with the
panning/tilting and zooming function.
• Panning/Tilting
Adjust the horizontal/vertical position of images from the camera
• Zoom
Zoom in/out images from the camera
• Focus
Adjust the focus of the camera
• Iris
Adjust the lens iris of the camera
• Preset position function Register preset positions and move the camera direction to the registered preset positio.
• Auto function Activate the auto function of the camera according to the settings of the camera
Note:
• The camera operation can be performed only when displaying images on a 1-screen on monitor 1.
• Depending on the model of the camera, some operations may not work.
• When a user with a higher user priority is operating at the same time, it may be impossible to operate the
camera. In this case, the indication "BUSY" will be displayed on the operation panel. Refer to the Installation
Guide for further information about the priority.
• Refer to page 70 for how to display the setup page of the camera and configure the settings of the camera.
Display the camera control panel
The panning/tilting, zooming, focus adjustment and iris adjustment can be made on the camera control panel.
Step 1
→ The [Pan/Tilt] tab of the camera control panel will
Press the [SUB MENU] button on the front panel.
be displayed.
→ The submenu window will be displayed.
Step 2
Move the cursor onto the [Camera control] button of
the submenu, and then press the [SET] button.
→ The menu list will be displayed. Move the cursor
onto "Camera operation" on the displayed menu
list, and then press the [SET] button.
64
Panning/Tilting
Adjust the horizontal/vertical position of images from the camera.
Step 1
Step 2
Display the camera control panel. (☞ Page 64)
Adjust the horizontal/vertical position of images from
the camera using the arrows button (C, D, A, B).
The camera direction will move to the direction commanded by the arrows button.
Note:
• It is possible to make the panning/tilting speed
slower by adjusting the camera direction when the
[HOLD] button is being lit (by pressing the [HOLD]
button).
• To release the hold, press the [HOLD] button
again.
Zooming
Zoom in/out images from the camera. Depending on the models of the connected cameras, the available zooming factors may be different.
Refer to the operating instructions of the camera for further information.
Step 1
Display the camera control panel (☞ page 64), and
then press the camera selection button [2] on the
front panel.
→ The [Zoom] tab will be displayed.
Step 2
Press the arrows button (C D). When pressing C,
the displayed image will be zoomed out. When pressing D, the displayed image will be zoomed in.
65
Focus adjustment
Adjust the focus of the camera. The auto focus function is available.
Step 1
Step 2
Display the camera control panel (☞ page 64), and
then press the camera selection button [2] on the
front panel.
→ The [Focus] tab will be displayed.
Press the arrows button (A B). When pressing A,
the focal point will move to the near side. When
pressing A, the focal point will move to the far side. It
is possible to automatically adjust the focus by pressing the [SET] button on the front panel.
Iris adjustment
Adjust the lens iris of the camera
Step 1
Display the camera control panel (☞ page 64), and
then press the camera selection button [3] on the
front panel.
→ The [Iris] tab will be displayed.
66
Step 2
Press the arrows button (A B). When pressing A,
the iris will be closed and images will become darker.
When pressing B, the iris will open and images will
become brighter. It is possible to reset the adjusted
iris to the default by pressing the arrows button (D).
Preset position function
Move the camera to the preset position registered in advance. It is necessary in advance to register preset positions to perform the preset position function.
Registration of preset positions
Register the preset positions for the camera. Up to 256 preset positions can be registered. The maximum number of preset position registration varies depending on the model of the camera.
Note:
• Only users whose user level is allowed to control cameras or to configure the settings can register the preset positions.
Step 1
Move the camera direction to a position to be registered as a preset position.
Step 2
Display the [Pan/Tilt] tab of the camera control panel
(☞ page 65)
Step 3
Press the [SET] button on the front panel.
→ The "Preset/Auto" window will be displayed.
Step 4
Enter a preset position number to be registered.
To enter the preset position number, press the camera
selection button (1 - 0/10) or rotate the jog dial
(inside).
Step 5
Move the cursor onto the [Regist] button, and then
press the [SET] button.
→ The confirmation window will be displayed. When
the [OK] button on the confirmation window is
selected, the "Preset/Auto" window will close and
the camera direction checked by the images currently being displayed will be registered as a preset position.
67
Move a camera to the preset position
Move the camera to the preset position registered in advance.
Step 1
Display the "Preset/Auto" window. (☞ Page 67)
Step 2
Enter the preset position number to move the camera
direction.
The preset position number can be entered in the
same manner as of the preset number registration
(☞ page 67).
When entering number "000", the camera direction
will move to the home position.
Note:
• It is necessary to register the "Home" position by
configuring the settings of the camera in advance.
Step 3
Move the cursor onto the [Call] button, and then
press the [SET] button.
→ The camera direction will move to the preset position corresponding to the entered preset position
number.
Step 4
To close the "Preset/Auto" window, press the [SET]
button after moving the cursor onto the [Cancel] button or press the [SETUP/ESC] button on the front
panel.
68
Auto functions (Auto panning, etc.)
Activate the auto function of the camera according to the settings of the camera.
Step 1
Display the "Preset/Auto" window. (☞ Page 67)
Step 5
To close the "Preset/Auto" window, press the [SET]
button after moving the cursor onto the [Cancel] button or press the [SETUP/ESC] button on the front
panel.
Step 2
Move the cursor onto "Auto mode", and then select
the desired auto function by rotating the jog dial
(inside).
The following 8 auto functions can be selected.
Auto track, auto pan, preset sequence, sort, patrol 1,
patrol 2, patrol 3, patrol 4
Refer to the operating instructions of the camera for
information about each auto function.
Step 3
Move the cursor onto the [Start] button, and then
press the [SET] button.
→ The "Preset/Auto" window will close and the
selected auto function will start.
Step 4
To stop the selected auto function, press the [SET]
button after moving the cursor onto the [Stop] button.
69
Operate the setup menu of the camera
To control the camera connected to the recorder, it is necessary in advance to configure the settings of the
camera function. The settings of the camera function can be configured on the setup menu of the camera.
It is possible to call the setup menu of the camera from the submenu. The contents of the setup menu and the
operation procedures vary depending on the model of the camera. Refer to the operating instructions of the
camera for further information.
The following are descriptions of how to display the setup menu of the camera and of how to perform the basic
operation.
Step 1
Press the [SUB MENU] button.
→ The submenu window will be displayed.
Step 2
Move the cursor onto the [Camera control] button of
the submenu, and then press the [SET] button.
→ The menu list will be displayed. Move the cursor
onto "Camera menu" on the displayed menu list,
and then press the [SET] button.
Step 3
Operate the setup menu of the camera using the
camera menu panel.
To operate the setup menu of the camera, use the following buttons.
Move the cursor
Change parameters
Apply the set value or
move to the lower level
menu
Arrows button (C D A B)
Arrows button (A B)
[SET] button
Move to the higher level [SETUP/ESC] button
menu
→ The camera menu will be displayed and the camera setup menu will be displayed on the monitor.
Display the special
menu
Move the cursor onto
"SPECIAL" on the setup
menu of the camera, and
then press the camera
selection button [2].
Reset the camera
Move the cursor onto
"CAMERA RESET" on the
setup menu of the camera,
and then press the camera
selection button [3].
Step 4
To close the setup menu of the camera, press the
camera selection button [4].
Note:
• The status bar will be hidden while the camera
menu panel is being displayed.
70
Note:
• When the camera has the refresh function
(REFRESH), it is possible to execute the refresh
function by selecting the [2] button on the camera
menu panel.
• The camera menu panel may sometimes remain
displayed after the setup menu of the camera is
closed such as when resetting the camera, etc. In
this case, select the [4] button on the camera
menu panel.
• Only users whose user level is allowed to control
cameras or to configure the settings can configure
the settings of the camera.
Disk management
On the [Disk] tab of "Maintenance" of the setup menu, it is possible to perform operation relating to the hard
disk drives in the recorder or in an optional extension unit and SDHC/SD memory card.
The following are descriptions of how to delete images recorded on the hard disk drives and of how to format
(initialize) an SDHC/SD memory card.
Delete images recorded on the hard disk drives manually
The following are descriptions of how to manually delete images recorded in the normal recording area and the
event recording area on the hard disk drives in the recorder.
By designating a time and date, all the images recorded until the day before the designated time and date will
be deleted. It is useful to delete unnecessary images.
Important:
• Note that the deleted images cannot be recovered and the remaining disk capacity will not increase even
though deletion is performed.
Note:
• It is possible to delete recorded images automatically when the set days have passed from the day the
image was recorded (HDD auto deletion). Refer to the Installation Guide for further information.
Step 1
Press the [SUB MENU] button.
→ The submenu window will be displayed.
Step 2
Move the cursor onto the [Setup Menu] button, and
then press the [SET] button.
Step 3
Move the cursor onto "Maintenance", and then press
the [SET] button.
→ The [Product information] tab of "Maintenance" of
the setup menu will be displayed.
→ The setup menu will be displayed.
71
Step 4
Move the cursor onto "Disk", and then press the
[SET] button.
→ The [Disk] tab will be displayed.
Step 5
Move the cursor onto [Next page C], and then press
the [SET] button to display the next page.
Select the recording area on which data to be deleted
from "Normal recording area" or "Event recording
area", and then set the date by rotating the jog dial
(inside). Images recorded until the day before the set
date are subject to deletion.
Step 6
Move the cursor onto the [Delete] button, and then
press the [SET] button.
→ The confirmation window will be displayed.
72
Step 7
Move the cursor onto [OK], and then press the [SET]
button.
→ Images recorded until the day before the set date
will be deleted.
Format (initialize) an SDHC/SD memory card
To copy recorded images onto an SDHC/SD memory card, it is necessary in advance to insert an SDHC/SD
memory card into the card slot of the recorder and format it. To delete recorded images on the SDHC/SD memory card, format the SDHC/SD memory card again.
Important:
• When an SDHC/SD memory card is formatted, all recorded images and setup data on the SDHC/SD memory card will be deleted. It is impossible to recover the deleted images and setup data.
• It is impossible to copy record images onto an SDHC/SD memory card formatted on a PC. Format the
SDHC/SD memory card on the recorder.
Step 1
Step 3
Display the [Disk] tab. (☞ Pages 71 - 72)
Move the cursor onto [OK], and then press the [SET]
button.
Step 2
Move the cursor onto the [Execute] button of "SD
card format", and then press the [SET] button.
→ Formatting of the SDHC/SD memory card will
start and the format progress window will be displayed. When completing the format, the format
completion window will be displayed.
Important:
• Do not turn off the power of the recorder in the
process of formatting.
→ The confirmation window will be displayed.
73
Configure the network settings
From this page to the "Disk management" chapter (☞ page 121), the instructions of how to operate the recorder using a web browser are provided.
When operating the recorder using a web browser, it is necessary in advance to configure the network settings
of the recorder and a PC.
When the network settings of the PC are as follows, it is unnecessary to configure the settings. It is possible to
configure the settings and operate the recorder using a web browser after completing the connection.
IP address: 192.168.0.2 – 192.168.0.249, 192.168.0.251 – 192.168.0.254
Subnet mask: 255.255.255.0
Default gateway: 192.168.0.1
When the settings are configured differently from the above, configure the network settings of the recorder or a
PC.
Configure the network settings of the recorder
To conform the settings of the recorder to the environment of PC’s, configure the settings using the buttons on
the front panel of the recorder.
Refer to the chapter relating to the [Basic] tab of "Network" of the setup menu for how to operate (☞ Installation
Guide).
Configure the network settings of the PC
The TCP/IP setting of the PC shall be changed to conform to the settings of the recorder.
When using the recorder with the default (IP address: 192.168.0.250), set the IP address of the PC to
"192.168.1.xxx (a number from 2 to 254 except 250)".
In these operating instructions, the settings are performed on Windows XP as examples. Refer to the operating
instructions of the respective OS for further information.
Step 1
Click "Start" on the task bar, and then click "Control
Panel".
→ The control panel will be displayed.
Important:
• Log in to the PC as an administrator.
74
Step 2
Click the "Network and Internet Connections" icon.
→ The "Network and Internet Connections" window
will be displayed.
Step 3
Step 5
Click "Network Connections".
Click "Properties".
→ The "Network Connections" window will be displayed.
→ The "Local Area Connection Properties" window
will be displayed.
Step 4
Step 6
Double-click "Local Area Connection".
Click "Internet Protocol (TCP/IP)", and then click
"Properties".
→ The "Local Area Connection Properties" window
will be displayed.
→ The "Properties" window of "Internet Protocol
(TCP/IP)" will be displayed.
Step 7
Click "Use the following IP address" and enter the IP
address and the subnet mask as follows.
• IP address: 192.168.0.9
• Subnet mask: 255.255.255.0
Depending on the network configuration, it is necessary to configure the default gateway. Refer to a system administrator for further information about the
settings.
Step 8
Click the [OK] button and close the window.
75
Network security of the recorder
The security function of the recorder
q Access restriction by the user authentication and the host authentication
It is possible to restrict users to access the recorder by selecting "On" for "User authentication/Host authentication". (☞ Installation Guide)
w Access restriction by changing the HTTP port number
By changing the HTTP port number, it is possible to prevent illegal access such as a port scanning, etc.
(☞ Installation Guide)
To enhance the network security
It is possible to enhance the network security by dividing the subnet using a router to authenticate users twice
(by the recorder and by the router). When connecting the recorder to an unsecured network, secure the network
connection by installing a VPN (Virtual Private Network) device, etc. between the recorder and the host PC.
Important:
• The settings for the network security varies depending on the network to which the recorder is to be
connected such as an intranet or Internet service provider. Refer to a network administrator for further
information about the network security.
[Connection example]
IP address: 192.168.1.1
Subnet mask: 255.255.255.0
Router
Router
IP address: 192.168.0.1
Subnet mask: 255.255.255.0
WAN*
* Stands for Wide Area Network
IP address: 192.168.0.250
Subnet mask: 255.255.255.0
Default gateway: 192.168.0.1
IP address: 192.168.1.100
Subnet mask: 255.255.255.0
Default gateway: 192.168.1.1
Recorder
PC
By using a firewall, etc., it is possible to use packet filtering and protocol filtering to enhance the network security.
[Connection example]
Firewall
Router
IP address: 192.168.1.1
Subnet mask: 255.255.255.0
Router
WAN*
IP address: 192.168.0.1
Subnet mask: 255.255.255.0
Switching hub
* Stands for Wide Area Network
IP address: 192.168.1.100
Subnet mask: 255.255.255.0
Default gateway: 192.168.1.1
PC
76
Recorder
IP address: 192.168.0.250
Subnet mask: 255.255.255.0
Default gateway: 192.168.0.1
Display the operation window
Boot the PC and operate the recorder using a web browser.
Step 1
Step 3
Start the web browser.
Enter the user name and password registered in the
recorder, and then click the [Login] button.
Step 2
Enter the IP address or URL assigned to the recorder
into the [Address] box, and then press the [Enter] key.
→ The authentication window will be displayed. The
authentication window will not be displayed when
"Off" is selected fro "User authentication" on the
[Basic] tab of "User mng." of the setup menu.
Important:
• Refer to a system administrator for further information about the set IP address.
• It is impossible to access the recorder from a PC
whose IP address is not registered in the recorder
when "On" is selected for "Host authentication"
on the [Basic] tab of "User mng." of the setup
menu. Refer to a system administrator for further
information.
• Do not attach "0" before the numbers when entering IP address.
Example:b 192.168.0.50
X 192.168.0.050
• If a message is displayed on the information bar,
see page 127.
Note:
• When displaying the top page of the operation
window of the recorder on a PC for the first time,
the wizard for ActiveX installation required to display images from cameras will be displayed.
Follow the instructions of the wizard to complete
the installation.
• When any ActiveX for Panasonic’s digital disk
recorder other than this product is already
installed, uninstall "WebVideo ActiveX" from "Add
or Remove Programs" in "Control Panel" and then
install ActiveX for this product.
• When the installation wizard is displayed each
time displaying other page even though installation of ActiveX for this product has been completed, reboot the PC.
→ The top page will be displayed.
Important:
• Refer to a system administrator for the set user
name and password.
• Refer to the Installation Guide for how to register
users.
• The default administrator name and password are
as follows.
Administrator name: ADMIN
Password: 12345
• To enhance the security, change the administrator
name and password before running the recorder.
Change the password periodically.
Refer to the Installation Guide for how to change
the password.
• Refer to page 127 when a message is displayed
on the information bar or when an unnecessary
status bar or scroll bar is displayed on the pop-up
window.
77
About the operation window
Top Page
[Setup] button
Status display area
Current time and date/Recording
time and date display area
[Control] button
Image display area
[CAM] tab
Download operation
area
[HDD] tab
[Control] button (☞ page 79)
It is possible to operate the switcher functions of the
camera such as switching the camera channel to display live images from a different camera or start the
sequence display using the operation panel displayed
by clicking this button. The search result will also be
displayed on this tab.
[Setup] button
Operation relating to the settings of the recorder can
be performed using the operation panel displayed by
clicking this button. Refer to Installation Guide for further information about the setup menu.
Status display area (☞ page 81)
The current status of the recorder such as playback
status, recording status, etc. will be displayed.
Current time and date/Recording time and date
display area
When displaying live images in the image display
area, the current time and date will be displayed.
When displaying recorded images, the recording time
and date (when images were recorded) will be displayed.
78
Image display area
Live images or recorded images will be displayed.
When configuring the settings, the setup menu will be
displayed.
Download operation area (☞ page 82)
Downloading of recorded images or the viewer software can be made on this area.
[HDD] tab (☞ page 82)
Playback operation of recorded images can be made
on this tab.
[CAM] tab (☞ page 83)
Camera control such as zooming, focus adjustment,
auto panning, etc. can be made on this tab.
[Control] button
The following operation panels will be displayed when this button is clicked.
[Sequence] box
Images from different cameras will sequentially be
displayed according to the settings configured in
advance by clicking the button. The indicator on the
button will light green during the sequence display.
(☞ Page 88)
[El-zoom] box
Images from the camera will be displayed at a scale
corresponding to the clicked zoom factor button.
[x1] button: x1
[x2] button: x2
[x4] button: x4
[Search] box
Use this button to search recorded images.
When selecting "HDD" for "Disk/Media", the
[Recording event] button and the [VMD] button will be
displayed. The recording event list window or the
VMD search list window will be displayed by clicking
each button respectively.
When selecting "DVD" or "SD" for "Disk/Media", the
[Copy data] button will be displayed. The copy data
window will be displayed by clicking the [Copy data]
button.
The search result will be displayed in list form at the
bottom of the [Search] box.
[Cam. select] box
Images from the selected camera channel will be displayed on a 1-screen in the image display area by
clicking the button.
[Multiscreen select] box
Images from 4 - 16 cameras can be displayed simultaneously on a multi-screen.
4-screen button: Each time this button is clicked,
images from different camera groups will be displayed on a 4-screen.
9-screen button: Each time this button is clicked,
images from different camera groups will be displayed on a 9-screen.
16-screen button: Images from camera channels 1 16 will be displayed on a 16-screen.
[Copy] button
The copy data window will be displayed by clicking
this button. Use this button to manually copy recorded images onto a DVD or an SDHC/SD memory card.
(☞ Page 104)
Recording event list window
Number of the listed data: Total number of the listed
data (recording event) will be displayed. When the
total number of the listed data ismore than
10 000, the ">10000" indication will be displayed.
[All list] button: Cancels filtering and lists all recording events.
[Refresh] button: Updates the list to the latest one.
[Prev page] button: Displays the previous page of
the list.
[Next page] button: Displays the next page of the
list.
[Time & date]: Start time of recording will be displayed.
79
[Ch]: A camera channel used for recording will be
displayed.
[Evt]: Event type will be displayed. (☞ Page 8)
[HDD]: The hard disk drive number in which the corresponding recorded images are stored will be
displayed.
[Audio]: When audio is attached to recorded images,
the audio icon will be displayed.
[Zoom in] button
Live images from the camera or recorded images will
be enlarged by clicking this button.
80
Status display area
q
w
q The status of image (live image/recorded
image) display operation will be displayed.
:Indicates that live images are being dis
played.
:
Indicates that playback images are being
displayed.
:Indicates that reverse playback images are
being displayed.
:
Indicates that fast playback images are
being displayed.
:Indicates that fast reverse playback images
are being displayed.
:
Indicates that a paused image is being dis
played.
:Indicates that recorded images/audio are
being downloaded.
:
Indicates that downloading of recorded
images/audio is completed.
[Step 1] - [Step 7]
: Indicates the playback speed.
: Normal playback speed (1x)
: Approx. 2x playback speed
: Approx. 5x playback speed
: Approx. 10x playback speed
: Approx. 20x playback speed
: Approx. 50x playback speed
: Approx. 100x playback speed
: Indicates that the sequence display is being
performed.
: Indicates the normal recording area or the
event recording area on the hard disk drive.
: Indicates that the DVD drive is being selected.
: Indicates that the SDHC/SD memory card is
being selected.
: Indicates that RAID recovery is being performed.
: Indicates that a recording events are being
filtered. Refer to page 93 for further information about filtering of recording events.
e
r
w [REC] indicator
Indicates the status of recording.
: Indicates that recording is being performed.
: Indicates that recording is not being performed.
e Indicates the following statuses:
: Indicates that the camera is inoperable since
a user with a higher priority is currently operating the camera.
: Indicates that copying is being performed.
: Indicates that recorded images are being
deleted.
r Indicates information about events and errors.
[ALARM SUSPEND] button
: Clicking this button will disable the subsequent alarm actions (☞ page 102).
: Indicates that the alarm is being suspended.
[ALM] button
: This button will be displayed when an event
occurs. The alarm action will be canceled by
clicking this button (☞ page 102).
[ERR] button
: Indicates an error occurrence. The error action
will be canceled by clicking this button. Refer
to pages 18 - 19 for further information about
errors.
Note:
• The emergency recording will not stop by clicking
the [ALM] button when the emergency recording
is being performed. It will stop only when
"Continue" is selected for "Recording duration" on
the "Emergency rec." page.
81
Download operation area
q
w
e
q The start and end time and date of recorded images to be downloaded will be displayed. (☞ Page
106)
[Start]: Designate the start time and date of recorded images to be downloaded.
[End]: Designate the end time and date of recorded images to be downloaded.
w [Download] button
Downloading of recorded images from the specified start and end time and date will start by clicking this
button.
e [Viewer] button
The viewer software will be downloaded by clicking this button. It is possible to play, save and print the
downloaded images using the viewer software. (☞ Page 108)
[HDD] tab
[REW] button
Plays recorded images in reverse at high speed.
Playback speed of fast reverse playback will change
in the following order each time this button is clicked:
Step1 (1x) → Step2 (Approx. 2x) → Step3 (Approx.
5x) → Step4 (Approx. 10x) → Step5 (Approx. 20x) →
Step6 (Approx. 50x) → Step7 (Approx. 100x)
[PLAY] button
Plays recorded images.
[FF] button
Plays recorded images at high speed. Playback
speed of fast playback will change in the following
order each time this button is clicked: Step2 (Approx.
2x) → Step3 (Approx. 5x) → Step4 (Approx. 10x) →
Step5 (Approx. 20x) → Step6 (Approx. 50x) → Step7
(Approx. 100x)
82
[NEXT RECORD] button
Skips to the next recorded image and plays it.
[PREV RECORD] button
Skips to the previous recorded image and plays it.
[Time slip] button
Jumps forward for a certain time and plays from the
jumped point.
[Reverse time slip] button
Jumps backward for a certain time and plays from the
jumped point.
Interval (Amount of time to be jumped)
Select the amount of time to be jumped from the following.
30 seconds, 1 minute, 5 minutes, 10 minutes, 30 minutes, 60 minutes
Note:
• The [Time slip] button and the [Reverse time slip]
button will not work when they are clicked at the
start point or the end point of recording data.
• When the [Time slip] button or the [Reverse time
slip] button is clicked, the start point after the
jump may sometimes be at a point several seconds later than the supposed point.
[PAUSE] button
Playback will be paused when this button is clicked
during playback. Playback will resume when this button is clicked during pausing.
[STOP] button
Stops playback and displays live images.
[Go to date] button:
The "Go to date" window will be displayed by clicking
this button. It is possible to designate the desired
time and date from when playback of recorded images is to start. (☞ Page 92)
[Rec] box
The recording button and the recording stop button
will be displayed when the
button is clicked.
The recording button and the recording stop button
will be hidden when the
button is clicked.
(Recording button): Starts manual recording.
[NEXT IMAGE] button
The next frame will be displayed when this button is
clicked during pausing.
[PREV. IMAGE] button
The previous frame will be displayed when this button
is clicked during pausing.
[Go to last] button:
Click this button to skip to a point that is the start
time of the latest recorded image using the camera
channel currently being displayed and start playback.
(Recording stop button): Stops manual recording.
Note:
• To display the recording button and the recording
stop button, hold down the
button until they
appear.
[CAM] tab
Zoom
Zooming can be adjusted by clicking the [–] button
(wide) or the [+] button (tele).
Note:
• It is possible to adjust zooming using the mouse
wheel.
Focus
Focusing can be adjusted by clicking the [Near] button or the [Far] button. The auto focus function can
be performed by clicking the [Auto] button.
Control pad/buttons
Clicking the buttons around the control pad can move
(pan/tilt) a camera in the clicked direction.
Clicking inside the control pad also can adjust the
vertical/horizontal position (pan/tilt) of the displayed
live images. Panning/tilting speed will become faster
if a clicked point gets farther from the center point of
the control pad.
Note:
• Clicking on the screen can move (pan/tilt) a camera to the clicked direction.
83
Brightness
The brightness (lens aperture) can be adjusted by
clicking the [–] (darker) button or the [+] (brighter) button.
It is possible to reset the adjusted brightness by clicking the [Reset] button.
Preset
It is possible to register preset positions of the camera and to move the camera direction to the registered preset positions.
Select the preset position number from the following.
Home, 1 - 256
When the [Move] button is clicked, the camera direction will move to the preset position corresponding to
the selected preset position number. When the
[Register] button is clicked, the camera direction will
be registered and assigned to the selected preset
position number.
Note:
• It is impossible to register the position as "Home".
• Only users whose user level is allowed to register
preset positions can register preset positions.
• Refer to the operating instructions of the camera
for the available preset position numbers.
Auto mode
Select the auto mode from the following. Click the
[Start] button to start the selected auto mode function. Click the [Stop] button to stop the auto mode
function.
Auto track: The camera will automatically track an
object moving on the screen.
Auto pan: The camera direction will automatically
move (pan) between the start point and end point
set in advance.
Preset sequence: The camera will move (pan) to the
preset positions registered in advance in order of
the preset position number (numerical order).
Sort: The camera will move (pan) counterclockwise to
the preset positions registered in advance in order
of the closest from the current position.
Patrol 1 - 4: The camera will trace the manually
recorded panning pattern.
84
Note:
• Each function of the auto mode is available only
for combination cameras. Refer to the operating
instructions of the camera for further information
about the auto mode function of the camera.
[Menu] box
When the [OPEN] button is clicked, the setup window
of the camera will be displayed. Refer to page 118 for
how to operate the setup window.
Monitor live images from cameras
Live images from cameras will be displayed in the image display area.
It is possible to display live images on a 1-screen or on a multiscreen. It is also possible to display live images
from multiple cameras sequentially by switching the camera channels in order (sequence display).
Display images on a 1-screen
To display live images on a 1-screen, take the following procedures.
Step 1
Display the top page of the operation window.
(☞ Page 77)
Step 2
Select the camera channel from which images to be
displayed.
Click the camera channel button in the [Cam. select]
box.
→ Live images from the selected camera channel will
be displayed.
Note:
• Selecting a camera from the right-click pop-up
menu will display images from the selected camera channel.
• When the image capture size of the current
recording is changed during displaying live images, image refresh may sometimes stop for a
moment (around a second).
85
Use the electronic zoom
When displaying live images on a 1-screen, it is possible to enlarge live images using the electronic zoom and
to move the area of the enlarged image to be displayed.
Step 1
Note:
Click any of the [x1], [x2] and [x4] buttons to change
• Clicking a point in the zoomed image moves the
the zoom factor of the electronic zoom.
zoomed image by positioning the clicked point as
the center point.
Enlarge images
It is possible to enlarge live images.
Step 1
Click the [Zoom in] button.
Note:
• It is also possible to enlarge images by selecting
"ZOOM IN" from the menu displayed when rightclicking on images from the camera.
• To return the zoomed image to the original size,
right-click on the zoomed image and select
"BACK" from the displayed pop-up menu.
86
Display images on a multiscreen
Live images from cameras can be displayed on a multiscreen (4-, 9-, 16-screen).
Step 1
Step 3
Display the top page of the operation window.
(☞ Page 77)
Step 2
Click a multiscreen selection button in the
[Multiscreen select] box.
To display images on a 1-screen again, click any of
the camera channel buttons in the [Cam. select] box.
Note:
• It is also possible to display images from the cameras on a multiscreen by selecting "Multiscreen"
from the menu displayed when right-clicking on
images from the camera.
• To display image from the camera on a 1-screen
again, right-click on the image and select a camera channel from the displayed pop-up menu.
• It is possible to display images from the desired
camera on a 1-screen by clicking the respective
camera title.
• When displaying images on a multiscreen, audio
assigned to the camera channel from which images are displayed on the upper left corner will be
heard.
(4-screen button)
Each time this button is clicked, images from different
camera groups will be displayed on a 4-screen.
(9-screen button)
Each time this button is clicked, images from different
camera groups will be displayed on a 9-screen.
(16-screen button)
Images from camera channels 1 - 16 will be displayed
on a 16-screen.
→ Live images from cameras will be displayed on a
multiscreen.
87
Display images from multiple cameras sequentially (sequence
display)
The sequence display function is the function that can automatically switch and display images from multiple
cameras sequentially.
The sequence display will be performed according to the settings configured in advance.
The settings of the sequence display can be configured on the [Network] tab of "Display" of the setup menu
(☞ Installation Guide).
Step 1
Display the top page of the operation window.
(☞ Page 77)
Step 2
Click the button in the [Sequence] box.
→ Live images from multiple cameras will be displayed sequentially according to the settings configured in advance. The indicator on the
[Sequence] button will light green and the "SEQ"
indication will be displayed on the status bar.
Step 3
To stop the sequence display, click the button in the
[Sequence] box again.
It is also possible to stop the sequence display by
operating the recorder to display images on a
1-screen (☞ page 85) or on a multiscreen (☞ page 87)
during the sequence display.
Note:
• Audio output will stop during the sequence display.
• When performing the sequence display and displaying images on the web browser, embedded
time and camera title will not be displayed.
• When images for a sequence step is unabled to
display, this sequence step will be skipped by the
camera partitioning function.
88
Record images
Live images can be recorded on the recorder. Images from up to 16 cameras can be recorded on a single
recorder.
Record images (Manual recording)
Recording can be started and stopped manually.
Step 1
Display the top page of the operation window.
(☞ Page 77)
Step 4
Click the recording button
to start recording.
Step 2
Click the [HDD] tab.
→ The [HDD] tab will be displayed.
Step 3
Click the [D] button in the [Rec] box.
Continue clicking the [D] button until the recording
button and the recording stop button appear.
• At the default, images from all the connected
cameras will be recorded.
• When images are being recorded in the recording
mode with a higher priority than the manual
recording, the manual recording will not start until
the recording with a higher priority ends.
Refer to page 37 for further information about the
recording mode and their priorities.
→ When recording starts, the [REC] indicator in the
status display area will light red.
→ The recording button will appear in the [Rec] box.
Step 5
butTo stop recording, click the stop recording
ton.
→ The [REC] indicator in the status display area will
go off.
Note:
• When recording in a different recording mode is
being performed simultaneously, the [REC] indicator will not go off since the recording in a different
recording mode will continue even when the manual recording is stopped.
• No image will be recorded by the manual recording for a camera channel from which no video
input is sent. When video input is sent from the
camera channel, the manual recording will start
recording images from it.
89
Play recorded images
Images recorded on the recorder will be displayed on a PC monitor.
Playback operation can be made while recording.
Step 1
Display the top page of the operation window.
(☞ Page 77)
Step 2
Click the [HDD] tab.
→ The [HDD] tab will be displayed.
Step 3
Click the [PLAY] button.
(play) indication
→ Plays recorded images. The
will be displayed in the status display area.
The playback start point varies depending on how
many times playback is performed after the login as
follows.
• The first playback after logging in to the recorder
The latest recorded image will be played. The
playback start point can be set on the setup menu
("Latest image position" on the "Basic" tab under
"Basic") (☞ Installation Guide). "30 seconds
before the latest" is selected at the default.
• Other than above (The second and subsequent
playback after logging in to the recorder.)
Playback will start from the point at which the last
playback was stopped (time and date).
Note:
• It is possible to change the camera channel by
clicking the camera selection button during playback.
• It is possible to display recorded images on a multiscreen by clicking a button in the [Multiscreen]
box during playback.
• When displaying images on a 1-screen, audio
assigned to the camera channel from which images are currently being displayed will be heard.
• When displaying images on a multiscreen, audio
assigned to the camera channel from which images are currently being displayed at the upper left
corner will be heard.
• When both a web browser and the viewer software are active, playback of audio may not be
performed correctly. To play audio correctly, use
only either of them and close the other.
• When load to be processed is too heavy for the
recorder (such as when many cameras are connected, images (live/playback) are displayed on
many windows (segments)), playback speed may
become slow or playback may stop for a while.
• When displaying images on a multiscreen, playback will be performed while skipping the current
recording.
• When playing images recorded at a higher recording rate and images recorded at a lower recording
rate together on a multiscreen, the gap of the displayed time of them will become larger.
• Playback of mages and audio may sometimes not
be synchronized.
• When clicking a camera title on the image displayed on a multiscreen, images from the camera
whose camera title is clicked will be displayed on
a 1-screen.
• The "pause" indication may sometimes be displayed on the status bar before playback is actually paused when the playback point is almost at
the end.
Step 4
To stop playback, press the [Stop] button.
indication will disappear and live images
→ The
will be displayed in the image display area.
90
Playback operation
Function
Button
Operation
Pause
• Playback will be paused when this button is clicked during playback.
• Playback will resume when this button is pressed during pause.
Fast playback/Fast
reverse playback
/
• Playback speed of fast playback will change in the following
order each time the fast playback button is clicked: Step2
(Approx. 2x) → Step3 (Approx. 5x) → Step4 (Approx. 10x) →
Step5 (Approx. 20x) → Step6 (Approx. 50x) → Step7 (Approx.
100x)
• Playback speed of fast reverse playback will change in the following order each time the fast reverse playback button is
clicked: Step1 (1x) → Step2 (Approx. 2x) → Step3 (Approx. 5x) →
Step4 (Approx. 10x) → Step5 (Approx. 20x) → Step6 (Approx.
50x) → Step7 (Approx. 100x)
• When the [PLAY] button is clicked during fast playback/fast
reverse playback, playback speed will return to the normal playback speed.
Frame by frame playback/Reverse frame
by frame playback
/
• When the frame by frame playback button is clicked, the next
frame will be displayed and paused.
• When the reverse frame by frame playback button is clicked, the
previous frame will be displayed and paused.
Skip/Reverse skip
/
• When the skip button is clicked, playback point will skip to the
start time of the next recorded images.
• When the reverse skip button is clicked, playback point will skip
to the start time of the previous recorded images.
• When there is no next or previous recorded data, the current
playback will continue. In this case, playback time of the current
playback may sometimes be displayed as around for 1 minute
ago.
Time slip/Reverse
time slip
/
• When the button is clicked after selecting amount of time to jump
(interval), the playback point will jump the selected amount of
time (forward) and start playback.
• A jumped playback point may sometimes not be a point exactly
calculated for the selected amount of time.
Go to date
• The "Go to date" window will be displayed by clicking this button. It is possible to start playback by designating the desired
time and date.
Skip to the latest
recorded data
• Playback of the latest recorded image will start by clicking this
button. (+ Page 40)
Multiscreen playback
• Playback images will be displayed on a multi-screen (4-screen/
9-screen/16-screen) by clicking this button.
• Each time the 4-screen button or the 9-screen button is clicked,
images from different camera groups will be displayed on a
4-screen or on a 9-screen respectively.
• When the 16-screen button is clicked, images from camera channels 1 - 16 will be displayed on a 16-screen.
• To display images on a 1-screen again, click any of the camera
channel buttons in the [Cam. select] box.
Electronic zoom
• Playback images will be zoomed in by the electronic zoom. Refer
to page 86 for how to use the electronic zoom.
Enlargement of
images
• Playback images will be enlarged. Refer to page 86 for how to
enlarge playback images.
91
Play image recorded at a designated time and
date
Start playback by designating the desired time and date of a recorded image.
Playback operation can be made while recording.
Step 1
Step 5
Display the top page of the operation window.
(☞ Page 77)
Click the [Play] button.
Step 2
Click the [HDD] tab.
→ The [HDD] tab will be displayed.
Step 3
Click the [Go to date] button.
→ Playback of images recorded at the designated
indication will be
time and date will start. The
displayed in the status display area.
Note:
• When no image is found at the designated time
and date, the following action will be taken.
• When images recorded after the designated
time and date are found, playback will start
from the oldest recorded image among them.
• When no image was recorded after the designated time and date, playback will start from
the latest image recorded before the designated time and date.
→ The time and date search window will be displayed.
Step 6
Step 4
Click the
and date.
button and determine the desired time
92
To stop playback, press the [Stop] button.
on the status display area will
→ The indication
disappear and live images will be displayed in the
image display area.
Search and play
Search a desired recorded image and play it. There are the following 2 searching methods.
• Search for recording events and play (recording event search)
• Search for time and date when a motion was detected from recorded images and play (VMD search)
To play recorded images on a multiscreen, switch to a multiscreen after starting playback.
Search and play recording events (recording event search)
Display a list of recording events, and then select a desired recording event to play from the list.
It is also possible to filter recording events using the following search filters.
Search filter
Search filter
Description
Time and date
Search for images recorded in a time range designated by selecting the start time
and the end time
Event
Search for images recorded by the selected recording mode only.
• Recording mode/Event
Manual recording, schedule recording, emergency recording, video loss, terminal
alarm, command alarm, video motion detection (VMD), camera site alarm, i-VMD
alarm
• Displayed when a camera alarm occurred
Motion detection, object appearance/disappearance detection, terminal alarm,
residence detection, direction detection, interruption detection
Camera
Search for images recorded using the selected camera channels only.
Recording event list
Number of the listed data
Displays the total number of listed copied data. When
more than 10 000 data matched, the ">10000" indication will be displayed.
[All list] button
Cancels filtering and lists all recording events.
93
[Refresh] button
The displayed contents will be updated to the latest.
[Prev page] button
Displays the previous page.
[Next page] button
Displays the next page.
Time & date
Displays the start time and date of the recording.
Ch
Displays the camera channel used for recording.
Playback of images recorded using the displayed
camera channel will start on a 1-screen.
Evt
Displays the event type. Refer to page 8 for further
information about the event type.
HDD
Displays the hard disk drive number on which images
were recorded.
Audio
Displays the icon to indicate whether audio is
attached to the data or not.
Note:
• Recording event list will be displayed when the
[Refresh] button is clicked or when the VMD
search (☞ page 96) or selection of the disk/medium (☞ page 99) is performed.
• The [All list] button will become unavailable during
playback. To use the [All list] button, stop playback and click it.
• When many cameras are connected, the recording start time of each camera channel may sometimes not be the same.
How to operate
Step 1
Display the top page of the operation window.
(☞ Page 77)
Step 3
Specify the search conditions (filters).
Step 2
Select "HDD" for "Disk/Media" in the [Search] box,
and then click the [REC Event] button.
→ The "REC event search" window will be displayed.
94
Time & date: Designate the recording start time and
date and the end time and date of recorded images to be searched for.
Select a start time and an end time by clicking the
[C] button.
REC event: Select an event type of recorded images
to be searched for from the following. The checkbox respective to the selected event type will be
checked. (When selecting "All", all the checkboxes will be checked.)
Camera: Select the desired camera channel used for
recording to be searched by clicking.
Select the desired camera channel used for
recording. The checkbox respective to the selected camera channel will be checked. (When selecting "All", all the checkboxes will be checked.) To
select all camera channels, click "All".
Step 6
To stop playback, press the [STOP] button.
→ Playback will stop. Playback in the image display
area will be switched to live image display.
Step 4
Click the [OK] button after completing the settings.
→ Recording events matched the search conditions
will be displayed in the recording event list. The
[Filtering] indication will be displayed on the status
display area.
Note:
• To cancel the filtering, click the [All List] button. All
recording events will be displayed and the
[Filtering] indication will disappear.
Step 5
Click the time and date of the desired recording
event.
→ Playback of recorded images of the selected
recording event will start.
Note:
• When starting playback after filtering, only the listed recorded images are subject to play.
• Recorded images will be played on a 1-screen. To
play on a multiscreen, click a multiscreen selection button in the [Multiscreen select] box after
starting playback.
95
Search for time and date when a motion was detected from
recorded images and play (VMD search)
Display a list of time and date when a motion was detected (by the VMD function) from images recorded by all
the recording modes (☞ page 37), and then select a desired recorded image to play from the list.
Camera channels, time and date, detection area and detection sensitivity can be used as the filters for the VMD
search.
Step 1
1. Create a detection area by dragging the mouse.
Display the top page of the operation window
Up to 4 areas can be created and they will be area
(☞ page 77), and then select the camera channel to
A, B, C and D in order or creation.
be searched for in the [Cam. select] box.
Step 2
Click the [VMD] button in the [Search] box.
→ The VMD search filter window will be displayed.
Step 3
Specify the search conditions (filters).
Set detection area and detection sensitivity
Up to 4 detection areas (A - D) can be set. Set detection areas and detection sensitivities for each of them
as follows.
96
Note:
• To delete the created detection area, check the
check box corresponding to the area to be deleted on the area setup window and then click the
[Area delete] button.
2. Set the detection sensitivity of each detection
area.
Click the [C] button, and then set the detection
sensitivity for each area (A - D) from the following.
Off: Does not detect motion in the selected area.
Low: Low sensitivity
Mid: Standard sensitivity
High: High sensitivity
Specify the mask duration
Click the [C] button, and then select the mask duration from the following.
1 s, 1 min, 1 h, 24h
When the mask duration is set, any motion will not be
detected for the set duration after a motion detection.
Use the mask duration when it takes time to detect
motion or when motion is detected frequently.
Specify the time range
Click the [C] button, and then specify the time range
to be searched for.
Step 4
Click the [OK] button after completing the settings.
→ Data matched to the specified search conditions
will be displayed in list form.
Step 5
Click the time and date of the desired data in the
result list.
→ Playback of recorded images of the selected data
will start.
Note:
• Recorded images will be played on a 1-screen. To
play on a multi-screen, click a multiscreen selection button in the [Multiscreen select] box after
starting playback.
• When selected time and date is too close to the
current time and date, playback may sometimes
not start. In this case, wait for a while and try to
playback again.
Step 6
To stop playback, click the [STOP] button.
→ Playback will stop. Playback in the image display
area will be switched to live image display.
Note:
• In the result list of the VMD search, the audio icon
will not be displayed in the "Audio" column even if
audio is attached to the recorded images.
• The VMD search of the pre-event recording data
will not be performed.
97
Check a list of copied recorded images
Display a list of copied data (copied recorded images) on an SDHC/SD memory card or a DVD, and then select
a desired recorded image to play from the list.
It is possible to search for copied data using the filters. Available filters are "Time & date" and "Ch".
Copied data list window
Number of the listed data
Displays the total number of listed copied data. When
more than 10 000 data matched, the ">10000" indication will be displayed.
[All list] button
Cancels filtering and lists all copied data.
[Refresh] button
The displayed contents will be updated to the latest.
[Prev page] button
Displays the previous page.
[Next page] button
Displays the next page.
Time & date
Displays the start time and date of the copied data
(time and date when copying started) will be displayed.
98
Ch
Displays the camera channel used for recording (of
which copied recorded images).
Evt
Displays the event type. Refer to page 8 for further
information about the event type.
Audio
Nothing will be displayed here.
How to operate
Step 1
Insert an SDHC/SD memory card on which recording
data is copied into the SDHC/SD memory card slot.
When recording data was copied on a DVD, insert it
in the DVD drive. (☞ Installation Guide)
Step 5
Click the [OK] button after completing the settings.
→ Copied data matched the search conditions (filters) will be displayed on the copied data list window.
Step 2
Display the top page of the operation window.
(☞ Page 77)
Step 3
Select "DVD" or "SD" for "Disk/Medium" in the
[Search] box, and then click the [Copy data] button.
Important:
• Do not remove the SDHC/SD memory card during
playback of copied data on the SDHC/SD memory
card. It may damage data on the SDHC/SD memory card.
→ The copy data search window will be displayed.
Step 4
Note:
• When checking a list after inserting the other
SDHC/SD memory card, select "Hard disk drive"
for "Select Medium" in the "Search" box first and
then select "SD memory card".
Specify the search conditions (filters).
Refer to page 94 for further information about the
copy data search window.
99
Event function
The recorder will take an event action when any of the following events occur.
Terminal alarm: Regarded as an event when an alarm input signal is supplied from an external device such as
a door sensor to the alarm input terminal on the rear of the recorder.
Video Motion Detection (VMD): Regard as an event when a motion is detected in the set detection area by the
video motion detection function. (See below about the VMD function.)
Video loss: Regard as an event when the video input signal is lost, such as by the camera cable disconnection,
malfunction of the camera, etc.
i-VMD alarm: Regarded as an event when an alarm (motion detection, object appearance/disappearance, etc.)
is detected by the SD5Link camera.
Camera site alarm: Regarded as an event when an alarm (motion detection, etc.) is detected by the camera.
Command alarm: Regarded as an event when an alarm via a network such as from a PC is received.
Note:
• Video Motion Detection (VMD) function
When a motion (luminance change) is detected in the specified area (detection area), a signal will be output.
The recorder will record images from the camera, send e-mails, etc. according to the settings when a
motion is detected.
Refer to the Installation Guide for the settings required to use the video motion detection function.
Event action
Refer to page 56.
Alarm action
The following are descriptions about the alarm actions that can be configured and checked from a PC.
Refer to page 56 for further information about the available alarm actions for the recorder.
Display the alarm notification window
Note:
• The alarm notification window will not be displayed in the following cases.
• When the alarm is suspended (☞ page 102)
• When "ADM" is selected for "Operational mode" (of each event) of "Event" of the setup menu
• When "Off" is selected for "Alarm message" of "Timetable" (under "Schedule" of the setup menu).
100
Display the [ALM] button in the status display area
Send a mail that notifies of an event occurrence
A mail that notifies of the event occurrence with the time and date of the event occurrence will be sent (Alarm
mail).
Up to 4 destination addresses for the alarm mail can be registered.
To send alarm mails at an event occurrence, configure the settings in advance.
Refer to page 122 for further information about contents of the alarm mail.
Send recorded images to an FTP server at an event occurrence
When an event occurs, recorded images will be continued transmitting to an FTP server automatically for the
set duration from the time when the event occurred. To send recorded images to an FTP server at an event
occurrence, configure the settings in advance.
Note:
• Images recorded from the start time of the event recording are to be sent to an FTP server. When multiple
events occurred, only images recorded from the start time of the first event recording will be sent.
101
Cancel the alarm action
The recorder will take an alarm action according to the settings configured in advance when an event occurs in
the alarm mode (ALM). To manually cancel the alarm action, perform the following operation.
Step 1
Note:
Click the [ALM] button displayed in the status display
• When the alarm action is canceled, the event
area.
recording will stop and return to the operational
status just before the event occurred.
• The emergency recording will not stop by clicking
the [ALM] button when the emergency recording
is being performed. It will stop only when
"Continue" is selected for "Recording duration" on
the "Emergency rec." page.
→ The alarm action will be canceled.
Suspend the alarm action
Configure the settings to not to perform the alarm action even when an event occurs. It is useful to suspend the
alarm action at an event occurrence such when maintaining the recorder for a certain period. However, recording, filing of event logs, preset action and displaying of the [ALM] button will be performed even though the
alarm action is being suspended.
Step 1
Step 2
Display the operation window.
Click the [ALARM SUSPEND] button.
The [ALARM SUSPEND] indicator will light and the
alarm action will be suspended.
Step 3
Click the [ALARM SUSPEND] button.
The [ALARM SUSPEND] indicator will go off and the
suspended alarm action will be released.
102
Cancel an error action
When an error occurred, this recorder will take an error action. To manually cancel an error action, perform the
following operation.
Step 1
When an error occurs, the [ERR] button will be displayed in the status display area.
Step 2
Click the [ERR] button.
→ The error action will be canceled.
Note:
• Depnding on the error type, the error indicator on
the front panel may not go ff even after the [ERR]
button is clicked.
103
Copy recorded images
It is possible to manually copy images recorded in the recorder onto a DVD or an SDHC/SD memory card. It is
recommended to make back-up copies on a regular basis for unexpected situations such as malfunction of the
hard disk drives.
Refer to page 59 for further information about the copy function.
Step 1
Display the top page of the operation window.
(☞ Page 77)
Step 2
Click the button in the [Copy] box.
→ The data copy window will be displayed.
Step 3
Specify the detailed conditions of recorded images to
be copied.
REC event: Select an event type of recorded images
from the following. Select the event type by
checking the checkbox corresponding to the
desired event type. The checkbox respective to
the selected event type will be checked. (When
selecting "All", all the checkboxes will be
checked.)
Camera: Select a camera channel used for recording.
Select the camera channel by checking the
checkbox corresponding to the desired camera
channel. To select all camera channels, select
"All".
Copy drive: Select a DVD or an SDHC/SD memory
card as a copying destination.
Check the checkbox corresponding to either of
"HDD → DVD" or "HDD → SDHC/SD memory
card".
Alter detect: Determine whether or not to attach the
alteration detection code to the recorded images
to be copied.
When the alteration detection code is attached, it
is possible to check if the copied recorded images
have been altered or not when playing the copied
recorded images using the viewer software.
Click the [C] button, and then select "On" or
"Off".
Data size: When the [Measurement] button is clicked,
size of the data to be copied will be displayed.
Remaining capacity: The remaining capacity of the
destination media (SDHC/SD memory card or
DVD) will be displayed.
Step 4
Click the [OK] button.
→ The data copy window will close. Copying will
will be displayed in
startandthe[COPY]icon
the status display area. When copying is complete,the[COPY]iconwilldisappear.
Date and time range: Designate the start time and
date and the end time and date of recorded images to be copied.
Click the [C] button, and then designate time and
date.
104
Note:
• Whenselecting"DVDDrive"eventhoughan
optional built-in DVD drive is not installed, the
error message of "No media is inserted" will be
displayed.
Important:
• Do not remove the SDHC/SD memory card during
copying on the SDHC/SD memory card. It may
damage data on the SDHC/SD memory card.
• In the following cases, copying will not start even
when the [COPY] button is clicked.
• When the end time is set earlier than the start
time
• Copying will be performed even when the remaining capacity of the destination media is not
enough for copying.
• When clicking the button in the [COPY] box during
copying, the confirmation window for cancellation
of the current copying will be displayed. It is possible to cancel the current copying on this window.
105
Download recorded images currently being played
Designate the start point and the end point of recorded images currently being played and download images to
a PC.
When downloading recorded images, recorded images and audio will be downloaded as an image data file (filename.n3r) and an audio data file (filename.n3a) respectively. Refer to page 108 for information on how to play
downloaded recorded images.
Important:
• When downloading, the available disk capacity must be 2 or more times the size of the file to be downloaded*.* It is a feature of Internet Explorer.
• When download is canceled in the process of the download, it may be impossible to properly play the
downloaded file on a PC.
Step 1
Display the top page of the operation window.
(☞ Page 77)
Step 2
Operation can be performed when recorded images
are being played on a 1-screen.
Click the [Start] button in the download operation
area at the desired point to set as the start point of
the recorded images to be downloaded, or enter time
and date in the "Start" box directly.
Step 3
Click the [End] button in the download operation area
at the desired point to set as the end point of the
recorded images to be downloaded, or enter time and
date in the "End" box directly.
→ The time and date of the end point will be displayed next to the [End] button. It is possible to
designate up to 20 minutes of the time range per
download.
Step 4
Click the [Download] button.
→ The time and date of the start point will be displayed next to the [Start] button.
106
→ The "Download" window will be displayed.
Step 5
Click the [OK] button after selecting "With audio" or
"Without audio" to determine whether or not to download images with audio and "ON" or "OFF" for "Alter
detect" to determine whether or not to attach an
alteration detection code to recorded images to be
downloaded.
→ The file download window will be displayed.
Step 6
Click the [Save] button.
→ The "Save As" window will be displayed.
Note:
• When "With audio" is selected, the "Download"
window will be displayed again after the download
is complete.
Step 7
Create a new folder in the desired directory and click
the [Save] button.
→ Recorded images and audio will be downloaded
as an image data file (filename.n3r) and an audio
data file (filename.n3a) respectively.
Note:
• If a message is displayed on the information bar,
see page 127.
• When playing on a multiscreen, it is impossible to
download recorded images.
107
Play the copied/downloaded recorded images
When recorded images are copied/downloaded, recorded images and audio will be copied/downloaded as an
image data file (filename.n3r) and an audio data file (filename.n3a) respectively into the copy/download destination. It is possible to play, save and print the copied/downloaded data files using the dedicated viewer software.
Viewer software to play recorded images copied on an SDHC/
SD memory card or a DVD
Double-click the executable file (HD_Viewer.exe) to launch the viewer software. The executable folder is copied
in the following folder together with recorded images.
Copy destination: S
DHC/SD memory card
[Drive]: \PRIVATE\MEIGROUP\PSS\HDR\HD_Viewer
Copy destination: D
VD
[Drive]: \
Refer to page 111 for how to use the viewer software.
Note:
• The viewer software copied onto an SDHC/SD memory card or a DVD is software that can be launched
without installation on a PC. When copying the viewer software to the other folder, copy all the files.
Viewer software to play recorded images downloaded using a
web browser
It is necessary to install the viewer software to a PC to play downloaded recorded images using the viewer software.
Download the viewer software using a web browser and install it on a PC to use the viewer software to play
recorded images.
• Donload the viewer software (+ page 108)
• Install the viewer software (+ page 109)
Refer to page 111 for how to use the viewer software.
Download the viewer software
Step 1
Click the [Viewer] button in the download operation
area.
→ The "File download" window will be displayed.
108
Step 2
Click the [Save] button.
→ The "Save As" window will be displayed.
Step 3
Create a new folder in the desired directory and click
the [Save] button.
→ The viewer software will be downloaded.
Install the viewer software
When the older version of the viewer software is installed on a PC, uninstall it before installing the newer version.
Step 1
Double-click the downloaded file (hdrsetup.exe).
→ The install wizard window will be displayed.
Step 3
Complete the user information on the user information entry window, and then click the [Next] button.
→ The setup type section radio buttons will be displayed.
User information entry is not required to proceed.
Step 2
Select "Agree", and then click the [Next] button.
→ The user information entry fields will be displayed.
Step 4
Select "All", and then click the [Next] button.
→ The wizard is ready to install.
109
Step 5
Click the [Install] button.
→ When the installation is complete, the installation
completion window will be displayed.
Step 6
Click the [Complete] button.
→ Installation of the viewer software is complete.
Uninstall the viewer software
For Windows XP
Step 1
Open "Add or Remove Programs" in "Control Panel".
Step 2
Select "HD_Viewer" (the program to be deleted) from
the presently installed programs, and then click the
[Remove] button.
→ The uninstallation program will be launched.
For Windows Vista
Step 1
Open "The uninstall program" in "Control Panel".
Step 2
Select "HD_Viewer" (the program to be deleted) from
the presently installed programs, and then right-click
on it. Select "Uninstall and Change" from the displayed right-click menu.
→ The uninstallation program will be launched.
Step 3
Complete the uninstallation by following the instructions of the wizard.
110
Step 3
Complete the uninstallation by following the instructions of the wizard.
Play the downloaded recorded images
Step 1
Select "HD_Viewer" from the start menu ("Start" – "All
programs" – "Panasonic" – "HD_Viewer") or doubleclick the HD_Viewer icon on the desktop.
Step 4
Click the [Open] button.
→ The image data will be displayed.
Step 5
Step 2
Click the [Open file] button.
→ The "Open" window will be displayed.
Step 3
Select the downloaded image data file (filename.n3r).
• It is possible to select two files or more (up to 32
files) by clicking the desired files while holding
down the [Ctrl] key or the [Shift] key.
• To play audio data, the image data file "filename.
n3r" and the audio data file "filename.n3a" are
necessary to be saved in the same folder.
Click the [PLAY] button.
When playback finishes, a black screen will be displayed and paused.
Note:
• It is possible to open an image file (extension: n3r)
by dragging and dropping it onto the window of
the viewer software.
• When two files or more are selected, it is possible
to skip to play the previous/next file by clicking
the [Previous file]/[Next file] buttons.
• When the [Zoom in] button is clicked, the displayed image will be enlarged two times.
• When performance of the PC in use is low, images
may not be played smoothly.
• It is possible to turn on/off audio by clicking the
[Speaker (audio on)] button and the [Speaker
(audio off)] button.
• When a web browser, the viewer software and the
HDD Viewer are running at the same time, audio
may not be heard correctly.
• Run only one of the web browser, the viewer software and the HDD viewer software to play audio.
• Images may sometimes not be played synchronized with audio.
111
Save the displayed image
The currently displayed image can be saved on a PC as a JPEG file.
Step 1
Start operation when playing images using the viewer
software.
Step 3
Click the [SAVE] button.
→ The "Save As" window will be displayed.
Step 4
Enter the file name, and then select "JPEG (*.jpg)" for
"Save as type".
Step 5
Step 2
Click the [PAUSE] button.
Designate the folder and click the [Save] button.
→ The image will be saved.
Print the displayed image
The image paused using the viewer software can be printed.
Step 1
Step 2
Start operation when playing images using the viewer
software.
Click the [PAUSE] button when the desired image is
displayed.
Step 3
Click the [PRINT] button.
When printing an image whose extension is "n3r", the
time and date when paused using the viewer software
will be printed.
112
Alteration detection
It is possible to detect the alteration of the data if a code for the alteration detection has been attached to the
downloaded data. Refer to the Installation Guide for how to attach the alteration detection code to data.
Step 1
Launch the viewer software and display the following
window.
Step 4
Click the [Open] button.
→ The first frame of the image data will be displayed
and paused.
Step 2
Click the [Open file] button.
→ The "Open file" window will be displayed.
Step 5
Click the [ALT CHECK] button.
→ The alteration detection will start.
The [ALT CHECK] button will be displayed only when
the image data with the alteration detection code is
displayed.
[OK (Not Altered)]: No alteration was detected.
[NG (Altered)]: Alteration was detected.
Step 3
Select the downloaded image data file (filename.n3r).
113
Operate the camera
It is possible to operate the following camera operations when displaying live images from a combination camera.
Panning/Tilting:
Adjust the horizontal/vertical position of images from the camera.
Zoom:
Zoom in/out images from the camera
Focus:
Adjust the focus of the camera.
Iris:
Adjust the lens iris of the camera
Preset position function:Register preset positions and move the camera direction to the registered preset
position.
Auto function:
Activate the auto function of the camera according to the settings of the camera
Note:
• The camera operation can be performed only when displaying images on a 1-screen on monitor 1.
• Depending on the model of the camera, some operations may not work.
• When a user with a higher user priority is operating at the same time, it may be impossible to operate the
camera. Refer to the Installation Guide for further information about the priority.
• Refer to page 118 for how to display the setup page of the camera and configure the settings of the camera.
Panning/Tilting
Adjust the horizontal/vertical position of images from the camera.
Step 1
Display the top page of the operation window.
(☞ Page 77)
Step 2
Display live images from the camera on a 1-screen,
and then click the [CAM] tab.
→ The [CAM] tab will be displayed.
114
Step 3
Adjust the horizontal position and the vertical position
of the camera (direction) by any of the following.
Control buttons: Click to move (pan/tilt) a camera in
the clicked direction.
Control pad: Click to move (pan/tilt) a camera in the
clicked direction. Panning/tilting speed will
become faster if a clicked point gets farther from
the center point of the control pad.
Image display area: Click the desired point to be
located at the center of the angular field of view.
The camera will move to locate the clicked point
as the center point in the image display area.
Zooming
Zoom in/out images from the camera. Depending on the models of the connected cameras, the available zooming factors may be different. Refer to the operating instructions of the camera for further information.
Step 1
Display the [CAM] tab. (☞ Page 114)
Step 2
Zooming can be adjusted by clicking the [–] button
(wide) or the [+] button (tele) in the [Zoom] box.
Note:
• It is possible to adjust zooming using the mouse
wheel.
Focus adjustment
Adjust the focus of the camera. The auto focus function is available.
Step 1
Display the [CAM] tab. (☞ Page 114)
Step 2
Focusing can be adjusted by clicking the [Near] button or the [Far] button in the [Focus] box.
The auto focus function can be performed by clicking
the [Auto] button.
115
Iris adjustment
Adjust the lens iris of the camera
Step 1
Display the [CAM] tab. (☞ Page 114)
Step 2
The brightness (lens aperture) can be adjusted by
clicking the [–] (darker) button or the [+] (brighter) button in the [Brightness] box. It is possible to reset the
adjusted brightness by clicking the [Reset] button.
Preset position function
It is possible to register preset positions of the camera and to move the camera direction to the registered preset positions.
Step 1
Display the [CAM] tab. (☞ Page 114)
Step 2
Click the [C] button, and then select the preset position number from the following.
Home, 1 - 256
Step 3
When the [Register] button is clicked, the confirmation window will be displayed. The camera direction
will be registered and assigned to the selected preset
position number by clicking the [OK] button on the
displayed confirmation window.
When the [Move] button is clicked, the camera direction will move to the preset position corresponding to
the selected preset position number.
Note:
• It is impossible to register the position as "Home".
• Only users whose user level is allowed to control
cameras or to configure the settings can register
the preset positions.
• Refer to the operating instructions of the camera
for the available preset position numbers.
116
Auto functions (Auto panning, etc.)
Activate the auto function of the camera according to the settings of the camera.
Step 1
Display the [CAM] tab. (☞ Page 114)
Step 2
Click the [C] button in the [Auto mode] box, and then
select the desired auto function from the following.
Step 4
Click the [Stop] button to turn off the auto mode function.
Note:
• Each function of the auto mode is available only
for combination cameras. Refer to the operating
instructions of the camera for further information
about the auto mode function of the camera.
Auto track: The camera will automatically track an
object moving on the screen.
Auto pan: The camera direction will automatically
move (pan) between the start point and end point
set in advance.
Preset sequence: The camera will move (pan) to the
preset positions registered in advance in order of
the preset position number (numerical order).
Sort: The camera will move (pan) counterclockwise to
the preset positions registered in advance in order
of the closest from the current position.
Patrol 1 - 4: The camera will trace the manually
recorded panning pattern.
Step 3
Click the [Start] button to start the selected auto
mode function.
117
Operate the setup menu of the camera
To control the camera connected to the recorder, it is necessary in advance to configure the settings of the
camera function. The settings of the camera function can be configured on the setup menu of the camera.
It is possible to call the setup menu of the camera from a PC. The contents of the setup menu and the operation procedures vary depending on the model of the camera. Refer to the operating instructions of the camera
for further information.
The following are descriptions of how to display the setup menu of the camera and of how to perform the basic
operation.
To operate the setup menu of the camera, use the folStep 1
lowing buttons.
Display the [CAM] tab. (☞ Page 114)
Step 2
Click the [OPEN] button in the [Menu] box.
Move the cursor
Change parameters
Apply the set value or
move to the lower level
menu
Arrows button (C D A B)
Arrows button (A B)
[SET] button
Move to the higher level [SETUP/ESC] button
menu
→ The setup window will be displayed and the setup
menu of the camera will be displayed in the image
display area.
Display the special
menu
Click the [Reset] button
after moving the cursor
onto [SPECIAL] of the
setup menu of the camera.
Reset the camera
Click the [Reset all] button
after moving the cursor
onto [CAMERA RESET] of
the setup menu of the camera.
Step 4
To close the setup menu of the camera, click the
[Close] button.
Step 3
Operate the setup menu of the camera.
118
Note:
• When the camera has the refresh function
(REFRESH), it is possible to execute the refresh
function by clicking the [Reset] button.
• The camera setup window may sometimes remain
displayed after the setup menu of the camera is
closed such as when resetting the camera, etc. In
this case, click the [Close] button of the camera
setup window.
• Only users whose user level is allowed to control
cameras or to configure the settings can configure
the settings of the camera.
Disk management
On the [Disk] tab of "Maintenance" of the setup menu, it is possible to perform operation relating to the hard
disk drives in the recorder or in an optional extension unit, DVD and SDHC/SD memory card.
The following are descriptions of how to delete images recorded on the hard disk drives and of how to format
(initialize) a DVD or an SDHC/SD memory card from a PC.
Delete images recorded on the hard disk drives manually
The following are descriptions of how to manually delete images recorded in the normal recording area and the
event recording area on the hard disk drives in the recorder.
By designating a time and date, all the images recorded until the day before the designated time and date will
be deleted. It is useful to delete unnecessary images.
Important:
• Note that the deleted images cannot be recovered and the remaining disk capacity will not increase even
though deletion is performed.
Note:
• It is possible to delete recorded images automatically when the set days have passed from the day the
image was recorded (HDD auto deletion). Refer to the Installation Guide for further information.
Step 1
Display the top page of the operation window.
(☞ Page 77)
Step 3
Click the [Maintenance] button.
→ The [Product information] tab of "Maintenance" of
the setup menu will be displayed.
Step 2
Click the [Setup] button.
Step 4
Click the [Disk] tab.
→ The [Disk] tab will be displayed.
→ The setup menu will be displayed.
119
Step 5
Set time and date after selecting "NML rec." or "EVT
rec." for "Data delete".
Images recorded until the day before the set date are
subject to deletion.
Step 6
Click the [Execute] button.
→ The confirmation window will be displayed.
Step 7
Click the [OK] button.
→ Images recorded until the day before the set date
will be deleted.
120
Format (initialize) an SDHC/SD memory card
To copy recorded images onto an SDHC/SD memory card, it is necessary in advance to insert an SDHC/SD
memory card into the card slot of the recorder and format it. To delete recorded images on the SDHC/SD memory card, format the SDHC/SD memory card again.
Important:
• When an SDHC/SD memory card is formatted, all recorded images and setup data on the SDHC/SD memory card will be deleted. It is impossible to recover the deleted images and audio.
• It is impossible to copy record images onto an SDHC/SD memory card formatted on a PC. Format the
SDHC/
SD memory card on the recorder.
Step 1
Display the [Disk] tab. (☞ Pages 119 - 120)
Step 2
Click the [Execute] button of "SD card format".
→ The confirmation window will be displayed.
Step 3
Click the [Execute] button.
→ Formatting of the SDHC/SD memory card will
start.
Important:
• Do not turn off the power of the recorder in the
process of formatting.
121
Notification by e-mail
Alarm mail
A link address to the alarm image that is saved in the recorder contained in an alarm mail as follows.
Contents of the alarm mail:
In HD600 (192.168.0.250), alarm was occurred.
Alarm date:
xx-xxx-xxxx xx:xx:xx GMT xx:xx (Example: 01-JAN-2009 GMT +0:00)
Cause of alarm: Displays an event type and a camera channel or an alarm number (Example:
VMD ALARM 5ch)
File name of alarm image:
The file name of the image attached to an e-mail.
URL: http://192.168.0.250/
122
Warning mail
The following mail will be sent to notify of a trouble occurrence to a registered address when the trouble occurs.
HD600 (192.168.0.250) STATUS REPORT
DATE: 2009-1-1 12:00:00
STATUS: The description of the trouble will be displayed. (Example: MAIN THERMAL
ERROR)
Indication
Description
DATE
Time and date when the trouble occurred will be displayed.
STATUS
The description of the trouble will be displayed.
THERMAL ERROR
Thermal error:
ALTERED
Alteration detection:
Lost of the recording area: "V-ERROR EVT" indicates a lost of the event recording area.
"V-ERROR NML" indicates a lost of the normal recording area.
"V-ERROR CPY" indicates a lost of the copy area.
"V-ERROR PRE-XX" indicates a lost of the pre-event recording
area (XX indicates camera channel number).
HDD write error detection: DISK ERROR XX
XX indicates disk number (sequential serial number)
DISK WARNING XX
HDD S.M.A.R.T. warning:
XX indicates disk number (sequential serial number)
HDD remaining capacity
<except FULL>
warning*1:
HDD-NORMAL CAPACITY REMAINS **%
HDD-EVENT CAPACITY REMAINS **%
** indicates the set value (%) - 1
<FULL>
HDD-NORMAL IS FULL
HDD-EVENT IS FULL
HDD hour meter warning:
HDD HOUR METER WARNING
Power outage detection:
POWER LOSS
Auto remove of link:
LOGICALLY REMOVED HDD XX
XX indicates disk number (sequential serial number)
1DOWN
FAN ERROR
Fan error:
MEDIUM ERROR
Copy media error:
UNDEFINED ERROR
Other errors:
HDD-ERROR
HDD error:
RAID 5 RECOVERY FAILURE X-Y
RAID recovery failure:
x indicates unit number, y indicates disk number
HDD remaining capacity warning
A warning mail with the <except FULL> content will be sent when the remaining disk capacity becomes less
than the set value for "HDD capacity warning" in the "Maintenance" menu. After a warning mail is sent, a warning mail with the <except FULL> content will be sent each time 1% of the remaining disk capacity is reduced,
and a warning mail with the <FULL> content will be sent when there is no remaining disk capacity.
123
Troubleshooting
Before asking for repairs, check the symptoms with the following table.
Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a
problem is not described below.
Symptom
Cause/solution
• Is the Ethernet cable firmly connected to the 10BASET/100BASE-TX port?
Confirm the cable is firmly connected.
_
• Is the connection indicator of the 10BASE-T/-100BASETX port lit?
When it is not lit, connection to a LAN is not established
or a network is not working correctly.
Confirm that the connection indicator of the 10BASET/100BASE-TX port is lit. Refer to the system administrator if it is not lit.
_
• Is the valid IP address set?
Refer to a system administrator for further information
about the settings.
Cannot access from the
browser.
124
Reference
pages
• Are you accessing the wrong IP address?
Check the connection as follows:
>ping "IP address of this recorder"
If there is reply from the recorder, the connection is normal. If not, check the settings of the IP address and the
subnet mask.
Installation
Guide
_
• Is the same IP address provided to other devices?
Refer to a system administrator for further information
about the settings.
Installation
Guide
• Are there contradictions between the address and the
network subnet to be accessed?
When the recorder and the client (PC) are on the same
subnet, is the same subnet set for the IP addresses of
the recorder and the PC?
Or is "Use Proxy Server" for the settings of the browser
checked?
When accessing the recorder in the same subnet, entering the address of the recorder in the "Don’t Use Proxy
For These Addresses" box is recommended.
Installation
Guide
Symptom
Cause/solution
Reference
pages
The image displayed on
the browser is not being
refreshed.
• Depending on the traffic of the network, there might be
difficulties in displaying images. Press the [F5] button
on the keyboard to request images.
_
Image refresh of the
browser is slow.
Response of the
browser is slow.
• Isn't the network traffic heavy?
These symptoms may occur when the network traffic is
heavy.
A pop-up is not
displayed on the
browser.
• It may be possible that a pop-up blocker other than
Internet Explorer is activating. Check the installed software and cancel the pop-up blocker.
Cannot close the
authentication window
displayed when
displaying the basic
operation window.
• Are the correct user name and password entered?
Confirm the correct user name and password.
Audio is interrupted
during playback using
the viewer software.
• When playing images recorded at a higher recording
rate, audio may sometimes be played interrupted.
Cannot play the
downloaded recorded
images.
• When any setting of the setup menu has been changed
during the download, the download will be canceled
automatically. In this case, the downloaded file is not a
complete file and it is impossible to play it.
No alarm action is taken.
• Isn't the alarm suspended?
Cancel the alarm suspension.
An error message is
displayed when trying to
launch the viewer
software by dragging
and dropping multiple
files onto it.
• Try to launch by dragging and dropping fewer files or
launch the viwer software first by double-clicking.
_
_
Installation
Guide
_
_
58, 102
_
125
Symptom
When displaying images
on a multi-screen,
images from two
cameras or more are
displayed in sequence
on a screen of multiscreen
126
Cause/solution
Reference
pages
• This may occur due to the display adapter and driver
combination.
When this occurred, update the driver of the display
adapter to the latest version first.
If updating the driver does not solve the problem, adjust
the hardware acceleration as follows.
The following are descriptions when using Windows XP.
1. After closing all web browser windows, right-click on
the desktop and select "Properties" from the displayed pop-up menu.
2. Select "Settings" from "Display Properties", and
then click the [Advanced] button.
3. Click the [Troubleshoot] tab and disable the
DirectDraw acceleration by adjusting the level of
"Hardware acceleration"
_
Message displayed on the information bar
Depending on the operation system in use, the following may occur. Follow the instructions below when the following occurred. By performing the following solutions, other applications may not be affected.
The "Information Bar" expressed in the following symptom and solutions will be displayed just below the
address bar only when there is information to communicate.
Information Bar
Symptom
Solution
The following message
is displayed on the
information bar.
"Pop-up blocked. To see
this pop-up or additional
options, click here…"
• Click the information bar and select "Always Allow
Pop-ups from This Site". The dialog window saying
"Allow pop-ups from this site?" will be displayed. Click
the [Yes] button.
The following message
is displayed on the
information bar.
"This site might require
the following Active X
control:
'wvasetup2.exe' from
'Panasonic Corpora­tion'.
Click here to install..."
• Click the information bar and select "Install ActiveX
Control...".
Click the "Install" button on the displayed "Security
Warning" window.
Reference
pages
–
–
127
Symptom
Cause/solution
Reference
pages
The following message
is displayed on the
information bar.
"To help protect your
security, Internet
Explorer blocked this
site from downloading
files to your computer.
Click here for options..."
• Click the information bar and select "Download File...".
When downloading fails even though you selected
"Download File...", perform the following operation.
Click "Internet Options" on the Tools menu of Internet
Explorer, and then click the [Security] tab. Then, click
the [Custom Level…] button to open the "Security
Setting" window. Under "Downloads", select "Enable"
for "Automatic prompting for file downloads". Then
click the [OK] button.
When the warning window is displayed, click the [Yes]
button.
–
The following message
is displayed on the
information bar when
tried to execute a
downloaded file.
"The publisher could not
be verified. Are you sure
you want to run this
software?"
Unnecessary status bar
or scroll bar is displayed
on the pop-up window.
An URL is displayed on
the pop-up title bar and
the title is not displayed
completely.
128
• Click the [Run] button.
–
• Click "Internet Options" on the Tools menu of Internet
Explorer, and then click the [Security] tab. Then, click
the [Custom Level…] button to open the "Security
Setting" window. Under "Miscellaneous", select
"Enable" for "Allow script-initiated windows without
size or position constraints". Click the [OK] button.
When the warning window is displayed, click the [Yes]
button.
–
Glossary
ActiveX Control
A software module developed by Microsoft. It is used to
add functions, downloaded from a web server via the
Internet or intranet, to Internet Explorer. The recorder
uses it to display video.
DDNS (Dynamic DNS)
A technology for dynamically translating DNS server
information to enable the transfer of only differences in
information between DNS servers (refer to "DNS"). This
reduces the data transfer amount necessary for updating information on the DNS server and reduces the load
on the network.
DHCP (Dynamic Host Configuration Protocol)
A protocol that enables PCs to automatically get information from a server needed for accessing a network.
DNS (Domain Name System)
The long lists of numbers or IP addresses that are used
in network environments are difficult to remember, which
makes them impractical. This is why PCs are given an
easy-to-follow name (domain name) which is converted
to an IP address before they are communicated with.
The DNS provides translation between domain names
and IP addresses.
NTP (Network Time Protocol)
A protocol developed to accurately maintain time among
hosts on the Internet.
PS·Data
Stands for Panasonic Security Data. When PS·Data
compatible devices are connected using a RS485 cable,
it is possible to operate the recorder from them or to
operate them from the recorder.
QVGA
Resolution with 320 x 240 pixels.
POP 3
A protocol for receiving e-mail stored on a server on the
Internet or an Intranet.
POP 3 Server
A server that supports POP3, currently the most widely
used mail sending protocol.
RAID (RAID5)
A protocol that is commonly used for transferring files
over the Internet.
An abbreviation for Redundant Arrays of Inexpensive
Disks 5 that provides a highly reliable disk array by distributing access over multiple HDDs, increasing both
speed and capacity. Even if one HDD has errors, data
can be recovered based on error correction data recorded on other HDDs. (RAID 5 is used when 3 or more
HDDs are connected. However, when 2 or more HDDs
simultaneously have errors, data cannot be recovered.)
HDD
RAID (RAID6)
FTP (File Transfer Protocol)
Stands for Hard Disk Drive (a high capacity storage
device). This product uses hard disk drives instead of
video tapes for recording.
IP address (Internet Protocol Address)
The identification number assigned to PCs connected
via IP networks such as the Internet or an Intranet, or to
individual communications devices. Do not assign the
same address to multiple devices, especially on the
Internet.
LAN (Local Area Network)
A communications network for connecting PCs, printers
and other network devices in a relatively small area such
as in a building or floor of a building or campus in which
data is transferred.
MAC address (Media Access Control address)
Fixed physical address assigned to network devices.
Devices send and receive data based on this.
An abbreviation for Redundant Arrays of Inexpensive
Disks 6 that provides a highly reliable disk array by distributing access over multiple HDDs, increasing both
speed and capacity. Even if two HDDs have errors, data
can be recovered based on error correction data recorded on other HDDs. (RAID 6 is used when 4 or more
HDDs are connected. However, when 3 or more HDDs
simultaneously have errors, data cannot be recovered.)
RS485
When this product is connected to the camera using the
video cable and the RS485 cable, the electrical characteristics of RS485 can make this product to control the
camera.
SD memory card (Secure Digital memory card)
A small, lightweight and removable storage device having a large capacity.
SMTP (Simple Mail Transfer Protocol)
H.264
One of the compression methods of moving images.
A protocol for sending e-mail on the Internet or an
Intranet. Used when transferring mail between servers or
when clients send mail to the server.
NAT (Network Address Translation)
SMTP server
A technology for sharing a single global address
between two or more PCs.
A server that supports SMTP, currently the most widely
used mail transfer protocol.
129
SMTP authentication (Simple Mail Transfer
Protocol authentication)
SMTP mail transfer protocol appended with a user
authentication function. It authenticates passwords and
user accounts between SMTP servers and clients. Both
SMTP servers and clients must support SMTP authentication.
SNMP (Simple Network Management Protocol)
A protocol for monitoring and managing networked
communications devices, such as routers, PCs, cameras
and Network Disk Recorders via a network.
TCP/IP (Transmission Control Protocol/Internet
Protocol)
The standard network protocol for the Internet and
Intranets.
URL (Uniform Resource Locator)
An address for locating information resources such as
documents and images on the Internet.
VGA (Video Graphic Array)
Resolution with 640 x 480 pixels.
VPN
Service used to make public lines as private lines. Many
companies are using this as a new medium of communication instead of costly private lines. Depending on service, VPN also provides a secure line using authentication technology and encryption.
WAN
Allows physically separated PCs, such as between the
head office and a branch office, to connect via a phone
line or private line data for exchanging.
Internet
A global system of interconnected computer networks. It
is required to contract with an Internet service provider
to connect to the Internet.
Event
Indicates an occurrence that causes the recorder to take
an event action. Events include terminal alarm, command alarm, video motion detection (VMD), video loss,
camera site alarm, etc.
Event action
A specific action to be taken at an event occurrence.
There are 2 event action modes: the alarm mode (ALM)
and the activity detection mode (ADM). The event action
to be taken at an event occurrence varies depending on
the selected event action mode. When "ALM" is selected, an event occurrence will be informed outside by displaying a notification on the monitor, lighting the LED,
sounding the buzzer, etc. (alarm action) When "ADM" is
selected, an event occurrence will not be informed outside and only recording and filing of event logs will be
performed. When "Off" is selected, only filing of event
logs will be performed.
130
Event recording
Recording automatically performed at an event occurrence.
Event recording includes the pre-event recording
(records images before an event occurs) and post-event
recording (records images after an event occurs).
Web browser
A software application which enables to display web
pages. Microsoft Internet Explorer® is one of the most
widely used web browser.
Video Motion Detection (VMD)
The function that automatically detects motion in images. In this product, it is possible to record images when
detecting motion in live images and also to search for
time and date of motion detection in recorded images
(VMD search).
External recording mode
Use the external switch connected to the recorder to
switch to time tables such as the recording settings and
event action settings.
Image quality
This product compresses and records images from cameras. Image quality varies depending on the compression rate. In this product, the following image qualities
(compression rates) are available and they can be
selected for each camera channel and each recording
mode. XF (Extra Fine: Highest quality), SF (Super Fine:
Super high quality), FQ (Fine: High quality), NQ (Normal:
Standard quality),EX (Extended: Low quality)
Resolution (Image capture size)
Generally indicates the smoothness of the image quality
and the size of the images recorded from the camera. In
this product, it indicates the number of dots used in the
image displayed on the screen. A horizontal resolution of
720 dots and a vertical resolution of 480 dots is
expressed as 720-480.
Camera operation
Operations of the camera connected to the recorder
such as pan and tilt (horizontal and vertical position),
zooming, focusing, brightness (iris adjustment), preset
motions (movement towards a set horizontal and vertical
position) and auto functions (automatic camera rotation,
etc.).
Emergency recording
Gives priority to recording video and audio when an
emergency occurs using the external switch connected
to the recorder.
Global (IP) address
IP address assigned to each device connected to the
Internet that is equivalent to an address on the Internet.
IP address is required for Internet communications. In
contrast, IP address freely available to assigned to each
device within an intranet is called as "Private (IP)
address".
Default gateway
Network device used as a gateway for networks, such
as a local network, to access PCs on an external network. Data is sent using the default gateway if a gateway is not specified in the destination IP address.
Cable compensation
Generally, video signals will be attenuated when using a
long cable to connect between the recorder and the
camera. The cable compensation function compensates
this attenuation. In this product, the cable compensation
function compensates video signals from the cameras
connected to the video input connectors 1 - 8 when
using the WJ-HD616K (the video input connectors 1 - 16
when using the WJ-HD716K).
Combination camera (PTZ camera)
Indicates a camera with the panning/tilting and zooming
function. Also known as PTZ camera.
Subnet
A small network used as a unit of administration when a
larger network is divided into smaller networks. Large
networks in corporations, for example, the network can
be broken down into smaller networks called "subnets"
to make the network more manageable and lines used
more efficiently. In this case, these smaller networks are
called subnets.
Subnet mask/Subnet prefix length
Subnet mask consists of 32-bit numeric values.
According to the values, devices can determine which
part of the address is the network address and which
part is the host address.
Sequence
The function that can sequentially display images from
cameras in order set in advance. In this product, the
sequence can be performed during displaying live images.
Schedule recording
Function that automatically starts video and audio
recording on a preset time schedule.
Multiscreen display
This product can display images from multiple camera
channels simultaneously while displaying live images or
playback images. Displaying of images from 4 cameras
or from 16 cameras simultaneously is called as
"4-screen display" or "16-screen display" respectively.
Electronic zoom
The function that enlarges live images and playback
images during playback. The electronic zoom enlarges
the images by the recorder and is separate from the
zoom function included as part of the camera operations
for enlarged images.
Coaxial communication
This method is used to control the camera using the
camera control signal through the cable connecting
between the recorder and the camera. In this product,
the cameras connected to the video input connectors 1
- 8 (1 - 16 for WJ-HD716K) can be connected using the
coaxial communication.
Disk configuration (Disk config.)
It is necessary to configure the HDD settings after
replacing, removing, or adding a HDD. "Disk config." is
the menu for configuring the HDD.
Half duplex
Communications method that switches between sending and receiving using a single communications line.
Bit rate
Indicates how many bits of data can be processed or
transmitted in a unit of time. Generally, the units are in
bps, or bits per second. Used to indicate the compression rate of video and audio data, and how much data a
communications line can send and receive in 1 second.
Firewall
A type of security used when accessing outside networks like the Internet. A PC is used to prevent computers outside a local network from accessing the network.
Private (IP) address
DNS servers usually have more than 2 systems and the
secondary server is the sub system.
If there is trouble with the primary server, the secondary
server takes over.
IP address assigned when connecting primarily to LAN.
Private IP addresses can be assigned freely on a network and do not require a formal application. However,
because private IP addresses cannot be used to access
the Internet, a router or other device it is necessary to
assign a global IP address.
Full duplex
Primary (DNS) server
Secondary (DNS) server
Communications method that allows simultaneous
sending and receiving by transmitting in both directions
using an independent sending line and receiving line.
Time zone
A time zone is a region or a country that has uniform
standard time.
DNS servers usually have more than 2 systems and the
primary server is the main system.
Plug-in software
Small programs used to add functions to application
software.
Broadband router
Router used to access the Internet via high-speed ADSL
or fiber optic lines.
131
Protocol
A set of rules that allows the exchange of data amongst
different types PCs with information.
The Internet uses the TCP/IP protocol as its base and
information is transferred following http and ftp protocols depending on the application.
Port number
A sub address set below the IP address to connect multiple parties simultaneously for communication (TCP,
UDP, etc.) on the Internet.
Hold playback speed
It is possible to change the playback speed during playback by rotating the shuttle ring. The hold playback
speed function can keep the playback speed even after
releasing the shuttle ring.
Manual recording
Click the [Recording] button and the [Recording stop]
button to manually start and stop recording of video and
audio.
Router
Placed in between different networks, a router sends
data to the proper destination via network. If data on the
network is addressed to an external network, routers
send the data to the outside of the network after judging
the optimum sending route.
Recording rate (ips)
Unit that determines the smoothness when recorded
images are played back. "ips" indicates the number of
recorded frames in 1 second. When the recording rate is
higher, the playback is smoother, but available recording
time is reduced.
132
For U.S., Canadian and Puerto Rican fields:
For European and other fields:
Panasonic System Solutions Company,
Unit Company of Panasonic Corporation of North America
http://panasonic.net
www.panasonic.com/business/
For customer support, call 1.800.528.6747
Three Panasonic Way 2H-2, Secaucus, New Jersey 07094
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada
(905)624-5010
http://www.panasonic.ca
Importer's name and address to follow EU rules:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg F.R.Germany
Panasonic Sales Company
Panasonic Puerto Rico, Inc.
AVE 65de Inf, Km 9.5 Carolina, PR 00985
(787)750-4300
© Panasonic Corporation 2009
N0609-1089
3TR006117BZB
Printed in China
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
