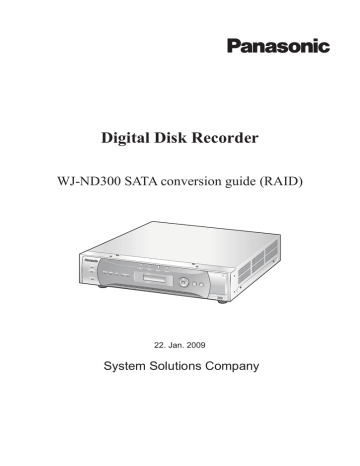

Digital Disk Recorder
WJ-ND300 SATA conversion guide (RAID)
ALARM
ALARM
SUSPENDED
HDD 1
ERROR
TIMER
REC
HDD 2
HDD 3
HDD 4
1-LINK/AC
T-2
PULL
OPERATE
ESC
SET
Network Disc
WJ-ND
Recorder
300A
22. Jan. 2009
System Solutions Company
WJ-ND300 SATA conversion guide (RAID)
Maintenance guide
1. Outline
This guide describes how to convert the hard disk drive installed in the WJ-ND300, ND300A from PATA type to SATA type.
2. Preparation
Following items are required for the SATA conversion.
(1) Screwdriver
(2) Wrench for hexagonal nut (5.5m/m)
(3) SATA HDD: Refet to the HDD compatibility chart in the BIG-WEB site.
(4) SATA conversion kit (0E0A0061AA)
Part name
SATA Board Ass’y
Part number
JHE30JKY3A
Quantity
2
K1V224Y20004 (SATA: RED, Power: RED/BLUE)
SATA cables
K1V224Y20005 (SATA: GLAY, Power: RED/YELLOW)
K1V224Y20004 (SATA: RED, Power: WHITE/PURPLE)
1 each
K1V224Y20004 (SATA: GLAY, Power: WHITE/ORANGE)
Cord clamp
FCA16
9
SATA board mounting bracket
3CA006051AAA
1
Hexagonal spacer 7 mm
1CJ001311AAA
4
Screw with washer
XYN3+F8FJ
4
Caution label
3PC001235AAA
1
HDD Caution label
3PD003138BAA
1
SATA Cable label
3PD003960AAA
1
SATA label, small (for front)
3PD003840AAA
1
SATA label, large (for top)
3PD003841AAA
4
SATA conversion leaflet
ND300PSATARB
1
Panasonic
2
ND300_SATAConversionGuideR_A
WJ-ND300 SATA conversion guide (RAID)
Maintenance guide
3. Replacement Procedure
Important +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
• Power off the unit and disconnect from the mains power supply before carrying out this work.
• Do not detach the cable connecting the unit and the front panel while the HDD status indicators are still lit or until 30 seconds have
passed since the HDD status indicators went off.
• Protect the hard disk drives from static electricity.
• Do not stack them, or keep them upright.
• Do not use an electric screwdriver to fix them. (Tightening torque: Approx. 0.49 N · m (5 kgf · cm))
• Avoid rapid changes in the temperature/humidity to prevent condensation. (Acceptable change: within 15°C/h (59 °F/h))
+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
(1) Open the connectors cover on the front panel and remove the
fixing screw.
Detach the front panel by sliding it after removing the screw.
AL
AR
M
SU ALAR
SP M
EN
DE
D
ER
OP
ER
AT
E
RO
R
TIM
ER
RE
C
LIN
K1
HD
LIN
K2
D
1
HD
D
2
HD
D
3
HD
D
4
ES
C
SE
T
Ne
two
Screw
rk Dis
WJ
c Re
corde
-ND
r
300
Connectorscover
(2) Disconnect the connector from the front panel.
Front panel
connector
(3) Disconnect four ATA cables and four HDD power cables
of all HDDs.
Note: When disconnecting the ATA cables, pull the pull-ring
slowly and straightforward.
Pull-ring
Panasonic
3
ND300_SATAConversionGuideR_A
WJ-ND300 SATA conversion guide (RAID)
Maintenance guide
Important +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
The HDDs should be installed in the correct positions in the
Inside the front cover
order as shown right. Do not skip a drive position or reverse the
order of the HDD positions. Incorrectly placed drives will result
in the recorder not recognizing the extension unit or the drives.
HDD 2
HDD 4
HDD #1 slot : HDD1
HDD #2 slot : HDD2
HDD #3 slot : HDD3
HDD #4 slot : HDD4
HDD 1
HDD 3
+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
(4) Remove 11 screws that fix the top cover to the main unit,
and then remove the top cover.
Top cover
(5) Remove eight screws fixing the HDD unit, pull out the
unit.
HDD unit
(6) Remove the screws (four pieces each) fixing the HDDs,
the sleeves and dampers and then remove the HDDs.
Damper
Sleeve
Panasonic
4
ND300_SATAConversionGuideR_A
WJ-ND300 SATA conversion guide (RAID)
Maintenance guide
(7) Release the radiator fan cable from two cord clamps attached to the HDD Fan Ass’y, and disconnect respective junction connectors,
and remove the HDD Fan Ass’y.
FAN1
FAN2
(8) Remove five screws (3x wafer-head screws, 2x screw with
washer) fixing the HDD Fan Ass’y and then remove the
HDD fan Ass’y.
screw with washer
wafer-head
screw
HDD Fan Ass'y
wafer-head
screw
(9) Remove six screws (Wafer-head screws) and remove three
HDD unit guide rails.
six wafer-head
screws
HDD unit guide rail
Panasonic
5
ND300_SATAConversionGuideR_A
WJ-ND300 SATA conversion guide (RAID)
Maintenance guide
(10)Remove seven inside screws (wafer-head screws) and three front screws (binding screws) that secure the bottom plate, and remove
the bottom plate.
HDD unit
guide rail
wafer-head
screw
seven wafer-head
screws
Bottom plate
Bottom plate
binding screw
(11)Disconnect four HDD cables from the Raid board, and release the cables from the HDD cable clamps, and then remove the HDD
cables.
Note: Discard the removed HDD cables.
HDD cable
HDD cable clamp
Raid board
HDD cable clamp
(12) Disconnect four power cables from the DC/DC board, and
remove the power cables.
DC/DC board
Note: Discard the removed power cables.
Power cable
Panasonic
6
ND300_SATAConversionGuideR_A
WJ-ND300 SATA conversion guide (RAID)
Maintenance guide
(13) Disconnect three cables (CN501, CN601, CN602) from
the Raid board.
CN602
CN601
CN501
(14)Remove nine screws (1x wafer-head screw, 6x screw with
washer, 2x binding screw) fixing the Raid board Ass'y, and
remove the Raid board Ass'y.
screw with washer
Raid board
Ass'y
(15)Remove four screws (screw with washer) fixing the Raid
board Ass'y mounting angle and the fix the Raid board
Ass'y mounting angle with four hexagonal spacers (7mm).
Remove four screws
(screw with washer)
Hexagonal spacer
four screws (7mm)
Raid board Ass'y
(16)Remove two cable clamps.
Cable clamp
Panasonic
7
ND300_SATAConversionGuideR_A
WJ-ND300 SATA conversion guide (RAID)
Maintenance guide
(17)Fix the SATA board mounting angle to the hexagonal
spacers with using the screws removed in (14).
additional four screws
(screw with washer)
four screws
removed in (14)
(screw with washer)
(18)Insert two SATA boards into the ATA connectors on
the Raid board Ass'y, and fix them with four additional
screws.
SATA board
mounting angle
SATA Board
Note: Circled tapped holes on the SATA connector side are not
necessarily screwed.
Raid board Ass'y
Hexagonal spacer
four screws (7mm)
(19) Secure the Raid board Ass’y to the Main board Ass'y with
seven screws.
Raid board Ass'y
(20) Connect three cables to the Raid board.
CN602
CN601
CN501
Panasonic
8
ND300_SATAConversionGuideR_A
WJ-ND300 SATA conversion guide (RAID)
Maintenance guide
(21)Remove two cord clamps from the HDD Fan Ass’y, and attach four new cord clamps.
Note: Peel off the double-sided tape, not leaving any portion.
Attach four new cord clamps
Remove
two cord clamps
20mm
HDD Fan Ass'y
unites with a
left end.
(22)Remove six cord clamps from the bottom of main unit
chassis.
10mm
10mm
Remove six cord clamps
(23)Attach five new cord clamps.
Approx. 10mm
Approx. 80mm
Approx. 210mm
New cord clamps
Panasonic
9
ND300_SATAConversionGuideR_A
WJ-ND300 SATA conversion guide (RAID)
Maintenance guide
(24) Connect the power cables (red, yellow) to the CN4 of DC/
DC board, and pass them through the clamps 1, 2, 4 as
shown right.
Clamp 4
(yellow, gray)
Clamp 1, 2
(red, yellow)
CN4
(25) Connect the power cables (red, blue) to the CN3 of DC/DC board, and pass them through the clamps 1, 2, 3 as shown below.
Clamp 3
(red, blue)
CN3
Clamp 1, 2
(red, yellow,
red, blue)
DC/DC Board
CN4
(26) Connect the power cables (white, orange) to the CN6 of
DC/DC board, and pass them through the clamps 5, 6, 8 as
shown right.
Clamp 8
(orenge, gray)
CN6
Clamp 5
(white, orenge)
Clamp 6
(white, orenge)
CN3
CN4
(27) Connect the power cables (white, purple) to the CN5 of DC/DC board, and pass them through the clamps 5, 6, 7 as shown below.
DC/DC Board
CN6
CN5
CN3
Panasonic
10
Clamp 7
(red,
purple)
Clamp 5
(white, orenge,
white, purple)
CN4
Clamp 6
(white, orenge,
white, purple)
ND300_SATAConversionGuideR_A
WJ-ND300 SATA conversion guide (RAID)
Maintenance guide
(28)Adjust the length of SATA cables and secure them as shown below.
Common to left and right
for HDD1
Approx. 30mm
for HDD3
for HDD4
Approx. 50mm
for HDD2
(29) Make the cables flat at an intersection as shown right.
(30)Insert convex portions of bottom plate into the holes in the
main unit chassis, and secure it with ten screws (7x waferhead screws, 3x binding screws).
(31)Insert convex portions of three HDD rails into the holes in
the bottom plate, and secure them with two screws each.
Note: Beware of cables
Panasonic
11
ND300_SATAConversionGuideR_A
WJ-ND300 SATA conversion guide (RAID)
Maintenance guide
(32)Fix HDD Fan assembly with five screws (3x wafer-head
screws, 2x screw with washer), and connect each HDD
Fan connector to the main board.
screw with washer
HDD Fan Ass'y
wafer-head
screw
wafer-head
screw
(33) Connect the junction connectors of each fan, and pass them through the clamps as shown below.
relay connector
Panasonic
12
ND300_SATAConversionGuideR_A
WJ-ND300 SATA conversion guide (RAID)
Maintenance guide
(34) Connect the SATA cables and power cables to each Raid SATA board as shown below.
SATA cable
for HDD4
(gray)
Power cable for HDD4
(orenge)
Power cable
for HDD3
(purple)
SATA cable
for HDD2
(gray)
SATA cable for HDD3
(red)
Power cable for HDD2
(yellow)
Power cable
for HDD1
(blue)
SATA cable for HDD1
(red)
(35) Pass the SATA cables and power cables through the clamps and fasten them with two cable ties as shown below.
cable tie
cable tie
Panasonic
13
ND300_SATAConversionGuideR_A
WJ-ND300 SATA conversion guide (RAID)
Maintenance guide
(36)Install new HDDs on the HDD mounting brackets with four screws each. Refer to the "Operating Instructions" for detail.
Notes:
SATA HDD's do not require jumper configuration.
Install the HDD, board side facing down and the connectors pointing toward the front.
Take care not to deform the dampers when installing the HDD.
(37)Install the HDD unit in the reverse order of the removal.
(38)Connect the SATA cables to the HDDs as shown right.
Make sure that the connectors have been inserted completely.
SATA cable
for HDD2
(gray)
SATA cable
for HDD1
(red)
SATA cable
for HDD4
(gray)
SATA cable
for HDD3
(red)
(39)Attach the SATA Cable label to the specified location on
the front panel chassis.
SATA Cable label
(40)Remove HDD Caution label from the Front panel Ass’y,
and attach new HDD Caution label.
HDD Caution label
Panasonic
14
ND300_SATAConversionGuideR_A
WJ-ND300 SATA conversion guide (RAID)
Maintenance guide
(41)Attach the Caution label to the specified location on the
HDD unit.
Caution label
Ap
pro
x. 1
5m
m
m
5m
x. 1
pro
Ap
(42)Install the top cover on the main unit with 11 screws.
(43)Connect the connector to the front panel and fix the front panel with one screw in the reverse order of the removal.
Front panel
connector
AL
AR
M
SU ALAR
SP M
EN
DE
D
ER
OP
ER
AT
E
RO
R
TIM
ER
RE
C
LIN
K1
HD
LIN
K2
D
1
HD
D
2
HD
D
3
HD
D
4
ES
C
SE
T
Ne
twork
Disc
Re
WJ
corde
-ND
r
300
Screw
(44)Attach the SATA label, large (for top) to the top panel.
Attach the SATA label, small (for front) to the front panel.
7-10mm
3-5mm
Connectorscover
SATA label(for top)
SATA label(for front)
A
Note:
The new HDDs need to be formatted before operation. Refer to the Operating Instructions for detail.
+++++++++++++++++++++++++++++++++++++End
Panasonic
of the document+++++++++++++++++++++++++++++++++
15
ND300_SATAConversionGuideR_A
Download PDF

advertising
