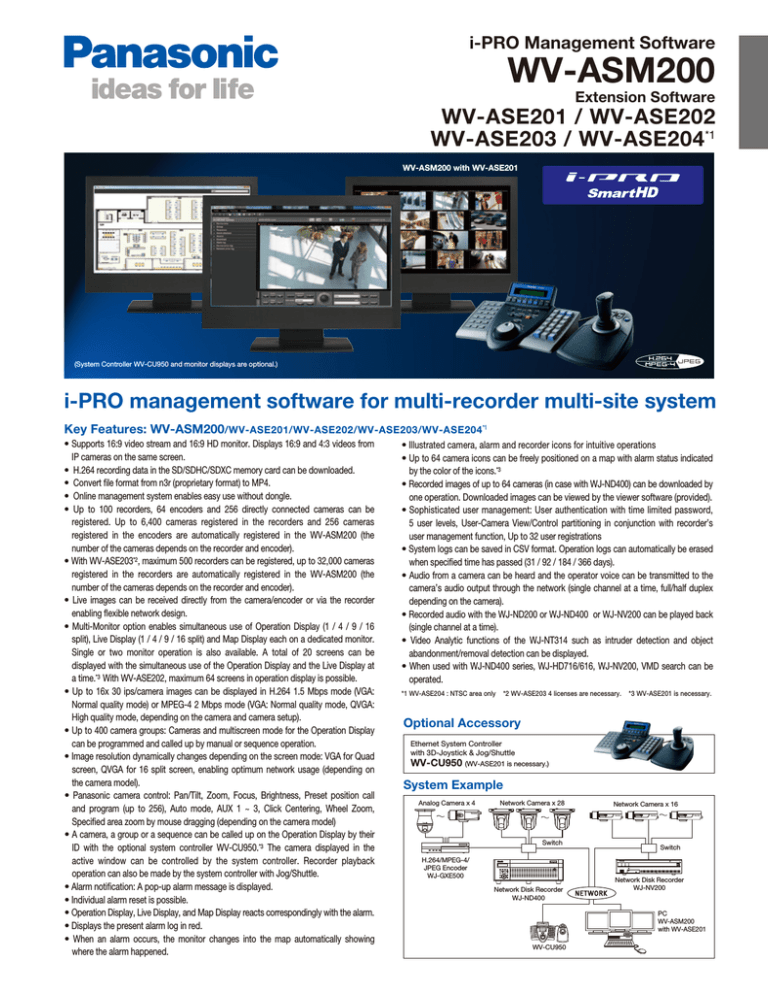

i-PRO Management Software
WV-ASM200
Extension Software
WV-ASE201 / WV-ASE202
WV-ASE203 / WV-ASE204*1
WV-ASM200 with WV-ASE201
(System Controller WV-CU950 and monitor displays are optional.)
i-PRO management software for multi-recorder multi-site system
Key Features: WV-ASM200/WV-ASE201/WV-ASE202/WV-ASE203/WV-ASE204 *1
• Supports 16:9 video stream and 16:9 HD monitor. Displays 16:9 and 4:3 videos from
IP cameras on the same screen.
• H.264 recording data in the SD/SDHC/SDXC memory card can be downloaded.
• Convert file format from n3r (proprietary format) to MP4.
• Online management system enables easy use without dongle.
• Up to 100 recorders, 64 encoders and 256 directly connected cameras can be
registered. Up to 6,400 cameras registered in the recorders and 256 cameras
registered in the encoders are automatically registered in the WV-ASM200 (the
number of the cameras depends on the recorder and encoder).
• With WV-ASE203*2, maximum 500 recorders can be registered, up to 32,000 cameras
registered in the recorders are automatically registered in the WV-ASM200 (the
number of the cameras depends on the recorder and encoder).
• Live images can be received directly from the camera/encoder or via the recorder
enabling flexible network design.
• Multi-Monitor option enables simultaneous use of Operation Display (1 / 4 / 9 / 16
split), Live Display (1 / 4 / 9 / 16 split) and Map Display each on a dedicated monitor.
Single or two monitor operation is also available. A total of 20 screens can be
displayed with the simultaneous use of the Operation Display and the Live Display at
a time.*3 With WV-ASE202, maximum 64 screens in operation display is possible.
• Up to 16x 30 ips/camera images can be displayed in H.264 1.5 Mbps mode (VGA:
Normal quality mode) or MPEG-4 2 Mbps mode (VGA: Normal quality mode, QVGA:
High quality mode, depending on the camera and camera setup).
• Up to 400 camera groups: Cameras and multiscreen mode for the Operation Display
can be programmed and called up by manual or sequence operation.
• Image resolution dynamically changes depending on the screen mode: VGA for Quad
screen, QVGA for 16 split screen, enabling optimum network usage (depending on
the camera model).
• Panasonic camera control: Pan/Tilt, Zoom, Focus, Brightness, Preset position call
and program (up to 256), Auto mode, AUX 1 ~ 3, Click Centering, Wheel Zoom,
Specified area zoom by mouse dragging (depending on the camera model)
• A camera, a group or a sequence can be called up on the Operation Display by their
ID with the optional system controller WV-CU950.*3 The camera displayed in the
active window can be controlled by the system controller. Recorder playback
operation can also be made by the system controller with Jog/Shuttle.
• Alarm notification: A pop-up alarm message is displayed.
• Individual alarm reset is possible.
• Operation Display, Live Display, and Map Display reacts correspondingly with the alarm.
• Displays the present alarm log in red.
• When an alarm occurs, the monitor changes into the map automatically showing
where the alarm happened.
• Illustrated camera, alarm and recorder icons for intuitive operations
• Up to 64 camera icons can be freely positioned on a map with alarm status indicated
by the color of the icons.*3
• Recorded images of up to 64 cameras (in case with WJ-ND400) can be downloaded by
one operation. Downloaded images can be viewed by the viewer software (provided).
• Sophisticated user management: User authentication with time limited password,
5 user levels, User-Camera View/Control partitioning in conjunction with recorder’s
user management function, Up to 32 user registrations
• System logs can be saved in CSV format. Operation logs can automatically be erased
when specified time has passed (31 / 92 / 184 / 366 days).
• Audio from a camera can be heard and the operator voice can be transmitted to the
camera’s audio output through the network (single channel at a time, full/half duplex
depending on the camera).
• Recorded audio with the WJ-ND200 or WJ-ND400 or WJ-NV200 can be played back
(single channel at a time).
• Video Analytic functions of the WJ-NT314 such as intruder detection and object
abandonment/removal detection can be displayed.
• When used with WJ-ND400 series, WJ-HD716/616, WJ-NV200, VMD search can be
operated.
*1 WV-ASE204 : NTSC area only
*2 WV-ASE203 4 licenses are necessary.
*3 WV-ASE201 is necessary.
Optional Accessory
Ethernet System Controller
with 3D-Joystick & Jog/Shuttle
WV-CU950 (WV-ASE201 is necessary.)
System Example
Analog Camera x 4
Network Camera x 28
Switch
H.264/MPEG-4/
JPEG Encoder
WJ-GXE500
Network Disk Recorder
WJ-ND400
Network Camera x 16
Switch
Network Disk Recorder
WJ-NV200
PC
WV-ASM200
with WV-ASE201
WV-CU950
Specifications: WV-ASM200/WV-ASE201/WV-ASE202/WV-ASE203/WV-ASE204
*1
GUI
Function
GUI
Function
Camera Control
Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256),
(depending on the Camera) Auto mode (SEQ, SORT, AUTO PAN, PATROL, AUTO TRACK), AUX 1 ~ 3,
Click centering, Wheel zoom, Drag and zoom
Recorder Control
REC, PLAY, Rev PLAY, Pause, Stop, FF (up to 96x), REW (up to 96x), Prev Record, Next
(depending on the Recorder) Record, Prev Image, Next Image, Skip (up to 60 min.),Rev Skip, (up to 60 min.) Text
Event Search
Target: Recorder (Camera) / Group / Map*2, Search criteria: Time date, Event type, Text
VMD Search
In case with WJ-ND400 series, WJ-HD716/616, WJ-NV200
Multiscreen Mode
Spot / Quad (A-D) / 9 split / 16 split
Sequence Display
10 programs, 64 steps/pattern, Spot / Quad / 9 split / 16 split
Dwell time: 3s / 5s / 10s / 15s / 20s / 25s / 30s / 35s / 40s / 45s / 50s / 55s / 1min
Display Performance
30 ips x 16 screens at H.264 1.5 Mbps, 30 ips x 16 screens at MPEG-4 2 Mbps
Multi-Monitor*2
Up to 3 monitors (Operation / Live / Map), Up to 20 cameras can be displayed (Operation-4, Live-16)
Camera Group Display
Up to 400 groups with 16 alphanumeric titles
Number of Maps*2
Up to 100 maps (JPEG or Bit map), Link: 64 cameras and 20 maps / map
Image Download
Recorded images of up to 64 cameras (in case with WJ-ND400) can be downloaded.
Manual download only. Viewer software can be extracted from the main software.
SD memory Download
Indicates the function featured in some Panasonic's cameras that transfers
H.264 video files (mp4 files) saved on the SD memory card equipped with the
camera to a PC using the FTP function.
Recorder/Camera Access The access to the Recorder and Camera Web pages when logged in as admin
File Conversion
Convert a n3r file to the standard format (mp4)
Camera Title Display
On the GUI, Up to 16 characters
Clock Display
On the GUI. Time: 12H/24H, Date: 5 formats (When the image comes from the recorder)
Alarm Source
Panasonic alarm protocol
Alarm Control
Reset, Auto reset (OFF / 10s / 20s / 30s / 1min / 5min)
Alarm Action
Up to 16 alarm images can be displayed on the live monitor. Corresponding
camera icon on the map lights up. Alarm message on the GUI and buzzer.
Digital Zoom
Up to 4 times
Text Attachment
Free comment can be attached for each record and reviewed at later time. Up to 200 characters
System Log
Operation (100,000), System (1,000), Network error (1,000), Recorder error (1,000), Alarm (30,000)
Recorder Log Download
Operator access, Network error, Error, Event
User Management
Registration: Up to 32 users + Administrator, ID: 4-14 digit, PW: 4-8 digit,
User level: 5 levels (Programmable), PW time limit: OFF / 31 / 92 / 184 / 366 days,
Auto login: ON / OFF
Security Method
User authentication (ID and Password), Host authentication (IP address),
Alteration detection, Activation Key Card
Setup page in English, French, Italian, Spanish, German, Russian, Chinese, Japanese
English, French, Italian, Spanish, German, Russian, Chinese, Japanese
Microsoft ® Windows Vista ® Business SP2 32bit/64bit,
Microsoft ® Windows ® 7 Professional SP1 32bit/64bit
The language of the OS must be same as selected GUI language.
CPU: Intel® Core™ i5-2400, 2500,
Intel® Core™ i7-860 or faster
When adding the license for WV-ASE202 and displaying images on
a 64-screen: Intel® Core™ i7-2600
RAM: 3 GB or more,
When using more than one live window: 4 GB
VRAM: 512 MB or more (256 MB min.), Microsoft® DirectX® 9.0c or later
Web Broswer: Internet Explorer® 7.0 or later (depends on a connected device)
HTTP proxy supported (IP address and port No.)
Passive/Active
Play, Rev Play, Pause, FF, REW, Prev Record, Next Record, Prev Image, Next Image
Alteration detection, Save as JPEG, Two times zoom, Print
System Setup
GUI Language
Supported OS*3
General
Required PC
Network
Viewer
Software
Proxy
FTP
Playback Control
Additional Functions
*1 WV-ASE204 : NTSC area only *2 WV-ASE201 is necessary. *3 Microsoft® Windows® XP not supported
Operation Window
Menu Bar
Tool Bar
Status Bar
Information
Display Area
Operation Panel
Function Panel
Software Comparison Chart
Functions
Main Functions / Description
Supported Devices Camera
Recorder
Max. Devices
Direct
Via Recorder
NVR
DVR
Encoder
Decoder
Controller
Camera
Direct
Via Recorder
WV-ASM200 (V.1.10 or later)
Management Software - Basic
Live / Playback / Control
i-PRO series
i-PRO series, BB series*4, Axis*4
WJ-ND400 series, WJ-ND300 series,
WJ-ND200 series,WJ-NV200 series
WJ-HD716/616, WJ-HD300A series
WJ-GXE500, WJ-NT314, WJ-NT304
+WV-ASE201
Extension Software
+WV-ASE202
Extension Software
+WV-ASE201
+WV-ASE202
Extension Software
Recorder
Encoder
Decoder
Controller
Supported Image Format
Supported Image Resolution
Max. screens
AVMD Display (Frame and Tracking Line)
Multiple Monitors Supported
+WV-ASE204*1
Extension Software
WV-GXD400
WV-CU950
WV-CU950
1,280*5
1,600
(with WJ-ND200 series/WJ-NV200 series)
256 (with WJ-GXE500, WJ-NT314/304)
Max.
Max. 32,000
(with WJ-ND400 series)*5
Max. 16,000
(with WJ-ND300 series)*5
Max. 8,000
(with WJ-ND200 series)*5
Max. 1,280*5
100
64
500*5
320*5
256
6,400 (with WJ-ND400 series)
3,200 (with WJ-ND300 series)
Via Encoder
Via Decoder
+WV-ASE203
Extension Software
10
1
1
H.264, MPEG-4 (i-PRO series), M-JPEG
2,048 x 1,536, 1,920 x 1,080, 1,280 x 960, 1,280 x 720,
960 x 720, 800 x 600, 640 x 480, 640 x 360, 320 x 240, 320 x 160
(depending on the source equipment)
16
Yes
20
Yes (Up to 3 monitors:
Operation / Live / Map)
Yes
64
68
Yes (Up to 6 monitors:
Operation / Live / Map)
Yes
Map Function
Audio
Yes (Live: 2-way, Playback: 1-way)
Event Search (T&D, Event type etc.)
Yes
VMD Search
Yes(with WJ-ND400 series, WJ-HD716/616, WJ-NV200)
Image Download
Yes
*4 Specific Models only. Also, JPEG only is supported and camera control is not supported. *5 WV-ASE203 x 4 licenses and 500 recorders are necessary.
Trademarks and registered trademarks
– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.
– Axis is a registered trademark of Axis Communications AB.
– Intel and Intel Core are registered trademarks of Intel Corporation.
– "i-PRO" and "i-PRO SmartHD" logos are trademarks or registered trademarks of Panasonic Corporation.
Important
– Panasonic recommends a dedicated PC to prevent installation errors and to keep best performance.
– Safety Precaution: carefully read the operating instructions and installation manual before using this product.
– Panasonic can not be responsible for network performance and/or other manufacturer products that reside on the network.
– When remote monitoring, please pay attention to the network design. For details, please contact your local Panasonic sales representatives.
• All TV pictures are simulated.
• Masses and dimensions are approximate.
• Specifications are subject to change without notice.
• These products may be subject to export control regulations.
• All product pictures are NTSC models.
