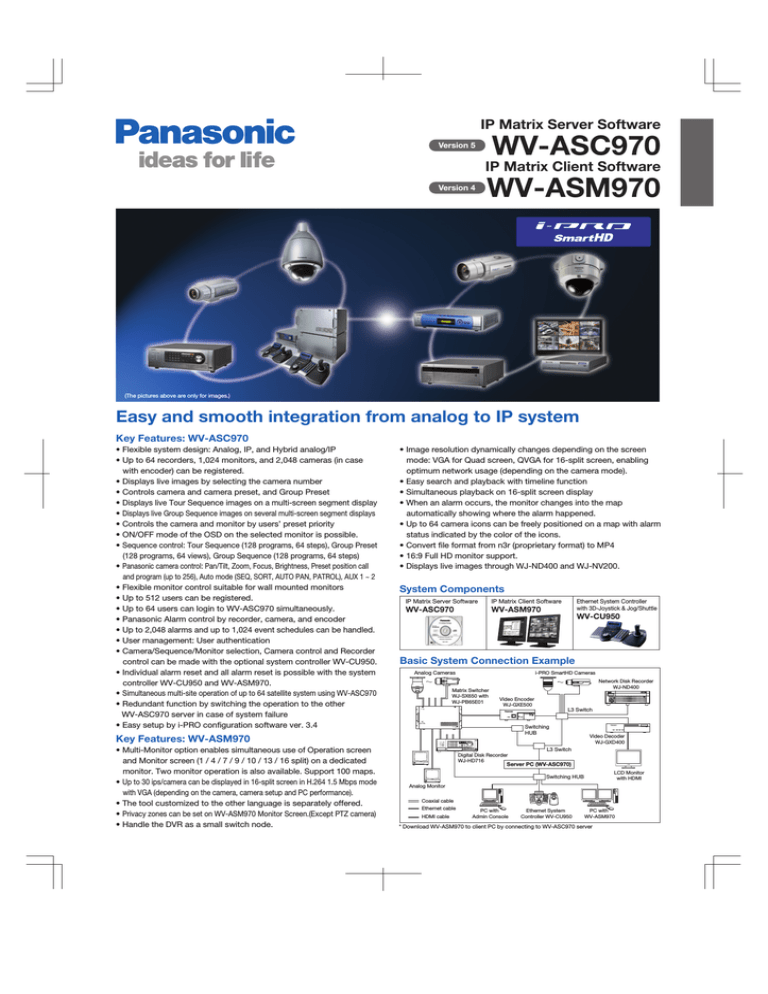

IP Matrix Server Software
Version 5
IP Matrix Client Software
Version 4
(The pictures above are only for images.)
Easy and smooth integration from analog to IP system
Key Features: WV-ASC970
• Flexible system design: Analog, IP, and Hybrid analog/IP
• Up to 64 recorders, 1,024 monitors, and 2,048 cameras (in case
with encoder) can be registered.
• Displays live images by selecting the camera number
• Controls camera and camera preset, and Group Preset
• Displays live Tour Sequence images on a multi-screen segment display
• Displays live Group Sequence images on several multi-screen segment displays
• Controls the camera and monitor by users’ preset priority
• ON/OFF mode of the OSD on the selected monitor is possible.
• Sequence control: Tour Sequence (128 programs, 64 steps), Group Preset
(128 programs, 64 views), Group Sequence (128 programs, 64 steps)
• Panasonic camera control: Pan/Tilt, Zoom, Focus, Brightness, Preset position call
and program (up to 256), Auto mode (SEQ, SORT, AUTO PAN, PATROL), AUX 1 ~ 2
• Flexible monitor control suitable for wall mounted monitors
• Up to 512 users can be registered.
• Up to 64 users can login to WV-ASC970 simultaneously.
• Panasonic Alarm control by recorder, camera, and encoder
• Up to 2,048 alarms and up to 1,024 event schedules can be handled.
• User management: User authentication
• Camera/Sequence/Monitor selection, Camera control and Recorder
control can be made with the optional system controller WV-CU950.
• Individual alarm reset and all alarm reset is possible with the system
controller WV-CU950 and WV-ASM970.
• Simultaneous multi-site operation of up to 64 satellite system using WV-ASC970
• Redundant function by switching the operation to the other
WV-ASC970 server in case of system failure
• Easy setup by i-PRO configuration software ver. 3.4
• Image resolution dynamically changes depending on the screen
mode: VGA for Quad screen, QVGA for 16-split screen, enabling
optimum network usage (depending on the camera mode).
• Easy search and playback with timeline function
• Simultaneous playback on 16-split screen display
• When an alarm occurs, the monitor changes into the map
automatically showing where the alarm happened.
• Up to 64 camera icons can be freely positioned on a map with alarm
status indicated by the color of the icons.
• Convert file format from n3r (proprietary format) to MP4
• 16:9 Full HD monitor support.
• Displays live images through WJ-ND400 and WJ-NV200.
System Components
IP Matrix Server Software
IP Matrix Client Software
Basic System Connection Example
Analog Cameras
i-PRO SmartHD Cameras
Matrix Switcher
WJ-SX650 with
Network Disk Recorder
Video Encoder
L3 Switch
Key Features: WV-ASM970
• Multi-Monitor option enables simultaneous use of Operation screen
and Monitor screen (1 / 4 / 7 / 9 / 10 / 13 / 16 split) on a dedicated
monitor. Two monitor operation is also available. Support 100 maps.
• Up to 30 ips/camera can be displayed in 16-split screen in H.264 1.5 Mbps mode
with VGA (depending on the camera, camera setup and PC performance).
• The tool customized to the other language is separately offered.
• Privacy zones can be set on WV-ASM970 Monitor Screen.(Except PTZ camera)
• Handle the DVR as a small switch node.
Ethernet System Controller
with 3D-Joystick & Jog/Shuttle
Digital Disk Recorder
Video Decoder
L3 Switch
Server PC (WV-ASC970)
LCD Monitor
with HDMI
Switching HUB
Analog Monitor
Coaxial cable
Ethernet cable
HDMI cable
PC with
Admin Console
Ethernet System
Controller WV-CU950
PC with
* Download WV-ASM970 to client PC by connecting to WV-ASC970 server
Specifications: WV-ASC970
Specifications: WV-ASM970
Supported Supported Cameras
Supported Recorders
Supported Switchers
Supported Encoders
Supported Decoders
Supported Controller
Max. Recorder Registrations
Max. Monitor Registrations
Max. Camera Registrations
Supported System Type
Camera Control
(depends on the
Panasonic Analog cameras,
Panasonic i-PRO series Network cameras except WV-NM100,
WV-NP472, WV-NS320 series, WV-NW470S series
WJ-NV200, WJ-ND400 series, WJ-ND300 series, WJ-ND200 series,
WJ-HD300 series*1, WJ-HD300A series, WJ-RT416 series, WJ-HD616/716 series
WJ-SX850, WJ-SX650EX
WJ-NT304, WJ-NT314, WJ-GXE500, WJ-GXE900 (MPEG-2 Encoder)*2
WJ-GXD400, WJ-GXD900 (MPEG-2 Decoder)*2
WV-CU950, WV-ASM970
2,048 (In case with encoder), Analog and/or IP camera*3
Multicast/Unicast system
Pan/Tilt, Zoom, Focus, Brightness,
Preset position call and program (up to 256),
AUX 1 - 2, Back Focus, Super Dynamic On/Off
REC (only Digital Disk Recorder), Playback
Recorder Control
(depends on the recorder)
Sequence Control
Tour Sequence: 128 programs, 64 steps
Group Preset: 128 programs, 64 views
Group Sequence: 128 programs, 64 steps
Camera Title Display
On the WJ-GXD400 and Analog Monitor
Alarm Source
Panasonic alarm protocol by Recorder, Camera, Encoder,
RS232C, I/O Ethernet Converter
Alarm Control
Reset, Auto reset, Arm, Disarm, Ack, Auto ack, All reset
Alarm Display Mode
Sequence, Hold
Alarm Action
Camera spot, Tour sequence, Group sequence
Max. Number of Alarm 2,048
System Log
Operation, Alarm, Switching, Video loss
User Management
Registration: Up to 512 users, ID: 5 digit, Password: 5 digit,
User level: customize
Simultaneous Login Users Up to 64 (depends on network conditions)
Operator - Controller, Controller - Monitor,
Controller - Camera, Camera - Monitor
Security Method
User authentication, Controller authentication (MAC address)
Requires 2x PC, 2x WV-ASC970 server, and 1x RS-232C I/O
Time Synchronization
NTP (Server/Client)
GUI (Admin) Language English
Supported OS
Red Hat Enterprise Linux 5.6 server (x86)(English)
Requirement Required PC
CPU: Intel® Xeon® Processor 5140 (2.33 GHz) or faster,
RAM: 2 GB or more, Network: 2x 100/Gigabit or more,
HDD: 80 GB or more free drive space, CD-ROM, Port: 1x RS-232C
Supported OS
Microsoft® Windows® XP Professional SP3 (English and Chinese Version)
Microsoft® Windows Vista® Business 32-bit SP2 (English and Chinese Version)
Microsoft® Windows® 7 Professional SP1 32bit (English and Chinese Version)
Requirement Required PC
CPU: Intel® Pentium® 4 processor 3.0 GHz or faster
RAM: 512 MB or more
Network: 10/100 Mbps
HDD: 200 MB or more free drive space
Monitor: 32-bit colors, 1,024 x 720 resolution
Network Protocol
HTTP (IP address and port No.), FTP, UDP
Supported Server
Supported System Type
Camera Control
(depends on the camera)
Recorder Control
(depends on the recorder)
Monitor Control
Event Search
Multiscreen Mode
Display Performance
Number of Maps
Image Download
Clock Display
Alarm Control
System Setup
GUI Language*4
Supported OS
Supported Browser
Required PC
Playback Control
Additional Functions
Multicast/Unicast system
Pan/Tilt, Zoom, Focus, Brightness, Preset position call
(up to 256), Auto Pan, AUX1-2
REC (only Digital Disk Recorder), Play, Rev Play, Pause, Stop,
FF, REW, Prev Image, Next Image, Goto Last, Goto Date
Display division pattern switch, Camera select switch,
Tour sequence, Group preset, Group sequence, Monitor lock
Target: Recorder (Camera)
Search criteria: Time date, Event type
Spot / Quad (A-D) / 7 split / 9 split /10 split / 13 split / 16 split
30 ips x 16 screens at MPEG-4 2 Mbps*3
30 ips x 16 screens at H.264 1.5 Mbps with VGA*3
2 Monitors (Operation/Monitor)
Up to 100 maps (JPEG or Bitmap), Link: 64 cameras/map
Recorded images of up to 64 (in case with WJ-ND400) can be
downloaded. Manual download only. Viewer software can be
extracted from the main software.
On the GUI. Time: 12H/24H, Date: 5 formats
Reset, All reset, Arm, Disarm, Ack, Auto ack
Setup page in English, Chinese
English, Chinese
Microsoft® Windows® 7 Professional SP1 (32-bit) (English and Chinese Version)
Microsoft® Windows® 7 Professional SP1 (64-bit)*2 (English and Chinese Version)
Microsoft® Windows Vista® Business SP2 (32-bit) (English and Chinese Version)
Microsoft® Windows Vista® Business SP2 (64-bit)*2 (English and Chinese Version)
Microsoft® Windows® XP Professional SP3 (32-bit) (English and Chinese Version)
Microsoft® Internet Explorer® 6.0 Service Pack 3
Microsoft® Internet Explorer® 7.0 Service Pack 1
Microsoft® Internet Explorer® 8.0
CPU: Intel® CoreTM 2 Duo 2.66 GHz or faster / Intel® CoreTM 2
Quad Q9650 or faster / Intel® CoreTM i7-920 or faster,
Memory: 2 GB or more / 3 GB or more (When operating H.264
VRAM: 128 MB or more, compatible with DirectX® 9.0c
2 monitors with 1,280 x 1,024 pixels or more
HTTP (IP address and port No.), FTP
Play, Rev Play, Pause, FF, REW, Prev Record, Next Record,
Prev Image, Next Image
Alteration detection, Save as JPEG, Two times zoom, Print
*1 WV-ASC970 Version 2.0 or later *2 Operation in WOW64 (32-bit mode)
*3 In case with Microsoft® Windows® 7 Professional (OS) and Intel® CoreTM i7-920 (CPU)
*4 Separately, the tool customized to the other language is offered.
*1 In case of using WV-ASC970 with WJ-HD300 Series, consult your sales company first. *2 NTSC only
*3 Depends on system configuration
Flexible Alarm Action
Flexible alarm actions can be assigned for each alarm.
Up to 2,048 alarms can be handled.
Alarm actions include:
• Display alarm information on the designated monitor
• Display alarm images from the camera or start the sequence display
on the designated monitor
• Turn on the alarm indicator on all the system controllers and
Alarm action example
Network Disk Recorder
Preset Position 1
(Zoom in to Entrance 1)
Turn on
the alarm
Entrance 1
* The WV-ASC970 does not support any error notifications (such as "REMOVE") from digital disk
recorders or network disk recorders.
Trademarks and registered trademarks
– "Red Hat" is a trademark of Red Hat in the U.S. and other countries.
– Intel, Xeon and Pentium are registered trademarks of Intel Corporation.
– "Super Dynamic", "SDII", "SDIII", "SD5", "SD5Link", "SD6", "i-PRO" and "i-PRO SmartHD" logos are trademarks or registered
trademarks of Panasonic Corporation.
– Safety Precaution: carefully read the operating instructions and installation manual before using this product.
– Panasonic can not be responsible for network performance and/or other manufacturer products that reside on the network.
• All TV pictures are simulated.
• Weights and dimensions are approximate.
• Specifications are subject to change without notice.
• These products may be subject to export control regulations.
• All product pictures are NTSC models.
Printed in Japan (2A-052GL)
