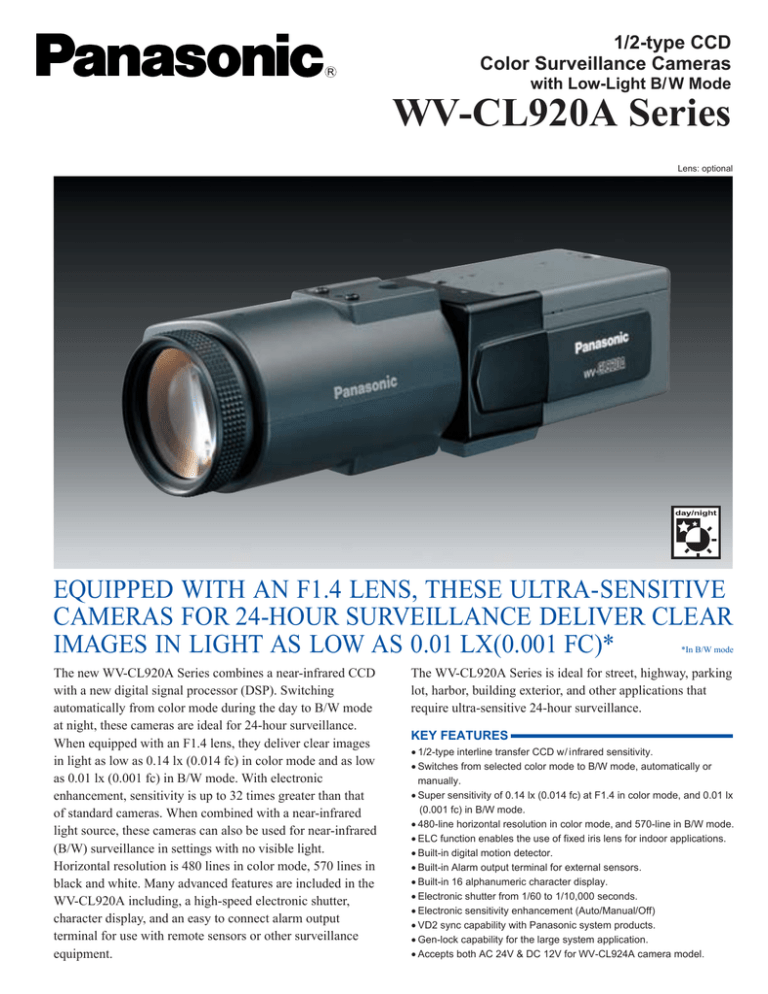

1/2-type CCD
Color Surveillance Cameras
R
with Low-Light B/ W Mode
WV-CL920A Series
Lens: optional
EQUIPPED WITH AN F1.4 LENS, THESE ULTRA-SENSITIVE
CAMERAS FOR 24-HOUR SURVEILLANCE DELIVER CLEAR
IMAGES IN LIGHT AS LOW AS 0.01 LX(0.001 FC)*
*In B/W mode
The new WV-CL920A Series combines a near-infrared CCD
with a new digital signal processor (DSP). Switching
automatically from color mode during the day to B/W mode
at night, these cameras are ideal for 24-hour surveillance.
When equipped with an F1.4 lens, they deliver clear images
in light as low as 0.14 lx (0.014 fc) in color mode and as low
as 0.01 lx (0.001 fc) in B/W mode. With electronic
enhancement, sensitivity is up to 32 times greater than that
of standard cameras. When combined with a near-infrared
light source, these cameras can also be used for near-infrared
(B/W) surveillance in settings with no visible light.
Horizontal resolution is 480 lines in color mode, 570 lines in
black and white. Many advanced features are included in the
WV-CL920A including, a high-speed electronic shutter,
character display, and an easy to connect alarm output
terminal for use with remote sensors or other surveillance
equipment.
The WV-CL920A Series is ideal for street, highway, parking
lot, harbor, building exterior, and other applications that
require ultra-sensitive 24-hour surveillance.
KEY FEATURES
• 1/2-type interline transfer CCD w/ infrared sensitivity.
• Switches from selected color mode to B/W mode, automatically or
manually.
• Super sensitivity of 0.14 lx (0.014 fc) at F1.4 in color mode, and 0.01 lx
(0.001 fc) in B/W mode.
• 480-line horizontal resolution in color mode, and 570-line in B/W mode.
• ELC function enables the use of fixed iris lens for indoor applications.
• Built-in digital motion detector.
• Built-in Alarm output terminal for external sensors.
• Built-in 16 alphanumeric character display.
• Electronic shutter from 1/60 to 1/10,000 seconds.
• Electronic sensitivity enhancement (Auto/Manual/Off)
• VD2 sync capability with Panasonic system products.
• Gen-lock capability for the large system application.
• Accepts both AC 24V & DC 12V for WV-CL924A camera model.
SYSTEM EXAMPLE
WV-CL924A x 4 WV-7260D x 4
WV-LZ81/6A x 4 WV-RC150 x 4
WV-7150D x 4
WV-CS854A x 4
WV-CS2S x 4
WV-CL924A x 4 WV-7260D x 4
WV-LA4R5A x 4 WV-RC150 x 4
WV-7135 x 4
WV-CL920A x 4
WV-LA12A x 4
WV-7010A x 4
Spot
Multi
screen
LAN/WAN
Color Monitor x 2
WJ-HDB502B
Ethernet
10Base-T/100Base-TX
PC
WJ-MP204C x 3
PS-Data Link
PC
Internet
System Controller
WV-CU50
MAJOR OPERATING CONTROLS
WV-CL920A
WV-CL924A
768 (H) x 494 (V) Pixels, Interline Transfer CCD
6.45 (H) x 4.84 (V) mm (Equivalent to 1/2" Tube)
525 lines / 60 fields / 30 frames
Horizontal 15.734 kHz / Vertical 59.94 Hz
2:1 Interlace
Internal, Line-locked, External (VBS/VS), or Multiplexed VD2 Selectable
1.0V[p-p] NTSC Composite / 75 Ω / BNC Connector
480-line at Color Imaging, or 570-line at B/W mode
0.14 lx (0.014 fc) at F1.4 (at Color mode), or 0.01 lx (0.001 fc) at F1.4 (at B/W)
50dB at AGC off
VBS 1.0[p-p] / 75 Ω / BNC Connector
16 Alphanumeric characters
On/Off selectable
Equivalent to continuous variable shutter speed between 1/60s to 1/10,000s
Off, Auto (x2, x4, x6, x10, x16, x32), Fixed (x2, x4, x6, x10, x16, x32, x64)
ATW1, ATW2, AWC selectable (setup menu)
Variable (setup menu)
AGC On/Off selectable (setup menu)
ON (DNR-H), ON (DNR-M), ON (DNR-L) or OFF selectable (setup menu)
Preset ON or OFF selectable (setup menu)
1/60 (OFF), 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 s selectable
CS-mount
DC / Video Servo Selectable (setup menu)
–10˚C - +50˚C (14˚F - 122˚F)
Less than 90%
120V AC
AC24V / DC12V
4.8W
4.9W / 460mA
Collector-output OFF (Open or 4V DC - 5V DC) / ON (≤ 1V 50mA)
Pulled-up to 5V DC OFF (Open) / ON (0V 0.2mA)
74 x 65 x 120mm (2-15/16" x 2-9/16" x 4-3/4")
450g (0.99 lbs.) without cables
440g (0.97 lbs.)
<WV-CL920A>
1
8
Auto Iris Lens Connector
Flange-back Adjusting Ring
Focus Fixing Screw
Camera Mounting Screw Hole
Gen-lock Termination Switch
Up Button
Right Button
Down Button
Set Button
Left Button
Video Output Connector
Gen-lock Input Connector
AC Socket Terminal
Alarm Output Terminal
Day/Night Input Terminal
AC/DC Compatible Input Terminal
APPEARANCE
Zoom Lenses
Variable Focal Lens
WV-LM4R5A
WV-LZ81/6A
WV-LZ83/6
WV-LZ80/2
Fixed Iris Lenses
Pinhole ALC Lens
WV-LF6
WV-LF12
WV-LP6
2-1/4-20UNC
74(2-15/16")
Manual Iris Lens
WV-LA4R5A
WV-LA6A
WV-LA12A
WV-LA18
WV-LA36
10
(3/8")
Wide variety of optional 1/2-type lenses for suit the any applications
Auto lris Lenses
<WV-CL924A>
65(2-9/16")
Scanning System
Synchronization
Video Output
Horizontal Resolution
Minimum Illumination
S/N Ratio
Video Output
Character Display
Motion Detector
Electronic Light Control
Electronic Sensitivity Up
White Balance
Aperture
Gain Control
AGC
Backlight Compensation
Electronic Shutter Speed
Lens Mount
ALC Lens
Ambient Operating Temperature
Ambient Operating Humidity
Power Source
Power Consumption
Alarm Out
Day/Night In
Dimensions (W x H x D)
Weight (approx.)
WV-CU360C x 2
55(2-3/16")
SPECIFICATIONS
Model No.
Pick-up Device
Scanning Area
Scanning
PS-Data Cable Kit
WV-CA48/10K x 3
Digital Disk Recorder WJ-HD500B
(with 16ch Multiplexer)
System Controller
33(1-5/16") 18(11/16")
120(4-3/4")
10(3/8")
Unit : mm (inches)
• Weights and dimensions are approximate. • Specifications are subject to change without notice. • These products may be subject to export control regulations.
DISTRIBUTED BY:
Panasonic Digital Communications & Security Company
Unit Company of Matsushita Electric Corporation of America
Security & Vision Systems Group
Security Systems
http://www.panasonic.com/cctv
Executive Office : One Panasonic Way 3E-7, Secaucus, New Jersey 07094
Zone Office
Eastern : One Panasonic Way, Secaucus, NJ 07094 (201) 348-7303
Central : 1707 N.Randal Road, Elgin, IL 60123 (847) 468-5205
Western : 6550 Katella Ave., Cypress, CA 90630 (714) 373-7840
PANASONIC CANADA INC.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada (905) 624-5010
PANASONIC SALES COMPANY
DIVISION OF MATSUSHITA ELECTRIC OF PUERTO RICO, INC.
San Gabriel Industrial Park 65th Infantry Ave. KM. 9.5 Carolina, P.R. 00985 (809) 750-4300
Printed in Japan
WV-JHCL920AT(2P-482D)
