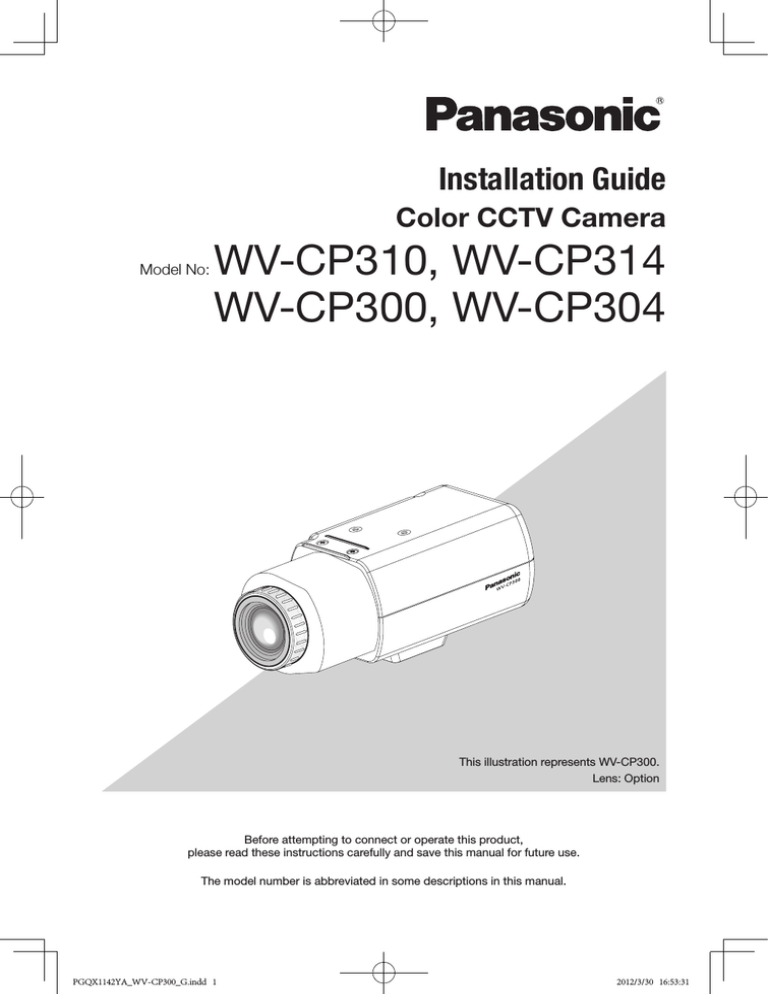

Installation Guide
Color CCTV Camera
Model No:
WV-CP310, WV-CP314
WV-CP300, WV-CP304
This illustration represents WV-CP300.
Lens: Option
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
PGQX1142YA_WV-CP300_G.indd 1
2012/3/30 16:53:31
WARNING:
•To prevent fire or electric shock hazard, do not
expose this apparatus to rain or moisture.
•The apparatus should not be exposed to dripping
or splashing and that no objects filled with liquids,
such as vases, should be placed on the apparatus.
•All work related to the installation of this product
should be made by qualified service personnel or
system installers.
•To prevent injury, this apparatus must be securely
attached to the floor/wall/ceiling in accordance
with the installation instructions.
•The mains plug or an appliance coupler shall
remain readily operable.
•The installation shall be carried out in accordance
with all applicable installation rules.
•This product has no power switch.
When turning off the power, turn off a Power
Supply or remove a power cable.
•The connections should comply with local electrical code.
For Canada
This Class A digital apparatus complies with
Canadian ICES-003.
For U.S.A
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead
symbol, within an equilateral triangle, is intended to alert the user to
the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance (servicing) instructions in
the literature accompanying the
appliance.
NOTE: This equipment has been tested and found
to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is
likely to cause harmful interference in which case
the user will be required to correct the interference
at his own expense.
FCC Caution: To assure continued compliance,
(example - use only shielded interface cables
when connecting to computer or peripheral
devices). Any changes or modifications not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate this equipment.
For U.S.A
The model number and serial number of this
product may be found on the surface of the unit.
You should note the model number and serial
number of this unit in the space provided and
retain this book as a permanent record of your
purchase to aid identification in the event of theft.
Model No.
Serial No.
2
PGQX1142YA_WV-CP300_G.indd 2
2012/4/2 13:29:35
Contents
Important safety instructions............................................................................................................ 4
Limitation of liability.......................................................................................................................... 5
Disclaimer of warranty..................................................................................................................... 5
Preface............................................................................................................................................ 6
About notations .............................................................................................................................. 6
Features.......................................................................................................................................... 6
About the user manuals................................................................................................................... 7
Trademarks and registered trademarks............................................................................................ 7
Precautions..................................................................................................................................... 8
Precautions for installation............................................................................................................. 10
Major operating controls and their functions.................................................................................. 12
Installation and connection............................................................................................................ 13
Setup menu................................................................................................................................... 23
List of setup menu...................................................................................................................... 23
CP310
Basic operation.............................................................................................................................
24
CP310
Screen transition diagram CP310 ................................................................................................. 26
CP300 ................................................................................................. 27
Screen transition diagram CP310
Troubleshooting.............................................................................................................................
28
CP300
Specifications................................................................................................................................ 29
Standard accessories.................................................................................................................... 30
3
PGQX1142YA_WV-CP300_G.indd 3
2012/3/30 16:53:32
Important safety instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
S3125A
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
4
PGQX1142YA_WV-CP300_G.indd 4
2012/3/30 16:53:32
Limitation of liability
THIS PUBLICATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE, OR NON-INFRINGEMENT OF
THE THIRD PARTY'S RIGHT.
THIS PUBLICATION COULD INCLUDE TECHNICAL INACCURACIES OR TYPOGRAPHICAL
ERRORS. CHANGES ARE ADDED TO THE INFORMATION HEREIN, AT ANY TIME, FOR THE
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S).
Disclaimer of warranty
IN NO EVENT SHALL Panasonic System Networks Co., Ltd. BE LIABLE TO ANY PARTY OR ANY
PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT,
FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:
(1) ANY DAMAGE AND LOSS, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT,
SPECIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THE
PRODUCT;
(2) PERSONAL INJURY OR ANY DAMAGE CAUSED BY INAPPROPRIATE USE OR NEGLIGENT
OPERATION OF THE USER;
(3) UNAUTHORIZED DISASSEMBLE, REPAIR OR MODIFICATION OF THE PRODUCT BY THE
USER;
(4) INCONVENIENCE OR ANY LOSS ARISING WHEN IMAGES ARE NOT DISPLAYED, DUE TO
ANY REASON OR CAUSE INCLUDING ANY FAILURE OR PROBLEM OF THE PRODUCT;
(5) ANY PROBLEM, CONSEQUENTIAL INCONVENIENCE, OR LOSS OR DAMAGE, ARISING
OUT OF THE SYSTEM COMBINED BY THE DEVICES OF THIRD PARTY;
(6) ANY CLAIM OR ACTION FOR DAMAGES, BROUGHT BY ANY PERSON OR ORGANIZATION
BEING A PHOTOGENIC SUBJECT, DUE TO VIOLATION OF PRIVACY WITH THE RESULT OF
THAT SURVEILLANCE-CAMERA'S PICTURE, INCLUDING SAVED DATA, FOR SOME
REASON, BECOMES PUBLIC OR IS USED FOR ANY PURPOSE.
5
PGQX1142YA_WV-CP300_G.indd 5
2012/3/30 16:53:32
Preface
This product is a 1/3-type CCD color CCTV camera. Connection of this product to a video monitor
allows users to use this product as a monitoring camera.
• WV-CP310: 120 V AC power supply, with color / black-and-white mode switch function
• WV-CP314: 24 V AC, 12 V DC power supply, with color / black-and-white mode switch function
• WV-CP300: 120 V AC power supply, with easy black-and-white mode switch function
• WV-CP304: 24 V AC, 12 V DC power supply, with easy black-and-white mode switch function
About notations
The following notations are used when describing the functions limited for specific models. The
functions without the notations are supported by all models.
CP310
CP310
CP310
CP310
CP300
CP300
:The functions with this notation are available when using the model WV-CP310 and
WV-CP314.
:The functions with this notation are available when using the model WV-CP300 and
WV-CP304.
Features
Introduction of newly developed high-resolution CCD
The introduction of the newly developed CCD with 976 horizontal pixels has led to a horizontal resolution of as high as 650 TV lines.
High sensitivity achieved because of noise reduction function
Sensitivity at the following minimum illuminations has been accomplished for color images because
CP310
of the introduction of low noise circuit design (F1.4) :
CP310
0.08 lx (color), 0.008 lx (black-and-white) CP310
0.08 lx (color), 0.05 lx (black-and-white) CP300
CP310
CP300
Day/Night conversion function equipped
CP310
CP310
No setup change is required at night because
the image automatically changes from the color
CP300
mode to the black-and-white mode at low illuminance.
Bright images can be captured at night because of automatic switching of IR filters at low illuminance.
Motion detection function (VMD) equipped
The motion of an object is detectable. The acts of covering the camera with a cloth, a cap or other
acts and changing the camera direction during surveillance can be detected.
6
PGQX1142YA_WV-CP300_G.indd 6
2012/3/30 16:53:32
Note:
• The VMD function is not the dedicated function to prevent thefts, fires, etc. We are not responsible for any accidents or damages caused by applying the function for the above purposes.
About the user manuals
The operating instructions of the camera consist of 2 sets: this book and operating instructions
(PDF).
This book explains how to install the camera.
Refer to the "Operating Instructions (PDF)"on the provided CD-ROM for descriptions of how to
perform the unit settings. Adobe® Reader® is required to read PDF. When the Adobe® Reader® is
not installed on the PC, download the latest Adobe® Reader® from the Adobe web site and install it.
Trademarks and registered trademarks
Adobe, Acrobat Reader and Reader are either registered trademarks or trademarks of Adobe
Systems Incorporated in the United States and/or othe countries.
7
PGQX1142YA_WV-CP300_G.indd 7
2012/3/30 16:53:32
Precautions
Refer installation work to the dealer.
Installation work requires technique and experiences. Otherwise injury or damage to this
product may result.
Be sure to consult the dealer.
Do not insert any foreign objects.
This could permanetly damage this product.
Turn the power off immediately and contact
qualified service personnel for service.
Do not attempt to disassemble or modify
this product.
Failure to observe this may cause fire or electric shock.
Consult the dealer for the repair or inspections.
Stop operation immediately when something is wrong with this product.
When smoke goes up from this product or
the smell of smoke comes from this product,
continued use will result in fire, injury, or damage to the product.
Turn the power off immediately and contact
qualified service personnel for service.
Select an installation area that can support
the total weight.
Selecting an inappropriate installation surface
may cause the product to fall down or topple
over, resulting in injury.
Installation work shall be started after sufficient reinforcement.
Periodic inspections shall be conducted.
Rust on the metal parts or screws may cause
the product to fall down resulting in injury or
accidents.
Consult the dealer for the inspections.
This product shall be installed in a vibration-free place.
Failure to observe this may cause screws and
bolts to be loosened and consequently to fall
resulting in injury.
Install this product in a location high
enough to avoid people and objects from
bumping the product.
Failure to observe this may cause a drop
resulting in injury or accidents.
Do not strike or give a strong shock to this
product.
Failure to observe this may cause injury or fire.
Turn the power off when do wiring of this
product.
Failure to observe this may cause electric
shock. A short circuit or wrong wiring may
cause fire.
Do not use this product in an atmosphere
of flammable gases.
Failure to observe this may cause injury by
explosion.
Avoid installing this product in locations
where it is subject to damage by salt or
corrosive gas.
Otherwise the mounting fixtures will deteriorate, causing the product to fall down and
leading to accidents.
Tighten screws and mounting fixtures to
the specified torque.
Failure to observe this may cause a drop
resulting in injury or accidents.
8
PGQX1142YA_WV-CP300_G.indd 8
2012/3/30 16:53:32
[Precautions for use]
This product is designed to be used indoors.
This product is not operable outdoors.
This product has no power switch.
When turning off the power, turn off a circuit
breaker.
Do not aim this product at strong light
sources.
A light source such as a spot light causes a
blooming (light bleeding) or a smear (vertical
lines).
Bright subject
Smear
To keep on using with stable performance
Parts of this product may deteriorate and it may
shorten the lifetime of this product when using
in locations subject to high temperatures and
high humidity. (Recommended operating temperature: +35 °C {95 °F} or lower)
Do not expose this product to direct heat
sources such as a heater.
Handle this product with care.
Do not drop this product, nor apply shock or
vibration to this product.
Failure to observe this may cause trouble.
Blooming
Cleaning this product body
Turn the power off when cleaning this product.
Do not use strong abrasive detergent when
cleaning this product.
Otherwise, it may cause discoloration.
Noise on monitor
This product is equipped with a super sensitive CCD. Therefore, noise may appear on the
monitor. This phenomenon is not trouble.
Discoloration on the CCD color filter
When continuously shooting a bright light
source such as a spotlight, the color filter of
the CCD may have deteriorated and it may
cause discoloration. Even when changing the
fixed shooting direction after continuously
shooting a spotlight for a certain period, the
discoloration may remain.
9
PGQX1142YA_WV-CP300_G.indd 9
2012/3/30 16:53:32
Precautions for installation
Panasonic assumes no responsibility for
injuries or property damage resulting from
failures arising out of improper installation
or operation inconsistent with this documentation.
This product is designed to be used
indoors.
This product is not operable outdoors.
Do not expose the product to direct sunlight
for hours and do not install the product near a
heater or an air conditioner. Otherwise, it may
cause deformation, discoloration and malfunction. Keep the product away from water
and moisture.
Installing place
Contact your dealer for assistance if you are
unsure of an appropriate place in your particular environment.
• Make sure that the installation area is strong
enough to hold the product, such as a concrete ceiling.
• Install the camera in the foundation area of
the architecture or where sufficient strength
is assured.
• If a ceiling board such as plaster board is
too weak to support the total weight, the
area shall be sufficiently reinforced.
Avoid installing this product in the following locations.
• Location where it may get wet from rain or
water splash.
• Locations where a chemical agent is used
such as a swimming pool.
• Locations subject to steam and oil smoke
such as a kitchen.
• Locations near flammable gas or vapor.
• Locations where radiation or x-ray emissions are produced.
• Locations where corrosive gas is produced,
Locations where it may be damaged by
briny air such as seashores.
• Locations where the temperature is not
within –10 °C to +50 °C {14 °F to 122 °F} .
• Locations subject to vibrations (This product is not designed for on-vehicle use.)
• Locations subject to condensation as the
result of severe changes in temperature.
Avoid moist or dusty places to install this
system.
Otherwise, lifetime of the internal parts may be
shortened.
Avoid installing this product in a place with
a high level of noise.
Installation near an air conditioner, an air
cleaner, a vending machine, or the like causes
noise.
Avoid installing and connecting during a
lightning storm. Otherwise, an electric
shock or fire may be caused.
Be sure to remove this product if it is not in
use.
Do not damage the power plug or cable.
Keep the camera cable away from the
lighting cable.
Failure to observe this may cause noise.
Radio interference
When the camera is used near T V/radio
antenna, strong electric field or magnetic field
(near a motor or a transformer), images may
be distorted and noise sound may be produced. In such a case, run the camera cable
through specialized steel conduit tubes.
10
PGQX1142YA_WV-CP300_G.indd 10
2012/3/30 16:53:33
Locally procure the screws
Screws are not supplied with this product.
Prepare the screws according to the material,
structure, strength and other factors of the
mounting area and the total weight of objects
to be mounted.
Screw tightening
• The screws and bolts must be tightened
with an appropriate tightening torque
according to the material and strength of
the installation area.
• Do not use an impact driver. Failure to
observe this may cause overtightening
and consequently damage to the screws.
• When a screw is tightened, make the
screw at a right angle to the surface. After
tightening the screws or bolts, perform
visual check to ensure tightening is
enough and there is no backlash.
Power cord (only for WV-CP300‚
WV-CP310)
Connect the power cord securely. Run the
power cord so that no load is applied to the
cord when panning or tilting the camera.
(Failure to observe this may disconnect the
power cord, and accordingly no image is displayed.)
11
PGQX1142YA_WV-CP300_G.indd 11
2012/3/30 16:53:33
Major operating controls and their functions
(Side view)
(Bottom view)
SET
UP
5
7
4
(Rear view)
<WV-CP300, WV-CP310>
<WV-CP304, WV-CP314>
2
2
24V~IN 2-N
6
1
120V~60Hz
12V
VIDEO OUT
3
1 AC power input terminal [120 V~ 60 Hz]
<Only for WV-CP300, WV-CP310>
Connect with the supplied power cord.
2 Video output connector [VIDEO OUT]
1-L
Provides video output to system units.
3 Tripod mount base
This is used to install the camera onto the
mount bracket (Iocally procured).
4 ALC lens connector
Connects to ALC lens (4-pin).
5 Back focus adjustment screw
Adjusts the back focus distance and
image focal length.
6 Power input terminal [12 V IN, 24 V~IN]
<Only for WV-CP304, WV-CP314>
The power supply of 24 V AC or 12 V DC is
connected to this terminal.
7 Setup button [SET]
Press the [SET] button once and the
"FOCUS ADJUSTMENT" screen will be
displayed.
IN
VIDEO OUT
3
Hold down the [SET] button for more than
2 seconds and the setup menu screen will
be displayed.
• [LEFT]/[RIGHT]: Press the [RIGHT] or [LEFT]
button to move to the right or left in the
menu, or change the displayed values.
• [UP]/[DOWN]: Press the [UP] or [DOWN]
button to move up or down in the menu.
(UP) UP
(LEFT)
(RIGHT)
(DOWN) SET
( T h e d i re c t i o n s o f " U P " , " D O W N " ,
"LEFT"and "RIGHT" are as shown when
you are directly facing "UP".)
• [SET]: Press this button in the menu to
confirm the selected value or function.
In addition, this button is used to open
submenus.
12
PGQX1142YA_WV-CP300_G.indd 12
2012/3/30 16:53:34
Installation and connection
Important:
• Follow the installation and connection procedure below to ensure safety.
1Rotate the lens (option) clockwise slowly to mount the lens.
Important:
• CS-mount lens can be used on this camera. For use of C-mount lens, use the C-mount
adaptor (option).
• For prevention of damage to the camera body, use a lens with protrusion of 5.5 mm or less
from the flange surface.
Protrusion from mount:
φ20 mm {25/32 inches} or less
Protrusion from flange:
5.5 mm {7/32 inches} or less
Optional dedicated lens
Lens type
ALC lens for 1/3-type CCD cameras
Model No.
2x vari-focal
WV-LZA61/2S
WV-LZA62/2
8x vari-focal
WV-LZ62/8S
2Connect the lens cable to the ALC lens connector of the camera.
ALC lens connector
1
3
2
4
Pin No.
1
2
3
4
Dump
Dump
Drive
Drive
13
PGQX1142YA_WV-CP300_G.indd 13
2012/3/30 16:53:34
3 Installation of safety wire
The following example shows the installation of safety wire:
Important:
• Be sure to install safety wire between the camera and the installation position to prevent unexpected injury caused by fallen camera.
• Ensure that the safety wire is installed. Consult the dealer about installation.
Attach the safety wire lug (accessory) to the screw hole of the mount
base with screw (accessory).
1Loosen one screw in the front portion of the
camera upper case. (Either left or right)
2Be sure to attach the safety wire lug (accessory)
with the wire lug fixing screw (M2.5 × 8 mm
{5/16 inches}) provided in the accessories.
Wire lug fixing
Wire engaging hole
screw (accessory)
Screws of
upper case
Important:
Safety wire lug
(accessory)
• Be sure to attach the safety wire lug (accessory)
with the screw provided in the accessories. Using
screw of different length may cause camera drop
or damage.
• Do not install the safety wire lug at places other than
the two screw holes of the upper case.
• Do not install the safety wire lug on the projections of the upper case. (Install the safety wire lug
between the two projections)
• Recommended tightening torque: 0.39 N·m
{0.29 lbf·ft}.
Engage the safety wire with the wire engaging hole.
Safety wire
Wire engaging
hole
1 Pass one end of the safety wire eyelet through the wire engaging hole.
2 Pass the other end of the safety wire through the eyelet.
14
PGQX1142YA_WV-CP300_G.indd 14
2012/3/30 16:53:36
4
Installation of camera mount bracket (locally procured)
Secure the camera mount bracket (locally procured) to the installation position, and mount the
camera on the camera mount bracket.
Prepare mounting screws according to the material of the area where the camera mount
bracket (locally procured) is to be installed. The installation method may be different depending
on the material of the area where the bracket is to be installed.
• When installing on steel: Fix with bolts and nuts (M6 or M8).
• When installing on concrete: Fix with expansion anchor bolts (M6 or M8).
• Use mount bracket with strength 5 times of the total weight of the camera body and lens.
• The height and length of the camera mount bracket must be appropriate to ensure the use
of the safety wire in the accessories.
The mounting conditions of the camera mount bracket (locally procured) are described as
follows:
Installation
position
Recommended
screw
Screw quantity
Minimum pull-out
strength (per 1 pc.)
On ceiling
On wall
M6 or M8
M8
3 pcs.
4 pcs.
196 N {44.06 lbf}
921 N {207.05 lbf}
Important:
• Refer to the operating instructions of the camera mount bracket (locally procured) for the
mounting angle of the camera mount bracket for a ceiling or wall.
• When the camera mount bracket is mounted on a wall, be sure to observe the mounting height
described on the illustration.
<Installation sample on a ceiling>
<Installation sample on a wall>
Camera mount
bracket
(locally procured)
Screws
(locally procured)
Screws
(locally procured)
Floor
More than
270 cm
{8.9 feet}
15
PGQX1142YA_WV-CP300_G.indd 15
2012/3/30 16:53:37
5Mount the camera on the camera mount bracket
Follow the instruction of camera mount bracket to mount the camera on the camera mount
bracket, and aware of the followings:
• Be sure to install the tripod mount base and safety wire before attaching the camera to the
camera mount bracket.
• Change the tripod mount base position when attaching the camera to the ceiling mount
bracket. Observe the following precautions at this time.
If it is needed to restore the tripod mount base to its original position, also observe the following precautions.
• When attaching an optional tripod mount base on the top or bottom of the camera, use the
removed screws to attach the tripod mount base. Use of longer or shorter screws may
cause the camera or tripod to fall causing damage. (Recommended tightening torque:
0.39 N·m {0.29 lbf·ft}).
<Installation sample on a ceiling>
Tripod socket
Screws
hole:1/4-20UNC
Tripod mount base
(The indentation
on the mount
base should
point forward.)
16
PGQX1142YA_WV-CP300_G.indd 16
2012/3/30 16:53:37
6Attach safety wire (accessory) to the ceiling or wall.
Attach the safety wire to the foundation or other parts of the building with sufficient strength
(minimum pull-out strength 196 N {44.06 lbf}).
Prepare screws according to the condition of the attachment position. Use the safety wire
(accessory), washer (accessory) and spring washer (accessory).
<When attached to the wall>
Recommended
screw M4,
minimum
pull-outstrength
196 N {44.06 lbf}
Spring washer Washer
(accessory)
(accessory)
Safety wire
(accessory)
Foundation or
other parts of
the building with
sufficient strength
<When attached to the ceiling>
Ceiling
Washer (accessory)
Spring washer (accessory)
Recommended screw M4,
minimum pull-out strength
196 N {44.06 lbf}
Safety wire (accessory)
17
PGQX1142YA_WV-CP300_G.indd 17
2012/3/30 16:53:38
7Connect the video output
Important:
• Be sure to turn off the power of each device before connecting.
• Be sure to secure the coaxial cable connectors.
Connect a coaxial cable (locally procured) to the video output connector.
Coaxial cable
To video input
120V~60Hz
VIDEO OUT
hUse a cable tie (locally procured) to attach the coaxial cable to the camera
mount bracket.
Important:
• The cable tie shall be made of metallic or durable material to be strong enough because the
coaxial cable plays the role of camera drop prevention measures in case.
<Installation sample on a ceiling>
Camera
mount
bracket
(locally
procured)
Safety wire
The cable
shall be tied
to the camera
mount bracket
by cable tie.
<Installation sample on a wall>
Safety wire
The cable shall be
tied to the camera
mount bracket by
cable tie.
Camera mount
bracket (locally
procured)
18
PGQX1142YA_WV-CP300_G.indd 18
2012/3/30 16:53:39
9Turn on the power.
WV-CP300, WV-CP310
Use the power cord (accessory) to connect the power supply.
Important:
• The included power cord is the dedicated power cord of this product. Do not use it with other
devices.
Power cord (accessory)
120 V AC, 60 Hz
120V~60Hz
VIDEO OUT
WV-CP304, WV-CP314
Caution:
• ONLY CONNECT WV-CP304, WV-CP314 TO 24V AC OR
12V DC CLASS 2 POWER SUPPLY.
24V~IN 2-N
12V
1-L
IN
VIDEO OUT
Important:
• Use 24 V AC or 12 V DC power supply that is insulated
from 120 V AC power.
• The power supply is automatically switchover either 24 V
AC or 12 V DC. No setting is required with this camera.
Power supply
(24 V AC
or 12 V DC)
1 Loosen the screw of the power cord plug (accessory).
2 Connect the power supply of 24 V AC or 12 V DC to the
power cord plug.
Strip the end of the wire by 3 mm to 7 mm, and twist the
stripped part of the wire sufficiently to avoid short circuit.
Specification of power cord (wire): AWG #16 - #24,
Single core, twisted
Important:
• Check whether the cord core is fully inserted into the power
cord plug.
<Ratings>
24 V AC
2-N
1-L
-
+
12 V DC
(GND)
Power cord
plug (accessory)
⊕
3 mm - 7 mm
{1/8 to 1/4 inches}
PGQX1142YA_WV-CP300_G.indd 19
19
2012/4/2 15:36:18
3 Tighten the screw of the power cord plug.
4 Connect the power cord plug to the power supply terminal on the rear side of the camera.
Important:
• Make sure that the power cord plug is inserted fully into the power supply terminal.
Cable length and wire gauge
24 V AC
The recommended cable length and wire gauge are shown in the table for reference. The voltage
supplied to the power terminals of the camera should be within 19.5 V AC and 28 V AC.
The recommended wire size for 24 V AC power cord is shown below:
Copper wire
size (AWG)
Length
(approx.)
#24
(0.205 mm2)
#22
(0.325 mm2)
#20
(0.519 mm2)
#18
(0.833 mm2)
#16
(1.307 mm2)
(m)
20
30
45
75
120
feet
66
100
150
250
395
12 V DC
Calculation of the relation among the cable length, resistance, and power supply.
The voltage supplied to the camera shall be between 10.8 V DC and 16 V DC.
10.8 V DC ≤ VA - 2 (R x I x L) ≤ 16 V DC
L :Cable length (m)
R :Resistance of copper wire (Ω/m)
VA:DC output voltage of power supply unit
I :DC current consumption (A)
See specifications.
Resistance of copper wire [at 20 °C]
Copper wire
size (AWG)
#24
(0.205 mm2)
#22
(0.325 mm2)
#20
(0.519 mm2)
#18
(0.833 mm2)
#16
(1.307 mm2)
Resistance
Ω/m
0.083
0.052
0.033
0.020
0.013
20
PGQX1142YA_WV-CP300_G.indd 20
2012/4/18 16:16:28
jAdjust the camera angle by loosening the screw of the camera mount bracket
while viewing the video monitor.
Be sure to loosen the screw of the camera mount bracket when the camera angle is adjusted.
If the camera angle is changed when the screw is tight, excessive force is applied to the camera mount bracket and camera, and accordingly they may be damaged. Be sure to tighten the
screw securely after camera angle adjustment.
Adjust the focus.
To use a fixed-focal lens
When adjusting the focus with a fixed-focal lens, use the back focus adjustment knob.
Adjust the focus with the focus assist function
The view angle and aperture can be adjusted according to the distance of the photographic
subject. Adjust the view angle and focus when adjusting the camera angle.
1 Loosen the zoom lock knob. Adjust the view angle
with the zoom and focus ring according to the
photographic subject.
2 Tighten the zoom lock knob.
3 Press the [SET] button.
→ The "FOCUS ADJUSTMENT" screen will appear. The focus assist function will be activated to perform
the optimum adjustment.
FOCUS ADJUSTMENT
LOW
HIGH
..................I
INDICATOR
PEAK HOLD
1135 BEST
1135 FOCUS
4 When the focus ring is positioned near the best focus
position, the position will automatically be memorized as the "PEAK HOLD" position (the higher the value is, the closer it is to the focus point).
5 When the focus ring is moved, the current focus position will be indicated on "INDICATOR". Adjust the focus position so that the indicator value goes close to the "PEAK HOLD"
position.
6 When the indicator value goes to the best focus position, "BEST FOCUS" will be displayed
in reverse at the lower right corner of the screen.
7 Press the [SET] button again to close the "FOCUS ADJUSTMENT" menu. (No operation for
3 minutes also closes the menu.)
21
PGQX1142YA_WV-CP300_G.indd 21
2012/3/30 16:53:40
Important:
• If the view angle changes during adjustment, press the [SET] button to close the "FOCUS
ADJUSTMENT" screen (once the view angle changes, the "PEAK HOLD" and "INDICATOR"
values will also change), and repeat from step 3 after the view angle is fixed.
• When shooting in the following place or following subjects, press the [SET] button again to
close the "FOCUS ADJUSTMENT" screen. Adjust to the best focus position while viewing the
image.
• Frequently moving subject
• Subject with large illuminance change
• Subject with low illuminance
• Too bright or reflective subject
• Subject through a window
• Place where the lens easily becomes dirty
• Subject with less contrast such as white wall
• Subject with remarkable depth
• Subject with heavy flicker
• Subject with horizontally parallel lines such as a shutter
22
PGQX1142YA_WV-CP300_G.indd 22
2012/3/30 16:53:40
Setup menu
Performing each setting item in the setup menu should be completed in advance to use this unit. Perform
the settings for each item in accordance with the installation conditions and customer requirements.
List of setup menu
Setup item
Description
CAMERA ID
This item specifies the camera title. The camera title that indicates the
camera location and other information about the camera is created with
alphanumeric characters and symbol, and then displayed on the screen.
CAMERA
Performs the camera operation settings.
SCENE 1/
SCENE 2
ALC/ELC
SHUTTER
AGC
SENS UP
WHITE BAL
DNR
D&N (IR/ELE)
VMD
SYSTEM
SYNC
PRIVACY ZONE
STABILIZER
EL-ZOOM
UPSIDE-DOWN
LDC
SPECIAL
CHROMA GAIN
AP GAIN
PEDESTAL
HUE
PIX OFF
COMMUNICATION
CAMERA RESET
SER.NO.
LANGUAGE
Selects a scene file. It is possible to register and save the settings as a
scene file in case that it is necessary to change the settings such when
shooting at night.
Selects the method of controlling the quantity of light in accordance with
the lens to be used.
Specifies the electronic shutter speed.
Specifies gain adjustment.
Specifies electronic sensitivity enhancement.
Specifies white balance adjustment.
Selects the level of the digital noise reduction function.
Performs each setting regarding the black-and-white mode such as
switching between color and black-and-white images.
Performs settings regarding VMD (Video Motion Detection).
Performs the settings regarding the camera system such as
synchronization and privacy zone.
Specifies the synchronization type.
Hides undesired portions in the camera shooting area.
Decides whether or not to enable the image stabilizer.
Switches the electronic zoom on and off.
Flips the camera images vertically or horizontally.
Adjusts the Lens distortion correction to convert the image so that it
matches the square monitor.
Adjusts the chroma level (color density).
Adjusts the aperture level.
Adjusts the pedestal (brightness) level.
Adjusts the chroma phase (hue).
Corrects image defects such as flaws.
Performs the communication setting of the system with a receiver into
which this unit is integrated.
Restores the settings in the setup menu to the default settings.
Displays the serial number of this unit.
Selects a language to be used in the setup menu.
23
PGQX1142YA_WV-CP300_G.indd 23
2012/4/2 12:55:30
Basic operation
The operations in the setup menu are performed with the operation buttons after calling up the
setup menu on the connected video monitor.
The description below explains how to operate the setup menu basically.
Screenshots of WV-CP310 are shown as an example.
Screenshot 1
Hold down the [SET] button for about 2 seconds
to call up the top screen of the setup menu.
MODEL
WV-CP310 SERIES
CAMERA ID
OFF
CAMERA
SYSTEM
SPECIAL
LANGUAGE
END
SETUP DISABLE
Step 1
Press the [UP] or [DOWN] button to move the
cursor to "END".
Step 2
Press the [RIGHT] button to move the cursor to
"SETUP", and press the [SET] button to
change the setup mode from "DISABLE" to
"ENABLE".
Screenshot 2
The setup mode changes to "ENABLE", and
the setup menu becomes ready to be set.
MODEL
WV-CP310 SERIES
CAMERA ID
OFF
CAMERA
SYSTEM
SPECIAL
LANGUAGE
END
Step 3
Move the cursor to the item to be set, and
press the [SET] button. SETUP ENABLE
24
PGQX1142YA_WV-CP300_G.indd 24
2012/3/30 16:53:41
Screenshot 3
The selected setup screen in the setup menu
appears on the screen.
**CAMERA SETUP**
SCENE1
ALC/ELC
ALC
SHUTTER
OFF
AGC
ON(HIGH)
SENS UP
OFF
WHITE BAL ATW1
DNR
HIGH
D&R(IR)
AUTO1
OFF
VMD
RET TOP END
Step 4
Perform the settings for each item.
• Selection of setting item:
Press the [UP] button or [DOWN] button to
move the cursor.
• Change of settings:
Press the [RIGHT] button or [LEFT] button.
• Display of advanced setup screen:
Press the [SET] button when "
attached to the target setting item.
" is
• Return to previous setup screen:
Note:
• If the top screen of the setup menu is
called up with the operation buttons
while the camera is operated, the setup
mode is always "DISABLE" to prevent
operation errors.
To perform settings in the setup menu,
change the setup mode to "ENABLE".
• The cursor is a reversely highlighted part.
Move the cursor to "RET" and press the
[SET] button.
• Return to the top screen:
Move the cursor to "TOP" and press the
[SET] button, to display the top screen of
the setup menu.
Step 5
Move the cursor to “END” and press the [SET]
button to return to the camera image screen,
or wait about 5 minutes and the setup menu
will automatically close.
25
PGQX1142YA_WV-CP300_G.indd 25
2012/4/2 14:11:03
Screen transition diagram
Top screen
MODEL
WV-CP310 SERIES
CAMERA ID
OFF
CAMERA
SYSTEM
SPECIAL
LANGUAGE
CP310
CP310
CP300
“CAMERA ID” screen
**CAMERA ID**
0123456789
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
().,'":;&#!?=
+-*/%$
SPACE POSI
RET TOP END RESET
END
SETUP DISABLE
................
“CAMERA SETUP” screen
**CAMERA SETUP**
SCENE1
ALC/ELC
ALC
SHUTTER
OFF
AGC
ON(HIGH)
SENS UP
OFF
WHITE BAL ATW1
DNR
HIGH
D&N(IR)
AUTO1
VMD
OFF
RET TOP END
“SYSTEM SETUP” screen
**SYSTEM SETUP**
SYNC
INT
PRIVACY ZONE OFF
STABILIZER
OFF
EL-ZOOM
OFF
UPSIDE-DOWN
OFF
LDC
I...... 0
+
RET TOP END
“SPECIAL SETUP” screen
**SPECIAL SETUP**
....I..160
CHROMA GAIN
...I... 32
AP GAIN
.I..... 15
PEDESTAL
HUE
...I... 0
+
PIX OFF
COMMUNICATION COAX
CAMERA RESET PUSH SET
SER.NO. XXXXXXXX
RET TOP END
“LANGUAGE SETUP” screen
**LANGUAGE SETUP**
LANGUAGE
ENGLISH
SET
RET TOP END
26
PGQX1142YA_WV-CP300_G.indd 26
2012/4/2 14:11:03
CP310
CP310
Screen transition diagram
CP300
Top screen
“CAMERA ID” screen
MODEL
WV-CP300 SERIES
CAMERA ID
OFF
CAMERA
SYSTEM
SPECIAL
LANGUAGE
**CAMERA ID**
0123456789
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
().,'":;&#!?=
+-*/%$
SPACE POSI
RET TOP END RESET
END
SETUP DISABLE
................
“CAMERA SETUP” screen
**CAMERA SETUP**
SCENE1
ALC/ELC
ALC
SHUTTER
OFF
AGC
ON(HIGH)
SENS UP
OFF
WHITE BAL ATW1
DNR
HIGH
D&N(ELE)
OFF
VMD
OFF
RET TOP END
“SYSTEM SETUP” screen
**SYSTEM SETUP**
SYNC
INT
PRIVACY ZONE OFF
STABILIZER
OFF
EL-ZOOM
OFF
UPSIDE-DOWN
OFF
LDC
I...... 0
+
RET TOP END
“SPECIAL SETUP” screen
**SPECIAL SETUP**
....I..160
CHROMA GAIN
...I... 32
AP GAIN
.I..... 15
PEDESTAL
HUE
...I... 0
+
PIX OFF
COMMUNICATION COAX
CAMERA RESET PUSH SET
SER.NO. XXXXXXXX
RET TOP END
“LANGUAGE SETUP” screen
**LANGUAGE SETUP**
LANGUAGE
ENGLISH
SET
RET TOP END
27
PGQX1142YA_WV-CP300_G.indd 27
2012/4/2 14:11:03
Troubleshooting
Before asking for repairs, confirm the causes with the following table.
Contact your dealer if a problem cannot be solved even after checking and trying the solution in the
table or a problem is not described below.
Symptom
No image displayed
Blurred image
Cause/solution
Reference page
•Are the power cord and coaxial cable
connected appropriately?
→ Check whether the connection is
appropriately established.
19~20
•Is the monitor brightness appropriately
adjusted, or is the contrast appropriately
adjusted?
→ Check whether the monitor settings
are appropriate.
-
•Is the lens cap detached?
→ Check whether the lens cap is removed.
-
•Is the lens of the camera soiled with dirt
or dust?
→ Check whether the lens of the
camera is clean.
-
•Is the focus adjusted correctly?
→ Check if the focus is adjusted
correctly.
21~22
Damaged power cord
sheathing
Heated portion of power line
consisting of power cord,
connector, and power plug
during use
The temperature of power
cord rises or falls when the
power cord is bent or
stretched during use
•The power cord, power connector, or
power plug is damaged. Continuous
use of the damaged cord, connector,
or plug may cause electric shock or
fire.
Disconnect the power plug immediately
and request repair from your dealer.
-
28
PGQX1142YA_WV-CP300_G.indd 28
2012/4/2 14:11:04
Specifications
General
WV-CP310
WV-CP300
WV-CP314
WV-CP304
120 V AC 60 Hz
24 V AC 60 Hz, 12 V DC
1.9 W
24 V AC: 2.3 W, 12 V DC: 210 mA
1/3-type interline transfer CCD
976 (H) × 494 (V)
4.8 mm (H) × 3.6 mm (V) {3/16 inches (H) × 5/32 inches (V)}
2:1 interlace
525 lines
15.734 kHz
59.94 Hz
Internal (INT), multiplexed vertical drive (VD2)
650 TV lines
350 TV lines
1.0 V [p-p] NTSC composite video signal 75 Ω
52 dB (AGC OFF)
0.08 lx (color mode)
0.008 lx
0.05 lx
0.008 lx
0.05 lx
Minimum illumination
(black-and(black-and(black-and(black-andwhite mode)
white mode)
white mode)
white mode)
ALC lens drive
DC drive
Lens mount
CS-mount
Ambient operating temperature –10 °C to +50 °C {14 °F to 122 °F}
Ambient operating humidity
Less than 90 %
101 mm (L) × 72 mm (W) × 55 mm (H) 81 mm (L) × 72 mm (W) × 55 mm (H)
Dimensions
{3-31/32 inches (L) × 2-27/32 inches {3-3/16 inches (L) × 2-27/32 inches
(W) × 2-5/32 inches (H)}
(W) × 2-5/32 inches (H)}
Approx.160 g
Approx.190 g {0.42 lbf}
Mass
(Power cord excluded)
{0.35 lbf}
Power source
Power consumption
Image sensor
Effective pixels
Scanning area
Scanning system
Scanning line
Horizontal scanning frequency
Vertical scanning frequency
Synchronization
Horizontal resolution
Vertical resolution
Video output
Signal-to-noise ratio
Camera title
Chinese: up to 8 characters; English letter, numbers and symbols:
up to 16 characters.
Light control mode setting
Back light compensation
Auto black stretch
ALC/ALC+/ELC
ON/OFF
ON/OFF
Shutter speed
OFF (1/60), 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000,
1/10000, 1/120000 (s)
Auto gain control
Sensitivity up
White balance
Digital noise reduction
Day&Night (IR)
Day&Night (Electronic)
ON (HIGH/MID/LOW), OFF
OFF/AUTO (×2, ×4, ×6, ×10, ×16, ×32)/FIX (×2, ×4, ×6, ×10, ×16,
×32, ×64, ×128, ×256, ×512)
ATW1/ATW2/AWC
LOW/HIGH CP310
CP310
CP310
AUTO1/AUTO2/ON/OFF
CP310
AUTO/OFF CP300
CP300
PGQX1142YA_WV-CP300_G.indd 29
29
2012/3/30 16:53:41
Video motion detection
Number of scene file
Privacy zone
Image stabilizer
Electronic zoom
Upside-down
Lens distortion correction
WV-CP310
WV-CP300
WV-CP314
OFF/MOTION DETECTION/SCENE CHANGE
2
ON (1)/ON (2)/OFF
ON/OFF
ON (up to 2x)/OFF
ON/OFF
0 to 255
WV-CP304
※ Values of weight and dimensions are approximate. The specification is subject to change without notice.
Standard accessories
CD-ROM*. ....................................................................1 pc.
Installation Guide (this book)..........................................1 pc.
Warranty card................................................................1 pc.
* The CD-ROM contains the operating instructions and installation guide (PDF).
The following parts are used during installation procedures:
Power cord (only for WV-CP300 and WV-CP310)
(Approx. 1.8 m {5.9 feet})........................................1 pc.
Power cord plug
(only for WV-CP304 and WV-CP314).......................1 pc.
Safety wire lug...............................................................1 pc.
Safety wire (Approx. 300 mm {1 feet}) ..........................1 pc.
Wire lug fixing screws (M2.5 × 8 mm {5/16 inches}).......2 pcs. (including 1 for replacement)
Washer..........................................................................1 pc.
Spring washer...............................................................1 pc.
30
PGQX1142YA_WV-CP300_G.indd 30
2012/3/30 16:53:41
31
PGQX1142YA_WV-CP300_G.indd 31
2012/3/30 16:53:41
Panasonic System Communications Company of North America,
Unit of Panasonic Corporation of North America
www.panasonic.com/business/
For customer support, call 1.800.528.6747
Three Panasonic Way, Secaucus, New Jersey 07094 U.S.A.
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada
(905)624-5010
www.panasonic.ca
© Panasonic System Networks Co., Ltd. 2012
PGQX1142YA_WV-CP300_G.indd 32
sC0112-1052
PGQX1142YA
Printed in China
2012/3/30 16:53:41
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
