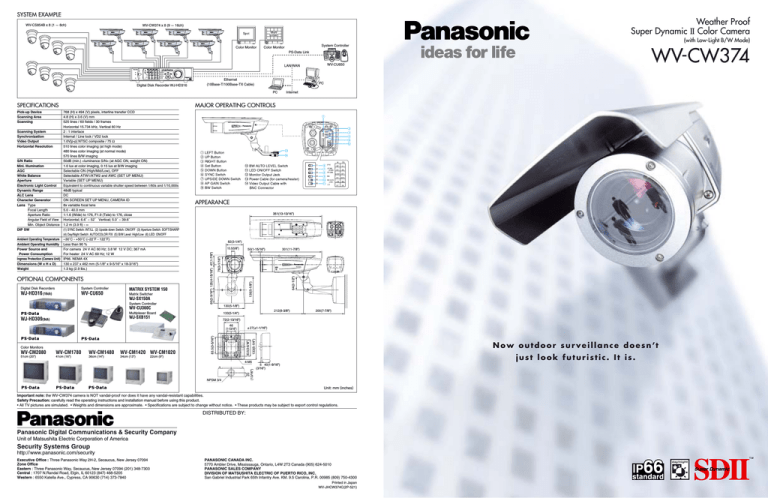

Panasonic WV-CW374 Specification

Panasonic WV-CW374 Specification
SYSTEM EXAMPLE
WV-CS854B x 8 (1 ~ 8ch)
Weather Proof
Super Dynamic II Color Camera
WV-CW374 x 8 (9 ~ 16ch)
(with Low-Light B/W Mode)
Color Monitor
System Controller
Color Monitor
WV-CW374
PS-Data Link
WV-CU650
LAN/WAN
+
Digital Disk Recorder WJ-HD316
Ethernet
(10Base-T/100Base-TX Cable)
PC
PC
SPECIFICATIONS
Internet
MAJOR OPERATING CONTROLS
Pick-up Device
Scanning Area
Scanning
WV-CU650
MATRIX SYSTEM 150
Matrix Switcher
WJ-SX150A
System Controller
4
5
6
APPEARANCE
351(13-13/16")
82(3-1/4")
15.5(5/8")
130(5-1/8")
Multiplexer Board
133(5-1/4")
212(8-3/8")
WV-CM1480
WV-CM1420 WV-CM1020
51cm (20")
41cm (16")
36cm (14")
34cm (13")
83.5(3-5/16")
WV-CM1780
27( 1-1/16")
83.5(3-5/16")
WV-CM2080
200(7-7/8")
72(2-13/16")
46
(1-13/16")
Color Monitors
301(11-7/8")
78(3-1/16")
WV-CU360C
WJ-SXB151
WJ-HD309(9ch)
50(1-15/16")
64(2-1/2")
System Controller
WJ-HD316 (16ch)
3
130(5-1/8")
Digital Disk Recorders
2
22cm (9")
133(5-1/4")
OPTIONAL COMPONENTS
1
65(2-9/16") 125(4-15/16") 47(1-7/8")
768 (H) x 494 (V) pixels, interline transfer CCD
4.8 (H) x 3.6 (V) mm
525 lines / 60 fields / 30 frames
Horizontal 15.734 kHz, Vertical 60 Hz
Scanning System
2 : 1 interlace
Synchronization
Internal / Line lock / VD2 lock
Video Output
1.0V[p-p] NTSC composite / 75 Ω
Horizontal Resolution
510 lines color imaging (at high mode)
480 lines color imaging (at normal mode)
570 lines B/W imaging
S/N Ratio
50dB (min.) <luminance S/N> (at AGC ON, weight ON)
Mini. Illumination
1.0 lux at color imaging, 0.15 lux at B/W imaging
AGC
Selectable ON (High/Mid/Low), OFF
White Balance
Selectable ATW1/ATW2 and AWC (SET UP MENU)
Aperture
Variable (SET UP MENU)
Equivalent to continuous variable shutter speed between 1/60s and 1/10,000s
Electronic Light Control
Dynamic Range
48dB typical
ALC Lens
DC
Character Generator
ON SCREEN SET UP MENU, CAMERA ID
Lens Type
8x variable focal lens
Focal Length
5.0 - 40.0 mm
Aperture Ratio
1:1.6 (Wide) to 176, F1.9 (Tele) to 176, close
Angular Field of View Horizontal; 6.6˚ ~ 52˚ Vertical; 5.0˚ ~ 39.6˚
Min. Object Distance 1.2 m (3.9 ft) - ∞
(1) SYNC Switch: INT/LL (2) Upside down Switch: ON/OFF (3) Aperture Switch: SOFT/SHARP
DIP SW
(4) Day/Night Switch: AUTO/COLOR FIX (5) B/W Level: High/Low (6) LED: ON/OFF
Ambient Operating Temperature –30˚C - +50˚C (–22˚F - 122˚F)
Ambient Operating Humidity Less than 90 %
Power Source and
For camera 24 V AC 60 Hz; 3.8 W 12 V DC; 367 mA
Power Consumption
For heater 24 V AC 60 Hz; 12 W
Ingress Protection (Camera Unit) IP66. NEMA 4X
Dimensions (W x H x D)
130 x 237 x 462 mm (5-1/8" x 9-5/16" x 18-3/16")
Weight
1.3 kg (2.9 lbs.)
NPSM 3/4
20
(13/16")
4-M5
N o w o u t d o o r s u r v e i l l a n c e d o e s n ’t
just look futuristic. It is.
5 40(1-9/16")
(3/16")
Unit: mm (inches)
Important note: the WV-CW374 camera is NOT vandal-proof nor does it have any vandal-resistant capabilities.
Safety Precaution: carefully read the operating instructions and installation manual before using this product.
• All TV pictures are simulated. • Weights and dimensions are approximate. • Specifications are subject to change without notice. • These products may be subject to export control regulations.
DISTRIBUTED BY:
Panasonic Digital Communications & Security Company
Unit of Matsushita Electric Corporation of America
Security Systems Group
http://www.panasonic.com/security
Executive Office : Three Panasonic Way 2H-2, Secaucus, New Jersey 07094
Zone Office
Eastern : Three Panasonic Way, Secaucus, New Jersey 07094 (201) 348-7303
Central : 1707 N.Randal Road, Elgin, IL 60123 (847) 468-5205
Western : 6550 Katella Ave., Cypress, CA 90630 (714) 373-7840
PANASONIC CANADA INC.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada (905) 624-5010
PANASONIC SALES COMPANY
DIVISION OF MATSUSHITA ELECTRIC OF PUERTO RICO, INC.
San Gabriel Industrial Park 65th Infantry Ave. KM. 9.5 Carolina, P.R. 00985 (809) 750-4300
Printed in Japan
WV-JHCW374C(2P-521)
Design, features, ease of installation, weather proof,
WV-CW374 outdoor camera has it all.
The new Panasonic WV-CW374‘s streamlined metallic body contains a
Super Dynamic II camera, 8x variable-focal lens, fan/heater,
and IP66 standard approved weather proof outdoor housing.
It‘s loaded with features that make it ideal for all day,
all night 24-hour surveillance, and it’s easy to install as well.
Unprecedented stylish design makes it the perfect match
for office entrances and communicates
the presence of the highest level of security available.
Stylish, silver metallic body
Blends smoothly into
any location/environment
State-of-the-art security
image frightens intruders
Futuristic
Affinity
Deterrent
Super Dynamic II
High-quality imaging with
510-line color (High) h. resolution
Ultra-sensitive, for lighting
as low as 1 lux (0.1 fc),
at color imaging
Weather Proof
IP66 standard approved
Color or black-and-white
24-hour surveillance
“Invisible Cable” concealed in bracket
8x variable-focal lens
Choice of 3 installation methods
Easy to install
The ideal form of outdoor surveillance for high-rise office buildings,
suburban office complexes, movie theaters, stadiums, museums,
shopping malls, airports, terminals, and parking lots.
2
3
IP66 dust and moisture protection and day/night features make it the perfect
choice for 24-hour outdoor surveillance. Equipped with an 8x variable-focal lens
and Super Dynamic II image processing, it captures clear images
in low-light and dark locations.
OUTDOOR
Loaded with advanced surveillance features
to ensure dependable weather proof
outdoor surveillance
Weather proof outdoor use
8x variable-focal lens
The WV-CW374 model meets the
IP66 international standard. The
camera can be installed under
building eaves, external walls,
rooftops and many other locations.
Equipped with a 5.0 mm - 40.0 mm (8x) variable-focal lens,
ensuring the best possible image under surveillance.
Possible
Installation
24-hour surveillance
As surroundings darken, it switches automatically from
color to black-and-white mode to enhance sensitivity.
Then in the morning, the Day/Night feature automatically
switches it back to color. Manual switching is also provided.
Day (Color mode)
Night (B/W mode) at low-light condition
Day/Night
switching
Flat lens structure
The flat surface of the lens makes it
difficult for dust, water droplets or
snow to stick to it.
Equipped with sun shield
The built-in sun shield allows this
camera to be located in direct
sunlight.
Built-in Fan/Heater
The built-in Fan/Heater turns on automatically when it
senses temperature fluctuations,
preventing dew condensation in cold
or changeable climates. Permits
installation in locations with
temperatures ranging from –30°C to
+50°C (–22°F - 122°F).
HIGH PERFORMANCE
4
Blue LED to deter intruders
The blue LED on the side of the
camera turns on for a deterrent
effect, and starts blinking when the
motion detector sensor activates.
By signally the camera’s movement,
it warns off intruders.
Super Dynamic II
VMD (Video Motion Detector) function
Super Dynamic II technology provides 64
times the range of conventional video
cameras, providing clear, viewable
surveillance images even in extreme
backlit and high contrast lighting situations.
When motion is detected in
the camera image, an alarm
is sent. By connecting the
alarm to a digital disk
recorder that stores the
image, you can construct a
highly effective automated
image-capture system.
Set the lens aperture to the bright section,
and the dark section is invisible.
(Turns white only in demo mode)
Camera title
Set the lens aperture to the dark section,
and the bright section is invisible.
Digital signal technology allows images
with high contrast to be seen on screen.
510-line horizontal resolution for clearer,
more vivid color images
Equipped with 768 (H) x 494 (V), 1/3-type CCD that
delivers 510-line color (in High mode) or 570-line resolution
in black-and-white.
Ultra-sensitive for color surveillance
in light as low as 1 lux (0.1 fc)
The monitor displays a title
identifying the camera that is
the source of the image. The
title can be up to 16
characters long and combine
alphabetic, numeric, and
symbolic characters.
24V AC /12V DC power supply
The WV-CW374 can use either 24V AC and 12V DC power
sources.
This ultra-sensitive camera delivers clear full color images
in lighting as low as 1 lux (0.1 fc) and clear black-and-white
images in lighting as low as 0.15 lux (0.015 fc). 32x
electronic enhancement ensures clear color images even in
dimly lit spaces.
Photographs were taken for the purpose of explanation; actual images may differ.
5
Super Dynamic II camera, 8x variable-focal lens, Fan/Heater, Protective Housing, Pan/Tilt bracket,
Mounting Arm, Mounting Plate, and Mounting Adapter Box are all included.
Sun Shield
Blue LED
(Both sides)
8x Variable-focal Lens
Mounting Plate
Tilt Lock Screw
Rear Cover
Protective Housing
Pan Lock Screw
SIMPLE & EASY TO INSTALL
A total outdoor surveillance solution in one stylish unit
Invisible Cable; Clean, Simple Lines
Both camera and wall cables are
concealed inside the bracket.
Simple Installation Procedure
1
Attach Mounting
Adapter Box to wall.
2
Attach Mounting Plate
to Hinge.
3-way Installation
1
Cables through wall with Mounting Adapter Box
Use four screws (option) to attach
Mounting Adapter Box to wall.
3
Attach Camera to
Mounting Arm.
Set Hinge Screw provided to allow
opening and closing
4
Cable in wall
2
Using Conduit (Flexible pipe) with Mounting Adapter Box
Pass the camera cable through the
Mounting Arm and attach to wall cable.
5
Attach Trim Covers
Use four screws provided to attach
Mounting Plate.
Cable in conduit
3
Secure Mounting Plate.
Direct mount without Mounting Adapter Box
6
Finished !
Use two screws provided.
Cable in wall, connected
directly to Mounting Plate*
(* The four screws required to attach the Mounting
Plate to the wall are not provided)
Equipped with Monitor output connector
Since a small LCD monitor
(option) can be attached to
the monitor output connector
(3.5mm in diam. Mini jack),
camera angle and focus can
be checked on the spot.
The opening can be either
on the left or the right side
The Mounting Plate
opening can be either
on the left or the right.
However, it is best if
one side is tightly
pressed against a wall.
Mounting Adapter Box
Tilt Bracket
Blue LED
Flexible camera angle settings
Fits neatly above the existing junction box.
The bracket allows the camera to Tilt +30° ~ –90° and pan,
making it possible to freely adjust the camera angle.
Installation is simple because the Mounting Adapter Box
and Mounting Plate are designed to be mounted directly
above the existing junction box.
(Both sides)
Pan Bracket
Mounting Arm
D e s i g n
Tilt
6
Pan
Photographs were taken for the purpose of explanation; actual images may differ.
7
SYSTEM EXAMPLE
WV-CS854B x 8 (1 ~ 8ch)
Weather Proof
Super Dynamic II Color Camera
WV-CW374 x 8 (9 ~ 16ch)
(with Low-Light B/W Mode)
Color Monitor
System Controller
Color Monitor
WV-CW374
PS-Data Link
WV-CU650
LAN/WAN
+
Digital Disk Recorder WJ-HD316
Ethernet
(10Base-T/100Base-TX Cable)
PC
PC
SPECIFICATIONS
Internet
MAJOR OPERATING CONTROLS
Pick-up Device
Scanning Area
Scanning
WV-CU650
MATRIX SYSTEM 150
Matrix Switcher
WJ-SX150A
System Controller
4
5
6
APPEARANCE
351(13-13/16")
82(3-1/4")
15.5(5/8")
130(5-1/8")
Multiplexer Board
133(5-1/4")
212(8-3/8")
WV-CM1480
WV-CM1420 WV-CM1020
51cm (20")
41cm (16")
36cm (14")
34cm (13")
83.5(3-5/16")
WV-CM1780
27( 1-1/16")
83.5(3-5/16")
WV-CM2080
200(7-7/8")
72(2-13/16")
46
(1-13/16")
Color Monitors
301(11-7/8")
78(3-1/16")
WV-CU360C
WJ-SXB151
WJ-HD309(9ch)
50(1-15/16")
64(2-1/2")
System Controller
WJ-HD316 (16ch)
3
130(5-1/8")
Digital Disk Recorders
2
22cm (9")
133(5-1/4")
OPTIONAL COMPONENTS
1
65(2-9/16") 125(4-15/16") 47(1-7/8")
768 (H) x 494 (V) pixels, interline transfer CCD
4.8 (H) x 3.6 (V) mm
525 lines / 60 fields / 30 frames
Horizontal 15.734 kHz, Vertical 60 Hz
Scanning System
2 : 1 interlace
Synchronization
Internal / Line lock / VD2 lock
Video Output
1.0V[p-p] NTSC composite / 75 Ω
Horizontal Resolution
510 lines color imaging (at high mode)
480 lines color imaging (at normal mode)
570 lines B/W imaging
S/N Ratio
50dB (min.) <luminance S/N> (at AGC ON, weight ON)
Mini. Illumination
1.0 lux at color imaging, 0.15 lux at B/W imaging
AGC
Selectable ON (High/Mid/Low), OFF
White Balance
Selectable ATW1/ATW2 and AWC (SET UP MENU)
Aperture
Variable (SET UP MENU)
Equivalent to continuous variable shutter speed between 1/60s and 1/10,000s
Electronic Light Control
Dynamic Range
48dB typical
ALC Lens
DC
Character Generator
ON SCREEN SET UP MENU, CAMERA ID
Lens Type
8x variable focal lens
Focal Length
5.0 - 40.0 mm
Aperture Ratio
1:1.6 (Wide) to 176, F1.9 (Tele) to 176, close
Angular Field of View Horizontal; 6.6˚ ~ 52˚ Vertical; 5.0˚ ~ 39.6˚
Min. Object Distance 1.2 m (3.9 ft) - ∞
(1) SYNC Switch: INT/LL (2) Upside down Switch: ON/OFF (3) Aperture Switch: SOFT/SHARP
DIP SW
(4) Day/Night Switch: AUTO/COLOR FIX (5) B/W Level: High/Low (6) LED: ON/OFF
Ambient Operating Temperature –30˚C - +50˚C (–22˚F - 122˚F)
Ambient Operating Humidity Less than 90 %
Power Source and
For camera 24 V AC 60 Hz; 3.8 W 12 V DC; 367 mA
Power Consumption
For heater 24 V AC 60 Hz; 12 W
Ingress Protection (Camera Unit) IP66. NEMA 4X
Dimensions (W x H x D)
130 x 237 x 462 mm (5-1/8" x 9-5/16" x 18-3/16")
Weight
1.3 kg (2.9 lbs.)
NPSM 3/4
20
(13/16")
4-M5
N o w o u t d o o r s u r v e i l l a n c e d o e s n ’t
just look futuristic. It is.
5 40(1-9/16")
(3/16")
Unit: mm (inches)
Important note: the WV-CW374 camera is NOT vandal-proof nor does it have any vandal-resistant capabilities.
Safety Precaution: carefully read the operating instructions and installation manual before using this product.
• All TV pictures are simulated. • Weights and dimensions are approximate. • Specifications are subject to change without notice. • These products may be subject to export control regulations.
DISTRIBUTED BY:
Panasonic Digital Communications & Security Company
Unit of Matsushita Electric Corporation of America
Security Systems Group
http://www.panasonic.com/security
Executive Office : Three Panasonic Way 2H-2, Secaucus, New Jersey 07094
Zone Office
Eastern : Three Panasonic Way, Secaucus, New Jersey 07094 (201) 348-7303
Central : 1707 N.Randal Road, Elgin, IL 60123 (847) 468-5205
Western : 6550 Katella Ave., Cypress, CA 90630 (714) 373-7840
PANASONIC CANADA INC.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada (905) 624-5010
PANASONIC SALES COMPANY
DIVISION OF MATSUSHITA ELECTRIC OF PUERTO RICO, INC.
San Gabriel Industrial Park 65th Infantry Ave. KM. 9.5 Carolina, P.R. 00985 (809) 750-4300
Printed in Japan
WV-JHCW374C(2P-521)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
