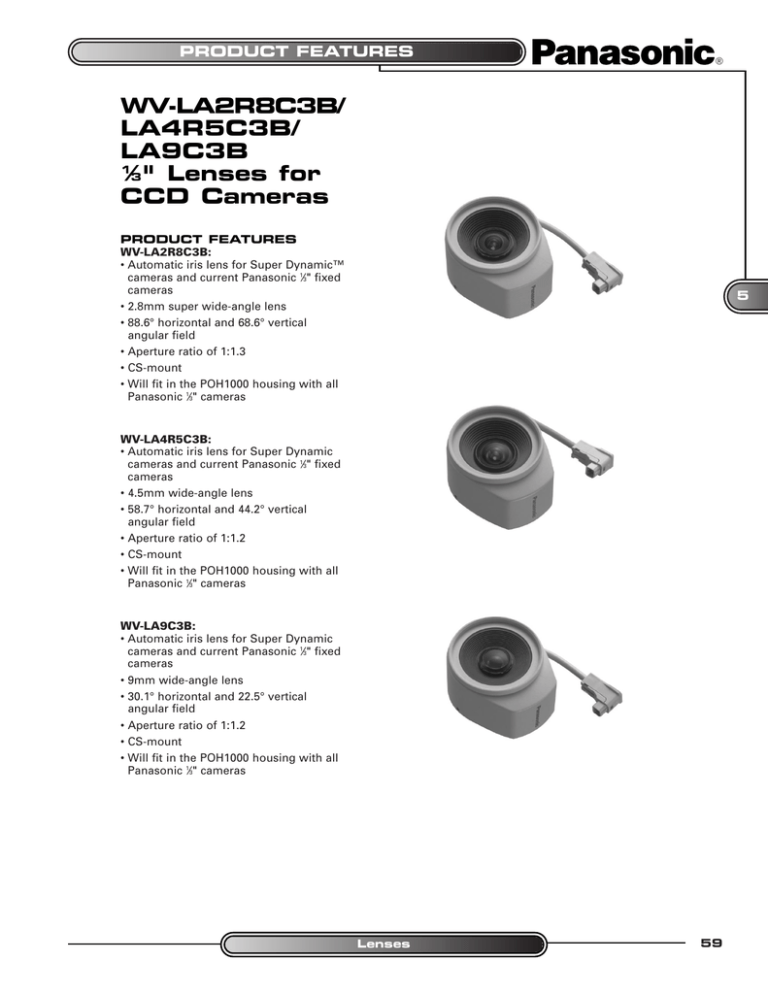

PRODUCT FEATURES
®
WV-LA2R8C3B/
LA4R5C3B/
LA9C3B
1
⁄3" Lenses for
CCD Cameras
PRODUCT FEATURES
WV-LA2R8C3B:
• Automatic iris lens for Super Dynamic™
cameras and current Panasonic 1⁄3" fixed
cameras
• 2.8mm super wide-angle lens
• 88.6° horizontal and 68.6° vertical
angular field
• Aperture ratio of 1:1.3
• CS-mount
• Will fit in the POH1000 housing with all
Panasonic 1⁄3" cameras
5
WV-LA4R5C3B:
• Automatic iris lens for Super Dynamic
cameras and current Panasonic 1⁄3" fixed
cameras
• 4.5mm wide-angle lens
• 58.7° horizontal and 44.2° vertical
angular field
• Aperture ratio of 1:1.2
• CS-mount
• Will fit in the POH1000 housing with all
Panasonic 1⁄3" cameras
WV-LA9C3B:
• Automatic iris lens for Super Dynamic
cameras and current Panasonic 1⁄3" fixed
cameras
• 9mm wide-angle lens
• 30.1° horizontal and 22.5° vertical
angular field
• Aperture ratio of 1:1.2
• CS-mount
• Will fit in the POH1000 housing with all
Panasonic 1⁄3" cameras
Lenses
59
®
TECHNICAL SPECIFICATIONS
WV-LA2R8C3B/LA4R5C3B/
LA9C3B 1⁄3" Lenses for
CCD Cameras
GENERAL SPECIFICATIONS
Focal Length
Aperture Ratio
Image Size
Angular Field-of-View
5
Iris Type
Min. Object Distance
Optical Filter Size
Mount
Ambient Operating
Temperature
Dimensions
Weight
WV-LA2R8C3B: 2.8mm
WV-LA4R5C3B: 4.5mm
WV-LA9C3B: 9mm
WV-LA2R8C3B: 1:1.3
WV-LA4R5C3B: 1:1.2
WV-LA9C3B: 1:1.2
4.8(H) x 3.6(V)mm
(equivalent to 1⁄3")
WV-LA2R8C3B: 88.6°(H), 68.6°(V)
WV-LA4R5C3B: 58.7°(H), 44.2°(V)
WV-LA9C3B: 30.1°(H), 22.5°(V)
Automatic
Determined by camera
None
CS-mount
-30°C ~ +60°C (-22°F ~ +140°F)
21⁄16"H x 11⁄4"W (52 x 31.8mm)
0.1 lbs. (45g)
Weights and dimensions shown are approximate.
Specifications subject to change without notice.
ARCHITECTS’ AND ENGINEERS’ BID SPECIFICATIONS
WV-LA2R8C3B
The 1⁄3" automatic iris lens shall be a Panasonic Model WV-LA2R8C3B or equivalent. The 1⁄3" automatic iris lens
shall be suitable for use in areas where there is a varying light source. The lens shall be compatible with late
model Panasonic 1⁄3" black-and-white or color CCD cameras only. The lens shall have a focal length of 2.8mm and
CS-mounting (special C-mount). The unit shall have a maximum aperture ratio of 1:1.3. The unit shall have an
angular field-of-view of 88.6°(H) and 68.6°(V). The lens shall have an image format of 4.8(H) x 3.6(V)mm (1⁄3"). The
lens shall not exceed the following dimensions: 11⁄4"L x 21⁄16"D.
WV-LA4R5C3B
The 1⁄3" automatic iris lens shall be a Panasonic Model WV-LA4R5C3B or equivalent. The 1⁄3" automatic iris lens
shall be suitable for use in areas where there is a varying light source. The lens shall be compatible with
Panasonic late model 1⁄3" black-and-white or color CCD cameras only. The lens shall have a focal length of 4.5mm
and CS-mounting (special C-mount). The unit shall have a maximum aperture ratio of 1:1.2. The unit shall have
an angular field-of-view of 58.7°(H) and 44.2°(V). The lens shall have an image format of 4.8(H) x 3.6(V)mm (1⁄3").
The lens shall not exceed the following dimensions: 11⁄4"L x 21⁄16"D.
WV-LA9C3B
The 1⁄3" automatic iris lens shall be a Panasonic Model WV-LA9C3B or equivalent. The 1⁄3" automatic iris lens shall
be suitable for use in areas where there is a varying light source. The lens shall be compatible with Panasonic
late model 1⁄3" black-and-white or color CCD cameras only. The lens shall have a focal length of 9mm and
CS-mounting (special C-mount). The unit shall have a maximum aperture ratio of 1:1.2. The unit shall have an
angular field-of-view of 30.1°(H) and 22.5°(V). The lens shall have an image format of 4.8(H) x 3.6(V)mm (1⁄3"). The
lens shall not exceed the following dimensions: 11⁄4"L x 21⁄16"D.
