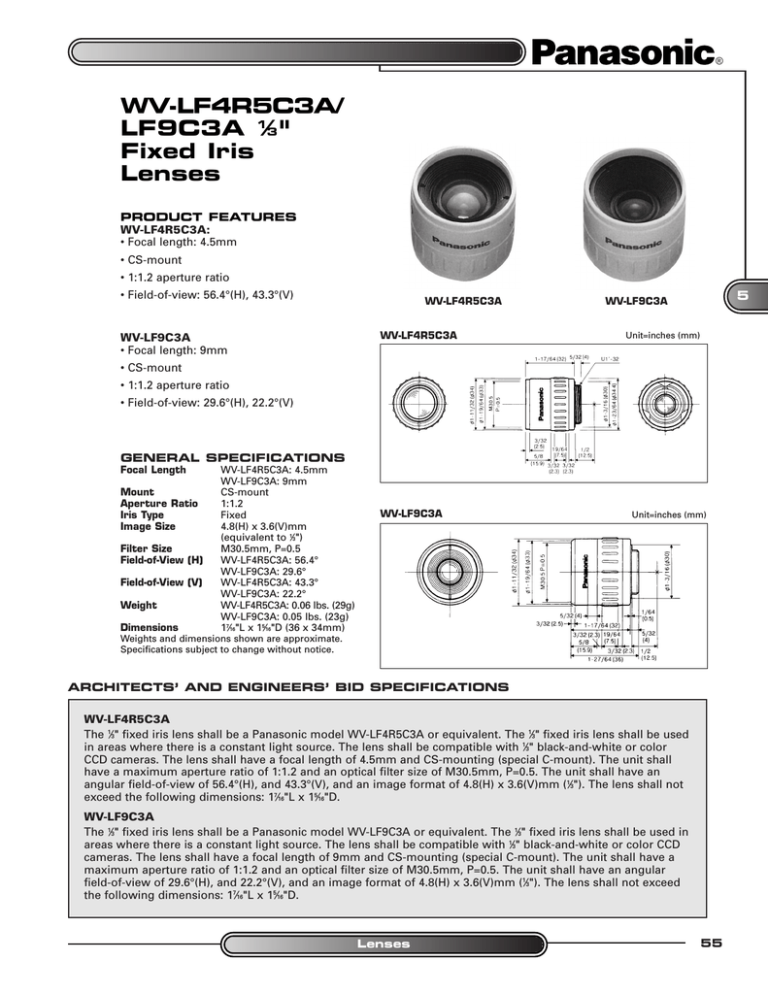

WV-LF4R5C3A/
LF9C3A 1⁄3"
Fixed Iris
Lenses
PRODUCT FEATURES
WV-LF4R5C3A:
• Focal length: 4.5mm
• CS-mount
• 1:1.2 aperture ratio
• Field-of-view: 56.4°(H), 43.3°(V)
WV-LF9C3A
• Focal length: 9mm
WV-LF4R5C3A
WV-LF4R5C3A
5
WV-LF9C3A
Unit=inches (mm)
• CS-mount
• 1:1.2 aperture ratio
• Field-of-view: 29.6°(H), 22.2°(V)
GENERAL SPECIFICATIONS
Focal Length
Mount
Aperture Ratio
Iris Type
Image Size
Filter Size
Field-of-View (H)
Field-of-View (V)
Weight
Dimensions
WV-LF4R5C3A: 4.5mm
WV-LF9C3A: 9mm
CS-mount
1:1.2
Fixed
4.8(H) x 3.6(V)mm
(equivalent to 1⁄3")
M30.5mm, P=0.5
WV-LF4R5C3A: 56.4°
WV-LF9C3A: 29.6°
WV-LF4R5C3A: 43.3°
WV-LF9C3A: 22.2°
WV-LF4R5C3A: 0.06 lbs. (29g)
WV-LF9C3A: 0.05 lbs. (23g)
17⁄16"L x 15⁄16"D (36 x 34mm)
WV-LF9C3A
Unit=inches (mm)
Weights and dimensions shown are approximate.
Specifications subject to change without notice.
ARCHITECTS’ AND ENGINEERS’ BID SPECIFICATIONS
WV-LF4R5C3A
The 1⁄3" fixed iris lens shall be a Panasonic model WV-LF4R5C3A or equivalent. The 1⁄3" fixed iris lens shall be used
in areas where there is a constant light source. The lens shall be compatible with 1⁄3" black-and-white or color
CCD cameras. The lens shall have a focal length of 4.5mm and CS-mounting (special C-mount). The unit shall
have a maximum aperture ratio of 1:1.2 and an optical filter size of M30.5mm, P=0.5. The unit shall have an
angular field-of-view of 56.4°(H), and 43.3°(V), and an image format of 4.8(H) x 3.6(V)mm (1⁄3"). The lens shall not
exceed the following dimensions: 17⁄16"L x 15⁄16"D.
WV-LF9C3A
The 1⁄3" fixed iris lens shall be a Panasonic model WV-LF9C3A or equivalent. The 1⁄3" fixed iris lens shall be used in
areas where there is a constant light source. The lens shall be compatible with 1⁄3" black-and-white or color CCD
cameras. The lens shall have a focal length of 9mm and CS-mounting (special C-mount). The unit shall have a
maximum aperture ratio of 1:1.2 and an optical filter size of M30.5mm, P=0.5. The unit shall have an angular
field-of-view of 29.6°(H), and 22.2°(V), and an image format of 4.8(H) x 3.6(V)mm (1⁄3"). The lens shall not exceed
the following dimensions: 17⁄16"L x 15⁄16"D.
