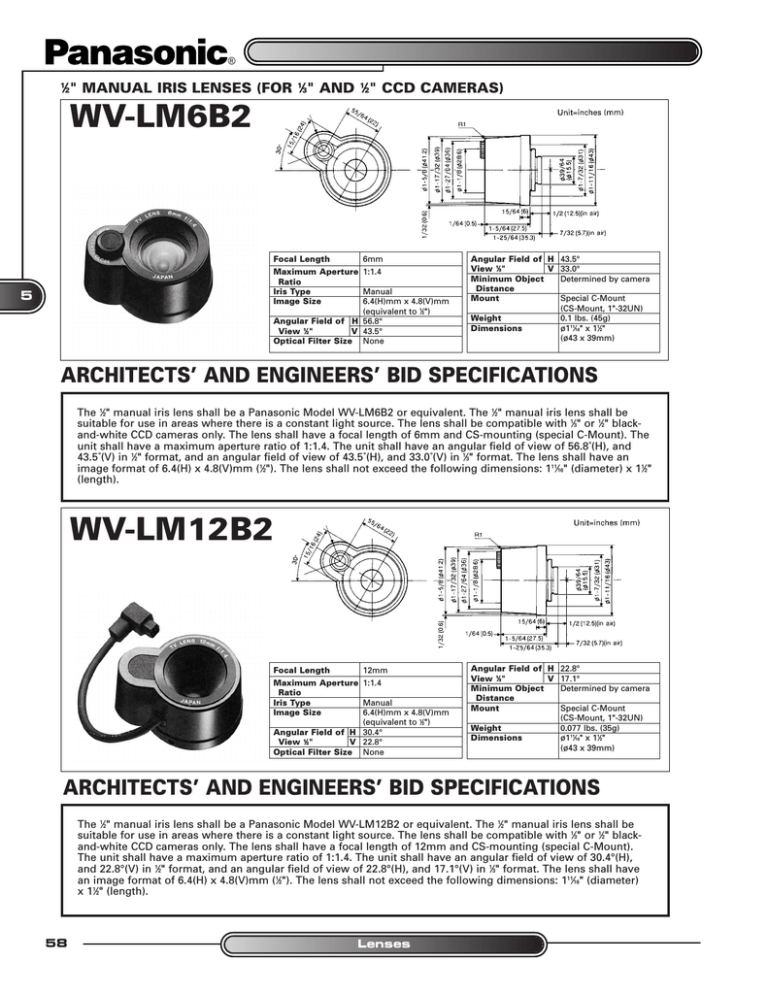

⁄2" MANUAL IRIS LENSES (FOR 1⁄3" AND 1⁄2" CCD CAMERAS)
1
WV-LM6B2
Focal Length
6mm
Maximum Aperture 1:1.4
Ratio
Iris Type
Manual
Image Size
6.4(H)mm x 4.8(V)mm
(equivalent to 1⁄2")
Angular Field of H 56.8°
View 1⁄2"
V 43.5°
Optical Filter Size None
5
Angular Field of H 43.5°
View 1⁄3"
V 33.0°
Minimum Object
Determined by camera
Distance
Mount
Special C-Mount
(CS-Mount, 1"-32UN)
Weight
0.1 lbs. (45g)
Dimensions
ø111⁄16" x 11⁄2"
(ø43 x 39mm)
ARCHITECTS’ AND ENGINEERS’ BID SPECIFICATIONS
The 1⁄2" manual iris lens shall be a Panasonic Model WV-LM6B2 or equivalent. The 1⁄2" manual iris lens shall be
suitable for use in areas where there is a constant light source. The lens shall be compatible with 1⁄3" or 1⁄2" blackand-white CCD cameras only. The lens shall have a focal length of 6mm and CS-mounting (special C-Mount). The
unit shall have a maximum aperture ratio of 1:1.4. The unit shall have an angular field of view of 56.8˚(H), and
43.5˚(V) in 1⁄2" format, and an angular field of view of 43.5˚(H), and 33.0˚(V) in 1⁄3" format. The lens shall have an
image format of 6.4(H) x 4.8(V)mm (1⁄2"). The lens shall not exceed the following dimensions: 111⁄16" (diameter) x 11⁄2"
(length).
WV-LM12B2
Focal Length
12mm
Maximum Aperture 1:1.4
Ratio
Iris Type
Manual
Image Size
6.4(H)mm x 4.8(V)mm
(equivalent to 1⁄2")
Angular Field of H 30.4°
1
View ⁄2"
V 22.8°
Optical Filter Size None
Angular Field of H 22.8°
View 1⁄3"
V 17.1°
Minimum Object
Determined by camera
Distance
Mount
Special C-Mount
(CS-Mount, 1"-32UN)
Weight
0.077 lbs. (35g)
Dimensions
ø111⁄16" x 11⁄2"
(ø43 x 39mm)
ARCHITECTS’ AND ENGINEERS’ BID SPECIFICATIONS
The 1⁄2" manual iris lens shall be a Panasonic Model WV-LM12B2 or equivalent. The 1⁄2" manual iris lens shall be
suitable for use in areas where there is a constant light source. The lens shall be compatible with 1⁄3" or 1⁄2" blackand-white CCD cameras only. The lens shall have a focal length of 12mm and CS-mounting (special C-Mount).
The unit shall have a maximum aperture ratio of 1:1.4. The unit shall have an angular field of view of 30.4°(H),
and 22.8°(V) in 1⁄2" format, and an angular field of view of 22.8°(H), and 17.1°(V) in 1⁄3" format. The lens shall have
an image format of 6.4(H) x 4.8(V)mm (1⁄2"). The lens shall not exceed the following dimensions: 111⁄16" (diameter)
x 11⁄2" (length).
