HP HSR6802/HSR6804 Routers FIPS Enclosure

HP HSR6802/HSR6804 Routers FIPS Enclosure
Manual Version: 6PW102-20151127
BOM: 3105A02H
Part number:5998-4481R

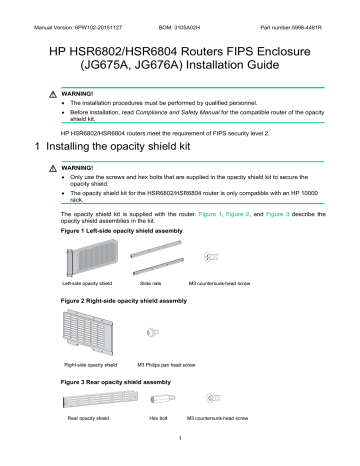

HP HSR6802/HSR6804 Routers FIPS Enclosure
(JG675A, JG676A) Installation Guide
WARNING!
• The installation procedures must be performed by qualified personnel.
• Before installation, read Compliance and Safety Manual for the compatible router of the opacity
shield kit.
HP HSR6802/HSR6804 routers meet the requirement of FIPS security level 2.
1 Installing the opacity shield kit
WARNING!
• Only use the screws and hex bolts that are supplied in the opacity shield kit to secure the
opacity shield.
• The opacity shield kit for the HSR6802/HSR6804 router is only compatible with an HP 10000
rack.
The opacity shield kit is supplied with the router. Figure 1, Figure 2, and Figure 3 describe the
opacity shield assemblies in the kit.
Figure 1 Left-side opacity shield assembly
Figure 2 Right-side opacity shield assembly
Figure 3 Rear opacity shield assembly
1
Manual Version: 6PW102-20151127
BOM: 3105A02H
Part number:5998-4481R
1.1 Preparing for installation
Wear an ESD-preventive wrist strap, and make sure the wrist strap makes good skin contact and is
well grounded.
If the router has been mounted on a rack, remove it from the rack.
If an air filter has been installed on the router, remove the air filter.
1.2 Installing the opacity shield kit
The opacity shield kits for the HSR6802 and HSR6804 are installed in the same way. This section
uses an HSR6802 as an example.
Attaching left-side opacity shield guide rails
Use M3
countersunk-head
screws to attach the
left-side opacity shield
guide rails to the chassis
as shown in the figure.
Installing the rear opacity shield
Remove the fastening
screws on the rear of the
chassis, install hex bolts,
align the holes on the
opacity shield with the
holes in the hex bolts,
press the opacity shield
against the rear panel,
and use M3
countersunk-head
screws to secure the
opacity shield.
2
Manual Version: 6PW102-20151127
BOM: 3105A02H
Part number:5998-4481R
Installing the left-side opacity shield
Mount the router to the
rack. For more
information, see HP HSR
6800 Routers Installation
Guide.
Insert the left-side
opacity shield along the
guide rails from the rear
of the chassis and fasten
the captive screws.
3
Manual Version: 6PW102-20151127
BOM: 3105A02H
Part number:5998-4481R
Installing the right-side opacity shield
Insert the right-side
opacity shield along the
guide rails from the rear
of the chassis until the
screw holes on the
opacity shield align with
the screw holes on the
chassis. Use M3
pan-head screws to
secure the opacity
shield.
2 Applying tamper evidence labels
IMPORTANT:
• Make sure the ambient air is above 10°C (50°F).
• Clean the chassis before applying the tamper evident labels. Alcohol-based cleaning pads are
recommended.
• Apply tamper evidence labels to all removable components on the device.
This section describes how to apply tamper evidence labels to an HSR6802. Apply tamper evidence
labels to an HSR6804 in the same way.
4
Manual Version: 6PW102-20151127
BOM: 3105A02H
Part number:5998-4481R
Figure 4 Applying tamper evidence labels (1)
Figure 5 Applying tamper evidence labels (2)
If the router is not installed with mounting brackets, apply a tamper evidence label on the ventilation
holes that are not covered by the opacity shield (see callout 1 in Figure 6).
5
Manual Version: 6PW102-20151127
BOM: 3105A02H
Part number:5998-4481R
Figure 6 Applying tamper evidence labels (3)
3 Obtaining documentation
For card installation and software upgrade, see HP HSR6800 Routers Installation Guide.
To access documentation and support services, go to the Hewlett Packard Enterprise Support
Center website:
www.hpe.com/support/hpesc
5998-4481R
The information in this document is subject to change without notice.
© Copyright 2015 Hewlett Packard Enterprise Development LP
6
