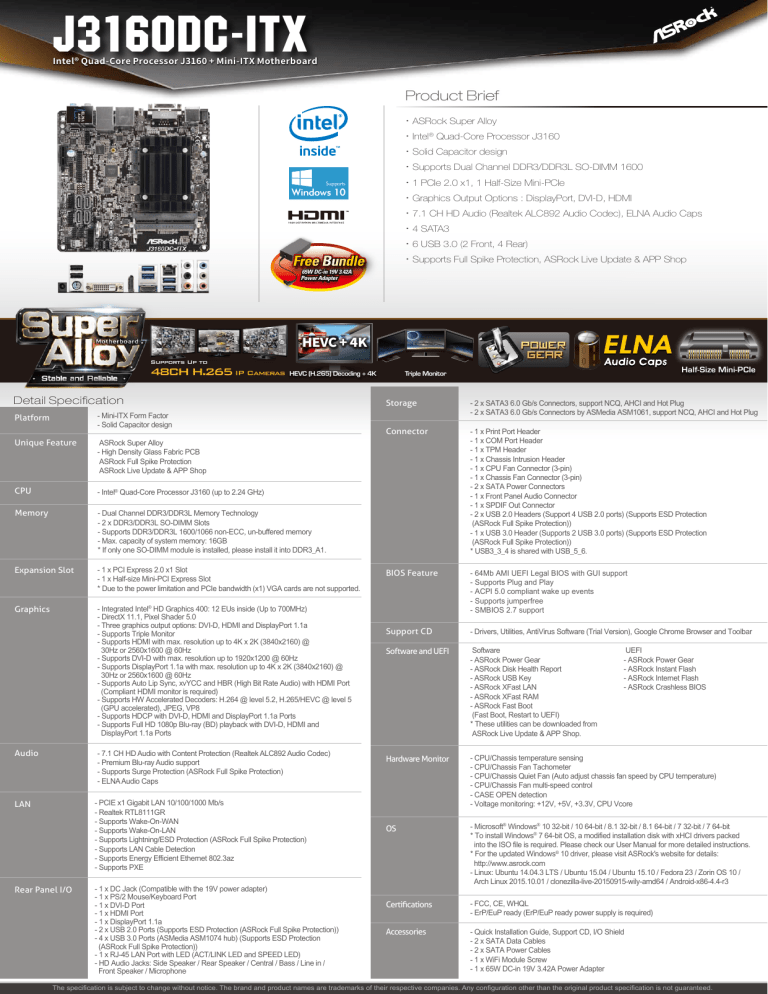

J3160DC-ITX
Intel® Quad-Core Processor J3160 + Mini-ITX Motherboard
Product Brief
•ASRock Super Alloy
•Intel® Quad-Core Processor J3160
•Solid Capacitor design
•Supports Dual Channel DDR3/DDR3L SO-DIMM 1600
•1 PCIe 2.0 x1, 1 Half-Size Mini-PCIe
Supports
Windows 10
•Graphics Output Options : DisplayPort, DVI-D, HDMI
•7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
•4 SATA3
•6 USB 3.0 (2 Front, 4 Rear)
Free Bundle
•Supports Full Spike Protection, ASRock Live Update & APP Shop
65W DC-in 19V 3.42A
Power Adapter
Supports Up to
HEVC + 4K
48CH H.265 IP Cameras HEVC (H.265) Decoding + 4K
Detail Specification
Platform
- Mini-ITX Form Factor
- Solid Capacitor design
Unique Feature
ASRock Super Alloy
- High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop
CPU
- Intel® Quad-Core Processor J3160 (up to 2.24 GHz)
Memory
- Dual Channel DDR3/DDR3L Memory Technology
- 2 x DDR3/DDR3L SO-DIMM Slots
- Supports DDR3/DDR3L 1600/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB
* If only one SO-DIMM module is installed, please install it into DDR3_A1.
Expansion Slot
- 1 x PCI Express 2.0 x1 Slot
- 1 x Half-size Mini-PCI Express Slot
* Due to the power limitation and PCIe bandwidth (x1) VGA cards are not supported.
Graphics
- Integrated Intel® HD Graphics 400: 12 EUs inside (Up to 700MHz)
- DirectX 11.1, Pixel Shader 5.0
- Three graphics output options: DVI-D, HDMI and DisplayPort 1.1a
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (3840x2160) @
30Hz or 2560x1600 @ 60Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports DisplayPort 1.1a with max. resolution up to 4K x 2K (3840x2160) @
30Hz or 2560x1600 @ 60Hz
- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port
(Compliant HDMI monitor is required)
- Supports HW Accelerated Decoders: H.264 @ level 5.2, H.265/HEVC @ level 5
(GPU accelerated), JPEG, VP8
- Supports HDCP with DVI-D, HDMI and DisplayPort 1.1a Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and
DisplayPort 1.1a Ports
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
- ELNA Audio Caps
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Wake-On-WAN
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
LAN
Rear Panel I/O
- 1 x DC Jack (Compatible with the 19V power adapter)
- 1 x PS/2 Mouse/Keyboard Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x DisplayPort 1.1a
- 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 4 x USB 3.0 Ports (ASMedia ASM1074 hub) (Supports ESD Protection
(ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in /
Front Speaker / Microphone
Half-Size Mini-PCIe
Triple Monitor
Storage
- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
Connector
- 1 x Print Port Header
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (3-pin)
- 1 x Chassis Fan Connector (3-pin)
- 2 x SATA Power Connectors
- 1 x Front Panel Audio Connector
- 1 x SPDIF Out Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection
(ASRock Full Spike Protection))
- 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection
(ASRock Full Spike Protection))
* USB3_3_4 is shared with USB_5_6.
BIOS Feature
- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports Plug and Play
- ACPI 5.0 compliant wake up events
- Supports jumperfree
- SMBIOS 2.7 support
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Software and UEFI
Software
- ASRock Power Gear
- ASRock Disk Health Report
- ASRock USB Key
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Fast Boot
(Fast Boot, Restart to UEFI)
* These utilities can be downloaded from
ASRock Live Update & APP Shop.
Hardware Monitor
- CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
- Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 7 32-bit / 7 64-bit
* To install Windows® 7 64-bit OS, a modified installation disk with xHCI drivers packed
into the ISO file is required. Please check our User Manual for more detailed instructions.
* For the updated Windows® 10 driver, please visit ASRock's website for details:
http://www.asrock.com
- Linux: Ubuntu 14.04.3 LTS / Ubuntu 15.04 / Ubuntu 15.10 / Fedora 23 / Zorin OS 10 /
Arch Linux 2015.10.01 / clonezilla-live-20150915-wily-amd64 / Android-x86-4.4-r3
Certifications
- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x SATA Power Cables
- 1 x WiFi Module Screw
- 1 x 65W DC-in 19V 3.42A Power Adapter
UEFI
- ASRock Power Gear
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
The specification is subject to change without notice. The brand and product names are trademarks of their respective companies. Any configuration other than the original product specification is not guaranteed.
J3160DC-ITX
Intel® Quad-Core Processor J3160 + Mini-ITX Motherboard
DC-In Jack
Compatible with 19V power
adapters. This unique design allows
this motherboard to fit in compact
chassis.
(Bundled)
Supports Up to 48CH H.265
IP Cameras
Able to work as an industrial grade 48 channel NVR (Networking Video Recorder)
system, and also capable of HEVC (H.265) recording for up to 48 IP cameras in D1
(704x576) resolution.
High Density
Glass Fabric PCB
Protects the motherboard against electrical shorts
caused by humidity.
Intel® Quad-Core Processor
J3160 (Up to 2.24 GHz)
HEVC (H.265) Decoding + 4K
Supports HEVC (H.265) decoding and a
minimum of 3840 x 2160 pixels with 4K
resolution.
HEVC + 4K
Improved performance, lower power consumption,
and new multimedia capabilities.
Supports Standard & Low
Voltage SO-DIMMs
Capable of supporting both standard and low voltage
SO-DIMMs.
16GB Memory Support
Triple Monitor
Choose up to three display interfaces to connect monitors and use them
simultaneously.
Each slot supports 8GB memory modules, thus
delivering a maximum capacity up to 16GB.
Half-Size Mini PCIe
A convenient interface that can be used for
connecting WiFi cards.
Power Gear
ELNA Audio Caps
Toggle between three operational modes to
maximize performance or conserve energy.
The 3uA leakage current reduces noise
levels.
Solid Capacitor Design
Full Spike Protection
Brings more stable performance and
ensures a longer lifespan.
Prevents your motherboard’s components (USB,
LAN, audio) from being damaged by voltage spikes.
The specification is subject to change without notice. The brand and product names are trademarks of their respective companies. Any configuration other than the original product specification is not guaranteed.
