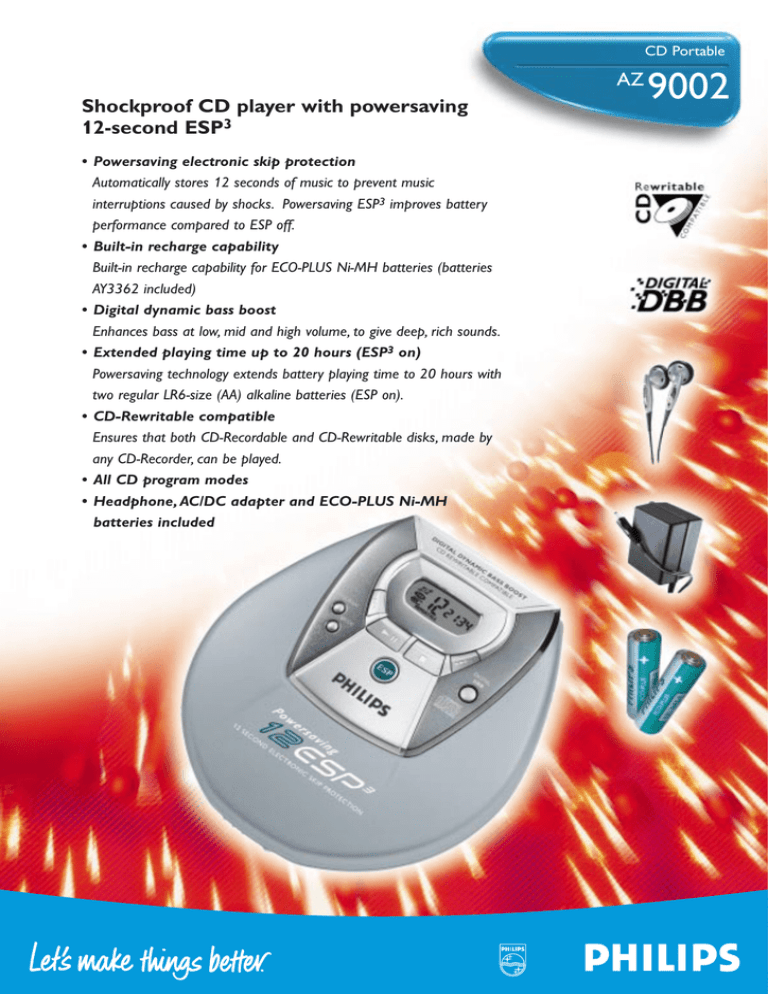

CD Portable
AZ
Shockproof CD player with powersaving
12-second ESP3
• Powersaving electronic skip protection
Automatically stores 12 seconds of music to prevent music
interruptions caused by shocks. Powersaving ESP3 improves battery
performance compared to ESP off.
• Built-in recharge capability
Built-in recharge capability for ECO-PLUS Ni-MH batteries (batteries
AY3362 included)
• Digital dynamic bass boost
Enhances bass at low, mid and high volume, to give deep, rich sounds.
• Extended playing time up to 20 hours (ESP3 on)
Powersaving technology extends battery playing time to 20 hours with
two regular LR6-size (AA) alkaline batteries (ESP on).
• CD-Rewritable compatible
Ensures that both CD-Recordable and CD-Rewritable disks, made by
any CD-Recorder, can be played.
• All CD program modes
• Headphone, AC/DC adapter and ECO-PLUS Ni-MH
batteries included
9002
CD Portable
AZ
Standard product information
Amplifier/ system
•
•
•
•
•
•
•
Output power (in-ear headphone) 2 x 3mW RMS
1-Bit D/A convertor for pure sound reproduction
Digital dynamic bass boost
Rotary volume control
S/N ratio (A weighted)
:
>100 dB
Frequency response
:
20 Hz - 20 kHz
Acoustic feedback
CD player
• 99-Track programmable, shuffle, repeat 1/all and introscan
• Search forward/ backward with sound
• Resume and hold
ESP - Electronic skip protection
• Electronic skip protection with 12 second memory
LCD display
• Indications for track, time, DBB, CD functions, ESP and battery status
Connections
• Headphone/ line out
• DC in
:
:
stereo, 3.5 mm
4.0 mm, 4.5V, centre ‘+’
Power supply
•
•
•
•
Batteries
:
2 x 1.5V, type AA/LR6/UM3 cell
Battery playing time
:
20 hours (Alkaline) / 10 hours (Ni-MH)
Built-in battery recharge function for ECO-PLUS NiMH batteries
Automatic power switch-off
General
•
•
•
•
•
•
Material
Weight
Product dimensions
D-box dimensions
Master carton dimensions
Master carton quantity
:
:
:
:
:
:
High temperature resistant plastic
230 g (excluding batteries)
128 mm W x 28 mm H x 138 mm D
256 mm L x 145 mm W x 54 mm H
303 mm L x 210 mm W x 199 mm H
3
Accessories
• AC/DC adapter
• Stereo in-ear headphone
• ECO-PLUS Ni-MH rechargeable batteries
9002
Product hightlights
• Compact disc audio player
Compact Disc technology that provides uncompressed superb digital sound
quality.
• ECO-PLUS Ni-MH rechargeable battery
Durable and environmental friendly rechargeable battery type which is
quick and easy to charge.
• Heat resistant body
Unique composite material enables the CD player to withstand very high
temperatures for in-car use.
• 1-Bit D/A converter
Advanced digital conversion technology ensures crystal-clear sound.
• Hold
Locks all buttons electronically to prevent interruption of play or change of
program settings.
• Resume
Ensures the CD starts precisely from the point it was stopped.
• Automatic power off
Automatically switches off the CD player at the end of a compact disc.
• CD next/ previous
Plays the next or previous track at the touch of a button
• CD music search
Searches the CD at high speed while still producing low-volume sound so
you know exactly when to stop
• Repeat one/ all
Repeat the current track or the total CD
• Shuffle
Plays disc selection randomly, giving you each time a new sequence of
tracks
• 99-track programmable
Stores up to 99 of your favourite tracks for playing back in your order of
preference
• Acoustic feedback
Confirms any key-push with friendly beep to acknowledges that a command
has been given.
Optional accessories (contact your dealer or service
center)
• AY3501 Car cassette adapter
• AY3545 4.5V Car cigarette lighter DC/DC adapter
Power supply adapter
• /00, /05
:
230V/50Hz to 4.5V
1999-12-10
Printed in Hong Kong
Subject to modification without notice
© 1999 Royal Philips Electronics
All Rights Reserved.
http://www.philips.com
