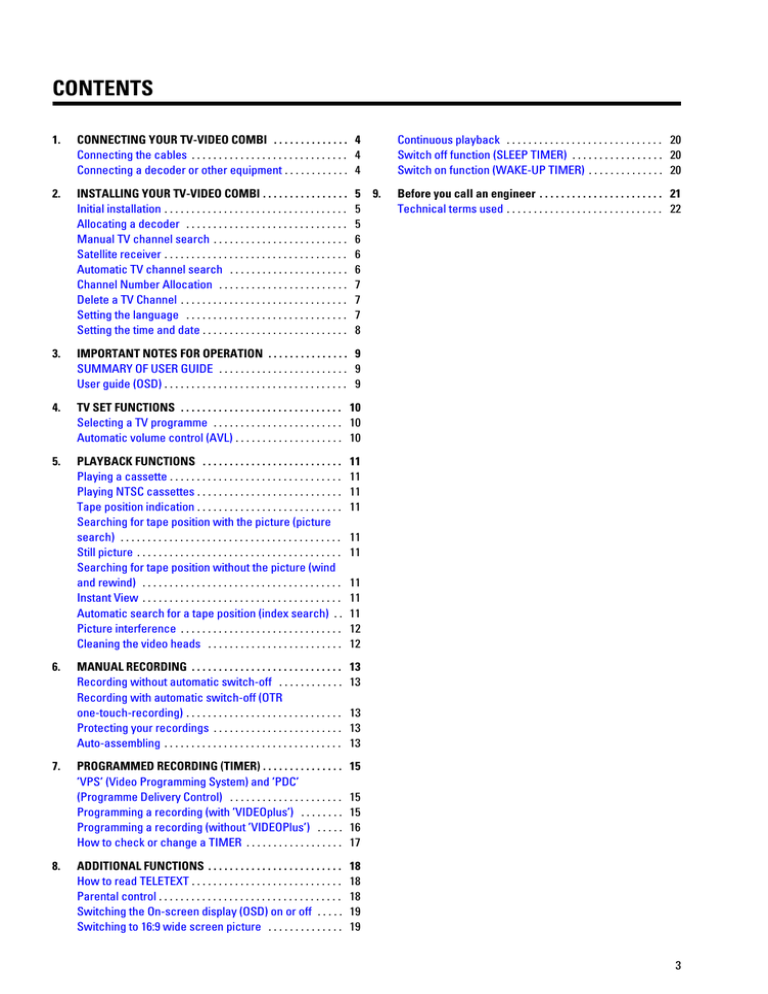

CONTENTS
1.
CONNECTING YOUR TV-VIDEO COMBI . . . . . . . . . . . . . . 4
Connecting the cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Connecting a decoder or other equipment . . . . . . . . . . . . 4
2.
INSTALLING YOUR TV-VIDEO COMBI . . . . . . . . . . . . . . . .
Initial installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Allocating a decoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual TV channel search . . . . . . . . . . . . . . . . . . . . . . . . .
Satellite receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic TV channel search . . . . . . . . . . . . . . . . . . . . . .
Channel Number Allocation . . . . . . . . . . . . . . . . . . . . . . . .
Delete a TV Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the time and date . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.
IMPORTANT NOTES FOR OPERATION . . . . . . . . . . . . . . . 9
SUMMARY OF USER GUIDE . . . . . . . . . . . . . . . . . . . . . . . . 9
User guide (OSD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.
TV SET FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Selecting a TV programme . . . . . . . . . . . . . . . . . . . . . . . . 10
Automatic volume control (AVL) . . . . . . . . . . . . . . . . . . . . 10
5.
PLAYBACK FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . .
Playing a cassette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Playing NTSC cassettes . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tape position indication . . . . . . . . . . . . . . . . . . . . . . . . . . .
Searching for tape position with the picture (picture
search) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Still picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Searching for tape position without the picture (wind
and rewind) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instant View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic search for a tape position (index search) . .
Picture interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning the video heads . . . . . . . . . . . . . . . . . . . . . . . . .
6.
7.
8.
MANUAL RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recording without automatic switch-off . . . . . . . . . . . .
Recording with automatic switch-off (OTR
one-touch-recording) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Protecting your recordings . . . . . . . . . . . . . . . . . . . . . . . .
Auto-assembling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 9.
5
5
6
6
6
7
7
7
8
Continuous playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Switch off function (SLEEP TIMER) . . . . . . . . . . . . . . . . . 20
Switch on function (WAKE-UP TIMER) . . . . . . . . . . . . . . 20
Before you call an engineer . . . . . . . . . . . . . . . . . . . . . . . 21
Technical terms used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
11
11
11
11
11
11
11
11
11
12
12
13
13
13
13
13
PROGRAMMED RECORDING (TIMER) . . . . . . . . . . . . . . .
’VPS’ (Video Programming System) and ’PDC’
(Programme Delivery Control) . . . . . . . . . . . . . . . . . . . . .
Programming a recording (with ’VIDEOplus’) . . . . . . . .
Programming a recording (without ’VIDEOPlus’) . . . . .
How to check or change a TIMER . . . . . . . . . . . . . . . . . .
15
15
15
16
17
ADDITIONAL FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . .
How to read TELETEXT . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parental control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching the On-screen display (OSD) on or off . . . . .
Switching to 16:9 wide screen picture . . . . . . . . . . . . . .
18
18
18
19
19
3
OPERATING INSTRUCTIONS IN BRIEF
The remote control
PLAY G
TELETEXT e TELETEXT: To switch TELETEXT on or off
STANDBY m Switch off : To switch off set, interrupt menu
function, interrupt a programmed recording
(TIMER)
SMART
SMART #
Smart Picture: No function
H
STOP h
I
INDEX E
Smart Sound: No function
0-9 Number buttons: 0 - 9
CLEAR Delete : To delete last entry or clear
RECORD/OTR n
STILL R
Playback : To play a recorded cassette
Rewind : During STOP and STANDBY: rewind, during PLAYBACK: reverse scanning
Pause/Stop: To stop the tape, except while a TIMER-recording is being made
Forward wind: During STOP and STANDBY: forward wind, during PLAYBACK: forward
scanning
Index search: In combination with H / I : to search for previous/next recording
on the cassette.
Record: To record the programme selected
Still picture: To stop the tape and show a still picture
programmed recording (TIMER)
Coloured TELETEXT- buttons: To select TELETEXT pages directly
TIMER k TIMER: To make a manual TIMER
programming or to alter or clear a
programmed TIMER
MENU Menu : To call up or end main menu
OK Store/Confirm: To store or confirm entry
P pAB Programme number: To select a programme
number up or down
P rB Select: One line up
AP q Select: One line down
SpDC Volume: To regulate the volume
DSr Select: Cursor left
qSC Select: Cursor right
y Volume off: To switch the volume on or off
z Previous programme number: To select the
previous programme number
n(red)
TELETEXT: Select page/chapter shown at the bottom of the screen
n(green) TELETEXT: Select page/chapter shown at the bottom of the screen
n(yellow)
TELETEXT: Select page/chapter shown at the bottom of the screen
n(blue)
TELETEXT: Select page/chapter shown at the bottom of the screen
Front of the set
8
m
Pp
Sp
Power switch : To switch off the set
Beware: When you switch the set off with the power switch, TIMER-recordings are not possible!
Standby : To switch off, interrupt a function, interrupt a programmed recording (TIMER)
Programme number : To select programme number up or down
Volume: To regulate the volume
H
Rewind : During STOP and STANDBY: rewind, during PLAYBACK: reverse scanning
I
Forward wind: During STOP and STANDBY: forward wind, during PLAYBACK: forward scanning
5
Record: To record the programme selected
G
Playback : To play a recorded cassette
?
Pause/Stop, eject cassette: To stop the tape and during STOP eject the cassette
AUDIO
Audio input socket
VIDEO
Video input socket : To connect a camcorder or videogames
w
Headphones socket: To connect headphones
Back of the set
EXT.1
2
Scart socket: To connect a satellite receiver, decoder, video recorder, etc.
Aerial input socket: To connect the aerial cable
OPERATING INSTRUCTIONS PHILIPS 14PV325/05S
Congratulations! You now own one of the most sophisticated
and simple-to-use TV-VIDEO Combinations on the market.
With this TV-VIDEO Combi you can record and play
VHS-standard cassettes.
So that you can identify your machine in the event of theft,
enter the serial number (PROD.NO) here. The serial number is
printed on the type plate fixed at the rear of the set.
MODEL NO: 14PV327/05B - 14PV325/05S
Please take the time to read this operating manual before
using your TV-VIDEO Combi.
Safety instructions and other notes
A Danger: High voltage!
Do not remove the top cover as there is a risk of an electrical
shock!
A The TV-VIDEO Combi does not contain any components that can
be repaired by the customer. To switch off the TV-VIDEO Combi
completely you must push the mains switch.
B Make sure that air can circulate freely through the ventilation
slots on the TV-VIDEO Combi.
PROD.NO: . . . . . .
This product complies with the requirements of the Directive
73/23/EEC + 89/336/EEC + 93/68/EEC.
Technical information
Measurements in cm (W / H / D): 39.2 / 40.7 / 39.8
Power consumption (Standby) : less than 45W (less than 4W)
Voltage : 198-264V 50Hz
Headphones : Output resistance less than 120 Ohms maximum
output voltage more than 2.6V at 120 Ohms
B Make sure that no objects or liquids enter the TV-VIDEO Combi.
If liquid is spilt into it, disconnect the TV-VIDEO Combi
immediately from the power supply and call the After-sales
Service for advice.
B The TV-VIDEO Combi should not be used immediately after
transportation from a cold to a hot area or vice versa, or in
conditions of extreme humidity.
After unpacking the TV-VIDEO Combi, it should be allowed to
acclimatize for at least three hours before installation.
C These operating instructions have been printed on nonpolluting
paper.
C Deposit old batteries at the relevant collection points.
Emergency interrupt
You can use the STANDBY m button on the TV-VIDEO Combi or
the remote control to interrupt any function. If you want to
interrupt a running Timer recording, hold the STANDBY m
button for several seconds.
So if you are having operating problems, you can just interrupt
the function and start again.
And you can practise operating your set without any worries.
No matter which buttons you press, you cannot damage it.
C Please make use of the facilities available in your country for
disposing of the packaging of the TV-VIDEO Combi in a way that
helps to protect the environment.
C This electronic equipment contains many materials that can be
recycled. Please inquire about the possibilities for recycling
your old set.
D VIDEOPlus+ and PlusCode are registered trademarks of
Gemstar Development Corporation. The VIDEOPlus+ system is
manufactured under licence from Gemstar Development
Corporation.
1
Special functions on your TV-VIDEO Combi
If a television programme, which transmits TELETEXT, is stored with programme
number ’P01’, time and date will be set automatically.
When you have plugged your TV-VIDEO Combi into the mains, you will be
welcomed with an OSD picture. All you have to do is follow the instructions in
the "intelligent help line" for the next step. Enjoy the Automatic TV channel
search/save function and the automatic time adjustment.
Automatic Volume Leveller. It minimises sudden changes in TV volume when
commercial spots are transmitted.
Philips has developed a system which produces the best possible playback
quality. It reduces disturbance on old, worn video cassettes, and emphasises
the detail on very good quality cassettes.
Simple programming system for TV-VIDEO Combis. Makes programming as easy
as making a telephone call. Simply enter the programme code which you will
find in your listings magazine.
The precision tape drive from Philips with rewind times of 100 seconds (E180)
and automatic tape length recognition.
We guarantee that your TV-VIDEO Combi will switch to the new millennium with
no problems whatsoever.
2
1.
CONNECTING YOUR TV-VIDEO COMBI
Important for the United Kingdom
Connecting the cables
This apparatus is fitted with an approved moulded 13 Amp
plug. To change a fuse in this type of plug proceed as follows:
a Remove fuse cover and fuse.
b Fix new fuse which should be a BS1362 5A, A.S.T.A. or
BSI approved type.
c Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should
be cut off and an appropriate plug fitted in its place.
If the mains plug contains a fuse, this should have a value of
5A. If a plug without a fuse is used, the fuse at the distribution
board should not be greater than 5A.
D Note: * The severed plug must be destroyed to avoid a
possible shock hazard should it be inserted into a 13A
socket elsewhere.
How to connect a plug:
The wires in the mains lead are coloured in accordance with
the following code:
BLUE - ’NEUTRAL’ (’N’)
BROWN - ’LIVE’ (’L’)
a Insert the aerial plug into the 2 socket.
b Insert the plug of the mains cable into the wall socket.
c If the little red light at the front of the set is not alight,
please switch on the set. The power switch
located on the left side panel of the set.
8
is
Connecting a decoder or other equipment
d The BLUE wire must be connected to the terminal which
is marked with the letter ’N’ or coloured BLACK.
e The BROWN wire must be connected to the terminal
which is marked with the letter ’L’ or coloured RED.
f Do not connect either wires to the earth terminal in the
plug which is marked with the letter ’E’ or by the safety
earth symbol \or coloured green or green-and-yellow.
Before replacing the plug cover, make certain that the cord
grip is clamped over the sheath of the lead - not simply over
the two wires.
4
You can also connect additional equipment to the EXT.1
socket. For instance, a satellite receiver, decoder or
camcorder.
2.
INSTALLING YOUR TV-VIDEO COMBI
Initial installation
Allocating a decoder
a Open up the battery compartment of your remote control
Some TV stations will send coded TV channels, that you can
only watch when you use a decoder. You can connect such a
decoder (descrambler) to your TV-VIDEO Combi. With the
following function, the connected decoder will automatically
be activated for the TV programme you want to watch.
and place the batteries in it as shown in the picture.
a Choose the TV channel on which you wish to use the
decoder with the qSC or DSr buttons on the
TV-VIDEO Combi or the number buttons 0-9 on the
remote control.
b Close the battery compartment.
c If you have connected the aerial to the TV-VIDEO Combi,
press the OK button.
’Automatic TV channel search’ starts. This picture will
appear on the screen:
b Press the MENU button on the remote control. The main
menu will appear.
c Select the line ’Installation’ with the AP q or
P rB
button and confirm with the
qSC
button.
d Select the line ’Manual store’ with the AP q or
P rB
button and confirm with the
qSC
button.
e Select the line ’Decoder’ with the AP q or
Searching...
CHANNELS FOUND:
P rB
button.
MANUAL STORE
//////,,,,,,,,,,,,,,,,,,,,,
Wait until all TV channels have been found. This can take
several minutes.
D If you have connected a decoder, you must install it
as described in the next section.
D If you have connected a satellite receiver, please
read the section ’satellite receiver’.
Channel/Frequency
FREQU.
Search
125
Fine tuning
(,,,,,,n=,,,,,,$
Name edit
xxx
Programme number
P01
Decoder
OFF
ã Exit:
« press MENU
f Select function ’ON’ with the DSr or qSC
button. When you select ’OFF’, the function will be
switched off.
g Confirm with the OK button.
h To end, press the MENU button.
Your decoder has now been allocated to this TV channel.
5
i Press the OK button to store the TV channel.
Manual TV channel search
In certain cases the ’Automatic TV channel search’ may not be
able to find all of the TV channels (e.g. coded TV channels). In
that case, use this manual method to set the channels.
D If you want to search for further TV channels, start
again at step e.
j To end, press the MENU button.
a Press the MENU button on the remote control. The main
menu will appear.
Satellite receiver
b Select the line ’Installation’ with the AP q or
P rB
button and confirm with the
qSC
button.
c Select the line ’Manual store’ with the AP q or
P rB
button and confirm with the
qSC
button.
MANUAL STORE
Channel/Frequency
FREQU.
Search
125
Fine tuning
(,,,,,,n=,,,,,,$
Name edit
xxx
Programme number
P01
Decoder
OFF
You can receive channels from the satellite receiver via the
scart socket EXT.1 .
To do this, select the channel number ’E1’ with the
P pAB button. You will have to select the channels to be
received by the satellite receiver on the receiver itself.
Automatic TV channel search
Your TV-VIDEO Combi will search for all TV channels.
If you want to start the automatic TV channel search again,
then follow the instructions below.
a Press the MENU button on the remote control. The main
ã Exit:
« press MENU
menu will appear.
d In the line ’Channel/Frequency’, select the
display for:
’FREQU.’: frequency
’C CH’: channel
’S CH’: special channel
b Select the line ’Installation’ with the AP q or
P rB
button and confirm with the
qSC
button.
c Select the line ’Autoinstall’ with the AP q or
P rB
e If you know the frequency or channel of the desired TV
channel, you can enter the data in line ’Search’ with
the digit buttons 0-9 .
button.
d Press the qSC button. The ’Automatic TV channel
search’ starts.
D If you don’t know the frequency or channel of the TV
channel of your choice, press the qSC button to
start the channel search.
f In the line ’Programme number’ select the
programme number you want e.g.: ’P01’, using the
DSr or qSC button.
Searching...
CHANNELS FOUND:
g If you want to change the TV channel name, press the
qSC
button in line ’Name
//////,,,,,,,,,,,,,,,,,,,,,
edit’.
E Select the character you want to change with the
DSr or the qSC button. Change the character
with the AP q or the P rB button. Select the next
character in the same way.
E To confirm the information, press the
OK
button.
h If you want to change the automatic tv channel setting,
select the line ’Fine tuning’.
With the DSr or qSC button you can vary the
automatic tv channel setting. Important: This re-tuning is
only necessary and useful in special cases, e.g.: when
there are stripes on the picture with cable-TV systems.
6
e When the TV channel search is complete,
’Installation
screen.
comp.’ will appear on the
How to search for a TV channel manually, you can read in the
section ’Manual TV channel search’.
D Automatic Channel Installation:
Some cable companies or broadcasters offer the
possibility to install TV channels automatically with ’ACI’.
Information about the installation offered and how to
select it, will appear on the screen.
This set will recognize and install TV channels with ’ACI’
automatically.
TV channels will be stored from programme number 1
onward.
If ’ACI’ cannot identify a TV channel, you can search for it
using the method as described in the section ’Manual TV
Channel Search’.
Delete a TV Channel
a Press the MENU button. The main menu appears.
b Select the line ’Installation’ with the menu
buttons
button
AP q
qSC
or
.
P rB
and confirm with the menu
c Select the line ’Sort channels’ with the menu
buttons
button
AP q
qSC
or
.
P rB
and confirm with the menu
SORT CHANNELS
01 xxx
02 yyy
03 zzz
Channel Number Allocation
04 aaa
05 bbb
06 ccc
a Press the MENU button. The main menu appears.
b Select the line ’Installation’ with the menu
buttons AP q or
button qSC .
P rB
and confirm with the menu
ã Exit:
« press MENU
press OK
c Select the line ’Sort channels’ with the menu
buttons
button
AP q
qSC
or
.
P rB
and confirm with the menu
d With the menu buttons AP q , P rB , DSr or
, select the TV channel you want to delete and
press the OK button.
qSC
SORT CHANNELS
01 xxx
02 yyy
03 zzz
04 aaa
05 bbb
06 ccc
e Repeat step d, until you have deleted all the required
TV channels.
Setting the language
You can select the language for the on-screen display (OSD).
a Press the MENU button on the remote control. The main
ã Exit:
« press MENU
press OK
d With the menu buttons AP q , P rB , DSr or
, select the TV channel to which you want to
allocate a programme number and press the OK button.
menu will appear.
b Select the line ’Installation’ with the AP q or
P rB
button and confirm with the
qSC
button.
qSC
c Select the line ’LANGUAGE’ with the AP q or
P rB
e With the menu buttons AP q , P rB , DSr or
, shift the TV channel to the programme number
you wish to allocate to this TV channel and press the
OK button.
qSC
button.
d Select your language with the DSr or qSC
button.
e To end, press the MENU button.
f Repeat steps dto euntil you have allocated a
programme number to all the required TV channels.
g To end, press the MENU button.
7
Setting the time and date
a Press the MENU button on the remote control. The main
menu will appear.
b Select the line ’Set clock’ with the AP q or
button and confirm with the
P rB
qSC
button.
SET CLOCK
Time
Year
Month
Date
Smart clock
15:36
1999
6
8
ON
ã Exit:
« press MENU
c Check the time in line ’Time’. If required, please change
the time with the
0-9
buttons on the remote control.
d Check ’Year’, ’Month’ and ’Date’ in the same way.
You can switch between entry fields with AP q or
P rB button. Confirm each entry with the OK button.
e To end, press the MENU button.
Automatic clock and date setting
(SMART CLOCK)
D If a TV programme, which transmits TELETEXT, is stored
with programme number ’P01’, time and date will be set
automatically.
D Clock will automatically be adjusted to winter time and
summer time.
a Select the line ’Smart clock’ with the menu buttons
AP q
or
P rB
.
b Switch the function on with the menu buttons DSr or
qSC
8
.
3.
IMPORTANT NOTES FOR OPERATION
SUMMARY OF USER GUIDE
The OSD menu offers the following functions. More details on each can be found in the appropriate chapter.
MAIN MENU
Sound
Setup
Tape
Installation
Brightness
(,,,,,,,,,,,,
Colour
(,,,,,,,,,,
Contrast
(,,,,,,,
Sharpness
(,,,,,,,,
Store as pref.
NO
ã Exit:
« press MENU
ã Exit:
« press MENU
Chapter: ’TV SET FUNCTIONS’
User guide (OSD)
The OSD (On-screen display) shows the various functions in
the form of a menu on the television screen. You can then
choose the settings you require. There is a summary of the
menus on this page. The main button functions are displayed
in a help line along the bottom of the screen.
E To call up the menu: With the
MENU
button.
or
P rB
button.
E Select within a line: With the menu buttons
qSC .
DSr
E To enter or change your selection: With the
DSr or qSC button.
0-9
E To select a line: With the
AP q
MENU
or
OK
E To close the menu: With the
MENU
Chapter ’TV SET FUNCTIONS’
,
button.
E To save or confirm: With the
Volume
(,,,,,,,,,,,,
Auto volume cont.
YES
Store as pref.
NO
ã Exit:
« press MENU
E To enter or change your selection in the TIMER entry
columns: With the AP q or P rB button.
E To cancel: With the
SOUND
button.
menu button.
SETUP
Parental control
Display
Format 16:9
OFF
MAX
NORMAL
ã Exit:
« press MENU
Chapter: ’ADDITIONAL FUNCTIONS’
TAPE
E To confirm the messages in red on the screen: Press the
OK button.
E You can switch the machine on with the AP q ,
P rB , z or 0-9 button or by putting in a cassette.
Tape speed
Tape Counter
Repeat play
Jitter
Tracking
Cleaning
SP
USED
N. ACT.
N. ACT.
(,,,,,,,,=,,,,,,$
ã Exit:
« press MENU
Chapter: ’PLAYBACK FUNCTIONS’
9
4.
TV SET FUNCTIONS
Selecting a TV programme
Volume control
Select the required TV channel (=programme number) with the
P pAB button or with the digit buttons 0-9 on the remote
control.
You can control the volume level with the SpDC button.
If you want to mute the sound temporarily (e.g.: during a
telephone call), press the y button on the remote control.
When you press the y button again, the sound will return at
its original volume level.
D If you don’t know the programme number of the required
TV channel:
a Press the P pAB button for more than 2
seconds. The TV channel list appears on the screen.
Sound settings
b Select the required TV channel with the
P pAB button.
After 1 second the TV-VIDEO Combi will switch to
the selected programme number.
a Press the MENU button. The main menu appears.
b Select the line ’Sound’ with the AP q or P rB
button and confirm with the
qSC
button.
Picture settings
a Press the MENU button. The main menu appears.
b Select the line ’Picture’ with the menu buttons
AP q
or
.
P rB
and confirm with the menu button
qSC
SOUND
Volume
(,,,,,,,,,,,,
Auto volume cont.
YES
Store as pref.
NO
ã Exit:
« press MENU
c Select the line ’Volume’ with the AP q or P rB
Brightness
(,,,,,,,,,,,,
Colour
(,,,,,,,,,,
Contrast
(,,,,,,,
Sharpness
(,,,,,,,,
Store as pref.
NO
button and alter with the
DSr
or
D To store this setting as a standard setting, select the
line ’Store as pref.’ with the menu buttons
AP q or P rB . Select ’YES’ and confirm with
the OK button.
10
qSC
button.
D To call up the standard settings, switch the set of
and on again.
c Select the required line with the menu buttons AP q or
and alter with the menu buttons
qSC .
or
D To store this setting as a standard setting, select
’YES’ in line ’Store as pref.’ and confirm
with the OK button.
ã Exit:
« press MENU
P rB
DSr
Automatic volume control (AVL)
E Switch on ’Auto volume cont.’, to activate the
automatic volume control. It minimises sudden changes
in TV volume when commercial spots are transmitted.
5.
PLAYBACK FUNCTIONS
Playing a cassette
Searching for tape position with the picture
(picture search)
a Put a cassette into the cassette slot.
a While a cassette is playing, press the H (reverse) or
I
b Press the PLAY G button.
(forward) button once or several times.
b To stop at a certain picture, press the PLAY G button.
c If you press the STOP h button once, the TV-VIDEO
Combi will switch to pause. To stop, press the
button again.
STOP h
d To eject the cassette, press the ? button on the
TV-VIDEO Combi or press the STOP h button on the
remote control several seconds.
D Some hired cassettes may have a poor picture or
poor sound quality. This is not a fault in your
machine. Please read `Picture interference´.
D Some functions switch off automatically after a
while (for example, pause, still picture, picture
search). This helps to protect the cassette and
avoids wasting power.
D During picture search, the picture quality may not be
so good and there will be no sound.
Still picture
a Press the STILL R button. A still picture will appear on
the screen.
b Each time you press STILL R again, the picture will
move on one step.
Searching for tape position without the
picture (wind and rewind)
a Stop the tape with the STOP h button.
b Press the H (reverse) or I (forward) button.
Playing NTSC cassettes
With this set you can play cassettes that have been recorded
on another video recorder in the NTSC standard (for example,
American cassettes).
D Some special features (for example, still picture) are not
possible while you are playing an NTSC cassette.
c To stop at a certain picture, press the STOP h button.
Instant View
With this function you can switch to picture search during
wind and rewind.
a If you hold the H (rewind) or I (wind) button
during wind or rewind, you will switch to picture search.
Tape position indication
D Press the
b When you release the button, the TV-VIDEO Combi will
OK
button to display the current tape position.
D To change the type of tape position display, proceed as
follows:
automatically switch back to rewind or wind.
Automatic search for a tape position (index
search)
a During playback, press the MENU button.
b Select the line ’Tape’ with the menu buttons AP q or
P rB
and confirm with the
OK
button.
c Select the line ’Tape counter’ with the menu
buttons
AP q
or
P rB
.
At the start of each recording, the TV-VIDEO Combi will write
an index code on the tape.
a Press the INDEX E button. Press the I button to
select the next code mark or the
previous code mark.
H
button for the
b When the TV-VIDEO Combi finds the code mark, it will
d With the menu buttons DSr or qSC select
automatically switch to play.
’USED’ to check the time used, or ’LEFT’ to check the
time left on the tape.
e Confirm with the OK button.
11
Picture interference
Cleaning the video heads
When the picture quality is poor when you play a cassette,
please follow these instructions.
If horizontal lines appear on the screen when you play a
cassette, you should clean the video heads.
Tracking during playback
a During playback, press the MENU button.
b Select the line ’Tape’ with the menu buttons AP q or
P rB
and confirm with the
qSC
button.
c Select the line ’Tracking’ with the menu buttons
AP q
or
P rB
.
d Hold the menu buttons DSr or qSC until the
playback quality is at its best.
a During playback, press the MENU button.
e Confirm with the OK button.
b Select the line ’Tape’ with the menu buttons AP q or
P rB
and confirm with the
qSC
button.
f To end, press the MENU button. This setting will remain
until you remove the cassette.
c Select the line ’Cleaning’ with the menu buttons
AP q
Tracking during still picture
or
P rB
.
d Press the OK button. ’CLEANING’ appears on the
If the still picture vibrates vertically, you can improve the still
picture as follows:
a During still picture, press the MENU button.
b Select the line ’Tape’ with the AP q button or
P rB
and confirm with the
qSC
button.
c Select the line ’Jitter’ with the AP q or P rB
button.
d Hold the DSr or qSC button until the picture
quality is at its best.
e Confirm with the OK button.
f To end, press the MENU button.
D Please note, however, that interference may still
occur with poor quality cassettes.
12
screen.
e Wait a few seconds, until the message disappears and
then press the
MENU
button.
6.
MANUAL RECORDING
Use ’Manual Recording’ to make a spontaneous recording (for
example, a programme currently being shown).
E If you want to start and stop a recording manually, read
the section: ’Recording without automatic switch-off’.
E If you want to start a recording manually but have it
stopped automatically, read the section: ’Recording with
automatic switch-off’.
Recording without automatic switch-off
Recording with automatic switch-off (OTR
one-touch-recording)
a Put a cassette in the machine.
b Use the P pAB button to select the programme
number you want to record.
c Press the RECORD/OTR n button on the remote control.
When you are recording, the red recording light at the
front of the TV-VIDEO Combi will be alight.
a Insert a cassette.
d Press the RECORD/OTR n button again and again until the
b Use the P pAB button to select the programme
number you want to record, for example, ’P01’.
D Programme number ’E1’ is provided for recording
from external sources (via the EXT.1 scart socket).
display on the TV-VIDEO Combi shows the desired end
time or length of the recording.
D To cancel this information, press the
CLEAR
button.
e Confirm with the OK button.
c To start recording, press the RECORD/OTR n button on the
remote control or 5 on the TV-VIDEO Combi.
When you are recording, the red recording light at the
front of the TV-VIDEO Combi will be alight.
Protecting your recordings
d Stop recording with the STOP h button.
D During a recording you can watch other TV
channels.
D To switch off the screen, press the
button.
f To end, press the MENU button.
STANDBY m
So that you don’t accidentally delete an important recording,
remove the special tab on the narrow side of the cassette with
a screwdriver or slide the special tab to the left. Later, if you
no longer want to protect your recording, you can seal the gap
again with sticky tape or slide the special tab to the right.
Auto-assembling
You can use the auto-assembling function to join individual
recordings without any major picture disturbance between
them.
a While the cassette is playing, search for the correct
position on the tape.
b Stop the cassette by pressing the STOP h button.
’Pause’ will appear on the TV screen.
c Now start recording as usual by pressing the
RECORD/OTR n
button on the remote control.
13
Selecting the recording speed (SP or LP)
You can reduce the recording speed by half. This makes it
possible to record, for example, eight-hours instead of
four-hours on an ’E240’ (four-hour) cassette.
a Press the MENU button. The main menu appears.
b Select the line ’Tape’ with the AP q or P rB
button, and confirm with the
qSC
button.
c Select the line ’Tape speed’ with the AP q or
P rB
button, and confirm with the
qSC
button.
d Select the required recording speed with the DSr or
qSC
button.
D ’LP’: Long Play = half recording speed (double
recording time).
’SP’: Standard Play = normal recording speed.
D The picture quality will be adversely affected when
recording at half recording speed (’LP’).
D For playback, the correct recording speed will
automatically be selected.
e Confirm with the OK button.
f To end, press the MENU button.
14
7.
PROGRAMMED RECORDING (TIMER)
Use programmed recording to automatically start and stop a
recording at a later date.
To make a programmed recording, your TV-VIDEO Combi
needs to know:
* the date you want to make the recording;
* the programme number for the TV channel you want to
record;
* the start and stop time of the recording;
* whether you want to use VPS or PDC;
* the recording speed (SP/LP).
c Enter the entire PlusCode-programming number (up to 9
digits) printed in your TV guide next to the start time of a
TV programme.
For example, 5-234-89 or 5 234 89
Enter 523489 for the PlusCode-programming number.
If you make a mistake, you can clear your instructions
with the CLEAR button.
VIDEOPLUS
The TV-VIDEO Combi stores all the information in a TIMER
block. You can programme up to 6 TIMER blocks a month in
advance.
’VPS’ (Video Programming System) and
’PDC’ (Programme Delivery Control)
CODE
REPEAT
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
1 2 3 4 5 6( ( (
0-9
ONCE
Store:
press OK
d In line ’REPEAT’ select daily or weekly programming
With ’VPS and PDC’, the TV station controls the start time and
the length of the recording. This means that the TV-VIDEO
Combi switches itself on and off at the right time even if a TV
programme you want to record begins earlier or finishes later
than expected.
Usually the start time is the same as the VPS or PDC time. But
if your TV guide gives a VPS or PDC time which is different to
the programme’s start time (for example, 20.15 and VPS 20.14),
you must enter ’20.14’ as the start time.
If you want to programme a time that is different from the VPS
or PDC time, you must switch off VPS or PDC.
with the DSr or qSC button.
’Mo-Fr’: recordings every day from Monday to Friday.
’Mo-Su’: recordings every day from Monday to Sunday.
’WEEKLY’: recordings every week on the same day of
the week.
e Confirm with the OK button. Your programming details
will then appear on the TV screen.
TIMER PROGRAMMING
Programming a recording (with ’VIDEOplus’)
VPS
DATE PROG. START END LP PDC REP.
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
15
xxx
15:36 15:50 -
*
ONCE
All the information required for a programming is contained in
the PlusCode-programming number.
ã Exit:
« press TIMER
D If VIDEOPlus+ does not recognise the TV channel,
’E1’ will appear on the TV screen. Instead of ’E1’,
you can select the programme number you want
with the number buttons 0-9 .
a Press the TIMER k button on the remote control.
b Select the line ’Videoplus’ with the menu buttons
AP q
or
P rB
and confirm with the
qSC
Start:
press è
button.
D If ’Code error’ appears on the TV screen, this
means you entered an incorrect PlusCode number
or the incorrect date. Correct your instructions or
end with the SV/V+ button.
15
D If ’Daily error’ appears on the TV screen, the
date was incorrectly entered. Daily programming
can only be used for recordings to be made from
Monday to Friday.
D Under ’VPS/PDC’, use the AP q or
button to switch ’VPS or PDC’ on or off.
Press the
P rB
D Under ’LP’, use the or P rB button to select the
recording speed ’SP’ or ’LP’.
D The TIMER lamp on the front of the set lights up
when one or more of the TIMER blocks are
occupied.
D If the end of the cassette is reached during a
recording, the TV-VIDEO Combi automatically ejects
the cassette.
D If you forget to load a cassette, ’No
will appear.
c Select a free TIMER block with the P pAB button.
cassette’
D If you inserted a cassette with erase protection
when you want to start a recording, the cassette will
be ejected.
f Press the OK button.
g Confirm the message on the screen with the OK button.
A TIMER recording can only start, if the set is not used for
other video recorder functions (e.g. playback).
h To end, press the TIMER k button.
OK
button.
TIMER PROGRAMMING
VPS
DATE PROG. START END LP PDC REP.
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
15
xxx
15:36 15:50 -
ã Exit:
« press TIMER
*
ONCE
Start:
press è
d Select the entry field with the DSr or qSC
button.
e Enter information with the menu buttons AP q or
P rB
or with the digit buttons
0-9
.
D Under ’REP.’, use the AP q or P rB button to
select daily or weekly programming.
’Mo-Fr’: recordings every day from Monday to
Friday.
’Mo-Su’: recordings every day from Monday to
Sunday.
’WEEKL’: recordings every week on the same day
of the week.
D Under ’VPS/PDC’, use the AP q or
button to switch ’VPS or PDC’ on or off.
Programming a recording (without
’VIDEOPlus’)
P rB
D Under ’LP’, use the AP q or P rB button to
select the recording speed ’SP’ or ’LP’.
f Confirm with the OK button when the information is
a Press the SV/V+ button on the remote control.
b Select the line ’Timer programming’ with the
menu buttons AP q or
qSC button.
P rB
and confirm with the
VPS
DATE PROG. START END LP PDC REP.
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
--
g Confirm the message on the screen with the OK button.
A TIMER recording can only start, if the set is not used for
other video recorder functions (e.g. playback).
D The programming information has been stored in a
TIMER block.
TIMER PROGRAMMING
--
correct.
--:-- --:-- -
-
-----
h To end, press the TIMER k button.
i Make sure that the cassette you have put in can be
recorded on.
ã Exit:
« press TIMER
16
Start:
press è
How to check or change a TIMER
How to clear a TIMER
a Press the TIMER k button on the remote control.
a Press the TIMER k button on the remote control.
b Select the line ’Timer programming’ with the
b Select the line ’Timer programming’ with the
menu buttons AP q or
qSC button.
P rB
and confirm with the
c Select the TIMER you want to check or change with the
AP q
or
P rB
button and confirm with the
OK
menu buttons AP q or
qSC button.
P rB
and confirm with the
c Select the TIMER you want to clear with the menu
buttons
AP q
or
P rB
.
button.
d Press the CLEAR button.
d Select the entry field with the DSr or qSC
button.
e Switch off with the TIMER k button.
e Change any information with the AP q or P rB
button or with the
0-9
buttons.
D Under ’LP’, use the AP q or P rB button to
select the recording speed ’SP’ or ’LP’.
f Confirm the message on the screen with the OK button.
A TIMER recording can only start, if the set is not used for
other video recorder functions (e.g. playback).
D The programming information has been stored in a
TIMER block.
g To end, press the TIMER k button.
h Make sure that the cassette you have put in can be
recorded on.
17
8.
ADDITIONAL FUNCTIONS
How to read TELETEXT
Parental control
E Press the TELETEXT e button to switch the TXT decoder
on and off. The TV-VIDEO Combi is now receiving the TXT
of the TV channel currently selected.
This function will prevent unauthorised use of your TV-VIDEO
Combi. All button-functions will be locked.
D You can make programmed recordings while the parental
control is on.
E To store the current page, press the OK button.
The next time you call up TELETEXT, you will
automatically turn to this page.
E If you want to select an other page, type in the number of
the page with the digit buttons 0-9 . With the colour
buttons on your remote control you can directly select
the page numbers/chapters shown at the bottom of the
TV screen.
a Press the MENU button. The main menu appears.
b Select the line ’Setup’ with the AP q or P rB
button and confirm with the
qSC
button.
Extra TELETEXT functions
To use the extra TELETEXT functions, press the
when you are in TELETEXT.
MENU
button,
SETUP
E To enlarge the print, select the symbol ’g’ and confirm
with the OK button.
Parental control
Display
Format 16:9
E To switch off the TELETEXT decoder temporarily, select
the symbol ’d’ and confirm with the OK button.
OFF
MAX
NORMAL
ã Exit:
« press MENU
E To call up a TELETEXT sub-page:
a Select the symbol ’}’ and confirm with the OK
button.
b Enter the page number of the sub-page with the
0-9
-buttons (e.g.: 0123).
E To call up concealed information, select the symbol ’b’
and confirm with the OK button.
E To stop the pages from being turned over, select the
symbol ’f’ and confirm with the OK button.
E To show TELETEXT transparently, select the symbol ’-’
and confirm with the OK button.
18
c In the line ’Parental control’ select ’ON’ with
the
DSr
or
qSC
button.
d Confirm with the OK button.
e To end, press the MENU button.
Keep the remote control in a safe place.
f If you want to switch off the parental control, select
’OFF’ in line ’Parental
control’.
Switching the On-screen display (OSD) on
or off
Switching to 16:9 wide screen picture
You can switch the On Screen Display of the current operating
information on or off.
If you are using a cassette with 16:9 wide screen recordings,
you can switch this function ’ON’. The TV-VIDEO Combi will
now automatically switch to wide screen.
a Press the MENU button. The main menu appears.
a Press the MENU button. The main menu appears.
b Select the line ’Setup’ with the menu buttons
b Select the line ’Setup’ with the AP q or P rB
AP q
or
P rB
and confirm with the
qSC
button.
Parental control
Display
Format 16:9
OFF
MAX
NORMAL
ã Exit:
« press MENU
c Select the line ’Display’ with the menu buttons
or
P rB
qSC
button.
SETUP
SETUP
AP q
button and confirm with the
.
d Select one of the options indicated with the menu buttons
or DSr .
’MAX’: OSD appears for a few seconds each time an
operating mode is selected and then disappears.
’MIN’: OSD is minimised.
’PROGR.’: the programme number is constantly
indicated.
’COUNTER’: the counter is constantly indicated.
qSC
Parental control
Display
Format 16:9
OFF
MAX
NORMAL
ã Exit:
« press MENU
c Select the line ’Format 16:9’ with the P rB or
AP q
button.
d Select one of the possibilities with the qSC or
DSr button.
’NORMAL’ : Normal size picture.
’EXTEND.’ : Extended size picture.
’COMPR.’ : 16:9 format picture.
D When you watch TV you can select between
’EXTEND.’ and ’NORMAL’.
e Confirm with the OK button.
e Confirm with the OK button.
f To end, press the MENU button.
f To end, press the MENU button.
D With the OK button you can superimpose the On
Screen Display of current operating mode on the TV
screen.
19
Continuous playback
Switch off function (SLEEP TIMER)
You can automatically play a cassette again and again. When
the end of the tape or the recording has been reached, it will
rewind and start again.
You can programme your set to switch off after a
predetermined period.
a Press the TIMER k button on the remote control.
a Press the MENU button. The main menu appears.
b Select line ’Sleep timer’ with the AP q or
b Select the line ’Tape’ with the menu buttons AP q or
. Confirm with the menu button
P rB
qSC
P rB
button and confirm with the
qSC
button.
.
c Determine the time left until switch off in 15 minutes
intervals using the
AP q
or
P rB
button.
D You can switch the function off with the
button on the remote control.
TAPE
Tape speed
Tape Counter
Repeat play
Jitter
Tracking
Cleaning
SP
USED
N. ACT.
N. ACT.
(,,,,,,,,=,,,,,,$
CLEAR
d Confirm with the OK button.
e To end, press the TIMER k button.
ã Exit:
« press MENU
Switch on function (WAKE-UP TIMER)
c Select the line ’Repeat play’ with the menu buttons
AP q
or
P rB
.
You can programme your set to switch on at a predetermined
time.
d Select ’ON’ with the menu buttons DSr or
. If you select ’OFF’, the function will be
switched off.
qSC
a Press the TIMER k button on the remote control.
b Select line ’Wake-up timer’ with the AP q or
e Confirm with the OK button.
f Press the MENU button.
P rB
button and confirm with the
qSC
button.
c Select the entry field with the DSr or qSC
button.
d Enter the information with the AP q or P rB button
or with the number buttons
0-9
.
e In the line ’ON’, switch the function on or off.
f Press the OK button.
g To end, press the TIMER k button.
20
9.
Before you call an engineer
If, contrary to expectation, you have any problems using this
TV-VIDEO Combi, it may be caused by one of the reasons
mentioned below. You can also call the customer service
centrein your country.
You will find the phone number in the enclosed guarantee
leaflet.
Your TV-VIDEO Combi does not respond to any button being
pressed:
•
•
•
•
•
There is no power supply: check the power supply
A programmed recording is currently being made: cancel the
programmed recording with the STANDBY m button.
Parental control is on: switch the parental control off.
Continuous playback is on: switch the continuous playback off.
There is a technical problem: switch off with the 8 power
switch for a moment.
’Smart Clock’ setting does not work:
•
•
•
You have stored a TV channel on programme number ’P01’ that
does not transmit TELETEXT: On ’P01’ store a TV channel that
transmits TELETEXT.
Poor TELETEXT reception: On ’P01’ store a TV channel with
good TELETEXT reception.
You have not activated the Smart Clock function: Switch the
function ’ON’.
You hear a very short and soft noise coming from your
TV-VIDEO Combi at 3:00 at night:
•
’Smart Clock’ is checking the time: Switch off the Smart Clock
function.
TELETEXT does not start at page 100:
•
You have stored a different preferred page: Store page 100 as
preferred page.
Cassette is jammed in the TV-VIDEO Combi:
•
Don’t use force. Switch off with the 8 power switch for a
moment.
Remote control does not work:
•
•
Remote control not pointed toward the TV-VIDEO Combi: point it
at the TV-VIDEO Combi.
Batteries have run out: change the batteries.
No picture when you play a cassette:
•
There is no recording on the cassette: change the cassette.
Poor picture quality when you play a cassette:
•
•
•
The cassette badly worn or of poor quality: use new cassette.
Tracking is not properly adjusted or the video heads are dirty:
turn to chapter ’PLAYBACK’ and read the section ’Picture
interference’.
You are playing a cassette with a LongPlay recording on it:
Excellent picture quality is only guarateed with recordings made
in StandardPlay recording speed.
The TV-VIDEO Combi will not record:
•
•
The TV channel you want to record is not stored or you selected
the wrong programme number: check TV channels stored.
You have loaded a cassette which cannot be recorded on: undo
the erase protection on the cassette.
Programmed recording does not work:
•
•
•
•
You have not set the TIMER properly: check the TIMER blocks.
You have programmed the wrong time or date: check time and
date.
You have put in a cassette that cannot be recorded on: undo the
erase protection on the cassette.
’PDC’ or ’VPS’ switched on but ’PDC/VPS time’ wrong: enter PDC
or VPS time exactly to the minute. Have the aerial checked.
21
Technical terms used
3103 166 23614
9353/011
(Wwn N Nw nwN nwnWwnNwWNn wnNnW)
14PV325/05S
Current tape position : The part of the tape currently being
played.
External source : A device connected via a socket (for
example, scart socket) which is transmitting audio/video
signals to the TV-VIDEO Combi.
Index marking : A marking which is automatically made on the
tape at the beginning of every recording. This marking
(recording ID) can be searched for with the Index search
function.
Scart cable : Also known as a Euro-AV cable. This standard
cable is an easy method of connecting various TV, audio and
video devices, such as a HIFI and Dolby Surround set, video
recorder, DVD player, SAT receiver, decoder, computer and
similar devices. Other signals in addition to audio and video
signals can be transmitted on it.
TV system : There are various systems for transmitting
television signals, for example, PAL, SECAM, PAL BG, SECAM
DK, SECAM L/L’, NTSC etc. The system used by your television
depends on which country you are in.
TXT : Also known as Teletext, Fasttext, Videotext, FLOF etc.
OTR : One touch recording. This function enables you to select
the switch-off time in intervals of 30 minutes.
22
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
