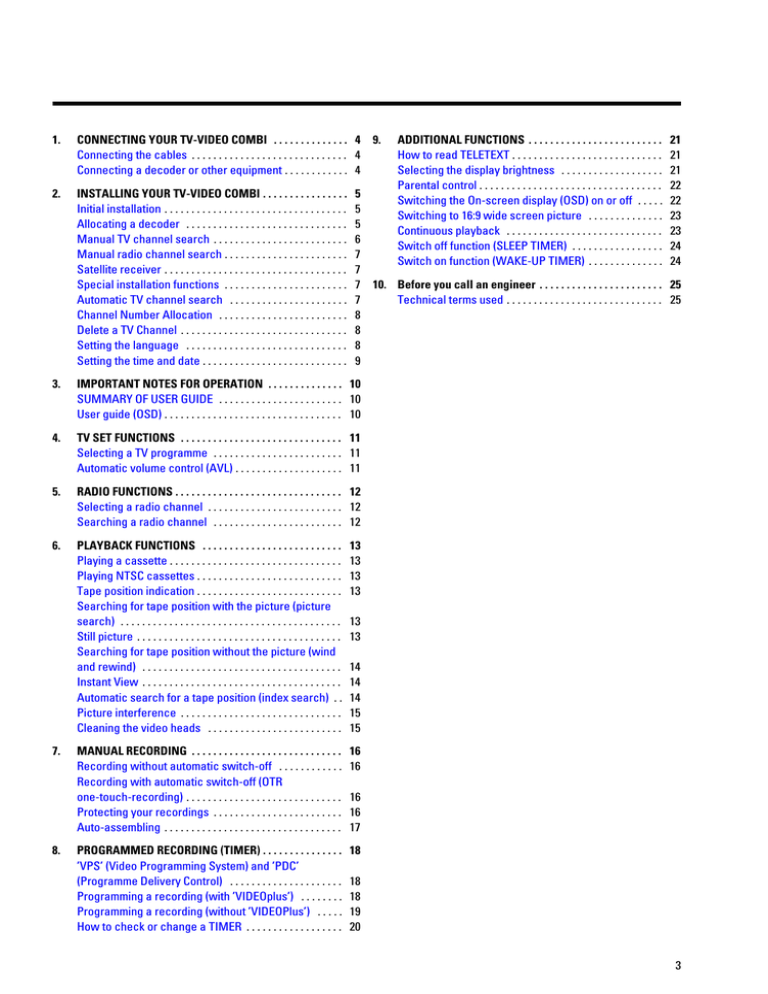

1.
CONNECTING YOUR TV-VIDEO COMBI . . . . . . . . . . . . . . 4 9.
Connecting the cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Connecting a decoder or other equipment . . . . . . . . . . . . 4
2.
INSTALLING YOUR TV-VIDEO COMBI . . . . . . . . . . . . . . . .
Initial installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Allocating a decoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual TV channel search . . . . . . . . . . . . . . . . . . . . . . . . .
Manual radio channel search . . . . . . . . . . . . . . . . . . . . . . .
Satellite receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Special installation functions . . . . . . . . . . . . . . . . . . . . . . .
Automatic TV channel search . . . . . . . . . . . . . . . . . . . . . .
Channel Number Allocation . . . . . . . . . . . . . . . . . . . . . . . .
Delete a TV Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the time and date . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.
IMPORTANT NOTES FOR OPERATION . . . . . . . . . . . . . . 10
SUMMARY OF USER GUIDE . . . . . . . . . . . . . . . . . . . . . . . 10
User guide (OSD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.
TV SET FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Selecting a TV programme . . . . . . . . . . . . . . . . . . . . . . . . 11
Automatic volume control (AVL) . . . . . . . . . . . . . . . . . . . . 11
5.
RADIO FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Selecting a radio channel . . . . . . . . . . . . . . . . . . . . . . . . . 12
Searching a radio channel . . . . . . . . . . . . . . . . . . . . . . . . 12
6.
PLAYBACK FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . .
Playing a cassette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Playing NTSC cassettes . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tape position indication . . . . . . . . . . . . . . . . . . . . . . . . . . .
Searching for tape position with the picture (picture
search) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Still picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Searching for tape position without the picture (wind
and rewind) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instant View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic search for a tape position (index search) . .
Picture interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning the video heads . . . . . . . . . . . . . . . . . . . . . . . . .
7.
8.
MANUAL RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recording without automatic switch-off . . . . . . . . . . . .
Recording with automatic switch-off (OTR
one-touch-recording) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Protecting your recordings . . . . . . . . . . . . . . . . . . . . . . . .
Auto-assembling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PROGRAMMED RECORDING (TIMER) . . . . . . . . . . . . . . .
’VPS’ (Video Programming System) and ’PDC’
(Programme Delivery Control) . . . . . . . . . . . . . . . . . . . . .
Programming a recording (with ’VIDEOplus’) . . . . . . . .
Programming a recording (without ’VIDEOPlus’) . . . . .
How to check or change a TIMER . . . . . . . . . . . . . . . . . .
ADDITIONAL FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . .
How to read TELETEXT . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the display brightness . . . . . . . . . . . . . . . . . . .
Parental control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching the On-screen display (OSD) on or off . . . . .
Switching to 16:9 wide screen picture . . . . . . . . . . . . . .
Continuous playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switch off function (SLEEP TIMER) . . . . . . . . . . . . . . . . .
Switch on function (WAKE-UP TIMER) . . . . . . . . . . . . . .
21
21
21
22
22
23
23
24
24
5
5
5
6
7
7
7 10. Before you call an engineer . . . . . . . . . . . . . . . . . . . . . . . 25
Technical terms used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7
8
8
8
9
13
13
13
13
13
13
14
14
14
15
15
16
16
16
16
17
18
18
18
19
20
3
OPERATING INSTRUCTIONS IN BRIEF
The remote control
z
TELETEXT e TELETEXT: To switch TELETEXT on or off
STANDBY m Switch off : To switch off set, interrupt menu
function, interrupt a programmed recording
(TIMER)
PLAY G
H
STOP h
I
FM SEARCH Radio: To search for radio channels
RADIO ON Radio: To switch on the radio and to switch
INDEX E
between radio and TV mode
ALARM ON
Switch on function: To switch the radio- or
buzzer-alarm on or off.
RECORD/OTR n
STILL R
Previous programme number: To select the previous programme number
Playback : To play a recorded cassette
Rewind : During STOP and STANDBY: rewind, during PLAYBACK: reverse scanning
Pause/Stop: To stop the tape, except while a TIMER-recording is being made
Forward wind: During STOP and STANDBY: forward wind, during PLAYBACK: forward
scanning
Index search: In combination with H / I : to search for previous/next recording
on the cassette
Record: To record the programme selected
Still picture: To stop the tape and show a still picture
SLEEP Sleep timer: To select the switch-off time in 15
minutes intervals.
0-9 Number buttons: 0 - 9
CLEAR Delete : To delete last entry or clear
programmed recording (TIMER)
Coloured TELETEXT- buttons: To select TELETEXT pages/chapters directly
(red)
(green)
TIMER k TIMER: To make a manual TIMER
(yellow)
programming or to alter or clear a
programmed TIMER
(blue)
MENU Menu : To call up or end main menu
OK Store/Confirm: To store or confirm entry
P pAB Programme number: To select a programme
number up or down
AP q Select: One line up
P rB Select: One line down
DSr/SqC Volume: To regulate the volume for the radio
and the TV
DSr Select: Cursor left
SqC Select: Cursor right
y Volume off: To switch the volume on or off
Select page/chapter shown in red at the bottom of the screen
Select page/chapter shown in green at the bottom of the screen
Select page/chapter shown in yellow at the bottom of the screen
Select page/chapter shown in blue at the bottom of the screen
Front of the set
Back of the set
EXT.1
2
8
m
Pp
Sp
ON/OFF
Scart socket: To connect a satellite receiver, decoder, video recorder, etc.
Aerial input socket: To connect the aerial cable
The display at the front of the machine
Power switch : To switch off the set
Beware: When you switch the set off with the power switch, TIMER-recordings are not possible!
Standby : To switch off, interrupt a function, interrupt a programmed recording (TIMER)
Programme number : To select programme number up or down
Volume: To regulate the volume
Radio: To switch on the radio and to switch between radio- and TV-mode
H
Rewind : During STOP and STANDBY: rewind, during PLAYBACK: reverse scanning
I
Forward wind: During STOP and STANDBY: forward wind, during PLAYBACK: forward scanning
In the display the time, the radio frequency or the radio programme number will be shown.
Also, these lights may light up in the display:
n
5
Record: To record the programme selected
G
Playback : To play a recorded cassette
ALARM n
Radio alarm: Will light up when the radio alarm is activated
nBUZZER
Buzzer alarm: Will light up when the buzzer alarm is activated
?
Pause/Stop, eject cassette: To stop the tape and during STOP eject the cassette
AUDIO
Audio input socket
VIDEO
Video input socket : To connect a camcorder or videogames
w
Headphones socket: To connect headphones
k
Recording light: Will light up when a recording is being made
Timer light: Will light up when a Timer recording has been programmed; will flash when a Timer
recording cannot start
OPERATING INSTRUCTIONS PHILIPS 14PV340/05, 14PV345/05S
Congratulations! You now own one of the most sophisticated
and simple-to-use TV-VIDEO Combinations on the market.
With this TV-VIDEO Combi you can record and play
VHS-standard cassettes.
So that you can identify your machine in the event of theft,
enter the serial number (PROD.NO) here. The serial number is
printed on the type plate fixed at the rear of the set.
MODEL NO.
Please take the time to read this operating manual before
using your TV-VIDEO Combi.
Safety instructions and other notes
A Danger: High voltage!
Do not remove the top cover as there is a risk of an electrical
shock!
A The TV-VIDEO Combi does not contain any components that can
be repaired by the customer. To switch off the TV-VIDEO Combi
completely you must push the mains switch.
B Make sure that air can circulate freely through the ventilation
slots on the TV-VIDEO Combi.
14PV340/05, 14PV345/05S
PROD.NO: . . . . . .
This product complies with the requirements of the Directive
73/23/EEC + 89/336/EEC + 93/68/EEC.
Technical information
Measurements in cm (W / H / D): 39.2 / 40.7 / 39.8
Power consumption (Standby) : less than 45W (less than 4W)
Voltage : 198-264V 50Hz
Headphones : Output resistance less than 120 Ohms maximum
output voltage more than 2.6V at 120 Ohms
B Make sure that no objects or liquids enter the TV-VIDEO Combi.
If liquid is spilt into it, disconnect the TV-VIDEO Combi
immediately from the power supply and call the After-sales
Service for advice.
B The TV-VIDEO Combi should not be used immediately after
transportation from a cold to a hot area or vice versa, or in
conditions of extreme humidity.
After unpacking the TV-VIDEO Combi, it should be allowed to
acclimatize for at least three hours before installation.
C These operating instructions have been printed on nonpolluting
paper.
C Deposit old batteries at the relevant collection points.
Emergency interrupt
You can use the STANDBY m button on the TV-VIDEO Combi or
the remote control to interrupt any function. If you want to
interrupt a running Timer recording, hold the STANDBY m
button for several seconds.
So if you are having operating problems, you can just interrupt
the function and start again.
And you can practise operating your set without any worries.
No matter which buttons you press, you cannot damage it.
C Please make use of the facilities available in your country for
disposing of the packaging of the TV-VIDEO Combi in a way that
helps to protect the environment.
C This electronic equipment contains many materials that can be
recycled. Please inquire about the possibilities for recycling
your old set.
D VIDEOPlus+ and PlusCode are registered trademarks of
Gemstar Development Corporation. The VIDEOPlus+ system is
manufactured under licence from Gemstar Development
Corporation.
Important!
If you switch the machine off with the mains switch while a
Timer recording or a Wake-up Timer has been programmed,
you will hear a soft warning signal. This signal should remind
you that a programmed recording and the Wake-up function
will only work with the machine switched to standby.
1
Special functions on your TV-VIDEO Combi
If a television programme, which transmits TELETEXT, is stored with programme
number ’P01’, time and date will be set automatically.
When you have plugged your TV-VIDEO Combi into the mains, you will be
welcomed with an OSD picture. All you have to do is follow the instructions in
the "intelligent help line" for the next step. Enjoy the Automatic TV channel
search/save function and the automatic time adjustment.
Automatic Volume Leveller. It minimises sudden changes in TV volume when
commercial spots are transmitted.
Philips has developed a system which produces the best possible playback
quality. It reduces disturbance on old, worn video cassettes, and emphasises
the detail on very good quality cassettes.
Simple programming system for TV-VIDEO Combis. Makes programming as easy
as making a telephone call. Simply enter the programme code which you will
find in your listings magazine.
The precision tape drive from Philips with rewind times of 100 seconds (E180)
and automatic tape length recognition.
Your Philips TV-VIDEO Combi combines perfect TV and VIDEO picture and sound
quality with full digital radio and alarm clock functionality.
If you wish to be waken up by TV, radio, buzzer or your favorite video tape you
can programme your Combi to be switched on at a desired time.
We guarantee that your TV-VIDEO Combi will switch to the new millennium with
no problems whatsoever.
2
1.
CONNECTING YOUR TV-VIDEO COMBI
Important for the United Kingdom
Connecting the cables
This apparatus is fitted with an approved moulded 13 Amp
plug. To change a fuse in this type of plug proceed as follows:
a Remove fuse cover and fuse.
b Fix new fuse which should be a BS1362 5A, A.S.T.A. or
BSI approved type.
c Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should
be cut off and an appropriate plug fitted in its place.
If the mains plug contains a fuse, this should have a value of
5A. If a plug without a fuse is used, the fuse at the distribution
board should not be greater than 5A.
D Note: * The severed plug must be destroyed to avoid a
possible shock hazard should it be inserted into a 13A
socket elsewhere.
How to connect a plug:
The wires in the mains lead are coloured in accordance with
the following code:
BLUE - ’NEUTRAL’ (’N’)
BROWN - ’LIVE’ (’L’)
a Insert the aerial plug into the 2 socket.
b Insert the plug of the mains cable into the wall socket.
c Adjust the radio aerial at the back of the machine to
obtain the best possible reception quality by positioning
the ends of the aerial in opposite directions.
d If the little red light at the front of the set is not alight,
please switch on the set. The power switch
located on the left side panel of the set.
8
is
d The BLUE wire must be connected to the terminal which
is marked with the letter ’N’ or coloured BLACK.
Connecting a decoder or other equipment
e The BROWN wire must be connected to the terminal
which is marked with the letter ’L’ or coloured RED.
f Do not connect either wires to the earth terminal in the
plug which is marked with the letter ’E’ or by the safety
earth symbol \or coloured green or green-and-yellow.
Before replacing the plug cover, make certain that the cord
grip is clamped over the sheath of the lead - not simply over
the two wires.
4
You can also connect additional equipment to the EXT.1
socket. For instance, a satellite receiver, decoder or
camcorder.
2.
INSTALLING YOUR TV-VIDEO COMBI
Initial installation
Allocating a decoder
a Open up the battery compartment of your remote control
Some TV stations will send coded TV channels, that you can
only watch when you use a decoder. You can connect such a
decoder (descrambler) to your TV-VIDEO Combi. With the
following function, the connected decoder will automatically
be activated for the TV programme you want to watch.
and place the batteries in it as shown in the picture.
a Choose the TV channel on which you wish to use the
decoder with the P pAB button on the TV-VIDEO
Combi or the number buttons 0-9 on the remote control.
b Close the battery compartment.
c If the aerial (antenna) has been connected to the
TV-VIDEO Combi and the radio aerial has been adjusted,
press the OK button.
’Automatic TV channel search’ starts. This picture will
appear on the screen:
b Press the MENU button on the remote control. The main
menu will appear.
c Select the line ’Installation’ with the P rB or
AP q
buton and confirm with the
SqC
button.
d Select the line ’Manual store’ with the P rB or
AP q
button and confirm with the
SqC
button.
e Select the line ’Decoder’ with the P rB or
AP q
button.
Searching...
CHANNELS FOUND: 07
Radio channels stored: 7
MANUAL STORE
//////,,,,,,,,,,,,,,,,,,,,,
Wait until all TV channels have been found. This can take
several minutes.
When ’autoinstall’ is ready, ’Installation
comp.’ will briefly appear on the TV screen.
D If you have connected a decoder, you must install it
as described in the next section.
D If you have connected a satellite receiver, please
read the section ’satellite receiver’.
Channel/Frequency
FREQU.
Search
125
Fine tuning
(,,,,,,n=,,,,,,$
Name edit
xxx
Programme number
01
Decoder
ON
ã Exit:
« press MENU
f Select function ’ON’ with the DSr OR SqC
button. When you select ’OFF’, the function will be
switched off.
g Confirm with the OK button.
h To end, press the MENU button.
Your decoder has now been allocated to this TV channel.
5
Manual TV channel search
In certain cases the ’Automatic TV channel search’ may not be
able to find all of the TV channels (e.g. coded TV channels). In
that case, use this manual method to set the channels.
E Select the letter or number you want to change with the
DSr or the SqC button. Change it with the
P rB or the AP q button. Select the next letter or
number in the same way.
To store, press the OK button.
h If you want to change the automatic tv channel setting,
a Press the MENU button on the remote control. The main
menu will appear.
b Select the line ’Installation’ with the P rB or
AP q
button and confirm with the
SqC
button.
c Select the line ’Manual store’ with the P rB or
AP q
button and confirm with the
SqC
button.
Channel/Frequency
FREQU.
Search
125
Fine tuning
(,,,,,,n=,,,,,,$
Name edit
xxx
Programme number
01
Decoder
ON
ã Exit:
« press MENU
d In the line ’Channel/Frequency’, select the
display for:
’FREQU.’: frequency
’C CH’: channel
’S CH’: special channel
e If you know the frequency or channel of the desired TV
channel, you can enter the data in line ’Search’ with
the digit buttons 0-9 .
D If you don’t know the frequency or channel of the TV
channel of your choice, press the SqC button to
start the channel search.
f In the line ’Programme number’ select the
programme number you want e.g.: ’P01’, using the
DSr or SqC button.
g If you want to change the TV channel name, press the
6
button in line ’Name
i Press the OK button to store the TV channel.
D If you want to search for further TV channels, start
again at step e.
j To end, press the MENU button.
MANUAL STORE
SqC
select the line ’Fine tuning’.
With the DSr or SqC button you can vary the
automatic tv channel setting. Important: This re-tuning is
only necessary and useful in special cases, e.g.: when
there are stripes on the picture with cable-TV systems.
edit’.
Manual radio channel search
Special installation functions
a Press the MENU button. The main menu appears.
You can select one of the following installation functions in
order to adapt your TV-VIDEO Combi to your own specific
requirements.
b Select the line ’Installation’ with the P rB or
AP q
button and confirm with the
SqC
button.
Automatic TV channel search
c Select the line ’Radio store’ with the P rB or
AP q
button and confirm with the
SqC
button.
Your TV-VIDEO Combi will search for all TV and radio
channels.
If you want to start the automatic TV channel search again,
then follow the instructions below.
a Press the MENU button on the remote control. The main
menu will appear.
RADIO STORE
Frequency search
Programme number
b Select the line ’Installation’ with the P rB or
123.4
1
AP q
ã Exit:
« press MENU
SqC
button.
c Select the line ’Autoinstall’ with the P rB or
AP q
d If you know the frequency of the desired radio channel,
you can enter the data in line ’Frequency
with the digit buttons 0-9 .
button and confirm with the
search’
button.
d Press the SqC button. The ’Automatic TV channel
search’ starts.
D If you don’t know the frequency of the radio channel
of your choice, press the SqC button to start
the channel search.
e In the line ’Programme number’ select the
Searching...
CHANNELS FOUND: 07
Radio channels stored: 7
programme number you want e.g.: ’02’, using the
DSr or SqC button.
//////,,,,,,,,,,,,,,,,,,,,,
f Press the OK button to store the radio channel.
D If you want to search for further radio channels,
start again at step d.
g To end, press the MENU button.
Satellite receiver
e When the TV channel search is complete,
’Installation
screen.
comp.’ will appear on the
How to search for a TV channel manually, you can read in the
section ’Manual TV channel search’.
You can receive channels from the satellite receiver via the
scart socket EXT.1 .
To do this, select the channel number ’E1’ with the
P pAB button. You will have to select the channels to be
received by the satellite receiver on the receiver itself.
7
D Automatic Channel Installation:
Some cable companies or broadcasters offer the
possibility to install TV channels automatically with ’ACI’.
Information about the installation offered and how to
select it, will appear on the screen.
This set will recognize and install TV channels with ’ACI’
automatically.
TV channels will be stored from programme number 1
onward.
If ’ACI’ cannot identify a TV channel, you can search for it
using the method as described in the section ’Manual TV
Channel Search’.
Delete a TV Channel
a Press the MENU button. The main menu appears.
b Select the line ’Installation’ with the menu
buttons
button
P rB
SqC
or
.
AP q
and confirm with the menu
c Select the line ’Sort channels’ with the menu
buttons
button
P rB
SqC
or
.
AP q
and confirm with the menu
SORT CHANNELS
Channel Number Allocation
01 xxx
02 yyy
03 zzz
04 aaa
05 bbb
06 ccc
a Press the MENU button. The main menu appears.
b Select the line ’Installation’ with the menu
buttons P rB or
button SqC .
AP q
and confirm with the menu
ã Exit:
« press MENU
To move:
press OK
c Select the line ’Sort channels’ with the menu
buttons
button
P rB
SqC
or
.
AP q
and confirm with the menu
SqC , select the TV channel you want to delete and
press the CLEAR button.
SORT CHANNELS
01 xxx
02 yyy
03 zzz
d With the menu buttons P rB , AP q , DSr or
04 aaa
05 bbb
06 ccc
e Repeat step d, until you have deleted all the required
TV channels.
f To end, press the MENU button.
Setting the language
ã Exit:
« press MENU
To move:
press OK
You can select the language for the on-screen display (OSD).
a Press the MENU button on the remote control. The main
d With the menu buttons P rB , AP q , DSr or
SqC , select the TV channel to which you want to
allocate a programme number and press the OK button.
menu will appear.
b Select the line ’Installation’ with the P rB or
AP q
e With the menu buttons P rB , AP q , DSr or
, shift the TV channel to the programme number
you wish to allocate to this TV channel and press the
OK button.
SqC
f Repeat steps dto euntil you have allocated a
programme number to all the required TV channels.
g To end, press the MENU button.
8
button and confirm with the
SqC
button.
c Select the line ’LANGUAGE’ with the P rB or
AP q
button.
d Select your language with the DSr or SqC
button.
e To end, press the MENU button.
Automatic clock and date setting
(SMART CLOCK)
Setting the time and date
a Press the MENU button on the remote control. The main
menu will appear.
b Select the line ’Installation’ with the menu
buttons P rB or
button SqC .
AP q
and confirm with the menu
c Select the line ’Set clock’ with the P rB or
AP q
button and confirm with the
SqC
button.
D If a TV programme, which transmits TELETEXT, is stored
with programme number ’P01’, time and date will be set
automatically.
D The clock will automatically be adjusted to winter time
and summer time.
a Press the MENU button on the remote control. The main
menu will appear.
b Select the line ’Installation’ with the menu
buttons
button
SET CLOCK
Time
Year
Month
Date
Smart clock
15:36
1999
6
8
ON
P rB
SqC
or
.
AP q
and confirm with the menu
c Select the line ’Set clock’ with the P rB or
AP q
button and confirm with the
SqC
button.
d Select the line ’Smart clock’ with the menu buttons
ã Exit:
« press MENU
P rB
or
AP q
.
e Switch the function on with the menu buttons DSr or
d Check the time in line ’Time’. If required, please change
the time with the
0-9
SqC
.
buttons on the remote control.
f Confirm with the OK button.
e Check ’Year’, ’Month’ and ’Date’ in the same way.
You can switch between entry fields with P rB or
AP q button. Confirm with the OK button.
g To end, press the MENU button.
f To end, press the MENU button.
D When you are watching TV or when the TV-VIDEO
Combi is switched to standby, the time will appear in
the display at the front of the machine.
9
3.
IMPORTANT NOTES FOR OPERATION
SUMMARY OF USER GUIDE
The OSD menu offers the following functions. More details on each can be found in the appropriate chapter.
MAIN MENU
Sound
Setup
Tape
Installation
Brightness
(,,,,,,,,,,,,
Colour
(,,,,,,,,,,
Contrast
(,,,,,,,
Sharpness
(,,,,,,,,
Store as pref.
YES
ã Exit:
« press MENU
ã Exit:
« press MENU
Chapter: ’TV SET FUNCTIONS’
User guide (OSD)
The OSD (On-screen display) shows the various functions in
the form of a menu on the television screen. You can then
choose the settings you require. There is a summary of the
menus on this page. The main button functions are displayed
in a help line along the bottom of the screen.
E To call up the menu: With the
E To select a line: With the
MENU
button.
or
AP q
P rB
E To select within a line: With the
button.
DSr
or
E To enter or change your selection: With the
DSr or SqC button.
button.
E To save: With the
MENU
OK
E To confirm: With the
0-9
button.
MENU
Chapter: ’TV SET FUNCTIONS’
SETUP
Clock Brightness
Parental control
Display
Format 16:9
button.
E To close the menu: With the
ã Exit:
« press MENU
,
button.
SqC
Volume
(,,,,,,,,,,,,
Auto volume cont.
ON
Store as pref.
NO
SqC
E To enter or change your selection in the TIMER entry
columns: With the P rB or AP q button.
E To cancel: With the
SOUND
BRIGHT
ON
MAX
NORMAL
ã Exit:
« press MENU
menu button.
Chapter: ’ADDITIONAL FUNCTIONS’
TAPE
E To confirm the messages in red on the screen: Press the
OK button.
E You can switch the machine on with the P pAB ,
z or 0-9 button or by putting in a cassette.
10
Tape speed
Tape counter
Repeat play
Jitter
Tracking
Cleaning
SP
USED
ON
N. ACT.
(,,,,,,,,=,,,,,,$
ã Exit:
« press MENU
Chapter: ’PLAYBACK FUNCTIONS’
4.
TV SET FUNCTIONS
Selecting a TV programme
Volume control
Select the required TV channel (=programme number) with the
P pAB button or with the digit buttons 0-9 on the remote
control.
You can control the volume level with the DSr/SqC
button.
If you want to mute the sound temporarily (e.g.: during a
telephone call), press the y button on the remote control.
When you press the y button again, the sound will return at
its original volume level.
D If you don’t know the programme number of the required
TV channel:
a Press the P pAB button for more than 2
seconds. The TV channel list appears on the screen.
Sound settings
b Select the required TV channel with the
button.
After 1 second the TV-VIDEO Combi will switch to
the selected programme number.
P pAB
a Press the MENU button. The main menu appears.
b Select the line ’Sound’ with the P rB or AP q
button and confirm with the
SqC
button.
Picture settings
a Press the MENU button. The main menu appears.
b Select the line ’Picture’ with the menu buttons
or
.
P rB
AP q
SOUND
and confirm with the menu button
Volume
(,,,,,,,,,,,,
Auto volume cont.
ON
Store as pref.
NO
SqC
ã Exit:
« press MENU
c Select the line ’Volume’ with the P rB or AP q
Brightness
(,,,,,,,,,,,,
Colour
(,,,,,,,,,,
Contrast
(,,,,,,,
Sharpness
(,,,,,,,,
Store as pref.
button and alter with the
c Select the required line with the menu buttons P rB or
and alter with the menu buttons
.
or
SqC
button.
D To store this setting as a standard setting, select
’YES’ in line ’Store as pref.’ and confirm
with the OK button.
ã Exit:
« press MENU
AP q
DSr
DSr
or
SqC
D To store this setting as a standard setting, select
’YES’ in line ’Store as pref.’ and confirm
with the OK button.
D To call up the standard settings, switch the set off
and on again.
Automatic volume control (AVL)
E Switch on ’Auto volume cont.’, to activate the
automatic volume control. It minimises sudden changes
in TV volume when commercial spots are transmitted.
11
5.
RADIO FUNCTIONS
To switch the radio on, press the RADIO ON button. You can
switch between radio- and TV-mode with the RADIO ON
button. You can switch the radio off with the STANDBY m
button.
D You can be waken up by the radio. Read the paragraph
’Switch on function (WAKE-UP TIMER)’ in the chapter
’Additional functions’.
D You can not call up any menu function while the radio
function is switched on.
Storing a radio channel
a If you want to store a radio channel, switch to TV-mode
with the
Select the required radio channel with the P pAB button
or with the digit buttons 0-9 on the remote control. The
programme number will appear in the display.
button.
b Press the MENU button. The main menu appears.
c Select the line ’Installation’ with the menu
buttons
button
P rB
SqC
or
.
AP q
and confirm with the menu
d Select the line ’Radio store’ with the menu buttons
P rB
Selecting a radio channel
RADIO ON
or
.
AP q
and confirm with the menu button
SqC
e In line ’Programme number’ select the programme
number you want the radio channel to be stored on, using
the SqC or DSr button.
f Press the OK button.
g To end, press the MENU button.
Searching a radio channel
You can search for radio channels that have not been stored,
while you are listening to the radio.
a Press the FM SEARCH button.
D The TV-VIDEO Combi will search for the next radio
channel. The corresponding frequency will appear
in the display.
b Repeat step a to search for the next radio channel.
12
Showing the frequency
E Press the OK button while you are listening to the radio.
You will see the frequency of the radio channel you are
listening to on the display.
6.
PLAYBACK FUNCTIONS
Playing a cassette
Tape position indication
D Press the
a Put a cassette into the cassette slot.
button to display the current tape position.
D To change the type of tape position display, proceed as
follows:
b Press the PLAY G button.
c If you press the STOP h button once, the TV-VIDEO
Combi will switch to pause. To stop, press the
button again.
OK
STOP h
d To eject the cassette, press the ? button on the
TV-VIDEO Combi or press the STOP h button on the
remote control several seconds.
D Some hired cassettes may have a poor picture or
poor sound quality. This is not a fault in your
machine. Please read ’Eliminating picture
interference’.
D Some functions switch off automatically after a
while (for example, pause, still picture, picture
search). This helps to protect the cassette and
avoids wasting power.
Playing NTSC cassettes
a During playback, press the MENU button.
b Select the line ’Tape’ with the menu buttons P rB or
AP q
D Some special features (for example, still picture) are not
possible while you are playing an NTSC cassette.
SqC
button.
c Select the line ’Tape counter’ with the menu
buttons
P rB
or
AP q
.
d With the menu buttons DSr or SqC select
’USED’ to check the time used, or ’LEFT’ to check the
time left on the tape.
e Confirm with the OK button.
Searching for tape position with the picture
(picture search)
a While a cassette is playing, press the H (reverse) or
I
With this set you can play cassettes that have been recorded
on another video recorder in the NTSC standard (for example,
American cassettes).
and confirm with the
(forward) button once or several times.
b To stop at a certain picture, press the PLAY G button.
D During picture search, the picture quality may not be
so good and there will be no sound.
Still picture
a Press the STILL R button. A still picture will appear on
the screen.
b Each time you press STILL R again, the picture will
move on one step.
13
Searching for tape position without the
picture (wind and rewind)
a Stop the tape with the STOP h button.
b Press the H (reverse) or I (forward) button.
c To stop at a certain picture, press the STOP h button.
Instant View
With this function you can switch to picture search during
wind and rewind.
a If you hold the H (rewind) or I (wind) button
during wind or rewind, you will switch to picture search.
b When you release the button, the TV-VIDEO Combi will
automatically switch back to rewind or wind.
Automatic search for a tape position
(index search)
At the start of each recording, the TV-VIDEO Combi will write
an index code on the tape.
a Press the INDEX E button. Press the I button to
select the next code mark or the
previous code mark.
H
button for the
b When the TV-VIDEO Combi finds the code mark, it will
automatically switch to play.
14
Picture interference
Cleaning the video heads
When the picture quality is poor when you play a cassette,
please follow these instructions.
If horizontal lines appear on the screen when you play a
cassette, you should clean the video heads.
Tracking during playback
a During playback, press the MENU button.
b Select the line ’TAPE’ with the menu buttons P rB or
AP q
and confirm with the
SqC
button.
c Select the line ’Tracking’ with the menu buttons
P rB
or
AP q
.
d Hold the menu buttons DSr or SqC until the
playback quality is at its best.
a During playback, press the MENU button.
e Confirm with the OK button.
b Select the line ’TAPE’ with the menu buttons P rB or
AP q
and confirm with the
SqC
button.
f To end, press the MENU button. This setting will remain
until you remove the cassette.
c Select the line ’Cleaning’ with the menu buttons
P rB
Tracking during still picture
or
AP q
.
d Press the OK button. ’CLEANING’ appears on the
If the still picture vibrates vertically, you can improve the still
picture as follows:
a During still picture, press the MENU button.
screen.
e Wait a few seconds, until the message disappears and
then press the
MENU
button.
b Select the line ’TAPE’ with the P rB button or
AP q
and confirm with the
SqC
button.
c Select the line ’Jitter’ with the P rB or AP q
button.
d Hold the DSr or SqC button until the picture
quality is at its best.
e Confirm with the OK button.
f To end, press the MENU button.
D Please note, however, that interference may still
occur with poor quality cassettes.
15
7.
MANUAL RECORDING
Use ’Manual Recording’ to make a spontaneous recording (for
example, a programme currently being shown).
E If you want to start and stop a recording manually, read
the section: ’Recording without automatic switch-off’.
E If you want to start a recording manually but have it
stopped automatically, read the section: ’Recording with
automatic switch-off’.
Recording without automatic switch-off
Recording with automatic switch-off
(OTR one-touch-recording)
a Put a cassette in the machine.
b Use the P pAB button to select the programme
number you want to record.
c Press the RECORD/OTR n button on the remote control.
When you are recording, the red recording light at the
front of the TV-VIDEO Combi will be alight.
a Insert a cassette.
d Press the RECORD/OTR n button again and again until the
b Use the P pAB button to select the programme
number you want to record, for example, ’P01’.
D Programme number ’E1’ is provided for recording
from external sources (via the EXT.1 scart socket).
display on the TV-VIDEO Combi shows the desired end
time or length of the recording.
D To cancel this information, press the
CLEAR
button.
e Confirm with the OK button.
c To start recording, press the RECORD/OTR n button on the
remote control or 5 on the TV-VIDEO Combi.
When you are recording, the red recording light at the
front of the TV-VIDEO Combi will be alight.
Protecting your recordings
d Stop recording with the STOP h button.
D During a recording you can only watch the current
programme.
D To switch off the screen, press the
button.
16
f To end, press the MENU button.
STANDBY m
So that you don’t accidentally delete an important recording,
remove the special tab on the narrow side of the cassette with
a screwdriver or slide the special tab to the left. Later, if you
no longer want to protect your recording, you can seal the gap
again with sticky tape or slide the special tab to the right.
Auto-assembling
You can use the auto-assembling function to join individual
recordings without any major picture disturbance between
them.
a While the cassette is playing, search for the correct
position on the tape.
b Stop the cassette by pressing the STOP h button.
’Pause’ will appear on the TV screen.
c Now start recording as usual by pressing the
RECORD/OTR n
button on the remote control.
Selecting the recording speed (SP or LP)
You can reduce the recording speed by half. This makes it
possible to record, for example, eight-hours instead of
four-hours on an ’E240’ (four-hour) cassette.
a Press the MENU button. The main menu appears.
b Select the line ’TAPE’ with the P rB or AP q
button, and confirm with the
SqC
button.
c Select the line ’Tape speed’ with the P rB or
AP q
button.
d Select the required recording speed with the DSr or
SqC
button.
D ’LP’: Long Play = half recording speed (double
recording time).
’SP’: Standard Play = normal recording speed.
D The picture quality will be adversely affected when
recording at half recording speed (’LP’).
D For playback, the correct recording speed will
automatically be selected.
e Confirm with the OK button.
f To end, press the MENU button.
17
8.
PROGRAMMED RECORDING (TIMER)
Use programmed recording to automatically start and stop a
recording at a later date.
To make a programmed recording, your TV-VIDEO Combi
needs to know:
* the date you want to make the recording;
* the programme number for the TV channel you want to
record;
* the start and stop time of the recording;
* whether you want to use VPS or PDC;
* the recording speed (SP/LP).
c Enter the entire PlusCode-programming number (up to 9
digits) printed in your TV guide next to the start time of a
TV programme.
For example, 5-234-89 or 5 234 89
Enter 523489 for the PlusCode-programming number.
If you make a mistake, you can clear your instructions
with the CLEAR button.
VIDEOPLUS
The TV-VIDEO Combi stores all the information in a TIMER
block. You can programme up to 6 TIMER blocks a month in
advance.
’VPS’ (Video Programming System) and
’PDC’ (Programme Delivery Control)
CODE
REPEAT
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
1 2 3 4 5 6( ( (
0-9
ONCE
Store:
press OK
d In the column ’REPEAT’ select daily or weekly
With ’VPS and PDC’, the TV station controls the start time and
the length of the recording. This means that the TV-VIDEO
Combi switches itself on and off at the right time even if a TV
programme you want to record begins earlier or finishes later
than expected.
Usually the start time is the same as the VPS or PDC time. But
if your TV guide gives a VPS or PDC time which is different to
the programme’s start time (for example, 20.15 and VPS 20.14),
you must enter ’20.14’ as the start time.
If you want to programme a time that is different from the VPS
or PDC time, you must switch off VPS or PDC.
Programming a recording (with ’VIDEOplus’)
All the information required for a programming is contained in
the PlusCode-programming number.
programming with the AP q or P rB button.
’Mo-Fr’: If you want to make a recording every day
from Monday to Friday.
’Mo-Su’: If you want to make a recording every day
from Monday to Sunday.
’WEEKLY’: If you want to make a recording every week
on the same day of the week.
’ONCE’: If you want to make only one recording.
e Confirm with the OK button. Your programming details
will then appear on the TV screen.
TIMER PROGRAMMING
VPS
DATE PROG. START END LP PDC REP.
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
15
xxx
15:36 15:50 -
ã Exit:
« press TIMER
a Press the TIMER k button on the remote control.
b Select the line ’VIDEOPlus’ with the menu buttons
P rB
or
AP q
and confirm with the
SqC
button.
*
ONCE
Start:
press è
D If VIDEOPlus+ does not recognise the TV channel,
’P??’ will appear on the TV screen. Instead of
’P??’, you can select the programme number you
want with the number buttons 0-9 .
D If ’Code error’ appears on the TV screen, this
means you entered an incorrect PlusCode number
or the incorrect date. Correct your instructions or
end with the TIMER k button.
18
D If ’Daily error’ appears on the TV screen, the
date was incorrectly entered.
D Under ’VPS/PDC’, use the P rB or
button to switch ’VPS or PDC’ on or off.
AP q
D Under ’LP’, use the P rB or AP q button to
select the recording speed ’SP’ or ’LP’.
D The TIMER lamp on the front of the set lights up
when one or more of the TIMER blocks are
occupied.
D When you are recording, the red recording light at
the front of the TV-VIDEO Combi will be alight.
D If the end of the cassette is reached during a
recording, the TV-VIDEO Combi automatically ejects
the cassette.
D If you forget to load a cassette, ’No
will appear.
Programming a recording
(without ’VIDEOPlus’)
a Press the TIMER k button on the remote control.
b Select the line ’Timer programming’ with the
menu buttons P rB or
SqC button.
AP q
and confirm with the
TIMER PROGRAMMING
VPS
DATE PROG. START END LP PDC REP.
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
--
--
--:-- --:-- -
-
-----
cassette’
D If you inserted a cassette with erase protection
when you want to start a recording, the cassette will
be ejected.
f Confirm with the OK button.
E ’Press STANDBY to start recording’
will appear on the screen. If you have programmed a
recording that should start within the next few minutes,
confirm with the STANDBY m button. If you have
programmed a recording that will start at some later point
in time, confirm with the OK button.
ã Exit:
« press TIMER
Start:
press è
c Press the SqC button.
TIMER PROGRAMMING
VPS
DATE PROG. START END LP PDC REP.
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
15
xxx
15:36 15:50 -
*
ONCE
D A programmed recording can only start, when the
machine is switched to standby.
D If you entered the wrong date for a daily/weekly
recording, your TV-VIDEO Combi will correct it
automatically.
ã Exit:
« press TIMER
Start:
press è
d Select the entry field with the DSr or SqC
g If you confirmed with the OK button, exit the menu with
the
TIMER k
button.
button.
e Enter information with the menu buttons P rB or
AP q
or with the digit buttons
0-9
.
D Under ’REP.’, use the P rB or AP q button to
select daily or weekly programming.
’Mo-Fr’: recordings every day from Monday to
Friday.
’Mo-Su’: recordings every day from Monday to
Sunday.
’WEEKL’: recordings every week on the same day
of the week.
’ONCE’: If you want to make only one recording.
D Under ’LP’, use the P rB or AP q button to
select the recording speed ’SP’ or ’LP’.
19
D Under ’VPS/PDC’, use the P rB or
button to switch ’VPS or PDC’ on or off.
AP q
D When you are recording, the red recording light at
the front of the TV-VIDEO Combi will be alight.
f Confirm with the OK button when the information is
correct.
E ’Press STANDBY to start recording’
will appear on the screen. If you have programmed a
recording that should start within the next few minutes,
confirm with the STANDBY m button. If you have
programmed a recording that will start at some later point
in time, confirm with the OK button.
D A programmed recording can only start, when the
machine is switched to standby.
D If you entered the wrong date for a daily/weekly
recording, your TV-VIDEO Combi will correct it
automatically.
How to check or change a TIMER
a Press the TIMER k button on the remote control.
b Select the line ’Timer programming’ with the
menu buttons P rB or
SqC button.
AP q
and confirm with the
c Select the TIMER you want to check or change with the
P rB
or
AP q
button and confirm with the
OK
button.
d Select the entry field with the DSr or SqC
button.
e Change any information with the P rB or AP q
button or with the
0-9
buttons.
D Under ’LP’, use the P rB or AP q button to
select the recording speed ’SP’ or ’LP’.
g If you confirmed with the OK button, exit the menu with
the
TIMER k
button.
D The programming information has been stored in a
TIMER block.
h Make sure that the cassette you have put in can be
recorded on.
f Confirm with the OK button.
g To end, press the TIMER k button.
h Make sure that the cassette you have put in can be
recorded on.
How to clear a TIMER
a Press the TIMER k button on the remote control.
b Select the line ’Timer programming’ with the
menu buttons P rB or
SqC button.
AP q
and confirm with the
c Select the TIMER you want to clear with the menu
buttons
P rB
or
AP q
.
d Press the CLEAR button.
e Switch off with the TIMER k button.
20
9.
ADDITIONAL FUNCTIONS
How to read TELETEXT
Selecting the display brightness
E Press the TELETEXT e button to switch the TXT decoder
on and off. The TV-VIDEO Combi is now receiving the TXT
of the TV channel currently selected.
You have a choice of several levels of display brightness
(clock, radio frequency, programme number).
E To store the current page as preferred page, press the
OK button.
The next time you call up TELETEXT, you will
automatically turn to this page.
E If you want to select an other page, type in the number of
the page with the digit buttons 0-9 . With the colour
buttons on your remote control you can directly select
the page numbers shown at the bottom of the TV screen.
a Press the MENU button. The main menu appears.
b Select the line ’Setup’ with the P rB or AP q
button and confirm with the
Extra TELETEXT functions
To use the extra TELETEXT functions, press the
when you are in TELETEXT.
button.
SETUP
MENU
Clock Brightness
Parental control
Display
Format 16:9
button,
E To enlarge the print, select the symbol ’g’ and confirm
with the OK button.
E To switch off the TELETEXT decoder temporarily, select
the symbol ’d’ and confirm with the OK button.
E To call up a TELETEXT sub-page:
a Select the symbol ’}’ and confirm with the OK
button.
b Enter the page number of the sub-page with the
0-9
SqC
-buttons (for example: 0123).
BRIGHT
ON
MAX
NORMAL
ã Exit:
« press MENU
c Select the line ’Clock Brightness’ with the
P rB
or
AP q
button.
d Select one of the options with the SqC or
button: ’OFF’ (display is switched off),
’SBY-OFF’ (display is switched off in standby mode),
’LOW’, ’MIDDLE’, ’HIGH’, ’BRIGHT’.
DSr
E To call up concealed information, select the symbol ’b’
and confirm with the OK button.
e Confirm with the OK button.
E To stop the pages from being turned over, select the
symbol ’f’ and confirm with the OK button.
f To end, press the MENU button.
E To show TELETEXT transparently, select the symbol ’-’
and confirm with the OK button.
21
Parental control
Switching the On-screen display (OSD) on
or off
This function will prevent unauthorised use of your TV-VIDEO
Combi. All button-functions will be locked.
D You can make programmed recordings while the parental
control is on.
You can switch the On Screen Display of the current operating
information on or off.
a Press the MENU button. The main menu appears.
a Press the MENU button. The main menu appears.
b Select the line ’Setup’ with the menu buttons
b Select the line ’Setup’ with the P rB or AP q
button and confirm with the
SqC
P rB
or
AP q
and confirm with the
SqC
button.
button.
SETUP
SETUP
Clock Brightness
Parental control
Display
Format 16:9
BRIGHT
ON
MAX
NORMAL
Clock Brightness
Parental control
Display
Format 16:9
BRIGHT
ON
MAX
NORMAL
ã Exit:
« press MENU
ã Exit:
« press MENU
c Select the line ’Display’ with the menu buttons
c In the line ’Parental control’ select ’ON’ with
the
DSr
or
SqC
P rB
or
AP q
.
button.
d Select one of the options indicated with the menu buttons
d Confirm with the OK button.
e To end, press the MENU button.
Keep the remote control in a safe place.
f If you want to switch off the parental control, select
’OFF’ in line ’Parental
control’.
D If a button is pressed with activated parental
control, ’Parental Control active’ will
appear in the display.
D If you want to eject a cassette with activated
parental control, press the STOP h button several
seconds.
22
SqC or DSr .
’MAX’: OSD appears for a few seconds each time an
operating mode is selected and then disappears.
’MIN’: OSD is minimised.
’PROGR.’: the programme number is constantly
indicated.
’COUNTER’: the counter is constantly indicated.
e Confirm with the OK button.
f To end, press the MENU button.
D With the OK button you can superimpose the On
Screen Display of current operating mode on the TV
screen.
Switching to 16:9 wide screen picture
Continuous playback
If you are using a cassette with 16:9 wide screen recordings,
you can switch this function ’ON’. The TV-VIDEO Combi will
now automatically switch to wide screen.
You can automatically play a cassette again and again. When
the end of the tape or the recording has been reached, it will
rewind and start again.
a Press the MENU button. The main menu appears.
a Press the MENU button. The main menu appears.
b Select the line ’Setup’ with the P rB or AP q
b Select the line ’TAPE’ with the menu buttons P rB or
button and confirm with the
SqC
button.
AP q
. Confirm with the menu buton
SqC
.
TAPE
Tape speed
Tape counter
Repeat play
Jitter
Tracking
Cleaning
SETUP
Clock Brightness
Parental control
Display
Format 16:9
BRIGHT
ON
MAX
NORMAL
ã Exit:
« press MENU
c Select the line ’Format 16:9’ with the AP q or
P rB
button.
d Select one of the possibilities with the SqC or
SP
USED
ON
N. ACT.
(,,,,,,,,=,,,,,,$
ã Exit:
« press MENU
c Select the line ’Repeat play’ with the menu buttons
P rB
or
AP q
.
d Select ’ON’ with the menu buttons DSr or
DSr button.
’NORMAL’ : Normal size picture.
’EXTEND.’ : Extended size picture.
’COMPR.’ : 16:9 format picture.
SqC . If you select ’OFF’, the function will be
switched off.
e Confirm with the OK button.
D When you watch TV you can select between
’EXTEND.’ and ’NORMAL’.
f Press the MENU button.
e Confirm with the OK button.
f To end, press the MENU button.
23
Switch off function (SLEEP TIMER)
Switch on function (WAKE-UP TIMER)
You can programme your set to switch off after a
predetermined period.
You can programme your set to switch on at a predetermined
time.
a Press the TIMER k button on the remote control.
a Press the TIMER k button on the remote control.
b Select line ’Sleep timer’ with the P rB or
b Select the line ’Wake-up timer’ with the P rB or
AP q
button and confirm with the
SqC
button.
c Determine the time left until switch off in 15 minutes
intervals using the
P rB
or
AP q
button.
D You can switch the function off with the
button on the remote control.
CLEAR
e To end, press the TIMER k button.
button and confirm with the
SqC
button.
c Select the line TV/TVCR, RADIO or BUZZER with the
P rB
D You can always simply select the switch-off time
with the SLEEP button on the remote control.
d Confirm with the OK button.
AP q
or
AP q
button and press the
SqC
button.
d Select the entry field with the DSr or SqC
button.
e Enter the information with the P rB or AP q button
or with the number buttons
0-9
.
E In the column ’REP.’ select one of the following options
with the AP q or AP q button:
’ONCE’: Wake-up alarm only once.
’Mo-Fr’: Wake-up alarm every day from Monday to
Friday.
’Mo-Su’: Wake-up alarm every day from Monday to
Sunday.
’Sa-Su’: Wake-up alarm during the weekend.
’WEEKL’: Wake-up alarm every week on the same day.
f Activate the function in the first entry field.
E You can also always switch the programmed WAKE-UP
TIMER for the radio and the buzzer on/off with the
ALARM ON button on the remote control.
g Press the OK button.
h To end, press the TIMER k button.
E If ’Date corrected’ appears on the screen, press
the OK button and check the date of the programming in
the second entry field.
D When a wake-up Timer has been programmed and
switched on, the corresponding light will light up in
the display.
D If you want to switch off the alarm when it is going
off, press the STANDBY m button. If you want the
alarm to repeat after ten minutes, press any key on
the remote control or the Combi, except the
STANDBY m button.
24
10. Before you call an engineer
If, contrary to expectation, you have any problems using this
TV-VIDEO Combi, it may be caused by one of the reasons
mentioned below. You can also call the customer service
centrein your country.
You will find the phone number in the enclosed guarantee
leaflet.
Your TV-VIDEO Combi does not respond to any button being
pressed:
•
•
•
•
•
There is no power supply: check the power supply
A programmed recording is currently being made: cancel the
programmed recording with the STANDBY m button.
Parental control is on: switch the parental control off.
Continuous playback is on: switch the continuous playback off.
There is a technical problem: switch off with the 8 power
switch for 30 seconds, then switch it on again.
’Smart Clock’ setting does not work:
•
•
•
You have stored a TV channel on programme number ’P01’ that
does not transmit TELETEXT: On ’P01’ store a TV channel that
transmits TELETEXT.
Poor TELETEXT reception: On ’P01’ store a TV channel with
good TELETEXT reception.
You have not activated the Smart Clock function: Switch the
function ’ON’.
You hear a very short and soft noise coming from your
TV-VIDEO Combi at 3:00 at night:
•
’Smart Clock’ is checking the time: Switch off the Smart Clock
function.
TELETEXT does not start at page 100:
•
You have stored a different preferred page: Store page 100 as
preferred page.
Cassette is jammed in the TV-VIDEO Combi:
•
Don’t use force. Switch off with the 8 power switch for 30
seconds, then switch it on again.
Remote control does not work:
•
•
Remote control not pointed toward the TV-VIDEO Combi: point it
at the TV-VIDEO Combi.
Batteries have run out: change the batteries.
No picture when you play a cassette:
•
There is no recording on the cassette: change the cassette.
Poor picture quality when you play a cassette:
•
•
•
The cassette badly worn or of poor quality: use new cassette.
Tracking is not properly adjusted or the video heads are dirty:
turn to chapter ’PLAYBACK’ and read the section ’Eliminating
picture interference’.
You are playing a cassette with a LongPlay recording on it:
Excellent picture quality is only guarateed with recordings made
in StandardPlay recording speed.
The TV-VIDEO Combi will not record:
•
•
The TV channel you want to record is not stored or you selected
the wrong programme number: check TV channels stored.
You have loaded a cassette which cannot be recorded on: undo
the erase protection on the cassette.
Programmed recording does not work:
•
•
•
•
Technical terms used
Current tape position : The part of the tape currently being
played.
External source : A device connected via a socket (for
example, scart socket) which is transmitting audio/video
signals to the TV-VIDEO Combi.
Index marking : A marking which is automatically made on the
tape at the beginning of every recording. This marking
(recording ID) can be searched for with the Index search
function.
Scart cable : Also known as a Euro-AV cable. This standard
cable is an easy method of connecting various TV, audio and
video devices, such as a HIFI and Dolby Surround set, video
recorder, DVD player, SAT receiver, decoder, computer and
similar devices. Other signals in addition to audio and video
signals can be transmitted on it.
TV system : There are various systems for transmitting
television signals, for example, PAL, SECAM, PAL BG, SECAM
DK, SECAM L/L, NTSC etc. The system used by your television
depends on which country you are in.
TXT : Also known as Teletext, Fasttext, Videotext, FLOF etc.
OTR : One touch recording. This function enables you to select
the switch-off time in intervals of 30 minutes.
You have not set the TIMER properly: check the TIMER blocks.
You have programmed the wrong time or date: check time and
date.
You have put in a cassette that cannot be recorded on: undo the
erase protection on the cassette.
’PDC’ or ’VPS’ switched on but ’PDC/VPS time’ wrong: enter PDC
or VPS time exactly to the minute. Have the aerial checked.
25
3103 166 23922
9334/011
26
(Wwn N Nw nwN nwnWwnNwWnNn Wn W)
14PV340/05, 14PV345/05S
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Languages
