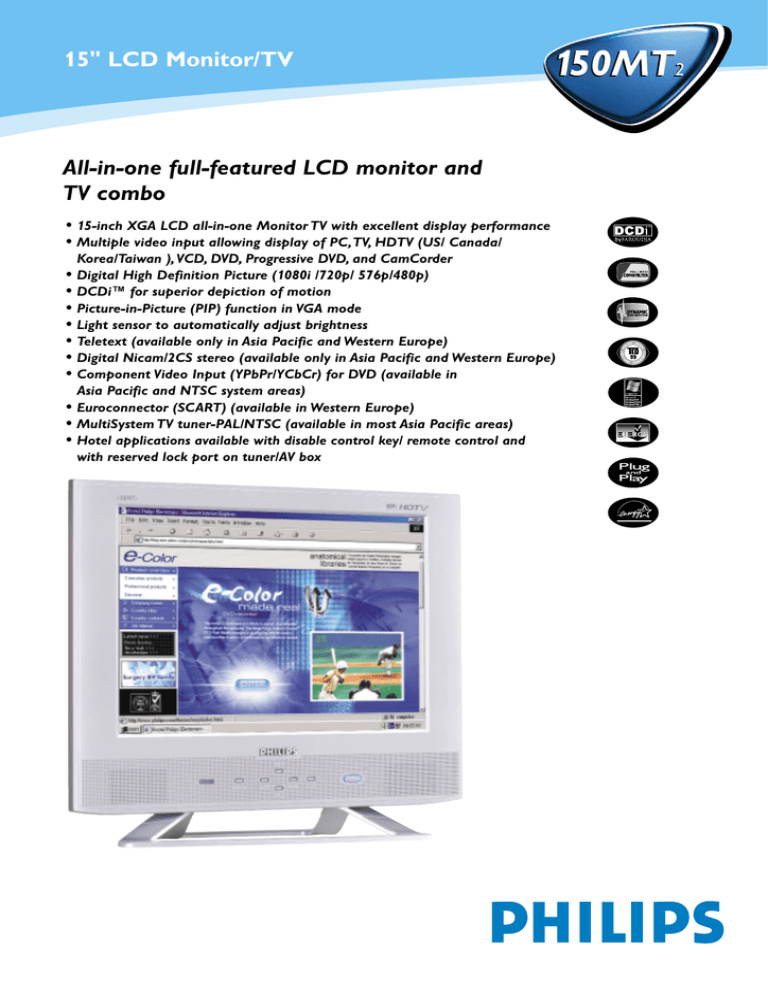

15" LCD Monitor/TV
150MT2
All-in-one full-featured LCD monitor and
TV combo
• 15-inch XGA LCD all-in-one Monitor TV with excellent display performance
• Multiple video input allowing display of PC,TV, HDTV (US/ Canada/
•
•
•
•
•
•
•
•
•
•
Korea/Taiwan ), VCD, DVD, Progressive DVD, and CamCorder
Digital High Definition Picture (1080i /720p/ 576p/480p)
DCDi™ for superior depiction of motion
Picture-in-Picture (PIP) function in VGA mode
Light sensor to automatically adjust brightness
Teletext (available only in Asia Pacific and Western Europe)
Digital Nicam/2CS stereo (available only in Asia Pacific and Western Europe)
Component Video Input (YPbPr/YCbCr) for DVD (available in
Asia Pacific and NTSC system areas)
Euroconnector (SCART) (available in Western Europe)
MultiSystem TV tuner-PAL/NTSC (available in most Asia Pacific areas)
Hotel applications available with disable control key/ remote control and
with reserved lock port on tuner/AV box
15" LCD Monitor/TV
150MT2
Technical Specifications
LCD Panel
•
•
•
•
Type
Screen size
Pixel pitch
LCD panel type
• Effective viewing area
• Display colors
PC Scanning
• Vertical refresh rate
• Horizontal frequency
PC Video
• Video dot rate (Max.)
• Input impedance
- Video
- Sync
• Input signal levels
• Sync input signal
• Sync polarities
TFT LCD
15.0 inch
0.297 mm x 0.297 mm
1024 x 768 pixels
RGB vertical stripe
Anti-glare polarizer
(H)304.1 x (V)228.1 mm
8 bits interface
(16.7M colors)
56-75Hz
31-63kHz
80MHz
75 Ohm
2K Ohm
0.7 Vpp
Separate sync
Positive and negative
Optical characteristics
•
•
•
•
Contrast ratio
500:1 (typ.)
Brightness
310 cd/m2 (typ.)
Peak contrast angle
6 o’clock
White chromaticity(PC) x:0.281
y:0.311 (at 9300ºK)
x:0.312
y:0.338 (at 6500ºK)
• Viewing angle
C/R ≥5
Upper ≥55 (typ.)
Lower ≥65 (typ.)
Left
≥70 (typ.)
Right
≥70 (typ.)
• Response time
≤25 ms (typ.)
Resolution & preset modes
•
•
•
•
Maximum
1024 x 768 at 75Hz
Recommended
1024 x 768 at 60Hz
15 user definable modes
17 factory preset modes
Resolution
Mode
fh(kHz) fv(Hz)
PC
640x350
VGA-1
31.469 70.086
640x480
VGA VESA 60 31.469 59.940
640x480
Mac 13
35.000 66.667
640x480
VGA VESA 75 37.500 75.000
720x400
IBM VGA 3H 31.468 70.087
800x600
SVGA VESA 56 35.156 56.250
800x600
SVGA VESA 60 37.879 60.317
800x600
SVGA VESA 75 46.875 75.000
832x624
Mac 16
49.724 74.550
1024x768
XGA VESA 60 48.363 60.004
1024x768
XGA VESA 75 60.023 75.029
Video
Video
60 Hz
15.734 59.940
Video
50 Hz
15.625 50.000
Progressive Video
HDTV
480P
31.470 60.000
Pr. Component 576P
31.250 50.000
HDTV
1080I
33.750 60.000
HDTV
720P
45.000 60.000
(Interlace mode is not applicable.)
Plug and play compatibility
• Display data channel DDC 2B (VESA)
• PC2001, NSTL, Microsoft® Windows®98/Me/2000/XP
compatible
Power Management
• Picture in Picture
• Comb Filter
(available only in Asia Pacific and Western Europe)
• Digital Comb Filter
(available only in NTSC system)
• Dynamic Noise Reduction (DNR)
• Smart Picture Setting
(Movies, Sports,Weak Signal, Personal)
• Light sensor
Automatically adjust the
Low-emission characteristics
brightness according to
• Complies with MPR-II and TCO ’99 specifications
environment lighting condition
(turn ON/OFF in OSD menu)
Monitor controls and functions
• Front Power on/off
-(Lock Switch)
Source
-(Touch-sense Switch) Sound
Menu(OK)
-(Touch-sense Switch) • 5W Stereo Audio
(2.5W/ Channel RMS x 2, 200Hz~10kHz, 4 Ohms,
Up/Down(Channel) -(Touch-sense Switch)
10%THD)
+/- (Volume)
-(Touch-sense Switch)
• Digital Nicam/2CS Stereo
• Power button LED indicator
(available only in Asia Pacific and Western Europe)
Blue
-(power on)
Amber
-(stand by/sleep mode) • Smart Sound Setting
(Theatre, Music,Voice, Normal)
• Surround
Connections
REAR LEFT
Ease of Use Installation
• 12Volt DC in
• Remote control
• D-sub in (for PC)
• 100 Preset channels
• PC Audio in
(available only in Asia Pacific and Western Europe)
• VGAII / HDTV in (for HDTV/ Progressive DVD)
• 181 channels (available only in NTSC system)
• HDTV/ Progressive DVD Audio in
• Autostore
REAR RIGHT
• Sleep Timer
• TV in (antenna/cable)
• DVD Component Video (YPbPr/YCbCr) in
(available only in Asia Pacific, and NTSC system areas) Reception
• TV system
PAL (BG, DK, I) and SECAM
• S-Video in
(BG,DK, LL’) (available only in
• CVBS Video in (available only in Asia Pacific, and
Asia pacific and Western
NTSC system)
Europe)
• AV Audio L/R in
• TV system
NTSC, PAL(M, N) (available
• Euroconnector (SCART): RGB in, CVBS in/out
only in North/South America
(available only in Western Europe)
area, Korea, and Taiwan)
SIDE
• Stereo System
NICAM/IGR/2CS
• Headphone jack 3.5mm out
(available only in Asia Pacific
• Stereo line out Jack 3.5mm for external speaker
and Western Europe)
• Stereo System
MTS with SAP
Regulatory approvals
(available only in NTSC system)
• TÜV/GS,TÜV-Ergo
• Video Playback Multi-system including
• FCC-B, UL, CSA
NTSC 4.43/3.58
• SEMKO
• 10 page Teletext (available only in Asia Pacific
• CE Mark
and Western Europe)
• NUTEK, Energy Star
• TCO’99
Others
• E2000
• Security Port
Kensington Lock Port
Cable door Lock Port
Physical specifications
• Wall mounting
Standard VESA mounting
• Dimension
392 x 338 x 54 mm
(options)
Pedestal hook easy mounting
(Wx H x D) without stand
392 x 374.1 x 167.8 mm
* Resolution 1028 x 768, standard size, contrast
(WxHxD) with stand
max., brightness 50%, 9300°K.
• Tilt
-5°~25°
Full white pattern, without Audio.
• Weight
4.1kg
• Power supply
We recommend using 1024 x 768 at 60 Hz non- Input
100-240V AC, 50/60 Hz 1.5 A
interlaced mode for the best picture quality
- Output
12V DC, 4.58 A
As an Energy Star partner, Philips has determined
• Temperature
0°C to 35°C (operating)
that this product meets the Energy Star guidelines
-20°C to 60°C (storage)
for energy efficiency.
• Relative humidity 20% to 80%
Microsoft and Windows are registered trademarks
• System MTBF
50K hrs
of Microsoft Corporation
(excluding CCFL 40K hrs)
Complies with EPA Energy Star and NUTEK
specifications
• Operation
48W* (typical)
• Sleep mode
< 2W
• Power button LED indicator
- Operation
Blue
- Stand by/sleep Amber
"DCDi" is a trademark of Faroudja, a division of
Genesis Microchip Inc.
All data subject to change without notice
Release date: December 2002
