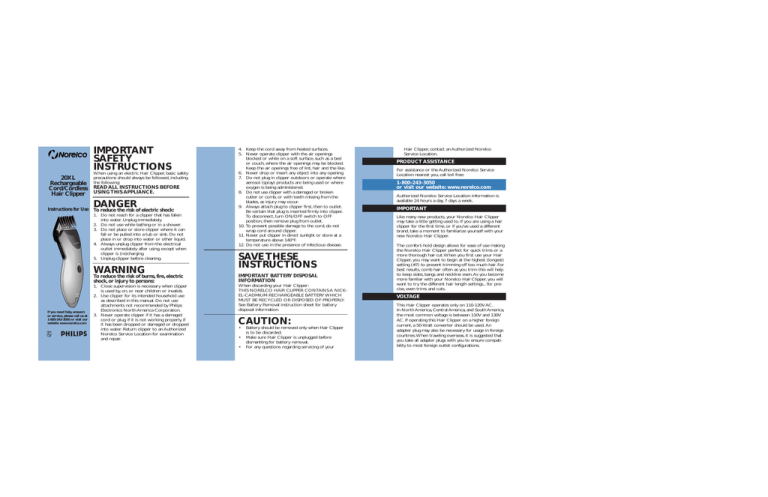

IMPORTANT
SAFETY
INSTRUCTIONS
20XL
Rechargeable
Cord/Cordless
Hair Clipper
Instructions for Use
When using an electric Hair Clipper, basic safety
precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE.
DANGER
To reduce the risk of electric shock:
1. Do not reach for a clipper that has fallen
into water. Unplug immediately.
2. Do not use while bathing or in a shower.
3. Do not place or store clipper where it can
fall or be pulled into a tub or sink. Do not
place in or drop into water or other liquid.
4. Always unplug clipper from the electrical
outlet immediately after using, except when
clipper is (re)charging.
5. Unplug clipper before cleaning.
WARNING
To reduce the risk of burns, fire, electric
If you need help, answers
or service, please call us at
1-800-243-3050 or visit our
website www.norelco.com
shock, or injury to persons:
1. Close supervision is necessary when clipper
is used by, on, or near children or invalids.
2. Use clipper for its intended household use
as described in this manual. Do not use
attachments not recommended by Philips
Electronics North America Corporation.
3. Never operate clipper if it has a damaged
cord or plug, if it is not working properly, if
it has been dropped or damaged or dropped
into water. Return clipper to an Authorized
Norelco Service Location for examination
and repair.
4. Keep the cord away from heated surfaces.
5. Never operate clipper with the air openings
blocked or while on a soft surface, such as a bed
or couch, where the air openings may be blocked.
Keep the air openings free of lint, hair and the like.
6. Never drop or insert any object into any opening.
7. Do not plug in clipper outdoors or operate where
aerosol (spray) products are being used or where
oxygen is being administered.
8. Do not use clipper with a damaged or broken
cutter or comb, or with teeth missing from the
blades, as injury may occur.
9. Always attach plug to clipper first, then to outlet.
Be certain that plug is inserted firmly into clipper.
To disconnect, turn ON/OFF switch to OFF
position, then remove plug from outlet.
10. To prevent possible damage to the cord, do not
wrap cord around clipper.
11. Never put clipper in direct sunlight or store at a
temperature above 140°F.
12. Do not use in the presence of infectious disease.
SAVE THESE
INSTRUCTIONS
IMPORTANT BATTERY DISPOSAL
INFORMATION
When discarding your Hair Clipper:
THIS NORELCO HAIR CLIPPER CONTAINS A NICKEL-CADMIUM RECHARGEABLE BATTERY WHICH
MUST BE RECYCLED OR DISPOSED OF PROPERLY.
See Battery Removal instruction sheet for battery
disposal information.
CAUTION:
•
•
•
Battery should be removed only when Hair Clipper
is to be discarded.
Make sure Hair Clipper is unplugged before
dismantling for battery removal.
For any questions regarding servicing of your
Hair Clipper, contact an Authorized Norelco
Service Location.
PRODUCT ASSISTANCE
For assistance or the Authorized Norelco Service
Location nearest you, call toll free:
1- 800 -243 -3050
or visit our website: www.norelco.com
Authorized Norelco Service Location information is
available 24 hours a day, 7 days a week.
IMPORTANT
Like many new products, your Norelco Hair Clipper
may take a little getting used to. If you are using a hair
clipper for the first time, or if you’ve used a different
brand, take a moment to familiarize yourself with your
new Norelco Hair Clipper.
The comfort-hold design allows for ease of use making
the Norelco Hair Clipper perfect for quick trims or a
more thorough hair cut.When you first use your Hair
Clipper, you may want to begin at the highest (longest)
setting (#7) to prevent trimming off too much hair. For
best results, comb hair often as you trim–this will help
to keep sides, bangs and neckline even. As you become
more familiar with your Norelco Hair Clipper, you will
want to try the different hair length settings... for precise, even trims and cuts.
VOLTAGE
This Hair Clipper operates only on 110-120V AC.
In North America, Central America, and South America,
the most common voltage is between 110V and 130V
AC. If operating this Hair Clipper on a higher foreign
current, a 50-Watt converter should be used. An
adapter plug may also be necessary for usage in foreign
countries.When traveling overseas, it is suggested that
you take all adapter plugs with you to ensure compatibility to most foreign outlet configurations.
CHARGING
FEATURES
1
Removable Guide
Comb Attachment
3-Dimensional Rounded
Chromium Steel Cutter Blades
1
2
3
Hair Length Selector
4
ON/OFF Switch
Charge Indicator Light
Recharging
Recharging requires 12 hours for approximately
30 minutes of cordless hair clipping.
If Hair Clipper has not been used for at least a month,
Hair Clipper must be recharged fully before use.
For most efficient battery usage, use Hair Clipper until
the charge completely runs out, then recharge fully.
Socket for Appliance Plug
Cleaning Brush
Barber’s Comb
Scissors
CORD/CORDLESS TRIMMING
Outlet Plug
1
2
3
Appliance Plug
• 60-Day
Money-Back Guarantee
• Full Two-Year Warranty
4
1
2
3
Use only the cord provided.
First time charging requires a full 12 hours.
(Re)charge at temperatures between
60°F and 95°F.
Charging at lower or higher temperatures
adversely affects lifetime of battery.
Slide ON/OFF switch to OFF (Fig.1).
Connect cord to Hair Clipper. Plug into
120V AC outlet.
Charging Indicator Light will light to indicate Hair
Clipper is (re)charging.
For the longest battery life, do not charge for more
than 24 hours. However, (re)charging longer than the
required period of time will not harm Hair Clipper.
Corded
Connect cord provided to Hair Clipper.
Plug into 120V AC outlet.
Slide ON/OFF switch ON.
Begin trimming.
When finished, turn hair clipper OFF and unplug.
It is not recommended that this Hair Clipper be
used exclusively as a corded Hair Clipper. Continual
use as a corded Hair Clipper, as well as continually
charging Hair Clipper, will reduce life of battery.
Cordless
Charge according to directions.
Unplug cord from outlet and then from unit.
Slide ON/OFF switch ON and begin trimming.
NOTE: If battery has completely run out, you can
return to corded trimming. Connect cord to Hair
Clipper and turn ON. If Hair Clipper does not start
immediately when plugged in, turn Hair Clipper OFF.
Wait approximately 1 minute.Turn back ON and begin
trimming.
GUIDE COMB ATTACHMENT
The Guide Comb may be removed if you are:
Defining/outlining hair line edges
Trimming nape of neck
Trimming with a comb or fingers
2
1
2
1
2
To Remove Guide Comb
Be certain Hair Clipper is in OFF position.
Push the Hair Length Selector and slide the Guide
Comb to the last setting, then gently pull off clipper
(Fig. 2). Position fingers at base of Guide Comb
Attachment to help remove Guide Comb
To Replace Guide Comb
Be certain Hair Clipper is in OFF position.
Slide Guide Comb back on Clipper.
NOTE:The Guide Comb can be placed on the
Hair Clipper only one way.
3
HAIR LENGTH SELECTOR,WITH
GUIDE COMB
TRIMMING
IMPORTANT
The Hair Length Selector allows you to adjust to seven
different hair lengths, so that you may achieve the exact
length and look you want.
1
1
2
•
•
7
6
5
4
3
2
1
To adjust settings, push Hair Length Selector to
desired setting.
Hair Length Selector will “click” and automatically
lock into place at each setting (Fig. 3).
Start at higher setting (#6 or #7), to prevent
trimming off too much hair.
As you become familiar with the settings, adjust
Hair Length Selector to desired trimming length
(see settings below).
SETTINGS
leaves hair approximately
leaves hair approximately
leaves hair approximately
leaves hair approximately
leaves hair approximately
leaves hair approximately
leaves hair approximately
21 mm/.84
18 mm/.72
15 mm/.6
13 mm/.52
10 mm/.4
7 mm/.28
4 mm/.16
inches
inches
inches
inches
inches
inches
inches
in length
in length
in length
in length
in length
in length
in length
4
Before Trimming Hair
Be certain Hair Clipper is clean (free of hair and
debris).
NOTE: If cutter blades are running slowly or do not
move, they may be dirty and clogged.
Clean following MAINTENANCE instructions.
Seat person having hair trimmed so that the top of
their head is at your chest height.
Place towel around their neck.
3 Comb hair well to remove all tangles. It is not
necessary to wash hair before trimming. For best
results, use on dry hair.
4 For accurate cutting control, hold Hair Clipper in
a comfortable grip.This is important for a precise,
even cut.
5 For best results, comb hair often during trim to be
certain the cut is even.
6 If using Hair Clipper for the first time, trim only a
small amount of hair at a time, until you become
comfortable with Hair Clipper and the Hair
Length Selector.
5
4
Hold Hair Clipper with Guide Comb flat against
the scalp (Fig. 4).
5 Start at the sides of the head. Move Hair Clipper
up slowly against direction of hair, lifting it up and
outward through hair, cutting a small amount at a time.
6 Continue trimming at neck and back of head (Fig. 5).
7 If you want hair shorter, change Hair Length
Selector to a lower setting and follow same steps.
2
IMPORTANT: When using Hair Clipper without
Comb Attachment, use a slow, smooth motion to
prevent trimming off more hair than desired.
1
2
3
Trimming Your Hair
Use Hair Clipper with Guide Comb.
Comb hair so that it falls into its natural direction.
Begin at highest setting (#7) on the Hair
Length Selector.
After you are familiar with the Hair Clipper, you
may easily choose between the 7 settings for your
desired length.
6
Trimming Top Of Head
1 Remove Guide Comb Attachment.
2 Comb hair forward over eyes.
3 Using barber comb, lift a small section of hair at a
time and grasp hair between two fingers.
The amount of hair you wish to cut should extend
beyond your fingers (Fig. 6).
4 Trim and blend hair using scissors or Hair Clipper.
5 Continue this procedure, working from the front to
the back of head.
As you work to the back, you may gradually cut
hair shorter by holding fingers closer to head when
grasping sections of hair.
6 Comb hair often to remove trimmed hair and to
check for uneven areas.
7
8
Outlining
Outlining helps to give a smooth, well-groomed line
along edge of hair.
1 Remove Guide Comb from Hair Clipper.
2 Comb hair so that it falls into its natural direction.
3 Hold Hair Clipper over ears with corner edge of
Hair Clipper against hair line (Fig. 7).
4 Angle upper edge of Hair Clipper at a safe distance
from top of ear. Slowly and carefully follow desired
outline of hair over and behind ears and down
sides of neck.
5 For longer hair styles, where hair is worn over the
ears, use scissors to trim off as much hair as
desired.
6 For defining sideburns and back of neck, hold Hair
Clipper as shown against the skin and move it
down slowly (Fig. 8).
11
5
6
Cut up the back to the crown (Fig. 11).
If necessary, repeat this cutting to be certain hair is
uniform in length.
7 For smooth, even cutting, especially with coarse,
heavy hair, allow Hair Clipper to cut through hair do not force it through hair faster than it can cut.
8 Finish this cut using the OUTLINING method to
smooth out hair line.
1
2
13
10
Short Cut
1 Use Hair Clipper with Guide Comb.
2 Choose desired setting on Hair Length Selector.
3 Cut hair against direction in which it grows starting
from the front to crown of head (Fig. 9).
4 Cut up sides to crown of head (Fig. 10).
During Usage
While trimming, hair will collect on top of Hair
Clipper. Frequently shake Hair Clipper lightly over
wastebasket and hair will easily fall away.
Do not tap on hard surface.
2 If too much hair collects while trimming, switch
Hair Clipper Off. Remove Guide Comb and lightly
shake or brush hair from Hair Clipper and Guide
Comb with cleaning brush provided.
3 If Hair Clipper slows down while trimming, the
cutters may need to be cleaned or replaced.
4 Cutter Blades do not need to be oiled.
1
12
3
9
MAINTENANCE
14
4
5
6
7
8
Crew Cut
Use Hair Clipper with Guide Comb.
Begin with highest (#7) setting on Hair Length Selector.
You may want to adjust this setting as you become
familiar with the settings.
Hold Guide Comb flat against head and slowly
move it through hair.
Cut hair up the back to crown of head.
Cut straight up sides and from back of ears in
a line even with sides of face. Leave hair long on
the crown (Fig. 12).
To give a “flat top” look, hair on top of head must
be cut over a comb or between fingers (Fig. 13)
Lift hair with barber comb or fingers to desired
length and cut hair with scissors or with Hair
Comb hair and check for uneven spots.
Finish this cut using the OUTLINING method for
sideburns and neckline.
1
2
3
After Usage
It is important to clean out Hair Clipper after each use.
Switch Hair Clipper OFF.
Remove Guide Comb and lightly shake or brush
hair from Hair Clipper and Guide Comb.
Clean cutters and inside of Hair Clipper with long
bristles of brush (Fig. 14).
IMPORTANT
Never use Hair Clipper with a damaged or broken
cutter or Guide Comb.
Clean Hair Clipper regularly.
Do not apply pressure to cutters. Do not touch
cutters with hard objects as this may dent or
damage cutter blades.
Do not use sharpeners as this will damage your
cutter blades and will adversely affect the cutting
performance.
When cutter blades eventually become dull, they
must be replaced. Do NOT use sharpeners.There
are no user serviceable parts.
For cutter blade replacement information, call
1-800-243-3050.
@@@@@@@@e?
@@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@e?
@@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@
@@@@@@@@
@@h?
@@
@@h?
@@
@@h?
@@
@@h?
@@
@@h?
@@
@@h?
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
60-DAY MONEY- BACK GUARANTEE
If you are not fully satisfied with your Norelco Home Hair
Cutting Clipper, Norelco will refund you the full purchase price.
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
The Clipper must be shipped by insured mail, insurance prepaid and have the sales slip indicating purchase price and the
date of purchase enclosed. Clipper must be postmarked no
later than 60 days after date of purchase. Norelco reserves the
right to verify the purchase price of the product and limit
refunds not to exceed suggested retail price.
Send dated sales slip, your complete name and address as indicated below, and the product, prepaid to: Norelco Consumer
Products Company, A Division of Philips Electronics North
America Corporation, P.O. Box 1116, Skokie, IL 60076. Please
allow 4-6 weeks for delivery of check.
@@
@@
@@
@@
@@
@@
@@
@@
NAME _____________________________________________
Please Print
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
ADDRESS _________________________________________________
CITY _____________________________________________________
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
STATE ______________________ZIP __________________________
TELEPHONE NO. (
Area Code
) __________________________________
REASON FOR RETURNING _________________________________
_________________________________________________________
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
_________________________________________________________
_________________________________________________________
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
_________________________________________________________
_________________________________________________________
@@
@@
@@
@@
@@
@@
@@
@@
@@g
@@g
@@g
@@g
@@g
@@g
@@@@@@@@
@@@@@@@@
Manufactured for:
Norelco Consumer Products Company
A Division of Philips Electronics North America Corporation
1010 Washington Blvd.
Stamford, CT 06912-0015
MADE IN HUNGARY.
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
®
LISTED
This symbol on the product’s nameplate means it is listed by
Underwriters’ Laboratories, Inc.
Norelco is a Registered Trademark of Philips Electronics North
America Corporation.
PHILIPS and Philips Shield are Registered Trademarks of
Koninklijke Philips Electronics N.V.
© 1999 Philips Electronics North America Corporation.
All Rights Reserved.
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
FULL TWO YEAR WARRANTY
Philips Electronics North America Corporation warrants each new
Norelco Product, Model 20XL (except cord and cutters), against
defects in materials or workmanship for a period of two years from
the date of purchase, and agrees to repair or replace any defective
product without charge.
IMPORTANT: This warranty does not cover damage resulting from
accident, misuse or abuse, lack of reasonable care, the affixing of any
attachment not provided with the product or loss of parts or subjecting the product to any but the specified voltage.* Use of unauthorized
replacement parts will void this warranty.
PHILIPS ELECTRONICS NORTH AMERICA CORPORATION WILL NOT PAY FOR WARRANTY SERVICE PERFORMED BY A NON-AUTHORIZED REPAIR SERVICE AND
WILL NOT REIMBURSE THE CONSUMER FOR DAMAGE
RESULTING FROM WARRANTY SERVICE PERFORMED BY
A NON-AUTHORIZED REPAIR SERVICE.
NO RESPONSIBILITY IS ASSUMED FOR ANY SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
In order to obtain warranty service, simply take or ship the product
postage prepaid to the nearest Authorized Norelco Service Location.
It is suggested that for your protection you return shipments of product by insured mail, insurance prepaid. Damage occurring during shipment is not covered by this warranty.
NOTE: No other warranty, written or oral, is authorized by Philips
Electronics North America Corporation.
This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state. Some states do not allow
the exclusion or limitation of incidental or consequential damages, so
the above exclusion and limitations may not apply to you.
*Read enclosed instructions carefully.
_________________________________________________________
[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@
[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@[email protected]@@@@@@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
[email protected]@
[email protected]@
[email protected]@
[email protected]@
[email protected]@
[email protected]@
[email protected]@@@@@@@
[email protected]@@@@@@@
INGENIOUS MEN’S GROOMING SOLUTIONS
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
