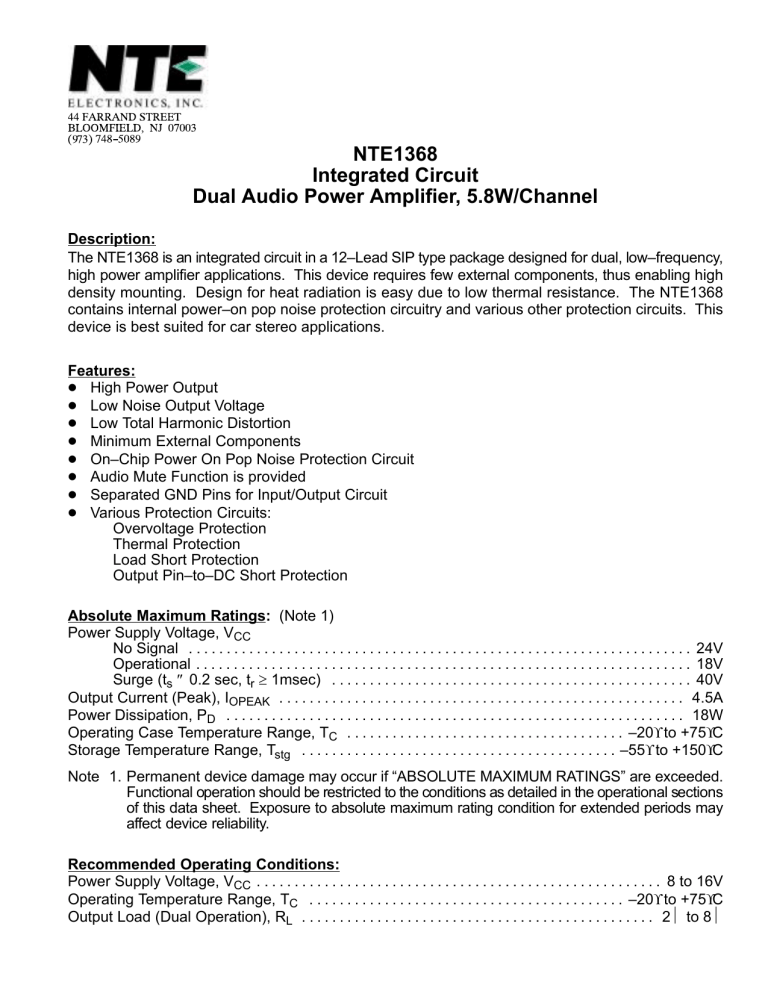

NTE1368
Integrated Circuit
Dual Audio Power Amplifier, 5.8W/Channel
Description:
The NTE1368 is an integrated circuit in a 12–Lead SIP type package designed for dual, low–frequency,
high power amplifier applications. This device requires few external components, thus enabling high
density mounting. Design for heat radiation is easy due to low thermal resistance. The NTE1368
contains internal power–on pop noise protection circuitry and various other protection circuits. This
device is best suited for car stereo applications.
Features:
D High Power Output
D Low Noise Output Voltage
D Low Total Harmonic Distortion
D Minimum External Components
D On–Chip Power On Pop Noise Protection Circuit
D Audio Mute Function is provided
D Separated GND Pins for Input/Output Circuit
D Various Protection Circuits:
Overvoltage Protection
Thermal Protection
Load Short Protection
Output Pin–to–DC Short Protection
Absolute Maximum Ratings: (Note 1)
Power Supply Voltage, VCC
No Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24V
Operational . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18V
Surge (ts ≤ 0.2 sec, tr ≥ 1msec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40V
Output Current (Peak), IOPEAK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5A
Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18W
Operating Case Temperature Range, TC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –20° to +75°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –55° to +150°C
Note 1. Permanent device damage may occur if “ABSOLUTE MAXIMUM RATINGS” are exceeded.
Functional operation should be restricted to the conditions as detailed in the operational sections
of this data sheet. Exposure to absolute maximum rating condition for extended periods may
affect device reliability.
Recommended Operating Conditions:
Power Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 to 16V
Operating Temperature Range, TC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –20° to +75°C
Output Load (Dual Operation), RL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2Ω to 8Ω
Electrical Characteristic:
(VCC = 13.2V, f = 1kHz, RL = 4Ω, TC = +25°C, One Channel Operation
unless otherwise specified)
Parameter
Symbol
Test Conditions
Min
Typ
Max
Unit
–
80
160
mA
Quiescent Power Supply Current
IQ
VIN = 0V, RL = ∞
Voltage Gain
AV
Po = 1W
48.5
50.5
52.5
dB
Difference Voltage Gain
∆AV
PO = 1W
–
0
1.5
dB
Output Power
PO
THD = 10%
5.0
5.8
–
W
Total Harmonic Distortion
THD
PO = 1W
–
0.2
1.0
%
Output Noise Voltage
VNO
Rg = 10kΩ, BW = 20 to 20kHz
–
0.8
1.6
mV
Input Resistance
RIn
20
30
–
kΩ
Cross Talk
CT
Rg = 600Ω
40
50
–
dB
Rg = 600Ω
–
40
–
dB
Audio Mute Attenuation
Pin Connection Diagram
(Front View)
12
11
10
9
8
7
6
5
4
3
2
1
Ch 1 Output
Ch 1 BS
VCC
Ch 2 BS
Ch 2 Output
GND (Output)
GND (Input)
Ch 2 Input
Ch 2 NFB
BP
Ch 1 NFB
Ch 1 Input
1.260 (32.0) Max
.197 (5.0) Max
.945 (24.0)
.590
(14.9)
1
12
.070
(1.78)
R Typ
.256
(6.5)
.100 (2.54)
.099 (2.5)
.512
(13.0)
